X1328AF - Projector ACER - Free user manual and instructions

Brand	Acer
Model	X1328AF
Product type	DLP projector
Native resolution	WXGA (1280 x 800)
Aspect ratio	Auto, 4:3, 16:9, L.Box
Optical zoom	1.1x manual zoom and focus
Throw ratio	1.55 - 1.70
Projection screen size	30" to 300" (76 to 762 cm)
Projection distance	1.0 m to 10.98 m
Display colors	1.07 billion colors
Horizontal scan rate	15 - 100 kHz
Vertical refresh rate	24 - 120 Hz
Digital zoom	0.8x - 2.0x
Lamp type	220 W or 240 W lamp
Audio	Built-in speaker, 3 W x 1
Power supply	AC input 100 - 240 V auto-switching
Power consumption	Normal 275/290 W, ECO 205/210 W, standby < 0.5 W
Dimensions (W x D x H)	313 x 240 x 113.7 mm (with feet)
Weight	2.8 kg (6.17 lbs)
Connectivity	HDMI, VGA, composite video, RS232, audio in/out, USB 5V DC output
Video compatibility	NTSC, PAL, SECAM, HDTV (480i/p, 576i/p, 720p, 1080i/p)
Operating temperature	0 to 40 C / 32 to 104 F
Special features	LumiSense, BluelightShield, 3D DLP Link, HDR (1080p), 120 Hz, low input lag, EcoProjection

Frequently Asked Questions - X1328AF ACER

What are the ways to turn off the projector safely?

Press and hold the power button, then press it again when prompted. The projector runs a cooling cycle for about 2 minutes. Do not unplug during cooling. Use Instant Resume if you need to restart quickly.

How do I connect my laptop?

Use an HDMI or VGA cable from the laptop to the matching projector port. Turn on the projector first, then the laptop. Use the Source button to select the correct input.

Can I clean the lens myself?

Yes, after the projector cools for at least 30 minutes. Use compressed air to remove dust and a special lens cloth to gently wipe it. Never use liquid cleaners or solvents; damage caused by improper cleaning is not covered by the warranty.

What should I do before replacing the lamp?

Allow the projector to cool for about 45 minutes. Unplug the power cord, then replace the lamp only if you are qualified. Reset the Lamp Hour Reset in the Management menu after replacement.

How do I use 3D projection?

Set 3D to On in the OSD menu, use DLP 3D glasses and a 120Hz compatible graphics card, and select a matching 3D format. You can invert left/right if the image is not correct.

Why is my projected image upside down?

The projection mode is probably set to a ceiling mode. Go to Image > Projection and choose Front, Rear, Front-Ceiling or Rear-Ceiling according to installation.

How can I fix a distorted (trapezoid) image?

Use Keystone in the OSD, or press the keystone correction key on the remote. You can also use Auto Keystone or 4 Corner Correction for more precise adjustment.

What does 'Projector Overheated' mean?

The projector temperature exceeded safe limits. Turn it off, let it cool, and verify ventilation is not blocked. The lamp will shut off automatically to protect the unit.

How do I reset the projector to factory defaults?

Open the OSD menu, go to Setting > Reset, press Enter and choose Yes. All parameters return to factory settings.

How do I change the startup screen?

Connect a source, go to Setting > Screen Capture, and capture a custom image. Set Startup Screen to User to use it.

USER MANUAL X1328AF ACER

Acer Projector User's Guide

Series Zoom Ratio Acer Projector
SVGA/XGA series Zoom	Ratio:1.1x	X128H/X128GH/X128/X118H/X118AH/X118X/Y118GH/X1126AH/X1226AH/X1227i/X1127i/D616D/D616/D606D/D606B/D606/D506AD/D516AD/D616Di/D606Di/D616D+/D606D+/EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/EV-S57AH/EV-X57AH/V60Xi/V60Si/V60X/V60S/V36X/V36XC/V36S/V36SB/V16S/V26AS/V26AX/AX610i/AS610i/AX610/AS610/AX319/AX319D/AS319/AS319E/AS309/AS600A/AX600A/EV-X57i/EV-S57i/DX212/DX212G/DX112/DX112C/DX112G/DX125A/DX225A/BS-125i/BS-025i/BS-112/B/S-025i/BS-012K/BS-012E/BS-025A/BS-125A/DX225i/DX125i/KX316/KX316B/KS316A/KS316B/KS320A/KX320A/KX320i/KS320i/X1223HG/X1286G/X1123HG/X1186G/X128HP/X1184P/DS-112P/BS-012P/X128HG/X118HG/DNX1723/DNX1851/DNX1724/DSV1725/DSV1726/DSV1727/DSV1844/DNX1843/DNX1911/DSV1912/X1128H/DS608/V65S/AS620/EV-S77H/BS-027/DX127/KS321/X119H/BS-014/X1228H/DX608/V65X/AX620/EV-X77H/BS-127/DX227/KX321/X129H/BS-114/X128I/DS608i/V65Si/AS620i/EV-S77i/B5-027i/DX127i/KS321i/X119i/BS-014i/X1228i/DX608i/V65Xi/AX620i/EV-X77i/BS-127i/DX227i/KX321i/X129i/BS-114i/DSV1852/X1228HPi/X1231i/X1231Ki/X1128HPi/X1131i/X1131Ki/X1228HP/X1231/X1231K/X1226HK/X128HK/BS-112K/X1128HP/X1131/X1131K/X1126HK/X118HK/X1128HKi/X1128HK/X1228HKi/X1228HK/X1227AH/X1228Ki/X1228Pi/X1231i/X1228PKi/X1231Ki/X1128Ki/X1128Pi/X1131i/X1128PKi/X1131Ki/X1228PK/X1128PK/X1228Hn/DX608n/V65Xn/DNX2305/X1128ic/X1228ic/BS-021A/X1228/X1228p/DX608pr/V66Xp/X620pr/X1228pic/DX608prc/V66Xpic/DN2515/X1128p/DX508pr/V66Sp/AS620pr/X1128pic/DS608prc/V66Spic/DSV2514/X1228Hr/DX608r/V66X/AX620r/DNX2513/X1128Hr/DS608r/V66S/AS620r/DSV2512/X1228STn/X1128/DS608p/V65Sp/AS620p/DX127p/KS321p/X119/DS608p/V65Spi/DX608p/V65Xp/AX620p/DX227p/KX321p/X129/DX608pi/V65Xpi/BS-114/P/DS608pic/V65Xpic/BS-114P/DS608pic/V65Spic/BS-014P
WXGA series Zoom	Ratio:1.1x	X138WH/X138WGH/X1326AWH/X1327Wi/D626D/D626D/D626D+/EV-W65H/EV-W57AH/V60Wi/V60W/V36W/V26AW/AW610i/AW610/AW319/AW600A/EV-W57i/DX412/DX425A/BS-325i/BS-312/B5-325A/DX425i/KW316/KW320A/KW320i/X138WHP/LH5386BDi+/BS-312P/DWX1722/DWX1842/DWX1910/X1328WH/DW608/V65W/AW620/EV-W77H/BS-327/DX427/KW321/X139WH/BS-314/X1328Wi/DW608i/V65Wi/AW620i/EV-W77i/BS-327i/DX427i/KW321i/X139Wi/BS-314i/DWX1850/X1328WKi/X1328WPi/X1331Wi/X1328PKi/X1331WKi/X1328WHP/X1331W/X1328WHK/X1331WK/X1326WHK/X138WHK/BS-312K/X1328WHk/BS-312PK/BS-112PK/X1328WPK/X1331WK/X1326WHK/X138WHK/BS-312PK/X1328WHn/DW608n/V65Wn/DWX2306/X1328Wic/X1328/X1328p/DW608pr/V66Wp/AW620pr/X1328pic/DW608prc/V66Wpic/DWX2516/X1328Stn/X1328i/X1328ic/DX427p/KW321p/X139WHp/DW608p/V65Wp/DW608p/V65Wp/AW620p/DX427p/KW321p/X139/DW608pi/V65Wpi/BS-314P/BS-322A/X1328AF/SW608F/V65WF/DWX2310
WUXGA series Zoom	Ratio:1.1x	X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/H6521ABD/E155F/HE-802K/GM512/VH-412/D1P1720
WUXGA series-1(Throw ratio 1.54 ~1.72 (60" @2m))	Zoom Ratio:1.3x	X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/GM532/VH-432/D1P1719
WUXGA series-2(Throw ratio 1.54 ~1.72 (60" @2.1m))	Zoom Ratio:1.3x	HV532/D1P1718
1080p series Zoom Ratio	Ratio:1.3x	H6545BD/V6520/G550/E146F/V151/HE-805L/HT-810/H6512BD+/HV533/V62B/TH-432/GM534/V7500+/VH-434/D1P1839/D1P1718/D1P1805/P5550/N500/PN-605/PR552/MF-452/P5535p/N358p/P5551/P5550ic/P5551ic/D1P2416/H6560/E660/GM560/DH700/P1560/GM516/VH-416/H6560BD/P1561/H6547/H6561/H6560ic/H6561ic/P1558i/HF200/E618/H6546Zi/H6541Zi/H6555Zi/H6542Zi/DX527Zi/H6547i/H6560i/X1528Zi/GS512/H6547it/H6560it/P1558i+/D1P2504
1080p series Zoom Ratio	Ratio:1.1x	X1527i/D656Di/V60Fi/AF610i/EV-F57i/BS-425i/DX525i/KF320i/H6541BDi/H6541BDi+/H6542ABDi/D1P1909/X1528H/DF608/V65F/AF620/EV-F58/BS-427/DX527/KF321/H6546BD/H6546BD+/H6546ABDi/HS19H/D1P1915/X1528i/DF608i/V65Fi/AF620i/EV-F58i/BS-427i/DX527i/KF321i/H6546BDi+/H6546ABDi/H6542ABDi/M457i/X1528Ki/H6546Ki/H6541Ki/X1528HPi/X1531i/X1531Ki/H6555AKi/X1528K/H6546BDK/X1528HPi/X1531/X1531K/X1528HK/E558Ki/H6542BDi/X1528Sti/X1528ic/H6532BDi/H6531BDi/H6546i/H6546ic/X1528Kic/GS511/H6546/X1528/H6546i/H6546ic/X1527HK/H6541BDK/H6541id/E558/H6541/H6555A/H6546Kit/H6541Kit/X1528it/H6546it/H6541it/X1528p/DF608p/V65Fp/E558p/X1528c/X1528bt/D1P2519/H6556i/H6531BDi/H6532BDi/H6533BDi/H6542BDi
720p series Zoom Ratio	Ratio:1.1x	H5385BDi/H5385BDi+/H5385ABDi/DWX1910/H5386BDi/H5386ABDi/H5386BDki/H5386ABDKi
XGA series Zoom Ratio	Ratio:1.0x	S1286HN/S1286H/S1288HN/S1288H/T411DT/T411D/T413DT/T413D/XS-X31HG/XS-X31H/XS-X33HG/XS-X33H/F1286HN/F1286H/F1288HN/F1288H/SE210L/SE210/SE210L/SE212/SE212/DS-110/DS-112T/DS-112/S1286GH/DNX1712/DNX1713/DNX1810/DNX1811/S1287/S1287H/T415/V65XS/S1287ic/SE113/DS-113/SE113ic/DS-113ic/DNX2405/S1287n/T415n/V66XSn/XS-X35HG/F1287N/S1287n+/X1228STn/SE211L/DS-111T/DNX2517
XGA series Zoom Ratio	Ratio:1.3x	P1258i/DX650/V68Xi/EV-X77Zi/BS-127Zi/DX227Zi/KX321Zi/BS-1124Zi/P1258i+/DNX2502
WXGA series Zoom Ratio	Ratio:1.0x	S1386WHN/S1386WH/S1388WH/S1388WH/T421DT/T421D/T423DT/T423D/XS-W31HG/XS-W31H/XS-W33HG/XS-W33H/F1386WH/F1386WH/F1388WH/F1388WH/SE410L/SE410/SE412/SE412/DS-310T/DS-310/DS-312/DS-312/DWX1711/DWX1734/DWX1809/DWX1737/S1387/S1387WH/ T425/V65WS/S1387ic/SE413 /DS-313/SE413ic/DS-313ic/DWX2406/S1387n/T425n/V66WSn/XS-W35HG/F1387N/S1387n+/X1328STn/ SE411L/DS-311T/ DWX2518
WXGA series Zoom Ratio	Ratio:1.3x	P1358i/DW650/V68Wi/EV-W77Zi/BS-327Zi/DX427Zi/KW321Zi/X139Zi/BS-314Zi/H5386Zi/P1328i+/H5360i/DWX2503
1080p series Zoom Ratio	Ratio:1.0x	H6518STi/E146Si/HE-802STi/H6517STPi/S1586Hi/GM513SVH-413S/D1P1914

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference.

Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC power outlet.
- Unplug the power cord before removing the power supply unit from the projector.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warnings!

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.
• This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.

iv

- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified/CCC certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need for service
- the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

• Do not look into the projector's lens when the lamp is on. The bright may hurt your eyes.
• Turn on the projector first and then signal sources

• Do not place the product in following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector is necessary.

• Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.
• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the life span and darkening the image.
• Locations near fire alarms.
• Locations with an ambient temperature above 40°C / 104°F .
• Locations where the altitudes are higher than 10000 feet.

- Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

- Do not keep using this product to break or drop it. In this case contact your dealer for inspection.

• Do not face the projector lens to the sun. It can lead to fire.
• When switching the projector off, suggest to ensure the projector completes its cooling cycle before disconnecting power.
• Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to turn off

vi

before turning main power off.

- Do not touch air outlet grille and bottom plate which becomes hot.

- Clean the air filter frequently if have. The temperature inside may rise and cause damage when the filter/ventilation slots clogged with dirt or dust.

- Do not look into the air outlet grille when projector is operating. It may hurt your eyes.

- Always open the lens shutter or remove the lens cap when the projector is on.

- Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

- The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

- Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.

- Never replace the lamp assembly or any electronic components unless the projector is unplugged.

- The product will detect the life of the lamp itself. Please be sure to change the lamp when is showing warning message.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you. The only user serviceable part is the lamp which has its own removable cover. Refer servicing only to suitable qualified professional service personnel.

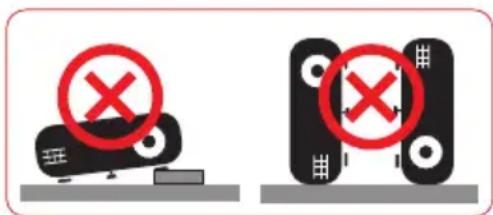

- Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.

- This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

- The projector should be placed in a horizontal way by means of desktop or ceiling mount mode only, and its tilt angles should not exceed 6 degrees, otherwise it would cause dramatical decrease of lamp life or severe safety concern of system malfunction.

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit

http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

"Lamp(s) contain Mercury, Dispose Properly."

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

Do not stare into the beam, RG2

"As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015"

viii

First things first

Usage Notes

Do:

• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

• Block the slots and openings on the unit provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:

•In extremely hot, cold or humid environments.
•In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

- Please do not open or disassemble the product as this may cause electric shock.

- When changing the lamp, please allow unit to cool down, and follow all changing instructions.

- This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

- Reset the "Lamp Hour Reset" function from the Onscreen display "Management" menu after replacing the lamp module.

- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

- Turn on the projector first and then the signal sources.

- Do not use lens cap when projector is in operation.

- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.

Cleaning the lens

• Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow the projector to cool down for at least 30 minutes.
• Use a compressed air tank to remove the dust.
• Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your fingers.
• Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is damaged due to the cleaning process, it is not covered by the warranty.

Warning:

• Do not use a spray containing flammable gases to remove dust or dirt from the lens. This may cause a fire due to excessive heat inside the projector.
• Do not clean the lens if the projector is warming up as this may cause the lens' surface film to peel off.
• Do not wipe or tap the lens with a hard object.

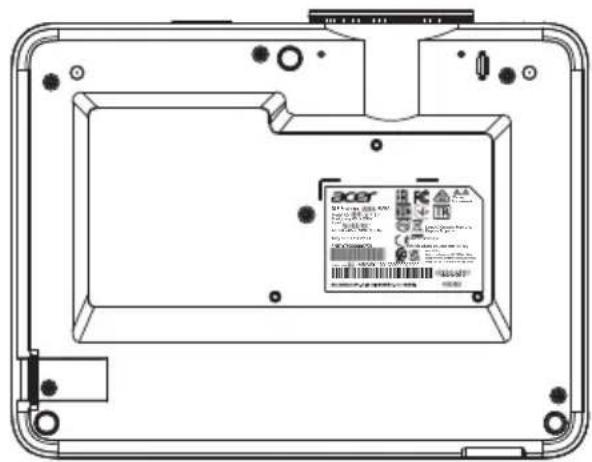

Spec label location

- Spec label location are placed the following locations:

Information for your safety and comfort iii

First things first viii

Usage Notes viii

Precautions viii

Cleaning the lens ix

Spec label location ix

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 4

Projector Outlook 4

Control Panel 7

Remote Control Layout 8

Getting Started 12

Connecting the Projector 12

Turning the Projector On/Off 14

Turning on the Projector 14

Turning the projector off 15

Adjusting the Projected Image 16

Adjusting the Height of Projected Image 16

How to get a preferred image size by adjusting distance and zoom 17

User Controls 30

Installation menu 30

Onscreen Display (OSD) Menus 31

Color 32

Image 36

Setting 39

Management 43

Audio 45

3D 45

Language 46

Appendices 47

Troubleshooting 47

LED & Alarm Definition Listing 52

Screen capture by PC tool 53

Replacing the Lamp (For service personnel only) 55

Ceiling Mount Installation 56

Specifications 59

Compatibility modes 88

Regulations and safety notices 93

Introduction

Product Features

This product is a single-chip DLP ^® projector. Outstanding features include:

•DLP ^® technology
- Enables projecting 3D content via DLP Link Technology: Blue-Ray 3D supported
- Acer ColorBoost technology delivers nature's true colors for vivid, life-like images
•High brightness and contrast ratio
- Acer LumiSense technology can intelligently optimize the projection images to the most comfortable visual lumens automatically based on display content.
- Versatile display modes enable optimum performance in any situation
•NTSC / PAL / SECAM compatible and HDTV (480i/p, 576i/p, 720p, 1080i/p) supported
- Lower power consumption and economy (ECO) mode extend lamp life
- Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement
- Smart detection delivers quick, intelligent source detection
- Multi-language onscreen display (OSD) menus
- Manual focus/zoom projection lens
- 0.8 \~ 2X digital zoom and pan move function
- Microsoft Windows 2000, XP, Vista , Windows 7, Windows 8.1, Windows 10, Macintosh OS compliant
- Support LumiSense
•Support HDR format under 1080p resolution
•Support 1080P/120Hz
•Support 8.3ms low input lag
•Support Acer Display Widget

Note: Functions vary depending on model definition.

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing.

Projector Power cord HDMI cable (option)

Quick start guide

VGA cable (option) Security card
(option)

Remote control AAA battery x2
(option)

Carrying case (option)

Quick start guide (for multi-media and wireless functions)
WirelessProjection-Kit (option)
Wireless receiver cable (EZC-CS2) (option)

Wireless transmitter dongle (H-1)
(Option)

Wireless transmitter dongle (C-1)
(Option)

(FSC-BP101Y)
(Option)
* This device needs to be used together with ProjLink app. Please see the next page for details

Note 1: When projecting a 4K2K/60Hz signal, use an HDMI Premium certified 4K2K/60Hz cable supporting 18Gbps bandwidth.

Trust the cable with the label

Note 2: Bluetooth dongle FSC-BP101Y is designed to work exclusively with the ProjLink app.

Please download and install the app from App Store or Google Play to ensure full functionality. Also, See OSD menus(setting->Bluetooth) for more detail.

Mobile System Requirements

Android: Requires Android version 12 or later

iOS: Requires iOS version 17 or later

Projector Overview

Projector Outlook

Front / upper side

# Description # Description
1 Lamp cover 7 Focus ring
2 Air outlet 8 Remote control receiver
3 Control panel 9 Projection lens
4 Power button 10 Lens cap
5 Zoom ring 11 Tilt adjusting wheels
6 Air inlet

Rear side (Type A)

# Description # Description
1 Power socket 8 Composite video input connector
2 HD MI connector 9 Audio in connector
3 HD MI connector 10 Audio out connector
4	DC 5V output (service)	11 Monitor loop-through output connector (for VGA IN 1, VGA IN only)
5 PC	analog signal/HDTV/component video input connector	12 3D SYNC connector
6 RS	232 connector 13 LAN (RJ45) connector
7 KensingtonTM lock port

Note: Functions vary depending on model definition.

Rear side (Type B)

1

2

3

5

4

7

6

8

9

10

13	2	7	12	6	5	10	11	11
		14		8

10

Remove	3	2	14	7	65	11
WIRELESS KIT port label

10

11

Description # Description

1 Power socket		8 Monitor loop-through outputconnector (for VGA IN 1, VGA IN only)
2 HDMI connector 9 LAN (RJ45 Port for 10/100M Ethernet)
3 USB connector (for wifi dongle) 10 Audio in connector
4 HDMI connector 11 Audio out connector
5 Composite video input connector 12 KensingtonTM lock port
6	PC analog signal/HDTV/componentvideo input connector	13 USB connector (device charge and USB displays and support mouse page up/down and firmware upgrade functions)
7	RS232 connector	14 5V DC output connector (device charge and support mouse page up/down and firmware upgrade functions)

Note: Functions vary depending on model definition.

Control Panel

# Icon Function Description
1 POWER POWER Power Indicator LED
2 LAMP LAMP Lamp Indicator LED
3 TEMP TEMP Temp Indicator LED
4		P O	See the contents in "Turning the Projector On/Off" section.
5		Four directional select keys	Use ▲to▼select items or make adjustments to your selection.
6 BACK BACK Returns to the previous operation.
7 SOURCE SOURCE Changes the active source.
8	ENTER	ENTER	Pop-up Manual Focus menu to adjust the image focus by Enter key. Confirm your selection of items.
9	[WZAT]	K E	Adjusts the image to compensate for distortion caused by tilting the projector.
10	MENU MENU		Press "MENU" to launch the Onscreen display (OSD) menu or exit the OSD menu.

Note: Functions vary depending on model definition.

Remote Control Layout

# Icon Function Description
1		Infrared transmitter	Sends signals to the projector.
2		POWER	Refer to the "Turning the Projector On/Off" section.
#	Icon	Function	Description
3 MUTE	irn	on/off the volume.
4 RATIC [XTS5]	choose the desired aspect ratio.
5		Select/Enter	Pop-up Manual Focus menu to adjust the image focus by Enter key. Confirm your selection of items.
		Play/Pause Press	to begin/pause playback.
6		Four directional select keys	Use up, down, left, right buttons to select items or make adjustments to your selection.
7 3D Pre D"		to select 3D models.
8 SOUR	anges the active source.
9 MODE	poses a display mode.
10 KEYS :			Adjusts the image to compensate for distortion caused by tilting the projector.
11		BACK Returns to the previous operation.
		STOP Press to stop playback.
12 VGA			Press "VGA" to change source to the VGA connector. This connector supports analog RGB, YPbPr (480p/576p/720p/1080i), YCbCr (480i/576i) and RGBsync.
13 FREE pause the screen image.
14 PgUp			For computer mode only. Use this button to select the previous page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.
15 COM :NT		No function.
16 PgDr			For computer mode only. Use this button to select the next page. This function is only available when USB Ctrl connector (mini type B) is connected to a computer via a USB cable.
17 MED			Press "MEDIA" to return to the home page of media mode.
18 KeyP 9 Press "0~9" to input a password in the "Security" OSD.
19 MEN			Press "MENU" to launch the Onscreen display (OSD) menu or exit the OSD menu.
20 HDM HL		To change source to HDMI/MHL.
21 HIDE			Momentarily turns off the video. Press "HIDE" to hide the image, press again to display the image.
# Icon Function Description
22 ZOOM INZooms the projector display in.
23 VIDEOTo change source to COMPOSITE VIDEO.
24 ZOOM OUTZooms the projector display out.
25 LAN/WiFi No function.
26 Backlight Remote backlight.
27 Laser pointerAim the remote at the viewing screen.
28 Laser button			Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.

Note: Functions vary depending on model definition.

Safety precautions and maintenance

Caution (Applicable models with battery)

• Replacement of a battery with an incorrect type that can defeat a safeguard;
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
  •Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Risk of fire or explosion if the battery is replaced by an incorrect type
• Do not ingest battery, Chemical Burn Hazard.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

To install or replace batteries:

1 Press and then slide the cover to open it.
2 Align the batteries according to the (+) and (−) indications inside the battery compartment.

3 Replace the cover.

Note: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

- Place "AAA" batteries matching the (+) and (−) signs on each battery to the (+) and (−) signs of the battery compartment.

- Do not mix battery types.

- Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.

- Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment.

Don't touch exposed battery acid, as it can damage your skin.

- If you do not intend to use the remote control for a long period, remove the batteries.

Getting Started

Connecting the Projector

# Description # Description
1 Power cord 8 RS232 cable
2 Audio cable 9 WirelessHD dongle
3 HDMI cable 10 Wireless dongle
4 VGA to component/HDTV adapter 11 Wired remote control
5 VGA cable 12 LAN cable
6 3 RCA component cable 13 12V DC cable
7 Composite video cable 14 3D SYNC cable

Note 1: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note 2: Functions vary depending on model definition

Note 3: USB cable needs powered extender if the length is over 5 m.

Note 4: USB DC 5V out connector support 5V power output for power bank charging.

Note 5: VGA OUT loops through for VGA IN 1 only.

Note 6: Compatible HDMI dongles: WirelessHD (MWIHD1), MWA3, Chromecast™.

Turning the Projector On/Off

Turning on the Projector

1 Ensure that the power cord and signal cable are securely connected. The Power indicator LED will flash red.
2 Turn on the projector by pressing "Power" button on the control panel or remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically.

• If the screen displays "Lock" and "Source" icons, it means the projector is locked onto a specific source type and there is no such type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables are securely connected or press source direct key.
• If you connect to multiple sources at the same time, use the "Source" button on either control panel or the remote control or direct source key on the remote control to switch between inputs.

Turning the projector off

1 To turn the projector off, press and hold the power button. This message appears: "Please press the power button again to complete the shutdown process." Press the power button again.
2 The LED power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly. (only supported under "Instant Resume" mode)
3 As long as the power cord remains plugged in, you can press the power button to turn the projector immediately back on anytime during the 2-minute shutdown process. (only supported under "Instant Resume" mode)
4 Once the system has finished cooling, the LED power indicator will stop blinking and turn solid red to indicate standby mode.
5 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Lamp will automatically turn off soon."
  This onscreen message indicates that the projector has overheated. The lamp with automatically turn off, the projector will automatically shut down, and the LED temp indicator will turn solid red. Contact your local dealer or service center.
• "Fan failed. Lamp will automatically turn off soon."
  This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED temp indicator will blink. Contact your local dealer or service center.

Note 1: Whenever the projector automatically shuts down and the LED lamp indicator turns solid red, contact your local reseller or service center.

Note 2: Functions vary depending on model definition.

Attention! The projector will enter a two minute cool down period to ensure continued optimal lamp operation.

Attention! Please do not turn off projector within 1 minute after power on.

Adjusting the Projected Image

Adjusting the Height of Projected Image

The projector is equipped with elevator feet for adjusting the height of image.

To raise/lower the image:

Use Tilt adjusting wheel to fine-tune the display angle.

Tilt adjusting wheel

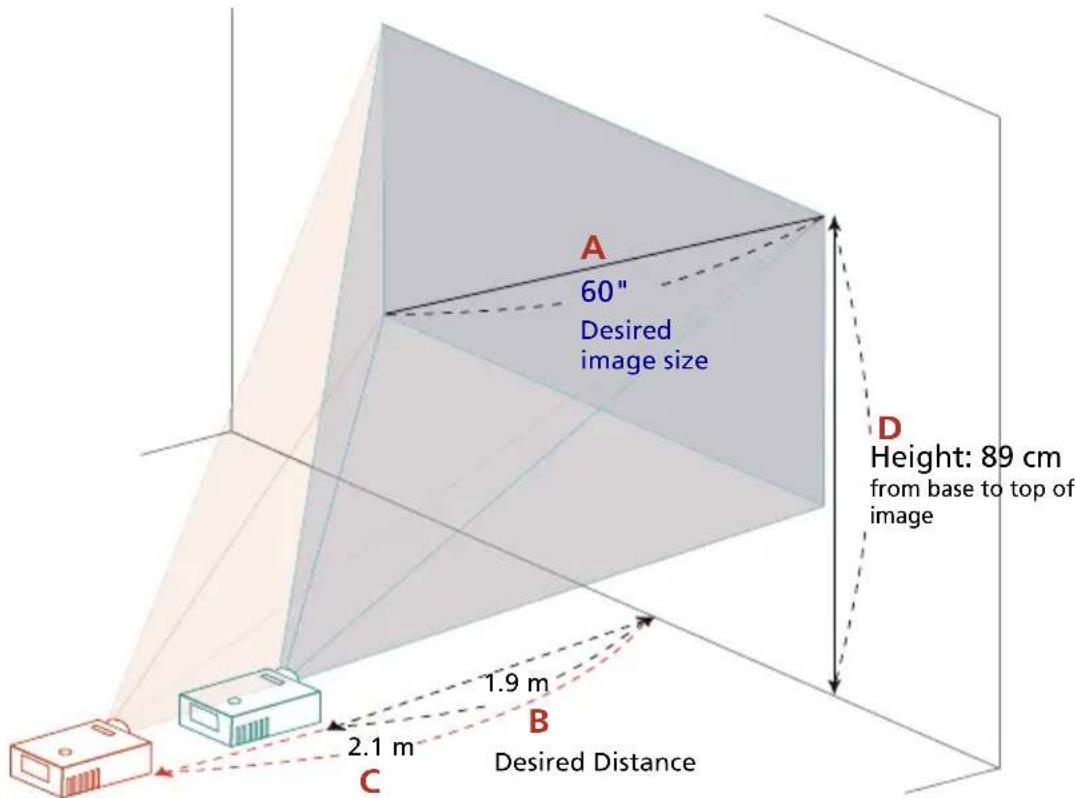

How to get a preferred image size by adjusting distance and zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

• SVGA/XGA series

To obtain an image size of 60" set the projector at a distance 2.4 m and 2.6 m from the screen.

Throw ratio 1.94~2.16
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 61 x 46	1.18 1.32 53
40 81 x 61	1.58 1.76 70
50 102 x 76	1.97 2.19 88
60 122 x 91	2.37 2.63 105
70 142 x 107	2.76 3.07 123
80 163 x 122	3.15 3.51 140
90 183 x 137	3.55 3.95 158
100 203 x 152	3.94 4.39 175
150 305 x 229	5.91 6.58 263
180 366 x 274	7.10 7.90 315
200 406 x 305	7.88 8.78 351
250 508 x 381	9.86	10.97	438
300 610 x 457	11.83 NA		526

Zoom Ratio: 1.1x

- WXGA series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.

Throw ratio 1.55~1.70
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 65 x 40	1.10 1.00 45
40 86 x 54	1.46 1.34 61
50 108 x 67	1.83 1.67 76
60 129 x 81	2.20 2.00 91
70 151 x 94	2.56 2.34 106
80 172 x 108	2.93 2.67 121
90 194 x 121	3.30 3.00 136
100 215 x 135	3.66 3.34 151
150 323 x 202	5.49 5.01 227
180 388 x 242	6.59 6.01 272
200 431 x 269	7.32 6.68 303
250 538 x 337	9.15 8.35 378
300 646 x 404	10.98	NA	454

Zoom Ratio: 1.1x

•WUXGA series

To obtain an image size of 60" set the projector at a distance 1.9 m and 2.1 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
34 73 x 46	1.1 1.2 50
50 108 x 67	1.6 1.7 74
60 129 x 81	1.9 2.1 89
70 151 x 94	2.2 2.4 104
80 172 x 108	2.5 2.8 118
90 194 x 121	2.8 3.1 133
100 215 x 135	3.2 3.5 148
120 258 x 162	3.8 4.2 178
150 323 x 202	4.7 5.2 222
200 431 x 269	6.3 7.0 296
250 538 x 387	7.9 8.7 370
300 646 x 404	9.5 10.5 444

Zoom Ratio: 1.1x

•WUXGA series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.7 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
34 73 x 46	1.2 1.5 50
50 108 x 67	1.7 2.2 74
60 129 x 81	2.0 2.7 89
70 151 x 94	2.4 3.1 104
80 172 x 108	2.7 3.5 118
90 194 x 121	3.1 4.0 133
100 215 x 135	3.4 4.4 148
120 258 x 162	4.1 5.3 178
150 323 x 202	5.1 6.7 222
200 431 x 269	6.8 8.9 296
250 538 x 337	8.5 11.1 370
300 646 x 404	10.2		444

Zoom Ratio: 1.3x

•WUXGA series

To obtain an image size of 60" set the projector at a distance 1.6 m and 2.1 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
40 86 x 54	1.0 1.4 59
50 108 x 67	1.3 1.7 74
60 129 x 81	1.6 2.1 89
70 151 x 94	1.8 2.4 104
80 172 x 108	2.1 2.7 118
90 194 x 121	2.3 3.1 133
100 215 x 135	2.6 3.4 148
120 258 x 162	3.1 4.1 178
150 323 x 202	3.9 5.1 222
200 431 x 269	5.2 6.8 296
250 538 x 387	6.5 8.6 370
300 646 x 404	7.8 10.3 444

Zoom Ratio: 1.3x

•1080p series

To obtain an image size of 60" set the projector at a distance 1.5 m and 2.0 m from the screen.

Throw ratio 1.21~1.59				1.13~1.47
Desired Image Size Distance (cm)				Distance (cm)		Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	Max zoom	Min zoom	From base to top of image
30 66 x	37 80 106 75	98 43
40 89 x	50 107 141	100 130 58
50 111 x	62 134 176	125 163 72
60 133 x	75 161 211	150 195 87
70 155 x	87 188 246	175 228 101
80	177 x 100	214 282	200 260 116
90	199 x 112	241 317	225 293 130
100	221 x 125	268 352	250 325 144
120	266 x 149	321 422	300 391 173
150	332 x 187	402 528	375 488 217
180	398 x 224	482 634	450 586 260
200	443 x 249	536 704	500 651 361
250	553 x 311	670 880	625 814 433
300	664 x 374	804	1056	750	976	466

Zoom Ratio: 1.3x

•XGA series

To obtain an image size of 50" set the projector at a distance 1.5 m and 2.0 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
26	53 x 40 1.0 46
30	61 x 46 0.9 1.2 53
40	81 x 61 1.2 1.6 70
50 102x76	1.5 2.0 80
60	122 x 91 1.8 2.4 105
70	142 x 107 2.1 2.7 123
80	163 x 122 2.4 3.1 140
90	183 x 137 2.7 3.5 158
100	203 x 152 3.0 3.9 175
150	305 x 229 4.5 5.9 263
180	366 x 274 5.4 7.1 315
200	406 x 305 6.0 7.8 351
266	541 x 405 8.0 466

Zoom Ratio: 1.3x

- WXGA series

To obtain an image size of 60" set the projector at a distance 1.5 m and 2.0 m from the screen.

Throw ratio 1.18~1.54
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
30 65 x 40	NA 1.00 45
40 86 x 54	1.02 1.33 61
50 108 x 67	1.28 1.66 76
60 129 x 81	1.53 2.00 91
70 151 x 94	1.79 2.33 106
80 172 x 108	2.05 2.66 121
90 194 x 121	2.30 2.99 136
100	215 x 135 2.56	3.33 151
150	323 x 202 3.84	4.99 227
180	388 x 242 4.60	5.99 272
200	431 x 269 5.11	6.65 303
250	538 x 337 6.39	8.31 378
300	646 x 404 7.67	NA	454
315	678 x 424 8.05	NA	476

Zoom Ratio: 1.3x

•1080p series

To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen.

Throw ratio 1.5~1.66		1.48~1.62
Desired Image Size Distance (cm)				Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	Max zoom	Min zoom	From base to top of image
27 60 x 34 90 99 88 97		39
50 111 x	62 170 184 16	4 179	72
60	133 x 75	200	220	197	215	87
70 155 x	87 230 257 22	9 251	101
80	177 x 100	270 294	262 287	116
90	199 x 112	300 331	295 323	130
100	221 x 125	330 367	328 359	144
120	266 x 149	400 441	393 430	173
150	332 x 187	500 551	491 538	217
200	443 x 249	660 735	655 717	289
250	553 x 311	830 919	819 897	361
300	664 x 374	1000	1102	983	1076	433

Zoom Ratio: 1.1x

-720p series

To obtain an image size of 60" set the projector at a distance 2.1 m and 2.3 m from the screen.

Throw ratio 1.55~1.70
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	Min zoom	From base to top of image
26 58 x 32	NA 0.87 39
40 89 x 50	1.46 1.34 59
50 111 x 62	1.83 1.67 74
60 133 x 75	2.20 2.00 89
70 155 x 87	2.56 2.34 104
80 177 x 100	2.93 2.67 119
90 199 x 112	3.30 3.00 134
100	221 x 125 3.66	3.34 149
150	332 x 187 5.49	5.01 223
180	398 x 224 6.59	6.01 267
200	443 x 249 7.32	6.68 297
250	553 x 311 9.15	8.35 371
300	664 x 374	10.98	NA	446

Zoom Ratio: 1.1x

•XGA series

To obtain an image size of 60" set the projector at a distance 0.8 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	From base to top of image
30 61 x 46 0.4 53
40 81 x 61 0.5 70
50 102 x 76 0.6 88
60 122 x 91 0.8 105
70 142 x 107 0.9 123
80 163 x 122 1.0 140
90 183 x 137 1.1 158
100 203 x 152 1.3 175
120 244 x 183 1.5 210
150 305 x 229 1.9 263
180 366 x 274 2.3 315
200 406 x 305 2.5 351
247 502 x 376 3.1 433
303 616 x 462 3.8 531

Zoom Ratio: 1.0x

- WXGA series

To obtain an image size of 60" set the projector at a distance 0.7 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	From base to top of image
36 78 x 48 0.4 54
50 108 x 67 0.6 76
60 129 x 81 0.7 91
70 151 x 94 0.8 106
80 172 x 108 0.9 121
90 194 x 121 1.0 136
100 215 x 135 1.1 151
120 258 x 162 1.3 182
150 323 x 202 1.7 227
180 388 x 242 2.0 272
200 431 x 269 2.2 303
250 538 x 337 2.8 378
303 653 x 408 3.4 458

Zoom Ratio: 1.0x

•1080p series

To obtain an image size of 60" set the projector at a distance 0.7 m from the screen.

Desired Image Size Distance (m) Top (cm)
Diagonal (inch)	W (cm) x H (cm)	Max zoom	From base to top of image
45 100 x 56 0	.5 65
50 111 x 62 0	.6 72
60 133 x 75 0	.7 87
70 155 x 87 0	.8 101
80 177 x 100	0.9 116
90 199 x 112	1.0 130
100 221 x 125	1.1 144
120 266 x 149	1.3 173
150 332 x 187	1.7 217
180 398 x 224	2.0 260
200 443 x 249	2.2 289
250 553 x 311	2.8 361
303 671 x 377	3.3 438

Zoom Ratio: 1.0x

User Controls

Installation menu

The installation menu provides an onscreen display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal input" is displayed on the screen.

The menu options include settings and adjustments for screen size and distance, focus, keystone correction and more.

1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the remote control to launch the OSD for projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and alignment settings, such as screen size and distance, focus and more.

4 The Installation menu includes the several options.

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the "ENTER" to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Push the "MENU" or "BACK" button anytime to exit the menu and return to the Acer welcome screen.

Note: Functions vary depending on model definition.

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the remote control or control panel.
• When the OSD is displayed, use the keys to select any item in the main menu. After selecting the desired main menu item, press "ENTER" to enter submenu for feature setting.
• Use the keys to select the desired item and adjust the settings by using the keys.
• Select the next item to be adjusted in the submenu and adjust as described above.
• Press "BACK" on the remote control or control panel, the screen will return to the main menu.
• To exit OSD, press "BACK" on the remote control or control panel. The OSD menu will close and the projector will automatically save the new settings.

Note 1: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

Note 2: Functions vary depending on model definition.

Color

LumiSense	Acer LumiSense technology can intelligently optimize the projection images to the most comfortable visual lumens automatically based on display content. The feature greatly enhances dark detail visibility and color saturation.Off: Default setting.Normal: Select "Normal" to meet the visual effect of dark detail enhancement.Boost: Select "Boost" to meet the visual effect of brightness boost.Dynamic Black:automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.: Once LumiSense is enabled, BluelightShield switches to "Off".
BluelightShield	Off: Default setting.Low / Medium / High: Select Low / Medium / High to reduce different exposure levels of blue light dynamically.: Once BluelightShield is enabled, LumiSense switches to "Off".
Display Mode	There are many factory presets optimized for various types of images.Bright: For brightness optimization.Presentation: For meeting presentation.Standard: For common environment.Video: For playing video in a bright environment.Game: For game content.Education: For education environment.Movie: For brighter and general movie/video/photo playing.Game Dark: Play game in the dark environment.Game Bright: Play game in the bright environment.sRGB: standard RGB color space.Football: For football performance.Dark Cinema: For dark movie content.Rec. 709: standard Rec. 709 color space.ISF Day: Calibrate and optimize the projection image based on bright environment by an ISF Certified technician.ISF Night: Calibrate and optimize the projection image based on dark environment by an ISF Certified technician.Game Auto: For game content and automatically adjusts image contrast and saturation according to the displayed content.Dark FPS: For darker game content and brings out more details in the darker areas.Bright FPS: For brighter game content and increases image contrast and saturation.User: Memorize user's settings.
Color Profile	User can choose all the display mode setting as reference setting of the current "User 1", "User 2" or "User 3" except itself. When User choose the display mode "User 1", "User 2" and "User 3", then OSD will showup the "color profile" and "rename". Both of User1/User2/User3 are default Standard.
Wall color	Use this function to choose a proper color according to the wall. There are several choices, including white, light yellow, light blue, pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.
Brightness	Adjust the brightness of the image.Press to darken the image.Press to lighten the image.
Contrast	"Contrast" controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.Press to decrease the contrast.Press to increase the contrast.
Saturation	Adjusts a video image from black and white to fully saturated color.Press to decrease the amount of color in the image.Press to increase the amount of color in the image.
Tint	Adjusts the color balance of red and green.Press to increase the amount of green in the image.Press to increase the amount of red in the image.
Color Temperature	ModeUse this function to choose CT1, CT2, CT3, User mode.
	R GainAdjusts the red gain for color temperature optimization.
	G GainAdjusts the green gain for color temperature optimization.
	B GainAdjusts the blue gain for color temperature optimization.
Gamma	Effects the representation of dark scenery. With greater gamma value, dark scenery looks brighter.
Advanced	Ind. Color ManagementAdjusts the red, green, blue, cyan, yellow and magenta colors.
	Ind. HueAdjusts the color balance of red and green.
	Ind. SaturationAdjusts the selected color to be less or more saturated color.
	Ind. GainAdjusts the selected color's contrast.
	Brilliant ColorProduces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images.
	White PeakingIncreases the brightness of whites that are near 100%. (video sources only)
	Film ModeSets the image optimized to 24-frame True Film mode.
	Noise ReductionAdjusts signal noise reduction."0" means the noise reduction is off,">0" increase noise reduction.
	Black ExtensionThis ensures optimum black level for each analog source.
	Wall colorUse this function to choose a proper color according to the wall.There are several choices, including white, light yellow, light blue,pink, dark green. It will compensate the color deviation due to the wall color to show the correct image tone.
	ISF1. The certified ISF technician will calibrate and optimize the projection image according to your actual environment. The ISF input password will be kept by technician only.2. "ISF Day" and "ISF Night" will not be shown in display mode if projector equipped with ISF function has not been calibrated by an ISF certified technician. For more information, please go to ISF official website: https://www.imagingscience.com and contact the dealer located in your country.3. The ISF calibration will be charged and guaranteed by ISF certified calibrator, and thereby Acer is not responsible for the calibration service.
	Low Input LagUse this function to make the projected screen smoothly without any lag. Only support [e-mail] the setting is set to "On", the 3D/Aspect Ratio/Keystone/H. Position/V. Position/HDMI Scan Info/Tracking/Digital Zoom function will be reset to its factory default settings. Aspect Ratio/Digital Zoom Out/4 Corner Correction/Auto Keystone/H Keystone/V Keystone/HDMI Scan Info/3D will be disable and set to default value when Low Input Lag is on. These items will be enabled and restored values automatically when Low Input Lag set to off.

Rename

1. When User choose the display mode "User 1", "User 2" or "User 3", then OSD will showup the "color profile" and "rename"
2. Timely saved when user change the name.
3. Only English is supported. When user changes any kind of system languages, show the English characters which user renamed.

Note 1: "Saturation" and "Tint" functions are not supported under computer or HDMI mode.

Note 2: Functions vary depending on model definition.


Projection	Front: The factory default setting.Rear: Reverses the image so you can project from behind a translucent screen.Rear-Ceiling: When you select this function, the projector reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.Front-Ceiling: When you select this function, the projectorinverts the image for ceiling-mounted projection.
Projection Mode	Front:The factory default setting.Rear: Reverses the image so you can project from behind a translucent screen.
Projection Location	Automatically adjusts projection location of image.DesCeilTurns the image upside down for ceiling-mounted projection.
Aspect Ratio Use this function to choose your desired aspect ratio.Auto: Keep the image with original width-higth ratio and maximize the image to fit native horizontal or vertical pixels.Full: Resize image to fit full screen by width (3840 pixels) and height (2160 pixels).4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.L.Box: Keep original signal aspect ratio and zoom in by 1.333 times.
Keystone Adjust image distortion caused by tilting projection.
Auto Keystone Automatically adjusts vertical image.Automatically adjusts vertical and horizontal image for X1328AF.
Manual Keystone Adjust image distortion caused by tilting projection.The Manual Keystone function is unavailable under Auto Keystone setting to "On".
H./V. Keystone H. KeystonePress thebuttonto adjust image distortion horizontally and makes a squarer image.
V. KeystonePress thebuttonto adjust image distortion vertically and makes a squarer image.
4 Corner Correction	Manually adjusts the shape and size of an image that is unevenly rectangular on all sides. Press "MODE" repeatedly to select the corner that you wish to adjust. Press four directional selection keys to adjust the image shape.[70CV]The function is unavailable when H./ V. Keystone is adjusted.
Auto Focus Enable	Auto Focus to adjust the focus by auto-detection.
Manual Focus Adjust	Focus by users and save the focus setting.
Native Resolution	Adjust the resolution by changing Native Resolution settings.
Digital Zoom Out S	Sets the default size of the projected image. You can further zoom in or out the image by pressing using the functions of Digital Zoom Out and Image Shift together helps you fit the projected image full screen without adjusting the existing ceiling mount settings.
Digital lens shift/Image Shift	Digital lens shift: Shifts the projected image by pressing .Image Shift: Shifts the projected image by pressing
Sharpness Adjusts	the sharpness of the image.Press to [HAZS] ease the sharpness.Press to increase the sharpness.
H. Position (Horizontal position)	Press to [BBYY] e the image left.Press to move the image right.
V. Position (Vertical position)	Press to e the image down.Press to move the image up.
Frequency "Frequency" changes the projector's refresh rate to match the frequency of your computer's graphics card. If you can see a vertical flickering bar in the projected image, use this function to make the necessary adjustments.
Tracking Synchronizes the signal timing of the projector with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
HDMI Color Range	Adjust the color range of the HDMI image data to correct color display error.●Auto: Automatically adjust by information from player.●Limited Range: Prosess the input image as limited color range data.●Full Range: Prosess the input image as full color range data.
HDMI Scan Info Adjust the overscan ratio of the HDMI image on screen.●Auto: Automatically adjust by information from player.●Underscan: Always no overscan on HDMI image.●Overscan: Always keep overscan on HDMI image.

Note 1: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under HDMI or Video mode.

Note 2: "HDMI Color Range" and "HDMI Scan Info" functions are only supported under HDMI mode.

Note 3: Functions vary depending on model definition.

Setting

Startup Screen Use this function to select your desired startup screen. If you change the setting, the changes will take effect when you exit the OSD menu.●Acer: The default startup screen of your Acer projector.●User: Use memorize picture from "Screen Capture" function.
Screen Capture Use this function to customize the startup screen. To capture the image that you want to use as the startup screen, follow the instructions below.Notice:Before proceeding with the following steps, make sure that the "Keystone" is set to the default value 0.●Press "Screen Capture" to customize the startup screen.●Pop message to suggest user to input native source. The "resolution" shown in the text is based on native timing. Press "Start" to go next UI; press "Back" to previous UI .●A dialog box appears to confirm the action. Show a message: Adjust your desired image in the red frame and system will capture your image after pressing "ENTER". Choose "ENTER" to use the current image as your customized startup screen. Choose "Back" to cancel the screen capture and exit the onscreen display (OSD).●A message appears, stating that the screen capture is in progress.●When the screen capture is finished, the message disappears and the original display is shown.●The customized startup screen takes effect when there is a new input signal or when you restart the projector.
Source Selection Manual by source menu, Auto by Smart Detection.
Closed Caption	Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4, (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC.Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is "16:9" or "Auto".
VGA OUT (Standby) Default is "Off". Choose "On" to enable VGA OUT connection.
HDMI CEC Default is "Off". Choose "On" to enable HDMI CEC function.
HDMI Long Cable Default: "Off".Select "On", "HDMI 1", or "HDMI 2". Depending on the selected HDMI option, the DC 5V out (USB-A) power may be turned off to help reduce possible interference to the HDMI signal caused by nearby wireless devices.<Note>1. For wireless models, enabling this function or switching input sources may require waiting for the wireless module to power on.2. When using a multimedia streaming device powered via the projector's DC 5V out (USB-A), do not select the HDMI option to which the device is connected. Otherwise, the device may repeatedly power on and off.
Security Security	This projector provides a useful security function for the administrator to manage usage of the projector. Press "ENTER" to change the "Security" setting. If the security function is enabled, your must enter the "Administrator Password" first before changing the security settings. Select "On" to enable the security function. The user has to enter a password to operate the projector. Please refer to the "User Password" section for details. If "Off" is selected, then the user can turn on the projector without password.
	Timeout(Min.) Once "Security" is activated to "On", the administrator can set timeout function. Press or to select the timeout interval. The range is from 10 minute to 990 minutes. When the time is up, the projector will prompt the user to enter the password again. The factory default setting of "Timeout(Min.)" is "Off". Once the security function is enabled, the projector will request user to enter password when switch on the projector. Both "User Password" and "Administrator Password" can be accepted for this dialogue.
	User Password Press "ENTER" to setup or change the "User Password". Press number keys to set your password on the remote control and press "ENTER" to confirm. Press to delete character. Enter the password when you see "Confirm Password" displayed. The password should be between 4 and 8 characters long. If you select "Request password only when plugging the power cord in.", the projector will prompt the user to enter the password every time the power cord is plugged. If you select "Always request password while projector turns on.", the user has to enter the password every time when the projector is turned on.
	Administrator Password The "Administrator Password" can be used in both the "Enter Administrator Password" and "Enter Password" dialog boxes. Press "ENTER" to change the "Administrator Password". The factory default of "Administrator Password" is "1234". If you forgot your administrator password, do the following to retrieve the administrator password: An unique 6-digit "Universal Password" which is printed on the Security Card (please check accessory in the box). This unique password is the number which will be accepted by projector anytime no matter what the Administrator Password is. If losing this security card and number, please contact with an Acer service center.
	Lock User Startup ScreenDefault Lock User Startup Screen is "Off". If lock user startup screen is "On", users cannot change startup screen anymore and avoid other users change that arbitrarily. Choose "Off" to unlock startup screen.
Network LAN IP/Mask	Identify IP and Mask address.
	WiFi IP/MaskIdentify IP and Mask address.
	MAC AddressIdentify MAC address.
	Wake on LAN (Standby)Set to "On" to enable wake-on-LAN function to power on projector via LAN under standby status. It is required to download WOL (wake-on-LAN; WOL) tool or app for PC/Mobile by users for this function.According to the ERP energy-saving regulations, when set to ON, if the projector is not powered on within 20 minutes, the LAN function will be disabled to achieve energy savings. In this state, the projector must be powered off and on again to be awakened via the network. If you want to bypass the ERP energy-saving regulations, you can set it to ERP OFF, allowing the LAN function to remain active during standby without being disabled.
	DHCP• On: Projector will obtain an IP address automatically from your network.• Off: Assign an IP address manually.<Note>1. Only available when DHCP set to Off, and will gray out if DHCP set to On.2. Press "Enter" to let users key in values and press "Enter" again to save values temporarily.3. Press "Apply" to confirm to save the settings for all in LAN setting page.Grey out when LAN isn't plugged in and LAN IP X.X.X.X show 0.0.0.0
	LAN ResetReset LAN function.
Reset Press the "ENTER" button and choose "Yes" to return the parameters on all menus to the factory default settings.
Bluetooth Smart Control	Default is “On”. Once Smart Control "Off", Bluetooth (Standby) & Blueooth ID will disable and gray out.When using projector with the Bluetooth dongle FSC-BP101Y (projector OSD select Smart Control On), user is allow to control the projector remotely by using ProjLink app.
	Bluetooth (Standby)Default is “Off”, according to the ERP energy-saving regulations, when set to OFF, if the projector is not powered on within 20 minutes, the function will be disabled to achieve energy savings. In this state, the projector must be powered off and on again to be awakened via the DC 5V out port.If you want to bypass the ERP energy-saving regulations, you can set it to Bluetooth (Standby) ON, allowing DC 5V out remain active during standby without being disabled.
	Bluetooth IDBluetooth ID always shows "Acer_XXXXXXX". Check the Bluetooth Dongle ID on screen.

Note: Functions vary depending on model definition.

Management

ECO Mode Choose "On" to dim the projector lamp which will lower power consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode.<Note> Gray out ECO mode item while either Lumisense or BluelightShield item is "On".

High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at full speed continuously to allow for proper high altitude cooling of the projector.

Turn Off Mode●Standard: Properly shuts down the projector after fan cooling.●Instant Resume: Resumes the system when the Power button is pressed again within 2 minutes.

Auto Shutdown The projector will automatically shutdown when there is no signal input after the allocated time. (default is 15 minutes)

Menu Display Time (Seconds) Choose the OSD menu display time. (Default is 15 seconds). Select "Manual" to turn off main menu/one direct-key menu manually by user.

Auto Power On AC Power OnChoose "On" to power on projector while AC power plug in.

Control Panel Lock OffDefault is set to "Off".

Information Display the projector information for Model Name, Input Source, Signal Type, Display Mode, Serial No., Software Version and QR code on the screen.

Scan QR code linking to Acer projector portal via mobile.

Note 1: Functions vary depending on model definition.

Note 2: Adjusting power-related functions may increase energy consumption.

Audio

Volume	●Press to decrease the volume.●Press to increase the volume.
Mute	●Choose "On" to mute the volume.●Choose "Off" to restore the volume.
HDMI Audio Select the voice source: HDMI & Audio In●HDMI: choose audio from HDMI●Audio In: choose audio from Audio In
Power On/Off Volume Select this function to adjust the notification volume when turning the projector on/off.

Note: Functions vary depending on model definition.

3D

3D Choose "On" to enable DLP 3D function.●On: Choose this item while using DLP 3D glasses, 120Hz 3D capable graphics cards and HQFS format file or DVD with corresponding SW player.●Off: Turn off 3D mode.

3D Format If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.

24P 3D Choose "96Hz" or "144Hz" to compatible with 3D glasses.

3D L/R Invert If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).

3D Warning Message Choose "On" to display the 3D warning message.Note: 3D display is now enabled.1. Please make sure you have the correct 3D signals and glasses.2. Remember to turn 3D off if you don't want to see 3D images.3. If the 3D display isn't correct, please try to enable 3D Sync Invert.4. Display mode options will be disabled while in 3D mode.

Note 1: It needs correct settings on graphic card 3D application program for correct 3D display.

Note 2: The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these three players on web page below,

• Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx
• DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html
  Note 3: "3D L/R Invert" is only available when 3D is enabled.
  Note 4: There has reminder screen if 3D still enable when power on projector.
  Please adjust setting depended on your purpose.
  Note 5: WUXGA model 24P 3D cannot be scaling due to TI ASIC buffer memory limitation, and once detect 24P 3D (96Hz or 144Hz) inputs, Aspect Ratio / HDMI Scan Info will be gray out, also HIDE will be not supported.

Language

Language

Choose the multilingual OSD menu. Use the ▲▼◀▶key to select your preferred menu language.•Press "ENTER" to confirm the selection.

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution
1 No image appears onscreen	Connected as described in the "Getting Started" section.Ensure none of the connector pins are bent or broken.Check if the projector lamp has been securely installed. Please refer to the "Replacing the Lamp (For service personnel only)" section.Make sure you have removed the lens cap and the projector is switched on.
2 Partial, scrolling or incorrectly displayed image (for PC (Windows 2000/XP/Vista/ Windows 7/ Windows 8))	For an incorrectly displayed image:Open "My Computer", open the "Control Panel", and then double-click the "Display" icon.Select the "Settings" tab.Verify that your display resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Advanced Properties" button. If the problem still appears, change the monitor display you are using and follow the steps below:Verify that the resolution setting is lower than or equal to WUXGA-RB (1920 x 1200).Click the "Change" button under the "Monitor" tab.Click "Show all devices". Next, select "Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.Verify that the resolution setting of the monitor display is lower than or equal to WUXGA-RB (1920 x 1200).
3 Partial, scrolling or incorrectly displayed image (For notebooks)	·For an incorrectly displayed image: ·Follow the steps for item 2 (above) to adjust the resolution of your computer. ·Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5] ·If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
4 The screen of the notebook computer is not displaying your presentation	·If you are using a Microsoft ® Windows® based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information. ·If you are using an Apple ® Mac® OS based notebook: In System Preferences, open Display and select Video Mirroring "On".
5 Image is unstable or flickering	·Adjust the "Tracking" to correct it. Refer to the "Image" section for more information. ·Change the display color depth settings on your computer.
6 Image has vertical flickering bar	·Use "Frequency" to make an adjustment. Refer to the "Image" section for more information. ·Check and reconfigure the display mode of your graphics card to make it compatible with the projector.
7 Image is out of focus	·Make sure the lens cap is removed. ·Adjusts the focus ring on the projector lens. ·Make sure the projection screen is within the required distance from the projector. Refer to the "How to get a preferred image size by adjusting distance and zoom" section for more information.
8 Image is stretched when displaying a "widescreen" DVD title	When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings: ·If you play a 4:3 format DVD title, please change the format to 4:3 in the projector OSD. ·If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player. ·If you play an Letterbox (LBX) format DVD title, please change the format to Letterbox (LBX) in the projector OSD.
9 Image is too small or too large	Adjust the zoom ring on the projector.Move the projector closer to or further from the screen.Press "MENU" on the remote control. Go to "Image -> Aspect Ratio" and try different settings or press "RATIO" on the remote control to adjust directly.
10 Image has slanted sides	If possible, reposition the projector so that it is centered on the screen.Press the "Keystone / " button on the remote control until the sides are vertical.
11 Image is reversed	Select "Image --> Projection Mode" on the OSD and adjust the projection direction.
12 LAN/WiFi, USB Display source show No signal	Power off peojector and power on again.
13 Image hangs up when displaying photo or document in Media	Power off peojector and power on again.

OSD Messages

# Condition Message Reminder

1 Message

•Fan Fail - the system fan is not working.Fan Fail.Lamp will automatically turn off soon.•Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used. Please check the following message.Projector overheated, system will turn off automatically soon, please:1. Check if operation ambient temperature between 5 degree and 40 degree.2. Check if filter needs to be cleaned.3. Check if inlet or outlet is blocked.4. Check if high altitude mode is set when the projector operating at high altitude area.Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it.•Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.Lamp is approaching the end of its useful life in full power operation.Replacement suggested!•Auto Focus error- the auto focus function is disable. Please reboot the projector and enable the auto focus function or use OSD / Remote control / Keypad to set "Manual Focus".Auto Focus ErrorPlease reboot the projector and enable the auto focus function or use OSD / Remote control / Keypad to set "Manual Focus".•Auto Keystone Is Out of Range.Auto Keystone Is Out Of Range.The range of H/V keystone is between -30 to 30 degree.Please keep rotation / tilt angle of projector is between -30 and 30 degree.The range of H/V keystone is between -30 to 30 degree, Please keep rotation / tilt angle of projector is between -30 and 30 degree.

Problems with the Projector

# Condition Solution
1 The projector stops responding to all controls	•If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.•Make sure that the control panel lock function is disabled.
2 Lamp burns out or makes a popping sound	•When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp (For service personnel only)" section.

LED & Alarm Definition Listing

LED Messages

Message	Lamp_LED Temp_LED Power LED
	Red Red Red Blue
Input power plug Flash ON	to OFF 100ms	Flash ON to OFF 100ms	Flash ON to OFF 100ms	--
Standby -- -- ON --
Power button ON -- -- -- ON
Lamp retry -- -- -- Quick				Flashing
Power off (Cooling state) --	-- Quick		Flashing	--
Power button OFF (cooling completed; standby mode)	-- -- ON --
Error (thermal failure) --	ON -- ON
Error (fan lock)	--	Quick Flashing	-- ON
Error (lamp breakdown)	ON	-- -- ON
Error (color wheel fail)	Quick Flashing	-- -- ON

Screen capture by PC tool

1 Set "Startup Screen" to "User"

Set the "Startup Screen" to "User" in Setting options menu.

2 Enter download mode

Hold both "Power" and "Enter" buttons and then plug in power cord. Release the buttons until Power/Lamp/Temp LED indicators are lighting red.

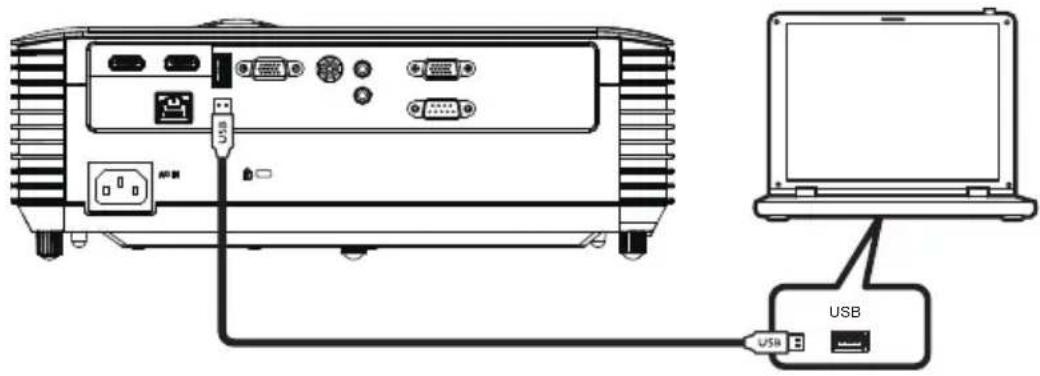

3 Connect USB cable between PC and projector

Please find the "SERVICE" USB port and plug-in USB cable.

4 Copy and Click Splash Downloader

Copy the Acer_Splash_Downloader folder from the CD (User's Guide) to your computer, click the Acer_Splash_Downloader.exe program, and follow the on-screen instructions. If the message says "Projector found", the projector has been connected successfully.

Note: If "Error: No Projector found.", the projector is not connected. Please retry step 2 and step 3.

5 Select logo file

Click the "Browse" button and select logo file. The recommended resolution of logo should not exceed the default logo resolution (For example, logo resolution is 1920x1200*). The purpose is that keeping the quality of the image. If not, the logo may be blurred

Note: Support ".bmp/.jpg/.png/.gif/.tiff" file format. (.png file recommendation)

Projector Type Default Logo Resolution
XGA Projector 1024x768
WXGA Projector 1280x800
1080P Projector 1920x1080
WUXGA Projector 1920x1200

6 Download logo to projector

Click the "Flash Image" button. If the file was written to projector successfully, the message "Download Complete" will be displayed on the screen.

7 Reboot projector

Plug-out the power cord of projector and plug-in it. Please ensure that the logo has been upgraded correctly.

8 Operating system compatibility

Operating system platform compatible
Windows XP Not support
Windows 7 (64 bit) Support
Windows 10 (64 bit) Support
Mac OS Not support
Windows 11 Support

Replacing the Lamp (For service personnel only)

The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation.

Replacement suggested!" When you see this message, change the lamp as soon as possible. Make sure the projector has been cooling down for at least 45 minutes before changing the lamp.

Warning: The lamp compartment is hot! Allow it to cool down before changing the lamp.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Warning: Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement.

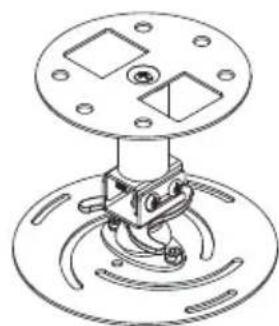

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

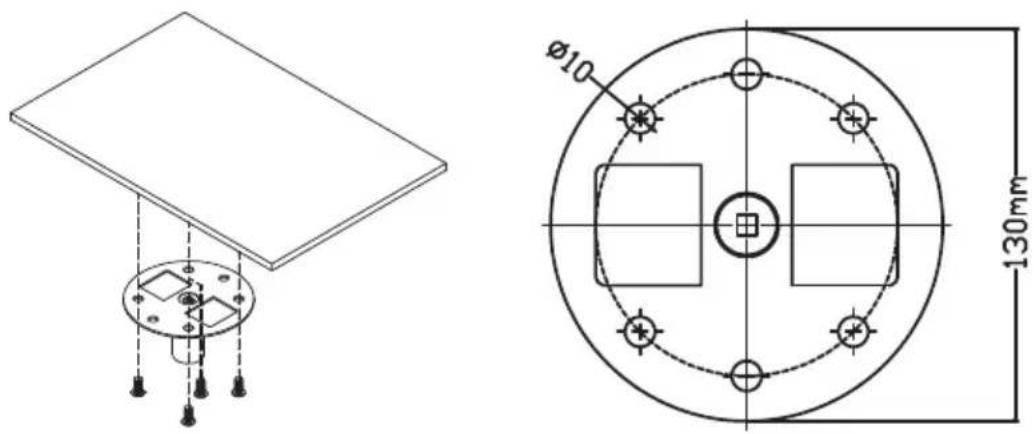

1 Drill four holes into a solid, structural ceiling member, and secure the ceiling mount base to the ceiling.

2 Choose the length combination based on actual environment. (CM-01S doesn't include Type 2 and Type 3.)

Type 1 Type 2 Type 3

3 Type 1:

For the standard size use three bracket screws to mount the projector to the ceiling mount bracket.

Type 2 and Type 3:

Alternatively, for the larger size, use the sliding extensions for more supports.

Type 1:

Type 2: Type 3:

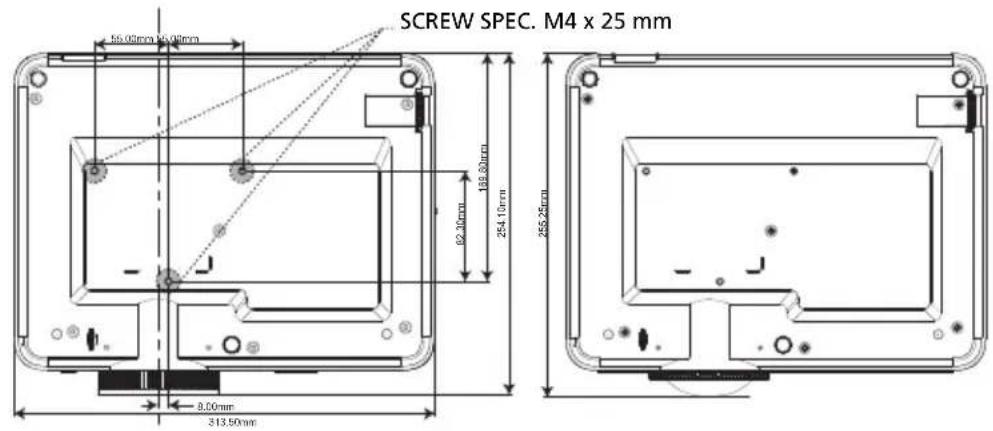

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.

4 Connect the main body connector to the projector bracket (illustration 1), and then screw up four screws (illustration 2).

Illustration 1

Illustration 2

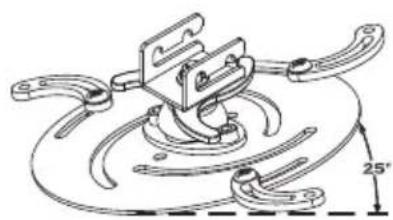

5 Adjust the angle and positioning as necessary.

Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
4	2	5	V

Specifications

The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications.

Projection system	DLP®
Computer compatibility IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +
Video compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Displayable colors 1.07 billion colors
Horizontal scan rate 15 - 100 kHz
Vertical refresh scan rate 24 - 120 Hz
Digital zoom 0.8x ~ 2.0x
Power supply AC input 100 - 240 V auto-switching power supply
Operating temperature 0°C to 40°C / 32°F to 104°F
Standard package contents	•AC power cord x1•HDMI cable x1 (option)•VGA cable x1 (option)•Remote control x1•AAA battery x2 (for remote control) (option)•Quick start guide (Projector) x1•Quick start guide (Media/Wireless function) (option) x1•Security card x1 (option)•Carrying case x1 (option)

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X1126AH/X1127i/D506AD/D606Di/D606D+/EV-S57AH/V60Si/V60S/V26AS/AS610i/AS610/AS600A/EV-S57i/DX125A/BS-025i/BS-025A/DX125i/KS320A/KS320i/X118HP/BS-012P/DSV1844/DSV1912/X1128H/DS608/V65S/AS620/EV-S77H/BS-027/DX127/KS321/X119H/BS-014/X1128i/DS608i/V65Si/AS620i/EV-S77i/BS-027i/DX127i/KS321i/X119i/BS-014i/X1128HKi/X1128HPi/X1131i/X1131Ki/X1128HK/X1128HP/X1131/X1131K/X1126HK/X118HK/X1128Ki/X1128Pi/X1131i/X1128PKi/X1131Ki/X1128PK/X1128ic/BS-021A/X1128/X1128p/DS608pr/V66Sp/ AS620pr/X1128pic/DS608prc/ V66Spic/DSV2514/X1128Hr/DS608r/V66S/AS620r/DSV2512/DS608p/V65Sp/AS620p/DX127p/KS321p/X119/DS608p/V65Spi

Resolution 800x600 SVGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9

Optical zoom ratio 1.1X

Throw ratio 1.94 \~ 2.16 (51"@2m)

Projection lens F = 2.41 \~ 2.53, f = 21.85mm \~ 24.01mm, Manual Zoom & Focus

Projection screen size (diagonal) 23" \~ 300" (58cm \~ 762cm)

Projection distance 1.0m \~ 11.8m (3.3' \~ 38.8')

Lamp type 220W or 240W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.8 Kg (6.17 lbs)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 275W or 290W ± 10% @ 110VAC

ECO mode: 205W or 210W ± 10% @ 110VAC

Standby mode: < 0.5W

I/O connectors X1126	AH/D506AD/D606D+/EV-S57AH/V60S/V26AS/AS610/AS600A/DX125A/BS-025A/KS320A/X118HP/BS-012P/DSV1844/X1128H/DS608/V65S/AS620/EV-S77H/BS-027/DX127/KS321/X119H/BS-014/X1128HK/X1128HP/X1131/X1131K/X1126HK/X118HK/X1128PK/BS-021A/X1128Hr/DS608r/V66S/AS620r/DSV2512	X1127i/D606Di/V60Si/AS610i/EV-S57i/BS-025i/DX125i/KS320i/DSV1912/X1128i/DS608i/V65Si/AS620i/EV-S77i/BS-027i/DX127i/KS321i/X119i/BS-014i/X1128HKi/X1128HPi/X1131i/X1131Ki/X1128Ki/X1128Pi/X1131i/X1128PKi	X1128/X1128p/DS608pr/V66Sp/AS620pr/X1128pic/DS608prc/V66Spic/DSV2514/DS608p/V65Sp/AS620p/DX127p/KS321p/X119/X1128ic/DS608pic/V65Spic/BS-014P/DSV2409
Power socket V V	V
VGA IN	VV	V
HDMI 1	VV	V
HDMI 2	XX	V
Composite video V V	V
RS232 V V V
3.5 mm audio jack input	V V V
3.5 mm audio jack output	V V V
5V DC output V V V
USB A1 (Wireless dongle)	X V X
VGA output V X V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X118H/X118AH/X118/D606D/D606B/D606/EV-S65H/EV-S65A/EV-S65/V36S/V36SB/V16S/AS319/AS319E/AS309/DX112/DX112C/DX112G/BS-012/BS-012K/BS-012E/KS316/KS316A/KS316B/X1123HG/X1186G/X118HG/DSV1725/DSV1726/DSV1727

Resolution 800x600 SVGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9

Optical zoom ratio 1.1X

Throw ratio 1.94 \~ 2.16 (51"@2m)

Projection lens F = 2.41 \~ 2.53, f = 21.85mm \~ 24.01mm, Manual Zoom & Focus

Projection screen size (diagonal) 23" \~ 300" (58cm \~ 762cm)

Projection distance 1.0m \~ 11.8m (3.3' \~ 38.8')

Lamp type 203 W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.7 Kg (5.95 lbs)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 240W ± 10% @ 110VAC

ECO mode: 195W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors X118	8H/D606D/EV-S65H/V36S/AS319/DX112/BS-012/KS316/X1123HG/X118HG/DSV1725	X118AH/D606B/EV-S65A/V36SB/AS319E/DX112C/BS-012K/KS316A/DSV1726	X118/D606/EV-S65/V16S/AS309/DX112G/BS-012E/KS316B/X1186G/DSV1727
Power socket V V	V
VGA IN	V X	V
HDMI	V V	X
Composite video	V X	X
3.5 mm audio jack input	V X	X
5V DC output	V V	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

S1286HN/S1286H/T411DT/T411D/XS-X31HG/XS-X31H/F1286HN/F1286H/SE210L/SE210/DS-110T/DS-110/S1286GH/DNX1712/DNX1713/S1287/S1287H/T415/V65XS/S1287ic/SE113/DS-113/SE113ic/DS-113ic/DNX2405/S1287n/T415n/V66XSn/XS-X35HG/ F1287N/S1287n+/ X1228STn/SE211L/ DS-111T/DNX2517

Resolution 1024x768 XGA resolution

	•Maximum: UXGA (1600 x 1200), WSXGA+(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, 4:3, 16:9
Optical zoom ratio 1.0X
Throw ratio 0.617 (100"@1.25m)
Projection lens F = 2.7, f = 7.15mm, Manual Focus
Projection screen size (diagonal) 32" ~ 300" (81cm ~ 762cm)
Projection distance 0.4m ~ 3.8m (1.3' ~ 12.3')
Lamp type 220W or 240W lamp
Audio	•S1286HN/S1286H/T411DT/T411D/XS-X31HG/XS-X31H/F1286HN/F1286H/SE210L/SE210/DS-110T/DS-110/DNX1712/DNX1713/S1287/S1287H/T415/V65XS/S1287ic/SE113/DS-113/SE113ic/DS-113ic/DNX2405/S1287n/T415n/ V66XSn/XS-X35HG/ F1287N/S1287n+/ X1228STn/SE211L/ DS-111T/DNX2517 series: Internal speaker with 16W x 1 output•S1286GH series: Internal speaker with 10W x 1 output
Weight 3.1 Kg (6.83 lbs)
Dimensions (W x D x H)(with feet)	313mm x 255.3mm x 113.7mm (12.3" x 10.0" x 4.5")

Power consumption Normal mode: 270W±10% or 285W ± 15% @ 110VAC
ECO mode:210W ± 15% @ 110VAC

Standby mode < 0.5W

I/O connectors S1286H/T41	1D/XS-X31H/F1286H/SE210/DS-110/S1286GH/DNX1713	S1286HN/T411DT/XS-X31HG/F1286HN/SE210L/DS-110T/DNX1712	S1287/S1287H/T415/V65XS/S1287ic/SE113/DS-113/SE113ic/DS-113ic/DNX2405	S1287n/T415n/V66XSn/XS-X35HG/ F1287N/S1287n+/X1228STn/SE211L/DS-111T/DNX2517
Power socket V V V	V
VGA IN	V X V	V
HDMI	V X X	X
Composite video	V V V	V
RS232	V V V	V
3.5 mm audio jack input	V V V	V
3.5 mm audio jack output	V V V	V
5V DC output	V X V	V
HDMI 1	X V V	V
HDMI 2	X V V	V
VGA IN 1	X V X	X
VGA IN 2	X V X	X
RJ45 LAN input	X V X	V
VGA output	V V V	V

USB A1 (Wireless dongle) X V X X
USB A2 (DC 5V output) X V X X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

S1288HN/S1288H/T413DT/T413D/XS-X33HG/XS-X33H/F1288HN/F1288H/SE212L/SE212/DS-112T/DS-112/DNX1810/DNX1811

Resolution 1024x768 XGA resolution
•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9
Optical zoom ratio 1.0X
Throw ratio 0.617 (100"@1.25m)
Projection lens F = 2.7, f = 7.15mm, Manual Focus
Projection screen size (diagonal) 32" ~ 300" (81cm ~ 762cm)
Projection distance 0.4m ~ 3.8m (1.3' ~ 12.3')
Lamp type 250 W lamp
Audio Internal speaker with 16W x 1 output
Weight 3.1 Kg (6.83 lbs)
Dimensions (W x D x H) (with feet)	313mm x 255.3mm x 113.7mm (12.3" x 10.0" x 4.5")

Power consumption Normal mode: 300W ± 10% @ 110VAC
ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors S1288H/T41	3D/XS-X33H/F1288H/SE212/DS-112/DNX1811	S1288HN/T413DT/XS-X33HG/F1288HN/SE212L/DS-112T/DNX1810
Power socket V	V
VGA IN	V	X
HDMI	V	X
Composite video	V	V
RS232	V	V
3.5 mm audio jack input	V	V
3.5 mm audio jack output V		V
5V DC output	V	X
HDMI 1	X	V
HDMI 2	X	V
VGA IN 1	X	V
VGA IN 2	X	V
RJ45 LAN input	X	V
VGA output	V	V
USB A1 (Wireless dongle)	X	V
USB A2 (DC 5V output)	X	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X1226AH/X1227i/D516AD/D616Di/D616D+/EV-X57AH/V60Xi/V60X/V26AX/AX610i/AX610/AX600A/EV-X57i/DX225A/BS-125i/BS-125A/DX225i/KX320A/KX320i/X128HP/BS-112P/DNX1843/DNX1911/X1228H/DX608/V65X/AX620/EV-X77H/BS-127/DX227/KX321/X129H/BS-114/X1228i/DX608i/V65Xi/AX620i/EV-X77i/BS-127i/DX227i/KX321i/X129i/BS-114i/X1228HKi/X1228HPi/X1231i/X1231Ki/X1228HK/X1228HP/X1231/X1231K/X1226HK/X128HK/BS-112K/X1227AH/X1228Ki/X1228Pi/X1231i/X1228PKi/X1231Ki/X1128Ki/X1128Pi/X1131i/X1128PKi/X1131Ki/X1228Hn/DX608n/V65Xn/DNX2305/X1228ic/X1228/X1228p/DX608pr/V66Xp/AX620pr/X1228pic/DX608prc/V66Xpic/DNX2515/X1228Hr/DX608r/V66X/AX620r/DNX2513/X1228STn/DX608p/V65Xp/AX620p/DX227p/KX321p/X129/DX608pi/V65Xpi/BS-114P

Resolution 1024x768 XGA resolution

	•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, 4:3, 16:9
Optical zoom ratio 1.1X
Throw ratio 1.94 ~ 2.16 (51"@2m)
Projection lens F = 2.41 ~ 2.53, f = 21.85mm ~ 24.01mm, Manual Zoom & Focus
Projection screen size (diagonal) 23" ~ 300" (58cm ~ 762cm)
Projection distance 1.0m ~ 11.8m (3.3' ~ 38.8')
Lamp type 240 or 220W lamp
Audio Internal speaker with 3W x 1 output
Weight 2.8 Kg (6.17 lbs)
Dimensions (W x D x H) (with feet)	313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5")
Power consumption Normal mode: 275W or 290W ± 10% @ 110VAC ECO mode: 205W or 210W ± 10% @ 110VAC Standby mode < 0.5W

I/O connectors X1226AH/D516AD/	X1227i/D616Di/V60Xi/AX610i/EV-X57i/BS-125i/DN1911/X1228i/DN1843/X1228H/DN608/V65X/AX620/EV-X77H/BS-127/DN227/KX321/X129H/BS-114/X1228HK/X1228HP/X1231/X1231K/X1226HK/X128HK/BS-112K/X1227AH/X1228Hr/DN608r/V66X/AX620r/DN2513	X1228Hn/DN2305/X1228STn	X1228/DN608p/V65Xp/AX620p/DN227p/KX321p/X129/X1228i/X1228ic/DN608pi/V65Xpi/BS-114P/X1228p/DN608pr/V66Xp/AX620pr/X1228pic/DN608prc/V66Xpic/DN2515
Power socket V V	V V
VGA IN	V	V	V
HDMI 1	V	V	V

HDMI 2 X X V V
Composite video V V V V
RS232 V V V V
3.5 mm audio jack input V V V V
3.5 mm audio jack output	V V V V
5V DC output V V V V
USB A1(Wireless dongle)	X V X X
VGA output V X V V
LAN (RJ45) X X V X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X128H/X128GH/X128/D616D/D616/EV-X65H/EV-X65/V36X/V36XC/AX319/AX319D/DX212/DX212G/BS-112/BS-112E/KX316/KX316B/X1223HG/X1286G/X128HG/DNX1723/DNX1851/DNX1724

Resolution 1024x768 XGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9

Optical zoom ratio 1.1X

Throw ratio 1.94 \~ 2.16 (51"@2m)

Projection lens F = 2.41 \~ 2.53, f = 21.85mm \~ 24.01mm, Manual Zoom & Focus

Projection screen size (diagonal) 23" \~ 300" (58cm \~ 762cm)

Projection distance 1.0m \~ 11.8m (3.3' \~ 38.8')

Lamp type 203 W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.7 Kg (5.95 lbs)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 240W ± 10% @ 110VAC

ECO mode: 195W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors X128	D616/EV-X65/V36XC/AX319D/DX212G/BS-112E/KX316B/X1286G/DNX1724	X128H/D616D/EV-X65H/V36X/AX319/DX212/BS-112/KX316/X1223HG/X128HG/DNX1723	X128GH/DNX1851
Power socket V	V	V
VGA IN	V	V	V
HDMI	X	V	X
HDMI 1	X	X	V
HDMI 2	X	X	V
Composite video	X	V	V
RS232	X	X(*)	X
3.5 mm audio jack input	X	V	V
3.5 mm audio jack output	X	X	V
5V DC output	V	V	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

S1386WHN/S1386WH/T421DT/T421D/XS-W31HG/XS-W31H/F1386WHN/F1386WH/SE410L/SE410/DS-310T/DS-310/DWX1711/DWX1734/S1387/S1387WH/T425/V65WS/S1387ic/SE413 /DS-313/SE413ic/DS-313ic/DWX2406/S1387n/T425n/V66WSn/XS-W35HG/F1387N/ S1387n+/ X1328STn/ SE411L/ DS-311T/ DWX2518

Resolution 1280x800 WXGA resolution

	•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, 4:3, 16:9, L.Box
Optical zoom ratio 1.0X
Throw ratio 0.521 (100"@1.12m)
Projection lens F = 2.8, f = 7.51mm, Manual Focus
Projection screen size (diagonal) 36" ~ 300" (91cm ~ 762cm)
Projection distance 0.4m ~ 3.4m (1.3' ~ 11.0')
Lamp type 220W or 240W lamp
Audio Internal speaker with 16W x 1 output
Weight 3.1 Kg (6.83 lbs)
Dimensions (W x D x H) (with feet)	313mm x 255.3mm x 113.7mm (12.3" x 10.0" x 4.5")

Power consumption Normal mode: 270W± 10% or 285W± 15% @ 110VAC
ECO mode:210W ± 15% @ 110VAC

Standby mode < 0.5W

I/O connectors S1386WH/	T421D/XS-W31H/F1386WH/SE410/DS-310/DWX1734	S1386WHN/T421DT/XS-W31HG/F1386WHN/SE410L/DS-310T/DWX1711	S1387/S1387WH//T425/V65WS/S1387ic/SE413/DS-313/SE413ic/DS-313ic/DWX2406	S1387n/T425n/V66WSn/XSW35HG/F1387N/S1387n+/X1328STn/SE411L/DS-311T/DWX2518
Power socket V	V V	V
VGA IN	V	X	V	V
HDMI	V	X X	X
Composite video	V	V	V	V
RS232	V	V V	V
3.5 mm audio jack input	V	V	V	V
3.5 mm audio jack output	V	V	V	V
5V DC output	V	X	V	V
HDMI 1	X	V	V	V
HDMI 2	X	V	V	V
VGA IN 1	X	V	X	X
VGA IN 2	X	V	X	X
RJ45 LAN input	X	V	X	V
VGA output	V	V	V	V
USB A1 (Wireless dongle)	X	V	X	X

USB A2 (DC 5V output) X V X X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

S1388WHN/S1388WH/T423DT/T423D/XS-W33HG/XS-W33H/F1388WHN/F1388WH/SE412L/SE412/DS-312T/DS-312/DWX1809/DWX1737

Resolution 1280x800 WXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9, L.Box

Optical zoom ratio 1.0X

Throw ratio 0.521 (100"@1.12m)

Projection lens F = 2.8, f = 7.51mm, Manual Focus

Projection screen size (diagonal) 36" \~ 300" (91cm \~ 762cm)

Projection distance 0.4m \~ 3.4m (1.3' \~ 11.0')

Lamp type 250 W lamp

Audio Internal speaker with 16W x 1 output

Weight 3.1 Kg (6.83 lbs)

Dimensions (W x D x H) 313mm x 255.3mm x 113.7mm (12.3" x 10.0" x 4.5") (with feet)

Power consumption Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors S1388WH/T	423D/XS-W33H/F1388WH/SE412/DS-312/DWX1737	S1388WHN/T423DT/XS-W33HG/F1388WHN/SE412L/DS-312T/DWX1809
Power socket V V
VGA IN V X
HDMI	V X
Composite video	V V
RS232	V V
3.5 mm audio jack input	V V
3.5 mm audio jack output	V V
5V DC output	V X
HDMI 1	X V
HDMI 2	X V
VGA IN 1	X V
VGA IN 2	X V
RJ45 LAN input	X V
VGA output	V V
USB A1 (Wireless dongle)	X V
USB A2 (DC 5V output)	X V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X1328AF/SW608F/V65WF/DWX2310/X1326AWH/X1327Wi/D526AD/D626Di/D626D+/EV-W57AH/V60Wi/V60W/V26AW/AW610i/AW610/AW600A/EV-W57i/DX425A/BS-325i/BS-325A/DX425i/KW320A/KW320i/X138WHP/H5386BDi+/BS-312P/DWX1842/DWX1910/X1328WH/DW608/V65W/AW620/EV-W77H/BS-327/DX427/KW321/X139WH/BS-314/X1328Wi/DW608i/V65Wi/AW620i/EV-W77i/BS-327i/DX427i/KW321i/X139Wi/BS-314i/X1328WKi/X1328WPi/X1331Wi/X1328WHKi/X1331WKi/X1328WK/X1328WHP/X1331W/X1328WHK/X1331WK/X1326WHK/X138WHK/BS-312K/BS-312PK/BS-112PK/X1328WPi/X1328PKi/X1331WKi/X1328WPK/X1331WK/X1326WHK/X138WHK/BS-312PK/X1328WHn/DW608n/V65Wn/DWX2306/X1328Wi/X1328Wic/X1328/X1328p/DW608pr/V66Wp/AW620pr/X1328pic/DW608prc/V66Wpic/DWX2516/X1328STn/X1328i/X1328ic/DX427p/KW321p/X139WHp/DW608p/V65Wp

Resolution 1280x800 WXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box
Optical zoom ratio 1.1X
Throw ratio 1.54 ~ 1.72 (60"@2m)
Projection lens F = 2.41 ~ 2.53, f = 21.85mm ~ 24.00mm, Manual Zoom & Focus
Projection screen size (diagonal) 27" ~ 300" (75cm ~ 762cm)
Projection distance 1.0m ~ 10m (3.3' ~ 32.7')
Lamp type 220W or 240W lamp
Audio Internal speaker with 3W x 1 output
Weight 2.8 Kg (6.17 lbs)
Dimensions (W x D x H) (with feet)	313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5")

Power consumption Normal mode: 275W or 290W ± 10% @ 110VAC

ECO mode: 205W or 210W ± 10% @ 110VAC Standby mode < 0.5W

I/O connectors	X1326AWH/D526AD/D626D+/EV-W57AH/V60W/V26AW/AW610/AW600A/DX425A/BS-325A/KW320A/X138WHP/BS-312P/DWX1842/X1328WH/DW608/V65W/AW620/EV-W77H/BS-327/DX427/KW321/X139WH/BS-314/X1328WK/X1328WHP/X1331W/X1328WHK/X1331WK/X1326WHK/X138WHK/BS-312K/BS-312PK/BS-112PK/X1328WPK/X1328Wi/X1328Wic	X1327Wi/D626Di/V60Wi/AW610i/EV-W57i/BS-325i/DX425i/KW320i/H5386BDi+/DWX1910/X1328Wi/DW608i/V65Wi/AW620i/EV-W77i/BS-327i/DX427i/KW321i/X139Wi/BS-314i/X1328WKi/X1328WPi/X1331Wi/X1328WHKi/X1331WKi/X1328WPi/X1328PKi/X1331WKi	X1328WHn/DW608n/V65Wn/DWX2306/X1328STn	X1328AF/SW608F/V65WF/DWX2310/X1328/X1328p/DW608pr/V66Wp/AW620pr/X1328pic/DW608prc/V66Wpic/DWX2516/X1328i/X1328ic/DX427p/KW321p/X139WHp/DW608p/V65Wp/DWX2306
Power socket V V	V	V
VGA IN V V V V
HDMI 1 V V V V
HDMI 2 X X V V
Composite video V V V V
RS232 V V V V
3.5 mm audio jack input	V V V V
3.5 mm audio jack output	V V V V
5V DC output V V V V
USB A1(Wireless dongle)	X V X X
VGA output V X V V
LAN (RJ45) X X V X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722

Resolution 1280x800 WXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Optical zoom ratio 1.1X

Throw ratio 1.54 \~ 1.72 (60"@2m)

Projection lens F = 2.41 \~ 2.53, f = 21.85mm \~ 24.00mm, Manual Zoom & Focus

Projection screen size (diagonal) 27" \~ 300" (75cm \~ 762cm)

Projection distance 1.0m \~ 10m (3.3' \~ 32.7')

Lamp type 203 W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.7 Kg (5.95 lbs)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 240W ± 10% @ 110VAC

ECO mode: 195W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
VGA IN V
HDMI V
Composite video	V
3.5 mm audio jack input	V
5V DC output	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

H5385BDi/H5385BDi+/H5385ABDi/DWX1910/H5386BDi/H5386ABDi/H5386BDKi/H5386ABDKi

Resolution 1280 x 720 720p resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Optical zoom ratio 1.1X

Throw ratio 1.54 \~ 1.72 (60"@2.1m)

Projection lens F = 2.41 \~ 2.53, f = 21.85mm \~ 24.00mm, Manual Zoom & Focus

Projection screen size (diagonal) 26" \~ 301" (67cm \~ 765cm)

Projection distance 1.0m \~ 10.3m (3.3' \~ 33.6')

Lamp type 220W or 240W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.8 Kg (6.17 lbs)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 275W or 290W ± 10% @ 110VAC

ECO mode: 205W or 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
VGA IN V
HDMI	V
Composite video	V
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V
USB A1 (Wireless dongle)	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

V6520/G550/V151/HT-810/HV533/TH-432/V7500+/D1P1718/D1P1805

Resolution 1920x1080 1080p resolution

•Maximum: UXGA (1600 x 1200), WSXGA+

(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Optical zoom ratio 1.3X

Throw ratio 1.21 \~ 1.59 (75"@2m)

Projection lens F = 1.94 \~ 2.23, f = 12.81mm \~ 16.74mm, Manual

Zoom & Focus

Projection screen size (diagonal) 28" \~ 300" (72cm \~ 762cm)

Projection distance 1.0m \~ 8.0m (3.3' \~ 26.4')

Lamp type 250 W lamp

Audio Internal speaker with 10W x 1 output

Weight 3.1 Kg (6.83 lbs)

Dimensions (W x D x H) 313mm x 272.4mm x 110.7mm (12.3" x 10.7" x 4.4") (with feet)

Power consumption Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
Composite video V
RS232	V
3.5 mm audio jack input	V
5V DC output	V
HDMI 1	V
HDMI 2	V
VGA IN 1	V
VGA IN 2	V
VGA output	V
AUDIO IN 1	V
AUDIO IN 2	V
3D SYNC	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

H6545BD/E146F/HE-805L/H6512BD+/V62B/GM534/VH-434/D1P1839/P5550/N500/PN-605/PR552/MF-452/P5535p/N358p/P5551/P5550ic/P5551ic/D1P2416/H6560/E660/GM560/DH700/P1560/GM516/VH-416/H6560BD/P1561/H6547/H6561/H6560ic/H6561ic

Resolution 1920x1080 1080p resolution
	•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, 4:3, 16:9, L.Box
Optical zoom ratio 1.3X
Throw ratio 1.21 ~ 1.59 (75"@2m) or 1.13 ~ 1.47 (60"@1.5m)
Projection lens F = 1.94 ~ 2.23, f = 12.81mm ~ 16.74mm or F = 2.43 ~ 2.78, f = 16.90mm ~ 21.61mm, Manual Zoom & Focus
Projection screen size (diagonal) 28" ~ 300" (72cm ~ 762cm) or 31" ~300" (78cm ~ 762cm)
Projection distance 1.0m ~ 8.0m (3.3' ~ 26.4') or 1.0m ~ 7.5m (3.3' ~ 24.6')
Lamp type 225 W or 240W lamp
Audio Internal speaker with 3W x 1 output or 10W x1 output
Weight 3.1 Kg (6.83 lbs) or 2.75Kg (6.06lbs)
Dimensions (W x D x H)(with feet)	313mm x 272.4mm x 110.7mm (12.3" x 10.7" x 4.4") or 313 mm X 236 mm X 113.7mm (12.3" x 9.27" x 4.47")
Power consumption Normal mode: 265W or 290W ± 10% @ 110VAC ECO mode: 205W or 210W ± 10% @ 110VAC Standby mode < 0.5W

I/O connectors H6545BD/E146F/	HE-805L/H6512BD+/V62B/GM534/VH-434/D1P1839	P5550/N500/PN-605/PR552/MF-452/P5535p/N358p/P5551/P5550ic/P5551ic/D1P2416	H6560/E660/GM560/DH700/P1560/GM516/VH-416/H6560BD/P1561/H6547/H6561/H6560ic/H6561ic/D1P2416
Throw Ratio 1.21 ~ 1.59 1.13 ~ 1.47
LAN		V
Power socket	V	V	V
VGA IN	V
Composite video	V
RS232	V	V	V
3.5 mm audio jack input	V	V	V
3.5 mm audio jack output	V	V	V
5V DC output	V	V	V
HDMI 1	V	V	V
HDMI 2	V	V	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

E558/H6541/H6555A/X1527i/D656Di/V60Fi/AF610i/EV-F57i/BS-425i/DX525i/KW320i/H6541BDi/H6541BDi+/H6542ABDi/D1P1909/X1528H/DF608/V65F/AF620/EV-F58/BS-427/DX527/KF321/H6546BD/H6546BD+/H6546ABD/X159H/D1P1915/X1528i/DF608i/V65Fi/AF620i/EV-F58i/BS-427i/DX527i/KF321i/H6546BDi/H6546BDi+/H6546ABDi/H6542ABDi/M457i/X1528Ki/H6546BDKi/X1528HPi/X1531i/X1528HKi/X1531Ki/X1528K/H6546BDK/X1528HP/X1531/X1528HK/X1531K/X1528PK/X1528STi/X1528ic/H6532BDi/H6531BDi/H6541Ki/H6555AKi/E558Ki/H6542BDi/H6546i/H6546ic/X1528Kic/GS511/H6546/X1528/H6546i/H6546ic/X1527HK/H6541BDK/H6541ic/ H6541id/H6546Kit/ H6541Kit/X1528it/ H6546it/ H6541it

Resolution 1920x1080 1080p resolution•Maximum: UXGA (1600 x 1200), WSXGA+(1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, 4:3, 16:9, L.Box
Optical zoom ratio 1.1X
Throw ratio 1.50 ~ 1.66 or 1.48 ~ 1.62 (60"@2 m)
Projection lens F = 1.98 ~ 2.02, f = 15.84mm ~ 17.44mm, Manual Zoom & Focus
Projection screen size (diagonal) 27" ~ 301" (69cm ~ 765cm)
Projection distance 1.0m ~ 10m (3.3' ~ 32.7')
Lamp type 220W or 240W lamp
Audio Internal speaker with 3W x 1 output
Weight 2.9Kg(6.4lbs)
Dimensions (W x D x H)(with feet)	313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5")
Power consumption Normal mode: 275W or 290W ± 10% @ 110VACECO mode: 205W or 210W ± 10% @ 110VACStandby mode < 0.5W

I/O connectors X1	528H/DF608/V65F/AF620/EV-F58/BS-427/DX527/KF321/H6546BD/H6546BD+/H6546ABD/X159H/D1P1915/X1528K/H6546BDK/X1528HP/X1531/X1528HK/X1531K/X1528PK	X1527i/D656Di/V60Fi/AF610i/EVF57i/BS-425i/DX525i/KW320i/H6541BDi/H6541BDi+/H6542ABDi/D1P1909/X1528i/DF608i/V65Fi/AF620i/EV-F58i/BS-427i/DX527i/KF321i/H6546BDi/H6546BDi+/H6546ABDi/D1P1909/M457i	X1528Ki/H6546Ki/H6541Ki/H6555AKi/E558Ki/H6542BDi/DX527i/H6531BDi/H6532BDi/X1528STi/GS511/H6546Ki/H6546Kit/H6541Kit/X1528it/H6546it/H6541it/H6556i/H6531BDi/H6532BDi/H6533BDi/H6542BDi	H6546/X1528/H6546ic/X1528ic/E558/H6541/H6555A/X1528p/DF608p/V65Fp/E558p/X1528c/X1528bt/D1P2519	X1527HK/H6541BDK/H6541ic/H6541id
Throw Ratio 1.5~	1.66 1.48~1.62 1.5~1.66
Power socket V V	V V V
VGA IN V V X X X
HDMI V X X X X
HDMI 1 X V V V V
HDMI 2 X V V V V
Composite video	V V X V X
RS232 V V V V V
3.5 mm audio jack input	V V V V V
3.5 mm audio jack output	V V V V V
5V DC output V V	V V V
USB A1(Wireless dongle)	V V V X X
VGA output	V X X V X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

H6521BD/X168H/E155F/D666D/HE-802K/EV-WU65H/GM512/V36U/VH-412/AU319/H6521ABD/DX612/BS-512/KU316/D1P1720/DWU1721

Resolution WUXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Optical zoom ratio 1.1X

Throw ratio 1.47 \~ 1.62 (63"@2m)

Projection lens F = 2.1\~2.31, f = 15.59 \~ 17.14mm, Manual Zoom & Focus

Projection screen size (diagonal) 29" \~ 300"' (73cm \~ 762cm)

Projection distance 1.0m \~ 9.5m (3.3' \~ 31.2')

Lamp type 250 W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.8 Kg (6.17 lbs)

Dimensions (W x D x H) 313mm x 240mm x 110.7mm (12.3" x 9.4" x 4.3") (with feet)

Power consumption Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
VGA IN V
HDMI V
Composite video	V
3.5 mm audio jack input	V
5V DC output	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

H6540BD/X1623H/E156D/D860D/HE-806J/EV-WU80H/GM532/V50U/VH-432/AU540/DX620/BS-520/KU330/D1P1719/DWU1729

Resolution WUXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9, L.Box

Optical zoom ratio 1.3X

Throw ratio 1.58 \~ 2.06 (59"@2m)

Projection lens F = 2.37 \~ 2.78, f = 16.91mm \~ 21.60mm, Manual Zoom & Focus

Projection screen size (diagonal) 27" \~ 300" (69cm \~ 762cm)

Projection distance 1.0m \~ 10.2m (3.3' \~33.6')

Lamp type 250 W lamp

Audio Internal speaker with 10W x 1 output

Weight 3.1 Kg (6.83 lbs)

Dimensions (W x D x H) 313mm x 240mm x 110.7mm (12.3" x 9.4" x 4.3") (with feet)

Power consumption Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
VGA IN V
HDMI 2	V
HDMI 1	V
Composite video	V
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

H6518STi/E146Si/HE-802STi/H6517STPi/S1586Hi/GM513S/VH-413S/D1P1914

Resolution 1920x1080 1080p resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9, L.Box

Optical zoom ratio 1.0X

Throw ratio 0.5 (91 "@1.0m)

Projection lens F = 2.8, f = 7.51mm, Manual Focus

Projection screen size (diagonal) 45" \~ 303" (115cm \~ 770cm)

Projection distance 0.5m \~ 3.4m (1.6' \~ 11.0')

Lamp type 240W lamp

Audio Internal speaker with 3W x 1 output

Weight 2.95kg (6.5lb)

Dimensions (W x D x H) 313mm x 240mm x 113.7mm (12.3" x 9.4" x 4.5") (with feet)

Power consumption Normal mode: 275W ± 10% @ 110VAC

ECO mode: 205W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
VGA IN V
HDMI 1 V
HDMI 2 V
Composite video	V
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V
USB A1 (Wireless dongle)	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

HV532/D1P1718

Resolution WUXGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, Full, 4:3, 16:9, L.Box

Optical zoom ratio 1.3X

Throw ratio 1.21 \~ 1.59 (77"@2m)

Projection lens F = 1.94 \~ 2.23, f = 12.81mm \~ 16.74mm, Manual Zoom & Focus

Projection screen size (diagonal) 35" \~ 300" (89cm \~ 762cm)

Projection distance 1.0m \~ 7.8m (3.3' \~ 25.6')

Lamp type 250 W lamp

Audio Internal speaker with 10W x 1 output

Weight 3.1 Kg (6.83 lbs)

Dimensions (W x D x H) 313mm x 272.4mm x 110.7mm (12.3" x 10.7" x 4.4") (with feet)

Power consumption Normal mode: 300W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors
Power socket V
Composite video V
RS232	V
3.5 mm audio jack output	V
5V DC output	V
HDMI 1	V
HDMI 2	V
VGA IN 1	V
VGA IN 2	V
VGA output	V
AUDIO IN 1	V
AUDIO IN 2	V
3D SYNC	V

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

P1258i/ DX650/ V68Xi/ EV-X77Zi/ BS-127Zi/ DX227Zi/ KX321Zi/ X129Zi/ BS-114Zi/P1258i+/DNX2502

Resolution 1024x768 XGA resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9

Optical zoom ratio 1.3X

Throw ratio 1.48\~1.93 (Wide 51"@1.5m; Tele 51"@2m)

Projection lens f=16.90mm (Wide) \~ 21.61mm (Tele) @C19U

F#=2.43 (Wide) \~ 2.78 (Tele) @C19U

Manual Zoom & Focus

Projection screen size (diagonal) 26" \~ 266"(66cm \~ 676cm)

Projection distance 1.0m \~ 8.0m (3.3' \~ 26.2')

Lamp type 240 W lamp

Audio Internal speaker with 10W x 1 output

Weight 2.9Kg (6.4lbs)

Dimensions (W x D x H) 313 mm X 236 mm X 113.7mm (12.3" x 9.27" x 4.47") (with feet)

Power consumption Normal mode: 290W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors P1258i/ DX650/	V68Xi/ EV-X77Zi/ BS-127Zi/ DX227Zi/KX321Zi/ X129Zi/ BS-114Zi/ P1258i+/ DNX2502
Power socket V
VGA IN V
HDMI 1	V
HDMI 2	V
Composite video	V
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V
USB A 1 (Wireless dongle)	V
VGA output	X

P1358i/ DW650/V68Wi/EV-W77Zi/BS-327Zi/DX427Zi/KW321Zi/X139Zi/BS-314Zi/H5386Zi/P1328i+/H5360i/DWX2503

Resolution 1280x800 WXGA resolution
	•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)
Aspect ratio Auto, Full, 4:3, 16:9, L.Box
Optical zoom ratio 1.3X
Throw ratio 1.18 ~ 1.54 (Wide 60"@1.5m; Tele 60"@2m)
Projection lens f=16.90mm (Wide) ~ 21.61mm (Tele) @C19U F#=2.43 (Wide) ~ 2.78 (Tele) @C19U Manual Zoom & Focus
Projection screen size (diagonal) 30" ~ 315"(76cm ~ 800cm)
Projection distance 1.0m ~ 8.0m (3.3' ~ 26.2')
Lamp type 240 W lamp
Audio Internal speaker with 10W x 1 output
Weight 2.9Kg (6.4lbs)
Dimensions (W x D x H) (with feet)	313 mm X 236 mm X 113.7mm (12.3" x 9.27" x 4.47")
Power consumption Normal mode: 290W ± 10% @ 110VAC ECO mode: 210W ± 10% @ 110VAC Standby mode < 0.5W

I/O connectors P1358i/ DW650	V68Wi/EV-W77Zi/BS-327Zi/DX427Zi/KW321Zi/X139Zi/BS-314Zi/H5386Zi/P1328i+/H5360i/DWX2503
Power socket V
VGA IN	V
HDMI 1	V
HDMI 2	V
Composite video	V
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V
USB A 1 (Wireless dongle)	V
VGA output	X

P1558i/HF200/E618/H6546Zi/H6541Zi/H6555Zi/H6542Zi/DX527Zi/H6547i/H6560i/X1528Zi/GS512/H6547it/H6560it/P1558i+/D1P2504

Resolution 1920x1080 1080p resolution

•Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Aspect ratio Auto, 4:3, 16:9, L.Box

Optical zoom ratio 1.3X

Throw ratio 1.12\~1.47 (Wide 61"@1.5m; Tele 61"@2m)

Projection lens f=16.90mm (Wide) \~ 21.61mm (Tele) @C19U

F#=2.43 (Wide) \~ 2.78 (Tele) @C19U

Manual Zoom & Focus

Projection screen size (diagonal) 31" \~ 322"(79cm \~ 818cm)

Projection distance 1.0m \~ 8.0m (3.3' \~ 26.2')

Lamp type 240 W lamp

Audio Internal speaker with 10W x 1 output

Weight 2.9Kg (6.4lbs)

Dimensions (W x D x H) 313 mm X 236 mm X 113.7mm (12.3" x 9.27" x 4.47") (with feet)

Power consumption Normal mode: 290W ± 10% @ 110VAC

ECO mode: 210W ± 10% @ 110VAC

Standby mode < 0.5W

I/O connectors P1558i/HF200/E618/H6546Zi/H6541Zi/H6555Zi/H6542Zi/DX527Zi/H6547i/H6560i/X1528Zi/GS512/H6547it/H6560it/P1558i+/D1P2504
Power socket V
VGA IN X
HDMI 1	V
HDMI 2	V
Composite video	X
RS232	V
3.5 mm audio jack input	V
3.5 mm audio jack output	V
5V DC output	V
USB A 1 (Wireless dongle)	V
VGA output	X

Note 1: Design and specifications are subject to change without notice.

Note 2: * Functions vary depending on model definition.

Compatibility modes

A. VGA Analog

1 VGA Analog - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA 640x480	60 31.5
	640x480 72	37.9
	640x480 75	37.5
	640x480 85	43.3
	640x480 120	61.9
SVGA 800x600	56 35.1
	800x600 60	37.9
	800x600 72	48.1
	800x600 75	46.9
	800x600 85	53.7
	800x600 120	77.4
XGA 1024x768	60 48.4
	1024x768 70	56.5
	1024x768 75	60.0
	1024x768 85	68.7
	1024x768 120	99.0
SXGA 1152x864	70 63.8
	1152x864 75	67.5
	1152x864 85	77.1
	1280x1024 60	64.0
	1280x1024 72	77.0
	1280x1024 75	80.0
	1280x1024 85	91.1
QuadVGA 1280x960	60 60.0
	1280x960 75	75.2
SXGA+ 1400x1050	60 65.3
UXGA 1600x1200	60 75.0
PowerBook G4	640x480 60	31.4
PowerBook G4	640x480	66.6(67)	34.9
PowerBook G4	800x600 60	37.9
PowerBook G4	1024x768 60	48.4
PowerBook G4	1152x870 75	68.7
PowerBook G4	1280x960 75	75.0
i Mac DV (G3)	1024x768	75 60.0

2 VGA Analog - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768 60 47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	1280x800 119	909 101.6
	1920x1200 60	74
	1440x900 60	59.9
WSXGA+ 1680x1050 60 65.3
	1920x1080(1080P)	60 67.5
	1366x768 60	47.7
WUXGA	1920x1200-RB	59.94	74.04

3 VGA Analog -Component Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
480i	720x480(1440x480)	59.94 (29.97)	15.7
576i	720x576(1440x576)	50(25)	15.6
480p	720x480	59.94	31.5
576p	720x576	50	31.3
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3

B. HDMI Digital

1 HDMI - PC Signal

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
VGA	640x480	60	31.5
	640x480	72 37.9
	640x480	75 37.5
	640x480	85 43.3
	640x480 120	61.9
SVGA 800x600	56 35.1
	800x600 60 3	7.9
	800x600 72 4	8.1
	800x600 75 4	6.9
	800x600 85 5	3.7
	800x600 120	77.4
XGA 1024x768	60 48.4
	1024x768 70	56.5
	1024x768 75	60.0
	1024x768 85	68.7
	1024x768 120	99.0
SXGA 1152x864	70 63.8
	1152x864 75	67.5
	1152x864 85	77.1
	1280x1024 60	64.0
	1280x1024 72	77.0
	1280x1024 75	80.0
	1280x1024 85	91.1
QuadVGA 1280x960	60 60.0
	1280x960 75	75.2
SXGA+ 1400x1050	60 65.3
UXGA 1600x1200	60 75.0
PowerBook G4 640x480	60 31.4
PowerBook G4 640x480	66.6(67)	34.9
PowerBook G4	800x600 60 3	7.9
PowerBook G4	1024x768 60	48.4
PowerBook G4	1152x870 75	68.7
PowerBook G4	1280x960 75	75.0
i Mac DV (G3) 1024x768		75 60.0

2 HDMI - Extended Wide timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
WXGA 1280x768	60	47.8
	1280x768 75	60.3
	1280x768 85	68.6
	1280x720 60	44.8
	1280x720 120	92.9
	1280x800 60	49.6
	1280x800-RB	119.909	101.6
	1440x900 60	59.9
	1920x1200 60	74
WSXGA+ 1680x1050 60 65.3
	1920x1080(1080P)	60 67.5
	1920x1080(1080P)	50 56.3
	1366x768 60	47.7
WUXGA 1920x1200-RB 59.94 74.04

3 HDMI - Video Signal

Modes Resolution V.Frequency [Hz] H.Frequency [KHz]
480i	720x480(1440x480)	59.94 (29.97)	15.7
576i 720x576(1440x576) 50(25)		15.6
480p	720x480	59.94	31.5
576p	720x576	50	31.3
720p	1280x720	60	45.0
720p	1280x720	50	37.5
1080i	1920x1080	60(30)	33.8
1080i	1920x1080	50(25)	28.1
1080p	1920x1080	23.97/24	27.0
1080p	1920x1080	25	28.1
1080p	1920x1080	29.97/30	33.8
1080p	1920x1080	60	67.5
1080p	1920x1080	50	56.3
1080p	1920x1200-RB 59.94 74.04
4K	3840x2160	60	135
	3840x2160	24 54
	3840x2160	25	56.25
	3840x2160	30 67.5
	3840x2160	50	112.5
	4096x2160	60	140
	4096x2160	24 60
	4096x2160	25 61.5
	4096x2160	30 75.5
	4096x2160	50	119

4 HDMI - 1.4a 3D Timing

Modes	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
720p (Frame Packing)	1280 x 720	50	37.5
720p (Frame Packing) 1280 x 720 60 45.0
1080p (Frame Packing ) 1920 x1080 24 27.0
720p (Frame Packing) 1280 x 720 50 37.5
720p (Frame Packing) 1280 x 720 60 45.0
1080i (Top and Bottom) 1920 x1080 50 (25) 28.1
1080i (Top and Bottom) 1920 x1080 60 (30) 33.8
1080p (Top and Bottom) 1920 x1080 24 27.0
1080p (Top and Bottom) 1920 x1080 50 56.3
1080p (Top and Bottom) 1920 x1080 60 67.5
720p (Side by Side (Half)) 1280 x 720 60 45.0
1080i (Side by Side (Half)) 1920 x1080 50 (25) 28.1
1080i (Side by Side (Half)) 1920 x1080 60 (30) 33.8
1080p (Side by Side (Half)) 1920 x1080 50 56.3
1080p (Side by Side (Half)) 1920 x1080 60 67.5
Graphic source monitor range limits	Horizontal scan rate:		15k-100kHz
	Vertical scan rate:		24-120 Hz
	Max. pixel rate:		Analog:165MHzDigital:165MHz

Note: Functions vary depending on model definition.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Compliant with Russian/ Ukraine regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-247)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

Recycling Information for the United States of America

Acer encourages information technology (IT) equipment owners to responsibly recycle their equipment when it is no longer needed. Acer offers programs and services to assist equipment owners with this process.

For more information on recycling IT equipment, please go to: https://www.acer.com/ac/en/US/content/recycling
