USER MANUAL AVINTAGECAVE DARTY

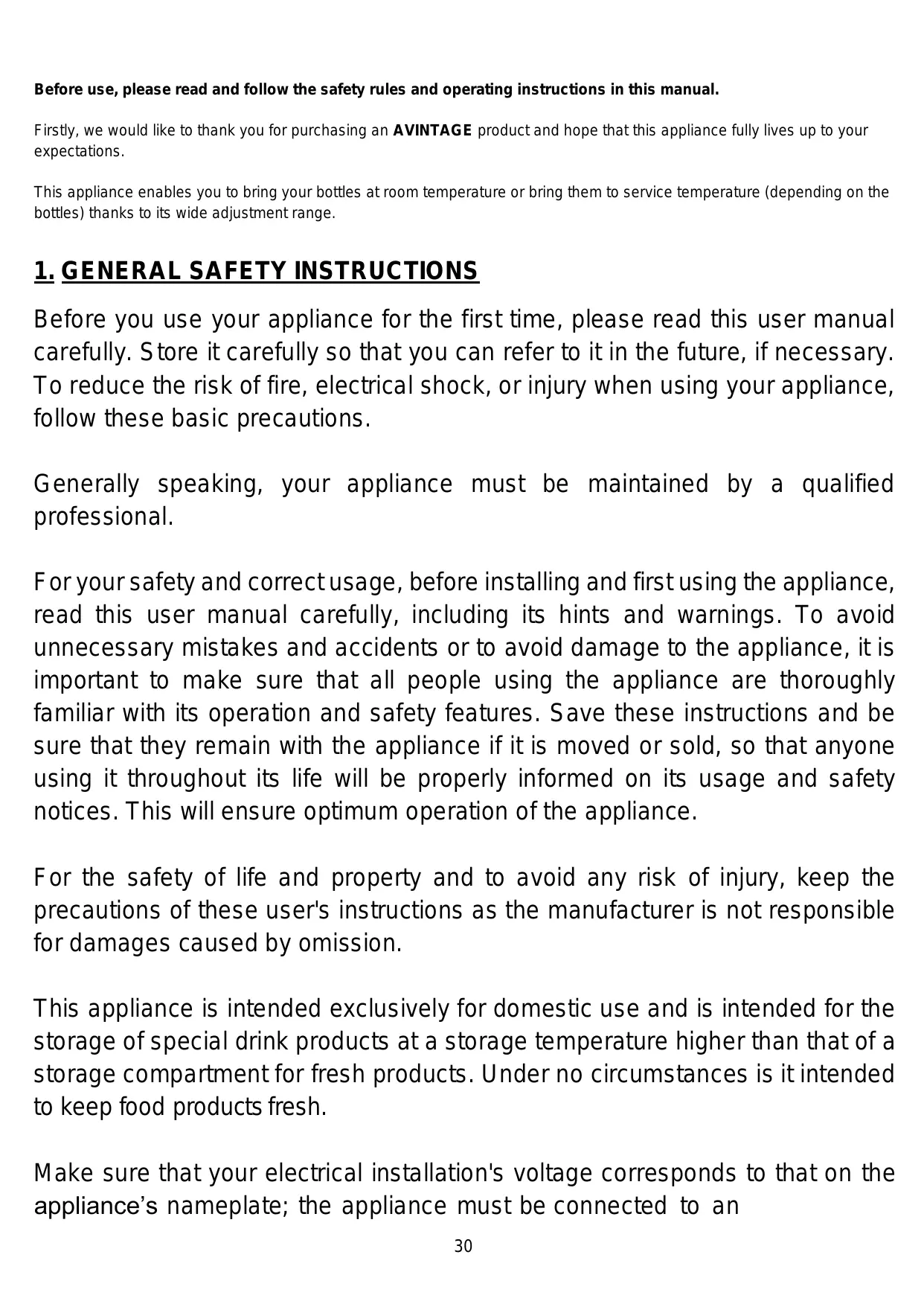

Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing an AVINTAGE product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.

1. GENERAL SAFETY INSTRUCTIONS Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in the future, if necessary. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions. Generally speaking, your appliance must be maintained by a qualified professional. For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents or to avoid damage to the appliance, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices. This will ensure optimum operation of the appliance. For the safety of life and property and to avoid any risk of injury, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. This appliance is intended exclusively for domestic use and is intended for the storage of special drink products at a storage temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh. Make sure that your electrical installation's voltage corresponds to that on the appliance’s nameplate; the appliance must be connected to an 30

approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt. This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied. For safety reasons, do not use an electrical extension cable. If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer. To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service center or professional repairer. This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible. ✓

Keep children away from the appliance

Do not use this appliance outdoors

In the event that liquid is accidentally spilled (broken bottle, etc.) on electrical components (motor, etc.), disconnect the mains plug immediately. To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands. Keep the appliance away from any source of heat and out of direct sunlight.

Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces. Do not pull on the mains cable - take hold of the plug to disconnect the appliance. Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3 kg). Your cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath. To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment. Safety of children and other vulnerable persons • This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised. • Keep all packaging away from children as there is risk of suffocation. • Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”. • If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. • If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the 32

spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. • Keep the appliance and its power cable out of reach of children less than 8 years old. • Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside. • Children should be supervised to ensure they do not play with the appliance. • Note: Children aged from 3 to 8 years are allowed to load and unload the appliance. General safety WARNING — This appliance is intended to be used in household and similar applications such as: ✓

Staff kitchen areas in shops, offices and other working environments,

Farm houses and by clients in hotels, motels and other residential type environments,

Bed and breakfast type environments,

Catering and similar non-retail applications.

WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they could leak or release fluids. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction and ensure that air can circulate, especially if the appliance is dedicated for a built-under or built-in installation. 33

WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame. WARNING — The refrigerant of these appliances is R600a, flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable. Caution: risk of fire If the refrigerant circuit should be damaged: ✓

Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety • We decline any liability in respect of incidents caused by poor electrical installation. • The power cord must not be lengthened. Do not use an extension cable, or adapter, or multi-way socket. • Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire. • Make sure that you can access the main plug of the appliance. • Do not pull the main cable. • Ensure that the appliance is always electrically earthed. • If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. • You must not operate the appliance without the interior lighting lamp cover. • The cellar is only applied with power supply of single phase alternating current of 220~240V/50Hz. • Do not attempt to replace a damaged power cable, contact your after-sales service. • The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician. Daily use • This appliance is intended to be used exclusively for the storage of wine. • Do not store flammable gas or liquids in the appliance. There is a risk of an explosion. • Do not operate any electrical appliances in the appliance (electric ice cream makers, mixers etc.). • When unplugging always pull the plug from the mains socket and do not pull on the cable. • Do not place hot items near the plastic components of this appliance. • The appliance manufactures storage recommendations should be strictly 35

adhered to. Refer to relevant instructions for storage. • Keep burning candles lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping beverages in normal household as explained in this instruction booklet. • The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances. • Never use the base, drawers, doors etc. to stand on or as supports. • To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put food into the appliance. Caution: cleaning and servicing • Before carrying out servicing, switch off the power supply and disconnect the appliance. • When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances. • Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. • Do not use sharp or pointed objects to remove ice. Use a plastic scraper. Important information concerning installation • It is intended to be used exclusively for the storage of wine. • This refrigerating appliance is not suitable for the freezing foodstuffs. • The wine cooler is recommended to be designed at 12°C. • The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances. • Avoid locating the unit in moist areas. 36

• Keep the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly. • Plug the wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center. • To ensure proper electrical connection, follow the recommendations given in the present manual. • Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging. • It is recommended that the appliance be allowed to settle for at least 24 hours before connecting the electrical power supply, so that the compressor fluid feed is correct. • Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided. • In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations. • The appliance should not be placed close to radiators or cooking hot plates or gas rings. • Check that electrical sockets remain accessible when the appliance is installed. • When positioning the appliance, ensure the supply cord is not trapped or damaged. Power saving To limit the electricity consumption of your appliance: 37

Install it in an appropriate place (see “Installation instructions”).

Leave the doors open as little time as possible.

To ensure that the appliance operates properly, clean the condenser regularly (see “Maintenance”).

Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit. There are four shelves and one display shelf in total.

The appliance's thermostat is electronic and allows you to set the temperature between 5 and 20 degrees. For wine storage, it is recommended that you set your appliance to 12 degrees. This temperature can be adapted according to the type of wine stored. Setting the temperature above 12 degrees will reduce the energy consumption of the appliance. Setting the temperature below 12 degrees will increase the energy consumption of the appliance. Some models allow you to set different temperature levels in the same cellar. The appliance ensures that the temperature is maintained as long as it is in operation and used under 38

normal conditions. The temperature inside the appliance can be influenced by many factors: room temperature, exposure to the sun, number of door openings and the number of bottles stored... Slight changes in temperature are perfectly normal. Trouble shooting • Any electrical work should be carried out by a qualified and skilled technician. • The appliance should be repaired by an accredited repair centre, using only manufacturer’s original spare parts. The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other use.

R600a Safety instructions • Caution — Do not obstruct the ventilation grills on the appliance. Keep ventilation openings in the appliance enclosure or in the structure for building- in clear of obstruction. • Caution — Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance. • Caution — Do not damage the refrigerating circuit in the appliance. • Caution — The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate. 39

• Caution — Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance meets the requirements of all applicable European directives and their amendments.

EPREL To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

2. DESCRIPTION OF THE APPLIANCE

Control panel Glass door Fan mask Full size shelf Display shelf Plinth Feet

3. TECHNICAL DATA Below is an example of the nameplate:

The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance. We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).

Once the appliance is installed and loaded, access to it is not so easy. CAUTION: no assistance can be provided without this information.

4. INSTALLATION INSTRUCTIONS Before using this appliance • Remove the exterior and interior packing. • Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. • Clean the interior surface with lukewarm water using a soft cloth. • When disposing your appliance, please choose an authorized disposal site. • Use two or more suitably qualified people to move and install the appliance. Failure to do so can result in back or other injury. • Place your wine cooler on a position that is strong enough to support it when it is fully loaded. To level your wine cooler, adjust the front leveling leg at the bottom of the wine cooler. • Adequate ventilation is required, do not block the front air outlet. • Not designed for placement in adage or basement. • The appliance is for indoor use only.

• This wine cellar is designed for free-standing or built-under installation. • Connect the cellar to a single socket and be careful to support it, so that your wine cellar is perfectly level (use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

• This appliance is intended to be used exclusively for the storage of wine. • This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation. Attention • Store wine in sealed bottles. • Do not overload the cabinet. • Do not open the door unless necessary. • Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation. • Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming. CAUTION: please keep the appliance away from substance, which can cause ignition. Ambient room temperature limits This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C Built-in installation drawings

Fixation to the furniture WARNING: Risk of the product tipping over when the door is opened, the appliance must be fixed to the furniture. In order to ensure the stability of your device, use the supplied bracket according to the diagram below.

Remove the cover caps as shown in picture A.

2. With the help of the screws (1), place the fixing plate (2) as shown in picture B. Do not tighten the screws (1) to facilitate the adjustment of the fixing plate (2). 3.

With the help of the screws (3), fix the fixing plate against the furniture as shown in picture C.

Fasten the screws (1) more tightly to ensure that the appliance is held securely.

Installing the handle Your appliance has a top handle. To fit it, simply screw it onto the door with the screws supplied as per the diagram below, having first removed the seal.

Reversing the door The door can be changed from left and right side. No special requirement, all the door is opened from left side. If required to open from right side please refer to the following direction.

1. Lower hinge (right) 4. Door 7. Top hinge (left) 10. Door limit device

5. Top hinge (Right) 8. Decorative nail 11. Screw

6. Hinge screws 9. Lower hinge (left) 12. Plug

5. Open the door to 90 degrees, remove the two screws (2) from the lower door axis (3), remove the door (4) and door axis (Fig. A). 6. Position the door (4) safely and remove the plug (12) from the top of the door frame. Unscrew one screw (11) at the bottom and remove the door limit device (10). Install the door limit device (10) at the top of the door frame. Please use the spare plug (12) to block the hole at the top of the door frame (Fig. A/B). 7.

Take out three hinge screws (6) from the upper hinge (right) (5) and remove it (Fig. C).

8. Remove the decorative nail (8) from the top left of the cabinet and install the spare top hinge (left) (7) on the top left of the cabinet with three screws (Fig. D). 9. 10. is aligned. 11.

Install the spare lower hinge (left) (9) according to the above procedure (Fig. E). The door opens to 180 degrees. Install the door in the same way as it was removed and fix it so that the door Block the hole at the top right of the cabinet with the spare decorative nail (8).

5. OPERATING INSTRUCTIONS It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32°C. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected and it may not be possible to obtain temperature between 512°C/12-20°C. The ambient temperature has an impact on the interior temperature and humidity of your cellar. For optimal operation, the settings of your cellar are made for ambient temperatures of 23°C to 25°C.

A B C D E F G H I J ON/OFF switch, turn on by pressing once, turn off by pressing and holding 5 seconds. Decrease temperature of 1 degree Celsius or Fahrenheit. Raise temperature of 1 degree Celsius or Fahrenheit. Display shows upper zone temperature at its setting. Temperature display in Celsius. Temperature display in Fahrenheit. Display shows lower zone temperature at its setting. Compartment selecting switch (lower or upper one). Once the compartment has been selected, it will show setting temperature as flash, 5 seconds later flash will stop and setting temperature will be showing Alarm cancel switch, press once to cancel the alarm. Press and hold 5 seconds to change Celsius or Fahrenheit. Light ON/OFF switch, turn on and turn off the light.

Temperature selection The wine cooler has two temperature zones. The temperature setting of upper zone is adjustable with the range 5-12°C, which is ideal for storing sparkling and white wines. The temperature setting of lower zone is adjustable with the range 12-20°C, which is ideal for storing white and red wines. NOTE: both two zones temperature could be set at 12ºC, and it is workable at the same time. But for optimal performance, once one zone is set at 12ºC, we suggest another setting for the other zone with 3°C difference at minimum (example: 5°C upper and 8°C lower). Maximum temperature difference between both compartments is 10°C. Always set cooler temperature in the upper compartment and warmer temperature in the lower compartment (example: 5°C upper and 15°C lower). • To select the temperature zone, press (H) once, upper zone will flash, (H) key pressing again to switch it to lower zone. Setting temperature could only be set under display flash status. • You can touch key “+” (C) and key “-” (B) to set the internal temperature for the selected zone. The degrees indicators will appear in the display window marked for upper zone and for lower zone. • When the unit is plugged in for the first time, the LED readouts will show the original temperature set previously. Touch the “+” (C) and “-” (B) mark once of each compartment to set the desired temperature. • The temperature will increase by 1°C or 1ºF if you touch the “+” (C) mark once, or the temperature will decrease by 1°C or 1ºF if you touch the “-” (B) mark once.

When the surrounding temperature is 25℃ and the wine cooler has no bottle loaded, it will take around 12 minutes to increase the wine cooler’s temperature from 5℃ to 12℃. Under the same circumstance, it will take around 25 minutes to decrease the wine cooler’s temperature from 12℃ to 5℃. The less the temperature span is, the less time it will take. The setting temperature of upper zone should be lower than the setting temperature of lower zone Temperature display Display show at its setting. To view the actual temperature in either zone at any time, touch key (B) and key (C) for 3 second, the display will display two zone’s actual temperature with flashing, and it will quit by holding stop.

NOTE: when first used or after operating the wine cellar after a long period of inactivity, the inner temperature will not immediately be the temperature setting on the display. Indeed, it is necessary to wait a few hours for a temperature adjustment of the wine cellar in order to have a homogeneous temperature. To avoid excessive condensation when the ambient temperature is above 28°C, do not lower the temperature to below 7°C.

IMPORTANT: after unplugging, turning off the power or after a power failure, it is imperative to wait 5 minutes before turning it on again. Temperature alarm Your appliance is equipped with a visual and audible temperature alarm. If the error codes HH and LL appear on the control panel display, check that you are not in the following situations: - The appliance door is not closed properly - The appliance has been switched on within the last 24 hours, or you have added a large quantity of bottles at one time. In this case it may take longer to reach the required temperature. The initial ambient temperature or the number of bottles installed in the appliance may have an impact on the internal temperature. If this is not the case, switch off and unplug the appliance and contact the Service Department with the code that was displayed. Door alarm If the door has been left open for more than 60s, the alarm will sound. Press key I once to stop the sound alarm if the noise disturbs you. Interior light The interior light makes it easy to view your wines labels and enhances the display of your collection. Touching and holding the mark (J) 5 seconds toggles between two modes of operation for the internal lights: -

Functional mode (default): the light will turn on only when the door is open, this is the most economic mode Showcase mode: light will turn on/off only by short touching of light key J.

Modes SABBATH MODE Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light and audible alarms and prevents them from turning on again. Normal cooling operations will still take place. To initiate sabbath mode, press the power (A) and light (J) keys at the same time for at least 5 seconds. The indicator light will flash four times and confirm the sabbath mode is ON. Sabbath mode can be stopped by repeating the above process. The sabbath mode will automatically exit after 96 hours.

ECO DEMO MODE Eco demo mode can be activated by presenting the appliance at exhibitions, shows or in salesrooms. In eco demo mode, compressor and all fan motors are switched OFF. By pressing and holding the “+” and “- ” (C and B) and light (J) keys at the same time for at least 5 seconds, the indicator light will flash five times to confirm the input and the unit will operate in eco demo mode. Eco demo mode can be abandoned by repeating the above process, be noted that compressor and fan will activate 5 minutes later (for compressor protection reason).

6. EQUIPMENT The climate control system According to advice from specialists, the ideal temperature for storing wine is around 12°C, within a bracket of 10 to 14°C. Do not confuse this with service temperature, which varies between 5 and 20°C, depending on the specific nature of the wine. It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature. The anti-vibration system The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines. The anti-UV system Light accelerates the ageing of wine. In our solid door cellars, your wines are naturally protected, on condition, of course, that the door is not opened too often. This glass-door model has been specially treated and filters out harmful ultraviolet rays, thus ensuring your wines are perfectly shielded. Defrosting Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance’s refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray. Shelves •

To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.

For easier access to the contents of the shelves, slide the shelf out approximately one third of the way. The shelves are, however, fitted with a stop to prevent the bottles falling out.

To remove or reposition the shelves, move the shelf to the position where the notch of wooden shelf is exactly under the plastic post and lift the wooden shelf. Please ensure these are replaced when the shelf is put back.

7. LOADING The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in liters). They correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux” bottle -standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height. In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum. Types of bottle:

We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. You will note the storage differences depending on bottle heights, diameters and alternating position method. For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

Criss-crossing types Top-to-bottom neck-to-neck: Note the difference in depth! Top-to-bottom neck between bottle bodies: Increased loading. -

Verify that you can shut the door without touching a bottle before closing. When loading several bottles at once, it will take more time for the unit to reach the desired temperature.

Announced capacity The announced capacity is the maximum capacity calculated with a defined number of shelves, which varies according to the model. This standard is calculated with 75cl bottles of the traditional Bordeaux type. Any other type of bottle size and the addition of shelves will considerably reduce the storage capacity. Below is the loading plan with the maximum announced capacity. The capacity of your wine cellar is measured according to the EN62552 standard.

Examples of serving temperatures Opinions vary, and the ambient temperature too, but many people agree on the following: Prestigious Bordeaux wines – Reds 16 – 17°C Prestigious Burgundy wines – Reds 15 – 16°C Prestigious dry white vintages 14 – 16°C Light, young, fruity reds 11 – 12°C Provence rosés, primeur wines 10 – 12°C Dry whites and vin de pays reds 10 – 12°C Vin de pays whites 8 – 10°C Champagnes 7 – 8°C Sweet wines 6°C

8. CARE AND MAINTENANCE Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit. Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow drying before reconnecting. Do not use solvents or abrasives. When the appliance is switched on for the first time, there may be a residual odor. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odors. In case of a power cut Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, tak e the necessary measures to protect your wine. • If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re- starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires). • When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilize. Vacation time • Short vacations: leave the wine cooler operating during vacations of less than three weeks. • Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary. Moving your wine cooler •

Securely tape down all loose items (shelves) inside your appliance.

Turn the adjustable leg up to the base to avoid damage.

Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

9. IN THE EVENT OF A BREAKDOWN Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer’s aftersales department, please check that: • The appliance is properly plugged in • There is not a power cut in progress • The breakdown is not one of those described in the table at the end of this manual IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury. IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES DEPARTMENT.

Unplug the appliance before carrying out any maintenance or repair work. 10. SPARE PART AND SAV Aesthetic and functional spare parts according to REGULATION (EU) 2019/2019 (Annex II, point 3.), are made available to professional repairers and end users for a period of 7 years or 10 years (List in Annex II, point 3.a.1 and 3.a.2) from the placing on the market of the last unit of the model. The list of spare parts and the procedure for ordering them (professional access / private access) are available on the following website: www.interfroidservices.fr or by post at the following address FRIO Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE For other functional spare parts not specified in the EU regulation 2019/2019, they are available for a period of 10 years. All FRIO wine cellars have a 1-year functional parts warranty. The EU regulation 2019/2019 and its annexes are available on the European website eur-lex.europa.eu

11. TROUBLE SHOOTING You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM Wine cooler does not operate

Wine cooler is not cold enough

Turns on and off frequently

The light does not work

POSSIBLE CAUSE Not plugged in The circuit breaker tripped or a blown fuse Check the temperature control setting External environment may require a higher setting The door is opened too often The door is not closed completely The door gasket does not seal properly The room temperature is hotter than normal A large amount of contents has been added to the wine cooler. The door is open too often The door is not closed completely The temperature control is not set correctly The door gasket does not seal properly Not plugged in The circuit breaker tripped or a blown fuse The bulb has burned out, contact your aftersales service The light switch is “OFF” Check to assure that the wine cooler is level

• • The wine cooler seems to make too much noise • • • • The door will not close properly

Failure LED display Fans do not work anymore « E1 » or « E3 » error code

The rattling noise may come from the flow of the refrigerant, which is normal As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler Contraction and expansion of the inside walls may cause popping and crackling noises The wine cooler is not level The wine cooler is not level The door was reversed and not properly installed The gasket is dirty The shelves are out of position Poor display quality Temperature value does not appear Contact your after-sales service Contact your after-sales service Temperature probe is failing Contact your after-sales service

Replacing light This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your wine cellar, the LEDs were defective, please contact your after-sales service for any intervention.

12. ENVIRONMENT This appliance is marked according to the European directive 2019/290/CE on Waste Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will potential negative consequences for the environment and human health, which could by inappropriate waste handling of this product.

Electrical and help prevent otherwise be caused

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

13. WARNING As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for AVINTAGE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document.
