USER MANUAL 8517S BRAUN

Stapled booklet, 120 x 170 mm, 40 pages (incl. 8 pages cover), 2/2 = PMS485C + black

cassette 83M Series 8

Cassette release button

Contacts for cleaning station (10) / power case (12) usage

to lock the shaver head for a precise shave

Release button to lift up longhair trimmer

Foil replacement Travel lock Cleaning station indicator Low charge / cordless use indicator Battery indicator

Note: Content may vary based on the model purchased

Contacts PowerCase to shaver

Battery Status of the PowerCase

To charge the shaver (max. 50% additional power)

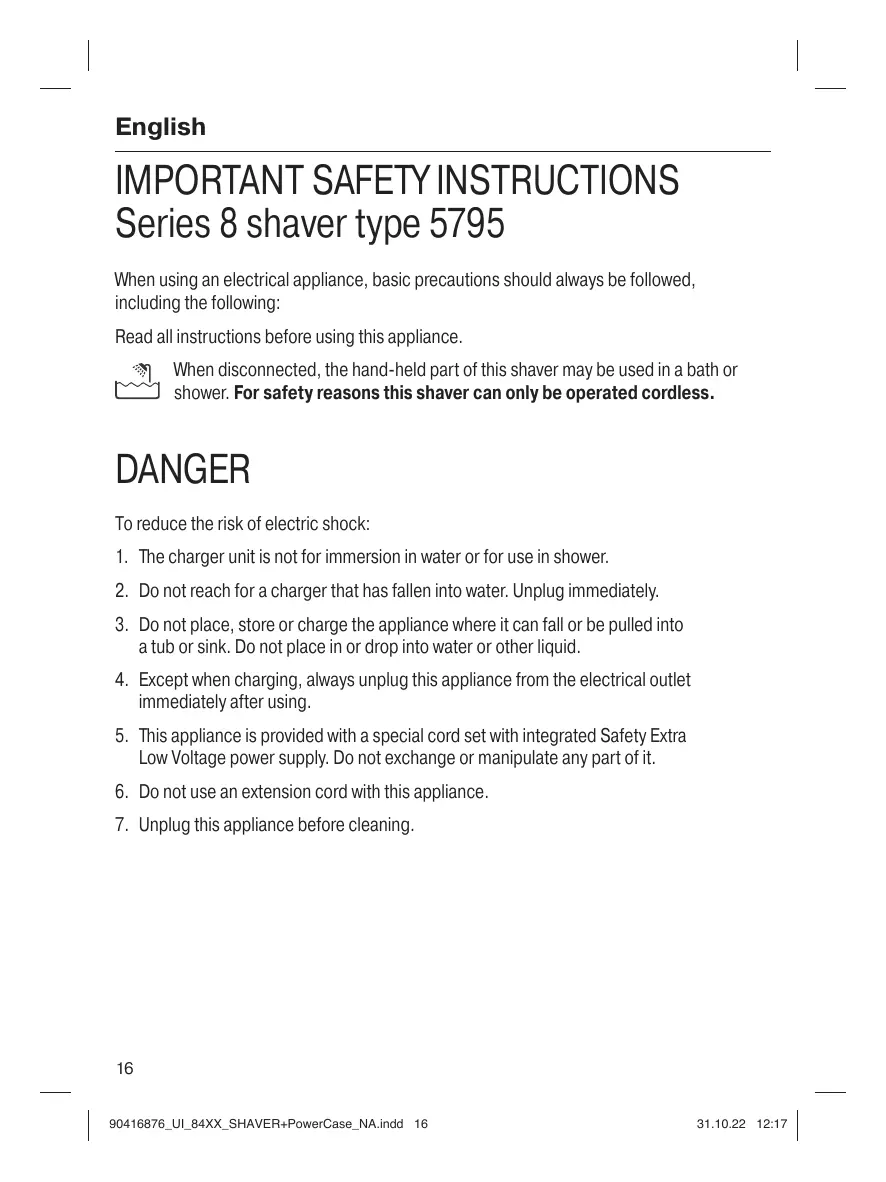

IMPORTANT SAFETY INSTRUCTIONS Series 8 shaver type 5795 When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. When disconnected, the hand-held part of this shaver may be used in a bath or shower. For safety reasons this shaver can only be operated cordless.

DANGER To reduce the risk of electric shock: 1. The charger unit is not for immersion in water or for use in shower. 2. Do not reach for a charger that has fallen into water. Unplug immediately. 3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. 4. Except when charging, always unplug this appliance from the electrical outlet immediately after using. 5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. 6. Do not use an extension cord with this appliance. 7. Unplug this appliance before cleaning.

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 16

IMPORTANT SAFETY INSTRUCTIONS PowerCase type 5796 When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.

DANGER To reduce the risk of electric shock: 1. Use only in dry condition. 2. Do not submerge in water. 3. Do not reach for an appliance that has fallen into water. Unplug immediately. 4. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. 5. Except when charging, always unplug this appliance from the electrical outlet immediately after using. 6. Unplug this appliance before cleaning. 7. Do not use an extension cord with this appliance.

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 17

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. 3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair. 4. Keep the cord away from heated surfaces. 5. Never drop or insert any object into any opening of the appliance. 6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered. 7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur. 8. Always attach plug to appliance first, then to outlet. 9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet’s pin configuration. 10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F), or incinerate. 11. To recharge the battery, only use the detachable power supply provided with , only use Braun power this appliance. If the appliance is marked supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS 18

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 18

This appliance is designed for household use only.

Important Keep power supply, charging stand, PowerCase and cleaning station dry. Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center. Only at the end of the product’s useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it. Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C, for storage and shaving it is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time. The shaver head needs cleaning under hot running water after each foam or gel usage! Switch the shaver on and rinse until all residues have been removed. For hygienic reasons, do not share this appliance with other persons. Shaver needs to be completely dry, when stored or charged in the PowerCase. Wipe the PowerCase with a damp cloth from time to time. For storage the PowerCase should be fully charged and recharged from time to time. Product contains recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice

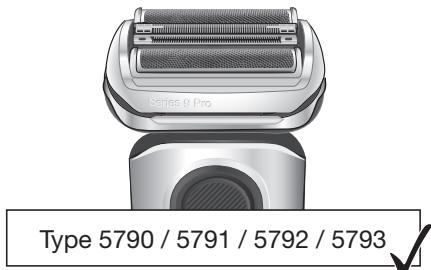

Description 1 Foil & cutter cassette 83M 2 Cassette release button 3 Multi head lock to lock the shaver head for a precise shave 4 On/off button

5 Display - Foil replacement indicator - Travel lock indicator - Cleaning station indicator - Low charge / cordless use indicator - Battery indicator with status bars and minutes left (9 minutes and below) 6 Long hair trimmer 7 Contacts for cleaning station / PowerCase usage 8 Release button to lift up long hair trimmer 9 Power socket 10 Cleaning station (see separate use instructions) 11 Charging stand 12 PowerCase 13 Power supply

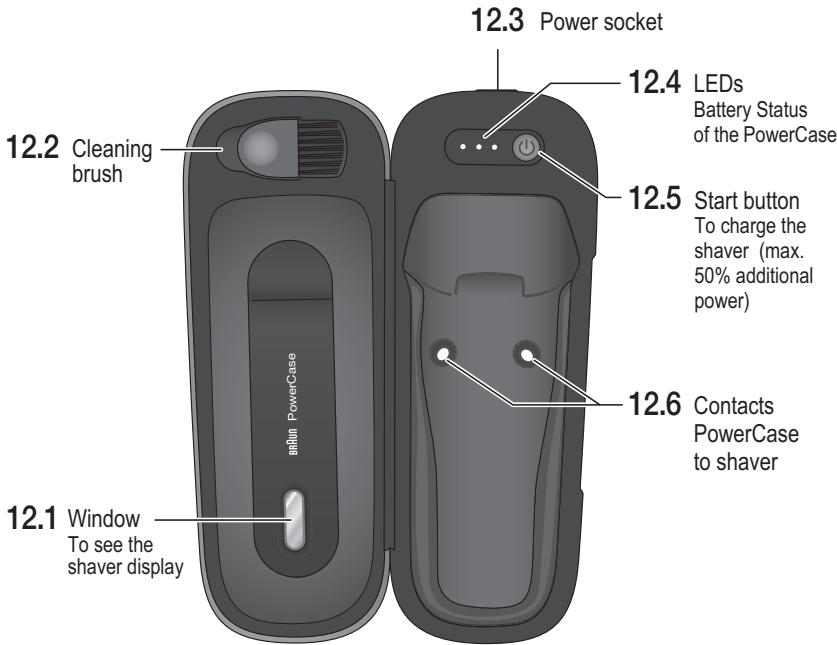

Description PowerCase 12.1 12.2 12.3 12.4 12.5

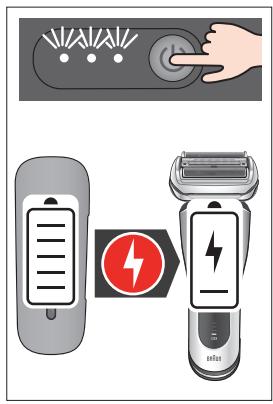

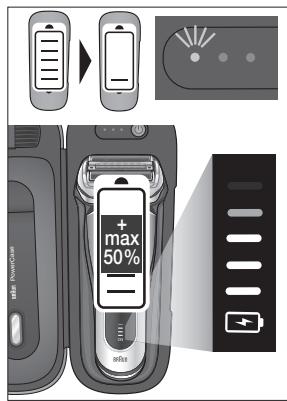

Window to view the shaver display Cleaning brush Power socket Battery status LEDs of the PowerCase Start button to charge the shaver (max. additional 50% battery power) 12.6 Contacts of the PowerCase need to align with the contacts of the shaver Note: Content may vary by model

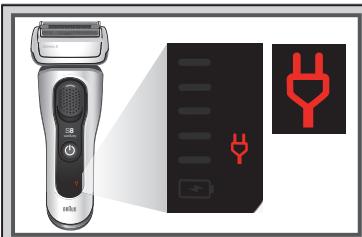

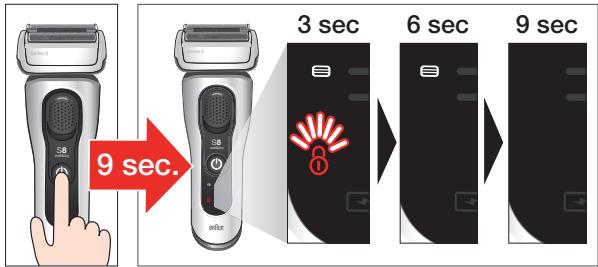

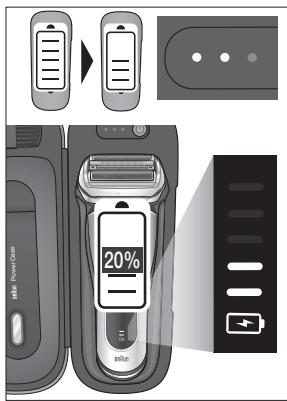

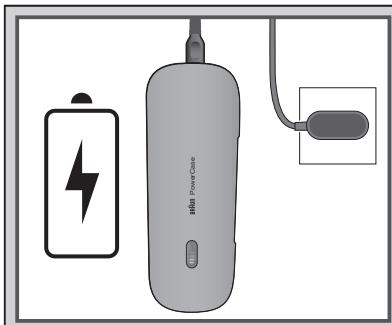

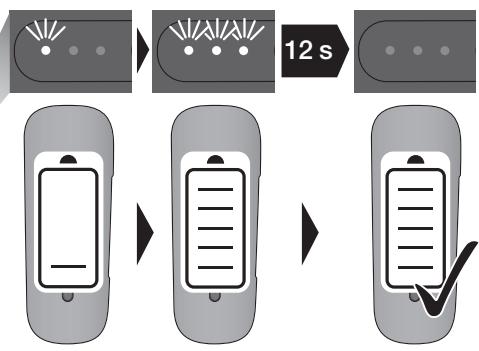

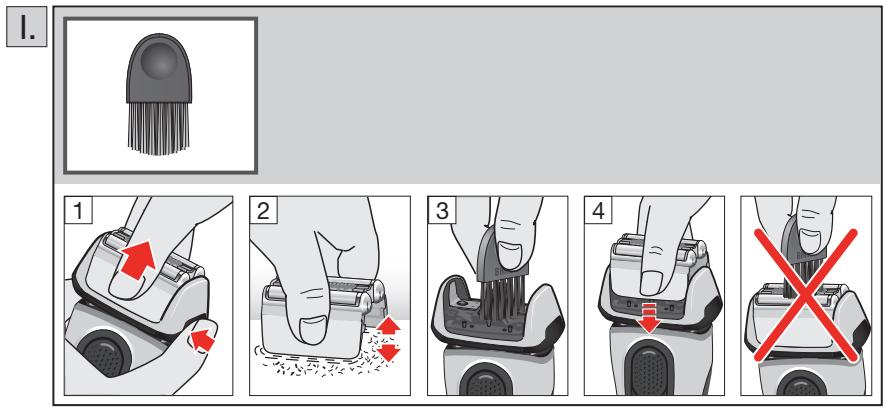

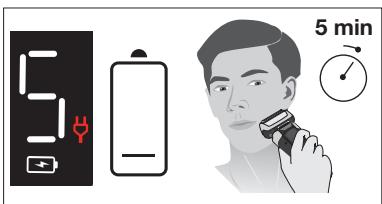

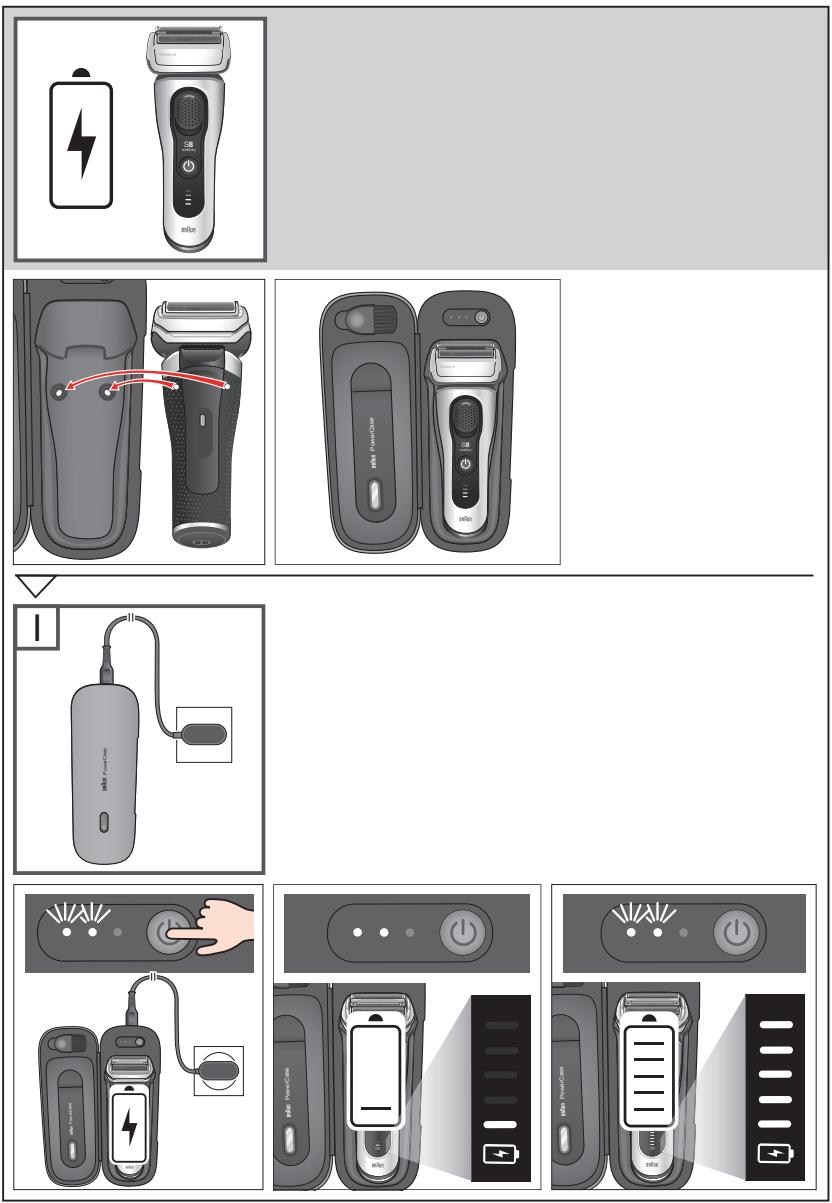

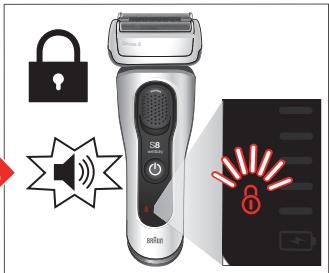

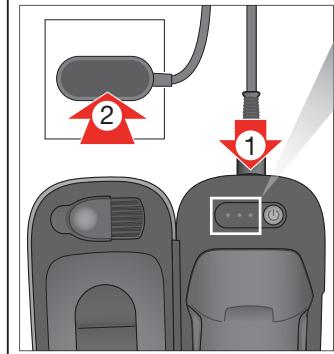

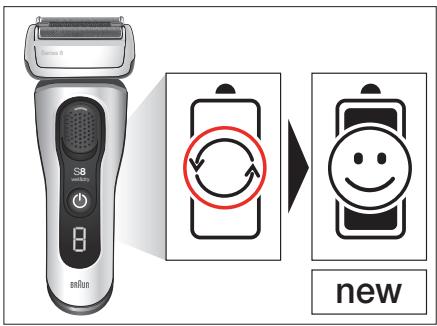

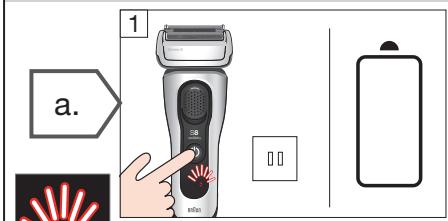

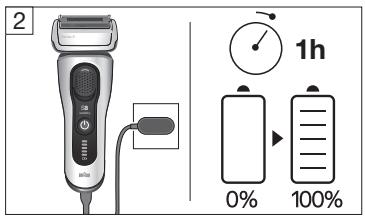

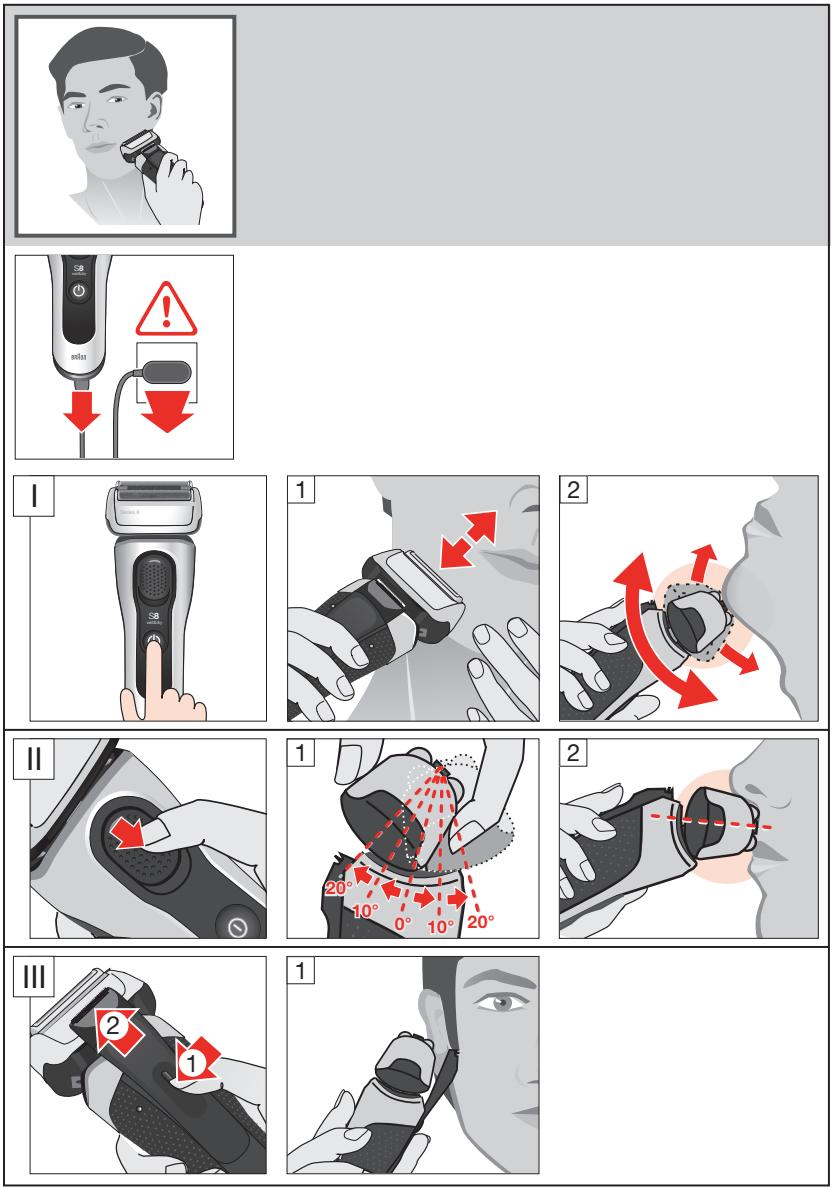

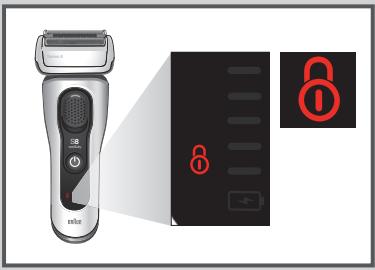

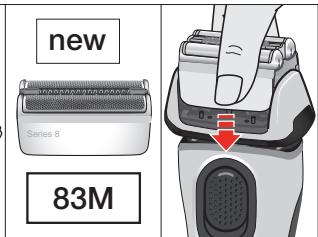

Usage A./B. Charging / Battery C. a. Low charge b. Cordless use D. Shaving E. Travel lock F. Foil replacement G. Automatic cleaning H./I. Manual cleaning J. Battery replacement K. Charging of PowerCase L. Charging of shaver in / from PowerCase

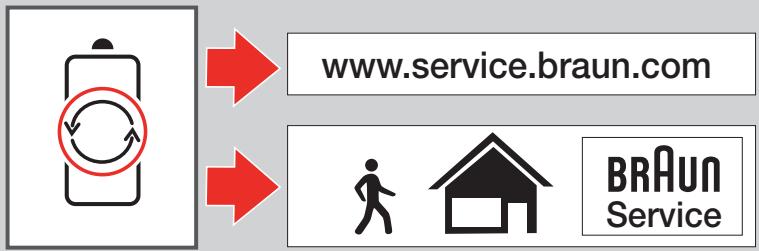

How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611).

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 28

How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative: Please call 1-800-387-6657.

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 29

60 day money back satisfaction guarantee for men’s grooming products Braun Shavers Braun Beard Trimmers Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment. Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase. Please include the following information when you return your product:

Telephone number Please allow 6-8 weeks for handling.

90416876_UI_84XX_SHAVER+PowerCase_NA.indd 30

FOR USA ONLY 2 year limited warranty (foil and cutter block excluded) Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com. This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY 2 year limited warranty (foil and cutter block excluded) In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer. This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts. Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.
