USER MANUAL RB275GM1110 TCL
Two-Door Household Refrigerator Operating Instructions
RB275GM1110
Contents
EN

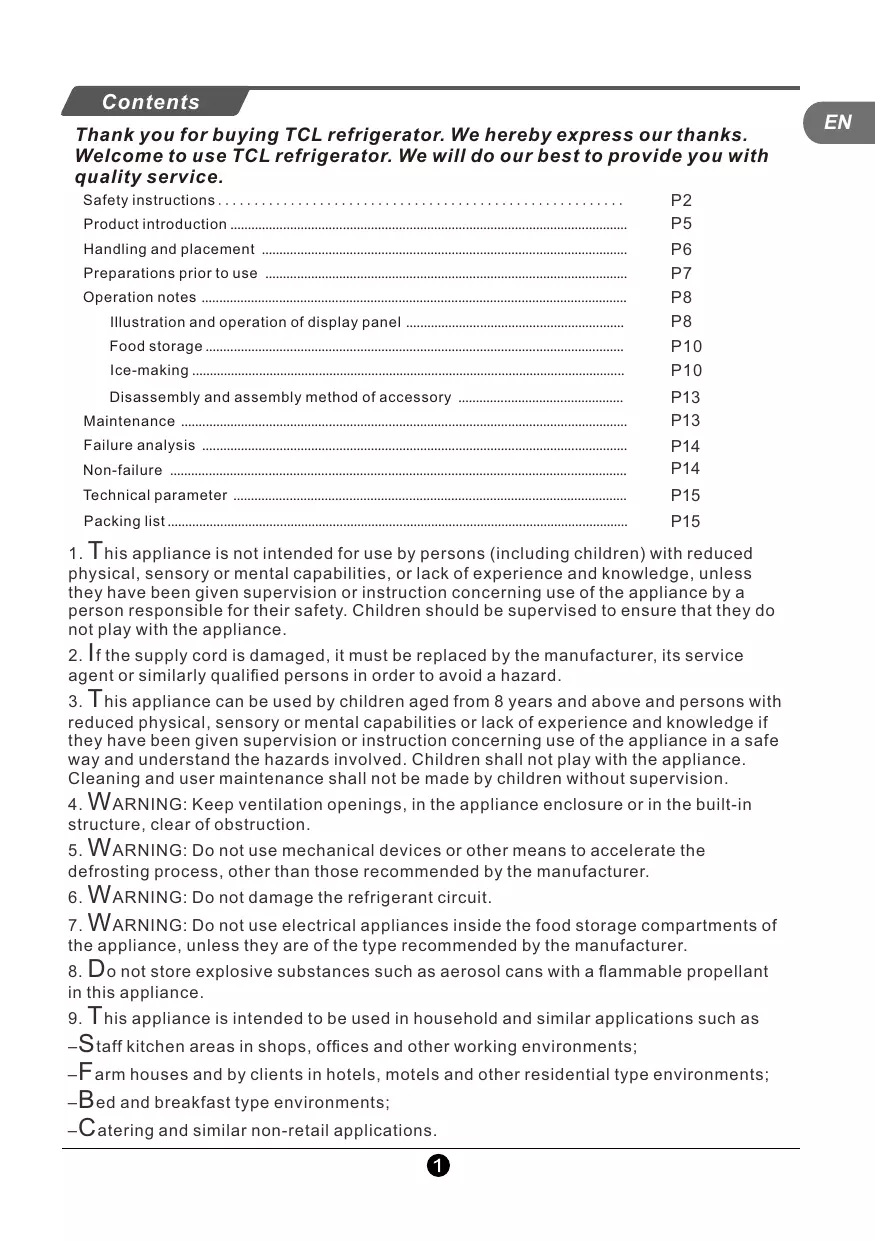

Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service.
Safety instructions P2
Product introduction P5
Handling and placement P6
Preparations prior to use P7
Operation notes P8
Illustration and operation of display panel P8
Food storage P10
Ice-making P10
Disassembly and assembly method of accessory P13
Maintenance P13
Failure analysis P14
Non-failure P14
Technical parameter P15
Packing list P15
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.
7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
9. This appliance is intended to be used in household and similar applications such as
Staff kitchen areas in shops, offices and other working environments;
-Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
-Catering and similar non-retail applications.
1. Warning
Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.
Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.
Warning: Never damage the refrigerating circuit.
Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.
Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.
Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.
Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the aftersales service department of the Company timely.
Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.
Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.
Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.
Warning: Under the climate types N, ST and T, the operating ambient range of the appliance is 16^ 43^ . If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.
Warning: Risk of fire / flammable materials
Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances
Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
2. Cautions
Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.
Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.
Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.
Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.
Cautions: The refrigerator must not be used in the rain or under the sunshine.
Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.
Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.
Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.
Cautions: Refrigerating appliances - in particular a refrigerator-freezer Type I - might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;
Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.
Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.
Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).
Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

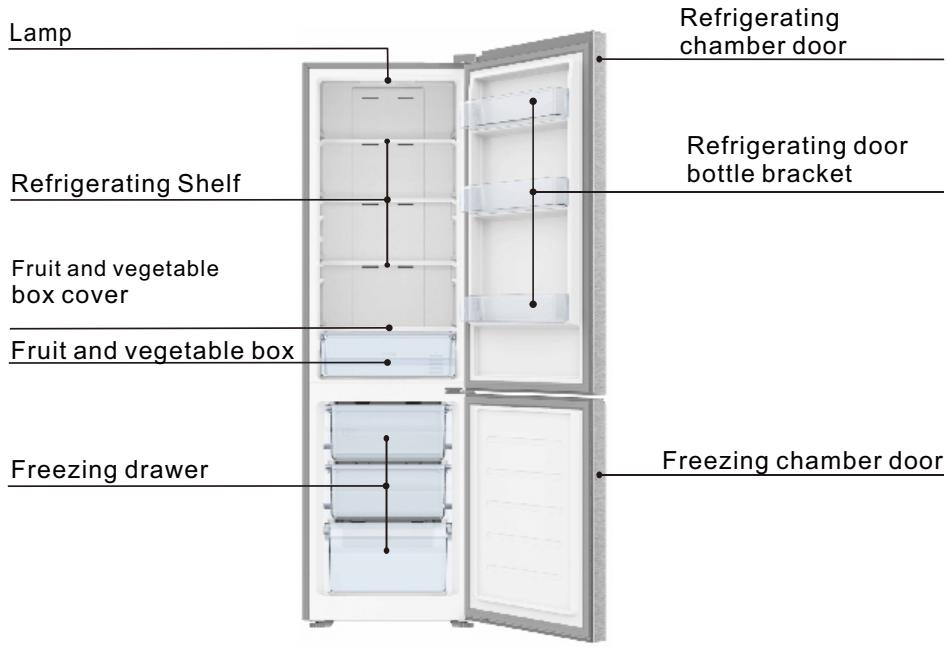

The pictures are for reference only. Please refer to the object
Features
--Computer intelligent temperature control; air cooling and frost free.
--Environmental-friendly refrigerant. It applies materials without CFC, R600a environmental-friendly materials. 80% of the main materials can be recycled;
--Transparent drawers with novel appearances and their internal foods can be clear at a glance;
--The tempered glass refrigeration shelves are height adjustable, wear proof, heat-proof and practical;
--The concealed condenser applies flat back design. It has perfect and coordinated style which is simple, easy to clean and high utility rate of space;
--This product adopts the efficient mute compressor of international brand and special case foaming technology, and features low noise, low energy consumption, and is more suitable for family and commercial purposes.
Warm prompt:
If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application. Please feel relieved about usage.
EN
Certain space shall be left around the refrigerator, shown in the figure.
During handling, the door side of the refrigerator shall not contact with the handling tools
The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.
The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.
Never place the refrigerator into a too cold environment that may get frozen.
Removing the foam base is beneficial for bottom heat dissipation and can avoid fire.
Warm prompt:
--When handling the refrigerator, at least two persons are required - one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).
--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.
--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.
--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise;
--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

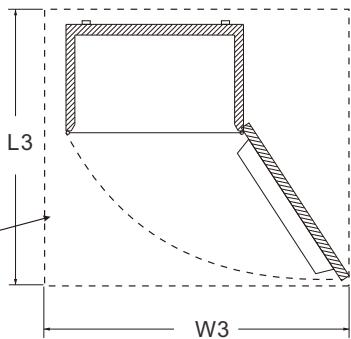

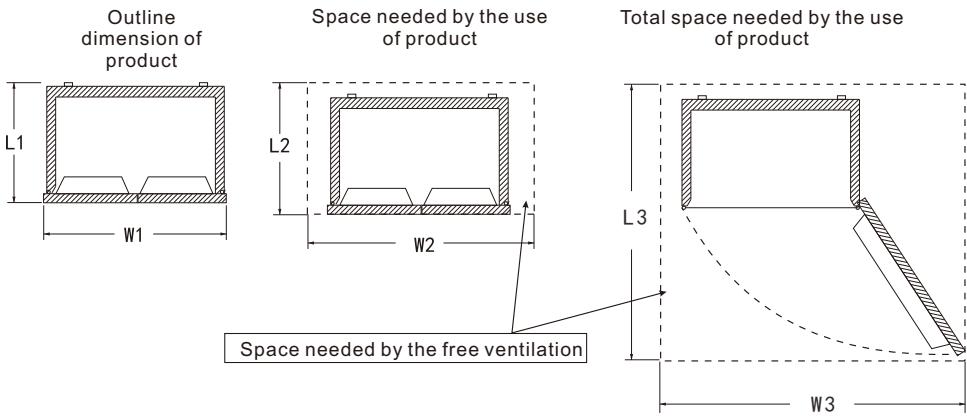

The outline dimension of the product and the space needed by the use of product are shown in the following pictures.
Unit: mm
| Product model | Outline dimension of product | Space needed by the use of product | Total space needed by the use of product | |||
| L1 | W1 | L2 | W2 | L3 | W3 | |
| RB275GM1110 | 615 | 545 | >L1+100 | =W1+200 | >L1+600 | =W1+400 |
Preparations prior to use
- Remove all packing assemblies such as case fixing tape etc., especially the foam base.
- Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
-
After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.
-
Remove fixing tape
In hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day.
2. Connect to power
- Store food after connecting to power for 2-3 hours
The plastics deodorant will disappear automatically after freezing for a while.

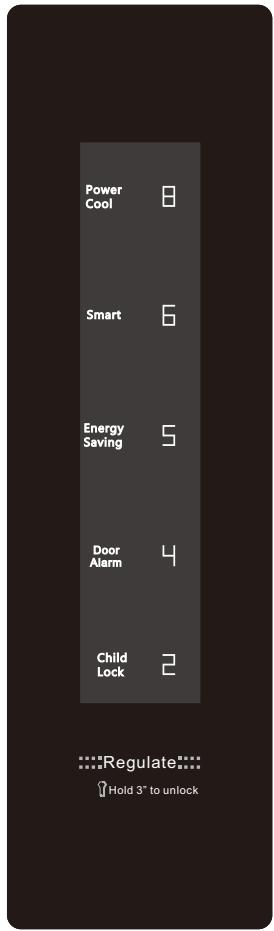

Operation and diagram of display board
The above is the computer control board of the product
Power on for the first time
The first time the power is turned on, the refrigerator runs in 5 speeds.
Child lock function
When there is no key operation in the display for 30 seconds, the child lock function is automatically turned on and the display enters the screen saver mode. In the screen saver mode, the display goes out and the display is awakened by pressing the button for the first time.
When the child lock function is turned on, press and hold the "Temperature Control" key for 3s to unlock the keyboard and the keys are valid.
Gear adjustment
When the child lock function is turned off, press the "Temperature Control" key repeatedly. The refrigerator compartment position is Cycle between "02" → "04" → "05" → "06" → "08" → "power cool" → "smart" → "energy saving" → "02", select the appropriate gear to stop the operation and wait for 5 seconds, the gear is confirmed.
Power cool function
In the unlocked state, press the "Temperature" key repeatedly until the "power cool" icon flashes, stop the key operation and wait for 5 seconds, temperature 2^ under "power cool" function.
Smart function
In the unlocked state, press the "Temperature" key repeatedly until the "smart" icon flashes. Stop the key operation and wait for 5 seconds. temperature 5^ under "smart" function.
Energy saving function
In the unlocked state, press the "Temperature Control" key repeatedly until the "energy saving" icon flashes. Stop the key operation and wait for 5 seconds to enter energy saving.refrigerator room temperature 6^ under "energy saving" function.
Power-off memory
When the power is cut off, the instantaneous working state of blackout will be locked and resume the state after power on.
Door alarm
When the refrigerator or freezer door is not well closed or open for over 1 minute, the buzzer siren will send off sound. Press down any key to stop alarming and the siren sounds "beep, beep, beep" again after I minute;
Display protection function
The refrigerator will enter display protection function without any key operation for 30 seconds, and the key board is locked automatically. Under display protection mode, press any key to exit display protection function.

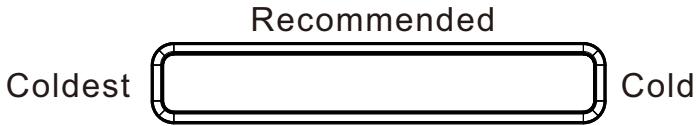

Damper adjustment paddle
Damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.
When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc.
Refrigerator temperature adjustment
When the damper adjustment blade is adjusted to the "cold" side, the amount of cold airblowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.
Freezer temperature adjustment
When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.
Operation keys
Foods storage
Refrigerating chamber (2^ 8^)
--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.
Freezing chamber (-22^ -15^)
--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.
★★Warm tips:
The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.
Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.
Ice-making (If the appliance has it)
Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.
Operation notes
EN

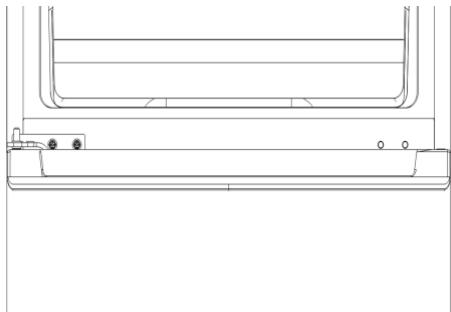

Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed.
1.Close the door, take out the screw from the upper hinge cover with a cross screw driver, remove the hinge cover, and then disassemble the connection terminal, screw off the top hinge, and take down the door. Remove the screw cover on the left.
- Take out the screws of the middle hinge with a cross screwdriver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door.
- Laying down the refrigerator, and remove the lower hinge and leveling angle at the bottom of the refrigerator.
- Remove the wire cover of the upper upper door cover, change the wiring harness from the right side to the left side, install the wire cover of the upper end cover, and change the upper door and lower door stop to the left side. (the replacement of upper door and lower door stop is the same as that of lower door, and the lower left figure will be changed to right picture)
Operation notes
EN

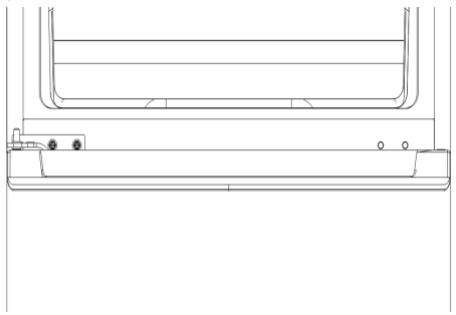

- Disassemble the lower hinge assembly, and then install the leveling foot and screw nut (as shown in the right figure).
- Replace the lower hinge assembly with the leveling angle, and install the lower door.
- Install the middle hinge at the left mounting position, and install the previously removed screw cover to the right screw hole.
- Install the door, connect the terminals, install the upper hinge, the upper hinge cover and the previously removed screw cover. Reverse door complete. (the upper hinge and hinge cover are installed on the left as shown in the figure, and the screw cover is in the right position)
- After the operation is completed, please stand still for a period of time and turn on the power.
Disassembly and assembly method of accessory
--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.
Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.
--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.
Note: Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.
Take out by pulling upwardly and outwardly in a slight way
Take out by pulling outwardly and upwardly in a slight way
Maintenance
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.
--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;
--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.
Inspections after maintenance:
- Whether there are damages to the power line and plug;
- Whether there are dusts on the power plug;
- Whether there is abnormal heat on the plug;
- Whether the socket is loose; 5. Whether the plug is totally inserted.
Unplug the refrigerator plug before cleaning
Note:
If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before replugging it;
Do not put your hands under the refrigerator to avoid getting hurt.
Please use neutral detergent
Failure analysis
EN
The following items shall be inspected before occurring failures which require maintenance:
Failures: Refrigerator does not work, the refrigeration effect is poor
Causes: 1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.
Remedies: 1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.
Failures: Foods in refrigerating chamber are frozen
Causes: 1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.
Remedies: 1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf
Failures: There is abnormal sound in refrigerator
Causes: 1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.
Remedies: 1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.
Failures: There is abnormal odor in refrigerator
Causes: 1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time. Remedies: 1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.
Non-failures
Phenomenon: Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.
Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.
Phenomenon: The door is too tight and not easy to open
Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.
Phenomenon: There is water ripple in refrigerator
Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.
Phenomenon: There is "Click" sound or tick sound in refrigerator
Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator
Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)
Phenomenon: There is condensation or frosting freezing chamber door surface or food surface
Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped
Phenomenon: There is condensation on the built-in light surface
Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.
Phenomenon: There is condensation and water mist on body
Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation
| Model | RB275GM1110 | ||||||
| Climate type | N/ST/T | ||||||
| Electric shock resistance | I | ||||||
| Star sign | **** | ||||||
| Total Storage Volume | 275L | ||||||
| Storage Volume of Freezer | 72L | ||||||
| Power type | 220-240V~150Hz | ||||||
| Rated current | 0.7A | ||||||
| Power consumption | 0.76kW·h/24h | ||||||
| Lamp power | 1.5W | ||||||
| Weight | 55kg | ||||||
| Dimension | 545x615x1825 | ||||||
| Refrigerant and charge amount | R600a,54g | ||||||
| Noise Volume | 42dB(A) |
Packing list
| Annex\Model | RB275GM1110 | ||||||
| Refrigerating shelf | 3 | ||||||
| Fruit and vegetable box cover | 1 | ||||||
| Fruit and vegetable box | 1 | ||||||
| Ice-making box | 1 | ||||||
| Egg box | 1 | ||||||
| Refrigerating door bottle bracke | 3 | ||||||
| Freezing drawer | 3 | ||||||
| Operating instruction | 1 |
EN
Material number: 8B110-000806
Edition: 202006-A.1
TCL
The Creative Life
He yBJIeTcHepoJaKoI P14
Texnueckne napameTpbl P15
UnaKOBouHbI JnCT P15
- 3TOT npi6bop He npedHa3nauhen Iyra nCnoIb3ObaHna Iuizamn (BkIouaJeTee) 6ez doCTaOHTHO ONBtA i 3HaHn IuN C oRpaHnueHbIMn Fn3UneckmN, CeHCOPbIMn IIn yMCTBeHHbIMn CNOCo6HoCTaMn, 3a INCKIOuHeHem Tex cLyuaeB, KOrDa OHN INCNOJIb3yOt 3TOT npi6bop NOKHTpONe IMu, OTBeTCTBeHHbIX 3a INx 6e3OnacHocTb. CneJyET cNeIntB, YTOsbI detn He irpapan C npi6bOpom.
- EcniuHyp 3neKtponntaHnnoBpeJdeH, ero cneJeYet 3amEnHt, Ho B cIeX 6e3oNaChocTn deNaTb 3TO pa3peWaeTcra TOJIbKO npOn3BOUInTeHIO, CnyX6e peMOHTa ININ INbIM IINaM, ObnadaOuIm Heo6xOUMo KBaINΦNkaCnei N 3HaHnMaM.
3.ДeTЯн He mnaIaIe 8 let n IInIaM c OrpaHnueHHbIMn ΦnIuYeCKmN, ceHcOpHbIMn nIIN yMCTBeHbIMn CnOcO6HOCTaMn nIIN COTcyTCTBHeM ONbTa n 3HaHn pa3pe7aEcTcR nONb3OBaTc3 aTNm pNbOporm pNn YCIOBnN, qTO m OBjAChNI, Ka TTo DeNaTb 6e3OnaCHO, n OHn NOHMAoT, Yero CTouT ONacatbCn Pn NcNoJIb3OBAHnN np6oba. DeTЯm 3aNpe7aEcTc rIrPab c DaHbIM np6OBom. DeTЯm 3aNpe7aEcTc np6OBaNTb OUcNtKy n TeKyuee o6cnyJxBaHne np6oRa 6e3 npNCMTpa co cTOpOHb B3pocblix. - BHIMAHHE: He nepekpblaBte BeHTnIaHNoHHbIe OTBepCTna Ha KOpnyce npnbopa nnn BHyTprn Hero! B clyuae, ecJn OHI nepekpbltbl, He3aMeIITneIbHo yctpaHnTe npnuHny nepekpbltnia.
- BHIMAHNE: 3anpeeheo nCnOJb30BaTb mExaHnueckne npncnoc6IeHn IIn dpyrne cpeDCTBa dJIy yCKopeHnI pOuceca pa3MOpaxKuBaHnI, 3a NCKJIUoyHeHm peKOMeHNDoBaHHbIX npOn3BOUnTeIeM.
- BHIMAHVE: 3anpeaetcHapuatb cenocthoctb cnCTembl cnpkyjauxn XOIOJNbHoro arenta.
- BHIMAHNE: 3anpeaetcncnoIb3ObaTb IIO6be 3JeKtpnueckne np6opb BHytpn XoNOnIbHnka, Kpome peKOMeHNDoBaHHbIX npOn3BODnTeJIem.
- 3anpeaetcxaHntb B 3TOM npnbope B3pbIBOONachbIe BeIecTbA, TAKHe KaK a3pO30JIbHbIe 6aJIIOHUnK C ORHeONaChbIM pOneJIJeHTOM.
- ΘTOT npn6op npednonaraetc nCnoJb3ObaT b 6bity u n IaI aHaIOnuHbIX ueJe, HapnPmep,
-Bkyxohhbx yrOknaxIyI cOTpydHnKOB bMaRa3nHaX, oΦncax I Na dpyrnx pa6oynx MeCTax;
-HaΦepeMaxI B HOMepax roctnHnU, MoteJIeN I npOuNX MeCTAX npOxKbAHnJIIOJe;
-Bxoctenax; - Ha 6aHKeTax n TOMy noo6hBix MeponpnaTnax, He CBra3aHHbIX C po3HnuHoT TOPROBnei.
1. BhimaHne
BhImaHne: He 3aRpOMoKdAaTe npocTpaHCTBO BOKpyr np6bopa nnu shkaΦa, B KOTOpbI OH BcTpoEh, YTObI He hapywaTb BeHTnlaZIO.
BHHMaHHe: 3aPpeuaeTcIy uckopeHn npoecca pa3mOpaxnBaHn nCnoB3ObaTb IIObIe MEXAHueckne npncnocO6JIeHn IIN INhIe MeToDbI, 3a NCKIIOUeHNEm peKOMeHDoBaHHbIX npOn3BOUnTeJIem.
BhimaHne: He hapyaatae cenocthoctb kontypa ukpnyaun xnaadaentHa.
BHMaHHe: He nCnoJb3yIe BHyTpI xOJIoJbHOrI MOpO3JbHOrO OTeJeHEn 3JIeKtpo6OpdyObaHHe, 3a NCKJIuOHeHHem peKOMeHNDoBaHHOrI pOn3BOdnteJIeM.
BHHMaHHe: He nOmeaaiTe B MOpO3nJIbHOe OTdJeIeHne XnKoCTn NnIuY B CTeKJIaHHbIX emKoCTx, BO n36eKaHne pNcKa paCTpeCKnBaHnna 3tNx EMKOCTei.
BhImaHne: EcIIN XOLOIOJIbHnK 6bl ONTOKIIOUeH OT 3NeKTPocETn, NOBTOPHoe NODKJIIOUeHNE K Hei MOxHO npoIN3BOOnITb, BByJdAB He MeHee 5 MNHT, BO n36ExAHne NOBpeXJeHnKOMnPecccopa.
BhImaHne: EcIn B npoucece 3Kcnpnyatauunn Bbl o6napyjnte oroneHHb npoBOD noD haprrkHeHem, ycblwnte HeoobHybI yum, NouyBCTByte Te HeoobHybI 3anaX, yBUnTe Dbl mI nCtOKNHeTcB CdpYrMn HETINNHybIM dIra HopMaIbHO pa60bI npi6bopa rBNeHmN, Heo6xOdmo HemeJeHNO obecToHTb npi6bp IN B cpoHOM nop8aKe CBa3aTbcS co Cnyk6oB noDpepKKn Kompannn.
BhImaHHe NoDCOBbIaTe NaOHO NOD XoNoDJIbHnK, B OcObeHnOCTn, NOe TbJIbHyIO YAcTb, YTO6bl He NoCapanaTbC8 o6OctpBe NOBepxHocTn.
BHHMaHHe: DeTm 3anpeaetcI rpaTb C xOJOnIbHnKOM n B36papTbcra Ha Hero. Bo n36ekaHne onaChbIX cHTyaun IcNoJIb3OBaHne XoJOnJIbHnKa DeTbMn DOJXHO oCyueCTBnTbC rno npncmotpom pOuTeNei.
BhImaHne: OTKpbIBa n 3akpbIBa BdEepn XOJOnMbHnKa, He depXHTecb 3a nx Kpa, qTO6bl He npuIeMnTb NaIbCuI. Ipn OTKpbITnN 3akpbITnN DBepe NxOJOnMbHnKa, noJIb3yItecb pyKoTkAmn DBepe.
BhImaHne: npn KInMaTnuecknx KnaCax N, ST n Tpa6oay OkpykaIoUaTe TMpepaTypa npnbopa coCTabIaIeT 16 ^ C 43^ . Ecnn TempepaTypa OkpykaIoUeTo BO3duXa 3a npedeJaMnyka3aHHbIX 3NaueHni, npnbop He cmoKet oBeCneuHT bTre6yEmy To TMpepaTypu BHyTpnu XoJOniNbHOm MOpO3NJbHO KAmep.
BHHMaHHe: IopKaOpOanacHO!IerKOBocPJaMeHJeUoIeSc MaTePnaJIbI!
BHHMaHHe: Ppu yctaHOBKe npnbopa He donyckaTe cnytbBaHne n nobpejdeHne shHpa 3JIeKtpOnTuHaHn.
BhImaHne: He pa3MeuaiTe 3NeKtpocetBeBbIe yDInHHteN-pa3BETBnTeN nnn npTaTnBHe iCTouHnKn 3NeKtpo3Heprnn no3aDi np6opa.
IeTAM B Bo3pacte ot 3 do 8 neT 3anpeaetcyaKnaabBaTb npOyKTbB MOpO3nJbHoe OTdeneHne NdoCTaBaTb INx OTTuJa.
He depxnte DBepe np6bopa OKpbTbIMn DInTeIbHoe BpeMra - 3TO npBDOHT K cyueCTBeHHOMy pocty TempepaTpyb BHytpn OTdeJehn.
PeryIaRHO ouHsauTe NOBepxHocTn, KOtOpbIe MOrY BCTynatb B COpnKOCHOHeNc C nIuEByIMn PpOyKTamn, n3JeMeHTbI dpeHaxHoN CnCTeMbI, haoJouIueCeB pIprMOM DoCTyne.
OuHuaTe EMKoCTn DJI B0bl, ECnn OHa He 6blna IcNoIb3ObaHa B TeeHne 48 cAcob, IporoHae BOy NO BoHOn CnCTMe, NpKlnUeHHo K CnCTMe BOOChA6JKeHna, ECnn BOy Hne HaBupaHn Ha npToaXeHHn 5 dHe.
XpaHNTe cbIpoe MRCO IN pbl6y B NOxODaIuNX EMKoCTx B XoIOaINbHnke, YTO6bl OHN He cponkacane C dpYrnni npOdyKtAm nITaHnry u T06bl KpOBb C mca IN pbl6bl He nonaDanaHa dpyrne npOdyKtB nITaHnry.
ÖTecknДпЯзаморожehньхпюдуктов,OTMeueHHeIe IByMЯ 3Be3doUcKamI,прдHa3NaчaIOTcIДпЯханяпсдариТьно 3amopoxeHHbIX npóduKTOB nITaHn,IpNiROTOBJIeHnMOPOjexHOIIJIbДа.
Otceki,OTmeueHHbIe OJHoi,DbymI TpeM3Be3doUkAmn,He npedHa3NaueHbI dJIa 3amopaxnbAHnCBexnx npoDyKTOB nItaHn.
Ecni xoIooHbHe o6OpyObaHne dOnro ocTaeTc He3aOnJIeHHbIM,OTKJIOUHTe erO, pa3MOPo3bTe, BbIMoTe, IpocyuNTe N OCTaBbTe CToTb C OTKpbITbIM N DBepzAmN, YTO6bl npedotBpaTn bnoBHeHne pIecEHn BHyTp nPi6opa.
2.Пре dioctepexeHЯ
IpeoctepexeHn: NCTOCHN KNTAHNA 3TOPO np60pa DOnJxH COOTBcTcBOBaTb OINCAHNIO CTOChNk PNTAHN HA NACnOPTHO TAbnUe Pn60pa. CneyET nCnONb3OBaTB cTaNdAPTHUO He3aBNCmHyO po3ETKy C TpEMy OTBepCTnMn (HaDExHO 3a3emHeHyo, C cnNO ToKa BbIe 10 A). KOnHpo3ETKe DOJIHXo BbIT NoKnUeHo He 6Oone OndHO rYcTpoCTBA. B npOTnBOM CNyueae, MoXe Ipn3OHTn BO3rOpAHNE B C83n C nepePebOM.
IpeoctepexeHn: He tAHnTe wHyp 3JeKtpOniTahnpykam. OToCoeINHpaHyp 3JIeKtpOniTahnO rpo3eTkn, depxNte erO ToBko 3a WTeNCbHyIO BUNKy. 3a WHyp 3JIeKtpOniTahnN uWTeNCbHyIO BUNky MoXHO 6paTbCra TOnBko cyXUMn pykAm BO n36eKaHne yDapa TOKOM.
IpeodoctepexHn: HeIb3a nepekImaTb shHypr 3neKtpOniTahnXoNoDInbHnKOM nI INpyrIM TaeJeBIM o6BeKOM, a TaKHe CINbHO m3ri6abT. NobpeJDeHn eHypa 3eKtpOniTAHn Hn npauHne erO n3Olaun MoKeT 6blpnpuHNO noXapa nn ydapa TOKOM. Ecnn 7Hyp 3neKtpOniTahnCnOMaHnn NnopezAH, HmEJaJIeHNO CBXJITecb CO cnJyXboi TexNuecko IOnDEpKKn.
IpeodocetepeKHeN:BXoNoDnBbHKe 3anpeaetcXpaHntb IerKOBOCpIaMeHJIOuIeCra NII B3pbIBOONaChbIe BeIecTBA,arpeccNBbIe KNCLOTbI NII IeNoU.
IpeoctepexeHn: XoIoOnbHnK 3aPpeHcNcNoB3OBaTb noDdoXdEmnnnoi npMmCoJIneHbIMn Lyamn.
IpeoctepexeHn: 3aPeeucaetcCTaBntb Ha xOIOuINbHnK EMKoCTn C XNIOKoCTbHO:B cnuyae NOBpExdEHHn HnONpOKnDbIBaHHn EMKOCT MoXeT 6bITb HapUSeHa 3NEKtpon3OJauCn XOIOuINbHnKa, yTO MOxet cTaTb PrunHNOJ NOKapa HnYdapa TOKOM.
IpeoctepeKHeHn: 3anpeaetc8e3 pa3peWeHn pa3bnpaTb xoJIoNbHnK nBHOCTbNMeHnBero KOHCTpykCnIO.PeMOHT XoJIoNbHnKa DOJIKeH BbINOJHrTbcraToNbKO CneuJaNCTOM.
Пре dioctepexeHЯ:Всучae ytekn lioboro roropueryra3a, Hanpimep yrolbHoro ra3a, Heobxodmo chauJa nepekpbItb kpaH, OTkyda npOn3oWla yteka, 3aTeM OTkpblb Okho Дя поветрпваньи n HE OTOcOeDnHЯ tB xJIoDnIbHnK OT pOzETKn B vNy puNcKa BO3rOpahn ИИ N B3PbIbA, KOTOpbIe MoKeT cnpOBoCupOBaT b JNeKTPnuCeckar nCKpa.
Пре dioctepexeHЯ:В pa60Te xOJIoNbHOrO o6OpyOBoAHn,ВчaTHOCTN XoJIoNbHnka C MOp3uNbHbIM OTdelenHeM TnnaI,MorYTHa6JIouDaTbcS HapUSeHn (BepoAHTocTb pa3MopaxuBaHnC OedePzHMoR IO JIN HeDcTaTOUHO Hn3KoI TempeaTypbI B MOpO3uNbHOM OTdelenHn),ecnB NOMEseHn,rgDe OHO 3KcPnyATnpyeTcR,B TeueHne DInTeBHo R BpemEH TmpepaTpya Bo3dyXa He PpeBbIshaET HxKHiO rpaHnCu DnApa3OHa TEMpepaTpy,pri KOTopbIX daHnoe o6OpyOBoAHne DoJnxHO 3KcPnyaTnpoBaTbcS;
IpeodoctepekeHn: RaHOBaHHbIe HAnNTKHeJIb3XpaHHTB MOpO3NlBHOM OTDeHEnn mOpO3NlBbIX OTceKaX nII B Hn3KoTeMnePaTyPbIX OTceKaX XoJOniNbHoro OTDeHEnn. HeKoTOpBie npOyKtbl, HanpImep neD, He cJeUyET yNoTpe6JrTB b Nnuy, noka OHn CnIshKom XoJOndHle.
IpeoctepexeHn: Heo6xmoCo6nDaTb cpoK npOyKTOB nHTaHn, pekomehoBaHHbIe Ix npOn3BOuNTeJIaMn.
IpeodocetepexeHn: Heo6xOIMO npHHMaTb Mepb, YTO6bl He dOnyctntb H3NJuHn InporpeB 3amopoxeHHbIX npOyKTOB nITaHn Ipr pa3MopaxkuaBaHn XOLOJNbHO O6OpuyoBaHn. K npimepy, 3amopoxeHHbIe npOyKbI MOXHO o6epHyTB B HeckOJIbKO cNoEB ra3EtHO 6ymaru.
IpeodoctepekeHn: BaKHO nOMHnTB, qTO cPOK xpaHeHHa 3aMOpOKeHHbIX pIoodyKToB nHTAHnMoKTe COKpATnTcR N3-3a NOBblEHHaNX Tempepatypbl npu pa3mopaxkBaHN, o6cnJyXnBAHN nnn ChCTKe XoNOniNbHorO o6OpdyOBaHN
IpeodoctepekeHn: ydeNte oc6oBe BHMaHne xpaHeHIO 3amOpKeHHbIX npOyKTOB, ecnn XoJIoNbHna TexHnka He pa6ToJa dInTeNbHOe Bpemr (n3-3a HapUSeHn 3heprochab6KeHn nn HeuCnpaBHOCTn CnCTeMb OXnAxxdHn).
IpeodocetepexeHn: Heo6xOIMOppeDpNHTb COOTBcTCTByUOme MepbB Cnyae BpeMeHHoro nIn npOdoJXnteNbHOrO OTKnIOUeHnXoIoNlBnHnKa (HaNPmEp, KOrda OH CTOnT NyctOn, BO BpeM qNCTKn, B cNyuae OTKpbToi (-bIX) DBeR(-ei) nIn KpbIuKn(-ek)).

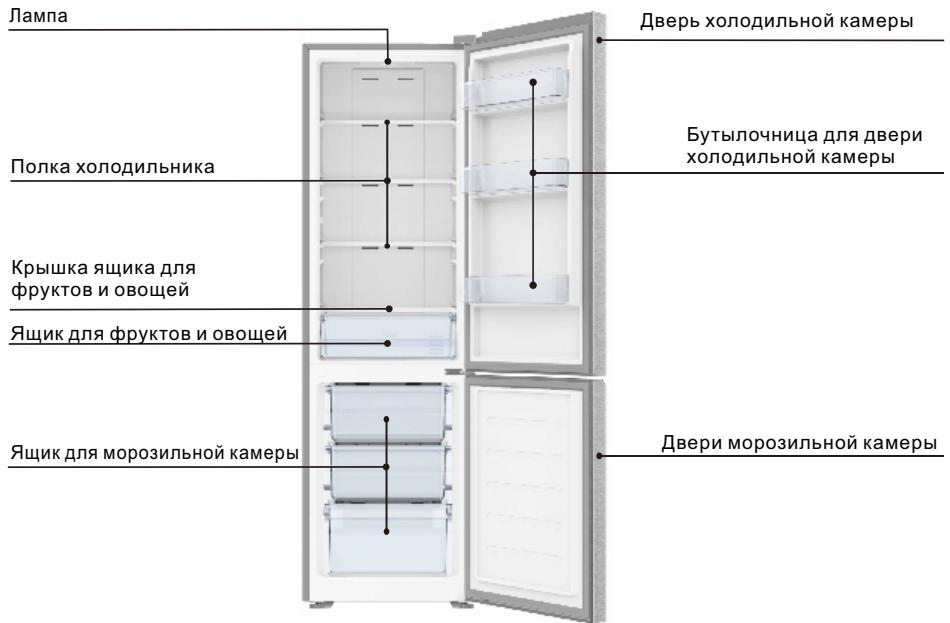

I3o6paXeHnHa HocT CnpaBOuHb XapakTep. B nepByIO oupeDb CBepraTeEc b c npi6opom, a He c I3o6paXeHnMa
XapakTepeNCTKNU
- KomlbioTepeHoe ynpabHeHne TemnepaTpyo C nHTenIeKTyaJIbHbIM pexmOM; fynkuaOxlaJckEnHna Bo3dyxa n cncTeMa Frost free.
-3KoIoruHbI XJaIaTeHT. npMHeHHe MaTePnaJIoB 6e3 CFC, R600a 3KOJIOrnueckn YIcTbIe MaTePnaJIbI. 80% ochOBhIx MaTePnaJIOpIeXaT nepepa6OtKe;
-Прзрачные яшикс совьим Дизайом: поруковы Вин BCERда на Виду;
-ПОЛКИЗЗАКALEНHOrO CTeKlnA N BO3MOxHOCtBOp eryIINpOBKN I NO BbICOTe, I3HOCOCTOKeN, TepMOCTOKeN I npakTnUHbIe;
-KoHdncatop pacnoJIOKEN BHTprn KOpNya, 6naOaIaprYeM3aHnraCTeHka rnaKa. IpeKpaChb, npOduMaHHn laKoHnHyb DN3aHn, oBeceNuBaOnu paNaOHnHaBHOcTB opraHm3aUnn pOcTpaHCTBa nPocSTOTy OuncCTKn XOJNOaHbNHka;
-B3tOM ToBape nCnoB3yeTcA 3ΦΦeKTHNBHb6ecUWMhI KOMPpeccop MExyHapOAnHO B6peHnA IN TExHOONrA CneuaNAbHOrO 3aeneHBaHnKoprnyCa.ToBaXapAKTePN3yET Hn3KnYPOBeHbUMyA, Hn3Koe 3HeprOnOTpeBLeHne, IN6oBleNoDxOoNT DnA CeMbN IN KOMMepuecknx CEneJ.
Baxho 3HaTb:
EcIn BbI nCnObl3yete yUyUeHHbI npOdyKT, OH MoKET OTnHuaTbC8OT OINcaHHO BmHCTpykCm. HoФyHKUOnHnpOBaHne I cNoCobI nCnObl30BaHna OCTaHyTcR Heu3MeHHbIMn. He 6ecNOKoITecb 6tOM Bo BpEma KcPnPyataCm.
Bokpyr xoonodinbHnka doJnHO 6bTb DoCTaTOHO MNO CBOOHDHO mecta.Cm.PcYHOK.
B Xode tpaHcnpoTnpoBKNi MceBaB a ctoPOna OHoXoJIbNtBuHa He OJOnKha KONTaKPOBbTa Cp cpeCTBaMM TpaHcnpoTnpoBKN
XoOJnIbHnKcNedyet
paMeaUbB C yCXM, XoOPOWIO npOBETpBaEMOM nOmeuHInn,
BdANl O nPmBXsCIOJIeHbYbN
nyeu IN uCTOnHKnOB TennA.
XoJNOJIbHNIK DONKENCTOHTHa
nnpckoN nnpOCH NOBepxHOCTN.
EcnIOBepHXocb He nnoCKa,
neooXdoMO OTPERyIPOBaT
peryINPOBOHYN KOxy
XoJNOJbHNIkA,CTO6bl OH CTOR
BEPTIKANbHO.
XOJIOJIbHbNK HEB3a 3aBnTb B CINIKOM XOJOHbIe MecTe, rge OH MOKETpeOeXaNlaCTbC.
YaIaNHeJIeN HeONLACTOBNOJNOJIOKNN 6bnAnrpoTHNo CKa3byaBcTaHnCA OTbOJe TENNa I NOBONET npDeOTBPATHT BO3OPAHoe
Baxho 3HaTb:
-Переньockухолдьнka Heo6xOДИМО OCUшЕСТВЯТБ ВДВОЕМ -ОДИН NOДHIMaET 3a 3aДHIOU BepXHIOU YacTb,ВTOPIOJ -3a 3aДHIOU HIXHIOU YacTb. ПОДБЕМ XOЛДИБHиKa 3a ONDy YacTb DOBOJbHO ONaCEH N MOKeT CtA Tb PrPNUHOr HeCuaCTHOrO CnyaJ.
-Пипенихени xлодьнka nнжня noДстаь мокет NOBpeNTb I noцapanabTЯ nb.Есп.Tpe6byTeСпеpeBstYxonoIbHnK Ha 6BJIoоPacSTOHeNc, BHTpeHNHe элentbI doJnxbl 6blt b3aФИКсрOBaHbI c NOMOtsu KNeiKeoi NeHbI. B npotNBHom cIyuee, ectb pnck, TOT OHI 6bUT 6bTuC dpyr o6dpyra n nobpeDcTcR.
- IopkaIyIcTa, pa3MeCTIte XoIodINbHInK TAK, YTO6bI OH KAK MOxHO MeHbWe Bn6pnpOan. B paOHax, Ine pOnCxOaT 3eMNeTpReCHeN, XoIOAnbHInK Heo6xoImo npKepnIaTB K CTHe IINKPOHwTeHy. EcIn 3TOrO He cDenaTb, OH MoKet yNaCTb N CTaB pIpuHNoH HeCuaCTHorO CnyaA.
- Bokpyr xoJIoDunbHnka dOnJxho 6bIb DocTaOuHo CBo6oDnHO npoctpaHCTBa. 13-3a HeIOCTaOuHOro IpoCTpaHCTBa IIIO NOCTOPOHnX INpeDMeTOB, JEXAunx Ha XoJIoDunbHnke IIN BNIOTHyK HEmy, MoKet 6bITb HApUSeH OTBOd TEnPaOT XoJIoDunbHnka. 3To MOKet pInBeCTN K Heo6OChOBaHOMy PoCtY Notpe6JIeHnA 3JIeKTPo3HePrrn, a TAKKe Bo3rOpaHnIO. Ecnn NocTaubTb XoJIoDunbHnK TblbHO tOPOHO BnIOHTHyO K CTHe, 3To pInBeTeK Bn6paZmM n Wymy;
- YuTo6bI BbIpOBnHrTb XOJOnJIbHnK, OTpErpyInpUyTe IuIeByU CTOpOHy n peRyInpOBoUHyIOHkKy. PnH nepOBHOY yCTaHOBKe XoJOnJIbHnKa BO3HnKaOT Bn6paunn N shm.
TpaHcnpTnpoBka n yctaHOBka
Pa3Mepb npoctpaHCTBa, Heo6xOIMMO rJa 3KcPnyatau n np6opa, n ero ra6apuTHbIe pa3Mepb npedctabJeHbHa cnedeyuOnx pncyHKax.
Ta6apnTbHe paamepb npn6oba
PazmebyipooctpaHCTBa, Heo6xodmOrn4 3ckcnpyataunpnp60pa
O6iue pamehbe, heo6xdoimbte dnnkcnnyataunn npnp60a
PpOCTpaHCTBO,Heo6xoJnMoOE DnB6cnpenTCTBeHHoB BENTINaUN
Unit: mm
- YcTaHOBInTe Ha MeCTO HnXKnH N apHnp B c6ope C yrIOM BbIPaBHBaHnN I yCtAHOBInTe HnXKnIO DBepey.
- YctaHOBNTe cpeHnI shapHnB IeBOM MOHTaXHOM IIOXKeHn I yCTaHOBNTe paHee ChrTyO KpbIshky BInHTa B npaBOe OTBepCTne IJBAHtA.
- UcTaHOBnTE DeBepu, noKKnOChte KNeEMMbI, ycTaHOBnTE BepxHni WapHnp, BepxHIO KoBbIkwy shapHnpa n paHee ChraTyUo KpbIkwy BnHTa. O6paTHa DBebp 3abepWeHa. (BepxHni WapHnp i KpbIwka WapHnpa ycTaHOBnHebI CneBa, KaK NOKa3aHO Ha pncyHke, a KpbIkwKa BnHTa HaxoJNTcB I npabNlbHom nolOKeHH)
CnTuaun: DBepb He nOdaTcN CnNkOM TJeKNo OTKpbBaetc
PnmuHna: NOBtropHe OTKpbIte NDbepr cpa3y je nocpe ee 3akpbTtna 3atpydHeNo, TAK KAc BHTpb KaMepb I nonadaet ropcau Bo3dyu, u Bo3NkaeT pa3HOct JB aBLehen BHTpN i chapuyx KaMepb. Cncyta HeKOTOpoe Bpem ADbep OTKpbIbaeTc JnerKO.
