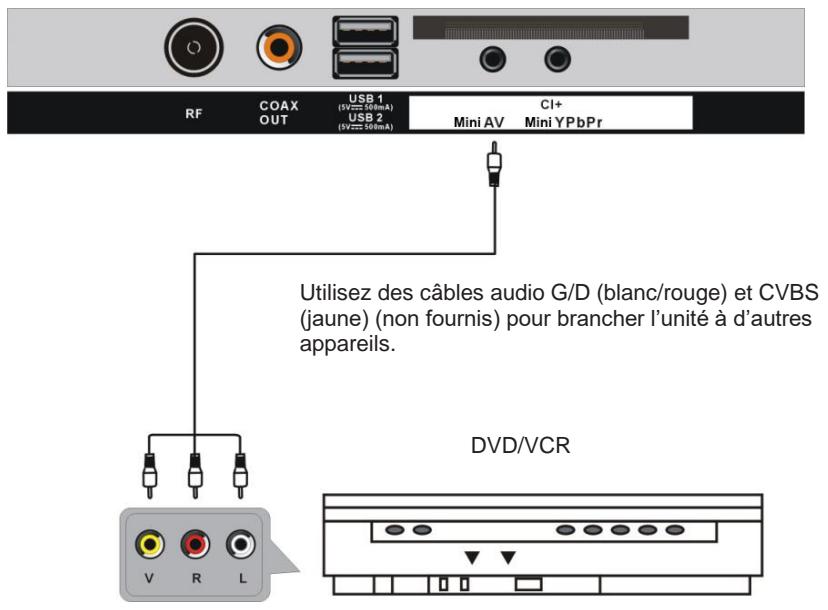

Branchement AV (video composite)

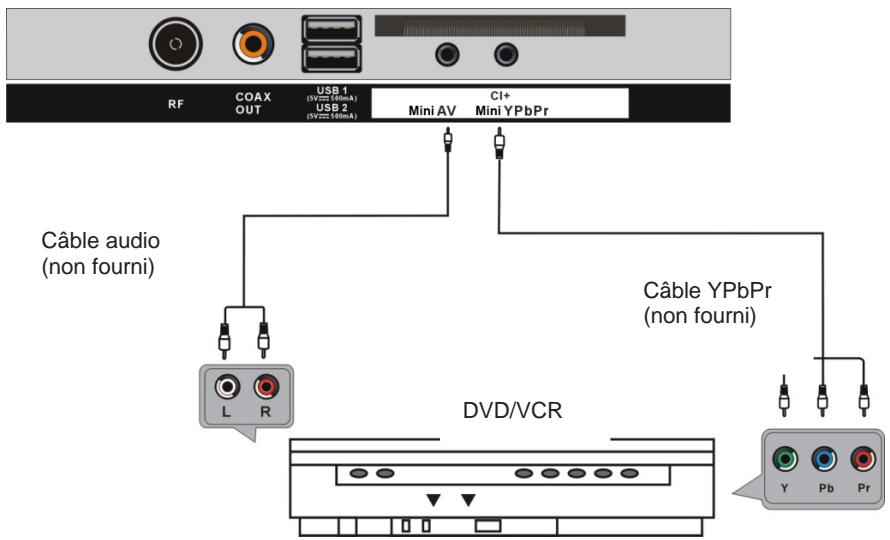

Branchement YPbPr

FR-11

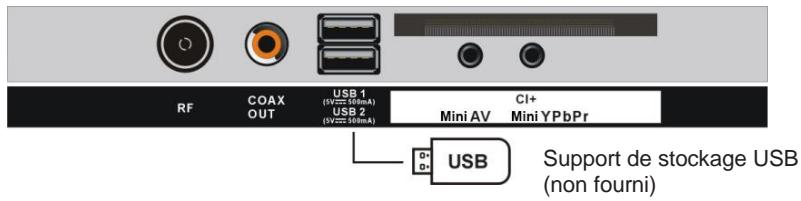

Branchement USB

Audiodescription (AD)

Hotline Darty France

Laboratories Licensing Corporation.

WAARSCHUWINGEN

- Ventilatie

This product is manufactured, distributed, serviced and warranted exclusively by Etablissements DARTY et Fils.

"JVC" is the trademark of JVCKENWOOD Corporation, used by Etablissements DARTY et Fils under license.

[European Union]

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

DVB and the DVB logo are trademarks of the DVB project.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby Audio

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

WARNING

- Ventilation

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.
  Allow at least a 10 cm gap all around the product.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles. And the point where they exit from the apparatus.
• This apparatus is intended for use in a tropical climate.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• To protect the environment, use local recycling facilities for battery disposal.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

- CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or expose to excessive heat such as sunshine, fire or the like that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance.
• The supply terminal are not to be short-circuited.

To prevent possible high sound pressure and hearing damage risk, do not listen at levels for long periods.

Never place a television set in an unstable location.

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

This marking indicates that the unit

complies with the European radio equipment directive.

This symbol indicates that the unit has

double insulation.

This symbol indicates that there are

important operating and maintenance instructions in the documentation accompanying this unit.

This symbol indicates that dangerous

voltage constituting a risk of electric shock is present within this unit.

• Read these instructions and keep them for further reference. Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals

such as alcohol, thinners or benzine.

• Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.
• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.
• Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

PRODUCT DESCRIPTION

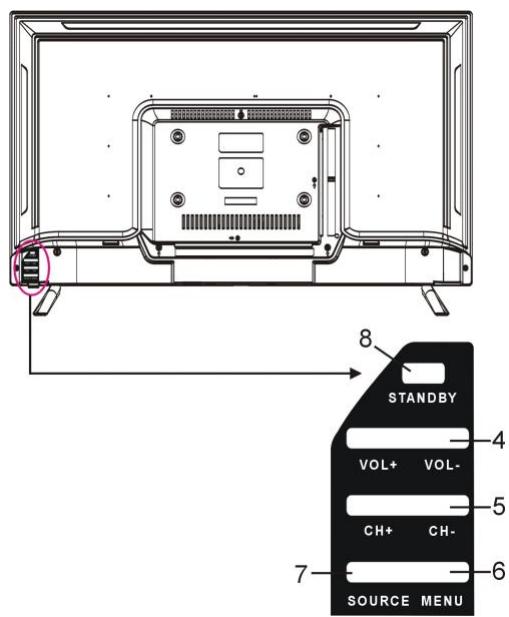

Front and Side Views

1. Screen
2. Remote control sensor / Power indicator
3. Stand
4. VOL+/- button: Adjust the volume level
5. CH + / - button: Select previous/next channel or move up/down
6. MENU button: Access the main menu.
7. SOURCE button: Change the input source.
8. (STANDBY) button: Turn the power on or off.

1. Power input
2. EARPHONE jack
3. HDMI ports
4. VGA port
5. PC AUDIO port
6. CI+ port
7. YPbPr port
8. AV port
9. USB ports
10. COAXIAL output port
11. RF port

ASSEMBLING

Attaching the Stand

CAUTION: When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

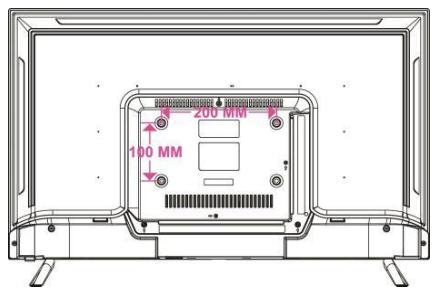

Mounting on a Wall

CAUTION:

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• The distance between the holes is 200 × 100 mm in width and height.
• Tighten the screws (M6x10mm) firmly to prevent the TV from tilting forward. Do not over tighten.

REMOTE CONTROL

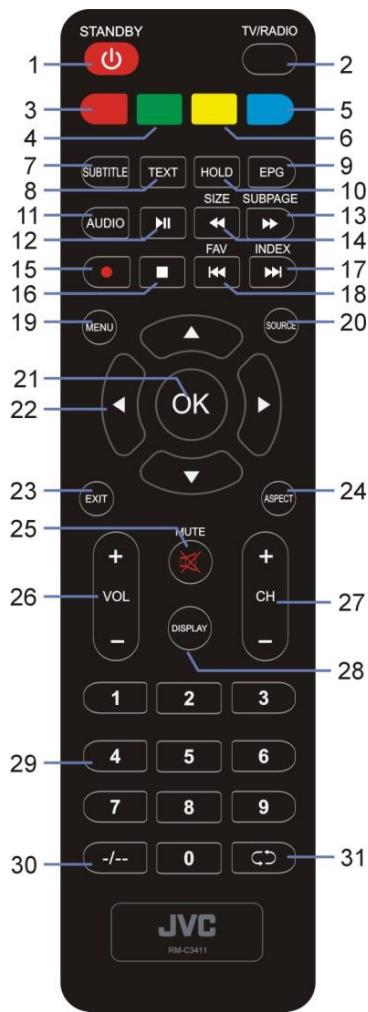

Buttons

1 POWER/Standby
2 TV/RADIO

3 RED Colored buttons: 4 GREEN Used for the selection, navigation and 5 BLUE 6 YELLOW operation of various functions.
7 SUBTITLE -Enable/disable subtitles
8 TEXT -Display the available Teletext.
9 EPG -Display the electronic program guide.
10 HOLD -Hold the Teletext.
11 AUDIO
12 Playback start/pause
13 SUBPAGE -Access Teletext sub-page.
Move fast forward
14 SIZE-Switch Teletext size.
Move fast backward.
15 (DTV) - The function is not available.
16 Stop playing.
17 Play the next file.

INDEX - Display the record list or Teletext index.

18 Play the previous file.
FAV - Display the favorite channel list.
19 MENU
20 SOURCE - Select a desired input source.
21 OK - Confirm selection.
22 ▲/▼/▲
23 EXIT
24 ASPECT-Change aspect ratio.
25 MUTE
26 VOL +/-: Adjust the volume level.
27 CH + / - Scroll through the saved channels.
28 DISPLAY - Display the available program information.
29 Numeric buttons (0-9) - Change channels.
30 ---: Switch the digit when watching TV programs.
31 Return to previous channel.

Remote control operation

1. Open the battery cover.
2. Insert two AAA size batteries (not included), observing the proper polarity markings inside the battery compartment.

3. Close the battery cover.

4. CAUTION: Do not mix old and new batteries, as this may damage the remote control.

Be sure to point the remote control at the remote control sensor on the TV.

This logo means "positioning of cell".

CONNECTIONS

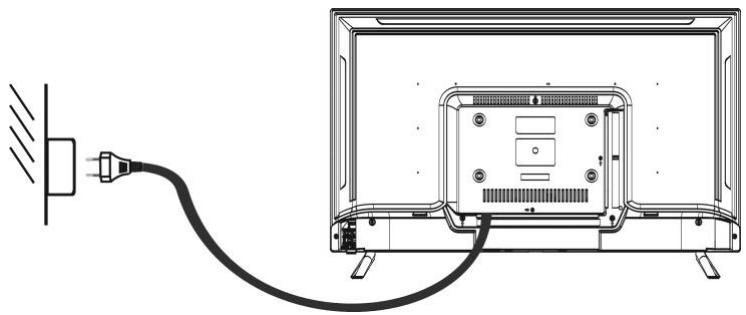

Connecting to AC power source

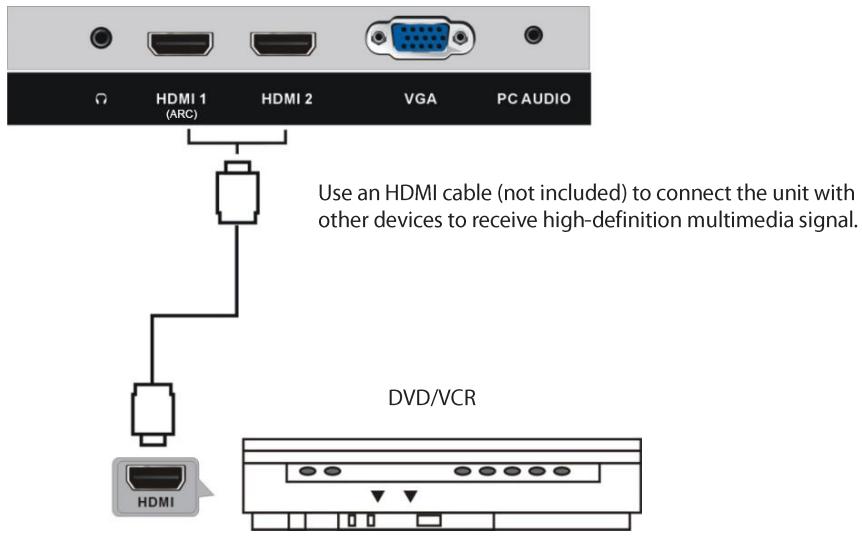

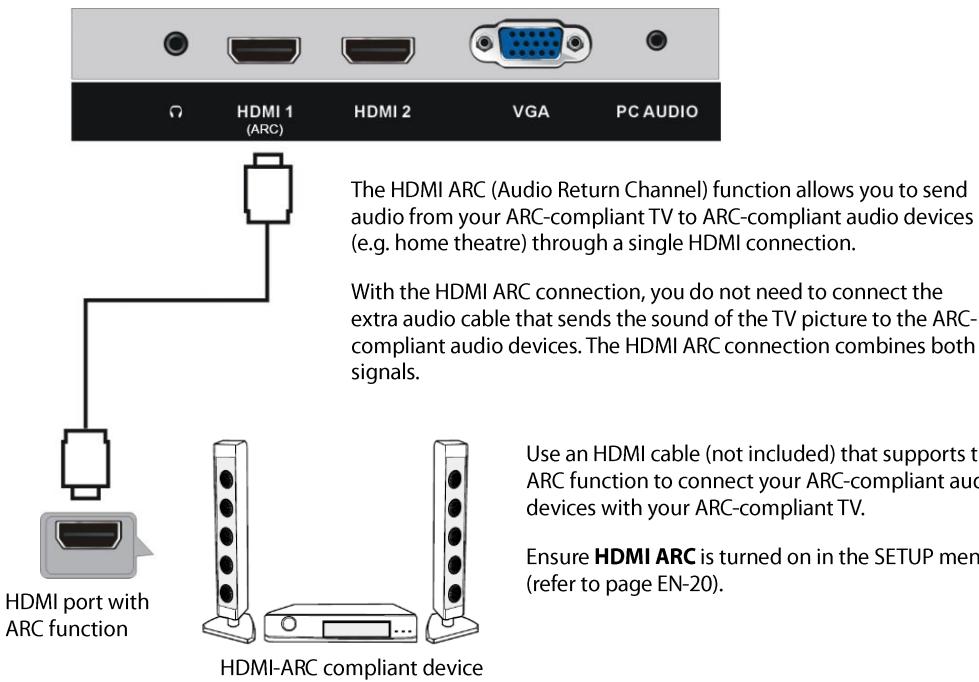

HDMI connection

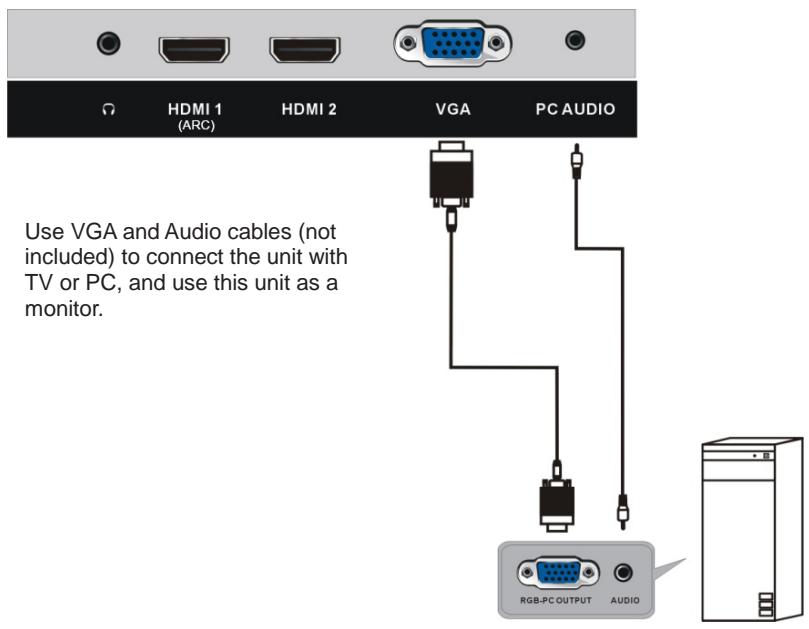

PC/VGA connection

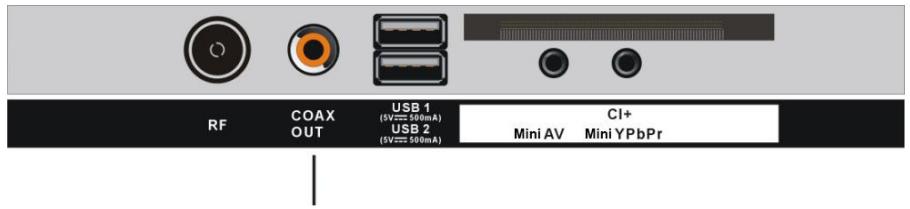

COAXIAL connection

Use a coaxial cable (not included) to connect the unit with an amplifier or other audio decoding devices for coaxial audio signal output.

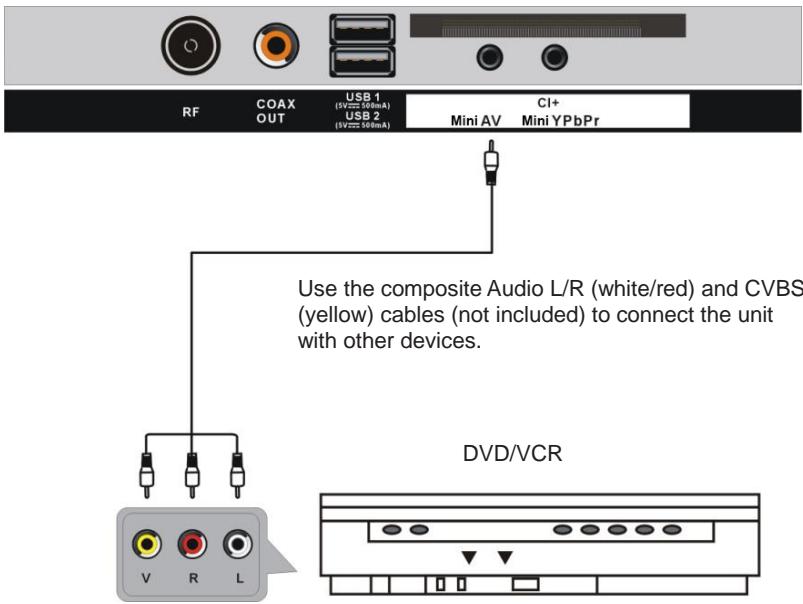

AV (Composite video) connection

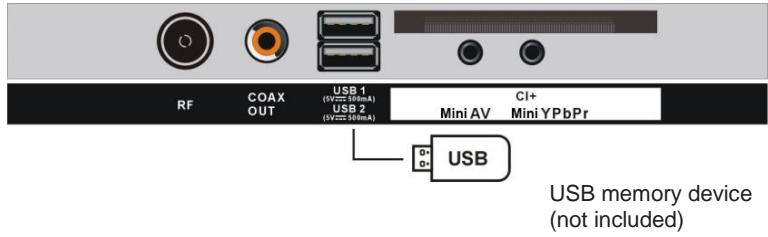

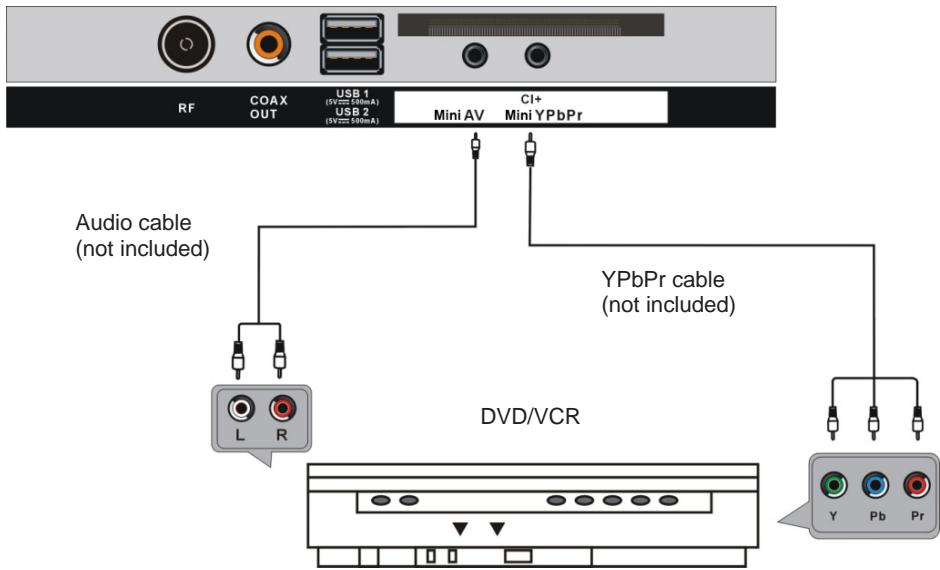

YPbPr connection

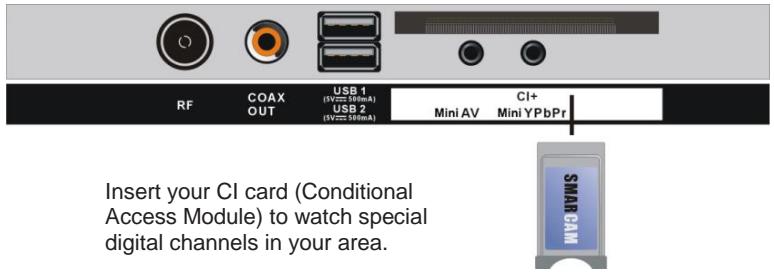

Insert a CI card

BASIC OPERATION

Make sure all necessary connections are correctly made before connecting the unit to the wall socket and turning on the power.

Watching TV

1. Press the STANDBY button to power on the unit.
2. Press the SOURCE button to select analog (ATV) or digital (DTV) as input source.
3. Choose the channel by pressing CH+ or CH- or by pressing the numeric buttons (combined [-/-] if necessary) to input the channel number directly.

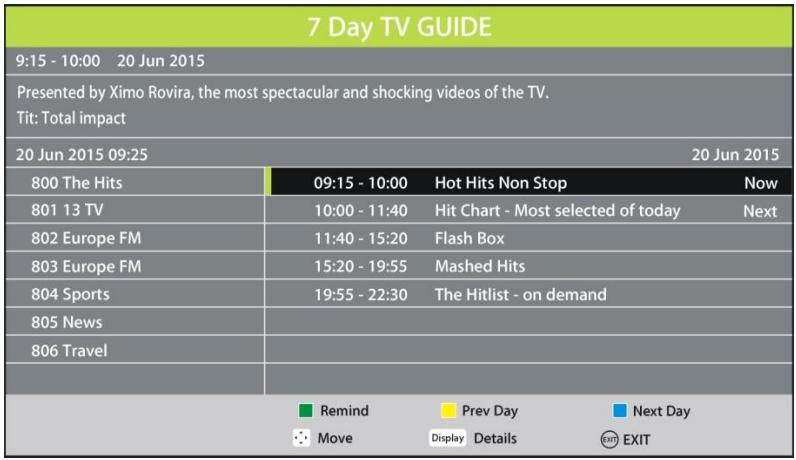

Electronic Program Guide (EPG)

EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control, the menu will appear on the screen, as below:

Press / navigation button to select preferred program
- Press / navigation button to switch between left column and right column.
- Press the GREEN button to set a reminder.
- Press the YELLOW button to display the program guide of the previous day.
- Press the BLUE button to display the program guide of the following day.

USING THE MENUS

The MENU button allows you to access the variety of TV settings for you to customize the settings.

Navigating through TV Menus

/ : Allow you to highlight options where applicable.

OK: Allow you to confirm the setting or advance to the next screen.

: Allow you to move back to the previous screen or adjust the value.
: Allow you to move to the next screen or adjust the value.

First time installation

When turning on the TV for the first time, the below installation menu will be displayed:

Language: select the on-screen menu language.

Country: select your country.

Energy Mode: select Home or Store mode. It will result in higher enery consumption if you leave Home mode.

Tuning Setup

• If above selections are finished, press OK button to call out Tuning Setup.
• Select preferred Tune Type and Digital Type using navigation buttons and press OK button to start auto tuning.

Note: Items following Digital Type are adjustable only when Digital Type is DVB-C and these items vary for different digital type.

1. Channel

Antenna

• Press LEFT/RIGHT navigation button to select DVB-T or DVB-C.

Auto Tuning

• Press the OK or RIGHT navigation button.
• Use the navigation buttons to set the Country, Tune Type and LCN.

Note: Scan type and following items are adjustable only when "Antenna" is DVB-C.

• Then press OK to start program tuning.

ATV Manual Tuning

Scan available programs manually.

DTV Manual Tuning

Scan available programs manually.

Programme Edit

Edit a program that TV received. (delete, skip or set a favorite program).

Signal information

This item is used to display signal details, for example: signal quality and strength.

CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

2. Picture

Picture Mode

• Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Picture Mode: available options: Standard, Mild, Personal, Dynamic.

Contrast / Brightness / Colour / Tint / Sharpness: adjustable value: 0-100.

Note: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is "Personal". Tint is adjustable only for NTSC system.

Color Temp

This item is used to adjust the optimum color temperature for suitable viewing.

Available options: Normal, Warm, Cold.

Noise Reduction

Available options: Off, Low, Medium, High

NOTE: Noise Reduction is not available when signal source is HD, such as 1080i in DTV & USB input source.

SCREEN (for PC/VGA mode only)

Dynamic CR

Turn on/off dynamic contrast ratio.

3. Sound

Sound Mode

• Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Sound Mode: available options: Standard, Music, Movie, Sports, Personal.

Treble/Bass:adjustablevalue:0-100.

Note: Treble and Bass are adjustable only when Sound Mode is "User".

Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

Auto Volume

This item is used to set Auto Volume ON or OFF.

Surround Sound

Turn on/off Surround Sound for better sound experience.

SPDIF Mode

Available options: Auto, PCM, Off.

AD Switch

This item is used to turn on/off Audio Description function. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it.

Notes:

• AD Switch function works only when you are viewing programs that contain related narration information.
• The users can adjust AD Volume when AD Switch is on.

4. Time

Clock

It displays current system time when an available channel was saved.

Time Zone

This item is used to select desired time zone.

Off Time

Off Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.

Hour / Minute: use navigation buttons to adjust the Hour / Minute when the Off Time is not "Off".

On Time

On Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.

Hour / Minute / Source / Channel / Volume: use navigation buttons to adjust these items when the Off Time is not "Off".

Sleep Timer

This item is used to set the automatic sleep time.

This item is used to select a desired Auto Sleep (standby) duration when no operations are done through the remote control.

Available options: Off, 3/4/5 hours. (It will result in higher energy consumption if you select more than 4 hours)

OSD Timer

This item is used to select a desired OSD menu duration.

Available options: Off, 5/10/15/20/25/30/35 seconds.

5. Lock

• When entered "Lock", input the factory default password "0000" using number buttons on remote control.
• Press UP/DOWN navigation button to select preferred item.

Note: If you forget the password, please use the universal password "8899".

System Lock

This item is used to turn on/off Lock System.

Set Password

Input a new password twice using number buttons on remote control to set a new password.

Channel Lock

Lock / unlock a channel.

Parental Guidance

This item is used to select desired program rating.

Available options: Off, 4-18.

Hotel Mode

This item is used to setup Hotel Lock.

6. Setup

Language

This item is used to select desired on-screen display language.

TT Language

This item is used to select the default teletext language.

Audio Language

• Press the RIGHT navigation button.
• Then you can select the desired primary audio language and secondary audio language.

Subtitle Language

• Press the RIGHT navigation button.
• Then you can select the preferred primary subtitle language and secondary subtitle language.

Hearing Impaired

This item is used to turn on/off the Hearing Impaired function. For Hearing Impaired users, this function providescaptions to supplement the audio.

NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

Aspect Ratio

This item is used to adjust the video size.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input sources and it is not available when signal source is HD, such as 1080i in DTV & USB input source.

Blue Screen

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON.

First Time Installation

This item is used to recall the First Time installation menu.

Energy Mode

This item is used to select Home or Store mode. It will result in higher energy consumption if you leave Home mode.

Reset

This item is used to recall factory default settings.

Software Update (USB)

This item is used to update software through the USB memory device.

HDMI CEC

To use the HDMI CEC function:

• Make sure the HDMI device which supports CEC function (Amplifier, etc.) is connected correctly.
• Press the SOURCE button on the remote control to select the HDMI input source.

HDMI CEC: turn on/off HDMI CEC.

HDMI ARC: turn on/off ARC function.

Auto Power: turn on/off Auto Power function.

Device Menu: display the setup menu of other device connected.

7. USB OPERATION

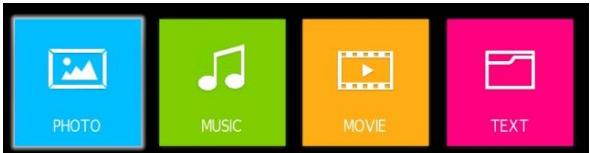

Plug in your USB device. Press the SOURCE button on remote control to open SOURCE list. Then press UP/DOWN navigation button to select USB (or Media) and press OK button to enter it.

SPECIFICATIONS

TV Broadcasting	PAL, B/G, D/K, I, SECAM
Receiving Channels	ATV (48.25MHz ~ 863.25MHz)
Number of Preset Channels	100 (ATV)
Channel Indicator	On Screen Display
RF Aerial Input	75 Ohm (unbalanced)
Operating Voltage	AC 100-240V~50/60Hz ( ~ means alternating current)
USB Output	5V --- 500mA (--- means direct current)
Audio Output Power (WRMS.) (10% THD)	8 W
Dimensions DxLxH (with foot)	191 x 732 x 481 mm
Weight (with foot)	3.6 kg
Dimensions DxLxH (without foot)	70 x 732 x 434 mm
Weight (without foot)	3.55 kg
Surrounding temperature	Operation: 0°C ~ 35°C Storage: 5°C ~ 30°C
Operating Humidity	Less than 80 % RH
Standby Mode	After 3\4\5 hours

Digital reception

Reception range		44MHz – 862MHz
Input impedance		75 Ω
Channel bandwidth		7 MHz / 8 MHz
Modulation	DVB-T	COFDM 2K/8K, QPSK, 16QAM, 64QAM
	DVB-C	16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Video system		MPEG-2 MP@ML, MPEG-2 MP@HL, H.265
Sound system		MPEG-1 layer 1⁄2, MPEG-2 layer
Basic functions		EPG, Subtitle, LCN, TELEXT (Europe)
Max storage channels		1000CH (DVB-T + DVB-C, dynamic)

Indoor Use only

Product Information Sheet

Parameter	Parameter value and precision			Unit
Supplier's name or trade mark	JVC
Supplier's address	Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier	LT-32FD110
Energy efficiency class for standard Dynamic Range (SDR)	E
On mode power demand for Standard Dynamic Range (SDR)	26			W
Energy efficiency class (HDR)	n.a.
On mode power demand in High Dynamic Range (HDR), if implemented	n.a.			W
Off mode, power demand, if applicable	n.a.			W
Standby mode power demand, if applicable	0,5			W
Networked standby mode power demand, if applicable	n.a.			W
Electronic display category	television
Size ratio	16	:	9	integer
Screen resolution (pixels) Horizontal and vertical pixels	1366	x	768	pixels
Screen diagonal	80			cm
Screen diagonal	32			inches
Visible screen area	27,4			dm2
Panel technology used	LED LCD
Automatic Brightness Control (ABC) available	NO
Voice recognition sensor available	NO
Room presence sensor available	NO
Image refresh frequency rate (default)	60			Hz
Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8			Years
Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7			Years
Minimum guaranteed product support	7			Years
Minimum duration of the general guarantee offered by the supplier	2			Years
Power supply type	Internal

ENERGY

LT-32FD110

JVC

26 kWh/1000h

2015/2013

TROUBLESHOOTING

Problem	Possible Solution
The screen does not appear/illuminate.	1. Check that the power plug is securely into the mains socket. 2. Check the power is on.
The screen appears, but there is no sound.	1. Press the MUTE button. 2. Increase the sound level by pressing the volume adjustment buttons 3. Check that the sound terminal of your external input is connected properly. 4. Check that the audio cables are connected properly. 5. Select and check any other input.
Noise or poor picture	Stop using wireless telephones, hair dryers or other electrical appliances near the TV.
The remote control does not work.	1. Check if the TV is not switched on. 2. Check that the batteries of the remote control are inserted properly. 3. Check for any obstacles between the TV remote sensor and the remote control. Remove them if necessary. 4. If the batteries have no power, replace them with two new batteries off the same type.

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Regulamento (UE) N. 2019/2013, N. 2019/2021, N. 2021/340, N. 2021/341

Software version: 20221215194849

ENIEC62311:2020

EN 55032:2015+A11:2020+A1:2020

EN 55035:2017+A11:2020

ENIEC61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN303340V1.2.1

EN 62368-1:2014+A11:2017

The person responsible for this declaration is:

Place, Date / Lieu :
