USER MANUAL RF282BSFO TCL

the climate types N, ST and T, the operating ambient range of the appliance is 16℃~43℃. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature. Safety instructions

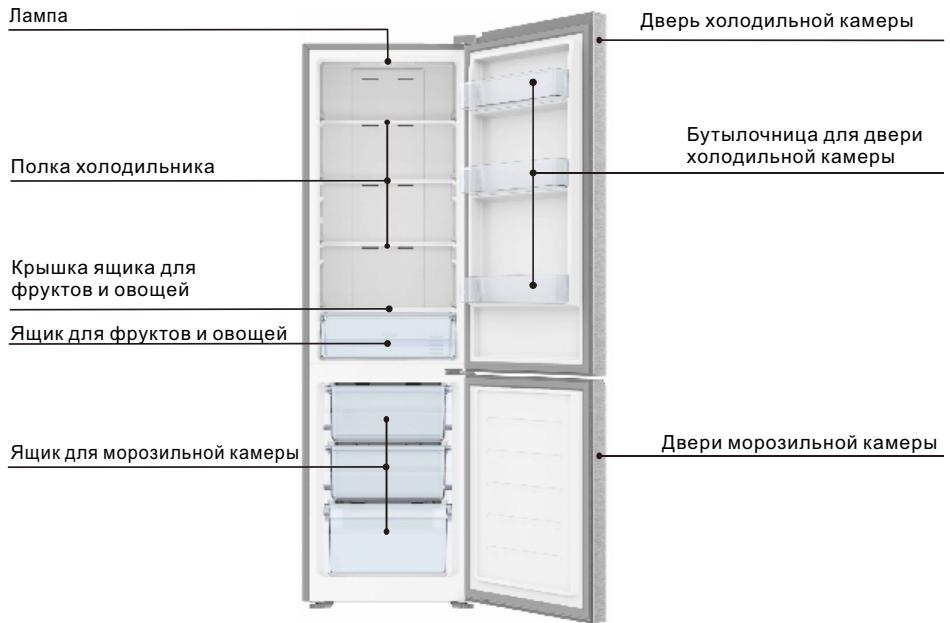

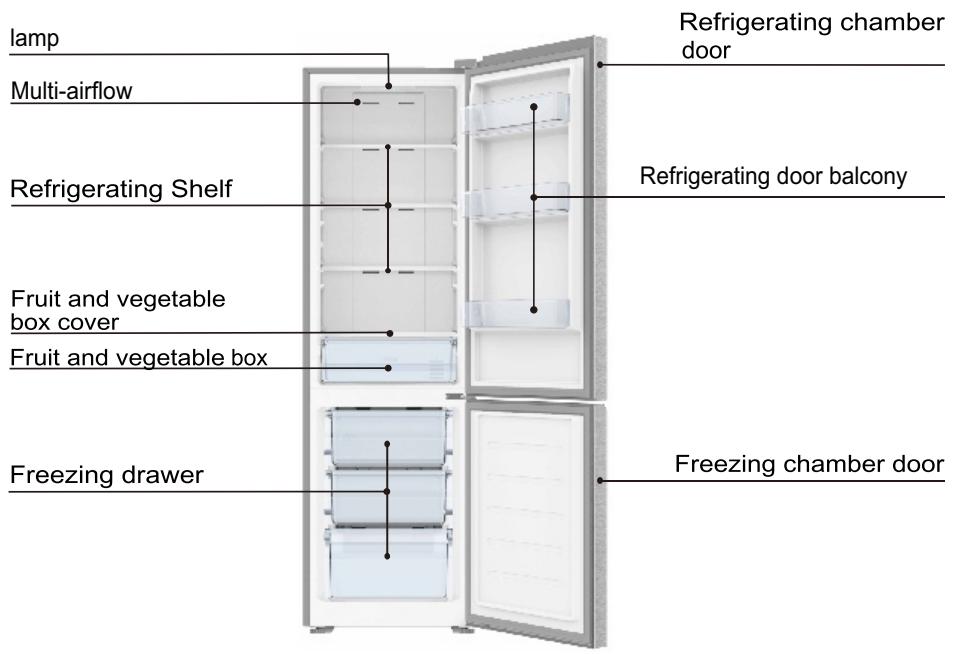

lamp Multi-airflow Refrigerating door balcony The pictures are for reference only. Please refer to the object

The above is the computer control board of the product Power on for the first time The first time the power is turned on, the refrigerator runs under 5℃. Gear adjustment Repeatedly pressing the "‹ "key or" ›" key, the refrigerator position will cycle between "02"

• "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed. Power-off memory When the power is cut off, the instantaneous state of the power cut is locked.After the incoming call, it still works according to the settings before the power cut. Damper adjustment paddle damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range. When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc. Refrigerator temperature adjustment When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect. Freezer temperature adjustment When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.

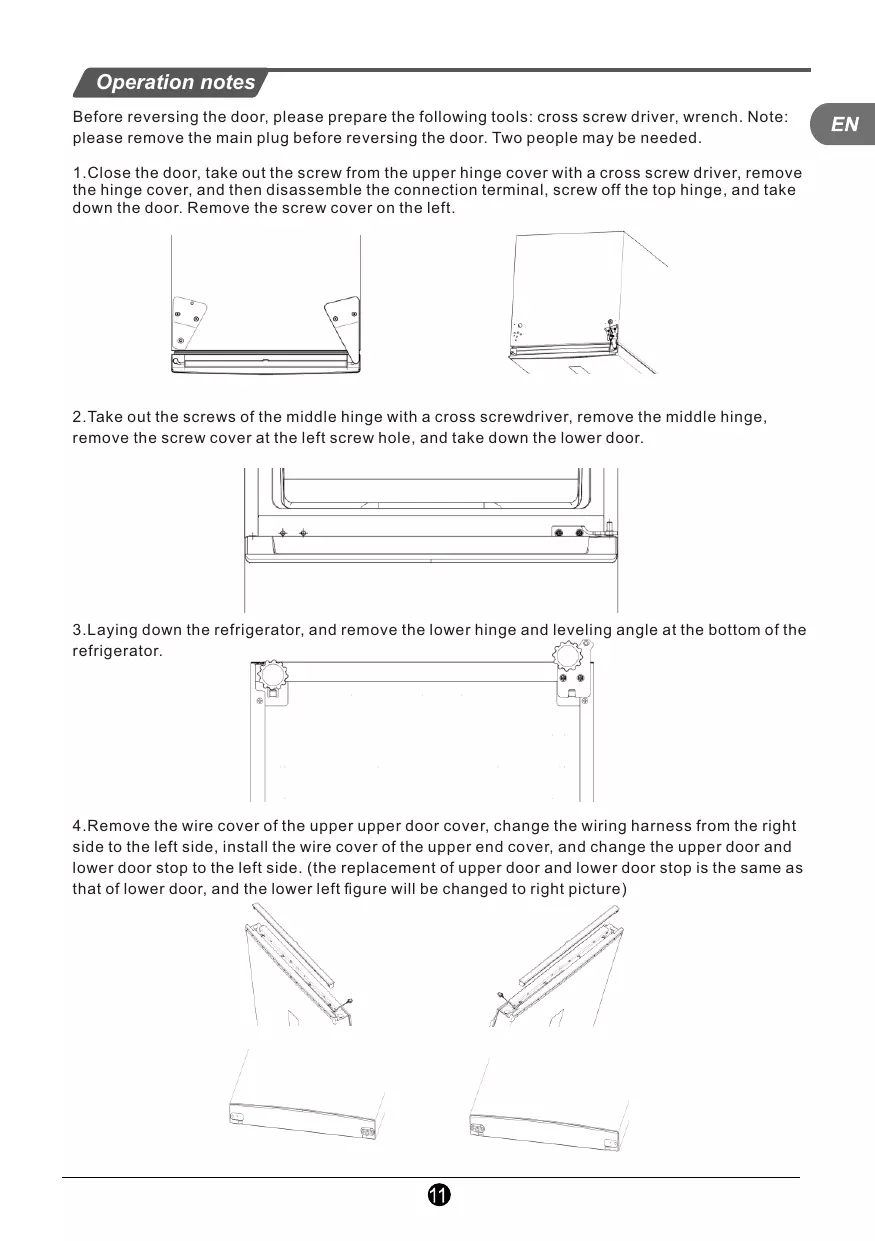

Operation notes Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed. 1.Close the door, take out the screw from the upper hinge cover with a cross screw driver, remove the hinge cover, and then disassemble the connection terminal, screw off the top hinge, and take down the door. Remove the screw cover on the left. 2.Take out the screws of the middle hinge with a cross screwdriver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door. 3.Laying down the refrigerator, and remove the lower hinge and leveling angle at the bottom of the refrigerator. 4.Remove the wire cover of the upper upper door cover, change the wiring harness from the right side to the left side, install the wire cover of the upper end cover, and change the upper door and lower door stop to the left side. (the replacement of upper door and lower door stop is the same as that of lower door, and the lower left figure will be changed to right picture) Operation notes 5.Disas semble the lower hinge assembly, and then install the leveling foot and screw nut (as shown in the right figure). 6.Replace the lower hinge assembly with the leveling angle, and install the lower door. 7.Install the middle hinge at the left mounting position, and install the previously removed screw cover to the right screw hole. 8.Install the door, connect the terminals, install the upper hinge, the upper hinge cover and the previously removed screw cover. Reverse door complete. (the upper hinge and hinge cover are installed on the left as shown in the figure, and the screw cover is in the right position) 9.After the operation is completed, please stand still for a period of time and turn on the power. Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. RF282BSF0

80L 0.7A Energy consumption E16 0.513kWh/24h Energy consumption E32 1.059kWh/24h 1.5W Weight Dimension

+ 16 to + 38 Tropical

+ 16 to + 38 Tropical

+ 16 to + 38 Tropical

+ 16 to + 38 Tropicale

TCL Home Appliances (Hefei) Co., Ltd. Adresa: No. 10 Yunhu Road, Economic Development Zone, Hefei City, Anhui Province, China

Заметки по эксплуатации The above is the computer control board of the product Power on for the first time The first time the power is turned on, the refrigerator runs under 5℃. Gear adjustment Repeatedly pressing the "‹ "key or" ›" key, the refrigerator position will cycle between "02"

• "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed. Power-off memory When the power is cut off, the instantaneous state of the power cut is locked.After the incoming call, it still works according to the settings before the power cut. Damper adjustment paddle damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range. When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc. Refrigerator temperature adjustment When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect. Freezer temperature adjustment When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.
