Product type	Oven
Brand	Indesit
Model	IFWS3841JPBL
Color	Black
Cooking functions	Natural convection, Multi-level, XL Cooking, Grill, Gratin, Pizza, Eco forced air, Keep warm, Freasy Cook, Turn & Go
Cleaning	Hydroclean (steam cleaning) and manual cleaning
Removable door	Yes, with removable inner glass (Click&Clean)
Lighting	Yes, with dedicated button
Display	Screen with clock, timer, cooking programming
Included accessories	Wire rack, drip tray, baking tray (depending on model)
Installation type	Built-in
Power supply	Electric
Retractable knobs	Yes, push to release
Programming	Duration, delayed cooking end, timer
Safety	Automatic shut-off at end of cooking
Repairability	Spare parts available via after-sales service
Documentation	Manual available in PDF on docs.indesit.eu

Frequently Asked Questions - IFWS3841JPBL INDESIT

How to set the time on the Indesit IFWS3841JPBL oven?

To set the time, press the clock button until the hour digits flash. Use the + and - buttons to adjust the hour, then press OK. The minutes then flash, set them and confirm with OK.

How to use the Turn & Go function?

Select the Turn & Go function by turning the selection knob to the corresponding icon, then turn the thermostat knob to the ● position. The oven automatically chooses the ideal temperature and cooking time for different foods (meat, fish, vegetables, etc.). Refer to the suggested weight table in the manual.

How to preheat the oven?

After selecting a function and setting the temperature, the oven preheats automatically. An audible signal and a flashing indicator indicate the preheating phase. When the indicator becomes steady, the oven has reached the desired temperature. Then place the food inside.

How to program delayed cooking?

After setting the cooking time, press the clock button until END flashes. Use + and - to set the desired end time, then confirm with OK. The oven starts automatically to finish at the chosen time. Note: not available for Grill and Turbo-grill functions.

How to clean the oven with the Hydroclean function?

Pour 200 ml of drinking water onto the bottom of the cold oven. Select the Hydroclean function at 90°C and start it. At the end of the cycle, let cool, then wipe the interior surfaces with a damp cloth. This helps loosen dirt.

How to remove and clean the oven door?

Open the door fully, lower the latches until they are unlocked. Close the door halfway, then lift it pulling towards you to release it. Place it on a soft surface. To reassemble, align the hinges and lower the latches to the original position.

How to remove the inner glass of the door (Click&Clean)?

After removing the door, place it with handles facing down. Press both fasteners and remove the upper edge. Lift the inner glass and clean it. To refit, ensure the R is visible at the top left and the clear side is facing up. Insert the long part into the guides, then lower the upper edge until it clicks.

What to do if the screen displays 'F' followed by a number?

It is a software problem. Note the displayed code (e.g., F1) and contact the nearest Indesit after-sales service mentioning this code. Before that, try disconnecting and reconnecting the oven to see if the problem persists.

What accessories are included with the oven?

The included accessories are: a wire rack, a drip tray, and a baking tray. The number and type may vary depending on the model purchased. You can buy other accessories from the after-sales service.

How to use the Multilevel function?

The Multilevel function allows simultaneous cooking of different foods on multiple shelves (up to three) without mixing odors. Select the function, set the temperature (usually between 160 and 200°C) and place dishes on the levels indicated in the cooking table. Cooking times may vary; remove earlier foods if necessary.

USER MANUAL IFWS3841JPBL INDESIT

MERCI D'AVOIR ACHETER UN PRODUIT INDESIT

REMOVER E REPORT A PORTA

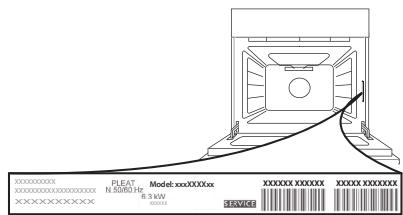

CÓMOPONERSE EN CONTACTO CON NUESTROSERVICIO POSTVENTA

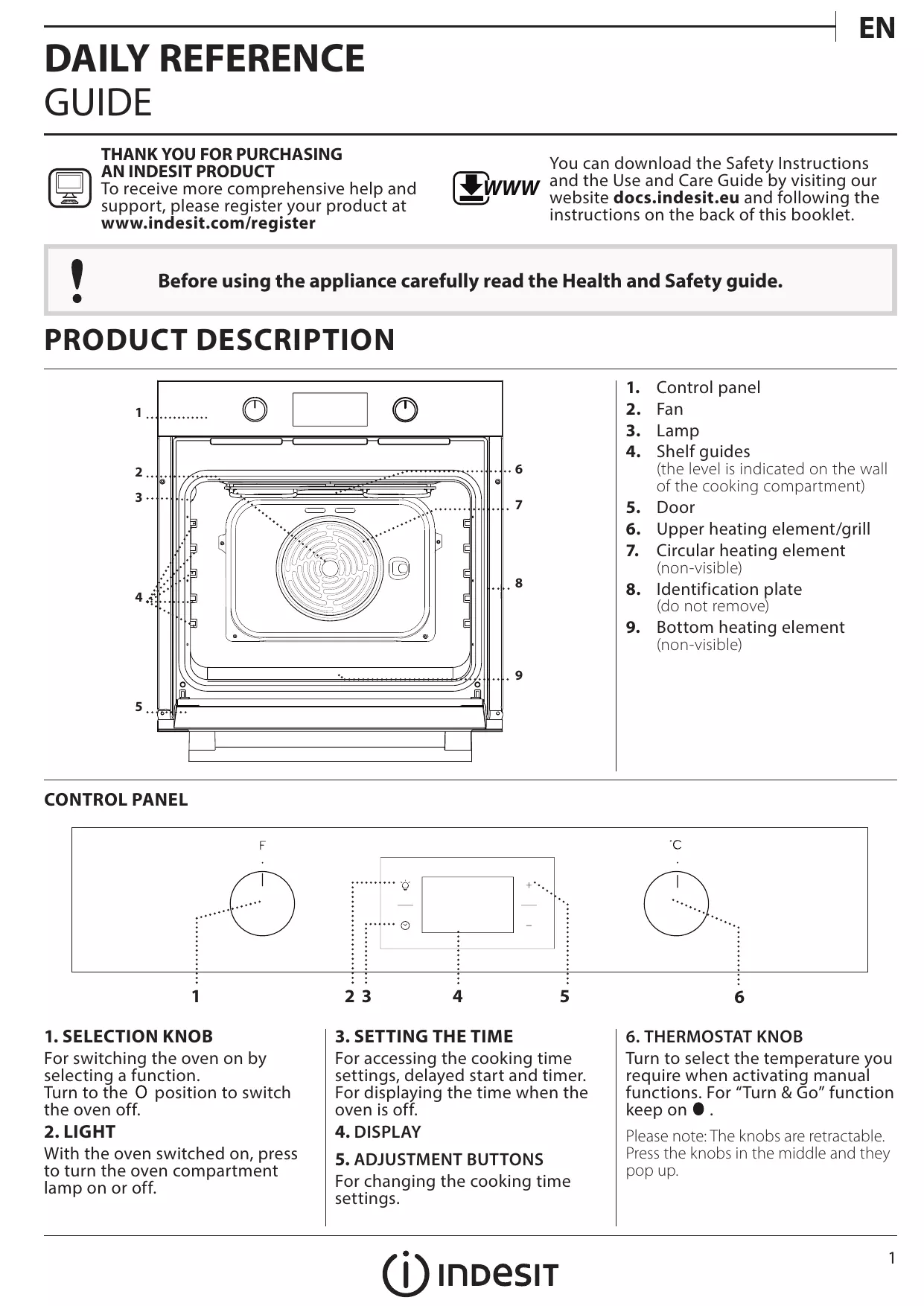

THANK YOU FOR PURCHASING AN INDESIT PRODUCT

To receive more comprehensive help and support, please register your product at www.indesit.com/register

You can download the Safety Instructions and the Use and Care Guide by visiting our website docs.indesit.eu and following the instructions on the back of this booklet.

Before using the appliance carefully read the Health and Safety guide.

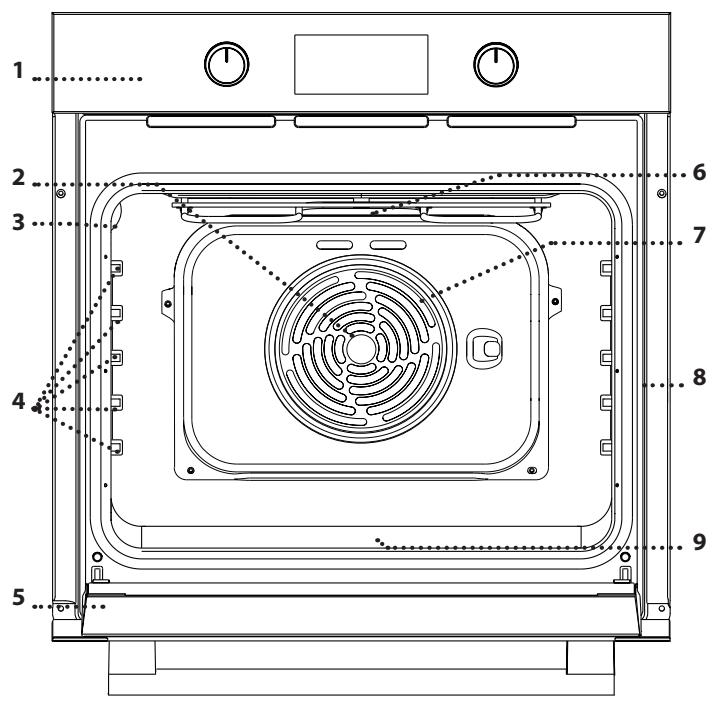

PRODUCT DESCRIPTION

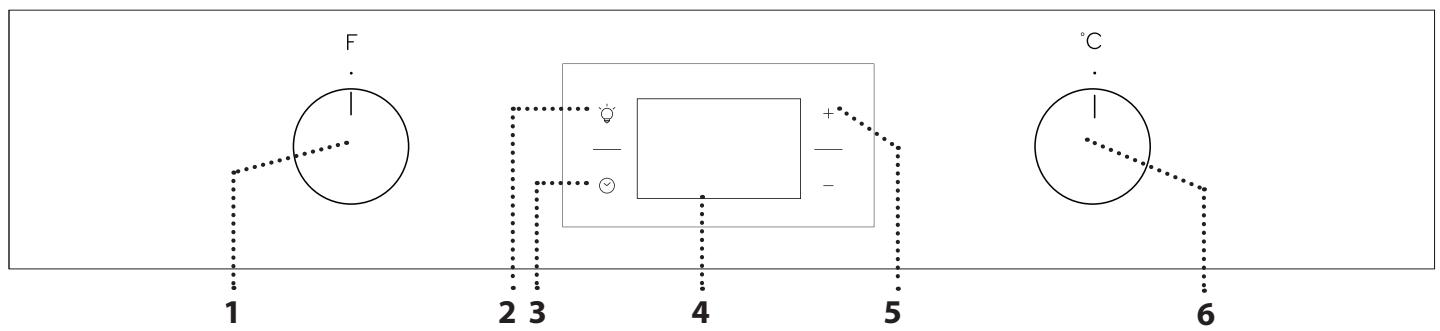

CONTROL PANEL

1. SELECTION KNOB

For switching the oven on by selecting a function.
Turn to the O position to switch the oven off.

2. LIGHT

With the oven switched on, press to turn the oven compartment lamp on or off.

3. SETTING THE TIME

For accessing the cooking time settings, delayed start and timer. For displaying the time when the oven is off.

4. DISPLAY

5. ADJUSTMENT BUTTONS

For changing the cooking time settings.

6. THERMOSTAT KNOB

Turn to select the temperature you require when activating manual functions. For "Turn & Go" function keep on .

Please note: The knobs are retractable. Press the knobs in the middle and they pop up.

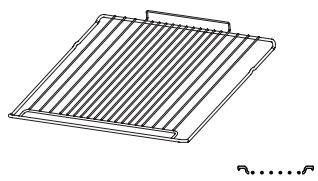

WIRE SHELF

DRIP TRAY (IF PRESENT)

BAKING TRAY

SLIDING SHELVES

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

USING THE ACCESSORIES

• Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first. Then slide it horizontally along the shelf guide as far as possible.

The other accessories, such as the baking tray, are

FUNCTIONS

inserted horizontally by sliding them along the shelf guides.

• The shelf guides can be removed to facilitate the oven cleaning: pull them to remove from their seats.
• The sliding shelves can be removed or fitted on any level.

Download the Use and Care Guide from

docs.indesit.eu for more information

CONVENTIONAL

For cooking any kind of dish on one shelf only.

MULTILEVEL

For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

XL COOKING

For cooking large joints of meat (above 2.5kg We recommend turning the meat over during cooking to ensure that both sides brown evenly. We also recommend basting the joint every so often to prevent it from drying out excessively.

PIZZA

For baking different types and sizes of pizza and bread. It is a good idea to swap the position of the baking trays halfway through cooking.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200ml of drinking water.

GRATIN

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

KEEP WARM

For helping sweet or savoury dough to rise effectively. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

FREASY COOK

All the heating elements and the fan come on, guaranteeing the distribution of heat consistently and uniformly throughout the oven. Pre-heating is not necessary for this cooking mode. This mode is especially recommended for cookingpre-packed food quickly (frozen or pre-cooked). The best results are obtained if you use one cooking rack only.

ECO FORCED AIR

For cooking roasts and stuffed roasting joints on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO function is in use, the light will remain switched off during cooking but can be switched on again by pressing .

HYDROCLEANING

The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. Pour 200 ml of drinking water on the bottom of the oven and use the function for 35^ at 90^ C . Activate the function when the oven is cold and let it cool down for 15^ once the cycle ends.

TURN & GO

This function automatically selects an ideal temperature and time for baking a wide range of recipes including meat, fish, pasta, sweets and vegetables. Activate the function when the oven is cold.

USING THE APPLIANCE FOR THE FIRST TIME

1. SETTING THE TIME

You will need to set the time when you switch on the appliance for the first time: Press until the icon and the two digits for the hour start flashing on the display.

Use + or — to set the hour and press to confirm. The two digits for the minutes will start flashing. Use + o — to set the minutes and press to confirm.

Please note: When the icon is flashing, for example following lengthy power outages, you will need to reset the time.

2. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 250^ for about one hour, preferably using the "XL Cooking" function. The oven must be empty during this time.

Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

DAILY USE

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL

To start the function you have selected, turn the thermostat knob to set the temperature you require.

Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob.

The function will not start if the thermostat knob will be on

• You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

TURN & GO

To start the "Turn & Go" function, select the function turning the selection knob on the relevant icon, keeping the thermostat knob on the position. To end the cooking, turn the selection knob on "O".

Please note: You can set the cooking end time and timer. To obtain the best cooking results using the "Turn & Go" function, follow the suggested weights for each kind of food in the following table.

Food	Recipe	Weight (kg)
Meat	Roast veal, Roast Beef rare	0,6 - 0,7
	Chicken / Leg of lamb in pieces	1,0 - 1,2
Fish	Salmon fillet / Baked fish (whole)	0,9 - 1,0
	Fish en papillote	0,8 - 1,0
Vegetables	Stuffed vegetables	1,8 - 2,5
	Vegetable pie	1,5 - 2,5
Salty cakes	Quiche lorraine / Flan	1,0 - 1,5
Pasta	Lasagne / Timbale of pasta or rice	1,5 - 2,0
Pastry	Leavened cake / Plum cake	0,9 - 1,2
	Baked apples	1,0 - 1,5
Bread	Bread loaf	0,5 - 0,6
	Baguettes	0,5 - 0,8

KEEP WARM

To start the "Keep Warm" function, turn the thermostat knob to the relevant symbol; if the oven is set to a different temperature (or if the cavity temperature is above 65^ ) the function will not start.

Please note: You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

3. PREHEATING

Once the function starts, an audible signal and a flashing icon on the display indicate that the preheating phase has been activated. At the end of this phase, an audible signal and the fixed icon on the display will indicate that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking.

DURATION

Keep pressing until the icon and "00:00" start flashing on the display.

Use + or — to set the cooking time you require, then press to confirm.

Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete.

Notes: To cancel the cooking time you have set, keep pressing until the icon starts flashing on the display, then use to reset the cooking time to "00:00". This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/ DELAYED START

After a cooking time has been set, starting the function can be delayed by programming its end time: press until the icon and the current time start flashing on the display.

Use + or — to set the time you want cooking to end and press to confirm.

Activate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Notes: To cancel the setting, switch the oven off by turning the selection knob to the 0 position.

Notes: Delay to start functionality is not available for Grill and Turbo Grill functions.

END OF COOKING

An audible signal will sound and the display will indicate that the function has finished.

Turn the selection knob to select a different function or to position “O” to switch the oven off.

Please note: If the timer is active, the display will show "END" alternately with the remaining time.

. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is off.

Keep pressing until the e "00:00" icon and "00:00" start flashing on the display.

Use + or — to set the time you require and press to confirm.

An audible signal will sound once the timer has finished counting down the selected time.

Notes: To cancel the timer, keep pressing until the icon starts flashing, then use — to reset the time to "00:00".

COOKING TABLE

RECIPE	FUNCTION	PREHEATING	TEMPERATURE (°C)	DURATION (MIN)	LEVEL AND ACCESSORIES
Leavened cakes	-	Yes	160 - 180	30 - 90	2/3
	-	Yes	160 - 180	30 - 90	4 1
Filled cake (cheese cake, strudel, fruit pie)	-	Yes	160 - 200	35 - 90	2
	-	Yes	160 - 200	40 - 90	4 2
Biscuits/tartlets	-	Yes	160 - 180	20 - 45	3
	-	Yes	150 - 170	20 - 45	4 2
	-	Yes	150 - 170	20 - 45	5 3 1
Choux buns	-	Yes	180 - 210	30 - 40	3
	-	Yes	180 - 200	35 - 45	4 2
	-	Yes	180 - 200	35 - 45	5 3 1
Meringues	-	Yes	90	150 - 200	3
	-	Yes	90	140 - 200	4 2
	-	Yes	90	140 - 200	5 3 1
Pizza / Bread	-	Yes	190 - 250	15 - 50	1/2
	-	Yes	190 - 250	20 - 50	4 2
Frozen pizza	-	Yes	250	10 - 20	3
	-	Yes	230 - 250	10 -25	4 2
Salty cakes (vegetable pie,quiche)	-	Yes	180 - 200	40 - 55	3
	-	Yes	180 - 200	45 - 60	4 2
	-	Yes	180 - 200	45 - 60	5 3 1
Vols-au-vents / puff pastry crackers	-	-	190 - 200	20 - 30	3
	-	-	180 - 190	20 - 40	4 2
	-	-	180 - 190	20 - 40	5 3 1
Lasagne / baked pasta / canneloni / flans	-	Yes	190 - 200	45 - 65	2

FUNCTIONS

Conventional

Grill

Gratin

Pizza

Multilevel

XL cooking

Eco Forced Air

ACCESSORIES	……… Wire shelf	Baking dish or cake tin on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water
RECIPE	FUNCTION	PREHEATING	TEMPERATURE (℃)	DURATION (MIN)	LEVEL AND ACCESSORIES
Lamb / veal / beef /pork 1 kg		Yes	190 - 200	80 - 110	3
Roast pork with crackling 2 kg		Yes	180 - 190	110 - 150	2
Chicken/rabbit/duck 1 kg		Yes	200 - 230	50 - 100	2
Turkey / goose 3 kg		-	190 - 200	100 - 160	2
Baked fish/en papillote (fillets, whole)		Yes	170 - 190	30 - 50	2
Stuffed vegetables (tomatoes, courgettes, aubergines)		Yes	180 - 200	50 - 70	2
Toasted bread		-	250	2 - 6	5
Fish fillets/slices		-	230 - 250	20 - 30*	4 3
Sausages/kebabs/spare ribs/hamburgers		-	250	15 - 30*	5 4
Roast chicken 1-1,3 kg		Yes	200 - 220	55 - 70**	2 1
Roast beef rare 1 kg		Yes	200 - 210	35 - 50**	3
Leg of lamb/knuckle		Yes	200 - 210	60 - 90**	3
Roast potatoes		Yes	200 - 210	35 - 55**	3
Vegetable gratin		-	200 - 210	25 - 55	3
Meat and potatoes		Yes	190 - 200	45 - 100***	4 1
Fish and vegetables		Yes	180	30 - 50***	4 1
Lasagne and meat		Yes	200	50 - 100***	4 1
Complete meal: fruit tart (level 5) / lasagne (level 3) / meat (level 1)		Yes	180 - 190	40 - 120***	5 3 1
Roast meat/stuffed roasting joints		-	170 - 180	100 - 150	2

The time indicated does not include the preheating phase: we recommend placing the food in the oven and setting the cooking time only after the required temperature has been reached.

• Turn food halfway through cooking.
  Turn food two thirds of the way through cooking (if necessary).
  * Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.

Download the Use and Care Guide from docs.igesit.eu for the table of tested recipes, compiled for the certification authorities in accordance with the standard IEC 60350-1.

FUNCTIONS	Conventional	Grill	Gratin	Pizza	Multilevel	XL cooking	Eco Forced Air
ACCESSORIES	......	Baking dish or cake tin on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water

Do not use steam cleaning equipment.

Use protective gloves during all operations.

Carry out the required operations with the oven cold.

Disconnect the appliance from the power supply.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

EXTERIOR SURFACES

Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge. Activate the "Hydrocleaning" function for

optimum cleaning of internal surfaces.

• The door can be easily removed and refitted to facilitate cleaning of the glass
• Clean the glass in the door with a suitable liquid detergent.
• The top heating element of the grill can be lowered to clean the upper panel of the oven: Extract the heating element from its seating, then lower it. To return the heating element to its position, lift it up, pull it slightly towards you and make sure that the tab support is in its proper seating.

ACCESSIONS

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

1. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle.

Simply remove the door by continuing to close it while pulling it upwards (a) at the same time until it is released from its seating (b).

Put the door to one side, resting it on a soft surface.

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.
2. Lower the door and then open it fully. Lower the catches into their original position: make sure that you lower them down completely.
3. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above.

CLICK TO CLEAN - CLEANING THE GLASS

1. After removing the door and resting it on a soft surface with the handle downwards, simultaneously press the two retaining clips and remove the upper edge of the door by pulling it towards you.

1. Lift and firmly hold the inner glass with both hands, remove it and place it on a soft surface before cleaning it.
2. To correctly reposition the inner glass, make sure that the "R" is visible in the left-hand corner and the clear surface (not printed) is facing up. First insert the long side of the glass indicated by "R" into the support seats, then lower it into position.

1. Refit the upper edge: a click will indicate correct positioning. Make sure the seal is secure before refitting the door.

Problem	Possible cause	Solution
The oven does not work.	Power cut. Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number.	Software problem.	Contact you nearest After-sales Service Centre and state the letter or number that follows the letter “F”.

USEFUL TIPS

Download the Use and Care Guide from

docs.indesit.eu for more information

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook various different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably dark-coloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.

COOKING DIFFERENT FOODS AT THE SAME TIME

The "Multilevel" function enables you to cook different foods (such as fish and vegetables) on different shelves at the same time. Remove the food which requires a shorter cooking time and leave the food which requires a longer cooking time in the oven.

PRODUCT FICHE

The product fiche with energy data of this appliance can be downloaded from the website docs.indesit.eu

HOW TO OBTAIN THE USE AND CARE GUIDE

Download the Use and Care Guide from our website docs.Indesit.eu (you can use this QR Code), specifying the product's commercial code.

Alternatively, contact our Client After-sales Service.

CONTACTING OUR AFTER-SALES SERVICE

You can find our contact details in the warranty

manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.
