USER MANUAL TDW4714 BARRYTHOMSON

MISE AU REBUT. p. 52

Touche Demarrer/Maintenir/Annuler

PROBLEMOMPOSSING .p. 89

PRODUCTINFORMATIEBLAD .p. 97

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN. p. 99

VERWIJDERING. p. 100

correct is ingesteld.

IMPORTANT SAFETY INSTRUCTIONS. p. 102

PRODUCT OVERVIEW. p. 105

INSTALLATION. p. 107

Appropriate installation location .p. 107

Connecting water supply .p. 108

Connection to the drain .p. 109

Adjusting the feet .p. 110

Electrical connection. p. 110

PREPARATION. p. 111

Tips for energy saving.. p. 111

Water softening system.. p. 111

Adjusting the water softening system. p. 111

Adding salt. p. 114

Detergent. p. 116

Adding detergent. p. 116

Tablet detergents.. p. 118

Rinse aid. p. 119

Items not suitable for washing in the dishwasher............p. 120

Placing the dishes into the dishwasher. p. 120

Cutlery basket. p. 122

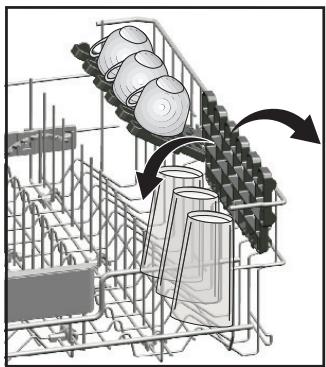

Upper basket height adjustable rack. p. 122

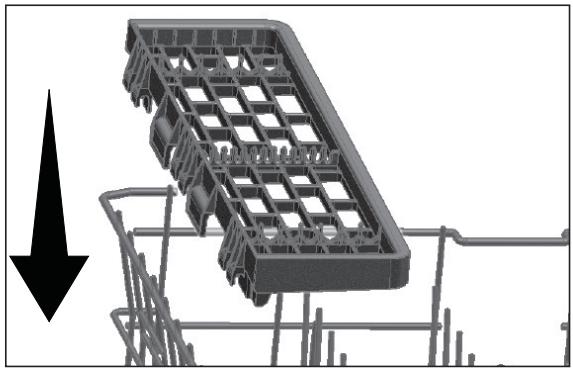

Upper basket multipurpose service rack. p. 123

OPERATION OF THE PRODUCT. p. 124

CLEANING AND MAINTENANCE. p. 132

TROUBLESHOOTING. p. 135

PRODUCT INFORMATION SHEET. p. 142

REPAIR AND SPARE PARTS SERVICE. p. 144

DISPOSAL. p. 145

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Ets Darty et Fils (S.A.).

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the instructions for the method and frequency of cleaning, refer to the section "CLEANING AND MAINTENANCE" in pages 132-134.
• The openings must not be obstructed by a carpet.
• The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.
• The maximum number of place settings to be washed by this dishwasher is 14 place settings.
• The door should not be left in the open position since this

could present a tripping hazard.

• Regarding the detailed instructions on how to load the dishwasher, refer to the section "Placing the dishes into the dishwasher" in pages 120-121.
  WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
• The minimum permissible inlet water pressure is 0.03MPa .
• The maximum permissible inlet water pressure is 1 MPa .
• The plug must be remained easily accessible after installation of the appliance.

Safety Precautions

• Installation and repair can only be carried out by a qualified technician.
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not immerse the appliance, cord or plug in water or any other liquid.
• Turn off and unplug the appliance before cleaning and performing maintenance.
• Do not sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Carefully open the door when the dishwasher is operating because there might be a risk of water squirting out.
• Do not place any heavy object on or stand on the door when it is open. The appliance could tip forward.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

• Use only detergent and rinse agents recommended for use in an automatic dishwasher.

• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.

• Do not tamper with controls.

• Earthing Instructions:

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.

• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

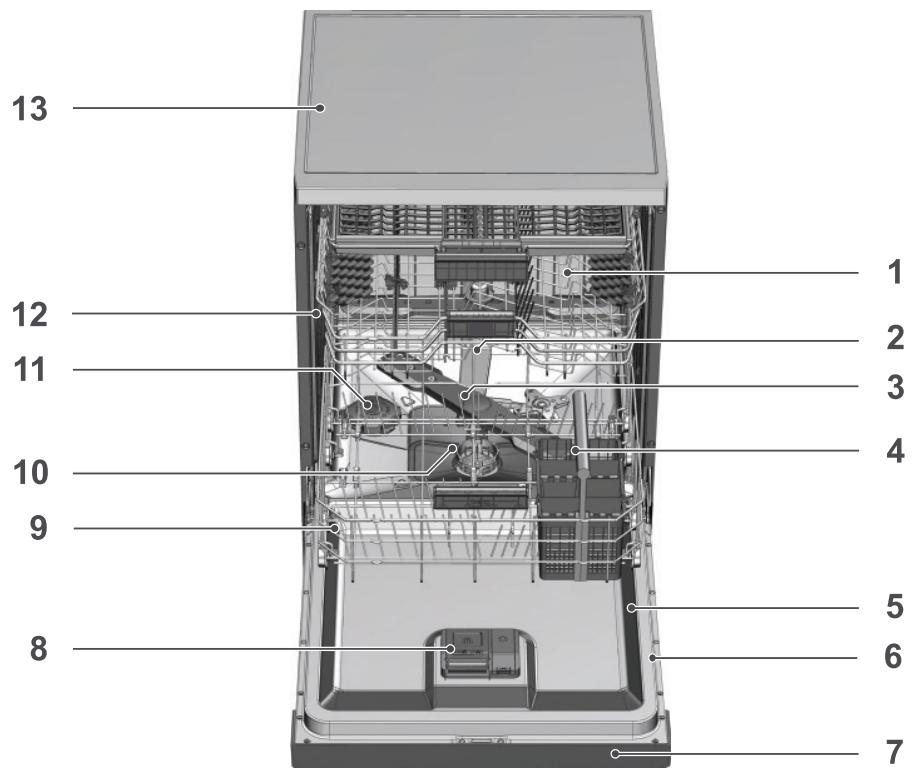

PRODUCT OVERVIEW

1. Upper basket

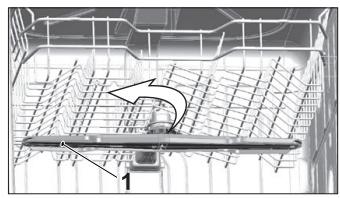

2. Upper impeller
3. Lower impeller
4. Cutlery basket
5. Door
6. Rating Label

7. Control panel

8. Detergent dispenser

9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Tabletop

Control Panel

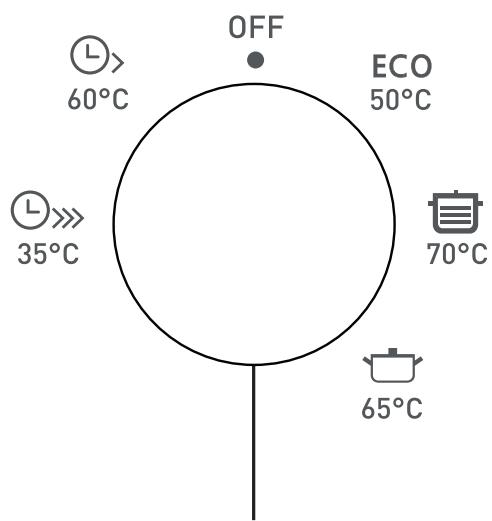

On-Off / Program Selection knob

1/2 3sec.

3sec.

Cancel 3sec.

3sec.

Half Load function key / Tablet detergent function key 3 sec

3sec.

Delay function key / auto door open key

Cancel 3sec.

Start / Pause / Cancel key

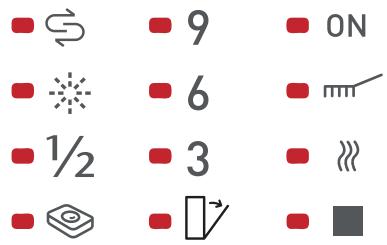

Low salt warning indicator	9	ON On/Off Control light
Rinse aid indicator	6	Program Monitoring Indicators	mm Washing Indicator
1/2Half load indicator	3		Drying Indicator
Tablet detergent indicator	Door open indicator		Program Ended Indicator

EN-106

INSTALLATION

Installation procedures must always be performed by the manufacturer, authorised service agent or a qualified person specified by the importer. To make the product ready for use, make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the authorised service agent. If they are not, call a qualified technician and plumber to have the necessary arrangements carried out.

i Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.
Installation and electrical connections must be carried out by the authorised service agent. Manufacturer shall not be held responsible for damages arising from processes carried out by unauthorised persons.
Prior to installation, check if the product has any defects on it. If the product is damaged, do not have it installed. Damaged products cause risks for your safety.
i Make sure that the water inlet and discharge hoses are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.
The front of the appliance may not be removed on free-standing or under-thecounter models.

When placing the product, pay attention not to damage the floor, walls, piping, etc. Do not hold the product from its door or panel to move it.

Appropriate installation location

In the area where this product is installed, there must not be a lockable, sliding or hinged door that will restrict full opening of the product's door.

i Make sure that you select a location that will allow you to load and unload the dishes in a fast and comfortable manner.

• Place the product on a solid and flat floor that has sufficient load carrying capacity! The product must be installed on a flat surface in order for the door to be closed properly and securely.
• Do not install the product at places where temperature may fall below 0^ C .
• Place the product on a hard floor. Do not place it on a long pile rug or similar surfaces.

Do not place the product on the power cable.

• Make sure that you select a location that will allow you to load and unload the dishes in a fast and comfortable manner.
• Install the product at a place close to the tap and the drain hole. Select the installation location by considering that it will not be changed after the connections are made.

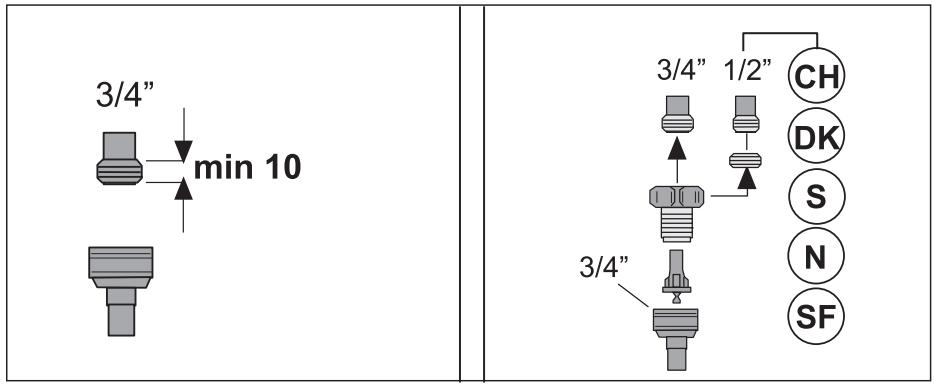

Connecting water supply

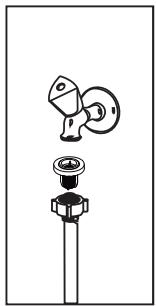

We recommend installing a filter at the water inlet in order to prevent the dirt (sand, clay, rust) in the mains or water installation of your home from damaging the machine or the dishes.

Permitted water temperature: up to 25^

The dishwasher may not be connected to open warm water devices or flow-through water heaters.

NOTICE Do not use an old or used water inlet hose on the new product.

Use the new water inlet hose supplied with the product.

Do not make extension at the hoses.

NOTICE Connect the water inlet hose directly to the water tap. Pressure coming from the tap should be 0.3 bars minimum and 10 bars maximum. If the water pressure exceeds 10 bars, a pressure relief valve should be installed in between.

NOTICE The water supply and draining hoses must be securely fastened and remain undamaged.

NOTICE Open the taps completely after making the connections to check for water leaks.

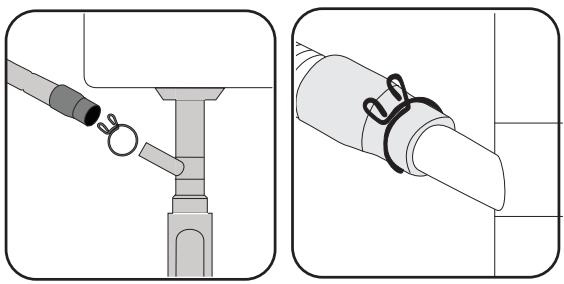

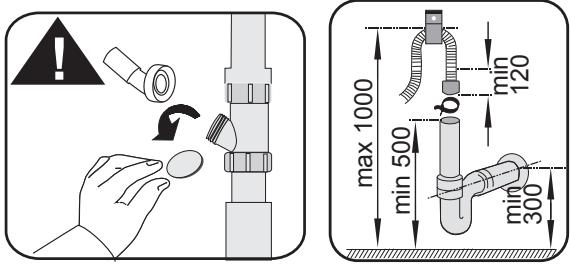

Connection to the drain

Water discharge hose can directly be connected to the drain hole or sink's drainage.

Drain pipe must be connected to the sewage system and it should not be connected to any surface water.

Adjusting the feet

If the door of the product cannot be closed properly or if the product rocks when you push it slightly, then you need to adjust the feet of the product.

Steam may escape if the door of the dishwasher is not adjusted properly. Hot steam may cause serious burns and injuries and damage your furniture.

Electrical connection

The installation of electrical equipment should be done by professionals.

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Ensure the voltage and frequency of the dishwasher correspond to those indicated on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Ensure that proper earthing exists before use.

PREPARATION

Tips for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

Wipe away any coarse food remnants on the dishes before putting them in the product.

i Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.

Operate the product after filling it completely. When selecting a programme, consider the table of "Programme data and average consumption values".

Do not put more detergent than suggested on the detergent package.

Water softening system

The product is equipped with a water softening system which reduces the hardness of incoming water. This system softens the supply water to a level that will allow washing the dishes with the required quality.

The mains water hardness must be softened if it is over 7^ . Otherwise, hardness ions will accumulate on the dishes that are washed and may affect the washing, rinsing and drying performances of the machine.

Adjusting the water softening system

Washing performance will increase when water softening system is adjusted properly.

Washing, rinsing and drying performance of your dishwasher will improve

when the water softening system is adjusted correctly.

To adjust the system, first learn the water hardness in your region and adjust as indicated below.

• Unpack the test strip.
• Open the tap and let the water flow for approx. 1 minute.
• Dip in the test strip into the water for 1 second.
  Take out the strip from the water and shake it.
  Wait for 1 minute.
• Make the necessary adjustment according to the test strip

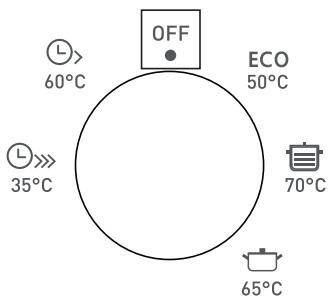

After the determination of the water hardness :

1. While the Program Selection Knob is "OFF", press and hold and rotate the Program Selection Knob one step clockwise and keep pressed for 3 seconds; the machine shall switch to regeneration setting mode after this period.
2. The regeneration level in the memory is illuminated for 5 seconds when you enter the regeneration setting mode.
3. For setting a new Water Hardness Level, bring the Program Selection Knob to the proper position for the hardness level of your mains water. (See Water Hardness Level Setting Table)
4. Press to record the selected setting in the memory.
5. Bring the Program selection knob to "OFF" position.

Water hardness level setting table

Hardness Level	English Hardness °dE	German Hardness °dH	French Hardness °dF	Level of program selection knob *	Water Hardness Level Indicator
0. Level	0-5	0-4	0-8	1	The Washing light on the panel illuminates.
1. Level	6-9	5-7	9-13	1
2. Level	10-15	8-12	14-22	2	The Drying light on the panel illuminates.
3. Level	16-19	13-15	23-27	3	The End light on the panel illuminates.
4. Level	20-24	16-19	28-34	4	The Washing, Drying and End lights on the panel illuminate.
5. Level	25-62	20-50	35-90	5	The Washing, Drying and End lights on the panel flashes with intervals of 1 second.

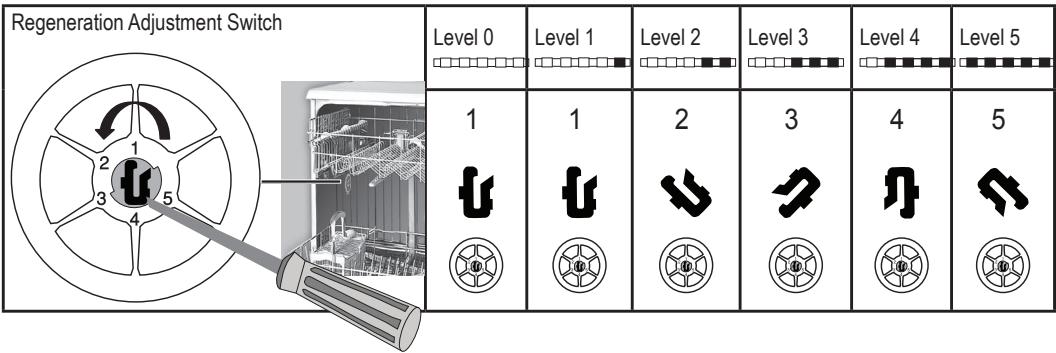

After detecting the water hardness:

Perform the same hardness level adjustment that you have set on the control panel also with he regeneration adjustment switch. For example, if you have adjusted to "3" in the control panel, also set the regeneration adjustment switch to 3.

• If the hardness level of the water that you use is above 50^ or if you are using well water, than it is recommended to use filter and water purification devices.

• If the hardness level of the water that you use is below 7^ , there is no need to use salt in your dishwasher. In this case, the Salt Indicator light on the control panel of your dishwasher will light continuously.

• If the water hardness is set to level 1, the Salt Indicator will light continuously although it is not necessary to use salt. If you use salt under this condition, salt will not be consumed and the lamp will not illuminate.

When moving, you will need to set the water hardness level of your dishwasher again according to the information above, depending on the water hardness of the place you have moved to. If the water hardness level of your machine is adjusted previously, your machine will display the most recent hardness level adjustment.

The regeneration of the water softening system can be done in all programmes during drying step. When regeneration occurs, duration, energy and water consumption of the programme increase.

For regeneration process; frequency of regeneration cycle, maximum additional duration, water and energy consumption are given in table below depending on ECO 50^ programme water consumption, when the dishwasher is run under standard conditions with 14 dH water supply on its ECO 50^ programme :

ECO 50°C water consumption (l)	Regeneration after ... cycles	Additional duration (min)	Additional water consumption (l)	Additional energy consumption (kWh)
12,3 – 14,7	5	5	3,0	0,05
9,6 – 12,2	6	5	3,0	0,05
9,0 – 9,5	7	5	3,0	0,05
8,0 – 9,0	8	5	3,0	0,05
7,0 – 7,9	9	5	3,0	0,05

Adding salt

Water softening system needs to be regenerated in order for the product

to operate with the same performance continuously. Dishwasher salt is used for this purpose.

i Use only special softening salts produced particularly for the dishwashers in your machine.
It is recommended to use granule- or powder-formed softening salts in the water softening system. Do not use salts that do not completely dissolve in water such as table salt or rock salt. Otherwise the performance of the system may deteriorate in time.
Salt reservoir will be filled with water when you start the product. For this reason, add salt before operating the machine.

1. Firstly, take the lower basket out to add softening salt.

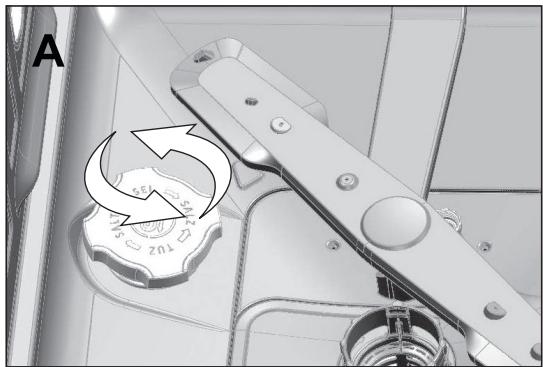

2. Turn the salt reservoir lid counterclockwise to open it (A).

1. Add 1 liter of water to salt reservoir of your machine only in initial use.

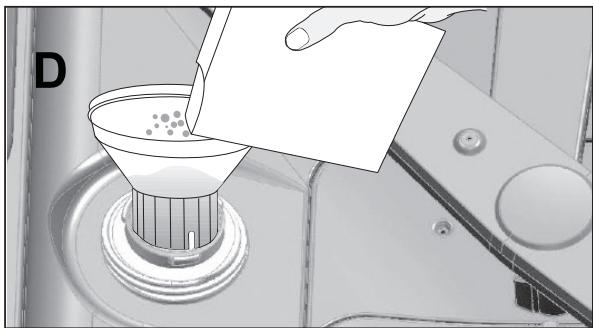

2. Fill the salt reservoir with salt by using the salt funnel (D). To speed up dissolution rate of salt in water, stir it with a spoon.

EN-115

You can put about 2kg of softening salt into the salt reservoir.

1. Replace the lid and tighten it when the reservoir is full.

You need to add salt right before starting the machine. Thus, the overflowing salty water will be flushed immediately, preventing the risk of corrosion in machine. In cases where you would not start washing immediately, run your machine empty in the shortest programme.
i Since different salt brands in the market have different particle sizes and since the water hardness may vary, dissolution of the salt in water may take a couple of hours. Therefore, Salt Indicator remains on for a while after adding salt into the machine.

Detergent

You can use powder, liquid/gel or tablet detergents in the machine.

Only use detergents produced particularly for use with dishwashers.

Note that detergents that contain chlorine and phosphate can be harmful for the environment. Liquid detergents without chlorine may not remove tea and coffee stains from cups.

Adding detergent

Pay attention to the warnings on the detergent packaging to get better washing and drying results.

Do not put solvents into the detergent dispenser. There is the risk of explosion!

Put the detergent into the detergent dispenser just before operating the machine as illustrated below.

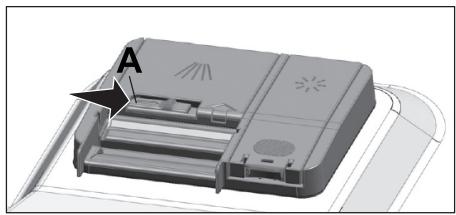

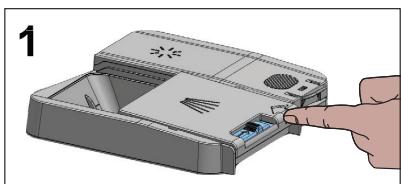

1. Push the latch to right to open the detergent dispenser lid (A).

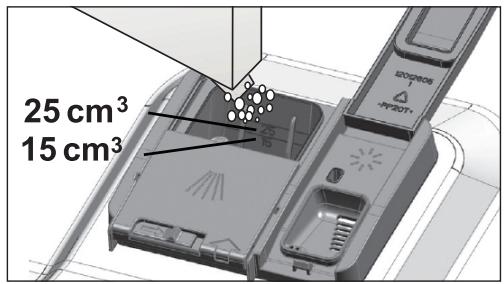

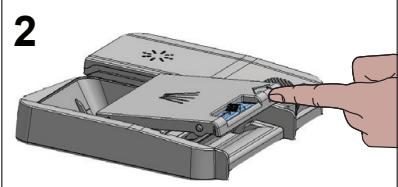

1. Put suggested amount of powder, liquid/gel or tablet detergent in the reservoir.

Inside the detergent dispenser there are level markings that help you use appropriate amount of powder detergent. When brimful, detergent dispenser will contain 45~cm^3 of detergent. Fill detergent up to 15~cm^3 or 25~cm^3 level marks in the detergent dispenser according to fullness of the machine and/or soiling degree of the dishes. One tablet is enough if you are using detergent tablets.

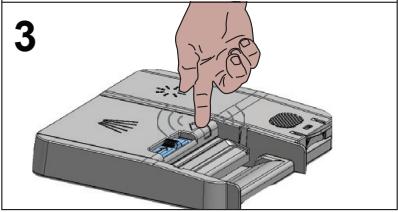

1. Push the lid of the detergent dispenser to close it. A "click" will be heard when the lid is closed.

EN-117

Use powder or liquid/gel detergent in short programmes without prewash since the solubility of the tablet detergent changes depending on the temperature and time.

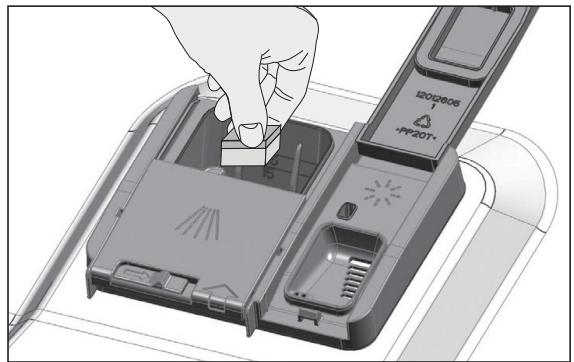

Tablet detergents

In addition to the conventional tablet detergents, there are also commercially available detergent tablets that show water softening salt and/or rinse aid effect. Some types of these detergents contain special purpose components such as glass and stainless steel protectors. These tablets show their effects up to a certain water hardness level (21^) . Water softening salt and rinse aid must also be used together with the detergent if the water hardness level is above the mentioned level.

The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually.

Observe the instructions of the detergent manufacturer on the package when using tablet detergents.
i Contact the detergent manufacturer if your dishes are wet and/or if you notice limescale spots particularly on your glasses after the washing programme is over when using a tablet detergent.

When you switch to powder detergent from tablet detergent:

1. Make sure that salt and rinse aid reservoirs are full.
2. Set the water hardness to the highest level and perform an empty

run.

1. After the empty washing cycle, review the user manual and readjust the water hardness level so as to suit the water supply.
2. Make the appropriate rinse aid settings.

Rinse aid

The rinse aid used in dishwashers is a special combination that aims to increase drying efficiency and prevent water or lime stains on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.

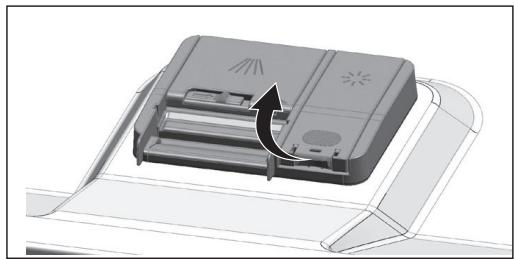

1. Open the lid of the rinse aid reservoir with the help of the latch.

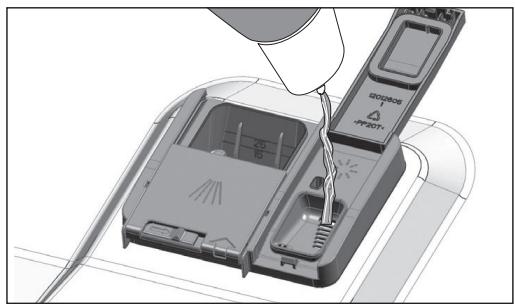

1. Fill the reservoir until "MAX" level.

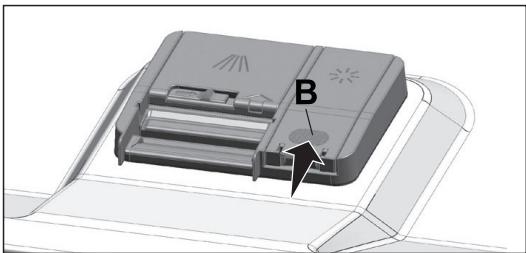

1. Slightly press the point (B) of the reservoir lid to close it.

EN-119

1. If there are stains on tableware items after washing, level must be increased and if there is a blue trace after wiping them by hand, it must be decreased. This is set to position 3 as factory default.

The rinse aid adjustment is described under "Adjusting the amount of rinse aid" in the section for operating the machine.
Wipe clean any spilled rinse aid outside the reservoir. Rinse aid that spilled accidentally will cause foaming and it will eventually decrease washing performance.

Items not suitable for washing in the dishwasher

• Never wash dishes soiled by cigarette ash, candle remnants, polish, dyestuff, chemicals, etc. in your dishwasher.
• Do not wash silverware and cutlery with wooden or bone stems, glued pieces, or pieces that are not resistant to heat, as well as copper and tinplated containers in the dishwasher.

1 Decorative prints of chinaware as well as aluminium and silver items may get discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. We strongly recommend you to check if the tableware you are going to purchase is suitable for washing especially in the dishwasher.

Placing the dishes into the dishwasher

Depending on the capacity of your dishwasher, you can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way.

• Wipe away any coarse food remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher.
• Place thin, narrow pieces in the middle sections of baskets if possible.
• Place the heavily soiled and bigger items in the lower basket and smaller, delicate and light items in the upper basket.
• Place the hollowed dishes such as bowls, glasses and pans upside down in the dishwasher. Thus, accumulation of water in deep hollows is prevented.

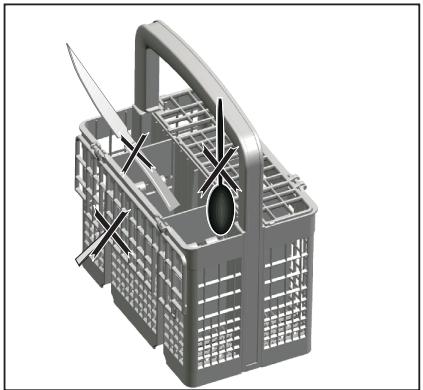

To prevent possible injuries, always place the sharp and pointed dishes such as service fork, bread knife, etc. upside down so as their pointed ends will face down or lay them horizontally in the dish basket. Unload dishes in the lower basket first and then the dishes in the upper basket.

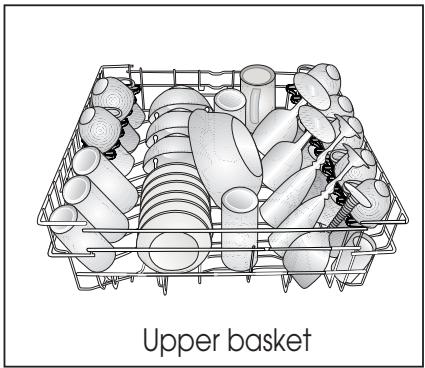

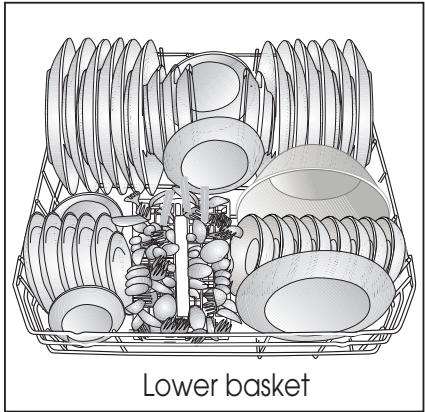

Suggestions for loading the dishwasher

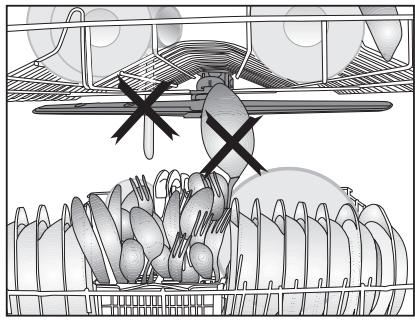

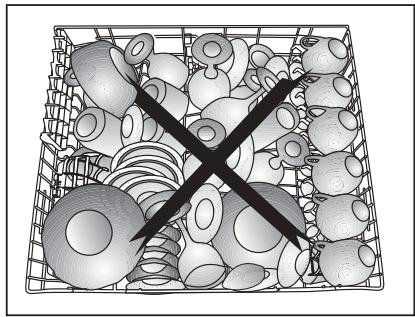

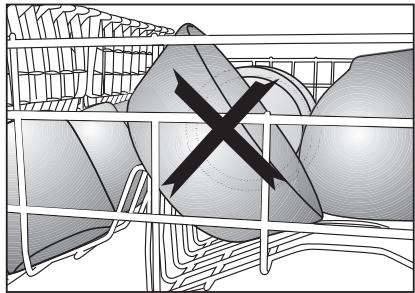

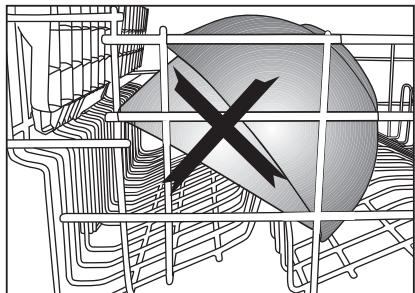

Improper Loading Of Dishware

Improper Loading Of Dishware

EN-121

Cutlery basket

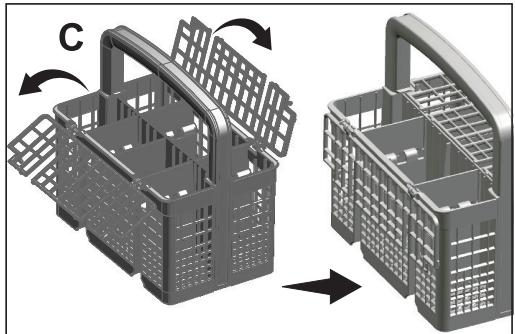

Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an efficient manner.

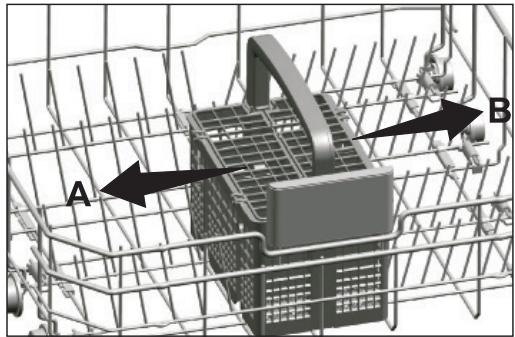

Since the cutlery basket can be moved (A, B), you can create more space while placing your dishes in the lower basket and free up space for your dishes of different sizes.

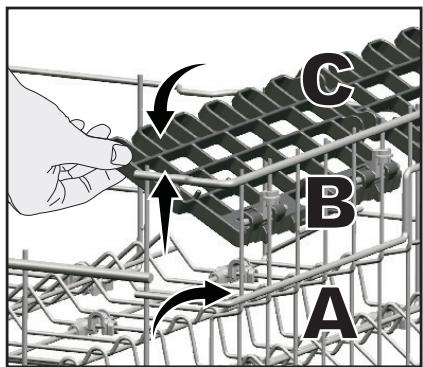

Upper basket height adjustable rack

Use the lower and upper parts of the height adjustable racks in the upper basket of the machine by sliding them down or up according to the heights of the glasses, cups or etc. (A, B, C).

EN-122

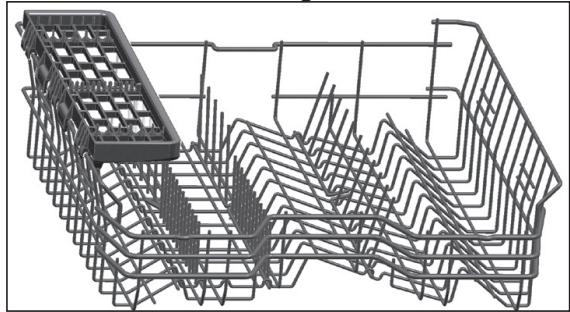

Upper basket multipurpose service rack

This accessory located at the upper basket of your machine allows you to easily wash pieces such as extra long ladles and bread knives.

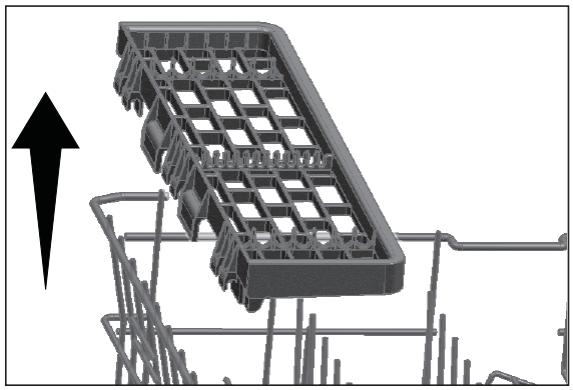

You can lift up the upper basket multipurpose service rack to remove it if you do not want to use it.

If you want to use the upper basket multipurpose service rack again, you can easily attach it to the side section of your upper basket.

EN-123

OPERATION OF THE PRODUCT

On-Off / Program Selection knob

When you select a program with the On-Off / Program Selection knob, On Warning control light is illuminated, and it is turned off when you bring the knob to Off position.

Start / Pause / Cancel key

Cancel 3sec. Used for starting, holding or cancelling the selected program.

Time Delay key

It is used to set the time delay duration.

Preparation of the machine

1. Open the door of the dishwasher.
2. Load your dishes as described in the user manual.
3. Ensure that lower and upper propellers are rotating freely.
4. Add adequate amount of detergent in the detergent compartment.
5. Inspect whether low salt and low rinse aid indicators are illuminated; and add salt and/or rinse aid if required.
6. Close the door of the dishwasher.

Program selection

1. Turn on your dishwasher with the On- Off / Program Selection knob.
2. Select the proper washing program for your dishes considering the program information and average consumption values table.
3. Select the program you have determined with the program selection knob.

Programme Data and Average Consumption Values Table
Programme	ECO50°C	70°CIntensive	65°CClean&Dry	L>60°CQuick&Dry	L>>35°CMini(#)
Cleaning temperature	50°C	70°C	65°C	60°C	35°C
Degree of Soiling	Suitable for washing dishes with normal amount of soil. It is the most efficient program in terms of combined power and water consumption. This is used for assessing the compliance with EU's eco-design directive.	Suitable for heavily soiled dishes, pots and pans.	Daily washing programme for normally soiled dishes.	Daily washing programme for normally soiled dishes in the fastest way.	Suitable for lightly soiled daily dishes that are scraped or pre-cleaned
	Medium	High	Medium	Medium	Low
Prewash	+	+	+	-	-
Wash	+	+	+	+	+
Dry	+	+	+	+	-
Duration (min)	190	133	135	79	76
Water (l)	11,5	17,6	16,2	11,8	11,8
Energy (kWh)	0,849	1,5	1,2	1	0,8

Loading Capacity: 14

The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions. * Reference programme for testing institutes.

The tests in accordance with EN 50242/60436 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme. The values given for programmes other than Eco 50^ programme are indicative only. (#) Additional functions might cause changes in programme durations.

Auxiliary functions

Washing programmes of your dishwasher are designed to obtain the best cleaning effect, considering the type of the soiling, soiling degree and properties of the dishes to be washed.

Auxiliary functions are provided in order to enable you to save time, water and energy and to perform a more comfortable washing with conditions specific to you.

Auxiliary functions may cause changes in the programme duration.
Some auxiliary functions cannot be used together.
Auxiliary functions are not suitable for all washing programmes. Indicator of the auxiliary function that is not compatible with the programme will not be active.

To add auxiliary function to the programme:

1. Select the desired washing programme by pressing the programme selection key.
2. In the selected washing programme, if auxiliary function is selected, its symbol will be displayed on the screen. If the function key is pressed again, the symbol will disappear and selection is cancelled.

Half Load function

It is used to operate the machine without loading it completely.

1. Load your dishes in the machine as you like.
2. Turn the machine on with On/Off key.

1/2

1. Select the desired programme and press the Half Load key 3sec.. While the function is enabled, the Half Load indicator 1 / 2 will come on in the function selection indicator and on the display.
2. Start the programme by pressing .

i With the Half Load function you can save both water and power while using the lower and upper baskets of the machine.

Tablet detergent function

Allows to obtain a better drying performance from the multi-purpose detergents called as all in one detergents such as 2in1, 3in1, 4in1, 5in1 and etc., depending on the hardness level of the tap water.

1/2

Press and hold the tablet function button 3sec. on the panel to activate the tablet function for appropriate programmes. Selecting the tablet function will light the Tablet Detergent indicator

If you have used the Tablet features during the last washing programme you used, Tablet function will remain active in the next washing programme you will select. If you do not want to use these functions in the new program you have selected, press the Tablet Detergent key until the indicator of the relevant function turns off.

i Tablet Detergent function may cause change in the programmeduration.

SelfDry

"SelfDry" feature of your machine increases drying efficiency of your machine and saves energy. There are two options: "OFF" and "ON".

To activate the feature of SelfDry:

1. Press SelfDry button _3sec . When the function is active, the indicator showing the selection of the function lights up.
2. SelfDry is activated.

When you activate this function, the door of your machine opens automatically at the end of the washing program.

To deactivate the feature of SelfDry:

1. Press the button of SelfDry _3sec . When the function is deactivated, the indicator showing the selection of the function turns off.
2. SelfDry is deactivated.

SelfDry opens the door of the machine at the end of the washing circle, thanks to the "door opening shafts". This process takes approximately 2 minutes. If the power fails while the shafts are moving out, do not force to close the door. When the power is back, the process shall be completed, and the shafts shall return to their initial position.

The function of SelfDry may change the duration of the selected program.

Programming the Washing Period

Time Delay key

You may delay the start time of the program up to 9 hours with the Delay key. Press after delaying. Program starts automatically when the delay period is over.

With each press on the Delay key 3sec , 3-6-9 hours indicators start to flash. When you press while the delay indicator you have selected is flashing, the delay indicator illuminated continuously and the count down starts. When the delay period is over, the delay indicator is turned off and the washing program you have selected starts.

The delay indicators are turned off if you press the Delay key while the 9-hour delay lamp is flashing. When you press while the delay indicators are off, the program you have selected shall start without delay.
i You may monitor the remaining time on the delay from the delay indicators. For example: When you select the 9-hour delay option, 6-hour indicator shall start to illuminate when the remaining time for the start of

washing program is 6 hours.

To cancel the delay function:

When you press for 3 seconds while the delay function is active, the delay process shall be cancelled.

Starting of the program

Press to start your machine after selecting the program and additional functions.

Machine softens the water as per the hardness of the mains water. The washing period may differ due to the water softening process. Moreover, program period may also change while the program is being executed as a result of the room temperature, mains water temperature and the amount of dishes.
Care to avoid opening of the door while the machine is being operated. If you need to open the door, stop the machine by pressing . Then open the door of the machine. Be careful as steam may come out when you open the door of the machine. Press again after closing the machine door. Program shall be resumed.
To ensure that the water remaining on the dishes and inside the machine is completely drained and that the water softener is removed after rinsing operation, your machine resumes operation at drying cycle after keeping silent for a while.

Monitoring of Program

You may monitor the current program step of the program you have selected from the program step monitoring indicators on the control panel.

If the drying indicator is illuminated, machine shall perform drying silently for approximately 30 to 60 minutes. After this period, the drying indicator is turned off and End indicator shall be illuminated. The End light is illuminated when the washing program you have selected is complete.

Cancelling the program

1. Press for 3 seconds to cancel the program.
2. Release the key when Washing and Drying indicators start to flash. The water inside the machine shall be drained within 45 seconds. Program shall be cancelled when the Washing and Drying indicators are turned off and End indicator is illuminated. Then, you may select a new program and start it.

Detergent or rinse aid may remain inside the machine and/or the dishes being washed as per the step of the program you have cancelled.
When the Program Selection Knob is brought to "Off" position, the washing program is ended and machine becomes ready for selection of program again. Water and detergent may remain inside the machine if the washing is ended in such a way.

Low Salt Warning indicator

Check the low salt warning indicator to determine if the softening salt available in your machine is adequate. You shall add salt to the salt compartment when the low salt warning indicator starts to illuminate.

Low Rinse Aid Warning indicator

Check the low rinse aid warning indicator to determine if the rinse aid available in your machine is adequate. You shall add rinse aid to the rinse aid compartment when the low rinse aid warning indicator starts to illuminate.

Setting the Rinse aid Amount

1. While the Program Selection Knob is "Off", press and hold 3sec. of your machine and rotate the Program Selection Knob one step clockwise and keep the function key pressed for 3 seconds. Machine switches to rinse aid setting mode.
2. When the rinse aid setting mode is activated, the rinse aid level in the memory is indicated by the program monitoring LEDs for 5 seconds.
3. Bring the Program selection knob to the proper position for the new rinse aid amount setting.

4. Press once to record the selected setting in the memory.

5. Machine returns to normal mode when you bring the Program Selection knob to "Off" position again.

Rinse Aid Amount	Level of program selection knob	Rinse Aid Setting Indicator
Applies 1 dose of rinse aid.	1	The washing indicator on the panel illuminates.
Applies 2 dose of rinse aid.	2	The drying indicator on the panel illuminates.
Applies 3 dose of rinse aid.	3	The End indicator on the panel illuminates.
Applies 4 dose of rinse aid.	4	The Washing, Drying and End indicators on the panel illuminate.
No dose of rinse aid is applied.	5	The Washing, Drying and End indicators on the panel flashes with intervals of 1 second.

End of Program

Program End indicator illuminates when the washing program has ended.

1. Turn off your machine with the On-Off / Program Selection knob.
2. Turn off the tap.
3. Remove the plug from the outlet.

After washing your dishes, keep them inside the machine for cooling for approximately 15 minutes. Your dishes shall dry faster if you leave the door of your machine ajar within this period. This shall improve the drying efficiency of the machine.

CLEANING AND MAINTENANCE

Unplug the product and turn off the tap before attempting any cleaningprocedures.
1 Do not use abrasive substances for cleaning.
Clean the filter and impellers at least once a week in order for the machine to operate efficiently.

Cleaning the outer surface of the product

NOTICE Clean the outer surface and door gaskets of the product gently with a mild cleaning material and damp cloth. Wipe the "control panel" only with a damp cloth.

Cleaning the interior of themachine

• Clean the interior of the machine by operating the machine in the programme running at the highest possible temperature with detergent or special machine cleaning agents monthly. This operation will help removal of leftovers and limescale from the interior of the machine.
• If water has remained in the machine, drain the water by performing the procedures under the topic "Cancelling a programme". If the water cannot be discharged, remove the filters as specified in the "Cleaning the filters" section and check if there are any leftover deposits that have accumulated at the bottom of the machine, blocking the water path. Clean if necessary.

Cleaning the filters

Clean the filters at least once a week in order for the machine operates efficiently.

Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water.

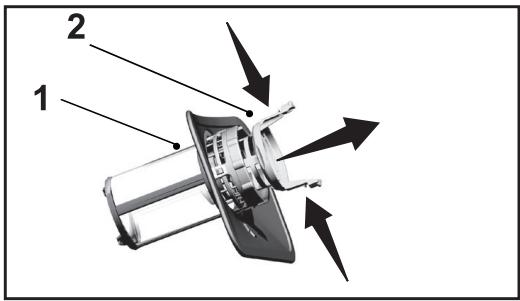

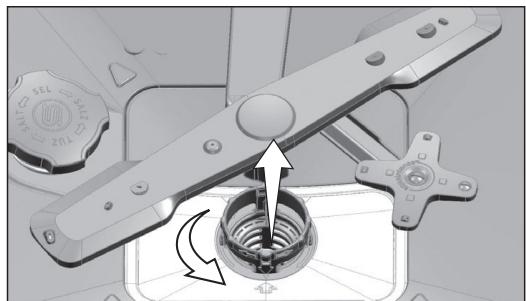

1. Turn the micro filter (1) and coarse filter (2) assembly counter clockwise and pull it out from its seating.

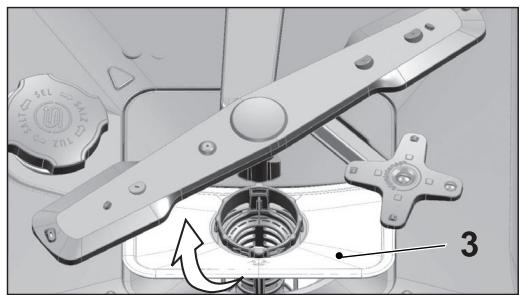

1. Pull out the metal/plastic filter (3) from the seating.

1. Press the two pawls on the coarse filter inwards and separate the coarse filter from the assembly.

1. Clean all three filters under tap water by means of a brush.
2. Place the metal/plastic filter.
3. Place the coarse filter into the micro filter. Make sure that it is properly seated. Turn the coarse filter clockwise until a "click" sound is heard.

1 Do not use the dishwasher without filter.
Incorrect placement of the filters will reduce washing efficiency.

Cleaning the hose filter

Damages on the machine that may be caused by impurities coming

from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary.

1. Turn off the tap and remove the hose.
2. After taking out the filter, clean it under running tap water.
3. Place the cleaned filter back to its seat in the hose.
4. Install the hose to tap.

Cleaning the impellers

Clean the impellers at least once a week in order for the machine operates efficiently.

Lower impeller

Check if the holes on the lower impeller (1) are clogged. If they are clogged, remove and clean the impeller. You can pull the lower impeller up to remove it.

Upper impeller

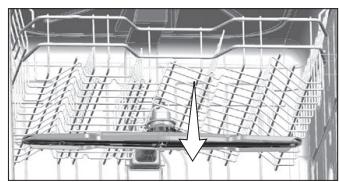

Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller.

Make sure that the nut is tightened well when installing the upper impeller.

TROUBLESHOOTING

Machine does not start.

• Power cable is unplugged. >>> Check if the power cable is plugged in.
• Fuse is blown. >>> Check the fuses in your house.
  Water is cut. >> Make sure that the water inlet tap is open.
• Door of the machine is open. >> Make sure that you have closed the door of the machine.
• On / Off button is not pressed. >>> Make sure that you have turned on the machine by pressing the On / Off button.

Dishes are not washed clean

• Dishes are not placed orderly in the machine. >> Load the dishes as described in the user manual.
• Selected programme is unsuitable. >>> Select a programme with a higher temperature and cycle time.
• Impellers are stuck. >> Prior to starting the programme, turn the lower and upper impellers by hand to make sure that they rotate freely.
• Impeller holes are clogged. >> Lower and upper impeller holes might be clogged with food remnants such as lemon pips. Clean the impellers regularly as illustrated in section “Cleaning and Care”.
• Filters are clogged. >> Check if the filter system is clean. Clean the filter system regularly as illustrated in section "Cleaning and Care".
• Filters are installed incorrectly. >> Check the filter system and make sure that it is installed correctly.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.
• Detergent is stored under unsuitable conditions. If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
  Detergent is not sufficient. >> If you are using powder detergent, adjust the amount of detergent according to the soiling degree of

your dishes and/or programme definitions. We recommend you to use tablet detergents for optimum results.

• Rinse aid is not sufficient. >> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
• Detergent dispenser lid is left open. >>>> Make sure that the detergent dispenser lid is closed tightly after adding detergent.

Dishes are not dry at the end of cycle

• Dishes are not placed orderly in the machine. >> Place your dishes in a way that no water will accumulate in them. Rinse aid is not sufficient. >> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
• Machine is unloaded right after the programme is over. >> Do not unload your machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket. Thus, dropping of water remained on a piece at upper basket onto the pieces at lower basket is prevented.
• Selected programme is unsuitable. Since rinsing temperature is low at programmes with short duration, drying performance will also be low. Select programmes with longer duration for a higher drying performance.
• Surface quality of the kitchen utensils is deteriorated. Desired washing performance can not be obtained on kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. Also, water can not flow easily on deteriorated surfaces. It is not recommended to wash such kitchen utensils in dishwasher.

It is normal that drying complaints can be experienced with Teflon kitchen utensils. It is associated with the structure of Teflon. Since the surface tensions of Teflon and water are different, water droplets will remain as beads on the Teflon surface.

Tea, coffee or lipstick stains remain on dishes.

• Selected programme is unsuitable. >>> Select a programme with a higher temperature and cycle time.
• Surface quality of the kitchen utensils is deteriorated. Tea and coffee stains or other dye spots may not be cleaned in dishwasher when they have penetrated in deteriorated surfaces. Desired washing performance can not be obtained on kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. It is not recommended to wash such kitchen utensils in dishwasher.
• Detergent is stored under unsuitable conditions. If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.

Lime traces remain on dishes and glassware gains a misty appearance

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
• Water hardness setting is low or salt level is insufficient Measure the hardness of the supply water appropriately and check the water hardness setting.
• Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.

There is a different odour in the machine

A new machine has a peculiar odour. It will fade out after a couple of washes.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section "Cleaning and Care".

• Dirty dishes are kept in dishwasher for 2-3 days. If you are not going to start the machine right after you have put the dishes into it, remove the remnants on the dishes and run the Prewash programme without detergent every 2 days. In such cases, do not close the door of the machine completely in order to avoid odour build up in machine. You can also use commercially available odour removers or machine cleaners.

Rust, discoloration or surface deterioration occurs on dishes

• Salt leakage exists. Salt may cause deterioration and oxidation on metal surfaces. Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.
• Salty food remnants have remained on dishes for a long time. If cutlery soiled with such foods will be kept waiting in machine, dirt must be removed by prewash or dishes must be washed without being kept waiting.
• Electric installation is not grounded. >>>Check if your machine is connected to the actual grounding line. Otherwise, the static electric created in the product causes arcs on the surfaces of metal items creating pores, removing the protective cover on the surface and causing discoloration.
• Intensive cleansers such as bleaches are used. >>> Protective cover on metal surfaces gets damaged and looses its efficiency in time when it gets in contact with cleansers such as bleach. Do not wash your dishes with bleach.
• Metal items particularly knives are used for purposes other than their intended uses. >> Protective cover on the edges of knives may get damaged when they are used for purposes such as opening cans. Do not use metal kitchen utensils out of their intended uses.
  Cutlery are made of low quality stainless steel. >> Corrosion on such

items is inevitable; they should not be washed in dishwashers.

• Kitchen utensils that are already corroded are washed in dishwasher. Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers.

Detergent remains in detergent dispenser.

• Detergent dispenser was damp when adding detergent. Make sure that the detergent dispenser is dried well prior to filling it with detergent.
• Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing. Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
• Detergent is stored under unsuitable conditions. If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
• Impeller holes are clogged. >> Lower and upper impeller holes might be clogged with food remnants such as lemon pips. Clean the impellers regularly as illustrated in section “Cleaning and Maintenance”.

Decorations and ornaments on kitchen utensils are being erased.

1 Decorated glasses and decorated lustre porcelains are not suitable for washing in the dishwasher. Manufacturers of some glassware and porcelain tableware items do not recommend washing such kitchen utensils in the dishwashers either.

Dishes are scratched.

Kitchen utensils that contains or are made of aluminium should not be washed in dishwasher.

• Salt leakage exists. >>>> Pay attention not to spill salt around the salt filling hole while adding salt. Spilled salt can cause scratches. Make

sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.

• Water hardness setting is low or salt level is insufficient Measure the hardness of the supply water appropriately and check the water hardness setting.
• Dishes are not placed orderly in the machine. >> When placing the glasses and other glassware into the basket lean them not against other dishes but the edges or racks of the basket or the glass support tines. Striking of the glasses to each other or to other dishes due to the impact of water during washing can cause breaks, or scratches on their surfaces.

A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light.

• Excessive rinse aid is used. >>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
• Corrosion has occurred on glass due to soft water. >> Measure the hardness of the supply water appropriately and check the water hardness setting. If your supply water is soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g. 60-65°C). You can also use glass protective detergents that are commercially available.

Foam forms in the machine.

• Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
• Rinse aid has spilled into the machine when adding rinse aid. >>> Take care that rinse aid is not spilled in the machine when you are

filling it. Clean any spilled rinse ait with the help of a tissue paper/ towel.

• Lid of the rinse aid reservoir is left open. >>>> Make sure that the lid of the rinse aid reservoir is closed after adding rinse aid.

Kitchen utensils are broken.

• Dishes are not placed orderly in the machine. >> Load the dishes as described in the user manual.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

Water remains in the dishwasher at the end of the programme.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section "Cleaning and Care".
• Discharge hose is clogged/blocked. >> Check the discharge hose. If necessary, remove the discharge hose, clear the blockage and insert is as illustrated in the user manual.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised Service Agent. Never try to repair a nonfunctional product yourself.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2017 with regard to energy labelling of household dishwashers
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: TDW4714WH, TDW4714SL, TDW4714BK
General product parameters:
Parameter	Value	Parameter		Value
Rated capacity (°) (ps)	14	Dimensions in cm	Height	85
			Width	60
			Depth	60
EEI (°)	49,9	Energy efficiency class (°)		D
Cleaning performance index (°)	1,130	Drying performance index (°)		1,070
Energy consumption in kWh (per cycle), based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0,849	Water consumption in litres (per cycle), based on the eco programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.		11,5
Programme duration (°) (h:min)	3:10	Type		free-standing
Airborne acoustical noise emissions (°) (dB(A) re 1 pW)	47	Airborne acoustical noise emission class (°)		C
Off-mode (W) (if applicable)	0,50	Standby mode (W) (if applicable)		1,00
Delay start (W) (if applicable)	4,00	Networked standby (W) (if applicable)		N/A

Minimum duration of the guarantee offered by the manufacturer: 24 months

Additional information:

Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.darty.com

(a) for the eco programme.

To find the model information in the product database: Click the link

https://eprel.ec.europa.eu/screen/product/dishwashers2019/1188401
https://eprel.ec.europa.eu/screen/product/dishwashers2019/1188410
https://eprel.ec.europa.eu/screen/product/dishwashers2019/1188413

Rated voltage / frequency	220-240V ~ 50Hz
Rated power	1800-2100 W
Water pressure	0,03 – 1,00 MPa

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

Vanden Borre

in alle vertrouwen

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling.

Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

TDW4714BK TDW4714SL TDW4714WH

Model number:

/Modelnummer /Numero de modelo /

Numero do modelos:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 61000-4-2:2009

EN 61000-4-3:2006+A1:2008+A2:2010

EN 61000-4-5:2014+A1:2017

EN 61000-4-6:2014

EN 61000-4-11:2020

LVD:

AS/NZS 60335-1:2020

AS/NZS 60335-2-5:2014+A1:2015+A2:2018+A3:2020

ErP :

(EU) 2019/2017

(EU) 2019/2022

(EU) 2021/340

(EU) 2021/341

EN 60436:2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :
