USER MANUAL SOMMELIERECAVEAVININTEGRABLELSBIS6BDZB DARTY

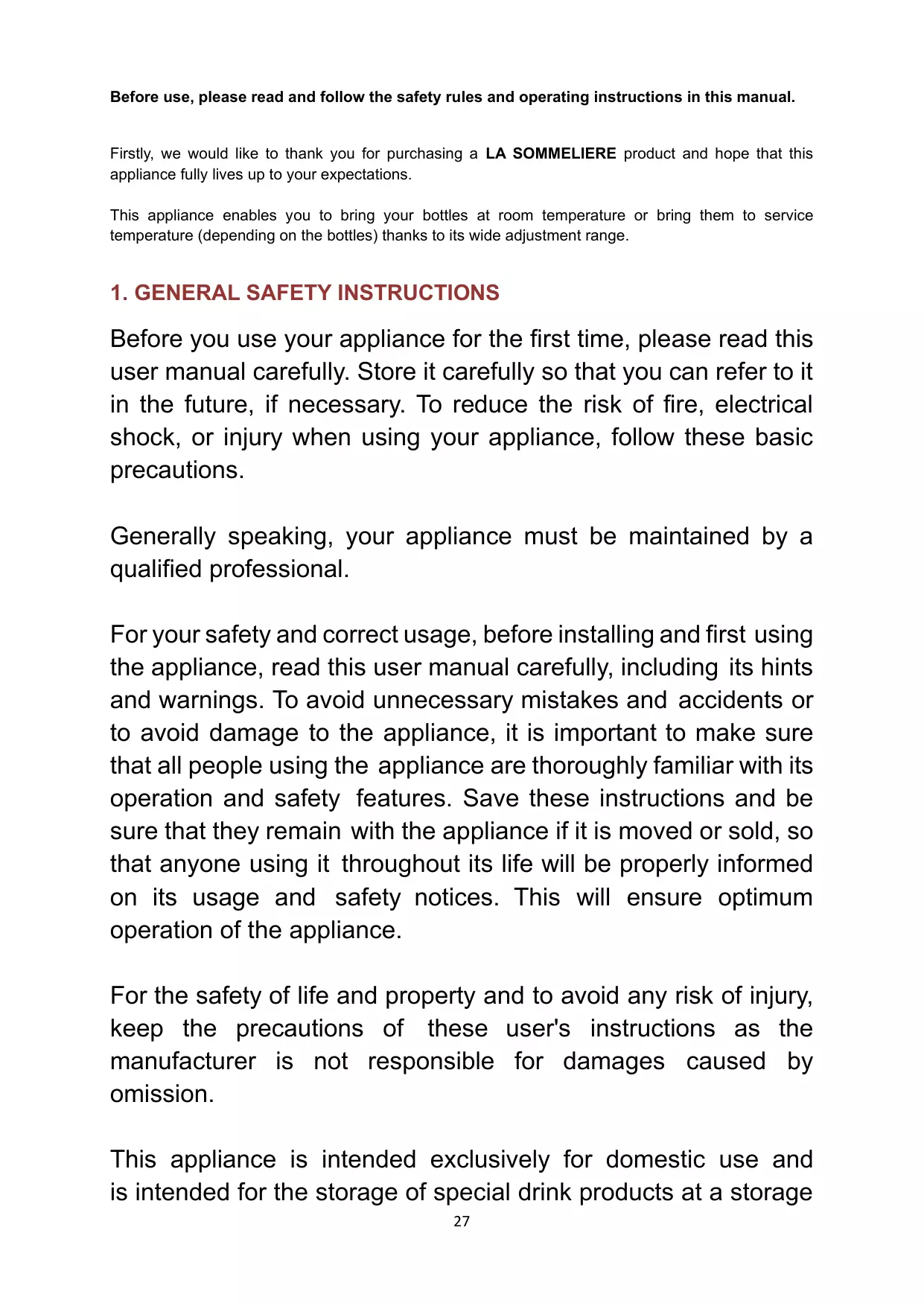

Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing a LA SOMMELIERE product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.

1. GENERAL SAFETY INSTRUCTIONS

Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in the future, if necessary. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions. Generally speaking, your appliance must be maintained by a qualified professional. For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents or to avoid damage to the appliance, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices. This will ensure optimum operation of the appliance. For the safety of life and property and to avoid any risk of injury, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. This appliance is intended exclusively for domestic use and is intended for the storage of special drink products at a storage

temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh. Make sure that your electrical installation's voltage corresponds to that on the appliance’s nameplate; the appliance must be connected to an approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt. This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied. For safety reasons, do not use an electrical extension cable. If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer. To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service center or professional repairer. This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible. ✓ Keep children away from the appliance. ✓ Do not use this appliance outdoors. In the event that liquid is accidentally spilled (broken bottle,

etc.) on electrical components (motor, etc.), disconnect the mains plug immediately. To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands. Keep the appliance away from any source of heat and out of direct sunlight. Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces. Do not pull on the mains cable - take hold of the plug to disconnect the appliance. Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3 kg). Your cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath. To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment. Safety of children and other vulnerable persons

• This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• User cleaning and servicing operations should not be carried

out by children, unless they are more than 8 years old and are supervised.

• Keep all packaging away from children as there is risk of suffocation.
• Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Keep the appliance and its power cable out of reach of children less than 8 years old.
• NOTE: children between 3 and 8 can load and unload the appliance.
• Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.
• Plastic bags can be dangerous. To avoid danger of suffocation, keep this wrapper away from children General safety WARNING — This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working

Farm houses and by clients in hotels, motels and other residential type environments,

Bed and breakfast type environments,

Catering and similar non-retail applications. WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they could leak or release fluids. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure

the built-in structure, clear obstruction and ensure that air can circulate. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an

authorized waste disposal center. Do not expose to flame. WARNING — The refrigerant of these appliances is R600A, flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable. Caution: risk of fire If the refrigerant circuit should be damaged: ✓ Avoid opening flames and sources of ignition. ✓ Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.
• The power cord must not be lengthened. Do not use an extension cable, or adapter, or multi-way socket.
• Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

• Make sure that you can access the main plug of the appliance.
• Do not pull the main cable.
• Ensure that the appliance is always electrically earthed.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• Disconnect the appliance before replacing the lighting bulb.
• The cellar is only applied with power supply of single phase alternating current of 220~240V/50Hz.
• Do not attempt to replace a damaged power cable, contact your after-sales service.
• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician. Daily use
• This appliance is intended to be used exclusively for the storage of wine.
• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket and do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• The appliance manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Keep burning candles lamps and other items with naked flames

away from the appliance so that do not set the appliance on fire.

• The appliance is intended for keeping beverages in normal household as explained in this instruction booklet.
• The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Never use the base, drawers, doors etc. to stand on or as supports.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put food into the appliance. Caution: cleaning and servicing
• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper. Important information concerning installation
• For all types of built-in product, make sure, if your appliance is placed between two pieces of furniture or in a corner against a wall, that the door opens sufficiently so that the shelves can be taken out without any problem. In fact, on some models, the doors must be opened more than 90° to pull out the shelves

when removing a bottle.

• This refrigeration appliance is intended to be used as a columnintegrable appliance
• This appliance is intended for wine storage only. It is recommended to set the wine cellar to 12 ° C.
• Your device is not designed to be placed in a garage, basement, or similar location.
• Avoid locating the unit in moist areas.
• Keep the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.
• Plug the wine cooler into an exclusive, properly installedgrounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center.
• To ensure proper electrical connection, recommendations given in the present manual. follow the

• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 24 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.

• In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.
• The appliance should not be placed close to radiators or cooking hot plates or gas rings.
• Check that electrical sockets remain accessible when the appliance is installed.
• When positioning the appliance, ensure the supply cord is not trapped or damaged. Power saving To limit the electricity consumption of your appliance: ✓ Install it in an instructions”). appropriate place (see “Installation ✓ Leave the doors open as little time as possible. ✓ To ensure that the appliance operates properly, clean the condenser regularly (see “Maintenance”). ✓ Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your aftersales service. Layout recommendations The combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit. Any change to this arrangement may impact the energy consumption of the device. Trouble shooting
• Any electrical work should be carried out by a qualified and skilled technician.

• The appliance should be repaired by an accredited repair centre, using only manufacturer’s original spare parts. The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other use. R600a Safety instructions Caution: Do not obstruct the ventilation grills on the appliance. Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance. Caution: Do not damage the refrigerating circuit in the appliance. Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate. Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance meets the requirements of all applicable European directives and their amendments.

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

Below is an example of the nameplate: The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance. We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.). Once the appliance is installed and loaded, access to it is not so easy. CAUTION: no assistance can be provided without this information.

Before using this appliance

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• When disposing your appliance, please choose an authorized disposal site.
• Place your wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the wine cooler.
• Adequate ventilation is required, do not block the front air outlet.
• This device is only intended to be installed as a built-in column, under no circumstances should it be installed as a free-standing device. For a good functionality of the device it is imperative to leave a good air circulation all around the device. We do not take responsibility for failure to comply with the installation instructions.
• Not designed for placement in adage or basement.
• The appliance is for indoor use only.
• This appliance is intended to be used exclusively for the storage of wine.
• This refrigeration appliance is not intended to be installed as a freestanding type appliance. The cellar must be integrated in a column.
• This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation.
• Connect the appliance to a single socket, leaving a 10 cm gap between the back of the cellar and the wall. Be careful to support it, so that your wine cooler is perfectly level (the use of a spirit level is recommended). This will prevent any movement due to instability, generating noise and vibration, and will ensure that the door seals perfectly. Attention
• Store wine in sealed bottles.
• Do not overload the cabinet.
• Do not open the door unless necessary.
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming. CAUTION: please keep the appliance away from substance, which can cause ignition. Ambient room temperature limits When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. This device is suitable for operation in rooms with a very specific ambient temperature, this climatic class is indicated on the nameplate. The ambient temperature affects the interior temperature and humidity of your cellar. For optimal operation, your cellar settings are made for ambient temperatures of 23 ° C to 25 ° C.

From +10 to +32 Temperate Subtropical

From +16 to +32 From +16 to +38 Tropical

From +16 to +43 Install the handle onto the door of wine cellar When fitting the handle of your cellar, proceed carefully so as not to break the glass of the door. Install the handle only with a manual screwdriver. Do not use power tools that could break the glass. Gently screw in the screws starting from one side, do not tighten it all the way. Then install the screw on the opposite side, once the 2 screws are positioned, adjust the tightening to fix the handle correctly, but without screwing too hard. CAUTION do not tighten to the limit. Over-screwing can break the glass. The handle is delivered in a separated package with screws together inside the carton. Reveal two small holes on the door frame① from inner side by pulling out a bit the door seal ③Aim the handle② to the holes and insert the screws④ from inside, Screw them up with screw-driver Put back door seal to cover the screws. Bracket installation The appliance is equipped with a pair of brackets at the top(②) and at the bottom. This pair of brackets might not be needed and can be removed as per your actual installation situation when you build the appliance into your closet. If the opening size of your closet is bigger than the appliance, you could fix 4 screws(①,ST4.0*13) (packed separately in a plastic bag) into the inner wood plate of closet. In this way, the appliance will be built-in and fixed tight with your closet. Note: Seller should not bear responsibility for any damages to the door or other parts during operation if the end-user does not follow this instruction to fix the appliance with closet when needed. Installation Position Do not lean the appliance over 45°when moving it to position. Do not put the appliance in the wet place. Do not use the appliance in the frozen place. Do not use the appliance outdoor in case of sunlight or rain. The appliance is designed to fully build into the cabinet.

Demonstration for building into the cabinet: LSBI28B : LSBI36BDZ :

It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32°C. If the ambient temperature is higher or lower than the recommended temperature, the performance of the unit may be affected and it may not be possible to obtain the desired temperatures. LSBI36BDZ

1. Press and hold for 3 seconds, power off, enter standby mode.

2. Keep pressing the key again for 3 seconds to return to normal operation.

B: LIGHTING Press the key, turn on or off the LED lights inside. In sleep mode, the key is invalid. C:SET Press the key to switch between the upper zone and the lower zone to choose which zone to set the temperature. Press the button once, the LED display in the selected area flashes regularly. Press the up and down keys to adjust the temperature. Press the button again; move to another zone to adjust the temperature.

D: UP TEMPERATURE ADJUSTMENT

Press the key once, the LED display flashes regularly indicating the current set temperature. Keep pressing to adjust the set temperature, one press increases by 1℃. The regular flash stops after 5 seconds, detects no pressure and the new set temperature is saved. The LED display returns to show the actual temperature inside.

E: SETTING THE TEMPERATURE DOWN

Press the key once, the LED display flashes regularly indicating the current set temperature. Keep pressing to adjust the set temperature, one press reduces 1℃. The regular flash stops after 5 seconds, detects no pressure and the new set temperature is saved. The LED display returns to show the actual temperature inside. F: CHILD LOCK (COMBINED KEY)

1. Lock: press both keys at the same time for 3 seconds to lock.

2. Unlock: press both keys at the same time for 3 seconds to unlock.

G: FAHRENHEIT/CELSIUS DISPLAY SWAP

Toggle the temperature display between Fahrenheit and Celsius by pressing the key.

LSBI28B All keys would be invalid in lock mode. Please unlock first.

1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.

2. Keep pressing the key again 3 seconds to return back to normal working.

B : LIGHT Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid. C : UP Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press increase 1℃. Regular flash quit after 5 seconds detecting no press and new set temperature saved. LED display return to show actual temperature inside. D : DOWN Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1℃. Regular flash quit after 5 seconds detecting no press and new set temperature saved. LED display return to show actual temperature inside.

E : CHILD LOCK（COMBINATION KEY）

Lock：Press both keys at the same time for 3 seconds to lock.

Unlock：Press both keys at the same time for 3 seconds to unlock.

F : FAHRENHEIT/CELSIUS DISPLAY INTERCHANGE

Switch temperature display between Fahrenheit and Celsius by pressing both of the keys at the same time. IMPORTANT: When the control panel display flashes, it indicates the set temperature. IMPORTANT: to optimize the operation of the device, it is important to adjust the temperatures while respecting a maximum difference of 10° C between the top and bottom compartment (18 and 8 ° C for example). The temperature set in the lower zone should always be the coldest. The top area is therefore always the hottest. The temperature of the device is adjustable between 5°C and 20°C. Temperature regulation is carried out by a thermostat. Changing the temperature generates higher energy consumption. When the ambient temperature is 25℃ and the device has no bottle charged, it will take about one hour to raise the temperature of the device from 11℃ to 18℃. Under the same circumstances, it will take about one hour to decrease the temperature of the device from 18℃ to 11℃.

The set temperature of the upper zone must be lower than that of the lower zone (LSBI36BDZ only). The device guarantees that the temperature is maintained as long as it is in operation and used under normal conditions of use. The temperature inside the appliance and its energy consumption can be influenced by many factors: ambient temperature, exposure to sunlight, number of door openings and quantity stored… Slight changes in temperature are perfectly normal.

The climate control system According to advice from specialists, the ideal temperature for storing wine is around 12°C, within a bracket of 10 to 14°C. Do not confuse this with service temperature, which varies between 5 and 20°C, depending on the specific nature of the wine. It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature. The anti-vibration system The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines. Defrosting Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance’s refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray. Hygrometry Hygrometry of our wine cellars is regulated by itself by the principle of hygrodynamics. During cooling process, there is a formation of frost (the cold dries the air), humidity can drop to 50%. During warming period, frost melts and the rate can rise above 75%. By averaging the 2 values, we obtain a humidity level suitable for wine storage. It is imperative to reason in average value over several cycles and not from a one-off statement. In case you want to increase the moisture level in your wine cellar, you can put a bowl of water at the bottom of your unit, making sure it is stable and cannot spill.

LSBI36BDZ LSBI28B The advertised capacity is measured according to the EN62552 standard. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottle format as well as the addition of shelves will considerably reduce the storage capacity. The maximum capacity is calculated with a defined number of shelves which vary according to the models. The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in liters). They correspond to tests conducted with a standard bottle: the standard “75 cl light Bordeaux” bottle standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height. In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum. Types of bottle: We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

Examples of serving temperatures To be observed when tasting, in order to avoid missing out on the rich aromas of your wines! Opinions vary, and the ambient temperature too, but many people agree on the following: Prestigious Bordeaux wines – Reds 16 – 17°C Prestigious Burgundy wines – Reds 15 – 16°C Prestigious dry white vintages 14 – 16°C Light, young, fruity reds 11 – 12°C Provence rosés, primeur wines 10 – 12°C Dry whites and vin de pays reds 10 – 12°C Vin de pays whites 8 – 10°C Champagnes 7 – 8°C Sweet wines 6°C

8. CARE AND MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit. Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives. When the appliance is switched on for the first time, there may be a residual odour. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours. In case of a power cut Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

• If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re- starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).
• When switching on for the first time or following a prolonged shutdown, it is possible that when restarting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilize. Vacation time
• Short vacations: leave the wine cooler operating during vacations of less than three weeks.
• Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving your wine cooler

• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item. Energy saving tips
• The wine cooler should be located in the coolest area of the room (but at least at 16°C), away from heat producing appliances, and out of the direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Only open the door for as long as necessary.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer’s after-sales department, please check that:

• The appliance is properly plugged in
• There is not a power cut in progress
• The breakdown is not one of those described in the table at the end of this manual IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury. IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES DEPARTMENT. CAUTION! Unplug the appliance before carrying out any maintenance or repair work. Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are made available to professional repairers and end users for a period of 7 years or 10 years (List in Annex II, point 3.a.1 and 3.a.2) from the time the last unit of the model is placed on the market. The list of spare parts and the procedure for ordering them (professional access / special access) are available on the following website: www.interfroidservices.fr or by post at the following address: FRIO - Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 10 years. The manufacturer's warranty is 1 year for functional parts. All FRIO wine cellar benefit from a 1-year parts warranty.

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM

Wine cooler does not operate Wine cooler is not cold enough

Turns on and off frequently

The light does not work Vibrations

The wine cooler seems to make too much noise

The door will not close properly

LED display is not working properly Condensate on the glass door?

POSSIBLE CAUSE Not plugged in The circuit breaker tripped or a blown fuse Check the temperature control setting External environment may require a higher setting The door is opened too often The door is not closed completely The door gasket does not seal properly Insufficient free space around the appliance The room temperature is hotter than normal A large amount of contents has been added to the wine cooler The door is open too often The door is not closed completely The temperature control is not set correctly The door gasket does not seal properly Not plugged in The circuit breaker tripped or a blown fuse The bulb has burned out The light switch is “OFF” Check to assure that the wine cooler is level The rattling noise may come from the flow of the refrigerant, which is normal As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler Contraction and expansion of the inside walls may cause popping and crackling noises The wine cooler is not level The wine cooler is not level The gasket is dirty The shelves are out of position A part of the contents is preventing the door from closing Control panel failed Power PCB has broken The appliance is not plugged in The probe is not working

• Please do not open the door frequently or for a long time.
• Please do not set the temperature too low.
• High ambient temperature and humidity would cause condensate. Error codes: LSBI28B / LSBI36BDZ : When the temperature sensor of upper zone failure occur, error code displays: E1 for open circuit; E2 for short circuit. When the defrost sensor failure occur, error code displays: E3 for open circuit; E4 for short circuit. LSBI36BDZ : When the temperature sensor of Lower zone failure occur, error code displays: E5 for open circuit; E6 for short circuit. Replacing light This device is made up of light emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifespan of these LEDs is normally sufficient for no change to be made. If, however, and despite all the care taken during the manufacture of your wine cabinet, the LEDs are defective, please contact your after-sales service for any intervention.

This appliance is marked according to the European directive 2019/290/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document.
