THFZ272NF - Freezer THOMSON - Free user manual and instructions

Product type	Vertical freezer with fan-assisted cooling (No Frost)
Brand	Thomson
Model	THFZ272NF
Dimensions (H x W x D)	1850 x 600 x 700 mm
Net weight	68 kg
Total volume	274 L
Freezing capacity	17 kg/24 h
Autonomy in case of power failure	9 h
Power supply	220-240 V ~, 50 Hz, 1.3 A
Energy class	E (IEE 100)
Annual consumption	246 kWh/year
Noise level	39 dB(A) – class C
Climate class	SN-T (10 °C to 43 °C)
Refrigerant	R600a (isobutane) / 74 g
Insulating gas	Cyclopentane
Defrost	Automatic (No Frost)
Special functions	Super freezing, Eco mode, Door alarm, Temperature alarm, Key lock
Interior lighting	LED (class G, replacement by professional)
Installation type	Freestanding
Door reversibility	Yes (reversible)
Warranty	2 years
Protection class	Class I (grounded)

Frequently Asked Questions - THFZ272NF THOMSON

How to set the freezer temperature?

Press the FREEZER button several times to select a temperature between -14°C and -22°C. The value appears on the screen.

How to activate super freezing?

Press the SUPER button. The screen displays -25°C and the * symbol. The function deactivates automatically after 50 hours or manually by pressing SUPER again.

How to use energy saving mode?

Press ALARM ECO for 3 seconds. The screen shows 'Eco' and the temperature adjusts automatically based on ambient temperature. To deactivate, repeat the same action.

What to do in case of door open alarm?

A sound signal sounds after 90 seconds if the door is not closed properly. Press ALARM ECO or close the door properly to stop it.

How to lock the control panel buttons?

Press LOCK for 3 seconds. The lock symbol appears. To unlock, repeat the same action. Locking reactivates automatically after 25 seconds of inactivity.

What to do in case of power failure?

Do not open the door. Frozen food remains safe for up to 9 hours. Do not refreeze fully thawed food.

How to clean the freezer?

Unplug the appliance, remove food. Clean the interior with a soft cloth, warm water and detergent. Do not use abrasive solvents. Dry thoroughly before restarting.

How to reverse the door opening direction?

The manual details the procedure: remove hinges, reverse closing blocks and reinstall the door. It is recommended to call a professional.

How to make ice cubes?

Fill an ice cube tray 3/4 full with drinking water and place it in the freezer drawer. To unmold, twist the tray slightly or briefly run it under tap water.

What is the storage time for frozen food?

Varies by food: 1 month for bacon, up to 12 months for fruits in syrup. Refer to the manual table for each category.

USER MANUAL THFZ272NF THOMSON

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321407

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321400

IMPORTANT SAFETY INSTRUCTIONS 7

NAMES OF PARTS 7

BEFORE INSTALLING THE APPLIANCE. 9

INSTALLATION 9

AMBIENT TEMPERATURE 9

BEFORE PLACING FOOD IN THE APPLIANCE 9

POWER FAILURE 9

ADJUSTING THE TEMPERATURES AND FUNCTIONS 10

MOVING YOUR APPLIANCE 11

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT 11

DOOR CONVERSION 13

TIPS FOR SAVING ENERGY 16

OPERATING NOISES 16

CLEANING AND MAINTENANCE 16

TROUBLESHOOTING 17

SPECIFICATIONS 18

PRODUCT INFORMATION SHEET 19

REPAIR AND SPARE PARTS SERVICE 21

DISPOSAL 22

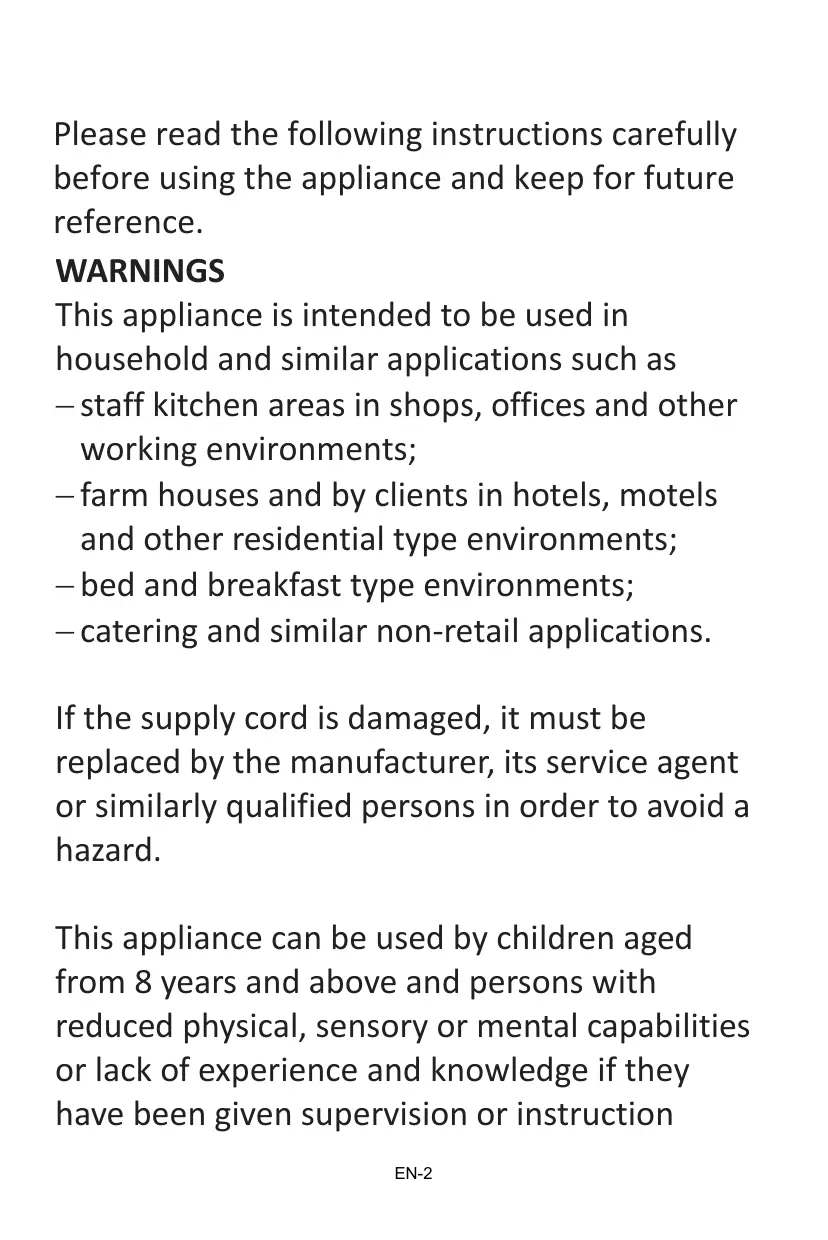

Please read the following instructions carefully before using the appliance and keep for future reference.

WARNING

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  —bed and breakfast type environments;
• catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on page EN-16 of the manual.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: For making ice (ice cubes), use potable water only

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Regarding the instructions for the blub replacement, refer to page EN-16.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old appliance with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freezer burns' on the lips.
• Do not stand or support yourself on the base or doors, etc.
• Effervescent drinks should not be stored in the freezer compartment.

Dispose of your old appliance

Fridges or freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

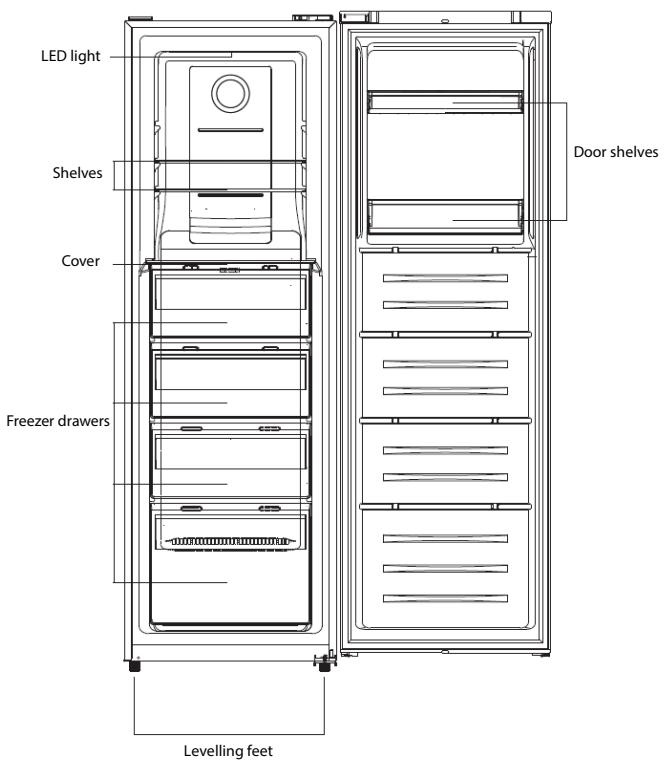

NAMES OF PARTS

Recommended Food Arrangement

Freezer compartment (-14^ 22^)

Freezing, storage of frozen food

Freezer compartment	Freezing, storage of frozen food
Freezer shelves	Leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. Vegetables, fruits
Top/middle drawers	Cakes and pastries Dairy products such as cheese and butter
Bottom drawer	cooked meat and fish
Freezer door shelves	Preserve small packaged frozen food Minced meat, biscuits

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 10^ and 43^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the doors of the appliance. Frozen food should not be affected if the power failure lasts for less than 9 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

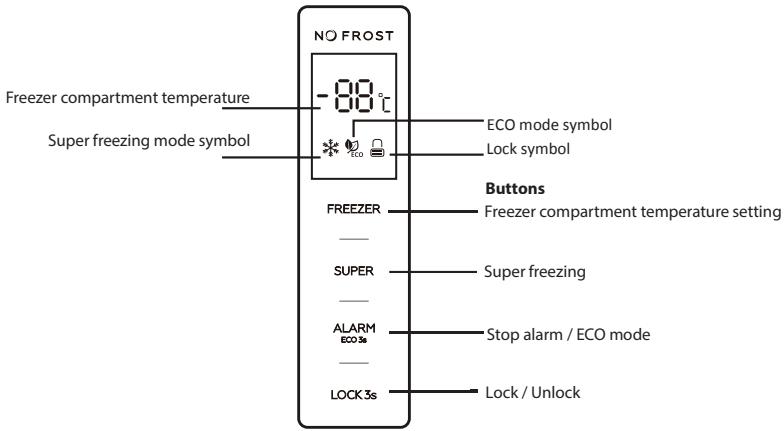

Control Panel and Display

Setting the Freezer Compartment Temperature

The temperature of the freezer compartment can be set between -22^ and -14^ .

Repeatedly press FREEZER to set the desired temperature.

Super freezing

This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance.

• To activate this function, press SUPER. When this mode is activated, the display will show the symbol . The display will show -25°C.
• This mode will be automatically deactivated after about 50 hours of operation. You can repeatedly press SUPER to manually deactivate this mode. The symbol * will disappear from the display.

ECO energy saving function

This function makes the freezer work in a power saving mode by reducing the energy consumption, which is useful when you are away on holiday for example.

To activate this function, press and hold ALARM for about 3 seconds. When this mode is activated, the display will show the symbol
- The display will show different preset temperatures, depending on the ambient temperature (Ta) of where the appliance is placed, as below.

Ambient Temperature (Ta)	Ta≤13°C	14°C < Ta ≤20°C	21°C < Ta ≤27°C	28°C < Ta ≤34°C	Ta>35°C
Preset Temperature	-18°C	-18°C	-18°C	-16°C	-15°C

ALARM

To deactivate this function, press and hold ECOs for about 3 seconds.

Lock/Unlock

This function allows you to disable the buttons.

To activate this function, press and hold LOCK3s for about 3 seconds. The symbol will appear on the display.
To deactivate this function, press and hold LOCK3s again for 3 seconds. The symbol will appear on the display.

IMPORTANT! In the unlock state, if there is no operation of any button about 25 seconds, the system will automatically enter the lock state.

Door open alarm

When the door is left open or has not been closed properly for about 90 seconds, an alarm will beep.

To stop the alarm, press ALARM ECO3s or close the door properly.

Temperature alarm

If high internal temperature of the appliance is detected, high temperature alarm will sound, the display will show "ht" and the detected temperature alternately.

ALARM To stop the alarm, press ECO3s

High temperature display will disappear automatically only when detected temperature goes back to normal.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalize before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the

appliance to avoid any shock.

• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT

Using the freezer compartment

• To store deep-frozen food.
• To make ice cubes.
• To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer drawers.

Storing frozen food

Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18^ ).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods whit a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

MAKING ICE CUBES

Fill the ice cube tray (not supplied) with 14 full of drinking water and place in the freezer drawer.

If the ice cube tray is stuck to the freezer drawer, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

DEFROSTING

This appliance is equipped with a frost free system.

This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

Door Conversion

1. Remove upper wire box covers.

1. Unscrew right top hinge cover, and disconnect connectors of door switch and display.

1. Unscrew and remove the top hinge, and then remove the door.

1. Remove the right aid-closer block, and take out left aid-closer block from the accessory bag and install it to the left side.

1. Unscrew the bottom hinge and remove the adjustable foot and fix it to the opposite side.

1. Unscrew the bottom hinge pin and fit it to the opposite side. Then install the bottom hinge on the opposite side.

1. Unscrew the top hinge pin and fit it from the bottom side to the upper side. Remove the door switch from the right hinge cover and then install it in left hinge cover.

1. Remove the screw and then remove the top decorative cover. Then install the cover on the opposite side with the screw.

1. Install the door, and move the connecting wires from right to the left side.

1. Install the top hinge to the left side. Slightly adjust the top hinge while installing to make sure the gasket is well sealed.

1. Connect connectors of door switch and display, and install the left top hinge cover.

1. Install the upper wire box covers to the right side.

Easy open handle installation

1. Remove the screw hole covers.

1. Install the easy open handle.

1. Install the easy open handle covers.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

• Ensure your appliance has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.

• Keep door openings to a minimum.

• Open the appliance as briefly as possible.

• Ensure that the fridge and freezer doors are always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and set the temperature as desired.
6. Put the food back into the appliance.

The LED light in the freezer cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent.

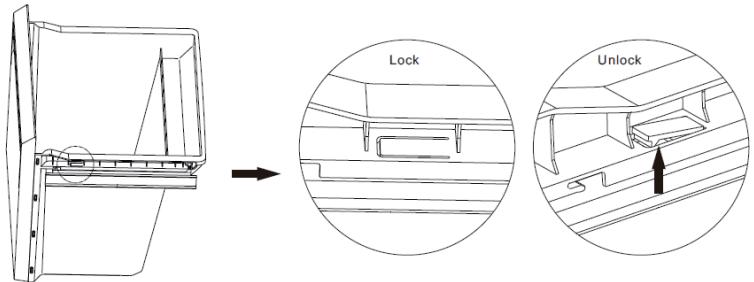

Dissemble the bottom drawer

1. Pull out the bottom drawer to the stopper position.
2. Push up the elastic buckles on both sides of the bottom drawer.
3. Pull out the bottom drawer.

Cleaning Tips

• Remove all shelves, door shelves and drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.
• Wipe all drainage area and water evacuation port with a damp cloth.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem	Possible causes	Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Noises	Cabinet not stable or level.	See installation section.
Appliance not cool	Temperature setting not correct.	See Adjusting the Temperatures and Functions section.
	Frequent door openings.	Minimise door openings to allow temperatures to stabilise.
	Large amount of food recently added.

SPECIFICATIONS

Temperature rise time	Power cut safe 9 h
Noise emissions	42 dB (A) re 1 pW
Electric shock protection class	Class I
Rated voltage and frequency	220-240V~50Hz
Rated current	1.3A
Total input power	140W
Defrost power	160W
Insulation blowing gas	Cyclopentane
Refrigerant/Amount	R600a/ 74g
Net weight	68 kg
Maximum lamp power	2.5W

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Fnac Darty (S.A.).

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THFZ272NFWH THFZ272NFSL
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1850	Total volume (dm3or l)		274
	Width	600
	Depth	700
EEI		100	Energy efficiency class		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		246	Climate class:		extended temperate/ temperate/ subtropical/ tropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		43
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	-	-	-	-
Wine storage	no	-	-	-	-
Cellar	no	-	-	-	-
Fresh food	no	—	—	—	—
Chill	no	—	—	—	—
0-star or ice-making	no	—	—	—	—
1-star	no	—	—	—	—
2-star	no	—	—	—	—
3-star	no	—	—	—	—
4-star	yes	274,0	-18	17,0	A
2-star section	no	—	—	—	—
Variable temperature compartment	no	—	—	—	—
For 4-star compartments
Fast freeze facility			yes
For wine storage appliances
Number of standard wine bottles			—
Light source parameters (a):
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found: www.darty.com

(^a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^' .
• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C .
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C' .
• Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C' .

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321407

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321400

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at:

DARTY www.darty.com	Vanden Borre in alle vertrouwen www.vandenborre.be
0978 970 970	02 334 00 00
24 Hours	8 AM – 6 PM
7 Days a week	Mon to Sat
9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France	Slesbroekstraße 101 1600 Sint-Pieters-Leeuw Belgium

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

UW APPARAAT VERPLAATSEN 11

LEVENSMIDDELEN IN HET VRIESVAK INVRIEZEN EN BEWAREN 11

ONTDOOIER 13

UW APPARAAT VERPLAATSEN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321407

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/321400

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017/A11:2020 EN 55014-2:2015
ENIEC61000-3-2:2019
EN 61000-3-3:2013/A1:2019
EN IEC 55014-1:2021
EN IEC 61000-3-2:2019/A1:2021

LVD:

EN 60335-1:2012/A2:2019
EN 60335-2-24:2010/A2:2019
EN 62233:2008

ErP:

(EU) 2019/2016
(EU) 2019/2019
(EU) 2021/340
(EU)2021/341
EN 62552-1:2020 EN 62552-2:2020
EN 62552-3:2020
EN 60704-1:2010+A11:2012
EN 60704-2-14:2013+A11:2015+A1:2019

(EU) 2019/2015

(EU) 2019/2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 21, 2022
