USER MANUAL HM 1200 SAMSUNG

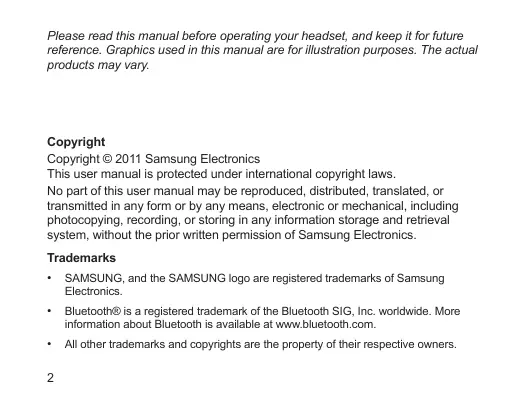

English Contents Please read this manual before operating your headset, and keep it for future reference. Graphics used in this manual are for illustration purposes. The actual products may vary. Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks

SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics.

Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. More information about Bluetooth is available at www.bluetooth.com.

All other trademarks and copyrights are the property of their respective owners.

When using your headset while driving, follow local regulations in the region you are in.

Keep your device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.

Avoid exposing your device to very cold or very hot temperatures (below 0 °C or above 45 °C). Extreme temperatures can cause the deformation of the device and reduce the charging capacity and life of your device.

Do not allow your device to get wet — liquids can cause serious damage. Do not handle your device with wet hands. Water damage to your device can void your manufacturer’s warranty.

Avoid using your device’s light close to the eyes of children or animals. Never disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorised service centre to repair it. Do not use the device during a thunderstorm. Thunderstorms can cause the device to malfunction and increase the risk of electric shock. Excessive exposure to loud sounds can cause hearing damage. Exposure to loud sounds while driving may distract your attention and cause an accident. Use only the minimum volume setting necessary to hear your conversation.

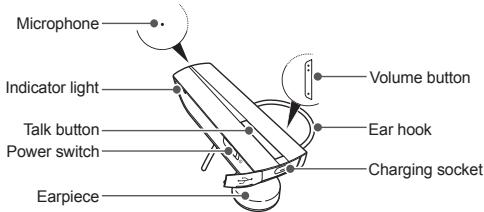

English Please read all Safety precautions before using your headset to ensure safe and proper use. Getting started Your headset overview Microphone Indicator light Talk button Power switch Volume button Ear hook Charging socket Earpiece

Make sure you have the following items: travel adapter, headset and user manual.

The supplied items may be changeable depending on your region. Button English Button functions Function Power switch

Slide up or down to turn the headset on or off. Talk

Press and hold for 3 seconds to enter Pairing mode. Press to make or answer a call. Press to end a call. Press and hold to reject incoming call. Press and hold to place a call on hold. Press and hold to switch between calls.

Press to adjust the volume. Press and hold to turn the microphone on or off during a call. Press and hold both Volume up and down buttons simultaneously to turn the indicator light on or off. Volume

Charging the headset This headset has a rechargeable internal battery which is non-removable. Make sure the headset is fully charged before using it for the first time. To check the battery level see page 7.

Connect the charger to the charging socket on the headset.

Plug the charger in to the wall outlet. During charging, the indicator light will turn red. If charging does not begin, unplug the travel adapter and plug it in again.

When the headset is fully charged, the red indicator light changes to blue. Unplug the travel adapter from the wall outlet and the headset.

Use only Samsung-approved chargers. Unauthorised or Non-Samsung chargers could cause damage to the headset or in extreme circumstances an explosion, it could also invalidate any warranty on the product.

Repeatedly charging and discharging of the headset, over time will cause the battery performance to diminish. This is normal for all rechargeable batteries. Never make or receive calls while charging, always disconnect your headset from the charger and answer the call.

To save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the outlet to interrupt the power supply. The travel adapter should remain close to the socket when in use. English

When the headset battery is low The headset beeps and the indicator light flashes red. If the headset powers off during a call, the call will be automatically transferred to the phone. Checking the battery level To check the battery level, press and hold the Talk button and the Volume down button at the same time. Depending on the battery level, the indicator light flashes 5 times in one of the following colours: Battery level Indicator light colour Above 80% Blue 80 ~20% Violet Below 20% Red

Wearing the headset Depending on which ear you are going to wear the headset, simply adjust the ear hook accordingly. Left Right Using your headset This section explains how to turn the headset on, pair and connect to the phone, and use various functions.

Activated functions and features may differ depending on the phone type.

Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your headset. English To ensure you get the best performance from your headset

Keep the distance between your headset and device as small as possible and avoid placing your body or other objects in the signals path.

If you usually use your mobile phone with your right hand, wear the headset on your right ear.

Covering your headset or device could effect its performance so keep contact to a minimum. Turning the headset on or off To turn the headset on Slide up the power switch. The blue indicator light flashes 4 times. To turn the headset off Slide down the power switch. The indicator light flashes blue and red then turns off.

Pairing and connecting the headset Pairing means unique and encrypted wireless connection between two Bluetooth devices when they agree to communicate with each other. In Pairing mode, two devices should be placed close enough to each other. Pairing and connecting the headset with a phone

• With the headset turned on, press and hold the Talk button for 3 seconds. The blue indicator light stays lit.
• If the headset is turned on for the first time, it will go into Pairing mode immediately and the Pairing mode stays for 3 minutes.

Activate the Bluetooth feature on your phone and search for the headset (see your phone’s user manual).

Select the headset (HM1200) from the list of devices found by your phone.

If requested, enter the Bluetooth PIN 0000 (4 zeros) to pair and connect the headset to your phone.

Your headset supports the Simple Pairing feature which allows the headset to be paired with a Bluetooth device without requesting a PIN. This feature is available for devices that are compliant with Bluetooth version 2.1 or higher. English The headset can also be paired via the Active pairing feature, see page 13. Connecting with two Bluetooth phones With the Multi-point feature activated, your headset can be connected to 2 Bluetooth phones at the same time.

Connect with the first Bluetooth phone.

Press and hold the Talk button for 3 seconds to enter Pairing mode.

Press and hold the Volume up button to activate Multi-point feature.

Activate the Bluetooth feature on the second Bluetooth phone and search for the headset (see your phone’s user manual).

Select the headset (HM1200) from the list of devices found by the second Bluetooth phone.

If requested, enter the Bluetooth PIN 0000 (4 zeros) to connect the headset to the second Bluetooth phone.

Reconnect to the headset from the first Bluetooth phone. When connecting the headset to 2 Bluetooth phones, some phones may not be able to connect as a second Bluetooth phone.

To turn Multi-point feature on In Pairing mode, press and hold the Volume up button. The blue indicator light flashes twice and you will hear a beep. To turn Multi-point feature off In Pairing mode, press and hold the Volume down button. The red indicator light flashes twice and you will hear a beep. Disconnecting the headset Turn off the headset or use the Bluetooth menu on your phone to remove the device from your pairing list. Reconnecting the headset If the headset loses the connection to the paired phone,

Press the Talk button on the headset or use the Bluetooth menu on your phone. Your headset will attempt to automatically reconnect each time you turn it on. This feature may be unavailable on some phones. If the Multi-point feature is activated, your headset will attempt to reconnect to the two most recently connected devices.

With the Active pairing feature, your headset automatically looks for a Bluetooth device and tries to make a connection with it. This feature is available for mobile phones, but the phone’s Bluetooth visibility option must be set to on.

In Pairing mode, press and hold the Talk button to enter Active pairing mode. To enter Pairing mode, see page 10.

The violet indicator light turns on and the headset will search for a Bluetooth phone within your phone’s range, and attempt to pair with it.

• Ensure the phone you wish to connect to is within range of the headset. Place the headset and phone close to each other to avoid pairing with other devices.
• The headset will attempt active paring for up to 20 seconds.
• The Bluetooth phone you want to connect with must not be paired with other devices. If the phone is already connected to another device, end the connection and restart the Active pairing feature.
• This feature may not be available on some devices.

English Pairing via the Active pairing feature Using call functions Available call functions may differ from phone to phone. Making a call Redialling the latest number To redial the latest number on the primary phone,

• Press the Talk button. To redial the latest number on the secondary phone,

Press the Talk button twice. For some phones, pressing the Talk button opens the call log list. Press the Talk button again to dial the selected number. Dialling a number by voice Press and hold the Talk button and say a name.

This function is only available on the primary phone using the Hands-Free profile.

This function may not be available on some devices. Press the Talk button to answer a call when you hear incoming call tones. If you receive calls on both connected devices at the same time you can only answer the call on the primary phone. Ending a call Press the Talk button to end a call. Rejecting a call Press and hold the Talk button to reject a call when a call comes in.

If you receive calls on both connected devices at the same time you can only reject the call on the primary phone.

This function is only available when using the Hands-Free profile. Options available during a call You can use the following functions during a call. Adjusting the volume Press the Volume up or down button to adjust the volume.

English Answering a call You will hear a beep when the volume level of the headset reaches it’s lowest or highest level. Muting the microphone Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on. Transferring a call from the phone to the headset Press the Talk button to transfer a call from the phone to the headset. Placing a call on hold Press and hold the Talk button to place the current call on hold.

When the headset is connected with two phones, this function is not available.

This function is only available when using the Hands-Free profile. Answering a second call

• Press the Talk button to end the first call and answer a second call.

Press and hold the Talk button to place the first call on hold and answer a second call. To switch between the current call and the held call, press and hold the Talk button.

When the headset is connected with two Bluetooth phones, you cannot answer a second call from the same phone. It may vary depending on your phone. English

Resetting the headset When the headset is paired with a device, it automatically saves connection and feature settings, such as the Bluetooth address or device type of the mobile phone. If you want to reset the connection settings in the headset;

In Pairing mode, press and hold both Volume buttons and Talk button at the same time for 3 seconds. The headset will turned on automatically. When you reset the headset, all connection settings in the headset will be deleted and the connection with your phone will be lost. In order to use the headset, you will have to pair it again.

Appendix Frequently asked questions Will my headset work with laptops, PCs, and PDAs? Your headset will work with devices that support your headset’s Bluetooth version and profiles. For specifications, see page 23. Why do I hear static or interference while on a call? Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves. Will my headset interfere with my car’s electronics, radio, or computer? Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.

When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone. Why do I hear an echo while on a call? Adjust the headset volume, or move to another area and try again. How do I clean my headset? Wipe it with a soft dry cloth. The headset does not fully charge. The headset and the travel adapter may not have been connected properly. Separate the headset from the travel adapter, reconnect, and charge the headset. I cannot use all the features described in the manual. Available features may vary depending on the connected device. If your headset is connected to two devices at once, some features may be unavailable. English Can other Bluetooth phone users hear my conversation?

Warranty and parts replacement Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.* If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.

• The warranty is limited to the original purchaser.
• A copy of your receipt or other proof of purchase is required for a proper warranty service.
• The warranty is void if the product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties.
• Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories.
• Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty.
• Depending on your region, the length of warranty may vary.

English Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Item Specifications and description Bluetooth version

Support profile Headset Profile, Hands-Free Profile Operating range Up to 33 feet (10 metres) Standby time Up to 300 hours* Talk time Up to 8 hours* Charging time Approximately 2 hours* English Specifications

• Depending on the phone type and usage, the actual time may vary.

Declaration of Conformity (R&TTE) Samsung Electronics We, declare under our sole responsibility that the product Bluetooth Headset: HM1200 to which this declaration relates, is in conformity with the following standards and/or other normative documents. SAFETY EN 60950- 1 : 2006 + A11 : 2009 EMC EN 301 489 - 01 V1.8.1 (04-2008) EN 301 489 - 17 V2.1.1 (05-2009) RADIO EN 300 328 V1.7.1 (10-2006) We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC. which will be made available upon request. (Representative in the EU) Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK*

(place and date of issue) Joong-Hoon Choi / Lab Manager (name and signature of authorised person)
