Product type	Freestanding fridge-freezer
Brand	Fortex
Model	FRIDGE-FREEZER (ref. DDF254NFWH / DDF254NFSL)
Dimensions (H × W × D)	1670 × 550 × 600 mm
Net weight	50 kg
Total volume	248 L (fridge 194 L, freezer 54 L)
Power supply	220-240 V ~ 50 Hz, 0.9 A, 110 W
Energy class	F (annual consumption 248 kWh)
Refrigerant	R600a (isobutane) / 52 g
Freezing capacity	2.5 kg/24 h
Autonomy in case of power failure	11 h
Defrost	Automatic (No Frost) for the freezer
Climate class	Temperate / Subtropical (16 °C to 38 °C)
Noise level	41 dB(A) – class C
Lighting	LED (class G, replacement by a professional)
Door reversibility	Yes – reversible by a technician
Adjustable feet	Yes – leveling
Vegetable drawer	Yes – with humidity control slider
Shelves	Several adjustable shelves in fridge and one drawer in freezer
Door bins	Yes – fridge and freezer
Temperature indicator	Yes – coldest zone of the fridge
Cleaning and maintenance	Unplug, use a soft cloth and warm water; do not use abrasive solvents
Safety	Mandatory grounding; do not damage the refrigeration circuit; do not use electrical appliances inside
Warranty	24 months

Frequently Asked Questions - REFRIGERATEUR-CONGELATEUR FORTEX

How to adjust the temperature of the fridge and freezer?

The freezer has a button with 3 positions: COLD, COLDER (recommended) and COLDEST. The fridge has a button with 4 positions: OFF, COLD, COLDER and COLDEST. Turn the button to adjust the temperature.

What to do in case of a power cut?

Do not open the door. Frozen food stays good for up to 11 hours if the door remains closed. Do not refreeze completely thawed food.

How to clean the inside of the appliance?

Unplug the appliance and remove food. Use a soft cloth soaked in warm water and mild detergent. Do not use solvents or abrasive cleaners. For stubborn stains, use baking soda.

Can I reverse the door opening direction?

Yes, but it is recommended to call a qualified technician. Detailed instructions are provided in the manual. The operation requires tools such as a Phillips screwdriver and a wrench.

What noises are normal?

The operating sounds of the motor and the flow of refrigerant in the pipes are normal. If the appliance makes an unusual noise, check that it is level and not in contact with furniture.

How to make ice cubes?

Fill an ice cube tray 3/4 full with drinking water and place it in the freezer compartment. To release, twist the tray slightly or briefly run it under running water.

What is the freezing capacity?

The freezing capacity is 2.5 kg per 24 hours. The specific total freezing capacity is 1.25 kg/12 h.

What does the temperature indicator in the fridge mean?

The indicator shows whether the coldest zone is properly adjusted. The OK indication means the temperature is correct. If the indicator turns white, the temperature is too high: increase the thermostat setting and check after 12 hours.

Can I replace the LED bulb myself?

No, the LED light source must be replaced by a qualified professional. Contact customer service in case of failure.

Which foods should not be frozen?

Unsuitable foods include: radishes, lettuce, eggs in shell, grapes, whole apples, peaches, pears, hard-boiled eggs, yogurt, curdled milk, sour cream, and mayonnaise.

USER MANUAL REFRIGERATEUR-CONGELATEUR FORTEX

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/707823

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/707833

MISE AU REBUT

IMPORTANT SAFETY INSTRUCTIONS 6

NAMES OF PARTS 7

BEFORE INSTALLING THE APPLIANCE. 7

INSTALLATION 7

AMBIENT TEMPERATURE 8

BEFORE PLACING FOOD IN THE APPLIANCE 8

POWER FAILURE 8

ADJUSTING THE TEMPERATURES 8

MOVING YOUR APPLIANCE 9

STORING FOOD IN THE FRIDGE COMPARTMENT 9

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT. 12

MAKING ICE CUBES 15

DEFROSTING 15

DOOR CONVERSION 15

TIPS FOR SAVING ENERGY 17

OPERATING NOISES 17

CLEANING AND MAINTENANCE. 18

TROUBLESHOOTING 19

SPECIFICATIONS 19

PRODUCT INFORMATION SHEET 20

DISPOSAL 22

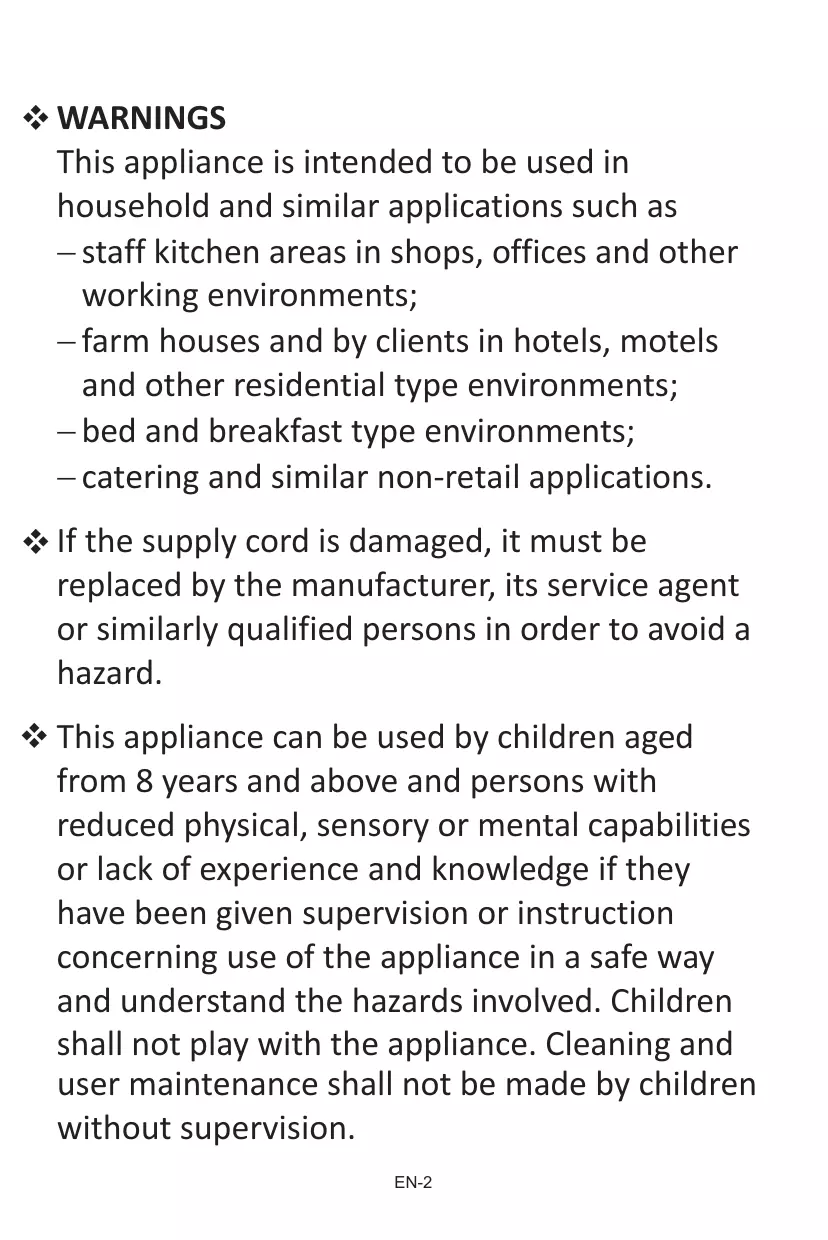

WARNING

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "Cleaning and Maintenance" in pages EN-18&19.
The appliance shall not be exposed to rain.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
WARNING: For making ice (ice cubes), use potable water only.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old fridge freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freeze burns' on the lips.
• Do not stand or support yourself on the base or door, etc.
• Effervescent drinks should not be stored in the freezer compartment.

Dispose of your old appliance

Fridge freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

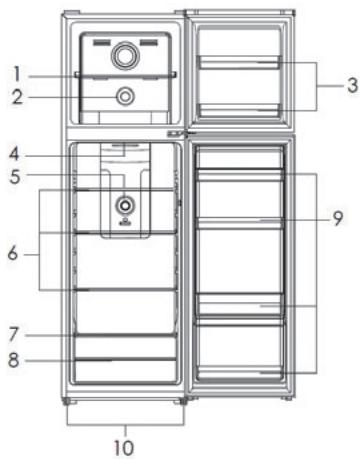

NAMES OF PARTS

1. Freezer shelf
2. Freezer temperature control
3. Freezer door shelves
4. LED lights
5. Fridge temperature control
6. Fridge shelves
7. Vegetable container cover with humidity control
8. Vegetable container
9. Fridge door shelves
10. Adjustable feet

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 16^ and 38^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the doors of the appliance. Frozen food should not be affected if the power failure lasts for less than 11 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

ADJUSTING THE TEMPERATURES

Setting the Freezer Compartment Temperature

There is a temperature control knob inside the freezer compartment. You can set the freezer compartment temperature by turning this control knob.

There are 3 settings: COLD, COLDER and COLDEST.

It is recommended to turn this control knob to the COLDER position for normal use.

Setting the Fridge Compartment Temperature

There is a temperature control knob inside the fridge compartment. You can turn this knob to set the fridge compartment temperature. There are 4 settings: OFF, COLD, COLDER and COLDEST.

The appliance may not operate the correct temperature if it is in a particularly hot or if you open the door often.

Neither the fridge or freezer compartment works when the setting is OFF.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalize before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the appliance to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE FRIDGE COMPARTMENT

The refrigerator compartment helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  Cool hot foods down before placing them in the refrigerator compartment.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended 'use by /best before/best by/' date stamped on them. Store them in the refrigerator compartment and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs can be stored in the refrigerator compartment.

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

• Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
• If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
• Keep shellfish chilled at all times. Use within 1 – 2 days.

Precooked foods and leftovers

• These should be stored in suitable covered containers so that the food will not dry out.
• Keep for only 1 - 2 days.
• Reheat leftovers only once and until steaming hot.

Vegetable and fresh fruit

• The vegetable container is the optimum storage location for fresh fruit and vegetables.
  Take care not to store the following at temperatures of less than 7^ for long periods:

Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes

• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas, and mangoes.

Adjusting the vegetable container humidity

The vegetable container cover has a humidity control slider. You can use this slider to adjust the desired humidity according to the humidity and cooling condition of your food in the vegetable container.

Move the slider towards Fruits for thicker vegetables or fruits with skin.

Move the slider towards Vegetables for leafy vegetables or more delicate fruits.

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT

Using the freezer compartment

• To store deep-frozen food.
• To make ice cubes.
• To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer drawers.

Storing frozen food

Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

• The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

MAKING ICE CUBES

Fill the ice cube tray (not supplied) with 3 / 4 full of drinking water and place in the freezer compartment.

If the ice cube tray is stuck to the freezer compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

DEFROSTING

This appliance is equipped with a frost free system.

This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer compartment will not defrost.

DOOR CONVERSION

If you need to hinge your doors on the opposite side it is recommended that you call your local authorized service agent to make this conversion or ask a technician.

Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the screws that fix the top cover and upper hinge cover to the appliance and then remove the top cover and upper hinge cover.

1. Lift the freezer door and place it on a padded surface to prevent it from scratching.

2. Remove the screws from the middle hinge and then remove the middle hinge. Lift the fridge door and place it on a padded surface to prevent it from scratching.

Remove the blank covers and then fit them to the opposite side.

1. Remove the screws, bottom hinge with adjustable foot from the bottom of the appliance.

1. Remove the remaining adjustable foot from the other side of the bottom of the appliance.

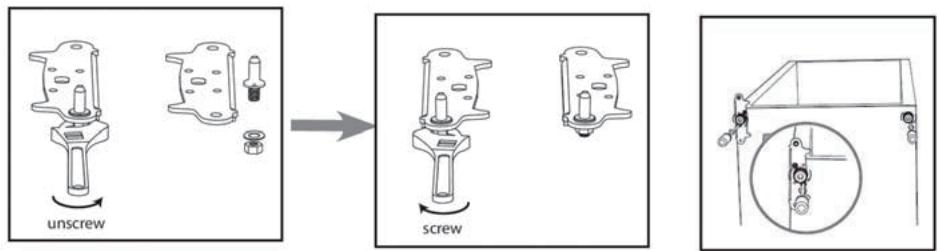

2. Unscrew the hinge pin from the bottom hinge. Turn over the bottom hinge and refit the screw the hinge pin onto the bottom hinge. Reattach the bottom hinge to the opposite side.

1. After replacing the fridge door, screw the middle hinge back onto the opposite side.

Ensure the lower door is

aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the hinge.

1. Unscrew the right middle stopper with metal block from the bottom of the freezer door and then install the left middle stopper with metal block on the left side of the bottom of the freezer door.

1. Fit the freezer door back into place. Reattach the upper hinge on the opposite side with screws and then fix the upper hinge cover to the upper hinge by tightening the screw. Attach the top cover to the opposite side.

2. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the upper hinge.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

• Ensure your appliance has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Ensure that the fridge and freezer doors are always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and set the temperature as desired.
6. Put the food back into the appliance.

Cleaning Tips

• Remove all shelves, door shelves, vegetable containers, removable accessories (such as egg tray and ice cube tray if included) and/or drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch, temperature control knob and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.

The LED lights in the fridge compartment cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem	Possible causes	Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Noises	Cabinet not stable or level.	See installation section.
Appliance not cool	Temperature setting not correct.Frequent door openings.Large amount of food recently added.	See Adjusting the Temperatures section.Minimise door openings to allow temperatures to stabilise.

SPECIFICATIONS

Temperature rise time	Power cut safe 11 h
Freezing capacity	2.5 kg/24h
Electric shock protection class	Class I
Rated voltage and frequency	220-240V~50Hz
Rated current	0.9A
Rated power input	110W
Defrosting power	150W
Lamp power	2W
Insulation blowing gas	Cyclopentane
Refrigerant/Amount	R600a/ 52g
Specific freezing capacity	1.25kg/12h
Net weight	50kg

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: CAFOM DISTRIBUTION | FORTEX
Supplier's address: 9 RUE JACQUARD 93310 LE PRE ST GERVALS, FRANCE
Model identifier: DDF254NFWH DDF254NFSL
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1670	Total volume (dm3 or l)		248
	Width	550
	Depth	600
EEI		125	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		248	Climate class:		temperate/subtropical
Minimum ambient temperature (℃), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (℃), for which the refrigerating appliance is suitable		38
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (℃)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	194,0	4	—	A
Chill	no	—	—	—	—
0-star or ice-making	no	—	—	—	—
1-star	no	—	—	—	—
2-star	no	—	—	—	—
3-star	no	—	—	—	—
4-star	yes	54,0	-18	2,5	A
2-star section	no	—	—	—	—
Variable temperature compartment	no	—	—	—	—
For 4-star compartments
Fast freeze facility			no
For wine storage appliances
Number of standard wine bottles			—
Light source parameters (a):
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.cafom.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class:
- Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C .
- Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C .

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/707823

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/707833

DISPOSAL

As a responsible company we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

CAFOM 9 RUE JACQUARD 93310 LE PRE ST GERVAIS, FRANCE
Déclaration UE de Conformité N°862022012036 EU Declaration of Conformity EU- Conformiteitsverklaring Déclaración UE de Conformidad Déclaração UE de Conformidade
Description du produit -	RéFRIGÉRATEUR-CONGÉLATEUR
Product Description:	Refrigerator Freezer
Productbeschrijving:
Descripción del producto:
Descrição do produits:
Marque -	Fortex
Brand /Merk /Marca:
Référence commerciale -	DDF254NFWH DDF254NFSL
Model number: /Modelnummer /Numero de modelos / Numero do modelos:
L'objet de la déclaration spécifique ci-dessus est conforme à la législation d'harmonisation de l'Union applicable : The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: Het hierboven beschreiben voorwerp is in overeenstemming met de desbeteffende harmonisatiewetgeving van de Unie: El objeto de la declaración describa anteriorsmente es conforme con la legislación de armonización pertinente de la Unión: O objeto da declaración acima descripto está em conformidade com a legislación de harmonização da Unión aplicável:

Reference number

2014/30/EU
2014/35/EU
2009/125/EC
2011/65/EU & (EU) 2015/863

Title

EMC Directive (EMC)

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-2-24: 2010 + A1: 2019 + A2: 2019

EN 60335-1: 2012 + A11: 2014 + A13: 2017 + A1: 2019 + A14: 2019 + A2: 2019

EN 62233:2008

ErP :

(EU) No 2019/2016 (EU) No 2021/340

(EU) No 2019/2019 (EU) No 2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Fonction - Position: Market Manager Export

Place, Date / Lieu :
