ONE TWO S AB4G1TUOS5 - Computer PACKARD BELL - Free user manual and instructions

Product type	All-in-one computer
Brand	Packard Bell
Model	ONE TWO S AB4G1TUOS5
Operating system	Windows 8.1
Processor	Not specified (varies according to configuration)
RAM memory	Not specified (varies according to configuration)
Hard drive	Not specified (varies according to configuration)
Screen	Not specified (typical size of an all-in-one)
Network connectivity	Ethernet RJ-45, Wi-Fi (built-in)
USB ports	USB 2.0 (black) and USB 3.0 (blue)
Video output	HDMI, VGA/DVI (depending on model)
Audio	Headphone jack, microphone jack, rear line-in/out
Card reader	SD, SDHC, SDXC
Optical drive	DVD burner (depending on model)
Power supply	External power adapter
Weight	Not specified
Dimensions	Not specified
Recovery functions	Packard Bell Recovery Management (USB/DVD backup, factory restore, refresh)
Security	BIOS password (supervisor/user), Kensington lock
Maintenance	Clean with a soft damp cloth, do not use liquids
Included accessories	Keyboard, mouse (PS/2 or USB), power adapter, documentation

Frequently Asked Questions - ONE TWO S AB4G1TUOS5 PACKARD BELL

What to do if the screen stays black at startup?

Check the power indicator: if it is on, press a key to reactivate the screen (power saving mode). If still black, adjust brightness with Fn + Up arrow or check if the display is switched to an external monitor (display toggle key).

How to resolve no sound?

Check the volume icon in the taskbar: if it is crossed out, click to disable silent mode. Make sure the volume is not too low. If headphones or external speakers are plugged in, the internal speakers are automatically disabled.

The keyboard is not responding, what to do?

Plug an external keyboard into a USB port. If it works, the internal keyboard cable may be disconnected. Contact your reseller or an authorized service center.

How to create a recovery backup?

Open Packard Bell Recovery Management from Start, click Create Factory Default Backup, plug in a USB drive of at least 16 GB (32 GB recommended), then follow the instructions. Keep the drive in a safe place.

How to restore the computer to factory settings?

From Windows, open Packard Bell Recovery Management and choose Restore Factory Settings. This operation erases all data. You can also restart and press Alt+F10 at startup to access recovery options.

How to connect to the Internet?

Make sure you have a connected router/modem. Plug an Ethernet cable from the router to the computer's RJ-45 port, or use the built-in Wi-Fi. To configure Wi-Fi, click the network icon in the taskbar and select your network.

How to check for Windows updates?

Go to PC Settings (Settings icon in the charms) > Change PC settings > Recovery and update > Windows Update, then click Check now.

How to set a password to secure the computer?

In the BIOS utility (press F2 at startup), go to the Security tab. You can set a supervisor password (BIOS access) and a user password (startup). Write them down carefully.

What to do if the computer does not start at all?

Check that the power adapter is correctly plugged in and that the outlet works. If the power indicator is off, try another outlet. If on, remove any USB device or disk from the optical drive, then restart with Ctrl+Alt+Del.

The printer is not working, how to fix?

Make sure the printer is powered on and that the USB cable is properly connected to the computer and printer. Check in Devices and Printers in the Control Panel that it is recognized and set as the default printer.

USER MANUAL ONE TWO S AB4G1TUOS5 PACKARD BELL

LECTURE DES FILMS BLU-RAY OU DVD

Demandedistance technique 9

Federal Communications Commission 15

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

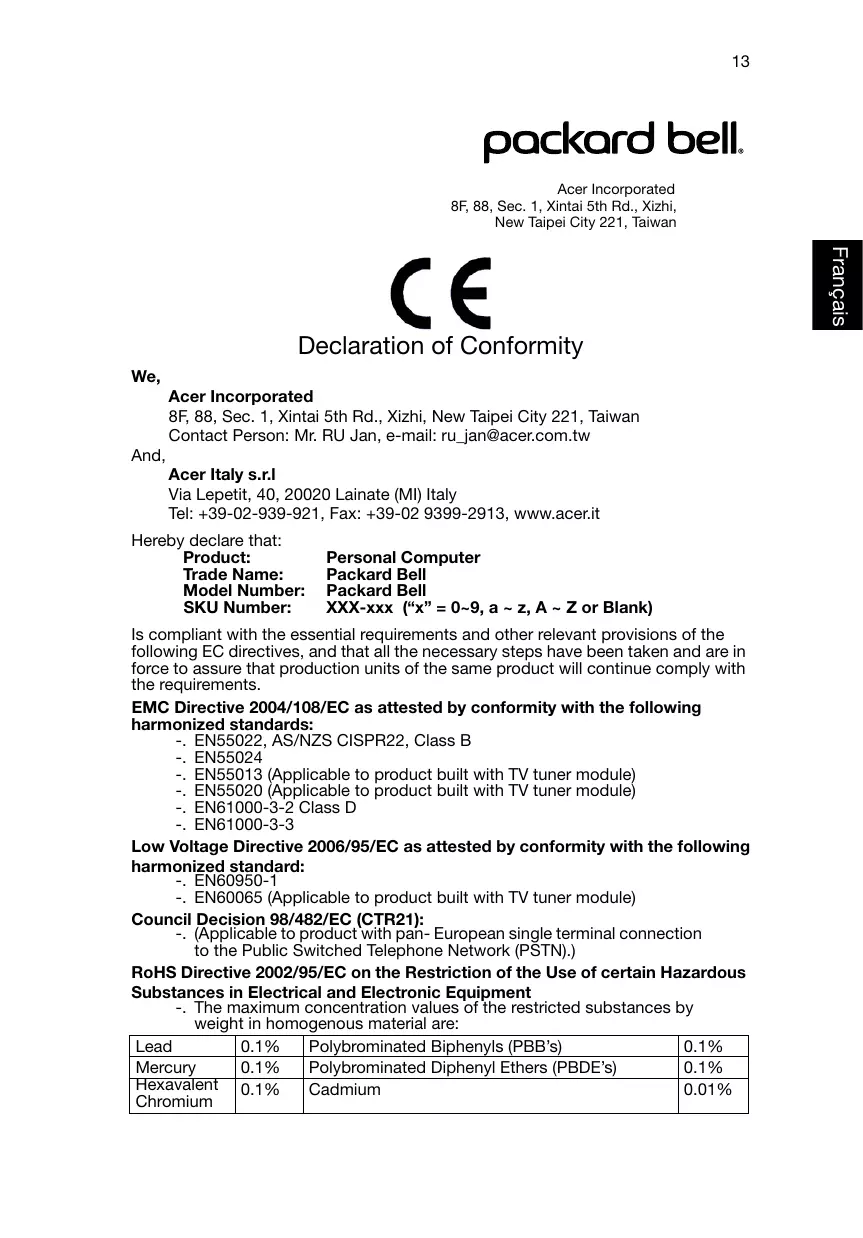

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Packard Bell

Model Number:

Packard Bell

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

. EN55022, AS/NZS CISPR22, Class B
- EN55024
- EN55013 (Applicable to product built with TV tuner module)
- EN55020 (Applicable to product built with TV tuner module)
- EN61000-3-2 Class D
- EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC

• EN301 489-1

• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).
  EN301489-17

• Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RaIr_2

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

packard bell.

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Packard Bell
Model Number:	Packard Bell
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
