USER MANUAL HIFILIVE460NC ERCASQUE

Detachable audio cable with remote

x1

Warranty card, Warning card, Safety sheet, QSR, QSG

x1

Quick Start Guide

1. Turn on the headphone

1. If connecting for the first time, the headphone will enter the pairing mode automatically after it is powered on

3. Connect to bluetooth device

Settings	Bluetooth
Bluetooth
MY DEVICES
JBL LIVE400BT

Choose "JBL LIVE400BT" to connect

Settings	Bluetooth
Bluetooth
MY DEVICES
JBL LIVE08BT

Choose "JBL LIVE500BT" to connect

OR

FR

Connexion Bluetooth

Managing phone calls

Voice Assistant

Download My JBL Headphones APP

Get even more control and personalization of your listening experience with this free App.

The Google Assistant

a. To set up the Google Assistant

1. Connect your headphones to your mobile device
2. Set up your Google Assistant using your mobile device:

On your Android device, press and hold the home button to open the Google Assistant and follow the on-screen instructions.

On your iOS devices, open or download the Google Assistant app and follow the app instructions.

Available on the App Store

GETON Google Play

Google Assistant

Note: The Google Assistant is available on eligible Android 6.0 devices* or later.

For iOS devices, the Google Assistant app needs to be downloaded. Works on Lollipop,

Marshmallow and Nougat Android Phones with Google Play Services, >1.5GB of memory and 720p or higher screen resolution.

For more information on what your Google Assistant can do, visit:

assistant assistant assistant assistant assistant assistant assistant

b. To use your Google Assistant

Function	What to do
Talk to your Google Assistant	Press and hold the Action button to begin. Requires pairing with eligible phone and internet connection. For examples of questions and things you can do, visit: https://assistant.google.com/platforms/headphones
Get your notifications	Touch the Action button.
Stop your Google Assistant	Double tap Action button.
Reply to a message (where available)	After receiving a message notification, touch and hold the Action button to respond. When you're done, release the button.

Note:

1. The Google Assistant isn't available in certain languages and countries.
2. If you want to turn on or off the Google Assistant, please download our JBL APP (see

Section 7). You can select under Settings > Voice assistant > Google Assistant.

For countries without the Google Assistant, you can double tap the left ear cup to activate voice assistant.

Quick Start Guide

1. Connect your headphones to your mobile device.
2. Download JBL APP and follow the app instructions, select Settings > Voice assistant > Amazon Alexa

1. On your mobile device, open or download the Amazon Alexa app and follow the app instructions.

amazon alexa

Quick Start Guide

1. In the Amazon Alexa App, navigate to the Device Page.

1. Click the Plus (+) button on the top right of the screen and select 'Add Device'.
2. Select Headphones from the list and then choose your Live Series Headphones in the Available Devices section. Follow the rest of the instructions in the Alexa App to complete set up.
3. Alexa is now enabled on your device. Touch the action button and try one of the below utterances:

Things to try	Example of what to say
Talk to Alexa	"What's the weather?"
Play audio	"Play Niall Horan."Note: Amazon Music is set as the default music service, To change the default music service, use the Alexa app
Play audio from a specific music service	"Play NPR on theratRadio."
Set a timer	"Set a timer for 5 minutes."
Discover more skills	"What new skills do you have?"
Stop Alexa	While Alexa is talking, press and release the Action button then say "Stop"

Note:

1. For more information and things to try with Alexa, visit: www.amazon.com/alexadevices and select 'Use Alexa'.
2. If you want to turn on or off the Amazon Alexa, please download our JBL APP (see Section 7). You can select under Settings > Voice assistant > Amazon Alexa.
3. Alexa is not available in all languages and countries.

Quick Start Guide

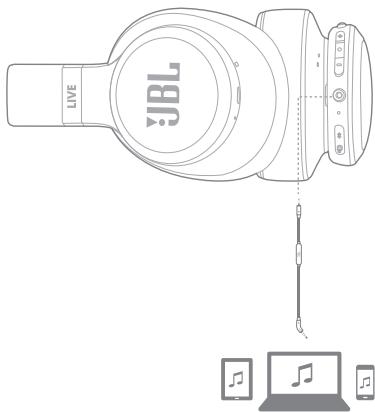

Wired listening mode

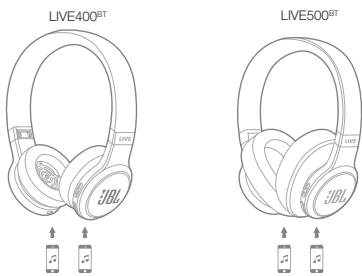

Seamlessly switch between devices

1. Pair and connect the headphone with the 1^st bluetooth device (see Section 3 Bluetooth pairing)
2. Pair and connect the headphone with the 2^nd bluetooth device

Quick Start Guide

1. Connect to bluetooth device

1. Go back to the bluetooth device list on the 1^st device and select the headphone* to connect

Note: *JBL LIVE400BT or JBL LIVE500BT

Items to note:

a. Maximum 2 devices can be connected simultaneously

b. To switch music source, pause the music on the current device and select play on the 2nd device.
c. Phone call will always take priority.
d. If one device goes out of bluetooth range or powers off, you may need to manually reconnect the remaining device. See Section 13 Step 3.

Quick Start Guide

LED Status	Headphone mode
On	① Power on
Fast	BT Painging
On	BT Connected
Slow	Low Battery
Off	Charging Complete
On	Charging in Progress
Slow	Talki/ Ambient Aware on

FR

• Driver size: 40mm
• Dynamic frequency response range: 20Hz-20Khz
  Sensitivity: 106dB SPL@1kHz/1mW
  Max input power: 15mW
  Transmit sensitivity: -19dBV@1kHz/Pa
  Impedance: 32ohm
• Bluetooth transmitted power: 0-4dbm
• Bluetooth transmitting modulation: GFSK, /4DQPSK , 8DPSK
• Bluetooth frequency: 2.402GHz-2.48GHz
  Profile version: A2DP V1.3, AVRCP V1.5, HFP V1.6
• Bluetooth version: V4.2
• Battery type: Polymer Li-ion Battery (3.7V DC, 700mAh)
• Charging time: 2 hours
  Music play time with BT on: Up to 24 hours
  Weight: 185.8g

FR

JBL LIVE400BT

• Driver size: 50mm
  Dynamic frequency response range: 18Hz-20KHz
  Sensitivity: 108dB SPL@1kHz/1mW
  Max input power: 15mW
  Transmit sensitivity: -19dBV@1kHz/Pa
  Impedance: 32ohm
• Bluetooth transmitted power: 0-4dbm
• Bluetooth transmitting modulation: GFSK, /4DQPSK , 8DPSK
• Bluetooth frequency: 2.402GHz-2.48GHz
  Profile version: A2DP V1.3, AVRCP V1.5, HFP V1.6
• Bluetooth version: V4.2
• Battery type: Polymer Li-ion Battery (3.7V DC, 700mAh)
• Charging time: 2 hours
  Music play time with BT on: Up to 30 hours
  Weight: 231.6g

JBL LIVE500BT
