USER MANUAL ICZ260EUS SHARK

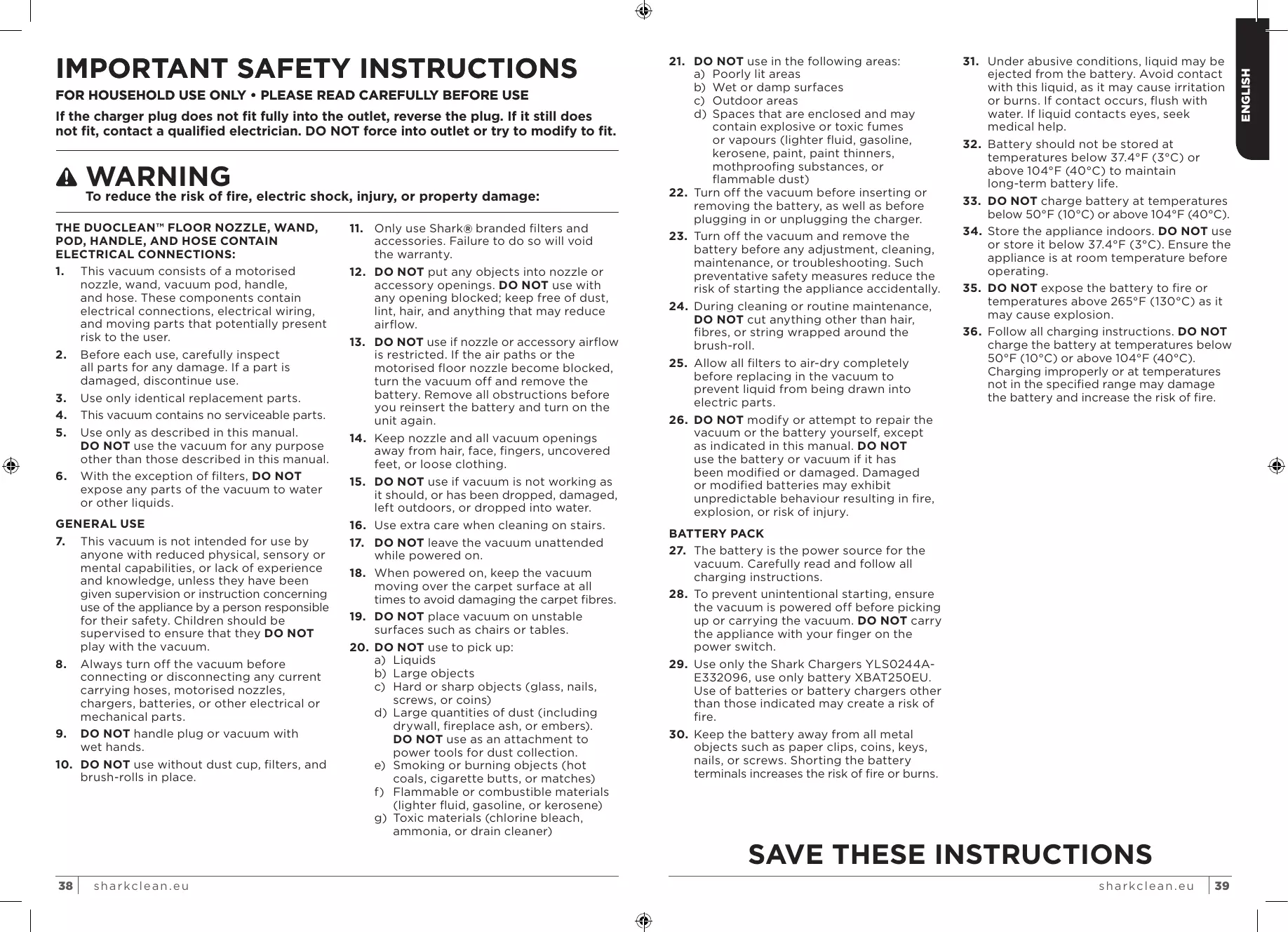

FOR HOUSEHOLD USE ONLY • PLEASE READ CAREFULLY BEFORE USE If the charger plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT force into outlet or try to modify to fit. WARNING To reduce the risk of fire, electric shock, injury, or property damage: THE DUOCLEAN™ FLOOR NOZZLE, WAND,

POD, HANDLE, AND HOSE CONTAIN

ELECTRICAL CONNECTIONS:

1. This vacuum consists of a motorised

nozzle, wand, vacuum pod, handle, and hose. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.

2. Before each use, carefully inspect

all parts for any damage. If a part is damaged, discontinue use.

3. Use only identical replacement parts.

4. This vacuum contains no serviceable parts.

5. Use only as described in this manual.

DO NOT use the vacuum for any purpose other than those described in this manual.

6. With the exception of filters, DO NOT

expose any parts of the vacuum to water or other liquids. GENERAL USE

7. This vacuum is not intended for use by

anyone with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they DO NOT play with the vacuum.

8. Always turn off the vacuum before

connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.

9. DO NOT handle plug or vacuum with

10. DO NOT use without dust cup, filters, and

brush-rolls in place.

11. Only use Shark® branded filters and

accessories. Failure to do so will void the warranty.

12. DO NOT put any objects into nozzle or

accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

13. DO NOT use if nozzle or accessory airflow

is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off and remove the battery. Remove all obstructions before you reinsert the battery and turn on the unit again.

14. Keep nozzle and all vacuum openings

away from hair, face, fingers, uncovered feet, or loose clothing.

15. DO NOT use if vacuum is not working as

it should, or has been dropped, damaged, left outdoors, or dropped into water.

16. Use extra care when cleaning on stairs.

17. DO NOT leave the vacuum unattended

18. When powered on, keep the vacuum

moving over the carpet surface at all times to avoid damaging the carpet fibres.

19. DO NOT place vacuum on unstable

surfaces such as chairs or tables.

20. DO NOT use to pick up:

a) Liquids b) Large objects c) Hard or sharp objects (glass, nails, screws, or coins) d) Large quantities of dust (including drywall, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection. e) Smoking or burning objects (hot coals, cigarette butts, or matches) f) Flammable or combustible materials (lighter fluid, gasoline, or kerosene) g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

21. DO NOT use in the following areas:

a) Poorly lit areas b) Wet or damp surfaces c) Outdoor areas d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, gasoline, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

22. Turn off the vacuum before inserting or

removing the battery, as well as before plugging in or unplugging the charger.

23. Turn off the vacuum and remove the

battery before any adjustment, cleaning, maintenance, or troubleshooting. Such preventative safety measures reduce the risk of starting the appliance accidentally.

24. During cleaning or routine maintenance,

DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.

25. Allow all filters to air-dry completely

before replacing in the vacuum to prevent liquid from being drawn into electric parts.

26. DO NOT modify or attempt to repair the

vacuum or the battery yourself, except as indicated in this manual. DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.

31. Under abusive conditions, liquid may be

ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.

32. Battery should not be stored at

temperatures below 37.4°F (3°C) or above 104°F (40°C) to maintain long-term battery life.

33. DO NOT charge battery at temperatures

below 50°F (10°C) or above 104°F (40°C).

34. Store the appliance indoors. DO NOT use

or store it below 37.4°F (3°C). Ensure the appliance is at room temperature before operating.

35. DO NOT expose the battery to fire or

temperatures above 265°F (130°C) as it may cause explosion.

36. Follow all charging instructions. DO NOT

charge the battery at temperatures below 50°F (10°C) or above 104°F (40°C). Charging improperly or at temperatures not in the specified range may damage the battery and increase the risk of fire. BATTERY PACK

27. The battery is the power source for the

vacuum. Carefully read and follow all charging instructions.

28. To prevent unintentional starting, ensure

the vacuum is powered off before picking up or carrying the vacuum. DO NOT carry the appliance with your finger on the power switch.

29. Use only the Shark Chargers YLS0244AE332096, use only battery XBAT250EU.

Use of batteries or battery chargers other than those indicated may create a risk of fire.

30. Keep the battery away from all metal

objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals increases the risk of fire or burns.

SAVE THESE INSTRUCTIONS

(Click) (Click) (Click)

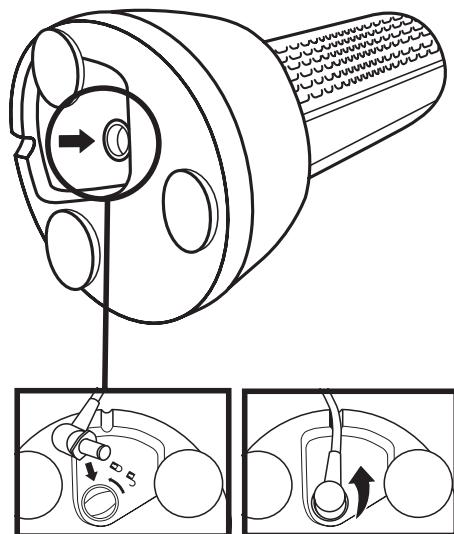

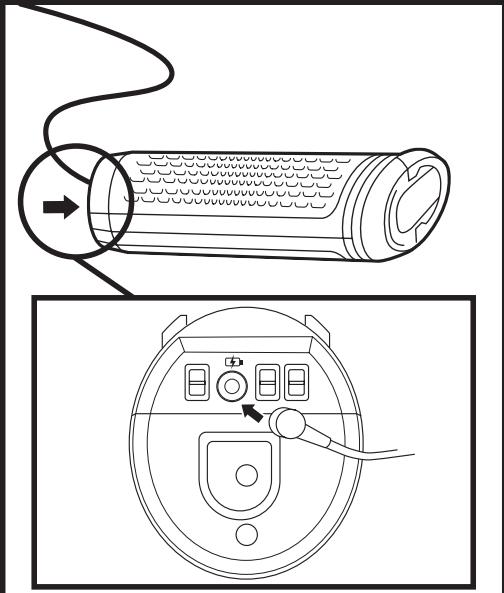

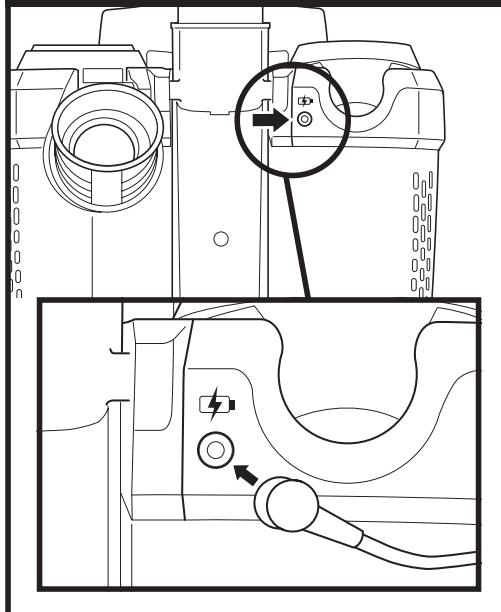

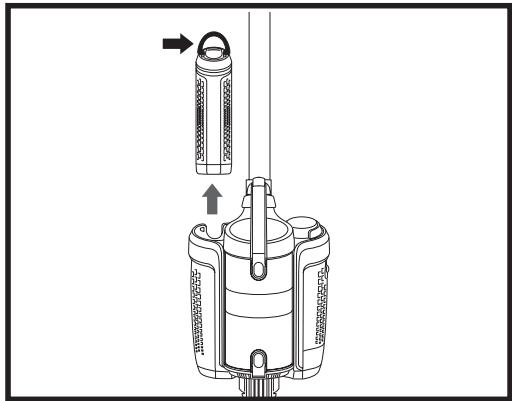

To remove the battery for charging, lift the handle on top of the battery and pull up. The battery must be charged before first use. A complete charge takes approximately 3.5 hours. IMPORTANT: When charging, connect the charger to the port first, then plug the charger into plug socket. IN VACUUM

(Click) (Click) (Click)

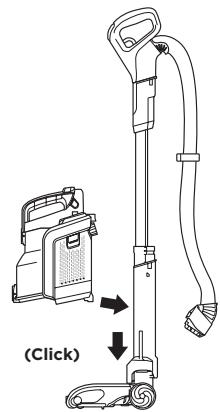

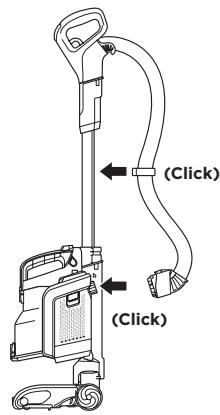

1. Insert wand into floor nozzle.

2. Insert handle into wand.

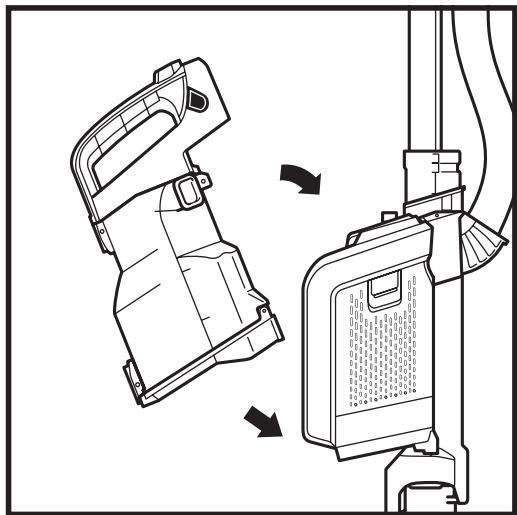

3. Align the bottom of pod onto the rails on the front of the neck of the floor nozzle.

Slide pod down the rails until it clicks into place.

4. Connect hose to back of pod, and attach hose clip onto wand.

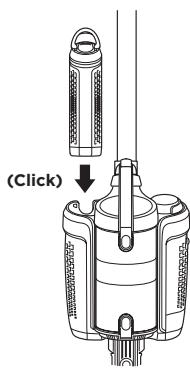

5. Insert charged battery into pod with the handle toward the back until it clicks.

To ensure proper insertion, the handle on battery must be down. IMPORTANT: For proper operation, ensure all connections are securely clicked into place. NOTE: only one charger is provided. NOTE: When using the cradle, insert the charger plug into the port and rotate to lock into place. The battery will not charge unless the charger is locked into place.

In Use: Lights illuminate steadily Full Charge Mid Charge Low Charge RUNTIMES Needs Charge Charging: One light flashes

Charge Indicator Light Low Charge Mid Charge Nearly Full ENGLISH

Full Charge TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS FLASHING ALTERNATELY

TECHNOLOGY (CARPET) Up to 25 minutes Up to 16 minutes

UPRIGHT & GET ANYWHERE

TECHNOLOGY (FLOOR) Up to 29 minutes Up to 15 minutes

ABOVE FLOOR & LIFT-AWAY

(WAND OR HANDLE) Up to 50 minutes Up to 15 minutes

POD, HANDLE AND WAND ARE DETACHABLE

If the first and third indicator lights are flashing alternately, the battery temperature is not optimal. If this happens when charging, leave the battery plugged in and charging will resume once temperature reaches optimal level. TIP: See next page for all the different ways you can use your vacuum. NOTE: The battery must be charged before first use. A complete charge takes approximately 3.5 hours. NOTE: The indicator light will shut off 5 minutes after reaching full charge.

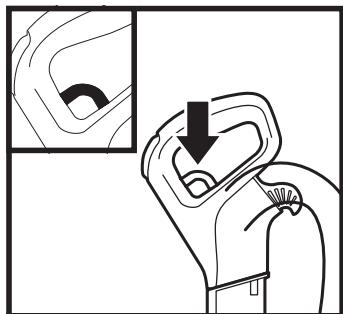

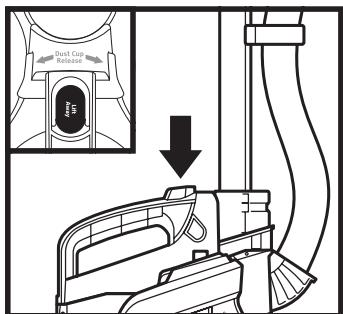

Press LIFT-AWAY button on handle and lift pod off floor nozzle. SETTINGS POWER BUTTON Press icon to turn power on or off. ower SURFACE Press icon to select surface setting:

OOST When in Lift-Away™ mode, press BOOST icon to turn on or off. The default power setting on floors and carpets is ION Power mode. For an additional boost of suction power, press and hold the BOOST icon.

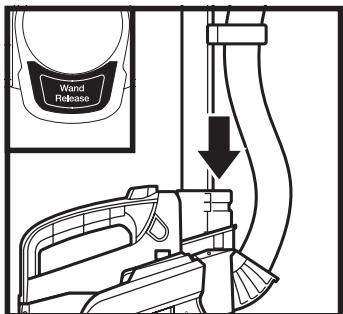

Press the Wand Release button until it clicks, then pull up on wand to detach from the floor nozzle. Pull the Handle Release trigger to detach the handle from the wand. s h a r kc l e a n . e u

IMPORTANT: Remove the battery before performing any maintenance. To remove, lift the handle on top of the battery and pull up.

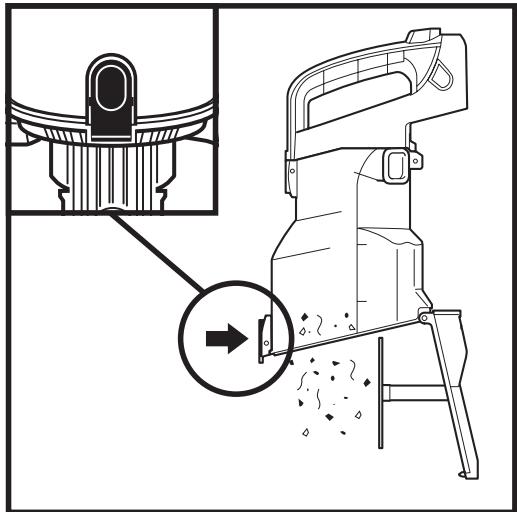

EMPTYING THE DUST CUP

UPRIGHT For cleaning carpets and hard floors. To activate brush-roll, step on floor nozzle and tilt handle back. Use the wand in Above Floor Mode for quick jobs above shoulder height.

GET ANYWHERE TECHNOLOGY

Use Get Anywhere Technology to reach under furniture to clean carpets and hard floors. Use the handle in Above Floor Mode for quick jobs off the floor. To remove Dust Cup, pinch and pull side tabs. Tilt dust cup away from the vacuum cleaner, then lift to remove. ABOVE-FLOOR With pod attached, detach the wand from the floor nozzle. Press lower button to open bottom of dust cup. ABOVE-FLOOR With pod attached, detach the handle from the wand. Lint Screen

LIFT-AWAY™ WITH WAND

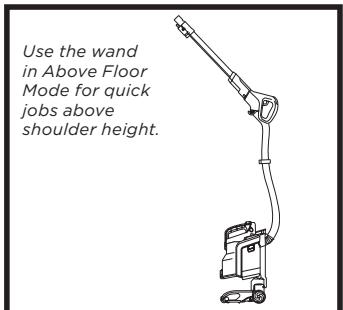

Use the wand in Lift-Away mode for more reach when cleaning above-floor areas like coving or skirting boards.

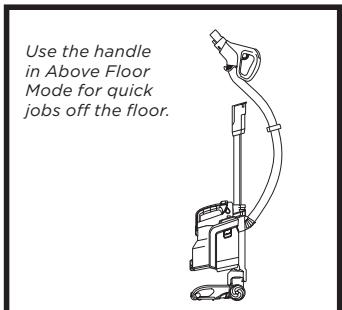

LIFT-AWAY WITH HANDLE

Use the handle in Lift-Away mode for more detailed cleaning of above-floor areas like upholstery, window sills or stairs. NOTE: See previous page for instructions on how to detach the pod, wand and handle.

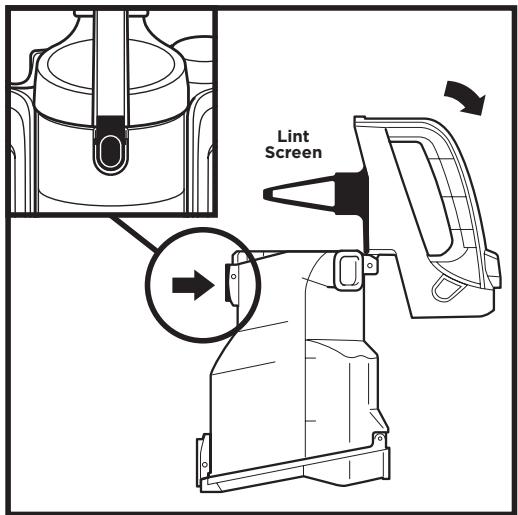

s h a r kc l e a n . e u To remove collected debris from Lint Screen, press top button and lift handle to open top of dust cup. To reinstall dust cup, place bottom into pod and then tilt dust cup toward the wand until it clicks into place. s h a r kc l e a n . e u

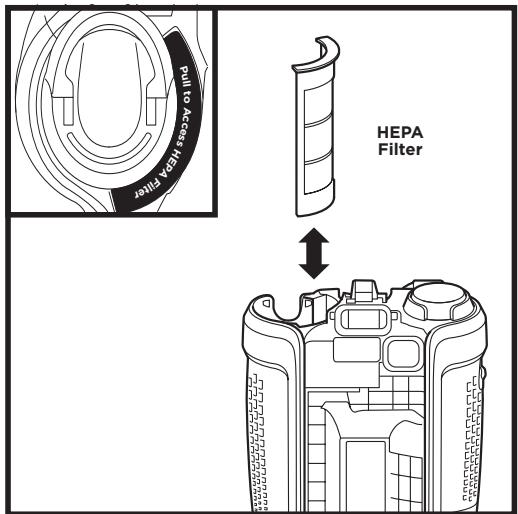

MAINTENANCE CLEANING FILTER (ONCE A YEAR) Your vacuum comes equipped with three filters located on the vacuum pod: two pre-motor filters (one is a filter frame) and one filter to capture and trap dust and debris. CLEANING PRE-MOTOR FILTER (ONCE A MONTH) ENGLISH MAINTENANCE Perform maintenance on your filter once a year to keep your vacuum's suction power optimal. IMPORTANT: Rinse Filter with lukewarm water ONLY. DO NOT use soap. Allow to air-dry for at least 24 hours before reinstalling. DO NOT scrub Filter. Perform regular maintenance on your filters to keep your vacuum's suction power optimal. IMPORTANT: To prevent damage, rinse filters with lukewarm water ONLY. DO NOT use soap. Allow filters to air-dry for at least 24 hours before replacing them in the vacuum to prevent liquid from being drawn into electric parts. Pull to Access H

1. Pull up on Filter access tab to remove.

2. Rinse filter with lukewarm water ONLY and leave

to air-dry at least 24 hours before reinstalling.

3. When dry, reinsert Filter and press down until it

clicks into place. HEPA Filter Note: Battery must be removed before Filter can be removed.

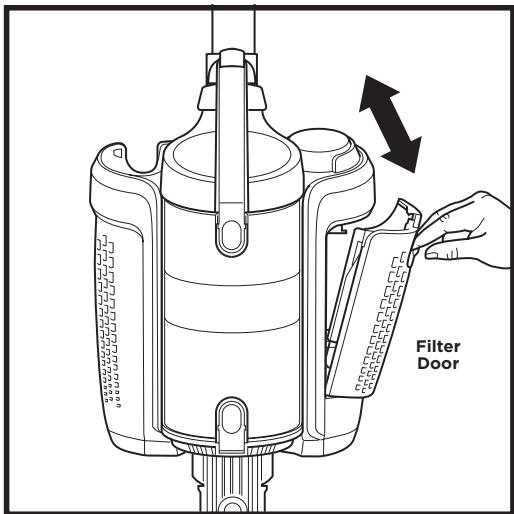

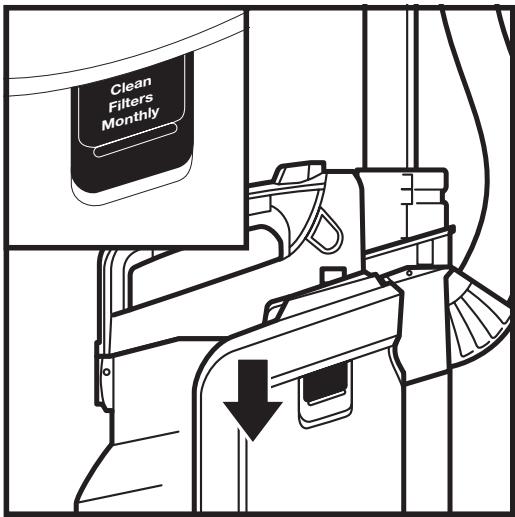

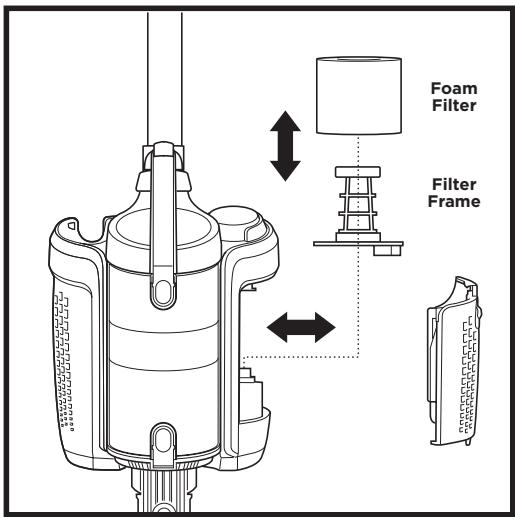

1. Slide down filter door release button.

2. Tilt filter door and lift off.

3. Remove filter from pod. Pull off foam filter.

4. Rinse foam filter and filter frame with lukewarm

water ONLY and leave to air-dry for at least 24 hours before reinstalling.

5. Once completely dry, reinsert foam filter on

6. Holding the pull tabs, push the filter back

7. Reinsert bottom of filter door into slots on

pod. Tilt door to close, pressing until it clicks into place. REPLACING FILTERS Follow the previous instructions for removing filters. The Foam Filter should be replaced every

2.5 years, and the Filter should be replaced every 3 years, subject to frequency of use.

Replacement Pre-Motor Filter and Frame Replacement Filter NOTE: To order replacement parts and filters, visit sharkclean.eu.

BRUSH-ROLL TURN LOCKS SOFT ROLLER ENGLISH MAINTENANCE IMPORTANT: DO NOT use sharp or metal objects to clear blockages. LIFT COVER If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brush-roll.

1. Turn off the vacuum.

2. Using a coin, turn locks anticlockwise to open,

then lift off cover to access brush-roll.

3. Clear airway of blockages.

4. Replace cover by sliding inserts into slots,

then pressing down firmly on all sides before turning locks clockwise to close. There will be an audible click once the locks are secured.

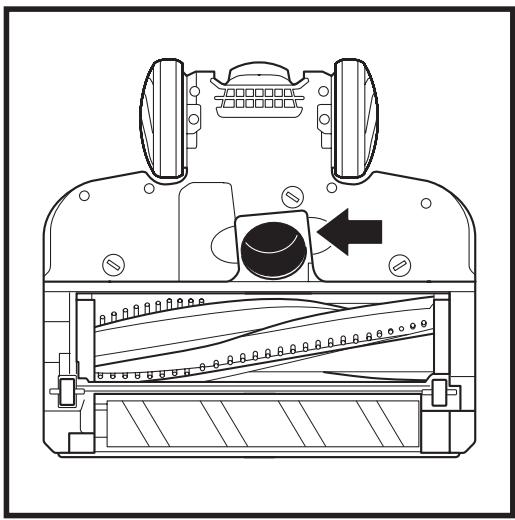

1. Slide Eject Roller button forward.

2. To remove Soft Roller, pull the tab on the right.

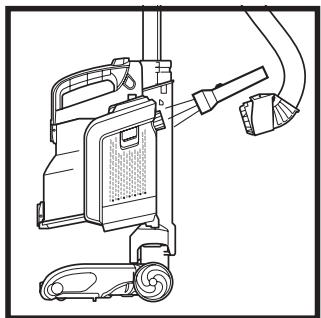

Detach hose from vacuum pod, and check opening on back of pod for blockages. Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages. etach handle from wand and hose from the vacuum pod, and check openings for blockages. Detach wand from floor nozzle and handle, and check both ends of wand for blockages.

3. Tap loose debris off the Soft Roller. Use a dry

towel to wipe clean, or to remove any hair or fibres caught in the teeth behind the Soft Roller.

4. Rinse as needed. Use ONLY lukewarm water,

and leave to air-dry completely for at least 24 hours.

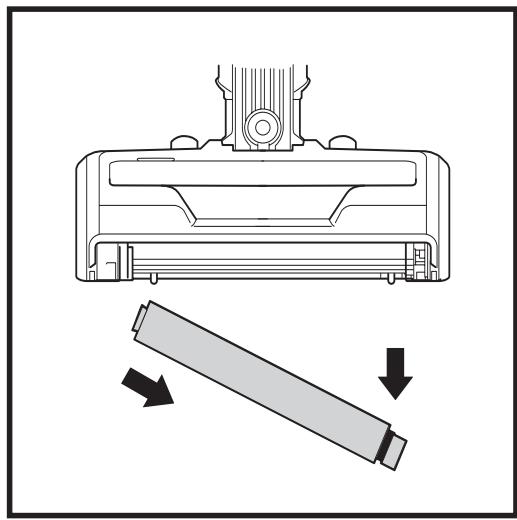

5. When dry, insert the left end of the roller first,

then push the right end into place with the word Front facing forward. Detach wand from floor nozzle. Tilt nozzle neck back to straighten the airway, and remove any blockages. NOTE: To order replacement parts and filters, visit sharkclean.eu.

Crevice Tool Dusting Brush Wide Upholstery Tool Motorised Pet Tool (certain models only) Accessory Bag Lithium-Ion Battery Charging Cord Battery Charging Cradle

FLOOR and CARPET LEDs flash together Blockage detected. Turn off unit and remove blockage. BOOST LED flashes Unit temperature is high. Turn off vacuum and wait for approx. 45 minutes. While unit is cooling, look for blockages and remove any that are found. Filters may also need to be cleaned. See Maintenance Section. FIRST and THIRD BATTERY INDICATOR LEDS flash alternately Battery temperature is not optimal, so charging is temporarily paused. Leave battery plugged in and charging will resume soon.

ENGLISH ACCESSORIES INCLUDED

BATTERY REMOVAL AND DISPOSAL

This product uses a lithium-ion rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery. When your lithium-ion battery needs to be replaced, dispose of it or recycle it in accordance with local ordinances or regulations. In some areas, it is illegal to place spent lithium-ion batteries in the bin or in a municipal solid waste stream. Return spent battery to an authorised recycling centre or to retailer for recycling. Contact your local recycling centre for information on where to drop off the spent battery.

NOTE: Not all accessories come with all units. Please see the top flap of your box for your unit's configuration. To order additional accessories, visit sharkclean.eu.

Vacuum is not picking up debris. No suction or light suction.

  • Ensure handle, hose, dust cup, and wand are all securely connected onto the unit.
  • Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting them in the vacuum.
  • Dust cup may be full; empty dust cup.
  • Check wand, hose, hose connections, nozzle and accessories for blockages; clear blockages if required.
  • Check floor nozzle for blockages; clear blockages if required.
  • Remove any string, carpet fibres, or hair that may be wrapped around the brush-roll and Soft Roller or trapped behind the Soft Roller. Vacuum lifts rugs.
  • Turn off vacuum, and move it away from any obstruction. Turn on vacuum and tilt handle back to activate brush-roll.
  • Check that vacuum is in Extended Runtime mode and/or try Floor mode.
  • Turn off the unit to disengage the brush-roll and restart with the Power button. Brush-roll/Soft Roller does not spin.
  • If Brush-roll Indicator Light on the floor nozzle turns red, the brush-roll and/or Soft Roller have stopped spinning. Immediately turn off and remove battery from vacuum pod and remove blockage before reconnecting and turning vacuum back on. If light turns green, the blockage has been successfully cleared.
  • If headlights are not illuminated, there is a connection issue between the hose, pod, wand, and nozzle. Try disconnecting the pieces and then reconnecting them, sliding in each one until it clicks securely into place. Vacuum turns off on its own or will not turn on. There are several possible reasons for the vacuum cleaner turning off on its own, including blockages, battery issues, and overheating. If the vacuum cleaner turns off on its own, perform the following steps:

1. Check battery indicator lights to see if battery needs to be recharged. If it does not need

charging, turn off the vacuum cleaner and remove battery.

2. Empty dust cup and clean filters.

3. Check wand, accessories, and inlet openings and remove any blockages.

4. Allow unit and battery to cool for at least 45 minutes, until it returns to room temperature.

5. Return battery to vacuum and press Power button.

Dust cup will not latch onto unit:

  • The dust cup will not latch if the pod is not inserted properly onto the unit. Align the bottom of pod onto the rails on the front of the neck of the floor nozzle. Slide pod down the rails until it clicks into place. Battery not charging.
  • Batteries outside of optimal temperature range may not begin charging immediately. Move to room temperature area and/or allow battery to cool before charging.
  • Please review battery runtimes in the Operating the Vacuum section.
  • When charging with the cradle, ensure battery is pressed all the way down onto cradle and that charge indicator lights illuminate.
  • Battery life expectancy is at least two years and comes with a two-year limited guarantee. New battery packs can be purchased at sharkclean.eu
  • When charging with the cradle ensure the charger is inserted and then rotated to lock it into place. Battery will not charge unless the charger is locked into place. Battery not inserting into vacuum.
  • Make sure handle is down before pushing battery securely into place.
  • Make sure filter is securely clicked into place prior to inserting the battery.

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your “statutory rights”). You can enforce these statutory rights against your retailer. However, at Shark we are so confident about the quality of our products (the “Products”) that we give you an additional manufacturer’s guarantee of up to five years (2 year as standard plus 3 years when you register (the “Extended guarantee”)). This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only – your statutory rights as a buyer are unaffected. Please note that the 5 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term. The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, Kurt–Blaum–Platz 8, 63450 Hanau (Germany) (“us”, “our” or “we”). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Shark. The Lithium-Ion Battery pack is not covered by the 5 year guarantee (see battery guarantee on next page). Shark™ Guarantees A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality. Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday. It’s free to call, and you’ll be put straight through to a Shark representative. You’ll also find online support at www.sharkclean.eu. How do I register my Extended guarantee? You can register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your machine:

  • Serial Number (only if available)
  • Date of purchase of the Product (receipt or delivery note) To register online, please visit www.sharkclean.eu IMPORTANT
  • The guarantee covers your Product for 2 years (or for 5 years, if registered) starting on the date of purchase.
  • Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee. What are the benefits of registering my guarantee? When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Shark technology and launches. If you register your guarantee online, you’ll get instant confirmation that we’ve received your details. Details of our privacy policy can be found at www.sharkclean.eu How long are our Products guaranteed for? Our confidence in our design and quality control means that your Product is guaranteed for a total of five years (2 years plus an Extended guarantee of 3 years). What is covered by the guarantee? Repair or replacement (at Shark’s discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer. What is not covered by the guarantee?

1. Blockages – For details of how to unblock your vacuum cleaner, please refer to the Operating Manual.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark Operating Manual supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark spares.

7. Faulty installation (except where installed by Shark).

8. Repairs or alterations carried out by parties other than Shark or its agents, unless you can show that the repairs or

alterations carried out by others are not related to the defect for which you exercise the guarantee.

9. The Lithium ION battery. Please see next page for battery guarantee.

What happens when my guarantee runs out? Shark does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has elapsed. In this case please contact our free phone customer service help line and ask about our guarantee program, on 0800 000 9063. Where can I buy genuine Shark spares and accessories? Shark spares and accessories are developed by the same engineers who developed your Shark vacuum. You’ll find a full range of Shark spares, replacement parts and accessories for all Shark machines at www.sharkclean.eu. Please remember that using non-Shark spares may invalidate your manufacturer's guarantee. However your statutory rights are unaffected. s h a r kc l e a n . e u

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your “statutory rights”). You can enforce these statutory rights against your retailer. However, at Shark we are so confident about the quality of our prod-ucts (the “Products”) that we give you an additional manufacturer’s battery guarantee of up to two years. This guarantee only ap-plies to the Product if it is bought in new and unused condition. These terms and conditions relate to our manufacturer’s battery guarantee (the “battery guarantee”) only – your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is avail-able in all EU countries and in the UK if it stops being an EU country during the guarantee term. The conditions below describe the prerequisites and scope of our battery guarantee which is issued by the SharkNinja Germany GmbH, Kurt–Blaum–Platz 8, 63450 Hanau (Germany) (“us”, “our” or “we”).. They do not affect your statutory rights or the obligations of your retailer and your contract with them. Shark® Guarantees Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday. It’s free to call, and you’ll be put straight through to a Shark representative. You’ll also find online support at www.sharkclean.eu. How do I register my extended Shark® guarantee? You can register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your Prod-uct:

  • Serial Number (only if available)
  • Date you purchased the Product (receipt or delivery note) To register online, please visit www.sharkclean.eu IMPORTANT
  • The battery guarantee covers your battery for 2 years starting on the date of purchase.
  • Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee. What are the benefits of registering my battery guarantee? When you register your guarantee, we’ll have your details to hand if we ever need to get in touch. You can also receive tips and ad-vice on how to get the best out of your Shark vacuum and hear the latest news about new Shark technology and launches. If you reg-ister your guarantee online, you’ll get instant confirmation that we’ve received your details. Details of our privacy policy can be found at www.sharkclean.eu How long are new Shark Lithium-Ion batteries guaranteed for? Our confidence in our design and quality control means that the battery in your new Shark vacuum cleaner is guaranteed for a total of 2 years. What is covered in my battery guarantee?

1. The original Lithium-Ion Battery, in Shark’s sole discretion, will be replaced or repaired for up to 2 years from the

original purchase date (including transport and shipping costs).

2. In the rare event that a replacement battery is issued, the guarantee coverage for the replacement battery ends six

months fol-lowing the receipt date of the replacement battery or the remainder of the existing guarantee, whichever is later. What is not covered by the battery guarantee?

1. Normal wear and tear of Lithium-Ion Battery, within the temperature range set out under the safety instructions

2. Any battery that has been tampered with or used for commercial purposes.

3. Damage caused by misuse, abuse, use of the vacuum outside of the approved temperature range, or careless

handling, or dam-age due to mishandling in transit.

4. Injury or damage caused to people or things other than the battery itself.

5. Faulty installation (except where installed by Shark).

6. Repairs or alterations carried out by parties other than Shark or its agents, unless you can show that the repairs or

alterations carried out by others are not related to the defect for which you exercise the battery guarantee. Problems with your battery If your Lithium-Ion battery fails to operate properly while in use under normal household conditions within the guarantee period, please call our freephone customer service helpline on 0800 000 9063 for product help and support.

Model Number: Date Code: Date of Purchase: (Keep receipt) Store of Purchase: TECHNICAL SPECIFICATIONS Voltage: 28.8V Watts: 260W Amps:

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. These instructions are designed to help you keep your Shark vacuum cleaner running at peak performance. TIP: You can find the model and serial numbers on the QR code label which is located on the bottom of the back of the vacuum pod and battery. s h a r kc l e a n . e u

ANYWHERE TECHNOLOGY (TAPPETI

ENGLISH Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. SHARK is a registered trademark of SharkNinja Operating LLC. DUOCLEAN and LIFT-AWAY are trademarks of SharkNinja Operating LLC.
