Product type	Electric scooter
Brand	Ninebot (Segway)
Model	GW-KICK-E45 (E45 series)
Dimensions (unfolded)	111 × 42 × 112 cm
Dimensions (folded)	114 × 42 × 36 cm
Net weight	15.0 kg
Payload	25–100 kg
Recommended age	14 years and up
Required height	120–200 cm
Maximum speed	30 km/h (E45), 20 km/h (E45D), 25 km/h (E45E)
Typical range	45 km
Maximum slope	15%
Rideable terrain	Asphalt/flat pavement; obstacles < 1 cm; holes < 3 cm
Operating temperature	-10 to 40 °C
Storage temperature	-20 to 50 °C
IP rating	IPX4
Battery	36 V, 368 Wh, Lithium-ion
Number of batteries	2 (one main)
Charging time	7.5 h
Motor	300 W nominal
Tires	9 inches, non-pneumatic (synthetic rubber)
Brakes	Electronic brake + rear pedal brake
Lighting	Front headlight, LED rear light, brake lights
Riding modes	Sport, Standard, Limited speed
Connectivity	Bluetooth 4.0, Segway-Ninebot mobile app
Maintenance and cleaning	Soft damp cloth; do not use solvents or high-pressure cleaners
Safety	Helmet mandatory; do not ride in rain; check lock before use
Spare parts and repairability	Contact an authorized center or customer service via www.segway.com
General information	Certification ANSI/CAN/UL-2272; battery compliant with UN/DOT 38.3

Frequently Asked Questions - GW-KICK-E45 NINEBOT

How to activate my Ninebot GW-KICK-E45 scooter?

To activate your scooter, install the Segway-Ninebot app on your mobile (iOS 9.0+ or Android 4.3+), turn on the scooter, connect via Bluetooth and follow the instructions in the app. Until activation, speed is limited to walking pace.

What is the maximum speed of the E45 model?

The maximum speed is 30 km/h (E45 model). For E45D and E45E models, it is 20 km/h and 25 km/h respectively.

How to change riding mode?

Double-click the on/off button to switch between Sport (red S icon), Standard (white S icon) and Limited speed (no S icon).

What is the actual battery range?

The typical range is 45 km (tested at 75 kg, 25°C, 60% of max speed on pavement). Actual range varies according to weight, temperature, riding style and terrain.

How long does it take to fully charge the battery?

Full charging time is approximately 7.5 hours with the supplied charger (71 W, 42 V, 1.7 A). Use only the original charger.

Can I ride in the rain?

No, it is forbidden to ride in the rain or on wet, muddy or icy roads. IPX4 rating protects against splashes but not immersion.

How to maintain my scooter?

Clean the frame with a soft damp cloth. Never use alcohol, gasoline, acetone or high-pressure cleaners. Store it in a cool, dry place, away from extreme temperatures.

What to do if the scooter beeps and does not move?

This may indicate a low battery, a connection fault or an error code. Check the battery level and use the app to diagnose. If the problem persists, contact customer service.

Can I install a second battery?

Yes, E45 models support a second battery (sold separately) to increase range. Follow the manual instructions for installation.

Where to find the serial number of my scooter?

The serial number is under the scooter or in the app (More settings > Basic info). It is needed for after-sales service.

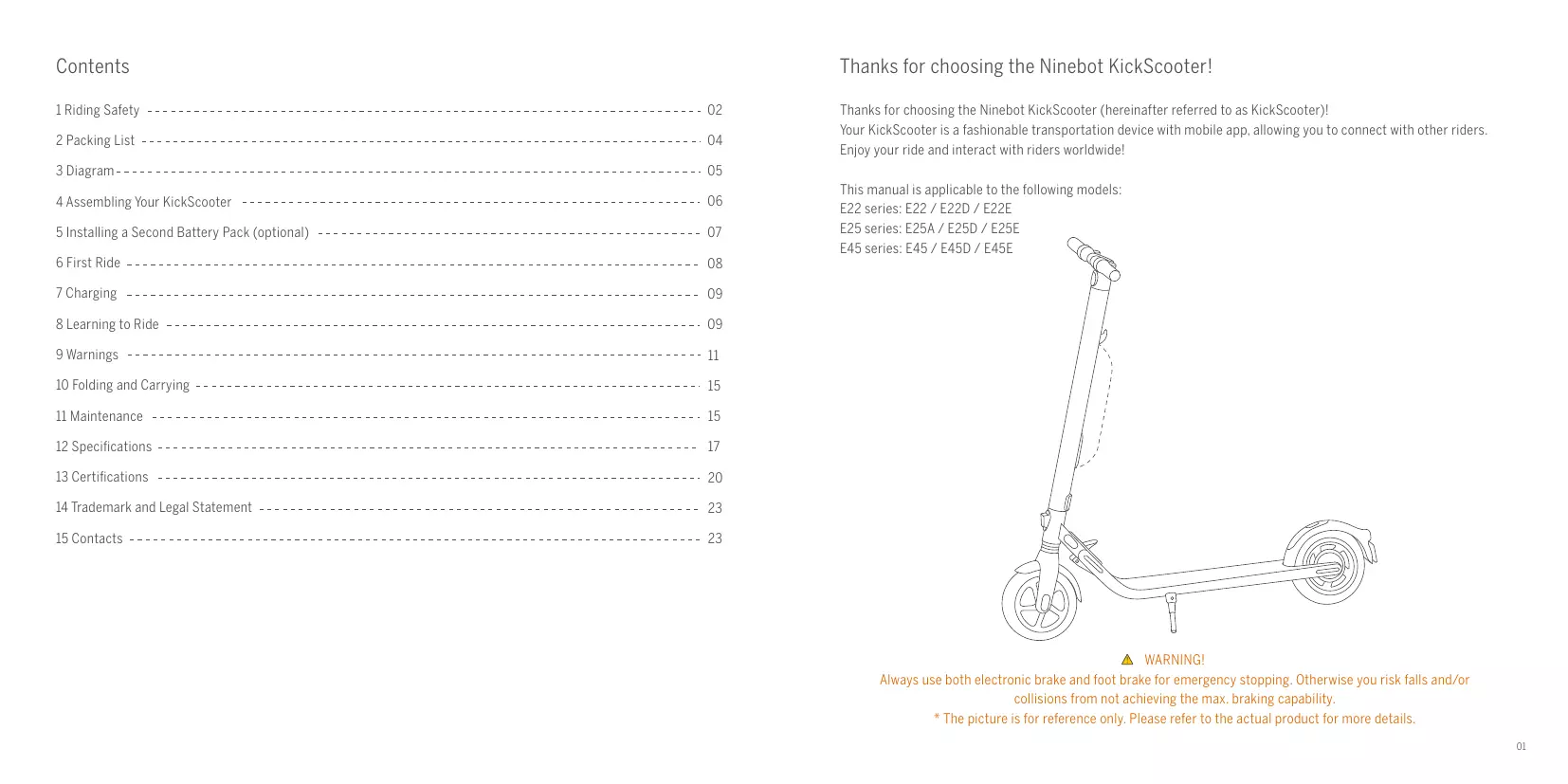

USER MANUAL GW-KICK-E45 NINEBOT

5 Installing a Second Battery Pack (optional) 07

6 First Ride 08

7 Charging 09

8 Learning to Ride 09

9 Warnings 11

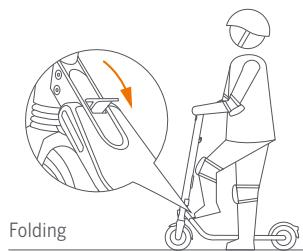

10 Folding and Carrying 15

11 Maintenance 15

12 Specifications 17

13 Certifications 20

14 Trademark and Legal Statement 23

15 Contacts 23

Thanks for choosing the Ninebot KickScooter!

Thanks for choosing the Ninebot KickScooter (hereinafter referred to as KickScooter)!

Your KickScooter is a fashionable transportation device with mobile app, allowing you to connect with other riders.

Enjoy your ride and interact with riders worldwide!

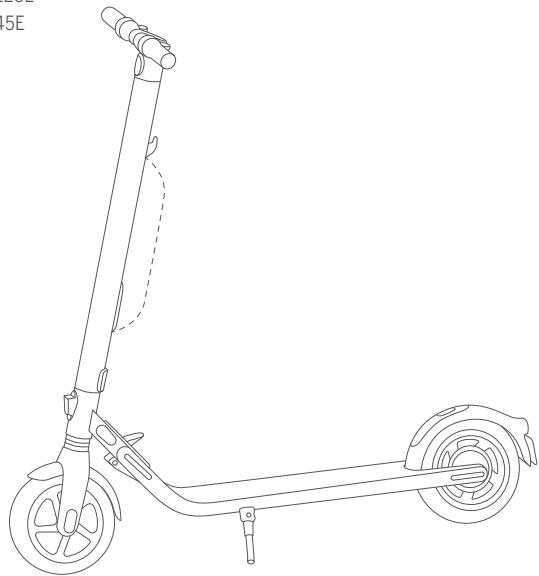

This manual is applicable to the following models:

E22 series: E22 / E22D / E22E

E25 series: E25A / E25D / E25E

E45 series: E45 / E45D / E45E

Line drawing of a scooter with wheels and suspension (no text or symbols)

WARNING!

Always use both electronic brake and foot brake for emergency stopping. Otherwise you risk falls and/or collisions from not achieving the max. braking capability.

* The picture is for reference only. Please refer to the actual product for more details.

1 Riding Safety

1. The KickScooter is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc. (means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates) nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the KickScooter you risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.
6. In places without laws, comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
7. Do not allow anyone to ride your KickScooter on his/her own unless they have carefully read this manual and followed the New Rider Tutorial in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the KickScooter. Make sure each new rider wears a helmet and other protective gear.
8. Before each ride check for loose fasteners and damaged components. If the KickScooter makes abnormal sounds or signals an alarm, immediately stop riding. Diagnose your KickScooter via the Segway-Ninebot App and call your dealer/distributor for service.
9. Be alert! Scan both far ahead and in front of your KickScooter — your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
10. To reduce risk of injury, you must read and follow all “CAUTION” and “WARNING” notices in this document. Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safety instructions:

A. People who should not ride the KickScooter include:

i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
iv. Anyone whose weight is outside the stated limits (see Specifications).
v. Pregnant women.

B. Riders under the age of 18 years old should ride under adult supervision.

C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.

D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.

E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.

1. Do not attempt to charge your KickScooter if it, the charger, or the power outlet is wet.

2. As with any electronic device, use a surge protector when charging to help protect your KickScooter from damage due to power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other different product models.

3. Use only Ninebot or Segway approved parts and accessories. Do not modify your KickScooter. Modifications to your KickScooter could interfere with the operation of the KickScooter, result in serious injury and/or damage, and void the Limited Warranty.

4. Children should not play with the KickScooter or parts of it nor should cleaning or maintenance be done by children. The use of the machine results in the transmission of vibrations throughout the driver's body.

5. Always place the KickScooter on its stand on a flat and stable surface. The KickScooter must be placed with the stand against the slope to prevent it from tipping over. Never place the KickScooter with the front facing down the slope, as the stand may close and tip the machine. Once the KickScooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park the KickScooter in a busy area, but rather along a wall. If possible, always choose to park your KickScooter on flat ground.

6. For a better driving experience, it is recommended to conduct a regular maintenance of the product.

7. Please read the user manual before charging the battery.

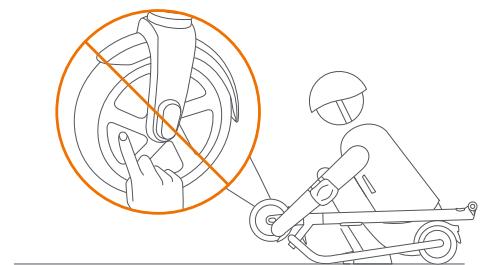

8. Do not touch the brake system, it could cause injuries.

9. The A-weighted emission sound pressure level is less than 70 dB(A). The mechanical vibrations transmitted by the KickScooter are less than 2,5 m/s ^2 .

2 Packing List

Handlebar

Line drawing of a T-shaped mechanical component with multiple arms and a central hub (no text or symbols)

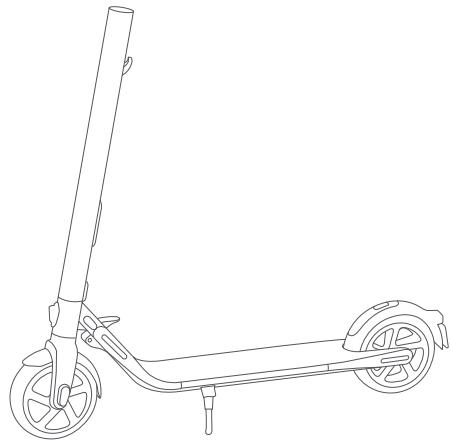

Mainframe

User Materials

Second Battery Pack

	E22 series	E25 series	E45 series
	Sold separately		Included

Line drawing of a scooter with wheels and a vertical post (no text or symbols)

Accessories

M5 Flathead Screw x 7 (one extra)

3mm Hex Wrench

Battery Charger

Bell

When unboxing your KickScooter, please verify that the above items are included in the package. If any components are missing, please contact your dealer/distributor or nearest service center (see Contacts in the user manual). After verifying that all components are present and in good condition, you can assemble your new KickScooter.

Please retain the box and packaging materials in case you need to ship your KickScooter in the future.

Remember to power off your KickScooter and unplug the charge cable before assembling, mounting accessories, or cleaning the mainframe.

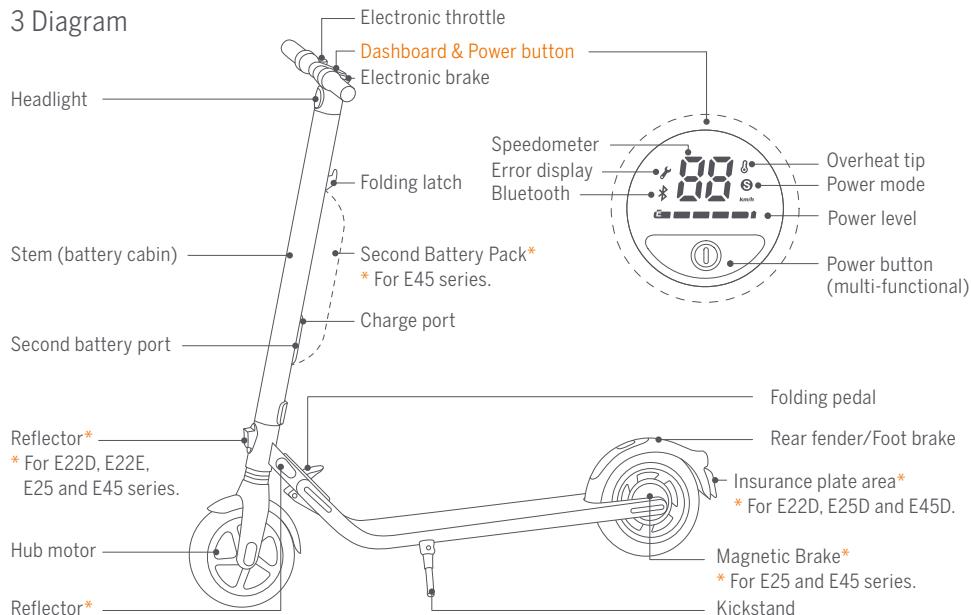

3 Diagram Electronic throttle Dashboard & Power button Electronic brake Headlight Folding latch Speedometer Error display Bluetooth Overheat tip Power mode Power level Power button (multi-functional) Stem (battery cabin) Second Battery Pack* For E45 series. Charge port Second battery port Reflector* For E22D, E22E, E25 and E45 series. Hub motor Reflector* Folding pedal Rear fender/Foot brake Insurance plate area* For E22D, E25D and E45D. Magnetic Brake* For E25 and E45 series. Kickstand

* For E22D, E22E, E25 and E45 series.

Dashboard & Power button

Speedometer: Indicates the current speed. Also displays error codes when faults are detected.

Battery level: Indicates the remaining battery level with 5 bars. Each bar equates to approximately 20% power level.

Power mode:

—Red "S" icon: Sport mode (maximum power/speed).
—White "S" icon: Standard mode (moderate power/speed).
—No "S" icon: Speed limit mode (minimum power/speed).

Bluetooth: A blinking Bluetooth icon indicates that the vehicle is ready to connect. A solid Bluetooth icon indicates that the vehicle is connected to a mobile device.

Power button: Short press to power on. Long press to power off. When powered on, press to turn on/off the headlight. Double-press to change power mode.

Overheat tip: The thermometer icon always on indicates that the battery temperature has reached 122^ F ( 50^ C). At this point, the vehicle cannot accelerate normally and may not be charged. Do not use it until the temperature is restored to normal range.

Error display: The lit wrench icon indicates the scooter error.

4 Assembling Your KickScooter

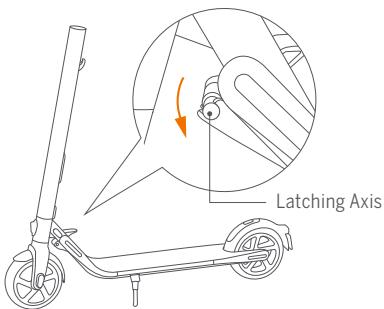

1. Unfold the stem and push it until you hear a click. Flip up the folding pedal. Then unfold the kickstand to support the scooter.

Note: Confirm that the latching axis on the folding mechanism is secured correctly.

Latching Axis

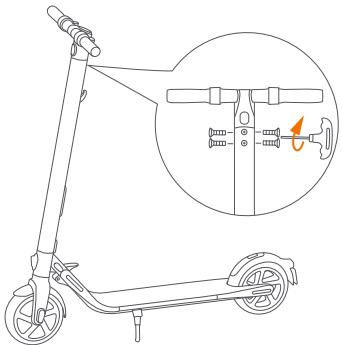

1. Install six screws (two on each side) with the included hex wrench.

Line drawing of a scooter with an inset showing the seat assembly and adjustment mechanism (no text or symbols)

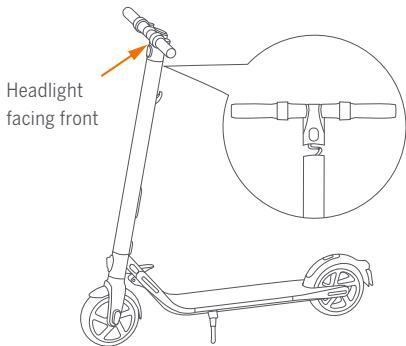

1. Firmly connect the wires inside the handlebar and the stem. Slide the handlebar onto the stem. Be aware of the correct orientation.

Headlight facing front

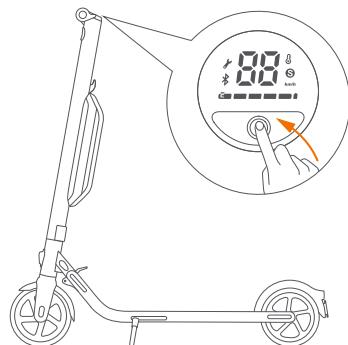

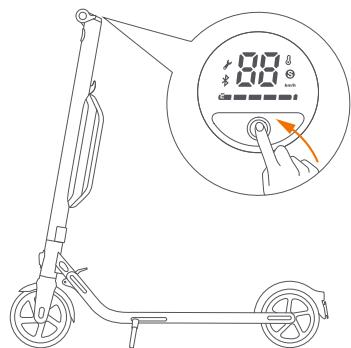

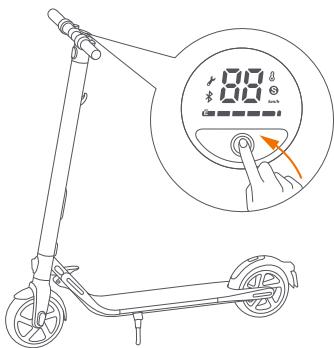

1. Verify that your KickScooter powers on and off.

Diagram of a scooter with an LCD display showing temperature reading of 89°C, accompanied by a hand pointing to the control panel.

5 Installing a Second Battery Pack (optional)

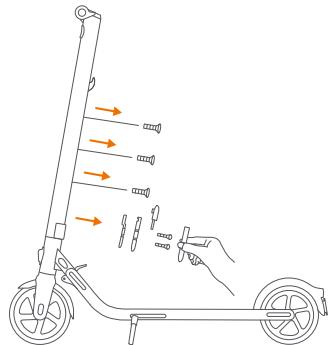

1. Remove the three screws on the stem. Then remove the cover near the charge port and remove the M3 screw.

⚠ Warning: please use the screws provided with this product only.

1. Install the rail with the M4 (10mm) screws (3 pcs), provided with this product. Please make sure it is properly fixed.

Diagram showing a scooter with directional arrows indicating motion or force vectors, including a hand holding a tool.

1. Install the external battery on the rail and fix it with the M4 (20mm) screws (2 pcs) and M3 screw (1 pcs), provided with this product. After they are properly installed, block the screw holes with the rubber stopper.

Line drawing of a scooter with attached sensor components and directional arrows (no text or symbols)

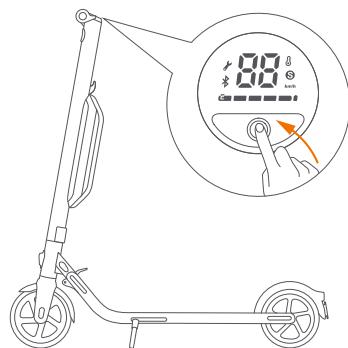

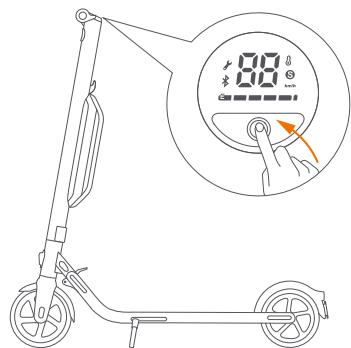

1. Verify that your KickScooter powers on and off.

Line drawing of a scooter with attached components and an arrow indicating motion (no text or symbols)

Diagram of an electric scooter with a digital display showing 88 degrees, including a hand pressing the button.

6 First Ride

QR code image containing encoded data, no visible human-readable text

Segway-Ninebot App

There are safety risks when learning to ride the KickScooter. You must read the Riding Safety via the App before your first ride.

For your safety, your new KickScooter is not activated and will beep occasionally after POWER ON.

Until activated, the KickScooter maintains a very low riding speed, and can not perform with full function. Install the Segway-Ninebot App on your mobile device (with Bluetooth 4.0 and above), connect to the KickScooter with Bluetooth, and follow the App instructions to activate your KickScooter and enjoy the full performance.

Scan the QR code to download the App (iOS 9.0 and above, Android™ 4.3 and above).

1 Install the Segway-Ninebot App and register/login.

2 Power on the KickScooter. A blinking Bluetooth icon indicates the KickScooter is ready to connect.

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

3 Click "Vehicle"→"Search vehicle" to connect to your KickScooter.

The KickScooter will beep when it has successfully connected.. The Bluetooth icon will stop blinking and remain illuminated.

8.00 8.00

Diagram showing a computer tower with an icon of a Bluetooth symbol, enclosed in two circular frames (no text or labels)

4 Follow the App instructions to activate the KickScooter and learn how to ride safely.

You can now start to use your KickScooter, check the status with the App, and interact with other users. Have fun!

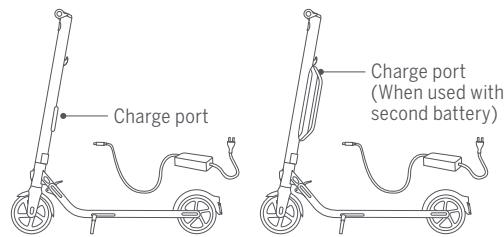

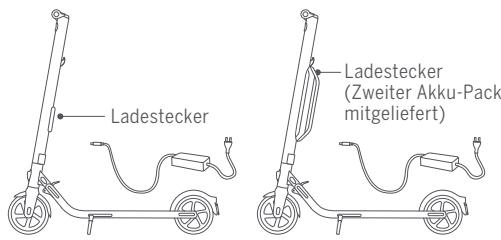

7 Charging

Charging steps:

Open the charge port cover.

Insert the charge plug.

Close the charge port cover when finished.

WARNING

Do not connect the charger if the charge port or charge cable is wet. Do not charge or use your battery if it is damaged or see trace of water.

Your KickScooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge). Close the charge port cover when not charging.

8 Learning to Ride

Line drawing of a person wearing a cap and two knee patches (no text or symbols)

Wear an approved helmet and other protective gear to minimize any possible injury.

88.0 ①

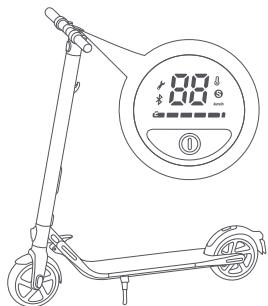

1. Power on the scooter and check the power level. Charge the scooter if the battery level is low.

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

1. Stand on the foot deck with one foot and push off with another foot to start gliding.

Illustration showing a hand using a scooter to lift a weight, with an inset magnified view highlighting the motion.

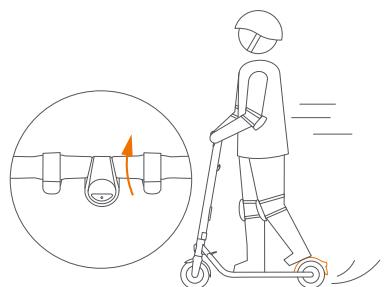

1. Put your other foot on the foot deck to keep both feet stable. Press the throttle to speed up when you are balanced.
   Note: For your safety, the motor will not engage until the scooter reaches 2.5 mph (4 km/h).

Line drawing of a person riding a scooter with an inset showing a hand holding a device (no text or symbols)

1. Slow down by releasing the throttle. Squeeze the electronic brake and stamp the rear fender with foot at the same time for a sudden brake.

Three identical figures in safety gear standing vertically with arrows indicating motion or movement (no text or symbols)

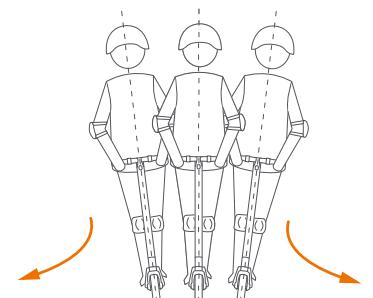

1. To turn, shift your body and turn the handlebar slightly.

WARNING

When braking rapidly, you risk serious injury due to loss of traction and falls. Maintain a moderate speed and look out for potential hazards.

9 Warnings

Line drawing of a person standing in the rain wearing a cap and holding a stick, with water splashing around (no text or symbols)

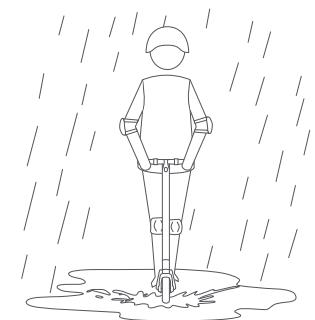

DO NOT ride the scooter in the rain.

Line drawing of a person standing in front of a door, viewed from behind by a person (no text or symbols)

Watch your head when passing through doorways.

WARNING

Failure to follow these instructions could lead to serious injury.

Line drawing of a person riding a scooter with helmet and seat (no text or symbols)

Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Watch your speed when traveling downhill. Use both brakes together when traveling at high speed.

Illustration showing a person using a scooter with a hand gesture and a circular warning symbol.

!

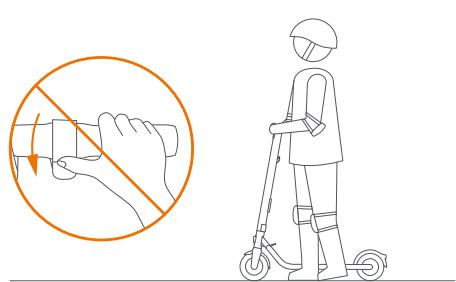

DO NOT press the throttle when walking with the scooter.

Line drawing of a person in safety gear standing with a lightning bolt symbol (no text or labels)

!

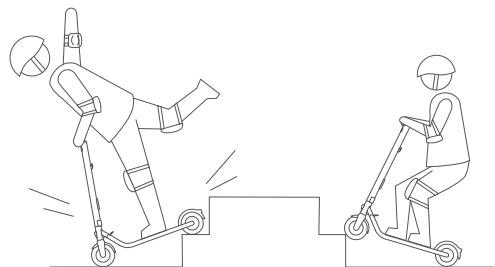

Avoid contacting obstacles with the tire/wheel.

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

!

DO NOT ride on public roads, motorways, or highways.

Three identical line drawings of a person in front and back view, each with wheels and directional arrows indicating motion (no text or symbols)

!

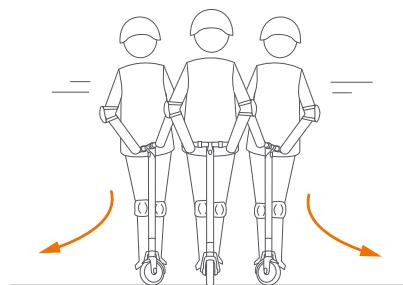

DO NOT rotate the handlebar violently while driving at high speed.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

!

DO NOT carry heavy objects on the handlebar.

Line drawing of a person riding a scooter with legs raised (no text or symbols)

!

DO NOT ride the scooter with only one foot.

Line drawing of a person using a mobility scooter to clean or trash (no text or symbols)

!

Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacle.

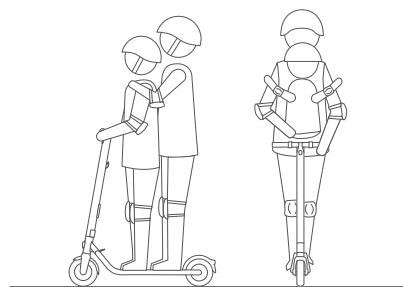

Line drawing of two people riding scooters, one with a helmet and the other with a helmet (no text or symbols)

!

The KickScooter is for one rider only. Do not ride with another person. Do not carry a child.

Line drawing of a person riding a scooter with a helmet and seatbelt (no text or symbols)

DO NOT step on the folding pedal while riding.

Illustration of a person using a scooter to lift a wheel, with an orange circle highlighting the wheel rim (no text or symbols present)

DO NOT touch the hub motor after riding because it can get hot.

Line drawing of a person riding a scooter with a smartphone (no text or symbols)

DO NOT take your hands off the handlebar while riding. Do not ride with one hand only.

Line drawing of two people performing a high kick exercise on a scooter (no text or symbols)

DO NOT ride up and down stairs or jump over obstacles.

WARNING

Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls.

Always check the locked condition of the folding mechanism before each use.

10 Folding and Carrying

Folding

Step on the folding pedal while pushing the handlebar forward slightly.

Illustration of a person riding a scooter with a thought bubble showing a curved arrow (no text or symbols)

Then fold the handlebar down until it locks into the rear fender.

Line drawing of a person wearing a helmet and holding a roller (no text or symbols)

When your KickScooter is folded up, simply lift it by the stem to carry.

11 Maintenance

Cleaning and Storage

Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE

Do not wash your KickScooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your KickScooter. Do not wash your KickScooter with a power washer or hose.

WARNING

Make sure the KickScooter is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components.

Store your KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Maintenance and removal of the battery

Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine: You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any further question, you can contact the customer service available at www.segway.com.

Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App.

Replace the Tires

Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions:

• Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.segway.com.
• If the product is no longer under guaranteed you can contact any specialized repairer of your choice.
• Should you have questions, you can contact customer service available at www.segway.com.

NOTE

Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. A low-power battery should retain charge for 30-60 days in Standby Mode. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-discharge or under-discharge will not be covered by the Limited Warranty.

WARNING

Do not charge or use your battery if it is damaged or see trace of water. Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.

WARNING

Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.

Others

The external flexible cable of this transformer cannot be replaced; if the cord is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com.

In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee. If not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com.

Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he is advised to contact an authorized or a specialized repairer or customer service.

12 Specifications

	Item	E22E/E22D	E22
Dimensions	Length x Width x Height	43.7 × 16.5 × 44.1 in (111 × 42 × 112 cm)	42.9 × 16.5 × 44.1 in (109 × 42 × 112 cm)
	folded: Length x Width x Height	44.9 × 16.5 × 14.2 in (114 × 42 × 36 cm)	44.5 × 16.5 × 14.2 in (113 × 42 × 36 cm)
Weight	Net Weight	Approx. 29.8 lbs (13.5kg)
Rider	Payload	55–220 lbs (25–100 kg)
	Recommended Age	14+ years
	Required Height	3'11"–6'6" (120–200 cm)
Parameters	Max. Speed	12.4 mph (20 km/h)
	Typical Range [1]	13.7 miles (22 km)
	Max. Slope	15%
	Traversable Terrain	asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	-4–122°F (-20–50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 3.5 h
Battery	Nominal Voltage	36 V ===
	Max. Charging Voltage	42 V ===
	Charging Temperature	32–104°F (0–40°C)
	Nominal Capacity	184 Wh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
	Number of Batteries [2]	1
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100–240 V~
	Output Voltage	42 V ===
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Riding Modes	Speed limit mode, Standard mode and Sport mode
Tire	Tires	Material: non-pneumatic tires. synthetic rubber. Size: 9 inches

[1] Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.
[2] All KickScooter models could install the second battery. Some of the parameters would change in this case.

[1] Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.
[2] All KickScooter models could install the second battery. Some of the parameters would change in this case.

	Item	E25D	E25E	E25A
Dimensions	Length x Width x Height	45.7 × 16.5 × 46.1 in (116 × 42 × 117 cm)
	folded: Length x Width x Height	46.9 × 16.5 × 14.2 in (119 × 42 × 36 cm)
Weight	Net Weight	31.5 lbs (14.3 kg)
Rider	Payload	55–220 lbs (25–100 kg)
	Recommended Age	14+ years
	Required Height	3'11"-6'6" (120–200 cm)
Parameters	Max. Speed	12.4 mph (20 km/h)	15.5 mph (25 km/h)	17.4 mph (28 km/h)
	Typical Range [1]	15.5 miles (25 km)
	Max. Slope	15%
	Traversable Terrain	asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	-4–122°F (-20–50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 4 h
Battery	Nominal Voltage	36 V===
	Max. Charging Voltage	42 V===
	Charging Temperature	32–104°F (0–40°C)
	Nominal Energy	215 Wh
	Nominal Capacity	5960 mAh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
	Number of Batteries [2]	1
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100–240 V~
	Output Voltage	42 V===
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber	Front
	Riding Modes	Speed limit mode, Standard mode and Sport mode
	Ambient Light	/	Customizable colour	Customizable colour
Tire	Tires	Material: non-pneumatic tires. synthetic rubber. Size: 9 inches

[1] Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.
[2] All KickScooter models could install the second battery. Some of the parameters would change in this case.

	Item	E45	E45D	E45E
Dimensions	Length x Width x Height	45.7 × 16.5 × 46.1 in ( 116 × 42 × 117 cm)
	folded: Length x Width x Height	46.9 × 16.5 × 14.2 in ( 119 × 42 × 36 cm)
Weight	Net Weight	33.1 lbs (15.0 kg)
Rider	Payload	55–220 lbs (25–100 kg)
	Recommended Age	14+ years
	Required Height	3'11"–6'6" (120–200 cm)
Parameters	Max. Speed	18.6 mph (30 km/h)	12.4 mph (20 km/h)	15.5 mph (25 km/h)
	Typical Range [1]	28.0 miles (45 km)
	Max. Slope	15%
	Traversable Terrain	asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	-4–122°F (-20–50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	36 V ===
	Max. Charging Voltage	42 V ===
	Charging Temperature	32–104°F (0–40°C)
	Nominal Energy	368 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
	Number of Batteries	2
Motor	Nominal Power	300 W, 0.3 kW
Charger	Output Power	71 W, 0.071 kW
	Input Voltage	100–240 V~
	Output Voltage	42 V ===
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Shock Absorber	Front
	Riding Modes	Speed limit mode, Standard mode and Sport mode
	Ambient light	Customizable colour	/	Customizable colour
Tire	Tires	Material: non-pneumatic tires. synthetic rubber. Size: 9 inches

[1] Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.

13 Certifications

For Model: E22, E25A, E45

This product is certified to ANSI/CAN/UL-2272 by CSA.

The battery complies with UN/DOT 38.3.

Federal Communications Commission (FCC) Compliance Statement for USA

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Industry Canada (IC) Compliance Statement for Canada

This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3 (B)/NMB-3(B)

Neither Segway Inc. nor Ninebot is responsible for any changes or modifications not expressly approved by Segway Inc. or Ninebot. Such modifications could void the user's authority to operate the equipment.

E22	FCC ID: 2ALS8-NT9529	E25A	FCC ID: 2ALS8-KS0003	E45	FCC ID: 2ALS8-KS0001
	IC: 22636-NT9529		IC: 22636-KS0003		IC: 22636-KS0001

For Model: E22D, E22E, E25D, E25E, E45D, E45E

This product is certified to ANSI/CAN/UL-2272 by CSA.

The battery complies with UN/DOT 38.3.

European Union Compliance Statement

Important WEEE information

WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmen-tal safe recycling.

Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.

Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Restriction of Hazardous Substances (RoHS) Directive

This Ninebot (Changzhou) Tech Co., Ltd. product, with included parts (cables, cords, and so on) meets the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2").

Radio Equipment Directive

The company “Segway Europe BV” hereby declares that this device complies with the essential requirements and other relevant provisions of the RED directive 2014/53/EU, the machine directive 2006/42/EC and the RoHS directive 2011/65/EU.

The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions

Segway Europe B.V.

EU Contact Address for regulatory topics only: Hogehilweg 8, 1101CC Amsterdam, The Netherlands.

Hereby, Ninebot (Changzhou) Tech Co., Ltd, declares that the wireless equipment listed in this section are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Bluetooth	Frequency Band(s)	2.4000-2.4835GHz
	Max. RF Power	100mW

14 Trademark and Legal Statement

Ninebot is the registered trademark of Ninebot (Tianjin) Tech. Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc.; Android, Google Play are trademarks of Google Inc., App Store is a service mark of Apple Inc., The respective owners reserve the rights of their trademarks referred to in this manual.

The KickScooter is covered by relevant patents. For patent information go to http://www.segway.com.

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice.

© 2020 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.

15 Contacts

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your KickScooter.

Americas:

Segway Inc.

14 Technology Drive, Bedford, NH 03110, USA

Tel:[phone]

Fax: [phone]

Toll Free: 1-866-473-4929

E-mail Sales: [e-mail]

E-mail Service: [e-mail]

Website: www.segway.com

Europe, Middle East and Africa:

Segway Europe B.V.

Hogehilweg 8, 1101CC Amsterdam, The Netherlands

Website: www.segway.com

Have your KickScooter serial number on hand when contacting Segway.

You can find your serial number on the underside of your KickScooter or Basic Information in the Segway-Ninebot App.

Ninebot KickScooter

Manuel utilisateur

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the App to download the latest user materials. You must install the App, activate your KickScooter, and obtain the latest updates and safety instructions.

Sommaire

Line drawing of a scooter with wheels and suspension components (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a T-shaped mechanical component with flanges and a central hub (no text or symbols)

Line drawing of a scooter with two wheels and a vertical rod (no text or symbols)

Accessoires

Vis M5 Flathead x 7 (une de rechange)

Clé hexagonale 3mm

Line drawing of a scooter with an inset showing the seatbelt mechanism (no text or symbols)

Diagram of a scooter with an inset showing a digital timer reading 18.0 and a hand pressing the button.

Diagram showing a scooter with directional arrows indicating motion or movement, possibly illustrating a motion problem or navigation.

Line drawing of a scooter with attached components and an arrow indicating motion (no text or symbols)

Line drawing of a scooter with attached bracket and directional arrows indicating motion (no text or symbols)

Diagram of a scooter with an inset showing a digital display showing 88 degrees temperature and a hand pressing the button.

QR code image containing encoded data, no visible human-readable text

Segway-Ninebot App

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a computer tower with control buttons and a wireless signal icon (no text or labels)

Line drawing of a person wearing a cap and two knee pads (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Illustration of a person using a scooter with a hand gesture and magnified detail (no text or symbols)

Line drawing of a person riding a scooter with an inset showing a gear mechanism (no text or symbols)

Three identical figures in hard hats standing vertically with motion arrows indicating vertical motion (no text or symbols)

Line drawing of a person riding a scooter through rain, with no text or symbols present

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

Line drawing of a person standing in front of a door, with a thought bubble indicating motion (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Safety instruction diagram showing no hand gesture and scooter usage on a person wearing helmet

!

Line drawing of a person in safety gear standing with a lightning bolt symbol (no text or labels)

!

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

!

Three identical line drawings of a person in front and back view, each with wheels and directional arrows indicating motion (no text or symbols)

!

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

!

Line drawing of a person riding a scooter with legs raised, no text or symbols present

!

Line drawing of a person using a walking scooter to clean or trash (no text or symbols)

!

Line drawing of two people riding scooters, one standing and one seated, both wearing helmets (no text or symbols)

!

Line drawing of a person riding a scooter with a helmet and seat, no text or symbols present

Line drawing of a person riding a scooter with a hand pointing to the wheel (no text or symbols)

Line drawing of a person riding an electric scooter, holding a device (no text or symbols)

Line drawing of two people using a scooter, one performing a jump and the other seated on the same side (no text or symbols)

Illustration of a person riding a scooter with a thought bubble showing a speedometer (no text or symbols)

Line drawing of a person wearing a helmet and holding a wheeled cart (no text or symbols)

Line drawing of a scooter with wheels and suspension components (no text or symbols)

WARNING!

Line drawing of a T-shaped mechanical component with flanges and a central hub (no text or symbols)

Benutzermaterialien

Line drawing of a scooter with wheels and a vertical rod (no text or symbols)

Zubehör

Simple line drawing of a rectangular electronic component connected to a wire (no text or symbols)

Glocke

Line drawing of a scooter with an inset showing a vertical bracket and a 1-speed rail (no text or symbols)

Diagram of a scooter with an LCD display showing price and time, including a hand pressing the button.

Diagram showing a scooter with five orange arrows indicating motion or force direction, and a hand holding a tool near the side.

Line drawing of a scooter with directional arrows indicating motion or movement (no text or symbols)

Line drawing of a scooter with attached components and a highlighted blade assembly (no text or symbols)

Diagram of a scooter with an inset showing a digital display showing 80°C and a hand pressing the button.

6 Erste Fahrt

QR code image containing encoded data, no visible human-readable text

Segway-Ninebot App

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a computer tower with an icon and a wireless signal symbol (no text or labels)

7 Laden

Line drawing of a person wearing a cap and two knee joint patches (no text or symbols)

88.0 10000

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person using a scooter to interact with a hand gesture (no text or symbols)

Line drawing of a person riding a scooter with an inset showing a hand holding a scooter (no text or symbols)

Three identical figures in hard hats standing vertically with orange curved arrows indicating motion or movement (no text or symbols)

Line drawing of a person riding a scooter through rain, with no text or symbols present

Line drawing of a person standing in front of a door, viewed from behind (no text or symbols)

Line drawing of a person riding a scooter with a helmet (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Safety instruction diagram showing hand grip and scooter usage with no text labels

!

Line drawing of a person riding a scooter with a lightning bolt symbol (no text or labels)

!

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

!

Three identical line drawings of a person in a scooter, viewed from behind, with orange curved arrows indicating motion or direction (no text or symbols)

!

Line drawing of a person riding a bicycle, viewed from behind (no text or symbols)

!

Line drawing of a person riding a scooter with a helmet and seatbelt (no text or symbols)

!

Line drawing of a person using a walking stick to clean debris near a wheel (no text or symbols)

!

Line drawing of two people using a scooter, one holding a child and the other in a safety vest (no text or symbols)

!

Line drawing of a person riding a scooter with a helmet and seat, no text or symbols present

Illustration of a person pushing a scooter with a hand gesture, showing no text or symbols on the diagram itself.

Line drawing of a person riding a scooter with a smartphone (no text or symbols)

Line drawing of two people riding scooters, one performing a leg lift and the other seated on the same side (no text or symbols)

Illustration of a person riding a scooter with an arrow indicating direction (no text or symbols)

Line drawing of a person wearing a helmet and holding a bicycle (no text or symbols)

Line drawing of a scooter with wheels and suspension (no text or symbols)

AVVERTENZA!

Technical line drawing of a T-shaped mechanical component with flanges and a central hub (no text or symbols)

Materiali Utente

Line drawing of a scooter with two wheels and a vertical post (no text or symbols)

Accessori

Line drawing of a scooter with an inset showing a vertical bracket assembly and a rotation indicator (no text or symbols)

Diagram of a scooter with an LCD display showing 18.0°C, including a hand pressing the button.

Diagram showing a scooter with directional arrows indicating motion or force vectors, possibly illustrating a physics or engineering concept.

Line drawing of a scooter with three orange arrows indicating motion or movement directions (no text or symbols)

Line drawing of a scooter with attached components and a highlighted blade (no text or symbols)

Diagram of an electric scooter with a digital display showing 88Ω, accompanied by a hand pressing the button.

6 Prima corsa

QR code image containing encoded data, no visible human-readable text

Segway-Ninebot App

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a computer tower with an icon of a Bluetooth symbol, enclosed in two circular frames (no text or labels)

Line drawing of a person wearing a cap and two knee patches (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Illustration of a person using a scooter to interact with a hand holding a device, showing motion and safety symbols (no text or labels)

Line drawing of a person riding a scooter with an inset showing a hand holding a device (no text or symbols)

Three identical figures in hard hats standing vertically with arrows indicating motion or movement (no text or symbols)

Line drawing of a person riding a scooter through rain, with no text or symbols present

Line drawing of a person standing in front of a door, with a speech bubble indicating sound (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seatbelt (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Illustration showing a person using a scooter with a no-smoking symbol and a hand gesture, accompanied by an instructional icon.

!

Line drawing of a person in safety gear standing with a lightning bolt symbol (no text or labels)

!

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

!

Three identical line drawings of a person in front and back view, each with wheels and directional arrows indicating motion (no text or symbols)

!

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

!

Line drawing of a person riding a scooter with legs raised, no text or symbols present

!

NON guidare lo scooter con un solo piede.

Line drawing of a person using a mobility scooter to clean debris (no text or symbols)

!

Line drawing of two identical figures riding scooters, one with a helmet and the other with a helmet (no text or symbols)

!

Line drawing of a person riding a scooter with a helmet and seat, no text or symbols present

Illustration of a person using a scooter to lift a wheel, with an orange circle highlighting the wheel rim (no text or symbols present)

Line drawing of a person riding a scooter with a smartphone (no text or symbols)

Line drawing of two people performing a high kick exercise on a scooter (no text or symbols)

Illustration of a person riding a scooter with an arrow pointing to the wheel (no text or symbols)

Line drawing of a person holding a mechanical device with an arrow indicating motion (no text or symbols)

Line drawing of a scooter with wheels and suspension (no text or symbols)

iADVERTENCIA!

Line drawing of a T-shaped mechanical component with multiple arms and a central hub (no text or symbols)

Bastidor

Line drawing of a scooter with wheels and a vertical post (no text or symbols)

Accesorios

Line drawing of a scooter with an inset showing the front view and side view (no text or symbols)

Diagram of a scooter with an LCD display showing 18.0°C, including a hand pressing the button.

Diagram showing a scooter with five orange arrows indicating motion or force direction, and a hand holding a tool near the side.

Line drawing of a scooter with attached screw components and an orange arrow indicating motion (no text or symbols)

Line drawing of a scooter with directional arrows indicating motion or movement (no text or symbols)

Diagram of a scooter with an inset showing a digital display showing 80 degrees temperature reading.

6 Primer uso

QR code image containing encoded data, no visible human-readable text

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a computer tower with control buttons and a wireless signal symbol (no text or labels)

Line drawing of a person wearing a cap and two knee joint patches (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Illustration of a person using a scooter to interact with a hand gesture (no text or symbols present)

Line drawing of a person riding a scooter with an inset showing a hand holding a device (no text or symbols)

Three identical figures in hard hats standing vertically with orange curved arrows indicating motion or movement (no text or symbols)

Line drawing of a person standing in the rain wearing a helmet and holding a scooter, with raindrops falling below (no text or symbols)

Line drawing of a person standing next to an open door, with another person visible in the background (no text or symbols)

Line drawing of a person riding a scooter with a helmet and harness (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Illustration showing a hand using a scooter with a no-smoking symbol and a person on the scooter, likely indicating scooter safety or mobility.

Line drawing of a person in safety gear standing with a lightning bolt symbol (no text or labels)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of a person in front and back view, each with wheels and directional arrows indicating motion (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seat, no text or symbols present

!

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

Line drawing of a person using a mobility scooter to clean or trash (no text or symbols)

Line drawing of two people riding scooters, one standing and one in profile view (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seatbelt (no text or symbols)

Illustration of a person using a scooter to lift a wheel, with an orange circle highlighting the wheel rim (no text or symbols present)

Line drawing of a person riding a scooter with a smartphone (no text or symbols)

Line drawing of two people performing a high kick exercise on a scooter (no text or symbols)

Illustration of two figures in a scooter, one showing a hand gesture and the other holding a cart (no text or symbols present)

Line drawing of a scooter with wheels and suspension components (no text or symbols)

⚠ OSTRZEŻENIE

Line drawing of a T-shaped mechanical component with multiple arms and a central hub (no text or symbols)

Line drawing of a scooter with extended boom and wheels (no text or symbols)

Wyposażenie

Simple line drawing of a ladowarka plug connected to a cable (no text or symbols)

Dzwonek

Line drawing of a scooter with an inset showing the seat assembly (no text or symbols)

Diagram of an electric scooter with a digital timer showing 88 degrees, including an inset image of the hand pressing a button.

Diagram showing a scooter with directional arrows indicating motion or force vectors, likely illustrating vehicle motion or safety instructions.

Line drawing of a scooter with directional arrows indicating motion or movement (no text or symbols)

Line drawing of a scooter with attached components and an arrow indicating motion (no text or symbols)

Diagram of a scooter with an inset showing a digital display showing 80% and 60% change.

6 Pierwsza jazda

QR code image containing encoded data, no visible human-readable text

Segway-Ninebot App

Line drawing of a hand holding a smartphone next to a scooter (no text or symbols)

Diagram showing a computer tower with an icon of a Bluetooth symbol inside, enclosed in two circular frames (no text or labels)

7 Ładowania

Line drawing of a person wearing a cap and two knee patches (no text or symbols)

Line drawing of a scooter with an analog digital display showing 88°C reading and a timer reading.

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

Illustration of a person using a scooter to lift a hand, showing the motion and safety instructions (no text or symbols)

Line drawing of a person riding a scooter with an inset showing a gear mechanism (no text or symbols)

Three identical figures in safety gear standing vertically with arrows indicating motion or movement (no text or symbols)

Line drawing of a person standing in the rain wearing a helmet and holding a stick, with water splashing around (no text or symbols)

Line drawing of a person standing in front of a door, viewed from behind (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seat (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Safety warning illustration showing a hand holding a scooter with no hand crossed out, alongside a person using a scooter.

Line drawing of a person standing with a lightning bolt symbol (no text or labels)

Line drawing of a person riding a scooter on a road with a car nearby (no text or symbols)

Three identical line drawings of a person in a standing position with roller skates, showing motion arrows (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with legs raised, no text or symbols present

Line drawing of a person cleaning a scooter with a hand tool (no text or symbols)

Line drawing of two people using a scooter, one standing and one in profile view (no text or symbols)

Line drawing of a person riding a scooter with a helmet and seat, no text or symbols present

Illustration of a person using a scooter to interact with a hand using a wheel, no text or symbols present

Line drawing of a person riding an electric scooter (no text or symbols)

Line drawing of two people riding scooters, one performing a dynamic maneuver (no text or symbols)

Illustration of a person riding an electric scooter with a thought bubble showing airflow or speed (no text or symbols)

Line drawing of a person wearing a helmet and holding a wheeled cart (no text or symbols)

Europe, Middle East and Africa:

Segway Europe B.V.

Hogehilweg 8, 1101CC, Amsterdam, Holandia

Website: www.segway.com
