Product type	Bluetooth hands-free car kit
Brand	Samsung
Model	HF1000
Bluetooth version	2.1 + EDR
Supported profiles	Headset Profile, Hands-Free Profile
Operating range	Up to 10 meters
Standby time	Up to 900 hours
Talk time	Up to 15 hours
Charging time	Approximately 3 hours
Power source	Rechargeable internal battery via cigarette lighter adapter
Multipoint function	Yes, simultaneous connection to two Bluetooth phones
Voice guide	Yes, multilingual (including French)
Active pairing	Yes, automatic search for a nearby phone
Default PIN code	0000
Warranty	1 year from date of purchase
Cleaning method	Soft, clean, dry cloth
Operating temperature	Do not expose beyond 50°C
User-replaceable battery	No, contact customer service

Frequently Asked Questions - BHF1000 SAMSUNG

How to pair the hands-free kit with my phone?

Turn on the kit and press and hold the communication button until the blue indicator stays on. Activate Bluetooth on your phone, search for 'HF1000', and enter the PIN code 0000.

Is the pairing PIN code changeable?

No, the PIN code is fixed: 0000. It is not changeable.

How to change the voice guide language?

On first startup, the voice guide asks you to choose a language. To change the language later, put the kit in Pairing mode (press and hold the communication button for 4 seconds) then press the communication button when you hear the desired language.

Can I connect two phones at the same time?

Yes, thanks to the Multipoint function. After pairing the first phone, activate Pairing mode, press and hold the volume up button until the indicator flashes blue twice, then pair the second phone in the same way.

What to do if the battery does not charge?

Check the connection between the charger and the kit. If the problem persists, try another cigarette lighter adapter. The kit will not charge if the temperature is too low or too high.

How to clean the hands-free kit?

Use a soft, clean, dry cloth. Do not use chemicals or liquids.

Why do I hear interference during a call?

Interference can be caused by other wireless devices (cordless phones, Wi-Fi routers). Move the kit away from these sources. Bluetooth technology produces less interference than a traditional phone.

Is the kit covered by warranty?

Yes, Samsung guarantees this product against manufacturing defects for 1 year from the date of purchase. Keep your receipt.

How to dispose of the product at end of life?

Do not throw the kit in household waste. Dispose of it at a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

How to transfer a call from the phone to the kit?

During a call on your phone, press the communication button on the kit to transfer the call. If the kit is already connected, incoming calls are automatically answered by the kit.

USER MANUAL BHF1000 SAMSUNG

Minimal & Easy driving

CAR HANDSFREE

HF1000

Bluetooth®

Solid blue rounded square shape with no text or symbols

English....1

Français....27

Italiano....53

Ελληνικά....79

Nederlands....107

Contents

Getting started

Layout....3

Button functions....4

Charging the hands-free car kit 5

Mount the hands-free car kit in your vehicle....7

Using your hands-free car kit

Turning the hands-free car kit on or off....8

Using the voice prompt....9

Pairing and connecting the hands-free car kit....11

Pairing via the Active pairing feature 15

Using call functions....16

Appendix

Frequently asked questions....20

Warranty and parts replacement 22

Correct disposal of this product....23

Correct disposal of batteries in this product 24

Specifications 25

Bluetooth ^® is a registered trademark of the Bluetooth SIG, Inc. worldwide — Bluetooth QD ID: B016384

More information about Bluetooth is available at www.bluetooth.com.

Safety precautions

Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your device.

• Avoid using mobile phones while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible.
• Do not install your device in any location that will interfere with normal operation of your vehicle.
• Keep your device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.
• Avoid exposing your device to very hot temperature (above 50^ / 122^ ).
• Do not allow your device to get wet — liquids can cause serious damage. Do not handle your device with wet hands. Water damage to your device can void your manufacturer's warranty.
• Allowing unqualified personnel to service your device may result in damage to your device and will void your warranty.
• Avoid using your device's light close to the eyes of children or animals.

Getting started

This section explains what to remember for the proper use of your Bluetooth hands-free car kit.

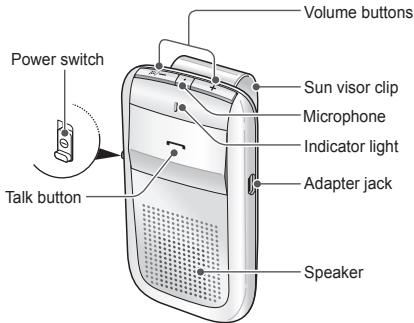

Layout

• Make sure you have the following items with your hands-free car kit: cigar lighter adapter, user manual.
• The items supplied with your hands-free car kit may vary depending on your region.

Button functions

Button		Function
[18]	Power switch	Slide up to turn the hands-free car kit on.Slide down to turn the hands-free car kit off.
[19]	Talk	Press to make or answer a call.Press to end a call.Press and hold to enter Pairing mode.
[20]	Volume	Press to adjust the volume.Press and hold to activate the Multi-point feature.During a call, press and hold to turn the microphone on or off.

Charging the hands-free car kit

Your hands-free car kit has an internal battery. Before using the hands-free car kit for the first time, you must charge the battery.

• If you charge the hands-free car kit at very cold or hot temperatures, it automatically stops charging.

• You cannot use the functions of the hands-free car kit while charging.

• Plug the small end of the cigar lighter adapter into the adapter jack.

Line drawing of a device with a cable inserted into a rectangular panel (no text or symbols)

1. Plug the large end of the cigar lighter adapter into the accessory outlet in your vehicle.
2. When the battery is fully charged (the indicator light turns blue), unplug the cigar lighter adapter from the hands-free car kit.

• You can also use the travel adapter to charge the hands-free car kit.
  • About the low battery indicator

When your battery is low, the indicator light will turn red. Recharge your battery to continue using your hands-free car kit. If the battery level becomes too low, the hands-free car kit will automatically power off. To turn it on, slide the Power switch up again.

Checking the battery level

Press and hold the Talk button and the Volume down button at the same time. Depending on the battery level, the indicator light flashes 5 times in one of the following colours:

Battery level	Indicator light colour
Above 80%	Blue
80 ~20%	Violet
Below 20%	Red

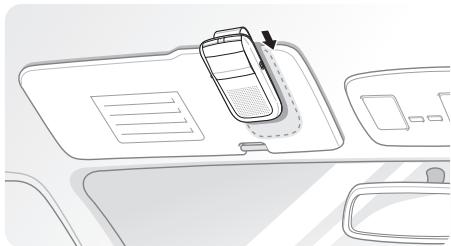

Mount the hands-free car kit in your vehicle

Slide the hands-free car kit onto a sun visor in your vehicle as shown below.

Top-down schematic of a vehicle's rearview and dashboard layout (no text or symbols)

Using your hands-free car kit

This section explains how to turn the hands-free car kit on, pair and connect to the phone, and use various functions.

• Activated functions and features may differ depending on the phone type.
• Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your hands-free car kit.

Turning the hands-free car kit on or off

• To turn the hands-free car kit on, slide the Power switch up. The blue indicator light flashes 4 times.
• To turn the hands-free car kit off, slide the Power switch down. The indicator light turns off after the blue indicator light changes to red.

Using the voice prompt

The voice prompt will inform you about the current status of the hands-free car kit and usage instructions.

Changing the language for the voice prompt

If you turn the hands-free car kit on for the first time, you will hear the voice prompt to change the language for the voice prompt. When you hear the voice prompt in the language you want, press the Talk button.

To change the language for the voice prompt in Pairing mode, press and hold the Talk button for 4 seconds.

Turning the voice prompt on or off

In Pairing mode, press and hold the Volume up and down buttons at the same time. To enter Pairing mode, see page 12.

The following voice prompts are available according to your status:

Status	Voice prompt
When you turn the hands-free car kit on	“Power on”
When you turn the hands-free car kit off	“Power off”
When you activate the language selection option	“Press call button to confirm”
When you select a language for the voice prompt	“Language name selected”
When the battery is low	“Battery is low”
When you enter Paring mode or you pair the hands-free car kit for the first time	“Ready to pair. Go to phone or computer Bluetooth menu. PIN code is 0000”
When you connect the hands-free car kit with a phone	“Phone1 connected” or “Phone2 connected”
When you disconnect the hands-free car kit from a phone	“Phone1 disconnected” or “Phone2 disconnected”
When an incoming call comes in	"Incoming call Phone1"
When the second call comes in during a call	"Incoming call Phone2"
When you reject or end a call	"Call terminated"
When you end the first call and accept the second call	"Call terminated"

Pairing and connecting the hands-free car kit

Pairing will create a unique and encrypted wireless link between two Bluetooth enabled devices, such as a Bluetooth phone and a Bluetooth hands-free car kit. To use the hands-free car kit with other Bluetooth devices, the devices must be paired. When trying to pair the two devices, keep the hands-free car kit and the phone reasonably close together. After pairing, you can connect the two devices

Pairing and connecting the hands-free car kit with a phone

1. Enter Pairing mode.

• Turn on your hands-free car kit and press and hold the Talk button until the blue indicator light stays lit.

• If you turn the hands-free car kit on for the first time, it proceeds into Pairing mode immediately after the language for the voice prompt is selected.

• Activate the Bluetooth feature on your phone and search for the hands-free car kit (see your phone's user manual).

• Select the hands-free car kit (HF1000) from the list of devices found by your phone.

• Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the hands-free car kit to your phone.

Your hands-free car kit supports the Simple Pairing feature which allows the hands-free car kit to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.

The hands-free car kit also can be paired via the Active pairing feature, see page 15.

Connecting with two Bluetooth phones

With the Multi-point feature activated, your hands-free car kit can be connected with two Bluetooth phones at the same time.

1. After connecting with the first Bluetooth phone, press and hold the Talk button until the blue indicator light stays lit.
2. Press and hold the Volume up button to activate the Multi-point feature.
3. Activate the Bluetooth feature on the second Bluetooth phone and search for the hands-free car kit (see your phone's user manual).
4. Select the hands-free car kit (HF1000) from the list of devices found by the second Bluetooth phone.
5. Enter the Bluetooth PIN (0000, 4 zeros) to connect the hands-free car kit to the phone.
6. Reconnect to the hands-free car kit from the first Bluetooth phone.

- You can set the hands-free car kit automatically to reconnect to the recently connected phones each time you turn it on.

• To reconnect to the two most recently connected phones, activate the Multi-point feature. Press and hold the Volume up button in Pairing mode until the blue indicator light flashes twice.
• To reconnect to only the most recently connected phone, deactivate the Multi-point feature. Press and hold the Volume down button in Pairing mode until the red indicator light flashes twice.

- When the hands-free car kit connects to two Bluetooth phones, some phones may not connect to the hands-free car kit as the second Bluetooth phone.

Disconnecting the hands-free car kit

To disconnect the hands-free car kit from your phone:

• Turn off the hands-free car kit.
• Use the Bluetooth menu on your phone.

Reconnecting the hands-free car kit

When the hands-free car kit is paired with a phone, it will attempt to automatically reconnect each time you turn it on.

If the hands-free car kit does not automatically attempt to reconnect:

• Press the Talk button.
  • Use the Bluetooth menu on your phone.

Pairing via the Active pairing feature

With the Active pairing feature, your hands-free car kit can automatically search for a Bluetooth phone and try to make a connection with it.

1. Turn on the hands-free car kit.
2. Press and hold the Talk button to enter Pairing mode.
3. Press and hold the Talk button until the violet indicator light turns on.
   The hands-free car kit will switch to Active Pairing mode, search a Bluetooth phone within range, and attempt to pair with it.

• Ensure the phone you wish to connect to is within range of the hands-free car kit. Place the hands-free car kit and phone close to each other to avoid pairing with other devices.
• The hands-free car kit will attempt Active pairing for up to 20 seconds.
• The Bluetooth phone you want to connect with must not be paired with other devices. If the phone is already connected to another device, end the connection and restart Active pairing feature.
• This feature is available for mobile phones, but the phone's Bluetooth visibility option must be set to on.
  • This feature may be unavailable depending on the some PDAs.

Using call functions

Making a call

Redialling the last number

Press the Talk button to redial the last number of the most recently connected phone.

Press the Talk button twice to redial the last number of the other phone.

Dialling a number by voice

Press and hold the Talk button to dial a number of the first phone by voice, and say a name.

Available call functions may vary by the phone.

Answering a call

Press the Talk button to answer a call when you hear incoming call tones.

When two calls from the two connected phones come in, you can answer the call of the first phone.

Ending a call

Press the Talk button to end a call.

Rejecting a call

Press and hold the Talk button to reject a call when a call comes in.

When two calls from the two connected phones come in, you can reject the call of the first phone.

Using options during a call

You can use the following functions to control your call during a call.

Adjusting the volume

Press the Volume up or down button to adjust the volume.

Muting the microphone

Press and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the hands-free car kit beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on.

Transferring a call from the phone to the hands-free car kit

Press the Talk button to transfer a call from the phone to the hands-free car kit.

Placing a call on hold

Press and hold the Talk button to place the current call on hold.

When the hands-free car kit is connected with two phones, this function is not available.

Answering a second call

• Press the Talk button to end the first call and answer a second call of the same phone when you hear call waiting tones.
• Press and hold the Talk button to place the first call on hold and answer a second call of the same phone when you hear call waiting tones.
• To switch between the current call and the held call, press and hold the Talk button.

When the hands-free car kit is connected with two Bluetooth phones, you cannot answer a second call of the same phone.

Answering a new call of the second phone

• Press the Talk button to end the first call and answer a second call of the other phone when you hear call waiting tones.
• Press and hold the Talk button to place the first call on hold and answer a second call of the other phone when you hear call waiting tones.
• To switch between the current call and the held call, press and hold the Talk button.

Appendix

Frequently asked questions

Will my hands-free car kit work with laptops, PCs, and PDAs?	Your hands-free car kit will work with devices that support your hands-free car kit's Bluetooth version and profiles. For specifications, see page 25.
Why do I hear static or interference while on a call?	Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the hands-free car kit away from other devices that use or produce radio waves.
Will my hands-free car kit interfere with my car's electronics, radio, or computer?	Your hands-free car kit produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.
Can other Bluetooth phone users hear my conversation?	When you pair your hands-free car kit to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your hands-free car kit is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.
Why do I hear an echo while on a call?	Adjust the hands-free car kit volume, or move to another area and try again.
How do I clean my hands-free car kit?	Wipe it with a soft dry cloth.
The hands-free car kit does not fully charge.	The hands-free car kit and the travel adapter may not have been connected properly.Separate the hands-free car kit from the travel adapter, reconnect, and charge the hands-free car kit.

Warranty and parts replacement

Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.*

If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.

• The warranty is limited to the original purchaser.
- A copy of your receipt or other proof of purchase is required for a proper warranty service.
- The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties.
- Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories.

- Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty.

Correct disposal of this product

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

(Waste Electrical & Electronic Equipment)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household

waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Specifications

Item	Specifications and description
Bluetooth version	2.1+EDR
Support profile	Headset Profile, Hands-Free Profile
Operating range	Up to 33 feet (10 metres)
Standby time	Up to 900 hours*
Talk time	Up to 15 hours*
Charging time	Approximately 3 hours*

* Depending on the phone type and usage, the actual time may vary.

Declaration of Conformity (R&TTE)

We,

Samsung Electronics

declare under our sole responsibility that the product

HF1000

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

SAFETY EN 60950-1:2006

EMC EN 301 489-01 V1.8.1 (04-2008)

EN 301 489-17 V2.1.1 (2009)

RADIO EN 300 328 V1.7.1 (10-2006)

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

which will be made available upon request.

(Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.03.04

(place and date of issue)

CE

P.S.pdx

Yong-Sang Park / S. Manager

(name and signature of authorised person)

* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.

Table des matières

Préparation

Présentation 29

Diagram of a device with a cable inserted into a rectangular panel (no text or symbols)

Top-down line drawing of a car interior layout with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.03.04

CE

P. S. P. d.

Yong-Sang Park / S. Manager

Diagram of a device with a cable inserted into a rectangular housing (no text or symbols)

Top-down line drawing of a car interior layout with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.03.04

Diagram of a device with a cable inserted into a rectangular housing (no text or symbols)

Top-down line drawing of a car interior layout with no visible text or symbols

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.03.04

Diagram of a device with a cable inserted into a rectangular housing (no text or symbols)

Top-down schematic of a vehicle's rearview and dashboard layout (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

(Elektrische & elektronische afvalapparatuur)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.03.04

CE

p.s.paz

Yong-Sang Park / S. Manager
