USER MANUAL DVD-P375K SAMSUNG

1. Setting up

- Refer to the identification label located on the rear of your player for its proper operating voltage. - Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation. - Do not push the disc tray in by hand. - Do not stack components.

4. Disc

- Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface. - Be sure to turn all components off before moving the player. - Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center. - Before connecting other components to this player, be sure to turn them off. - Wipe the dirt away gently; never wipe a cloth back and forth over the disc. - Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time. - The mains plug is used as a disconnect device and shall stay readily operable at any time.

2. For your safety

- This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. - Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

- Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only. - Apparatus shall not be exposed to dripping or splashing and no object filled with liquids, such as vase, shall be placed on the apparatus. - Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally. - When condensation forms inside the player due to sharp changes in temperature, the

player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environ ment. - So, dispose of batteries in the proper man ner, according to federal, state, and local regulations. The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3. CAUTION: USE OF ANY CONTROLS,

ADJUSTMENTS, OR PROCEDURES OTHER

THAN SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. Batteries for Remote Control (AAA Size) Video/Audio Cable Install Batteries in the Remote control

1. Open the battery cover on the back of the remote

2. Insert two AAA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

3. Replace the battery cover.

If remote control doesn’t operate properly: - Check the polarity + - of the batteries (Dry-Cell) - Check if the batteries are drained. - Check if remote control sensor is blocked by obstacles. - Check if there is any fluorescent lighting nearby. TABLE OF CONTENTS SETUP General Features Excellent Sound Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction. Screen Both regular and widescreen(16:9) pictures can be viewed. Slow Motion An important scene can be viewed in slow motion. Parental Control (DVD) The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc. Various On-Screen Menu Functions You can select various languages (Audio/Subtitle) and screen angles while enjoying movies. Progressive Scan Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture. EZ VIEW (DVD) Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3). Digital Photo Viewer (JPEG) You can view Digital Photos on your TV. Repeat You can repeat a song or movie simply by pressing the REPEAT button. MP3/WMA This unit can play discs created from MP3/WMA files. Instant Replay (DVD) This function is used to replay the previous 10 seconds of a movie from the current position. Instant Skip (DVD) This function skips playback ahead 10 seconds MPEG4 This unit can play MPEG4 formats within an avi file.

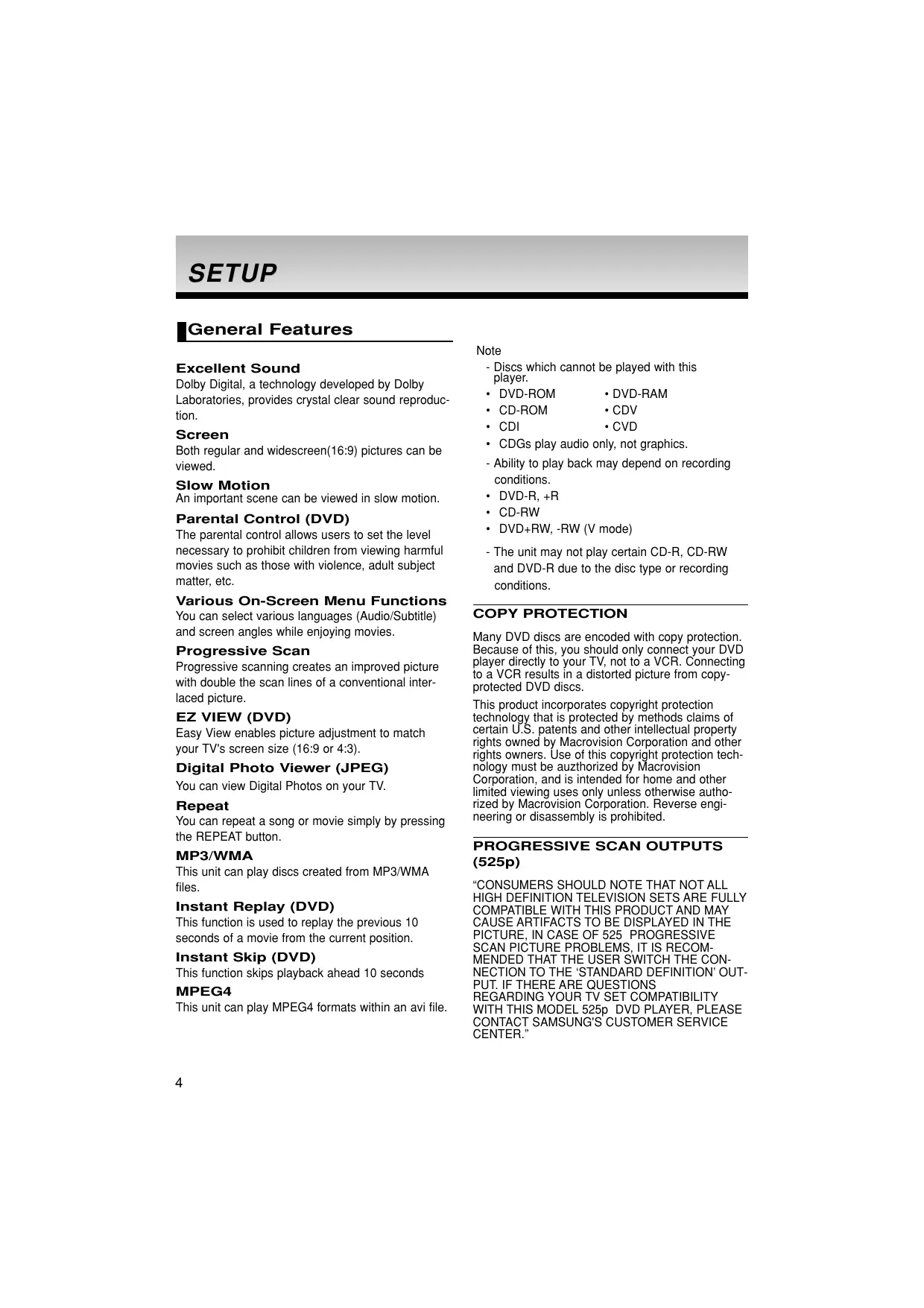

Note - Discs which cannot be played with this player.

• CDGs play audio only, not graphics. - Ability to play back may depend on recording conditions.
• DVD+RW, -RW (V mode) - The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions. COPY PROTECTION Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs. This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be auzthorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS

“CONSUMERS SHOULD NOTE THAT NOT ALL

HIGH DEFINITION TELEVISION SETS ARE FULLY

COMPATIBLE WITH THIS PRODUCT AND MAY

CAUSE ARTIFACTS TO BE DISPLAYED IN THE

PICTURE, IN CASE OF 525 PROGRESSIVE

SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS

REGARDING YOUR TV SET COMPATIBILITY

WITH THIS MODEL 525p DVD PLAYER, PLEASE

CONTACT SAMSUNG'S CUSTOMER SERVICE

CENTER.” Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Recording Types Max. Playing Time Characteristics 12 Cm - DVD contains excellent sound and video due to Dolby Digital and MPEG2 system. 8 Cm - Various screen and audio functions can be easily selected through the onscreen menu. 12 Cm 74 min. - Video with CD sound, VHS quality & MPEG-1 compression technology. 8 Cm 20 min. 12 Cm 74 min. 8 Cm 20 min. Audio - CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. Disc Markings Region Number

PAL Play Region Number PAL broadcast system in U.K, France, Germany, etc. Dolby Digital disc STEREO DIGITAL SOUND Stereo disc Digital Audio disc Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. DTS disc MP3 disc You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player. DivX Certification DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license

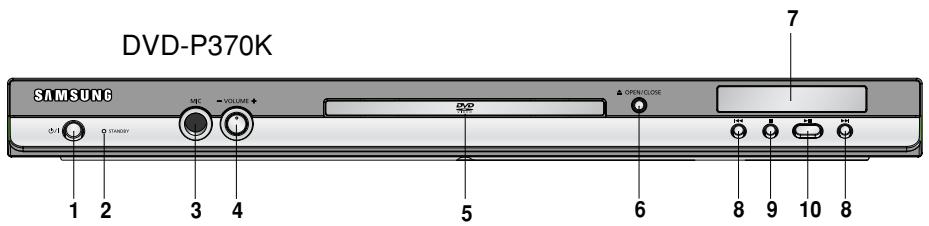

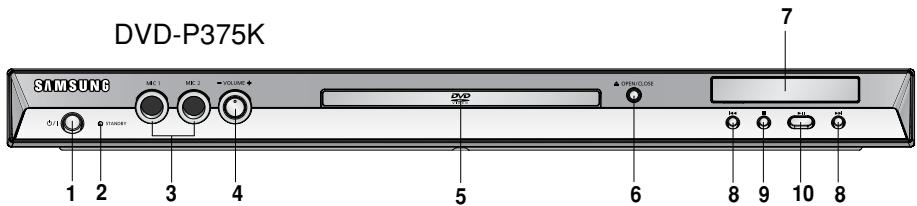

English Description Front Panel Controls

STANDBY/ON ( When STANDBY/ON is pressed on, the indicator goes out and the player is turned on. STANDBY indicator When the unit is first plugged in, this indicator lights. MIC 1/2 Connect Microphone for karaoke functions. MICROPHONE VOLUME Use to adjust microphone volume level. Use the button by pressing it. Turn it to the left or right to control the volume. DISC TRAY Place the disc here.

OPEN/CLOSE ( Press to open and close the disc tray. DISPLAY Operation indicators are displayed here.

SKIP ( ) SEARCH Allow you to search forward/backward through a disc. Use to skip the title, chapter or track.

9. STOP (

10. PLAY/PAUSE (

Begin or pause disc play. Front Panel Display Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ... nodSC: No disc loaded. OPEn: The disc tray is open. LOAd: Player is loading disc information.

SCART JACK - Connect to a TV scart input jack.

DIGITAL AUDIO OUT JACKS

- Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. - Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

COMPONENT VIDEO OUT JACKS

- Use these jacks if you have a TV with Component Video in jacks. These jacks provide PR, PB and Y video. - If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work. - If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television. - The Video Output in Setup Menu must be set to S-Video.

S-VIDEO OUT JACK

- Use the S-Video cable to connect this jack to the S-Video jack on your television for higher picture quality. - The Video Output in Setup Menu must be set to S-Video. Note - Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system. - If P-SCAN Video Output is selected in Setup Menu, S-Video will not work. - See pages 27 to get more information on how to use the setup menu.

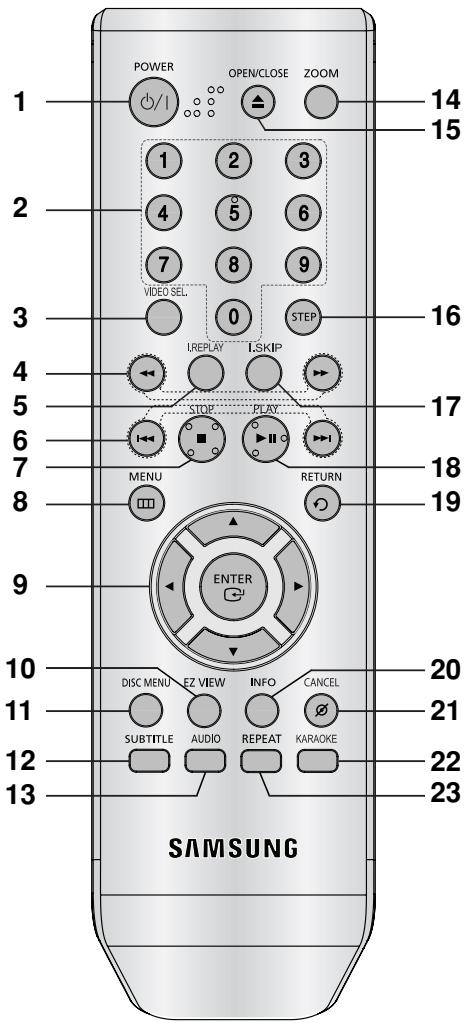

Tour of the Remote Control

INSTANT REPLAY Button This function is used to replay the previous 10 seconds of a movie from the current position.

Use to skip the title, chapter or track.

œ/ƒ,¦/‹ Buttons ENTER/œ This button functions as a toggle switch.

10. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3).

11. DISC MENU Button

Brings up the Disc menu.

12. SUBTITLE Button

13. AUDIO Button

Use this button to access various audio functions on a disc.

15. OPEN/CLOSE (

) Button To open and close the disc tray.

16. STEP Button

Advances play one frame at a time.

17. INSTANT SKIP Button

This function skips playback ahead 10 seconds.

18. PLAY/PAUSE Button (

Begin/Pause disc play.

19. RETURN Button

Returns to a previous menu.

20. INFO Button

Displays the current disc mode.

DVD POWER Button Turns the power on or off.

21. CANCEL Button

Use to remove menus or status displays from the screen.

22. KARAOKE Button

Use to begin Karaoke functions.

23. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

Allow you to search forward/backward through a disc.

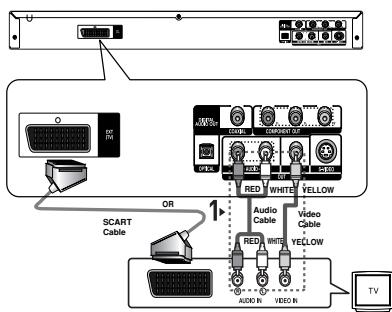

CONNECTIONS The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components. Connecting to a TV (SCART) - Using the SCART, connect the SCART (EXT) terminal on the rear of the DVD Player to the SCART (IN) terminal of your TV. - If your TV is not equipped with a SCART you can select one of the following alternative connections: Connecting to a TV (VIDEO CVBS)

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

Turn on the DVD player and TV. RED SCART Cable WHITE YELLOW Audio Cable Video Cable

RED WHITE YELLOW

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen. Note - Noise may be generated if the audio cable is too close to the power cable. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV. - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. - Please do not connect Scart and Component Video (Y, Pb, Pr) output simultaneously, as they may interfere and degrade both video output quality.

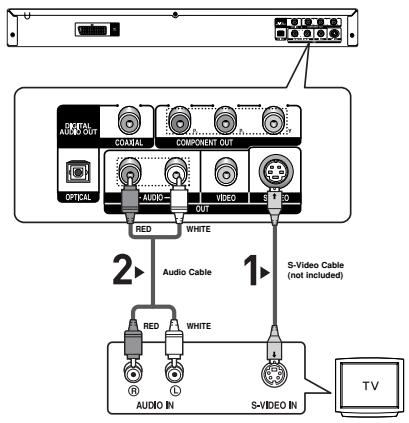

English Choosing a Connection Connection to a TV (S-Video) - Connecting to your TV using an S-Video cable. - You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals aredelivered through the audio output.)

Using an S-Video cable (not included), connect the SVIDEO OUT terminal on the rear of the DVD player to the S-VIDEO IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV. RED

Press the input selector on your TV remote control until the S-Video signal from the DVD player appears on your TV screen. WHITE Audio Cable RED S-Video Cable (not included) WHITE

Set the Video Output to S-Video in the Display Setup menu. (See pages 27) Note - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV. - Please do not connect S-Video and Component Video (Y, Pb, Pr) output simultaneously, as they may interfere and degrade both video output quality.

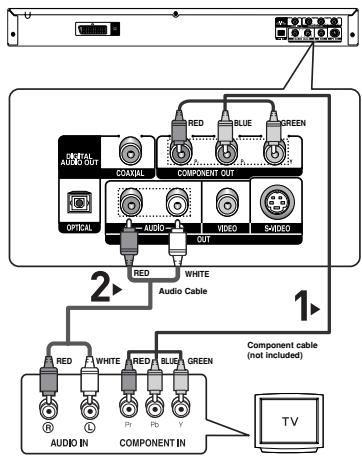

Connection to a TV (Interlace) - Connecting to your TV using Component video cables. English - You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV. RED BLUE GREEN

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen. RED WHITE Audio Cable RED WHITE RED BLUE GREEN Component cable (not included)

Set the Video Output to I-SCAN in the Display Setup menu. (See pages 27) Note - If Video output is incorrectly set to S-Video, with the Component cables connected, the screen will turn red. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The component terminal of TV can be marked by “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “PR, PB, Y” depending on the manufacturer. The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV.

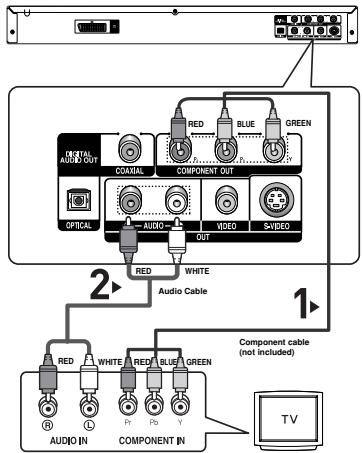

Connection to a TV (Progressive)

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV. RED

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen. BLUE GREEN WHITE RED Audio Cable Component cable (not included) RED WHITE RED BLUE GREEN

Set the Video Output to P-SCAN in the Display Setup menu. (See pages 27) To see the progressive video output, -You Consult TVsupporting User’s Manual to find out need ayour TV set the progressive scanif your TV supports Progressive Scan. If Progressive Scan isfunction. supported, follow TV up User’s Manual regarding Progressive Scan settings in the TV’s input And you havethe to set the TV menu system. - Depending on your TV, the connection method may differ from the illustration above. Note - What is "Progressive Scan"? Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality.

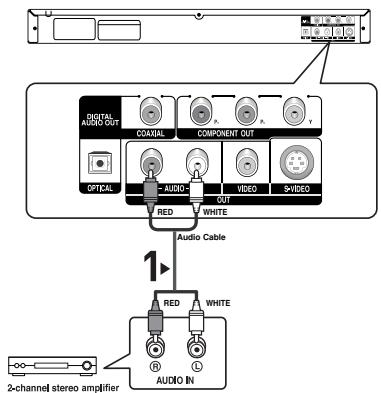

Connection to an Audio System (2 Channel Amplifier)

English Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

Using the video signal cable(s), connect the VIDEO, SVIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 12.

WHITE RED Audio Cable Turn on the DVD player, TV, and Amplifier. RED WHITE

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 26) - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

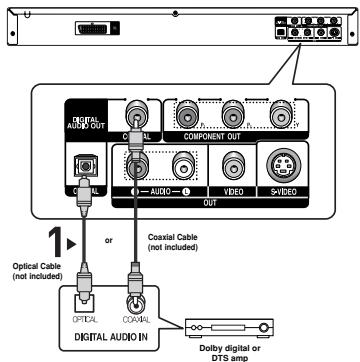

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (OPTICAL) terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

Using the video signal cable(s), connect the VIDEO, SVIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 12

Coaxial Cable (not included) Optical Cable (not included)

Turn on the DVD player, TV, and Amplifier.

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input. Note - When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound doesn't come out or there will be a big noise. - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 26) - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. - Please remove the dust cover before using the optical cable (not included) and put the cover on the cable again when it's not used.

BASIC FUNCTIONS Before Play - Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control. - If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input. After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language. Press

pour Français Drücken Sie

para Español Premere

per Italiano Druk op

voor Nederlands Playback

1. Press the OPEN/CLOSE ( ) button. The STANDBY

indicator light goes out and the tray opens.

2. Place a disc gently into the tray with the disc’s label facing

3. Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE

( ) button to close the disc tray. - When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE ( ) button again, it will pick up where you left off. ) button during play.

5. Removing Disc

Press the OPEN/CLOSE ( English

4. Stopping Play

Press the STOP ( Playing a Disc ) button.

6. Pausing Play

Press the PLAY/PAUSE ( ) or STEP button on the remote control during play. - Screen stops, no sound. To resume, press the PLAY/PAUSE ( ) button once again.

7. Step Motion Play (Except CD)

Press the STEP button on the remote control during play. - Each time the button is pressed, a new frame will appear. - No sound is heard during STEP mode. - Press the PLAY/PAUSE ( ) button to resume normal play. - You can only perform step motion play in the forward direction.

8. Slow Motion Play

Press the SEARCH ( / ) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode. - No sound is heard during slow mode. - Press the PLAY/PAUSE ( ) button to resume normal play. Note - If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE ( ) button to resume normal play. - If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off except when the MIC is connected. (Automatic Power-Off Function) - If the player is left for about 5 minutes in pause mode, it will stop. - This ( ) icon indicates an invalid button press.

Using the Search and Skip Functions During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Searching through a Chapter or Track During play, press the SEARCH ( remote control for more than 1 second. DVD 2X, 4X, 64X, 128X VCD 4X, 8X

2X, 4X, 8X ) button on the Using the Display Function When Playing a DVD/VCD/MPEG4

1. During play, press the INFO button on the remote control.

2. Press the œ/ƒbuttons to select the desired item.

- When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button.

3. Press the ¦/‹ buttons to make the desired setup and then

press the ENTER button. - You may use the number buttons of the remote control to directly access a title, chapter or to start the play back from a desired time.

4. To make the screen disappear, press the CANCEL button.

Note - The speed marked in this function may be different from the actual playback speed. - No sound is hearing during search mode (Except CD). Note Title Skipping Tracks During play, press the SKIP (

) button. - When playing a DVD, if you press the SKIP ( Chapter ) button, it moves to the next chapter. If you press the SKIP ( press makes it move to the beginning of the previous Time chapter. - When playing a VCD 2.0 in Menu Off mode, or a VCD 1.1 ) button, it moves to the next track. If you press the SKIP ( Audio ) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. Subtitle - If a track exceeds 15 minutes when playing a VCD and you press the If you press the button, it moves forward 5minutes. button, it moves backward 5 minutes. Note When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button.

Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on a VCD).

button, it moves to the beginning of the chapter. One more To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified. Shortcut Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc. Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles. To access the desired Bookmark or Angle function. Some DVD discs are have more angle function from any picture. Bookmark function make you easily and quickly to find a track or chapter from DVD or VCD ( Menu Off). Using the Disc and Title Menu Repeat Play

1. During the playback of a DVD disc, press the MENU button

on the remote control.

2. Press the œ/ƒ buttons to select Disc Menu, then press the

‹ or ENTER button. Press ENTER key for Disc Menu Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD/VCD

1. Press the REPEAT button on the remote control.

Repeat screen appears.

2. Press the ¦/‹ buttons to select Chapter, Title or A-B,

then press the ENTER button. - DVD repeats play by chapter or title, VCD repeat play by disc or track. - Chapter ( ): repeats the chapter that is playing. - Title ( ): repeats the title that is playing. - Disc ( ): repeats the disc that is playing. - Track ( ): repeats the track that is playing. - A-B: repeats a segment of the disc that you select.

Enter Return Menu Note - Depending on a disc, the Disc Menu may not work. - You can also use the Disc Menu, using the DISC MENU button on the remote control. - When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button. DVD Off

01 A - B ENTER REPEAT 01 A - B ENTER REPEAT VCD Off

Using the A-B Repeat function Using the Title Menu

1. Press the REPEAT A-B button at the point where you

1. During the playback of a DVD disc, press the MENU button

on the remote control.

2. Press the œ/ƒ buttons to select Title Menu, then press the

‹ or ENTER button. want repeat play to start (A). B is automatically highlighted.

2. Press the REPEAT A-B button at the point where you

want the repeat play to stop (B). - To return to normal play, press the CANCEL button.

3. To return to normal play, press REPEAT button again, then

press the ¦/‹ buttons to select Off and press ENTER button. Press ENTER key for Title Menu DVD Off Enter Return

01 A - B ENTER REPEAT 01 A - B ENTER REPEAT Menu Note - Depending on a disc, the Title Menu may not work. - Title Menu will only be displayed if there are at least two titles in the disc. VCD Off

English Note - A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point (A) has been set - Depending on a disc, the Repeat function may not work. - When playing VCD2.0, this function works only when the menu is off. Select Menu Off by pressing the DISC MENU button. Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) Slow Play This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely. When playing a DVD

1. During play, press the PLAY/PAUSE (

ADVANCED FUNCTIONS ) button.

2. Press the SEARCH (

) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode. Press the EZ VIEW button. - The screen size changes when the button is pressed repeatedly. - The screen zoom mode operates differently depending on the screen setting in the Display Setup menu. - To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 27). WIDE SCREEN EZ VIEW If you are using a 16:9 TV For 16:9 aspect ratio discs - WIDE SCREEN Displays the content of the DVD title in 16:9 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.) - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge For 4:3 aspect ratio discs - Normal Wide Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. - Vertical Fit When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV For 4:3 aspect ratio discs - Normal Screen Displays the content of the DVD title in 4:3 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. Note - This function depends on audio languages are encoded on the disc and may not work. - A DVD disc can contain up to 8 audio languages. - To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 25. Selecting the Subtitle Language You can select a desired subtitle quickly and easily with the SUBTITLE button. Using the SUBTITLE button (DVD/MPEG4)

1. Press the SUBTITLE button. The subtitle languages are

represented by abbreviations. The subtitle changes when DVD the button is pressed Off repeatedly. SUBTITLE Note This function may behave differently depending on the type of disc. Selecting the Audio Language External Subtitle Off readme.TXT External Subtitle option will appear, depends on the DivX disc. Non-standard fonts are not supported You can select a desired audio language quickly and easily with the AUDIO button. Using the AUDIO button (DVD/VCD/MPEG4)

1. Press the AUDIO button. The Audio changes when the

button is pressed repeatedly. The audio languages are DVD represented by

ENG DOLBY DIGITAL 5.1CH

abbreviations. AUDIO When playing a VCD you can select among Stereo, Right or Left. VCD Press Audio button at remocon repeatedly to select the desired Audio on MPEG4 then press the ENTER . MPEG4 Stereo PCM 1/2 AUDIO AUDIO Enter Press SUBTITLE button at remocon repeatedly to select the desired subtitle language on a MPEG4 then press the ENTER . Return Menu MPEG4 Off SUBTITLE Note - You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button. - This function depends on what subtitles are encoded on the disc and may not work on all DVDs. - A DVD disc can contain up to 32 subtitle languages. - To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 25.

English For 16:9 aspect ratio discs - 4:3 Letter Box Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. - 4:3 Pan Scan The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed. - SCREEN FIT The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. Changing the Camera Angle Using the Bookmark Function When a DVD contains multiple angles of a particular scene, you can use the ANGLE function. Using the ANGLE button (DVD) If the disc contains multiple angles, the ANGLE appears on the screen. This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time. Using the Bookmark Function (DVD/VCD)

1. During play, press the INFO button on the remote control.

2. Press the œ/ƒ buttons to select Shortcut.

3. Press the ¦/‹buttons to select Angle, then press the

1. During play, press the INFO button on the remote control.

2. Press the œ/ƒ buttons to select Shortcut.

DVD Shortcut Shortcut Angle Bookmark Enter Enter VCD Shortcut

4. Press the ¦/‹ buttons or you can use the number buttons

on the remote control to select the desired angle. 4/6 Note - If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature. - Depending on the disc, these functions may not work. Using the Instant Replay/Skip Function Using the Instant Replay function (DVD) If you miss a scene, you can see it again using this function. If you press the INSTANT REPLAY button, the current scene moves backward about 10 seconds, and plays back. Bookmark

3. Press the œ/ƒ buttons to select Bookmark, then press the

4. When you reach the scene you want to mark, press the

ENTER button. Up to three scenes may be marked at a time.

1 - -

CANCEL Note - When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button. - Depending on a disc, the Bookmark function may not work. Recalling a Marked Scene 1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 20.

4. Press the ¦/‹ buttons to select a marked scene.

Using the Instant Skip function (DVD) Use this function to skip playback about 10 seconds ahead of the current scene. Enter

5. Press the PLAY/PAUSE (

scene. CANCEL ) button to skip to the marked Clearing a Bookmark Press the INSTANT SKIP button. - Playback will skip ahead 10 seconds. Note Depending on the disc, these functions may not work.

1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 20.

4. Press the ¦/‹ buttons to select the bookmark number you

5. Press the CANCEL button to delete a bookmark number.

CANCEL : Name of currently playing file.

: Current Playback Time.

: Current Playback Mode : There are four Using the Zoom Function modes. They can be selected in order by pressing the REPEAT button. Using the Zoom Function (DVD/VCD) - Off: Normal Playback English

- Track: Repeats the current track.

1. During play or pause mode, press the ZOOM button on the

remote control, press the ENTER button.

2. Press the œ/ƒ / ¦/‹buttons to select the part of the

screen you want to zoom in on. - During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order. - During VCD play, press ENTER to zoom in 2X/4X/2X/Normal in order. - Folder: Repeats the current folder - Random: Files in the disc will be played in random order.

: Current Folder icon.

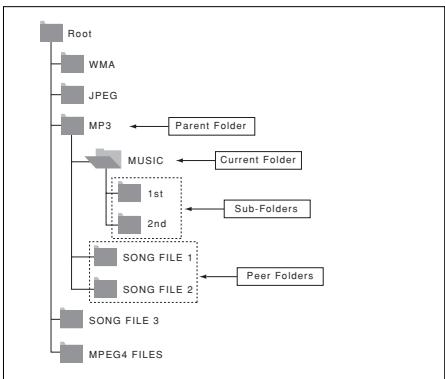

Folder Selection The folder can be selected in Stop or Play mode. - To select the Parent Folder Press the RETURN button to go to parent folder, or press the ƒ buttons to select “..” and press ENTER to go to the parent folder. Clips Menu for MP3/WMA/ JPEG/ MPEG4/CD Audio CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders. - To select the Peer Folder ƒ buttons to select the desired folder, then Press the œ/ƒ press ENTER. - To select the Sub-Folder ƒ buttons to select the desired folder, Press the œ/ƒ then press ENTER. R oot W MA Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays. Stop 1s t S ub-Fol ders 2nd

S ON G FILE 1

S ON G FILE 2

S ON G FILE 3

MP E G4 FILE S

MP3/WMA/CD Audio Playback

1. Open the disc tray. Place the disc on the tray. Close the tray.

- Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files. ƒ or ¦/‹ ‹ buttons to select a song file.

2. Press the œ/ƒ

Press ENTER to begin playback of the song file. Play Off 00:00:23 Repeat/Random playback Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random. - Off: Normal Playback - Track: Repeats the current song file. - Folder: Repeats the song files which have the same extension in the current folder. - Random: Song files which have the same extension will be played in random order. To resume normal play, press the CANCEL button. CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used. - When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension. General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+). - Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

- Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. - Do not try recording copyright protected MP3 files. Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media (registered trade mark of Microsoft Inc) and SDMI (registered trade mark of The SDMI Foundation). You cannot copy such files. - Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). - This unit can play a maximum of 500 files and 500 folders per disc. MPEG4 Playback MPEG4 Play Function AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played.

1. Open the disc tray. Place the disc on the tray.

Close the tray. ƒ or ¦/‹ ‹ buttons to select an avi file

2. Press the œ/ƒ

(DivX/XiviD) and then press ENTER button. Stop Off /MPEG4

a01_divx51b-8 a02_divx505b-8 a03_divx502sp-8 a04_divx412-8 Enter Return Menu Repeat playback Press the REPEAT button to change playback mode. There are 3 modes, such as Off, Folder, Title - Folder : repeats the AVI files which have the same extension in the current folder. - Title : repeats the title that is playing. MPEG4 Function Description During play, press the button, it moves forward or backward 5 minutes. During play, press the SEARCH

) button and press Search again to search at a faster

) speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X) Allows you to search at a Slow Motion slower speed in an AVI file. Play (1/8X, 1/4X, 1/2X) Each time the STEP button Step Motion is pressed, a new frame will Play appear.

2X/4X/2X/Normal in order

1. Select the desired folder.

ƒ buttons to select a Picture file in the clips

2. Press the œ/ƒ

menu and then press the ENTER button.

3. Press the INFO button on the remote control to select the

menu you want to view and then press the ENTER button.

English Function ENTER RETURN P 15 Note - Press the STOP button to return to the clips menu. - When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu. P 15 P 21 - These functions may not work depending on MPEG4 file. Rotation CD-R AVI file Zoom This unit can play the following video compression formats within the AVI file format: - DivX 3.11 contents - DivX 4 contents (Based on MPEG-4 Simple Profile) - DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.) - XviD MPEG-4 compliant Contents. ƒ buttons to select the part of the : Press the œ/ƒ screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 2X. Slide Show : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

• Before beginning the Slide Show, the picture interval must be set. This unit supports all resolutions up to maximum below. Bitrate may fluctuate: Device may skip decoding the high bitrate portions and begin decoding again when Bitrate returns to normal. 720 x 480 @30fps 720 x 576 @25fps : Maximum bitrate : 4Mbps Note
• Some MPEG-4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.
• This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”.

: When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.

: The pictures change automatically with about a 12 second interval.

: The pictures change automatically with about a 18 second interval. TIMER: ENTER RETURN Note - Depending on a file size, the amount of time between each picture may be different from the manual. - If you don’t press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Disc - Only files with the “.jpg” and “.JPG” extensions can be played. - If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. - Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. - The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +). - Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment. - A maximum of 3000 images can be stored on a single CD. - Kodak Picture CDs are recommended. - When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. - Kodak Picture CD: The JPEG files in the pictures folder can be played automatically. - Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - QSS Picture CD: The unit may not play QSS Picture CD. - If the number of files in 1 Disc is over 500, only 500 JPEG files can be played. - If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played KARAOKE FUNCTIONS Karaoke Functions Operation Sequence

1. Connect the Mixed Audio Out terminals with the TV or

Amplifier. (see page 9 to 13)

2. Connect Mic into Mic jack. When a MIC is connected, the

karaoke functions can be used. DVD-P370K DVD-P375K Key Control

1. Playback the Karaoke Disc containing the wanted songs.

Press the KARAOKE button. ‹ buttons to change the desired tone.

2. Press the ¦/‹

Note - If you hear feedback(squealing or howling) while using the karaoke feature, move the microphone away from the speakers or turn down the microphone volume or the speaker volume. - When playing MP3, WMA, DTS and LPCM disc, the karaoke functions will not operate. - When the MIC is connected, Digital Out does not work. - If the MIC is connected in VCD 2.0, Playback is selected to Menu off mode automatically. - The MIC sound outputs only from Analog Audio Out.

Setting Up the Language Features CHANGING SETUP MENU If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

1. With the unit in Stop mode, press the MENU button on the

ƒ buttons to select Setup, then remote control. Use the œ/ƒ press the ‹ or ENTER button. Language Setup

Setup DivX(R) Registration Enter Return LANGUAGE SETUP Menu ❶ Language Setup: Setup of the Language. ❷ Audio Setup : Setup of the Audio Options. ❸ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options. ❹ Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc. ❺ Divx(R) Registration : Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod. ƒ buttons to access the different features.

2. Press the œ/ƒ

Press the ‹ or ENTER button to access the sub features.

3. To make the setup screen disappear after setting up, press

the MENU button again. Note Depending on the disc, some Setup Menu selections may not work.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Language Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. ƒ buttons to select Player Menu, then press

4. Press the œ/ƒ

the ‹ or ENTER button. ƒ buttons to select the desired language,

5. Press the œ/ƒ

then press the ‹ or ENTER button. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. Player Menu Menu Player Using the Disc Menu Language This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Language Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. ƒ buttons to select Disc Menu, then press

4. Press the œ/ƒ

the ‹ or ENTER button. ƒ buttons to select the desired language,

5. Press the œ/ƒ

then press the ‹ or ENTER button. - If the selected language is not recorded on the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. LANGUAGE SETUP Player Menu Player Menu Disc Menu Audio Subtitle Setup DivX Subtitle Enter Using the Player Menu Language The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have. Using the DivX Subtitle Language Using the Audio Language

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Language Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. ƒ buttons to select Audio, then press the ‹

4. Press the œ/ƒ

or ENTER button. ƒ buttons to select the desired language, then

5. Press the œ/ƒ

press the ‹ or ENTER button. - Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in. - If the selected language is not recorded on the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Language Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. ƒ buttons to select DivX Subtitle, then press

4. Press the œ/ƒ

the ‹ or ENTER button. ƒ buttons to select the desired language,

5. Press the œ/ƒ

then press the ‹ or ENTER button. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. LANGUAGE SETUP Player Menu : English Disc Menu : English Audio : English √ Unicode Cyrillic Greek Subtitle LANGUAGE SETUP Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Language Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. ƒ buttons to select Subtitle, then press the ‹

4. Press the œ/ƒ

or ENTER button. ƒ buttons to select the desired language,

5. Press the œ/ƒ

then press the ‹ or ENTER button. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language. - Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting. - The language is selected and the screen returns to setup menu. - To make the setup menu disappear, press the MENU button. Setup Enter Setting Up the Audio Options Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Audio Setup, then press

3. Press the œ/ƒ

the ‹ or ENTER button. ƒ buttons to select the desired item, then

4. Press the œ/ƒ

press the ‹ or ENTER button. Setup Language Setup

DivX(R) Registration Enter Return Menu AUDIO SETUP LANGUAGE SETUP Player Menu Return Dynamic Compression : On PCM Down Sampling : On Setup Enter Return Menu - Bitstream : Outputs Dolby Digital or DTS via the digital output. Select Bitstream when connecting to a Dolby Digital or DTS Decoder. Note

• There is no analog audio output when you play a DTS sound disc. ❷ MPEG-2 Digital Out - PCM : Converts to PCM(2CH) audio. - Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH Setting Up the Display Options Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. ƒ buttons to select Display Setup, then press

3. Press the œ/ƒ

the ‹ or ENTER button. ƒ buttons to select the desired item, then

4. Press the œ/ƒ

press the ‹ or ENTER button. ❸ DTS Select On when connecting to a DTS Decoder. - Off : Doesn’t output digital signal. - On : To select dynamic compression. - Off : To select the standard range. ❺ PCM Down Sampling - On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ. - Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes. Note : Even when PCM Down sampling is Off

❶ TV Aspect Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio). - 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. - 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) - 16:9 Wide : You can view the full 16:9 picture on your wide screen TV. DISPLAY SETUP Aspect Ratio TV Aspect : 16:9 Wide

• Some discs will only output down sampled Still Mode audio through the digital outputs.
• To make the Setup menu disappear, press the MENU button.

Setup DivX(R) Registration ❷ Still Mode These options will help prevent picture shake in still mode and display small text clearer. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. - Auto : When selecting Auto, Field/Frame mode will be automatically converted. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. - Frame : Select this feature when you want to see small letters more clearly in the Auto mode. - Field : Select this feature when the screen shakes in the Auto mode. ❸ Screen Messages Use to turn on-screen messages On or Off. ❹ Black Level Adjusts the brightness of the screen.(On or Off) It does not function in Progressive mode.

English ❺ TV System - NTSC : In case of using NTSC disc

• If your TV system only has PAL-Video input, you must choose “PAL”. When you choose “PAL”, Interlace output format is PAL 60 Hz output. Setting Up the Parental Control

• If your TV system only has NTSC, input you must choose “NTSC ”. The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. - PAL : In case of using PAL disc Setting Up the Rating Level

• If your TV system only has NTSC-Video input, you must choose “NTSC”.
• If your TV system only has PAL input, you must choose “PAL ”.

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

or ENTER button. DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level : Off TV System System

: PAL NTSC Enter Return Menu ➏ Video Output Select Video Output. - S-Video : Select when you want to use Video and S-Video Out. - I-SCAN : Select when you want to use Component Interlace (525i) Out. - P-SCAN : Select when you want to use Component Progressive (525p) Out. - SCART-RGB Output : Select when you want to use Scart Out.

Setup DivX(R) Registration Enter √ PAL Setup Video Output ƒ buttons to select Parental Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. Language Setup

Setup DivX(R) Registration Enter Return

Menu ƒ buttons to select Rating Level, then press

4. Press the œ/ƒ

the ‹ or ENTER button. PARENTAL SETUP Rating Level

• If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu. : Kids Safe Change Password Setup DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages Black Level TV System VideoOutput Output Setup Video Enter : On Enter Menu

5. Enter your password.

- By default, password is set to 0000. PARENTAL SETUP Rating Level : Kids Safe Change Password Menu Enter Password

• Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.
• If Video Output is set incorrectly, the screen may be blocked. Setup Enter Return Menu ƒ buttons to select the Rating Level you want,

6. Press the œ/ƒ

then press the ‹ or ENTER button. e.g) Setting up in Kids Safe. PARENTAL SETUP Rating RatingLevel Level Change Passwor : Kids Safe √ Kids Safe Level 2 Level 3 Level 4 Level 5 Level 6 Setup Enter

Return Menu To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play. Changing the Password Language Setup

Setup DivX(R) Registration Enter Return English

1. With the unit in Stop mode, press the MENU button.

ƒ buttons to select Setup, then press the ‹

2. Press the œ/ƒ

Menu ƒ buttons to select Parental Setup, then

3. Press the œ/ƒ

press the ‹ or ENTER button. The Enter Password screen appears. Enter your password. Language Setup

Setup DivX(R) Registration Enter Return

Menu ƒ button to select Change Password, then

4. Press the œ/ƒ

press the ‹ or ENTER button. Enter your new password again. PARENTAL SETUP Rating Level :Kids Safe Change Password Setup Enter Return Menu PARENTAL SETUP Rating Level :Kids Safe Change Password Enter Password Setup Enter Return Menu PARENTAL SETUP Rating Level :Kids Safe Change Password Enter New Password Setup Enter Return Menu Note If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide.

REFERENCE Firmware upgrade Introduction Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com). Because the specially new mpeg4 codec continues and it is appearing. What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade. How to make an upgrade disc Write the downloaded file onto a blank CD-R or CDRW disc, using the following settings: Firmware upgrade starts - In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes. - If the unit was succesfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.

3. Press the number buttons to select the desired language

1. You have to download a new file through Download Center

of Samsung Internet Site (www.samsung.com).

2. Write the file to Disc using CD-RW of your computer.

Note - File System CD-ROM ISO Level - Character set ISO 9660 - Finalized, single session - Write speed low Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the

tray. The Firmware upgrade screen appears. Firmware upgrade appears on the display

Note - If the “Select Menu Language” doesn’t appear, please contact to “Samsung Service Center”. - Do not press any button and unplug the power cord during upgrade. - The upgrade procedure may change, refer to the web site (www.samsung.com). Troubleshooting Before requesting service (troubleshooting), please check the following. Page No operations can be performed with the remote control.

• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.

5.1 channel sound is

not being reproduced. The icon appears on screen.

• 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD player is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on the outside.
• Check if your audio system is connected and working properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

English Action Problem P13~14 P26 Disc Menu doesn’t appear. • Check if the disc has a Menu. Play mode differs from the Setup Menu selection.

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function. The screen ratio cannot be changed.

• The Screen Ratio is fixed on your DVDs. No audio.

• Make sure you have selected the correct Digital Output in the Audio Options Menu. The screen is blocked

• Press the P27~28 P26~27 button (in front panel) for more than 5 seconds under no disc inside. All settings will revert to the factory settings. Forgot password

• Press the button (in front panel ) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary. If you experience other problems.

• Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest authorized service center. The picture is noisy or distorted P25~29

• Make sure that the disc is not dirty or scratched.
• Clean the disc. P15 P28

Specifications General Power Requirements AC 110-240 V, 60/50 Hz Power Consumption

1.7 Kg

430mm (W) X 207mm (D) X 37mm (H) Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 % SCART Jack 2 Channel 2 Channel : L(1/L), R(2/R) L(1/L), R(2/R) 48 kHz Sampling : 4 Hz to 22 kHz Audio *Frequency Response Output *S/N Ratio 110 dB *Dynamic Range 100 dB *Total Harmonic Distortion

0.004 %

96 kHz Sampling : 4 Hz to 44 kHz *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice. - Weight and dimensions are approximate.

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region North America Middle East & Africa U.A.E STEREO DIGITAL SOUND Câble S-Video (non fourni) BLANC Cable Component (non fourni) Cable Component (non fourni) 2-Channel stereo amp Cable coaxial (non fourni)

5. Press the PLAY/PAUSE (

scene. CANCEL ) button to skip to the marked

S ON G FILE 1

S ON G FILE 2

S ON G FILE 3

MP E G4 FILE S

a01_divx51b-8 a02_divx505b-8 a03_divx502sp-8 a04_divx412-8 Enter Return Menu Setup DivX(R) Immatriculation

Enter Return √ Unicode Cyrillic Greek DivX(R) Immatriculation Enter Return

Menu OPTIONS AUDIO Setup DivX(R) Immatriculation Enter Return Menu Setup DivX(R) Immatriculation Enter Return

Menu Setup DivX(R) Immatriculation √ PAL Setup DivX(R) Immatriculation Enter Return Français Setup DivX(R) Immatriculation Enter Return

Menu AC 110-240V ~ 60/50 Hz

1.7 Kg

430mm (W) X 207mm (D) X 37mm (H)

*DISTORSION HARMONIQUE TOTALE

Middle East & Africa U.A.E - CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. STEREO DIGITAL SOUND Disco estéreo External Subtitle Off readme.TXT 1s t S ub-Fol ders Subcarpetas 2nd

a01_divx51b-8 a02_divx505b-8 a03_divx502sp-8 a04_divx412-8 √ Unicode Cyrillic Greek Return Menu Setup DivX(R) Registro Enter

CONFIGURACIÓN IDIOMA

Return Menu Setup DivX(R) Registro Enter Return Menu AC 110V-240V ~ 50/60 Hz

1.7 Kg

430mm (An) X 207mm (Pr) X 37mm (Al) Tolerancia Térmica +5°C to +35°C DVD (DISCO VERSATIL DIGITAL) Middle East & Africa U.A.E
