USER MANUAL DVD-HR750 SAMSUNG

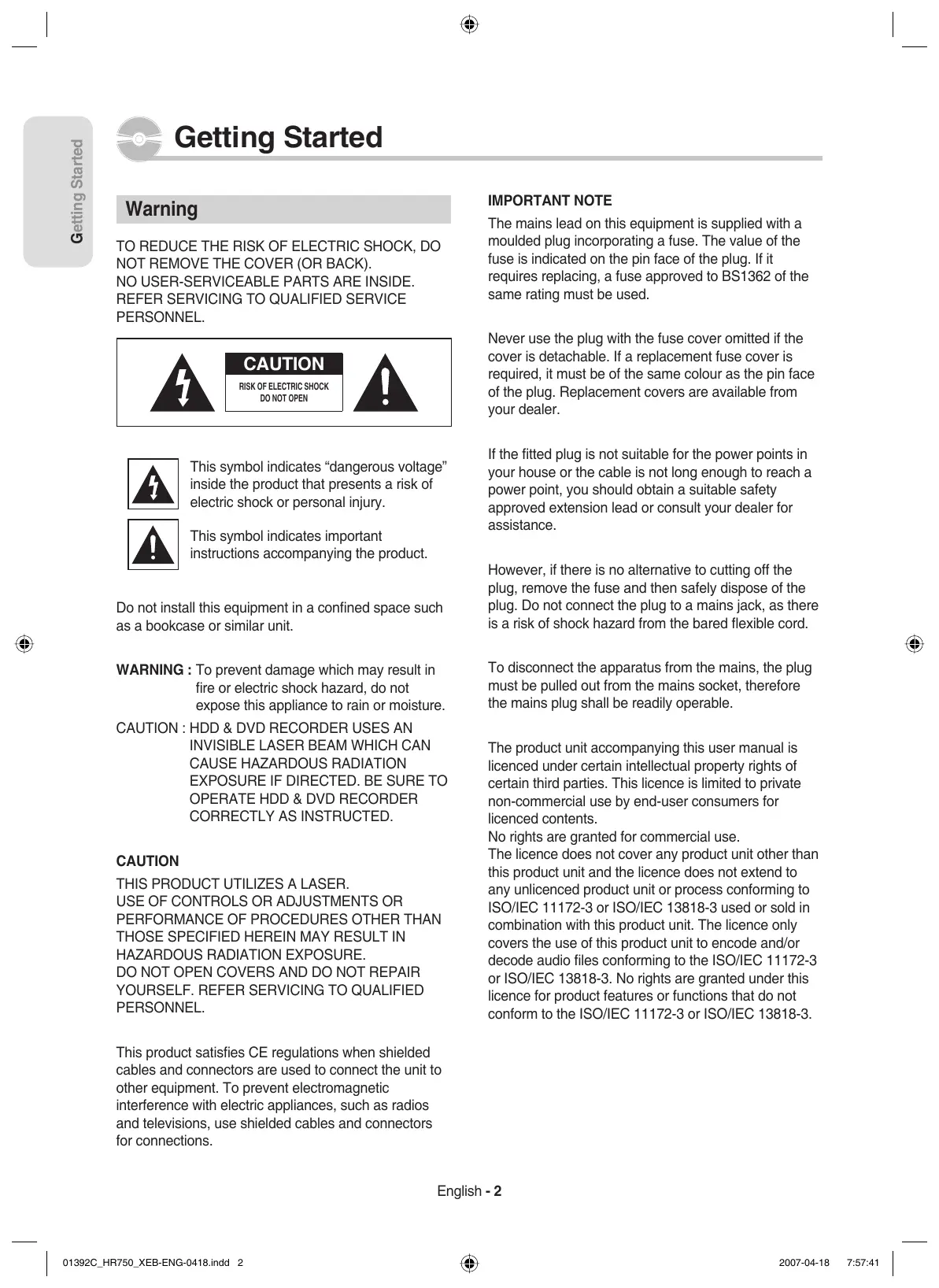

PERSONNEL. The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer. CAUTION

RISK OF ELECTRIC SHOCK

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. Do not install this equipment in a confined space such as a bookcase or similar unit. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

WARNING : To prevent damage which may result in

fire or electric shock hazard, do not expose this appliance to rain or moisture. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

OPERATE HDD & DVD RECORDER

CORRECTLY AS INSTRUCTED. CAUTION THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL. The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consumers for licenced contents. No rights are granted for commercial use. The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicenced product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. English - 2 01392C_HR750_XEB-ENG-0418.indd 2 2007-04-18 7:57:41 Handling Cautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Before connecting other components to this HDD & DVD RECORDER, be sure to turn them all off.
• Do not move the HDD & DVD RECORDER while a disc is being played, or the disc may be scratched or broken, the HDD & DVD RECORDER internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the HDD & DVD RECORDER.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this HDD & DVD RECORDER. If this occurs, turn the HDD & DVD RECORDER off and on again with the STANDBY/ON button, or disconnect and then reconnect the AC power cord to the AC power outlet. The HDD & DVD RECORDER will operate normally.
• Be sure to remove the disc and turn off the HDD & DVD RECORDER after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the HDD & DVD RECORDER for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time. Getting Started Precaution Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time. HDD (Hard Disk Drive)

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The hard disk has a high storage density, which enables long recording durations and quick access to written data. However, it can easily be damaged by shock, vibration or dust and should be kept away from magnets. To avoid losing important data, observe the following precautions.

• Do not use the HDD & DVD RECORDER in a place subject to extreme changes in temperature.
• Do not apply a strong shock to the HDD & DVD RECORDER. English - 3 01392C_HR750_XEB-ENG-0418.indd 3 2007-04-18 7:57:41 Getting Started

• Do not place the HDD & DVD RECORDER in a location subject to mechanical vibrations or in an unstable location. Disc Storage

• Do not place the HDD & DVD RECORDER on top of a heat source. Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.

• Do not disconnect the AC power cord while the power is on.

• Keep in a cool ventilated area.

• Do not attempt to change the hard disk. This may result in a malfunction.

• Keep in a clean protection jacket.

• Store vertically. Should the hard disk be damaged, you cannot recover lost data. The hard disk is only a temporary storage space. Disc Handling
• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this HDD & DVD RECORDER may be damaged.

• If you move your HDD & DVD RECORDER suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. Disc Specifications
• DVD-HR749 / DVD-HR750 This unit allows you to record and playback high quality digital video on DVD-RAM/-RW/-R discs or on the HDD. You can also edit digital images on DVD-RAM/-RW discs or HDD. Holding discs
• Avoid touching the surface of a disc where recording is performed. Disc Type DVD-RAM, DVD-RW and DVD-R ◆ DVD-Video

• Clean with an optional DVD-RAM/ PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RAM/-RW/-R discs.

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby digital surrounding, allowing you to enjoy vivid and clear theatre quality images in the comfort of your own home. DVD-Video, Audio-CD
• Wipe off dirt or contamination on the disc with a soft cloth.

• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalised, it becomes DVD-Video. Cautions on handling discs
• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.) ◆ Audio CD
• An audio disc on which 44.1 kHz PCM Audio is recorded.
• Plays CD-DA format audio CD-R and CD-RW discs.
• The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs. English - 4 01392C_HR750_XEB-ENG-0418.indd 4 2007-04-18 7:57:41 ◆ DVD-RW Disc Playback and Recording

• Use a 700MB (80 minutes) CD-R/-RW disc. If possible, do not use a 800MB (90 minutes) or above disc, as the disc may not play back.

• Recording and playback can be performed on DVD-RW discs in both the Video and VR Modes.

• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs. ◆ DVD-R Disc Playback and Recording
• Once a DVD-R recorded in Video Mode is finalised, it becomes DVD-Video.
• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programmes and erasing programmes before finalising.
• When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to complete recording management information after recording finishes.

• Once a DVD-RW recorded in both the Video and VR Modes is finalised, you cannot perform additional recording.
• Once a DVD-RW recorded in Video Mode is finalised, it becomes DVD-Video. Getting Started ◆ CD-R/-RW

• In both modes, playback can be performed before and after finalisation, but additional recording, deleting and editing can not be performed after finalisation.
• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost.
• A DVD-RW blank disc is initialized to VR Mode when first initialized. ◆ DVD-RAM Disc Playback and Recording
• Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording.
• You cannot play a DVD-RAM in most DVD components due to compatibility issues.
• Only DVD-RAM standard Version 2.0. discs can be played in this unit.
• DVD-RAM recorded on this unit may not work with other DVD components. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.

• This product optimizes the DVD-R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times.

• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

• Playback may be impossible in some cases due to the condition of recording.
• This unit can play back DVD-R discs recorded and finalised with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording. English - 5 01392C_HR750_XEB-ENG-0418.indd 5 2007-04-18 7:57:41 ❋ For more information on DVD recording compatibility, Getting Started Disc Copy consult your DVD-RAM/-RW/-R manufacturer. ❋ Use of poor quality DVD-RAM/-RW/-R discs may Contents Copy Specifications Contents HDD ➔ DVD DVD ➔ HDD Recorded Video Title Supported Supported Copy Protected Title Not supported Not supported Copy Once Title Move (Deletes the Title in the Not supported HDD after copying) MP3 Supported Supported JPEG(photo) Supported Supported DivX Supported Supported cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the HDD & DVD RECORDER. Disc Format ◆ Using MP3 disc
• CD-R/-RW, DVD-RAM/±RW/±R, HDD with MP3 files recorded with UDF, ISO9660 or JOLIET format can be playbacked. Once “Copy Once programme” has been recorded on the DVD disc, this title cannot be copied to HDD anymore. But “Copy Once programme” has been recorded on the HDD, this title can be copied to DVD-RW (VR mode) or DVD-RAM.

• Only MP3 files with the “.mp3” or “.MP3” extension can be played.
• For MP3 files recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.
• Playable bit-rate range is from 56 Kbps to 320 Kbps.
• Each folder can have up to 500 items including files and sub folders. When you copy MP3/JPEG/DivX files from HDD to DVD, only DVD-RW(V)/-R discs are available. ◆ Using JPEG disc COPY PROTECTION

• CD-R/-RW, DVD-RAM/±RW/±R, HDD recorded with UDF, ISO9660 or JOLIET format can be playbacked.

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your HDD & DVD RECORDER directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

• Only JPEG files with the “.jpg” or “.JPG” extension can be displayed.
• Each folder can have up to 500 items including files and sub folders.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

• MOTION JPEG and progressive JPEG are not supported. ◆ Using DivX disc
• Disc : CD-R/-RW, DVD-RAM/±RW/±R, HDD
• Video File with following extensions can be played. : .avi, .divx, .AVI, .DIVX
• DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
• DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, LPCM, AC3 Protection This HDD & DVD RECORDER can allow you to protect the contents of your discs, as described below.

• Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass
• Each folder can have up to 500 items including files and sub folders.
• You cannot play back the disc that is larger than a 720 x 576 pixel resolution.

• Disc-protected: See page 91 “Disc Protection” ❋ DVD-RAM/±RW/±R discs that are incompatible with the DVD-VIDEO format cannot be played with this product. English - 6 01392C_HR750_XEB-ENG-0418.indd 6 2007-04-18 7:57:41 Do not use the following discs! Getting Started

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note] Disc types that can be played : CD/CD-R/-RW/MP3/ JPEG/DVD-Video/DVD-RAM/-RW/-R. For a DVD-RW/-R disc, which has been recorded in Video Mode on another component, it can play only when finalised.
• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.” will be displayed.
• If your DVD-RAM/±RW/±R discs is an illegal copy or is not in DVD video format, it may also not be playable. ◆ Disc compatibility
• High Speed Recording discs can be used in this unit.
• Not all brands of discs will be compatible with this unit. English - 7 01392C_HR750_XEB-ENG-0418.indd 7 2007-04-18 7:57:41 Getting Started Contents Getting Started Warning ....................................................................... 2 Precaution ................................................................... 3 Important Safety Instructions ...................................... 3 Handling Cautions....................................................... 3 Maintenance of Cabinet .............................................. 3 HDD (Hard Disk Drive) ............................................... 3 Disc Handling .............................................................. 4 Disc Storage................................................................ 4 Disc Specifications ...................................................... 4 Disc Copy .................................................................... 6 Connecting to AV 3 IN, DV input jack ..................... 23 Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV 3 IN jacks ................................................................. 23 Case 2 : Connecting a Camcorder to the DV IN jack ...................................................... 23 System Setup On-Screen Menu Navigation .................................... 24 Plug & Auto Setup .................................................... 24 General Features ...................................................... 10 Setting the Clock ....................................................... 25 Before reading the user’s manual ............................ 11 Channel Set ............................................................. 26 Auto Setup ................................................................ 26 Manual Setup ............................................................ 26 How to use the HDD & DVD RECORDER .............. 11 Unpacking ................................................................. 13 Description ................................................................ 15 Front Panel................................................................ 15 Rear Panel ................................................................ 16 Front Panel Display .................................................. 16 Tour of the Remote Control ...................................... 17 Setting up the Language Options............................. 27 Setting up the System Options ................................. 28 Auto Power Off Setting ............................................. 28 Automatic Chapter Creator ....................................... 28 EP Mode Time Setting.............................................. 29 EZ Record ................................................................. 29 DivX(R) Registration ................................................. 30 Setting up the Audio Options.................................... 30 Connecting & Setting Up Connecting the HDD & DVD RECORDER .............. 18 Additional connections .............................................. 18 Antenna + HDD & DVD RECORDER + External decoder box + TV .................................................... 19 Setting up the Video Options.................................... 32 Setting up the Parental Lock .................................... 35 If you forgot your password ...................................... 35 Setting the Rating Level ........................................... 35 Changing the Password ........................................... 35 Other type of connecting the Video output cable .... 19 Case 1 : Connecting to a Video (Composite) output jack ................................................................. 20 Case 2 : Connecting to an S-Video output jack ...... 20 Case 3 : Component Video output jacks.................. 21 Other type of connecting the Audio output cable .... 21 Case 1 : Connecting to your TV .............................. 21 Case 2 : Connecting to a stereo amplifier with AV output jacks ........................................................ 22 Case 3: Connecting to an AV amplifier with a digital output jack ..................................................... 22 English - 8 01392C_HR750_XEB-ENG-0418.indd 8 2007-04-18 7:57:42 Editing Region code (DVD-Video only) ................................ 36 Basic Editing (Title List) ............................................ 73 Playing the Title ........................................................ 73 Renaming (Labeling) a Title ..................................... 73 Locking (Protecting) a Title ...................................... 74 Deleting a Title ........................................................ 75 Splitting a Section of a Title (Split) ......................... 76 Deleting a Section of a Title (Partial Delete) .......... 77 Logos of Discs that can be played ........................... 36 Disc types that can be played .................................. 36 Playing a Disc ........................................................... 37 Using the Disc Menu & Title Menu........................... 38 Using the playback related buttons .......................... 39 Using the INFO button .............................................. 41 Selecting the Subtitle Language............................... 41 Selecting the Soundtracks & Audio Channels ......... 42 Using the Sort function (Title List) ............................ 78 Navigation Menu ....................................................... 78 Select Contents......................................................... 79 Using the Bookmarks................................................ 46 Advanced Editing (Playlist) ....................................... 80 Creating a Playlist .................................................... 80 Playing Entries in the Playlist .................................. 81 Renaming a Playlist Entry ........................................ 81 Editing a Scene for the Playlist................................. 82 Deleting a Playlist Entry from the Playlist................. 84 Using the Sort (Playlist) ............................................ 85 Playing an Audio CD/MP3 ........................................ 47 Copying from HDD to DVD....................................... 85 Viewing a Picture ...................................................... 52 Copying from DVD to HDD....................................... 87 Playing a DivX........................................................... 54 Copying MP3, JPEG or DivX.................................... 88 File Copy ................................................................... 88 Folder Copy............................................................... 88 Recording Changing the name of Music/Photo/DivX file........... 90 Recordable Discs ...................................................... 56 Disc Manager ............................................................ 91 Editing the Disc Name .............................................. 91 Disc Protection .......................................................... 91 Delete All Title Lists ................................................. 92 Delete All Title Lists/DivX Lists /Music Lists/ Photo Lists ................................................................ 92 Formatting a Disc ...................................................... 93 Finalising a Disc ....................................................... 94 Unfinalising a Disc (V/VR mode) ............................. 95 Changing the Camera Angle .................................... 42 Repeat Play............................................................... 43 Zooming-In ................................................................ 44 Using Markers ........................................................... 45 Recording Formats ................................................... 57 Recording Mode........................................................ 58 Unrecordable pictures............................................... 59 Recording immediately ............................................. 60 Copying from a Camcorder ...................................... 62 Making a One Touch Recording (OTR) ................... 63 Getting Started Playback Simultaneous Recording and Playback ................... 64 Time Shift function as a live signal ........................... 65 Making a Timer Recording ...................................... 66 Editing the Scheduled List ........................................ 68 Adding a Scheduled List ........................................... 68 Deleting a Scheduled List ......................................... 69 Reference Troubleshooting ........................................................ 96 Specifications ............................................................ 98 Using the ShowView Feature ................................... 70 ShowView Extended ................................................. 71 Go To Recorded List................................................. 71 English - 9 01392C_HR750_XEB-ENG-0418.indd 9 2007-04-18 7:57:42 Getting Started Creating a DVD video title using DVD-RW/-R disc General Features
• DVD-HR749 / DVD-HR750 This unit allows you to record and playback high quality digital video on DVD-RAM/-RW/-R discs or on the HDD. You can also edit digital images on DVD-RAM/-RW discs or HDD. HDD Recording
• DVD-HR749 / DVD-HR750 You can record up to Approx. 199 hours of video (in EP mode) on the internal 160GB (gigabyte) hard disk (HDD). With both recordable DVD and a high-capacity HDD in the same recorder, you have the flexibility to keep recordings on the HDD for quick access anytime, or record to DVD for archiving or playing on other DVD players. Copy between HDD and DVD You can copy recordings from the HDD to recordable DVD, or from DVD to the HDD. With the HDD & DVD RECORDER, you can create your own DVD Video titles on 4.7 GB DVD-RW/-R discs. Copying data from a digital camcorder using a DV input jack Record DV Device video onto HDD and DVD-RAM/ -RW/-R discs using the DV input jack (IEEE 1394-4pin/4pin). (See page 62) High quality progressive scan Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest image playback and recording quality. (See pages 33~34) DivX Certification DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under licence. EZ Record Mode You can only copy in the same record mode as source title. This function allows you Initialise and Finalise a disc automatically. (See page 29) Simultaneous Recording and Playback Playback and recording for both the DVD and the built-in hard disk drive (HDD) are completely independent. For example you can record a broadcast programme to either a recordable DVD or the HDD, while watching another recording you already made on the same DVD or on the HDD. High quality digital audio and video recording and playback You can record up to approximately 16-hours of video on a double side 9.4GB DVD-RAM disc, up to 15-hours on a dual-layer 8.5GB DVD-R disc, and up to 8-hours on a 4.7GB DVD-RAM/-RW/-R disc, depending on the recording mode. Selectable Recording Mode You can set your HDD & DVD RECORDER to one of four different recording speeds, each varying in recording quality and length. EP (6Hr or 8Hr) mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, XP mode gives you the highest quality recording. The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 36) Automated Quality Adjustment for Timer Recording If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 66) English - 10 01392C_HR750_XEB-ENG-0418.indd 10 2007-04-18 7:57:42 Copyright ©2007 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co. Make sure to check the following terms before reading the user manual. Icons that will be used in manual Icon

Term Definition This involves a function available HDD on the HDD. This involves a function available DVD on DVD or DVD±R/-RW(V) discs that have been finalised. This involves a function available RAM on DVD-RAM. This involves a function available -RW on DVD-RW. This involves a function available on DVD-R. This involves a function available on a data CD (CD-R or CD-RW). This involves a function available JPEG on CD-R/-RW, DVD±R/±RW/ -RAM discs or HDD. This involves a function available MP3 on CD-R/-RW, DVD±R/±RW/ -RAM discs or HDD. This involves a function available DivX on CD-R/-RW, DVD±R/±RW/ -RAM discs or HDD. This involves a case where a Caution function does not operate or settings may be cancelled. This involves tips or instructions NOTE on the page that help each function operate. One-Touch A function that can be operated by button using only one button. About the use of this user’s manual

1) Be sure to be familiar with Safety Instructions

before using this product. (See pages 2~7)

2) If a problem occurs, check the Troubleshooting.

(See pages 96~97) Getting Started Before reading the user’s manual How to use the HDD & DVD RECORDER Step 1: Select the disc type or HDD Please check available disc type before recording.

• DVD-HR749 / DVD-HR750 If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW or DVD-RAM type disc. If you want to save a recording without any changes, choose a non-rewritable DVD-R. You can record files directly to the built-in HDD or edit a recorded file. Step 2: Format the disc to start recording Unlike a VCR, the HDD & DVD RECORDER automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc. Using the HDD Formatting unnecessary. Using a DVD-RAM This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded images and create a playlist in a specific sequence according to your requirements. Using a DVD-RW This type of disc can be formatted in either DVD-Video format (V mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to initialize a disc or not. If you select “DVD-VR” or “DVD-V”, initialising will be started. You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing. English - 11 01392C_HR750_XEB-ENG-0418.indd 11 2007-04-18 7:57:43 Getting Started Using a DVD-R Step 5: Editing a recorded disc Formatting disc is unnecessary and only V Mode Recording is supported. You can play these type of discs on various DVD components only when they have been finalised. Editing on discs is easier than conventional video tapes. The HDD & DVD RECORDER supports many different edit functions, possible only with DVDs and HDD. M You can only use either the VR or Video mode on a DVD-RW, but not both at the same time. You can format a DVD-RW to V or VR mode using Disc Manager. It should be noted that the disc’s data will be lost when changing formats. Step 3: Recording With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title. Creating a playlist (DVD-RAM/-RW in VR mode, HDD) With this HDD & DVD RECORDER, you can create a new playlist on a disc and edit it without the original, pre-existing recording. Step 6: Finalising & Playing on other DVD components There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as follows: Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the recording mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc. To play your DVD on other DVD components, finalising may be necessary. First, finish all editing and recording operations, then finalise the disc. When using a DVD-RW disc in VR Mode DVD discs recorded in VR mode can only be played back in DVD recorders, not players. When using a DVD-RW disc in Video Mode Step 4: Playing You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections, called titles, and subsections, called chapters. The disc should be finalised first to enable playback on anything other than this HDD & DVD RECORDER. No more editing or recording can be made on the disc once it has been finalised. To enable recording on the disc again, the disc must be unfinalised. When using a DVD-R disc During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in Video mode. The chapter’s length (interval between chapters) varies according to the recording mode. You should finalise the disc to play it on a component other than this HDD & DVD RECORDER. You cannot edit or record on the disc once it has been finalised. M You can finalise the disc automatically using EZ Record function. (See page 29) English - 12 01392C_HR750_XEB-ENG-0418.indd 12 2007-04-18 7:57:43 Preparing the Remote Control Install Batteries in the Remote Control Accessories Check for the supplied accessories below.

• Open the battery cover on the back of the remote control.
• Insert two AAA batteries. Make sure that the polarities (+ and –) are aligned correctly.
• Replace the battery cover. Getting Started Unpacking If the remote does not operate properly: Video/Audio Cable RF Cable for TV

Check the polarity + – of the batteries (Dry-Cell) Check if the batteries are drained. Check if remote sensor is blocked by obstacles. Check if there is any fluorescent lighting nearby. Dispose of batteries according to local environmental regulations. Do not put them in the household trash. Remote Control Batteries for Remote Control (AAA Size) Instruction Manual Quick Guide To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.

2. Point the remote control towards the television.

3. Press and hold the TV STANDBY/ON button and

enter the two-figure code corresponding to the brand of your television, by pressing the appropriate number buttons. English - 13 01392C_HR750_XEB-ENG-0418.indd 13 2007-04-18 7:57:44 Getting Started Controllable TV Codes BRAND BUTTON BRAND BUTTON SANYO 41, 42, 43, 44, 48 SAMSUNG 01, 02, 03, 04, 05, 06, 07, 08, 09 SCHNEIDER

ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18 SHARP 36, 37, 38, 39, 48 BANG & OLUFSEN

TELEFUNKEN 67, 73, 75, 76 THOMSON 72, 73, 75 DAEWOO 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 EMERSON

06, 19, 20, 21, 22, 78 LOEWE 06, 69 LOEWE OPTA 06, 57 MAGNAVOX

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control. M If several codes are indicated for your television brand, try each one in turn until you find one that works. If you replace the remote control’s batteries, you must set the brand code again. Then you can control the television using the following buttons after pressing the TV button. Button Function TV STANDBY/ON Used to switch the television on and off. INPUT SEL. Used to select an external source. Used to adjust the volume of the television. TV VOL (+ –) Used to select the desired channel. PROG (,.) TV MUTE Number Used to toggle the sound on and off. Used to input number directly. M The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly. English - 14 01392C_HR750_XEB-ENG-0418.indd 14 2007-04-18 7:57:45 Getting Started Description Front Panel < DVD-HR749 > < DVD-HR750 >

1. STANDBY/ON button

Turns the HDD & DVD RECORDER on and off.

Opens to accept a disc.

Select TV preset Channels. Same as PROG button on the remote control.

3. OPEN/CLOSE button

Opens and closes the disc tray.

Displays the playing status, time, etc.

Stops disc playback.

Connect external equipment.

Connect external digital equipment with a DV jack. (such as a camcorder)

Selects the progressive scan mode.

13. PLAY/PAUSE button

Plays a disc or pauses playback.

14. SEARCH/SKIP buttons

Goes to the next title/chapter/track or goes back to the previous title/chapter/track.

Select DVD mode. English - 15 01392C_HR750_XEB-ENG-0418.indd 15 2007-04-18 7:57:45 Getting Started Rear Panel Fan The fan always revolves when the power is on. Ensure a minimum of 10 cm clear space on all sides of the fan when installing the product.

1. DIGITAL AUDIO OUT(OPTICAL)

Connects to an amplifier having a digital optical audio input jack.

Connects the input of external equipment using an S-Video cable.

2. DIGITAL AUDIO OUT(COAXIAL)

Connects to an amplifier having a digital coaxial audio input jack.

6. COMPONENT VIDEO OUT

Connects to equipment having Component video input.

Connects to the audio input of external equipment using audio cables.

Connects the input of external equipment using a Video cable.

8. AV2(EXT) INPUT SCART connector

In from aerial connector

Out to TV connector M The Antenna connection does not pass the output signal of the DVD. To watch DVD/HDD playback your TV, you must connect audio/ video or Scart cables. Front Panel Display

1. Lights when a disc is loaded.

5. Playing time/clock/current status indicator.

2. Lights in the record mode.

6. Lights in the progressive scan mode.

3. Lights when a HDD/DVD is selected.

7. Lights to indicate the timer record mode.

4. Lights when a DVD-RAM/-RW/-R disc is loaded.

Press this to operate DVD.

Press this to operate TV.

Press to skip backwards or forwards.

Press to stop a disc.

9. REVERSE/FORWARD SEARCH buttons

Press to search a disc backwards or forwards.

TV volume adjustment.

Press this when you copy DVD to HDD and vice-versa. To start copying, press the COPY button on the title list screen or press the COPY button during the playback.

Use to make a recording on HDD/DVD-RAM/-RW/-R discs.

Use this to bookmark a position while playing a disc.

Press this to operate HDD.

Select input signal in external input mode (PROG, AV1, AV2, AV3 or DV input)

To open and close the disc tray.

22. TV STANDBY/ON button

23. REPEAT A-B button

Allows you to repeat a title, chapter, track or disc.

Allows you to repeat a title, chapter, track or disc.

25. PLAY/PAUSE button

Press to play/pause a disc.

Use this to select a TV programme.

In TV mode, this operates as sound mute. Use this to access various audio functions on a disc (DVD mode).

Use this to return to the Title menu, or to view the recorded files list.

Press to directly enter the Timer Recording Mode menu.

Use this to pause during recording. In TV mode, use this to operate Time shift function.

Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP). Getting Started Your HDD & DVD RECORDER remote control will work with Samsung televisions and compatible brands. English - 17 01392C_HR750_XEB-ENG-0418.indd 17 2007-04-18 7:57:48 Connecting & Setting Up Connecting & Setting Up Connecting the HDD & DVD RECORDER This section involves various methods of connecting the HDD & DVD RECORDER to other external components and required initial setting modes. Additional connections You can connect your HDD & DVD RECORDER to a satellite or digital tuner. You can connect your HDD & DVD RECORDER to the television using the SCART cable if the appropriate input is available on the television.

1. Connect the RF cable as shown.

2. Connect one end of the SCART cable to the AV1

socket on the rear of the HDD & DVD RECORDER.

3. Plug the other end into the appropriate connector

4. Plug in the HDD & DVD RECORDER and TV

5. Turn on the HDD & DVD RECORDER and TV.

6. Press the INPUT SEL. button on your TV remote

control until the Video signal from the HDD & DVD RECORDER appears on the TV screen.

External device (VCR/Satellite receiver)

1. Connect the AV2 connector of HDD & DVD

2. Connect the AV1 connector to the SCART AV

connector on TV. To TV

3. Turn on the HDD & DVD RECORDER, VCR/

Satellite receiver or digital tuner and TV.

1. Press the TV/DVD button on remote control, then

“TV” appear on Front LED display. (or turn off HDD & DVD RECORDER.) To ANT INPUT M The RF cable connection of this product sends only signals of TV. You must connect SCART cable or Audio/Video cables to watch a DVD from your HDD & DVD RECORDER.

2. You can watch programmes from a satellite or

digital tuner connected to this HDD & DVD RECORDER, even when the HDD & DVD RECORDER is turned off. TV mode : Press the TV/DVD button on remote control, then “TV” appear on Front LED display (or turn off HDD & DVD RECORDER). Then you can watch programmes received through TV. English - 18 01392C_HR750_XEB-ENG-0418.indd 18 2007-04-18 7:57:49 Antenna + HDD & DVD RECORDER + External decoder box + TV Other type of connecting the Video output cable If you connect external decoder box to HDD & DVD RECORDER, you can record scrambled channels (CANAL+or Premiere broadcasts) received through the built-in TV tuner in HDD & DVD RECORDER. There are several ways to output video signal not using scart cables. Select one of the following video connecting that best suits you below.

• Case 1 : Connecting to a Video (Composite) output jack
• Case 3 : Component Video output jacks

S-Video, Component video and Progressive Output Modes

• S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings. DECODER Connecting & Setting Up

• Case 2 : Connecting to an S-Video output jack Wall

• Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, clear image than interlaced video. This is only available with TVs that support progressive scan.

1. Connect RF antenna cables as shown.

2. Connect the AV1 connector on this recorder to the

SCART AV connector on TV using a SCART cable.

3. Connect the AV2 connector to a SCART AV

connector on decoder box.

• Progressive Scan Output (576P) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture, in case of 576 progressive scan picture problems, It is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding our TV set compatibility with this model 576P HDD & DVD RECORDER, please contact our customer service centre.

4. To watch or record PAY-TV Canal Plus

programmes, set your HDD & DVD RECORDER to receive the channels using the on-screen display. (Refer to pages 26~27) English - 19 01392C_HR750_XEB-ENG-0418.indd 19 2007-04-18 7:57:50 Case 1 : Connecting to a Video (Composite) output jack Case 2 : Connecting to an S-Video output jack

1. Connect a video (Yellow) cable between the VIDEO

(yellow) OUT jack on HDD & DVD RECORDER and VIDEO (yellow) INPUT jack on your TV (or AV amplifier).

1. Connect an S-Video cable (not included) between

the S-VIDEO OUT jack on HDD & DVD RECORDER and S-VIDEO INPUT jack on your TV (or AV amplifier). Connecting & Setting Up

• You will enjoy regular quality images.

• You will enjoy high quality images.

2. Connect audio cables (white and red) between the

AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 21~22)

2. Connect audio cables (white and red) between the

1. Connect Component video cables(not supplied)

between the COMPONENT OUT(Y, PB, PR) jacks on HDD & DVD RECORDER and COMPONENT IN(Y, PB, PR) jacks on your TV. There are several ways to output audio signal not using scart cables. Select the audio connection that best suits you below.

• Case 1 : Connecting to your TV

2. Connect audio cables (white and red) between the

AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 21~22).

• Case 2 : Connecting to a stereo amplifier with AV output jacks
• Case 3 : Connecting to an AV amplifier with a digital output jack

3. After connecting, refer to the pages 33~34.

Manufactured under licence from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Connecting & Setting Up

• You will enjoy high quality and accurate colour reproduction images. “DTS” and “DTS Digital Out” are trademarks of DTS, Inc. Case 1 : Connecting to your TV If your TV has audio input jacks, use this connection. Green Blue Red Green Blue Red Yellow Yellow White match. The Y, PB, PR component output jacks of your HDD & DVD RECORDER must be connected to the exact corresponding component input jacks on your TV. Red M Make sure that the colour coded connections White Red Progressive setting is only available when the Video Out is set to Component. (See pages 33~34) English - 21 01392C_HR750_XEB-ENG-0418.indd 21 2007-04-18 7:57:52 Case 2 : Connecting to a stereo amplifier with AV output jacks Case 3: Connecting to an AV amplifier with a digital output jack Connecting & Setting Up If your stereo amplifier only has AUDIO INPUT jacks (L and R), use the AUDIO OUT jacks Red White Red White If your AV amplifier has a Dolby Digital, MPEG2 or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings. According to your amplifier, connect to an optical cable or a coaxial cable. (See pages 30~31)

Rear (L) Front(L) speaker Rear (R) Front(R) speaker Front (L) Front (R) Subwoofer Centre English - 22 01392C_HR750_XEB-ENG-0418.indd 22 2007-04-18 7:57:55 Connecting to AV 3 IN, DV input jack This allows you to connect your HDD & DVD RECORDER to other external devices and view or record their outputs. Case 2 : Connecting a Camcorder to the DV IN jack If your digital camcorder has a DV output jack, connect it to the DV input jack of your HDD & DVD RECORDER. Connecting & Setting Up

• Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV 3 IN jacks
• Case 2 : Connecting a DV Device to the DV IN jack Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV 3 IN jacks Camcorder Connecting a VCR or external device to AV 3 IN jacks of the HDD & DVD RECORDER. You can record from connected equipment (VCR, STB, DVD player or Camcorder). M If the input is not selected automatically, use Camcorder INPUT SEL. button to select proper input. VCR Red White Yellow STB DVD Yellow White Red M AV 3 in selection will be automatically done. If the input is not selected automatically, use INPUT SEL. button to select proper input. Copy protected content cannot be recorded. English - 23 01392C_HR750_XEB-ENG-0418.indd 23 2007-04-18 7:57:56 System Setup On-Screen Menu Navigation

Setup mMOVE sSELECT rRETURN eEXIT The on-screen menus allow you to enable or disable various functions on your HDD & DVD RECORDER. Press the MENU button to open the on-screen menu and then use the following buttons to navigate through the on screen menus.

Press these buttons on the remote control to move the selection bar ▲▼, ◄► to cycle through the menu options.

Press this button on the remote control to confirm any new settings. System Setup

Press this button on the remote control to return to the Previous menu screen displayed or to exit the on-screen menu.

Press this button to exit the on-screen MENU. Plug & Auto Setup Your HDD & DVD RECORDER will automatically set itself up when it is plugged in for the first time. TV stations and clock will be stored in memory. The process takes a few minutes. Your HDD & DVD RECORDER will then be ready for use. Press

1. Connect the RF cable as indicated on page 18.

(Connecting Your HDD & DVD RECORDER to the TV Using the RF Cable and scart cable.) Pulse

2. Plug the HDD & DVD RECORDER into the mains. “AUTO” in the

front panel display flickers. MP 12

3. Press a number button to select the language.

4. Press the OK button to start the auto setup.

5. Select “Country” using the ▲▼, ◄► buttons to select your country.

Auto setup will be started.

• Refer to following abbreviation table when selecting “Country”. Yes

A(Austria) NL(Netherlands) B(Belgium) I(Italy) CH(Swiss) CZ (Czech) DK(Denmark) N(Norway) TR(Turkey) Others FIN(Finland) P(Portugal) GR(Greece) D(Deutschland) E(Spain) S(Sweden) PL(Poland) HU(Hungary)

• The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected. English - 24 01392C_HR750_XEB-ENG-0418.indd 24 2007-04-18 7:57:59

6. Auto channel scan will be started.

• The number of stations automatically stored by the HDD & DVD RECORDER depends on the number of stations that it has found. Auto Setup Please wait.

7. After auto channel scan is completed, auto clock setting will be

started automatically in 10 seconds. If you want to start auto clock setting immediately, press OK button. If you do not want to do auto clock setting, select No using the ◄►buttons, then press the OK button. 63% Stop

8. Wait until current date and time are displayed automatically. If you

want to exit auto clock setting, press MENU button. Auto channel scan completed successfully. Press the [OK] button to auto clock set. M Now, HDD & DVD RECORDER is ready for use. Function for

Yes “Plug & Auto Setup” is fixed already. So if you want to change this fixed one, you can change it by Presetting the Stations in OSD “Channel Set - Manual Setup” menu. (See pages 26~27) Auto setup function can be performed by pressing STOP ( )

9. Check the date and time.

• If it is : Incorrect, input correct Month, Day, Year, Hour or Minute using ▲▼, ◄► buttons or number buttons. Press OK button then the date and time will be saved. When you need to change clock setting, you can set up it manually. min. Auto

System Setup on the unit continuously for 5 seconds or more during power off with no disc inserted. Please wait. Now setting the clock. If you want to exit clock setting, press the [MENU] button.

Monday Setting the Clock

3. Press the ▲▼ buttons to select Clock Set, then press the OK or ►

button. Press the ▲▼◄► buttons to input Month, Day, Year, Hour or Minute. Press the number buttons to input clock data directly. The day of the week is displayed automatically.

4. Press the OK button, then the date and time will be saved. If you

don’t press the OK button, it will not be saved. M You must have the RF cable connected to set the Auto Clock. (See page 18) Timer Record Disc Manager This menu is used to set the current time. You need to set the time to use timer recording. sSELECT rRETURN eEXIT The HDD & DVD RECORDER automatically sets the clock according to the time signal broadcast between the channels PR1 to PR5. If you do not need the Auto Clock Set function, select Off. English - 25 01392C_HR750_XEB-ENG-0418.indd 25 2007-04-18 7:58:00 Channel Set

Manual Setup Disc Manager Setup Auto Setup This feature allows you to manually set the HDD & DVD RECORDER tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

► button. The message “Your data will be lost. Press [OK] to continue, [RETURN] to exit.” is displayed.

5. Press the OK button, then press the ▲▼◄► buttons to select your

• The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected. Refer to following table when selecting your country. A(Austria) B(Belgium) DK(Denmark) FIN(Finland) D(Deutschland) NL(Netherlands) I(Italy) N(Norway) P(Portugal) E(Spain) S(Sweden) CH(Swiss) TR(Turkey) GR(Greece) HU(Hungary) PL(Poland) CZ (Czech) Others

6. Press the OK button. Channel scan will be started.

• The first frequency band is scanned and the first station found is displayed and stored. And the HDD & DVD RECORDER searches for the second station and so on.
• The number of stations automatically stored by the HDD & DVD RECORDER depends on the number of stations that it has found. M Press the OK button to stop the Auto Setup Manual Setup

Swap You can add preset channel that Auto Channel Search missed. And you can delete a channel you wish to remove. You can programme the order of channels.

• In case of Edit (RED(A) button) : You can add or edit PR(programme) information. After change PR informations (CH., Name , Decoder, MFT, System), select Save, then press the OK button. MFT System L / L’ Save mMOVE sSELECT - CH : Tune the channel using ◄► buttons. - Name : Display station name automatically detected in broadcasting signal. If not detected, you can edit name by using ▲▼◄► buttons. - Decoder : If you set on, you can record scrambled channels using external decoder box. Before setting on, refer to connecting external decoder box in the page 19. - MFT(Manual Frequency Tunning) : You can tune up the channel frequency better using ◄► buttons.

• In case of Delete (GREEN(B) button) : the channel information of selected PR(programme) will be removed.

Setup mMOVE sSELECT System Setup - System : You can select broadcasting system of the receivable channel(B/G or L/L’) Setting up the Language Options If you set the language options, in advance, they will come up automatically every time you watch a movie.

2. Press the ▲▼ buttons to select Setup,

the OK or ► button. M If the selected language is not recorded on the disc, the original pre-recorded language is selected. The selected language will only appear if it is supported on the disc. English - 27 01392C_HR750_XEB-ENG-0418.indd 27 2007-04-18 7:58:04

DivX(R) Registration sSELECT rRETURN eEXIT Setting up the System Options This function allows you to setup the system setting.

4. Press the ▲▼ buttons to select the desired system option, then

• Off : Auto power off is disabled.
• 2 Hours : HDD & DVD RECORDER will automatically turn off for 2 hours after the last button is pressed.
• 6 Hours : HDD & DVD RECORDER will automatically turn off for 6 hours after the last button is pressed.
• If the turn off time set with the Auto Power off function is reached during playback or recording, the device will operate until the playback or recording is finished.

eEXIT A DVD-Video consists of ‘Titles’ and ‘Chapters’. When you record one programme, it makes one Title. If you use this function, the Title will be divided into Chapters.

1. Press the ▲▼ buttons to select Chapter Creator, then press the

2. Press the ▲▼ buttons to select Off or On, then press the OK or ►

• Off : Select if you do not want use Automatic Chapter Creator.
• On : Select this option to use the Automatic Chapter Creator feature. Press the EXIT ( ) button to exit the menu.

3. Press the REC button to start recording.

(See page 58 about how to set recording speed) The message “Do you want to create the chapter menu after this recording?” is displayed.

4. Press the ◄► buttons to select OK, then press the OK button.

English - 28 01392C_HR750_XEB-ENG-0418.indd 28 2007-04-18 7:58:05

• A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode. 1/1 Jan/1/2007 17:30 PR1 Jan/1/2007 17:30 PR1

5. Press the STOP button to stop recording.

6. To display the created titles, finalise the disc (See page 94) and then

press the TITLE MENU button. The title menu will be displayed. Previous Top

7. To display the created chapters, select the desired Title and then

press the DISC MENU button. The chapter menu for the selected Title will be displayed. Next CHAPTER 1/1 J The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off. Previous Top Next EP Mode Time Setting : Off

mMOVE sSELECT rRETURN eEXIT You can select one of four recording modes by pressing the REC MODE button repeatedly. EP mode is one of four REC Mode (XP, SP, LP, EP). In EP(Extended Play) mode, you can set recording time to 6 or 8 hours with this setting.

If the disc is new, it will initialise automatically.

4. Press the REC button.

5. EZ Record function will automatically Finalise the disc under the

following conditions. Finalisation... 50%

• When you press the OPEN/CLOSE button on your HDD & DVD RECORDER after recording on at least 70% of the disc. The tray will open after the disc has been finalised.
• The above feature is available only when a DVD-RW(V) or DVD-R disc is inserted. M If you insert a new DVD-RW disc, it will be formatted in V mode after auto initialising. If you select off, you must initialise (see page 57) and finalise the disc manually in the Disc Manager menu.(see page 94) The length of Recording is different according to recording mode. (see page 36) English - 29 01392C_HR750_XEB-ENG-0418.indd 29 2007-04-18 7:58:07 DivX(R) Registration

Setting up the Audio Options You can connect the HDD & DVD RECORDER to an external amp or Home theatre. Allows you to setup the Audio device and sound status depending on the audio system in use. You can also set NICAM mode. eEXIT

sSELECT rRETURN eEXIT ) button to exit the menu. Digital Output

• PCM : Select this when your equipment is not decode Dolby Digital compatible.
• Bitstream : Outputs Dolby Digital (or MPEG-2) audio as bitstream. Select this when your AV receiver or AV amplifier has a Dolby Digital (or MPEG-2) Decoder. M Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting. Be sure to select the correct Digital Output or you will hear no sound or a loud noise. English - 30 01392C_HR750_XEB-ENG-0418.indd 30 2007-04-18 7:58:10 DTS

• Off : Doesn’t output DTS signal. Select this when your AV receiver (or AV amplifier) does not have DTS decoder.
• On : Outputs DTS Bitstream via digital output when you play DTS track. Select this only when your AV receiver (or AV amplifier) have DTS decoder. M When DTS soundtrack is played, sound does not output from AV Audio Output.

rRETURN eEXIT DRC This is only active when a Dolby Digital signal is detected.

• On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
• Off : You can enjoy the movie with the standard Dynamic Range. System Setup Setup Audio NICAM

Off V-Mode Compatibility sSELECT rRETURN eEXIT NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound by setting NICAM on or off.

• Off : Only set at this position to record the standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.

Audio Selection Dual L : Dual L Dual R mMOVE sSELECT rRETURN V-Mode Compatibility This feature is about the setup for selecting audios when recording the NICAM STEREO (Multi-audio) broadcasting on HDD. It does not affect to the direct DVD recording of a programme.

• Off : Both “Dual L” and “Dual R” of the multi-audio broadcasting are recorded on HDD. Titles recorded on HDD under such setup status cannot be copied to DVD-R or DVD-RW (V mode).
• On : Either “Dual L” or “Dual R” of the multi-audio broadcasting is recorded on HDD. Titles recorded on HDD under such setup status can be copied to DVD-R or DVD-RW (V mode). “Dual L” and “Dual R” options can be selected from “Audio Selection.”

eEXIT Setting up the Video Options This function allows you to setup the video setting. This function depends on disc type. It may not work for some disc types.

HDD Library TV Aspect Timer Record Disc Manager Video : 4:3 Letter Box| 4:3 Letter Box 4:3 Pan-Scan 3D Noise Reduction : Off 16:9 Wide Video Output : Component | Setup mMOVE sSELECT rRETURN eEXIT ) button to exit the menu. TV Aspect Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan-Scan : Select this for conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

: Component | : You can view the full 16:9 picture on your wide screen TV. 3D Noise Reduction (motion adaptive noise reduction)

: Off : Component | Component RGB Setup mMOVE sSELECT rRETURN eEXIT You can enjoy high quality image through RGB or Component video connections. RGB video output is available connecting scart jack(AV1) and component video output is available connecting component(Y, PB, PR) jack. Only one of these signals can be selected at one time.

• RGB In Component mode, you can set video output to Progressive (P.SCAN) or Interlace, see pages 33 to 34. Available video output jacks are as follow. Available Video Output Jack Component Output (Y, PB, PR)

(TV in progressive mode)

System Setup Component mode Setting mode RGB Mode Output jack P.SCAN off mode (Interlace mode) P.SCAN on mode Progressive scan If your TV supports Progressive Scan, press the P.SCAN button on the front of the HDD & DVD RECORDER. To view ‘Progressive scan mode’, first connect the component cable. (See page 21) Be sure the Component cables are connected properly. ◆ Setting up the Progressive scan Press [Yes] to confirm Progressive scan mode. Otherwise, press [No]. Yes

1. With the unit in Stop mode, press the P.SCAN button on the front of

the HDD & DVD RECORDER. The message “Press [Yes] to confirm Progressive scan mode. Otherwise, press [No].” will appear.

2. Press the ◄► buttons to select Yes, and then press the OK button.

3. Set your TV to Progressive input (using the TV remote control.)

M If the P.SCAN button on the HDD & DVD RECORDER’s front panel is pressed during playback, the message “This function is possible only on stop mode” appears on the screen. Progressive setting is only available when the HDD & DVD RECORDER is in stop mode. English - 33 01392C_HR750_XEB-ENG-0418.indd 33 2007-04-18 7:58:17 ◆ Canceling the Progressive scan Press [Yes] to confirm Interlace scan mode. Otherwise, press [No]. Yes

1. With the unit in Stop mode, press the P.SCAN button on the front of

2. Press the ◄► buttons to select Yes, and then press the OK button.

3. Set your TV to Interlace input (using the TV remote control.)

M Do not press the P.SCAN button if you are using a TV that does not support Progressive mode as nothing will be displayed on the screen. System Setup If you press the P.SCAN button by mistake when your TV does not support Progressive mode, the mode will then need to be released. To release the Progressive mode, press the P.SCAN button on the front panel 3 times. The screen will recover after the PS indicator on the front panel display turns off. English - 34 01392C_HR750_XEB-ENG-0418.indd 34 2007-04-18 7:58:18

The Parental Lock function works in conjunction with DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

control. The “Confirm the password” message will be displayed. Enter your password again. If you forgot your password

2. Press and hold the PROG (

Disc Manager ) button on the front panel for Setting the Rating Level

1. Press the ▲▼ buttons to select Rating Level, then press the OK or

2. Press the ▲▼ buttons to select the rating level you want, then press

the OK or ► button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the programme is intended for adult use only. Changing the Password

1. Press the ▲▼ buttons to select Change Password, then press the

3. Enter your password again using the number buttons on the remote

control. M After Rating Level has been set, you can change the password. English - 35 01392C_HR750_XEB-ENG-0418.indd 35 2007-04-18 7:58:18 Playback This section introduces basic functions of playback and playback by disc type. Read the following information before playing a disc. Disc types that can be played Disc Types DVD-VIDEO Region code (DVD-Video only) AUDIO-CD Both the HDD & DVD RECORDER and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this HDD & DVD RECORDER is described on the rear panel of the HDD & DVD RECORDER. JPEG MP3 DivX Logos of Discs that can be played Playback Disc Shape Single sided(12cm) AUDIO Double sided(12cm) VIDEO Single sided(8cm) Double sided(8cm) Single sided(12cm) AUDIO Single sided(8cm) Single sided(12cm) JPEG Image Single sided(8cm) Single sided(12cm) MP3 Audio Single sided(8cm) Single sided(12cm) DivX Movie Single sided(8cm) AUDIO VIDEO Double sided(12cm) (9.4GB) AUDIO VIDEO DVD-RW DTS Recorded content Single sided(12cm) (4.7GB) DVD-RAM Dolby Digital Disc Logo content 12cm (4.7GB) Digital Audio Single Layer(12cm) (4.7GB) AUDIO VIDEO DVD-R Stereo Dual Layer(12cm) (8.5GB) PAL broadcast system in U.K, France, Germany, etc. CD-R/-RW DVD-RAM/ -RW/-R DivX DVDHR749 MP3 HDD DVDHR750 JPEG MP3 DivX AUDIO VIDEO

1 hr. (XP: Excellent Quality) 2 hrs. (SP: Standard Quality) 4 hrs. (LP: Long Playback) 6 or 8 hrs. (EP: Extended) 2 hrs. (XP: Excellent Quality) 4 hrs. (SP: Standard Quality) 8 hrs. (LP: Long Playback) 12 or 16 hrs. (EP: Extended) 1 hr. (XP: Excellent Quality) 2 hrs. (SP: Standard Quality) 4 hrs. (LP: Long Playback) 6 or 8 hrs. (EP: Extended) 1 hr. (XP: Excellent Quality) 2 hrs. (SP: Standard Quality) 4 hrs. (LP: Long Playback) 6 or 8 hrs. (EP: Extended) 1 hr. 50min (XP: Excellent Quality) 3 hrs. 40min (SP: Standard Quality) 7 hrs. 20min (LP: Long Playback) 11 or 14 hrs. 40min (EP: Extended) Approx. 41 (XP: Excellent Quality) Approx. 67 (SP: Standard Quality) Approx. 133 (LP: Long Playback) Approx. 199 or Approx. 264 (EP: Extended) English - 36 01392C_HR750_XEB-ENG-0418.indd 36 2007-04-18 7:58:21 Discs that cannot be played

• DVD-Video with a region number other than “2” or “ALL”
• 3.9 GB DVD-R Disc for Authoring.
• DVD-RAM/-RW(VR mode) not recorded following the Video Recording Standard
• A DVD-R/DVD-RW(V) disc which has been recorded and not finalised in a different manufacturer’s recorder.
• DVD-ROM/PD/MV-Disc, etc
• CVD/CD-ROM/CDV/CD-G/CD-I M This HDD & DVD RECORDER can only operate with discs that are compatible with DVD-RAM Standard Version 2.0. Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched, finger prints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording. DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording. played and recorded using this product. Playback Discs with NTSC programmes recorded on them cannot be Playing a Disc

1. Press the OPEN/CLOSE button.

2. Place a disc gently into the tray with the disc’s label facing up.

3. Press the OPEN/CLOSE button to close the disc tray.

• Your HDD & DVD RECORDER closes the disc tray and plays the disc automatically.
• The HDD & DVD RECORDER does not play discs automatically after being powered on initially.
• When the HDD & DVD RECORDER is powered on and a disc is in the tray, the unit will be activated and wait in stop status.
• Press the PLAY( ) button to start playback.

• If you want the unit to play automatically when it is powered on with a disc in the unit, power on with the PLAY( ) button.

) button to stop playback. M When you stop playing back a disc, the HDD & DVD RECORDER remembers where you stopped, so when you press PLAY( ) button again, it will pick up where you left off. (Unless the disc is removed or the HDD & DVD RECORDER is unplugged, or if you press the STOP( ) button twice.) English - 37 01392C_HR750_XEB-ENG-0418.indd 37 2007-04-18 7:58:22 J Do not move your HDD & DVD RECORDER while playing, as this may cause damage to the disc. Make sure to press the OPEN/CLOSE button to open or close the disc tray. Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction. Do not place foreign materials on or in the disc tray. Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case. Be especially careful that children’s fingers are not caught between the disc tray and the tray chassis when it closes. You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the HDD & DVD RECORDER. Using the Disc Menu & Title Menu Playback Some type of discs contain a dedicated menu system that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc. For DVD-VIDEO Disc

Disc Menu : Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.
• You can select audio language and subtitle etc. provided by the disc. Title Menu : Press the TITLE MENU button to move to the title menu of the disc.
• Press this button if the disc contains more than one title. Some discs may not support the title menu functionality. For HDD/DVD-RAM/-RW/-R Disc SXCV
• Title List Press the TITLE LIST button. Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again.
• Play List (DVD-RAM/-RW(VR)) Press the PLAY LIST button. This refers to a list of user-selected titles. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode) English - 38 01392C_HR750_XEB-ENG-0418.indd 38 2007-04-18 7:58:23 Using the playback related buttons Searching through a Chapter or Track SZXCVB During play, press the SEARCH ( ) buttons on the remote control. HDD/DVD-VIDEO/

• You can scan the programme in reverse. ) buttons, playback is
• When you press and hold the SEARCH ( done at the default speed of X 4. ) buttons , playback is performed If you release the SEARCH ( at a normal speed.
• To return to normal speed playback, press the PLAY ( ) button. CDs(CD-DA). (You can hear sound during forward search(X 2) in disc.) The speed marked in this function may be different from the Playback M No sound is heard during Scan(Search) mode, except with actual playback speed. Skipping Chapters, Titles or Markers SXCVB During play, press the SKIP ( ) buttons on the remote control.

• To return to normal speed playback, press the PLAY ( ) button. ) buttons during pause, the disc Press and hold the SEARCH ( will play slowly at 1/4 speed. If the button is released, the pause operation will resume. M The speed marked in this function may be different from the actual playback speed. Slow motion operates only in the forward direction on DivX discs. Playback Step Motion Play SZXCVD Press the SKIP( mode.

) buttons on the remote control in the pause

• Each time the button is pressed, a new frame will appear. When the SKIP( ) button is pressed, the previous frame will be activated. When the SKIP( ) button is pressed, the next frame will be activated.
• To return to normal speed playback, press the PLAY ( ) button. M Step motion operates only in the forward direction on DivX discs. English - 40 01392C_HR750_XEB-ENG-0418.indd 40 2007-04-18 7:58:25 Using the INFO button The INFO function allows you to easily search for a desired scene by accessing title, chapter, time. You can also change the subtitle and audio settings and set some features including Angle, Repeat, Zoom. Moving to a scene directly using the INFO HDD t Search O Subtitle Q Audio P Repeat v Zoom >MOVE Info None 2 D 2/0 L+R Off Off sSELECT

SZXCVD If you want to move to a certain title, chapter or time, use this function.

1. Press the INFO button during playback.

Search w Title x Time <CHANGE

3. Press the ▲▼ buttons to select Title, Chapter or Time.

4. Press the ◄► buttons or number buttons to select the desired

scene, then press the OK button. In case of searching a time, enter the time in the sequence of hours, minutes, and seconds using the number buttons. Then press the OK button. When an audio CD(CD-DA) or an MP3/JPEG disc is inserted, depending on the disc type, the information display may not appear. The Time Search function does not operate in some discs. Playback M This may not work for some discs. To make the screen disappear, press the RETURN button. Selecting the Subtitle Language DVD-VIDEO t Search O Subtitle Q Audio z Angle P Repeat v Zoom >MOVE Info Off

Selects one of the subtitle language recorded on the disc. You can also operate this function by pressing the SUBTITLE button on the remote control.

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select Subtitle.

3. Press the ◄► buttons to select the desired subtitle language.

Selects one of the soundtracks recorded on the disc. Also selects the audio channels from recorded TV programmes. You can also operate this function by pressing the AUDIO button on the remote control.

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select Audio.

3. Press the ◄► buttons to select the desired soundtracks or audio

channel. M Soundtracks or Audio channel may be different because they are disc-specific. Some discs allow you to select the audio language for the disc menu only. Playback Changing the Camera Angle DVD-VIDEO t Search O Subtitle Q Audio z Angle P Repeat v Zoom >MOVE Info ENG

When a DVD VIDEO contains multiple angles of a particular scene, you can select the Angle function.

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select Angle.

3. Press the ◄► buttons to select the desired angle.

M This function is disc-dependent, and may not work on all DVDs. This function does not work when a DVD has not been recorded with a multi-camera angle system. Displays the current angle, total angle number. English - 42 01392C_HR750_XEB-ENG-0418.indd 42 2007-04-18 7:58:28 Repeat Play Playing Repeatedly (Repeat Playback) HDD t Search O Subtitle Q Audio P Repeat v Zoom <CHANGE Info None 2 D 2/0 L+R Off Off sSELECT

SZXCVD You can also operate this function by pressing the REPEAT button on the remote control.

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select the Repeat.

3. Press the ◄► buttons to select Off, A-B or Title or Chapter you

want to play repeatedly, then press the OK button. M HDD/DVD-RAM/-RW(VR mode), unfinalised DVD-R and unfinalised DVD-RW (V mode) discs will do not repeat a chapter. You can also activate Normal Playback by pressing the EXIT( ) button. Repeat A-B Info None 2 D 2/0 L+R A-B Off sSELECT

SZXCV You can also operate this function by pressing the REPEAT A-B button on the remote control. Playback HDD t Search O Subtitle Q Audio P Repeat v Zoom <CHANGE

1. Press the INFO button during playback.

4. Press the OK button at the point where you want the repeat play to

start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts. M If you set point (B) before five seconds of playback has lapsed, the prohibition mark ( ) will appear. You can also activate Normal Playback by pressing the EXIT( ) button. Audio CDs(CD-DA), MP3 discs and DivX discs do not support the Repeat A-B function. English - 43 01392C_HR750_XEB-ENG-0418.indd 43 2007-04-18 7:58:28 Zooming-In HDD t Search O Subtitle Q Audio P Repeat v Zoom <CHANGE Info None 2 D 2/0 L+R Off Off sSELECT SZXCV

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select Zoom, then press the OK or ►

button. ( ) will be displayed.

3. Press ▲▼◄► buttons to move to the area you want to enlarge.

4. Press the OK button.

The screen will be enlarged to twice the normal size. The screen size will be enlarged to four times the normal size. HDD/DVD-VIDEO/

normal size ➞ X2 ➞ X4 ➞ X2 ➞ normal size M When the recording is done in EP mode, the zoom function is Playback not supported except when the recording has been in V mode. English - 44 01392C_HR750_XEB-ENG-0418.indd 44 2007-04-18 7:58:31 W Marker 01 02 -- -- -- -- -- -- -- -- N:2 Using Markers SXC (VR mode) <MOVE sPLAY Cancel rRETURN Set marks at scenes you want to see again so that you can start playback from the marked position. Setting Markers

1. Press the MARKER button during playback.

2. Press the OK button when the desired scene appears.

• The number 01 is displayed and the scene is memorized.

3. Press the ► buttons to move to the next position.

4. Press the OK button again when the desired scene appears.

• The number 02 is displayed and the scene is memorized.
• HDD, DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protection, Markers cannot be set or deleted, only playback is available. Playback Playing back a marker

1. Press the MARKER button during playback.

2. Press the ◄► buttons to select a marked scene.

3. Press the OK or PLAY (

scene. ) button to start playing from the selected

• If you press the SKIP ( ) button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.
• If you press the SKIP ( ) button, it moves to the next marker. Clearing a marker

1. Press the MARKER button during playback.

2. Press the ◄► buttons to select a marked scene.

3. Press the RED(A) button to delete the selected mark.

• When a marker is cleared while HDD/DVD-RAM/-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th. English - 45 01392C_HR750_XEB-ENG-0418.indd 45 2007-04-18 7:58:32 W Bookmark 1 2 - - - - - - - -

Using the Bookmarks ZCV (V mode) <MOVE sPLAY Cancel rRETURN Setting Bookmarks

1. Press the MARKER button during playback.

2. Press the OK button when the desired scene appears.

• The number 1 is displayed and the scene is memorized.

3. Press the ► buttons to move to the next position.

4. Press the OK button again when the desired scene appears.

The number 2 is displayed and the scene is memorized.

• Repeat above to bookmark other positions.
• You can bookmark up to 10 scenes. M When the disc tray is opened and then closed, bookmarks will disappear. Playback Playing back a bookmark

1. Press the MARKER button during playback.

2. Press the ◄► buttons to select a bookmarked scene.

3. Press the OK or PLAY(

scene. ) button to start playing from the selected Clearing a bookmark

1. Press the MARKER button during playback.

2. Press the ◄► buttons to select a bookmarked scene.

3. Press the RED(A) button to delete the selected bookmark.

English - 46 01392C_HR750_XEB-ENG-0418.indd 46 2007-04-18 7:58:34 Playing an Audio CD/MP3 Buttons on the Remote Control used for Audio CD(CD-DA)/MP3 playback

1. ▲▼ : Selects a track (song).

2. OK button, Play (

) button: Plays the selected track (song).

) button: Stops a track(song).

) button: Plays a track(song) or pauses playback.

8. RED(A) button: • Creates a playlist or go to playlist.

• Select Copy and Select All button.(MP3 disc only)

Playback Playing an Audio CD(CD-DA)

1. Insert an audio CD (CD-DA) into the disc tray.

• The audio CD menu appears and the tracks (songs) are played automatically.

2. Press the ▲▼ buttons to select the track (song) you want to hear,

and then press the OK button.

Q TRACK01 Music List 1/10 No.

1. Current track (song): Displays the number of the track currently

2. Displays available buttons and a playback time corresponding to a

portion that is currently played.

3. Displays the current file type and file name.

4. Display available buttons.

5. Displays the current play index, total track number.

6. Displays the track list (song list).

English - 47 01392C_HR750_XEB-ENG-0418.indd 47 2007-04-18 7:58:35 Playing an MP3 Disc

1. Insert an MP3 disc into the disc tray.

• The menu is displayed

2. Press the ▲▼ buttons to select Library, then press the OK or ►

4. Press the ▲▼ buttons to select the track you want to hear, and then

press the OK button.

Q Song 1.mp3 Music List 1/9 No. Title Size Y ROOT

00:02:22 9 Song 1.mp3 E ROOT Edit Q Song 1.mp3

◆ MP3 Screen Elements

1. Current track (song): Displays the name of the track being played.

2. Displays available buttons and a playback time corresponding to a

portion that is currently played.

3. Displays the current file type, file name and folder name.

5. Displays the current play index, total track number.

6. Displays the track list (song list).

Q TRACK01 Music List 1/10 No.

Title TRACK01 Length 4:19

#/$ PREVIOUS/NEXT PAGE

Track TRACK06 Repeat All TRACK07 Random 5:08 3:31 Play Mode eEXIT Repeat CD (CD-DA) & MP3 You can also operate this function by pressing the REPEAT button on the remote control. During playback, press the REPEAT button repeatedly to select the repeat mode you want.

1. Press the YELLOW(C) button during the Music List playback.

2. Press the ▲▼ buttons to select desired play mode, then press the

• Normal (CD (CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc.

Title TRACK01 Length 4:19

TRACK07 3:31 New Playlist Go To Playlist Edit

1. Press the RED(A) button during the Music List playback.

3. Press the ▲▼ buttons to select tracks in the order in which you

want them to play, then press the OK button.

• If you playlisted a wrong track, press the ►▲▼ buttons to select the wrong track, then press the OK button. Playlist 001 TRACK01 You can register a maximum 30 tracks in the playlist. Music List sADD rRETURN eEXIT

Title TRACK01 Length 4:19

TRACK07 3:31 New Playlist Go To Playlist Edit

1. Press the RED(A) button during the Music List playback.

3. Press the ▲▼ buttons to select the desired playlist folder, then

press the OK button. The selected tracks are played automatically.

No. Title Length Y PLAYLIST E PLAYLIST01 ► 00:02:22 Y PLAYLIST mMOVE sSELECT a CHECK eEXIT English - 49 01392C_HR750_XEB-ENG-0418.indd 49 2007-04-18 7:58:40 Delete the Playlist Q TRACK01 Music List 1/10 No.

Title TRACK01 Length 4:19

TRACK07 3:31 New Playlist Go To Playlist Edit

1. Press the RED(A) button during the Music List playback.

3. Press the ▲▼ buttons to select the Playlist you want to delete.

The selected Playlist is deleted. E PLAYLIST02 ► 00:00:00 i PLAYLIST01 Delete mMOVE Edit Playlist sSELECT New Playlist Music List a CHECK eEXIT

Q TRACK01 Music List 1/10 No.

Title TRACK01 Length 4:19

No. Title Length Y PLAYLIST E PLAYLIST01 E PLAYLIST02 Delete Edit Playlist sSELECT New Playlist Music List a CHECK eEXIT

3. Press the ▲▼ buttons to select the Playlist you want to edit.

4. Press the GREEN(B) button in playlist mode.

5. Press the ▲▼ buttons to select tracks in the order in which you

want them to play, then press the OK button.

• If you playlisted a wrong track, press the ►▲▼ buttons to select the wrong track, then press the OK button. ► 00:00:00 i PLAYLIST01 mMOVE

1. Press the RED(A) button during the Music List playback.

No. Title Playlist 1/4 Length

TRACK01 4:19 Edit Playlist New Playlist Go To Music List

1. Press the BLUE(D) button during the Playlist playback.

The Music List will be displayed. Music List eEXIT English - 50 01392C_HR750_XEB-ENG-0418.indd 50 2007-04-18 7:58:44 Using the Sort Q Song 10.mp3 Music List 1/10 No. Title Size Y ROOT Q Song 10.mp3

Contents a CHECK eEXIT When you need to change the Sort order of Music List, you can change it simply.

• Size : In order of audio file size.. M Audio CD(CD-DA) is not available. You can sort by Name, Length. Sorted list will be resorted in copied order upon reentering Music List. Select Contents Q Song 10.mp3 Music List 1/10 No. Title Size Y ROOT Q Song 10.mp3

2. Press the ▲▼ buttons to select the contents you want to move, then

Press the OK or ► button. Playback Edit

1. Press the BLUE(D) button to select Contents.

3.8MB M This function is possible only when the disc contains the selected contents. Audio CD(CD-DA) is not available. English - 51 01392C_HR750_XEB-ENG-0418.indd 51 2007-04-18 7:58:50

1. Insert a JPEG disc into the disc tray.

• The menu is displayed

2. Press the ▲▼ buttons to select Library, then press the OK or ►

• Once in the Photo List, you can also operate slideshow in by pressing the YELLOW(C) button. Playback Rotate >PHOTO ► SLIDE SHOW Zoom rRETURN Image 1.jpg eEXIT 1/17

6. Press the RED(A) button to select Speed.

7. Press the ▲▼ buttons to select the slideshow speed, then press the

OK or ► button. The slideshow starts and plays at the selected speed.

• Once you select a rotate angle, you can change it by pressing the RED(A) button.
• You can go to Photo List by pressing YELLOW(C) button. ◆ To stop the Rotate Rotate Rotate Off Press the GREEN(B), STOP( Photo List rRETURN ) or RETURN button. eEXIT English - 52 01392C_HR750_XEB-ENG-0418.indd 52 2007-04-18 7:58:54 Zoom To setup, follow steps 1 to 4 in page 52. 5-1. Press the YELLOW(C) button to select Zoom.

6. Each time the OK button is pressed, the picture is enlarged up to

Using the Sort When you need to change the Sort order of Photo List, you can change it simply.

• Size : In order of photo file size. M You can sort by Name, Size. Sorted list will be resorted in copied order upon reentering Photo List.

#/$ PREVIOUS/NEXT PAGE

Slideshow a CHECK Contents Select Contents To setup, follow steps 1 to 3 in page 52.

1. Press the BLUE(D) button to select Contents.

2. Press the ▲▼ buttons to select the contents you want to move, then

Press the OK or ► button. eEXIT M This function is possible only when the disc contains the selected contents. English - 53 01392C_HR750_XEB-ENG-0418.indd 53 2007-04-18 7:59:00

Movie_01.avi DivX List 1/1 No. Title Size Y ROOT 001 Movie_01.avi Playing a DivX 162.8MB 3 DivX N Using the MENU button E ROOT

1. Insert a DivX disc into the disc tray.

Edit Sort Subtitle Enc. a CHECK Contents eEXIT

• The menu is displayed

OK or PLAY ( ) button.

5. When DivX file is played, you can use following functions. Pressing

the STOP ( ) button once during playback will display the file list, pressing the button again will exit the menu screen. DivX Function Description Playback Function Description Skip ) buttons, During play, press the SKIP ( it moves forward or backward 5 minutes. Search ) buttons During play, press the SEARCH ( and press again to search at a faster speed. (X 2, X 4, X 8) Slow Motion Play In pause mode( Pause ), press the SEARCH ( button on the remote control. (1/2, 1/4, 1/8)

Reverse Slow Motion Play is not available. Step Motion Play In pause mode( Pause ), press the SKIP ( ) button on the remote control in the still mode. Reverse Step Motion Play is not available. M This unit can play the following video compression formats, - DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC) - DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, LPCM, AC3 Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass (The subtitle file should have exactly the same name to corresponding DivX file name) Some DivX files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification are not supported. You cannot play back the disc that is larger than a 720 x 576 pixel resolution. English - 54 01392C_HR750_XEB-ENG-0418.indd 54 2007-04-18 7:59:04 DivX Subtitle Encoding Movie_01.avi DivX List 1/1 No. Title Size Y ROOT 001 Movie_01.avi 3 DivX 162.8MB

1. Press the YELLOW(C) button in the file list.

Subtitle Enc. Contents a CHECK eEXIT Western Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, Swedish Central English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, Slovenian Greek English, Greek Cyrillic English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, Uzbek M If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If is still does not work, the format is not supported. Using the Sort DivX List 1/3 No. Title Size Y ROOT 3 DivX 001 Movie_01.avi 162.8MB 002 Movie_02.avi 238.2MB 003 Movie_03.avi 118.4MB When you need to change the Sort order of DivX List, you can change it simply. Playback

• Size : In order of DivX file size. M You can sort by Name, Size. Sorted list will be resorted in copied order upon reentering DivX List. Select Contents Movie_01.avi DivX List 1/1 No. Title Size Y ROOT 001 Movie_01.avi 3 DivX Sort Subtitle Enc. a CHECK

1. Press the BLUE(D) button to select Contents.

2. Press the ▲▼ buttons to select the contents you want to move, then

Press the OK or ► button. Title DivX Music Photo E ROOT Edit 162.8MB Contents eEXIT M This function is possible only when the disc contains the selected contents. English - 55 01392C_HR750_XEB-ENG-0418.indd 55 2007-04-18 7:59:06 Recording This section shows various HDD & DVD Recording methods. This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference. Compatibility between Samsung and Other Company’s Recorder Disc Types Recording format DVD-RAM VR Mode Recording Device

Recordable Other Company

• DVD-RAMs and DVD-RWs are rewritable. Samsung

• DVD-Rs are non-rewritable. DVD-R Additional Recording in Samsung Recorder Samsung Recordable Discs This HDD & DVD RECORDER can record on the following discs. Finalising V Mode Other Company finalised Not recordable not finalised Recordable finalised Not recordable not finalised Recordable finalised Not recordable not finalised Recordable finalised Not recordable not finalised Not recordable finalised Not recordable not finalised Recordable finalised Not recordable not finalised Not recordable M Finalise - This closes the DVD-RW/-R so no additional recording can be done. Unfinalise Recording - This allows additional recording on a DVD-RW disc originally recorded on the HDD & DVD RECORDER. - A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalised. - A DVD-RW disc that has been recorded in Video Mode of a different maker’s recorder cannot be unfinalised. - A DVD-R disc cannot be unfinalised. English - 56 01392C_HR750_XEB-ENG-0418.indd 56 2007-04-18 7:59:09 Recording Formats <DVD-RW> Uninitialized Disc. Do you want to initialize this disc? DVD-VR DVD-V

When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences. DVD-RAM: Formatting will be started automatically. DVD-RW: Use after initializing the disc. If you want to change the VR or V mode, refer to Formatting a Disc on page 93. DVD-R: Formatting disc is unnecessary and only V Mode Recording is supported. DVD-RAM/-RW(VR mode)

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.).
• Various editing options using a created Playlist. DVD-RW(V mode)/-R
• Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in V mode. The chapter’s length (interval between chapters) varies according to the recording mode.
• Simple editing (erasing titles/changing title name). Recording English - 57 01392C_HR750_XEB-ENG-0418.indd 57 2007-04-18 7:59:09 Recording Mode Select one of four recording modes by pressing the REC MODE button repeatedly while the unit is in Stop mode for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes and you can use this mode for timer recording.
• DVD-HR749 / DVD-HR750 Recording Mode Recording Times HDD (160GB)

(high quality mode) Approx. 41 hours Approx. 1 hour about 8.5 Mbps

(standard quality mode) Approx. 67 hours Approx. 2 hours about 4.5 Mbps

(long recording mode) Approx. 133 hours Approx. 4 hours about 2 Mbps

(extended mode) (Flexible Recording) Approx. 199 hours Approx. 264 hours Approx. 41 hours ~ 199 hours Approx. 6 hours/ about 1.6 Mbps Approx. 8 hours/ about 1.2 Mbps Approx. 1~6 hours M Recording time may vary according to specific conditions. 1GB = 1,000,000,000 bytes; actual formatted capacity may be Recording less as the internal firmware uses a portion of the memory. The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 36) English - 58 01392C_HR750_XEB-ENG-0418.indd 58 2007-04-18 7:59:10 Unrecordable pictures You cannot record copy protected movie. Video with copy protection cannot be recorded on this HDD & DVD RECORDER. When the HDD & DVD RECORDER receives a copy- guard signal while recording, recording stops and the following message appears on the screen. Concerning Copy Control Signals TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type programme, use DVD-RW with CPRM in VR Mode and DVD-RAM. Signal type Media DVD-RW(Ver.1.1) Copy-Free Copy-Once Copy-Never

Once “Copy Once” has been recorded, recording cannot be done anymore. ◆ Content Protection for Recordable Media (CPRM) Recording CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some HDD & DVD RECORDERs, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable. English - 59 01392C_HR750_XEB-ENG-0418.indd 59 2007-04-18 7:59:10 Recording immediately SXCV Before you start

1. Check that the disc has enough available space for the recording.

2. Press the HDD or DVD button.

If you select DVD, Press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Recording the current TV programme you are watching 6 Record Mode SP(35:12) > ) or number buttons to select the current

programme you want to record.

2. Press the REC MODE button repeatedly, (or press the REC MODE

button and then press the ▲▼ buttons) to select the recording speed(quality). HDD ➞ SP ➞ LP ➞ EP ➞ XP Recording: PR 1 [SP]

3. Press the REC button.

Information concerning the channel is displayed on the screen, then recording begins. Recording Icon( ) is displayed on the front panel. Recording from external equipment you are watching

1. Press the INPUT SEL. button to select the input source according

to the connection you made. The front panel display changes in the following sequence: ➞ PR Number ➞ AV1 ➞ AV2 ➞ AV3 ➞ DV If you connect a digital camcorder, press the INPUT SEL. button to select DV. (See page 62)

2. Press the REC MODE button repeatedly, (or press the REC MODE

button, then press the ▲▼ buttons) to select the recording speed (quality). ➞ SP ➞ LP ➞ EP ➞ XP English - 60 01392C_HR750_XEB-ENG-0418.indd 60 2007-04-18 7:59:10

3. Press the REC button.

Information concerning the external input mode is displayed on the screen, then recording begins. Icon( ) is displayed on the front panel. To pause recording

• Press the REC PAUSE button to pause a recording in progress.
• Press the REC PAUSE button again during pause to resume recording.
• You can switch channels by pressing the PROG ( while recording pauses. ) buttons To stop recording Press the STOP ( progress. ) button to stop or finish a recording in

• When using DVD-RAM/-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed. M You can not change the recording mode while recording. Recording will stop automatically if there is no free space left for recording. Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc. Up to 999 titles can be registered on the HDD. HDD recording is available for up to 24 hours, and when recording for 24 hours, 3 titles will be recorded with each being 8 hours in length. Recording will stop automatically if a copy protected image is selected. DVD-RAM/-RW discs must be formatted before starting to record. Most new discs are sold unformatted. Recording Do not use DVD-R authoring discs with this unit. English - 61 01392C_HR750_XEB-ENG-0418.indd 61 2007-04-18 7:59:12 6 Record Mode Copying from a Camcorder SP(35:12) > SXCV You may control the Camcorder using the IEEE1394 (DV) interface.

1. Connect the DV output jack of your camcorder to the DV input jack

on the front of your HDD & DVD RECORDER using a DV cable.

If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. The DV device is connected <MOVE rRETURN

3. Press the REC MODE button repeatedly to select the recording

4. Press the INPUT SEL. button to select DV.

If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

5. Select the Play (►) icon on the upper part of the screen to playback

the camcorder and find the starting position to copy.

6. To start recording, use the ◄► buttons to select Record ( ● ) icon

in the top side of the screen, then press the OK button. You can press the REC button of the remote control to start recording. To stop recording Recording Press the STOP ( ) button to stop or finish a recording in progress.

• When using DVD-RAM/-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed. M To display playback related icons on the screen, press any direction button on the remote control. English - 62 01392C_HR750_XEB-ENG-0418.indd 62 2007-04-18 7:59:13 Making a One Touch Recording (OTR) HDD SXCV Recording: PR 1 [SP] You can set the HDD & DVD RECORDER to record in 30-minute increments up to 8 hours by pressing the REC button. 5 OTR Mode 0:30

1. Press the HDD or DVD button.

If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

) or number buttons to select the programme to record. If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV2, AV3, DV or PR01).

3. Press the REC button to start recording.

4. Press the REC button repeatedly to adjust the desired recording

time. ➞ 0:30 ➞ 1:00 ➞ ... 8:00 ➞ Off M The timer counter decreases by the minute from 8:00 to 0:00, then the HDD & DVD RECORDER stops recording. To stop recording Press the STOP ( ) button. The message “Do you want to stop recording?” is displayed.

• Or press the STOP ( ) button again. Recording

• Press the ◄► buttons to select Yes, then press the OK button. English - 63 01392C_HR750_XEB-ENG-0418.indd 63 2007-04-18 7:59:15 Simultaneous Recording and Playback

You can play back from the beginning of the programme you are currently recording. You can watch the previous title list while recording a programme. Using the PLAY ( ) button HDD ► Play

1. With the unit in recording mode, press the PLAY ( ) button.

It plays back the title that you are currently recording from the beginning. Playback is not available for 10 seconds from the start of recording. ) and other playback-related buttons You can use the SKIP ( to view the previous recorded list. Stopping Playback / Recording

1. Press the STOP ( ) button. Playback screen disappears and the

recording in progress screen appears.

2. Pressing the STOP (

HDD RECORDING... Title List 4/4 No. Title 002 JAN/01/2007 21:00 PR 01:00:00 003 JAN/01/2007 23:15 PR 00:30:00 004 RECORDING... 00:00:00 4 JAN/02/2007 00:00 1 XP Recording eEXIT HDD ► Play N Using the TITLE LIST button Length 001 JAN/01/2007 17:30 PR 01:00:00 3 MPEG2 ) button once more will stop the recording.

1. With the unit in recording mode, press the TITLE LIST button.

The above operation is possible from approx.10 seconds or more after recording starts. Press the ▲▼/SKIP ( ) buttons to select the recording title list.

2. Press the OK or PLAY ( ) button.

It plays back the title that you are currently recording from the beginning. N Using the MENU button

1. With the unit in recording mode, press the MENU button.

2. Press the ▲▼ buttons to select Title, then press the OK button.

Title List screen is displayed.

3. Press the ▲▼/SKIP (

) buttons to select the recording title list, then press the OK or ► button. It plays back the title that you are currently recording from the beginning. Stopping Playback / Recording

1. Press the STOP( ) button once, playback screen disappears and

the Title List screen appears.

2. Pressing the MENU(

screen appears. ) button again, the recording in progress

3. Pressing the STOP(

) button once more will stop the recording. English - 64 01392C_HR750_XEB-ENG-0418.indd 64 2007-04-18 7:59:17 M No sound is heard during search mode. DVD disc or HDD playback is available during HDD recording. However, JPEG, MP3, and DivX files in the disc cannot be played back. HDD playback is available during DVD recording. However, JPEG and MP3 files in the HDD cannot be played back. Time Shift function as a live signal / Time Shift >CHANGE

This function replays recordings as a live signal. If you are interrupted while watching a TV programme, simply press the TIME SHIFT button, and the HDD & DVD RECORDER immediately starts recording the programme. sSELECT

1. Press the TIME SHIFT button on the remote control.

The Time Shift menu is displayed.

1. While watching the currently broadcasting programme, press the

PLAY/PAUSE ( ) button. The programme on TV is set in pause mode and the Time Shift Bar is displayed.

2. Press the PLAY/PAUSE (

Displays the current media. Displays the current status. Watching Point. Current play time. Live Point. Live Time. Time Shift Time Bar Recording

) button : Returns to the point where Time Shift begines. ) button : Switches to live TV. M The Time Shift is available only when HDD mode is selected. You can use this function for up to maximum two hours. You can only play the contents by using the menu when the Time Shift is set to On. English - 65 01392C_HR750_XEB-ENG-0418.indd 65 2007-04-18 7:59:22 Making a Timer Recording SXCV

1. Check the antenna cable is connected.

2. Check the remaining time of the disc.

3. Check the date and time are correct.

Make sure the Clock (Setup-Clock Set) must be set before you proceed with a timer recording. (See page 25)

Scheduled List ShowView Extended Disc Manager

3. Press the OK button to select Add a list.

mMOVE sSELECT rRETURN HDD No. eEXIT Scheduled List Current Time 10:54 To Source Date Start End Add a list Mode VPS/PDC

4. Set timer recording option.

• Fill the input items using the ▲▼◄► buttons and number buttons. ◄► : Moves to the previous/next item. ▲▼, 0~9 : Sets a value.
• To : Select the media to record HDD or DVD.
• Source : The video input source (AV1, AV2 or AV3), or the broadcasting channel you want to make a timer recording from. Recordable Time HDD 108:14 SP Recorded List sSELECT rRETURN HDD Scheduled List Current Time 10:54 No. To Source No. 01 No Title

• Date : Timer Recording allows setting the recording time within one month period. Set the recording day. (month/day)

s Save JAN 31 Every SUN JAN 30 Recordable Time HDD 108:14 SP Recording Recorded List <MOVE sSELECT rRETURN eEXIT JAN 29 Every SAT MON-FRI JAN 02 MON-SAT JAN 01 Every Day

• Start/End Time : Start and end time of the timer recording.
• Mode (Recording Mode) : - FR (Flexible Recording) : Select when you want to set video quality automatically. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes. - XP (high quality) : Select when video quality is important. - SP (standard quality) : Select to record in standard quality. - LP (low quality) : Select when a long recording time is required. - EP (extended) : Select when a longer recording time is required. - The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 36) English - 66 01392C_HR750_XEB-ENG-0418.indd 66 2007-04-18 7:59:24 M When you are recording at EP mode on a DVD-RW(V mode)/R disc, it may not record the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a programme with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

• VPS/PDC : VPS(Video Programme System) or PDC(Programme Delivery Control) function. - If you set this function on, you can control the starting and ending time of recording by special signal included in the broadcasting signal. If a TV programme is shortened or starts earlier or later than scheduled, this function synchronizes the starting and ending time of recording with the actual broadcasting time automatically. - Set up the start-time EXACTLY according to the published TV schedule. Otherwise the timer recording will not operate. - Do not select PDC or VPS unless you are sure the programme you wish to record is broadcast with PDC or VPS.
• TITLE : To label the title name, press the RED(A) button. Title renaming screen appears. Follow steps 4 and 5 of “Renaming (Labeling) a Title” on page 73.

5. After selecting the set up value for each mode, press the OK button

will appear on the front panel. It means that a timer recording is registered. If the timer settings overlap; The programmes are recorded in order of priority. After recording of the first programme is complete, the second programme starts being recorded. To return to the previous menu Press the RETURN button if you don’t want to set a timer recording. Recording To exit without saving the current setting Press the EXIT ( ) button.

6. When you want to recording on DVD-RAM/-RW/-R, you must insert

7. Turn the power off to finish the Timer Recording setting.

Timer Recording will not work when the power is on. M The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 2 minutes before the start time of the next recording.) You can make the Timer Recording up to 12 programmes. If HDD disk has no available recording space, blinks. It means that HDD disk has no space to record. If you have set the Timer Recording using VPS/PDC, the fan can still operate and make a noise when the power is off. English - 67 01392C_HR750_XEB-ENG-0418.indd 67 2007-04-18 7:59:26 Editing the Scheduled List

Scheduled List ShowView Extended Disc Manager

Recorded List Setup mMOVE sSELECT rRETURN HDD eEXIT Scheduled List Current Time 10:54 No. To Source

Recordable Time HDD 108:14 SP Add Delete >MOVE Recorded List sSELECT rRETURN Follow these directions to edit the Scheduled List. N Using the TIMER button

2. Press the OK or ► button to select Scheduled List.

3. Press the ▲▼ buttons to select the number of the Scheduled List

you want to edit, then press the OK button.

• Edit the items you want to modify. See the “Making a Timer Recording” section for more information on Timer Recording Input items. (See pages 66~67) eEXIT

4. Press the OK button to confirm the edited setting.

HDD Scheduled List Current Time 10:54 No. To Source No. 01 No Title

5. Press the EXIT ( ) button after finishing the operation. The

Scheduled List screen will disappear. Mode VPS/PDC Title Recordable Time HDD 108:14 SP

s Save Recordable Time HDD 108:14 SP Add Delete <MOVE sSELECT Recorded List rRETURN eEXIT Adding a Scheduled List HDD Scheduled List Current Time 10:54 No. To Source

Recordable Time HDD 108:14 SP Add Delete Recording >MOVE Recorded List sSELECT rRETURN HDD eEXIT Scheduled List Current Time 10:54 No. To Source No. 04 No Title

s Save Recordable Time HDD 108:14 SP Add Delete <MOVE sSELECT Recorded List rRETURN HDD No.

Follow these directions to add an entry from the Scheduled List. N Using the TIMER button

3. Press the ▲▼ buttons to select the number of the Scheduled List,

then press the RED(A) button.

• Set the items you want to add. See the “Making a Timer Recording” section for more information on Timer Recording Input items.(See pages 66~67)

4. Press the OK button to confirm the added setting.

5. Press the EXIT ( ) button after finishing the operation. The

Scheduled List screen will disappear. Recordable Time HDD 108:14 SP Recorded List >MOVE sSELECT rRETURN eEXIT English - 68 01392C_HR750_XEB-ENG-0418.indd 68 2007-04-18 7:59:26 Deleting a Scheduled List

Recorded List Setup Follow these directions to delete an entry from the Scheduled List. mMOVE sSELECT rRETURN HDD eEXIT Scheduled List Current Time 10:54 No. To Source

Recordable Time HDD 108:14 SP Add >MOVE Delete sSELECT Recorded List rRETURN HDD eEXIT Scheduled List Current Time 10:54 No. To Source -- No.---01 ---01 HDD PR 01 02 HDD PR 01 03 HDD PR 01 Date Start End

17:30 18:30 JAN 21:00to delete? 22:00 Do 01 you want JAN 01 23:15 23:45 Yes Mode -SP

2. Press the OK or ► button to select Scheduled List.

3. Press the ▲▼ buttons to select the number of the Scheduled List

you want to delete, and then press the GREEN(B) button.

• You will be prompted with the delete confirm message such as “Do you want to delete?”.

4. Press the ◄► buttons to select Yes, then press the OK button.

• The selected entry will be deleted from the list.

5. Press the EXIT ( ) button after finishing the operation. The

Scheduled List screen will disappear. Recording English - 69 01392C_HR750_XEB-ENG-0418.indd 69 2007-04-18 7:59:31

Scheduled List ShowView Extended Disc Manager Using the ShowView Feature

Source Date Start End HDD

• A message is displayed to allow you to enter the ShowView code.

4. Press the number buttons to enter the code of the programme that

you want to record in your television magazine.

• If you want to correct the ShowView code that you are entering: - Press the ◄ button until the digit to be corrected is cleared. Recordable Time HDD 108:14 SP <MOVE Before presetting your HDD & DVD RECORDER.
• Switch on both the television and your HDD & DVD RECORDER.
• Check that the date and time are correct. Up to twelve programmes can be preset eEXIT - Enter the correct digit.

5. Press the OK button.

• The information concerning the programme is displayed.
• When using the ShowView function for the first time with stored stations, the programme number flashes. This one time, you must enter the PR number manually by pressing the ▲▼ buttons.

6. Press the RED(A) button if you do not want to use the default title

name. The rename screen is displayed. Follow steps 4 and 5 of “Renaming (Labeling) a Title” on page 73. Recording

7. If the programme and times are correct, press the OK button.

8. Turn the power off by pressing the STANDBY/ON button to activate

the timer recording setting.

• Refer to pages 69, 71 if you want to - Check whether the timer Recording has set correctly or not. - Cancel a preset recording. M The numbers next to each TV programme listing in the magazines or newspapers are ShowView code numbers, which allow you to programme your HDD & DVD RECORDER. instantly with the remote control. Enter the ShowView code for the programme you wish to record. ShowView is a trademark of Gemstar Development Corporation. The ShowView system is manufactured under licence from Gemstar Development Corporation. English - 70 01392C_HR750_XEB-ENG-0418.indd 70 2007-04-18 7:59:33

Scheduled List ShowView Extended Disc Manager

Recorded List Setup mMOVE sSELECT rRETURN ShowView Extended To prevent delays or overruns the HDD & DVD RECORDER has a function called ShowView Extended allowing you to extended the recording time by up to 60 minutes.

• Only use if PDC is not available or set to OFF. eEXIT

Scheduled List Off ShowView Extended : 30 Recorded List

4. Press the ▲▼ buttons to select the ShowView Extended time, then

Recorded List Setup mMOVE sSELECT rRETURN HDD eEXIT Recorded List No. To Source Date Start End Mode V/P Status

Delete All rRETURN HDD eEXIT Recorded List No. To Source Date

was 23:15 finished23:45 successfully

Delete All sSELECT Scheduled List rRETURN

3. Press the EXIT ( ) button after finishing the operation.

The Recorded List screen will disappear. Information about Recorded List Informs whether the selected Recorded List performed a Timer Recording successfully. 3-1. Press the ▲▼ buttons to select the number of the Recorded List, then press the OK button.

2. Press the ▲▼ button to select Recorded List,

then press the OK or ► button. Scheduled List sSELECT N Using the TIMER button Recording Delete >MOVE You can confirm the performance results of title lists that have passed the reserved recording time. eEXIT English - 71 01392C_HR750_XEB-ENG-0418.indd 71 2007-04-18 7:59:35 Delete Recorded List HDD No. Recorded List Date Start End Mode V/P Status 01 No. HDD 01 PR 01 JAN 01 17:30 18:30

you 23:15 want to 23:45 delete?SP

Delete All sSELECT eEXIT HDD Recorded List No. To Source Date Start End Mode V/P Status

JANwant 01 to 23:15 SP list? you delete a23:45 recorded

Yes Delete mMOVE sSELECT rRETURN No. To Source Date Start End Mode V/P Status

Delete All sSELECT Recording Go to Scheduled List Switches directly from the Recorded List to the Scheduled List. 3-1. Press the YELLOW(C) button. Scheduled List rRETURN HDD No. 3-1. Press the GREEN(B) button. eEXIT Recorded List Delete Clears all Recorded List at once. Scheduled List HDD >MOVE Clear Recorded List

Delete All 3-1. Press the ▲▼ buttons to select the number of the Recorded List you want to delete, and then press the RED(A) button.

4. Press the ◄► buttons to select Yes, then press the OK button.

Scheduled List rRETURN Deletes a Recorded List individually. eEXIT Scheduled List Current Time 10:54 To Source Date Start End Add a list Mode VPS/PDC Recordable Time HDD 105:44 SP Recorded List sSELECT rRETURN eEXIT English - 72 01392C_HR750_XEB-ENG-0418.indd 72 2007-04-18 7:59:39 Editing This section introduces basic functions of editing and explains both edit functions for the recording on a disc and edit functions for the entire disc. Recording or editing might not be completed if an error, such as a sudden power failure occurs. Please be aware that a material that has been damaged is unable to be retrieved to its original content. Basic Editing (Title List) Playing the Title HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title SXCV Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 Follow these instructions to play back a scene from the Title List. 3 MPEG2 4 JAN/01/2007 17:30 1 SP V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT N Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST

2. Press the ▲▼ buttons to select an entry you want to play from Title

List, then press the OK or PLAY ( ) button. The selected entry (title) will be played back.

3. To stop title play, press the STOP( ) button.

The screen returns to the Title List screen. Renaming (Labeling) a Title HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title SXCV Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 3 MPEG2 4 JAN/01/2007 17:30 1 SP V-Mode Compatibility Edit Sort Edit Contents a CHECK eEXIT Title List 1/3 No. Title Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded programme. N Using the TITLE LIST button

button. 003 JAN/03/2007 23:15 PR 00:30:00 Sort

2. Press the ▲▼ buttons to select an entry you want to rename from

the Title List, then press the RED(A) button. Go to Contents a CHECK eEXIT Editing HDD JAN/01/2007 17:30 PR1 Delete Copy Rename Protection Partial Delete 3 MPEG2 Split4 JAN/01/2007 17:30 New1Playlist V-Mode Select All Compatibility Go to

3. Press the ▲▼ buttons to select Rename, then press the OK or ►

button. The Rename screen is displayed.

4. Select the desired characters using the ▲▼◄► buttons, press the

• Back Space (RED(A) button) : Deletes and moves the cursor backwards by one position. English - 73 01392C_HR750_XEB-ENG-0418.indd 73 2007-04-18 7:59:41 HDD Rename

• Space (GREEN(B) button) : Enters a blank and moves the cursor one forward (to the right).
• Clear (YELLOW(C) button) : Deletes all the character inputs. Sports(A1)

2. Press the ▲▼ buttons to select an entry you want to protect from

the Title List, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to protect.

• If you don’t want to protect a certain one of the checked entries, simply select that entry and press the MARKER to deselect it until a checkmark disappears.

3. Press the RED(A) button to select Edit.

Edit menu is displayed. Off 1 SP V-Mode Compatibility <MOVE Follow these instructions to lock an entry to protect it from accidental deletion. Go to Contents rRETURN eEXIT

5. Press the ◄► buttons to select On, then press the OK button. The

key icon on the information window for the selected entry changes to the locked status. (1 0)

6. If you want to cancel the Protection, select Off in step 5 and press

the OK button. The key icon changes to the unlocked status. (0 1) M If you select “Select All” in the Edit menu, all title will be checked. English - 74 01392C_HR750_XEB-ENG-0418.indd 74 2007-04-18 7:59:45 Deleting a Title HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title SXCV Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 3 MPEG2 4 JAN/01/2007 17:30 Follow these instructions to delete an entry from the Title List. 1 SP V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT HDD JAN/02/2007 21:00 PR1 Title List 2/3 No. Title Length 001 JAN/01/2007 17:30 PR 01:00:00 Delete Copy Protection 3 MPEG2 JAN/02/2007 21:00 New4Playlist 1 SP Select All V-ModeAll Compatibility Unselect Edit 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 Sort Go to Contents a CHECK eEXIT HDD JAN/02/2007 21:00 PR1 Title List 2/3 No. Title Length 001 JAN/01/2007 17:30 PR 01:00:00 2 items are selected 002 JAN/02/2007 21:00 PR 01:00:00 Do you want to delete? 003 may JAN/03/2007 23:15 PR 00:30:00 (Related playlists be deleted.) 3 MPEG2 4 JAN/02/2007 21:00 Yes

2. Press the ▲▼ buttons to select an entry you want to delete in the

Title List, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to delete.

• If you don’t want to delete a certain one of the checked entries, simply select that entry and press the MARKER to deselect it until a checkmark disappears.

3. Press the RED(A) button to select Edit.

Edit menu is displayed.

4. Press the ▲▼ buttons to select Delete, then press the OK or ►

• The message may be different depending on the type of disc. You will be prompted with the confirmation message. HDD, DVD-RAM(VR mode), DVD-RW(VR mode): If a Playlist is present, the message “Do you want to delete? (Related playlists may be deleted.)” is displayed. DVD-RW(V mode)/-R: If a Playlist is not present, the message “Do you want to delete?” is displayed.

5. Press the ◄► buttons to select Yes, then press the OK button.

M You cannot delete a protected entry. If you want to delete a protected entry, select “Off” in the Title Protection menu. (See page 74) When the Disc Protection has been set to Protected, you cannot delete titles. (See page 91) Once an entry is deleted from the Title List it cannot be recovered. With DVD-R, titles are only deleted from the menu, however, the Title remains physically on the disc. Editing Once DVD-RW/-R is finalised, it cannot be deleted. If you select “Select All” in the Edit menu, all title will be checked. English - 75 01392C_HR750_XEB-ENG-0418.indd 75 2007-04-18 7:59:49 Splitting a Section of a Title (Split) HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title

Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 3 MPEG2 4 JAN/01/2007 17:30 Follow these instructions to split a section of a Title List entry into two titles. 1 SP V-Mode Compatibility Edit Sort HDD JAN/01/2007 17:30 PR1 Delete Copy Rename Protection Partial Delete 3 MPEG2 Split4 JAN/01/2007 17:30 New1Playlist V-Mode Select All Compatibility Edit Go to Contents a CHECK eEXIT N Using the TITLE LIST button Title List 1/3 No. Title

2. Press the ▲▼ buttons to select an entry you want to Split from the

Title List, then press the RED(A) button. The Edit menu is displayed.

3. Press the ▲▼ buttons to select Split, then press the OK or ►

4. Using the playback-related buttons (PLAY ( ), SEARCH (

move to a point for splitting and press the OK button. If it is not the point where you want to split, press the RETURN button to cancel the selection. Using the playback-related buttons, move to a point to split and press the OK button. 00:00:01 Select Split Return & PLAY/PAUSE <MOVE SCAN sSELECT rRETURN eEXIT HDD JAN/01/2007 17:30 PR1 ➀ First split interval Split ➁ Current playtime Title List No. 001

Split 1 Split 2 00:00:00 00:00:20

00:00:20 Split Return & PLAY/PAUSE <MOVE ➂ Start time of the second split and its screen SCAN sSELECT rRETURN eEXIT HDD JAN/01/2007 17:30 PR1 Split

5. Press the OK button to select Split.

6. Press the ◄► buttons to select Yes, then press the OK button.

The split title is divided into two, and the following titles will be shifted down by one. Title List No. 001 Split 1 Split 2 00:00:00 00:00:20

Select Return & PLAY/PAUSE <MOVE 00:00:20 Split SCAN sSELECT rRETURN eEXIT HDD JAN/01/2007 17:30 PR1 Split Title List No. 001 Split 1 Split 2 00:00:00 00:30:55 This title cannot be recovered after spliting. Do you want to split? Yes

Select & PLAY/PAUSE <MOVE 00:30:55 Split Return SCAN sSELECT rRETURN eEXIT English - 76 01392C_HR750_XEB-ENG-0418.indd 76 2007-04-18 7:59:52 Deleting a Section of a Title (Partial Delete) HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title SXC Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 (VR mode) 3 MPEG2 4 JAN/01/2007 17:30 Follow these instructions to delete a section of a Title List entry. 1 SP V-Mode Compatibility Edit Sort HDD JAN/01/2007 17:30 PR1 Delete Copy Rename Protection Partial Delete 3 MPEG2 Split4 JAN/01/2007 17:30 New1Playlist V-Mode Select All Compatibility Edit Go to Contents a CHECK eEXIT N Using the TITLE LIST button Title List 1/3 No. Title

2. Press the ▲▼ buttons to select an entry you want to edit from the

Title List, then press the RED(A) button. The Edit menu is displayed. 003 JAN/03/2007 23:15 PR 00:30:00 Sort Go to Contents a CHECK eEXIT HDD JAN/01/2007 17:30 PR1

3. Press the ▲▼ buttons to select Partial Delete, then press the OK

or ► button. Partial Delete

4. Press the OK button at the starting point.

The image and starting point time is displayed in the section deletion starting point window. Title List No. 001 Start End 00:19:10 00:41:20

Start Delete & PLAY/PAUSE <MOVE Partial Delete List Screen Elements 00:41:20 End Return ➀ Playback bar SCAN sSELECT rRETURN eEXIT HDD JAN/01/2007 17:30 PR1 ➁ Playtime ➂ Section deletion starting point window and time Partial Delete ➃ Section deletion end point window and time Title List No. 001

HDD JAN/01/2007 17:30 PR1 Start End 00:19:10 00:41:20 Do you want to delete? (Deleted part will not be restored.) Yes

5. Press the OK button at the end point.

The image and end point time is displayed in the Section deletion ending point window.

6. Press the ◄► buttons to select Delete, then Press the OK button.

7. Press the ◄► buttons to select Yes, then press the OK button.

The selected section has been deleted. 00:41:20 Delete & PLAY/PAUSE <MOVE

• Select the start and end points of the section you want to delete using the playback related buttons. Partial Delete Title List No. 001 Start

to finish the operation. M The length of the section to be deleted must be at least 5 seconds long. The section cannot be deleted when it includes a still picture. Press the EXIT ( ) button after the operation has finished. The Title List screen will disappear. Editing End point cannot be marked earlier than start point English - 77 01392C_HR750_XEB-ENG-0418.indd 77 2007-04-18 7:59:58 HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title Using the Sort function (Title List) Length SXCV 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 3 MPEG2 Date Name 17:30 4 JAN/01/2007 Length 1 SP V-Mode Compatibility Channel Edit Info Sort Go to Contents a CHECK eEXIT When you need to change the Sort order of Title List, you can change it simply.

• Date : In order of when the titles were recorded
• Name : In alphabetical order
• Length : In order of recorded title length.

1. With the unit in Stop mode/Playback mode, press the TITLE LIST

2. Press the ▲▼ buttons to select an entry you want to play from Title

List, then press the YELLOW(C) button. Playlist Time Navigation Scene Navigation Sort Using this function, you can search scene minute-by-minute from the recorded title list. eEXIT

3. Press the ▲▼ buttons to select Time Navigation, then press the

4. Press the ◄► buttons to skip one minute at a time and search the

desired scene, then press the OK or PLAY ( ) button. M Cursor does not move if the selected recorded title is shorter than 1 minute. The Navigation function may not work on a disc that has not been recorded by this device. An edited title may not display the exact search time. English - 78 01392C_HR750_XEB-ENG-0418.indd 78 2007-04-18 8:00:03 Scene Navigation HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title SXC Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 (VR mode) 3 MPEG2 4 JAN/01/2007 17:30 1 SP V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 If there is a title composed of markers (See page 45), you can search the desired scene using the Scene Navigation. N Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST

2. Press the ▲▼ buttons to select an entry you want to play from Title

1. Press the BLUE(D) button to select Contents.

Go to Contents a CHECK eEXIT

2. Press the ▲▼ buttons to select the contents you want to move, then

The Edit menu is displayed.

3. Press the ▲▼ buttons to select New Playlist, then press the OK or

► button. The Make Playlist screen is displayed.

4. Press the OK button at the start point.

• The image and time at the start point is displayed on the Start window.
• The yellow-coloured selection bar moves to the End item. 00:11:03 End Follow these instructions to create a new playlist entry from a recorded title.

• Select the starting point of the section from which you want to create a new scene using the playback related buttons ), SKIP ( (PLAY ( ), SEARCH ( # $ SKIP eEXIT

5. Press the OK button at the end point.

• The image and end point time is displayed in the End window.
• The yellow-coloured selection bar moves to the Make item.

6. Press the ◄► buttons to select Make, then press the OK button.

• To make a scene for the playlist. A new Make scene screen is displayed. Repeat steps 4~6 to make a new scene for the playlist. A new scene will be added to the current playlist. You can check and see all the scenes on the Edit playlist screen. (See page 82) Editing

• To make a new playlist. Repeat steps 1~6 if you want to make a new playlist.

7. Press the ◄► button to select Return, then press the OK button to

finish the operation. M You can create up to 99 playlist entries. Depending on the kind of disc, the displayed screen may have a slight difference. English - 80 01392C_HR750_XEB-ENG-0418.indd 80 2007-04-18 8:00:12 Playing Entries in the Playlist HDD JAN/02/2007 13:47 Playlist 1/3 No. Title SXC Length 001 JAN/02/2007 13:47 00:06:09 002 JAN/02/2007 13:51 00:03:33 003 JAN/02/2007 14:08 00:01:54 (VR mode) i PLAYLIST 4 JAN/02/2007 13:47 Follow these instructions to play the playlist entries. 7 6 Scenes Edit Sort Title List a CHECK eEXIT N Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST

2. Press the ▲▼ buttons to select the playlist you want to play, then

press the OK or PLAY ( ) button.

3. Press the STOP ( ) button to stop playing.

The screen returns to the Playlist screen. HDD JAN/02/2007 13:47 Playlist 1/3 No. Title Renaming a Playlist Entry SXC Length 001 JAN/02/2007 13:47 00:06:09 002 JAN/02/2007 13:51 00:03:33 003 JAN/02/2007 14:08 00:01:54 (VR mode) i PLAYLIST 4 JAN/02/2007 13:47 Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry. 7 6 Scenes Edit Sort Title List a CHECK HDD JAN/02/2007 13:47 Playlist 1/3 No. Delete Copy Rename i PLAYLIST Edit4 Playlist JAN/02/2007 13:47 New7Playlist 6 Scenes Select All Edit eEXIT Title Length 001 JAN/02/2007 13:47 00:06:09 002 JAN/02/2007 13:51 00:03:33 003 JAN/02/2007 14:08 00:01:54 Sort Title List a CHECK HDD eEXIT Rename D o l p h in N Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST

2. Press the ▲▼ buttons to select the title you want to Rename from

the Playlist, then press the RED(A) button. The Edit menu is displayed.

3. Press the ▲▼ buttons to select Rename, then press the OK or ►

button. The Rename screen is displayed.

the OK button. Back Space mMOVE Space sSELECT Clear rRETURN Save eEXIT

• Back Space (RED(A) button) : Deletes and moves the cursor backwards by one position.
• Space (GREEN(B) button) : Enters a blank and moves the cursor one forward (to the right).
• Save (BLUE(D) button) : Registers the character inputs.

5. Press the BLUE(D) button to select Save.

The changed title is displayed in the title field of the selected playlist entry. Editing

2. Press the ▲▼ buttons to select the title you want to edit from the

Playlist, then press the RED(A) button. The Edit menu is displayed.

3. Press the ▲▼ buttons to select Edit Playlist, then press the OK or

► button. The Edit Playlist screen is displayed. 0:01:22 Add Delete sPLAY eEXIT Playing a Selected Scene

4. Press the ▲▼◄► buttons to select the scene you want to play,

then press the OK or PLAY ( ) button. The selected scene is played.

• To stop scene play, press the STOP ( HDD JAN/02/2007 13:47 Edit Playlist Scene No. 1/6 ) button. Modifying a Scene (Replacing a Scene) Editing To setup, follow steps 1 to 3 in page 82.

0:01:22 Add Delete sPLAY eEXIT 4-1. Press the ▲▼◄► buttons to select the scene you want to Modify, then press the RED(A) button. The Modify Scene screen is displayed.

5. Press the OK button at the start point of the scene.

HDD JAN/02/2007 13:47 Modify Scene Scene No. 001 Title List 1/3 Start End 00:04:54 00:00:00

• The image and starting point time is displayed on the Start window.
• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY ( ), SEARCH ( ), SKIP (

# $ SKIP eEXIT English - 82 01392C_HR750_XEB-ENG-0418.indd 82 2007-04-18 8:00:21

6. Press the OK button at the end point of the scene.

HDD JAN/02/2007 13:47 Modify Scene

• The image and ending point time is displayed in the End window. Scene No. 001 Title List: 1/3 End 00:04:54 00:06:25

• The scene you want to modify is changed with the selected section. # $ SKIP rRETURN eEXIT Moving a Scene (Changing the Position of a Scene) HDD JAN/02/2007 13:47 Edit Playlist Scene No. 1/6

0:01:22 To setup, follow steps 1 to 3 in page 82. 4-1. Press the ▲▼◄► buttons to select the scene you want to move (change the position), then press the GREEN(B) button.

• A yellow selection window is displayed on the scene to be moved. Modify Move Add Delete sPLAY eEXIT HDD JAN/02/2007 13:47 Edit Playlist Scene No. 1/6

5. Press the ▲▼◄► buttons to select the position to which you want

to move the selected scene, then select the OK button. M You cannot move the selected scene to the position of the next scene, because the selected scene should be inserted before that position, which requires no action. Depending on the kind of disc, the displayed screen may have sSAVE eEXIT a slight difference. Adding a Scene HDD JAN/02/2007 13:47 Edit Playlist Scene No. 1/6

5. Press the OK button at the starting point of the scene.

• The image and starting point time is displayed on the Start window. 00:01:51 Start End Add & PLAY/PAUSE <MOVE Return SCAN sSELECT # $ SKIP rRETURN eEXIT HDD JAN/02/2007 13:47 Add Scene

6. Press the OK button at the end point of the scene.

• The image and end point time are displayed in the End window.
• To cancel, press the ◄► buttons to select Return, then press the OK button. Editing

4-1. Press the ▲▼◄► buttons to select the scene that will have a new scene inserted before it, then press the YELLOW(C) button. The Add Scene screen is displayed.

• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY ( ), SEARCH ( ), SKIP (

Scene No. 001 Start To setup, follow steps 1 to 3 in page 82. Scene No. 001 Title List: 1/3 Start End 00:01:51 00:07:28

• The section you want to add is inserted prior to the scene selected in step 4-1 of Adding a Scene. # $ SKIP eEXIT English - 83 01392C_HR750_XEB-ENG-0418.indd 83 2007-04-18 8:00:29 Deleting a Scene HDD JAN/02/2007 13:47 Edit Playlist Scene No. 1/6

• The message “Do you want to delete the scene?” is displayed. Delete eEXIT

5. Press the ◄► buttons to select Yes, then press the OK to delete

the selected scene. Edit Playlist Scene No. 1/6 00:02:24 Do02you want 0:00:34to delete 00:00:31 the scene?

0:01:22 To setup, follow steps 1 to 3 in page 82. 0:01:22

Move 00:00:00 Add sSELECT rRETURN Delete eEXIT Deleting a Playlist Entry from the Playlist HDD JAN/02/2007 13:47 Playlist 1/3 No. Title Length 001 JAN/02/2007 13:47 00:06:09 002 JAN/02/2007 13:51 00:03:33 003 JAN/02/2007 14:08 00:01:54 N Using the PLAY LIST button i PLAYLIST

2. Press the ▲▼ buttons to select an entry you want to delete in the

Playlist, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to delete.

• If you don’t want to delete a certain one of the checked entries, simply select that entry and press the MARKER button to deselect it until a checkmark disappears. Title List HDD JAN/02/2007 13:51 7 6 Scenes Length 001 JAN/02/2007 13:47 a CHECK i PLAYLIST eEXIT

Edit menu is displayed.

4. Press the ▲▼ buttons to select Delete, then press the OK or ►

• You will be prompted with the delete confirmation message “Do you want to delete?”.

5. Press the ◄► buttons to select Yes, then press the OK button.

You will be automatically returned to the Playlist screen after the delete operation has finished. M If you select “Select All” in the Edit menu, all title will be checked. English - 84 01392C_HR750_XEB-ENG-0418.indd 84 2007-04-18 8:00:38 Using the Sort (Playlist) HDD JAN/02/2007 13:47 Playlist 1/3 No. Title When you need to change the Sort order of Playlist, you can change it simply. Length 001 JAN/02/2007 13:47 00:06:09 002 JAN/02/2007 13:51 00:03:33 003 JAN/02/2007 14:08 00:01:54 i PLAYLIST

• Date : In order of when the playlists were created
• Name : In alphabetical order M You can sort by Date, Name. Sorted list will be resorted in copied order upon reentering Playlist. Copying from HDD to DVD About the Copy Screen

➃ The location where the copied files are stored Selection a CHECK

➀ Total size and number of selected titles for copying ➂ This shows available disc space 0 SP Start Copy

eEXIT ➄ Copy start button ➅ Sort button (Date, Name, Length, Channel Info) ➆ Selection button - Select All : All entries in the current folder will be checked. - Unselect All : All checked entries will be unchecked. Contents Copy Specifications Contents HDD DVD Recorded Video Title Supported Copy Protected Title Not supported Copy Once Title Move (Deletes the Title in the HDD after copying) The Copy is possible only with CPRM-Compatible disc. But “Copy Once programme” has been recorded on the HDD, this title can be copied to DVD-RW(VR mode) or DVD-RAM. Editing Once “Copy Once programme” has been recorded on the DVD disc, this title cannot be copied to HDD anymore. N Using the TITLE LIST button

1. Press the OPEN/CLOSE button and place a recordable disc on the

2. Press the OPEN/CLOSE button to close the disc tray. Wait until

LOAD disappears from the front panel display. Check that the disc has enough available space for the recording. English - 85 01392C_HR750_XEB-ENG-0418.indd 85 2007-04-18 8:00:45 HDD JAN/01/2007 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/02/2007 21:00 PR 01:00:00 003 JAN/03/2007 23:15 PR 00:30:00 3 MPEG2 4 JAN/01/2007 17:30 Sort HDD Selected Items: Go to Contents a CHECK eEXIT Copy Available : 4099MB Source : HDD To : DVD 001 JAN/01/2007 1 DVD 002 JAN/01/2007 1 003 JAN/01/2006 1 3 MPEG2 8 47MB Sort Selection a CHECK

• During Playback, you can also copy the title by pressing the COPY button.

6. Press the ▲▼ buttons to select the title you wan to copy, then press

the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to copy.

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press MARKER button to deselect it until a checkmark disappears. 0 SP Start Copy

4. With the unit in Stop mode/Playback mode, press the TITLE LIST

5. Press the COPY button. Copy screen is displayed.

1 SP V-Mode Compatibility Edit

3. Select the HDD by pressing the HDD button on the front panel of

the HDD & DVD RECORDER or on the remote control. eEXIT

7. Press the RED(A) button to select Start Copy.

HDD Selected Items: 47MB (1) Source : HDD Copy Available : 3975MB To : DVD 001 JAN/01/2007 1 DVD 002 JAN/01/2007 1

• The title to be copied is not displayed on the screen, and copying begins while the currently broadcasting programme is displayed on the screen. 003 JAN/01/2006 1 3 MPEG2 0 SP 8 47MB Start Copy Sort Selection a CHECK eEXIT

• Press the INFO button to change the copy processing bar. If you press INFO button again, copy processing bar will be appeared.
• To cancel the copying in progress, press the RED(A) button.

8. After a successful copy, “The title is successfully copied” message

21% Cancel b Bar Type c Channel Editing The title is successfully copied. English - 86 01392C_HR750_XEB-ENG-0418.indd 86 2007-04-18 8:00:48 DVD-RAM(VR) JAN/01/2007 17:30 PR1 Title List 1/3 No. Title Copying from DVD to HDD Length 001 JAN/01/2007 17:30 PR 01:00:00 002 JAN/01/2007 21:00 PR 01:02:06 003 JAN/01/2007 23:15 PR 00:01:03 3 MPEG2 N Using the TITLE LIST button 4 JAN/01/2007 17:30 1 SP Edit Sort Go to Contents a CHECK eEXIT

1. Press the OPEN/CLOSE button and place a recorded disc on the

2. Press the OPEN/CLOSE button to close the disc tray.

4. Press the COPY button. Copy screen is displayed.

003 JAN/01/2006 1 3 MPEG2 0 SP 8 47MB Start Copy Sort

• During Playback, you can also copy the title by pressing the COPY button. Selection a CHECK eEXIT

5. Press the ▲▼ buttons to select the title you want to copy, then

press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to copy.

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press MARKER button to deselect it until a checkmark disappears.

21% Cancel b Bar Type c Channel

6. Press the RED(A) button to select Start Copy.

• Press the INFO button to change the copy processing bar. If you press INFO button again, copy processing bar will be appeared. The title is successfully copied.

• To cancel the copying in progress, press the RED(A) button.

7. After a successful copy, “The title is successfully copied.” message

is displayed. M You cannot copy anything else on finalised DVD-R and DVDRW(V mode) mode. You cannot copy a DVD-VIDEO to HDD. Contents Copy Specifications Contents DVD HDD Recorded Video Title Supported Copy Protected Title Not supported Copy Once Title Not supported Editing English - 87 01392C_HR750_XEB-ENG-0418.indd 87 2007-04-18 8:00:53

6. Press the ▲▼ buttons to select the MP3, Photo or DivX file you

want to copy, then press the MARKER button until a checkmark appears. 003 Song 2.mp3 004 Song 3.mp3 005 Song 4.mp3 Start Copy New Folder Rename eEXIT

Selected Items: 9.68MB (2) Copy Available : 236724MB Source : DVD To : HDD Y ROOT t ROOT 001 Number Song 10.mp3 of item 9 MP3 8 3.84MB 002 Song 1.mp3 003 Song 2.mp3 Start 004 Song 3.mp3 EXIT New Folder

• You can create a new folder by pressing the GREEN(B) button. Rename eEXIT

Selected Items: 9.68MB (2) Source : DVD Copying... Y ROOT Free space : 236623 MB Song Number of001 item : 110.mp3 Song 1.mp3 1.mp3 File Name 002 : Song 9 MP3 8 3.84MB

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press MARKER button to deselect it until a checkmark disappears.

7. Press the ► button, then press the OK button to make the first

folder where the copied files are stored.

5. Press the COPY button. Copy screen is displayed.

t ROOT E MP3 001 Song 10.mp3 8 3.84MB

1. Insert a JPEG disc, MP3 disc or DivX disc into the disc tray.

2. Press the OPEN/CLOSE button to close the disc tray. Wait until

LOAD disappears from the front panel display. Check that the disc has enough available space for the recording. To : HDD Y ROOT File Copy eEXIT Copy Available : 236724MB To : HDD t ROOT 003 Song 2.mp3

8. Press the RED(A) button to select Start Copy.

The message “Number of item : x” is displayed.

9. Press the ◄► buttons to select Start, then press the OK button.

1. Insert a Disc (JPEG, MP3 or DivX) into the tray.

4. Press the COPY button. Copy screen is displayed.

To : HDD Y ROOT t ROOT E MP3 (1) 9 MP3 8 36.6MB Start Copy

3. Press the ▲▼ buttons to select Music, Photo or DivX then press

5. Press the ▲▼ buttons to select the folder you want to copy, then

press the MARKER button until a checkmark appears. E MP3 (2) E MP3 (3) New Folder eEXIT

• If you don’t want to copy a certain one of the checked folders, simply select that entry and press MARKER button to deselect it until a checkmark disappears. English - 88 01392C_HR750_XEB-ENG-0418.indd 88 2007-04-18 8:00:57

Selected Items: 76.8MB (2) Copy Available : 236715MB Source : DVD To : Y ROOT 9 MP3 8 36.6MB Start Copy

• You can create a new folder by pressing the GREEN(B) button. t ROOT E MP3Number (1) of item : 24

7. Press the RED(A) button to select Start Copy.

6. Press the ►▲▼ or OK button to select the location where the

8. Press the ◄► buttons to select Start, then press the OK button.

Folder copy begins. Subfolders and files in the selected folder are copied.

• To cancel the copying in progress, press the EXIT ( ) button. t ROOT M Pressing the EXIT ( ) button during folder copying will cancel the folder copying after the current file is copied. 33% New Folder You can copy up to 500 including files and sub folders to one eEXIT folder. [ MP3, JPEG, DivX ] If you want to file copy, you should create a new folder before starting a copy. You cannot copy to top-level(ROOT) folder directly without creating a new folder. If the top-level (ROOT) folder has had already 500 including folders, you should delete one or more items before you can create a new folder. Files having an existing name of ***.mp3/***.jpg, are automatically renamed to ***01.mp3/***01.jpg and copied. It allows up to 999 copies to have the same name. You cannot copy an Audio CD. File size on a disc and the copied file in the HDD may be slightly different due to the file system. If you check some entries in the current folder and move to open a different folder, those entries are automatically unchecked and excluded from the selection list. Contents Copy Specifications Contents MP3 HDD DVD Supported DVD HDD Supported JPEG(photo) Supported Supported DivX Supported Supported Editing

• The disc that has Video recording or has title dubbing from HDD can’t be copied.
• If the disc is finalised through Disc Manager, it can be compatible with PC as a disc with a UDF file system. English - 89 01392C_HR750_XEB-ENG-0418.indd 89 2007-04-18 8:01:07 HDD Q Song 1.mp3 Music List No. Title Changing the name of Music/Photo/DivX file Size

Y ROOT Copy Delete ► 00:00:00 Rename Song 1.mp3 New9Playlist E Playlist ROOT Go To Select All Edit 001 Song 1.mp3

a CHECK HDD Contents eEXIT Rename Back Space Space Clear sSELECT rRETURN HDD Q Dream.mp3 Save eEXIT Music List 1/9 No. Title 00:00:00 9 Dream.mp3 E ROOT Edit Q Dream.mp3

the OK button. Back Space (RED(A) button): Deletes and moves the cursor backwards by one position. Size Y ROOT

1. Press the ▲▼ buttons to select the entry you want to rename, then

press the RED(A) button.

2. Press the ▲▼ buttons to select Rename, then press the OK or

► button. Rename Screen is displayed. Dream mMOVE You can rename a Music, Photo or DivX file copied to HDD. Contents Space (GREEN(B) button): Enters a blank and moves the cursor one forward (to the right). Clear (YELLOW(C) button): Deletes all the character inputs. Save (BLUE(D) button): Registers the character inputs. eEXIT Editing

4. Press the BLUE(D) button to select Save.

The changed file name is displayed on the selected entry. English - 90 01392C_HR750_XEB-ENG-0418.indd 90 2007-04-18 8:01:10 DVD-RAM(VR) Disc Manager Disc Name DVD-VR Used Space 00:17 ( 0.52 GB) Available Space 01:54 SP ( 3.85 GB) Disc Protection Info Not Protected Current Rec. Mode VR-Mode Rename <MOVE Protection Delete All sSELECT rRETURN DVD-RAM(VR) Disc Manager Editing the Disc Name XCV Format eEXIT Rename Follow these instructions to give a name to a disc. DISC–1

The Rename screen is displayed.

A disc name is given to the disc. M You may need to clear Disc Protection beginning editing. Depending on the kind of disc, the displayed screen may be different. DVD-RAM(VR) Disc Manager Disc Name DVD-VR Used Space 00:17 ( 0.52 GB) Available Space 01:54 SP ( 3.85 GB) Disc Protection Info Not Protected Current Rec. Mode VR-Mode Rename <MOVE Protection Delete All sSELECT rRETURN Disc Protection XCV Format eEXIT Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

button. Disc Protection: Not Protected Current Rec. Mode

Protection Delete All sSELECT

• You will be prompted with the confirmation message “Do you want to delete all title lists?”. VR-Mode Yes

1. With the unit in Stop mode, press the MENU button.

3. Press the ▲▼◄► buttons to select Delete All, then press the OK

button. want to Not delete all title lists? Protected Current Rec. Mode <MOVE XCV Format rRETURN eEXIT

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.
• When protected a DVD-RAM/-RW is used, data cannot be deleted from a disc.
• If you select Yes, you will be prompted with the confirmation message “All playlists will also be deleted. Do you want to continue?”.

4. Press the ◄► buttons to select Yes, then press the OK button.

All title lists are deleted. Delete All Title Lists/DivX Lists /Music Lists/Photo Lists HDD Disc Manager Used Space 000:39 Available Space 065:19 XP ( 231.01 GB)

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item. ( 1.68 GB) Select contents to delete all Title

4. Press the ◄► buttons to select the Title, DivX, Music or Photo,

then press the OK button.

5. Press the ◄► buttons to select Yes, then press the OK button.

All title lists, DivX lists, music lists or photo lists are deleted. ( 1.68 GB) 065:19 XP ( 231.01 GB) All playlists will also be deleted. Do you want to continue? Yes

or ► button. Format eEXIT HDD/ DVD-RAM

• You will be prompted with the confirmation message“Current media:½½½ Do you want to format?”.
• If you select Yes, you will be prompted with the confirmation message “All data will be deleted. Do you want to continue?”. DVD-RW
• You will be prompted with the confirmation message “Choose the recording format for DVD-RW.”
• If you select the desired format type, you will be prompted with the confirmation message “All data will be deleted. Do you want to continue?”.

4. Press the ◄► buttons to select Yes, then press the OK button. The

Rename Protection <MOVE Delete All sSELECT Finalise rRETURN You will be prompted with the message “Do you want to finalise disc?”. You will be prompted again with the message “Disc will be finalised. Do you want to continue?”. Disc will be finalised. NottoProtected you want continue? Yes

Disc Protection Info Do Current Rec. Mode

1. With the unit in Stop mode, press the MENU button.

or ► button. you want Not to finalise Protecteddisc? Current Rec. Mode After you record titles onto a DVD-RW/-R disc with your HDD & DVD RECORDER, it needs to be finalised before it can be played back on external devices. Format eEXIT

5. Press the ◄► buttons to select Yes, then press the OK button.

The disc is finalised. M Once a disc is finalised, you cannot delete entries from the record list. After being finalised, the DVD-R/-RW(video mode) operates in the same manner as a DVD-Video. Depending on the disc type, the displayed screen may be different. Finalising time may be different depending on the amount of data recorded on the disc. Data on the disc will be damaged if the recorder is powered off during finalisation process. You can finalise the disc automatically using EZ Record. (See Editing page 29) English - 94 01392C_HR750_XEB-ENG-0418.indd 94 2007-04-18 8:01:19 Unfinalising a Disc (V/VR mode) DVD-RW(VR:F) Disc Manager Disc Name DVD-VR Current Rec. Mode VR-Mode

button. You will be prompted with the message “Do you want to unfinalise disc?”. Do you want to unfinalise disc? Yes

You will be prompted again with the message “Disc will be unfinalised. Do you want to continue?”.

5. Press the ◄► buttons to select Yes, then press the OK button.

The disc is unfinalised. Disc will be unfinalised. Do you want to continue? Yes

Unfinalise <MOVE sSELECT rRETURN Format M A DVD-RW can be finalised or unfinalised in Video mode. eEXIT Finalise Unfinalise Mark DVD-Video(RW) DVD-RW(V) Operation Same as DVD-Video Additional recording, protection and deletion are possible. A DVD-RW can be finalised or unfinalised in VR mode. Finalise Unfinalise Mark DVD-RW(VR:F) DVD-RW(VR) Operation Additional recording, deletion, editing, and protection are impossible. Additional recording, deletion, editing, and protection are possible. Editing English - 95 01392C_HR750_XEB-ENG-0418.indd 95 2007-04-18 8:01:20 Reference icon appears on the screen. Troubleshooting Checkpoint 1 If your product malfunctions, go through the checkpoints below before contacting a Samsung authorised service centre. (1) Your DVD disc restricts it. (2) Your DVD disc does not support this feature (for example: angles) Power (3) The feature is not available at the moment. The input is displayed for a while when the power is turned on. Checkpoint 1 The HDD & DVD RECORDER requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on. (4) You’ve requested a title, chapter, or scan time that is out of range. Play mode settings are different from the settings configured in the Settings menu. Checkpoint 1 Recording Cannot record TV programmes. Checkpoint 1 Check whether the power cord is securely plugged into the power outlet. Checkpoint 2 Did you set the HDD & DVD RECORDER channel settings correctly? Checkpoint 3 Check the free space on your HDD/DVD-RAM/-RW/-R discs. The aspect ratio is fixed for DVD discs. (See page 32) The angle operation does not work while playing a DVD disc. Checkpoint 1 I pressed the REC button but there is no response. Check available disc type. (See page 56) If a programme is copy protected, it cannot be recorded. The angle operation is available only when the disc contains images captured from different angles. The selected audio and/or subtitle language is not played. Checkpoint 1 Playback Cannot play the disc. Checkpoint 1 The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly. Cannot change the aspect ratio. Checkpoint 1 Checkpoint 1 You cannot use this operation or function due to one of the following reasons: Audio and subtitle languages are disc-specific. Only the sound and subtitle languages contained on the DVD disc are available and displayed in the disc menu. Cannot copy title or file to the other mode. Check whether the disc is inserted correctly with the label facing up. Check the regional code of the DVD disc. Checkpoint 3 This HDD & DVD RECORDER cannot play some types of discs. (See pages 7, 36) Checkpoint 1 DVD discs encoded with copy protection can not be copied to HDD. Checkpoint 2 Refer to “Contents Copy Specifications” on page 6 to check if copying is supported. Refer to “V-Mode Compatibility” on page 31 to check if copying is support. Reference Checkpoint 2 English - 96 01392C_HR750_XEB-ENG-0418.indd 96 2007-04-18 8:01:21 Timer recording does not work properly. Video The disc revolves, but no image or bad quality images is displayed. Checkpoint 1 Be sure that the Video Setting is properly set. (See pages 32~34) Checkpoint 2 Check whether there is damage to or any foreign material on your disc. Checkpoint 3 Some low quality discs may not play properly. Checkpoint 4 If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault. Re-check the recording time and the end time settings again. Checkpoint 2 Recording will be cancelled if the power is interrupted due to a power failure or another similar reason while recording. Remote Control Unit Sound No sound. Checkpoint 1 Checkpoint 1 Are you watching a programme in slow or skip mode? If you are playing a programme at a speed other than normal speed, sound will not be heard. (Except for forward search (X 2) in disc.) The remote control doesn’t work. Checkpoint 1 Point the remote control at the remote control sensor on your HDD & DVD RECORDER. Allow for proper distance. Remove obstacles between your HDD & DVD RECORDER and the remote control. Checkpoint 2 Check whether the batteries are drained. Checkpoint 3 Check the TV/DVD selection button setting. Checkpoint 4 Check whether TV control button is selected or not. Other Checkpoint 2 Check the connections and settings. (See pages 21~22, 30~31) Checkpoint 3 Check whether the disc is damaged. Clean the disc, if necessary. Checkpoint 4 Check whether the disc is inserted correctly with the label facing up. I forgot my password for parental supervision. Checkpoint 1 No audio output. Checkpoint 1 Check whether you have selected the correct digital output options in the Audio Output Options menu. (See pages 30~31) Timer lamp flickers. Checkpoint 1 Checkpoint 1 Read the table of contents and then find and read the section describing your problem, follow the instructions given. Checkpoint 2 Plug your HDD &DVD RECORDER off and on. Checkpoint 3 If the problem still persists, contact a nearby Samsung service centre. Check there is enough space in the disc or HDD for recording. Check whether the current disc is recordable or not. Make sure to check before the start time of recording. A recorded disc is played with only the subtitle and the audio signal which were selected during recording. Reference Checkpoint 2 Is it possible to change a subtitle and an audio signal on a recorded disc? Other problems. Timer Recording Checkpoint 1 Press and hold the PROG ( ) buttons on the front panel of the Recorder for more than 5 seconds with no disc in the unit. All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.) English - 97 01392C_HR750_XEB-ENG-0418.indd 97 2007-04-18 8:01:21 Specifications General Input Power requirements 220-240 V AC, 50 Hz Power consumption 32 Watts / 2,9 Watts (Power off) Weight 3,9 Kg Dimensions 430 mm(W) x 300 mm(D) x 59 mm(H) Operating temp. +5 °C to +35 °C Other conditions Keep level when operating. Less than 75% operating humidity Video Composite Video : 1.0 V p-p at 75Ω load, sync negative Audio Max.Audio Input Level : 2 Vrms DV Input IEEE 1394(4p) compatible jack Receivable Channels

Scart Jack AV2 (Scart Ext) Video : Composite, RGB Audio: analogue Audio Analogue output jacks x 2 Optical/Coaxial digital audio output Composite Video : Video output jack x 1 Output Video S-Video output x 1 (Y:1,0Vp-p, C:0,286Vp-p at 75Ω load) Component output x 1 (Y: 1,0Vp-p, Pb: 0,70Vp-p, Pr: 0,70Vp-p at 75Ω load) Recording HDD Capacity Scart Jack AV1 (Scart TV) Video : Composite, RGB Audio: analogue Picture Compression format MPEG-II Audio Compression format Dolby Digital 2ch/256Kbps, MPEG-II Recording Quality EP (about 1,6 Mbps or about 1,2 Mbps) Audio Frequency Response 20 Hz~20 kHz DVD-HR749 DVD-HR750 160 GB Audio Output Reference XP (about 8,5 Mbps), SP (about 4,5 Mbps), LP (about 2,5 Mbps), For DVD discs, audio signals recorded at 96 kHz sampling frequency are converted into and output at 48 kHz. Disc Type DVD AUDIO CD(CD-DA) Analog Audio Output 48 / 96 kHz 44,1 kHz Digital Audio Output 48 kHz 44,1 kHz English - 98 01392C_HR750_XEB-ENG-0418.indd 98 2007-04-18 8:01:22 UNITED KINGDOM This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from: Samsung Electronics U.K. Ltd. Customer Care Centre PO Box 17243 Edinburgh, EH11 4YB United Kingdom Tel : 0870 SAMSUNG (7267864), Fax : 0870 7221127 (United Kingdom) Tel : 0818 717 100, Fax : +44 (0)870 7221127 (Republic of Ireland) Web : www.samsung.com/uk „ WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service

is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced.

2. Samsung’s obligations are limited to the repair or,

at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised

Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty. 01392C_HR750_XEB-ENG-0418.indd 99 REPUBLIC OF IRELAND

4. This product is not considered to be defective

in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured. This warranty will not cover, and no re-imbursement will be made for such adaptation nor any damage which may result.

5. This warranty covers none of the following:

a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear. b) Cost relating to transport, removal or installation of the product. c) Misuse, including the faiure to use this product for its normal purposes or incorrect installation. d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper ventilation or any other cause beyond the control of Samsung.

6. This warranty is valid for any person who legally

acquired possession of the product during the warranty period.

7. The consumers statutory rights in any applicable

national legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty. Unless there is national legislation to the contrary, the rights under this warranty are the consumers sole rights and Samsung, its subsidiaries and distributors shall not be liable for indirect or consequential loss or any damage to records, compact discs, videos or audio taper or any other related equipment or material. SAMSUNG ELECTRONICS (U.K.) LTD. 2007-04-18 8:01:22 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region 01392C_HR750_XEB-ENG-0418.indd 100 Country Customer Care Centre Web Site 2007-04-18 8:01:22 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. English Nederlands 01392C_HR750_XEB-ENG-0418.indd 101 Français AK68-01392C 2007-04-18 8:01:23 Gebruiksaanwijzing DVD-HR749 DVD-HR750 < DVD-HR749 > < DVD-HR750 > www.samsung.com/be English Nederlands Français AK68-01392C Aan de slag Aan de slag BELANGRIJKE OPMERKING Waarschuwing

OM HETRISICO OPELEKTRISCHE SCHOKKEN TE

SHARP 36, 37, 38, 39, 48 ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18 SIEMENS

THOMSON 72, 73, 75 THOMSON ASIA 80, 81 DAEWOO 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 EMERSON

06, 19, 20, 21, 22, 78 LOEWE 06, 69 LOEWE OPTA 06, 57 MAGNAVOX

ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18 SHARP 36, 37, 38, 39, 48 BANG & OLUFSEN

TELEFUNKEN 67, 73, 75, 76 THOMSON 72, 73, 75 DAEWOO 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 EMERSON

06, 19, 20, 21, 22, 78 LOEWE 06, 69 LOEWE OPTA 06, 57 MAGNAVOX

3. BOUTON OPEN/CLOSE

1. DIGITAL AUDIO OUT (OPTICAL)

(REPEAT (REPETER)) Lecture

00:02:22 9 Song 1.mp3 E ROOT Édit Q Song 1.mp3

direct TV. ), bouton STOP (

00:00:00 9 Dream.mp3 E ROOT Édit Q Dream.mp3
