USER MANUAL DVD-HR738 SAMSUNG

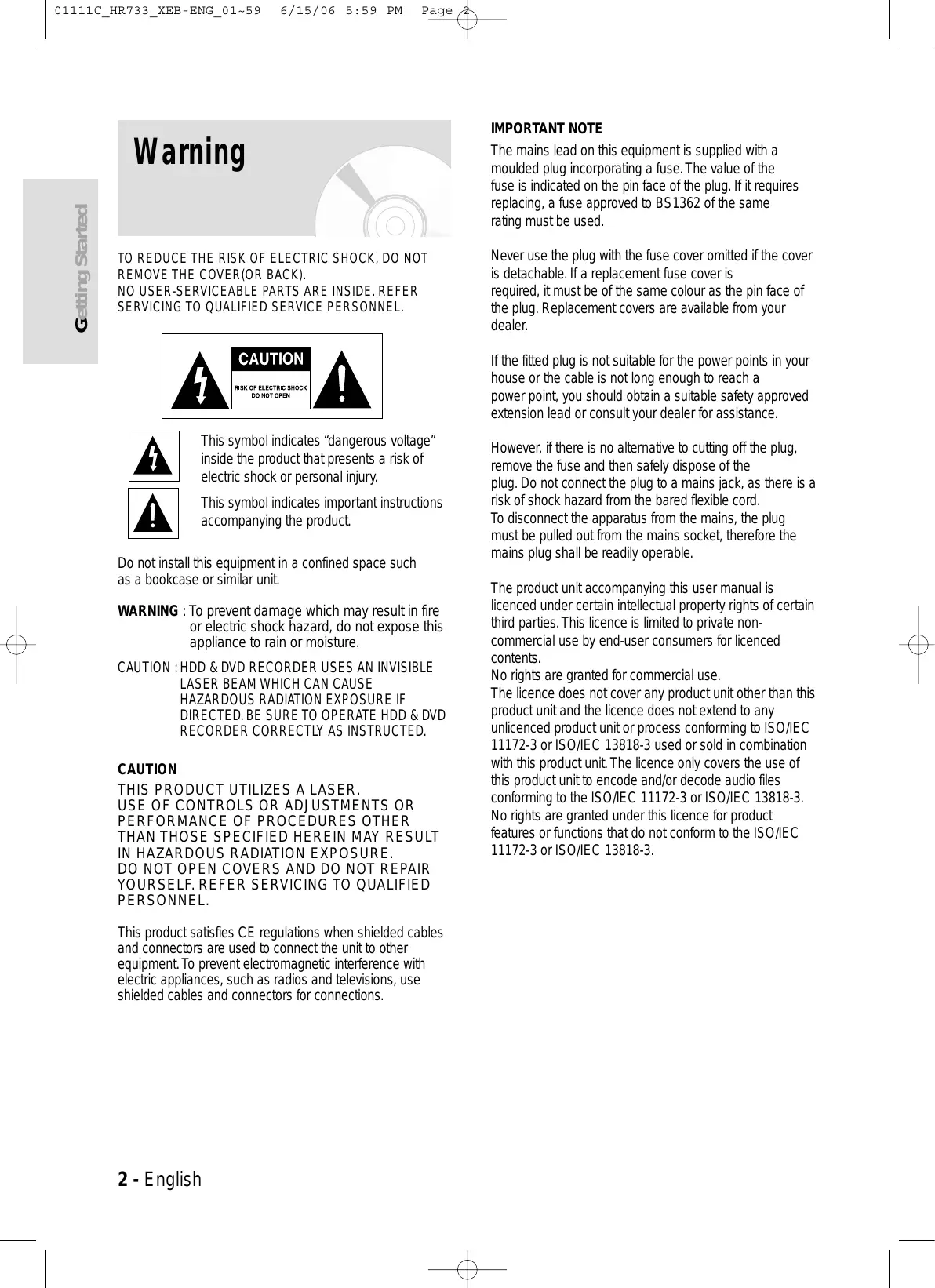

Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. CAUTION : HDD & DVD RECORDER USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE HDD & DVD RECORDER CORRECTLY AS INSTRUCTED. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private noncommercial use by end-user consumers for licenced contents. No rights are granted for commercial use. The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicenced product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

6/15/06 5:59 PM Page 3

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1) 2) 3) 4) 5) 6) 7)

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings, Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Before connecting other components to this HDD & DVD RECORDER, be sure to turn them all off. • Do not move the HDD & DVD RECORDER while a disc is being played, or the disc may be scratched or broken, the HDD & DVD RECORDER internal parts may be damaged. • Do not put a flower vase filled with water or any small metal objects on the HDD & DVD RECORDER. • Be careful not to put your hand into the disc tray. • Do not place anything other than the disc in the disc tray. • Exterior interference such as lightning and static electricity can affect normal operation of this HDD & DVD RECORDER. If this occurs, turn the HDD & DVD RECORDER off and on again with the STANDBY/ON button, or disconnect and then reconnect the AC power cord to the AC power outlet. The HDD & DVD RECORDER will operate normally. • Be sure to remove the disc and turn off the HDD & DVD RECORDER after use. • Disconnect the AC power cord from the AC outlet when you don’t intend to use the HDD & DVD RECORDER for long periods of time. • Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet. • Do not use benzene, thinner, or other solvents for cleaning. • Wipe the cabinet with a soft cloth.

HDD (Hard Disk Drive) The hard disk has a high storage density, which enables long recording durations and quick access to written data. However, it can easily be damaged by shock, vibration or dust and should be kept away from magnets. To avoid losing important data, observe the following precautions. • Do not use the HDD & DVD RECORDER in a place subject to extreme changes in temperature. • Do not apply a strong shock to the HDD & DVD RECORDER. • Do not place the HDD & DVD RECORDER in a location subject to mechanical vibrations or in an unstable location.

Important Safety Instructions

6/15/06 5:59 PM Page 4

• Do not place the HDD & DVD RECORDER on top of a heat source. • Do not disconnect the AC power cord while the power is on. • Do not attempt to change the hard disk. This may result in a malfunction. Should the hard disk be damaged, you cannot recover lost data. The hard disk is only a temporary storage space.

• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.) • Do not use scratch-proof protectors or covers. • Do not use discs printed with label printers available on the market. • Do not load warped or cracked discs.

Disc Storage Disc Handling • Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this HDD & DVD RECORDER may be damaged.

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment. • Do not keep under direct sunlight. • Keep in a cool ventilated area. • Store vertically. • Keep in a clean protection jacket. • If you move your HDD & DVD RECORDER suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again.

• Avoid touching the surface of a disc where recording is performed.

Disc Specifications DVD-RAM, DVD-RW and DVD-R • Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RAM/ -RW/-R discs.

DVD-Video, Audio-CD • Wipe off dirt or contamination on the disc with a soft cloth.

Disc Type DVD-Video • A digital versatile disc (DVD) can contain up to 135minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby digital surrounding, allowing you to enjoy vivid and clear theatre quality images in the comfort of your own home. • When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit. • Once a DVD-RW/-R recorded in Video Mode is finalised, it becomes DVD-Video.

Cautions on handling discs • Do not write on the printed side with a ball-point pen or pencil. • Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.

Audio CD • An audio disc on which 44.1kHz PCM Audio is recorded. • Plays CD-DA format audio CD-R and CD-RW discs. • The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 5

CD-R/-RW DVD-R Disc Playback and Recording • Once a DVD-R recorded in Video Mode is finalised, it becomes DVD-Video. • You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programmes and erasing programmes before finalising. • When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not. • It takes about 30 seconds for the unit to complete recording management information after recording finishes. • This product optimizes the DVD-R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times. • Playback may be impossible in some cases due to the condition of recording. • This unit can play back DVD-R discs recorded and finalised with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

• You cannot play a DVD-RAM in most DVD components due to compatibility issues. • Only DVD-RAM standard Version 2.0. discs can be played in this unit. • For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

Disc Copy Contents Copy Specifications Contents Recorded Video Title Copy Protected Title Copy Once Title

HDD ➞ DVD DVD ➞ HDD Supported Supported Not supported Not supported Move (Deletes the Title in the Not supported HDD after copying)

Once "Copy Once programme" has been recorded on the DVD disc, this title cannot be copied to HDD anymore. But "Copy Once programme" has been recorded on the HDD, this title can be copied to DVD-RW(VR mode). Contents Copy Specifications Contents HDD ➞ DVD or USB DVD ➞ HDD or USB USB ➞ HDD or DVD MP3 Supported Supported Supported JPEG(photo) Supported Supported Supported DivX Supported Supported Supported • Disc(CD-R/ CD-RW/ DVD-R(Finalise)/ DVD-RW(Finalise))➞ HDD or USB • HDD ➞ DVD-R, DVD-RW(V) or USB • USB ➞ HDD or DVD-R, DVD-RW(V) • The disc that has Video recording or has title dubbing

from HDD can’t be copied.

DVD-RW Disc Playback and Recording • Recording and playback can be performed on DVDRW discs in both the Video and VR Modes. • Once a DVD-RW recorded in both the Video and VR Modes is finalised, you cannot perform additional recording.

• PTP USB is not available when you copy to USB. • If the disc is finalised through Disc Manager, it can be

compatible with PC as a disc with a UDF file system.

• Once a DVD-RW recorded in Video Mode is finalised, it becomes DVD-Video. • In both modes, playback can be performed before and after finalisation, but additional recording, deleting and editing can not be performed after finalisation. • If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost. • A DVD-RW blank disc is initialized to VR Mode when first initialized.

• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back. • If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, all recorded files may not play. • Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

COPY PROTECTION • Many DVD discs are encoded with copy protection. Because of this, you should only connect your HDD & DVD RECORDER directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. • This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Protection This HDD & DVD RECORDER can allow you to protect the contents of your discs, as described below. • Programme-protected: See page 92 “Locking(Protecting) a Title” • Disc-protected: See page 116 “Disc Protection” ❋ DVD-RW/-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product. ❋ For more information on DVD recording compatibility, consult your DVD-RW/-R manufacturer. ❋ Use of poor quality DVD-RW/-R discs may cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the HDD & DVD RECORDER.

Disc Format Using MP3 disc • CD-R/-RW, DVD-RAM/-RW/-R, HDD with MP3 files recorded with UDF, ISO9660 or JOLIET format can be playbacked. • Only MP3 files with the “.mp3” or “.MP3” extension can be played. • For MP3 files recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in out. • Playable bit-rate range is from 56 Kbps to 320 Kbps. • The unit can handle a maximum of 500 files and 100 sub folders under a folder.

Using JPEG disc • CD-R/-RW, DVD-RAM/-RW/-R recorded with UDF, ISO9660 or JOLIET format can be playbacked. • Only JPEG files with the “.jpg” or “.JPG” extension can be displayed. • The unit can handle a maximum of 500 files and 100 sub folders under a folder. • MOTION JPEG and progressive JPEG are not supported.

Using MPEG4 disc • Disc : CD-R/-RW, DVD-RAM/-RW/-R • MPEG4(DivX) File with following extensions can be played. : .avi, .divx, .AVI, .DIVX • DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC) • DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, Windows Media Audio, LPCM, AC3 • Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass • The unit can handle a maximum of 500 files and 100 sub folders under a folder.

DVD-RW (VR) • This is a format that is used for recording data on a DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc. • A disc that is recorded in this mode may not be played by existing HDD & DVD RECORDER.

DVD-RW (V)/-R • This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by existing HDD & DVD RECORDER once it has been finalised. • If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been finalised, it cannot be played or additionally be recorded by this HDD & DVD RECORDER.

Do not use the following discs! • LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note] Disc types that can be played : CD/CD-R/-RW/ MP3/JPEG/DVD-Video/DVD-RAM/-RW-R. For a DVD-RW/-R disc, which has been recorded in Video Mode on another component, it can play only when finalised. • Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.” will be displayed. • If your DVD-RW disc is an illegal copy or is not in DVD video format, it may also not be playable.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 7

Disc compatibility • High Speed Recording discs can be used in this unit. • Not all brands of discs will be compatible with this unit.

• The USB host port acts as the one of desktop or laptop computer. ✻ This product is compatible with mass storage devices(removable storage devices) and PTP devices (such as digital still cameras) • The USB host port provides USB2.0 connectivity and also backward compatibility with USB1.1 (USB1.0) devices. • Supported devices at host port ✻ Mass Storage Devices ✔ Digital Still Camera (in PC or Normal mode among USB connection modes) ✔ MP3 Player ✔ Memory Stick ✔ Card Reader (One or Multi-slot Card Reader) ✔ External Hard Disk Drive ✔ Others removable storage devices. ✻ PTP (Picture Transfer Protocol) devices ✔ Digital Still Camera (in PTP mode among USB connection modes) • This product supports FAT16/32 file systems • This product supports up to maximum 4 partitions • Notice (Caution) ✻ If you happen to use a bad quality USB cable, the USB device might not be recognized. ✻ The compatibility with MP3 players is somewhat restricted. ✔ This product can playback only mp3 format contents. ✔ This product does not support the audio contents encrypted by DRM (Digital Right Management) ✻ Either USB hub device or hub extension connectivity is not supported ✻ There are awfully lots of kinds of USB devices. Some of the USB devices mentioned above might not be compatible with this product. In other words, the USB host function of this product does not guarantee the compatibility with all of USB devices. ✻ This product supports both the high and full speed USB devices. (Does not support Low speed device) • TPL (Target Peripheral List) Since this product is not a Windows XP but a embedded USB host system, naturally the supported USB devices cannot help being limited. The USB host functionality and compatibility of this product have been proved with following items. (Except these items, we expect lots of other USB devices will work well with this product)

DSC ( Digital Still Camera)

Brand YP-T6, YH-820, YP-T8N, YP-T7, YP-F2 ipod video, ipod nono, ipod shuffle H10, U10 NW-A1000

Compatible Printers at device port • This product is compatible with PictBridge-supporting printers. ✻ PictBridge logo certified. ✻ Do not connect to other USB host such as PC • The USB device port provides USB2.0 connectivity and also backward compatibility with USB1.1 (USB1.0) printers. • The USB device functionality and compatibility of this product have been proved with following items. (Except these items , we expect lots of other PictBridge USB printers will work well with this product)

Compatible USB devices at host port

01111C_HR733_XEB-ENG_01~59

Connecting HDMI/DVI to a TV (HR738 Only) 24

Case 1 : Connecting to a TV with HDMI Jack 24 Case 2 : Connecting to a TV with DVI Jack 24

Connecting to AV 3 IN, DV input jack26

Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV3 IN jacks26 Case 2 : Connecting a Camcorder to the DV IN jack 26

Case 1 : Connecting to PictBridge-supporting printer 27 Case 2 :Connecting a USB memory, MP3 player, Digital Camera to the USB port27

Copying Title List106 About the Copy Screen106 Copying from HDD to DVD106 Changing the Record Mode 109 Copying from DVD to HDD109

Copying MP3, JPEG or Divx111 About the Copy Screen111 File Copy111 Folder Copy 113

Disc Manager 115 Editing the Disc Name 115 Disc Protection 116 Formatting a Disc 116 Delete All Title Lists/DivX List/Music Lists/Photo Lists ...117 Delete All Title Lists118 Finalising a Disc 119 Unfinalising a Disc (V/VR mode)120

Recording Before Recording76 Recording the current TV programme you are watching78 Recording from external equipment you are watching80 Copying from a Camcorder81 Making a One Touch Recording (OTR)82 Simultaneous Recording and Playback83 Making a Timer Recording 84 Editing the Scheduled List86 Deleting a Scheduled List 87 Go To Recorded List88

Reference Troubleshooting 121 Specifications 125

Editing Basic Editing (Title List) 91 Renaming(Labeling) a Title91 Locking (Protecting) a Title 92 Deleting a Title93 Splitting a Section of a Title (Split)94 Deleting a Section of a Title (Partial Delete)95

Advanced Editing (Playlist)97 Creating a Playlist97 Playing Entries in the Playlist99 Renaming a Playlist Entry99 Editing a Scene for the Playlist100 Deleting a Playlist Entry from the Playlist 105

Creating a DVD video title using DVD-RW/-R disc With the HDD & DVD RECORDER, you can create your own DVD Video titles on 4.7 GB DVD-RW/-R discs.

Copying data from a digital camcorder using a DV input jack The HDD(Hard Disk Drive) & DVD RECORDER allows you to record and play high quality digital video on DVDRW/-R discs or on the HDD. You can also edit digital images on DVD-RW discs or HDD.

HDD Recording • DVD-HR733 You can record up to 127 hours of video (in EP mode) on the internal 80 GB (gigabyte) hard disk (HDD).

Record DV Device video onto HDD and DVD-RW/-R discs using the DV input jack (IEEE 1394-4pin/4pin). (See page 81)

High quality progressive scan Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest image playback and recording quality. (See pages 42~44)

• DVD-HR738 You can record up to 429 hours of video (in EP mode) on the internal 250 GB (gigabyte) hard disk (HDD).

A variety of functions with an easy-to-use user interface

With both recordable DVD and a high-capacity HDD in the same recorder, you have the flexibility to keep recordings on the HDD for quick access anytime, or record to DVD for archiving or playing on other DVD players.

The integrated menu system allows you to perform desired operations both easily and conveniently. With a HDD, DVD-RW disc, you can edit recorded video, create a playlist, edit video in a specific sequence according to your requirements.

Copy between HDD and DVD You can copy recordings from the HDD to recordable DVD, or from DVD to the HDD. Usually you can use the high speed copy feature. You can also choose to copy material at a different recording quality from the original. For example, you might want to copy at XP mode (highest quality) recording on the HDD to SP (standard play) quality on a DVD so that you can fit other recordings on the same disc.

Simultaneous Recording and Playback Playback and recording for both the DVD and the built-in hard disk drive (HDD) are completely independent. For example you can record a broadcast programme to either a recordable DVD or the HDD, while watching another recording you already made on the same DVD or on the HDD.

High quality digital audio and video recording and playback Record up to 8-hours of video with a 4.7 GB DVD-RW/-R disc, depending on the recording mode.

Selectable Recording Mode You can set your HDD & DVD RECORDER to one of four different recording speeds, each varying in recording quality and length. EP (6Hr or 8Hr) mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, XP mode gives you the highest quality recording.

Automated Quality Adjustment for Timer Recording If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 85)

MPEG4 playback This HDD & DVD RECORDER can play MPEG4 formats within an avi file.

DivX Certification DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under licence.

HDMI (High Definition Multimedia Interface) (HR738 Only) HDMI reduces picture noise by allowing a pure digital video/audio signal path from the HDD & DVD RECORDER to your TV. This HDD & DVD RECORDER only supports 576p.

USB Interface for Data Transfer You can transfer JPEG, MP3 and DivX file of the MP3 player, USB memory or digital camera to a HDD & DVD RECORDER using the USB interface. You can also copy JPEG, MP3 and DivX file of the HDD & DVD RECORDER to MP3 player, USB memory or digital camera using the USB interface.

Printing with PictBridge When you connect the HDD & DVD RECORDER to a PictBridge-supported printer using a USB cable, you can print your stored pictures without a PC. (See page 73)

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 11

©2006 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual Icon

HDD & DVD RECORDER Term

HDD This involves a function available on the HDD.

DVD This involves a function available on DVD or DVD-R/DVD-RW discs that have been recorded and finalised in Video Mode.

RAM This involves a function available on DVD-RAM.

RW This involves a function available on DVD-RW.

R This involves a function available on DVD-R.

CD This involves a function available on a data CD (CD-R or CD-RW).

Unlike a VCR, the HDD & DVD RECORDER automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

This involves a case where a function does not operate or settings may be cancelled.

NOTE This involves tips or instructions on the page that help each function operate.

One-Touch A function that can be operated button by using only one button. ANYKEY A function that can be operated button by using ANYKEY button.

USB This involves a function available on USB.

Select the disc type or HDD This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW type disc. If you want to save a recording without any changes, choose a nonrewritable DVD-R. You can record files directly to the built-in HDD or edit a recorded file.

Format the disc to start recording

Using the HDD Formatting unneccessory.

Using a DVD-RW This type of disc can be formatted in either DVD-Video format (V mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to initialize a disc or not. If you select “Yes”, disc will be formatted in VR mode. You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing.

Using a DVD-R Formatting disc is unnecessary and only V Mode Recording is supported. You can play these type of discs on various DVD components only when they have been finalised.

About the use of this user’s manual 1) Be sure to be familiar with Safety Instructions before using this product. (See pages 2~7) 2) If a problem occurs, check the Troubleshooting. (See pages 121~124)

Before Reading the User’s Manual

You can only use either the VR or Video mode on a DVD-RW, but not both at the same time. You can change the DVD-RW to format to another format by reinitializing. It should be noted that the disc's data will be lost when changing formats.

Editing a recorded disc

Editing on discs is easier than conventional video tapes. The HDD & DVD RECORDER supports many different edit functions, possible only with DVDs and HDD. With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as follows: Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the recording mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc.

Creating a playlist (DVD-RW in VR mode, HDD) With this HDD & DVD RECORDER, you can create a new playlist on a disc and edit it without the original, pre-existing recording.

Finalising & Playing on other DVD components

To play your DVD on other DVD components, finalising may be necessary. First, finish all editing and recording operations, then finalise the disc.

When using a DVD-RW disc in VR Mode

You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections, called titles, and subsections, called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in Video mode. The chapter’s length (interval between chapters) varies according to the recording mode.

DVD discs recorded in VR mode can only be played back in DVD recorders, not players.

When using a DVD-RW disc in Video Mode The disc should be finalised first to enable playback on anything other than this HDD & DVD RECORDER. No more editing or recording can be made on the disc once it has been finalised. To enable recording on the disc again, the disc must be unfinalised.

When using a DVD-R disc You should finalise the disc to play it on a component other than this HDD & DVD RECORDER.You cannot edit or record on the disc once it has been finalised.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 13

Unpacking Setting the Remote Control

Check for the supplied accessories below. You can control certain functions of another manufacturer’s TV with this remote control. Control function buttons involve: TV STANDBY/ON, PROG , VOL + –, Number buttons, TV MUTE, INPUT SEL. button. Video/Audio Cable

RF Cable for TV Batteries for Remote Control (AAA Size)

USB Cable HDMI Cable (HR738 only)

Preparing the Remote Control Install Batteries in the Remote Control • Open the battery cover on the back of the remote control. • Insert two AAA batteries. Make sure that the polarities (+ and –) are aligned correctly. • Replace the battery cover. If the remote does not operate properly: • Check the polarity + – of the batteries (Dry-Cell) • Check if the batteries are drained. • Check if remote sensor is blocked by obstacles. • Check if there is any fluorescent lighting nearby. Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

BUTTON 01, 02, 03, 04, 05, 06, 07, 08, 09 82 10, 11, 12, 13, 14, 15, 16, 17, 18 57 71 73 57 52 75 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 64 73 06, 49, 57 57 84 70 49, 52, 71 60, 72, 73, 75 52 61, 79 06, 19, 20, 21, 22, 78 06, 69 06, 57 40 57 06, 48, 62, 65 52, 77 83 68 66 74 72, 73, 75 53, 54, 74, 75 06, 55, 56, 57 06, 56, 57 58, 59, 73, 74 06, 56 57 45, 46 74 57, 72, 73, 74, 75 74 41, 42, 43, 44, 48 06

BRAND SELECO SHARP SIEMENS SINGER SINUDYNE SONY TELEAVA TELEFUNKEN THOMSON THOMSON ASIA TOSHIBA WEGA YOKO ZENITH BUTTON 74 36, 37, 38, 39, 48 71 57 57 35, 48 73 67, 73, 75, 76 72, 73, 75 80, 81 47, 48, 49, 50, 51, 52 57 06 63

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control. ■

If several codes are indicated for your television brand, try each one in turn until you find one that works.

If you replace the remote control's batteries, you must set the brand code again.

NOTE Then you can control the television using the following buttons after pressing the TV button.

Button TV STANDBY/ON INPUT SEL. VOL (+ –) PROG ( ) TV MUTE Number

NOTE Function Used to switch the television on and off. Used to select an external source. Used to adjust the volume of the television. Used to select the desired channel. Used to toggle the sound on and off. Used to input number directly.

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 15

Description Getting Started

Front Panel < DVD-HR733 >

1. STANDBY/ON BUTTON Turns the HDD & DVD RECORDER on and off. 2. DISC TRAY Opens to accept a disc. 3. OPEN/CLOSE BUTTON Opens and closes the disc tray. 4. DISPLAY Displays the playing status, time, etc. 5. STOP BUTTON Stops disc playback. 6. PLAY/PAUSE BUTTON Plays a disc or pauses playback. 7. AV 3 INPUT Connect external equipment. 8. DV-INPUT Connect external digital equipment with a DV jack. (such as a camcorder) 9. USB HOST Connect digital still camera, MP3 player, memory stick, Card reader, externl HDD or other removable storage devices.

10. USB DEVICE Connect the PictBridge-supporting printer using a USB cable. 11. P.SCAN BUTTON Selects the progressive scan mode. 12. DVD BUTTON Select DVD mode. 13. HDD BUTTON Select HDD mode. 14. PROG BUTTONS Select TV preset Channels. Same as PROG button on the remote control. 15. REC BUTTON Starts recording. 16. SEARCH/SKIP BUTTONS Goes to the next title/chapter/track or goes back to the previous title/chapter/track.

Fan The fan always revolves when the power is on. Ensure a minimum of 10cm clear space on all sides of the fan when installing the product.

1. DIGITAL AUDIO OUT(OPTICAL) Connects to an amplifier having a digital optical audio input jack.

6. COMPONENT VIDEO OUT Connects to equipment having Component video input.

2. DIGITAL AUDIO OUT(COAXIAL) Connects to an amplifier having a digital coaxial audio input jack.

7. AV1(TV) OUTPUT SCART Connector 8. AV2(EXT) INPUT SCART Connector

3. AUDIO OUT Connects to the audio input of external equipment using audio cables.

In from aerial connector Out to TV connector

Connects the input of external equipment using a Video cable. 5. S-VIDEO OUT

Connects the input of external equipment using an S-Video cable.

NOTE The Antenna connection does not pass the output signal of the DVD. To watch DVD/HDD playback your TV, you must connect audio/video or Scart cables.

Front Panel Display 1. Lights when a disc is loaded. 2. Lights in the record mode. 3. Lights when a HDD/DVD is selected. 4. Lights when a -R/RW/RAM disc is loaded. 5. Playing time/clock/current status indicator. 6. Lights in the progressive scan mode. 7. Lights to indicate the timer record mode.

15. ANYKEY Button Allows access to common functions of the recorder. 16. SUBTITLE Button Press this to switch the DVD’s subtitle language. 17. REC Button Use to make a recording on HDD/DVD-RW/-R discs. 18. REC PAUSE Button Use this to pause during recording.

23. OPEN/CLOSE Button To open and close the disc tray. 24. CM SKIP Button When a programme recorded on DVD disc or HDD is played, the unit can be set to automatically skip a portion of the programme. 25. PLAY/PAUSE Button Press to play/pause a disc. 26. PROG Button Use this to select a TV programme.

TV Button Press this to operate TV.

DVD Button Press this to operate DVD.

REVERSE/FORWARD SKIP Buttons Press to skip backwards or forwards.

REVERSE/FORWARD STEP Buttons Each time this button is pressed, a new frame will appear.

REVERSE/FORWARD SEARCH Buttons Press to search a disc backwards or forwards.

STOP Button Press to stop a disc.

10. VOL Button TV volume adjustment 11. MENU Button Brings up the HDD & DVD RECORDER’s setup menu.

27. TV MUTE/AUDIO Button In TV mode, this operates as sound mute. Use this to access various audio functions on a disc (DVD mode). 28. RETURN Button 29. PLAY LIST/TITLE MENU Button Use this to return to the Title menu, or to view the recorded files list. 30. CANCEL Button 31. USB Button Press this to operate USB. 32. REPEAT Button Allows you to repeat a title, chapter, track or disc. 33. TIMER Button Press to directly enter the Timer Recording Mode menu. 34. REC MODE Button Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP). 35. MARKER Button Use this to bookmark a position while playing a disc.

6/15/06 5:59 PM Page 18

Connecting & Setting Up

Connecting & Setting Up This section involves various methods of connecting the HDD & DVD RECORDER to other external components and required initial setting modes.

Quick Overview A Quick Overview presented in this guide will give you enough information to start using the HDD & DVD RECORDER.

Connecting the HDD & DVD RECORDER

† Additional connections

† Antenna + HDD & DVD RECORDER + External decoder box + TV

† Other type of connecting the Video output cable

† Other type of connecting the Audio output cable

† Connecting to HDMI/DVI to a TV (HR738 Only)

† Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Connecting the HDD & DVD RECORDER . . . . . . . .19 Additional connections . . . . . . . . . . . . . . . . . . . . . . .19 Antenna + HDD & DVD RECORDER + External decoder box + TV . . . . . . . . . . . . . . . . . . . .20 Other type of connecting the Video output cable . . . .20 Other type of connecting the Audio output cable . . . .22 Connecting to HDMI/DVI to a TV (HR738 Only) . . . .24 Connecting to AV 3 IN, DV input jack . . . . . . . . . . . .26 Connecting to USB Devices . . . . . . . . . . . . . . . . . . .27

Connecting to AV 3 IN, DV input jack

† Connecting to USB Devices

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 19

Additional connections

You can connect your HDD & DVD RECORDER to the television using the SCART cable if the appropriate input is available on the television. 1. Connect the RF cable as shown. 2. Connect one end of the SCART cable to the AV1 socket on the rear of the HDD & DVD RECORDER. 3. Plug the other end into the appropriate connector on the television. 4. Plug in the HDD & DVD RECORDER and TV 5. Turn on the HDD & DVD RECORDER and TV. 6. Press the INPUT SEL. button on your TV remote control until the Video signal from the HDD & DVD RECORDER appears on the TV screen.

You can connect your HDD & DVD RECORDER to a satellite or digital tuner.

external device (VCR/Satellite receiver)

< DVD-HR733 > < DVD-HR733 >

The RF cable connection of this product sends only signals of TV. You must connect SCART cable or Audio/Video cables to watch a DVD from your HDD & DVD RECORDER. TV mode : Press the TV/DVD button on remote control, then “TV” appear on Front LED display (or turn off HDD & DVD RECORDER). Then you can watch programmes received through TV.

- DVD mode 1. Connect the AV2 connector of HDD & DVD RECORDER and VCR/Satellite receiver or digital tuner using a SCART cable. 2. Connect the AV1 connector to the SCART AV connector on TV. 3. Turn on the HDD & DVD RECORDER, VCR/Satellite receiver or digital tuner and TV. 4. Set Input mode on AV2. - TV mode 1. Press the TV/DVD button on remote control,then “TV” appear on Front LED display. (or turn off HDD & DVD RECORDER.) 2. You can watch programmes from a satellite or digital tuner connected to this HDD & DVD RECORDER, even when the HDD & DVD RECORDER is turned off.

Connecting & Setting Up

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 20

Connecting & Setting Up

Antenna + HDD & DVD RECORDER + External decoder box + TV If you connect external decoder box to HDD & DVD RECORDER, you can record scrambled channels (CANAL+or Premiere broadcasts) received through the built-in TV tuner in HDD & DVD RECORDER.

There are several ways to output video signal not using scart cables. Select one of the following video connecting that best suits you below. • Case 1 : Connecting to a Video (Composite) output jack • Case 2 : Connecting to an S-Video output jack • Case 3 : Component Video output jacks

S-Video, Component video and Progressive Output Modes

1. Connect RF antenna cables as shown. 2. Connect the AV1 connector on this recorder to the SCART AV connector on TV using a SCART cable. 3. Connect the AV2 connector to a SCART AV connector on decoder box. 4. To watch or record PAY-TV Canal Plus programmes, set your HDD & DVD RECORDER to receive the channels using the on-screen display. (Refer to pages 31~33)

Other type of connecting the Video output cable

• S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings. • Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flickerfree, clear image than interlaced video. This is only available with TVs that support progressive scan. • Progressive Scan Output (576p) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture, in case of 576 progressive scan picture problems, It is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding our TV set compatibility with this model 576p HDD & DVD RECORDER, please contact our customer service centre.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 21

Case 1 : Connecting to a Video (Composite) output jack

Case 2 : Connecting to an S-Video output jack 1. Connect an S-Video cable (not included) between the S-VIDEO OUT jack on HDD & DVD RECORDER and S-VIDEO INPUT jack on your TV (or AV amplifier). • You will enjoy high quality images.

2. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23)

2. Connect audio cables (white and red) between the AUDIO OUT jacks on HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23)

< DVD-HR733 > < DVD-HR733 >

Connecting & Setting Up

1. Connect a video(yellow) cable between the VIDEO (yellow) OUT jack on HDD & DVD RECORDER and VIDEO (yellow) INPUT jack on your TV (or AV amplifier). • You will enjoy regular quality images.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 22

Case 3 : Component Video output jacks 1. Connect Component video cables(not supplied) between the COMPONENT OUT(Y,PB,PR) jacks on HDD & DVD RECORDER and COMPONENT IN(Y,PB,PR) jacks on your TV.

Connecting & Setting Up

• You will enjoy high quality and accurate colour reproduction images. 2. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23).

Other type of connecting the Audio output cable There are several ways to output audio signal not using scart cables. Select the audio connection that best suits you below. • Case 1 : Connecting to your TV • Case 2 : Connecting to a stereo amplifier with AV output jacks • Case 3 : Connecting to an AV amplifier with a digital output jack

3. After connecting, refer to the pages 42~44. Manufactured under licence from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theatre System, Inc.

Case 1 : Connecting to your TV If your TV has audio input jacks, use this connection.

Progressive setting is only available when the Video Out is set to Component. (See pages 42~44)

Make sure that the colour coded connections match. The Y, PB, PR component output jacks of your HDD & DVD RECORDER must be connected to the exact corresponding component input jacks on your TV.

Case 2 : Connecting to a stereo amplifier with AV output jacks If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

Case 3: Connecting to an AV amplifier with a digital output jack If your AV amplifier has a Dolby Digital, MPEG2 or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings. According to your amplifier, connect to an optical cable or a coaxial cable.(See pages 39~40)

Connecting & Setting Up

6/15/06 5:59 PM Page 24

Connecting HDMI/ DVI to a TV (HR738 Only)

Connecting & Setting Up

If your TV has a HDMI/DVI input, connect HDMI/DVI Adapter cable to a TV. You will enjoy the best quality images and sounds. • Case 1 : Connecting to a TV with HDMI Jack • Case 2 : Connecting to a TV with DVI Jack

Case 1 : Connecting to a TV with HDMI Jack

Case 2 : Connecting to a TV with DVI Jack • Using the DVI Adapter Cable(not supplied), connect the HDMI OUT jack on the rear of the HDD & DVD RECORDER to the DVI IN jack of your TV. • Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the HDD & DVD RECORDER to the AUDIO (red and white) IN jacks of your TV. Turn on the HDD & DVD RECORDER and TV. • Press the input selector on your TV remote control until the DVI signal from the HDD & DVD RECORDER appears on your TV screen.

• Using the HDMI cable connect the HDMI OUT jack on the rear of the HDD & DVD RECORDER to the HDMI IN jack of your TV. • Press the input selector on your TV remote control until the HDMI signal from the HDD & DVD RECORDER appears on your TV screen.

To use HDMI cable, make the Audio/Video connection before plugging in the power cord or after finishing the “Plug & Auto Setup.” Do not connect the HDMI cable while the “Plug & Auto Setup” is progressing.

Progressive scan automatically activates when HDMI is connected.

If your TV does not have Bitstream decoder, you must set the digital audio output to PCM in order to watch through the HDMI output. (See pages 39~40)

Depending on the HDMI device (TV/HDMI Receiver) you use, audio may not be supported. If TV/HDMI Receiver does not support Dolby digital, Audio output is not available when you set Digital output as 'Bitstream' in Audio setup menu. In this case, set the digital audio output to PCM. If TV/HDMI Receiver does not support DTS, Audio output is not available when you play disc in DTS format.

You can switch from the HDMI output to other output only in stop mode.

HDMI (High Definition Multimedia Interface) HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Since HDMI is based on DVI, it is completely compatible with DVI. The only difference between HDMI and DVI is that HDMI supports multi-channel audio. Using HDMI, the HDD & DVD RECORDER transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

HDMI connection description

What is the HDCP? HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data). - Though the HDD & DVD RECORDER uses a HDMI cable, the HDD & DVD RECORDER outputs only a pure digital signal to the TV. - If TV does not support HDCP (High -bandwidth Digital Content Protection), snow noise appears on the screen.

Connecting & Setting Up

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the HDD & DVD RECORDER) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the HDD & DVD RECORDER to your TV.

NOTE Why does Samsung use HDMI?

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 26

Connecting & Setting Up

Connecting to AV 3 IN, DV input jack

Case 2 : Connecting a Camcorder to the DV IN jack If your digital camcorder has a DV output jack, connect it to the DV input jack of your HDD & DVD RECORDER.

This allows you to connect your HDD & DVD RECORDER to other external devices and view or record their outputs.

• Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV3 IN jacks • Case2 : Connecting a DV Device to the DV IN jack Camcorder

Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV3 IN jacks Connecting a VCR or external device to AV3 IN jacks of the HDD & DVD RECORDER. You can record from connected equipment (VCR, STB, DVD player or Camcorder). ■

AV 3 in selection will be automatically done. If the input is not selected automatically, use INPUT SEL. button to select proper input.

Copy protected content cannot be recorded.

6/15/06 5:59 PM Page 27

Connecting to USB Devices This allows you to connect your HDD & DVD RECORDER to USB devices and print or copy files.

Connecting a USB memory or other USB device to USB HOST of the HDD & DVD RECORDER. You can transfer JPEG, MP3 and DivX file of the MP3 player, USB memory or digital camera to a HDD & DVD RECORDER using the USB interface. You can also copy JPEG, MP3 and DivX file of the HDD & DVD RECORDER to MP3 player, USB memory or digital camera using the USB interface. (See pages 111~114)

Case 1 : Connecting to PictBridgesupporting printer Connect the USB cable between the USB DEVICE on HDD & DVD RECORDER and USB port on printer. You can print your photo images directly without connecting to a PC. (See page 73) MP3 Player

Disconnecting the USB cable during the data transfer will stop the communication and may damage data stored in the memory.

When data communication is disrupted due to static electricity, magnetic field or other reason, restart the programme or try to disconnect / connect the USB Cable again.

For printing information, refer to the User's manual of the printer.

Depending on the printer, printing failure may occur.

Connecting & Setting Up

• Case 1 : Connecting to PictBridge-supporting printer • Case 2 : Connecting a USB memory, MP3 player, Digital Camera to the USB port.

Case 2 : Connecting a USB memory, MP3 player, Digital Camera to the USB port.

01111C_HR733_XEB-ENG_01~59

6/15/06 5:59 PM Page 28

On-Screen Menu Navigation The on-screen menus allow you to enable or disable various functions on your HDD & DVD RECORDER. Use the following buttons to open and navigate through the on-screen menus.

HDD & DVD RECORDER Library

HDD Library Library Disc Manager Programme

SELECT RETURN EXIT Press this button on the remote control to open the on-screen menu. Press again to exit the on-screen menu.

On-Screen Menu Navigation . . . . . . . . . . . . . . . . . . . . .28 Plug & Auto Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Presetting Channels with the Auto Setup function . . . . .31

Press these buttons on the remote control to move the selection bar …†œ √ to cycle through the menu options.

Presetting Channels with the Manual Setup function . . .32 Setting up the Language Options . . . . . . . . . . . . . . . . . .33 Auto Power Off Setting . . . . . . . . . . . . . . . . . . . . . . . . . .34

Press this button on the remote control to confirm any new settings.

Setting up the Quick Recording Options . . . . . . . . . . . .35 Automatic Chapter Creator . . . . . . . . . . . . . . . . . . . . . . .36 DivX(R) Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 CM Skip Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . .37 EP Mode Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . .38 Setting up the Audio Options . . . . . . . . . . . . . . . . . . . . .39 Setting up the Video display Options . . . . . . . . . . . . . . .41 Setting up Video Output Options . . . . . . . . . . . . . . . . . .42 Setting up the Progressive scan . . . . . . . . . . . . . . . . . . .42 Canceling the Progressive scan . . . . . . . . . . . . . . . . . . .43 Setting up the Parental Lock . . . . . . . . . . . . . . . . . . . . .44

Press this button on the remote control to return to the Previous menu screen displayed or to exit the on-screen menu.

Select “Country” using the …† œ √ buttons to select your country.

Your HDD & DVD RECORDER will automatically set itself up when it is plugged in for the first time. TV stations and clock will be stored in memory. The process takes a few minutes. Your HDD & DVD RECORDER will then be ready for use.

Connect the RF cable as indicated on page 19. (Connecting Your HDD & DVD RECORDER to the TV Using the RF Cable and scart cable.)

Plug the HDD & DVD RECORDER into the mains. “AUTO” in the front panel display flickers.

N TR FIN P GR D E HU

• Refer to following abbreviation table when selecting “Country”. A(Austria) B(Belgium) DK(Denmark) FIN(Finland) D(Deutschland)

NL(Netherlands) I(Italy) N(Norway) P(Portugal) E(Spain)

S(Sweden) PL(Poland) CH(Swiss) CZ (Czech) TR(Turkey) Others GR(Greece) HU(Hungary)

• The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected.

Auto channel scan will be started.

Auto Setup Please wait. 68%

Press a number button to select the language.

• The number of stations automatically stored by the Press

HDD & DVD RECORDER depends on the number of stations that it has found.

After auto channel scan is completed, auto clock setting will be started automatically in 10 seconds. If you want to start auto clock setting immediately, press OK button. If you do not want to do auto clock setting, press CANCEL or MENU button.

Press the OK button to start the auto setup.

Auto channel scan completed successfully. Press the [OK] button to auto clock set.

Auto setup will be started.

(HR738 Only) To use HDMI cable, make the Audio/Video connection before plugging in the power cord or after finishing the “Plug & Auto Setup.” Do not connect the HDMI cable while the “Plug & Auto Setup” is progressing.

6/15/06 5:59 PM Page 30

Wait until current date and time are displayed automatically. If you want to exit auto clock setting, press MENU button.

Please wait. Now setting the clock. If you want to exit clock setting, press the [MENU] button.

Setting the Clock This menu is used to set the current time. You need to set the time to use timer recording.

With the unit in Stop mode, press the MENU button.

HDD & DVD RECORDER Check the date and time.

• if it is : Correct, press OK button then the date and time will be saved. If you don't press the OK button, the date and time will be saved automatically after 5 seconds.

• if it is : Incorrect, input correct Month, Day, Year, Hour or Minute using …†œ √ buttons or number buttons. Press OK button then the date and time will be saved. When you need to change clock setting, you can set up it manually.

Now, HDD & DVD RECORDER is ready for use. Function for “Plug & Auto Setup” is fixed already. So if you want to change this fixed one, you can change it by Presetting the Stations in OSD “Presetting Channels with the Manual Setup function” menu. (See page 32~33) Auto setup function can be performed by pressing STOP ( ) on the unit continuously for 5 seconds or more during power off with no disc inserted.

Press the …† buttons to select Clock Set, then press the OK or √ button. Press the …†œ √ buttons to input Month, Day, Year, Hour or Minute. Press the number buttons to input clock data directly. The day of the week is displayed automatically.

HDD & DVD RECORDER Clock Set

HDD Presetting Channels with the Auto Setup function This feature allows you to manually set the HDD & DVD RECORDER tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

Library Disc Manager

Press the …† buttons to select On for the Auto Clock.

Press the OK button, then the date and time will be saved. If you don’t press the OK button, it will not be saved.

You must have the RF cable connected to set the Auto Clock. (See page 19)

The HDD & DVD RECORDER automatically sets the clock according to the time signal broadcast between the channels PR1 to PR5. If you do not need the Auto Clock Set function, select Off.

HDD Library Disc Manager

6/15/06 5:59 PM Page 32

• The first frequency band is scanned and the first station found is displayed and stored. And the HDD & DVD RECORDER searches for the second station and so on. • The number of stations automatically stored by the HDD & DVD RECORDER depends on the number of stations that it has found.

Press the …† buttons to select Auto Setup, then press the OK or √ button. The message “Your data will be lost. Press [OK] to continue, [Return] to exit.” is displayed.

HDD & DVD RECORDER Channel Set

HDD Library Disc Manager

Programme Your data will be lost.

Press [OK] to continue, [Return] to exit. Setup

OK SELECT System Setup

RETURN EXIT Press the OK button, then press the …†œ √ buttons to select your Country. • The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected.

N TR FIN P GR D E HU MOVE SELECT Channel scan will be started. Press the OK button to stop the Auto Setup.

RETURN Presetting Channels with the Manual Setup function You can add preset channel that Auto Channel Search missed. And you can delete a channel you wish to remove. You can programme the order of channels.

EXIT Refer to following table when selecting your country. A(Austria)

B(Belgium) DK(Denmark)

FIN(Finland) D(Deutschland)

P(Portugal) E(Spain)

GR(Greece) HU(Hungary)

MOVE Auto Setup Please wait. 3% Stop

- CH : Tune the channel using œ √ buttons. - Name : Display station name automatically detected in broadcasting signal. If not detected, you can edit name by using …†œ √ buttons. - Decoder : If you set on, you can record scrambled channels using external decoder box. Before setting on, refer to connecting external decoder box in the page 20. - MFT(Manual Frequency Tunning) : You can tune up the channel frequency better using œ √ buttons.

05 Edit 06 Delete 07 Swap

• In case of Delete : the channel information of selected PR(programme) will be removed. • In case of Swap : You can swap the channel information of two PR(programme). For example, if you wish to swap PR2 and PR5, select swap at PR2, then press the OK button at PR5.

- System : You can select broadcasting system of the receivable channel(B/G or L/L’)

Setting up the Language Options If you set the audio, subtitle, disc menu and on-screen menu, in advance, they will come up automatically every time you watch a movie. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

The selected language will only appear if it is supported on the disc.

This feature automatically turns off your HDD & DVD RECORDER, if you do not press any button for the selected time.

HDD Disc Manager Library

Disc Manager Programme Setup

Original :: Original Original

• Off : Auto power off is disabled.

HDD & DVD RECORDER System

HDD Library Disc Manager

Setting up the Quick Recording Options If this function is set to on, the HDD & DVD RECORDER will power on quickly, which enables you to immediatedly record a desired channel.

The Quick Recording is set to Off as default.

If this function is set to on, power consumption will be increased when the unit power off.

• 2 Hours : HDD & DVD RECORDER will automatically turn off for 2 hours after the last button is pressed. • 6 Hours : HDD & DVD RECORDER will automatically turn off for 6 hours after the last button is pressed. • If the turn off time set with the Auto Power off function is reached during playback or recording, the device will operate until the playback or recording is finished.

01111C_HR733_XEB-ENG_01~59

Automatic Chapter Creator

A DVD-Video consists of ‘Titles’ and ‘Chapters’. When you record one programme, it makes one Title. If you use this function, the Title will be divided into Chapters.

• Off: Select if you do not want use Automatic Chapter Creator. • On: Select this option to use the Automatic Chapter Creator feature.

Press the REC button to start recording. (See page 77 about how to set recording speed) The message “Do you want to create the chapter menu after this recording?” is displayed.

EXIT Press the …† buttons to select System, then press the OK or √ button. System menu will be displayed.

Do you want to create the chapter menu after this recording? Yes

Press the œ √ buttons to select Yes and press the OK button. • A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.

Press the STOP button to stop recording.

CM Skip Time Setting When a programme recorded on a HDD, a DVD-RW, or a DVD-R is played, the unit can be set to automatically skip a portion of the programme corresponding to a CM(commercial) skip time set by the user.

The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off.

SELECT RETURN EXIT Press the …† buttons to select PVR Option, then press the OK or √ button. PVR Option menu will be displayed.

HDD DivX(R) Registration

To display the created chapters, select the desired Title and then press the DISC MENU button. The chapter menu for the selected Title will be displayed.

If you press the CM SKIP button during playback, the section corresponding to the set time is skipped, and then the next section is played.

You can select one of four recording modes by pressing the REC MODE button repeatedly. EP mode is one of four REC Mode (XP, SP, LP, EP). In EP(Extended Play) mode, you can set recording time to 6 or 8 hours with this setting.

NOTE CM Skip can be performed only during normal playback.

Library Disc Manager Programme

When the time set is more than a remaining time of a current title: The next title is played from the beginning.

When the time set is more than a remaining time of a play list, the next scene is played.

CM Skip does not work in still picture mode.

When a set time is greater than the remaining time of a scene, last title, or last track that is currently displayed, a prohibition mark appears.

CM Skip releases Repeat (including Repeat A-B, Chapter, and Title).

CM Skip may not operate with some DVD-Video discs. MOVE

SELECT RETURN You can connect the HDD & DVD RECORDER to an external amp or Home theatre. Allows you to setup the Audio device and sound status depending on the audio system in use. You can also set NICAM mode.

Digital Output 1. PCM : Select this when your equipment is not decode Dolby Digital compatible. 2. Bitstream : Outputs Dolby Digital (or MPEG-2) audio as bitstream. Select this when your AV receiver or AV amplifier has a Dolby Digital (or MPEG-2) Decoder.

Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting.

Be sure to select the correct Digital Output or you will hear no sound or a loud noise.

1. Off : Doesn’t output DTS signal. Select this when your AV receiver (or AV amplifier) does not have DTS decoder. 2. On : Outputs DTS Bitstream via digital output when you play DTS track. Select this only when your AV receiver (or AV amplifier) have DTS decoder.

NOTE When DTS soundtrack is played, sound does not output from AV Audio Output.

This feature is about the setup for selecting audios when recording the NICAM STEREO (Multi-audio) broadcasting on HDD. It does not affect to the direct DVD recording of a programme. 1. Off : Both “Dual L” and “Dual R” of the multiaudio broadcasting are recorded on HDD. Titles recorded on HDD under such setup status cannot be copied to V mode (DVDRW/-R). 2. On : Either “Dual L” or “Dual R” of the multiaudio broadcasting is recorded on HDD. Titles recorded on HDD under such setup status can be copied to DVD-R or DVDRW (V mode). “Dual L” and “Dual R” options can be selected from “Audio Selection.”

DRC This is only active when a Dolby Digital signal is detected.

HDD & DVD RECORDER Digital Output

1. Off : You can enjoy the movie with the standard Dynamic Range.

2. On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

NICAM NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound by setting NICAM on or off. 1. Off: Only set at this position to record the standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions. 2. On: NICAM mode

HDD & DVD RECORDER Video

HDD Library Disc Manager

This function allows you to setup the TV screen settings. This function depends on disc type. It may not work for some disc types.

TV Aspect Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio) 1. 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. 2. 4:3 Pan-Scan : Select this for conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) 3. 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

3D Noise Reduction (motion adaptive noise reduction) 1. Off : Normal 2. On : Provides a clear picture through noise reduction (for recording).

HDD Library Disc Manager

You can enjoy high quality image through RGB or Component video connections. RGB video output is available connecting scart jack(AV1) and component video output is available connecting component(Y,PB,PR) jack. Only one of these signals can be selected at one time.

In Component mode, you can set video output to Progressive(P.SCAN) or Interlace, see pages 42 to 44. Available video output jacks are as follow.

NOTE HDD & DVD RECORDER When the HDMI cable is connected, other Video output does not operate. (HR738 Only)

MOVE SELECT RETURN EXIT Setting up the Progressive scan If your TV supports Progressive Scan, press the P.SCAN button on the front of the HDD & DVD RECORDER. To view ‘Progressive scan mode’, first connect the component cable.(See page 22) Be sure the Component cables are connected properly.

6/15/06 6:00 PM Page 43

With the unit in Stop mode, press the P.SCAN button on the front of the HDD & DVD RECORDER. The message “Press [Yes] to confirm Progressive scan mode. Otherwise, press [No].” will appear. Press the œ √ buttons to select Yes, and then press the OK button.

Canceling the Progressive scan

1 Press [Yes] to confirm Progressive scan mode. Otherwise, press [No].

The message “Please, set your TV to Progressive input. To deactivate, press [STOP] key.” will appear. Press the OK button.

With the unit in Stop mode, press the P.SCAN button on the front of the HDD & DVD RECORDER. The message “Press [Yes] to confirm Interlace scan mode. Otherwise, press [No].” will appear. Press the œ √ buttons to select Yes, and then press the OK button.

Please, set your TV to Progressive input. To deactivate, press [STOP] key.

The message “Video Output Mode Progressive Scan” will appear. The video will now be Progressive Scan.

The message “Please, set your TV to Interlace input. To deactivate, press [STOP] key.” will appear. Press the OK button.

Please, set your TV to Interlace input. To deactivate, press [STOP] key.

OK Video Output Mode Progressive Scan.

When the HDMI cable is connected, this screen is not displayed. (HR738 Only)

If the P.SCAN button on the HDD & DVD RECORDER’s front panel is pressed during playback, the message “This function is possible only on stop mode” appears on the screen.

Progressive setting is only available when the HDD & DVD RECORDER is in stop mode.

Do not press the P.SCAN button if you are using a TV that does not support Progressive mode as nothing will be displayed on the screen. If you press the P.SCAN button by mistake when your TV does not support Progressive mode, the mode will then need to be released. To release the Progressive mode, press the P.SCAN button on the front panel 3 times. The screen will recover after the PS indicator on the front panel display turns off.

Press the …† buttons to select Parental Lock, then press the OK or √ button. When you operate your HDD & DVD RECORDER for the first time, the “Create the Password” message will be displayed.

HDD & DVD RECORDER Parental Lock

HDD Library Disc Manager

SELECT RETURN EXIT Enter the 4-digit password using the number buttons on the remote control. The “Confirm the password” message will be displayed. Enter your password again.

HDD & DVD RECORDER The Parental Lock function works in conjunction with DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

HDD Library Disc Manager

Confirm the password

EXIT Press the OK or √ button to select Password.

6/15/06 6:00 PM Page 45

If you forgot your password

Changing the Password

Press and hold the PROG ( ) button on the front panel for 5 seconds or more.

Password Rating Level

Enter the 4-digit password using the number buttons on the remote control. The “Confirm the password” message will be displayed.

Level1-Kids Level1-Kids

MOVE SELECT RETURN EXIT HDD & DVD RECORDER Change Password

HDD Library Disc Manager

Press the …† buttons to select the rating level you want, then press the OK or √ button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the programme is intended for adult use only.

Confirm the password

Library Disc Manager

Read the following information before playing a disc. This section introduces basic functions of playback and playback by disc type.

DTS Region code (DVD-Video only) Both the HDD & DVD RECORDER and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this HDD & DVD RECORDER is described on the rear panel of the HDD & DVD RECORDER.

Disc types that can be played Stereo

PAL broadcast system in U.K, France, Germany, etc.

Disc Logo Recorded content

AUDIO + VIDEO AUDIO + VIDEO Approx.61 (XP:Excellent Quality) Approx.113 (SP:Standard Quality) Approx.219 (LP:Long Playback) Approx.324 or Approx.429 (EP:Extended)

Approx.18 (XP:Excellent Quality) Approx.33 (SP:Standard Quality) Approx.64 (LP:Long Playback) Approx.95 or Approx.127 (EP:Extended)

Selecting the Subtitle Language 58 Selecting the Soundtracks & Audio channels 59

Max. Playing Time or minute Single sided(12cm) 240 Double sided(12cm) 480 Single sided(8cm) 80 Double sided(8cm) 160 Single sided(12cm) 74 Single sided(8cm) 20 1 (XP: Excellent Quality) Single-sided 2 (SP: Standard Quality) 12cm (4.7GB) 4 (LP: Long Playback) 6 or 8 (EP:Extended) 2 (XP: Excellent Quality) Double-sided 4 (SP: Standard Quality) 12cm (9.4GB) 8 (LP: Long Playback) 12 or 16 (EP:Extended) 1 (XP: Excellent Quality) 2 (SP: Standard Quality) 12cm (4.7GB) 4 (LP: Long Playback) 6 or 8 (EP:Extended) 1 (XP: Excellent Quality) 2 (SP: Standard Quality) 12cm (4.7GB) 4 (LP: Long Playback) 6 or 8 (EP:Extended) Disc Shape

01111C_HR733_XEB-ENG_01~59

Discs that cannot be played • • • •

Place a disc gently into the tray with the disc’s label facing up.

Press the OPEN/CLOSE button to close the disc tray. • Your HDD & DVD RECORDER closes the disc

tray and plays the disc automatically. • The HDD & DVD RECORDER does not play discs

automatically after being powered on initially. • When the HDD & DVD RECORDER is powered

on and a disc is in the tray, the unit will be activated and wait in stop status. • Press the PLAY(

) button to start playback.

• If you want the unit to play automatically when it

is powered on with a disc in the unit, power on with the PLAY( ) button.

) button to stop playback.

When you stop playing back a disc, the HDD & DVD RECORDER remembers where you stopped, so when you press PLAY( ) button again, it will pick up where you left off. (Unless the disc is removed or the HDD & DVD RECORDER is unplugged, or if you press the STOP( ) button twice.)

Do not move your HDD & DVD RECORDER while playing, as this may cause damage to the disc. Make sure to press the OPEN/CLOSE button to open or close the disc tray. Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction. Do not place foreign materials on or in the disc tray. Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case. Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes. You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the HDD & DVD RECORDER.

This HDD & DVD RECORDER can only operate with discs that are compatible with DVD-RAM Standard Version 2.0. Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched, finger prints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording. DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording. Discs with NTSC programmes recorded on them cannot be played and recorded using this product.

Using the Disc Menu & Title Menu

Using the Search & Skip Functions Searching through a Chapter or Track

Some type of discs contain a dedicated menu system that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc.

Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation. • You can select audio language and subtitle etc. provided by the disc.

Press the TITLE MENU button to move to the title menu of the disc. • Press this button if the disc contains more than one title. Some discs may not support the title menu functionality.

During play, press the SEARCH ( the remote control.

• You can scan the programme in reverse. To return to normal speed playback, press the PLAY ( ) button. • When you press and hold the SEARCH ( ) buttons, playback is done at the default speed of X4. If you release the SEARCH ( ) buttons , playback is performed at a normal speed.

For HDD/DVD-RAM/-RW/-R Disc

• The speed marked in this function may be different from the actual playback speed.

Title List : Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again.

Play List : This refers to a list of userselected titles. When one playlist is played,only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode)

No sound is heard during Scan(Search) mode, except with CDs (CD-DA). (You can hear sound during forward search(Fast 1) in disc.)

6/15/06 6:00 PM Page 49

Skipping Chapters, Tracks or Markers During play, you can search quickly through a chapter or track.

Press the STEP( in the pause mode. During play, press the SKIP ( remote control.

) buttons on the remote control

• Each time the button is pressed, a new frame will appear. When the STEP(

• If you press the SKIP ( ) button, it moves to the beginning of the chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)).

) button is pressed, the previous

frame will be activated. When the STEP(

) button is pressed, the next

frame will be activated. • To return to normal speed playback, press the PLAY ) button. (

• If you press the SKIP ( ) button, it moves to the next chapter or track or marker (HDD/DVD-RAM/-RW(VR mode)).

NOTE Step motion operates only in the forward direction on MPEG4 discs.

Slow 1 ➞ Slow 2 ➞ Slow 3 • To return to normal speed playback, press the ) button. PLAY ( ) buttons during Press and hold the SEARCH ( pause, the disc will play slowly at 1/4 speed. If the button is released, the pause operation will resume.

The speed marked in this function may be different from the actual playback speed. Slow motion operates only in the forward direction on MPEG4 discs.

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, time. You can also change the subtitle and audio settings and set some features including Marker, Angle, Zoom, Repeat, Media.

CHANGE Moving to a scene directly using the

SELECT ANYKEY 1/5 1/40 00:02:16

• If you want to move to a title or a chapter to find a desired scene.

Press the ANYKEY button during playback.

Press the …† buttons to select Title or Chapter.

• If you want to move to a desired time, the following instructions will help you find a scene.

Press the ANYKEY button during playback.

CHANGE Search Title Chapter Time

CHANGE Playing the Title List

SELECT Follow these instructions to play back a scene from the Title List.

ANYKEY Using the TITLE LIST button

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Press the …† buttons to select Time.

1/3 No. Title Length 001 JAN/01/2006 17:30 PR 01:00:00 001 002 JAN/02/2006 21:00 PR 01:00:00 003 JAN/03/2006 23:15 PR 00:30:00

Enter the time in the sequence of hours, minutes, and seconds using the number buttons, then press the OK button.

This may not work for some discs. When an audio CD(CD-DA) or an MP3 disc is inserted, depending on the disc type, the information display may not appear. The Time Search function does not operate in some discs. To make the screen disappear, press the RETURN button.

Press the …† buttons to select an entry you want to play from Title List, then press the OK or PLAY ( ) button. The selected entry (title) will be played back.

- About INFO button If you press the INFO button once during a playback, the system information screen appears.: Displays Active Status, Background Status, and Screen information.

Scene Navigation 12:00

If there is a title composed of markers (See page 55), you can search the desired scene using the Scene Navigation.

Pressing the INFO button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists, Recordable Time(Title), Available Space(Music/Photo).

HDD Total Title Total Playlist Recordable Time: Title Available Space: Music/Photo JAN/01/2006 (SUN)

Disc Info 3 1 35:41 SP

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Pressing the INFO button three times, Current playback information screen appears.: Displays information of Playback Name, Title, Created Time, Length, Playing Time, Audio, and if the disc protection is activated.

Press the …† buttons to select an entry you want to play from Title List, then press the ANYKEY button. Title List

1/3 No. Title Length 001 JAN/01/2006 17:30 PR 01:00:00

HDD Scene Navigation

No. Title Length 001 JAN/01/2006 17:30 PR 01:00:00

NOTE Scene Navigation will not operate if a selected title does not have Markers.

Press the ANYKEY button during playback.

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

(VR mode) Using this function, you can search scene minute-byminute from the recorded title list.

Press the …† buttons to select an entry you want to play from Title List, then press the ANYKEY button.

Press the ANYKEY button during playback.

Press the …† buttons to select Navigation, then press the œ √ buttons to select Time.

No. Title Length 001 JAN/01/2006 17:30 PR 01:00:00

HDD CHANGE HDD Title List

JAN/01/2006 17:30 PR1

1/3 No. Title Length 001 JAN/01/2006 17:30 PR 01:00:00

Press the œ √ buttons to skip one minute at a time and search the desired scene, then press the OK or PLAY ( ) button.

Press the œ √ buttons to skip one minute at a time and search the desired scene, then press the OK or PLAY ( ) button.

Cursor does not move if the selected recorded title is shorter than 1 minute. The Navigation function may not work on a disc that has not been recorded by this device. An edited title may not display the exact search time.

Press the OK button again when the desired scene appears. • The number 02 is displayed and the scene is memorized.

Set marks at scenes you want to see again so that you can start playback from the marked position. Marker

Press the MARKER button during playback.

• HDD or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protection or is a DVD-RAM disc, Markers cannot be set or deleted, only playback is available.

Playing back a marker

Press the OK button when the desired scene appears. • The number 01 is displayed and the scene is memorized.

Using the MARKER button

Press the MARKER button during playback.

PLAY CANCEL RETURN RETURN Using the ANYKEY button. • Press the ANYKEY button during playback.

Press the √ buttons to move to the next position.

Press the œ √ buttons to select a marked scene.

Press the œ √ buttons to select a marked scene.

MOVE RETURN Press the OK or PLAY ( ) button to start playing from the selected scene.

Press the MARKER button during playback.

PLAY CANCEL RETURN Press the CANCEL button to delete the selected mark.

• If you press the SKIP ( ) button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker. • If you press the SKIP ( ) button, it moves to the next marker.

01 02 03 04 05 06 07 08 - - - - N : 8

SELECT RETURN When a marker is cleared while HDD/ DVD-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

6/15/06 6:51 PM Page 57

Press the OK button again when the desired scene appears. The number 2 is displayed and the scene is memorized.

Press the MARKER button during playback.

• You can bookmark up to 10 scenes.

NOTE MOVE SELECT When the disc tray is opened and then closed, bookmarks will disappear.

• Press the ANYKEY button during playback. • Press the …† buttons to select Bookmark, then press the OK or √ button.

Press the OK button when the desired scene appears.

• The number 1 is displayed and the scene is memorized.

Bookmark 1 - - - - - - - -

Press the MARKER button during playback.

• Press the ANYKEY button during playback.

• Press the …† buttons to select Bookmark, then press the OK or √ button.

Press the √ buttons to move to the next position.

Press the œ √ buttons to select a bookmarked scene.

Press the OK or PLAY( from the selected scene.

) button to start playing

Playing back a bookmark

Selecting the Subtitle Language

Press the MARKER button during playback.

Selects one of the subtitle language recorded on the disc. 1 2 3 4 5 6 7 8 -

• Press the ANYKEY button during playback. • Press the …† buttons to select Bookmark, then press the OK or √ button.

RETURN Press the CANCEL button to delete the selected bookmark.

Bookmark 1 2 3 4 5 6 7 - -

Press the SUBTITLE button during playback.

Press the œ √ buttons to select a bookmarked scene.

Press the …† buttons to select the desired subtitle language. Also, press the SUBTITLE button repeatedly to select the desired subtitle language. • To make the screen disappear, press the CANCEL or RETURN button.

6/15/06 6:01 PM Using the ANYKEY button

Press the ANYKEY button during playback.

Press the …† buttons to select Subtitle.

Selecting the Soundtracks & Audio Channels Selecting the Audio Selects one of the soundtracks recorded on the disc. Also selects the audio channels from recorded TV programmes.

Press the AUDIO button during playback. HDD/DVD-RAM/-RW Audio

Press the …† buttons to select the desired soundtracks or audio channel. Also, press the AUDIO button repeatedly to select the desired soundtracks or audio channel. • To make the screen disappear, then press the CANCEL or RETURN button.

Press the ANYKEY button during playback.

Changing the Camera Angle When a DVD VIDEO contains multiple angles of a particular scene, you can select the Angle function.

Press the …† buttons to select Audio.

Press the ANYKEY button during playback.

Soundtracks or Audio channel may be different because they are disc-specific. Some discs allow you to select the audio language for the disc menu only.

This function is disc-dependent, and may not work on all DVDs. This function does not work when a DVD has not been recorded with a multi-camera angle system. Displays the current angle, total angle number.

6/15/06 6:10 PM Page 61

Press the œ √ buttons to select Repeat Off, Repeat A-B or Repeat Title or Repeat Chapter you want to play repeatedly, then press the OK button.

Playing Repeatedly(Repeat Playback)

HDD/DVD-RAM/-RW(VR mode), unfinalised DVD-R and unfinalised DVD-RW (V mode) discs will do not repeat a chapter. You can also activate Normal Playback by pressing the CANCEL button.

Using the REPEAT button

Press the REPEAT button during playback.

Press the …† buttons to select the Off, Title or Chapter you want to play repeatedly, then press the OK button.

Press the ANYKEY button during playback.

Press the ANYKEY button during playback.

Press the …† buttons to select the Repeat.

6/15/06 6:10 PM Page 62

Press the OK button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B).Repeat playback of the A-B section starts.

Repeat A-B Press the CANCEL button to return to normal playback.

Press …† œ √ buttons to move to the area you want to enlarge.

Press the OK button. The screen will be enlarged to twice the normal size. The screen size will be enlarged to four times the normal size.

If you set point (B) before five seconds of playback has lapsed, the prohibition mark ( ) will appear. You can also activate Normal Playback by pressing the CANCEL button. Audio CDs(CD-DA), MP3 discs and MPEG4 discs do not support the Repeat A-B function.

Press the ANYKEY button during playback.

When the recording is done in EP mode, the zoom function is not supported except when the recording has been in V mode.

Press the ANYKEY button during playback.

Press the …† buttons to select Media.

Insert an audio CD (CD-DA) into the disc tray. • The audio CD menu appears and the tracks (songs) are played automatically.

Press the …† buttons to select the track (song) you want to hear, and then press the OK button.

Audio CD(CD-DA) Screen Elements !

NOTE CD USB media will only appear when connect a USB cable.

1. Current track (song): Displays the number of the track currently being played. 2. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 3. Displays the current file type and file name. 4. Display available buttons. 5. Displays the current play index, total track number. 6. Displays the track list (song list).

Insert an MP3 disc into the disc tray. • The menu is displayed

Press the …† buttons to select the track you want to hear, and then press the OK button.

ROOT Song1.mp3 1.mp3 Song √

EXIT MP3 Screen Elements ! 1. …†: Selects a track (song). 2. OK button, Play ( ) button : Plays the selected track (song). 3. SKIP ( ) button: Plays the next track. 4. SKIP ( ) button: Returns to the beginning of the current track when pressed during playback. If pressed again, your HDD & DVD RECORDER moves to and plays the previous track. If you press the this button within three seconds after playback starts, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning. 5. STEP( ) buttons: Move the page up/down. 6. Press the SEARCH ( ) buttons: Fast Play (X2, X4, X8) 7. STOP ( ) button: Stops a track(song). 8. PLAY ( ) button: Plays a track(song) or pauses playback. 9. ANYKEY button: The ANYKEY menu is displayed.

ROOT Song Song1.mp3 1.mp3

1. Current track (song): Displays the name of the track being played. 2. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 3. Displays the current filetype, file name and folder name. 4. Displays available buttons. 5. Displays the current play index, total track number. 6. Displays the track list (song list).

01111C_HR733_XEB-ENG_60~89

6/15/06 6:10 PM Page 65

Buttons on the Remote Control used for MP3 playback

Using the REPEAT button.

During playback, press the REPEAT button repeatedly to select the repeat mode you want.

Press the REPEAT or CANCEL button repeatedly to return to normal playback.

1. …†: Selects a track (song). 2. OK button, Play ( ) button: Plays the selected track (song). 3. SKIP ( ) button: Plays the next track. 4. SKIP ( ) button: Returns to the beginning of the current track when pressed during playback. If pressed again, your HDD & DVD RECORDER moves to and plays the previous track. If you press the this button within three seconds after playback starts, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning. 5. STEP( ) buttons: Move the page up/down. 6. STOP ( ) button: Stops a track(song). 7. PLAY ( ) button: Plays a track(song) or pauses playback. 8. ANYKEY button: The ANYKEY menu is displayed.

• Normal (CD (CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc. • Repeat Track (CD (CD-DA)/MP3) • Repeat Folder (MP3) • Repeat All (CD (CD-DA)/MP3) • Random (CD (CD-DA)/MP3): The random option plays a disc’s track in random order.

You can register a maximum 28 tracks in the playlist.

Press the ANYKEY button during the Music List playback.

Press the ANYKEY button during the Music List playback.

Playlist Select Media

MOVE Press the …† buttons to select desired play mode, then press the OK or √ button. • Normal (CD (CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc. • Repeat Track (CD (CD-DA)/MP3) • Repeat Folder (MP3) • Repeat All (CD (CD-DA)/MP3) • Random (CD (CD-DA)/MP3): The random option plays a disc’s tracks in random order.

EXIT Press the …† buttons to select tracks in the order in which you want them to play, then press the OK button. CD No.

If you playlisted a wrong track, press the √…† buttons to select the wrong track, then press the OK or CANCEL button. The wrong track will be removed.

Press the ANYKEY button during the Music List playback.

005 TRACK 05 Delete Delete 006 TRACK 06

MOVE Press the …† buttons to select the Go To Playlist, then press the OK button. A new Playlist will be created.

Press the …† buttons to select the desired playlist folder, then press the OK button. The selected tracks are played automatically.

Press the ANYKEY button during the Music List playback.

Press the …† buttons to select the Playlist you want to delete.

Playlist Select Media

√ 00:02:22 Delete Playlist Delete Playlist Edit Playist Playlist02 New Playlist

Do you want to delete?

√ 00:02:22 Delete Playlist

RETURN Press the …† buttons to select the Delete Playlist, then press the OK or √ button.

SELECT RETURN EXIT Press the œ √ buttons to select Yes, then press the OK button. The selected Playlist is deleted.

Press the ANYKEY button in playlist mode.

Press the ANYKEY button during the Music List playback.

√ 00:02:22 Delete Playlist Delete Playlist

Press the …† buttons to select tracks in the order in which you want them to play, then press the OK button.

RETURN Edit Playlist

Delete Delete 006 TRACK 06

Press the …† buttons to select the Playlist you want to edit.

007 Go ToTRACK Playlist07

Press the ANYKEY button during the Playlist playback.

Insert a JPEG disc into the disc tray. • The menu is displayed

To setup, follow steps 1 to 4 in pages 70~71. Press the ANYKEY button. -1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

Zoom Go to Photolist

00:00:00√√ Rotate 90

Each time the OK button is pressed, the picture is enlarged up to 4x(four times the normal size).

- To stop the Zoom Rotate Rotate

Zoom Go To Photo List

To setup, follow steps 1 to 4 in page 70~71.

To setup, follow steps 1 to 4 in page 70~71. -1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

-1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

Zoom Go to Photolist

Printing Photos You can print your stored pictures without a PC. To printing, first connect the printer using a USB cable (See page 27), then check whether a printer is power on.

Press the œ buttons to select Start, then press the OK button to begin printing.

Press the ANYKEY button in the Photo List.

When finished, disconnect the USB cable.

This function works only with printers that support PictBridge.

If you check some entries in the current folder and move to open a different folder, those entries are automatically unchecked and excluded from the selection list. For further details about printing photos, refer to the user's manual of the printer. Printing may not be performed depending on types of printers.

Press the …† buttons to select the JPEG files you want to print, then press the OK or √ button until a checkmark appears.

• If you don’t want to print a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears.

When MPEG4 file is played, you can use following functions. Pressing the STOP ( ) button once during playback will display the file list, pressing the button again will exit the menu screen.

Using the MENU button MPEG4 Function Description

Insert a DivX disc into the disc tray. • The menu is displayed

Press the …† buttons to select Library, then press the OK or √ button. (In case of playing a DivX Disc, see number 4 on this page.)

During play, press the SKIP ( ) buttons, it moves forward or backward 5 minutes.

During play, press the SEARCH ( ) buttons and press again to search at a faster speed. (Fast 1, Fast 2, Fast 3)

NOTE SELECT RETURN EXIT This unit can play the following video compression formats, - DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC) - DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, Windows Media Audio, LPCM, AC3 Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass (The subtitle file should have exactly the same name to corresponding MPEG4 file name) Some MPEG4 files created on a personal computer may not be play back. Codec Type, Version and Higher resolution over specification are not supported.

Press the ANYKEY button in the file list.

ROOT Subtitle Encoding

ROOT Subtitle Encoding

RETURN EXIT Press the …† buttons to select a supported DivX subtitle language by region, then press the OK button.

Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French,German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, Swedish

English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, Slovenian

English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, Uzbek

NOTE SELECT Playback

If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If is still does not work, the format is not supported.

Before Recording This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable Discs This section shows various HDD & DVD Recording methods.

This HDD & DVD RECORDER can record on the following discs.

•DVD-RWs are rewritable. •DVD-Rs are non-rewritable Compatibility between Samsung and Other Company’s Recorder Disc Types

DVD-R Recording Device Finalising Additional Recording in Samsung Recorder Not recordable finalised Samsung Recordable not finalised Not recordable finalised Other Company Recordable not finalised Not recordable finalised Samsung not finalised Recordable Not recordable finalised Other Company not finalised Not recordable finalised Not recordable Samsung not finalised Recordable finalised Not recordable Other Company not finalised Not recordable

Finalise - This closes the DVD-RW/-R so no additional recording can be done. Unfinalise - This allows additional recording on a DVD-RW disc originally recorded on the HDD & DVD RECORDER. - A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalised. - A DVD-RW disc that has been recorded in Video Mode of a different maker’s recorder cannot be unfinalised. - A DVD-R disc cannot be unfinalised.

01111C_HR733_XEB-ENG_60~89

6/15/06 6:11 PM Page 77

Recording Formats When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences. DVD-RW: When unused DVD-RW disc is first inserted, the message “Uninitialized Disc. Do you want to initialize this disc?” will be displayed. If you select Yes, the disc will be formatted in VR mode. If you want to change the mode, refer to Formatting a Disc on pages 116~117.

Uninitialized Disc. Do you want to initialize this disc? Yes

DVD-R: Formatting disc is unnecessary and only V Mode Recording is supported.

DVD-RW(V mode)/-R • Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in V mode. The chapter’s length (interval between chapters) varies according to the recording mode. • Simple editing (erasing titles/changing title name)

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.) • Various editing options using a created Playlist.

Select one of four recording modes by pressing the REC MODE button repeatedly while the unit is in Stop mode for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes and you can use this mode for timer recording. • DVD-HR733 Recording Mode XP (high quality mode) SP (standard quality mode)

Recording Times HDD (80GB) DVD-RW/-R Approx. 1 hour Approx. 18 hours about 8.5 Mbps Approx. 2 hours Approx. 33 hours about 4.5 Mbps

LP (long recording mode)

Approx. 64 hours Approx. 95 hours

FR (Flexible Recording)

Approx. 4 hours about 2 Mbps Approx. 6 hours/ about 1.6 Mbps Approx. 8 hours/ about 1.2 Mbps Approx.1~6 hours

XP (high quality mode) SP (standard quality mode)

Recording Times HDD (250GB) DVD-RW/-R Approx. 1 hour Approx. 61 hours about 8.5 Mbps Approx. 2 hours Approx. 113 hours about 4.5 Mbps

LP (long recording mode)

EP (extended mode) FR (Flexible Recording)

NOTE Approx. 324 hours Approx. 429 hours Approx.61~324 hours

Approx. 4 hours about 2 Mbps Approx. 6 hours/ about 1.6 Mbps Approx. 8 hours/ about 1.2 Mbps Approx.1~6 hours

Recording time may vary according to specific conditions.

6/15/06 6:11 PM Page 78

Unrecordable pictures Video with copy protection cannot be recorded on this HDD & DVD RECORDER. When the HDD & DVD RECORDER receives a copyguard signal while recording, recording stops and the following message appears on the screen.

Recording the current TV programme you are watching

Check that the disc has enough available space for the recording. Adjust the recording mode.

You cannot record copy protected movie.

Concerning Copy Control Signals TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type programme, use DVD-RW with CPRM in VR Mode.

Press the HDD or DVD button. If you select DVD, Press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

If an unused DVD-RW disc is used, whether to initialize or not will be asked first. Make your selection, then press the OK button.(See page 77) Signal type

with CPRM Uninitialized Disc. Do you want to initialize this disc? Yes

Once “Copy Once” has been recorded, recording cannot be done anymore. - Content Protection for Recordable Media (CPRM) CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some HDD & DVD RECORDERs, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Press the PROG ( ) or number buttons to select the current programme you want to record.

Press the REC MODE button repeatedly, (or press the REC MODE button and then press the …† buttons) to select the recording speed(quality).

You can not change the recording mode and the PROG while recording.

Recording will stop automatically if there is no free space left for recording.

Up to 99 titles can be recorded onto a disc.(DVD-RW/-R)

Up to 999 titles can be registered on the HDD.

HDD recording is available for up to 24 hours, and when recording for 24 hours, 4 titles will be recorded with each being 6 hours in length.

Recording will stop automatically if a copy protected image is selected.

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit.

Press the REC button. Information concerning the channel is displayed on the screen, then recording begins. Icon( ) is displayed on the front panel.

- To pause recording • Press the REC PAUSE button to pause a recording in progress. • Press the REC PAUSE button again during pause to resume recording. • You can switch channels by pressing the PROG ( ) buttons while recording pauses.

- To stop recording Press the STOP ( ) button to stop or finish a recording in progress. • When using DVD-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

01111C_HR733_XEB-ENG_60~89

Recording from external equipment you are watching

Press the REC button. Information concerning the external input mode is displayed on the screen, then recording begins. Icon(

) is displayed on the front panel.

- To pause recording • Press the REC PAUSE button to pause a recording in progress.

Before you start Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. If an unused DVD-RW disc is used, whether to initialize or not will be asked first. (See page 77) Press the INPUT SEL. button to select the input source according to the connection you made. The front panel display changes in the following sequence:

If you connect a digital camcorder, press the INPUT SEL. button to select DV. (See page 81)

Press the REC MODE button repeatedly, (or press the REC MODE button, then press the …† buttons) to select the recording speed (quality).

• Press the REC PAUSE button again during pause to resume recording. • You can switch channels by pressing the PROG ( ) buttons while recording pauses.

- To stop recording Press the STOP ( ) button to stop or finish a recording in progress. • When using DVD-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

01111C_HR733_XEB-ENG_60~89

6/15/06 6:11 PM Page 81

Copying from a Camcorder

Press the INPUT SEL. button to select DV. If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

DV You may control the Camcorder using the IEEE1394 (DV) interface.

The DV device is connected MOVE

Connect the DV output jack of your camcorder to the DV input jack on the front of your HDD & DVD RECORDER using a DV cable.

Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

Press the REC MODE button repeatedly to select the recording speed(quality).

➞ SP ➞ LP ➞ EP ➞ XP SP(35:12)

Select the Play (√) icon on the upper part of the screen to playback the camcorder and find the starting position to copy.

To start recording, use the œ √ buttons to select Record ( ● ) icon in the top side of the screen, then press the OK button. You can press the REC button of the remote control to start recording.

- To stop recording Press the STOP ( ) button to stop or finish a recording in progress. • When using DVD-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

Making a One Touch Recording (OTR) You can set the HDD & DVD RECORDER to record in 30-minute increments up to 8 hours by pressing the REC button.

NOTE The timer counter decreases by the minute from 8:00 to 0:00, then the HDD & DVD RECORDER stops recording.

- To stop recording Press the STOP ( ) button. The message “Do you want to stop recording?” is displayed. • Press the œ √ buttons to select Yes, then press the OK button. • Or press the STOP (

Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

Press the PROG ( ) or number buttons to select the programme to record. If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV2, AV3, DV or PR01).

About INFO button During recording, press the INFO button once, the system information screen appears.: Displays Active Status, Background Status, and Main Screen information.

HDD Active status Record SP Background Status – – Screen Recording:PR1 [SP] JAN/01/2006 (SUN)

Press the REC button to start recording.

Recording : PR 1 [SP]

Pressing the INFO button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists, Recordable Time(Title), Available Space(Music/Photo).

HDD Total TItle Total Playlist Recordable Time:Title Available Space:Music/Photo JAN/01/2006 (SUN)

Press the REC button repeatedly to adjust the desired recording time. ➞ 0:30 ➞ 1:00 ➞ ... 8:00 ➞ Off

Pressing the INFO button three times: Current recording information screen appears.: Displays information of recording Name, Title, Created Time and Recording Time.

0:30 HDD Name Recording Title

Recording Info JAN/01/2006 12:00 PR 1 4

Created Time JAN/01/2006 12:00 Recording Time 00:13:27 JAN/01/2006 (SUN)

Simultaneous Recording and Playback

Press the OK or PLAY ( ) button. It plays back the title that you are currently recording from the beginning.

You can play back from the beginning of the programme you are currently recording. You can watching the previous title list while recording a programme.

Press the PLAY ( ) button. It plays back the title that you are currently recording from the beginning. Playback is not available for 10 seconds from the start of recording. You can use the SKIP ( ) and other playback-related buttons to view the previous recorded list.

- Stopping Playback / Recording -

Press the STOP ( ) button. Playback screen disappears and the recording in progress screen appears.

Pressing the STOP ( stop the recording.

) button once more will

With the unit in recording mode, press the TITLE LIST button. The Title List screen is displayed. Press the …†/SKIP ( ) buttons to select the recording title list.

No sound is heard during search mode. DVD disc playback is available during HDD recording. However, JPEG, MP3, and DivX files in the disc cannot be played back. HDD playback is available during DVD recording. However, JPEG and MP3 files in the HDD cannot be played back.

Press the OK button to select Add a list.

HDD Current Time 10:54

1. Check the antenna cable is connected. 2. Check the remaining time of the disc. 3. Check the date and time are correct. Make sure the Clock (Setup-Clock Set) must be set before you proceed with a timer recording. (See pages 30~31)

With the unit in Stop mode/Playback mode, press the TIMER button. The Programme screen is displayed.

HDD & DVD RECORDER Programme

HDD Library Disc Manager

Scheduled List List Scheduled

Press the OK or √ button to select Scheduled List.

HDD Scheduled List Current Time 10:54

• Date : Timer Recording allows setting the recording time within one month period. Set the recording day. (month/day)

• Start/End Time : Start and end time of the timer recording. • Mode (Recording Mode) : - FR (Flexible Recording) : Select when you want to set video quality automatically. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes.

If the timer settings overlap; The programmes are recorded in order of priority. If timer recording is set for the first programme and then again for the second programme and both programmes overlap, the following message will appear on the screen: “This setting is identical with 1.” The message shows that the first programme has priority. After recording of the first programme is complete, the second programme starts being recorded.

- XP (high quality) : Select when video quality is important. - SP (standard quality) : Select to record in standard quality. - LP (low quality) : Select when a long recording time is required. - EP (extended) : Select when a longer recording time is required.

NOTE When you are recording at EP mode on a DVD-RW(V mode)/-R disc, it may not record the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a programme with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

• VPS/PDC : VPS(Video Programme System) or PDC(Programme Delivery Control) function.

• TITLE : To label the title name, select the title and then press the OK button. Title renaming screen appears. See page 91 for the registration.

To exit without saving the current setting Press the MENU button. To return to the previous menu Press the RETURN button if you don’t want to set a timer recording.

When you want to recording on DVD-RW/-R, you must insert the disc.

Turn the power off to finish the Timer Recording setting. Timer Recording will not work when the power is on.

The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 2 minutes before the start time of the next recording.)

You can make the Timer Recording up to 12 programmes.

If HDD disk has no available recording space, blinks. It means that HDD disk has no space to record.

- If you set this function on, you can control the starting and ending time of recording by special signal included in the broadcasting signal. If a TV programme is shortened or starts earlier or later than scheduled, this function synchronizes the starting and ending time of recording with the actual broadcasting time automatically. - Set up the start-time EXACTLY according to the published TV schedule. Otherwise the timer recording will not operate. - Do not select PDC or VPS unless you are sure the programme you wish to record is broadcast with PDC or VPS.

After selecting the set up value for each mode, press the OK button to select Save, and press the OK button again. • will appear on the front panel. It means that a timer recording is registered.

01111C_HR733_XEB-ENG_60~89

6/15/06 6:11 PM Page 86

Editing the Scheduled List

Press the …† buttons to select the number of the Scheduled List you want to edit, then press the ANYKEY button. • The Add, Edit, Delete and Go to Recorded List items is displayed. Scheduled List

HDD Follow these directions to edit the Scheduled List.

Current Time 10:54 No.

To Source -- --- ----

Edit Delete Recordable Time ListHDD 35:45 SP Go to Recorded

HDD Library Disc Manager

Scheduled List List Scheduled

Press the …† buttons to select Edit, then press the OK or √ button. • The Scheduled Record Input item is displayed. Edit the items you want to modify. See the “Making a Timer Recording” section for more information on Timer Recording Input items.(See pages 84 to 85)

Press the OK or Scheduled List.

HDD Scheduled List Current Time 10:54

Press the OK button to select Save, then press the OK button to confirm the edited setting.

Press the MENU button after finishing the operation. The Scheduled List screen will disappear.

01111C_HR733_XEB-ENG_60~89

6/15/06 6:12 PM Page 87

Deleting a Scheduled List

Press the …† buttons to select the number of the Scheduled List you want to delete, and then press the ANYKEY button. • The Add, Edit, Delete and Go to Recorded List items are displayed.

Follow these directions to delete an entry from the Scheduled List.

HDD Scheduled List Current Time 11:01

Delete Recordable Time List HDD 35:45 SP Go to Recorded

Press the …† buttons to select Delete, then press the OK or √ button. • You will be prompted with the delete confirm message such as “Do you want to delete?”.

HDD Library Disc Manager

Scheduled List List Scheduled

HDD Scheduled List Current Time 11:01

Do you want to delete?

Press the œ √ buttons to select Yes, then press the OK button. • The selected entry will be deleted from the list. HDD

Scheduled List Current Time 10:54

Scheduled List Current Time 11:01

Press the OK or √ button to select Scheduled List.

Press the MENU button after finishing the operation. The Scheduled List screen will disappear.

Press the MENU button after finishing the operation. The Recorded List screen will disappear.

You can confirm the performance results of title lists that have passed the reserved recording time.

Information about Recorded List Informs whether the selected Recorded List performed a Timer Recording successfully. -1 Press the …† buttons to select the number of the Recorded List, then press the ANYKEY button.

Using the TIMER button

With the unit in Stop mode/Playback mode, press the TIMER button. The Programme screen is displayed.

HDD & DVD RECORDER HDD Programme

HDD Library Disc Manager

Scheduled List List Scheduled

OK OK Delete List Clear Go to Scheduled List

Timer rec was finished successfully

Press the …† button to select Recorded List, then press the OK or √ button. The Recorded List screen is displayed.

Delete Recorded List

Press the …† buttons to select List Clear, then press the OK or √ button.

Deletes a Recorded List individually. -1 Press the …† buttons to select the number of the Recorded List you want to delete, and then press the ANYKEY button.

Do you want to delete a Recorded list?

OK MOVE SELECT RETURN EXIT OK Delete List Clear Go to Scheduled List

MOVE SELECT RETURN EXIT Go to Scheduled List Press the …† buttons to select Delete, then press the OK or √ button.

Switches directly from the Recorded List to the Scheduled List.

Recorded List Source

No.01 Do you want to delete?

OK OK List Clear Go to Scheduled List

MOVE SELECT RETURN EXIT Clear Recorded List Clears all Recorded List at once.

Press the …† buttons to select Go to Scheduled List, then press the OK or √ button.

-1 Press the ANYKEY button.

HDD Scheduled List Current Time 10:54

MOVE HDD 35:45 SP MOVE Go to Scheduled List

Editing This section introduces basic functions of editing and explains both edit functions for the recording on a disc and edit functions for the entire disc.

Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again. • Play List This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original stream will not be deleted. Basic Editing (Title List) . . . . . . . . . . . . . . . . . . . . . . . . . .91 Advanced Editing (Playlist) . . . . . . . . . . . . . . . . . . . . . . .97 Copying Title List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106 Copying MP3, JPEG or DivX . . . . . . . . . . . . . . . . . . . .111 Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Recording or editing might not be completed if an error, such as a sudden power failure occurs. Please be aware that a material that has been damaged is unable to be retrieved to its original content.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:21 PM Page 91

Basic Editing (Title List)

Press the …† buttons to select Rename, then press the OK or √ button. The Rename screen is displayed.

HDD Renaming(Labeling) a Title

JAN / 01 / 2006 17:30 PR1

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded programme. Back Space

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

• Back Space: Deletes and moves the cursor backwards by one position. • Space: Enters a blank and moves the cursor one forward (to the right). • Delete: Deletes the character at the cursor position. • Clear: Deletes all the character inputs. • Save: Registers the character inputs.

then press the OK or √ button. • Press the …† buttons to select Title,

then press the OK or √ button.

Press the …† buttons to select an entry you want to rename from the Title List, then press the ANYKEY button.

Press the …† œ √ buttons to select Save, and then press the OK button. The changed title name is displayed on the title item of the selected entry.

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

Locking (Protecting) a Title Follow these instructions to lock an entry to protect it from accidental deletion.

With the unit in Stop mode/Playback mode, press the TITLE LIST button . The Title List screen is displayed.

SELECT RETURN EXIT Press the …† buttons to select the additional entry you want to protect, then press the OK or √ button until a checkmark appears.

• If you don’t want to protect a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears.

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

Deleting a Title Follow these instructions to delete an entry from the Title List.

Press the …† buttons to select Delete, then press the OK or √ button. Delete screen will be displayed.

MOVE With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

1/3 Title JAN/01/2006 JAN/01/2006 17:30 17:30

SELECT RETURN EXIT Press the …† buttons to select the additional entry you want to delete, then press the OK or √ button until a checkmark appears.

• If you don’t want to delete a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears.

JAN/01/2006 21:00 01:00:00 JAN/01/2006 21:00 Do you want to delete? (Related playlists may be JAN/01/2006 23:15deleted.)00:30:00 Delete

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

• The message may be different depending on the type of disc. You will be prompted with the confirmation message. HDD, DVD-RW(VR mode): If a Playlist is present, the message “Do you want to delete? (Related playlists may be deleted.)” is displayed. DVD-RW(Video mode)/-R: If a Playlist is not present, the message “Do you want to delete?” is displayed.

Press the …† buttons to select an entry you want to Split from the Title List, then press the ANYKEY button.

You cannot delete a protected entry. If you want to delete a protected entry, select “Off” in the Title Protection menu. (See page 92)

When the Disc Protection has been set to Protected, you cannot delete titles. (See page 116)

1/3 No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

Once DVD-RW/-R is finalised, it cannot be deleted.

Follow these instructions to split a section of a Title List entry into two titles.

RETURN Press the …† buttons to select Edit, then press the OK or √ button. The Edit menu is displayed.

Once an entry is deleted from the Title List it cannot be recovered.

Splitting a Section of a Title (Split)

003 JAN/01/2006 23:15 PR 00:30:00 Split Partial Delete

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Using the playback-related buttons (PLAY( ), )), move to a point for SEARCH ( splitting and press the OK button. If it is not the point where you want to split, press the RETURN button to cancel the selection. Using the playback-related buttons, move to a point to split and press the OK button.

Press the œ √ buttons to select Yes, then press the OK button. The split title is divided into two, and the following titles will be shifted down by one.

MOVE SELECT RETURN EXIT EXIT

① First split interval ➁ Current playtime ➂ Start time of the second split and its screen

Deleting a Section of a Title (Partial Delete) Follow these instructions to delete a section of a Title List entry.

JAN/01/2006 17:30 PR1

Title List No. 001 Split 1

SELECT RETURN EXIT Press the OK button to select Split. The message “This title cannot be recovered after splitting. Do you want to split?” is displayed.

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

This title cannot be recovered after splitting Do you want to split? 00:00:00

6/15/06 6:21 PM Page 96

Partial Delete List Screen Elements

Press the …† buttons to select an entry you want to edit from the Title List, then press the ANYKEY button.

JAN/01/2006 17:30 PR1

Title List No. 001 HDD JAN/01/2006 17:30 PR1 Rename

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

MOVE SELECT RETURN EXIT

① Playback bar ➁ Playtime ➂ Section deletion starting point window and time ➃ Section deletion end point window and time • Select the start and end points of the section you want to delete using the playback related buttons. • Playback related buttons : (PLAY( ), SEARCH ( ))

• When using a DVD-RW(VR) disc, you can select Partial Delete directly by pressing the ANYKEY button. (Then go to step 5)

Press the …† buttons to select Edit, then press the OK or √ button. The Edit Title List screen is displayed. Title List

HDD JAN/01/2006 17:30 PR1

1/3 No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

Rename Protection Copy

Press the OK button at the end point. The image and end point time is displayed in the Section deletion ending point window.

SELECT RETURN EXIT Partial Delete

Press the œ √ buttons to select Delete, then Press the OK button.

Partial Delete Title List No. 001

MOVE SELECT RETURN EXIT Start

Do you want to delete? (Deleted part will not be restored.) 00:01:00

Press the OK button at the starting point. The image and starting point time is displayed in the section deletion starting point window.

JAN/01/2006 17:30 PR1

Title List No. 001 Start

Press the œ √ buttons to select Yes, then press the OK button. The selected section has been deleted.

Press the œ √ buttons to select Return, then press the OK button to finish the operation.

Advanced Editing (Playlist) Creating a Playlist Follow these instructions to create a new playlist entry from a recorded title.

The length of the section to be deleted must be at least 5 seconds long.

If the length of the section to be deleted is less than 5 seconds, you will be prompted with the message “The range is too short.”.

If the end time precedes the starting time, you will be prompted with the message “End point cannot be marked earlier than start point”.

The section cannot be deleted when it includes a still picture.

Press the MENU button after the operation has finished. The Title List screen will disappear.

Using the TITLE LIST button

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Press the …† buttons to select New Playlist, then press the OK or √ button. The Make Playlist screen is displayed.

Press the œ √ buttons to select Make, then press the OK button. • To make a scene for the playlist. A new Make scene screen is displayed. Repeat steps 4~6 to make a new scene for the playlist. A new scene will be added to the current playlist. You can check and see all the scenes on the Edit playlist screen. (See page 100) • To make a new playlist. Repeat steps 1~6 if you want to make a new playlist.

Press the OK button at the start point.

MOVE SELECT RETURN EXIT

• The image and time at the start point is displayed on the Start window. • The yellow-coloured selection bar moves to the End item. • Select the starting point of the section from which you want to create a new scene using the playback related buttons (PLAY( ), SEARCH ( )).

Press the OK button at the end point.

• The image and end point time is displayed in the End window. • The yellow-coloured selection bar moves to the Make item.

You can create up to 99 playlist entries.

Depending on the kind of disc, the displayed screen may have a slight difference.

Press the œ √ button to select Return, then press the OK button to finish the operation.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:22 PM Page 99

Renaming a Playlist Entry

Playing Entries in the Playlist Follow these instructions to play the playlist entries.

Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry.

Using the PLAY LIST button

With the unit in Stop mode/Playback mode, press the PLAY LIST button. The Playlist screen is displayed.

HDD Using the PLAY LIST button

With the unit in Stop mode/Playback mode, press the PLAY LIST button. The Edit Playlist screen is displayed.

• Press the …† buttons to select Library,

then press the OK or √ button.

• Press the …† buttons to select Library,

• Press the …† buttons to select Title,

then press the OK or √ button.

then press the OK or √ button.

• Press the …† buttons to select Title, then press the OK or √ button. The Title List screen is displayed.

The Title List screen is displayed. • Press the ANYKEY button. • Press the …† buttons to select Playlist, then press the OK or √ button.

• Press the ANYKEY button. • Press the …† buttons to select Playlist, then press the OK or √ button.

• Press the …† buttons to select Go To Playlist, then press the OK or √ button.

Press the …† buttons to select the playlist you want to play, then press the OK or PLAY ( ) button.

Press the STOP ( ) button to stop playing. The screen returns to the Playlist screen.

Press the …† buttons to select the title you want to Rename from the Playlist, then press the ANYKEY button. ANYKEY menu is displayed : Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titlelist.

Delete Edit Playlist 13:47 NewJAN/02/2006 Playlist 6 Scenes Go to Titlelist

6/15/06 6:22 PM Page 100

Press the …† buttons to select Rename, then press the OK or √ button. The Rename screen is displayed.

HDD Editing a Scene for the Playlist Follow these instructions to edit scenes for a playlist.

HDD With the unit in Stop mode/Playback mode, press the PLAY LIST button. The Edit Playlist screen is displayed.

Length 00:06:09 00:06:09

• With the unit in Stop mode/Playback mode, press the MENU button. • This function is the same as the Rename function in Renaming the Title. (See page 91) • The maximum number of characters that can be entered is 31. All 31 characters can be displayed by pressing the INFO button.

Press the …† œ √ buttons to select Save, then press the OK button. The changed title is displayed in the title field of the selected playlist entry.

1/3 No. Title 001 Dolphin Dolphin

Length 00:08:15 00:01:07

002 JAN/02/2006 13:51

Press the …† buttons to select the title you want to edit from the Playlist, then press the ANYKEY button. The Edit Playlist menu is displayed: Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titlelist.

Length 00:06:09 00:06:09

EXIT Delete Edit Playlist 13:47 NewJAN/02/2006 Playlist 6 Scenes Go to Titlelist

Press the …† buttons to select Edit Playlist, then press the OK or √ button. The Edit Scene screen is displayed.

Modifying a Scene (Replacing a Scene)

To setup, follow steps 1 to 3 in page 100~101.

Press the …†œ √ buttons to select the scene you want to play, then press the ANYKEY button. The playlist entry to be played is selected.

Press the …† buttons to select Modify, then press the OK or √ button. The Modify Scene screen is displayed.

MOVE Press the …† buttons to select Play, then press the OK or √ button. The selected scene is played.

SELECT RETURN EXIT Press the OK button at the start point of the scene.

• To stop scene play, press the STOP (

• The image and starting point time is displayed on the Start window. • Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY( ), SEARCH ( )).

Press the OK button at the end point of the scene.

Moving a Scene (Changing the Position of a Scene)

To setup, follow steps 1 to 3 in page 100~101.

-1 Press the …† œ √ buttons to select the scene you want to move (change the position), then press the ANYKEY button.

• The image and ending point time is displayed in the End window.

00:00:04 04 00:00:31. 04

• The scene you want to modify is changed with the selected section.

• A yellow selection window is displayed on the scene to be moved.

Press the …† œ √ buttons to select the position to which you want to move the selected scene, then select the OK button.

To setup, follow steps 1 to 3 in page 100~101.

-1 Press the …† œ √ buttons to select the scene that will have a new scene inserted before it, then press the ANYKEY button.

RETURN HDD Edit Playlist

• The selected scene is moved to the selected position.

You cannot move the selected scene to the position of the next scene, because the selected scene should be inserted before that position, which requires no action. Depending on the kind of disc, the displayed screen may have a slight difference.

SELECT RETURN EXIT Press the OK button at the starting point of the scene.

• The image and starting point time is displayed

on the Start window. • Select the starting or ending point of the

section you want to modify using the playback related buttons (PLAY( ), SKIP ( )).

Press the OK button at the end point of the scene.

To setup, follow steps 1 to 3 in page 100~101.

-1 Press the …† œ √ buttons to select the scene you want to delete, then press the ANYKEY button.

RETURN HDD Edit Playlist

Add 05 Delete0:00:09

Do you want to delete the scene ?

EXIT SELECT RETURN EXIT

• The message “Do you want to delete the scene ?” is displayed.

• The section you want to add is inserted prior to the scene selected in step 4 of Adding a Scene on the previous page.

Press the œ √ buttons to select Yes, then press the OK to delete the selected scene.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:23 PM Page 105

Deleting a Playlist Entry from the Playlist

With the unit in Stop mode/Playback mode, press the PLAY LIST button. The Edit Playlist screen is displayed.

HDD Press the …† buttons to select Delete, then press the OK or √ button. Delete screen will be displayed.

MOVE SELECT RETURN EXIT Playlist 1/3

Press the …† buttons to select the additional entry you want to delete from the Playlist, then press the OK or √ button until a checkmark appears.

• Press the …† buttons to select Library,

• If you don’t want to delete a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears.

then press the OK or √ button. • Press the …† buttons to select Title,

then press the OK or √ button. The Title List screen is displayed.

• Press the ANYKEY button. • Press the …† buttons to select Playlist, then press the OK or √ button. • Press the …† buttons to select Go To Playlist, then press the OK or √ button.

Press the œ button to select Delete, then press the OK button. • You will be prompted with the delete confirmation message “Do you want to delete?”.

JAN/01/2006 21:00 JAN/02/2006 13:51 Do you want to delete? JAN/02/2006 14:08

Press the ANYKEY button. The Edit Playlist menu is displayed:Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titlelist.

SELECT RETURN EXIT Press the œ √ buttons to select Yes, then press the OK button. You will be automatically returned to the Playlist screen after the delete operation has finished.

Delete Edit Playlist 13:47 NewJAN/02/2006 Playlist 6 Scenes Go to Titlelist

01:00:00 00:03:33 00:01:54

Copying from HDD to DVD Copying Title List Using the TITLE LIST button You can copy a title from DVD to HDD and vice-versa.

Press the OPEN/CLOSE button and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.

Select the HDD by pressing the HDD button on the front panel of the HDD & DVD RECORDER or on the remote control.

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

1/3 Title Length JAN/01/2006 00:17:30 JAN/01/2006 00:17:30

➔ HS HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

LP ➔ HS Start Copy Rec.Mode 7%

MOVE SELECT RETURN EXIT

^ ! Check titles to be copied @ Record time of title to be copied # Recording mode for copying - HS(high speed): you can copy more quickly than normal playback speed. Copies in the same record mode as source title. - XP/SP/LP/EP : you can not use high speed copy. $ Copy start button % Record mode setup button ^ This shows a available space of a disc corresponding to a percentage that is currently selected.

Contents Copy Specifications Contents Recorded Video Title Copy Protected Title Copy Once Title

HDD ➞ DVD DVD ➞ HDD Supported Supported Not supported Not supported Move (Deletes the Title in the Not supported HDD after copying)

Once "Copy Once programme" has been recorded on the DVD disc, this title cannot be copied to HDD anymore. But "Copy Once programme" has been recorded on the HDD, this title can be copied to DVD-RW(VR mode).

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 01:00:00 01:00:00

LP LP ➔➔ HS HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

Title Length JAN/01/2006 JAN/01/2006 00:17:30 00:17:30

Press the …† buttons to select Copy, then press the OK or √ button. Copy screen is displayed.

HDD SELECT RETURN EXIT

- Copying a Title that has been edited once before -

1/3 Title Length JAN/01/2006 00:17:30 JAN/01/2006 00:17:30

➔ HS HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

The “Do you want to view screen of copying title?” message is displayed.

1/3 Title Length JAN/01/2006 JAN/01/2006 00:17:30 00:17:30

EXIT Rec. Mode LP LP ➔➔ HS HS

00:21:00 title? LP ➔ HS Do you want to viewJAN/01/2006 screen of copying JAN/01/2006 00:23:15

By pressing COPY button from the title list( or during playback), you can go to this step.

Press the …† buttons to select an additional title you want to copy, then press the OK or √ button until a checkmark appears. Repeat this step to select a additional title you want to copy.

Rec. Mode LP ➔ HS LP LP ➔

➔ HS HS JAN/01/2006 00:23:15

LP ➔ HS Start Copy Rec.Mode 15%

MOVE SELECT RETURN EXIT

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears. • If you want to change the record mode when copying, see page 109. • Up to 7 entries can be checked for titles.

If you want to stop copy, press CANCEL key.

• If No is selected, the title to be copied is not displayed on the screen, and copying begins while the currently broadcasting programme is displayed on the screen. • Press the INFO button to change the copy processing bar. If you press INFO button again, copy processing bar will be appeared. • To cancel the copying in progress, press the CANCEL button.

JAN/01/2006 00:17:30 JAN/01/2006 00:21:00 JAN/01/2006 00:21:00

01111C_HR733_XEB-ENG_90~128

6/15/06 6:23 PM Page 108

- Copying an Unedited title -

To begin high speed copy, press the œ √ buttons to select Yes, then press the OK button. High speed copy begins. The title to be copied is not played back, while the currently broadcasting programme is displayed on the screen.

-1 The “Do you want to use high speed copy mode?” message is displayed.

1/3 Title Length JAN/01/2006 JAN/01/2006 00:17:30 00:17:30

LP LP ➔➔ HS HS JAN/01/2006 00:21:00

LP ➔ HS Do you want to use high speed copy mode? JAN/01/2006 00:23:15

SELECT RETURN If you want to stop copy, press CANCEL key.

EXIT High speed copy : This means that you can transfer without having to worry about the quality getting worse with each copy ‘generation’. It also means that copying can be carried out at the maximum speed possible.

• If No is selected, the title to be copied is displayed at its playback speed while copying. • Press the INFO button to change the copy processing bar. If you press INFO button again, copy processing bar will be appeared. • To cancel the copying in progress, press the CANCEL button.

After a successful copy, “The title is successfully copied” message is displayed.

The title is successfully copied.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:23 PM Page 109

Changing the Record Mode

Copying from DVD to HDD To setup, follow steps 1 to 7 in page 106~107.

LP LP ➔➔ HS HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

MOVE SELECT RETURN EXIT Press the …† buttons to select record mode you want to record, then press the OK button. • HS(High Speed) : Copies in the same record mode as HDD. • XP/SP/LP/EP : You cannot copy at a higher quality mode than original. If the same record mode is selected, the title is copied at high speed.

Press the OPEN/CLOSE button to close the disc tray.

With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Using the same method, you can copy a Playlist. High speed copying is not available for a title list that has been partially deleted. During copying, timer recording is not available. High speed copying is not available when: - Copying a title that can only be copied once - Copying a playlist - Copying a partially-deleted title If copy list contains at least one title that cannot be copied at high speed, it performs step 9 described on page 107. Otherwise, it performs the step 9-1 described on page 108. Regarding title lists that can be copied only once: - Only available for DVD discs that support CPRM - If a playlist contains a scene that can only be copied once, it cannot be copied.

Press the OPEN/CLOSE button and place a recorded disc on the disc tray.

1/3 Title Length JAN/01/2006 JAN/01/2006 00:17:30 00:17:30

No. Title Length 001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 00:17:55 01:00:00

partial Delete Playlist JAN/01/2006 17:30 Navigation SP Select Media V-Mode Compatibility

21% If you want to stop copy, press CANCEL key.

• Press the INFO button to change the copy processing bar. If you press INFO button again, copy processing bar will be appeared.

Press the …† buttons to select Copy, then press the OK or √ button. Copy screen is displayed.

JAN/01/2006 00:17:30

LP ➔ HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

After a successful copy, “The title is successfully copied.” message is displayed.

MOVE SELECT RETURN EXIT The title is successfully copied.

By pressing COPY button from the title list (or during playback), you can go to this step.

Press the …† buttons to select an additional title you want to copy, then press the OK or √ button until a checkmark appears. Repeat this step to select a additional title you want to copy. ■ DVD-RW(VR)

JAN/01/2006 00:17:30

LP ➔ HS JAN/01/2006 00:21:00

LP ➔ HS JAN/01/2006 00:23:15

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears. • Up to 7 entries can be checked for titles.

You cannot copy anything else on finalised DVD-R and DVD-RW(V mode) mode. You cannot copy a DVD-VIDEO to HDD. High speed copying from a DVD-RW (VR mode) is available. When you copy from DVD-RW(V mode)/-R disc to HDD, high speed copy is not available. Record mode cannot be changed when you copy a title from DVD to HDD.

Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.

ROOT 01. 01. Song Song 1.mp3 1.mp3

ROOT EXIT The location where the copied files are stored Check titles to be copied File size Copy start button Target Folder setup button All entries in the current folder will be checked.

Contents Copy Specifications

Contents HDD ➞ DVD or USB DVD ➞ HDD or USB USB ➞ HDD or DVD MP3 Supported Supported Supported JPEG(photo) Supported Supported Supported DivX Supported Supported Supported

ROOT Song 1.mp3 1.mp3 Song

• The disc that has Video recording or has title dubbing

from HDD can’t be copied. • PTP USB is not available when you copy to USB.

• If the disc is finalised through Disc Manager, it can be

compatible with PC as a disc with a UDF file system.

Song 1.mp3 1.mp3 Song √ Copy Copy

Insert a Disc (JPEG, MP3 or DivX) into the tray.

Press the …† buttons to select the target media, then press the OK or √ button. Copy screen is displayed.

ROOT ROOT Start Copy

ROOT Start Copy Target Folder

SELECT RETURN EXIT Press the …† or OK button to select the location where the copied files are stored.

By pressing COPY button from the Music list (Photo List, DivX(MPEG4) List), you can go to this step.

Press the …† buttons to select the additional entry you want to copy, then press the OK or √ button until a checkmark appears.

CD Start Copy Done Select All

MOVE SELECT RETURN EXIT Copy

Start Copy Target Folder

• If you don’t want to copy a certain one of the checked entries, simply select that entry and press OK or √ button to deselect it until a checkmark disappears.

Start Copy Done Select All

• If you select "Select All", all entries in the current folder will be checked.

• If you select Done, you will be returned to the copy screen.

Press the œ and † buttons to select Target Folder, then press the OK button. Target Folder screen will be displayed.

Start Copy Target Folder Select All

NOTE If you check some entries in the current folder and move to open a different folder, those entries are automatically unchecked and excluded from the selection list.

Press the …† buttons to select the target media, then press the OK or √ button. Copy screen is displayed.

ROOT ROOT Insert a Disc (JPEG, MP3 or DivX) into the tray.

Target Folder Select All

RETURN EXIT Press the …† buttons to select the folder you want to copy, then press the OK button.

Press the …† buttons to select Select Folder, then press the OK button. Checkmark will appear.

Start Copy Target Folder Select All

• If you select Into Folder, Subfolders and files in the folder will be displayed. • If you select "Select All", all folder will be checked.

ROOT DivX(MPEG4) Jpg é

Copy Copy CopyROOT Playlist Playlist

ROOT MP3 HDD HDD √√ √ √

Select Media Media Select

Press the œ and † buttons to select Target Folder, then press the OK button. Target Folder screen is displayed. CD

- To return to check off -

Press the …† buttons to select the folder you want to check off, then press the OK or √ button.

Press the …† or OK button to select the location where the copied folders are stored. CD

EXIT Target Folder Select All

SELECT RETURN EXIT Press the œ button to select Start Copy, then press the OK button. Folder copy begins. Subfolders and files in the selected folder are copied.

Pressing the CANCEL button during folder copying will cancel the folder copying after the current file is copied.

Up to 500 files and 100 subfolders can be copied into one folder for MP3 files.

Up to 500 files and 100 subfolders can be copied into one folder for JPEG files.

Up to 500 files and 100 subfolders can be copied into one folder for DivX files.

Files having an existing name of ***.mp3/***.jpg, are automatically renamed to ***01.mp3/***01.jpg and copied.

It allows up to 999 copies to have the same name.

You cannot copy an Audio CD.

File size on a disc and the copied file in the HDD may be slightly different due to the file system.

NOTE ROOT Start Copy Done Select All

• If you select Done, you will be returned to the copy screen.

Press the …† œ √ buttons to select Rename, then press the OK button. The Rename screen is displayed. Rename

Editing the Disc Name Follow these instructions to give a name to a disc. Back Space

01:54 SP Disc Protection Info Current Rec.Mode

02:10 SP Disc Protection Info Current Rec.Mode

You may need to clear Disc Protection beginning editing.

Depending on the kind of disc, the displayed screen may be different.

Disc Protection Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

With the unit in Stop mode, press the MENU button.

Use these instructions to format a disc. The disc protect should also be cleared.

01:54 SP Disc Protection Info Current Rec.Mode

01:54 SP Rename Protection

Do you want to format this disc? [Music/Photo Partition] Used Space 0119MB Available Space Yes 4636MB No Delete All

SELECT RETURN EXIT HDD • You will be prompted with the confirmation message “Do you want to format this disc?”. • If you select Yes, you will be prompted with the confirmation message “All data will be deleted. Do you want to continue?”.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:23 PM Page 117

DVD-RW • You will be prompted with the confirmation message “Choose the recording format for DVD- RW.” DVD-RW(VR)

Delete All Title Lists/DivX Lists /Music Lists/Photo Lists

• If the USB storage device has more than two logical drives, select a “Drive” that you want to format.

• If you select Yes, you will be prompted with the confirmation message “All data will be deleted. Do you want to continue?”. Disc Manager

035 29 SP Delete All

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.

DVD-V DVD-RW/DVD-R DVD-VR and DVD-V are defined according to their recording format.

Select contents to delete all? [Music/Photo Partition] Used Space 0119MB Available Space 4636MB Title DivX Music Photo

Drive E: Used Space 00:17 Available Space 01:54 SP Do you want to format this USB Drive?

• You will be prompted with confirmation message "Do you want to format this USB Drive?".

035:29 SP Drive E: Used Space 00:17 Available Space 01:54 SP Please, select USB Drive to change. File System

Delete All Title Lists

All playlists will also be deleted. [Music/Photo Partition] Do you want to continue? Used Space 0119MB Available Space 4636MB Yes No Delete All

[Title/DivX(MPEG4) Partition] Used Space 000 20 Available Space 035 29 SP All music will be deleted. [Music/Photo Partition] Do you want to continue? Used Space 0119MB Available Space 4636MB Yes No Delete All

01:54 SP Disc Protection Info Current Rec.Mode

[Title/DivX(MPEG4) Partition] Used Space 000 20 Available Space 035 29 SP All photo will be deleted. [Music/Photo Partition] Do you want to continue? Used Space 0119MB Available Space 4636MB Yes No Delete All

RETURN EXIT Press the …† œ √ buttons to select Delete All, then press the OK button. • You will be prompted with the confirmation message “Do you want to delete all title lists?”.

Press the œ √ buttons to select Yes, then press the OK button. All title lists, DivX lists, music lists or photo lists are deleted.

01:54 SP Do you want to delete all title lists?

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item. • When protected a DVD-RW is used, data cannot be deleted from a disc. • If you select Yes, you will be prompted with the confirmation message “All playlists will also be deleted. Do you want to continue?”.

DVD-RW(VR) Disc Name Used Space Available Space

00:17 01:54 SP Do you want to finalise disc? Disc Protection Info Not Protected Current Rec.Mode VR-Mode

Press the œ √ buttons to select Yes, then press the OK button. All title lists are deleted.

RETURN EXIT If you select Yes, you will be prompted again with the message “Disc will be finalised. Do you want to continue?”.

Finalising a Disc Disc Name Used Space Available Space

00:17 01:54 SP Disc will be finalised. Disc Protection InfoDo you want Not Protected to continue? Current Rec.Mode VR-Mode Rename

EXIT Press the œ √ buttons to select Yes, then press the OK button. The disc is finalised.

Once a disc is finalised, you cannot delete entries from the record list.

After being finalised, the DVD-R/DVDRW(video mode) operates in the same manner as a DVD-Video.

Depending on the disc type, the displayed screen may be different.

Finalising time may be different depending on the amount of data recorded on the disc.

Data on the disc will be damaged if the recorder is powered off during finalisation process.

01:54 SP Disc Protection Info Current Rec.Mode

After you record titles onto a DVD-RW/DVD-R disc with your HDD & DVD RECORDER, it needs to be finalised before it can be played back on external devices.

Disc will be unfinalised. Do you want to continue? Yes

Do you want to unfinalise disc?

Additional recording, deletion, editing, and protection are impossible.

Additional recording, deletion, editing, and protection are possible.

EXIT Press the œ √ buttons to select Unfinalise, then press the OK button. You will be prompted with the message “Do you want to unfinalise disc?”.

EXIT Unfinalise DVD-RW(V) Additional recording, protection Operation Same as DVD-Video and deletion are possible.

Press the …† buttons to select Disc Manager, then press the OK or √ button.

EXIT If you select Yes, you will be prompted again with the message “Disc will be unfinalised. Do you want to continue?”.

RETURN Press the œ √ buttons to select Yes, then press the OK button. The disc is unfinalised. ■

Troubleshooting If your product malfunctions, go through the checkpoints below before contacting a Samsung authorised service centre.

Power The input is displayed for a while when the power is turned on.

The HDD & DVD RECORDER requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on. But If Quick recording function is set to on, the HDD & DVD RECORDER will power on quickly, which enables you to immediately record a desired channel. (see page 35)

Recording Cannot record TV programmes.

Check whether the power cord is securely plugged into the power outlet.

Did you set the HDD & DVD RECORDER channel settings correctly?

Recording is possible for HDD/DVD-RW/-R discs only. If a programme is copy protected, it cannot be recorded.

I pressed the REC button but there is no response.

Check whether the disc is inserted correctly with the label facing up.

Check the regional code of the DVD disc.

The angle operation is available only when the disc contains images captured from different angles.

This HDD & DVD RECORDER cannot play some types of discs. (See pages 6, 47)

icon appears on the screen.

The angle operation does not work while playing a DVD disc.

You cannot use this operation or function due to one of the following reasons: (1) Your DVD disc restricts it. (2) Your DVD disc does not support this feature (for example: angles) (3) The feature is not available at the moment. (4) You've requested a title, chapter, or scan time that is out of range.

The selected audio and/or subtitle language is not played.

Audio and subtitle languages are disc-specific. Only the sound and subtitle languages contained on the DVD disc are available and displayed in the disc menu.

Cannot copy title or file to the other mode.

Play mode settings are different from the settings configured in the Settings menu.

The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly.

Cannot change the aspect ratio.

The aspect ratio is fixed for DVD discs. (See page 41)

DVD discs encoded with copy protection can not be copied to HDD.

Refer to “Contents Copy Specifications” on page 5 to check if copying is supported. Refer to “V-Mode Compatibility” on page 40 to check if copying is support.

6/15/06 6:24 PM Video

The disc revolves, but no image or bad quality images is displayed.

Be sure that the Video Setting is properly set. (See page 41)

Check whether there is damage to or any foreign material on your disc.

Some low quality discs may not play properly. If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault.

Timer lamp flickers.

Check there is enough space in the disc or HDD for recording.

Check whether the current disc is recordable or not. Make sure to check before the start time of recording.

Timer recording does not work properly.

Re-check the recording time and the end time settings again.

Recording will be cancelled if the power is interrupted due to a power failure or another similar reason while recording.

Are you watching a programme in slow or skip mode? If you are playing a programme at a speed other than normal speed, sound will not be heard.(except for forward search (Fast 1) in disc.) Check the connections and settings. (See pages 22~23, 39~40) Check whether the disc is damaged. Clean the disc, if necessary.

Cannot copy MP3 or JPEG or DivX files

Check the connections and settings. (See page 27)

Check the USB connection. Disconnect and try to connect again.

Refer to “Compatible USB devices at host port” on page 7.

Check whether the disc is inserted correctly with the label facing up.

Cannot print image files. No audio output.

Check whether you have selected the correct digital output options in the Audio Output Options menu. (See pages 39~40)

Check the connections and settings. (See page 27)

Refer to "Printing Photos" on page 73

Refer to “Compatible Printers at device port” on page 7

Check whether the mode is stop mode or not. You can switch HDMI mode in stop mode. Check the Video output is HDMI enabled. Check the connection between the TV and the HDMI jack of the HDD & DVD RECORDER. See if your TV supports HDMI.

Other I forgot my password for parental supervision.

Press and hold the PROG( ) buttons on the front panel of the Recorder for more than 5 seconds with no disc in the unit. All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.)

Abnormal HDMI output screen. Is it possible to change a subtitle and an audio signal on a recorded disc? Checkpoint 1

If snow noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection). Checkpoint 1

Check your TV system setup correctly.

Please refer to the user’s manual of your TV.

A recorded disc is played with only the subtitle and the audio signal which were selected during recording.

Read the table of contents and then find and read the section describing your problem, follow the instructions given.

Plug your HDD &DVD RECORDER off and on.

The remote control doesn't work.

Checkpoint 3 Checkpoint 1

Point the remote control at the remote control sensor on your HDD & DVD RECORDER. Allow for proper distance. Remove obstacles between your HDD & DVD RECORDER and the remote control.

Check whether the batteries are drained.

Check the TV/DVD selection button setting. Check whether TV control button is selected or not.

If the problem still persists, contact a nearby Samsung service centre.

+5°C to +35°C Other conditions

Keep level when operating. Less than 75% operating humidity

Receivable Channels Scart Jack AV2 (Scart Ext) Audio

Audio Frequency Response HDD Capacity USB

Audio Output For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz.

01111C_HR733_XEB-ENG_90~128

6/15/06 6:24 PM Page 126

UNITED KINGDOM This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from: Samsung Electronics U.K.Ltd. Unit C,Stafford Park 12 Telford,Shropshire TF3 3BJ The United Kingdom Tel:0870)242 0303, Fax:01952)297617 ■ WARRANTY CONDITIONS 1. The warranty is only valid if, when warranty service is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced. 2. Samsung’s obligations are limited to the repair or, at its discretion, replacement of the product or the defective part. 3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty.

4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured. This warranty will not cover, and no reimbursement will be made for such adaptation nor any damage which may result. 5. This warranty covers none of the following: a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear. b) Cost relating to transport, removal or installation of the product. c) Misuse, including the faiure to use this product for its normal purposes or incorrect installation. d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper ventilation or any other cause beyond the control of Samsung. 6. This warranty is valid for any person who legally acquired possession of the product during the warranty period. 7. The consumers statutory rights in any applicable national legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty. Unless there is national legislation to the contrary, the rights under this warranty are the consumers sole rights and Samsung, its subsidiaries and distributors shall not be liable for indirect or consequential loss or any damage to records, compact discs, videos or audio taper or any other related equipment or material. SAMSUNG ELECTRONICS (U.K.) LTD.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Merk YP-T6, YH-820, YP-T8N, YP-T7, YP-F2 ipod video, ipod nono, ipod shuffle H10, U10 NW-A1000

00:02:22 00:02:22 Song1.mp3

Nieuwe Nieuwe6playlist playlist TRACK

√ 00:02:22 Delete Playlist

00:06:09 00:06:09 00:03:33

00:06:09 00:06:09 00:03:33

00:06:09 00:06:09 00:03:33

00:06:09 00:06:09 00:03:33

00:08:15 00:01:07 00:03:33

00:06:09 00:06:09 00:03:33

00:06:09 00:06:09 00:03:33

00:06:09 00:06:09 00:03:33

JAN/01/2006 JAN/01/2006 00:17:30 00:17:30 JAN/01/2006 00:21:00

LP LP ➞➞HS HS LP ➞ HS JAN/01/2006

JAN/01/2006 JAN/01/2006 00:17:30 00:17:30 JAN/01/2006 00:21:00

LP LP ➞➞HS HS LP ➞ HS JAN/01/2006

LP ➞ HS LP LP ➞➞ HS HS JAN/01/2006

JAN/01/2006 JAN/01/2006 00:21:00 00:21:00

LP ➞ HS JAN/01/2006 JAN/01/2006 00:21:00 00:21:00

LP LP ➞➞ HS HS JAN/01/2006

ROOT ROOT ROOT E Jpg

ROOT DivX(MPEG4) Jpg 00:00:00

ROOT Medium selecteren

ROOT DivX(MPEG4) Jpg 00:00:00

ROOT USB Medium selecteren

ROOT ROOT CD Kopiëren

Marque YP-T6, YH-820, YP-T8N, YP-T7, YP-F2 ipod video, ipod nono, ipod shuffle H10, U10 NW-A1000

BOUTON 01, 02, 03, 04, 05, 06, 07, 08, 09 82 10, 11, 12, 13, 14, 15, 16, 17, 18 57 71 73 57 52 75 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34 64 73 06, 49, 57 57 84 70 49, 52, 71 60, 72, 73, 75 52 61, 79 06, 19, 20, 21, 22, 78 06, 69 06, 57 40 57 06, 48, 62, 65 52, 77 83 68 66 74 72, 73, 75 53, 54, 74, 75 06, 55, 56, 57 06, 56, 57 58, 59, 73, 74 06, 56 57 45, 46 74 57, 72, 73, 74, 75 74 41, 42, 43, 44, 48 06

L(Netherlands) I(Italy) N(Norway) P(Portugal)

S(Sweden) CH(Swiss) TR(Turkey) GR(Greece)

(HR738 uniquement) Pour utiliser le câble HDMI, branchez celui-ci avant le câble d'alimentation ou une fois la procédure de "Branchement et configuration automatique" effectuée. Ne branchez pas le câble HDMI lorsque la procédure "Branchement et configuration automatique" est en cours.

Installation Auto Add/Delete

Library Disc Manager

mDÉPLA. sSELECT. rREVENIR eSORTIE Reportez-vous au tableau d’abréviations suivant lorsque vous sélectionnez votre pays. A(Austria) B(Belgium) DK(Denmark) FIN(Finland)

L(Netherlands) I(Italy) N(Norway) P(Portugal)

S(Sweden) CH(Swiss) TR(Turkey) GR(Greece)

Installation Manuelle Add/Delete

√ 00:02:22 Delete Playlist

LP (mode Enregistrement long)

LP (mode Enregistrement long)

No. To Source Source No. Vers

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

00:01:07 00:08:15 00:03:33

JAN/01/2006 JAN/01/2006 00:17:30 00:17:30 JAN/01/2006 00:21:00

LP LP ➞➞HS HS LP ➞ HS JAN/01/2006

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 JAN/01/2006 00:17:30 00:17:30 JAN/01/2006 00:21:00

LP LP ➞➞HS HS LP ➞ HS JAN/01/2006

LP ➞ HS JAN/01/2006 JAN/01/2006 00:21:00 00:21:00

LP LP ➞➞ HS HS JAN/01/2006

JAN/01/2006 17:30 PR1 No.

JAN/01/2006 17:30 PR1 No.

001 JAN/01/2006 JAN/01/2006 17:30 17:30 PR PR 00:17:55 01:00:00

LP ➞ HS JAN/01/2006 JAN/01/2006 00:21:00 00:21:00

LP LP ➞➞ HS HS JAN/01/2006

ROOT ROOT DivX(MPEG4) Jpg 00:00:00
