Product type	DVD Recorder with Hard Drive
Brand	Samsung
Model	DVD-HR734A
Hard disk capacity	160 GB
Maximum recording time	Up to 270 hours (EP mode)
Recording modes	XP, SP, LP, EP
Compatible disc formats	DVD-RW/-R, DVD-RAM, CD-RW/-R
Playable file formats	MP3, JPEG, MPEG4 (DivX), Audio CD
Dimensions (W x D x H)	430 x 300 x 59 mm
Weight	3.9 kg
Power supply	AC 220-240 V, 50 Hz
Power consumption	35 W (operation), 4.3 W (standby)
Connections	SCART AV1 (TV), AV2 (Ext), composite output, S-Video, component, digital audio optical and coaxial, DV input, front AV3 input
Main features	Programmed recording, HDD↔DVD copy, simultaneous playback, progressive scan, parental control
Care and cleaning	Disconnect before cleaning, use a soft cloth, do not use solvents
Safety	Do not expose to rain or moisture, do not open the casing, risk of electric shock
Spare parts and repairability	No user-serviceable parts, refer all servicing to qualified personnel
Included accessories	Video/audio cable, RF cable, remote control, AAA batteries, user manual, quick setup guide

Frequently Asked Questions - DVD-HR734A SAMSUNG

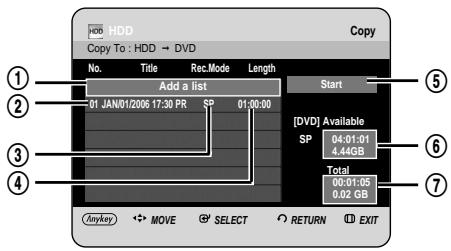

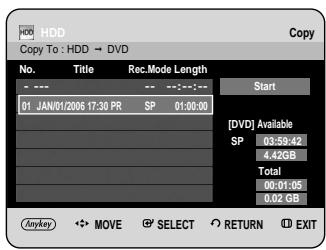

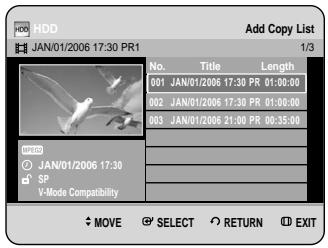

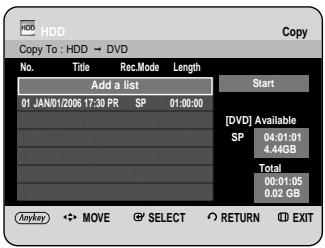

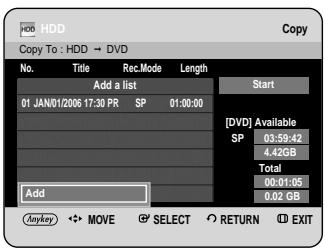

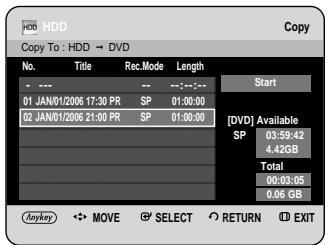

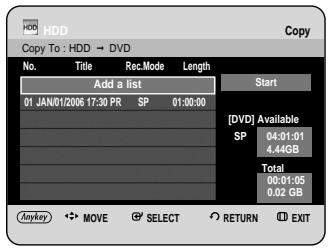

How to copy a recording from the hard drive to a DVD?

To copy a title from the hard drive to a DVD, insert a blank DVD-RW/-R disc, select the title from the title list, then press the COPY button on the remote control. Follow the on-screen instructions. Note that copy-protected titles cannot be copied.

Can I watch a DVD while recording another program?

Yes, the recorder allows simultaneous playback and recording. For example, you can play a recording already stored on the hard drive while recording a live broadcast to a DVD or the hard drive.

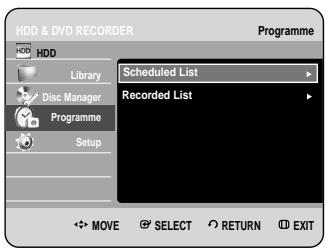

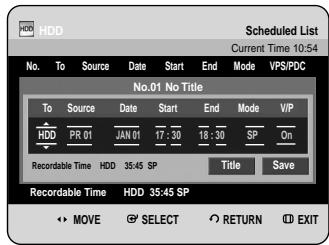

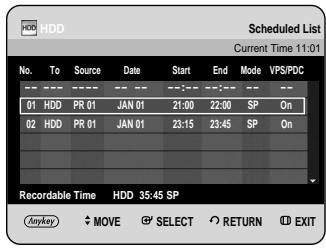

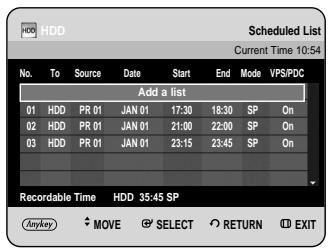

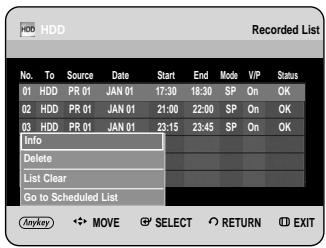

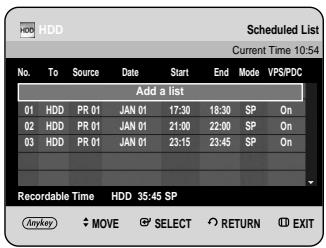

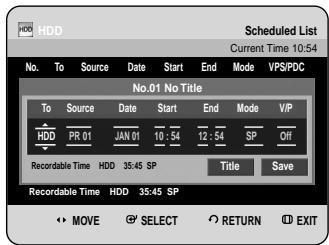

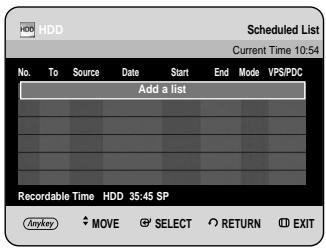

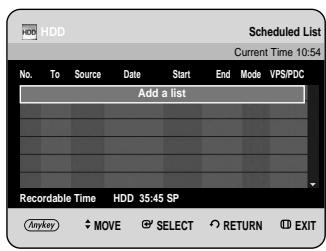

How to set a timer recording?

Press the TIMER button on the remote control to access the timer recording menu. Enter the date, start and end time, channel, and recording mode (XP/SP/LP/EP). Confirm with OK. Make sure the clock is set correctly.

What to do if the remote control does not work?

Check the battery polarity, their charge state, and that no obstacles block the infrared sensor. Also make sure you are in DVD mode (DVD button pressed). If the remote controls the TV, check the TV/DVD selector.

What types of discs can I use for recording?

You can use DVD-RW discs (VR or Video format) and DVD-R discs (Video format only). Discs must be blank or unfinalized. The internal hard drive can also be used without a disc.

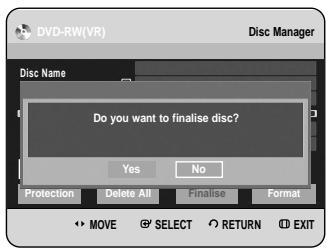

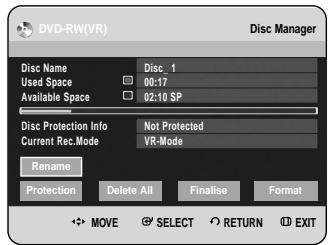

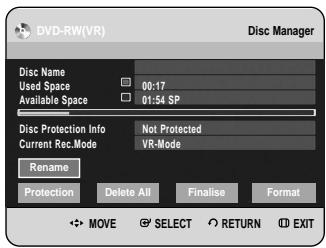

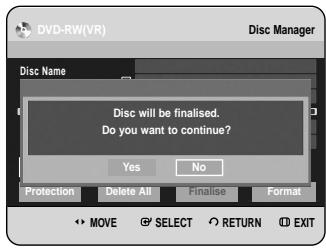

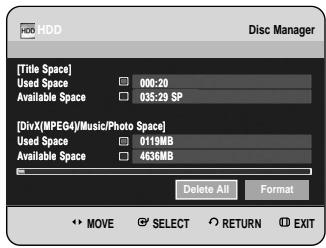

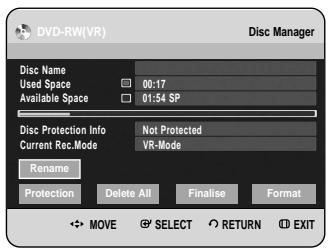

How to finalize a disc to play on other players?

In the Disc Manager menu, select Finalize. Follow the instructions. Once finalized, the disc can be played on most DVD players, but you will no longer be able to add or delete recordings.

What is the maximum recording capacity on the hard disk?

The DVD-HR734A model has a 160 GB hard drive, allowing up to 270 hours of recording in EP mode (extended quality). Durations vary depending on the selected mode (XP, SP, LP, EP).

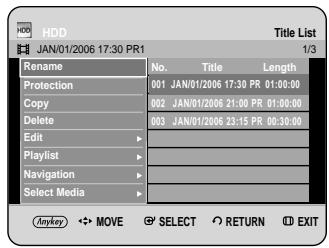

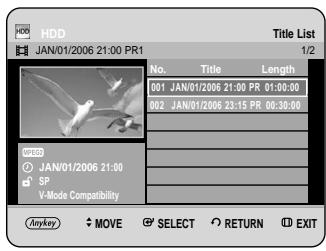

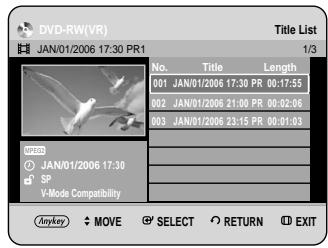

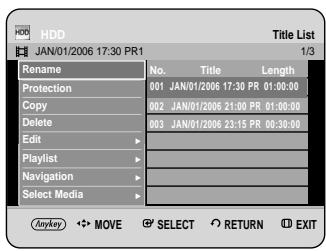

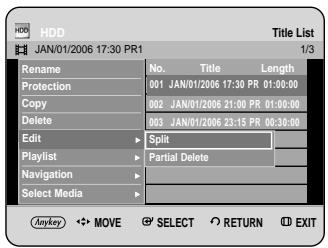

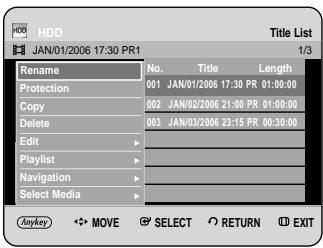

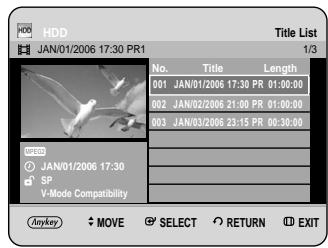

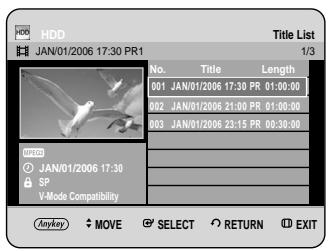

How to protect a title from deletion?

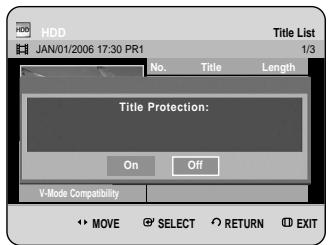

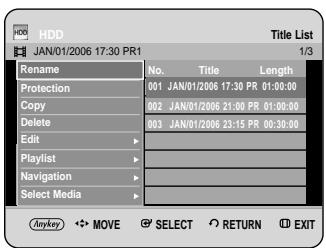

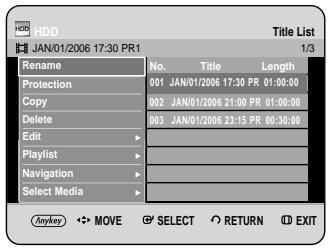

In the title list, select the title to protect, press ANYKEY, then choose Lock (or Protect). A locked title cannot be accidentally deleted. To unlock, repeat the operation.

What does the blinking 'AUTO' display mean?

The blinking 'AUTO' display during initial power-on indicates that the recorder is performing automatic setup, including channel search and clock setting. Let the unit complete this process.

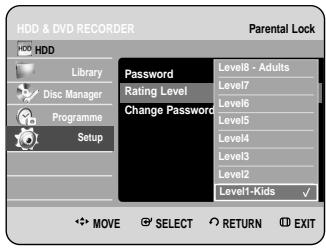

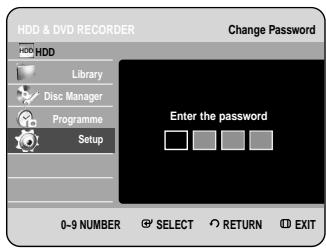

How to reset the parental lock code?

Turn on the unit without a disc. Press and hold (for more than 5 seconds) the PROG (up and down) buttons on the front panel. All settings, including the parental code, will be reset to factory defaults.

USER MANUAL DVD-HR734A SAMSUNG

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : HDD & DVD REORDER USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE HDD & DVD REORDER CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consumers for licenced contents.

No rights are granted for commercial use.

The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Precaution

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions

• Before connecting other components to this HDD & DVD REORDER, be sure to turn them all off.
• Do not move the HDD & DVD REORDER while a disc is being played, or the disc may be scratched or broken, the HDD & DVD REORDER internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the HDD & DVD REORDER.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this HDD & DVD REORDER. If this occurs, turn the HDD & DVD REORDER off and on again with the STANDBY/ON button, or disconnect and then reconnect the AC power cord to the AC power outlet. The HDD & DVD REORDER will operate normally.
• Be sure to remove the disc and turn off the HDD & DVD REORDER after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the HDD & DVD RECORDER for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

HDD (Hard Disk Drive)

The hard disk has a high storage density, which enables long recording durations and quick access to written data. However, it can easily be damaged by shock, vibration or dust and should be kept away from magnets. To avoid losing important data, observe the following precautions.

• Do not use the HDD & DVD REORDER in a place subject to extreme changes in temperature.
• Do not apply a strong shock to the HDD & DVD REORDER.

• Do not place the HDD & DVD REORDER in a location subject to mechanical vibrations or in an unstable location.

• Do not place the HDD & DVD REORDER on top of a heat source.

• Do not disconnect the AC power cord while the power is on.
• Do not attempt to change the hard disk. This may result in a malfunction.

Should the hard disk be damaged, you cannot recover lost data. The hard disk is only a temporary storage space.

Disc Handling

• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this HDD & DVD REORDER may be damaged.

Holding discs

• Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD-RW and DVD-R

• Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RAM/-RW/-R discs.

DVD-Video, Audio-CD

• Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.

4 - English

• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your HDD & DVD REORDER suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again.

Disc Specifications

Disc Type

DVD-Video

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby digital surrounding, allowing you to enjoy vivid and clear theatre quality images in the comfort of your own home.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalised, it becomes DVD-Video.

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded.
• Plays CD-DA format audio CD-R and CD-RW discs.
• The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

DVD-R Disc Playback and Recording

• Once a DVD-R recorded in Video Mode is finalised, it becomes DVD-Video.
• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programmes and erasing programmes before finalising.
• When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to complete recording management information after recording finishes.
• This product optimizes the DVD-R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times.
• Playback may be impossible in some cases due to the condition of recording.
• This unit can play back DVD-R discs recorded and finalised with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW DiscPlayback and Recording

• Recording and playback can be performed on DVD-RW discs in both the Video and VR Modes.
• Once a DVD-RW recorded in both the Video and VR Modes is finalised, you cannot perform additional recording.
• Once a DVD-RW recorded in Video Mode is finalised, it becomes DVD-Video.
• In both modes, playback can be performed before and after finalisation, but additional recording, deleting and editing can not be performed after finalisation.
• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost.
• A DVD-RW blank disc is initialized to VR Mode when first initialized.

DVD-RAM Disc Playback

• You cannot play a DVD-RAM in most DVD components due to compatibility issues.
• Only DVD-RAM standard Version 2.0. discs can be played in this unit.
• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

Disc Copy

Contents Copy Specifications

Contents	HDD → DVD	DVD → HDD
Recorded Video Title	Supported	Supported
Copy Protected Title	Not supported	Not supported
Copy Once Title	Move (Deletes the Title in the HDD after copying)	Not supported
MP3	Supported	supported
JPEGphoto	Supported	supported
DivX	Supported	Supported

Once "Copy Once programme" has been recorded on the DVD disc, this title cannot be copied to HDD anymore. But "Copy Once programme" has been recorded on the HDD, this title can be copied to DVD-RW(VR mode).

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your HDD & DVD REORDER directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

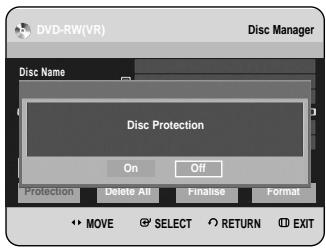

Protection

This HDD & DVD REORDER can allow you to protect the contents of your discs, as described below.

Programme-protected: See page 89 "Locking(Protecting) a Title"
- Disc-protected: See page 112 "Disc Protection"
DVD-RW/-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.
For more information on DVD recording compatibility, consult your DVD-RW/-R manufacturer.
* Use of poor quality DVD-RW/-R discs may cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the HDD & DVD REORDER.

Disc Format

Using MP3 disc

• CD-R/-RW, DVD-RAM/-RW/-R, HDD with MP3 files recorded with UDF, ISO9660 or JOLIET format can be playbacked.
• Only MP3 files with the ".mp3" or ".MP3" extension can be played.
• For MP3 files recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.
• Playable bit-rate range is from 56 Kbps to 320 Kbps.
• The unit can handle a maximum of 500 files and 100 sub folders under a folder.

Using JPEG disc

• CD-R/-RW, DVD-RAM/-RW/-R recorded with UDF, ISO9660 or JOLIET format can be playbacked.
• Only JPEG files with the“.jpg” or“.JPG” extension can be displayed.
• The unit can handle a maximum of 500 files and 100 sub folders under a folder.
• MOTION JPEG and progressive JPEG are not supported.

Using MPEG4 disc

Disc:CD-R/-RW,DVD-RAM/-RW/-R
- MPEG4(DivX) File with following extensions can be played.:.avi, .divx, .AVI, .DIVX
DivX Video (Codec) Format: DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
- DivX Audio (Codec) Format: MP3, MPEG1 Audio Layer 2, Windows Media Audio, LPCM, AC3
Supported subtitle file formats:.smi, .srt, .sub, .psb, .txt, .ass
- The unit can handle a maximum of 500 files and 100 sub folders under a folder.

DVD-RW (VR)

• This is a format that is used for recording data on a DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc.
• A disc that is recorded in this mode may not be played by existing HDD & DVD REORDER.

DVD-RW (V)/-R

• This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by existing HDD & DVD REORDER once it has been finalised.
• If a disc that has been recorded in Video Mode by a different maker's recorder but has not been finalised, it cannot be played or additionally be recorded by this HDD & DVD REORDER.

Do not use the following discs!

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note]

Disc types that can be played : CD/CD-R/-RW/ MP3/JPEG/DVD-Video/DVD-RAM/-RW-R.

For a DVD-RW/-R disc, which has been recorded in Video Mode on another component, it can play only when finalised.

• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either "No disc." or "Please check the regional code of the disc." will be displayed.

• If your DVD-RW disc is an illegal copy or is not in DVD video format, it may also not be playable.

Disc compatibility

• High Speed Recording discs can be used in this unit.
• Not all brands of discs will be compatible with this unit.

Contents

Getting Started

Warning 2

Precaution 3

Important Safety Instructions 3

Handling Cautions 3

Maintenance of Cabinet 3

HDD (Hard Disk Drive) 3

Disc Handling 4

Disc Storage 4

Disc Specifications. 4

Disc Copy 5

General Features 10

Before Reading the User's Manual 11

How to use the HDD & DVD REORDER 11

Unpacking 13

Description 15

Front Panel 15

Rear Panel 16

Front Panel Display. 16

Tour of the Remote Control. 17

Connecting & Setting Up

Quick Overview 18

Connecting the HDD & DVD REORDER 19

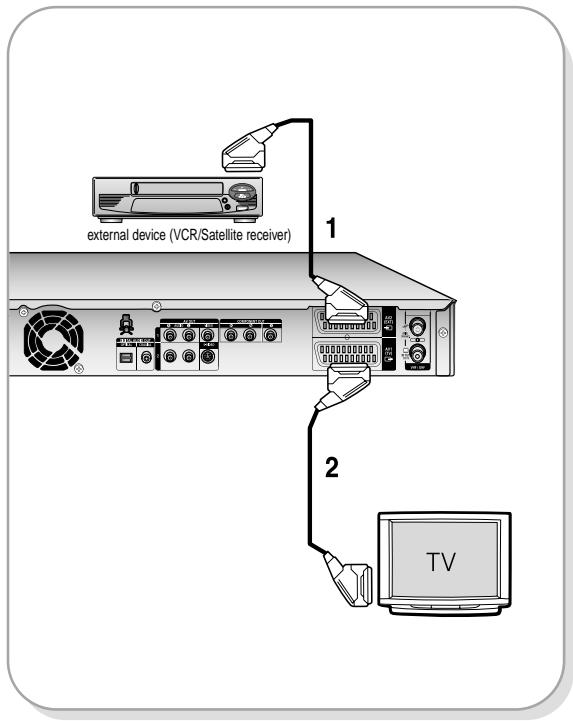

Additional connections 19

Antenna + HDD & DVD REORDER +

External decoder box + TV 20

Other type of connecting the Video output cable 20

Case 1: Connecting to a Video (Composite)

output jack 21

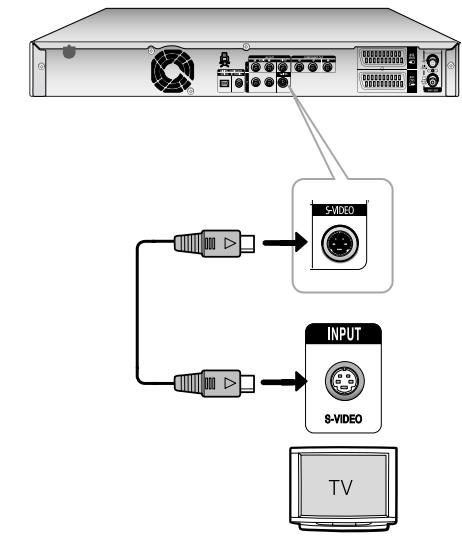

Case 2: Connecting to an S-Video output jack. 21

Case 3 : Component Video output jacks. 22

Other type of connecting the Audio

output cable 22

Case 1: Connecting to your TV 22

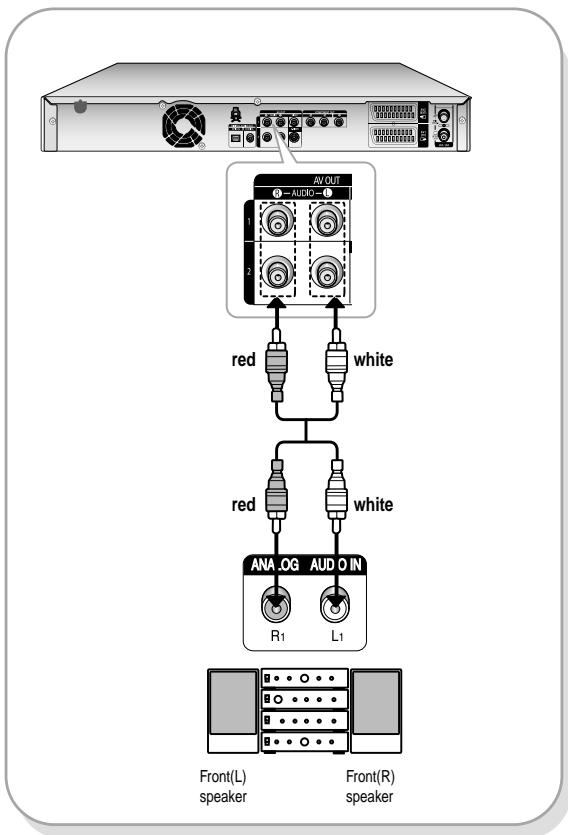

Case 2: Connecting to a stereo amplifier

with AV output jacks 23

Case 3: Connecting to an AV amplifier

with a digital output jack 23

Connecting to AV 3 IN, DV input jack. 24

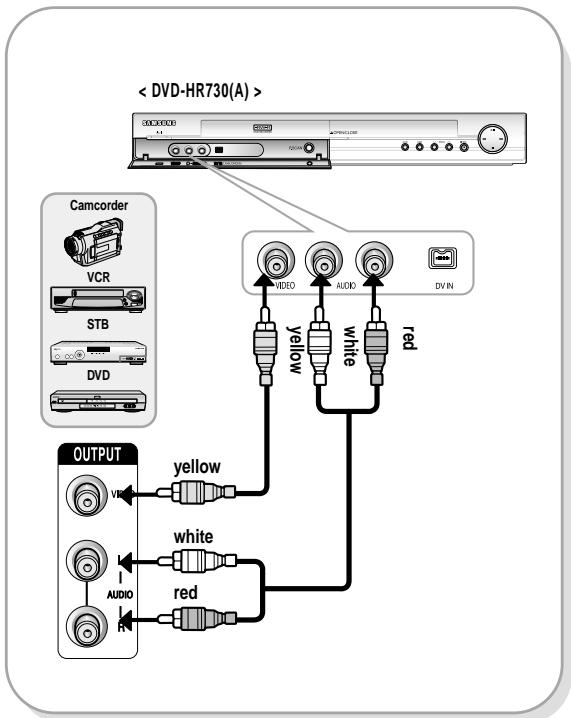

Case 1: Connecting a VCR, Set-Top Box(STB),

DVD player or Camcorder to the AV3 IN jacks.24

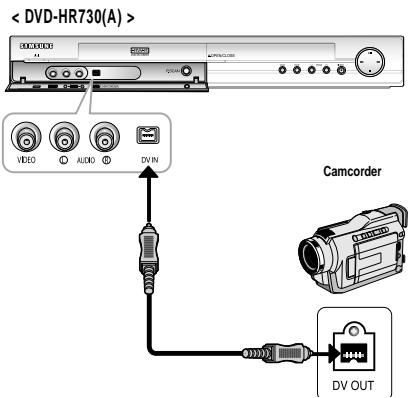

Case 2: Connecting a Camcorder to the

DV IN jack 24

System Setup

On-Screen Menu Navigation 25

Plug & Auto Setup 26

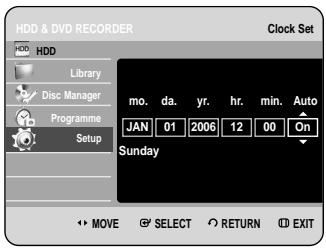

Setting the Clock. 27

Presetting Channels with

the Auto Setup function. 28

Presetting Channels with

the Manual Setup function 29

Setting up the Language Options 30

Auto Power Off Setting. 31

Setting up the Quick Recording Options. 32

Automatic Chapter Creator 33

DivX(R) Registration 34

CM Skip Time Setting 34

EP Mode Time Setting 35

Setting up the Audio Options 36

Setting up the Video display Options. 38

Setting up Video Output Options 39

Setting up the Progressive scan. 39

Canceling the Progressive scan 40

Setting up the Parental Lock. 41

If you forgot your password. 42

Setting the Rating Level 42

Changing the Password 42

Playback

Before Playing 43

Playing a Disc 44

Using the Disc Menu & Title Menu 45

Using the Search & Skip Functions 45

Slow Motion Play/Step Motion Play 46

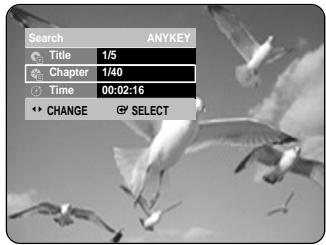

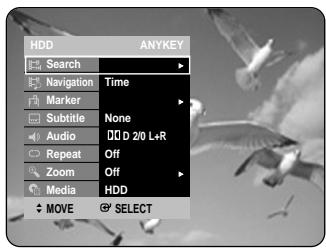

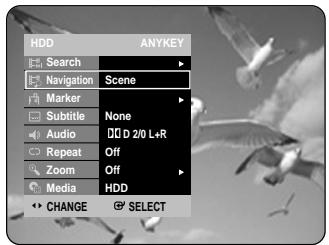

About ANYKEY 47
Playing the Title List. 48

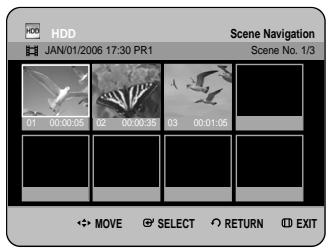

Navigation menu 49
Using Markers. 52
Using the Bookmarks. 54
Selecting the Subtitle Language 55
Selecting the Soundtracks & Audio channels.....56
Changing the Camera Angle. 57
Repeat Play 58

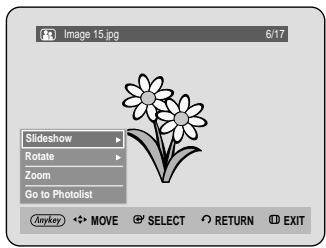

Zooming-In 59
Select Media. 60

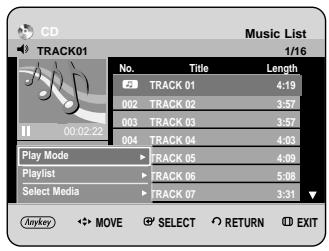

Playing an Audio CD/MP3. 60
Viewing a Picture 67
Playing an MPEG4 71

Recording

Before Recording 73
Recording the current TV programme you are watching. 75
Recording from external equipment you are watching. 77
Copying from a Camcorder 78
Making a One Touch Recording (OTR) 79
Simultaneous Recording and Playback. 80
Making a Timer Recording. 81
Editing the Scheduled List 83

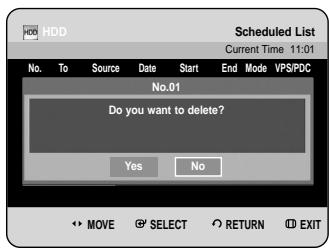

Deleting a Scheduled List. 84
Go To Recorded List. 85

Editing

Basic Editing (Title List) 88

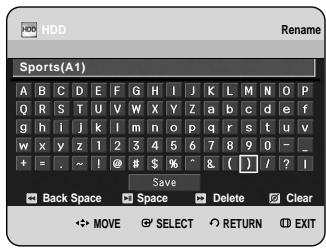

Renaming(Labeling) a Title 88
Locking (Protecting) a Title 89
Deleting a Title 90

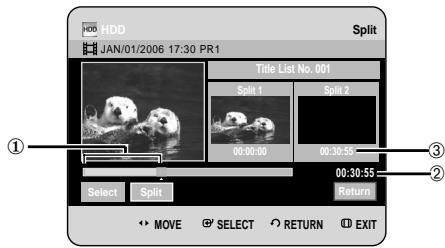

Splitting a Section of a Title (Split) 91

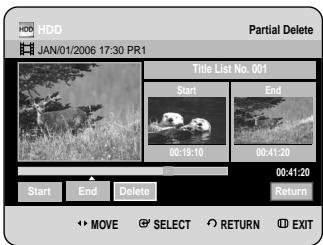

Deleting a Section of a Title (Partial Delete) 92

Advanced Editing ( Playlist) 94

Creating a Playlist. 94
Playing Entries in the Playlist. 96

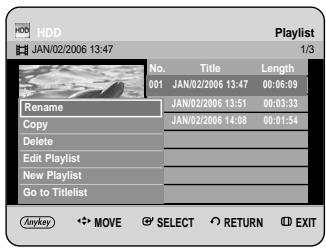

Renaming a Playlist Entry. 96

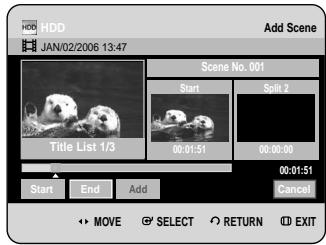

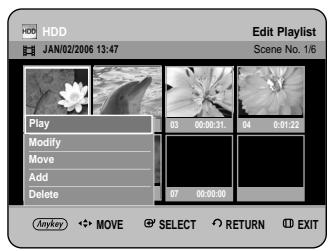

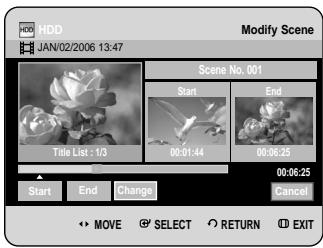

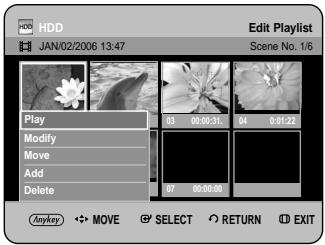

Editing a Scene for the Playlist. 97
Deleting a Playlist Entry from the Playlist 102

Copying from HDD to DVD. 103

About the Copy Screen. 103

Copying Multiple Titles at One Time 105

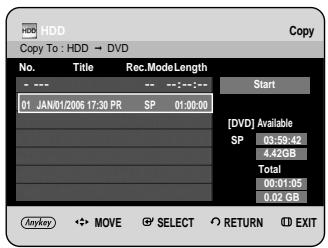

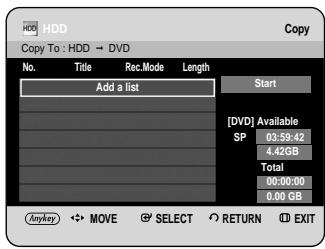

Deleting an Undesired Title from the Copy List.....106

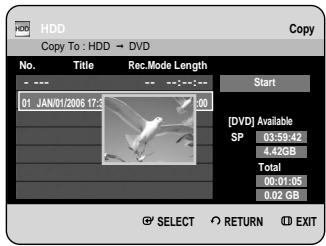

Previewing a Selected Title from the Copy List. 107

Copying from DVD to HDD 107

Copying MP3, JPEG or DivX 109

File Copy 109

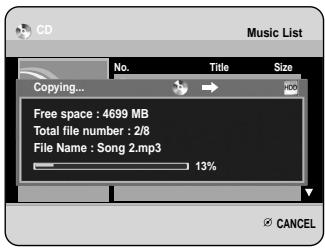

Folder Copy. 110

Disc Manager 111

Editing the Disc Name 111
Disc Protection. 112

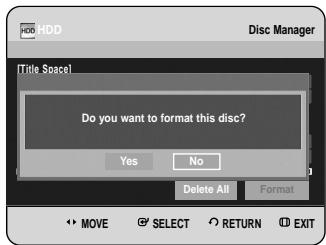

Formatting a Disc 112

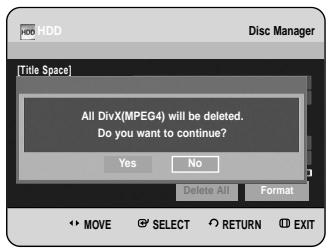

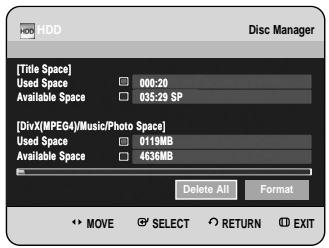

Delete All Title Lists/DivX List/Music Lists/ Photo Lists 113
Delete All Title Lists 114
Finalising a Disc. 115
Unfinalising a Disc (V/VR mode) 116

Reference

Troubleshooting 117
Specifications 121

General Features

The HDD(Hard Disk Drive) & DVD REORDER allows you to record and play high quality digital video on DVD-RW/-R discs or on the HDD. You can also edit digital images on DVD-RW/-R discs or HDD.

HDD Recording

DVD-HR730(A)

You can record up to 130 hours of video (in EP mode) on the internal 80GB (gigabyte) hard disk (HDD).

DVD-HR734(A)

You can record up to 270 hours of video (in EP mode) on the internal 160GB (gigabyte) hard disk (HDD).

With both recordable DVD and a high-capacity HDD in the same recorder, you have the flexibility to keep recordings on the HDD for quick access anytime, or record to DVD for archiving or playing on other DVD players.

Copy between HDD and DVD

You can copy recordings from the HDD to recordable DVD, or from DVD to the HDD.

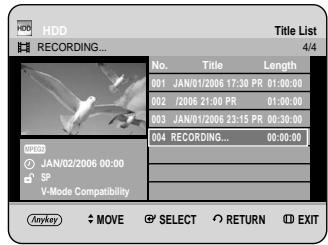

Simultaneous Recording and Playback

Playback and recording for both the DVD and the built-in hard disk drive (HDD) are completely independent. For example you can record a broadcast programme to either a recordable DVD or the HDD, while watching another recording you already made on the same DVD or on the HDD.

High quality digital audio and video recording and playback

Record up to 8-hours of video with a 4.7 GB DVD-RW/-R disc, depending on the recording mode.

Selectable Recording Mode

You can set your HDD & DVD REORDER to one of four different recording speeds, each varying in recording quality and length. EP (6Hr or 8Hr) mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, XP mode gives you the highest quality recording.

Automated Quality Adjustment for Timer Recording

If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 82)

Creating a DVD video title using DVD-RW/-R disc

With the HDD & DVD REORDER, you can create your own DVD Video titles on 4.7 GB DVD-RW/-R discs.

Copying data from a digital camcorder using a DV input jack

Record DV Device video onto HDD and DVD-RW/-R discs using the DV input jack (IEEE 1394-4pin/4pin). (See page 78)

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest image playback and recording quality. (See pages 39~41)

A variety of functions with an easy-to-use user interface

The integrated menu system allows you to perform desired operations both easily and conveniently. With a HDD, DVD-RW disc, you can edit recorded video, create a playlist, edit video in a specific sequence according to your requirements.

MPEG4 playback

This HDD & DVD REORDER can play MPEG4 formats within an avi file.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under licence.

Before Reading the User's Manual

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon	Term	Definition
HDD	HDD	This involves a function available on the HDD.
DVD	DVD	This involves a function available on DVD or DVD-R/DVD-RW discs that have been recorded and finalised in Video Mode.
DVD-RAM	RAM	This involves a function available on DVD-RAM.
DVD-RW	RW	This involves a function available on DVD-RW.
DVD-R	R	This involves a function available on DVD-R.
CD	CD	This involves a function available on a data CD (CD-R or CD-RW).
JPEG	JPEG	This involves a function available on CD-R/-RW or DVD-R/-RW/-RAM discs.
MP3	MP3	This involves a function available on CD-R/-RW or DVD-R/-RW/-RAM discs.
MPEG4	MPEG4	This involves a function available on CD-R/-RW or DVD-R/-RW/-RAM discs.
Caution	Caution	This involves a case where a function does not operate or settings may be cancelled.
NOTE	NOTE	This involves tips or instructions on the page that help each function operate.
One-Touch button	A function that can be operated by using only one button.
ANYKEY	ANYKEY button	A function that can be operated by using ANYKEY button.

About the use of this user's manual

1) Be sure to be familiar with Safety Instructions before using this product. (See pages 2~7)
2) If a problem occurs, check the Troubleshooting. (See pages 117~120)

Copyright

©2006 Samsung Electronics Co.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

How to use the HDD & DVD REORDER

Step 1 Select the disc type or HDD

This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritesable DVD-RW type disc. If you want to save a recording without any changes, choose a nonrewritesable DVD-R. You can record files directly to the built-in HDD or edit a recorded file.

RW

R

Step 2 Format the disc to start recording

Unlike a VCR, the HDD & DVD REORDER automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

Using the HDD

Formattingunnecessory.

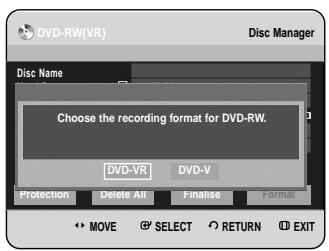

Using a DVD-RW

This type of disc can be formatted in either DVD-Video format (V mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to initialize a disc or not. If you select "Yes", disc will be formatted in VR mode. You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing.

Using a DVD-R

Formatting disc is unnecessary and only V Mode Recording is supported. You can play these type of discs on various DVD components only when they have been finalised.

• You can only use either the VR or Video mode on a DVD-RW, but not both at the same time.
• You can change the DVD-RW to format to another format by reinitializing. It should be noted that the disc's data will be lost when changing formats.

Step 3 Recording

There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as follows:

Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the recording mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc.

Step 4 Playing

You can select the title you want to play in a displayed menu and then immediately start playback.

A DVD consists of sections, called titles, and subsections, called chapters.

During recording, a title is created between two points where you start and stop recording.

Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in Video mode.

The chapter's length (interval between chapters) varies according to the recording mode.

Step 5 Editing a recorded disc

Editing on discs is easier than conventional video tapes. The HDD & DVD REORDER supports many different edit functions, possible only with DVDs and HDD.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

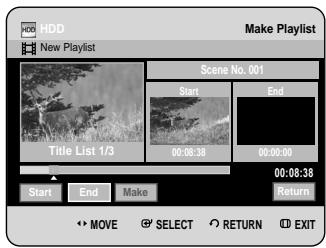

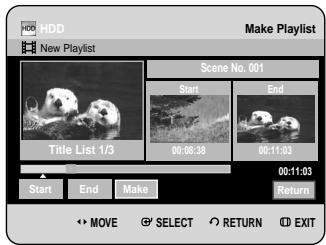

Creating a playlist (DVD-RW in VR mode, HDD)

With this HDD & DVD REORDER, you can create a new playlist on a disc and edit it without the original, pre-existing recording.

Step 6 Finalising & Playing on other DVD components

To play your DVD on other DVD components, finalising may be necessary. First, finish all editing and recording operations, then finalise the disc.

When using a DVD-RW disc in VR Mode

DVD discs recorded in VR mode can only be played back in DVD recorders, not players.

When using a DVD-RW disc in Video Mode

The disc should be finalised first to enable playback on anything other than this HDD & DVD REORDER.

No more editing or recording can be made on the disc once it has been finalised.

To enable recording on the disc again, the disc must be unfinalised.

When using a DVD-R disc

You should finalise the disc to play it on a component other than this HDD & DVD REORDER. You cannot edit or record on the disc once it has been finalised.

Accessories

Check for the supplied accessories below.

Video/Audio Cable

RF Cable for TV

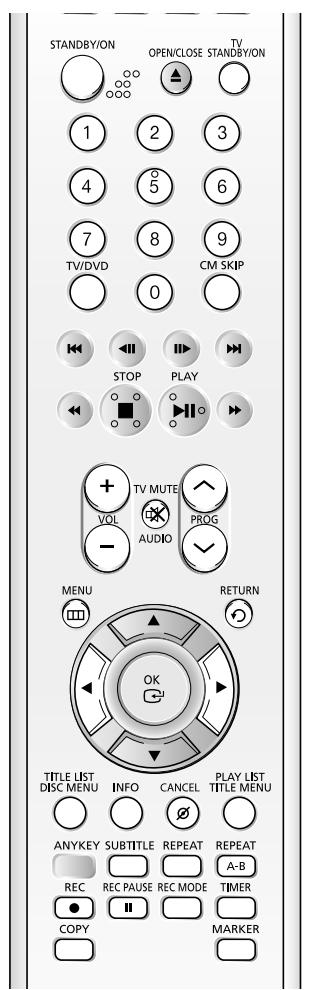

Remote Control

Batteries for Remote Control (AAA Size)

Instruction Manual

Quick Guide

Preparing the Remote Control

Install Batteries in the Remote Control

• Open the battery cover on the back of the remote control.
• Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.
• Replace the battery cover.

If the remote does not operate properly:

• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

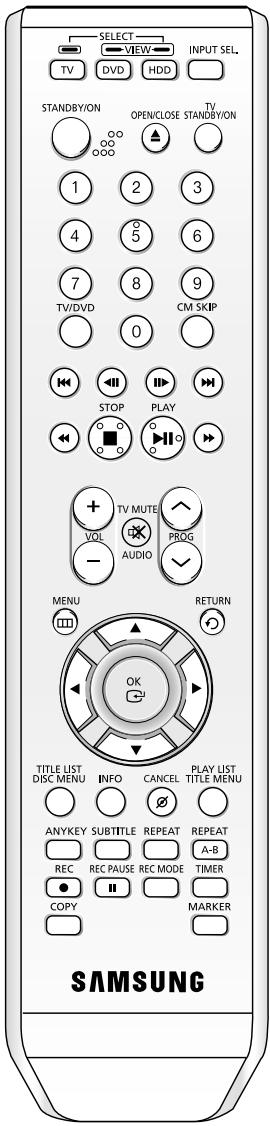

Setting the Remote Control

You can control certain functions of another manufacturer's TV with this remote control.

Control function buttons involve: TV STANDBY/ON, PROG , VOL + -, Number buttons, TV MUTE, INPUT SEL. button.

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV STANDBY/ON button and enter the two-figure code corresponding to the brand of your television, by pressing the appropriate number buttons.

Controllable TV Codes

BRAND	BUTTON
SAMSUNG	01, 02, 03, 04, 05, 06, 07, 08, 09
AIWA	82
ANAM	10, 11, 12, 13, 14, 15, 16, 17, 18
BANG & OLUFSEN	57
BLAUPUNKT	71
BRANDT	73
BRIONVEGA	57
CGE	52
CONTINENTAL EDISON	75
DAEWOO	19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34
EMERSON	64
FERGUSON	73
FINLUX	06, 49, 57
FORMENTI	57
FUJITSU	84
GRADIENTE	70
GRUNDIG	49, 52, 71
HITACHI	60, 72, 73, 75
IMPERIAL	52
JVC	61, 79
LG	06, 19, 20, 21, 22, 78
LOEWE	06, 69
LOEWE OPTA	06, 57
MAGNAVOX	40
METZ	57
MITSUBISHI	06, 48, 62, 65
MIVAR	52, 77
NEC	83
NEWSAN	68
NOBLEX	66
NOKIA	74
NORDMENDE	72, 73, 75
PANASONIC	53, 54, 74, 75
PHILIPS	06, 55, 56, 57
PHONOLA	06, 56, 57
PIONEER	58, 59, 73, 74
RADIOLA	06, 56
RADIOMARELLI	57
RCA	45, 46
REX	74
SABA	57, 72, 73, 74, 75
SALORA	74
SANYO	41, 42, 43, 44, 48
SCHNEIDER	06

BRAND	BUTTON
SELECO	74
SHARP	36, 37, 38, 39, 48
SIEMENS	71
SINGER	57
SINUDYNE	57
SONY	35, 48
TELEAVA	73
TELEFUNKEN	67, 73, 75, 76
THOMSON	72, 73, 75
THOMSON ASIA	80, 81
TOSHIBA	47, 48, 49, 50, 51, 52
WEGA	57
YOKO	06
ZENITH	63

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

NOTE

If several codes are indicated for your television brand, try each one in turn until you find one that works.
If you replace the remote control's batteries, you must set the brand code again.

Then you can control the television using the following buttons after pressing the TV button.

Button	Function
TV STANDBY/ON	Used to switch the television on and off.
INPUT SEL.	Used to select an external source.
VOL (+-)	Used to adjust the volume of the television.
PROG ( ∧ ∨)	Used to select the desired channel.
TV MUTE	Used to toggle the sound on and off.
Number	Used to input number directly.

NOTE

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly.

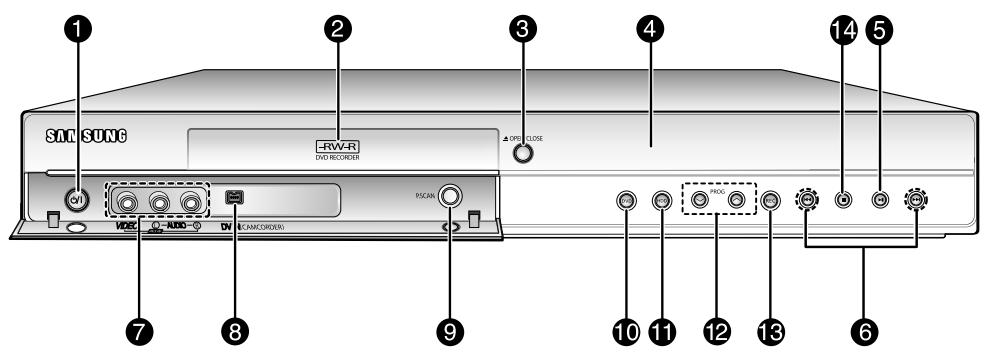

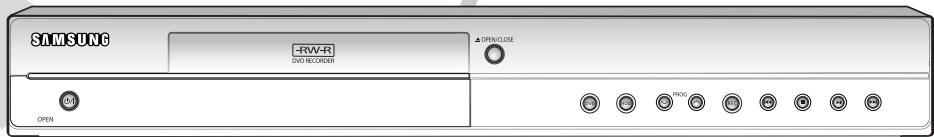

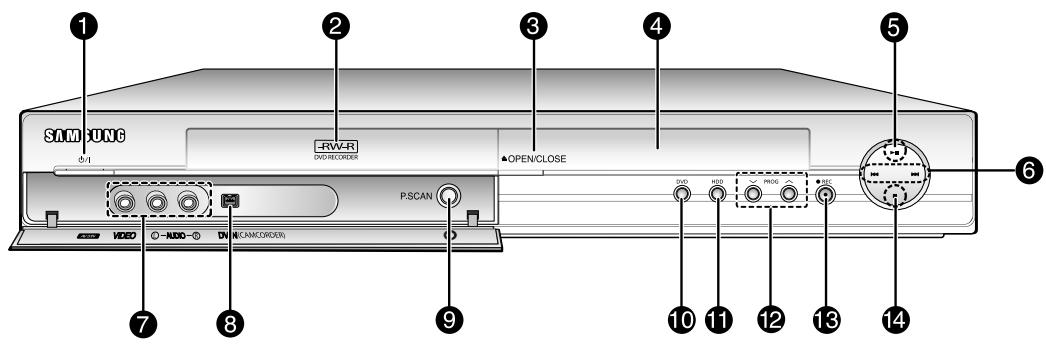

Front Panel

< DVD - HR730(A)>

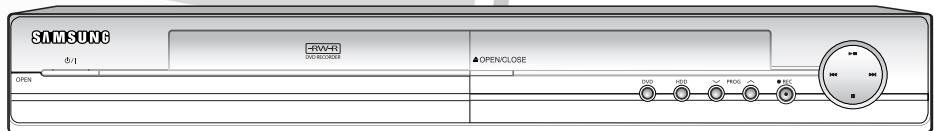

< DVD - HR734(A)>

1. STANDBY/ON BUTTON

Turns the HDD & DVD REORDER on and off.

1. DISC TRAY

Opens to accept a disc.

1. OPEN/CLOSE BUTTON

Opens and closes the disc tray.

1. DISPLAY

Displays the playing status, time, etc.

1. PLAY/PAUSE BUTTON

Plays a disc or pauses playback.

1. SEARCH/SKIP BUTTONS

Goes to the next title/chapter/track or goes back to the previous title/chapter/track.

1. AV 3 INPUT

Connect external equipment.

1. DV-INPUT

Connect external digital equipment with a DV jack. (such as a camcorder)

1. P.SCAN BUTTON

Selects the progressive scan mode.

1. DVD BUTTON

Select DVD mode.

1. HDD BUTTON

Select HDD mode.

12.PROGV BUTTONS

Select TV preset Channels. Same as PROG button on the remote control.

1. RE C BUTTON

Starts recording.

1. STOP BUTTON

Stops disc playback.

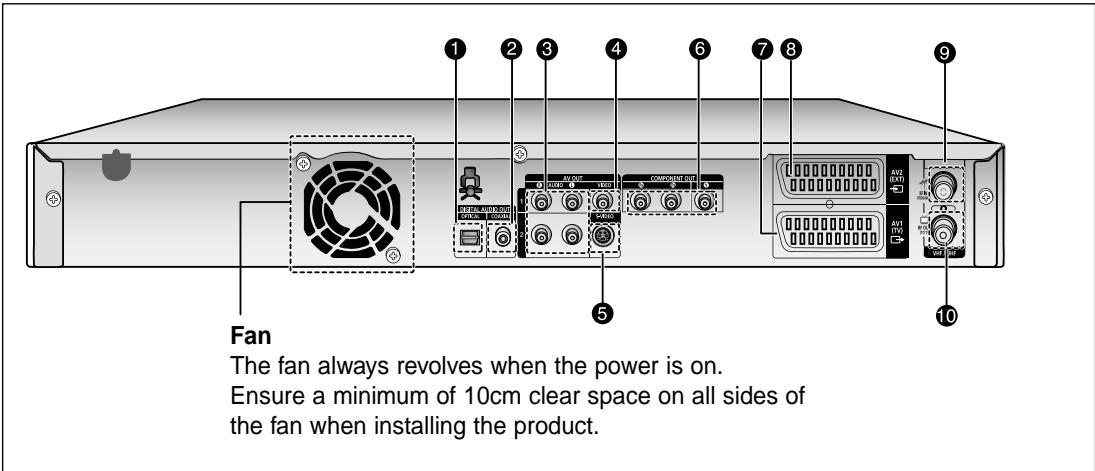

1. DIGITAL AUDIO OUT(OPTICAL)

Connects to an amplifier having a digital optical audio input jack.

2. DIGITAL AUDIO OUT(COAXIAL)

Connects to an amplifier having a digital coaxial audio input jack.

3. AUDIO OUT

Connects to the audio input of external equipment using audio cables.

4.VIDEO OUT

Connects the input of external equipment using a Video cable.

5. S-VIDEO OUT

Connects the input of external equipment using an S-Video cable.

6. COMPONENTVIDEO OUT

Connects to equipment having Component video input.

7. AV1(TV) OUTPUT SCART Connector

8. AV2(EXT) INPUT SCART Connector

9. In from aerial connector

10. Out to TV connector

NOTE

• The Antenna connection does not pass the output signal of the DVD. To watch DVD/HDD playback your TV, you must connect audio/video or Scart cables.

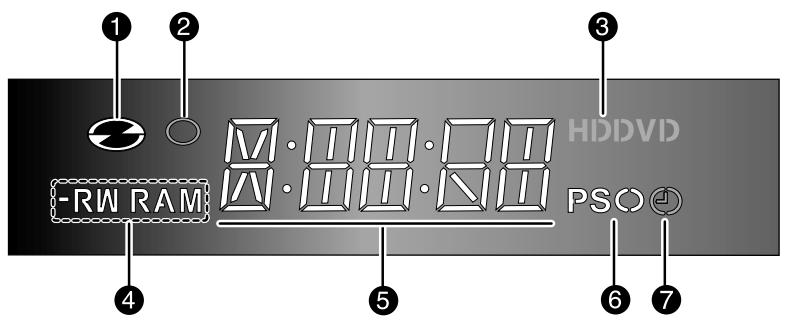

Front Panel Display

1. Lights when a disc is loaded.
2. Lights in the record mode.
3. Lights when a HDD/DVD is selected.

4. Lights when a -R/RW/RAM disc is loaded.

5. Playing time/clock/current status indicator.

6. Lights in the progressive scan mode.
7. Lights to indicate the timer record mode.

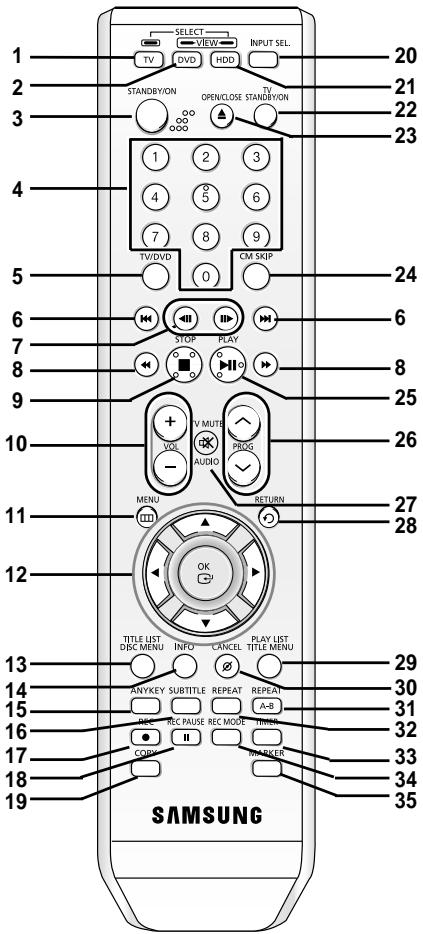

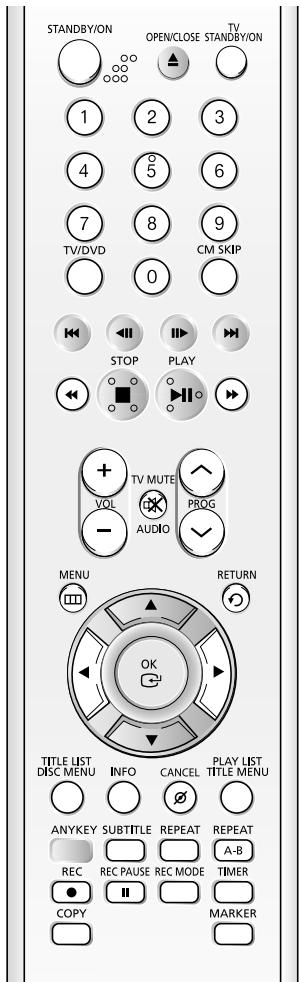

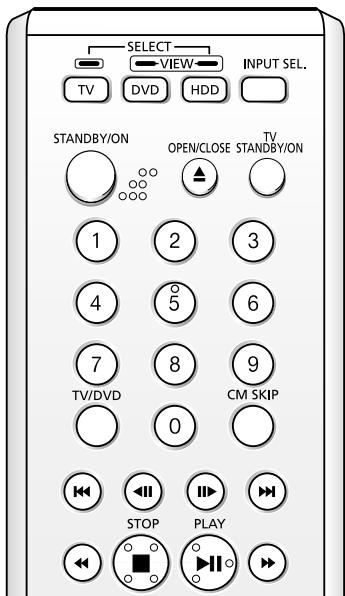

Tour of the Remote Control

1. TV Button

Press this to operate TV.

1. DVD Button

Press this to operate DVD.

1. STANDBY/ON Button

2. NUMBER Buttons

3. TV/DVD Button

4. REVERSE/FORWARD SKIP Buttons

Press to skip backwards or forwards.

1. REVERSE/FORWARD STEP Buttons

Each time this button is pressed, a new frame will appear.

1. REVERSE/FORWARD SEARCH Buttons

Press to search a disc backwards or forwards.

1. STOP Button

Press to stop a disc.

1. VOL Button

TV volume adjustment

1. MENU Button

Brings up the HDD & DVD REORDER's setup menu.

1. OK/DIRECTIO

N Buttons (▲▼▲▶ Buttons)

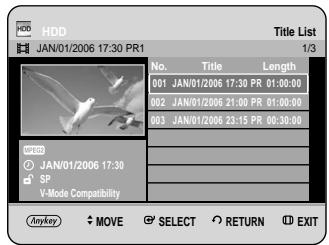

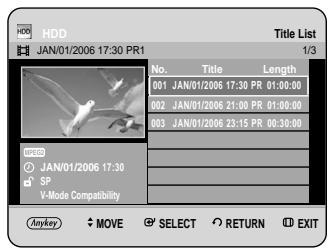

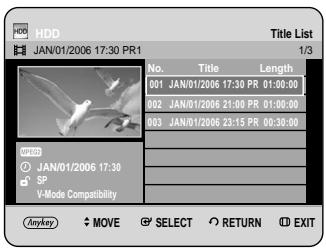

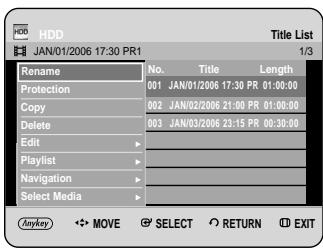

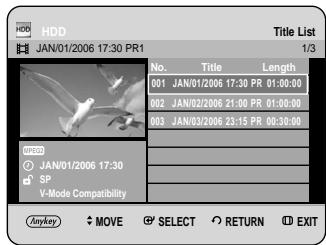

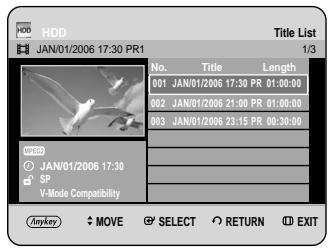

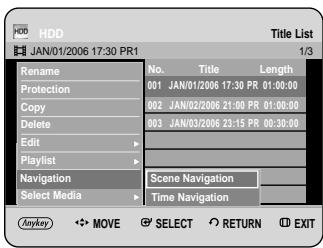

1. TITLE LIST/DISC MENU Button

Use this to enter the View Recording list/disc menu.

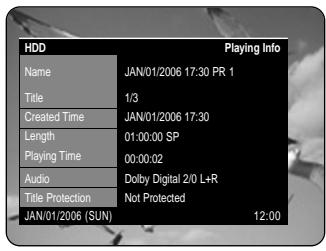

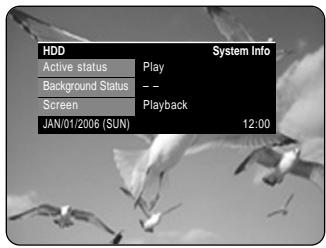

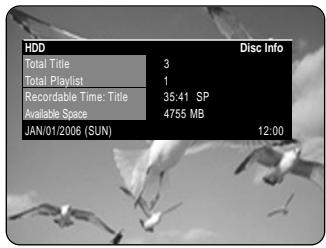

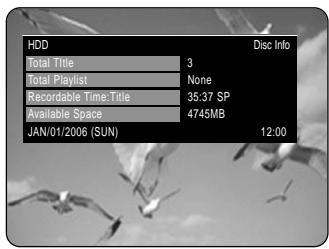

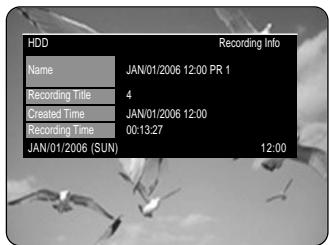

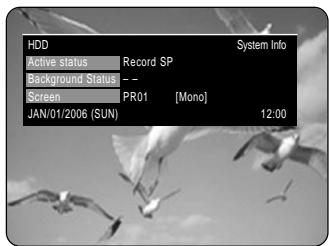

1. INFO Button

This will display current setting or disc status.

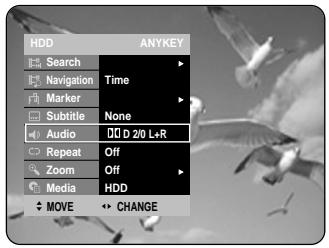

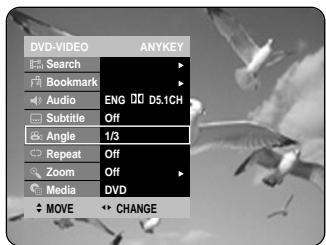

1. ANYKEY Button

Allows access to common functions of the recorder.

1. SUBTITLE Button

Press this to switch the DVD's subtitle language.

1. REC Button

Use to make a recording on HDD/DVD-RW/-R discs.

1. REC PAUSE Button

Use this to pause during recording.

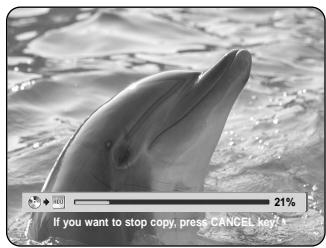

1. COPY Button

Press this when you copy DVD to HDD and

vice-versa.

To start copying, press the COPY button on the title list

screen or press the COPY button during the playback.

1. INPUT SEL Button

Select input signal in external input mode (PROG,

AV1,AV2,AV3 or DV input)

1. HDD Button

Press this to operate HDD.

1. TV STANDBY/ON Button

2. OPEN/CLOSE Button

To open and close the disc tray.

1. CM SKIP Button

When a programme recorded on DVD disc or HDD is played, the unit can be set to automatically skip a portion of the programme.

1. PLAY/PAUSE Button

Press to play/pause a disc.

1. PROG Button

Use this to select a TV programme.

1. TV MUTE/AUDIO Button

In TV mode, this operates as sound mute.

Use this to access various audio functions on a disc (DVD mode).

1. RETURN Button

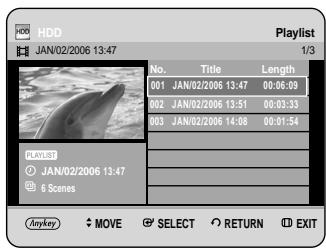

2. PLAY LIST/TITLE MENU Button

Use this to return to the Title menu, or to view the

recorded files list.

1. CANCEL Button

2. REPEAT A-B Button

Allows you to repeat a title, chapter, track or disc.

1. REPEAT Button

Allows you to repeat a title, chapter, track or disc.

1. TIMER Button

Press to directly enter the Timer Recording Mode menu.

1. REC MODE Button

Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP).

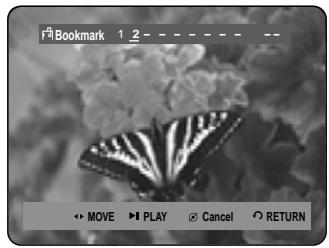

1. MARKER Button

Use this to bookmark a position while playing a disc.

Connecting & Setting Up

This section involves various methods of connecting the HDD & DVD REORDER to other external components and required initial setting modes.

Quick Overview 18

Connecting the HDD & DVD REORDER 19

Additional connections 19

Antenna ^+ HDD & DVD REORDER ^+ External decoder box ^+ TV 20

Other type of connecting the Video output cable . . .20

Other type of connecting the Audio output cable . . .22

Connecting to AV 3 IN, DV input jack .24

Quick Overview

A Quick Overview presented in this guide will give you enough information to start using the HDD & DVD REORDER.

Connecting the HDD & DVD REORDER

Additional connections

Antenna + HDD & DVD REORDER + External decoder box + TV

Other type of connecting the Video output cable

Other type of connecting the Audio output cable

Connecting to AV 3 IN, DV input jack

Connecting the HDD & DVD REORDER

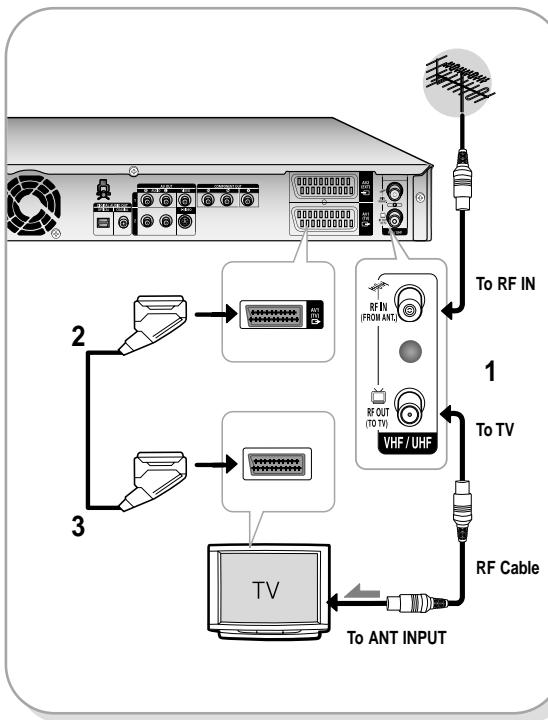

Additional connections

You can connect your HDD & DVD REORDER to the television using the SCART cable if the appropriate input is available on the television.

1. Connect the RF cable as shown.
2. Connect one end of the SCART cable to the AV1 socket on the rear of the HDD & DVD RECORDER.
3. Plug the other end into the appropriate connector on the television.
4. Plug in the HDD & DVD REORDER and TV
5. Turn on the HDD & DVD REORDER and TV.
6. Press the INPUT SEL. button on your TV remote control until the Video signal from the HDD & DVD RECORDER appears on the TV screen.

NOTE

• The RF cable connection of this product sends only signals of TV. You must connect SCART cable or Audio/Video cables to watch a DVD from your HDD & DVD REORDER.
  TV mode: Press the TV/DVD button on remote control, then "TV" appear on Front LED display (or turn off HDD & DVD REORDER). Then you can watch programmes received through TV.

You can connect your HDD & DVD REORDER to a satellite or digital tuner.

• DVD mode

• Connect the AV2 connector of HDD & DVD RECORDER and VCR/Satellite receiver or digital tuner using a SCART cable.

• Connect the AV1 connector to the SCART AV connector on TV.
• Turn on the HDD & DVD REORDER, VCR/Satellite receiver or digital tuner and TV.

• Set Input mode on AV2.

• TV mode

• Press the TV/DVD button on remote control, then "TV" appear on Front LED display. (or turn off HDD & DVD REORDER.)

• You can watch programmes from a satellite or digital tuner connected to this HDD & DVD RECORDER, even when the HDD & DVD RECORDER is turned off.

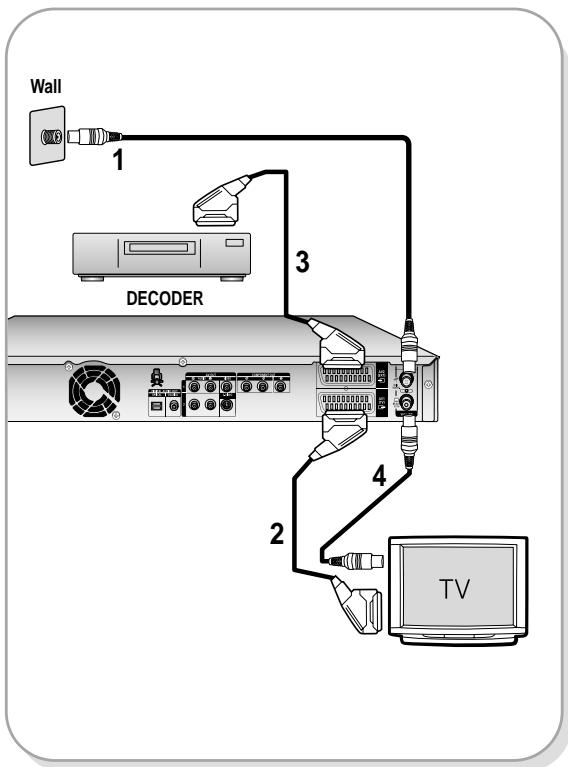

Antenna + HDD & DVD RECORDER + External decoder box + TV

If you connect external decoder box to HDD & DVD RECORDER, you can record scrambled channels (CANAL+or Premiere broadcasts) received through the built-in TV tuner in HDD & DVD RECORDER.

1. Connect RF antenna cables as shown.
2. Connect the AV1 connector on this recorder to the SCART AV connector on TV using a SCART cable.
3. Connect the AV2 connector to a SCART AV connector on decoder box.
4. To watch or record PAY-TV Canal Plus programmes, set your HDD & DVD RECORDER to receive the channels using the on-screen display. (Refer to pages 28~30)

Other type of connecting the Video output cable

There are several ways to output video signal not using scart cables. Select one of the following video connecting that best suits you below.

• Case 1: Connecting to a Video (Composite) output jack
• Case 2: Connecting to an S-Video output jack
• Case 3 : Component Video output jacks

S-Video, Component video and Progressive Output Modes

• S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings.
• Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, clear image than interlaced video. This is only available with TVs that support progressive scan.
• Progressive Scan Output (576p) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture, in case of 576 progressive scan picture problems. It is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 576p HDD & DVD RECORDER, please contact our customer service centre.

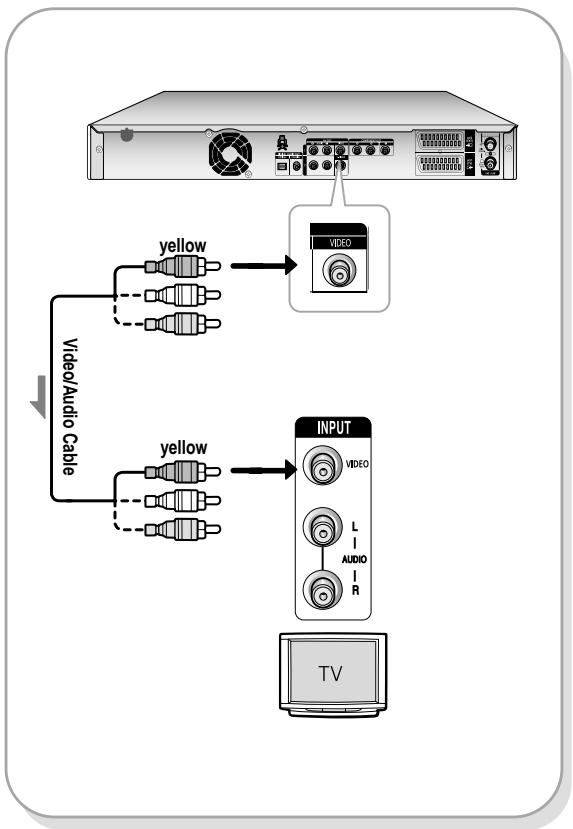

Case 1: Connecting to a Video (Composite) output jack

1. Connect a video(yellow) cable between the VIDEO (yellow) OUT jack on HDD & DVD RECORDER and VIDEO (yellow) INPUT jack on your TV (or AV amplifier).
2. You will enjoy regular quality images.
3. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD REORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23)

Case 2: Connecting to an S-Video output jack

1. Connect an S-Video cable (not included) between the S-VIDEO OUT jack on HDD & DVD RECORDER and S-VIDEO INPUT jack on your TV (or AV amplifier).
2. You will enjoy high quality images.
3. Connect audio cables (white and red) between the AUDIO OUT jacks on HDD & DVD REORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23)

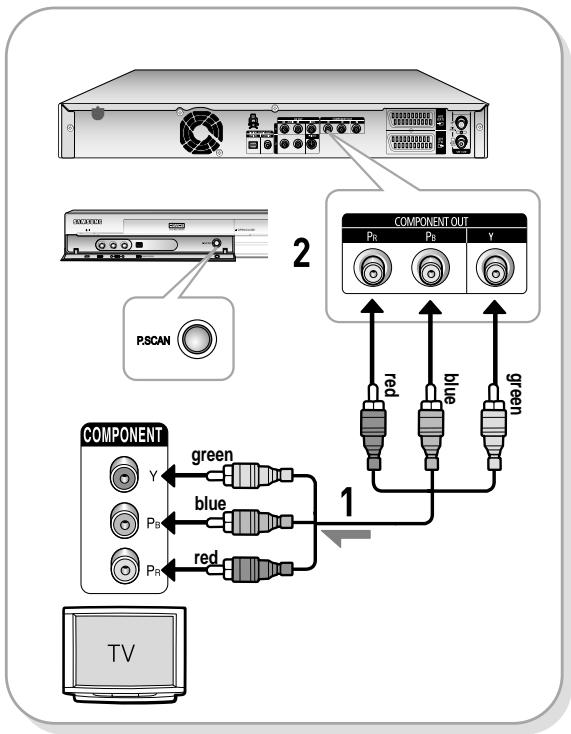

Case 3 : Component Video output jacks

1. Connect Component video cables(not supplied) between the COMPONENT OUT(Y, P_B, P_R ) jacks on HDD & DVD REORDER and COMPONENT IN(Y, P_B, P_R ) jacks on your TV.
2. You will enjoy high quality and accurate colour reproduction images.
3. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 22~23).
4. After connecting, refer to the pages 39~41.

NOTE

Make sure that the colour coded connections match. The Y, P_B P_R component output jacks of your HDD & DVD REORDER must be connected to the exact corresponding component input jacks on your TV.
- Progressive setting is only available when the Video Out is set to Component. (See pages 39~41)

Other type of connecting the Audio output cable

There are several ways to output audio signal not using scart cables. Select the audio connection that best suits you below.

• Case 1: Connecting to your TV
• Case 2: Connecting to a stereo amplifier with AV output jacks
• Case 3: Connecting to an AV amplifier with a digital output jack

Manufactured under licence from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Out" are trademarks of Digital Theatre System, Inc.

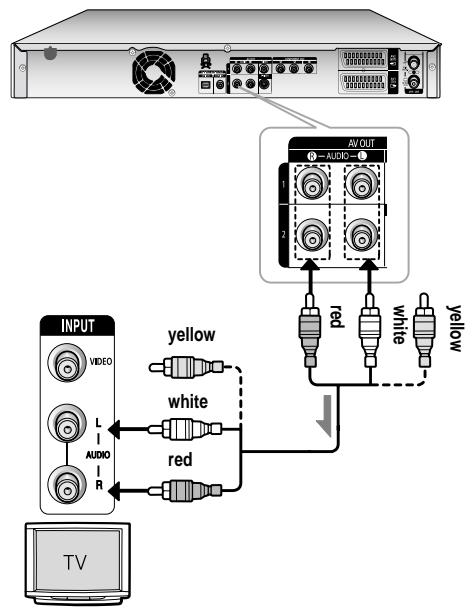

Case 1 : Connecting to your TV

If your TV has audio input jacks, use this connection.

Case 2 : Connecting to a stereo amplifier with AV output jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

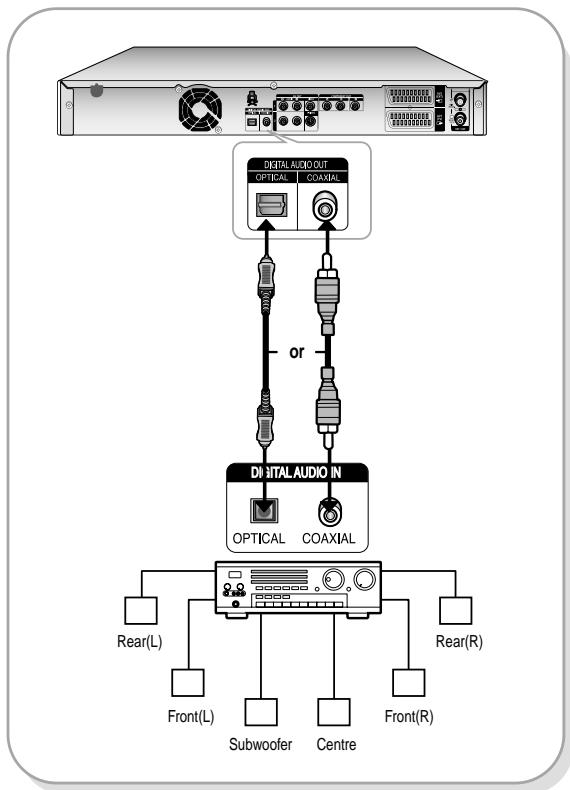

Case 3: Connecting to an AV amplifier with a digital output jack

If your AV amplifier has a Dolby Digital, MPEG2 or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings.

According to your amplifier, connect to an optical cable or a coaxial cable.(See pages 36~37)

Connecting to AV 3 IN, DV input jack

This allows you to connect your HDD & DVD RECORDER to other external devices and view or record their outputs.

• Case 1: Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV3 IN jacks
• Case2: Connecting a DV Device to the DV IN jack

Case 1: Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV3 IN jacks

Connecting a VCR or external device to AV3 IN jacks of the HDD & DVD REORDER.

You can record from connected equipment (VCR, STB, DVD player or Camcorder).

NOTE

AV 3 in selection will be automatically done. If the input is not selected automatically, use INPUT SEL. button to select proper input.
- Copy protected content cannot be recorded.

Case 2: Connecting a Camcorder to the DV IN jack

If your digital camcorder has a DV output jack, connect it to the DV input jack of your HDD & DVD RECORDER.

NOTE

If the input is not selected automatically, use INPUT SEL. button to select proper input.

System Setup

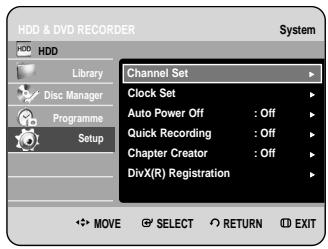

On-Screen Menu Navigation

The on-screen menus allow you to enable or disable various functions on your HDD & DVD RECORDER. Use the following buttons to open and navigate through the on-screen menus.

On-Screen Menu Navigation 25

Plug & Auto Setup 26

Setting the Clock 27

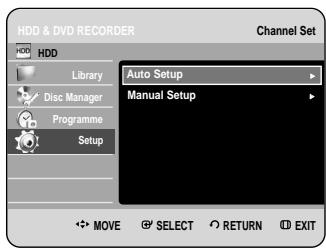

Presetting Channels with the Auto Setup function 28

Preseting Channels with the Manual Setup function 29

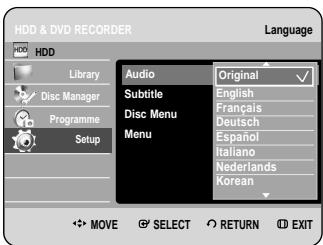

Setting up the Language Options 30

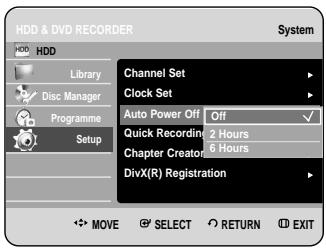

Auto Power Off Setting 31

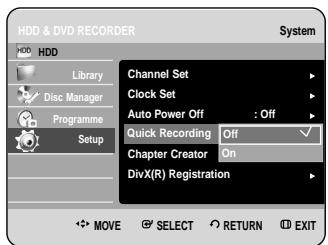

Setting up the Quick Recording Options 32

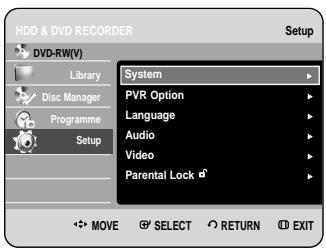

Automatic Chapter Creator 33

DivX(R) Registration 34

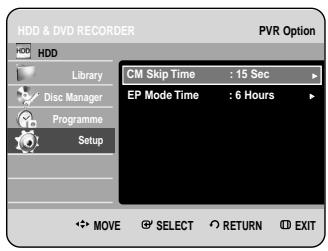

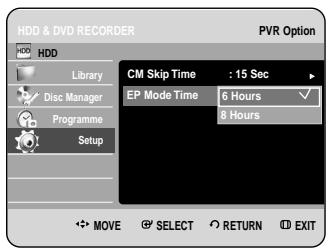

CMSkip Time Setting 34

EP Mode Time Setting 35

Setting up the Audio Options 36

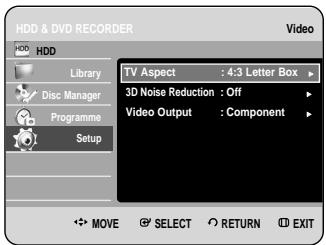

Setting up the Video display Options 38

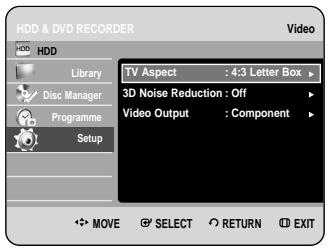

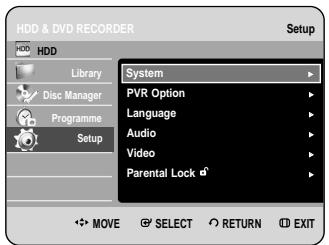

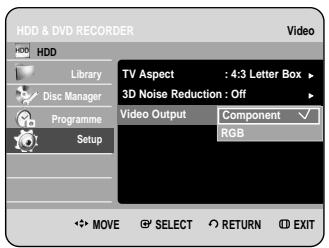

Setting up Video Output Options 39

Setting up the Progressive scan 39

Canceling the Progressive scan 40

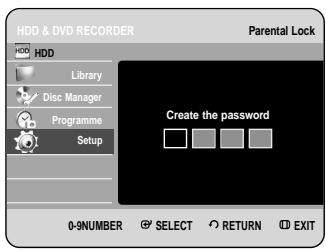

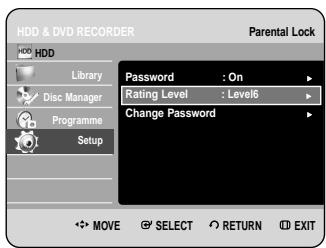

Setting up the Parental Lock 41

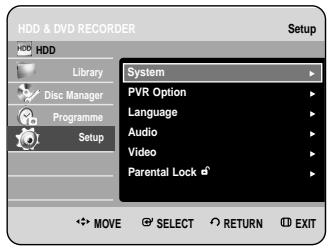

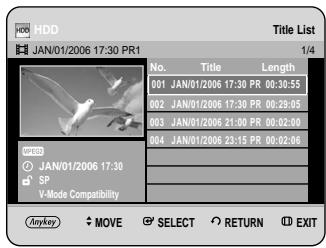

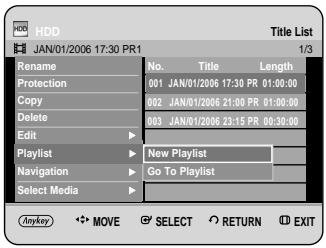

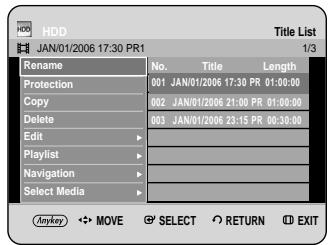

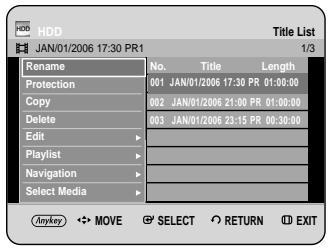

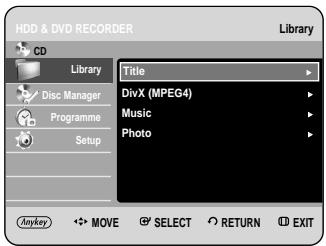

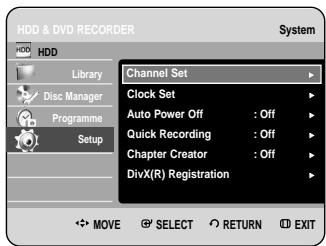

1 MENU Button

Press this button on the remote control to open the on-screen menu.

Press again to exit the on-screen menu.

2 ▲▼▲▶ Buttons

Press these buttons on the remote control to move the selection bar to cycle through the menu options.

OK Button

Press this button on the remote control to confirm any new settings.

RETURN Button

Press this button on the remote control to return to the Previous menu screen displayed or to exit the on-screen menu.

Plug & Auto Setup

Your HDD & DVD REORDER will automatically set itself up when it is plugged in for the first time. TV stations and clock will be stored in memory. The process takes a few minutes. Your HDD & DVD REORDER will then be ready for use.

1 Connect the RF cable as indicated on page 19. (Connecting Your HDD & DVD REORDER to the TV Using the RF Cable and scart cable.)
2 Plug the HDD & DVD REORDER into the mains. "AUTO" in the front panel display flickers.

Press a number button to select the language.

4 Press the OK button to start the auto setup.

5 Select "Country" using the buttons to select your country.

Refer to following abbreviation table when selecting "Country".

A(Austria)	NL(Netherlands)	S(Sweden)	PL(Poland)
B(Belgium)	I(Italy)	CH(Swiss)	CZ (Czech)
DK(Denmark)	N(Norway)	TR(Turkey)	Others
FIN(Finland)	P(Portugal)	GR(Greece)
D(Deutschland)	E(Spain)	HU(Hungary)

• The HDD & DVD REORDER searches for the stations according to a preset preference list corresponding to the country that you have selected.

6 Auto channel scan will be started.

• The number of stations automatically stored by the HDD & DVD REORDER depends on the number of stations that it has found.
  7 After auto channel scan is completed, auto clock setting will be started automatically in 10 seconds. If you want to start auto clock setting immediately, press OK button. If you do not want to do auto clock setting, press CANCEL or MENU button.

8 Wait until current date and time are displayed automatically. If you want to exit auto clock setting, press MENU button.

9 Check the date and time.

• if it is : Correct, press OK button then the date and time will be saved. If you don't press the OK button, the date and time will be saved automatically after 5 seconds.
• if it is: Incorrect, input correct Month, Day, Year, Hour or Minute using buttons or number buttons. Press OK button then the date and time will be saved. When you need to change clock setting, you can set up it manually.

NOTE

Now, HDD & DVD REORDER is ready for use. Function for "Plug & Auto Setup" is fixed already. So if you want to change this fixed one, you can change it by Preseting the Stations in OSD "Presetting Channels with the Manual Setup function" menu. (See page 29~30)
- Auto setup function can be performed by pressing STOP (⊙) on the unit continuously for 5 seconds or more during power off with no disc inserted.

Setting the Clock

This menu is used to set the current time. You need to set the time to use timer recording.

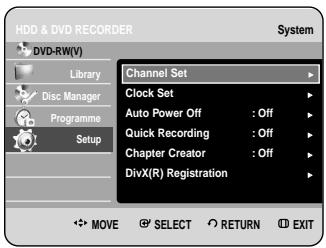

1 With the unit in Stop mode, press the MENU button.

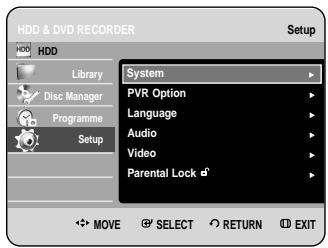

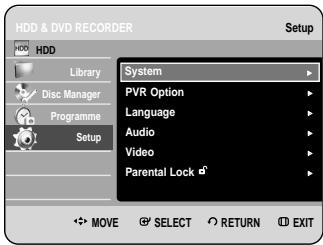

Press the buttons to select Setup, then press the OK or button.

Press the buttons to select System, then press the OK or button.

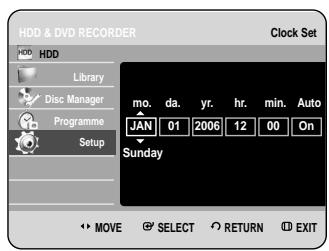

4 Press the buttons to select Clock Set, then press the OK or button.

Press the buttons to input Month, Day, Year, Hour or Minute. Press the number buttons to input clock data directly.

The day of the week is displayed automatically.

Press the buttons to select On for the Auto Clock.

6 Press the OK button, then the date and time will be saved. If you don't press the OK button, it will not be saved.

NOTE

• You must have the RF cable connected to set the Auto Clock. (See page 19)
  The HDD & DVD REORDER automatically sets the clock according to the time signal broadcast between the channels PR1 to PR5. If you do not need the Auto Clock Set function, select Off.

Presetting Channels with the Auto Setup function

This feature allows you to manually set the HDD & DVD RECORDER tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Setup, then press the OK or button.

press the buttons to select System, then press the OK or button.

Press the buttons to select Channel Set, then press the OK or button.

Press the buttons to select Auto Setup, then press the OK or button.

The message "Your data will be lost. Press [OK] to continue, [RETURN] to exit." is displayed.

• The first frequency band is scanned and the first station found is displayed and stored. And the HDD & DVD REORDER searches for the second station and so on.
• The number of stations automatically stored by the HDD & DVD REORDER depends on the number of stations that it has found.

8 Channel scan will be started. Press the OK button to stop the Auto Setup.

6 Press the OK button, then press the buttons to select your Country.

• The HDD & DVD REORDER searches for the stations according to a preset preference list corresponding to the country that you have selected.

Refer to following table when selecting your country.

A(Austria)	NL(Netherlands)	S(Sweden)	PL(Poland)
B(Belgium)	I(Italy)	CH(Swiss)	CZ (Czech)
DK(Denmark)	N(Norway)	TR(Turkey)	Others
FIN(Finland)	P(Portugal)	GR(Greece)
D(Deutschland)	E(Spain)	HU(Hungary)

7 Press the OK button. If you want to exit, press the MENU button.

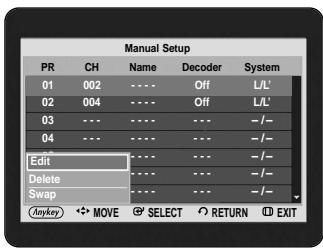

Presetting Channels with the Manual Setup function

You can add preset channel that Auto Channel Search missed. And you can delete a channel you wish to remove. You can programme the order of channels.

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select System, then press the OK or button.

4 Press the buttons to select Channel Set, then press the OK or button.

Press the buttons to select Manual Setup, then press the OK or button.

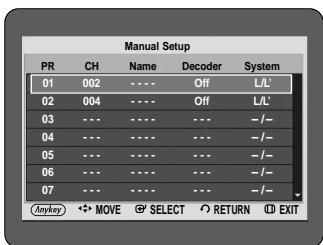

6 Press the buttons to select a PR(programme) you wish to edit, delete, or swap, then press the ANYKEY button. Select Edit, Delete or Swap.

• In case of Edit : You can add or edit PR(programme) information. After change PR informations(CH., Name, Decoder, MFT, System), select Save, then press the OK button.

• CH: Tune the channel using buttons.
• Name : Display station name automatically detected in broadcasting signal. If not detected, you can edit name by using buttons.
• Decoder : If you set on, you can record scrambled channels using external decoder box. Before setting on, refer to connecting external decoder box in the page 20.
• MFT(Manual Frequency Tunning): You can tune up the channel frequency better using buttons.
• System : You can select broadcasting system of the receivable channel(B/G or L/L')
• In case of Delete : the channel information of selected PR(programme) will be removed.
• In case of Swap : You can swap the channel information of two PR(programme). For example, if you wish to swap PR2 and PR5, select swap at PR2, then press the OK button at PR5.

Setting up the Language Options

If you set the audio, subtitle, disc menu and on-screen menu, in advance, they will come up automatically every time you watch a movie.

If the selected language is not recorded on the disc, the original pre-recorded language is selected.

1 With the unit in Stop mode, press the MENU button.

2 Press the buttons to select Setup, then press the OK or button.

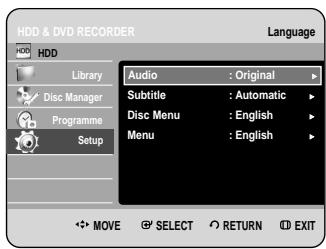

Press the buttons to select Language, then press the OK or button. Language setup menu will be displayed.

Press the buttons to select the desired language option, press the OK or button.

• Audio: For the disc audio language.
• Subtitle: For the disc subtitles.
• Disc Menu: For the disc menu contained on the disc
• Menu: For the on-screen menu of your HDD & DVD RECORDER.

Press the buttons to select the desired language, then press the OK or button.

NOTE

• Press the RETURN or button to return to the previous menu. Press the MENU button to exit the menu.
• The selected language will only appear if it is supported on the disc.

Auto Power Off Setting

This feature automatically turns off your HDD & DVD REORDER, if you do not press any button for the selected time.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select System, then press the OK or button. System menu will be displayed.

4 Press the buttons to select Auto Power Off, then press the OK or button.

Press the buttons to select the desired item, then press the OK or button.

• Off: Auto power off is disabled.
• 2 Hours : HDD & DVD REORDER will automatically turn off for 2 hours after the last button is pressed.
• 6 Hours : HDD & DVD REORDER will automatically turn off for 6 hours after the last button is pressed.
• If the turn off time set with the Auto Power off function is reached during playback or recording, the device will operate until the playback or recording is finished.

Setting up the Quick Recording Options

If this function is set to on, the HDD & DVD REORDER will power on quickly, which enables you to immediately record a desired channel.

1 With the unit in Stop mode/No Disc mode,press the MENU button.

Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select System, then press the OK or button.

4 Press the buttons to select Quick Recording, then press the OK or button.

Press the buttons to select On, then press the OK or button.

NOTE

The Quick Recording is set to Off as default.
If this function is set to on, power consumption will be increased when the unit power off.
If the Quick Start Recording is set to On, the fan can still operate and make a noise when the power is off.

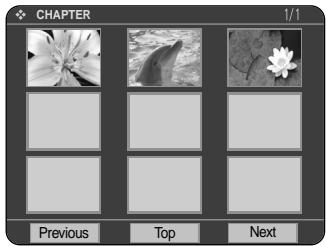

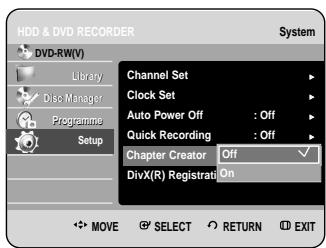

Automatic Chapter Creator

A DVD-Video consists of 'Titles' and 'Chapters'. When you record one programme, it makes one Title. If you use this function, the Title will be divided into Chapters.

(V mode)

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select System, then press the OK or button. System menu will be displayed.

Press the buttons to select Chapter Creator, then press the OK or button.

Press the buttons to select Off or On, then press the OK or button.

• Off: Select if you do not want use Automatic Chapter Creator.
• On: Select this option to use the Automatic Chapter Creator feature.

Press the MENU button to exit the menu.

6 Press the REC button to start recording. (See page 74 about how to set recording speed) The message "Do you want to create the chapter menu after this recording?" is displayed.

7 Press the buttons to select Yes and press the OK button.
- A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.
8 Press the STOP button to stop recording.

9 To display the created titles, finalise the disc (See page 115) and then press the TITLE MENU button. The title menu will be displayed.

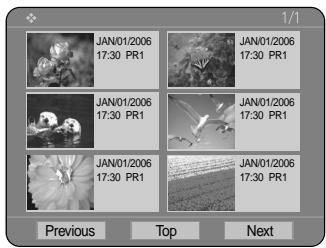

10 To display the created chapters, select the desired Title and then press the DISC MENU button. The chapter menu for the selected Title will be displayed.

The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off.

DivX(R) Registration

Please use the Registration code to register this HDD & DVD REORDER with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vod

CM Skip Time Setting

When a programme recorded on a HDD, a DVD-RW, or a DVD-R is played, the unit can be set to automatically skip a portion of the programme corresponding to a CM(commercial) skip time set by the user.

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select PVR Option, then press the OK or button. PVR Option menu will be displayed.

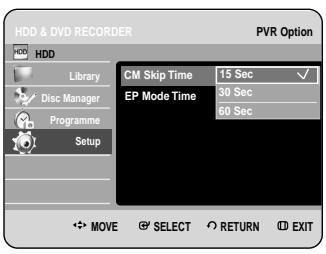

4 Press the buttons to select CM Skip Time, then press the OK or button.

Press the buttons to select the desired time interval, then press the OK or button.

6 If you press the CM SKIP button during playback, the section corresponding to the set time is skipped, and then the next section is played.

CM Skip can be performed only during normal playback.
- When the time set is more than a remaining time of a current title: The next title is played from the beginning.
- When the time set is more than a remaining time of a play list, the next scene is played.
CM Skip does not work in still picture mode.
- When a set time is greater than the remaining time of a scene, last title, or last track that is currently displayed, a prohibition mark appears.
CM Skip releases Repeat (including Repeat A-B, Chapter, and Title).
CM Skip may not operate with some DVD-Video discs.

EP Mode Time Setting

You can select one of four recording modes by pressing the REC MODE button repeatedly.

EP mode is one of four REC Mode (XP, SP, LP, EP). In EP(Extended Play) mode, you can set recording time to 6 or 8 hours with this setting.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select PVR Option, then press the OK or button. PVR Option menu will be displayed.

4 Press the buttons to select EP Mode Time, then press the OK or button.

Press the buttons to select the desired Time, then press the OK or button.

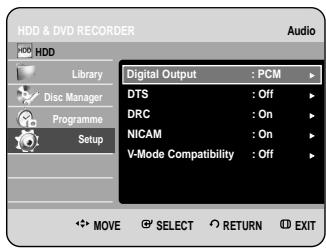

Setting up the Audio Options

You can connect the HDD & DVD RECORDER to an external amp or Home theatre.

Allows you to setup the Audio device and sound status depending on the audio system in use.

You can also set NICAM mode.

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

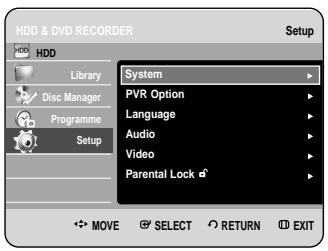

Press the buttons to select Audio, then press the OK or button.

4 Press the buttons to select the desired audio option, then press the OK or button.
Press the buttons to select the desired item, then press the OK or button.

NOTE

• Press the RETURN or button to return to the previous menu.

Press the MENU button to exit the menu.

Digital Output

1. PCM : Select this when your equipment is not decode Dolby Digital compatible.
2. Bitstream : Outputs Dolby Digital (or MPEG-2) audio as bitstream. Select this when your AV receiver or AV amplifier has a Dolby Digital (or MPEG-2) Decoder.

NOTE

• Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting.
• Be sure to select the correct Digital Output or you will hear no sound or a loud noise.

DTS

1. Off: Doesn't output DTS signal. Select this when your AV receiver (or AV amplifier) does not have DTS decoder.
2. On: Outputs DTS Bitstream via digital output when you play DTS track. Select this only when your AV receiver (or AV amplifier) have DTS decoder.

• When DTS soundtrack is played, sound does not output from AV Audio Output.

DRC

This is only active when a Dolby Digital signal is detected.

1. On: When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
2. Off: You can enjoy the movie with the standard Dynamic Range.

NICAM

NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound by setting NICAM on or off.

1. On: NICAM mode
2. Off: Only set at this position to record the standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.

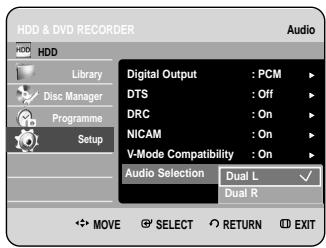

V-Mode Compatibility

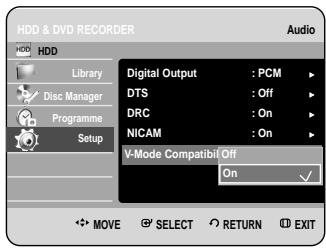

This feature is about the setup for selecting audios when recording the NICAM STEREO (Multi-audio) broadcasting on HDD. It does not affect to the direct DVD recording of a programme.

1. Off : Both "Dual L" and "Dual R" of the multi- audio broadcasting are recorded on HDD. Titles recorded on HDD under such setup status cannot be copied to V mode (DVDRW/-R).
2. On : Either "Dual L" or "Dual R" of the multi-audio broadcasting is recorded on HDD. Titles recorded on HDD under such setup status can be copied to DVD-R or DVD-RW (V mode). "Dual L" and "Dual R" options can be selected from "Audio Selection."

Setting up the Video display Options

This function allows you to setup the TV screen settings. This function depends on disc type. It may not work for some disc types.

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

Press the buttons to select Video, then press the OK or button. Video setup menu will be displayed.

4 Press the buttons to select the desired video option, then press the OK or button.

Press the buttons to select the desired item, then press the OK or button.

NOTE

• Press the RETURN or button to return to the previous menu.

Press the MENU button to exit the menu.

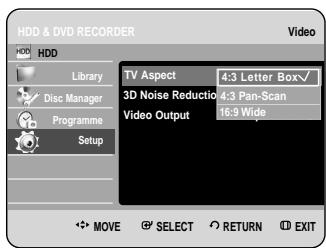

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

1. 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
2. 4:3 Pan-Scan : Select this for conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
3. 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

3D Noise Reduction (motion adaptive noise reduction)

1. Off : Normal
2. On : Provides a clear picture through noise reduction (for recording).

Setting up Video Output Options

You can enjoy high quality image through RGB or Component video connections. RGB video output is available connecting scart jack(AV1) and component video output is available connecting component (Y, P_B, P_R) jack. Only one of these signals can be selected at one time.

1 With the unit in Stop mode, press the MENU button.
Press the buttons to select Setup, then press the OK or button.

3 Press the buttons to select Video, then press the OK or button. Video setup menu will be displayed.

Press the buttons to select Video Output, then press the OK or button.

Press the buttons to select the desired item, then press the OK or button.

In Component mode, you can set video output to Progressive(P.SCAN) or Interlace, see pages 39 to 41. Available video output jacks are as follow.

Available Video Output Jack

Setting mode Output jack		Component mode		RGB Mode
		P.SCAN off mode (Interlace mode)	P.SCAN on mode
Component Output (Y, PB, PR)		O	O (TV in progressive mode)	X
AV1 Scart	R, G, B	X	X	O
	Composite	O	X	X
Composite Video out		O	X	O
S-Video out		O	X	O

Setting up the Progressive scan

If your TV supports Progressive Scan, press the P.SCAN button on the front of the HDD & DVD REORDER.

To view 'Progressive scan mode', first connect the component cable.(See page 22)

Be sure the Component cables are connected properly.

1 With the unit in Stop mode, press the P.SCAN button on the front of the HDD & DVD REORDER. The message "Press [Yes] to confirm Progressive scan mode. Otherwise, press [No]." will appear. Press the buttons to select Yes, and then press the OK button.

The message "Please, set your TV to Progressive input. To deactivate, press [STOP] key." will appear. Press the OK button.

3 The message "Video Output Mode Progressive Scan" will appear. The video will now be Progressive Scan.

NOTE

If the P.SCAN button on the HDD & DVD RECORDER's front panel is pressed during playback, the message "This function is possible only on stop mode" appears on the screen.
- Progressive setting is only available when the HDD & DVD REORDER is in stop mode.

Canceling the Progressive scan

1 With the unit in Stop mode, press the P.SCAN button on the front of the HDD & DVD REORDER. The message "Press [Yes] to confirm Interlace scan mode. Otherwise, press [No]." will appear. Press the buttons to select Yes, and then press the OK button.

The message "Please, set your TV to Interlace input. To deactivate, press [STOP] key." will appear. Press the OK button.

3 The message "Video Output Mode Interlace Scan" will appear.

• Do not press the P.SCAN button if you are using a TV that does not support Progressive mode as nothing will be displayed on the screen.
  If you set progressive scan mode, black bars may appear on the side of the screen because showing area of screen is different according to TV bland.
  If you press the P.SCAN button by mistake when your TV does not support Progressive mode, the mode will then need to be released. To release the Progressive mode, press the P.SCAN button on the front panel 3 times. The screen will recover after the PS indicator on the front panel display turns off.

Press the buttons to select Parental Lock, then press the OK or button.

When you operate your HDD & DVD REORDER for the first time, the "Create the Password" message will be displayed.

Setting up the Parental Lock

The Parental Lock function works in conjunction with DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Setup, then press the OK or button.

4 Enter the 4-digit password using the number buttons on the remote control.

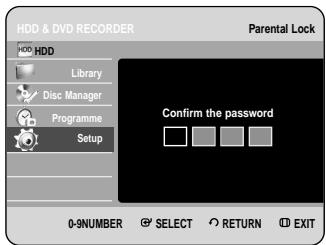

The "Confirm the password" message will be displayed. Enter your password again.

Press the OK or button to select Password.

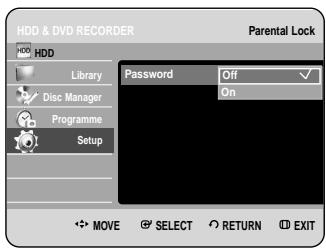

6 Press the buttons to select On or Off, then press the OK or button.

NOTE

• Press the RETURN or button to return to the previous menu.

Press the MENU button to exit the menu.

If you forgot your password

1 Remove the disc.
Press and hold the PROG ( ) button on the front panel for 5 seconds or more.

Setting the Rating Level

Press the buttons to select Rating Level, then press the OK or button.

2 Press the buttons to select the rating level you want, then press the OK or button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the programme is intended for adult use only.

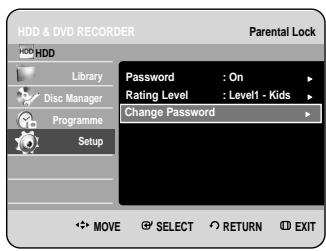

Changing the Password

1 Press the buttons to select Change Password, then press the OK or button.

2 Enter the 4-digit password using the number buttons on the remote control. The "Confirm the password" message will be displayed.

3 Enter your password again using the number buttons on the remote control.

Playback

This section introduces basic functions of playback and playback by disc type.

DOLBY

DIGITAL

Dolby Digital

DTS

Digital Audio

Stereo

PAL broadcast

system in U.K, France, Germany, etc.

MP3

DivX

Before Playing 43

Playing a Disc. 44

Using the Disc Menu & Title Menu 45

Using the Search & Skip Functions. 45

Slow Motion Play/Step Motion Play 46

About ANYKEY. 47

Playing the Title List. 48

Navigation menu 49

Using Markers 52

Using the Bookmarks 54

Selecting the Subtitle Language 55

Selecting the Soundtracks & Audio channels. 56

Changing the Camera Angle 57

Repeat Play 58

Zooming-In 59

Select Media. 60

Playing an Audio CD/MP3 60

Viewing a Picture 67

Playing an MPEG4 71

Before Playing

Read the following information before playing a disc.

Region code (DVD-Video only)

Both the HDD & DVD REORDER and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this HDD & DVD REORDER is described on the rear panel of the HDD & DVD REORDER.

Disc types that can be played

Disc Types		Disc Logo	Recorded content	Disc Shape	Max. Playing Time or minute
DVD-VIDEO		DVD VIDEO	AUDIO + VIDEO	Single sided(12cm)	240
				Double sided(12cm)	480
				Single sided(8cm)	80
				Double sided(8cm)	160
AUDIO-CD		COMPACT USSG DIGITAL AUDIO	AUDIO	Single sided(12cm)	74
				Single sided(8cm)	20
DVD-RAM		RAM	AUDIO + VIDEO	Single-sided 12cm (4.7GB)	1 (XP: Excellent Quality)
					2 (SP: Standard Quality)
					4 (LP: Long Playback)
					6 or 8 (EP:Extended)
				Double-sided 12cm (9.4GB)	2 (XP: Excellent Quality)
					4 (SP: Standard Quality)
					8 (LP: Long Playback)
					12 or 16 (EP:Extended)
DVD-RW		RW	AUDIO + VIDEO	12cm (4.7GB)	1 (XP: Excellent Quality)
					2 (SP: Standard Quality)
					4 (LP: Long Playback)
					6 or 8 (EP:Extended)
DVD-R		R	AUDIO + VIDEO	12cm (4.7GB)	1 (XP: Excellent Quality)
					2 (SP: Standard Quality)
					4 (LP: Long Playback)
					6 or 8 (EP:Extended)
CD-R/-RW DVD-RAM/ -RW/-R			JPEG MP3 MPEG4	-	-
HDD	DVD-HR730(A)	ADD	AUDIO + VIDEO		Approx. 21 (XP: Excellent Quality) Approx. 34 (SP: Standard Quality) Approx. 69 (LP: Long Playback) Approx. 104 or Approx. 130 (EP:Extended)
	DVD-HR734(A)	ADD	AUDIO + VIDEO		Approx. 42 (XP: Excellent Quality) Approx. 69 (SP: Standard Quality) Approx. 139 (LP: Long Playback) Approx. 208 or Approx. 270 (EP:Extended)

Discs that cannot be played

DVD-Video with a region number other than "2" or "ALL"
12cm 2.6 GB and 5.2 GB DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RAM/-RW(VR mode) not recorded following the Video Recording Standard
- Unfinalised DVD-R,unfinalised DVD-RW(V mode) recorded on other equipment.
DVD-ROM/PD/MV-Disc,etc
CVD/CD-ROM/CDV/CD-G/CD-I

This HDD & DVD REORDER can only operate with discs that are compatible with DVD-RAM Standard Version 2.0.
- Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.
- Do not allow the disc to become dirty or scratched, finger prints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.
DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.
- Discs with NTSC programmes recorded on them cannot be played and recorded using this product.

Playing a Disc

1 Press the OPEN/CLOSE button.

2 Place a disc gently into the tray with the disc's label facing up.

Press the OPEN/CLOSE button to close the disc tray.

• Your HDD & DVD REORDER closes the disc tray and plays the disc automatically.
• The HDD & DVD REORDER does not play discs automatically after being powered on initially.
• When the HDD & DVD REORDER is powered on and a disc is in the tray, the unit will be activated and wait in stop status.
• Press the PLAY(⊙) button to start playback.
• If you want the unit to play automatically when it is powered on with a disc in the unit, power on with the PLAY(⊙) button.

4 Press the STOP() button to stop playback.

NOTE

• When you stop playing back a disc, the HDD & DVD RECORDER remembers where you stopped, so when you press PLAY(⊙) button again, it will pick up where you left off. (Unless the disc is removed or the HDD & DVD RECORDER is unplugged, or if you press the STOP(⊙) button twice.)

Caution

• Do not move your HDD & DVD RECORDER while playing, as this may cause damage to the disc.
  Make sure to press the OPEN/CLOSE button to open or close the disc tray.
• Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.
• Do not place foreign materials on or in the disc tray.
  Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.
• Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.
• You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the HDD & DVD REORDER.

Using the Disc Menu & Title Menu

Some type of discs contain a dedicated menu system that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc.

For DVD-VIDEO Disc

Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.
• You can select audio language and subtitle etc. provided by the disc.

Press the TITLE MENU button to move to the title menu of the disc.

• Press this button if the disc contains more than one title. Some discs may not support the title menu functionality.

For HDD/DVD-RAM/-RW/-R Disc

Press the TITLE LIST button to display title list.

NOTE

Title List : Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again.
- Play List : This refers to a list of user-selected titles. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode)

Using the Search & Skip Functions

Searching through a Chapter or Track

1 During play, press the SEARCH (▶) buttons on the remote control.

HDD/DVD-VIDEO/DVD-RAM/-RW/-R	Fast 1 → Fast 2 →Fast 3 →Fast 4 →Fast 5 →Fast 6 →
MPEG4	Fast 1 → Fast 2 → Fast 3
AUDIO CD(CD-DA)	X 2 → X 4 → X 8 →

• You can scan the programme in reverse. To return to normal speed playback, press the PLAY (▶) button.
• When you press and hold the SEARCH (▶) buttons, playback is done at the default speed of X4. If you release the SEARCH (▶) buttons, playback is performed at a normal speed.
• The speed marked in this function may be different from the actual playback speed.

NOTE

• No sound is heard during Scan(Search) mode, except with CDs (CD-DA). (You can hear sound during forward search(Fast 1) in disc.)

■ Skipping Chapters, Tracks or Markers

During play, you can search quickly through a chapter or track.

1 During play, press the SKIP (▶) buttons on the remote control.

• If you press the SKIP (▶) button, it moves to the beginning of the chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)).
• If you press the SKIP ( ) button, it moves to the next chapter or track or marker (HDD/DVD-RAM/-RW(VR mode)).

Slow Motion Play/ Step Motion Play

Slow Motion Play

In pause or step mode, press the SEARCH ( ) buttons on the remote control.

• If you press the SEARCH (▶) button,
  Slow 1 Slow 2 Slow 3
• If you press the SEARCH (O) button,
  Slow 1 Slow 2 Slow 3
  To return to normal speed playback, press the PLAY () button.

Press and hold the SEARCH (▶) buttons during pause, the disc will play slowly at Slow 2 speed. If the button is released, the pause operation will resume.

The speed marked in this function may be different from the actual playback speed.
Slow motion operates only in the forward direction on MPEG4 discs.

Step Motion Play

Press the STEP( ) buttons on the remote control in the pause mode.

Each time the button is pressed, a new frame will appear.
When the STEP( ) button is pressed, the previous frame will be activated.
When the STEP( ) button is pressed, the next frame will be activated.
- To return to normal speed playback, press the PLAY (▶) button.

NOTE

• Step motion operates only in the forward direction on MPEG4 discs.

About ANYKEY

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, time. You can also change the subtitle and audio settings and set some features including Marker, Angle, Zoom, Repeat, Media.

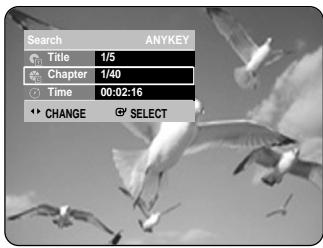

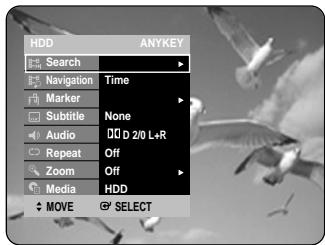

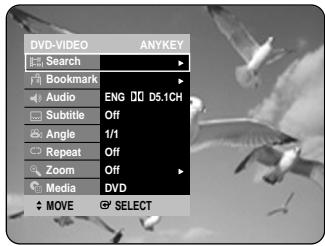

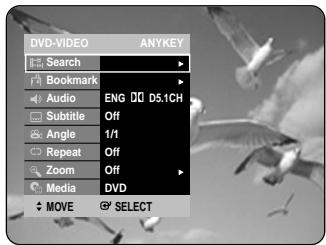

Moving to a scene directly using the ANYKEY

• If you want to move to a title or a chapter to find a desired scene.

1 Press the ANYKEY button during playback.

Press the buttons to select Search, then press the OK button or button.

Press the buttons to select Title or Chapter.
4 Press the buttons or number buttons to select the desired scene, then press the OK button.
- If you want to move to a desired time, the following instructions will help you find a scene.

1 Press the ANYKEY button during playback.

Press the buttons to select Search, then press the OK or button.

Press the buttons to select Time.
4 Enter the time in the sequence of hours, minutes, and seconds using the number buttons, then press the OK button.

NOTE

This may not work for some discs. When an audio CD(CD-DA) or an MP3 disc is inserted, depending on the disc type, the information display may not appear.
The Time Search function does not operate in some discs.
To make the screen disappear, press the RETURN button.

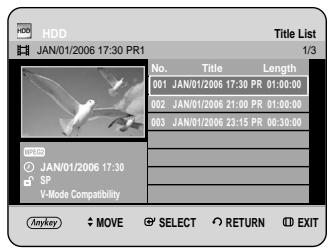

Playing the Title List

Follow these instructions to play back a scene from the Title List.

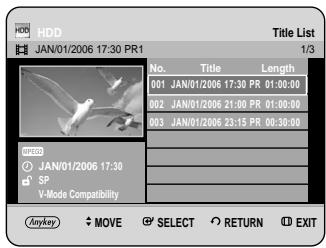

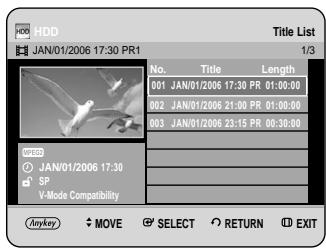

Using the TITLE LIST button

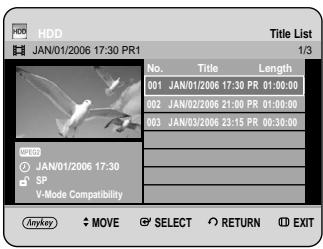

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

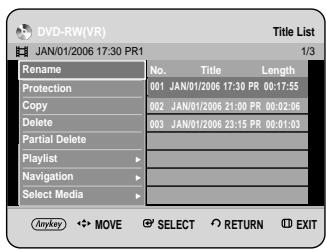

The Title List screen is displayed.

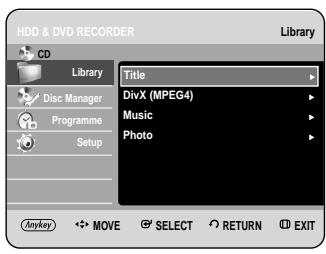

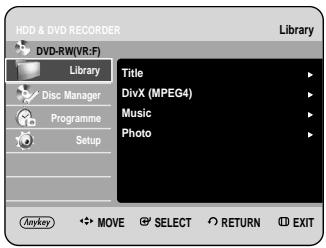

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to play from Title List, then press the OK or PLAY ( ) button.

The selected entry (title) will be played back.

3 To stop title play, press the STOP(⊙) button. To return the title list screen, press the TITLE LIST button.

- About INFO button -

If you press the INFO button once during a playback, the system information screen appears.: Displays Active Status, Background Status, and Screen information.

Pressing the INFO button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists, Recordable Time(Title), Available Space.

Pressing the INFO button three times, Current playback information screen appears.: Displays information of Playback Name, Title, Created Time, Length, Playing Time, Audio, and if the disc protection is activated.

Navigation Menu

Scene Navigation

If there is a title composed of markers (See page 52), you can search the desired scene using the Scene Navigation.

(VR mode)

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to play from Title List, then press the ANYKEY button.

Press the buttons to select Navigation, then press the OK or button.

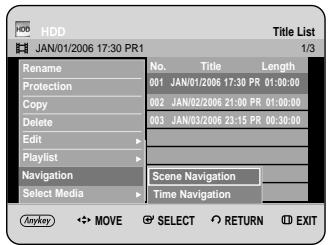

4 Press the buttons to select Scene Navigation, then press the OK or button.

5 Press the buttons to select desired scene, then press the OK or PLAY (） button.

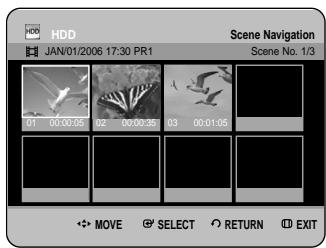

Using the ANYKEY button

1 Press the ANYKEY button during playback.
Press the buttons to select Navigation, then press the buttons to select Scene.

3 Press the OK button.

4 Press the buttons to select desired scene, then press the OK or PLAY (） button.

NOTE

• Scene Navigation will not operate if a selected title does not have Markers.

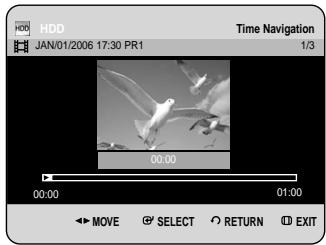

Time Navigation

(VR mode)

Using this function, you can search scene minute-by-minute from the recorded title list.

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to play from Title List, then press the ANYKEY button.

Press the buttons to select Navigation, then press the OK or button.

4 Press the buttons to select Time Navigation, then press the OK or button.

Press the buttons to skip one minute at a time and search the desired scene, then press the OK or PLAY (）) button.

ANYKEY

Using the ANYKEY button

1 Press the ANYKEY button during playback.
Press the buttons to select Navigation, then press the buttons to select Time.

3 Press the OK button.

4 Press the buttons to skip one minute at a time and search the desired scene, then press the OK or PLAY (） button.

NOTE

Cursor does not move if the selected recorded title is shorter than 1 minute.
The Navigation function may not work on a disc that has not been recorded by this device.
An edited title may not display the exact search time.

Using Markers

Set marks at scenes you want to see again so that you can start playback from the marked position.

(VR mode)

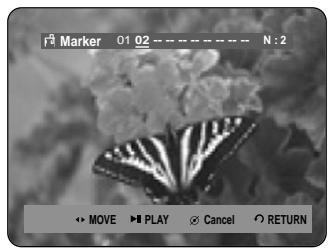

Using the MARKER button

1 Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Marker, then press the OK or button.

Press the OK button when the desired scene appears.

• The number 01 is displayed and the scene is memorized.

Press the buttons to move to the next position.

Press the OK button again when the desired scene appears.

• The number 02 is displayed and the scene is memorized.

• HDD or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protection or is a DVD-RAM disc, Markers cannot be set or deleted, only playback is available.

Playing back a marker

(VR mode)

Using the MARKER button

1 Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Marker, then press the OK or button.

2

Press the buttons to select a marked scene.

Press the OK or PLAY ( ) button to start playing from the selected scene.

• If you press the SKIP (▶) button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.
• If you press the SKIP (▶) button, it moves to the next marker.

Clearing a marker

(VR mode)

Using the MARKER button

Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Marker, then press the OK or button.

2

Press the buttons to select a marked scene.

3

Press the CANCEL button to delete the selected mark.

• When a marker is cleared while HDD/DVD-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

Using the Bookmarks

(V-mode)

Using the MARKER button

1 Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Bookmark, then press the OK or button.

Press the OK button when the desired scene appears.

• The number 1 is displayed and the scene is memorized.

Press the buttons to move to the next position.

4 Press the OK button again when the desired scene appears.

The number 2 is displayed and the scene is memorized.

• Repeat above to bookmark other positions.
• You can bookmark up to 10 scenes.

NOTE

• When the disc tray is opened and then closed, bookmarks will disappear.

Playing back a bookmark

Using the MARKER button

1 Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Bookmark, then press the OK or button.

Press the buttons to select a bookmarked scene.

Press the OK or PLAY( ) button to start playing from the selected scene.

Using the MARKER button

1 Press the MARKER button during playback.

Using the ANYKEY button.

• Press the ANYKEY button during playback.
• Press the buttons to select Bookmark, then press the OK or button.

Press the buttons to select a bookmarked scene.

Press the CANCEL button to delete the selected bookmark.

Selecting the Subtitle Language

Selects one of the subtitle language recorded on the disc.

DVD-VIDEO

DYDRAM

DVD-RW

(VR mode)

Using the SUBTITLE button

Press the SUBTITLE button during playback.

Press the buttons to select the desired subtitle language. Also, press the SUBTITLE button repeatedly to select the desired subtitle language.

• To make the screen disappear, press the CANCEL or RETURN button.

ANYKEY

Using the ANYKEY button

1 Press the ANYKEY button during playback.
Press the buttons to select Subtitle.

3 Press the buttons to select the desired subtitle language.

NOTE

The subtitle display may be different depending on the disc type.
Some discs allow you to select the language for the disc menu only.

Selecting the Soundtracks & Audio Channels

Selecting the Audio

Selects one of the soundtracks recorded on the disc. Also selects the audio channels from recorded TV programmes.

(VR mode)

Using the AUDIO button

Press the AUDIO button during playback.

HDD/DVD-RAM-RW

DVD-VIDEO

2 Press the buttons to select the desired soundtracks or audio channel. Also, press the AUDIO button repeatedly to select the desired soundtracks or audio channel.

• To make the screen disappear, then press the CANCEL or RETURN button.

ANYKEY

Using the ANYKEY button

1 Press the ANYKEY button during playback.

Press the buttons to select Audio.

Press the buttons to select the desired soundtracks or audio channel.

NOTE

Soundtracks or Audio channel may be different because they are disc-specific.
Some discs allow you to select the audio language for the disc menu only.

Changing the Camera Angle

When a DVD VIDEO contains multiple angles of a particular scene, you can select the Angle function.

ANYKEY

Using the ANYKEY button

1 Press the ANYKEY button during playback.

Press the buttons to select Angle.

Press the buttons to select the desired angle.

NOTE

This function is disc-dependent, and may not work on all DVDs.
This function does not work when a DVD has not been recorded with a multi-camera angle system.
- Displays the current angle, total angle number.

Repeat Play

Playing Repeatedly(Repeat Playback)

Using the REPEAT button

Press the REPEAT button during playback.

2 Press the buttons to select the Off, Title or Chapter you want to play repeatedly, then press the OK button.

ANYKEY

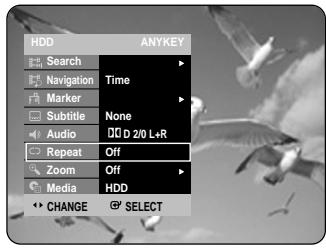

Using the ANYKEY button

1 Press the ANYKEY button during playback.

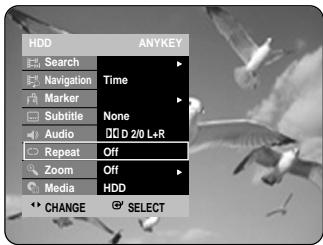

Press the buttons to select the Repeat.

Press the buttons to select Repeat Off, Repeat A-B or Repeat Title or Repeat Chapter you want to play repeatedly, then press the OK button.

NOTE

HDD/DVD-RAM/-RW(VR mode), unfinalised DVD-R and unfinalised DVD-RW (V mode) discs will do not repeat a chapter.
- You can also activate Normal Playback by pressing the CANCEL button.

Repeat A-B

Using the REPEAT A-B button

Press the REPEAT A-B button during playback.

Press the OK button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

- To return to normal playback -

3 Press the CANCEL button to return to normal playback.

ANYKEY

Using the ANYKEY button

1 Press the ANYKEY button during playback.

Press the buttons to select Repeat.

3 Press the buttons to select Repeat A-B, then press the OK button.
Press the OK button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

- To return to normal playback -

Press the CANCEL button to return to normal playback.

NOTE

If you set point (B) before five seconds of playback has lapsed, the prohibition mark () will appear.
- You can also activate Normal Playback by pressing the CANCEL button.
Audio CDs(CD-DA), MP3 discs and MPEG4 discs do not support the Repeat A-B function.

Zooming-In

Press the ANYKEY button during playback.

Press the buttons to select Zoom, then press the OK or button. () will be displayed.

3 Press buttons to move to the area you want to enlarge.
4 Press the OK button. The screen will be enlarged to twice the normal size. The screen size will be enlarged to four times the normal size.

HDD/DVD-VIDEO/DVD-RAM/-RW/-R

normal size → x2 → x4 → x2 → normal size

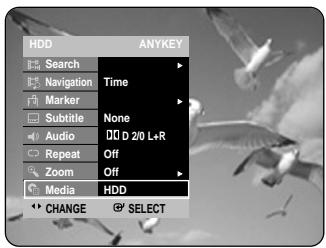

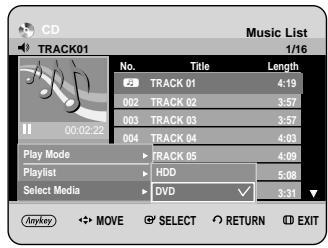

Select Media

1 Press the ANYKEY button during playback.
Press the buttons to select Media.

Press the buttons to select HDD or DVD, then press the OK button.

Playing an Audio CD/ MP3

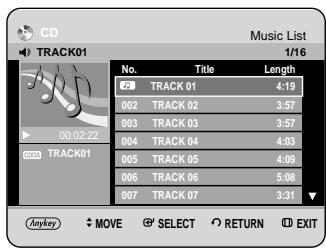

Playing an Audio CD(CD-DA)

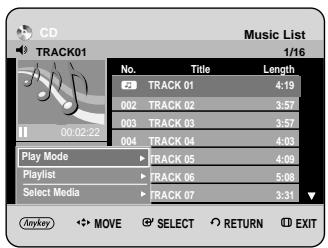

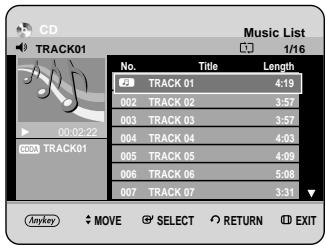

1 Insert an audio CD (CD-DA) into the disc tray. The audio CD menu appears and the tracks (songs) are played automatically.

Press the buttons to select the track (song) you want to hear, and then press the OK button.

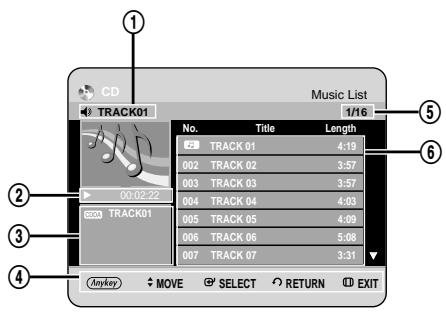

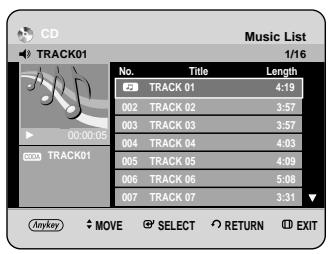

Audio CD(CD-DA) Screen Elements

1. Current track (song): Displays the number of the track currently being played.
2. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.
3. Displays the current file type and file name.
4. Display available buttons.
5. Displays the current play index, total track number.
6. Displays the track list (song list).

- Buttons on the Remote Control used for Audio CD(CD-DA) playback

1. : Selects a track (song).
2. OK button, Play (⊙) button : Plays the selected track (song).
3. SKIP () button: Plays the next track.
4. SKIP (⊙) button: Returns to the beginning of the current track when pressed during playback. If pressed again, your HDD & DVD REORDER moves to and plays the previous track. If you press the this button within three seconds after playback starts, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning.
5. STEP(⊙) buttons: Move the page up/down.
6. Press the SEARCH (⊙) buttons: Fast Play (X2, X4, X8)
7. STOP (⊙) button: Stops a track(song).
8. PLAY (念) button: Plays a track(song) or pauses playback.
9. ANYKEY button: The ANYKEY menu is displayed.

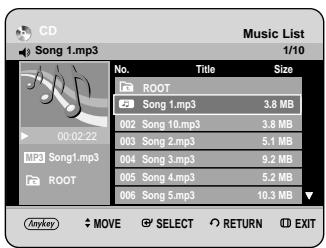

Playing an MP3 Disc

1 Insert an MP3 disc into the disc tray. The menu is displayed
Press the buttons to select Library, then press the OK or button.
Press the buttons to select Music, then press the OK or button.
Press the buttons to select the track you want to hear, and then press the OK button.

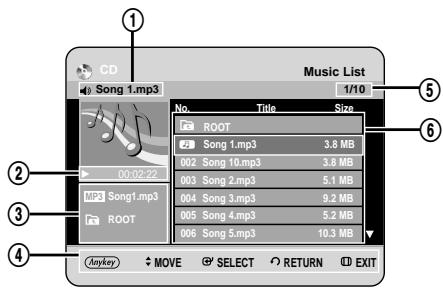

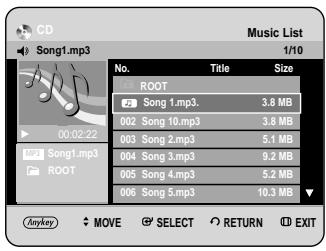

MP3 Screen Elements

1. Current track (song): Displays the name of the track being played.
2. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.
3. Displays the current filetype, file name and folder name.
4. Displays available buttons.
5. Displays the current play index, total track number.
6. Displays the track list (song list).

- Buttons on the Remote Control used for MP3 playback

Repeat CD (CD-DA) & MP3

Using the REPEAT button.

1 During playback, press the REPEAT button repeatedly to select the repeat mode you want.

• Normal (CD (CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc.
  Repeat Track (CD (CD-DA)/MP3)
  Repeat Folder (MP3)
  Repeat All (CD (CD-DA)/MP3)

• Random (CD (CD-DA)/MP3): The random option plays a disc's track in random order.

• To return to normal playback -

Press the REPEAT or CANCEL button repeatedly to return to normal playback.

1. : Selects a track (song).
2. OK button, Play (▶) button: Plays the selected track (song).
3. SKIP () button: Plays the next track.
4. SKIP () button: Returns to the beginning of the current track when pressed during playback. If pressed again, your HDD & DVD RECORDER moves to and plays the previous track. If you press the this button within three seconds after playback starts, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning.
5. STEP(⊙) buttons: Move the page up/down.
6. STOP () button: Stops a track(song).
7. PLAY (@) button: Plays a track(song) or pauses playback.
8. ANYKEY button: The ANYKEY menu is displayed.

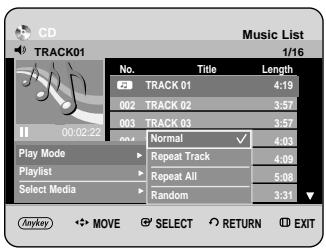

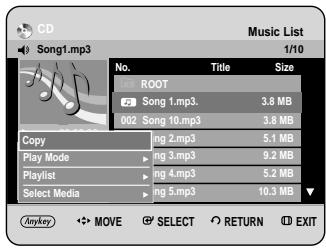

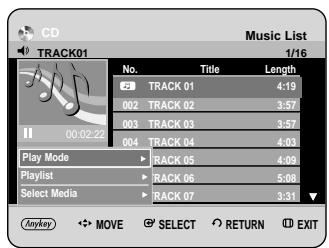

Using the ANYKEY button

1 Press the ANYKEY button during the Music List playback.

2 Press the V buttons to select Play Mode, then press the OK or button.

3 Press the buttons to select desired play mode, then press the OK or button.

• Normal (CD (CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc.
  Repeat Track (CD (CD-DA)/MP3)
  Repeat Folder (MP3)
  Repeat All (CD (CD-DA)/MP3)
• Random (CD (CD-DA)/MP3): The random option plays a disc's tracks in random order.

New Playlist

You can register a maximum 28 tracks in the playlist.

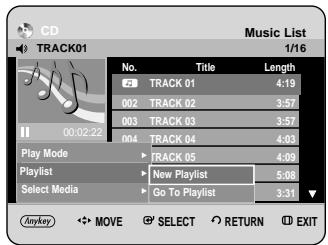

1 Press the ANYKEY button during the Music List playback.

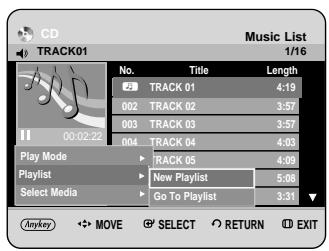

2 Press the buttons to select Playlist, then press the OK or button.

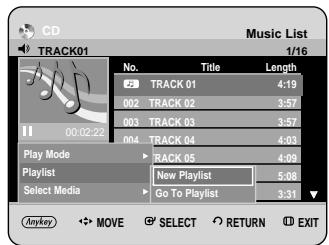

3 Press the buttons to select New Playlist, then press the OK or button.

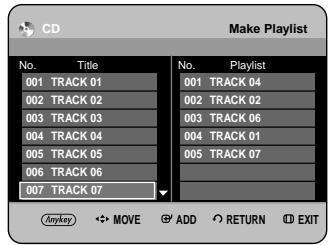

4 Press the buttons to select tracks in the order in which you want them to play, then press the OK button.

5

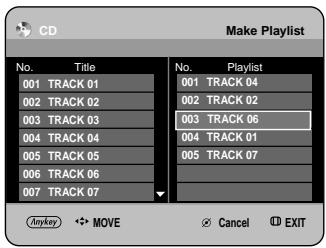

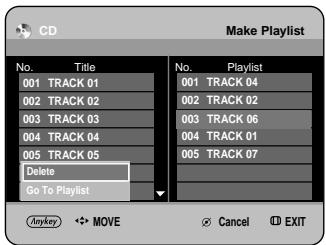

If you playlisted a wrong track, press the buttons to select the wrong track, then press the OK or CANCEL button. The wrong track will be removed.

6

To store the Playlist, press the ANYKEY button.

7

Press the buttons to select the Go To Playlist, then press the OK button. A new Playlist will be created.

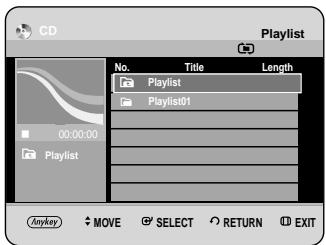

Go To Playlist

1

Press the ANYKEY button during the Music List playback.

2

Press the buttons to select Playlist, then press the OK or button.

3

Press the buttons to select Go To Playlist, then press the OK or button.

4

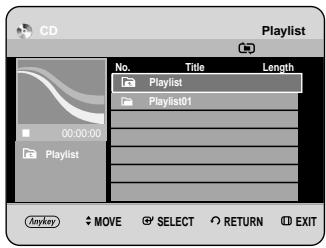

Press the buttons to select the desired playlist folder, then press the OK button. The selected tracks are played automatically.

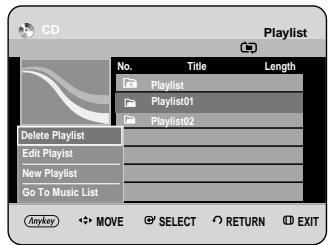

Delete the Playlist

1 Press the ANYKEY button during the Music List playback.

Press the buttons to select Playlist, then press the OK or button.

Press the buttons to select Go To Playlist, then press the OK or button.

Press the buttons to select the Playlist you want to delete.
Press the ANYKEY button.

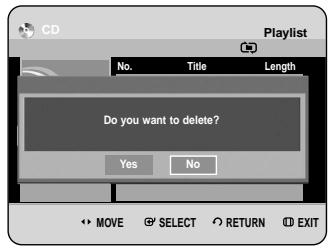

Press the buttons to select the Delete Playlist, then press the OK or button.

7 Press the buttons to select Yes, then press the OK button. The selected Playlist is deleted.

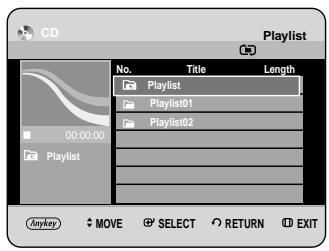

Go To Edit Playlist

1 Press the ANYKEY button during the Music List playback.

Press the buttons to select Playlist, then press the OK or button.

Press the buttons to select Go To Playlist, then press the OK or button.

Press the buttons to select the Playlist you want to edit.

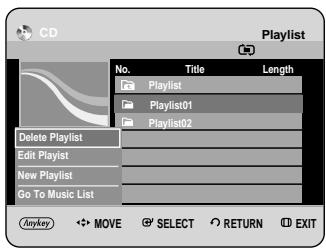

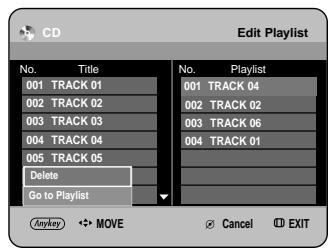

Press the ANYKEY button in playlist mode.

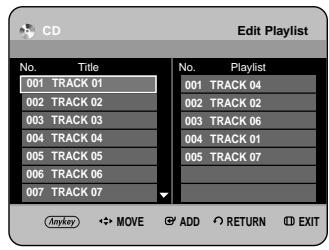

6 Press the buttons to select Edit Playlist, then press the OK or button.

7 Press the buttons to select tracks in the order in which you want them to play, then press the OK button.
8 If you playlisted a wrong track, press the buttons to select the wrong track, then press the OK or CANCEL button.
9 To store the Playlist, press the ANYKEY button.

10 Press the buttons to select the Go To Playlist, then press the OK button. Playlist will be edited.

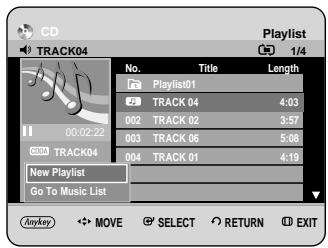

Go To Music List

Press the ANYKEY button during the Playlist playback.

Press the buttons to select Go To Music List, then press the OK or button.

Select Media

1 Press the ANYKEY button.

Press the buttons to select Select Media, then press the OK or button.

3 Press the buttons to select HDD or DVD, then press the OK or button.

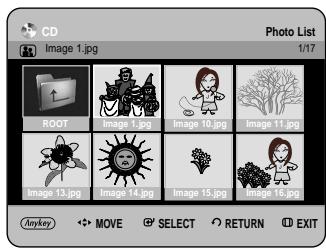

Viewing a Picture

1 Insert a JPEG disc into the disc tray. The menu is displayed

2 Press the buttons to select Library, then press the OK or button.

3 Press the buttons to select Photo, then press the OK or button.

Press the buttons to select a picture.

To see the next 8 pictures, press the SKIP (按钮。
To see the previous 8 pictures, press the SKIP( (心) ) button.

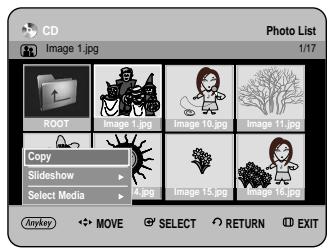

Slide Show

Press the ANYKEY button.

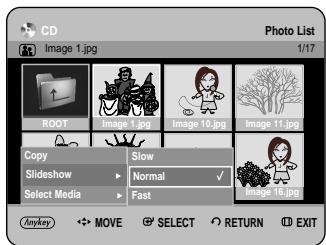

6 Press the buttons to select Slideshow, then press the OK or button.

7 Press the v buttons to select the slideshow speed, then press the OK or button. The slide show starts.

- To stop the Slide Show

1 Press the ANYKEY button.

Press the buttons to select Slideshow Off, then press the OK or button.

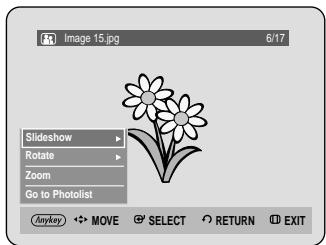

Rotate

To setup, follow steps 1 to 4 in pages 67~68.

5-1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

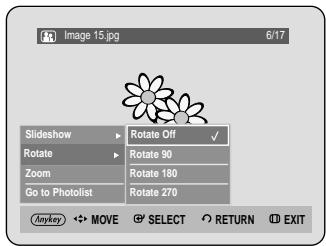

6 Press the buttons to select Rotate, then press the OK or button.

7 Press the v buttons to select the rotate angle, then press the OK or button.

- To stop the Rotate -

1 Press the ANYKEY button.

Press the buttons to select Rotate, then press the OK or button.
3 Press the buttons to select Rotate Off, then press the OK or button.

Zoom

To setup, follow steps 1 to 4 in page 67~68.

5-1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

6 Press the buttons to select Zoom, then press the OK or button.

Each time the OK button is pressed, the picture is enlarged up to 4x(four times the normal size).

- To stop the Zoom -

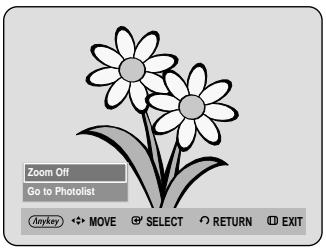

1 Press the ANYKEY button.

Press the buttons to select Zoom Off, then press the OK or button.

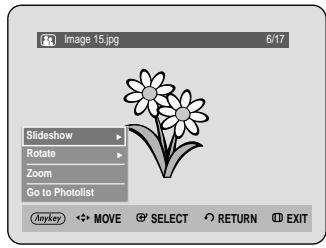

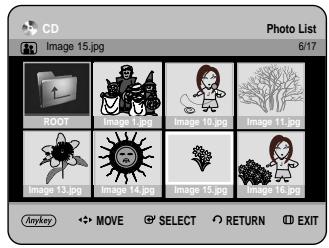

Go To Photo List

To setup, follow steps 1 to 4 in page 67~68.

5-1 Press the OK button to select the picture you want to see, then press the ANYKEY button.

Press the buttons to select Go To Photo list, then press the OK or button.

Playing an MPEG4

Using the MENU button

1 Insert a DivX disc into the disc tray. The menu is displayed

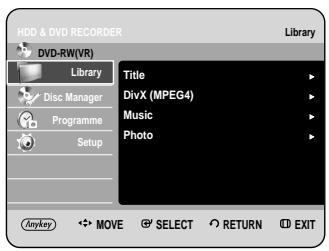

Press the V buttons to select Library, then press the OK or button. (In case of playing a DivX Disc, see number 4 on this page.)

3 Press the buttons to select DivX(MPEG4), then press the OK or button. The DivX(MPEG4) screen is displayed.

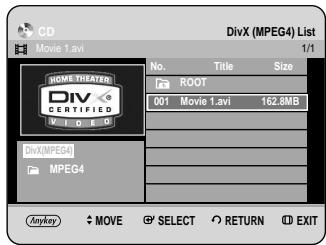

4 Press the v buttons to select the avi file (DivX), then press the OK or PLAY (O) button.
5 When MPEG4 file is played, you can use following functions. Pressing the STOP (●) button once during playback will display the file list, pressing the button again will exit the menu screen.

MPEG4 Function Description

Function	Description
Skip	During play, press the SKIP (▶) buttons, it moves forward or backward 5 minutes.
Search	During play, press the SEARCH (▶) buttons and press again to search at a faster speed. (Fast 1, Fast 2, Fast 3)
Slow Motion Play	In pause or step mode, press the SEARCH (▶) button on the remote control.(Slow1, Slow2, Slow3)
Step Motion Play	Press the STEP (▶) button on the remote control in the still mode.

NOTE

This unit can play the following video compression formats,

• DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
• DivX Audio (Codec) Format: MP3, MPEG1
  Audio Layer 2, Windows Media Audio, LPCM, AC3

Supported subtitle file formats:.smi, .srt, .sub, .psb, .txt, .ass (The subtitle file should have exactly the same name to corresponding MPEG4 file name)
Some MPEG4 files created on a personal computer may not be play back. Codec Type, Version and Higher resolution over specification are not supported.

DivX Subtitle Encoding

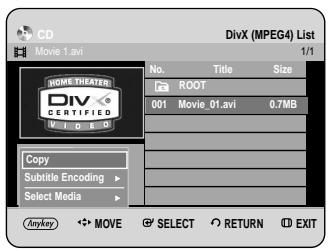

Press the ANYKEY button in the file list.

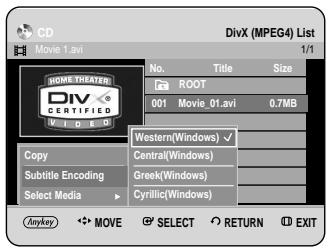

Press the buttons to select Subtitle Encoding, then press the OK or button.

Press the buttons to select a supported DivX subtitle language by region, then press the OK button.

Western	Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, Swedish
Central	English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, Slovenian
Greek	English, Greek
Cyrillic	English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, Uzbek

NOTE

If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If is still does not work, the format is not supported.

Recording

This section shows various HDD & DVD

Recording methods.

Before Recording 73

Recording the current TV programme

you are watching 75

Recording from external equipment

you are watching 77

Copying from a Camcorder 78

Making a One Touch Recording (OTR) 79

Simultaneous Recording and Playback 80

Making a Timer Recording 81

Editing the Scheduled List 83

Deleting a Scheduled List 84

Go To Recorded List 85

Before Recording

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable Discs

This HDD & DVD REORDER can record on the following discs.

HDD	DVD-RW	DVD-R
HD	R W	R

DVD-RWs are rewritten.
DVD-Rs are non-rewritable

Compatibility between Samsung and Other Company's Recorder

Disc Types	Recording format	Recording Device	Finalising	Additional Recording in Samsung Recorder
DVD-RW	VR Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Recordable
	V Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Not recordable
DVD-R	V Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Not recordable

NOTE

Finalise

• This closes the DVD-RW/-R so no additional recording can be done.

Unfinalise

• This allows additional recording on a DVD-RW disc originally recorded on the HDD & DVD REORDER.
• A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalised.
• A DVD-RW disc that has been recorded in Video Mode of a different maker's recorder cannot be unfinalised.
• A DVD-R disc cannot be unfinalised.

Recording Formats

When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences.

DVD-RW: When unused DVD-RW disc is first inserted, the message "Uninitialized Disc Do you want to initialize this disc?" will be displayed.

DVD-R: Formatting disc is unnecessary and only V Mode Recording is supported.

DVD-RW(V mode)/-R

• Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in V mode. The chapter's length (interval between chapters) varies according to the recording mode.
• Simple editing (erasing titles/changing title name)

DVD-RW(VR mode)

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.)
• Various editing options using a created Playlist.

Recording Mode

Select one of four recording modes by pressing the REC MODE button repeatedly while the unit is in Stop mode for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes and you can use this mode for timer recording.

DVD-HR730(A)

Recording Mode	Recording Times
	HDD (80GB)	DVD-RW/-R
XP (high quality mode)	Approx. 21 hours	Approx. 1 hour about 8.5 Mbps
SP (standard quality mode)	Approx. 34 hours	Approx. 2 hours about 4.5 Mbps
LP (long recording mode)	Approx. 69 hours	Approx. 4 hours about 2 Mbps
EP (extended mode)	Approx. 104 hours	Approx. 6 hours/ about 1.6 Mbps
	Approx. 130 hours	Approx. 8 hours/ about 1.2 Mbps
FR (Flexible Recording)	Approx. 21~104 hours	Approx.1~6 hours

DVD-HR734(A)

Recording Mode	Recording Times
	HDD (160GB)	DVD-RW/-R
XP (high quality mode)	Approx. 42 hours	Approx. 1 hour about 8.5 Mbps
SP (standard quality mode)	Approx. 69 hours	Approx. 2 hours about 4.5 Mbps
LP (long recording mode)	Approx. 139 hours	Approx. 4 hours about 2 Mbps
EP (extended mode)	Approx. 208 hours	Approx. 6 hours/ about 1.6 Mbps
	Approx. 270 hours	Approx. 8 hours/ about 1.2 Mbps
FR (Flexible Recording)	Approx. 42~208 hours	Approx.1~6 hours

NOTE

• Recording time may vary according to specific conditions.

Unrecordable pictures

Video with copy protection cannot be recorded on this HDD & DVD REORDER.

When the HDD & DVD REORDER receives a copyguard signal while recording, recording stops and the following message appears on the screen.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type programme, use DVD-RW with CPRM in VR Mode.

Signal type Media	Copy-Free	Copy-Once	Copy-Never
DVD-RW(Ver.1.1)	O	-	-
DVD-RW(Ver.1.1) with CPRM
VR mode	O	O*	-
V mode	O		-
DVD-R	O		-

Once "Copy Once" has been recorded, recording cannot be done anymore.

- Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some HDD & DVD RECORDERS, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID.

During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Recording the current TV programme you are watching

Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the HDD or DVD button.

If you select DVD, Press the OPEN/CLOSE button and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.

If an unused DVD-RW disc is used, whether to initialize or not will be asked first. Make your selection, then press the OK button.(See page 74)

Press the PROG ( ) or number buttons to select the current programme you want to record.

Press the REC MODE button repeatedly, (or press the REC MODE button and then press the buttons) to select the recording speed(quality).

Press the REC button. Information concerning the channel is displayed on the screen, then recording begins. Icon( ) is displayed on the front panel.

- To pause recording -

• Press the REC PAUSE button to pause a recording in progress.
• Press the REC PAUSE button again during pause to resume recording.
• You can switch channels by pressing the PROG (⊙) buttons while recording pauses.

- To stop recording -

Press the STOP (⊙) button to stop or finish a recording in progress.
- When using DVD-RW/-R discs, the message "Updating the information of disc. Please wait for a moment" is displayed.

NOTE

• You can not change the recording mode and the PROG while recording.
• Recording will stop automatically if there is no free space left for recording.
  Up to 99 titles can be recorded onto a disc.(DVD-RW/-R)
  Up to 999 titles can be registered on the HDD.
• HDD recording is available for up to 24 hours, and when recording for 24 hours, 4 titles will be recorded with each being 6 hours in length.
• Recording will stop automatically if a copy protected image is selected.
  DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.
• Do not use DVD-R authoring discs with this unit.

Recording from external equipment you are watching

Before you start

Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the HDD or DVD button.

If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray.

Wait until LOAD disappears from the front panel display. If an unused DVD-RW disc is used, whether to initialize or not will be asked first. (See page 74)

Press the INPUT SEL. button to select the input source according to the connection you made.

The front panel display changes in the following sequence:

PR Number AV1 AV2 AV3 DV

If you connect a digital camcorder, press the

INPUT SEL. button to select DV. (See page 78)

Press the REC MODE button repeatedly, (or press the REC MODE button, then press the buttons) to select the recording speed (quality).

Press the REC button.

Information concerning the external input mode is displayed on the screen, then recording begins.

Icon() is displayed on the front panel.

• To pause recording -

• Press the REC PAUSE button to pause a recording in progress.

• Press the REC PAUSE button again during pause to resume recording.

• You can switch channels by pressing the PROG (⊙) buttons while recording pauses.

• To stop recording -

Press the STOP (⊙) button to stop or finish a recording in progress.

• When using DVD-RW/-R discs, the message "Updating the information of disc. Please wait for a moment" is displayed.

Copying from a Camcorder

You may control the Camcorder using the IEEE1394 (DV) interface.

1 Connect the DV output jack of your camcorder to the DV input jack on the front of your HDD & DVD RECORDER using a DV cable.
Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.
3 Press the REC MODE button repeatedly to select the recording speed(quality).

4 Press the INPUT SEL. button to select DV. If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

5 Select the Play () icon on the upper part of the screen to playback the camcorder and find the starting position to copy.
6 To start recording, use the buttons to select Record ( ) icon in the top side of the screen, then press the OK button. You can press the REC button of the remote control to start recording.

- To stop recording -

Press the STOP (⊙) button to stop or finish a recording in progress.

• When using DVD-RW/-R discs, the message "Updating the information of disc. Please wait for a moment" is displayed.

NOTE

• To display playback related icons on the screen, press any direction button on the remote control.

Making a One Touch Recording (OTR)

You can set the HDD & DVD REORDER to record in 30-minute increments up to 8 hours by pressing the REC button.

Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.
2 Press the PROG (⊙) or number buttons to select the programme to record. If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input (AV1, AV2, AV3, DV or PR01).
Press the REC button to start recording.

Press the REC button repeatedly to adjust the desired recording time.

NOTE

• The timer counter decreases by the minute from 8:00 to 0:00, then the HDD & DVD REORDER stops recording.

- To stop recording -

Press the STOP (⊙) button. The message "Do you want to stop recording?" is displayed.

• Press the buttons to select Yes, then press the OK button.
• Or press the STOP (⊙) button again.

About INFO button

During recording, press the INFO button once, the system information screen appears.: Displays Active Status, Background Status, and Main Screen information.

Pressing the INFO button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists, Recordable Time(Title), Available Space.

Pressing the INFO button three times: Current recording information screen appears.: Displays information of recording Name, Title, Created Time and Recording Time.

Simultaneous Recording and Playback

You can play back from the beginning of the programme you are currently recording.

You can watching the previous title list while recording a programme.

While Recording

Press the PLAY () button.

It plays back the title that you are currently

recording from the beginning.

Playback is not available for 10 seconds from the start of recording.

You can use the SKIP (一 一) and other

playback-related buttons to view the previous recorded list.

Using the TITLE LIST button

1 With the unit in recording mode, press the TITLE LIST button.

The Title List screen is displayed.

Press the / SKIP (一 + 一) buttons to select the recording title list.

Press the OK or PLAY ( ) button. It plays back the title that you are currently recording from the beginning.

- Stopping Playback / Recording -

1 Press the STOP ( ) button. Playback screen disappears and the recording in progress screen appears.

2 Pressing the STOP (⊙) button once more will stop the recording.

NOTE

No sound is heard during search mode.
DVD disc playback is available during HDD recording. However, JPEG, MP3, and DivX files in the disc cannot be played back.
- HDD playback is available during DVD recording. However, JPEG and MP3 files in the HDD cannot be played back.

Making a Timer Recording

1. Check the antenna cable is connected.
2. Check the remaining time of the disc.
3. Check the date and time are correct.
   Make sure the Clock (Setup-Clock Set) must be set before you proceed with a timer recording.

(See pages 27~28)

Using the TIMER button

1 With the unit in Stop mode/Playback mode, press the TIMER button.

The Programme screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Programme, then press the OK or button.

Press the OK or button to select Scheduled List.

3 Press the OK button to select Add a list.

Using the ANYKEY button.

• Press the ANYKEY button.
• Press the buttons to select Add, then press the OK or button.

4 Set timer recording option.

• Fill the input items using the buttons and number buttons.

:Moves to the previous/next item.

• To: Select the media to record HDD or DVD.
• Source: The video input source (AV1, AV2 or AV3), or the broadcasting channel you want to make a timer recording from.
• Date: Timer Recording allows setting the recording time within one month period. Set the recording day. (month/day)

• Start/End Time: Start and end time of the timer recording.
  Mode (Recording Mode):
• FR (Flexible Recording): Select when you want to set video quality automatically. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes.
• XP (high quality): Select when video quality is important.
• SP (standard quality): Select to record in standard quality.
• LP (low quality): Select when a long recording time is required.
• EP (extended) : Select when a longer recording time is required.

• When you are recording at EP mode on a DVD-RW(V mode)/-R disc, it may not record the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a programme with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

• VPS/PDC :VPS(Video Programme System) or PDC(Programme Delivery Control) function.

• If you set this function on, you can control the starting and ending time of recording by special signal included in the broadcasting signal. If a TV programme is shortened or starts earlier or later than scheduled, this function synchronizes the starting and ending time of recording with the actual broadcasting time automatically.

• Set up the start-time EXACTLY according to the published TV schedule. Otherwise the timer recording will not operate.

• Do not select PDC or VPS unless you are sure the programme you wish to record is broadcast with PDC or VPS.

• TITLE : To label the title name, select the title and then press the OK button. Title renaming screen appears. See page 88 for the registration.

5 After selecting the set up value for each mode, press the OK button to select Save, and press the OK button again.

• ① will appear on the front panel. It means that a timer recording is registered.

If the timer settings overlap;

The programmes are recorded in order of priority. If timer recording is set for the first programme and then again for the second programme and both programmes overlap, the following message will appear on the screen: "This setting is identical with 1." The message shows that the first programme has priority. After recording of the first programme is complete, the second programme starts being recorded.

To exit without saving the current setting Press the MENU button.

To return to the previous menu

Press the RETURN button if you don't want to set a timer recording.

6 When you want to recording on DVD-RW/-R, you must insert the disc.

7 Turn the power off to finish the Timer Recording setting.

Timer Recording will not work when the power is on.

NOTE

• The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 2 minutes before the start time of the next recording.)
• You can make the Timer Recording up to 12 programmes.
  If HDD disk has no available recording space, blinks. It means that HDD disk has no space to record.
  If you have set the Timer Recording using VPS/PDC, the fan can still operate and make a noise when the power is off.

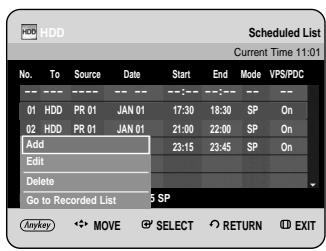

Editing the Scheduled List

Follow these directions to edit the Scheduled List.

Using the TIMER button

1 With the unit in Stop mode/Playback mode, press the TIMER button. The Programme screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Programme, then press the OK or button.

Press the OK or button to select Scheduled List.

3 Press the buttons to select the number of the Scheduled List you want to edit, then press the ANYKEY button.

• The Add, Edit, Delete and Go to Recorded List items is displayed.

4 Press the buttons to select Edit, then press the OK or button.

• The Scheduled Record Input item is displayed. Edit the items you want to modify. See the "Making a Timer Recording" section for more information on Timer Recording Input items.(See pages 81 to 82)

5 Press the OK button to select Save, then press the OK button to confirm the edited setting.
6 Press the MENU button after finishing the operation. The Scheduled List screen will disappear.

Deleting a Scheduled List

Follow these directions to delete an entry from the Scheduled List.

Using the TIMER button

1 With the unit in Stop mode/Playback mode, press the TIMER button. The Programme screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Programme, then press the OK or button.

Press the OK or button to select Scheduled List.

3 Press the buttons to select the number of the Scheduled List you want to delete, and then press the ANYKEY button.

• The Add, Edit, Delete and Go to Recorded List items are displayed.

4 Press the buttons to select Delete, then press the OK or button.

• You will be prompted with the delete confirm message such as "Do you want to delete ?".

Press the buttons to select Yes, then press the OK button.

• The selected entry will be deleted from the list.

6 Press the MENU button after finishing the operation. The Scheduled List screen will disappear.

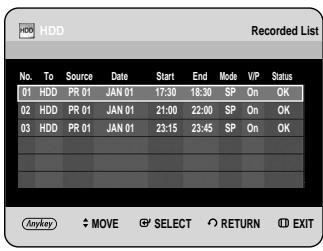

Go To Recorded List

You can confirm the performance results of title lists that have passed the reserved recording time.

Using the TIMER button

1 With the unit in Stop mode/Playback mode, press the TIMER button. The Programme screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Programme, then press the OK or button.

Press the button to select Recorded List, then press the OK or button. The Recorded List screen is displayed.

3 Press the MENU button after finishing the operation. The Recorded List screen will disappear.

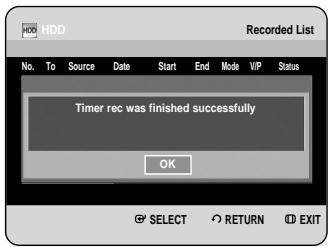

Information about Recorded List

Informs whether the selected Recorded List performed a Timer Recording successfully.

3-1 Press the buttons to select the number of the Recorded List, then press the ANYKEY button.

4 Press the buttons to select Info, then press the OK or button.

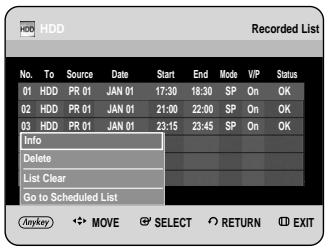

Delete Recorded List

Deletes a Recorded List individually.

3-1 Press the buttons to select the number of the Recorded List you want to delete, and then press the ANYKEY button.

4 Press the buttons to select Delete, then press the OK or button.

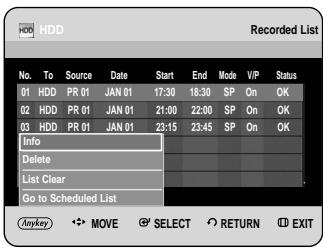

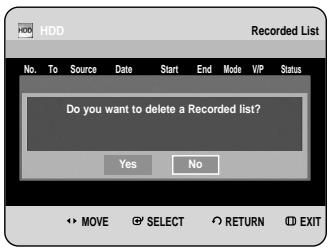

Clear Recorded List

Cleared List at once.

3-1 Press the ANYKEY button.

4 Press the buttons to select List Clear, then press the OK or button.

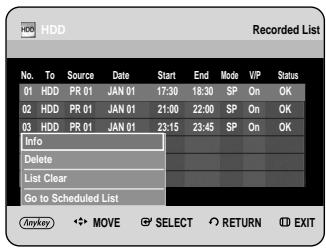

Go to Scheduled List

Switches directly from the Recorded List to the Scheduled List.

3-1 Press the ANYKEY button.

4 Press the buttons to select Go to Scheduled List, then press the OK or button.

Editing

This section introduces basic functions of editing and explains both edit functions for the recording on a disc and edit functions for the entire disc.

Basic Editing (Title List) 88

Advanced Editing ( Playlist) 94

Copying from HDD to DVD 103

Copying Multiple Titles at One Time 105

Copying from DVD to HDD 107

Copying MP3, JPEG or DivX 109

Disc Manager 111

- Title List

Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again.

- Play List

This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original stream will not be deleted.

Recording or editing might not be completed if an error, such as a sudden power failure occurs. Please be aware that a material that has been damaged is unable to be retrieved to its original content.

Basic Editing (Title List)

Renaming(Labeling) a Title

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded programme.

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

Press the buttons to select an entry you want to rename from the Title List, then press the ANYKEY button.

Press the buttons to select Rename, then press the OK or button.

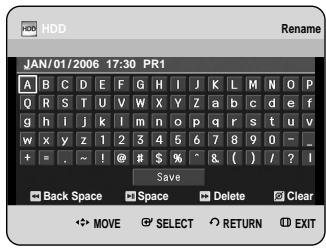

The Rename screen is displayed.

4 Select the desired characters using the buttons, press the OK button.

• Back Space: Deletes and moves the cursor backwards by one position.
• Space: Enters a blank and moves the cursor one forward (to the right).
• Delete: deletes the character at the cursor position.
• Clear: Deletes all the character inputs.
• Save: Registers the character inputs.

Press the buttons to select Save, and then press the OK button.

The changed title name is displayed on the title item of the selected entry.

Locking (Protecting) a Title

Follow these instructions to lock an entry to protect it from accidental deletion.

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to protect from the Title List, then press the ANYKEY button.

Press the buttons to select Protection, then press the OK or button.

4 Press the buttons to select On, then press the OK button. The key icon on the information window for the selected entry changes to the locked status. (A→B)

- Deleting a Title

Follow these instructions to delete an entry from the Title List.

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to delete in the Title List, then press the ANYKEY button.

3 Press the buttons to select Delete, then press the OK or button.

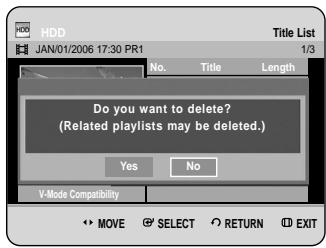

• The message may be different depending on the type of disc. You will be prompted with the confirmation message. HDD, DVD-RW(VR mode): If a Playlist is present, the message "Do you want to delete? (Related playlists may be deleted.)" is displayed. DVD-RW(Video mode)/-R: If a Playlist is not present, the message "Do you want to delete?" is displayed.

Press the buttons to select Yes, then press the OK button.

• You cannot delete a protected entry. If you want to delete a protected entry, select "Off" in the Title Protection menu. (See page 89)
• When the Disc Protection has been set to Protected, you cannot delete titles. (See page 112)
  Once an entry is deleted from the Title List it cannot be recovered.
  Once DVD-RW/-R is finalised, it cannot be deleted.

2 Press the buttons to select an entry you want to Split from the Title List, then press the ANYKEY button.

Splitting a Section of a Title (Split)

Follow these instructions to split a section of a Title List entry into two titles.

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

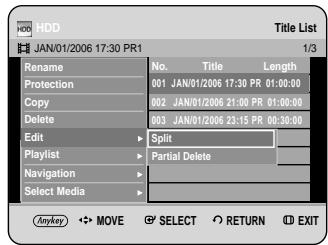

3 Press the buttons to select Edit, then press the OK or button. The Edit menu is displayed.

4 Press the buttons to select Split, then press the OK or button.

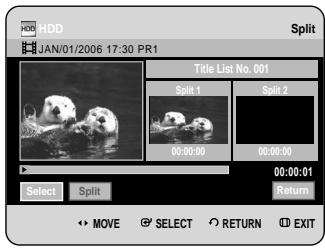

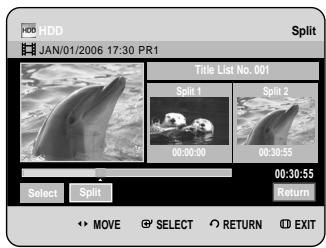

5 Using the playback-related buttons (PLAY(), SEARCH ( )) , move to a point for splitting and press the OK button. If it is not the point where you want to split, press the RETURN button to cancel the selection. Using the playback-related buttons, move to a point to split and press the OK button.

① First split interval
② Current playtime
③ Start time of the second split and its screen

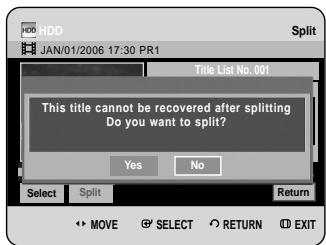

6 Press the OK button to select Split. The message "This title cannot be recovered after splitting. Do you want to split?" is displayed.

7 Press the buttons to select Yes, then press the OK button.

The split title is divided into two, and the following titles will be shifted down by one.

- Deleting a Section of a Title (Partial Delete)

Follow these instructions to delete a section of a Title List entry.

(VR mode)

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

2 Press the buttons to select an entry you want to edit from the Title List, then press the ANYKEY button.

• When using a DVD-RW(VR) disc, you can select Partial Delete directly by pressing the ANYKEY button. (Then go to step 5)

Press the buttons to select Edit, then press the OK or button.

The Edit Title List screen is displayed.

4 Press the buttons to select Partial Delete, then press the OK or button.

Press the OK button at the starting point. The image and starting point time is displayed in the section deletion starting point window.

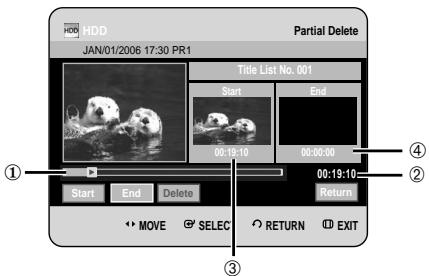

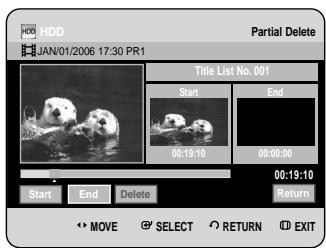

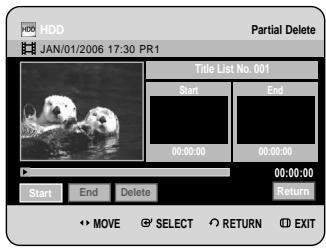

Partial Delete List Screen Elements

① Playback bar
② Playtime
③ Section deletion starting point window and time
④ Section deletion end point window and time

• Select the start and end points of the section you want to delete using the playback related buttons.
• Playback related buttons: (PLAY(⊙), SEARCH(⊙))

6 Press the OK button at the end point. The image and end point time is displayed in the Section deletion ending point window.

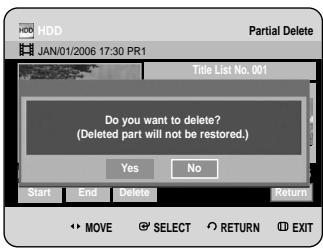

7 Press the buttons to select Delete, then Press the OK button.

Press the buttons to select Yes, then press the OK button. The selected section has been deleted.
9 Press the buttons to select Return, then press the OK button to finish the operation.

NOTE

The length of the section to be deleted must be at least 5 seconds long.
If the length of the section to be deleted is less than 5 seconds, you will be prompted with the message "The range is too short."
If the end time precedes the starting time, you will be prompted with the message "End point cannot be marked earlier than start point".
The section cannot be deleted when it includes a still picture.
- Press the MENU button after the operation has finished. The Title List screen will disappear.

Advanced Editing ( Playlist)

Creating a Playlist

Follow these instructions to create a new playlist entry from a recorded title.

(VR mode)

Using the TITLE LIST button

1 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

Press the ANYKEY button.

Press the buttons to select Playlist, then press the OK or button.

Press the buttons to select New Playlist, then press the OK or button. The Make Playlist screen is displayed.

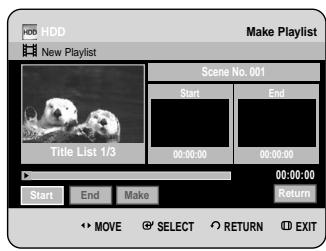

4 Press the OK button at the start point.

• The image and time at the start point is displayed on the Start window.
• The yellow-coloured selection bar moves to the End item.
• Select the starting point of the section from which you want to create a new scene using the playback related buttons (PLAY(⊙), SEARCH(⊙)).

Press the OK button at the end point.

• The image and end point time is displayed in the End window.
• The yellow-coloured selection bar moves to the Make item.

6 Press the buttons to select Make, then press the OK button.

• To make a scene for the playlist.
  A new Make scene screen is displayed.
  Repeat steps 4~6 to make a new scene for the playlist.
  A new scene will be added to the current playlist.
  You can check and see all the scenes on the Edit playlist screen. (See page 97)
  To make a new playlist. Repeat steps 1~6 if you want to make a new playlist.

7 Press the button to select Return, then press the OK button to finish the operation.

NOTE

• You can create up to 99 playlist entries.
  Depending on the kind of disc, the displayed screen may have a slight difference.

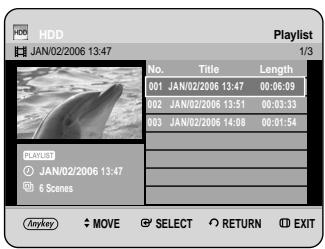

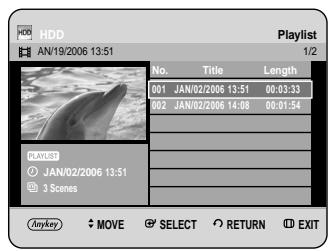

Playing Entries in the Playlist

Follow these instructions to play the playlist entries.

(VR mode)

Using the PLAY LIST button

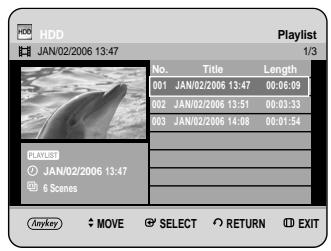

1 With the unit in Stop mode/Playback mode, press the PLAY LIST button.

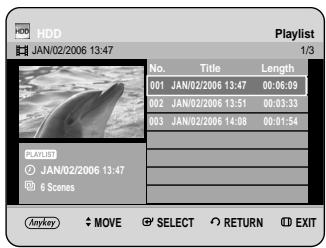

The Playlist screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button. The Title List screen is displayed.
• Press the ANYKEY button.
• Press the buttons to select Playlist, then press the OK or button.
• Press the buttons to select Go To Playlist, then press the OK or button.

2 Press the buttons to select the playlist you want to play, then press the OK or PLAY (·) button.

3 Press the STOP ( ) button to stop playing. The screen returns to the Playlist screen.

Renaming a Playlist Entry

Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry.

(VR mode)

Using the PLAY LIST button

1 With the unit in Stop mode/Playback mode, press the PLAY LIST button.

The Edit Playlist screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button. The Title List screen is displayed.
• Press the ANYKEY button.
• Press the buttons to select Playlist, then press the OK or button.
• Press the buttons to select Go To Playlist, then press the OK or button.

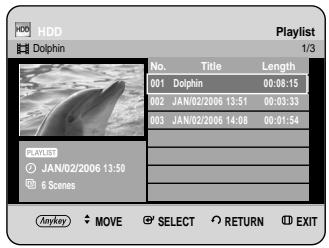

2 Press the buttons to select the title you want to Rename from the Playlist, then press the ANYKEY button.

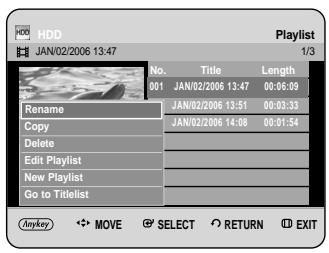

ANYKEY menu is displayed : Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titlelist.

Press the buttons to select Rename, then press the OK or button.

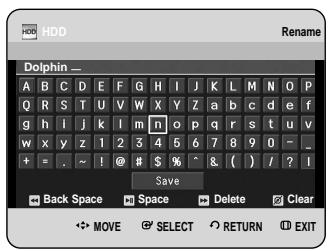

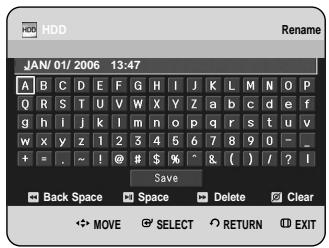

The Rename screen is displayed.

4 Select the desired characters using the buttons, then press the OK button.

• This function is the same as the Rename function in Renaming the Title. (See page 88)
• The maximum number of characters that can be entered is 31. All 31 characters can be displayed by pressing the INFO button.

Press the buttons to select Save, then press the OK button.

The changed title is displayed in the title field of the selected playlist entry.

Editing a Scene for the Playlist

Follow these instructions to edit scenes for a playlist.

(VR mode)

Using the PLAY LIST button

1 With the unit in Stop mode/Playback mode, press the PLAY LIST button.

The Edit Playlist screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.
• Press the ANYKEY button.
• Press the buttons to select Playlist, then press the OK or button.
• Press the buttons to select Go To Playlist, then press the OK or button.

Press the buttons to select the title you want to edit from the Playlist, then press the ANYKEY button. The Edit Playlist menu is displayed: Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titlelist.

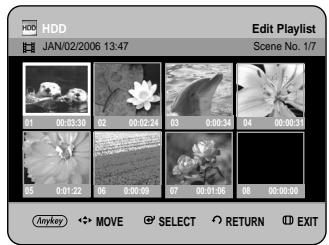

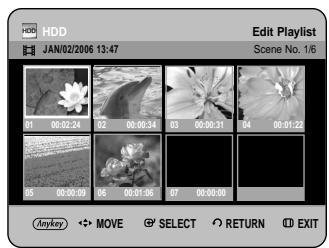

Press the buttons to select Edit Playlist, then press the OK or button. The Edit Scene screen is displayed.

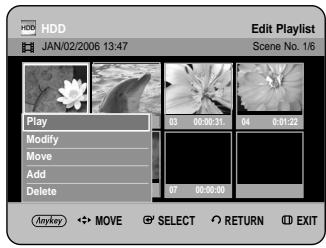

Playing a Selected Scene

4 Press the buttons to select the scene you want to play, then press the ANYKEY button. The playlist entry to be played is selected.

Press the buttons to select Play, then press the OK or button. The selected scene is played.

• To stop scene play, press the STOP (⊙) button.

Modifying a Scene (Replacing a Scene)

To setup, follow steps 1 to 3 in pages 97~98.

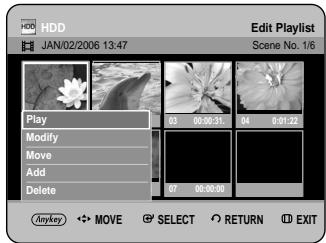

Press the buttons to select the scene you want to Modify, then press the ANYKEY button.

Press the buttons to select Modify, then press the OK or button. The Modify Scene screen is displayed.

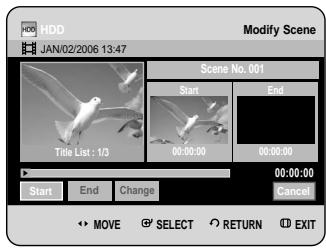

6 Press the OK button at the start point of the scene.

• The image and starting point time is displayed on the Start window.
• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY(⊙), SEARCH(⊙)).

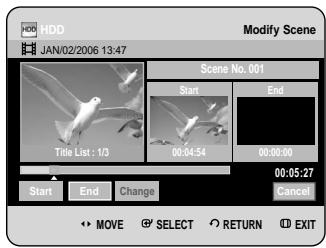

Press the OK button at the end point of the scene.

• The image and ending point time is displayed in the End window.

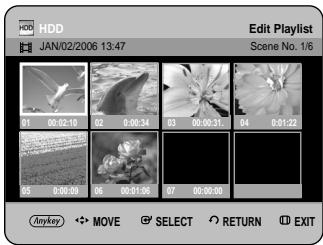

Press the buttons to select Change, then press the OK button.

• The scene you want to modify is changed with the selected section.

Moving a Scene (Changing the Position of a Scene)

To setup, follow steps 1 to 3 in pages 97~98.

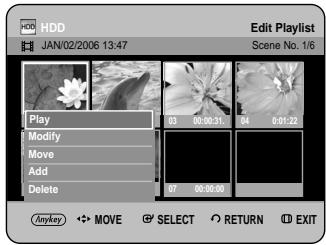

4-1 Press the buttons to select the scene you want to move (change the position), then press the ANYKEY button.

5 Press the buttons to select Move, then press the OK or button.

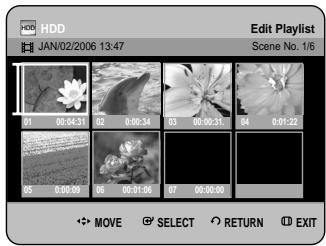

• A yellow selection window is displayed on the scene to be moved.

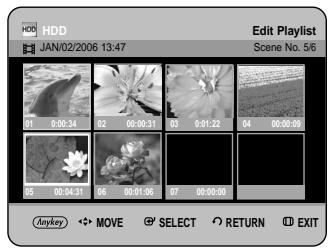

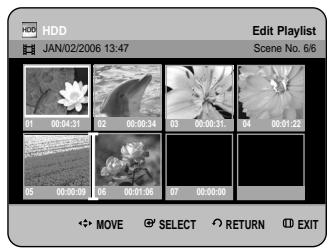

Press the buttons to select the position to which you want to move the selected scene, then select the OK button.

• The selected scene is moved to the selected position.

NOTE

• You cannot move the selected scene to the position of the next scene, because the selected scene should be inserted before that position, which requires no action.
  Depending on the kind of disc, the displayed screen may have a slight difference.

Adding a Scene

To setup, follow steps 1 to 3 in pages 97~98.

4-1 Press the buttons to select the scene that will have a new scene inserted before it, then press the ANYKEY button.

Press the buttons to select Add, then press the OK or button.

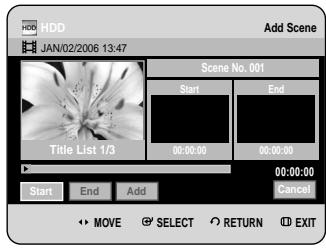

The Add Scene screen is displayed.

6 Press the OK button at the starting point of the scene.

• The image and starting point time is displayed on the Start window.
• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY(⊙), SKIP(⊙)).

7

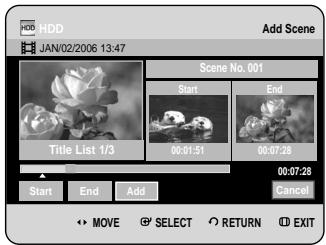

Press the OK button at the end point of the scene.

• The image and end point time are displayed in the End window.
• To cancel, press the buttons to select Cancel, then press the OK button.

8

Press the buttons to select Add, then press the OK button.

• The section you want to add is inserted prior to the scene selected in step 4 of Adding a Scene on the previous page.

Deleting a Scene

To setup, follow steps 1 to 3 in pages 97~98.

4-1

Press the buttons to select the scene you want to delete, then press the ANYKEY button.

5

Press the buttons to select Delete, then press the OK or button.

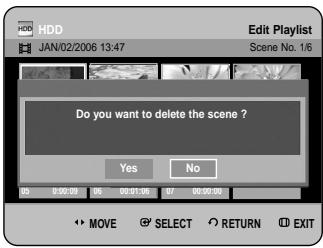

• The message "Do you want to delete the scene ?" is displayed.

6

Press the buttons to select Yes, then press the OK to delete the selected scene.

- Deleting a Playlist Entry from the Playlist

Using the PLAY LIST button

1 With the unit in Stop mode/Playback mode, press the PLAY LIST button.

The Edit Playlist screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button. The Title List screen is displayed.
• Press the ANYKEY button.
• Press the buttons to select Playlist, then press the OK or button.
• Press the buttons to select Go To Playlist, then press the OK or button.

Press the buttons to select the title you want to edit from the Playlist, then press the ANYKEY button. The Edit Playlist menu is displayed:Rename, Copy, Delete, Edit Playlist, New Playlist, Go to Titelist.

Press the buttons to select Delete, then press the OK or button.

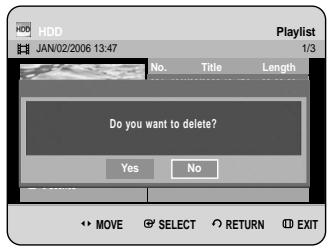

• You will be prompted with the delete confirmation message "Do you want to delete?"

4 Press the buttons to select Yes, then press the OK button.

You will be automatically returned to the Playlist screen after the delete operation has finished.

Copying from HDD to DVD

Using the TITLE LIST button

About the Copy Screen

① Add titles to be copied (up to 7 titles can be copied at one time)
② Title to be copied
③ Recording mode for copying
④ Record time of title to be copied
⑤ Copy start button
Remaining time and space on the current disc in DVD Record mode
⑦ Total record time and space of selected titles for copying

Contents Copy Specifications

Contents	HDD → DVD
Recorded Video Title	Supported
Copy Protected Title	Not supported
Copy Once Title	Move (Deletes the Title in the HDD after copying)

Once "Copy Once programme" has been recorded on the DVD disc, this title cannot be copied to HDD anymore. But "Copy Once programme" has been recorded on the HDD, this title can be copied to DVD-RW(VR mode).

1 Press the OPEN/CLOSE button and place a recordable disc on the disc tray.
Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.
3 Select the HDD by pressing the HDD button on the front panel of the HDD & DVD REORDER or on the remote control.
4 With the unit in Stop mode/Playback mode, press the TITLE LIST button.

The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

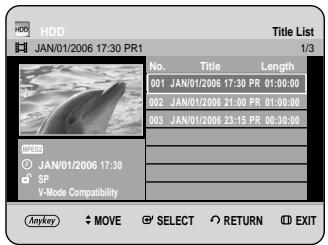

Press the buttons to select the title you want to copy.

To move to other pages, press the SKIP( ) buttons.

SKIP( ) : previous page of title list

SKIP( ) : next page of title list

Press the ANYKEY button.

7 Press the buttons to select Copy, then press the OK or button.

Copy screen is displayed.

- About Using COPY button -

Press the buttons to select title you want to copy from the title list and then press the COPY button on the remote control. You can go to copy screen.

• During playback, you can also copy the title by pressing the COPY button.

Press the OK or button to select Start, then press the OK button.

• To cancel the copying in progress, press the CANCEL button.

After a successful copy, "The title is successfully copied" message is displayed.

NOTE

Using the same method, you can copy a Playlist.
During copying, timer recording is not available.
- Regarding title lists that can be copied only once:

• Only available for DVD discs that support CPRM
• If a playlist contains a scene that can only be copied once, it cannot be copied.

Copying Multiple Titles at One Time

Using the TITLE LIST button

1 Press the OPEN/CLOSE button and place a recordable disc on the disc tray.
Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.
3 Select the HDD by pressing the HDD button on the front panel of the HDD & DVD REORDER or on the remote control.
4 With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

Press the buttons to select the titles you want to copy.

To move to other pages, press the SKIP ( ) buttons.

SKIP( ) : previous page of title list

SKIP( ): next page of title list

6 Press the ANYKEY button.

7 Press the buttons to select Copy, then press the OK or button. Copy screen is displayed.

Press the ANYKEY button.

9

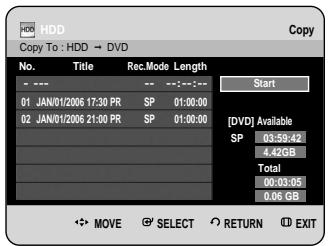

Press the OK button. Add Copy List screen is displayed.

10 Press the buttons to select an additional title you want to copy, then press the OK button. Repeat steps 8~10 to select a title you want to copy.

11 Press the OK or buttons to select Start, then press the OK button.

The added title lists are copied into the copy list. To cancel the copying in progress, press the CANCEL button.

- Deleting an Undesired Title from the Copy List

To setup, follow steps 1 to 7 in page 105.

8-1 Press the buttons to select a title you want to delete from the copy screen.

Press the ANYKEY button. Press the buttons to select Delete, then press the OK or button. The message "Do you want to delete?" is displayed.

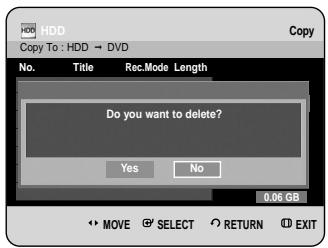

10 Press the buttons to select Yes, then press the OK button. The selected title is deleted.

Previewing a Selected Title from the Copy List

To setup, follow steps 1 to 7 in page 105.

8-1 Press the buttons to select a title you want to preview in the copy screen.

Press the ANYKEY button. Press the buttons to select Preview, then press the OK or button. You can preview the selected title through the display window located at the centre of the screen.

10 Press the RETURN button to exit the Preview mode.

Copying from DVD to HDD

Using the TITLE LIST button

1 Press the OPEN/CLOSE button and place a recorded disc on the disc tray.
Press the OPEN/CLOSE button to close the disc tray.
3 With the unit in Stop mode/Playback mode, press the TITLE LIST button. The Title List screen is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the MENU button.
• Press the buttons to select Library, then press the OK or button.
• Press the buttons to select Title, then press the OK or button.

4 Press the buttons to select the title you want to copy.

To move to other pages, press the SKIP ( ) buttons.

SKIP( ) : previous page of title list

SKIP( ) : next page of title list

Press the ANYKEY button.

6 Press the buttons to select Copy, then press the OK or button.

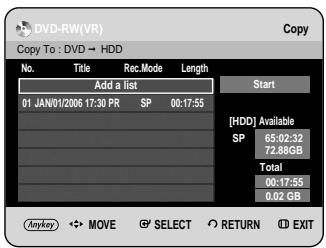

Copy screen is displayed.

- About Using COPY button -

Press the buttons to select the title you want to copy from the title list and then press the COPY button on the remote control. You can go to copy screen.

• During playback, you can also copy the title by pressing the COPY button.

Press the OK or buttons to select Start, then press the OK button.

• Press the INFO button to change the copy processing bar.

If you press INFO button again, copy processing bar will be appeared.

• To cancel the copying in progress, press the CANCEL button.

8 After a successful copy, "The title is successfully copied." message is displayed.

• Copying Multiple Titles at One Time – Same as an HDD operation(See page 105)
• Deleting an Undesired Title from the Copy List – Same as an HDD operation(See page 106)
• Previewing a Selected Title from the Copy List – Same as an HDD operation(See page 107)

NOTE

• You cannot copy anything else on finalised DVD-R and DVD-RW(V mode) mode.
• You cannot copy a DVD-VIDEO to HDD.

Contents Copy Specifications

Contents	DVD → HDD
Recorded Video Title	Supported
Copy Protected Title	Not supported
Copy Once Title	Not supported

Copying MP3, JPEG or DivX

File Copy

1 Insert a JPEG disc, MP3 disc or DivX disc into the disc tray.
Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.
Press the buttons to select Library, then press the OK or button.
4 Press the buttons to select Music, Photo or DivX(MPGE4), then press the OK or button.

Press the buttons to select the MP3, JPEG or DivX files you want to copy, then press the ANYKEY button.

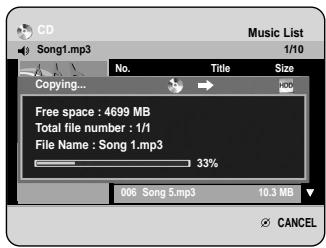

6 Press the buttons to select Copy, then press the OK or button. File copy begins.

Folder Copy

1 Insert a Disc (JPEG, MP3 or DivX) into the tray.
Press the buttons to select Library, then press the OK or button.

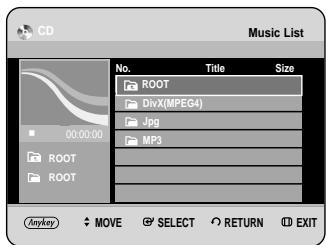

Press the buttons to select Music, Photo or DivX(MPEG4) then press the OK or button. MP3, JPEG or DivX(MPEG4) folder is displayed.

4 Press the buttons to select the MP3, JPEG or DivX(MPEG4) folder you want to copy, then press the ANYKEY button.

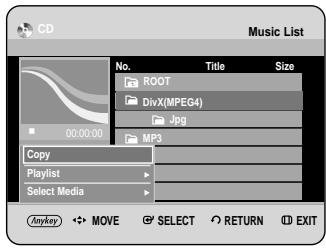

Press the buttons to select Copy, then press the OK or button.

Folder copy begins.

Sub folders and files in the selected folder are copied.

NOTE

• Pressing the CANCEL button during folder copying will cancel the folder copying after the current file is copied.
• Up to 500 files and 100 sub folders can be copied into one folder for MP3 files.
• Up to 500 files and 100 sub folders can be copied into one folder for JPEG files.
• Up to 500 files and 100 sub folders can be copied into one folder for DivX files.
• Files having an existing name of .mp3/.jpg, are automatically renamed to 01.mp3/01.jpg and copied.
  It allows up to 999 copies to have the same name.
• You cannot copy an Audio CD.
  File size on a disc and the copied file in the HDD may be slightly different due to the file system.

Contents Copy Specifications

Contents	HDD → DVD	DVD → HDD
MP3	Supported	supported
JPEGphoto)	Supported	supported
DivX	Supported	Supported

• Disc(CD-R/ CD-RW/ DVD-R(Finalise)/DVD-RW(Finalise)) HDD
  · HDD DVD-R, DVD-RW(V)
• The disc that has Video recording or has title dubbing from HDD can't be copied.
• If the disc is finalised through Disc Manager, it can be compatible with PC as a disc with a UDF file system.

Disc Manager

Editing the Disc Name

Follow these instructions to give a name to a disc.

1 With the unit in Stop mode, press the MENU button.

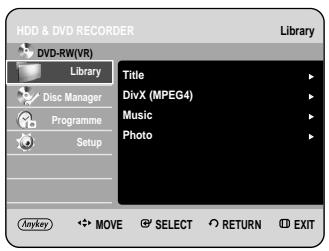

Press the buttons to select Disc Manager, then press the OK or button.

3 Press the buttons to select Rename, then press the OK button.

The Rename screen is displayed.

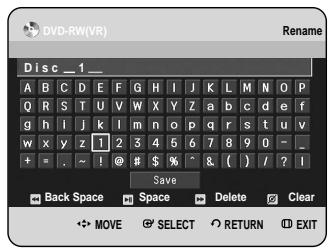

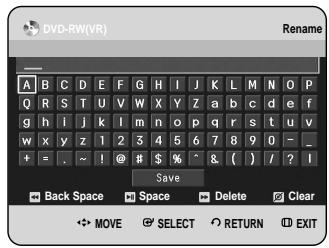

4 Select the desired characters using the buttons, then press the OK button.

Press the buttons to select Save, then press the OK button.

A disc name is given to the disc.

NOTE

• You may need to clear Disc Protection beginning editing.
  Depending on the kind of disc, the displayed screen may be different.

Disc Protection

Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Protection, then press the OK button.

Press the buttons to select On, then press the OK button.

Formatting a Disc

Use these instructions to format a disc. The disc protect should also be cleared

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Format, then press the OK button.

HDD

• You will be prompted with the confirmation message "Do you want to format this disc?"
• If you select Yes, you will be prompted with the confirmation message "All data will be deleted. Do you want to continue?"

DVD-RW

• You will be prompted with the confirmation message "Choose the recording format for DVD-RW."

Press the buttons to select Yes, then press the OK button. The disc is formatted.

DVD-VR and DVD-V are defined according to their recording format.

	DVD-VR	DVD-V
DISC	DVD-RW	DVD-RW/DVD-R

Delete All Title Lists/DivX Lists /Music Lists/Photo Lists

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Delete All, then press the OK button.

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.

4

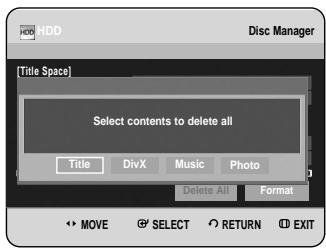

Press the buttons to select the Title, DivX, Music or Photo, then press the OK button.

5

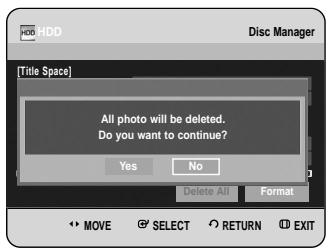

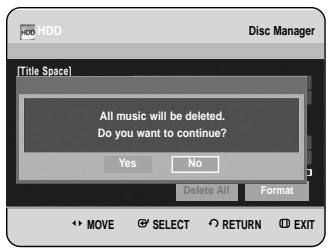

Press the buttons to select Yes, then press the OK button.

All title lists, DivX list, music lists or photo lists are deleted.

1

Delete All Title Lists

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Delete All, then press the OK button.

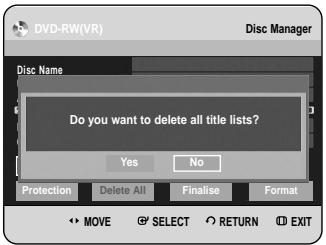

• You will be prompted with the confirmation message "Do you want to delete all title lists?"

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.
• When protected a DVD-RW is used, data cannot be deleted from a disc.
• If you select Yes, you will be prompted with the confirmation message "All playlists will be deleted. Do you want to continue?"

Press the buttons to select Yes, then press the OK button.

All title lists are deleted.

Finalising a Disc

After you record titles onto a DVD-RW/DVD-R disc with your HDD & DVD REORDER, it needs to be finalised before it can be played back on external devices.

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Finalise, then press the OK button.

You will be prompted with the message "Do you want to finalise disc?"

If you select Yes, you will be prompted again with the message "Disc will be finalised. Do you want to continue?"

4 Press the buttons to select Yes, then press the OK button.

The disc is finalised.

NOTE

Once a disc is finalised, you cannot delete entries from the record list.
After being finalised, the DVD-R/DVD-RW(video mode) operates in the same manner as a DVD-Video.
Depending on the disc type, the displayed screen may be different.
- Finalising time may be different depending on the amount of data recorded on the disc.
Data on the disc will be damaged if the recorder is powered off during finalisation process.

Unfinalising a Disc (VVR mode)

1 With the unit in Stop mode, press the MENU button.

Press the buttons to select Disc Manager, then press the OK or button.

Press the buttons to select Unfinalise, then press the OK button.

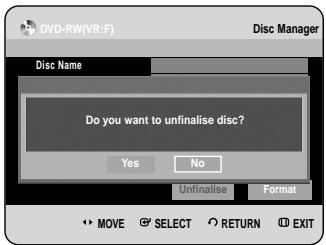

You will be prompted with the message "Do you want to unfinalise disc?"

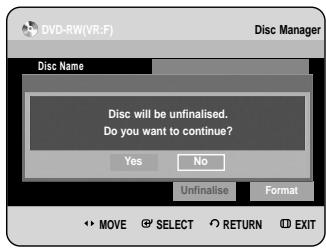

If you select Yes, you will be prompted again with the message "Disc will be unfinalised. Do you want to continue?"

4 Press the buttons to select Yes, then press the OK button.

The disc is unfinalised.

NOTE

A DVD-RW can be finalised or unfinalised in Video mode.

	Finalise	Unfinalise
Mark	DVD-Video(RW)	DVD-RW(V)
Operation	Same as DVD-Video	Additional recording, protection and deletion are possible.

A DVD-RW can be finalised or unfinalised in VR mode.

	Finalise	Unfinalise
Mark	DVD-RW(VR:F)	DVD-RW(VR)
Operation	Additional recording, deletion, editing, and protection are impossible.	Additional recording, deletion, editing, and protection are possible.

Reference

Troubleshooting

If your product malfunctions, go through the checkpoints below before contacting a Samsung authorised service centre.

Power

The input is displayed for a while when the power is turned on.

Checkpoint 1

The HDD & DVD REORDER requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on. But If Quick recording function is set to on, the HDD & DVD Recorder will power on quickly, which enables you to immediately record a desired channel. (see page 32)

Recording

Cannot record TV programmes.

Checkpoint 1

Check whether the power cord is securely plugged into the power outlet.

Checkpoint 2

Did you set the HDD & DVD RECORDER channel settings correctly?

Checkpoint 3

Check the free space on your HDD/DVD-RW/-R discs.

I pressed the REC button but there is no response.

Checkpoint 1

Recording is possible for HDD/DVD-RW/-R discs only. If a programme is copy protected, it cannot be recorded.

Troubleshooting 117

Specifications 121

Playback

Cannot play the disc.

Checkpoint

Check whether the disc is inserted correctly with the label facing up.

Checkpoint 2

Check the regional code of the DVD disc.

Checkpoint 3

This HDD & DVD REORDER cannot play some types of discs. (See pages 7, 44)

念 icon appears on the screen.

Checkpoint 1

You cannot use this operation or function due to one of the following reasons:

(1) Your DVD disc restricts it.
(2) Your DVD disc does not support this feature (for example: angles)
(3) The feature is not available at the moment.
(4) You've requested a title, chapter, or scan time that is out of range.

Play mode settings are different from the settings configured in the Settings menu.

Checkpoint

The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly.

Cannot change the aspect ratio.

Checkpoint

The aspect ratio is fixed for DVD discs. (See page 38)

The angle operation does not work while playing a DVD disc.

Checkpoint 1

The angle operation is available only when the disc contains images captured from different angles.

The selected audio and/or subtitle language is not played.

Checkpoint 1

Audio and subtitle languages are disc-specific. Only the sound and subtitle languages contained on the DVD disc are available and displayed in the disc menu.

Cannot copy title or file to the other mode.

Checkpoint 1

DVD discs encoded with copy protection can not be copied to HDD.

Checkpoint 2

Refer to "Contents Copy Specifications" on page 5 to check if copying is supported. Refer to "V-Mode Compatibility" on page 37 to check if copying is support.

Video

The disc revolves, but no image or bad quality images is displayed.

Checkpoint 1

Be sure that the Video Setting is properly set. (See pages 38~39)

Checkpoint 2

Check whether there is damage to or any foreign material on your disc.

Checkpoint 3

Some low quality discs may not play properly.

Checkpoint 4

If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault.

Sound

No sound.

Checkpoint 1

Are you watching a programme in slow or skip mode?

If you are playing a programme at a speed other than normal speed, sound will not be heard.(except for forward search (Fast 1) in disc.)

Checkpoint 2

Check the connections and settings. (See pages 22~23, 36~37)

Checkpoint 3

Check whether the disc is damaged. Clean the disc, if necessary.

Checkpoint 4

Check whether the disc is inserted correctly with the label facing up.

No audio output.

Checkpoint 1

Check whether you have selected the correct digital output options in the Audio Output Options menu. (See page 36~37)

Timer Recording

Timer lamp flickers.

Checkpoint 1

Check there is enough space in the disc or HDD for recording.

Checkpoint 2

Check whether the current disc is recordable or not.
Make sure to check before the start time of recording.

Timer recording does not work properly.

Checkpoint 1

Re-check the recording time and the end time settings again.

Checkpoint 2

Recording will be cancelled if the power is interrupted due to a power failure or another similar reason while recording.

Remote Control Unit

The remote control doesn't work.

Checkpoint

Point the remote control at the remote control sensor on your HDD & DVD RECORDER. Allow for proper distance. Remove obstacles between your HDD & DVD RECORDER and the remote control.

Checkpoint 2

Check whether the batteries are drained.

Checkpoint 3

Check the TV/DVD selection button setting.

Checkpoint 4

Check whether TV control button is selected or not.

Other

I forgot my password for parental supervision.

Checkpoint 1

Press and hold the PROG() buttons on the front panel of the Recorder for more than 5 seconds with no disc in the unit. All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.)

Is it possible to change a subtitle and an audio signal on a recorded disc?

Checkpoint 1

A recorded disc is played with only the subtitle and the audio signal which were selected during recording.

Other problems.

Checkpoint 1

Read the table of contents and then find and read the section describing your problem, follow the instructions given.

Checkpoint 2

Plug your HDD &DVD RECORDER off and on.

Checkpoint 3

If the problem still persists, contact a nearby Samsung service centre.

Specifications

General	Power requirements		220-240V AC, 50Hz
	Power consumption		35 Watts / 4.3Watts(Power off)
	Weight		3,9 Kg
	Dimensions		430mm(W) x 300mm(D) x 59mm(H)
	Operating temp.		+5°C to +35°C
	Other conditions		Keep level when operating. Less than 75% operating humidity
Input	Video		Composite Video : 1.0 V p-p at 75Ω load, sync negative
	Audio		Max.Audio Input Level : 2Vrms
	DV Input		IEEE 1394(4p) compatible jack
	Receivable Channels		PAL-B/G, SECAM-L/L'
	Scart Jack	AV2 (Scart Ext)	Video : Composite, RGB Audio: analogue
Output	Audio		Analogue output jacks x 2
			Optical/Coaxial digital audio output
	Video		Composite Video : Video output jack x 1
			S-Video output x 1 (Y:1,0Vp-p, C:0,286Vp-p at 75Ω load)
			Component output x 1 (Y: 1,0Vp-p, Pb: 0,70Vp-p, Pr: 0,70Vp-p at 75Ω load)
	Scart Jack	AV1 (Scart TV)	Video : Composite, RGB Audio: analogue
Recording	Picture Compression format		MPEG-II
	Audio Compression format		Dolby Digital 2ch/256Kbps, MPEG-II
	Recording Quality		XP (about 8,5 Mbps), SP (about 4,5 Mbps), LP (about 2,5 Mbps),
			EP (about 1,6 Mbps or about 1,2 Mbps)
	Audio Frequency Response		20 Hz~20 kHz
HDD Capacity	DVD-HR730(A)		80 GB
	DVD-HR734(A)		160 GB

Audio Output

For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz.

Disc Type	DVD	AUDIO CD(CD-DA)
Analog Audio Output	48 / 96kHz	44,1kHz
Digital Audio Output	48kHz	44,1kHz

This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased.

However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from:

Samsung Electronics U.K.Ltd.

Unit C, Stafford Park 12

Telford, Shropshire

TF3 3BJ

The United Kingdom

Tel:[phone],

Fax:[phone]

■ WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced.
2. Samsung's obligations are limited to the repair or, at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursment will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty.

4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured. This warranty will not cover, and no reimbursement will be made for such adaptation nor any damage which may result.

5. This warranty covers none of the following:

a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the product.
c) Misuse, including the failure to use this product for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper ventilation or any other cause beyond the control of Samsung.

1. This warranty is valid for any person who legally acquired possession of the product during the warranty period.
2. The consumers statutory rights in any applicable national legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty. Unless there is national legislation to the contrary, the rights under this warranty are the consumers sole rights and Samsung, its subsidiaries and distributors shall not be liable for indirect or consequential loss or any damage to records, compact discs, videos or audio taper or any other related equipment or material.

SAMSUNG ELECTRONICS (U.K.) LTD.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Gebruiksaanwijzing

DVD-HR730(A)

DVD-HR734(A)

Waarschuwing

OM HETRISICO OPELEKTRISCHE SCHOKKEN
TE BEPERKEN, DIENTU DE BEHUIZING (OF DE
ACHTERZIJDE) NIETTE VERWIJDEREN.
DITAPPARAATBEVATGEEN ONDERDELEN DIE DOOR
DE GEBRUIER KUNNEN WORDEN ONDERHOUDEN OF
GEREpareERD.
LAATONDERHOUD EN REPARATIES OVER AAN EEN
GEKWALIFICEERDE MONTEUR.

DivX(R)-registration. 34

HDD	DVD-RW	DVD-R
HDD	R W	R W

CONDITIONS DE GARANTIE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

©2006 Samsung Electronics Co.

1. DIGITAL AUDIO OUT (OPTICAL)

1. Bouton TV STANDBY/ON

2. Bouton OPEN/CLOSE

Presentsation rapide. 18

Raccordement du GRAVEUR DE DVD AVEC DISQUE DUR 19

A(Austria)	L(Netherlands)	S(Sweden)	PL(Poland)
B(Belgium)	I(Italy)	CH(Swiss)	CZ (Czech)
DK(Denmark)	N(Norway)	TR(Turkey)	Autres
FIN(Finland)	P(Portugal)	GR(Greece)
D(Deutschland)	E(Spain)	HU(Hungary)

A(Austria)	L(Netherlands)	S(Sweden)	PL(Poland)
B(Belgium)	I(Italy)	CH(Swiss)	CZ (Czech)
DK(Denmark)	N(Norway)	TR(Turkey)	Autres
FIN(Finland)	P(Portugal)	GR(Greece)
D(Deutschland)	E(Spain)	HU(Hungary)

Available Video Output Jack

CONDITIONS DE GARANTIE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
