Product Type	DVD Player
Brand	Samsung
Model	DVD-HD850
Dimensions (W x D x H)	430 mm x 250 mm x 49 mm
Weight	2.3 kg
Power Supply	AC 120-240 V, 60/50 Hz
Power Consumption	12 W
Compatible Disc Formats	DVD, VCD, Audio CD, CD-R/RW, DVD±R/RW, MP3, WMA, JPEG
Video Outputs	Composite, S-Video, Component (Y/Pb/Pr), HDMI
HDMI Resolutions	480p, 720p, 768p, 1080i
Audio Outputs	Analog 2-channel (RCA), Optical and Coaxial Digital
Digital Audio Formats	Dolby Digital, DTS, MPEG-2, PCM
Main Features	Progressive Scan, EZ View, Repeat, Program, Zoom, Bookmarks, Instant Replay/Skip, Parental Control, MP3/WMA/JPEG playback
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use benzene, thinners, or solvents.
Safety	Class 1 laser radiation. Do not open the cover. Avoid exposure to moisture and heat sources.
Included Parts and Accessories	Remote control, AAA batteries (2), audio/video cable (RCA), HDMI cable, user manual
Warranty	1 year labor and parts (Canada)
Operating Temperature	+5 °C to +35 °C
Operating Humidity	10% to 75%

Frequently Asked Questions - DVD-HD850 SAMSUNG

How do I connect the DVD player to my TV?

You can use the HDMI output for optimal quality, or the Composite (yellow video) or S-Video outputs. If your TV supports progressive scan, use the Component (Y/Pb/Pr) or HDMI outputs. Connect the corresponding audio cables (red/white). Turn on the player and select the appropriate video input on your TV.

How do I change the on-screen menu language?

Put the player in Stop mode, press MENU, select Setup then Language Setting. Choose Player Menu and select the desired language (French, English, etc.). Confirm with ENTER.

What types of discs can I play on this player?

This player plays DVD, VCD, Audio CD, CD-R/CD-RW, DVD±R/RW (V mode) discs. It also plays MP3, WMA, and JPEG files on CD-R. It does not play DVD-ROM, DVD-RAM, CD-ROM, CDV, CDI, CVD, Super Audio CD (except CD layer), or CD-G (audio only).

How do I clean the DVD player?

Unplug the power cord. Use a soft, dry cloth to wipe the exterior. Never use benzene, thinner, or solvents. For the disc, wipe from the center outward with a soft cloth.

What should I do if the remote control does not work?

Check the polarity and condition of the batteries (AAA type). Ensure the remote sensor is not obstructed and there is no fluorescent light nearby. If necessary, remove the batteries, press a button for a few seconds to reset, then reinsert the batteries.

How do I reset the player to factory settings?

With no disc inserted, press the ▶ (PLAY) button on the front panel for more than 5 seconds. All settings, including the parental control password, will be reset.

How do I use the parental control function?

Put the player in Stop mode, press MENU, go to Setup then Parental Control. Enter a 4-digit password. You can set a control level (1 to 8) to limit playback of DVDs with higher ratings.

I have no sound, what should I check?

Check that the audio cables are properly connected. Make sure the volume is not muted. If using a digital output, check in the Audio Options menu that the output is set to Bitstream for Dolby Digital/DTS or PCM for standard compatibility. If the disc is DTS, enable DTS mode in the menu.

How do I program tracks to play in a specific order?

While playing an Audio CD, press PROG. Use the directional keys to select Program. Choose the desired track and press ENTER. Repeat for up to 20 tracks, then press PLAY to start programmed playback.

How do I adjust the picture format (EZ View)?

Press the EZ VIEW button on the remote control while playing a DVD. The format switches between 16:9 Wide, 4:3 Letter Box, and 4:3 Pan Scan according to the setting in the Display Options menu. This allows you to adjust the image to your TV.

USER MANUAL DVD-HD850 SAMSUNG

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN1 LASER LAITE

KCLASS 1 LASER APPARAT

PRODUCTO LAsER CLASE1

ATTENTION

CE PRODUIT UTILISE UN FAISCEAU LASER. EN OPÉRANT UN CONTROôle, UN AJUSTEMENT, OU TOUTE PROCÉDURE AUTRE QUE CELLES INDIQUÉES DANS CE MANUEL, VOUS VOUS EXPOSEZ À DES RADIATIONS DANGEREUSES. NE JAMAIS OUVRIR LE CAPOT ET NE PAS ESSAYER DE RÉPARER LE LECTEUR VOUS-MÈME. TOUTE RÉPARATION DOIT ETRE EFFECTUÉE PAR UN TECHNICIEN QUALIFIÉ.

Remarque:

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

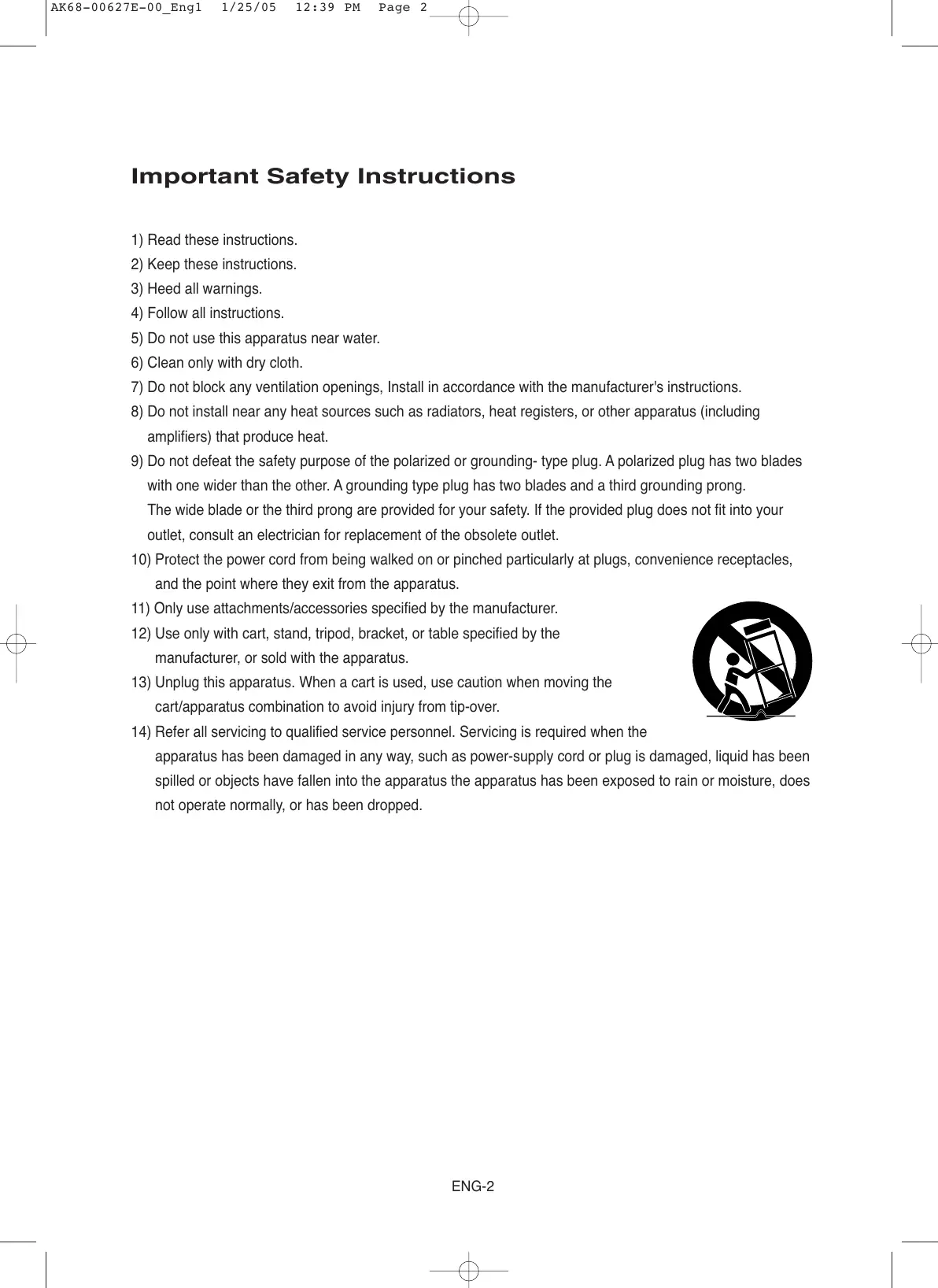

Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
13) Unplug this apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Precautions

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.

CAUTIONS

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This class B digital apparatus meets all requirements of the Canadian Interference --

Causing Equipment Regulations.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN1 LASER LAITE

KCLASS 1 LASER APPARAT

PRODUCTO LASERCLASE1

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1.

This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.

The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player's internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the player for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
- Do not use benzene, thinner, or other solvents for cleaning.
- Wipe the cabinet with a soft cloth.

Before you start

Accessories

Remote Control

Batteries for Remote Control (AAA Size)

User's Manual

Video/Audio Cable

HDMI Cable

Install Batteries in the Remote control

1

Open the battery cover on the back of the remote control.

2

Insert two AAA batteries.
Make sure that the polarities (+ and -) are aligned correctly.

3

Replace the battery cover.

If the remote control doesn't operate properly:

• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote control sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

TABLE OF CONTENTS

Important Safety Instructions 2
Precautions 3
Before you start 5

Chapter 1: Setup

General Features 7
Disc Type and Characteristics 8
Description 9

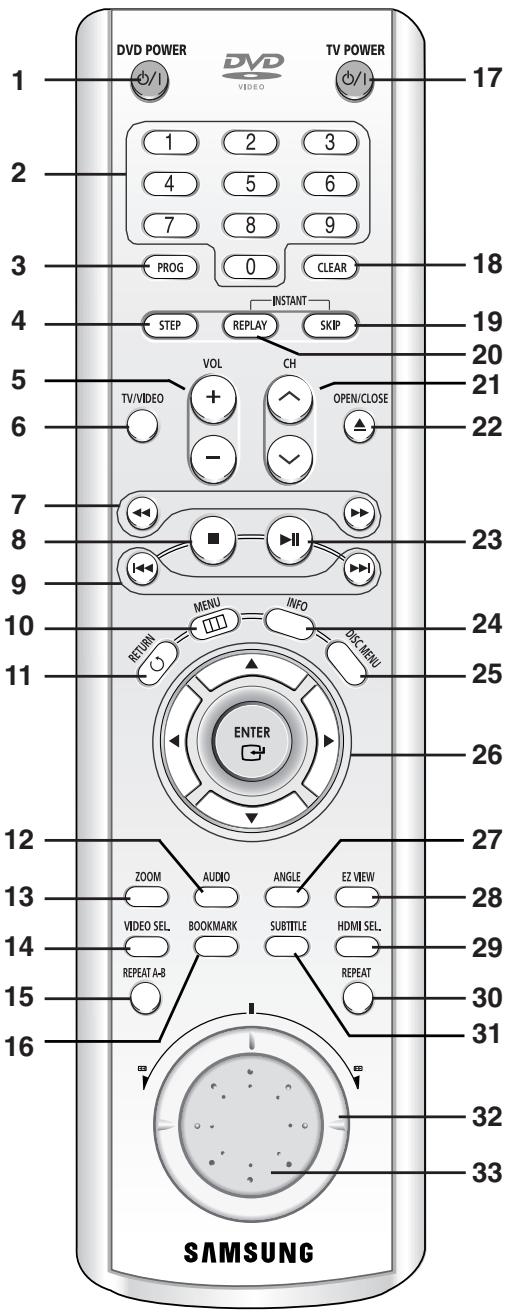

Tour of the Remote Control. 11

Chapter 2: Connections

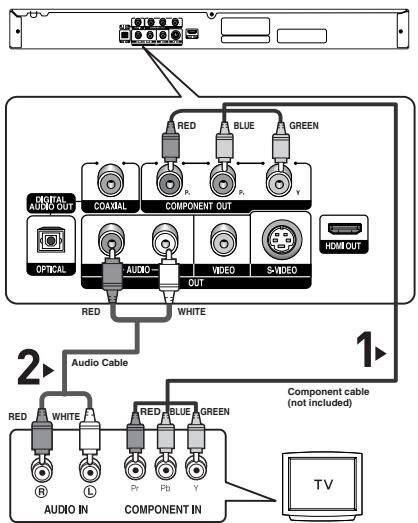

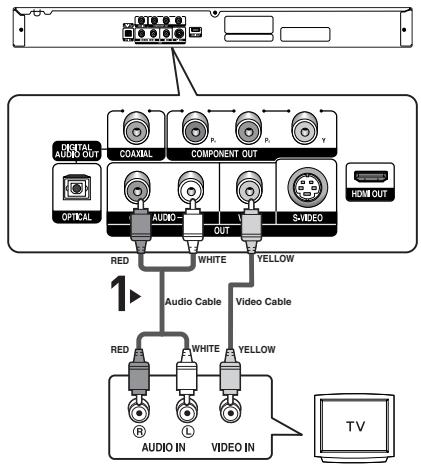

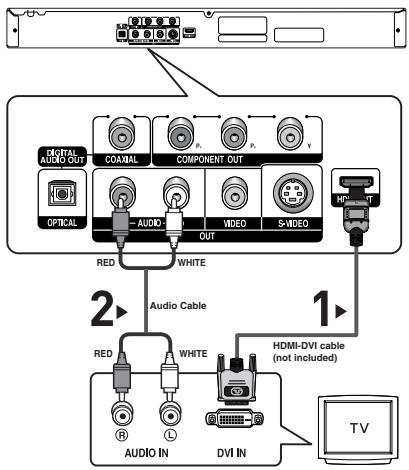

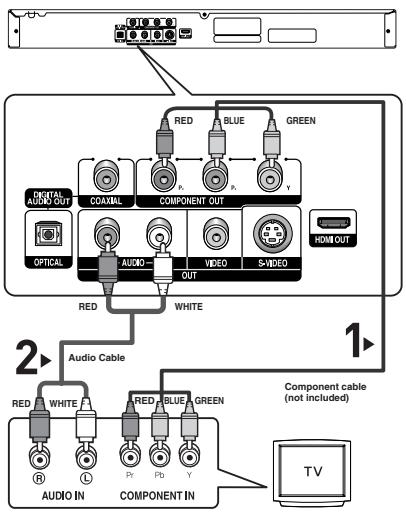

Choosing a Connection 12

Chapter 3: Basic Functions

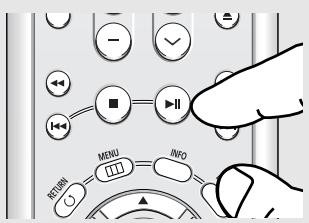

Playing a Disc 20
Using the Search and Skip Functions 22
Using the Display Function 23
Using the Disc and Title Menu 25

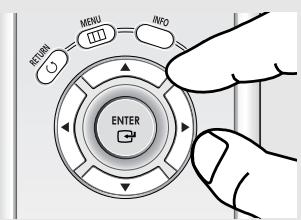

Using the Function Menu 26
Repeat Play 27
Slow Repeat Play 28
Program Play & Random Play 29

Chapter 4: Advanced Functions

Adjusting the Aspect Ratio (EZ View). 30
Selecting the Audio Language 32
Selecting the Subtitle Language. 33
Changing the Camera Angle 34
Using the Instant Replay/Skip Function 34
Using theBookmark Function 35
Using the Zoom Function 37

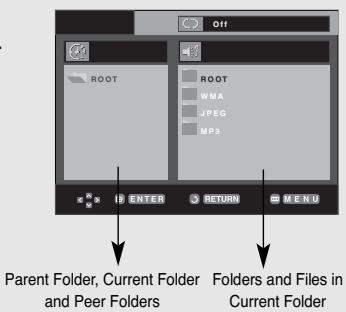

Clips Menu for MP3/WMA/JPEG 38

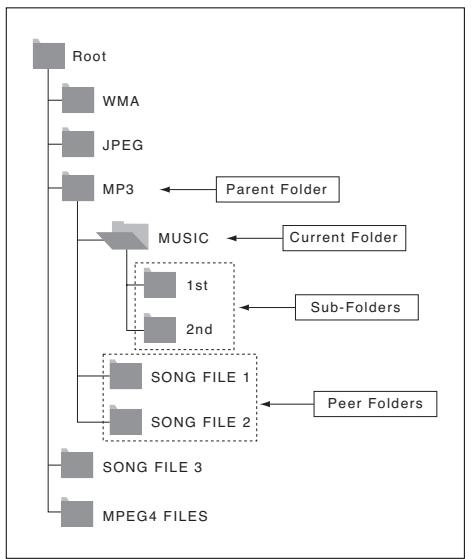

Folder Selection 38
MP3/WMAPlayback 39
Picture CDPlayback. 41

Chapter 5: Changing Setup Menu

Using the Setup Menu 43
Setting Up the Language Features. 44
Setting Up the Audio Options 48
Setting Up the Display Options. 50
Setting Up the Parental Control 53

Chapter 6: Reference

Controlling a TV with the Remote control 56
Troubleshooting 57
Specifications 59

Warranty 63

Chapter 1

SETUP

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widenscreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Program Play (CD)

You can program tracks to play in desired order.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

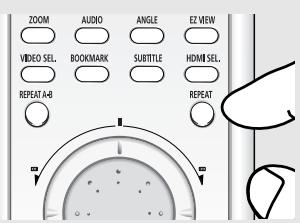

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

Instant Replay (DVD)

This function is used to replay the previous 10 seconds of a movie from the current position.

Instant Skip (DVD)

This function skips playback ahead 10 seconds.

HDMI (High Definition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digital video/audiosignal path from the player to your TV.

Note

• Discs which cannot be played with this player.
  DVD-ROM DVD-RAM
• CD-ROM CDV
• CDI -CVD
• Super Audio CD(except CD layer)
• CDGs play audio only, not graphics.
• Ability to play back may depend on recording conditions.
  DVD-R, +R
  CD-RW
  DVD+RW, -RW (V mode)
• The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS

(525p)

"CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IF 525 PROGRESSIVE SCAN PICTURE PROBLEMS OCCUR, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER."

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVD DVD VIDEO	Audio + Video	12 Cm	Single-sided 240 min. Double-sided 480 min.	- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system. - Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min. Double-sided 160 min.
VIDEO-CD COMPACT DISC DIGITAL VIDEO	Audio + Video	12 Cm	74 min.	- Video with CD sound, VHS quality & MPEG-1 compression technology.
		8 Cm	20 min.
AUDIO-CD COMPACT DISC DIGITAL AUDIO	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.

Disc Markings

Play Region Number
NTSC	NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.
DOLBY DIGITAL	Dolby Digital disc
STEREO	Stereo disc
DIGITAL SOUND	Digital Audio disc
dts	DTS disc
MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

Description

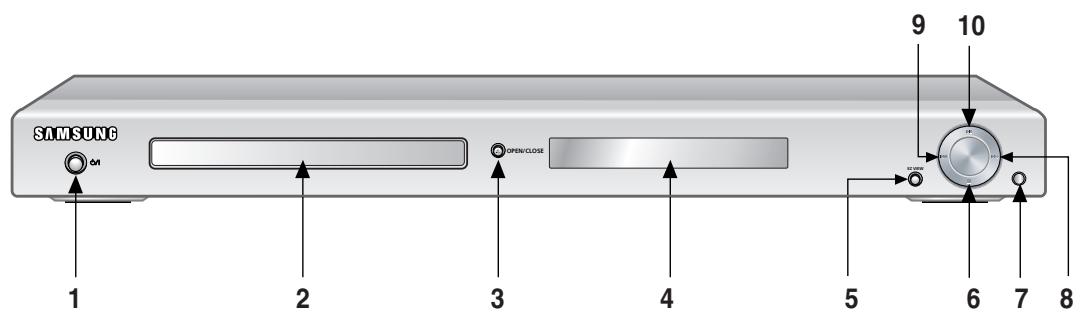

Front Panel Controls

1. STANDBY/ON (0/1)

When the unit is first plugged in, the indicator lights.

When STANDBY/ON is pressed on, the indicator goes out and the player is turned on.

1. DISC TRAY

Place the disc here.

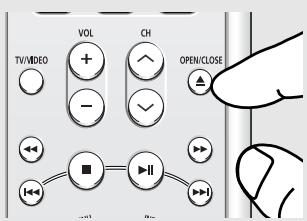

1. OPEN/CLOSE (▲)

Press to open and close the disc tray.

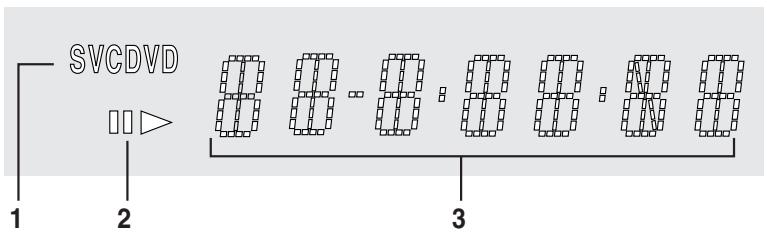

1. DISPLAY

Operation indicators are displayed here.

1. EZ VIEW

The aspect ratio of a picture can easily be adjusted to your TV's screen size (16:9 or 4:3).

1. STOP ( )

Stops disc play.

1. REMOTE CONTROL RECEIVER

2. SKIP (▶)/SEARCH

Use to forward skip a scene or music.

1. SKIP (↓) / SEARCH

Use to reverse skip a scene or music.

1. PLAY/PAUSE (▶II)

Begin or pause disc play.

Front Panel Display

1. Disc type indicators

2. Play / Pause

3. Displays various messages concerning operations such as PLAY, STOP, LOAD ...

no DISC: No disc loaded.

OPEN: The disc tray is open.

LOAD: Player is loading disc information.

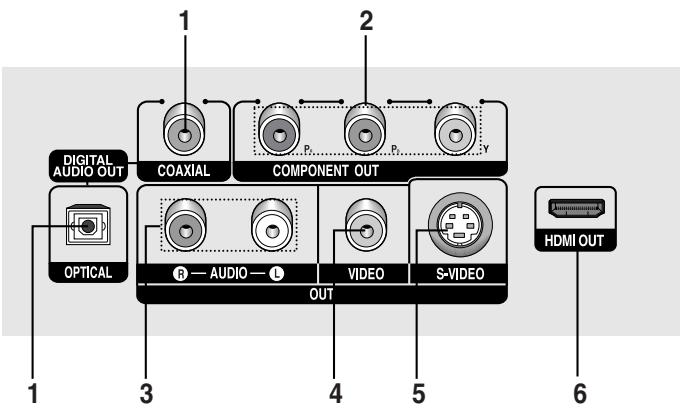

Rear Panel

1. DIGITAL AUDIO OUT JACKS

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.
• Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

2. COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide P , P and Y video.
• If Component(P-SCAN) Video Output is selected in Setup Menu, progressive scan mode will work.
• If Component(I-SCAN) Video Output is selected in Setup Menu, interlaced scan mode will work.

3. AUDIO OUT JACKS

Connect to the Audio input jacks of your television or audio/video receiver

4. VIDEO OUT JACK

• Use a video cable to connect to the Video input jack on your television.
• The Video Output in Setup Menu must be set to COMPOSITE/S-VIDEO.

5. S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for higher picture quality.
• The Video Output in Setup Menu must be set to COMPOSITE/S-VIDEO.

6. HDMI OUT JACK

• Use the HDMI cable to connect this jack to the HDMI jack on your television for the best quality picture.
• If an HDMI cable is connected to an HDMI-compatible TV, HDMI will be output automatically a maximum of 10 seconds later.
• If you want to use a Video, S-Video or Component Output, unplug HDMI cable.

Note

• Consult your TV User's Manual to find out if your TV supports Progressive Scan (P-SCAN). If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If HDMI/COMPONENT (P-SCAN) Video Output is selected in Setup Menu, Video and S-Video Outputs do not work.
• The HDMI output of this unit can be connected to a DVI jack on a TV or other device using a conversion adapter. In this case, it is necessary to use a TV or display with an HDCP-compatible DVI input.
• There may be no image output if the DVD player is connected to a TV or display that is not compatible with the above format.
• Refer to the TV's instruction manual for detailed information regarding the HDMI terminal.
• See pages 50 52 to get more information on how to use the setup menu.

Tour of the Remote Control

1. DVD POWER Button

Turns the power on or off.

1. NUMBER Buttons

2. PROG Button

Allows you to program a specific order.

1. STEP Button

Advances play one frame at a time.

1. VOL (+, -) Buttons

Control volume.

1. TV/VIDEO Button

Press to display all of the available video sources (i.e., TV, Cable, Video)

1. SEARCH Buttons («/»)

Allow you to search forward/backward through a disc.

1. STOP Button (■)

2. SKIP Buttons (▶/▶)

Use to skip the title, chapter or track.

1. MENU Button

Brings up the DVD player's menu.

1. RETURN Button

Returns to a previous menu.

1. AUDIO Button

Use this button to access various audio functions on a disc.

1. ZOOM Button

Enlarges DVD picture.

1. VIDEO SEL. Button

Selects Video output format.

1. REPEAT A-B Button

Allows you to repeat play A-B disc.

1. BOOKMARK Button

2. TV POWER Button

Turns the TV's power on or off.

1. CLEAR Button

Use to remove menus or status displays from the screen.

1. INSTANT SKIP Button

This function skips playback ahead 10 seconds.

1. INSTANT REPLAY Button

This function is used to replay the previous 10 seconds

of a movie from the current position.

1. CH (, ) Buttons

Channel selection.

1. OPEN/CLOSE ( ) Button

To open and close the disc tray.

1. PLAY/PAUSE Button (▶II)

Begin/Pause disc play.

1. INFO Button

Displays the current disc mode.

25.DISCMENUButton

Brings up the Disc menu.

1. ENTER/▲▼▶ Buttons

This button functions as a toggle switch.

1. ANGLE Button

Use to access various camera angles on a DVD.

1. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted

according to the screen size of your TV (16:9 or 4:3).

1. HDMI SEL. Button

HDMI or DVI Output resolution setup.

1. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

1. SUBTITLE Button

2. SHUTTLE DIAL (Search mode)

Performs fast motion play.

1. JOG DIAL (Step mode)

Operates frame by frame play. In CD mode,

performs track search.

Chapter 2

CONNECTION

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• Refer to the user's manual of the additional components (such as a TV) you are connecting for more information on those particular components.

Connection to a TV (Video)

1

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of your TV.

2

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

Note

• Noise may be generated if the audio cable placed too close to the power cable.

• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 18 to 19)

• The number and position of terminals may vary depending on your TV set. Please refer to the user's manual of your TV.
• If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.
• If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (COMPOSITE/S-VIDEO COMPONENT (I-SCAN) HDMI/COMPONENT(P-SCAN))
• When the Video Output in Setup menu is set to HDMI/COMPONENT(P-SCAN), the Video and S-Video Outputs do not work.

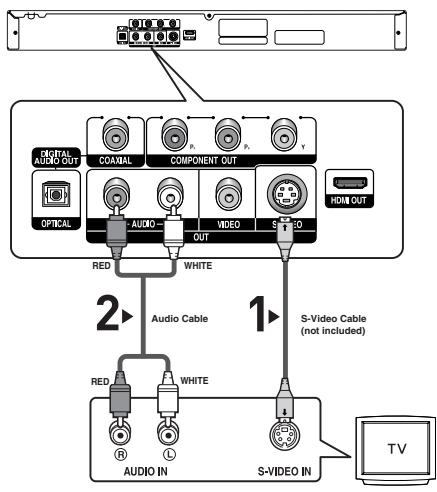

Connection to a TV (S-Video)

• Connecting to your TV using an S-Video cable.
• You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals are delivered through the audio output.)

1

Using an S-Video cable (not included), connect the S-VIDEO OUT terminal on the rear of the DVD player to the S-VIDEO IN terminal of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the S-Video signal from the DVD player appears on your TV screen.

4

Set the Video Output to COMPOSITE/S-VIDEO in the Display Setup menu. (See pages 50 to 52)
You can use the VIDEO SEL. button to change the Video Output mode. (See page 12)

Note

• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 18 to 19)
• The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

Connection to a TV (Interlace)

• Connecting to your TV using Component video cables.
• You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to COMPONENT (I-SCAN) in the Display Setup menu. (See pages 50 to 52)
You can use the VIDEO SEL. button to change the Video Output mode. (See page 12)

Note

• If Video output is incorrectly set to S-Video with the Component cables connected, the screen will turn red.
• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 18 to 19)
• The component terminal of your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “ P_R , P_B , Y” depending on the manufacturer. The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

Connection to a TV (Progressive)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to HDMI/COMPONENT (P-SCAN) in the Display Setup menu. (See pages 50 to 52)
You can use the VIDEO SEL. button to change the Video Output mode. (See page 12)

To see the progressive video output,

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• Depending on your TV, the connection method may differ from the illustration above.

Note

• What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method.

Progressive scanning method provides better and clearer picture quality.

Connecting to a TV with DVI Jack

1

Using the HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the DVD player to the DVI IN terminal of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV.

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the DVI signal from the DVD player appears on your TV screen.

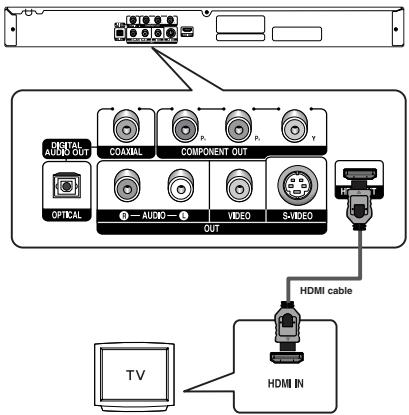

Connecting to a TV with HDMI Jack

1

Using the HDMI-HDMI cable connect the HDMI OUT terminal on the rear of the DVD player to the HDMI IN terminal of your TV.

2

Press the input selector on your TV remote control until the HDMI signal from the DVD player appears on your TV screen.

HDMIVIDEO Specifications

When you press the HDMI SEL. button, 480p, 720p, 768p, 1080i are selected in order.

The first press of the HDMI SEL. button, brings up the current resolution.

The second press allows you to change the HDMI output resolution.

• Depending on your TV, certain HDMI output resolutions may not work.
• Please refer to the user's manual of your TV.
• If HDMI or HDMI-DVI cable is plugged into TV, the DVD player's output is set to HDMI/DVI automatically about 10 seconds later.
• If you set the HDMI output resolution 720p or 1080i, HDMI output provides better picture quality.

- HDMI (High Definition Multimedia Interface)

HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

HDMI connection description

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

• Though the player uses a HDMI cable, the player outputs only a pure digital signal to the TV.
• If TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on the screen.

- Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD player) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. DVI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (PC, DVD, etc) and a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

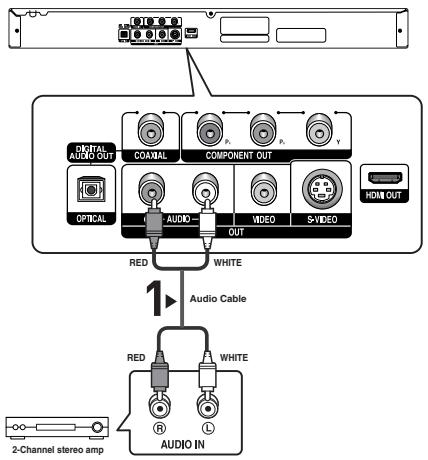

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO, COMPONENT or HDMI OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO, COMPONENT or DVI IN terminal of your TV as described on pages 12 to 16.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier.(See pages 48 to 49)
• The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

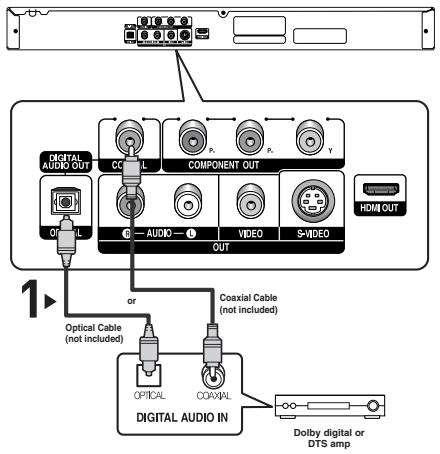

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

1

If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (OPTICAL) terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO, COMPONENT or HDMI OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO, COMPONENT or DVI IN terminals of your TV as described on pages 12 to 16.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

• When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

• Please set the audio in the menu screen according to the Amplifier. (See pages 48 to 49)

• The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.
• Please remove the dust cover before using the optical cable (not included) and put the cover on the cable again when it's not used.

Chapter 3

BASIC FUNCTIONS

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input on the TV's remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button.

(This screen will only appear when you plug in the player for the first time.)

If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

SELECT MENU LANGUAGE

Press 1 for English

Press the OPEN/CLOSE

() button.

The STANDBY indicator light goes out and the tray opens.

2

Place a disc gently into the tray with the disc's label facing up.

3

Press the PLAY/PAUSE () button or OPEN/CLOSE () button to close the disc tray.

RESUME function

When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (▶II) button again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you press the STOP (■) button twice.)

4

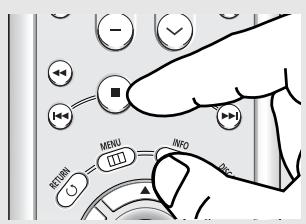

Stopping Play

Press the STOP (■) button during play.

5

Removing Disc

Press the OPEN/CLOSE

(△) button.

6

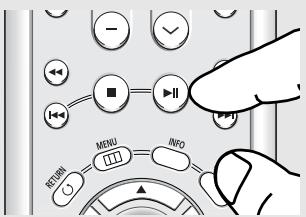

Pausing Play

Press the PLAY/PAUSE

( ) or STEP button on the remote control during play.

7

Step Motion Play (Except CD)

Turn the JOG DIAL clockwise or press the STEP button on the remote control during play.

8

Slow Motion Play (Except CD)

Press the SEARCH (▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

Note

• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE (▶II) button to resume normal play.
• If the player is left in the stop mode for more than 30 minutes, the power will automatically turn off. (Automatic Power-Off Function)

Screen stops, no sound.

To resume, press the PLAY/PAUSE (▶II) button once again.

Note

If the player is left for about 5 minutes in pause mode, it will stop.

Each time the button is pressed or Jog Dial is turned, a new frame will appear.

No sound is heard during STEP mode.

Press the PLAY/PAUSE (▶II) button to resume normal play.

You can only perform step motion play in the forward direction.

No sound is heard during slow mode.

Press the PLAY/PAUSE (▶II) button to resume normal play.

Reverse slow motion play will not work.

Note

This () icon indicates an invalid button press.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, turn the SHUTTLE DIAL or press the SEARCH (or) button on the remote control for more than 1 second.

During play, press the SEARCH (or ) button and press again to search at a faster speed.

DVD	2X, 4X, 64X, 128X
VCD	4X, 8X
CD	2X, 4X, 8X

Note

• The speed marked in this function may be different from the actual playback speed.
• No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (or) button.

• When playing a DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (▲) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in Menu Off mode, or a VCD 1.1 or a CD, if you press the SKIP (▶) button, it moves to the next track. If you press the SKIP (▲) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the button, it moves forward 5 minutes. If you press the button, it moves backward 5 minutes.

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Using the Display Function

When Playing a DVD/VCD/CD

1

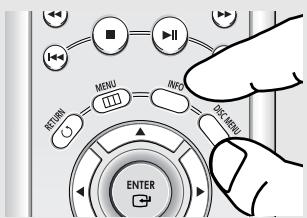

During play, press the INFO button on the remote control.

You can select Info in the function menu by pressing the MENU button.

2

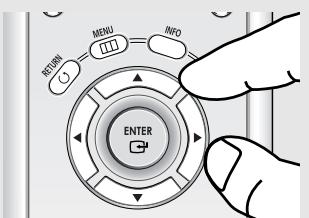

Press the / buttons to select the desired item.

DVD

VCD

CD

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

3

Press the buttons to make the desired setup and then press the ENTER button.

You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from a desired time.

4

To make the screen disappear, press the INFO button again.

Note

Title	To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.
Chapter	Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).
Track
Time	Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.
Audio	Refers to the film's soundtrack language. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.
Subtitle	Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

Using the Disc and Title Menu

Using the Disc Menu (DVD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

2

Press the / buttons to select Disc Menu, then press the or ENTER button.

Using the Title Menu (DVD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

2

Press the / buttons to select Title Menu, then press the or ENTER button.

Note

Depending on a disc, the Disc Menu may not work.
- You can also use the Disc Menu, using the DISC MENU button on the remote control.
- In VCD 2.0 the DISC MENU button is used to select Menu On or Menu Off mode.

Note

Depending on a disc, the Title Menu may not work.
- Title Menu will only be displayed if there are at least two titles in the disc.

Using the Function Menu

Using the Function Menu (DVD/VCD)

1
Press the MENU button during playback.
2
Press the / buttons to select Function, then press the or ENTER button.

• Info (See pages 23 to 24)
• Zoom (See page 37)
• Bookmark (See pages 35 to 36)
• Repeat (See pages 27 to 28)
  -EZ View (See pages 30 to 31)

3
Press the / buttons to select one of the five functions. Then press the
or ENTER button to access the function.

You can also directly select these functions using their respective buttons on the remote control.

Note

• When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD/CD

1

Press the REPEAT button on the remote control. Repeat screen appears.

2

Press the buttons to select Chapter, Title or A-B, then press the ENTER button.

DVD

VCD/CD

DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.

Chapter () : repeats the chapter that is playing.

Title (): repeats the title that is playing.

Disc (): repeats the disc that is playing

Track (圆) : repeats the track that is playing.

A-B: repeats a segment of the disc that you select.

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A). B is automatically highlighted.

2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).

3. To return to normal play, press the CLEAR button.

Note

A-B REPEAT does not allow you to set point (B) until at least 5 seconds of playback time has elapsed after point (A) has been set.

3

To return to normal play, press REPEAT button again, then press the buttons to select Off and press ENTER button.

DVD

VCD/CD

Note

Depending on a disc, the Repeat function may not work.
- When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Slow Repeat Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD/VCD

1

During play, press the PLAY/PAUSE (▶II) button.

2

Press the SEARCH (▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

3

Press the REPEAT button on the remote control. Press the buttons to select A-B.

4

Press the ENTER button at the point where you want repeat play to start (A). B is automatically highlighted. Press the ENTER button at the point where you want the repeat play to stop (B).

5

To return to normal play, press the CLEAR button and then press the PLAY/PAUSE (▶II) button.

The disc will play from A to B repeatedly at the speed you chose.
To set A-B REPEAT, set (A) first, then set (B) after the following slow play time has elapsed: 1/8x: wait 40 seconds, then press B 1/4x: wait 20 seconds, then press B 1/2x: wait 10 seconds, then press B

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Using the A-B Repeat function

1. During slow playback, press the REPEAT A-B button at the point where you want repeat play to start (A). B is automatically highlighted.
2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).
3. To return to normal play, press the CLEAR button and then press the PLAY/PAUSE(▶II) button.

Program Play & Random Play

Program Play (CD)

Program Play allows you to select the order in which you want tracks to play.

1

During play, press the PROG button.

2

Press the buttons to select PROGRAM. Press the ENTER button.

3

Press the / / buttons to select the first track to add to the program. Press the ENTER button. The selection numbers appear in the Program Order box.

4

Press the PLAY/PAUSE ( ) button. The disc will be played in programmed order.

Random Play (CD)

Random Play plays a disc's tracks in random order.

1

Press the PROG button.

2

Press the buttons to select RANDOM. Press the ENTER button.

• To return to the previous menu screen, press the RETURN button.

• To cancel the selected program order, press the CLEAR button.

• This unit can support a maximum of 20 programmed tracks.

Note

Depending on a disc, the Program and Random Play functions may not work.
- While in playback mode, press the CLEAR button on the remote control to cancel Program Play or Random Play.

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.
• To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 50 to 52).

To make the aspect ratio bar disappear, press the CLEAR button.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears.
The picture will look vertically stretched.

-ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

-ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/VCD/CD)

1

Press the AUDIO button. The Audio changes when the button is pressed repeatedly.

• The audio languages are represented by abbreviations.

When playing a VCD or CD, you can select among Stereo, Right or Left.

DVD

VCD/CD

2

To remove the AUDIO icon, press the CLEAR or RETURN button.

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD; Refer to "Using the Audio Language" on page 46.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD)

1

Press the SUBTITLE button.

The subtitle changes when the button is pressed repeatedly.

The subtitle languages are represented by abbreviations.

DVD

2

To remove the SUBTITLE icon, press the CLEAR or RETURN button.

Note

Depending on DVDs, you have to change the desired subtitle in the Disc Menu. Press the DISC MENU button.
- This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
- A DVD disc can contain up to 32 subtitle languages.
- To have the same subtitle language come up whenever you play a DVD; Refer to "Using the Subtitle Language" on page 47.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1

Press the ANGLE button, then the ANGLE icon will appear with the current angle number and the number of angles available.

2

Press the ANGLE button repeatedly to select the desired angle. To remove the ANGLE icon, press the CLEAR or RETURN button.

Note

If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.

Using the Instant Replay/Skip Function

Using the Instant Replay function (DVD)

If you miss a scene, you can see it again using this function.

Press the INSTANT REPLAY button.

• The current scene moves backward about 10 seconds, and plays back.

Using the Instant Skip function (DVD)

Use this function to skip playback about 10 seconds ahead of the current scene.

Press the INSTANT SKIP button.

-Playback will skip ahead 10 seconds.

Note

Depending on the disc, these functions may not work.

Using theBookmark Function

This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time.

Using theBookmark Function (DVD/VCD)

1

During play, press the BOOKMARK button on the remote control.

Using the MENU button.

During play, press the MENU button on the remote control.

Press the / buttons to select Function, then press the or ENTER button.

Press the / buttons to select Bookmark, then press the or ENTER button.

2

When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

Note

• When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.
• Depending on a disc, theBookmark function may not work.

Recalling a Marked Scene

1
During play, press the BOOKMARK button on the remote control.

2
Press the buttons to select a marked scene.

3
Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

Clearing aBookmark

1
During play, press the BOOKMARK button on the remote control.

2
Press the buttons to select the bookmark number you want to delete.

3
Press the CLEAR button to delete a bookmark number.

Using the Zoom Function

Using the Zoom Function (DVD/VCD)

1

During play, press the ZOOM button on the remote control.

Using the MENU button.

During play or pause mode, press the MENU button on the remote control.

Press the / buttons to select Function, then press the or ENTER button.

Press the / buttons to select Zoom, then press the or ENTER button.

2

Press the / or buttons to select the part of the screen you want to zoom in on. Press the ENTER button.

During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

During VCD play, press ENTER to zoom in 2X/Normal in order.

Note

When VCD 2.0 is in Menu Off mode only, this function works. Select Menu Off by pressing the DISC MENU button.

Clips Menu for MP3/WMA/JPEG

Discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray.
Place the disc on the tray.
Close the tray.
The tray closes and this screen displays.

• :Name of currently playing file.
• : CurrentPlaybackTime.

• : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.

• Off: Normal Playback

• Track: Repeats the current track.
• Folder: Repeats the current folder.

• Random: Files in the disc will be played in random order.

• [113]: MP3 file icon.

• :WMA file icon.
• JPEG: JPEG file icon.
• : Folder icon.
• : Current Folder icon.

Folder Selection

The folder can only be selected in the Stop mode.

- To select the Parent Folder

Press the RETURN button to go to the parent folder, or press the / buttons to select .. and press ENTER to go to the parent folder.

- To select the Peer Folder

Press the buttons to highlight the left window. Press the buttons to select the desired folder, then press ENTER.

- To select the Sub-Folder

Press the buttons to highlight the right window. Press the buttons to select the desired folder, then press ENTER.

MP3/WMA Playback

1

Open the disc tray.
Place the disc on the tray.
Close the tray.

2

Press the / or / buttons to select a song file.

Press ENTER to begin playback of the song file.

When a disc that contains both MP3 and WMA files, only one type will play, not both.

Repeat/Random playback

1

Press the REPEAT button to change the playback mode. There are four modes; Off, Track, Folder and Random.

• Off: Normal Playback
• Track: Repeats the current song file.
• Folder: Repeats the song files which have the same extension in the current folder.
• Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CLEAR button.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

• Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

• When naming your MP3 or WMA files, do not exceed 8 characters, and enter ".mp3, .wma" as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/, =,+).

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality.

Conversely, files with decompression rates below 128 Kbps will not be played properly.

• Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.

Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

• Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media™ (registered trade mark of Microsoft Inc) and SDMI™ (registered trade mark of The SDMI

Foundation). You cannot copy such files.

• Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

• This unit can play a maximum of 3000 files and 300 folders per disc.

Picture CD Playback

1

Select the desired folder.

2

Press the / buttons to select a Picture file in the clips menu and then press the ENTER button.

3

Press the INFO button to display the menu.

Press the buttons to select the menu you want to view, then press the

ENTER button.

Note

• If no buttons on the remote control are pressed for 10 seconds, the menu will disappear.
• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Album Screen

: Returns to the Album Screen.

• To see the next six pictures, press the button.
  To see the previous six pictures, press the button.

Rotation

Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

: Press the / or / buttons to select the part of the screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 4X. (2X 4X 2X Normal)

Slide Show

: The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set. Press the buttons to select a desired icon, then press the ENTER button.

The pictures change automatically with about a 6 second interval.

: The pictures change automatically with about a 12 second interval.

: The pictures change automatically with about a 18 second interval.

Note

• Depending on a file size, the amount of time between each picture may be different from the set interval time.
• If you don't press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Discs

• Only files with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +) .
• Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 3000 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• QSS Picture CD: The unit may not play QSS Picture CD.
• If the number of files in 1 Disc is over 3000, only 3000 JPEG files can be played.
• If the number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played.

Chapter 5

CHANGING SETUP MENU

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1

With the unit in Stop mode, press the MENU button on the remote control.

Press the / buttons to select Setup, then press the or ENTER button.

Language Setup : Setup of the Language.
2 Audio Setup : Setup of the Audio Options.
Display Setup: Setup of the Display Options. Use to select which type of screen you want to watch and several display options.
Parental Setup: Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

2

Press the / buttons to access the different features. Press the or ENTER button to access the sub features.

3

To make the setup screen disappear after setting up, press the MENU button again.

Note

Depending on the disc, some Setup menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Language Setup, then press the or ENTER button.

4

Press the / buttons to select Player Menu, then press the or ENTER button.

5

Press the / buttons to select the desired language, then press the or ENTER button.

• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Language Setup, then press the or ENTER button.

4

Press the / buttons to select Disc Menu, then press the or ENTER button.

5

Press the / buttons to select the desired language, then press the

or ENTER button.

• Select "Others" if the language you want is not listed.

• If the selected language is not recorded on the disc, the original pre-recorded language is selected.

• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Audio Language

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Language Setup, then press the or ENTER button.

4

Press the / buttons to select Audio, then press the or ENTER button.

5

Press the / buttons to select the desired language, then press the or ENTER button.

• Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.
• Select "Others" if the language you want is not listed.
• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Subtitle Language

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Language Setup, then press the or ENTER button.

4

Press the buttons to select Subtitle, then press the or ENTER button.

5

Press the / buttons to select the desired language, then press the or ENTER button.

• Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

• Select "Others" if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

• The language is selected and the screen returns to setup menu.
• To make the setup menu disappear, press the MENU button.

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Audio Setup, then press the or ENTER button.

4

Press the / buttons to select the desired item, then press the or ENTER button.

To make the setup menu disappear, press the MENU button.

Dolby/DTS Digital Out

• PCM: Converts to PCM(2CH) audio.
• Bitstream : Outputs Dolby Digital or DTS Bitstream via digital output.
  Select Bitstream when connecting to a Dolby Digital and DTS Decoder.

Note

• There is no analog audio output when you play a DTS disc.

Dynamic Compression

• On: To select dynamic compression.
• Off : To select the standard range.

PCM Down Sampling

• On : Select this when the Amplifier connected to the player is not 96KHz compatible.
  In this case, the 96KHz signals will be down converted to 48KHZ.
• Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case,
  all signals will be output without any changes.

Note

Even when PCM Down sampling is Off

• Some discs will only output down sampled audio through the digital outputs.

HDMI

• If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS, MPEG), you should set Digital Audio to PCM.
• If your TV is not compatible with LPCM sampling rates over 48kHz , you should set PCM Down sampling to On.

Note

• To make the Setup menu disappear, press the MENU button.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

Setting Up the Display Options

Display options enable you to set various video functions of the player.

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Display Setup, then press the or ENTER button.

4

Press the / buttons to select the desired item, then press the or ENTER button.

To make the setup menu disappear, press the MENU button.

TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
• 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

2 Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

• Auto: When selecting Auto, Field/Frame mode will be automatically converted.
• Field : Select this feature when the screen shakes in the Auto mode.
• Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

Screen Messages

Use to turn on-screen messages On or Off.

Black Level

Adjusts the brightness of the screen. (On or Off) It does not function in Progressive mode.

Video Output

Select Video Output.

• COMPOSITE/S-VIDEO : Select when you want to use Video and S-Video Out.

• COMPONENT(I-SCAN) : Select when you want to use Video and Component 525i(Interlace) Out.

• HDMI / COMPONENT(P-SCAN) : Select when you want to use Component 525p(Progressive) Out or HDMI.

• If you press the VIDEO SEL. button, Video output mode is changed in regular sequence in no disc mode. (COMPOSITE/S-VIDEO COMPONENT (I-SCAN) HDMI/COMPONENT(P-SCAN))

• If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

3 HDMI

This setting is used when the unit is connected by HDMI or DVI with Display devices (TV, projector, etc).

• Resolution

• 480p/576p : 720 x 480, 720 x 576

• 720p : 1280 x 720
• 768p : 1024 x 768

• 1080i : 1920 x 1080

• Format

You can use this function to set HDMI or DVI output digital data RGB range.

• RGB-Normal : HDMI/DVI Limited range RGB data output.
• RGB-Expand :HDMI/DVI Full range RGB data output.
• YCbCr-(4:4:4) : HDMI Limited range YCbCr-(4:4:4) output.
• YCbCr-(4:2:2) : HDMI Limited range
  YCbCr-(4:2:2) output.

In case of HDMI output resolution 768p, you cannot use YCbCr format.

Limited range Black/White and color level are expressed within Limited data range.

ex) In case that bit depth is 8 bits

-Y:16~235
-CbCr:16~240

Full range Black/White and color level are expressed within full data range.

ex) In case that bit depth is 8 bits

• Y:0~255
  -CbCr:0~255

• Brightness

You can use this function to set HDMI / COMPONENT(P-SCAN) output brightness.

Dark

Bright

Level 1 Level 2 Level 3 Level 4 Level 5

• DVI Output

You can use this function to set HDMI to DVI output format.

• This function corrects a TV screen when it is not centered to secure a normal view.
• If HDMI to DVI Output is set incorrectly, the screen can be biased.

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Video Output is set incorrectly, the screen may be blocked.
• The resolutions available for HDMI output depend on the connected TV or projector. For details, see the user's manual of your TV or projector.
• When the resolution is changed during playback, it may take a few seconds for a normal image to appear.
• If you set the HDMI output resolution 720p or 1080i, HDMI output provides better picture quality.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Parental Setup, then press the or ENTER button.

4

Press the or ENTER button to select Yes if you want to use a password. The Enter Password screen appears.

5

Enter your password. The Re-enter Password screen appears to confirm the password. Enter your password again. The player is locked ( ).

To make the setup menu disappear, press the MENU button.

Setting Up the Rating Level

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Parental Setup, then press the or ENTER button.

4

Enter your password.

5

Press the / buttons to select Rating Level, then press the or ENTER button.

6

Press the / buttons to select the Rating Level you want, then press the or ENTER button. e.g) Setting up in Level 6.

To make the setup menu disappear, press the MENU button.

For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

Changing the Password

1

With the unit in Stop mode, press the MENU button.

2

Press the / buttons to select Setup, then press the or ENTER button.

3

Press the / buttons to select Parental Setup, then press the or ENTER button.

The Enter Password screen appears.

Enter your password.

4

Press the / button to select Change

Password, then press the or ENTER button.

Enter your new password. Re-enter the new password again.

To make the setup menu disappear, press the MENU button.

Note

If you have forgotten your password, see

"Forgot Password" in the Troubleshooting Guide.

Chapter 6

REFERENCE

Controlling a TV with the Remote control

The remote control can also be set up to control most TVs. To program the remote control, use the code that corresponds to your brand.

TV Codes
BRAND	CODE	BRAND	CODE
ANAM	10, 11, 12, 13, 14, 15, 16, 17, 18	NORDMENDE	72, 73
AIWA	82	NOKIA	74
BANG&OLUFSEN	57	PANASONIC	53, 54, 74, 75
BLAUPUNKT	71	PHILPS	06, 55, 56, 57
BRANDT	73	PHONOLA	06, 56, 57
BRIONVEGA	57	PIONEER	58, 59, 73, 74, 75
CGE	52	RADIOLA	06, 56
CONTINENTAL EDISON	75	RADIOMARELLI	57
DAEWOO	19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34	RCA	45, 46
		REX	74
EMERSON	64	SABA	57, 72, 73, 74, 75
FERGUSON	73	SALORA	74
FINLUX	06, 49, 57	SAMSUNG	01, 02, 03, 04, 05, 06, 07, 08, 09
FORMENTI	57	SANYO	41, 42, 43, 44, 48
FUJITSU	84	SCHNEIDER	06
GRADIENTE	70	SELECO	74
GRUNDIG	49, 52, 71	SHARP	36, 37, 38, 39, 48
HITACHI	60, 72, 73, 75	SIEMENS	71
IMPERIAL	52	SINGER	57
JVC	61, 79	SINUDYNE	57
LG	06, 19, 20, 21, 22, 78	SONY	35, 48
LOEWE	06, 69	TELEAVA	73
LOEWE OPTA	06, 57	TELEFUNKEN	67, 73, 75, 76
MAGNAVOX	40	THOMSON	72, 73, 75
METZ	57	THOMSON ASIA	80, 81
MITSUBISHI	06, 48, 62, 65	TOSHIBA	47, 48, 49, 50, 51, 52
MIVAR	52, 77	WEGA	57
NEC	83	YOKO	06
NEWSAN	68	ZENITH	63
NOBLEX	66

1. Turn on the TV.
2. Point the DVD's remote control at the TV.
3. While holding the TV POWER button down, enter the code for your brand.
4. If the TV turns off, setup is complete. Enter other codes of the same brand if the first code does not work.

You can control the TV POWER, CH (∧, ∨), VOL (+, -) and TV/VIDEO functions of another manufacturer's TV.

• The remote control may not be able to control every model TV of the brands listed.
• If you replace the remote control's batteries, set the brand code again.

e.g) For Samsung 2 TVs

While holding down the TV POWER button, enter 0 and then 1.

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem	Action	Page
No operations can be performed with the remote control.	·Check the batteries in the remote control. They may need replacing. ·Operate the remote control at a distance of no more than 20 feet. ·Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.	P5
Disc does not play.	·Ensure that the disc is installed with the label side facing up. ·Check the region number of the DVD.	P8
5.1 channel sound is not being reproduced.	·5.1 channel sound is reproduced only when the following conditions are met.: 1) The DVD player is connected with the proper Amplifier 2) The disc is recorded with 5.1 channel sound. ·Check whether the disc being played has the "5.1 ch" mark on the outside. ·Check if your audio system is connected and working properly. ·In a SETUP Menu, is the Audio Output set to Bitstream?	P19 P48~49
The icon appears on screen.	·The features or action cannot be completed at this time because: 1. The DVD's software restricts it. 2. The DVD's software doesn't support the feature (e.g., angles). 3. The feature is not available at the moment. 4. You've requested a title or chapter number or search time that is out of range.
Disc Menu doesn't appear.	·Check if the disc has a Menu.
Play mode differs from the Setup Menu selection.	·Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P43~55
The screen ratio cannot be changed.	·The Screen Ratio is fixed on your DVDs.	P50~51
No audio.	·Make sure you have selected the correct Digital Output in the Audio Options Menu.	P48~49
The screen is blocked	·Press the ➔ button for more than 5 seconds under no disc inside. All settings will revert to the factory settings.	P20
Forgot password	·Press the ➔ button for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.	P53~55
If you experience other problems.	·Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again. ·If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	·Make sure that the disc is not dirty or scratched. ·Clean the disc.	P4
No HDMI output.	·Check the Video output is HDMI enabled. ·Check the connection between the TV and the HDMI jack of DVD player. ·See if the TV supports this 480p/720p/768p/1080i DVD player.	P16~17
Abnormal HDMI output screen.	·If snow noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).	P16~17
HDMI output Judder	·Check your TV system setup correctly. ·The screen Judder phenomenon may occur when frame rate is converted from 50Hz to 60Hz for 720P/1080i HDMI (High Definition Multimedia Interface) Output. ·Please refer to the user's manual of your TV.	P50~52

Specifications

General	Power Requirements	AC 120-240V ~ 60/50 Hz
	Power Consumption	12 W
	Weight	2.3 Kg
	Dimensions	430mm (W) X 250mm (D) X 49mm (H)
	Operating Temperature Range	+41°F to +95°F
	Operating Humidity Range	10 % to 75 %
Disc	DVD (DIGITAL VERSATILE DISC)	Reading Speed: 3.49 ~ 4.06 m/sec. Approx. Play Time (Single Sided, Single Layer Disc): 135 min.
	CD: 12Cm (CHIPACK DISC)	Reading Speed: 4.8 ~ 5.6 m/sec. Maximum Play Time: 74 min.
	CD: 8Cm (CHIPACK DISC)	Reading Speed: 4.8 ~ 5.6 m/sec. Maximum Play Time: 20 min.
	VCD: 12Cm	Reading Speed: 4.8 ~ 5.6 m/sec. Maximum Play Time: 74 min. (Video + Audio)
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 Ω load)
	Component Video	Y: 1.0 Vp-p (75 Ω load) Pr: 0.70 Vp-p (75 Ω load) Pb: 0.70 Vp-p (75 Ω load)
	S-Video	Luminance Signal: 1.0 Vp-p (75 Ω load) Chrominance Signal: 0.3 Vp-p (75 Ω load)
	HDMI	480p, 720p, 768p, 1080i
Audio Output	2 Channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling: 4 Hz to 22 kHz 96 kHz Sampling: 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.004 %

*: Nominal specification

Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
- Weight and dimensions are approximate.

Memo

Memo

Memo

Warranty

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship.

SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

LABOR

One year (Carry-in)

PARTS

One year

On carry-in models, transportation to and from the service center is the customer's responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

HEADQUARTERS

SAMSUNG ELECTRONICS CANADA, INC.

7037 FINANCIAL DRIVE MISSISSAUGA, ONTARIO L5N 6R3 CANADA

FABRIQUE EN CORÉE

TEL: [phone]

www.samsung.ca
