USER MANUAL DCB-H360RA SAMSUNG

DCB_H360R draft 0604 eng 06/4/06 07:39 Page iv DCB-H360R SAFETY INSTRUCTIONS This STB has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully. AC 100-240V~, 50/60Hz OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or electrical shock. LIQUIDS: Keep liquids away from the STB. CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened with water(no solvents) to clean the exterior. VENTILATION: Do not block the STB ventilation holes. Ensure that free airflow is maintained around the STB. Never store the STB where it is exposed to direct sunlight or near heating equipment e.g. a radiator. Never stack other electronic equipment on top of the STB. Place the STB at least 30mm from the wall. Need at least 10mm from the top and both side of the STB for ventilation. ATTACHMENTS: Do not use any attachment that is not recommended by the manufacturer; it may cause a hazard or damage the equipment. SERVICING: Do not attempt to service this product yourself. Any attempt to do so will make the warranty invalid. Refer all servicing to a qualified service agent. LIGHTNING: If the STB is installed in an area subject to intense lightning activity, protection devices for the STB mains connector and modem telephone line are essential. The individual manufacturer’s instruction for safeguarding other equipment, such as TV set, Hi-Fi, etc., connected to the STB must also be followed during lightning storms. GROUNDING: CATV cable MUST BE EARTHED. The grounding system must comply with local regulations. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Note : Dispose the used batteries at designated place for environment protection. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. GB-1

MAINS SUPPLY: DCB_H360R draft 0604 eng 06/4/06 07:39 Page 2 DCB-H360R DCB-H360R TECHNICAL OVERVIEW TECHNICAL OVERVIEW Aspect ratio What are SDTV and HDTV ? Resolution Dolby® Digital 5.1 Resolution refers to the number of pixels on the screen. The higher the resolution, the better the visual quality. Digital broadcasts are classified into HD and SD grades according to the visual quality. In general, HD (High Definition) grade supports resolutions of 1920x1080i and 1280x720p and an aspect ratio of 16:9 for both ATSC and DVB standards. SD (Standard Definition) grade supports resolutions of 720x480p and 720x480i for the ATSC standard, and supports resolutions of 720x576p and 720x576i for the DVB standard. SD grade usually supports an aspect ratio of 4:3. However, it may differ depending on the region. Dolby Digital 5.1 provides 5 discrete channels of digital audio information for use by A/V receivers capable of decoding the 5.1 channel signal. The audio signals are broken into left-front, center, right-front, left-rear, right-rear and a low-frequency effects channel (designed for subwoofers). The result when connected to a compatible Dolby Digital 5.1 channel A/V receiver and speaker setup is a home theater experience that provides much of the dynamic range, 360-degree imaging, and sonic excitement of a real theater. To take full advantage of the Dolby Digital 5.1 capabilities of the HD Receiver, you will need a Dolby Digital 5.1 compatible A/V receiver connected to the HD Receiver through the Dolby Digital Optical jack. AC-3 is a sound encoding/decoding technology developed in 1987 for movie theatres and means an AC-3 bit stream. AC-3 is used synonymously with Dolby Digital nowadays. SDTV is a digital TV format that provides a high quality picture at resolutions that can be displayed on standard TV sets (see more on resolutions later in this chapter). DVB-C ( Cable Digital Video Broadcasting) Digital video broadcasting - cable (DVB-C) is European standard DVB for digital broadcasting transmission via cable. DVB-C system provide audio/video digital transmission through mpeg-2 format and utilize QAM modulation system. DVB-C standard has been developed so that a digital broadcasting signal can be sent through VHF/UHF channels. The advantages of this standard are relatively protected environment with respect to distortion and signal path attenuation so a higher signal to noise ratio can be achieved and no negative effect from multipath so higher order modulation schemes can be implemented. GB-2

HDTV HDTV is a digital TV format that provides the highest quality picture at resolutions that can be displayed on computer monitors and HDTV-ready TV displays (see more on resolutions later in this chapter). In addition to resolution, HDTV is also defined by the aspect ratio of its broadcasts. Aspect ratio means the shape of the screen as defined by the ratio of the screen’s width to its height. For analog TV and SDTV, the aspect ratio is 4 units wide by 3 units high (usually written 4:3). This is the familiar shape of conventional TVs — slightly wider than they are tall. For HDTV broadcasts, the aspect ratio is 16:9 (nearly twice as wide as it is tall). This is, not coincidentally, more like the shape of movies shown in theaters. This makes HDTV an ideal format for broadcasting and viewing movies on a TV. But what happens if you are watching a nearly square-shaped 4:3 broadcast on a rectangular 16:9 TV, or vice-versa? The HD Receiver allows you to choose from a variety of screen formats to help you deal with those scenarios. SDTV HDMI (High Definition Multimedia Interface) HDMI is an interface to enable the digital transmission of video and audio data with just a single connector.Using HDMI the receiver transmits a digital video and audio signal and displays as a vivid picture on a TV having an HDMI input jack.

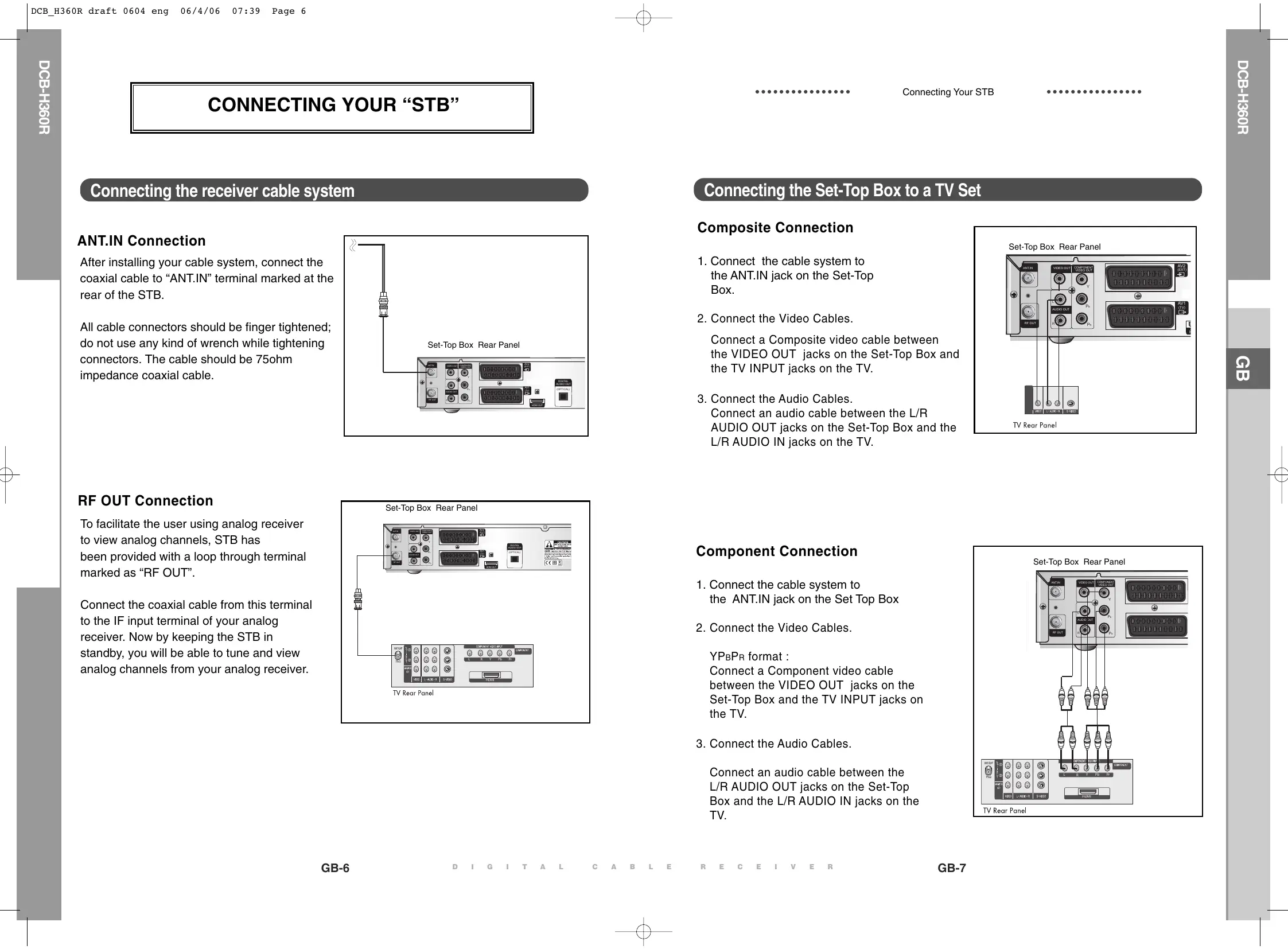

CONNECTING YOUR “STB”

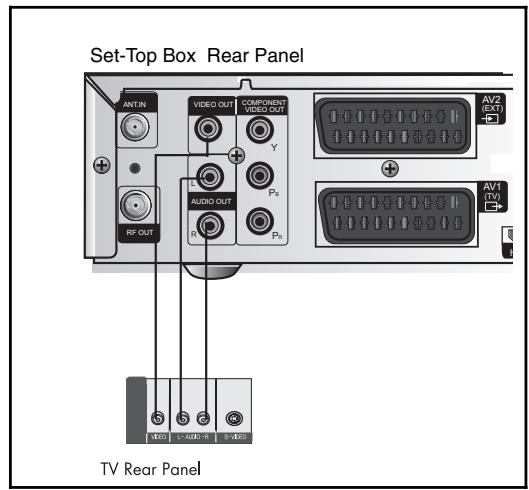

Connecting the Set-Top Box to a TV Set Connecting the receiver cable system Composite Connection ANT.IN Connection Set-Top Box Rear Panel

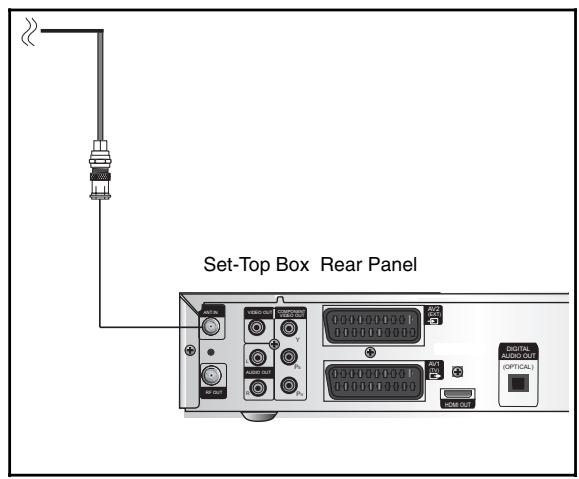

1. Connect the cable system to

the ANT.IN jack on the Set-Top Box. After installing your cable system, connect the coaxial cable to “ANT.IN” terminal marked at the rear of the STB. ANT.IN VIDEO OUT

Connect a Composite video cable between the VIDEO OUT jacks on the Set-Top Box and the TV INPUT jacks on the TV. Set-Top Box Rear Panel

Connect an audio cable between the L/R AUDIO OUT jacks on the Set-Top Box and the L/R AUDIO IN jacks on the TV.

All cable connectors should be finger tightened; do not use any kind of wrench while tightening connectors. The cable should be 75ohm impedance coaxial cable. AV2 COMPONENT Set-Top Box Rear Panel To facilitate the user using analog receiver to view analog channels, STB has been provided with a loop through terminal marked as “RF OUT”. ANT.IN VIDEO OUT AV2 COMPONENT (EXT) VIDEO OUT

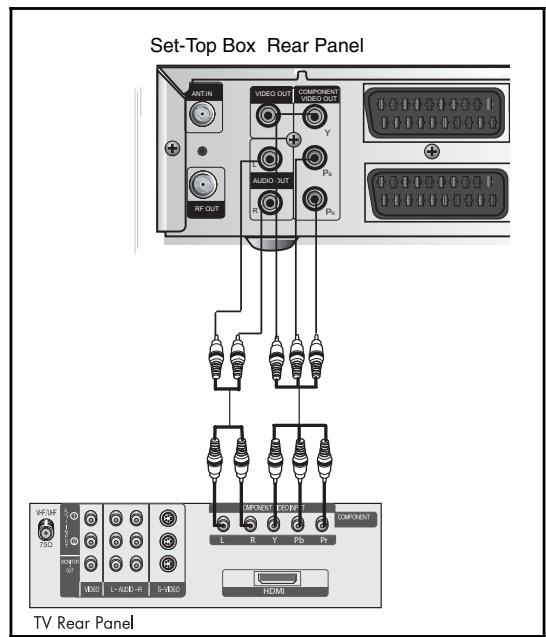

Component Connection (OPTICAL) (TV) Set-Top Box Rear Panel

1. Connect the cable system to

the ANT.IN jack on the Set Top Box Connect the coaxial cable from this terminal to the IF input terminal of your analog receiver. Now by keeping the STB in standby, you will be able to tune and view analog channels from your analog receiver. ANT.IN VIDEO OUT COMPONENT VIDEO OUT

YPBPR format : Connect a Component video cable between the VIDEO OUT jacks on the Set-Top Box and the TV INPUT jacks on the TV.

Connect an audio cable between the L/R AUDIO OUT jacks on the Set-Top Box and the L/R AUDIO IN jacks on the TV. GB-6

DCB_H360R draft 0604 eng 06/4/06 07:39 Page 8 DCB-H360R DCB-H360R Connecting Your STB Connecting Your STB Connecting the Set-Top Box to a TV with a HDMI jack Set-Top Box Rear Panel

1. Connect the cable system to

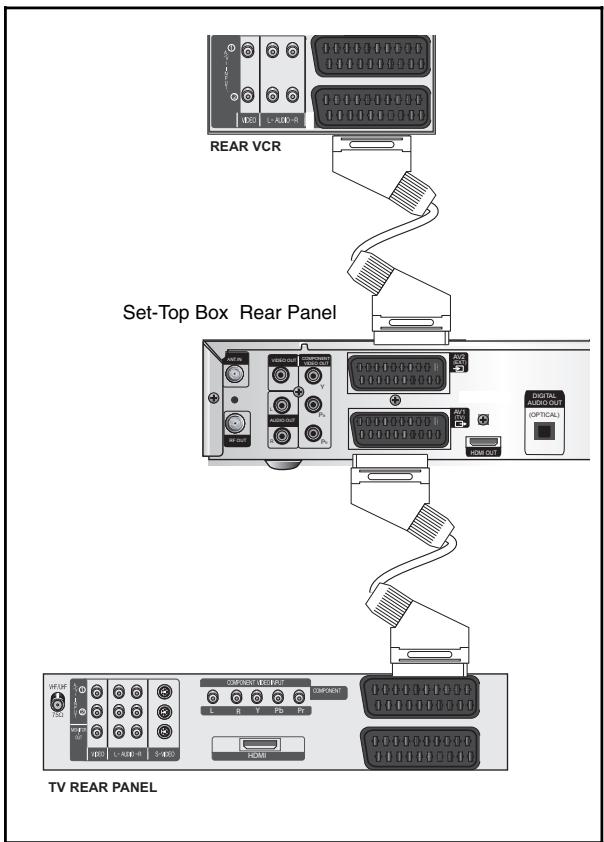

the ANT.IN jack on the Set-Top Box. Scart Connection

1. Connect the cable system to

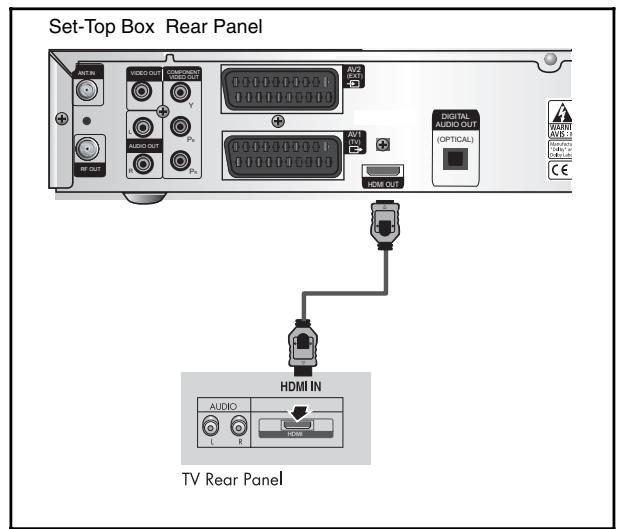

between the HDMI OUT jack on the Set-Top Box and the HDMI IN jack on the HDMI device (TV , Monitor) Set-Top Box Rear Panel 3, Connect Scart cable between AV1 (TV) jack on the STB and jack Scart Input on the TV AV2 COMPONENT

2. Connect a Scart cable between

the VCR OUT jacks on VCR and the Scart AV2 (EXT) jacks on the STB. VIDEO OUT AV2 COMPONENT (EXT) VIDEO OUT

N o t e : Depend on the any receiver, HDMI out may not operate properly. (OPTICAL) (TV)

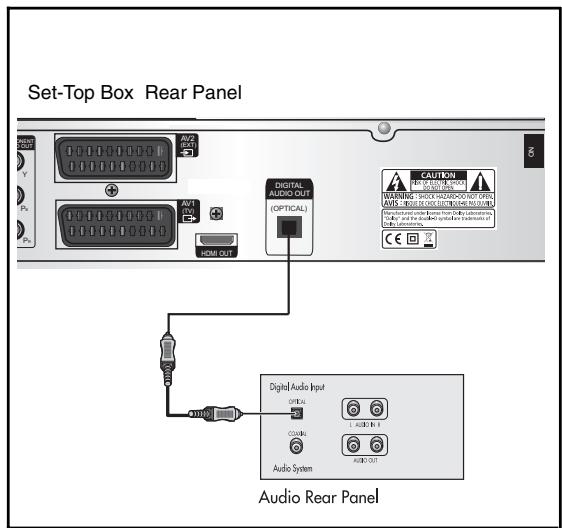

Connecting an Audio Component Set-Top Box Rear Panel ONENT O OUT AV2 (EXT)

There are many types of audio systems on the market today. A simplified illustration of an audio system is shown to the right. For more information, see your audio system owner’s manual.

HDMI OUT For An optical digital audio input, connect the audio system to the DIGITAL AUDIO (OPTICAL) jack on the Set-Top Box. GB-8

GB-9 DCB_H360R draft 0604 eng 06/4/06 07:39 Page 10 Connecting Your STB Setting Up TV Operations with the Remote Control Selecting the Resolution and the DTV Output Signal Enter the manufacturer number into the remote control to control the TV with the remote control (see “Available TV Manufacturer Numbers” on pages 32~37). You can select the appropriate video output for the connected TV or monitor mode. To select the resolution:

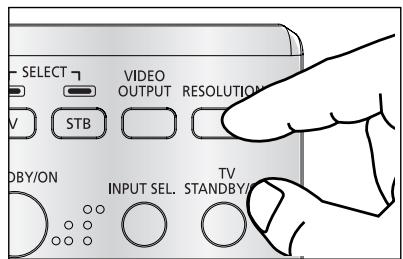

Select a resolution by using the RESOLUTION key on the remote control and referring to the following table.

2. Point the remote control towards the TV.

3. Enter the TV manufacturer number by using the NUMERICAL keys while pressing the TV key.

E.g. For a Samsung TV, press 0, 0 and 1 in this order by using the NUMERICAL keys while pressing the TV key. N o t e : EXIT key at the front of the HD receiver also operates as RESOLUTION key, when any OSD is not displayed on the screen. To select the video output signal: TV functions that you can control with the remote control Select the output signal by using the VIDEO OUTPUT key on the remote control and referring to the following table. Button key Function

Press to turn the TV on or off. INPUT SEL Press to select an external input source for the TV. RGB: VOL+/- Press to adjust the TV volume / Exclusive to the TV

MUTE 0~9 Press to select a TV channel. Select the output signal by using the VIDEO OUTPUT key on the remote control referring to the following table. YPBPR: Select YPBPR when the TV is connected to the Component (YPBPR) and HDMI output port of the HD receiver. Video Out Available Resolution Output Status 576i Always output. Scart 576i Scart output can be selected between RGB and Composite. Component (YPBPR) 1080i/720p/576p The 576i resolution is not supported. HDMI 1080i/720p/576p The 576i resolution is not supported. Press to select TV channel. N o t e : 1. There is a model that can only be turned on by pressing the numeric key ‘0’ on the remote control.

2. TV models of other manufacturer that can be controlled with the remote control

are limited, and some functions may not work.

3. If you replace the remote control batteries or enter a new manufacturer number,

the previously configured TV manufacturer number is deleted.

4. When a connected device is an integrated TV model (VCR, DVDP), take care

when using the remote control because it may operate both of them simultaneously.

5. If the configuration number does not work, try another number.

Resolution and Video Output Composite Press to mute the TV sound. N o t e : Initial value is YPBPR (1080i resolution) mode. GB-10

4. When the TV is turned off or on, the configuration is finished.

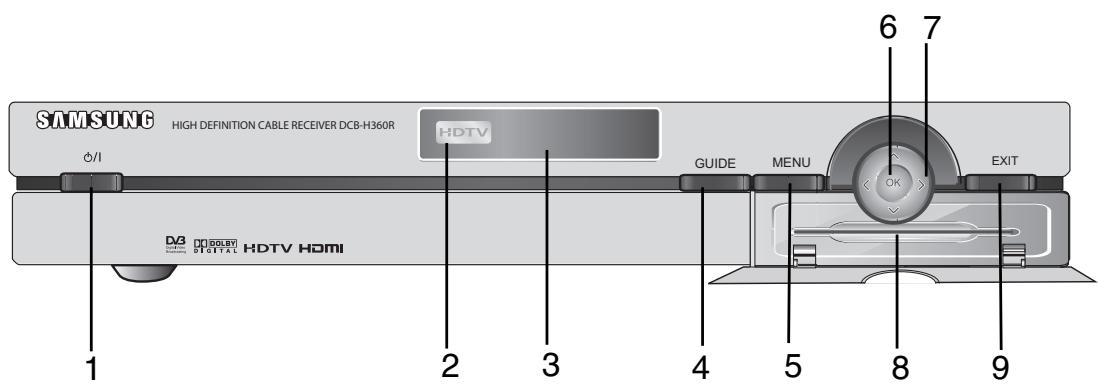

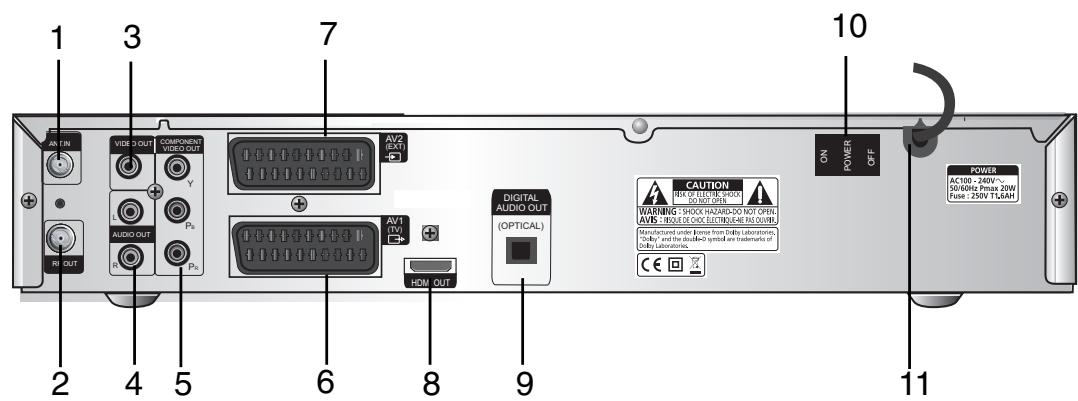

Turns the receiver operating or standby mode.

This port is connected to your cable system via a coaxial cable. Displays the broadcasting status. When the STB detects a HD Broadcasting signal, the HDTV logo lights.

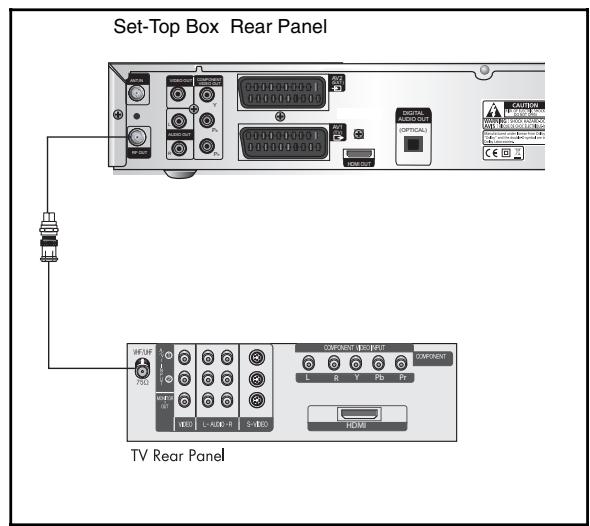

Connects a TV or other receiver via a coaxial cable.

Displays information about digital HDTV receiver.

Connect to a TV, monitor or other external display device through the Analog Video IN port.

Displays the main menu. Connect to a TV, audio receiver or other external device through the analog Audio IN port.

Connect to a TV, monitor or other external display device through the Component Video IN (YPBPR). At this time, the VIDEO OUTPUT key on the remote control has to be YPBPR mode.

These arrow keys navigate in the on screen guide and menu system.

Slot for Irdeto Smartcard.

This is used to connect to your TV.

Clears on-screen displays and returns to TV program viewing.

This is used to connect to your VCR, DVD or other receiver.

Use the HDMI cable to connect this jack on your television for the best quality picture.

Output for connection to a digital amplifier.

This is used to supply(ON) or interupt (OFF) the power.

Selects the output resolution format between 1080i, 720p, and 576p (576i) according to the video input of the TV or monitor.

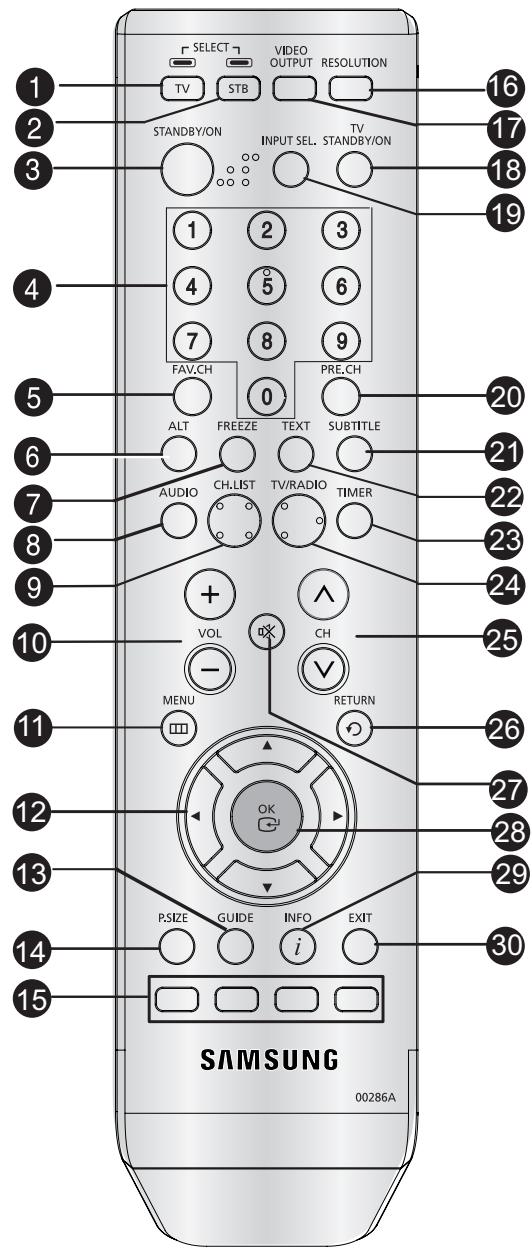

1. TV (for TV exclusive use)

Switches the remote control mode to TV mode.

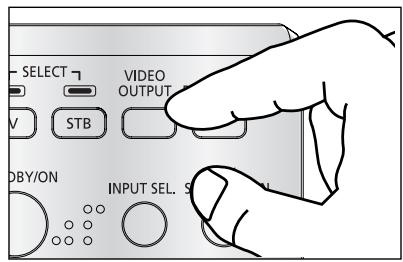

Selects Video Output format between RGB and YPBPR according to the video input of TV or monitor

Switches the remote control mode to receiver mode.

17 3. STANDBY/ON Turns the receiver operating or standby mode. 19 4. 0 ~ 9 NUMERICAL keys Press the number keys to tune to a channel or to enter numbers on menu screens.

Press to select the input source in the TV (for TV exclusive use)

Displays the subtitle on the screen.

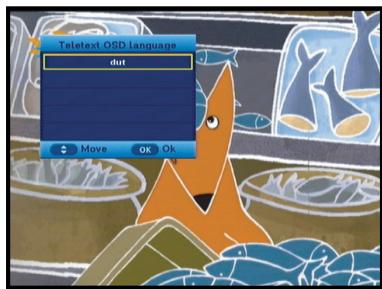

Displays the teletext OSD mode on the screen.

This is used to reserve a program by EPG.

The scanned channel list appears.

Toggles between the TV channel and Radio channel. 10.Vol+ /Vol27 Adjust the volume level 29 11. MENU Press to display the on-screen menus.

Turn to the previous channel. 20 6. ALT Press once to select the soundtrack list and twice to select video track list.

Press once to hold the picture, twice to release.

Change the audio to the left, right or both channel.

Use the key to switch between favorite lists.

Press to change the channel

Press to return to the previous menu. 30 12. œƒ¦‹ These keys are for moving the highlight bar for selecting options on the menu.

Press to confirm and save any data to the receiver in the menu system

Displays the program information in the screen. Press it once and basic information appears.Press it twice and detailed information appears in the text box.

Press to change the screen format according to the screen aspect ratio and the input signal format.

Clears on-screen displays and return to program viewing.

15. COLOR (RED, GREEN, YELLOW, BLUE)

Use according to the instructions on the screen when using a menu or guide screen. N o t e : When inserting batteries, make sure that the polarity(+/-) is correct. GB-14

Before you can view the television program, you must perform the installation. Therefore you will see only menu images at first. After the television channels have been programmed, you will see the following picture(banner) each time you switch channels: To control the volume level : ● Press the VOL- or VOL+ keys to adjust the volume level.

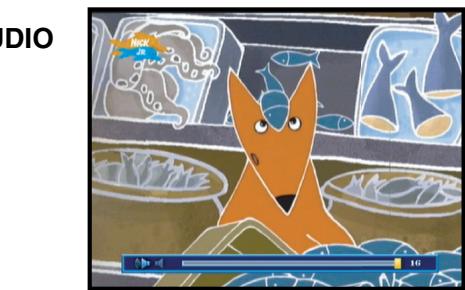

Press the MUTE key to turn to silence mode.

Press the MUTE key again or VOL- / VOL+ keys in order to cancel the mute function. Note : HDMI sound is controlled by TV, not HD receiver.

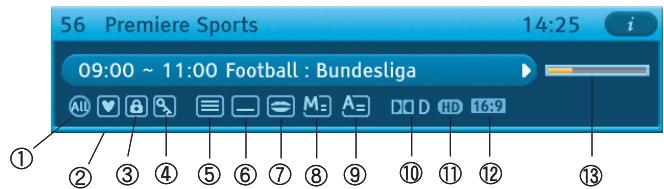

! Parental Rating. @ Favorite Channel. # Locked Channel. $ Scramble Channel. % Teletext

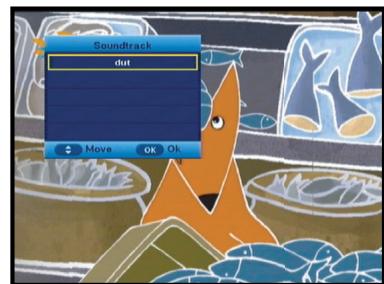

3. Select Soundtrack

Press the ALT key to see the soundtrack list.

Press the œƒand OK key to select one.

Press the INFO key in view mode. Select the channel by pressing NUMERICAL 0-9 or œƒkeys and select the TV/RADIO key to move to TV or Radio channel The soundtrack service is not provided for every channel and depends on the conditions the operator is in. You will also see this picture each time you change the channels. When you press the TV/RADIO key on the remote control. TV and Radio program are toggled. Detailed program information

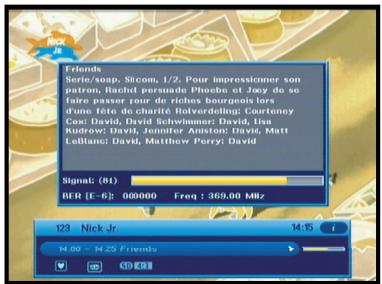

Press the INFO key twice while you are viewing a program

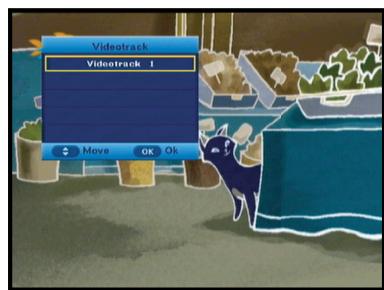

Press the ALT key twice to see the videotrack list.

Press the œƒ and OK key to select one.

The videotrack service is not provided for every channel and depends on the conditions the operator is in. N o t e : When you select AUTO in the selection window, operation will follow system setting of main menu. First you will see the banner described above. After the INFO key is pressed in the second time, detailed information for current program can be displayed on another banner, if there is more information. When this information is more than one page, YELLOW and BLUE keys can be used for scroll up and down. Note : This service depends on service provider. GB-16

Press the CH LIST key while you are viewing a program.

Select list by pressing the TV/RADIO key.

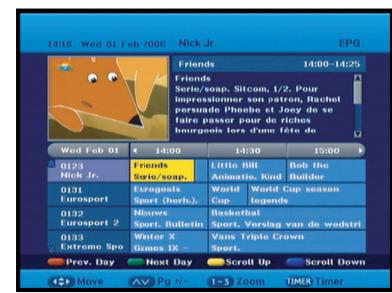

EPG-Electronic Program Guide The electronic program guide gives you information for the channels. The icon behind the channel name symbolises scrambled channel, and the icon behind the channel name shows locked channel.

DCB-H360R DCB-H360R BASIC FUNCTIONS BASIC FUNCTIONS Press the OK key to watch that channel.

Press the GUIDE key while you are viewing a program.

RED key is for moving back to the previous date. The colour key corresponds the following service list.

Select the channel by pressing the œƒkeys on the remote control. Note : 1. This service depends on service provider.

2. After receiver recognized the GMT-time

from the signal which takes few seconds, it can display correct EPG information. YELLOW key : Favorites

GREEN key is for moving to the next coming date.

YELLOW key can be used for scroll up, if there is more information than one page.

Press the (Page Up/Dn) keys to move to next or previous page.

BLUE key can be used for scroll down, if there is more information than one page.

Time interval can be adjusted by press keys as followings on EPG screen: Press the EXIT key to exit. 1 key: 1 hour and 30 minutes

Select the channel by pressing the œƒ keys and press the OK key to watch this channel.

Press the YELLOW key on the remote control to select the group of favorite channel list. When the TIMER key on the remote control is pressed in the EPG screen, if the current channel involves an event, timer is set immediately and the set timer is indicated on the EPG screen. A program that has been set in this way is indicated on Timer Setting.

Press the YELLOW key to switch between favorite channel list and channel list. Use the œƒ keys to select a favorite group or a channel that you want. Press the

Press the EXIT key to exit

(Page Up/Dn) keys to move to next or previous page.

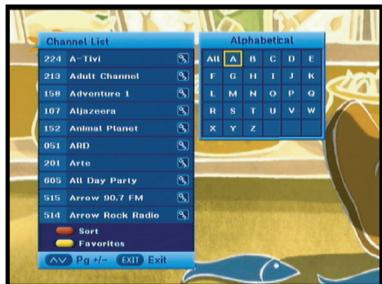

5.2 Alphabetical Channel LIst

Press the RED key on the remote control to select the Alphabetical channel list.

Press the RED key to switch between alphabetical channel list and channel list.

3 key: 15 minutes With the TV/RADIO key you can browse among the various programs lists.

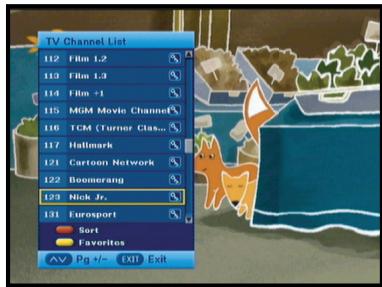

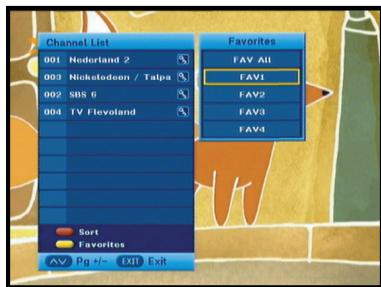

5.1 Favorite Channel List

2 key: 30 minutes Use the œƒ keys to select a Alphabetical group or a channel that you want. Press the EXIT key to exit. GB-18

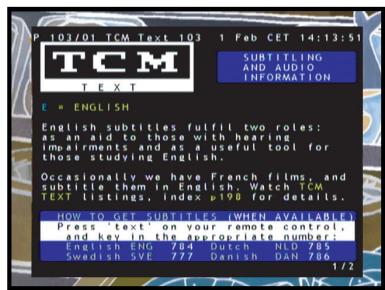

When the current broadcasting program provides Teletext, press the TEXT key once to see the current language list for Teletext in order to get teletext in OSD regardless of TV type. icon on the banner shows that Teletext is available on this event(program). Even is displayed on the banner, Teletext may not be available due to broadcasting. ● Press the EXIT key to exit. You can choose a mode among left, right or stereo using the AUDIO key. To change the audio mode:

N o t e : When the connected TV provides the Teletext feature, this function is not supported. The HD receiver does not support the Teletext VBI function. When the teletext application is active following keys can be used: ● NUMERICAL keys: 0.....9 are used to change main page. Then in the left upper corner will be visible number of the main page. If the broadcasting program provides this page after the moment (usually about 20s), this page will be visible. ● œƒ keys are used to change main page , just (+1) for œ key and (-1) for ƒ key. ● ¦‹ keys are used to change Next/Previous subpage number. Sometimes broadcaster send one or more subpages on one main page. To change sub-page number just press ¦ or ‹ key, if subpages will be exist in STB memory then next/previous subpage will be displayed.

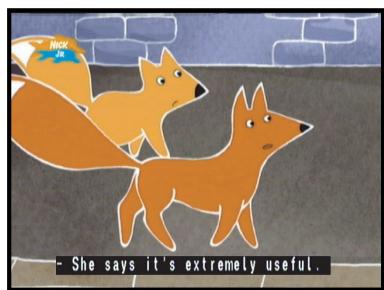

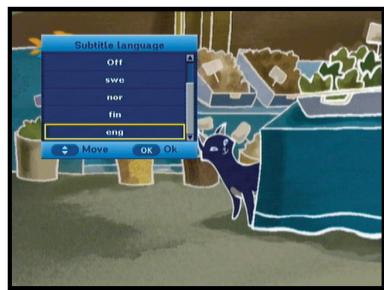

When the current broadcasting program provides subtitle, press the SUBTITLE key to see the current subtitle language list. If subtitle is available on current program, is displayed on the banner . To change the subtitle language: ● Press the SUBTITLE key once to see the subtitle language List. ● Use the œƒ keys to select a subtitle language you want. ● Press the OK key and then the subtitle language you want is displayed. N o t e : When you select AUTO in the selection window, operation will follow system setting of main menu. GB-20

After installing your cable system and STB with appropriate connectors. To tune-in new channels, the STB has been provided with “Manual Scanning” where the channel data can be entered by the user. After selecting the “Manual Scanning” from the Installation Menu, the following screen will be displayed:

Plug in the AC main power and switch on the receiver.

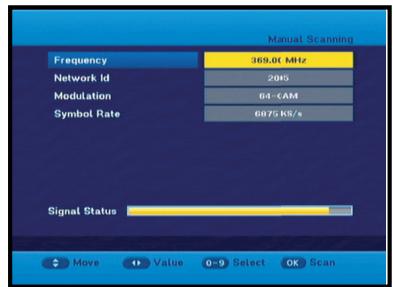

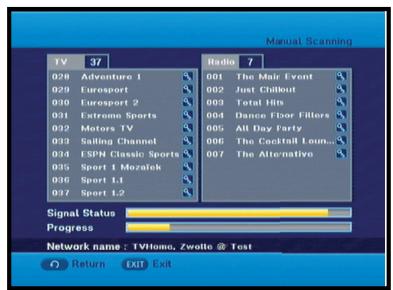

Press the MENU key to bring up the main menu. Input the frequency of the channel you want to find. The following on screen display will appear:

The sub menu topics will be displayed. For the sub-menus Installation, Channel , System, Mailbox and Irdeto Input the Network ID of the channel you want to find. Ask your cable operator.

Select the Modulation of the channel you want to find. You can select the value of 16, 32, 64, 128 and 256.

Input the symbol rate of channel you want to find.

After select option, press the OK key to start the scan process.

Press the EXIT key to exit the menu . Before you begin with the “Installation” menu, you should check in the 3th menu “System” whether all the information are applicable for you. Note : When you see “NOT COMPLETE CHANNEL”, please scan again with following instuction of service provider.

The menu provides settings for customizing, adding new services and displaying the status of the receiver.

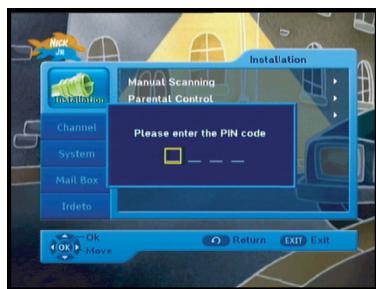

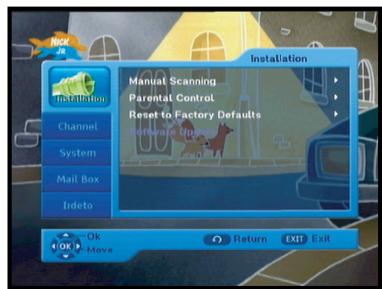

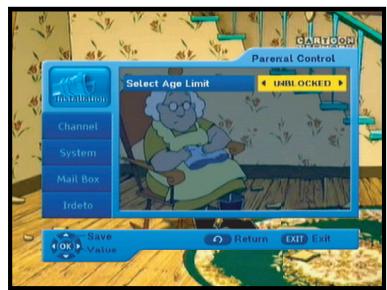

Select “Installation” in the main menu to select the sub menu. Parental rating protects your children from adult content. This option is set in Installation ‹Parental Control menu. Enter the PIN Code. Use the ¦‹keys to select age for your youngest child then press the OK key to save this setting.

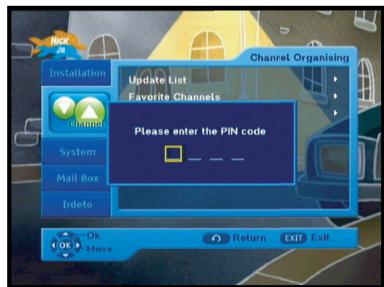

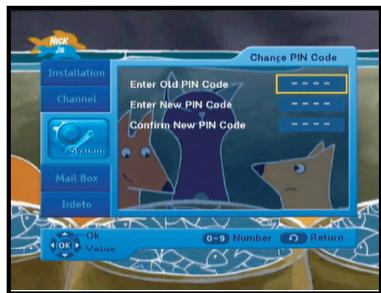

If you have not entered your own PIN Code then the PIN Code 0000 applies, which was set at the factory.

All services which age grade is greater than set will be blocked and request to enter the PIN Code.

If you want blocked all services, select “ALL BLOCKED”.

By default, all services are “UNBLOCKED”. Please enter the PIN Code. GB-22

This banner is shown if service which age grade is greater than set in Parental Control menu. Enter four digits PIN Code to hide this banner and show service content. Factory PIN Code is 0000, and you can change it in Change PIN Code menu.

2.2 Favorite Channels

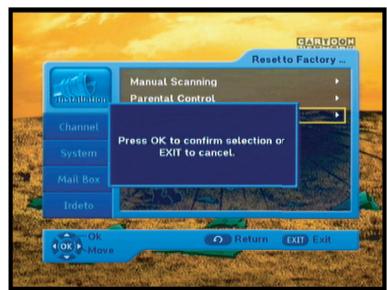

1.3 Reset to Factory Defaults

You can immediately register the present channel to the desired Favorite Group. In addition, you can register a channel to multiple favorite groups. This is to recover the Factory set values in case the user has encountered some problems after changing any values of channel data and others which may be in error. At the request window, if you press the OK key, the receiver will be reset to factory default settings automatically. Select the desired channel list using the ƒœ or numeric keys at the TV or RADIO list window.

Note : This causes your previous settings to be deleted! All settings and information including channel data will be deleted. Press the EXIT key to exit the menu .

Press the RED key and then register the selected channel at the Favorite Group.

Then press the OK key for confirmation. This option is enabled only if your cable provider sends software for your STB. To upgrade the software, place the cursor on Installation ‹ Software Update menu and press the OK key. If new software is available, banner “Start Software Updating Process ?” will be displayed. There is also information about estimated time of software download. Press the OK key to confirm and start Software Updating process. If there is newest software on your STB “You don’t need to update software !” will be displayed.

When you press the TV/RADIO key, TV list and Radio list are toggled.

Press the FAV.CH key to select another favorite list.

Press the EXIT key to exit the menu. To delete channels from Favorite Group: Note : STB automatically reboots for software upgrading process. During the upgrading process, TV screen will remain blank for approximately 10 minutes. Window display at the STB front panel will show the progress. Service will be resumed automatically after the upgrade is completed.

Select a channel list to delete with the ƒœ keys.

Press the RED key to delete the selected channel from the favorite channels.

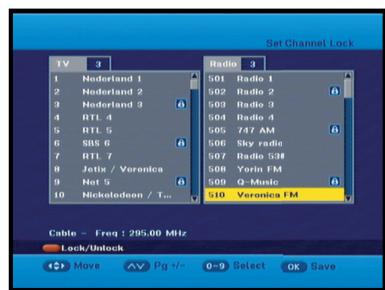

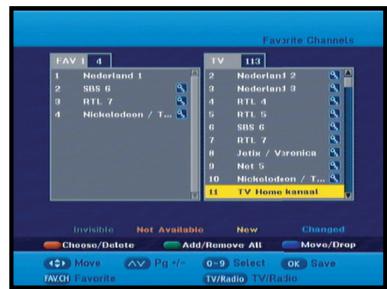

2.3 Set Channel Lock

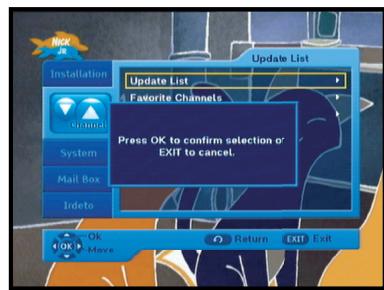

The “Channel” menu has three functions: Saving changes on channel list by select Update List and it provides making four favourite lists and set channel lock, as you want.

Select the TV or RADIO channel window by pressing the ¦‹keys.

Focus the channel by pressing the ƒœkeys.

Select the channel lock by pressing the RED key.

Press the OK key for confirmation. This will lock the channel. Whenever you need to view the channel, you will have to enter the PIN Code at the request window. If you have not entered your own PIN Code, 0000 applies which was set at the factory.

To cancel the lock: ● Press the RED key again in order to cancel the lock. When some new channels will be transmitted to your cable network, these channels would be shown on channel list green colored. To save these channels, use Channel ‹Update List. GB-24 Press the EXIT key to exit the menu .

You can change TV list or Radio list by the TV/RADIO key and change favorite list by the FAV.CH key.

The screen display will be as follows:

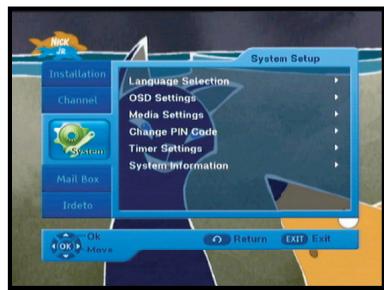

This option enables you to change the system settings as your requirements. You can set the transparency of OSD, subtitle and Teletext, banner display time and OSD Position. DCB-H360R DCB-H360R

OPERATING THE RECEIVER

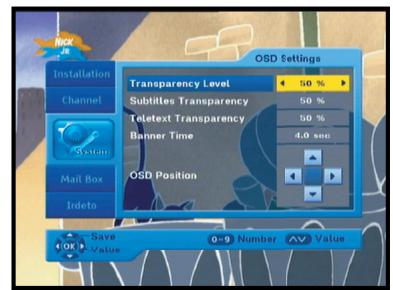

Select OSD Transparency level. The OSD Transparency level from 0 to 100%. Setting is made with the numeric keys, ¦‹ or CH+/CH- keys .

¦‹ keys : Setting in increment of 1%. CH+/CH- keys : Setting in increment of 10%.

¦‹ keys : Setting in increment of 1%. CH+/CH- keys : Setting in increment of 10%. There are 3 OSD languages available and 37 languages supported for soundtracks, subtitles,Teletext, and EPG. Select Teletext Transparency level. The OSD Transparency level from 0 to 100%. Setting is made with the numeric keys, ¦‹ or CH+/CH- keys . To select the desired language menu, press the ¦‹keys to change language and press the OK key. ¦‹ keys : Setting in increment of 1%. CH+/CH- keys : Setting in increment of 10%.

The soundtracks, subtitle, Teletext, and EPG will vary according to the selected language. Set the display duration of the information(banner) box displayed in the screen. The time ranges from 0.5 to 60.0 seconds. Setting is made with the numeric keys, ¦‹keys or CH+/CH- keys.

Press the EXIT key to exit the menu . ¦‹ keys : Adjusting in increment of 0.5sec. CH+/CH- keys : Adjusting in increment of 1 sec. Note : This setting does not apply to info banner and info window. GB-26

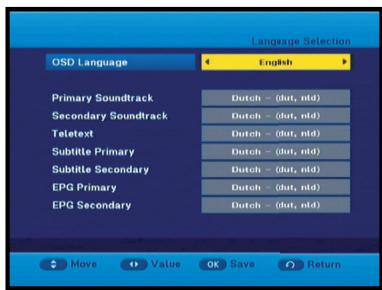

The “Language Selection” option allows the user to select the desired language of the OSD, Soundtrack, Teletext, Subtitle or EPG. However, these languages for Soundtrack, Teletext, Subtitle and EPG depend on broadcasting. For example, even the language for Subtitle can be selected, it may not be supported because of no Subtitle on the program.

Select Subtitle Transparency level. The OSD Transparency level from 0 to 100%. Setting is made with the numeric keys, ¦‹ or CH+/CH- keys .

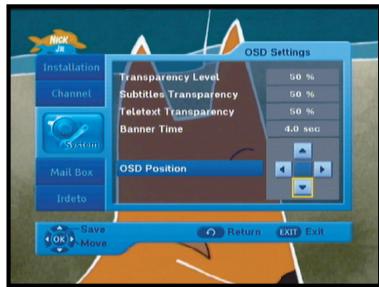

Place the cursor on the position you want, and press the ¦‹ orœƒ keys until the screen moves to the position you want. The screen will move to the position you want. To change the PIN Code, select the fourth option “Change PIN Code”. This will take you to the following menu: Press the EXIT key to exit the menu . In this option, you need to enter the current PIN Code at the first cursor, and at the second cursor enter the desired PIN Code. To confirm, you need to enter the new PIN Code again.

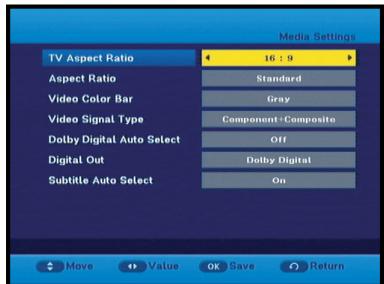

You can set the various media settings you want. Place the cursor on this sub menu and press OK.

When selecting 16:9 for the screen format, you can select an aspect ratio of 4:3 for a movie. (However, the 16:9 video menu is not available in this aspect ratio). 16:9 Video aspect ratio: Standard, Wide

When selecting 4:3 for the screen format, you can select an aspect ratio of 16:9 for a movie. (However, the 4:3 video menu is not available in this aspect ratio).

Select Video Color Bar: Black or Grey. - Warning! Do not display the video color bar in black for extended periods of time as you may experience temporary or permanent image burn. See also the precaution instructions regarding your display device.

Press the EXIT key to exit the menu .

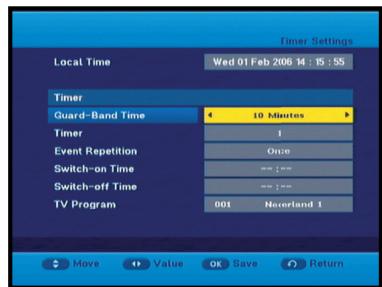

Guard-Band time is a function to ensure, that whole event will fit in set time boundaries. 1 minute of Guard-Band Time means that STB will start this timer operation 1 minute before set time and end 1 minute after set time.

15 timers are supported including timer(s) from EPG. Select the Subtitle Auto Select : On, Hearing Impaired or off

Press the EXIT key to exit the menu . Press the ¦‹ keys to choose event repetition you want to reserve : Daily, Every Sunday, Every Monday, Every Tuesday, Every Wednesday, Every Thursday, Every Friday, Every Saturday and Once. If the timer is set from EPG screen, EPG is displayed on ‘Event Repetition’.

Press the Numerical (0~9) keys to set the time you want and press the œƒ keys to choose a switch time you want to reserve. If set time on ‘Switch-on Time’ is same as one on ’Switch-off Time’, this timer works for 24 hours.

Select TV program to set the event program by pressing the ¦‹keys. When you press the TV/RADIO key, TV program and Radio program are toggled.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. GB-28 Select the timer number on ‘Timer’ using the ¦‹ keys from 1 to 15.

Even you can set timers on Daily and Every Monday or Every Sunday, etc. The priority has the repetition event which is less. For example, when you set timers onOnce and daily, ‘Once’ will work in stead of ‘Daily’ at that day. If the timer is running, ‘Running’ message with a timer number is displayed on ‘Timer’.

If you have to contact your service provider or a service center they might ask for information available from this menu. Place the cursor on this sub menu and press the OK key. The following will be the on-screen display. The menu provides the information of the smartcard and the STB. Press the OK key to enter the sub menu.

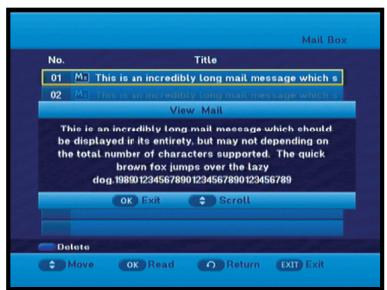

You can read the message sent to the individual decoders. We can save the maximum 10 mail messages.

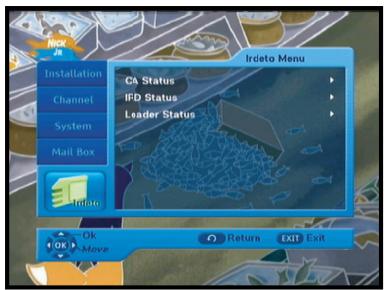

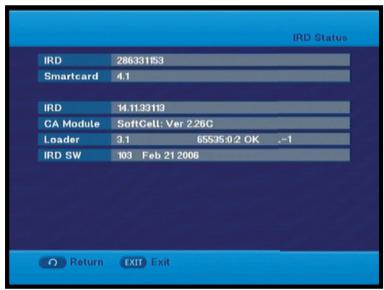

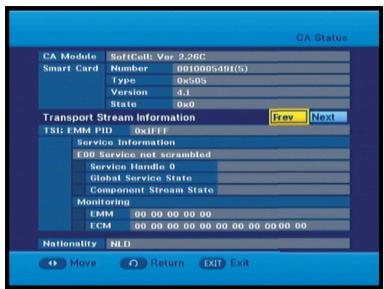

You can see the IRD status (technical information about the IRD, CA, Smart Card and software loaded into it). Press the EXIT key to exit the menu.

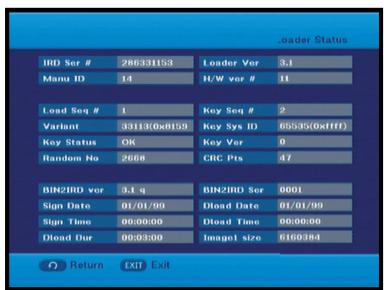

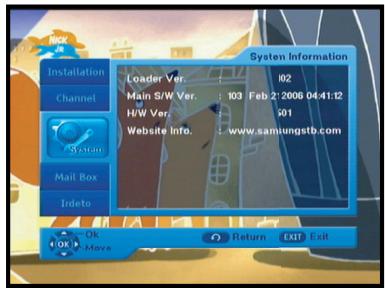

You can see the information about the IRD, and software loaded into it.

2. TV Operating keys: TV STANDBY/ON, 0~9, CH

Maker (BRAND) NAME MELVOX MEMOREX MEMPHIS MERCURY METZ

RADIONETTE RADIOSHACK RADIOTONE RANK ARENA RCA RECOR RECTILIGNE REDIFFUSION DCB-H360R DCB-H360R Available TV Manufacturer Numbers DCB_H360R draft 0604 eng 06/4/06 07:39 Page 38 DCB-H360R DCB-H360R TECHNICAL SPECIFICATIONS TROUBLESHOOTING Power supply Problem Possible cause Solution of the problem No display LED on the front panel; No power supply Power cord not plugged in correctly Power cord plug in correctly No pictures on the screen Receiver in Standby mode; SCART,RCA or HDMI not connected tightly to video input of television; Incorrect channel or video output selected on television: Incorrect video output selection on HD Receiver Set receiver to “On”; Check connection; Type : Input voltage : Fuse rating : Tuner & Demodulator Input Frequency : Channel Bandwith DEMODULATION : SYMBOL RATE : Constellation : CABLE OUT : Check channel and video input of TV (TV instruction manual); Check video output on HD receiver (Refer to page 10) SCART or Audio connected incorrectly; Check connection; Loudness level = 0; Increase loudness on television set or HD receiver; Muting active Press the MUTE key Remote Control does not operate directly Incorrect Operation; Batteries dead or inserted incorrectly Point remote control towards the receiver; Replace batteries or insert correctly Poor picture quality Signal strength too low Check all wire connections Menu screen does not disappear Channel lists not installed; Scan channels. Please go to Installation menu; On-Screen Error Messages; Signal cable not connected or not tight “Searching for signal”; “No signal” Check connection On-Screen Error Messages; Smartcard “Smartcard Failure” - not plugged in correctly; “Unknown smartcard” “Please insert Smartcard” - not plugged in (Depend on model) Check the smartcard; 50.5~858 MHz 8 MHz QAM DVB-C MAX 7.252 Msps 16, 32, 64, 128, 256 QAM RF LOOP-THROUGH OUTPUT for other receiver or TV

(MP@HL(HD), MP@ML(SD))

H.264 ISO/IEC 14496-10

(MP@L3, MP@L4, HP@L4 up to 30 Mbps) 1080i, 720p, 576p, (576i) SD output (2 SCART (AV1,AV2), Composite RCA) HD output (Component (YPBPR), HDMI) 4:3(Normal) & 16:9 (Widescreen) Resolution : Video Output: Video Format Audio Decoder System decoding : Insert the smartcard DISPOSAL MPEG Audio-1 ISO/IEC 11172-3 (Layer1, Layer2) MPEG Audio-2 ISO/IEC 13818-3 Dolby Digital (AC-3) Mono, Dual stereo, Joint stereo 32kHz, 44.1kHz, 48kHz, 96kHz Audio mode : Sampling Rate: The device, packaging material (e.g. Styrofoam) and the batteries must never be disposed of with household refuse. Please obtain appropriate information about the regulations in your community, and dispose of all refuse in accordance with regulations at the separate locations provided. Audio output : Analog output (L/R (RCA) 1 CH) Digital output (S/PDIF(Optical)) PHISICAL SPECIFICATION Size (W x D x H) Weight (Net) GB-38

PASS LOOP VOOR RGB-SIGNAAL

ACCENT ACEC ACURA ADMIRAL

(MP@HL(HD), MP@ML(SD))

AUDIO OUT RF OUT AV1

ACCENT ACEC ACURA ADMIRAL

(MP@HL(HD), MP@ML(SD))
