UE-55ES6300 - TV SAMSUNG - Free user manual and instructions
Find the device manual for free UE-55ES6300 SAMSUNG in PDF.
| Product Type | LED Television |
| Brand | SAMSUNG |
| Model | UE-55ES6300 |
| Screen Size | 55 inches (138 cm) |
| Display Resolution | 1920 x 1080 pixels |
| Dimensions (with stand) | 1252.8 x 807.6 x 276.6 mm |
| Dimensions (without stand) | 1252.8 x 736.6 x 46.9 mm |
| Weight (with stand) | 18 kg |
| Weight (without stand) | 16.2 kg |
| Audio Power | 2 x 10 W |
| TV System | Analog B/G, D/K, L, I; Digital DVB-T/DVB-C/DVB-S2 |
| Connectivity | HDMI (x3 including 1 with DVI), Component Input, AV Input, USB, LAN RJ45, ANT IN, CI/CI+ |
| Smart Functions | SMART HUB, AllShare Play, Anynet+ (HDMI-CEC), e-Manual, Web Browser (via network) |
| 3D | Yes (active 3D glasses included for models 40" and above) |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | See label on back of TV |

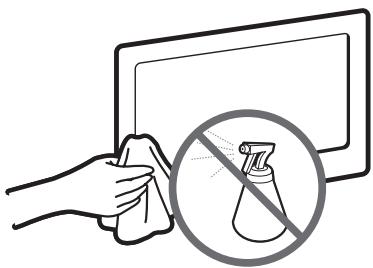

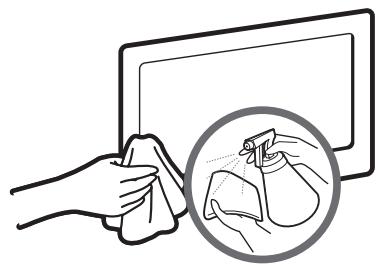

| Maintenance and Cleaning | Clean with a soft, slightly damp cloth. Do not use solvents. |
| Safety | Respect ventilation distances. Wall installation recommended by a professional. |
| Spare Parts and Repairability | Contact a SAMSUNG authorized center. Use only parts provided by Samsung. |
Frequently Asked Questions - UE-55ES6300 SAMSUNG
User questions about UE-55ES6300 SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual UE-55ES6300 - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UE-55ES6300 by SAMSUNG.
USER MANUAL UE-55ES6300 SAMSUNG
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
| Country | Customer Care Centre® | Web Site |
| AUSTRIA | 0810 - SAMSUNG (7267864, € 0.07/min) | www.samsung.com |
| BELGIUM | 02-201-24-18 | www.samsung.com/be (Dutch) www.samsung.com/be_fr (French) |
| BOSNIA | 05 133 1999 | www.samsung.com |
| BULGARIA | 07001 33 11, normal tariff | www.samsung.com |
| CROATIA | 062 SAMSUNG (062 726 7864) | www.samsung.com |
| CZECH | 800 - SAMSUNG (800-726786) | www.samsung.com |
| Samsung Electronics Czech and Slovak, s.r.o., Oasis Florenc, Sokolovská 394/17, 180 00, Praha 8 | ||
| DENMARK | 70 70 19 70 | www.samsung.com |
| FINLAND | 09 85635050 | www.samsung.com |
| FRANCE | 01 48 63 00 00 | www.samsung.com |
| GERMANY | 0180 5 SAMSUNG bzw. 0180 5 7267864* (*0,14 €/Min. aus dem dt. Festnetz, aus dem Mobilfunk max. 0,42 €/Min.) | www.samsung.com |
| CYPRUS | 8009 4000 only from landline (+30) 210 6897691 from mobile and land line | www.samsung.com |
| GREECE | 80111-SAMSUNG (80111 726 7864) only from land line (+30) 210 6897691 from mobile and land line | www.samsung.com |
| HUNGARY | 06-80-SAMSUNG (726-7864) | www.samsung.com |
| ITALIA | 800-SAMSUNG (726-7864) | www.samsung.com |
| LUXEMBURG | 261 03 710 | www.samsung.com |
| MACEDONIA | 023 207 777 | www.samsung.com |
| MONTENEGRO | 020 405 888 | www.samsung.com |
| NETHERLANDS | 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) | www.samsung.com |
| NORWAY | 815 56480 | www.samsung.com |
| POLAND | 0 801-1-SAMSUNG (172-678) +48 22 607-93-33 | www.samsung.com |
| PORTUGAL | 808 20-SAMSUNG (808 20 7267) | www.samsung.com |
| ROMANIA | 08008 SAMSUNG (08008 726 7864) TOLL FREE No. | www.samsung.com |
| SERBIA | 0700 Samsung (0700 726 7864) | www.samsung.com |
| SLOVAKIA | 0800 - SAMSUNG (0800-726 786) | www.samsung.com |
| SPAIN | 902 - 1 - SAMSUNG (902 172 678) | www.samsung.com |
| SWEDEN | 0771 726 7864 (SAMSUNG) | www.samsung.com |
| SWITZERLAND | 0848 - SAMSUNG(7267864, CHF 0.08/min) | www.samsung.com/ch (German) www.samsung.com/ch_fr (French) |
| U.K | 0330 SAMSUNG (7267864) | www.samsung.com |
| EIRE | 0818 717100 | www.samsung.com |
| LITHUANIA | 8-800-77777 | www.samsung.com |
| LATvia | 8000-7267 | www.samsung.com |
| ESTONIA | 800-7267 | www.samsung.com |
| TURKEY | 444 77 11 | www.samsung.com |

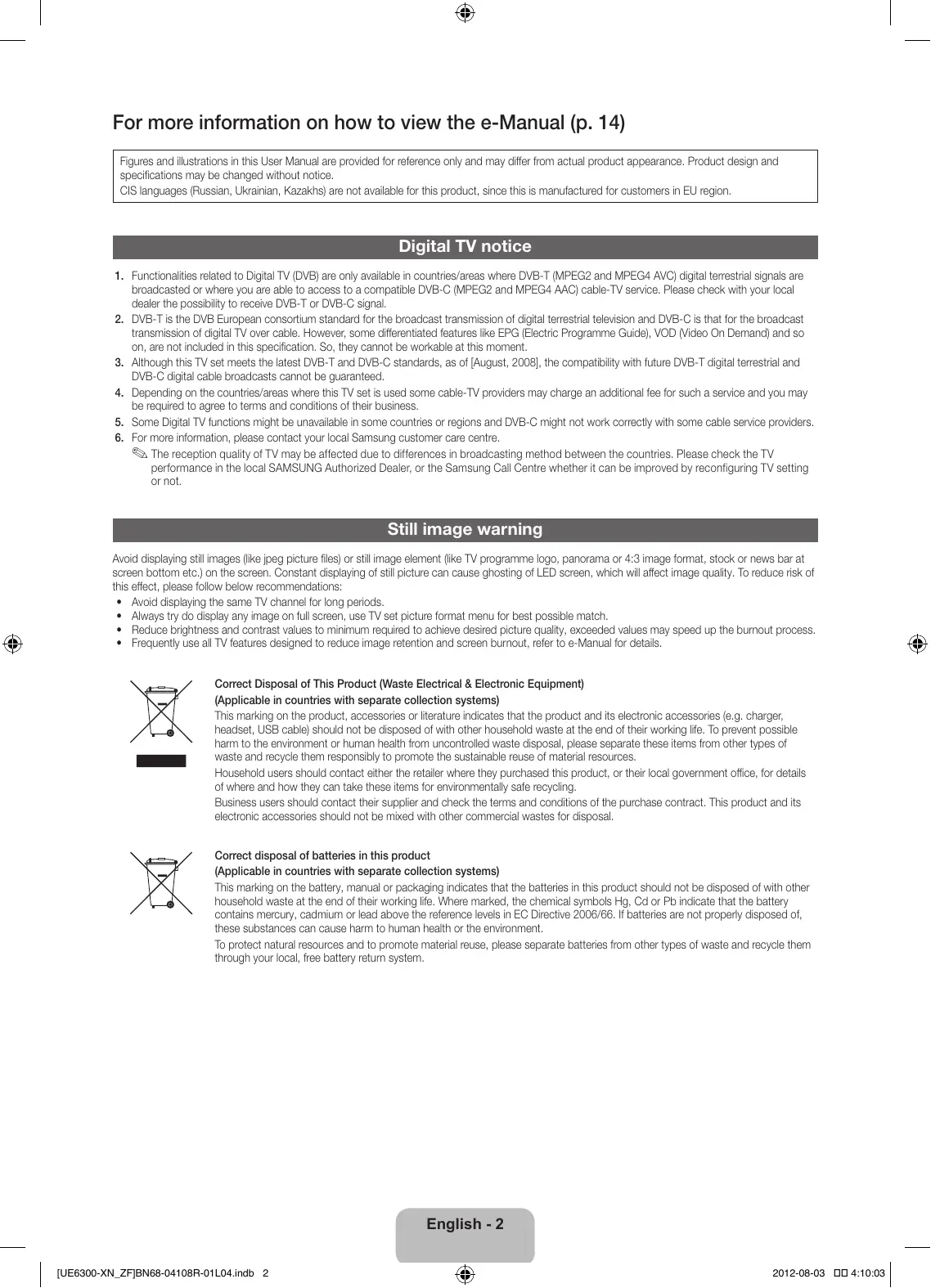

LED TV user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
Model _ Serial No. _.
For more information on how to view the e-Manual (p. 14)
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.
CIS languages (Russian, Ukrainian, Kazaks) are not available for this product, since this is manufactured for customers in EU region.
Digital TV notice
- Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
- DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
- Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
- Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
- Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
- For more information, please contact your local Samsung customer care centre.
The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.
Still image warning
Avoid displaying still images (like JPEG picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:
- Avoid displaying the same TV channel for long periods.
Always try do display any image on full screen, use TV set picture format menu for best possible match. - Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
- Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

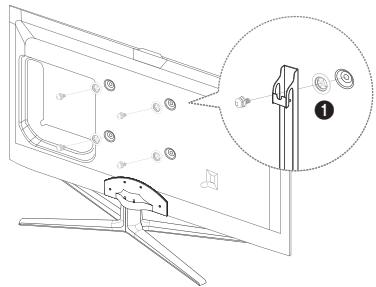

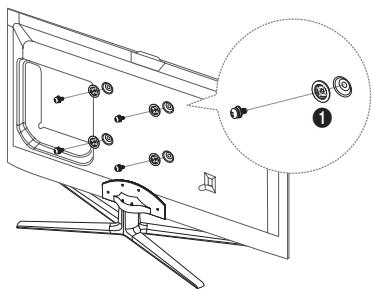

When using a stand or wall-mount, use parts provided by Samsung Electronics only.
- If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
The appearance may differ depending on the product.
- Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand.
Installation with a wall-mount.
List of Features
-
3D: This exciting new feature enables you to view 3D content from some broadcasting or 3D BD players.
SMART HUB: The Gateway to all content integrated in one place. -
It's all integrated to guide you to easier and diverse entertainment choices.
- Control your entertainment life with easy and simple user friendly UI.
- Access to diverse Apps that are adding up every day.
-
Customize your TV, by App grouping & sorting to your taste.
-
AllShare Play: AllShare Play lets you access, view, or play photos, videos, or music located on USB devices, digital cameras, cell phones, and PCs. PCs, cell phones, and other compatible devices can be accessed wirelessly, through your wireless network.
- Anynet+(HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV's remote.

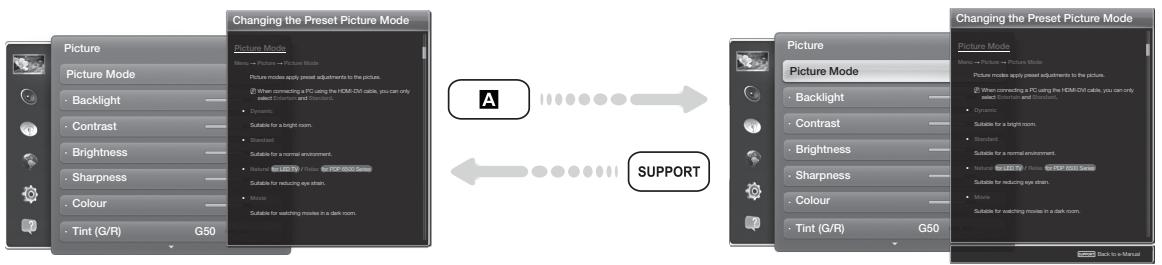

- e-Manual: Allows you to read on screen full manual. (p. 14)
Accessories
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
The items' colours and shapes may vary depending on the models.
Cables not included in the package contents can be purchased separately.
Check that there is no accessory hidden behind packing materials when you open the box.
CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET
Remote Control & Batteries (AAA x 2)
- User Manual
- Warranty Card (Not available in some locations) / Safety Guide
Power Cord
- Cleaning-Cloth
Samsung 3D Active Glasses (40 inch model and above)
Holder-Ring x 4
Holder-Wire stand
- An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)
- (b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).
- The amount of such administration charge will be advised to you before any work or home visit is carried out.

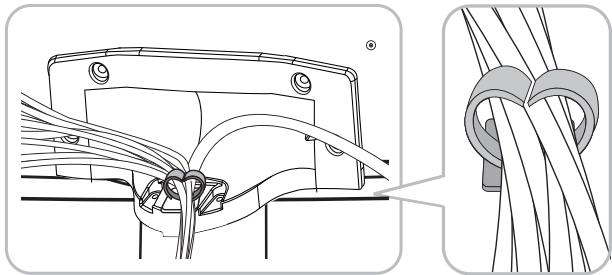

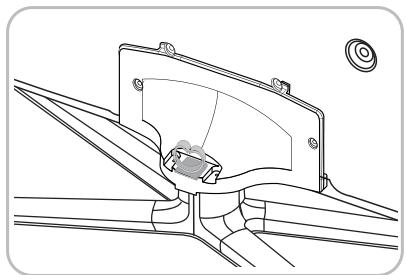

Assembling the Holder-Wire stand
TV Controller is a multi directional button that helps navigate without remote control.
Some functions which require a PIN code may not be available.
The product colour and shape may vary depending on the model.

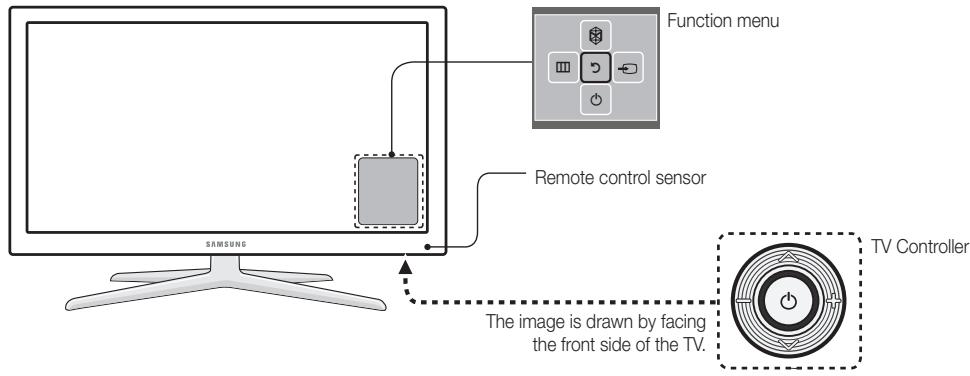

The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.
Follow these instructions facing the front of your TV.
When selecting the function by moving the controller to the upwards/downwards/left/right directions, be sure not to press the controller. If you press it first, you cannot operate it to move the upwards/ downwards/left/right directions.
| Power on | Turn the TV on by pressing the Controller when the TV is in standby mode. |
| Adjusting the volume | Adjust the volume by moving the Controller from side to side when the power is on. |
| Selecting a channel | Select a channel by moving the Controller upwards and downwards when the power is on. |
| Using the Function menu | To view and use the Function menu, press and release the Controller when the power is on. To close the Function menu, press and release the Controller again. |
| Selecting the MENU (III) | With the Function menu visible, select the MENU (III) by moving the Controller to the left. The OSD (On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or upwards and downwards to make additional selections. To change a parameter, select it, and then press the Controller. |
| Selecting the SMART HUB (☑) | With the Function menu visible, select SMART HUB (☑) by moving the Controller upwards. The SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller. |
| Selecting a Source (¬) | With the Function menu visible, open the Source (¬) by moving the Controller to the right. The Source screen appears. To select a source, move the Controller upwards and downwards. When the source you want is highlighted, press the Controller. |
| Power off (⊙) | With the Function menu visible, select Power off (⊙) by moving the Controller downwards, and then press the Controller. |
To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

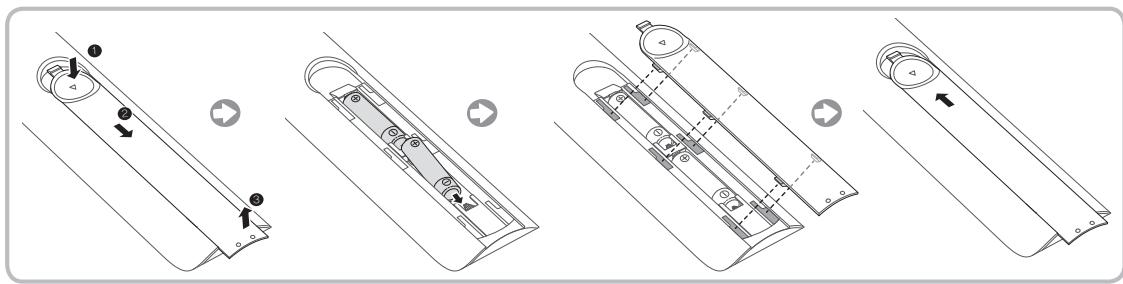

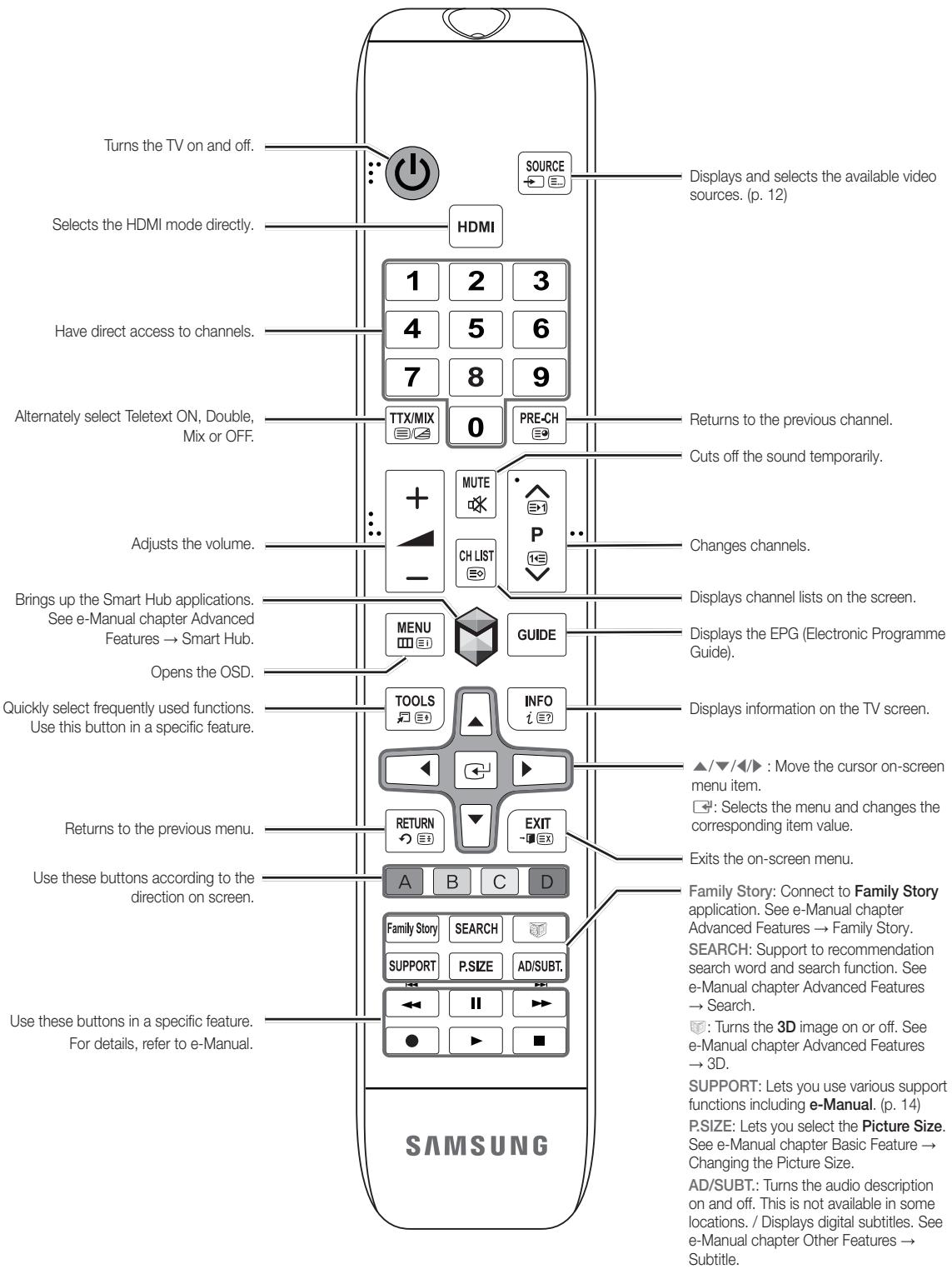

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.
NOTE
- Use the remote control within 23 feet of the TV.
- Bright light may affect the performance of the remote control Avoid using when near special fluorescent lights or neon signs.
- The colour and shape may vary depending on the model.

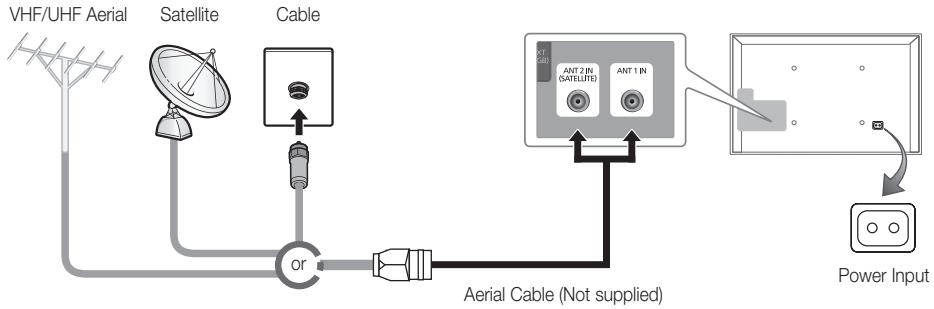

Connecting to an Aerial
When the TV is initially powered on, basic settings proceed automatically.
Plug the power cord into a wall outlet only after you have made all other connections.
If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite connections, you do not need to connect the ANT IN jack to an aerial or a cable connection.
Use caution when you move or swivel the TV if the aerial cable is tightly connected. You could break the aerial jack off the TV.
Setup (Initial Setup)
When you turn the TV on for the first time, a sequence of prompts and screens will assist you in configuring basic settings. To begin Setup, press the button on your remote.
Setup is available only when the input source is set to TV. See "Changing the Input Source" (p. 12).
To return to the previous step in the Setup sequence, Select Previous.
Before you begin, make sure you have connected the TV to an aerial or a cable connection and that the TV is plugged in (p. 7).
To start the Setup select Start.
| 1 | Menu Language: Selecting a menu language | Select a menu language you want using your remote, and then select Next. The TV will be displayed a menu using the selected language since next step. |
| 2 | Use Mode: Select the Home Use Mode. | Select Home Use using your remote, and then select Next. Store Demo mode is for retail environments. |

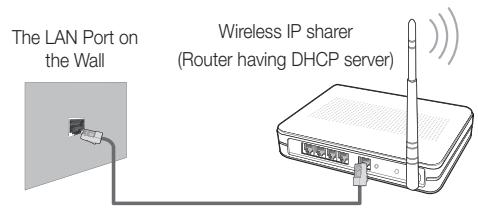

| 3 | Network Settings: Configure network settings To connect later, select Skip. | To set up your network connection, select Next using your remote. If you do not know your network set up information or want to set to it later, select Skip. For more detailed information, refer to “Setting up the Wired or Wireless Network” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 13). You can set up the network connection later using the Network menu. |
| 4 | Software Upgrade: Upgrading the software to latest version To upgrade later, select Skip. | Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to Software Upgrade (Preference Features → Support Menu) in the e-Manual. This may take some time, depending on network status. |
| 5 | Select Country (Depending on the country) | Select the appropriate country. After selecting the country in the country menu, some models may proceed with an additional option to setup the pin number. |
| 6 | Auto Tuning (1): Selecting how you watch your TV | Let's find and store channels on your TV. Do you need to search for channels? • Yes, I need to.: All the channels available will be found and stored on your TV. • No, I don't need to.: My set-top box provides all the channels that are available, so I don't need to search for channels. |
| 7 | Auto Tuning (2): (Depending on the country) Selecting a search options | Select the channel source to memorise. When setting the aerial source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Auto Tuning (Channel Menu → Memorizing Channels) in the e-Manual. When Air or Cable is selected first: After all Air or Cable channels are stored, the step for storing Satellite channels is displayed. When Satellite is selected first: After all Satellite channels are stored, the step for storing Air or Cable channels is displayed. Select Stop at any time to interrupt the memorization process. |
8
Clock: Setting the Clock Mode
- Auto: Set the current time automatically.
- Manual: Allows you to manually set the current date and time.
9
Time Zone
Depending on the country): Setting the your Time Zone
This step is only available when the clock mode is set to Auto.
- Auto: Set the time zone automatically.
- Manual: Set the time zone manually.
If you selected Manual, you can select whether to turn DST (Daylight Savings Time) On or Off. (Depending on the country)
10
Setup Complete
Select Close to finish.
The completed settings are displayed.
If You Want to Reset This Feature...
Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0" (except France). If you want to change the PIN number, use the Change PIN function.
You should do Setup (Menu System) again at home although you did in shop.
If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to "0-0-0-0" (France: "1-1-1-1"): MUTE 8 2 4 POWER (on).
Connections

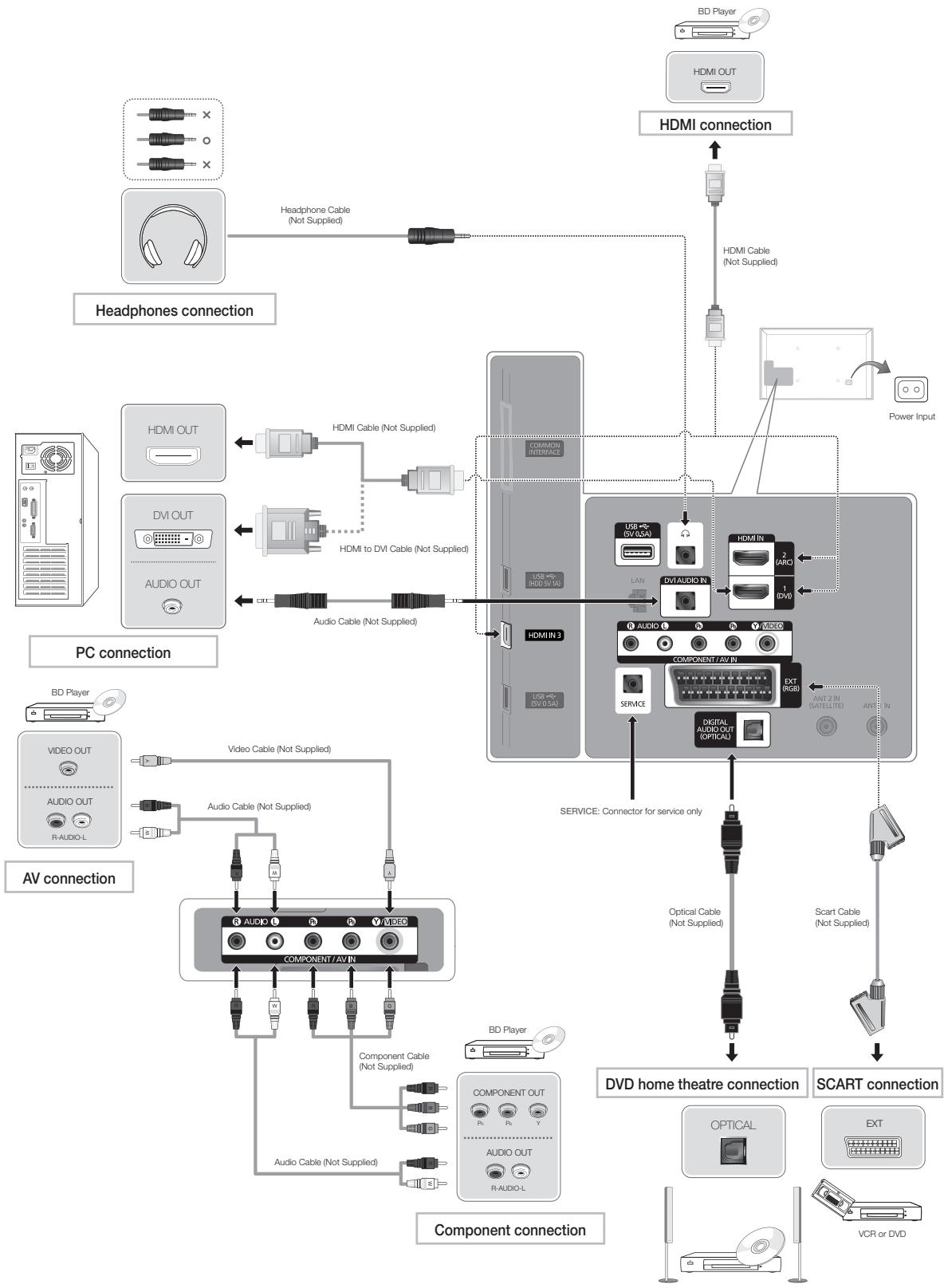

For more information, refer to Connecting the TV in the e-Manual.
The displayed image may differ depending on the model.

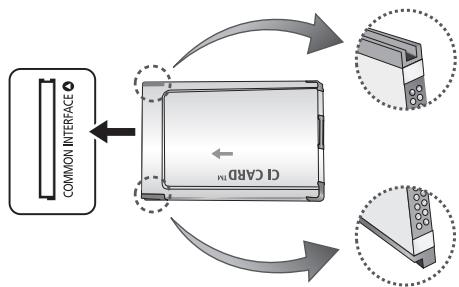

Using the "CI or CI+ CARD"
To watch paid channels, the "CI or CI+ CARD" must be inserted.
- If you don't insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
- The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.
- When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.
NOTE
- You must obtain a "CI or Cl + CARD" from a local cable service provider.
- When removing the "CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI or CI+ CARD" may cause damage to it.
- Insert the "CI or Cl+ CARD" in the direction marked on the card.
- The location of the COMMON INTERFACE slot may be different depending on the model.
- "CI or CI+ CARD" is not supported in some countries and regions; check with your authorized dealer.
- If you have any problems, please contact a service provider.
- Insert the "CI or CI+ CARD" that supports the current aerial settings. The screen will be distorted or will not be seen.
Source
Source
Use to select TV or an external input source such as a DVD player / Blu-ray player / cable box / STB satellite receiver.
TV/Ext./HDMI1/DVI/HDMI2/HDMI3/AV/Component
- Press the button on your remote. The Smart Hub screen appears.
- Select Source. The Source screen appears.
- Select a desired external input source.
You can only choose external devices that are connected to the TV. In the displaying Source list, connected inputs will be highlighted.
In the Source, Ext. is always stays activated.
How to use Edit Name
Edit Name lets you associate a device name to an input source. To access Edit Name, open the Tools menu when the Source is displayed. The following selections appear under Edit Name:
VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.
If you have connected a PC to the HDMI IN 1(DVI) port with an HDMI cable, select PC under Edit Name to enter a device name.
If you have connected a PC to the HDMI IN 1(DVI) port with an HDMI to DVI cable, select DVI PC under Edit Name to enter a device name.
If you connected an AV device to the HDMI IN 1(DVI) port with an HDMI to DVI cable, select DVI Devices under Edit Name to enter a device name.
Information
You can see detailed information about the selected external device.
Refresh
In Source, if the external devices are not displayed, open the Tools menu, and then select Refresh, then search for the connected devices.
Alternatively, You can refresh the Source list screen by selecting A using your remote.
This function is only available if Anynet+ (HDMI-CEC) function is set to On.
You can set up your TV so that it can access the SMART TV applications through your local area network (LAN) using a wired or wireless connection.
Network Connection - Wireless
You can connect your TV to your LAN through a standard wireless router or modem.
LAN Cable (Not Supplied)
TV
This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not play smoothly.
Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP or TKIP for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.
Network Connection - Wired
There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:
The Modem Port on the Wall
External Modem
(ADSL / VDSL / Cable TV)
Modem Cable (Not Supplied)
TV Rear Panel
LAN Cable (Not Supplied)
The LAN Port on the Wall
LAN Cable (Not Supplied)
TV Rear Panel
It is not supported when the network speed is below or equal to 10Mbps.
Use Cat 6 (*STP Type) cable for the connection.
*Shielded Twist Pair
How to view the e-Manual
You can find instructions for your TV's features in the e-Manual. To open the e-Manual, press the SUPPORT button on your remote.
You can also access it through the menu:
Menu Support e-Manual
Access the e-Manual
To use the e-Manual, follow these steps:
- When you need help, select Support using your remote. The e-Manual screen appears.
- Select a desired category.
- Select a desired topic. The e-Manual displays the page you want to see.
Blue word in e-Manual means menu list on TV screen.
Green icon in e-Manual means a button on your remote.
Arrow steps (e.g. Menu Support e-Manual) in e-Manual signifies that a sequence of steps is required for the function.
How to toggle between an e-Manual topic and the corresponding OSD menu(s).
This function is not enabled in some menus.
You can't use the Try Now function if the menu is not available.
- If you want to execute the corresponding menu(s), press the A using your remote.
-
To return to the e-Manual screen, select Support using your remote.
-
Scroll bar: Scroll the e-Manual screen up or down.
- / : Moves the previous or next chapter.
- A Try Now: Move the OSD menu that corresponds to the topic. To return to the e-Manual screen, select Support using your remote.
Home:Moves to the e-Manual home screen. - Position: Each time you select c , change a position for the e-Manual screen.
- D Index (depending on the country): Displays the Index screen.
- Return: Return to the previous screen.
How to search for a topic on the index page
- Select D using your remote. The Index screen appears.
- To search for a topic, select a letter. The Index displays a list of topics and keywords that begin with the letter you selected.
- Select a topic or keyword you want.
- The e-Manual page with the topic appears.
To close the Index screen, press the RETURN button.
To Change the screen position of the e-Manual
If the e-Manual screen is not invisible well because the OSD Menu screen, you can change the e-Manual screen's position.
- Move the Highlight to the e-Manual screen by pressing the SUPPORT button on your remote.
- Press the button on your remote. Each time you select using your remote, the position of the e-Manual will change.
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.
Preparing before installing Wall-Mount
Case A. Installing the SAMSUNG Wall-Mount
Case B. Installing another company's Wall-Mount
To install a wall-mount, use the Holder-Ring 1.
The wall mount kit is not supplied, but sold separately.
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
NOTE
- Standard dimensions for wall mount kits are shown in the table below.
- When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
- Do not use screws that do not comply with the VESA standard screw specifications.
- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
- For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
- Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. - Do not mount the TV at more than a 15 degree tilt.
| Product Family | inches | VESA Spec. (A * B) | Standard Screw | Quantity |
| LED-TV | 32~40 | 200 X 200 | M8 | 4 |
| 46~60 | 400 X 400 |
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability and safety, you can purchase and install the anti fall device as described below.

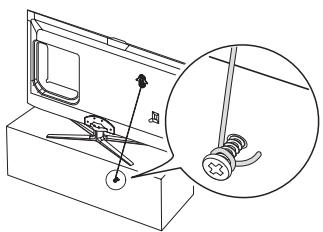

To Avoid the TV from Falling
- Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.
You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.
- Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.
Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.
Screw Specifications
For a 32~60 inches: M8
- Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.
NOTE
- Install the TV near to the wall so that it does not fall backwards.
- It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
-
Untie the string before moving the TV.
-
Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.
Troubleshooting
If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit "www.samsung.com," then click on Support, or contact the call centre listed on the back-cover of this manual.
| Issues | Solutions and Explanations |
| The TV won't turn on. | ·Make sure the AC power cord is securely plugged in to the wall outlet and the TV. ·Make sure the wall outlet is working. ·Try pressing the Ⓞ button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work.” below. |
| There is no picture/video. | ·Check cable connections (remove and reconnect all cables connected to the TV and external devices). ·Set your external device's (Cable/Sat Box, DVD, Blu-ray etc.) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV. ·Make sure your connected devices are powered on. ·Be sure to select the correct input source. ·Reboot the connected device by reconnecting the device's power cable. |
| The remote control does not work. | ·Replace the remote control batteries with the poles (+/-) in the right direction. ·Clean the sensor's transmission window on the remote. ·Try pointing the remote directly at the TV from 5~6 feet away. |
| The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume. | ·Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code. |
Some of above pictures and functions are available at specific models only.
You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung. com Support Downloads) by USB.
Storage and Maintenance
If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.
Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.
Clean the product with a soft cloth dapped in a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.
Specifications
| Display Resolution | 1920 x 1080 |
| Environmental Considerations | |
| Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Operating Humidity | 10% to 80%, non-condensing |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Humidity | 5% to 95%, non-condensing |
| TV System | Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C/DVB-S2 |
| Colour/Video System | Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60 Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0 |
| Sound System | BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC |
| HDMI IN | Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits. |
| Stand Swivel (Left / Right) | -20° ~ 20° |
| Model Name | UE32ES6300 / UE32ES6340 | UE37ES6300 |
| Screen Size | 32 inches (80 cm) | 37 inches (94 cm) |
| Sound (Output) | 10 W X 2 | |
| Dimensions (WxHxD) | ||
| Body | 739.6 x 448.0 x 46.9 mm | 861.4 x 516.9 x 46.9 mm |
| With stand | 739.6 x 514.8 x 241.3 mm | 861.4 x 582.7 x 241.3 mm |
| Weight | ||
| Without Stand | 6.5 Kg | 9 Kg |
| With Stand | 7.7 Kg | 10.3 Kg |
| Model Name | UE40ES6300 / UE40ES6340 | UE46ES6300 / UE46ES6340 |
| Screen Size | 40 inches (101 cm) | 46 inches (116 cm) |
| Sound (Output) | 10 W X 2 | |
| Dimensions (WxHxD) | ||
| Body | 926.8 x 553.4 x 46.9 mm | 1062.2 x 629.8 x 46.9 mm |
| With stand | 926.8 x 619.1 x 241.3 mm | 1062.2 x 700.8 x 276.6 mm |
| Weight | ||
| Without Stand | 10.3 kg | 12.9 Kg |
| With Stand | 11.6 Kg | 14.7 Kg |
| Model Name | UE50ES6300 | UE55ES6300 / UE55ES6340 |
| Screen Size | 50 inches (125 cm) | 55 inches (138 cm) |
| Sound (Output) | 10 W X 2 | |
| Dimensions (WxHxD) | ||
| Body | 1139.3 x 672.7 x 46.9 mm | 1252.8 x 736.6 x 46.9 mm |
| With stand | 1139.3 x 743.3 x 276.6 mm | 1252.8 x 807.6 x 276.6 mm |
| Weight | ||
| Without Stand | 14.5 Kg | 16.2 Kg |
| With Stand | 16.3 Kg | 18 Kg |
| Model Name | UE60ES6300 | |
| Screen Size | 60 inches (152 cm) | |
| Sound (Output) | 10 W X 2 | |
| Dimensions (WxHxD) | ||
| Body | 1372.9 x 804.1 x 46.9 mm | |
| With stand | 1372.9 x 875.3 x 309.6 mm | |
| Weight | ||
| Without Stand | 19.7 Kg | |
| With Stand | 23 Kg | |
Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.
Typical power consumption is measured according to IEC 62087 Ed.2
Video Codec
| File Extension | Container | Video Codec | Resolution | Frame rate (fps) | Bit rate (Mbps) | Audio Codec |
| *.avi | Divx 3.11/4.x/5.x/6.x | 1920 x 1080 | 6-30 | 30 | AC3 LPCM ADMPCM(IMA, MS) AAC HE-AAC WMA DD+ MPEG(MP3) DTS Core G.711(A-Law, μ-Law) | |
| *.mkv | ||||||
| *.asf | MPEG4 SP/ASP | |||||
| *.wmv | H.264 BP/MP/HP | |||||
| *.mp4 | Motion JPEG | 640 x 480 | 8 | |||
| *.3gp | AVI | Window Media Video v9 | 1920 x 1080 | 30 | ||
| *.vro | MKV | |||||
| *.mpg | ASF | |||||
| *.mpeg | MP4 | |||||
| *.ts | 3GP | |||||
| *.tp | VRO | |||||
| *.trp | VOB | |||||
| *.mov | PS | |||||
| *.flv | TS | |||||
| *.vob | MPEG2 | |||||
| *.svi | MPEG1 | |||||
| *.m2ts | VP6 | |||||
| *.mts | ||||||
| *.divx | ||||||
| *.webm | WebM | VP8 | 1920 x 1080 | 6-30 | 8 | Vorbis |
Other Restriction
Video content will not play, or not play correctly, if there is an error in the content or the container.
Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.
If the Index Table is in error, the Seek (Jump) function is not supported.
When you play video over a network connection, the video may not be played smoothly.
The menu may take longer to appear if the video's bit rate exceeds 10Mbps.
Some USB/digital camera devices may not be compatible with the player.
Video decoder
Supports up to H.264, Level 4.1.
H.264 FMO/ASO/RS,VC1SP/MP/APL4 are not supported.
- For all Video codecs except VP8, VP6:
Below 1280 x 720: 60 frame max
-
Above 1280 x 720: 30 frame max
-
GMC is not supported.
Supports only SVAF Top/Bottom and Side by Side.
Audio decoder
WMA 9, 10 Pro supports up to 5.1 channel and M2 profile (except LBR mode of M0).
WMA lossless audio is not supported.
- If Vorbis is only in Webm container, supports up to 2 channel.
Display Resolution
| Mode | Resolution | Horizontal Frequency (KHz) | Vertical Frequency (Hz) | Pixel Clock Frequency (MHz) | Sync Polarity (H / V) |
| IBM | 640 x 350 | 31.469 | 70.086 | 25.175 | +/- |
| 720 x 400 | 31.469 | 70.087 | 28.322 | -/+ | |
| MAC | 640 x 480 | 35.000 | 66.667 | 30.240 | -/- |
| 832 x 624 | 49.726 | 74.551 | 57.284 | -/- | |
| 1152 x 870 | 68.681 | 75.062 | 100.000 | -/- | |
| VESA DMT | 640 x 480 | 31.469 | 59.940 | 25.175 | -/- |
| 640 x 480 | 37.861 | 72.809 | 31.500 | -/- | |
| 640 x 480 | 37.500 | 75.000 | 31.500 | -/- | |
| 800 x 600 | 37.879 | 60.317 | 40.000 | +/+ | |
| 800 x 600 | 48.077 | 72.188 | 50.000 | +/+ | |
| 800 x 600 | 46.875 | 75.000 | 49.500 | +/+ | |
| 1024 x 768 | 48.363 | 60.004 | 65.000 | -/- | |
| 1024 x 768 | 56.476 | 70.069 | 75.000 | -/- | |
| 1024 x 768 | 60.023 | 75.029 | 78.750 | +/+ | |
| 1152 x 864 | 67.500 | 75.000 | 108.000 | +/+ | |
| 1280 x 720 | 45.000 | 60.000 | 74.250 | +/+ | |
| 1280 x 800 | 49.702 | 59.810 | 83.500 | -/+ | |
| 1280 x 1024 | 63.981 | 60.020 | 108.000 | +/+ | |
| 1280 x 1024 | 79.976 | 75.025 | 135.000 | +/+ | |
| 1366 x 768 | 47.712 | 59.790 | 85.500 | +/+ | |
| 1440 x 900 | 55.935 | 59.887 | 106.500 | -/+ | |
| 1600 x 900RB | 60.000 | 60.000 | 108.000 | +/+ | |
| 1680 x 1050 | 65.290 | 59.954 | 146.250 | -/+ | |
| 1920 x 1080 | 67.500 | 60.000 | 148.500 | +/+ |
NOTE
- The interlace mode is not supported.
- The set might operate abnormally if a non-standard video format is selected.
Recommendation - EU Only
C E
- Hereby, Samsung Electronics, declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
- This equipment may only be used indoors.
- This equipment may be operated in all EU countries.
*Shielded Twist Pair
*Shielded Twist Pair
*Shielded Twist Pair
