USER MANUAL UN46C9000 SAMSUNG

LED TV user manual Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Customer Care Center Web Site Address CANADA 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 LED TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model______________ Serial No.______________ © 2010 Samsung Electronics Co., Ltd. All rights reserved. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Important Warranty Information Regarding Television Format Viewing ✎✎ See the warranty card for more information on warranty terms. Wide screen format LED Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on no expanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LED Displays that leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.

• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only. The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product. Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables. For the location of a SAMSUNG Authorized Service Center, please call toll-free: – In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG Still image warning Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of a still picture can cause ghosting of the LED screen, which will affect image quality. To reduce risk of this effect, please follow the recommendations below:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details. Securing the Installation Space Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product. ✎✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only. xx If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling. ✎✎ The appearance may differ depending on the product. Installation with a stand. Installation with a wall-mount. 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches

• English Contents Getting Started Advanced Features Connecting to an AV Device p. 11
• Connecting to an Audio Device p. 13
• Connecting to a PC p. 14
• Changing the Input Source Connecting to a Wired Network Connecting to a Wireless Network p. 15

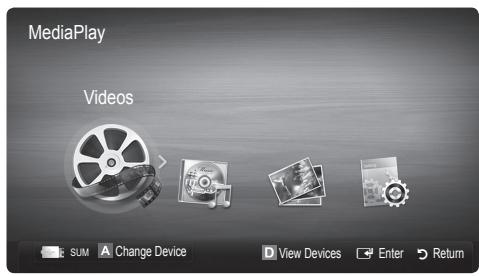

yy Media Play............................................................... 39 Connecting a USB Device Connecting to your PC through a network Screen Display Playing Multiple Files Media Play - Additional Functions

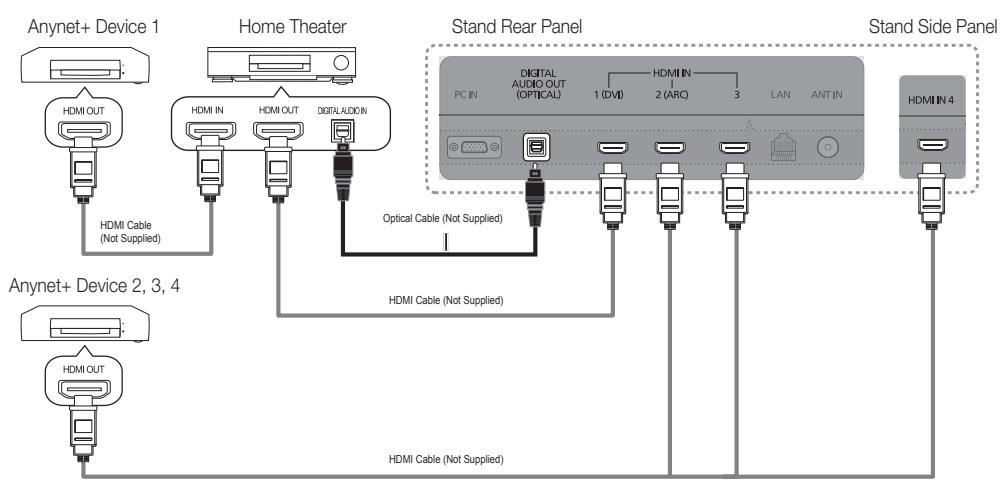

yy Anynet+................................................................... 46 Setting Up Anynet+ Switching between Anynet+ Devices Recording Listening through a Receiver Troubleshooting for Anynet+

yy Internet@TV............................................................. 50 Basic Features Getting Started with Internet@TV Setting up Internet@TV Using the Internet@TV service PROFILE Widget Widget Gallery Troubleshooting for Internet@TV Help Website yy How to Navigate Menus........................................... 15 yy Channel Menu......................................................... 16 Seeing Channels Using Favorite Channels Memorizing Channels Editing Channels Other Features

yy Sound Menu............................................................ 24 Changing the Preset Sound Mode Adjusting Sound Settings Sound Settings

Changing the Preset Picture Mode Adjusting Picture Settings Economical Solutions Changing the Picture Options Viewing TV using the 3D function Setting up the TV with Your PC

Check the Symbol! TOOLS

This function can be used by pressing the TOOLS button on the remote control. Note Step by Step Guide Indicates additional information. Check here for instructions on how to open the relevant submenu within the OSD (on screen display). English Getting Started List of Features yy Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) satellite receiver. yy Media Play: Allows you to play music files, pictures, and movies saved on a USB device (p. 39). yy Internet@TV: You can use various internet services and view useful information and entertaining content (p. 50). yy AllShare: AllShare connects your TV and compatible Samsung mobile phones/devices through a network (p. 57). yy Self Diagnosis: You can check whether picture or sound operate normally (p. 30). yy 3D: This exciting new feature enables you to view 3D content. Accessories ✎✎Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer. ✎✎The items' colors and shapes may vary depending on the models. yy Owner’s Instructions yy Cleaning Cloth (BN63-01798B) yy Warranty Card / Safety Guide / Quick Setup Guide (M4XL12) AV Adapter (BN39-01154H) Component Adapter (BN39-01154C) TV-Holder & Screw (1EA) (BN96-10788D) Mini Remote Control & Lithium battery Samsung Wireless Lan Adapter For stand type (BN59-00788A) (WIS09ABGN2) USB adapter For wall mount type Touch Control yy Owner’s Instructions MUTE yy Warranty Card / Quick Setup Guide

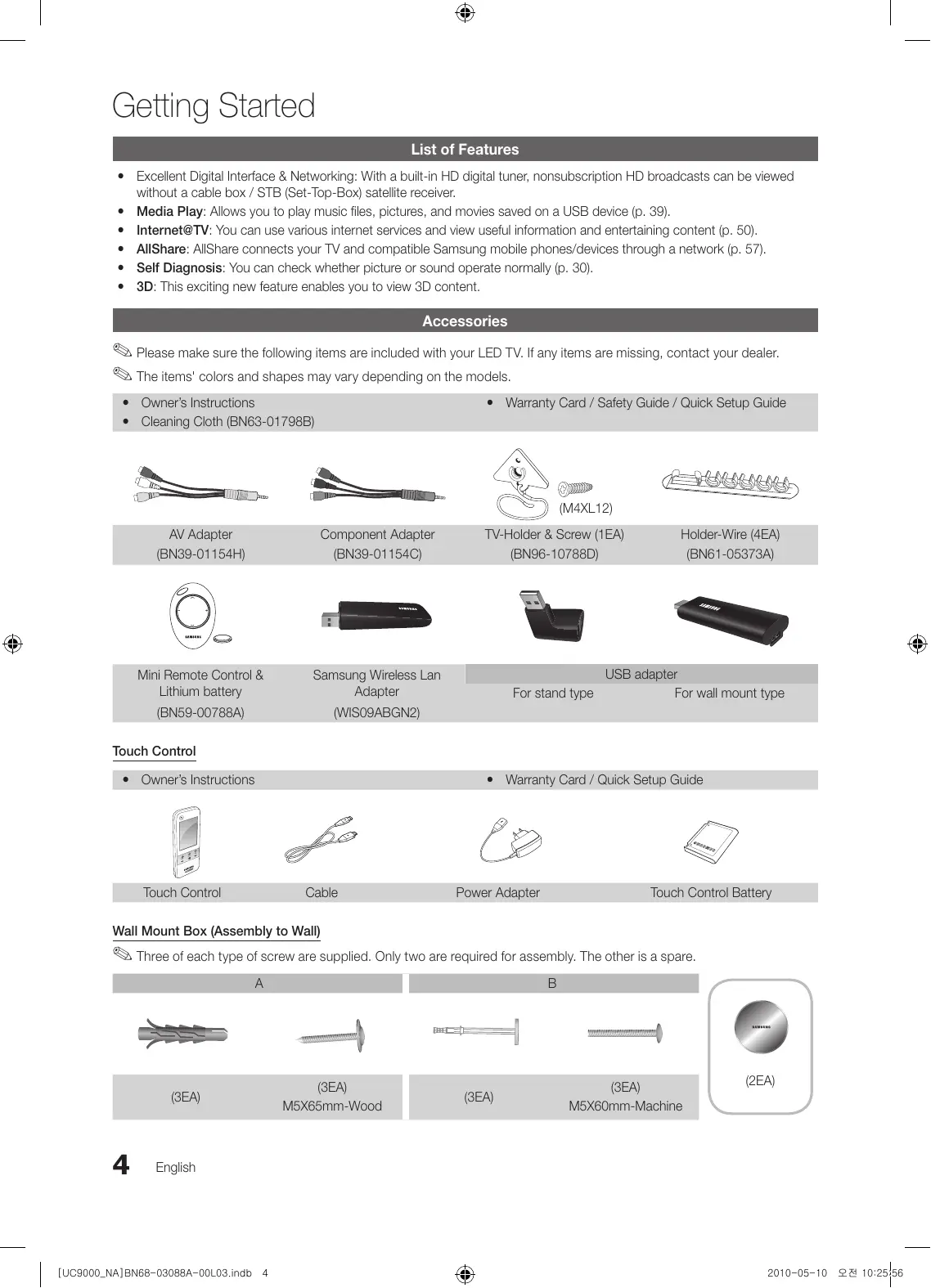

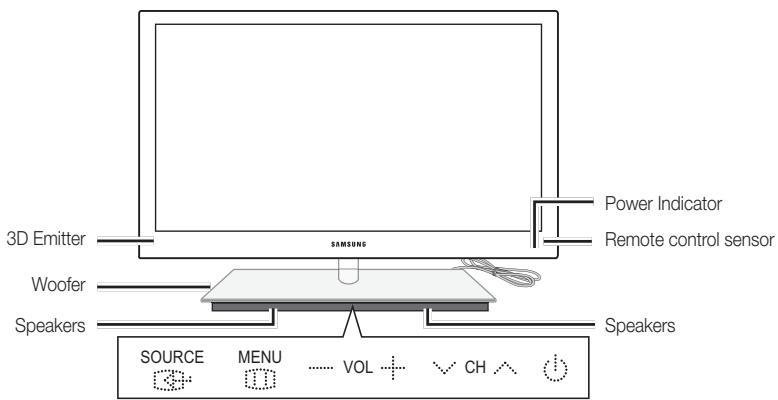

SOUR VOL Touch Control Cable Power Adapter Touch Control Battery Wall Mount Box (Assembly to Wall) ✎✎Three of each type of screw are supplied. Only two are required for assembly. The other is a spare.

(3EA) M5X65mm-Wood (3EA) (3EA) M5X60mm-Machine (2EA) English ✎✎For best cable connection to this product, be sure to use cables with a maximum thickness as below: yy Maximum thickness - 0.55 inches (14mm) Input Cables (Sold Separately) HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA Viewing the Control Panel ✎✎The product color and shape may vary depending on the model. Power Indicator 3D Emitter Remote control sensor Woofer Speakers Speakers SOURCE MENU VOL

✎✎To control the TV using the LED touch pad, tap the LED touch pad centered underneath the stand. The touch pad will slide out by itself. The LED touch pad will slide back in if unused for a specified period of time. 3D Emitter Power Indicator Remote control sensor SOURCEE MENUm

P (Power) The LED on the 3D emitter blinks only when sending a 3D signal. Blinks and turns off when the power is on and lights up in standby mode. Aim the remote control towards this spot on the TV. Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control. Displays an on-screen menu, the OSD (on screen display) of your TV’s features. Adjusts the volume. In the OSD, use the y buttons as you would use the ◄ and ► buttons on the remote control. Changes the channels. In the OSD, use the z buttons as you would use the ▼ and ▲ buttons on the remote control. Turns the TV on or off. Standby mode Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord. English Getting Started Mini Remote Control The Mini Remote Control is a simplified remote control that consists of the power, channel and volume buttons only. ¦¦ Description Power On/Off button ✎✎ Point the IrDA transmitter at the TV to use the mini remote. Next channel Volume decrease IrDA transmitter Volume increase Previous channel ✎✎This is a special remote control for the visually impaired and has Braille points on the Channel and Volume buttons.

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA ‘Perchloate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate:’ ¦¦ Inserting the battery

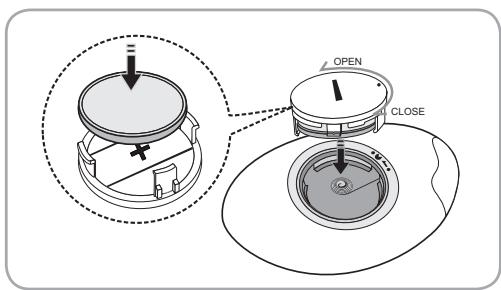

1. Turn the battery cover counterclockwise to unlock it and then

separate the battery cover.

2. Insert a 3V Lithium battery with the + side facing down into the

battery cover. OPEN CLOSE

3. Place the battery cover into the remote control aligning it with the

grooves and then turn the battery cover clockwise to lock the cover. ✎✎If the remote control doesn’t work, check the following: xx Is the TV power on? xx Are the plus and minus ends of the batteries reversed? xx Are the batteries drained? xx Is there a power outage or is the power cord unplugged? xx Is there a special fluorescent light or neon sign nearby?

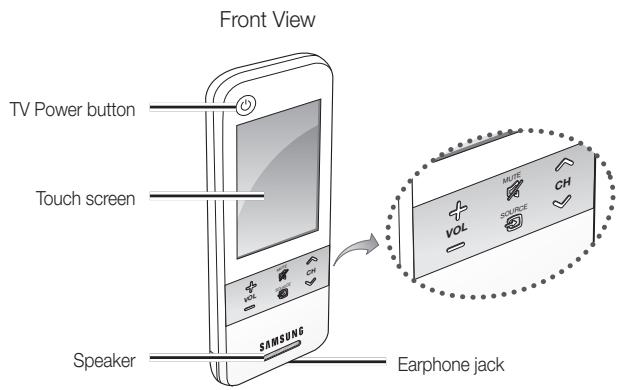

English Viewing the Touch Control ¦¦ Description Front View Rear View TV Power button Battery cover UTE

Speaker Earphone jack Power Turn the TV on and off. MUTE Mute or unmute the sound. SOURCE Display the source list (TV, PC, etc.) on the screen. Volume Press to control the volume. Channel Press to change channels. ¦¦ Inserting the battery

1. Slide and open the battery cover

in the direction of the arrow.

2. Insert the battery with the

Samsung logo facing up.

3. Slide and close the battery

cover in the direction of the arrow. English Getting Started ¦¦ Remote Control Screen Display

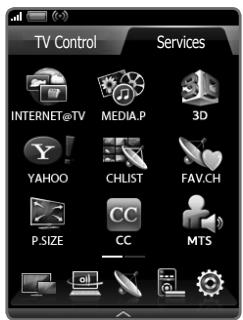

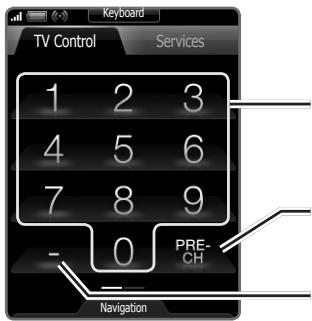

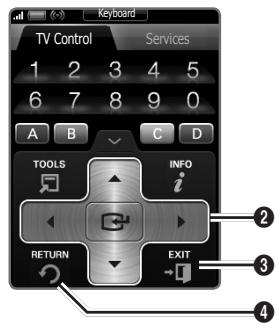

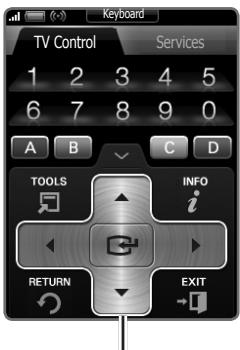

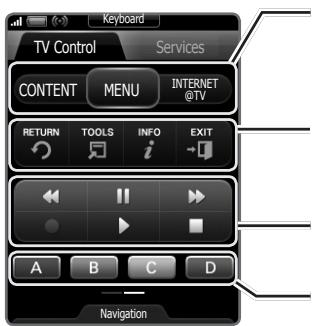

Initial Screen Keyboard TV Control Services Press to directly access channels. Returns to the previous channel. Press to select additional channels (digital) being broadcasted by the same station. For example, to select channel “54-3”, press “54”, then press “–” and “3”. Navigation

Drag to the Left direction Keyboard CONTENT: Displays the Content View, which includes Channel List, Internet@TV, Media Play, AllShare and 3D. MENU: Brings up the OSD. INTERNET@TV: Link to various internet services (p. 50). RETURNR: Returns to the previous menu. TOOLST: Quickly select frequently used functions. INFO : Displays information on the TV screen. EXITe: Exits the menu. Use these buttons in Media Play and Anynet+ modes (p. 39, 46). (: Controls recording for Samsung recorders that have the Anynet+ feature) Buttons used in the Channel List, Internet@TV, Media Play menu, etc. Navigation

Selects the on-screen menu items and changes the values seen on the menu.

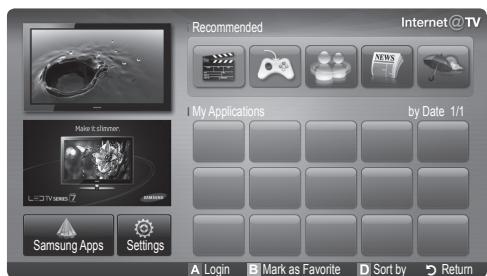

TV Control Services INTERNET@TV: Link to various internet services (p. 50). MEDIA.P: Displays Media Play (p. 39). 3D: Sets the 3D mode. (p. 22). YAHOO!: Runs the Yahoo widget. (p. 54). CHLIST: Displays channel lists on the screen (p. 16). FAV.CH: Displays Favorite Channel Lists on the screen (p. 16). P.SIZE: Selects the picture size (p. 20). CC: Controls the caption decoder (p. 28). MTS: Press to choose stereo, mono or Separate Audio Program (SAP broadcast) (p. 25). English You can set up your Touch Control to control your TV in three ways: As a standard, IR (Infra Red) remote As an IR remote, your LCD Touch Control works the same way as a standard push button remote, except you touch icons and symbols on the LCD screen to control your TV instead of pushing buttons. Using your Touch Control as an IR remote requires no more set up than a standard remote and gives you access to most of the remote’s functions and features. 01 Getting Started ¦¦ Setting Up Your Remote As an extended distance, Wi-Fi remote As an extended distance, Wi-Fi remote, your Touch Control offers all the functions and features of the IR mode and, because it uses Wi-Fi radio waves instead of infra red waves to control your TV, it lets you control your TV from a much greater distance and even from around corners. It also gives you access to the Twin Display function which lets you watch the program or content that is on your TV screen on the LCD screen of the Touch Control. The long distance, Wi-Fi mode requires a few additional setup steps; possibly including re-initialization. It also requires you to attach Samsung’s Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB ports. As a networked, Wi-Fi remote As a networked, Wi-Fi remote, your Touch Control gives you all the functions and features of the IR and the extended distance modes and also gives you access to the Multimedia function which lets you listen to or view music, movie, and picture files from your PC on your TV screen. You can also download upgrades to your Touch Control’s software directly from the Internet. The networked, Wi-Fi mode requires the largest number of setup steps. In addition, to use the networked, Wi-Fi mode, you need a working local area network and a wireless router. You also need to attach Samsung’s Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB ports. To use the Multimedia function, you need to install Samsung’s PC Share Manager on your PC. You can download PC Share Manager from http://www.samsung.com. ¦¦ Setting up the Network You can set up a wireless network for the Touch Control. How to connect using PBC (WPS) If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN.

Press the PBC button on the access point within 120 seconds.

2. On the Services screen, touch Settings → Remote Settings.

3. Touch Network.

4. Touch the PBC(WPS).

5. If the Press PBC button on the access point within 120 seconds. message appears,

press the PBC button on the device to connect. ✎✎ For more information, refer to the wireless network setup manual of the device to be connected. 6. If the device is connected properly to the TV after starting count on message box then message box will be disappeared automatically. ✎✎ If the connection fails, please retry after 2 minutes. Connecting to network To setup the wireless connection automatically, follow these steps:

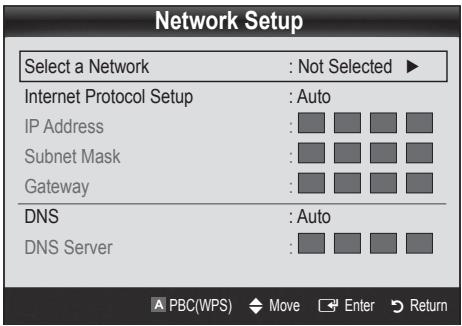

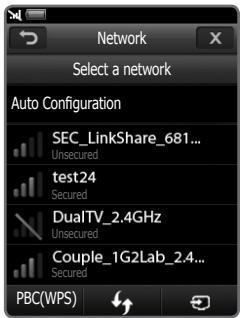

1. Follow Steps 1 through 3 in the “How to connect using PBC (WPS)” procedure.

✎✎ If the intended network cannot be found in the list, select to open the list of networks again.

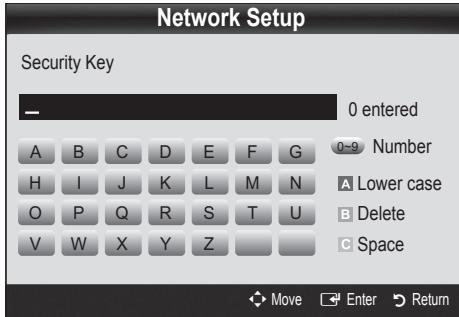

2. Select a network and connect to the network using the encryption method (PIN, security

key, ad-hoc, etc.) set for the network.

3. When the network connection is complete, select Test to perform a network test.

✎✎ For the automatic IP, the AP will automatically define the IP Address, Subnet Mask, Gateway and DNS server. ✎✎ For the manual IP, you can select Edit and directly enter the IP Address, Subnet Network Select a network Auto Configuration Unsecured Secured Unsecured Secured PBC(WPS) Mask, Gateway and DNS server. ✎✎For Full Touch Control instructions, please read the Touch Control's user manual. English Getting Started Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. ✎✎Connecting the power cord and antenna. VHF/UHF Antenna Cable

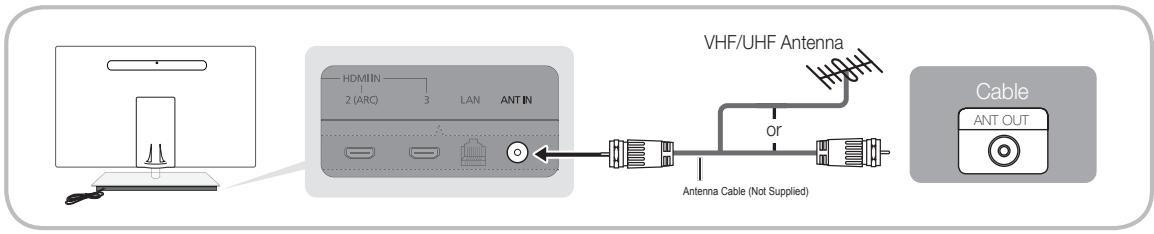

ANT OUT Antenna Cable (Not Supplied) Plug & Play (Initial Setup) When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button. Plug & Play is available only when the Input source is set to TV. ✎✎To return to the previous step, press the Red button.

Turn on the TV and Touch Control. yy Turn on the Touch Control and then tap OK on your remote. ✎✎It may take about one minute to establish a wireless connection between the TV and Touch Control using the Samsung Wireless LAN Adapter.

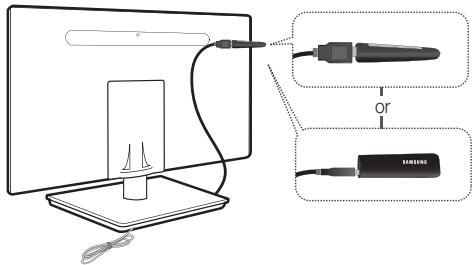

Connect the Samsung Wireless LAN Adapter

Selecting a language

Selecting an antenna

Setting the Clock Mode

View the HD Connection Guide Enjoy your TV. Selecting Store Demo or Home Use Selecting a channel yy Connect the Samsung Wireless LAN Adapter to the TV. You can connect the Samsung Wireless LAN Adapter using the method shown on page 35. yy If the connection fails, reconnect the Samsung Wireless LAN Adapter and then try again. Press the ▲ or ▼ button, then press the ENTERE button. Select the desired OSD (On Screen Display) language. Press the ◄ or ► button, then press the ENTERE button. yy Select the Home Use mode. Store Demo Mode is for retail environments. yy To return the unit’s settings from Store Demo to Home Use (standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec. Press the ▲ or ▼ button, then press the ENTERE button. Select Air, Cable or Auto. Press the ▲ or ▼ button, then press the ENTERE button. Select the channel source to memorize. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Program (p. 16).

Press the ENTERE button at any time to interrupt the memorization process. Set the Clock Mode automatically or manually. yy Auto: Allows you to select DST (Daylight Saving Time) mode and time zone. yy Manual: Allows you to manually set the current date and time (p. 26). The connection method for the best HD screen quality is displayed. Press the ENTERE button. If You Want to Reset This Feature... Connecting to an AV Device Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p) We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver Audio Cable (Not Supplied) Device AUDIO OUT HDMI Cable (Not Supplied) HDMI to DVI Cable (Not Supplied) Device DVI OUT R-AUDIO-L

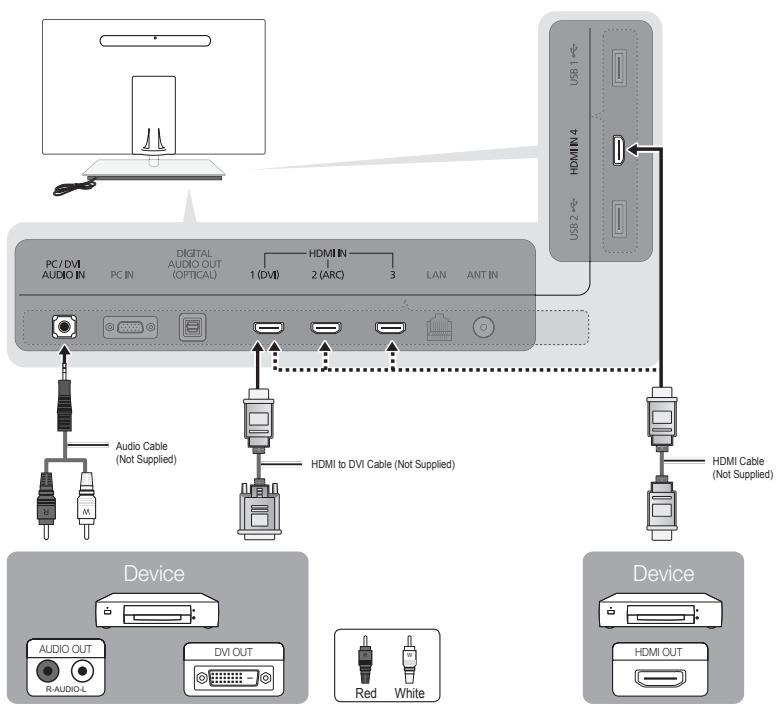

Red White HDMI OUT ✎✎HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN xx For better picture and audio quality, connect to a digital device using an HDMI cable. xx An HDMI cable supports digital video and audio signals, and does not require an audio cable. –– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables. xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade. xx Be sure to use an HDMI cable with a thickness of 14 mm or less. xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur. xx A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI. xx This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2(ARC) port only. –– If 3D Auto View is set to On, some functions such as Internet@TV may be disabled. In this case, set 3D Auto View or 3D Mode to Off. xx The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function. English Connections Using a Component (up to 1080p) or Audio/Video (480i only) Cable Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR Device COMPONENT OUT AUDIO OUT

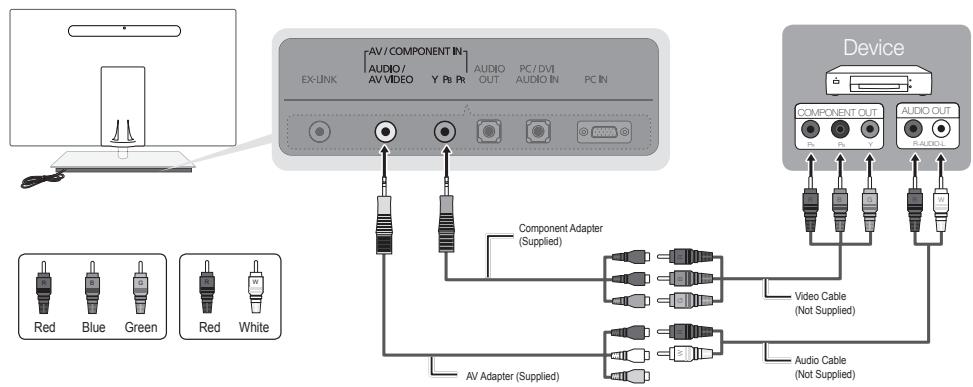

Component Adapter (Supplied) Green Red White Video Cable (Not Supplied)

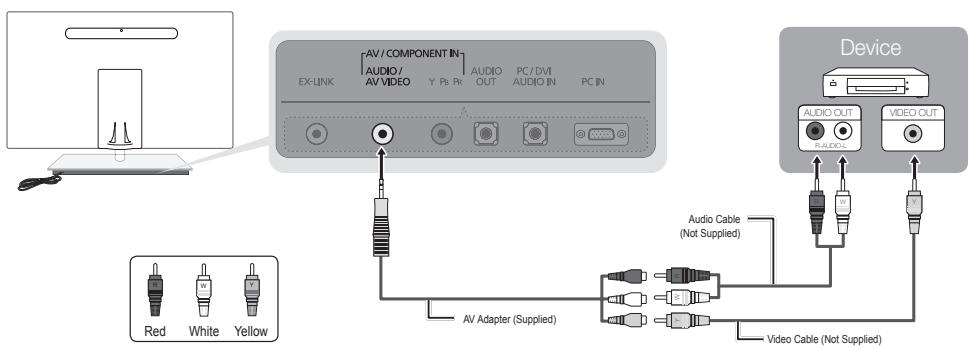

Red AV Adapter (Supplied) Audio Cable (Not Supplied) Device AUDIO OUT VIDEO OUT R-AUDIO-L

Audio Cable (Not Supplied)

Red White Yellow AV Adapter (Supplied)

Video Cable (Not Supplied) ✎✎For better picture quality, the Component connection is recommended over the A/V connection. Using an EX-Link Cable Connection Available Devices: External devices that support EX-Link. EX-LINK: Connector for service only.

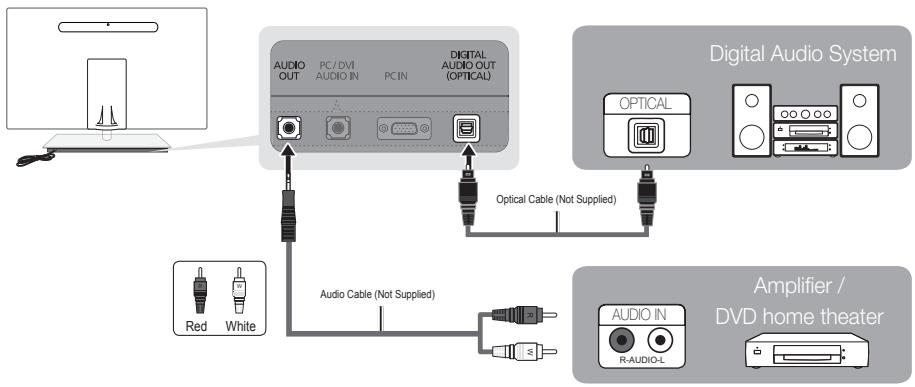

English Connecting to an Audio Device Using an Optical (Digital) or Audio (Analog) Cable Connection Available devices: Digital Audio System, Amplifier, DVD home theater Digital Audio System OPTICAL Optical Cable (Not Supplied)

Audio Cable (Not Supplied) White AUDIO IN Amplifier / DVD home theater R-AUDIO-L ✎✎DIGITAL AUDIO OUT (OPTICAL) xx When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system. xx 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. xx When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater. ✎✎AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theater. xx When connecting, use the appropriate connector. xx When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the volume level with the amplifier’s volume control. English Connections Connecting to a PC Using an HDMI/DVI cable or a D-sub cable Audio Cable (Not Supplied) AUDIO OUT DVI OUT HDMI to DVI Cable (Not Supplied) D-Sub Cable (Not Supplied) PC OUT Audio Cable (Not Supplied) AUDIO OUT Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution is 1920 X 1080 @ 60 Hz. Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V) IBM 640 x 350 720 x 400

MAC 640 x 480 832 x 624 1152 x 870

VESA CVT 720 x 576 1152 x 864 1280 x 720 1280 x 960

VESA DMT 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

VESA GTF 1280 x 720 1280 x 1024

VESA DMT / DTV CEA

✎✎NOTE xx For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. xx The interlace mode is not supported. xx The set may operate abnormally if a non-standard video format is selected. xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English Source List Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver. ✎✎ You can only choose external devices that ■■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier. 02 Connections Changing the Input Source ✎✎When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set the TV to DVI PC mode under Edit Name. ✎✎When connecting an HDMI/DVI cable to the HDMI IN are connected to the TV. In the Source List, connected inputs will be highlighted. 1(DVI) port, you should set the TV to DVI PC or DVI Devices mode under Edit Name. ✎✎ In the Source List, PC is always activated. Basic Features How to Navigate Menus How to Operate the OSD (On Screen Display) Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions. Keyboard The access step may differ depending on the selected menu.

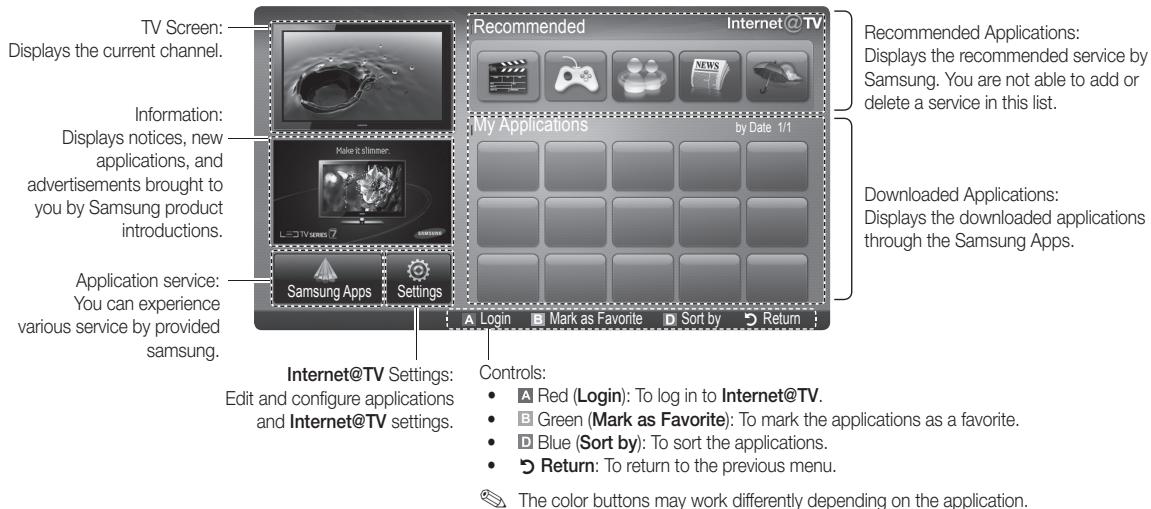

ENTER E Services INTERNET @TV

The main menu options appear on the screen: Picture, Sound, Channel, Setup, Input, Application, Support. Select an icon with the ▲ or ▼ button. Press ENTERE to access the sub-menu. Select the desired submenu with the ▲ or ▼ button. Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu. Press ENTERE to confirm the selection. Press EXIT. English Basic Features Channel Menu ¦¦ Using Favorite Channels OO MENU → Channel → Channel List → ENTERE ¦¦ Seeing Channels Add to Favorite / Delete from Favorite Channel List

Add, delete or set Favorite channels and use the program guide for digital broadcasts. OO MENU → Channel → Channel List → CHLIST ENTERE Added Channels

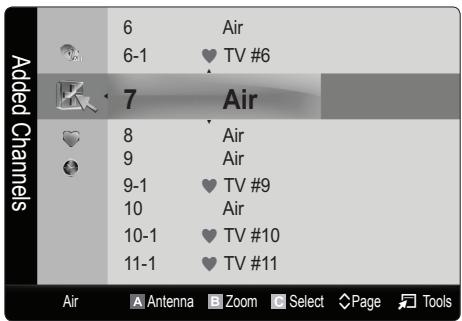

9-1 10-1 11-1 Air Antenna

2. Add or delete a channel using the Add to Favorite or

Delete from Favorite menu respectively. Added Channels Select a channel in the All Channels, Added Channels, Favorite or Programmed screen by pressing the ▲ / ▼ and ENTERE buttons. Then you can watch the selected channel. Set channels you watch frequently as Favorites.

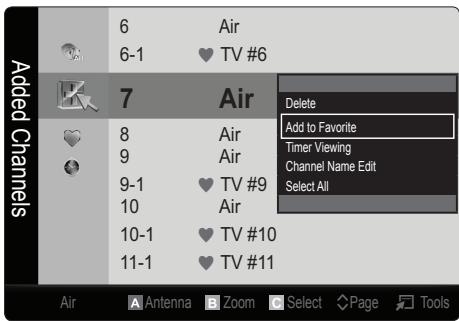

1. Select a channel and press the TOOLS button.

9-1 10-1 11-1 Air Antenna Delete Add to Favorite Timer Viewing Channel Name Edit Select All Select kPage T Tools To show all Favorite channels, click on the button shown on the right. Select kPage T Tools FAV.CH All Channels: Shows all currently available channels.

Added Channels: Shows all added channels.

• Favorite: Shows all favorite channels.

Programmed: Shows all currently reserved programs. ✎✎Using the color buttons with the Channel List xx Red (Antenna): Switches to Air or Cable. xx B Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists. Select desired channels and press the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels. xx k (Page): Move to next or previous page. xx T (Tools): Displays the Channel List option menu. (The options menus may differ depending on the situation.) ¦¦ Memorizing Channels OO MENU → Channel → ENTERE Antenna (Air / Cable) t Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Auto Program ■■ Air: Air antenna signal. ■■ Cable: Cable antenna signal. ■■ Auto: Air and Cable antenna. Channel Status Display Icons Icons

Operations A channel selected. A channel set as a Favorite. A reserved Program. English xx When selecting the Cable TV system: STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected. xx After all the available channels are stored, it starts to remove scrambled channels. The Auto Program menu then reappears. ¦¦ Editing Channels OO MENU → Channel → Channel List → ENTERE Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu. ■■ Channel Name Edit (analog channels only): Assign your own channel name. ¦¦ Other Features OO MENU → Channel → ENTERE Clear Scrambled Channel ✎✎ NOTE xx All deleted channels will be shown on the All Channels menu. xx A gray-colored channel indicates the channel has been deleted. xx The Add menu only appears for deleted channels. xx Delete a channel from the Added Channels or Favorite menu in the same manner. ■■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function.

1. Press the ◄ / ► / ▲ / ▼ buttons to select the

desired channel in Channel List.

2. Press the TOOLS button, then select Timer

3. Scroll up or down to adjust the settings in the box,

or use the numeric buttons on your remote to enter the date and time. ✎✎ If you selected Once, Every Week or EveryDay in Repeat you can enter the date you want.

4. Select OK, then press the ENTERE button when

done. ✎✎ NOTE xx Only memorized channels can be reserved. xx Reserved programs will be displayed in the Programmed menu. xx When a digital channel is selected, press the ► This function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes. ■■ Select All: Select all the channels in the channel list. How to Stop Searching Scrambled Channels ■■ Deselect All: Deselect all the selected channels.

1. Press the ENTERE button to select Stop.

2. Press the ◄ button to select Yes.

3. Press the ENTERE button.

✎✎This function is only available in Cable mode. Channel List Channel List Option Menu Set each channel using the Channel List menu options (Add / Delete, Timer Viewing, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■■ Add / Delete: Delete or add a channel to display the channels you want. button to view the digital program. ✎✎ You can only select Deselect All when one or more channels are selected. Programmed (in Channel List) You can view, modify or delete a show you have reserved to watch. Programmed timer viewing is displayed here. Highlight a program and press the TOOLS button to display Options. ■■ Change Info: Change a show you have reserved to watch. Begin with step 3 of “Timer Viewing” above. ■■ Cancel Schedules: Cancel a show you have reserved to watch. ✎✎ This deletes the highlighted or selected program(s). English Basic Features ■■ Information: Display a show you have reserved to watch. (You can also change the reservation Information.) ✎✎ Alternatively, you can view Information by highlighting a program and pressing the ENTERE button. ■■ Select All / Deselect All: Select or deselect all reserved programs. ¦¦ Adjusting Picture Settings OO MENU → Picture → ENTERE Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R) Your television has several setting options for picture quality control. ✎✎NOTE Fine Tune (analog channels only) If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, fine tune the channel manually. Scroll to the left or right until the image is clear. ✎✎Settings are applied to the channel you're currently xx When you make changes to Backlight, Contrast, Brightness, Sharpness, Color or Tint (G/R) the OSD will be adjusted accordingly. xx In PC mode, you can only make changes to Backlight, Contrast and Brightness. xx Settings can be adjusted and stored for each external device connected to the TV. watching. ✎✎Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner. ✎✎To reset the fine-tuning, select Reset. Picture Menu ¦¦ Changing the Preset Picture Mode OO MENU → Picture → Mode → ENTERE Mode t Select your preferred picture type. ■■ Dynamic: Suitable for a bright room. ■■ Standard: Suitable for a normal environment. ■■ Natural: Suitable for reducing eye strain. ✎✎ Natural is not available in PC mode. ■■ Movie: Suitable for watching movies in a dark room. ¦¦ Economical Solutions The Eco Function can be used to enhance your power savings. Eco Solution OO MENU → Picture → Eco Solution → ENTERE ■■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto): This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except the volume button to turn on the screen. ■■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room. ✎✎ If you adjust the Backlight, the Eco Sensor will be set to Off. Min Backlight: When Eco sensor is On, the minimum screen brightness can be adjusted manually. If Eco Sensor is On, the display brightness may change (become slightly darker in most cases) depending on the surrounding light intensity.

■■ No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal. ✎✎ Disabled when the PC is in power saving mode.

English ■■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue color for making fine adjustments to the hue and saturation. Advanced Settings ■■ Color Space (Auto / Native / Custom): Adjust the range of colors available to create the image. To adjust Color, Red, Green, Blue and Reset, set Color Space to Custom. OO MENU → Picture → Advanced Settings → ENTERE (Advanced Settings are available in Standard / Movie mode) Compared to previous models, new Samsung TVs have a more precise picture. ✎✎In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance, LED Motion Plus. Advanced Settings Black Tone : Off ► Dynamic Contrast : Medium Shadow Detail : -2 Gamma

Expert Pattern : Off RGB Only Mode : Off Color Space : Native

U Move E Enter R Return ■■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth. ■■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast. ■■ Shadow Detail (-2~+2): Increase the brightness of dark images. ■■ Gamma: Adjust the primary color intensity. ■■ Expert Pattern (Off / Pattern1 / Pattern2): By running the Expert Pattern function, the picture can be calibrated. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears. Off: Turns the Expert Pattern function off. Pattern1: This is a test screen designed to demonstrate the affects of display settings on shades. Pattern2: This is a test screen designed to demonstrate the affects of display settings on colors. After selecting Pattern1 or Pattern2, you can adjust any of the advanced settings to the desired effect.

■■ White Balance: Adjust the color temperature for a more natural picture. 03 Basic Features ¦¦ Changing the Picture Options R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness. R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness. Reset: Resets the White Balance to it's default settings. ■■ 10p White Balance (Off / On): Controls the white balance in 10 point intervals by adjusting the red, green, and blue brightness. ✎✎ Available when the picture mode is set to Movie and when the external input is set to HDMI or Component. ✎✎ Some external devices may not support this function. Interval: Select interval to adjust. Red: Adjust the red level. Green: Adjust the green level. Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default settings. ■■ Flesh Tone: Emphasize pink “Flesh Tone.” ■■ Edge Enhancement (Off / On): Emphasize object boundaries. ■■ xvYCC (Off / On): Setting the xvYCC mode on increases detail and color space when watching movies from an external device (e.g. BD/DVD player) connected to the HDMI or Component IN jacks. ✎✎ Available when the picture mode is set to Movie and when the external input is set to HDMI or Component. ✎✎ Some external devices may not support this function. ■■ LED Motion Plus (Off / On): Removes drag from fast scenes with a lot of movement to provide a clear picture. ✎✎ While the Expert Pattern is running, sound is not output. ✎✎ Only enabled in DTV, Component and HDMI modes. English Basic Features ✎✎NOTE Picture Options OO MENU → Picture → Picture Options → ENTERE ✎✎In PC mode, you can only make changes to the Color Tone, Size and Auto Protection Time. Picture Options Color Tone : Normal ► Size : 16:9 xx After selecting Zoom1, Zoom2 or Wide Fit:

1. Press the ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲ or ▼ button to move the picture up

4. Press the ENTERE button.

5. Press the ► button to select Reset.

6. Press the ENTERE button to reset the picture

to its default position. xx After selecting Screen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

U Move E Enter R Return ■■ Color Tone (Cool / Normal / Warm1 / Warm2)

2. Press the ENTERE button.

3. Press the ▲, ▼, ◄ or ► button to move the

picture. ✎✎Warm1 or Warm2 will be deactivated when the picture ✎✎Settings can be adjusted and stored for each external mode is Dynamic. device connected to an input on the TV. ■■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

5. Press the ◄ or ► button to select Reset.

xx HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) xx Settings can be adjusted and stored for each P.SIZE 16:9 : Sets the picture to 16:9 wide mode. Zoom1: Use for moderate magnification. Zoom2: Use for a stronger magnification. Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen. Available with HD 1080i / 720p signals in 16:9 mode.

4:3 : Sets the picture to basic (4:3) mode. Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention(screen burn) which are not covered by the warranty. external device you have connected to an input on the TV. Input Source ATV, AV, Component (480i, 480p) DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p)

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

English ✎✎ When the signal is weak, try other options until the best picture is displayed. Auto Visualization: When changing analog channels, displays signal strength. Only available for analog channels.

✎✎ When bar is green, you are receiving the best possible signal. ■■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality. ■■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth. ✎✎ Available only in HDMI mode. ■■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjusts the picture for optimum quality. ✎✎ Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i). ■■ Auto Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo): Removes drag from fast scenes with a lot of movement to provide a clearer picture. ✎✎ If noise occurs on the screen, please set the Auto Motion Plus to Off. If Auto Motion Plus is Custom, you can set up the Blur Reduction, Judder Reduction or Reset manually. OO MENU → Picture → 3D → ENTERE

IMPORTANT HEALTH AND SAFETY INFORMATION FOR

3D PICTURES. Read and understand the following safety information before using the TV’s 3D function. [[WARNING xx Some viewers may experience discomfort while 03 Basic Features ■■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen. viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove 3D Active Glasses and rest. xx Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses and rest. xx A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. xx Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) xx Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injuries due to running into objects, tripping, and/or falling. ✎✎ If Auto Motion Plus is Demo, you can compare the difference between on and off modes. Blur Reduction: Adjusts the blur reduction level from video sources. Judder Reduction: Adjusts the judder reduction level from video sources when playing films. Reset: Reset the custom settings. ■■ Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): Set the time the screen remains idle with a still image until the screen saver is activated. The screen saver prevents the formation of ghost images on the screen. English Basic Features ✎✎ “Side by Side” and “Top & Bottom” are available

This exciting new feature enables you to view 3D content. In order to fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses (SSG-2100AB, SSG-2200AR, SSG-2200KR) to view 3D video. Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV. when the resolution is 720p, 1080i and 1080p in DTV, HDMI and USB mode or when set to PC and the PC is connected through an HDMI/DVI cable.

✎✎ “Vertical Strip”, “Line by Line” and “Checker Board” are available when the resolution is set to PC and the PC is connected through an HDMI/ DVI cable. ✎✎ “Frequency” displays the frequency (60Hz only) when the resolution is set to PC. ■■ 3D → 2D (Off / On): Displays the image for the left eye only. ✎✎ This function is deactivated when 3D Mode is set to “2D → 3D” or Off. ■■ 3D View point: The overall adjustment of 3D perspective. 3D emitter ✎✎ This function is deactivated when 3D Mode is set to “2D → 3D” or Off. ✎✎If there is any obstacle between the emitter and 3D Active Glasses, the proper 3D effect may not be obtained. ■■ 3D Mode: Select the 3D input format. ✎✎ If you want to feel the 3D effect fully, please wear the 3D Active Glasses first, and then select 3D Mode from the list below that provides the best 3d viewing experience. ✎✎ When watching 3D images, turn on 3D Active Glasses. 3D Mode Operation Off Turns the 3D function off. 2D → 3D Side by Side Top & Bottom Line by Line Vertical Stripe Checker Board Frequency

Changes a 2D image to 3D. Displays two images next to each other. Displays one image above another. Displays the images for the left and right eye alternately in rows. Displays the images for the left and right eye alternately in columns. Displays the images for the left and right eye alternately in pixels. Displays the images for the left and right eye alternately in frames. ■■ Depth: Adjusts focus / depth in “2D → 3D” mode. ✎✎ This function is only activated when the 3D Mode is “2D → 3D”. ■■ Picture Correction: Adjusts the images for the left and right eye. ■■ 3D Auto View (Off / On): If 3D Auto View is set to On, a “Side-By-Side” format HDMI signal with one of the resolutions below is automatically switched to 3D. Here, correct 3D information must be sent from the Standard HDMI 3D Format. ✎✎ If a 3D failure occurs due to a 3D information error, set 3D Auto View to Off and manually select a 3D Mode using the 3D button or corresponding menu. ✎✎ Support resolution (16:9 only) Resolution 1280 x 720p 1920 x 1080i 1920 x 1080p Frequency (Hz) 60 Hz 60 Hz 24 / 30 / 60 Hz ■■ 3D Optimize: The overall adjustment of 3D effect. Resolution supported for HDMI PC mode The resolution for HDMI PC mode is optimized to 1920 x 1080 input. An input resolution other than 1920 x 1080 may not be displayed properly in 3D display or full screen mode. English

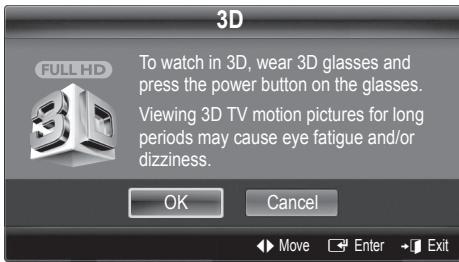

To watch in 3D, wear 3D glasses and press the power button on the glasses. Viewing 3D TV motion pictures for long periods may cause eye fatigue and/or dizziness.

Cancel L Move E Enter e Exit

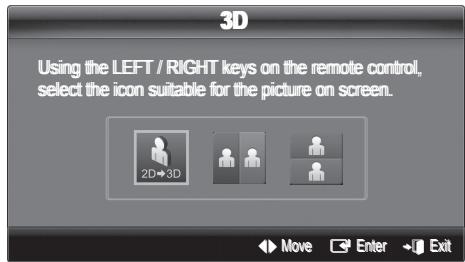

Using Using the the LEFT LEFT // RIGHT RIGHT keys keys on on the the remote remote control, control, select select the the icon icon suitable suitable for for the the picture picture on on screen. screen. xx You may notice a small amount of screen flickering when watching 3D images in poor light conditions (from a strobe light, etc.), or under a fluorescent lamp (50Hz ~ 60Hz) or 3 wavelength lamp. If so, dim the light or turn the lamp off. xx 3D mode is automatically disabled in following cases: 03 Basic Features How to watch the 3D image when changing a channel or the input source, or accessing Media Play or Internet@TV. xx Some Picture functions are disabled in 3D mode. xx The Touch Control does not support 3D pictures. xx 3D Active Glasses from other manufacturers may not be supported. xx When the TV is initially powered on, it may take some time until the 3D display is optimized. xx The 3D Active Glasses may not work properly if there L Move E Enter e Exit

1. Press the CONTENT button, then the Content View

2. Press the ◄ or ► button, then select 3D.

is any other 3D product or electronic devices turned on near the glasses or TV. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses. xx Photos of Media Play are shown in “2D → 3D” mode only. To watch in 3D, wear 3D Active Glasses and press the power button on the glasses.

3. Select OK, then press the ENTERE button.

xx If you lie on your side while watching TV with 3D

4. Using the ◄ or ► buttons on your remote control, select

the 3D Mode of the image you want to view. xx Be sure to stay within the viewing angle and optimum ✎✎ Some 3D modes may not be available depending on the format of the image source. Supported formats and operating specifications for Standard HDMI 3D ✎✎The 3D formats indicated below are recommended by active glasses, the picture may look dark or may not be visible. TV viewing distance when watching 3D pictures. –– Otherwise, you may not be able to enjoy proper 3D effects. xx The ideal viewing distance should be three times or more the height of the screen. We recommend sitting with viewer's eyes on a level with the screen. the HDMI association and must be supported. Source signal format The mode is automatically switched to 3D in one of the source signal formats above. For the Standard HDMI 3D format with 24Hz, the TV is optimized as follows: –– Resolution First Display Mode: If Auto Motion Plus is set to Off, Clear or Standard, you can watch the video at a high resolution optimized to the resolution of the source video. –– Judder Reduction Display Mode: When Auto Motion Plus is set to Smooth or Custom, you can watch a smooth picture without judder. English Basic Features Sound Menu Picture Reset (OK / Cancel) Resets your current picture mode to its default settings. ¦¦ Setting up the TV with Your PC Set the input source to PC. ¦¦ Changing the Preset Sound Mode OO MENU → Sound → SRS TheaterSound → ENTERE SRS TheaterSound t Auto Adjustment t ■■ Standard: Selects the normal sound mode. Adjust frequency values/positions and fine tune the settings automatically. ■■ Music: Emphasizes music over voices. ✎✎Not available when connecting with an HDMI/DVI cable. ■■ Movie: Provides the best sound for movies. Screen ■■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired. ■■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen. ■■ Position: Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. ■■ Image Reset: Resets the image to default settings. Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

■■ Clear Voice: Emphasizes voices over other sounds. ¦¦ Adjusting Sound Settings OO MENU → Sound → Equalizer → ENTERE Equalizer Adjusts the sound mode (standard sound mode only). ■■ Balance L/R: Adjusts the balance between the right and left speaker. ■■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies. ■■ Reset: Resets the equalizer to its default settings.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

yy The correct size setting (resolution) [Optimum: 1920 X 1080 pixels] yy If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

English OO MENU → Sound → ENTERE SRS TruSurround HD (Off / On) t (standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology. (standard sound mode only) This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly. volume and MUTE buttons will not operate and the sound settings will be limited. ✎✎When Speaker Select is set to External Speaker. xx TV Speaker: Off, External Speaker: On xx TV Speaker: On, External Speaker: On ✎✎If there is no video signal, both speakers will be mute. SPDIF Output SPDIF (Sony Philips Digital Interface) is used to provide digital sound, reducing interference going to speakers and various digital devices such as an A/V Receiver/Home theater. Preferred Language MTS ■■ Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital. ■■ Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms). ✎✎You can only select a language among the ones being broadcasted. Multi-Track Sound (MTS) t (analog channels only) ■■ Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal. ✎✎When Speaker Select is set to External Speaker, the ✎✎When Speaker Select is set to TV Speaker. (digital channels only) Digital-TV broadcasts are capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker. 03 Basic Features Speaker Select (External Speaker / TV Speaker) ¦¦ Sound Settings Reset all sound settings to the factory defaults. MTS ■■ Stereo: Choose for channels that are broadcasting in stereo. ■■ SAP: Choose to listen to the Separate Audio Program, which is usually a foreignlanguage translation. ✎✎Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Auto Volume (Off / Normal / Night) To equalize the volume level on each channel, set to Normal. ■■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night. English Basic Features Setup Menu ¦¦ Setting the Time ¦¦ Setting the On / Off Timer OO MENU → Setup → Time → Timer 1 → ENTERE You can set the TV to turn on automatically at a preset time. ■■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first. Time Timer 1 ■■ Clock: Setting the clock is for using various timer features of the TV. OO The current time will appear every time you press the INFO button. ✎✎ If you disconnect the power cord, you have to set the clock again. Clock Mode (Auto / Manual) –– Auto: Set the current time automatically using the time from a digital channel. The antenna must be connected in order to set the time automatically.

–– Manual: Set the current time manually. Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm manually. Available only when Clock Mode is set to Manual.

✎✎ You can set the Month, Day, Year, Hour and Minute directly by pressing the number buttons on the remote control. DST (Daylight Saving Time) (Off / On): Switches the Daylight Saving Time function on or off. This function is only available when the Clock Mode is set to Auto.

Time Zone: Select your time zone. This function is only available when the Clock Mode is set to Auto.

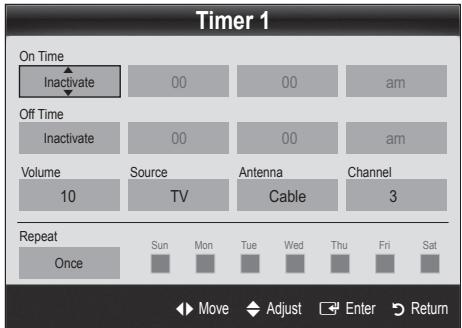

L Move U Adjust E Enter R Return On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.) Volume: Set the desired volume level. Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV) Antenna (when the Source is set to TV): Select Air or Cable. Channel (when the Source is set to TV): Select the desired channel. Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically. NOTE

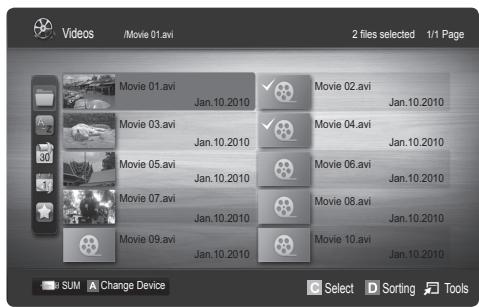

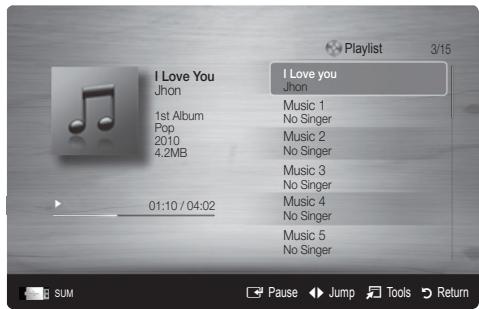

xx If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly. xx When there is only one photo file in the USB, the Slide Show will not play. xx If a folder name is too long, the folder cannot be selected. xx Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names. ■■ Sleep Timer t : Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes). ✎✎ To cancel the Sleep Timer, select Off.

✎✎Auto Power Off (available only when the TV is turned on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating. ¦¦ Locking Programs OO MENU → Setup → Security → ENTERE Security The PIN input screen appears, Enter your 4 digit PIN number. ■■ V-Chip: The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal identification number) before any of the V-Chip restrictions are set up or changed. ✎✎ NOTE xx V-Chip is not available in HDMI, Component or PC mode. xx The default PIN number of a new TV set is “0-0-0-0”. xx Allow All: Press to unlock all TV ratings. xx Block All: Press to lock all TV ratings. V-Chip Lock (Off / On): You can block rated TV Programs. TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching. –– TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature audience –– ALL: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog The V-Chip will automatically block certain categories dealing with more sensitive material. For example, if you block the TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in TV-14 and TV-MA will automatically be blocked.

MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children. –– G: General audience (no restrictions). / PG: Parental guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated. The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked.

Canadian English: You can block TV programs depending on their Anglophone Canadian ratings. –– C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming. The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then PG, 14+ and 18+ will automatically be blocked.

Canadian French: You can block TV programs depending on their French Canadian rating. –– G: General / 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults. The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels. English Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer. The c mark indicates the day is selected.

2010-05-10 오전 10:26:29 Basic Features ✎✎ NOTE xx If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. xx Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. xx The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. xx Parental restriction levels differ depending on the broadcasting station. The default menu name and Downloadable US Rating change depending on the downloaded information. xx Even if you set the on-screen display to another language, the Downloadable U.S. Rating menu will appear in English only. xx The rating will automatically block certain categories that deal with more sensitive material. xx The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station. ■■ Change PIN: The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Confirm New PIN screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized. How to watch a restricted channel If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: This channel is blocked by V-Chip. Please enter the PIN to unblock. ¦¦ Other Features OO MENU → Setup → ENTERE Menu Language Set the menu language.

1. Select Menu Language and press the ENTERE

2. Choose desired language and press the ENTERE

button. ✎✎Choose between English, Español and Français. Caption (On-Screen Text Messages) ■■ Caption (Off / On): You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen.

✎✎ The Caption feature doesn’t work in Component, HDMI or PC modes. ■■ Caption Mode: You can select the desired caption mode. ✎✎ The availability of captions depends on the program being broadcast. Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.) Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions function works with digital channels. Service1~6 may not be available in digital caption mode depending on the broadcast.

✎✎If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to “0-00-0:” POWER (off) → MUTE → 8 → 2 → 4 → POWER (on)

English Size: Options include Default, Small, Standard and Large. The default is Standard. Font Style: Options include Default and Styles 0 to 7. The default is Style 0. Foreground Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White. Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black. Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing. Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing. Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default. NOTE

xx Digital Caption Options are available only when Default and Service1 ~ Service6 can be selected in Caption Mode. xx The availability of captions depends on the program being broadcasted. xx The Default setting follows the standards set by the broadcaster. xx The Foreground and Background cannot be set to have the same color. xx You cannot set both the Foreground Opacity and the Background Opacity to Transparent. Network (Network Type / Network Setup / Network Test / SWL(Samsung Wireless Link) / SWL connect) For details on set up options, refer to the “Network Connection” instructions (p. 32). General ■■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game menu. ✎✎NOTE xx Precautions and limitations for game mode –– To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu. –– If you display the TV menu in Game Mode, the screen shakes slightly. xx Game Mode is not available when the input source is set to TV or PC. xx After connecting the game console, set Game Mode to On. Unfortunately, you may notice reduced picture quality. xx If Game Mode is On: –– Picture mode is set to Standard and Sound mode is set to Movie. –– Equalizer is not available. ■■ BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theater products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution. ✎✎ Available when connecting Samsung products that support BD Wise through a HDMI cable. ■■ Menu Transparency (Bright / Dark): Set the Transparency of the menu. ■■ Slide Key (On / Off): You can choose to use the LED touch pad, which is centered underneath the stand, or not. ■■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off. ✎✎ Melody is disabled when FastStart is On. ■■ FastStart (Off / On): When the TV is powered on, the screen will come on quickly with this feature. English ■■ Digital Caption Options: (digital channels only)

2010-05-10 오전 10:26:30 Basic Features Wireless Remote Control (Off / On) Turn on/off or give permission to Samsung mobile phones/ devices. You must have a Samsung Mobile phone/device which supports Wireless Remote Control. For more details, refer to each device's manual. Support Menu OO MENU → Support → ENTERE Legal Notice ✎✎The Legal Notice may differ depending on the country. Self Diagnosis ✎✎Self Diagnostic might take few seconds, this is part of the normal operation of the TV. ■■ Signal Information: (digital channels only) An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength. ■■ Troubleshooting: If the TV seems to have a problem, refer to this description. ✎✎ If none of these troubleshooting tips apply, contact the Samsung customer service center. Software Upgrade Software Upgrade can be performed by network connection or downloading the latest firmware from “www. samsung.com.” to a USB memory device. Current Version - the software already installed in the TV. ✎✎Software is represented as “Year/Month/Day_Version.” Software Upgrade Current Version 2010/01/18_000001 ■■ Picture Test: Use to check for picture problems. Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG). No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual. ■■ Sound Test: Use the built-in melody sound to check for sound problems. ✎✎ If you hear no sound from the TV’s speakers, By USB

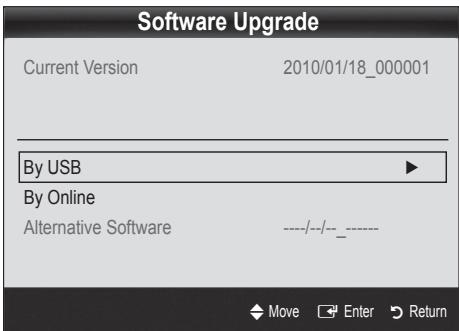

By Online Alternative Software ----/--/--_------ U Move E Enter R Return Installing the Latest Version Stand Side Panel before performing the sound test, make sure Speaker Select is set to TV Speaker in the Sound menu. ✎✎ The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button. Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG). No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

USB Drive ■■ By USB: Insert a USB drive containing the firmware upgrade file, downloaded from “www.samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade. English ■■ By Online: Upgrade the software using the Internet. ✎✎ First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions. ✎✎ If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade. ■■ Alternative Software: Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated. HD Connection Guide Refer to this information when connecting external devices to the TV. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centers and how to download products and software. English Advanced Features Network Connection You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. ¦¦ Connecting to a Wired Network You can attach your TV to your LAN using cable in three ways: yy You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable. See the diagram below. The Modem Port on the Wall Stand Rear Panel External Modem (ADSL / VDSL / Cable TV) Modem Cable (Not Supplied) LAN Cable (Not Supplied) yy You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use a Cat 5 cable for the connection. See the diagram below. The Modem Port on the Wall External Modem (ADSL / VDSL / Cable TV) Modem Cable (Not Supplied) IP Sharer (having DHCP server) LAN Cable (Not Supplied) Stand Rear Panel LAN Cable (Not Supplied) yy Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house. The LAN Port on the Wall Stand Rear Panel LAN Cable (Not Supplied) If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks. Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer. You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

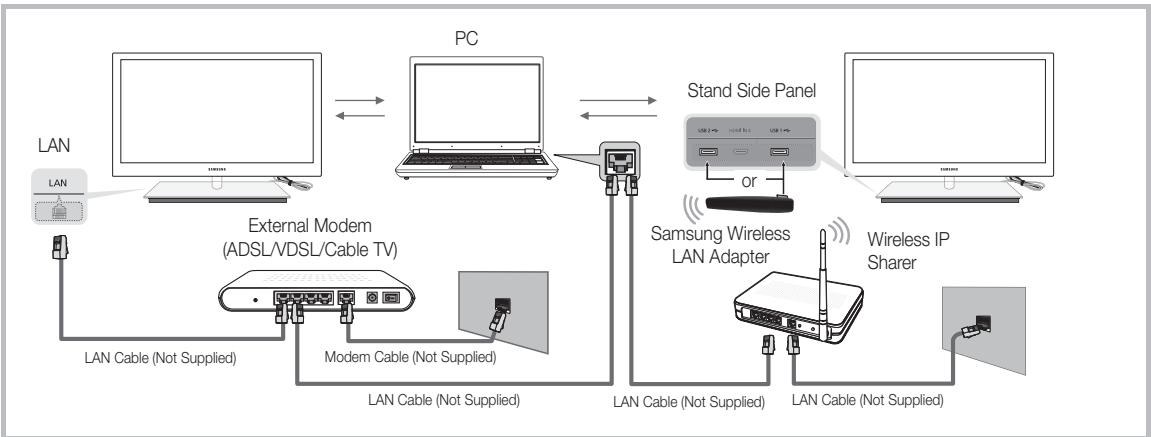

English Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps: Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. How to set up automatically To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

1. Connect your TV to your LAN as described in the

2. Turn on your TV, press the MENU button on your

remote, use the ▲ or ▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲ or ▼ button to select Network in the Setup

menu, and then press the ENTERE button. The Network screen appears. : Wired

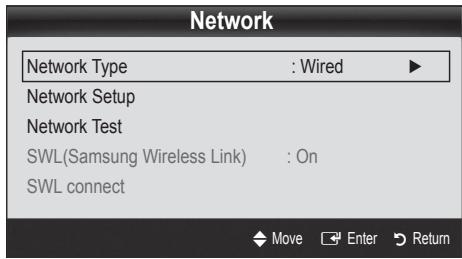

Network Setup Network Test SWL(Samsung Wireless Link)

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

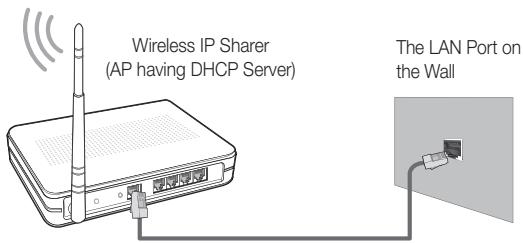

Network connection values are displayed. How to set up manually Network Network Type Getting the Network Connection Values 04 Advanced Features SWL connect U Move E Enter R Return

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

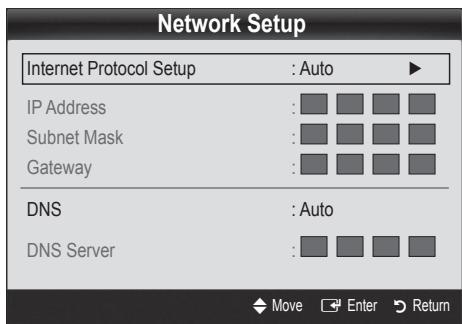

6. Select Network Setup. The Network Setup screen

appears. To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up

automatically” procedure.

3. Press the ▼ button on your remote to go to the first

4. Enter the IP Address, Subnet Mask, Gateway, and

DNS Server values. Use the number buttons on your remote to enter numbers and the arrow buttons to move from one entry field to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

U Move E Enter R Return

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

9. Wait two minutes, and then press the RETURN button

10. If the Network Function has not acquired the network

connection values, go to the directions for Manual. English Advanced Features ¦¦ Connecting to a Wireless Network To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN2), which you connect to your TV’s side panel USB jack. See the illustration below. Stand Side Panel Wireless IP Sharer (AP having DHCP Server) The LAN Port on the Wall

Samsung Wireless LAN Adapter LAN Cable (Not Supplied) ✎✎When the USB 1 port is connected to a Samsung Wireless LAN Adapter, you may not be able to use the HDMI IN 4 and USB 2 ports. We recommend connecting a Samsung Wireless LAN Adapter to the USB 2 port. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly. ✎✎NOTE xx You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN2) to use a wireless network. xx To use a wireless network, your TV must connect wirelessly to a wireless IP sharer (either a router or a modem). If the wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. xx Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure. xx If you apply a security system other than the systems listed blow, it will not work with the TV. xx If you select the Pure High-throughput (Greenfield) 802.11N mode and set your AP's Security Encryption type to WEP, TKIP or TKIPAES (WPS2Mixed), your Samsung TV will not support the connection in compliance with new Wi-Fi certification specifications. xx If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. xx If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.” xx Connection Methods: You can setup the wireless network connection six ways.

Samsung Auto Configuration - For non-Samsung devices. PBC (WPS) Auto Setup (Using the Auto Network Search function) Manual Setup SWL(Samsung Wireless Link) - For Samsung devices only. Ad-Hoc xx The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via a USB extension cable other than the one available from Samsung.

English The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference. Method Connect via an extension cable ✎✎The Samsung Wireless LAN Adapter should be installed in an interference-free area in order to avoid interference between the adapter and tuner. Network Setup (Samsung Auto Configuration) The Samsung Auto Configuration function lets you connect your Samsung TV automatically to non-Samsung wireless APs. If your non-Samsung AP does not support Samsung Auto Configuraton, you must connect using one of the other methods: PBC (WPS), auto configuration, or manual configuration. ✎✎To use this function, you must set SWL(Samsung 04 Advanced Features Notice Wireless Link) to Off in the TV’s on-screen menu. ✎✎You can check for equipment that supports Samsung Auto Configuration on www.samsung.com. How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them

on. ✎✎ Because AP booting times vary, you may have to wait approximately two minutes for your AP to boot up. ✎✎ Ensure the LAN cable is connected to the To connect the Samsung Wireless LAN Adapter using an extension cable, follow these steps:

1. Connect the extension cable to the USB port.

2. Connect the extension cable and Samsung Wireless

3. Attach the Samsung Wireless LAN Adapter to the back

of the TV near the top, using double-sided adhesive tape. WAN port of the AP during Samsung Auto Configuration. If it is not connected, Samsung Auto Configuration only confirms that the TV is connected to the AP, but does not confirm it is connected to the Internet.

2. After 2 minutes, connect the Samsung Wireless LAN

Adapter to the TV. When the Samsung Wireless LAN Adapter establishes a connection with your TV, a pop-up window appears.

3. As soon as a connection is established, place the AP

parallel to the Samsung Wireless LAN Adapter and not farther than than 9 and 7/8s inches (25cm) from it.

4. Wait until the connection is automatically established.

✎✎ If Samsung Auto Configuration does not connect your TV to your AP, a pop-up window appears on the screen notifying you of the failure. If you want to try using Samsung Auto Configuration again, reset the AP, disconnect the Samsung Wireless LAN Adapter and then try again from Step 1. You can also choose one of the other connection setup methods: PBC (WPS), auto, or manual.

5. Place the AP in a desired location.

✎✎ If the AP settings change or you install a new AP, you must perform the Samsung Auto Configuration procedure again, beginning from Step 1. English Advanced Features Network Setup (PBC (WPS)) How to set up using PBC (WPS) If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the

2. Turn on your TV, press the MENU button on your

remote, use the ▲ or ▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲ or ▼ button to select Network in the Setup

menu, and then press the ENTERE button.

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen

appears. How to set up automatically To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” procedure.

2. Press the ▼ button to select Internet Protocol Setup,

and then press the ENTERE button. Press the ▲ or ▼ button to select Auto, and then press the ENTERE button.

3. Press the ▲ button to go to Select a Network, and

then press the ENTERE button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to select

a network, and then press the ENTERE button. ✎✎ If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection. Network Setup Select a Network : Not Selected ►

5. If the Security/PIN pop-up appears, go to Step 6. If the

Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN. For

most home networks, you would select Security (for Security Key). The Security Screen appears. Network Setup Security Key 0 entered

7. Press the Red button on your remote.

8. Press the PBC (WPS) button on your router within 2

minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

RETURN button to exit the Network Setup screen. Network Setup (Auto) Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

0~9 Number Lower case

Delete Space n Move E Enter R Return

7. On the Security screen, enter your network’s Pass

Phrase. ✎✎ You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem. English –– Press the number buttons on your remote to enter numbers. –– Use the direction buttons on your remote to move from button to button on the Security Key screen. –– Press the Red button to change case or display symbols/characters. –– To a enter letter or symbol, move to the letter or symbol, and then press the ENTERE button. –– To delete the last letter or number you entered, press the Green button on your remote.

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection confirmation message is

displayed, and then press the ENTERE button. The Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTERE button. Network Setup (Ad-Hoc) You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network. ✎✎This function is available when SWL(Samsung Wireless Link) is set to Off in the TV’s on-screen menu. How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a Network. A list of devices/networks

3. While in the device list, press the Blue button on the

remote. ✎✎ The message Ad-hoc is a direct Wi-Fi connection with cell phone or PC. The existing network system may have limited functionality. Do you want to change the network connection? is displayed.

4. Input the generated Network Name (SSID) and

Security Key into the device you want to connect. How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a Network. The Device/Network list

3. Select the device you want in the Device list.

4. If security key is required, input the security key.

✎✎ If network doesn’t operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction. 04 Advanced Features

8. To enter the Pass Phrase, follow these general

directions: Network Setup (Manual) If the other methods do not work, you need to enter the Network setting values manually. Getting the Network Connection Values To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed. How to set up manually To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

2. Press the ▼ button to select Internet Protocol Setup,

and then press the ENTERE button. Press the ▲ or ▼ button to select Manual, and then press the ENTERE button.

3. Press the ▼ button to go to the first entry field (IP

4. Use the number buttons to enter numbers.

5. When done with each field, use the ► button to move

successively to the next field. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the first DNS entry field.

Enter the numbers as above.

9. When done, press the ▲ button to go to Select a

Network. Select your network, and then press the ENTERE button.

10. Go to Step 4 in the “How to set up automatically” (p.

36), and follow the directions from that point on. English Advanced Features SWL(Samsung Wireless Link) If Your TV Fails to Connect to the Internet This function lets you connect your TV to a Samsung device (router, etc.) that supports PBC (WPS) . You can connect the TV to the device even if a sharer is not connected to the TV. Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect. To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet. If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet. The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG. ✎✎For the TV to use Internet@TV, the AP (access point) must be connected to the wireless network. ✎✎Only sharers using the 2.4 Ghz band are supported. Sharers using the 5 Ghz band are not supported. SWL connect You can directly connect the TV to a Samsung device that supports PBC (WPS). ✎✎This function is available when SWL (Samsung Wireless Link) is set to On in the TV’s on-screen menu. ✎✎To use the SWL(Samsung Wireless Link) function, connect the Samsung Wireless LAN Adpater to the USB port. How to connect using Samsung Wireless Link To connect using Samsung Wireless Link, follow these steps:

1. Follow Steps 1 through 5 in the “How to set up using

2. Select SWL(Samsung Wireless Link) by using the ▼

button, and then press the ENTERE button to turn it On.

3. Select SWL connect by using the ▼ button, and then

press the ENTERE button.

4. If the Press the PBC button on the PBC(WPS)

supported device to connect within 120 seconds. message appears, press the PBC button on the device to connect. ✎✎ For more information, refer to the wireless network setup manual of the device to be connected.

5. If the TV connects properly to the device after the count

in the message box starts, then the message box disappears automatically. ✎✎ If the connection fails, please retry after 2 minutes.

English Enjoy photos, music and/or movie files saved on a USB Mass Storage Class (MSC) device. MEDIA.P 04 Advanced Features MENU → Application → Content View

• Media Play → ENTERE SUM Change Device View Devices E Enter R Return ¦ Connecting a USB Device Stand Side Panel

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie files to the USB 1

or USB 2 jack on the side of the TV.

3. When USB is connected to the TV, a popup window appears. Then you can

USB Drive ¦ Connecting to your PC through a network You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode. ✎ If you want to use Media Play to play files saved on your PC over your TV, you should download “PC Share Manager” and the users manual from “www.samsung.com.” Stand Side Panel LAN External Modem (ADSL/VDSL/Cable TV) LAN Cable (Not Supplied) Samsung Wireless LAN Adapter Wireless IP Sharer Modem Cable (Not Supplied) LAN Cable (Not Supplied) LAN Cable (Not Supplied) LAN Cable (Not Supplied)

1. For more information on how to configure your network, refer to “Network Connection” (p. 32).

– You are recommended to locate both the TV and the PC in same subnet. The first 3 parts of the subnet address of the TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address: 123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager

Program will be installed. – You can connect the TV to the PC directly without connecting it through a Sharer (Router). English Advanced Features ✎✎Functions that are not supported when connecting to a PC through a network: xx The Background Music and Background Music Setting functions. xx Sorting files by preference in the Photos, Music, and Videos folders. xx The (REW) or µ (FF) button while a movie is playing. ✎✎Divx DRM, Multi-audio, embedded captions are not supported. ✎✎Samsung PC Share manager should be permitted by the firewall program on your PC. ✎✎When you use Media Play mode through a network connection, depending on the functions of the provided server: xx The sorting method may vary. xx The scene search function may not be supported. xx The Play Continuously function, which resumes playing of a video, may not be supported. –– The Play Continuously function does not support multiple users. (It will have only memorized the point where the most recent user stopped playing.) xx The ◄ or ► buttons may not work depending on the content information. xx You may experience file stuttering while playing a video in Media Play through a network connection. ✎✎It might not work properly with unlicensed multimedia files. ✎✎Need-to-Know List before using Media Play xx MTP (Media Transfer Protocol) is not supported. xx The file system supports FAT16, FAT32 and NTFS. xx Certain types of USB Digital camera and audio devices may not be compatible with this TV. xx Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port. xx Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. xx Do not disconnect the USB device while it is loading. xx The higher the resolution of the image, the longer it takes to display on the screen. xx The maximum supported JPEG resolution is 15360X8640 pixels. xx For unsupported or corrupted files, the “Not Supported File Format” message is displayed. xx If the files are sorted by Basic View, up to 1000 files can be displayed in each folder. xx MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements. xx If more than 2 PTP devices are connected, you can only use one at a time. xx If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported. xx If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction. xx If the TV has been no input during time set in Auto Protection Time, the Screensaver will run. xx The power-saving mode of some external hard disk drives may be released automatically when connected to the TV. xx If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read. xx If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection. xx If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

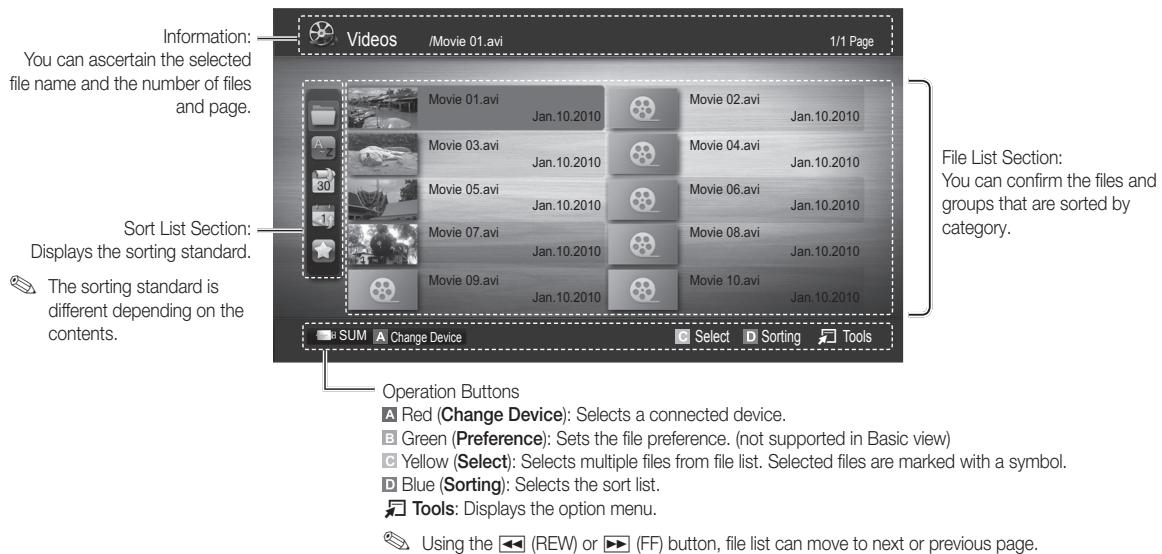

English Move to the desired file using the up/down/right/left buttons and then press the ENTERE or (Play) button. The file is played. ✎✎Supports the View Devices and Home in Media Play homepage. Information: You can ascertain the selected file name and the number of files and page. Videos Sort List Section: Displays the sorting standard. File List Section: You can confirm the files and groups that are sorted by category. Jan.10.2010 Jan.10.2010 ✎✎ The sorting standard is different depending on the contents. 1/1 Page /Movie 01.avi Jan.10.2010 Sorting T Tools Operation Buttons Red (Change Device): Selects a connected device. B Green (Preference): Sets the file preference. (not supported in Basic view) Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol. Blue (Sorting): Selects the sort list. T Tools: Displays the option menu. ✎✎ Using the (REW) or µ (FF) button, file list can move to next or previous page. Videos Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired video in the file list.

3. Press the ENTERE button or (Play) button.

–– The selected file is displayed on the top with its playing time. –– If video time information is unknown, play time and progress bar are not displayed. –– During video playback, you can search using the ◄ and ► button. ✎✎In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself. yy Supported Subtitle Formats 00:04:03 / 00:07:38 1/1 Movie 01.avi Name File extension MPEG-4 time-based text .ttxt Format XML SAMI .smi HTML SubRip .srt string-based SubViewer .sub string-based Micro DVD .sub or .txt string-based SUM E Chaptering L Jump T Tools R Return English Advanced Features yy Supported Video Formats File Extension Video Codec Resolution Frame rate (fps) H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Container *.avi *.mkv *.asf AVI MKV ASF *.mp4 MP4 *.3gp 3GPP *.vro VRO VOB *.ts *.tp *.trp 800x600 6 ~ 30

XviD 1920x1080 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920x1080 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

VC1 1920x1080 6 ~ 30

ASF *.wmv *.mpg *.mpeg xx If there are problems with the contents of a codec, the codec will not be supported. xx If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly. xx Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above. xx If the Index Table is in error, the Seek (Jump) function is not supported. Video Decoder

Supports up to H.264, Level 4.1 H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported. XVID, MPEG4 SP, ASP : –– Below 1280 x 720: 60 frame max –– Above 1280 x 720: 30 frame max GMC 2 over is not supported. Only Samsung Techwin MJPEG is supported. H.263 is not supported. Audio Decoder

Supports up to WMA 7, 8, 9, STD WMA 9 PRO does not support 2 channel excess multi channel or lossless audio. WMA sampling rate 22050Hz mono is not supported. English If you exit the playing movie function, the movie can be played later from the point where it was stopped. ✎✎If you press the ENTERE button (Chaptering) during playing the file, you can explore scene divided into 5 chapters you want. ✎✎If the index information is damaged or unsupported, you will not be able to use the Chaptering function.

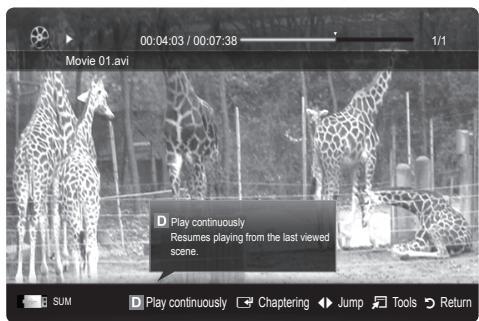

1. Select the movie file you want to play continuously by pressing

the ◄ or ► button to select it from the file list section.

2. Press the (Play) / ENTERE button.

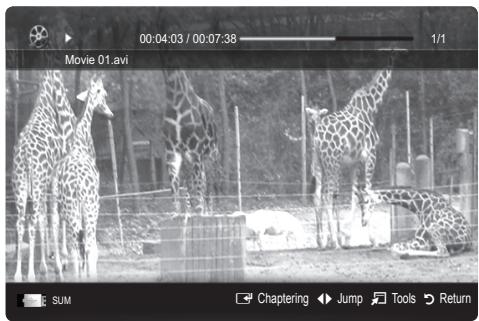

00:04:03 / 00:07:38 1/1 Movie 01.avi

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped. ✎✎ The Blue button is available when resuming play. ✎✎ If the Continuous Movie Play Help function is set to On 04 Advanced Features Playing movie continuously (Resume Play) Play continuously Resumes playing from the last viewed scene. in the Settings menu, a pop-up message will appear when you resume play a movie file. SUM Play continuously E Chaptering L Jump T Tools R Return Music Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTERE button in the Media Play menu. Playlist

2. Press the ◄/►/▲/▼ button to select the desired Music file in

3. Press the ENTERE button or (Play) button.

–– During music playback, you can search using the ◄ and ► buttons. –– (REW) and µ (FF) buttons do not function during play. ✎✎Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device. I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer 3/15 Music 1 Music 2 No Singer Music 3 E Pause L Jump T Tools R Return ✎✎If the sound is abnormal when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.) Creating My Playlist

1. Press the ◄/►/▲/▼ button to select the tracks you want to add and press the TOOLS button.

2. Select Add My Playlist.

3. When the Add My Playlist menu appears, select New My Playlist.

✎✎ To add to an old play list, simply select the play list you want to add music to.

4. The newly created or updated playlist will be in the main Music page.

Playing My Playlist Select the My Playlist folder and it will play automatically. Press the ▲ or ▼ button to select a different music file within the playlist. English Advanced Features Photos Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

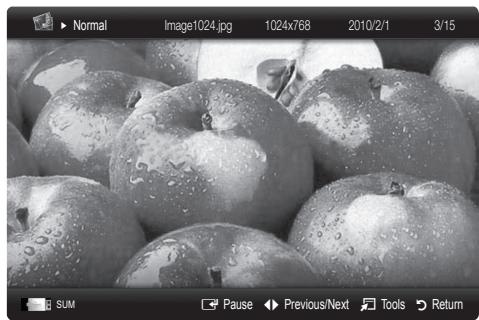

ENTERE button in the Media Play menu. Normal Image1024.jpg 1024x768 2010/2/1 3/15

2. Press the ◄/►/▲/▼ button to select the desired photo in the

3. Press the ENTERE button or (Play) button.

–– While a photo list is displayed, press the (Play) / ENTERE button on the remote control to start the slide show. –– All files in the file list section will be displayed in the slide show. –– During the slide show, files are displayed in order. ✎✎Music files can be automatically played during the slide show if E Pause L Previous/Next T Tools R Return SUM the Background Music is set to On. ✎✎The BGM Mode cannot be changed until the BGM has finished loading. ¦¦ Playing Multiple Files Playing selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

2 files selected /Movie 01.avi ✎✎ NOTE Movie 01.avi xx The c mark appears to the left of the selected files. xx To cancel a selection, press the Yellow button again. xx To deselect all selected files, press the TOOLS button and select Deselect All. Playing the video/music/photo file group Jan.10.2010 Movie 09.avi

3. Press the TOOLS button and select Play Selected Contents.

1/1 Page Jan.10.2010 Change Device Select Sorting T Tools

1. While a file list is displayed, move to any file in the desired group.

2. Press the TOOLS button and select Play Current Group.

¦¦ Media Play - Additional Functions Sorting the file list Press the Blue button in the file list to sort the files. Category Videos Music Photos Basic View Displays the whole folder. You can view the photo by selecting the folder.

Title Sorts and displays the file title in Symbol/Number/Alphabet/Special order.

Preference Sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.

Latest Date Sorts and shows files by the latest date.

Earliest Date Sorts and shows files by the earliest date.

Artist Sorts the music file by artist in alphabetical order.

Album Sorts the music file by album in alphabetical order.

Genre Sorts music files by the genre.

Mood Sorts music files by the mood. You can change the music mood information.

Monthly Sorts and shows photo files by month.

English During file playback, press the TOOLS button. Category Operation Videos Music Photos Title You can move directly to another Title.

Repeat Mode You can play movie and music files repeatedly.

Picture Size (Mode1 / Mode2 / Original) You can adjust the picture size to your preference. Picture Setting You can adjust the picture setting. (p. 18 ~ 24)

Sound Setting You can adjust the sound setting. (p. 24, 25)

Subtitle Setting You can play the video with Subtitles. This function only works if the subtitles are the same file name as the video.

Audio You can enjoy video in one of supported languages as required. The function is only enabled when stream-type files which support multiple audio formats are played.

Stop Slide Show / Start Slide Show You can start or stop a slide show. Slide Show Speed You can select the slide show speed during the slide show.

Slide Show Effect You can set various slide show effects.

Background Music You can set and select background music when watching a slide show.

Zoom You can zoom into images in full screen mode.

Rotate You can rotate images in full screen mode.

Home Background You can move the file to the Media Play desktop. Information You can see detailed information about the played file.

04 Advanced Features Settings Using the Setup Menu ■■ Background Setting: Select to display the background you want. ■■ Continuous Movie Play Help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback. ■■ Get DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register, you can download the VOD registration file. If you play the VOD registration using Media Play, the registration is completed. ✎✎ For more information on DivX® VOD, visit “www.DivX.com.” ■■ Get DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated. ■■ Information: Select to view information about the connected device. English Advanced Features Anynet+ What is Anynet+? t Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it. To connect to a Samsung Home Theater Anynet+ Device 1 HDMI Cable (Not Supplied) Stand Rear Panel Stand Side Panel Optical Cable (Not Supplied) HDMI Cable (Not Supplied) HDMI Cable (Not Supplied)

1. Connect the HDMI IN (1(DVI), 2(ARC), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+

device using an HDMI cable.

2. Connect the HDMI IN jack of the Home Theater and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable. ✎✎NOTE xx Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theater. xx The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated when the TV is connected to an audio receiver that supports the ARC function. xx When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theater’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV. xx You can connect only one Home Theater. xx You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. xx Anynet+ works when the AV device supporting Anynet+ is in the standby or on status. xx Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

English The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Device List (device_name) MENU (device_name) INFO Recording: (*recorder) Stop Recording: (*recorder) Receiver Description Changes Anynet+ mode to TV broadcast mode. Shows the Anynet+ device list. Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear. Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear. Starts recording immediately using the recorder. (This is only available for devices that support the recording function.) Stops recording. Sound is played through the receiver. 04 Advanced Features Anynet+ Menu If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name). OO MENU → Application → Anynet+ (HDMI-CEC) → ENTERE ■■ Setup Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On. ✎✎ When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off. The active source on the TV must be set to TV to use the Anynet+ function.

✎✎ Even if an external device is still recording, it may turn off. ¦¦ Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

✎✎ If you cannot find a device you want, press the Red button to refresh the list.

2. Select a device and press the ENTERE button. You can switch to the selected device.

✎✎ The Device List menu will only appear when you set Anynet+ (HDMI-CEC) to On in the Application menu. xx Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation. xx If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List. English Advanced Features ¦¦ Recording You can make a recording of a TV Program using a Samsung recorder.

1. Select Recording.

✎✎ When there are more than two recording devices xx When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List. ✎✎ When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

✎✎ You can record the source streams by selecting Recording: (device_name). ✎✎ Pressing the (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. ✎✎ Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. ¦¦ Listening through a Receiver You can listen to sound through a receiver (i.e Home Theater) instead of the TV Speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎✎ If your receiver supports audio only, it may not appear in the device list. ✎✎ The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV. ✎✎ When the receiver (i.e Home Theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV (air) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver. ✎✎NOTE xx You can only control Anynet+ devices using the TV remote control, not the buttons on the TV. xx The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device. xx The Anynet+ functions do not operate with other manufacturers’ products. Using the ARC function You can listen to sound through a receiver connected HDMI cable without the need for a separate optical cable.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎✎To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the HDMI IN 2 (ARC) port. ✎✎To disable the ARC function, set the Receiver to Off. Even if the TV transmits the ARC signal continuously, the receiver will be blocked from receiving the signal.

English Problem Anynet+ does not work. Possible Solution

I want to start Anynet+.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Only one receiver (home theater) can be connected. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether the remote control is Anynet+ compatible. Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play or Plug & Play (initial setup), etc.) When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TOOLS button to display the Anynet+ menu and select a menu you want. I want to exit Anynet+.

Select View TV in the Anynet+ menu. Press the SOURCE button on the TV remote control and select a non- Anynet+ device. Press z, PRE-CH, and FAV.CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The message “Connecting to Anynet+ device...” appears on the screen.

You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play.

You cannot use the play function when Plug & Play (initial setup) is in progress. The connected device is not displayed.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions. If connection is terminated because there has been a power interruption or the HDMI cable has been disconnected, please repeat the device scan.

The TV Program cannot be recorded.

Check whether the antenna jack on the recording device is properly connected. The TV sound is not output through the receiver.

Connect the optical cable between TV and the receiver. The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated when the TV is connected to an audio receiver that supports the ARC function. English ¦¦ Troubleshooting for Anynet+

2010-05-10 오전 10:27:12 Advanced Features Internet@TV ¦ Getting Started with Internet@TV INTERNET@TV Recommended Internet@TV brings useful and entertaining contents and services directly from the web to your TV.

My Applications by Date 1/1 MENU → Application → Content View

• Internet@TV → ENTERE Samsung Apps Settings Login B Mark as Favorite Sort by R Return Screen Display TV Screen: Displays the current channel. Recommended Information: Displays notices, new applications, and advertisements brought to you by Samsung product introductions. My Applications Recommended Applications: Displays the recommended service by Samsung. You are not able to add or delete a service in this list. by Date 1/1 Downloaded Applications: Displays the downloaded applications through the Samsung Apps. Application service: You can experience various service by provided samsung. Samsung Apps Settings Login Internet@TV Settings: Edit and configure applications and Internet@TV settings.

Mark as Favorite Sort by R Return Controls: Red (Login): To log in to Internet@TV.

• B Green (Mark as Favorite): To mark the applications as a favorite. Blue (Sort by): To sort the applications.
• R Return: To return to the previous menu.

The color buttons may work differently depending on the application. ✎ NOTE

Configure the network settings before using Internet@TV. For more information, refer to “Network Connection” (p. 32).

Unsupported fonts within the provider’s content will not display normally.

Depending on your country’s regulations, some applications may have limited service or not be supported.

Slow responses and/or interruptions may occur, depending on your network conditions. Depending on the region, English may be the only language supported for application services. This feature is not available in some locations. If you experience a problem using a application, please contact the content provider. According to circumstances of the contents provider, an application’s updates or the application itself may be discontinued. English For an application with multiple accounts, use ◄ and ► to access the different accounts. Login

✎✎ Depending on your country, the Ticker application admin User account : Ticker Autorun (Off / On): You can set Ticker Autorun to come on when powering on the TV. The Ticker application provides useful News, Weather, and Stock Market information. The Ticker application on Internet@TV must be downloaded to use this feature. may have a different service or not be supported. Password : Create [0~9] Enter PIN R Cancel ✎✎For a more enjoyable application experience, register and log in to your account. ✎✎For instructions on creating an account, refer to Channel Bound Service (Off / On): Some channels support applications as an Internet data service, allowing you to access the Internet service while watching TV. Only available if supported by the broadcaster.

Change the Service Lock password The default password set is “0-0-0-0.”

✎✎ If you forget the password you created, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on). Settings → Internet@TV ID → Create.

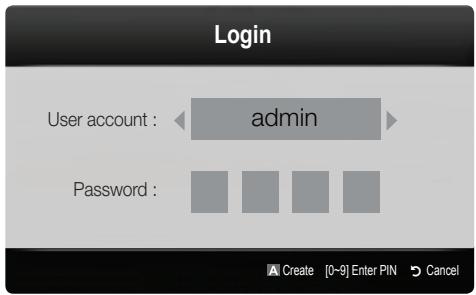

1. Press the Red button in the Internet@TV home page.

2. Select the desired User account, then press the

ENTERE button. ✎✎ If you want to create an account, press the Red button; then the create account OSD window will appear.

3. After selecting User account, enter the Password using

the number button on the remote control. ✎✎ When login succeeds, User account will be displayed on the screen. Reset: Resets Internet@TV settings to factory default settings. ■■ Internet@TV ID You can use this menu when creating and deleting the account. You can control your account including contents site’s account information. Create: Create an account and link it with desired service applications. NOTE

xx Maximum number of accounts is 10. xx Maximum number of characters is 8. Settings Create IDs and configure Internet@TV settings from this screen. Highlight Settings using the ▲ and ▼ buttons and press the ENTERE button. Settings

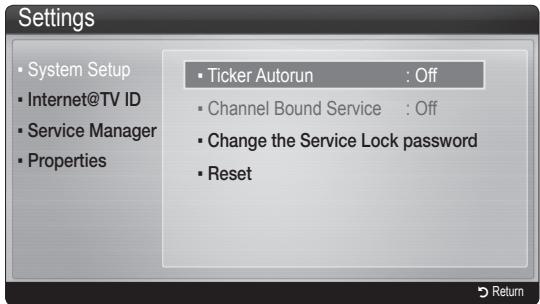

• Ticker Autorun : Off

• Channel Bound Service : Off

• Change the Service Lock password
• Reset R Return English Advanced Features How to create Internet@TV ID Before creating a User account, you should download the application first on the Samsung Apps.

1. Using the ▲/▼/◄/► button, select Settings. Then

press the ENTERE button.

2. Press the ▼ button to select Internet@TV ID, then

press the ENTERE or ► button.

3. Select Create. The Keypad screen will appear.

4. The keypad OSD will be displayed on the screen.

Using the Keypad Pressing the – button on the remote while you are using the Screen Keypad enables you to change the text fields to lower case, upper case, numbers and icons. You can use this Screen Keypad in a several Internet@ TV applications. Here is how to input characters. 4-1. For example, suppose that you want to input “105Chang”. 4-2. Press the – button on the remote twice to change the input mode from lower case to numbers. 4-3. Press the 1, 0 and 5 button in numerical order. 4-4. Press the – button on the remote 3 times to change the input mode from numbers to upper case. 4-5. Press the 2 button on the remote 3 times to input C. 4-6. Press the – button on the remote 3 times to change the input mode from upper case to lower case. 4-7. Press buttons on the remote to input the rest of “Chang”. When done, press the ENTERE button.

5. Using the number buttons, enter the User account

and Password. xx Password must be numbers only. xx You can delete the entered character using the PRE-CH button. xx Using the (REW) or μ (FF) button, you can select icon you want to enter in icon keypad screen.

6. Account created. You can use the services provided

by all users of your Samsung TV with a single login by linking the users’ account to the TV ID. If you want to register a service site ID, select Yes. Service Site list will appear on the screen.

7. Select Register of the Service Site you want, then

press the ENTERE button.

8. Using number buttons, enter your application site ID

and password. Then press the ENTERE button.

9. Registered successfully. If you add another service

site, select Yes. then press the ENTERE button, go to step 5.

10. When completed, select OK. Then press the

ENTERE button. Manager –– Service Site: Register login information for service sites. –– Change Password: Change account password. –– Delete: Delete the account. ■■ Service Manager: Delete and lock applications installed to Internet@TV. Lock: Lock the application. ✎✎ Accessing a locked application requires the password. Delete: Delete the application. ■■ Properties: Display information about Internet@TV. Use the Check the speed of your internet connection option to test your network connection. English Using the Samsung Apps by category Samsung Apps Samsung Apps is a store for downloading applications to be used on Samsung TV/AV equipment. Users can enjoy a variety of contents such as videos, music, photos, games, useful information etc. using the downloaded applications. Additional applications will be available in the future. Samsung Apps What’s New? Video Sports Featured You Tube Most downloaded Most recent Name YouTube Free TV store Test User002 Game Lifestyle Information The following categories are available: yy What’s New?: Displays newly registered applications. yy Video: Displays various video media such as movies, TV shows and short length videos. yy Sports: Displays various sports media such as match information, images and short length video. yy Game: Displays various games such as sudoku and chess. yy Lifestyle: Includes various lifestyle media services such as music, personal photo management tools and social networking such as Facebook and Twitter. yy Information: Includes various information services such as news, stocks and weather. yy Other: Includes other miscellaneous services. yy My Page: Displays the application list and your cyber cash balance. Starting in the middle of 2010 (US and Korea only), you can purchase cyber-cash for buying applications through tv.samsung.com. 04 Advanced Features ¦¦ Using the Internet@TV service

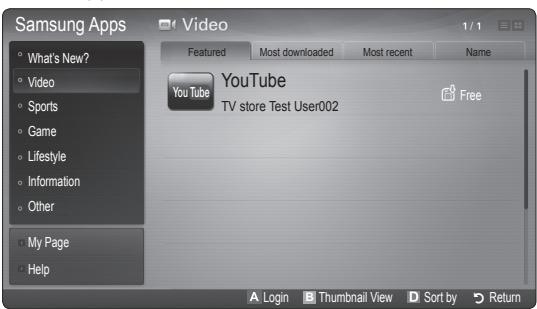

✎✎Using the color buttons with the Samsung Apps. yy Help: If you have questions about Internet@TV, check this section first. xx Red (Login): To log in to the internet service. xx B Green (Thumbnail View): To change the view mode.

Blue (Sort By): To sort the applications by Featured, Most downloaded, Most recent or Name. [ Legal Statement ] Due to the various capabilities of products featuring the Samsung Internet@TV - Content Service, as well as limitations in the available content, certain features, applications, and services may not be available on all devices or in all territories. Some features on Internet@TV may also require additional peripheral devices or membership fees that are sold separately. Please visit http://www.samsung.com for more information on specific device information and content availability. The services and availability of content through Internet@TV are subject to change from time to time without prior notice. English Advanced Features Yahoo Internet@TV provides an integrated Internet and television experience powered by the Yahoo!® Widget Engine. You can monitor financial stocks, share photos with friends and family, and track news and weather all through the Yahoo!® Widget Engine. Yahoo ✎ When running Internet@TV for the first time, you will be prompted to configure the basic settings. ✎ Depending on your country’s regulations, some applications may have limited service or not be supported. Screen Display y Dock Mode Hello John! 5:15 AM Mon January 19th Viewport Edit Snippet Welcome Banner: Shows your profile. Blue (Viewport): Toggles between Viewport and Overlay modes. Yellow (Edit Snippet): To edit snippets with a help window. ✎ In Viewport mode, the TV or video plays in a scaled-down area with graphics outside. In overlay mode, the graphics are displayed on top of the TV or video. Dock: Displays your snippets.

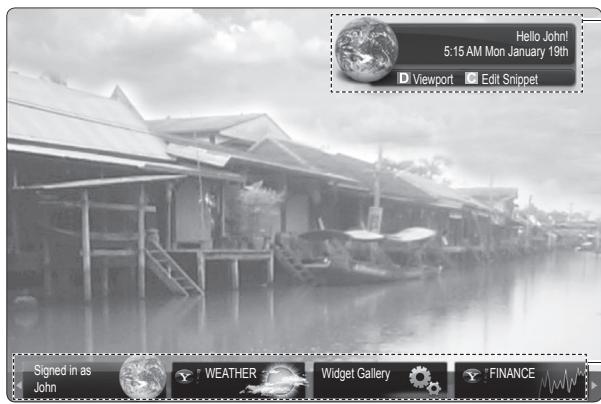

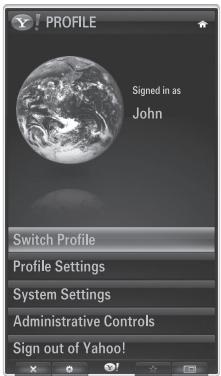

• Snippets are quick launch icons for your widgets. Signed in as John WEATHER Widget Gallery FINANCE

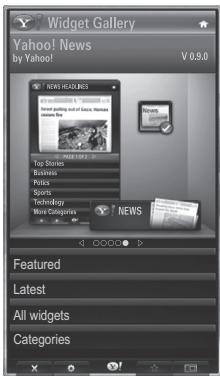

PROFILE Widget and Widget Gallery cannot be deleted. Widget logo and Current menu. My Stocks To remove a stocks symbol, please select it from the list below. Contents List : The current selection is highlighted in blue. Displays the current page and number of total pages. Controls: Red: To close the widget. If you want to see the Dock mode, press the Yahoo button.

• B Green: To change the widget’s settings. Yellow: To manage your snippets. Blue: To size video to fit or display in full screen.

Some buttons may not be available with certain widgets. Editing Snippets in the Dock

1. Edit a snippet by selecting it in the dock and pressing the Yellow button.

2. The snippet moves to the Second position and its tile slides up to show the following help text:

✎ Using the color buttons with the dock mode.

Red (Delete): To remove the widget. Deleted widgets can be restored from Widget Gallery.

Blue (Move): To rearrange snippets. Yellow (Done): To exit the Edit Snippet menu. English Set up user profiles through Profile Widget. You can set up multiple profiles, each with its own list of widgets. Use the Switch Profile option to switch to a different user profile. ✎✎There must be at least two registered profiles. For instructions on adding a profile, refer to Administrative Controls. yy Use the Profile Settings option to customize and protect your profile. –– User profiles can be customized with a unique name and avatar (a picture used to represent your profile). –– Your profile’s name and avatar are displayed in the profile snippet in the dock. –– Protect your profile using the Create Profile PIN option. –– When setting up a new PIN, you can set a Security Question. yy The Profile Settings option limits access to the profile’s widgets. –– If you forget your Profile PIN, answer your profile’s Security Question. –– New widgets cannot be added to profiles with the Limit Profile indicator enabled. Owner PIN must be set to use this feature. For instructions on setting Owner PIN, refer to Administrative Controls.

yy System Settings allows you to: –– Change your Location and Zip Code (US only) to tailor contents specific to your region. –– Replay the tutorial that was shown during guided setup. –– Restore Factory Settings resets all widget settings and information. When you cannot run Restore Factory Settings normally or you can not install/run the specific widgets normally, press the remote control buttons in the following sequence, which resets the Yahoo Service: POWER (on)

• MUTE → 9 → 4 → 8 → EXIT → POWER (off) → POWER (on) → YAHOO! (If Yahoo Service is displayed on the TV Screen, You should stop the Yahoo Service using EXIT button in advance.).

yy From the Administrative Controls menu you can: –– Configure the Screen Saver timeout to avoid screen burn-in. –– Create Owner PIN and set a Security Question to control other profiles. –– Create and configure a new profile with a unique set of widgets. –– Delete an existing profile. yy Sign into Yahoo!® from PROFILE Widget using your Yahoo! ID. –– If you have a Yahoo! ID, you can access personalized content using Yahoo! TV widgets. –– You will be automatically signed-in to all installed Yahoo! TV widgets with your profile’s Yahoo! ID. –– If you do not have a Yahoo! account, visit “www. yahoo.com” to create one. –– You may not be able to log in with an ID created through a Yahoo website in a country that does not support Internet@TV. yy About Profile Widget: Press the Green button to view a brief description of Profile Widget, Copyright Policy, Terms of Service, and Privacy Policy. ¦¦ Widget Gallery Use Yahoo!® Widget Gallery to add more widgets to your TV. View available TV widgets in the following categories: ■■ Featured: Displays recommended widgets. ■■ Latest: Displays the most recent widgets. ■■ All widgets: Displays all widgets. ■■ Categories: Displays all widgets by category. ✎✎To install a widget, select Add Widget to My Profile and press the ENTERE button. The widget will be installed and become available in the dock. Featured Latest All widgets Categories ■■ Widget Gallery Settings: Press the Green button. –– About Yahoo! Widget Gallery...: You can view brief information for the Widget Gallery, Copyright Policy, Terms of Service, and Privacy Policy. –– TV Widget Software: Displays the current version of the system software, and installed widgets. –– Create your own widgets through the Developer Settings menu. For more information, visit our developer site at http://connectedtv.yahoo.com/. English Advanced Features ¦¦ Troubleshooting for Internet@TV Problem Possible Solution Some application contents only appear in English. How can I change the language? The Application content language may be different from the application user interface language. The ability to change the language depends on the service provider. Some application services do not work. Check with the service provider. Refer to the help website for application service provider information. When a network error occurs, I can only use the setting menu. If network connection doesn’t work, your service might be limited, as all functions except the setting menu are needed to connect to the internet. All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE DEVICE IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE AND ACCURACY IS WITH YOU. THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE DEVICE AND ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY, OF QUIET ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT WARRANT THAT THE DEVICE, CONTENT OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF THE DEVICE, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or service made available through this device. Samsung may impose limits on the use of or access to certain services or content, in any case and without notice or liability. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers. ✎✎Accessing steps may be changed in the future. ✎✎It can be different links for special countries. Country USA Website www.samsung.com → consumer products → Television → medi@2.0 → Internet@TV Canada OO MENU → Application → Content View → AllShare

• ENTERE Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message, Media, or ScreenShare function. ✎✎The Media function is available in all mobile devices ¦¦ About AllShare which support AllShare. AllShare connects your TV and compatible Samsung mobile phones/ devices through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV for browsing web pages in your mobile phones. contact the Samsung call center. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide. ■■ Allowed / Denied: Allows/Blocks the mobile phone. ■■ Delete: Deletes the mobile phone from the list. ✎✎ This function only deletes the name of the mobile 04 Advanced Features AllShare from the list. If the deleted mobile device is turned on or trys to connect to the TV, it may appear on the list again. Using the Message Function Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV. ✎✎NOTE xx To disable the alarm window, set Message to Off in ¦¦ Setting Up AllShare Setup of AllShare. xx If OK is selected, or if OK is not selected after the Setup ■■ Message (On / Off): Enables or disables the message function (for call arrivals, SMS messages and schedules set on your mobile phones). ■■ Media (On / Off): Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare. ■■ ScreenShare (On / Off): Enables or disables the ScreenShare function for using mobile phone as a remote control. ■■ TV name: Sets the TV name so you can find it easily on a mobile device. ✎✎ If you select User Input, you can type on the TV using the OSK (On Screen Keyboard). AllShare™ 3/7 Setup Message : On Message Media : On Media ScreenShare : On ScreenShare TV name : Home TV message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone. xx The alarm window can be displayed while using some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode. xx When a message from an unknown mobile phone is displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone. Message View If a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed. You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual.

✎✎ Some types of characters may be displayed as blank or broken characters. E Select R Return e Exit Setup R Return English Advanced Features Call Arrival Alarm Using ScreenShare Function If a call arrives while you are watching TV, the alarm window appears. Using ScreenShare, you can browse various web contents provided by the mobile phone. For example, the image below displays an access page for contents on a mobile. You can read the mobile’s files and view the phone book and calendar on the TV. Also, in the phone book, you can make a call to another person, or send to SMS. Schedule Alarm While you are watching TV, the alarm window appears to display the registered event. You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual.

✎✎ Some special characters may be displayed as blank or broken characters. ✎✎NOTE xx You must have ScreenShare installed on your Samsung Mobile phone/device to use this feature. xx Doc Viewer can read files in doc format, but cannot modify them. xx The screen display may differ depending on the Using the Media Function An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played. connected device. My Mobile ✎✎NOTE xx If the media function executes for the first time, the warning popup window appears. Press the ENTERE button to select Allow, then you can use Media function on that device. “Unknown Device 0” is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press “Allow”, otherwise press “Deny”. You can also change the setting (or resetting) of this feature at “AllShare Setup”.

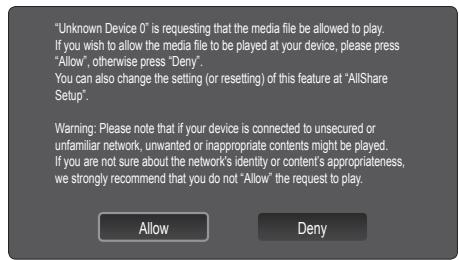

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content’s appropriateness, we strongly recommend that you do not “Allow” the request to play. Allow Deny Contacts Calendar Doc Viewer E Select Return Using your Samsung Phone to Operate Your TV Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, y, z and MUTE buttons are supported. ✎✎Even if you keep pressing down on a control button (channel or volume) on the mobile phone, the value will only go up or down by one unit. xx To turn off the media contents transmission from the mobile phone, set Media to Off in the AllShare setup. xx Contents may not be played on your TV depending on their resolution and format. xx The ENTERE and ◄ / ► buttons may not work depending on the type of media content. xx Using the mobile device, you can control the media playing. For details, refer to each mobile’s user’s guide. xx When you want to play media contents from your PC, select the PC icon on the main display of AllShare. Then the TV’s Media Play menu automatically changes. For more detail information, refer to “Media Play” (p. 39).

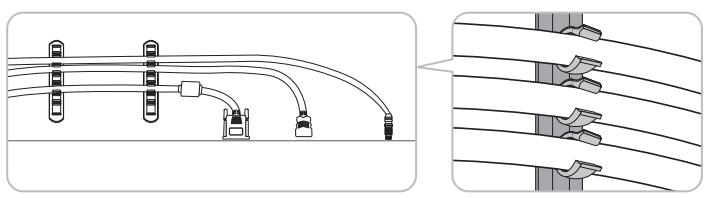

English Other Information 05 Other Information Assembling the Cables Wall-Mount Type ✎✎Do not pull the cables too hard when arranging them. This may cause damage to the product’s connection terminals. English Other Information Securing the TV to the Wall Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. Accessories TV-Holder Screw (M4XL12) To prevent the TV from falling

1. Remove the screw attached to the back of your TV, then connect the TV-Holder to the TV with the screw.

✎✎ Make sure to only use the supplied screw. 2. Firmly fasten the screw to the wall or cabinet where the TV is to be installed. Tie the TV-Holder attached to the TV and the screw fastened on the wall or cabinet so that the TV is fixed. ✎✎ Only the screw needed to attach the holder to the TV is supplied. The screw to attach the Holder to the wall or cabinet must be purchased separately. We recommend purchasing a size M4xL20 wood screw. ✎✎ Install the TV close to the wall so that it does not fall. ✎✎ When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes. ✎✎ Check the cord occasionally to make sure it is secure. ✎✎ Before moving the TV, separate the connected cord first. 3. Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any doubt about the security of your connections, contact a professional installer.

English If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit “www.samsung.com,” then click on Support, or call Samsung customer service at 1-800-SAMSUNG. Issues Solutions and Explanations Poor picture First of all, please perform the Picture Test and confirm that your TV is properly displaying the test image. (go to MENU - Support - Self Diagnosis - Picture Test) (p. 30) If the test image is properly displayed, the poor picture may be caused by the source or signal. The TV image does not look as good as it did in the store.

The picture is distorted: macro block error, small block, dots, pixelization.

If you have an analog cable/satellite box, upgrade to an HD digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality. Cable/Satellite subscribers: Try HD stations from the channel line up. Antenna connection: Try HD stations after performing Auto program. ✎✎ Many HD channels are up scaled from SD(Standard Definition) contents. Adjust the Cable/Sat box video output resolution to 1080i or 720p. Compression of video contents may cause picture distortion, especially in fast moving pictures such as sports and action movies. Low signal level can cause picture distortion. This is not a TV problem. Mobile phones used close to the TV (up to 3.3 ft) may cause noise in picture on analog and digital TV. Color is wrong or missing.

If you’re using Component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or a blank screen. There is poor color or brightness.

Adjust the Picture options in the TV menu (go to Picture mode / Color / Brightness / Sharpness) (p. 18) Adjust Energy Saving option in the TV menu (go to MENU – Picture – Eco Solution – Energy Saving) (p. 18) Try resetting the picture to view the default picture settings (go to MENU - Picture - Picture Reset) (p. 24)

There is a dotted line on the edge of the screen.

If the picture size is set to Screen Fit, change it to 16:9 (p. 20). Change cable/satellite box resolution. The picture is black and white.

If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV. When changing channels, the picture freezes or is distorted or delayed.

If connected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes) Set the output resolution of the cable box to 1080i or 720p.

05 Other Information Troubleshooting

The 3D Active Glasses may not work properly if there is any other 3D product or electronic devices turned on near the glasses or TV.

If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses. You may notice a small amount of screen flickering when watching 3D images in poor light conditions (from a strobe light, etc.), or under a fluorescent lamp (50Hz ~ 60Hz) or 3 wavelength lamp.

If so, dim the light or turn the lamp off. The ideal viewing distance should be three times or more the height of the screen.

We recommend sitting with viewer's eyes on a level with the screen. If you leave 3D glasses on, battery lifespan is shortened.

Turn off 3D glasses while not using them. English Other Information Issues Solutions and Explanations Sound Problem First of all, please perform the Sound Test to confirm that your TV audio is properly operating. (go to MENU - Support - Self Diagnosis - Sound Test) (p. 30) If the audio is OK, the sound problem may caused by the source or signal. There is no sound or the sound is too low at maximum volume.

Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV. The picture is good but there is no sound.

Set the Speaker Select option to TV Speaker in the Sound menu (p. 25). If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV. If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV). If you are using a DVI to HDMI cable, a separate audio cable is required. If your TV has a headphone jack, make sure there is nothing plugged into it. Reboot the connected device by reconnecting the device’s power cable.

The speakers are making an inappropriate noise.

Check cable connections. Make sure a video cable is not connected to an audio input. For antenna or Cable connections, check the signal strength. Low signal level may cause sound distortion. Perform the Sound Test as explained above. No Picture, No Video The TV won’t turn on.

Make sure the AC power cord is securely plugged in to the wall outlet and the TV. Make sure the wall outlet is working. Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below. The TV turns off automatically.

Ensure the Sleep Timer is set to Off in the Setup menu (p. 26). If your PC is connected to the TV, check your PC power settings. Make sure the AC power cord is plugged in securely to the wall outlet and the TV. When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if there is no signal. There is no picture/video.

Check cable connections (remove and reconnect all cables connected to the TV and external devices). Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV. Make sure your connected devices are powered on. Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control. Reboot the connected device by reconnecting the device’s power cable.

RF(Cable/Antenna) Connection The TV is not receiving all channels.

Make sure the coaxial cable is connected securely. Please try Auto Program to add available channels to the channel list. Go to MENU - Channel Auto Program then select Auto and make sure the correct Cable TV signal type is set in the menu. There are 3 options (STD, HRC and IRC) (p. 16) Verify the Antenna is positioned correctly. No Caption on digital channels.

Check Caption Setup menu. Try changing Caption Mode Service1 to CC1 (p. 28). Some channels may not have caption data. The picture is distorted: macro block error, small block, dots, pixelization.

Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies. A low signal can cause picture distortion. This is not a TV problem. A “Mode Not Supported” message appears.

Set your PC’s output resolution so it matches the resolutions supported by the TV (p. 14). “PC” is always shown on the source list, even if a PC is not connected.

This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected. The video is OK but there is no audio.

If you are using an HDMI connection, check the audio output setting on your PC. PC Connection

English Solutions and Explanations 05 Other Information Issues Network Connection The wireless network connection failed.

The Samsung Wireless USB dongle is required to use a wireless network. Make sure the Network Connection is set to Wireless (p. 34). Make sure the TV is connected to a wireless IP sharer (router). Software Upgrade over the network fails.

Try network test in Setup menu (p. 29). If you have latest SW version, SW upgrade will not proceed. Purple/green rolling horizontal bars and buzzing noise from the TV speakers with Component cable connection.

Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI connection. The picture won’t display in full screen.

HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents. Black bars on the Top & Bottom will be shown on movies that have aspect ratios different from your TV. Adjust the picture size options on your external device or TV to full screen. The remote control does not work.

Replace the remote control batteries with the poles (+/–) in the right direction. Clean the sensor’s transmission window on the remote. Try pointing the remote directly at the TV from 5~6 feet away. The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

Program the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code. A “Mode Not Supported” message appears.

Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 14 of this manual. Caption on TV menu is greyed out.

Caption can not be selected in the TV menu when connected via HDMI or Component (p. 28). Caption must be activated on the external device (p. 28). There is a plastic smell from the TV.

This smell is normal and will dissipate over time. The TV Signal Information is unavailable in the Self Diagnostic Test menu.

This function is only available with digital channels from an Antenna / RF/Coax connection (p. 30). The TV is tilted to the side.

Remove the base stand from the TV and reassemble it. The channel menu is greyed out (unavailable).

The Channel menu is only available when the TV source is selected. Your settings are lost after 30 minutes or every time the TV is turned off.

If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play → ENTERE (p. 10). You have intermittent loss of audio or video.

Check the cable connections and reconnect them. Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to a wall, we recommend using cables with 90 degree connectors. You see small particles when you look closely at the edge of the frame of the TV.

This is part of the product’s design and is not a defect. POP (TV’s internal banner ad) appears on the screen.

Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature (p. 10).

✎✎This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English Other Information Enclosed Wireless LAN Adapter WIS09ABGN2 Features

Compatible with IEEE 802.11a/b/g and 802.11n draft 2.0 Supports USB 2.0 Compact and Lightweight Pocket-Sized Design Supported Model: The Enclosed wireless LAN Adapter will only be work with the TV is was shipped with. Safety Precautions

Do not let children swallow the product or play with the plastic bag. Keep the product and the plastic bag out of the reach of children. Do not let water or other liquids come into contact with the product, as it may result in damage. Keep the product away from direct sunlight, fire or a heat source such as a heater. This may reduce the product lifetime or result in fire. Warranty: 1 Year

If the product is not working properly due to a performance defect that appears under normal circumstances within the warranty period, please visit the retailer where you purchased it. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter Specifications Standard 64/128bit WEP, WPA /WPA2, 802.1x, WPS Output Power TX: 500mA at continuous transmit mode (2 Tx chains on ) RX: 300mA at continuous receive mode (2 Rx chains on ) Dimensions (L X W X D)

3.3 X 1.047 X 0.63 inches (84 X 26.6 X 16 mm)

Ideal For 802.11n (5GHz) streaming HD video streaming SD video music, photo

recommended 802.11n (2.4GHz)

802.11 a/b/g

not recommended not recommended recommended recommended Network conditions and environmental factors (including but not limited) volume of network traffic, building materials and construction, may lower actual data throughput rate. Environmental conditions will affect wireless signal coverage. Video clips with lower than 20Mbps bit-rates are recommended for the wireless video streaming.

English License TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx. com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274 Open Source License Notice In the case of using open source software, Open Source Licenses are available on the product menu. Open Source License Notice is written only English. Specifications Panel native 1920 x 1080 Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Screen Size (Diagonal) 46 inches (45.9 inches measured diagonally) 55 inches (54.6 inches measured diagonally) 10 W X 2 15 W X 2 Sound (Output) Dimensions (WxDxH) Body With stand Weight Without Stand With Stand With Wall Mount ✎✎Design and specifications are subject to change without prior notice. ✎✎This device is a Class B digital apparatus. ✎✎For information about power supply, and more about power consumption, refer to the label attached to the product. English Other Information Dimensions ■■ Front view / Side view

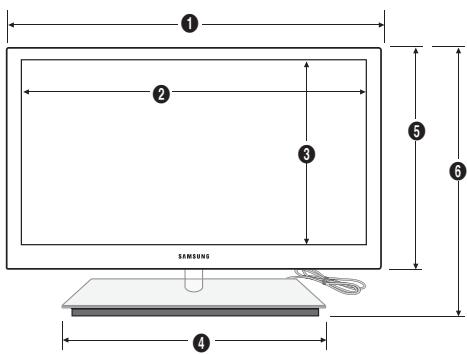

NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors. © 2010 Samsung Electronics America, Inc

English AllShare Amplify Antenna Anynet+ AUDIO OUT Auto Adjustment Auto Volume

Background Music Balance L/R Basic View Batteries Black Tone Brightness

Installation Space Internet@TV Change PIN Channel Menu Clock Color Tone Component Connecting to a PC Connecting to an Audio Device

Media Play Melody Menu Transparency Mono Music

Navigate Network Connection Network Setup

Password Photos Picture Size Plug & Play Power Indicator Receiver Recording Remote Control Repeat Mode RGB Only Mode Rotate

Eco Sensor Edit Name Editing Channels Energy Saving Equalizer External Speaker 8, 16

DIGITAL AUDIO OUT

DivX® VOD D-sub Dynamic Dynamic Contrast FAV.CH button Favorite Channel Film Mode Fine Tune Flesh Tone Frequency

Select All Self Diagnosis Sharpness Signal Information Sleep Timer Slide Show Software Upgrade Source List Speaker Select Specifications Standby mode Symbol

Timer Title Tools Troubleshooting TV Speaker

Warm White Balance Widget

English Other Information Regulatory Compliance Information FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: yy Reorient or relocate the receiving antenna. yy Increase the separation between the equipment and receiver. yy Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. yy Consult the dealer or an experienced radio/TV technician for help. Wireless Radio For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Important: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its atenna(s) must not be colocated or operation in conjunction with any other antenna or transmitter. Wireless Radio For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Important: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

English This page is intentionally left blank. Pantalla inicial Keyboard Control TV Services ✎✎HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN ✎✎DIGITAL AUDIO OUT (OPTICAL) 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

VESA GTF 1280 x 720 1280 x 1024

VESA DMT / DTV CEA

✎✎NOTA ■■ Tono Color (Frío / Normal / Tibio1 / Tibio2)

Sonid Multi-track (MTS) t L Mover U Ajustar *.ts *.tp *.trp

Códec de vídeo Resolución H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920x1080 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

VC1 1920x1080 6 ~ 30

Códec de audio I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer 3/15 Music 1 Music 2 No Singer Music 3 TV store Test User002 64/128bit WEP, WPA /WPA2, 802.1x, WPS TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx. com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274 This page is intentionally left blank. Touche Power On/Off ✎✎HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN Appareil COMPONENT OUT AUDIO OUT

Bleu Verte Rouge Blanc

Appareil AUDIO OUT VIDEO OUT R-AUDIO-L

✎✎DIGITAL AUDIO OUT (OPTICAL) 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

VESA GTF 1280 x 720 1280 x 1024

VESA DMT / DTV CEA

✎✎REMARQUE ■■ Nuance Coul. (Froide / Normal / Chaude1 / Chaude2) OO MENU → Support technique → ENTERE Avis juridique MPEG-4 time-based text .ttxt XML SAMI .smi HTML 00:04:03 / 00:07:38 1/1 Movie 01.avi Format SubRip .srt à chaînes SubViewer .sub à chaînes Micro DVD .sub ou .txt à chaînes SUM *.ts *.tp *.trp

Codec Vidéo Résolution H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920x1080 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

VC1 1920x1080 6 ~ 30

I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer 3/15 Music 1 Music 2 No Singer Music 3 Image Format (Mode1 / Mode2 / Original) Créer [0~9] Entrez NIP R Annuler TV store Test User002 Site Web www.samsung.com → consumer products → Television → medi@2.0 → Internet@TV Canada 64/128bit WEP, WPA /WPA2, 802.1x, WPS Dimensions (L X L X P) TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274 Aff. de base AllShare Amplification Antenne Anynet+ AUDIO OUT Autodiagnostic

Navigation Netteté Nuance coul. This page is intentionally left blank.
