USER MANUAL PS58A656 SAMSUNG

Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRIA Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01768A-02 BN68-01768A.indb 1 2009-01-22 오후 2:56:17 User Instructions Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Height The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there. Heat on the top of the PDP TV The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 5°C(41°F) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Afterimage on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. Warranty - Warranty does not cover any damage caused by image retention. - Burn-in is not covered by the warranty. Installation Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.) © 2008 Samsung Electronics Co., Ltd. All rights reserved. English - BN68-01768A.indb 2 2009-01-22 오후 2:56:18 General Information

PC Display Operation

• Storing Channels Automatically p. 13
• Storing Channels Manually p. 14
• Adding / Locking Channels p. 15
• Sorting the Stored Channels p. 16
• Assigning Names to Channels p. 16
• Fine Tuning Channel Reception p. 17
• LNA (Low Noise Amplifier) p. 17
• Changing the Picture Standard p. 18
• Customizing the Picture Settings p. 18
• Configuring Detailed Settings on the Picture p. 19
• Picture Options p. 20
• Resetting the Picture Settings to the Factory Defaults p. 22
• Sound Control Sound Features p. 23
• Selecting the Sound Mode (depending on the model) p. 24
• Connecting Headphones (Sold separately) p. 24
• Function Description Using the DTV Feature Previewing the DTV Menu System p. 31
• Displaying Programme Information p. 32
• Operating the DTV Menu p. 33
• What is Anynet+? p. 51
• Connecting Anynet+ Devices p. 51
• Setting Up Anynet+ p. 52
• Scanning and Switching between Anynet+ Devices p. 52
• Recording p. 53
• Listening through a Receiver p. 54
• Check Points before Requesting Service p. 54

• Appendix Teletext Feature (depending on the model) p. 55
• Wall Mount Kit Specifications (VESA) p. 57
• Auto Wall- mount adjustment (Sold separately) p. 58
• Preparing before installing Wall- Mount on the wall p. 59
• How to assemble the Stand-Base (depending on the model) p. 59
• Securing the TV to the Wall p. 60
• Troubleshooting p. 61

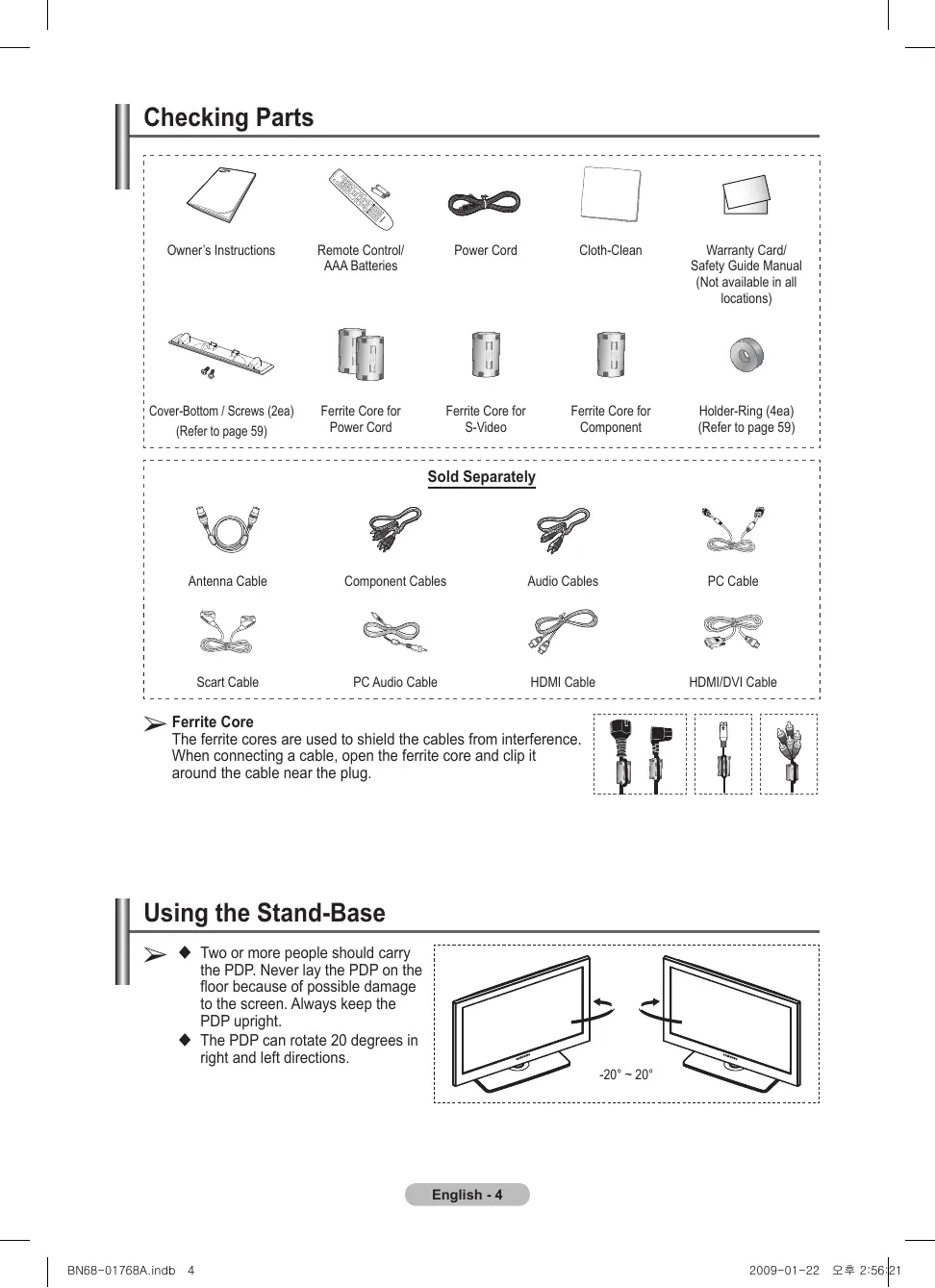

• Specifications Remote Control/ AAA Batteries Power Cord Cloth-Clean Warranty Card/ Safety Guide Manual (Not available in all locations) Cover-Bottom / Screws (2ea) (Refer to page 59) Ferrite Core for Power Cord Ferrite Core for S-Video Ferrite Core for Component Holder-Ring (4ea) (Refer to page 59) Sold Separately Antenna Cable Component Cables Audio Cables PC Cable Scart Cable PC Audio Cable HDMI Cable HDMI/DVI Cable Core Ferrite The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. Using the Stand-Base p. 62

Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright. The PDP can rotate 20 degrees in right and left directions. -20° ~ 20° English - BN68-01768A.indb 4 2009-01-22 오후 2:56:21 Control Panel Front Panel The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, HDMI4, DTV). 5 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

In the on-screen menu, use this button as you would use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. Front Panel buttons Touch each button to operate. POWER Press to turn the TV on and off. 7 Remote Control Sensor Aim the remote control towards this spot on the TV. 8 Speakers 3 – Press to increase or decrease the volume. In the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control. English - BN68-01768A.indb 5 2009-01-22 오후 2:56:22 Connection Panel Rear Panel

Cable Television Network

The product colour and shape may vary depending on the model.

Whenever you connect an audio or video system to your set, ensure that all elements are switched off. When connecting an external device, match the colour of the connection terminal to the cable. 1 POWER IN Connect the supplied power cord. 2 COMPONENT IN Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component. 3 PC IN(PC) / (AUDIO) Connect to the video and audio output jack on your PC. 4 EXT 1, EXT 2 Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. 5 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio Component. 6 Connecting external Audio Devices Connect RCA audio signals from the TV to an external source, such as Audio equipment. 7 SERVICE − Connector for service. − Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control. Input/Output Specification Connector EXT 1 EXT 2 Input Output Video Audio(L/R) RGB Video + Audio(L/R) Only TV or DTV

output is available. Output you can

choose. Continued... English - BN68-01768A.indb 6 2009-01-22 오후 2:56:24 8 HDMI IN 1, 2, 3 − No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. What is HDMI? - “High Definition Multimedia interface” allows the ansmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI IN (HDMI 2) AUDIO R/L

DVI audio outputs for external devices. 9 ANT IN 75Ω Coaxial connector for Aerial/Cable Network. Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component The product colour and shape may vary depending on the model. 1 COMMON INTERFACE Slot Insert CI (Common Interface) card into the slot. (refer to page 41) − When ‘CI Card’ isn’t inserted in some channels, “Scramble Signal” is displayed on the screen. − The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. − When the channel information configuration has finished, the message “Updating Completed” is displayed, indicating that the channel list is now updated. Insert the CI-Card in the direction marked on it.

2 HDMI IN 4 Connect to the HDMI jack of a device with HDMI output. 3 WISELINK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 4 S-VIDEO or VIDEO / AUDIO L/R Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR. 5 headphones jack You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room. Prolonged use of headphones at a high volume may damage your hearing.

English - BN68-01768A.indb 7 2009-01-22 오후 2:56:25 Viewing the Remote Control The performance of the remote control may be affected by bright light. 1 POWER button (turns the TV on and off) 2 Selects the TV and DTV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 Temporary sound switch-off 6 Available source selection Volume increase Volume decrease 8 Electronic Program Guide (EPG) display 9 Use to quickly select frequently used functions. 0 Control the cursor in the menu ! Use to see information on the current broadcast @ Use these buttons in the Channel list and WISELINK, etc. $ Press to select the optional display and sound modes for sports, cinema and games. % VCR/DVD Function (Rewind, Stop, Play/Pause, Fast/ Forward) ON/OFF Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF( ) light button set to On will reduce the battery usage time. & Previous channel Next channel Previous channel ( Displays the main on-screen menu ) This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 45 (JPEG), 48 (MP3)) a Returns to the previous menu b Exit the on-screen menu c Picture size selection d Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 52) e Channel control button (Refer to page 15) f Digital subtitle display

Teletext Functions (Refer to page 55) 2 Exit from the teletext display (depending on the model) 6 Teletext mode selection (LIST/FLOF) 8 Teletext store 9 Teletext size ! Teletext reveal @ Fastext topic selection # Teletext display/mix both teletext information and the normal broadcast & Teletext sub page

• P :Teletext next page :Teletext previous page ( Teletext index a Teletext hold b Teletext cancel Continued... English - BN68-01768A.indb 8 2009-01-22 오후 2:56:26 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Using the remote control with the ON/OFF( ) light button set to On will reduce the battery usage time. Close the cover as shown in the figure. Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

remote control doesn’t work! Check the following: 1.If the Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off The mains lead is attached to the rear of the television. 1 Plug the mains lead into an appropriate socket. The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz. 2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 13 or “Storing Channels Manually” on page 14. If the television is initially powered on, several basic customer settings proceed automatically. Refer to “Plug & Play Feature” on page 10. 3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control. 4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

Press the MENU button. The main menu is displayed on the screen. Its left side has six icons: Picture, Sound, Channel, Setup, Input, and Digital Menu. Press the ▲ or ▼ button to select one of the icons. Press the ENTER button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTER button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu.

Picture Mode : Standard Cell Light 7 Contrast 80 Brightness Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings More Move Enter Exit English - BN68-01768A.indb 9 2009-01-22 오후 2:56:27 Plug & Play Feature When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available. If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. 1 If the television is in standby mode, press the POWER button on the remote control. The message Start Plug & Play is displayed. Press the ENTER button. 2 The Language menu will automatically appear after several seconds. 3 Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button. The message Select ‘Home Use’ when installing this TV in your home. is displayed. 4 Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed. The default selection is Home Use. We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button. When the volume OSD is displayed, press and hold the MENU button for 5 seconds. 5 Make sure that the antenna is connected to the TV. Press the ENTER button. The Country menu is displayed. 6 Select your country or area by pressing the ▲ or ▼ button. Press the ENTER button. The message Some DTV functions may not be available. Digital Scan? is displayed. This function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria. If your country supports the DTV functions, the message is not displayed. Then you can follow the instructions from step

12. When the local service provider does not support DTV

broadcasting but you choose a DTV supporting country, it enters the DTV Plug & Play but DTV functions may not work properly.When No is selected, follow the instructions from step 7 to 10. When Yes is selected, follow the instructions from step 11.

Plug & Play Start Plug & Play. Enter Plug & Play English Deutsch Français Italiano

Language Move Select ‘Home Use’ when installing this TV in your home. Store Demo Move Home Use Enter Plug & Play Check antenna input. Enter Plug & Play United Kingdom Austria Eastern Europe Others Country Move Enter Plug & Play Some DTV functions may not be available. Digital Scan? Yes Move

Enter Skip Select No pressing the ◄ or ► button, then press the ENTER button. Auto Store menu is displayed. Press the ENTER button to start search the channels. The channel search will start and end automatically. After all the available channels are stored, Clock Set menu is automatically displayed. Press the ENTER button. To stop the search before it has finished, press the ENTER button with Stop selected. Press the ◄ or ► button to select Month, Day, Year, Hour, or Minute. Set these by pressing the ▲ or ▼ button. You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control. Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Select Yes pressing the ◄ or ► button, then press the ENTER button. Auto Store menu is displayed. Press the ENTER button to start search the analog channels. The analog channel search will start and end automatically. After all the available analog channels are stored, the screen for searching digital channels is automatically displayed. To stop the search before it has finished, press the ENTER button with Stop selected. Press the ENTER button to start search the digital channels. The digital channel search will start and end automatically. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country. To stop the search before it has finished, press the ENTER button with Stop selected. If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. For detailed descriptions about DTV channel update, refer to page 33 of this manual. Press the ▲ or ▼ button to select required time zone, then press the ENTER button. The screen for setting the time is displayed. Press the ENTER button. Press the ◄ or ► button to select Month, Day, Year, Hour, or Min. Set these by pressing the ▲ or ▼ button. You can set the Month, Day, Year, Hour, or Min directly by pressing the numeric buttons on the remote control. Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Plug & Play Clock Set Month Year

Move Adjust Plug & Play

The Iberian Peninsula and Balears Islands Canarian Islands Move Select Skip <Spain only> Plug & Play Set the current time. Month Day Year

Scanning for digital services...

Move Enter Skip Enjoy your viewing

If you want to reset this feature … 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ENTER button again to select Plug & Play. The message Start Plug & Play is displayed.

Setup Plug & Play Language : English Time Auto Wall-Mount Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear. Tools

Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard Custom Off Off Off Mono Enter Exit Anynet+(HDMI-CEC), see page 52 Picture Mode, see page 18 Sound Mode, see page 23 Sleep Timer, see page 25 SRS TS XT, see page 23 Energy Saving, see page 27 Dual I-II, see page 24 PIP, see page 27 Auto Adjustment, see page 30 Viewing External Signal Sources You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source (broadcast or cable). 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ENTER button again to select Source List. 4 Press the ▲ or ▼ button to select the signal source, then press the ENTER button. Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, HDMI 4, DTV You can choose only those external devices that are connected to the TV.

Input Source List : TV Edit Name Anynet + (HDMI-CEC) WISELINK Move

Enter Return Source List Ext.1 Ext.2 S-Video Component More Move can select these options simply by pressing the SOURCE You button on the remote control. watch television programme again, press the TV/DTV button and select the channel number required. English - 12 BN68-01768A.indb 12 2009-01-22 오후 2:56:29 Editing Device Names You can give a name to the external source. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ▲ or ▼ button to select Edit Name, then press the ENTER button. 4 Press the ▲ or ▼ button to select the external source to be edited, then press the ENTER button. 5 Select the required device by pressing ▲ or ▼, then press the ENTER button. Available device names: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA. 6 Press the EXIT button to exit. Input

Source List : TV Edit Name Anynet + (HDMI-CEC) WISELINK Move Enter

(availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ENTER button again. The available countries are listed. 4 Select your country by pressing the ▲ or ▼ button, then press the ENTER button. Even though you have changed the country setting in this menu, the country setting for DTV is not changed. Use the Plug & Play function to change the country setting for DTV. (Refer to pages 10 to 11) 5 Press the ▲ or ▼ button to select Auto Store, then press the ENTER button. 6 Press the ENTER button again to start the search. The search will end automatically. To stop the search before it has finished, press the MENU or the ENTER button. : −−−− −−−− : −−−− VCR DVD : Cable STB Satellite STB PVR STB AV Receiver

Return Channel Country : United Kingdom Auto Store Switzerland Manual Store United Kingdom Austria Channel Manager Eastern Europe Sort Others Name Fine Tune LNA : Off Move Enter

Return Storing Channels Automatically Not available in DTV or external input mode. You can scan for the frequency ranges available to you

Move Enter Return Auto Store P 1

40 MHz 0 % Start Enter Return English - 13 BN68-01768A.indb 13 2009-01-22 오후 2:56:30 Storing Channels Manually Not available in DTV or external input mode. You can store television channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Manual Store, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit.

Manual Store Programme Colour System Sound System Channel Search Store Move Enter Return Programme (Programme number to be assigned to a channel) − Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9). Colour System: Auto/PAL/SECAM/NTSC4.43 − Press the ▲ or ▼ button to select the required colour standard. Sound System: BG/DK/I/L − Press the ▲ or ▼ button to select the required sound standard. Channel (When you know the number of the channel to be stored) − Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). − Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) − Press the ▲ or ▼ button to start the search. − The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number) − Set to OK by pressing the ENTER button.

mode Channel P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. English - 14 BN68-01768A.indb 14 2009-01-22 오후 2:56:30 Adding / Locking Channels Not available in DTV or external input mode. Using the Channel Manager, you can conveniently lock or add

channels. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Channel Manager, then press the ENTER button. Adding channels Using the Channel List, you can add channels.

Select Channel List by pressing the ENTER button. Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select a channel to be added, and press the ENTER button to add the channel. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added. Enter Return Channel Manager Channel List Child Lock : Off

Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Press the ▲ or ▼ button to select Child Lock, then press the ENTER button. 7 Select On by pressing the ▲ or ▼ button, then press the ENTER button. 8 Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 9 Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select a channel to be locked, and press the ENTER button. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is canceled. A blue screen is displayed when Child Lock is activated. 10 Press the EXIT button to exit.

Move Enter Return Channel List P 1 C6 1 / 10 Prog.

Lock Enter Exit can select these options simply by pressing the CH LIST You button on the remote control. English - 15 BN68-01768A.indb 15 2009-01-22 오후 2:56:31 Sorting the Stored Channels Not available in DTV or external input mode. This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Sort, then press the ENTER button. 4 Select the channel that you wish to move by pressing the ▲ or ▼ button, then press the ENTER button. 5 Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button. Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly. 6 Repeat steps 4 to 5 until you have moved all the channels to the required programme numbers. 7 Press the EXIT button to exit. Assigning Names to Channels Not available in DTV or external input mode. Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Name, then press the ENTER button. 4 Press the ▲ or ▼ button to select the channel to be assigned to a new name, then press the ENTER button. 5 Press the ▲ or ▼ button to select a letter, a number, or a symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank). Move on to the previous or next letter by pressing the ◄ or ► button, then press the ENTER button. 6 Repeat steps 4 to 5 for each channel to be assigned to a new name. 7 Press the EXIT button to exit.

Fine Tuning Channel Reception Not available in DTV or external input mode. If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to fine tune the channel manually. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Fine Tune, then press the ENTER button. 4 To obtain a sharp, and clear picture and good sound quality, press the ◄ or ► button until you reach the optimal setting. Press the ENTER button. Press the Info button. Fine Tune Store will change the colour of the Channel OSD (On Screen Display) from White to Red and add the “*” mark. To reset the fine tuning to 0, select Reset by pressing the ▲ or ▼ button. Press the ENTER button. 5 Press the EXIT button to exit.

P 1* Mono Picture Sound

SRS TS XT

LNA (Low Noise Amplifier) This function is very useful in the situation that the TV is used in weak signal. LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal. 1 Press the MENU button to display the menu. Channel Country : United Kingdom 2 Press the ▲ or ▼ button to select Channel, then press the Auto Store ENTER button. Manual Store Channel Manager 3 Press the ▲ or ▼ button to select LNA, then press the ENTER Sort button. Name Fine Tune 4 Select Off or On by pressing the ▲ or ▼ button, then press LNA : Off the ENTER button. 5 Press the EXIT button to exit. Depending on areas, factory mode of LNA, will be set up as or Off. Move Enter Return English - 17 BN68-01768A.indb 17 2009-01-22 오후 2:56:32 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie The settings values may vary depending on the input source. 5 Press the EXIT button to exit.

Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More

Choose Dynamic for viewing the TV during the day or when there is bright light in the room. Choose Standard for general TV watching mode. Choose Movie when viewing the movie. Enter Return Picture Dynamic Mode : Standard Standard Cell Light 7 Movie Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move Enter Return Tools Easy Setting

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select Picture Mode.

Press the ◄ or ► button to select the required option. Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard ► Custom Off Off Off Mono Adjust Exit Customizing the Picture Settings Your television has several setting options that allow you to control the picture quality. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie 5 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 6 When you are satisfied with your setting, press the ENTER button. 7 Press the EXIT button to exit.

Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move Enter Return Cell Light - Contrast – Brightness – Sharpness – Colour – Tint In Analog TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function. In PC mode, you can only make changes to Cell Light, Contrast, and Brightness. Press the ◄ or ► button until you reach the optimal setting.

English - 18 BN68-01768A.indb 18 2009-01-22 오후 2:56:33 Configuring Detailed Settings on the Picture You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement, xvYCC 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. Detailed Settings is available in Standard or Movie mode. In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance from among the Detailed Settings items.

Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move

Enter Return Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth. Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. Gamma: -3 ~ +3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting. Colour Space : Auto/Native/Custom Colour space is a colour matrix composed of red, green and blue colours. Select your favorite colour space to experience the most natural colour. − Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources. − Native: Native Colour Space offers deep and rich colour tone. − Custom: Adjusts the colour range to suit your preference. (see “Customizing the Colour Space”) Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom. Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button. − Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. − Reset: Resets the colour space to the default values. White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. Continued... English - 19 BN68-01768A.indb 19 2009-01-22 오후 2:56:33 Flesh Tone:-15~+15 You can emphasize the pink tone in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. Edge Enhancement: Off/On You can emphasize object boundaries. xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. The xvYCC function works only in Component or HDMI mode.

Picture Options Picture You can set detailed picture settings. Mode : Standard 1 Press the MENU button to display the menu. Cell Light 7 Contrast 95 2 Press the ENTER button to select Picture. Brightness 3 Press the ▲ or ▼ button to select Picture Options, then Sharpness 20 Colour 50 press the ENTER button. Tint G50 R50 Detailed Settings 4 Select the required option by pressing the ▲ or ▼ button, More then press the ENTER button. 5 When you are satisfied with your setting, press the Move Enter Return ENTER button. Picture Options Colour Tone : Normal 6 Press the EXIT button to exit. Size : Auto Wide Screen Mode 16:9 In PC mode, you can only make changes to the Colour Tone, Digital NR : Auto Size and Screen Burn Protection from among the items in DNle : On Picture Options. HDMI Black Level : Normal Movie Plus : Low Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 Blue only mode : Off Screen Burn Protection When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected. Move Enter Return Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan You can select the picture size which best corresponds to your Size viewing requirements. Auto Wide − Auto Wide: Expanding and pulling up the picture from 4:3 to 16:9 Wide Zoom 16:9 ratio. Zoom − 16:9: Sets the picture to 16:9 wide mode. 4:3 − Wide Zoom: Magnify the size of the picture more than 4:3. Just Scan Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button. − Zoom: Magnify the size of the picture vertically on screen. Move Enter Return − 4:3: Sets the picture to 4:3 normal mode. − Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i/1080p), Component(1080i/1080p) signals are input. After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Press the ◄ or ► button to select , then press the ENTER button. Press the ▲, ▼, ◄ or ► button to move the picture up, down, left and right. Reset: Press the ◄ or ► button to select Reset, then press the ENTER button. You can initialize the setting. With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen. For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported. You can change the picture size simply by pressing the P.SIZE button on the remote control. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Continued...

English - 20 BN68-01768A.indb 20 2009-01-22 오후 2:56:34

Positioning and Sizing the screen using Zoom − Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the ▲ or ▼ button as well as the screen size. − Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ◄ or ► button. − Resize the screen vertically using the ▲ or ▼ button after selecting the by pressing the ◄ or ► button. Screen Mode: 16:9/Wide Zoom/Zoom/4:3 Picture Options When setting the picture size to Auto Wide in a 16:9 wide TV, Colour Tone : Normal you can determine the picture size you want to see the 4:3 Size : Auto Wide Screen Mode : 16:9 16:9 WSS (Wide Screen Service) image or nothing. Each individual Digital NR : Wide Zoom European country requires different picture size so this function DNle Zoom is intended for users to select it. HDMI Black Level : 4:3 Movie Plus Low − 16:9: Sets the picture to 16:9 wide mode. Blue only mode : Off − Wide Zoom: Magnify the size of the picture more than 4:3. Screen Burn Protection − Zoom: Magnify the size of the picture vertically on screen. Move Enter Return − 4:3: Sets the picture to 4:3 normal mode. This function is available in Auto Wide mode. This function is not available in PC,Component or HDMI mode. Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. This function is not available in PC mode. When the signal is weak, select one of the other options until the best picture is displayed. DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. This function is available only in Dynamic mode. HDMI Black Level: Normal/Low Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to 235). This function is active only when the external input connects to HDMI(RGB signals). Movie Plus: Off/Low/Medium/High/Demo You can view more natural skin and clear text even in fast moving scenes. Use this function when watching movies. This function is not available in Wide Zoom and Zoom modes. This function is not available when PIP is set to On. It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode. Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/ Yellow Colour Bar Patterns, without using an additional Blue Filter. Blue Only Mode is available when the picture mode is set Screen Burn Protection to Movie or Standard. Pixel Shift White Screen Burn Protection Scrolling To reduce the possibility of screen burn, this unit is equipped Side Gray : Dark with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes. Move Enter Return Continued...

English - 21 BN68-01768A.indb 21 2009-01-22 오후 2:56:34 − Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen. − Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button. − Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Horizontal Dot, Vertical Line, Time Optimum condition for pixel shift;

TV/Ext/AV/Component/ HDMI/DTV Horizontal Dot

4 min Pixel Shift Pixel Shift Horizontal Dot Vertical Line Time Move : On

Return The Pixel Shift value may differ depending on the monitor size (inches) and mode. − White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. Light: When you set the screen ratio to 4:3, it brightens the left and right sides. To remove after images on the screen, use either White or Scrolling function. Although both of the two functions remove after images on the screen, Scrolling is more effective. The after image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again. Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Reset, then press the ENTER button. 4 Press the ▲ or ▼ button to select OK or Cancel then press the ENTER button. Each mode can be reset.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Sound, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Mode, Equalizer, SRS TS XT, Auto Volume, TV Speaker, Sound Select 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit. Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Sound Mode. 3 Press the ◄ or ► button to select the required option.

Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard Custom Off Off Off Mono Adjust

Exit Equalizer Equalizer: Balance/100Hz/300Hz/1KHz/3KHz/10KHz

The television has several settings which allow you to control the sound quality.

If you make any changes to these settings, the sound mode is automatically switched to Custom. Balance 100Hz 300Hz 1KHz 3KHz 10KHz SRS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the Move Adjust Return problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select SRS TS XT. 3 Press the ◄ or ► button to select Off or On. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II

Standard Custom Off Off Off Mono Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is Move Adjust changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. Exit TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. The – +, MUTE buttons do not operate when the TV Speaker is set to Off. When TV Speaker is set to Off, you can operate only Sound Select (in PIP mode) in Sound menu.

Sound Select: Main/Sub When the PIP feature is activated, you can listen to you can operate only Sound Select (in PIP mode) in Sound menu. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. English - 23 BN68-01768A.indb 23 2009-01-22 오후 2:56:35 Selecting the Sound Mode (depending on the model) The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the current transmission. Easy Setting

Tools Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select Dual I-II. Press the ◄ or ► button to select the required option. Type of broadcast Regular broadcast (Standard audio) NICAM Stereo

On-screen indication

Standard Standard Off Off Off Mono

Mono (Normal use) Regular + NICAM Mono NICAM Mono (Normal) NICAM Stereo NICAM stereo Mono (Normal) Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II NICAM dual-1 Regular broadcast (Standard audio) Bilingual or DUAL-I/II Dual I Stereo Stereo NICAM dual-2 Move Adjust Exit Mono (Normal) Mono (Normal use) Dual II Mono (Forced mono) If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono. If the stereo signal is weak and automatic switching occurs, switch to Mono. This function is only available in Analog TV mode. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room. When you insert the head set jack into the corresponding TV Side Panel port, you can operate only “Auto Volume” and Sound Select(in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not hear sound from the speakers when you connect headphones to the TV. The headphone volume and TV volume are adjusted separately. English - 24 BN68-01768A.indb 24 2009-01-22 오후 2:56:35 Time Features

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ▲ or ▼ button to select Time, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Clock Set, Sleep Timer, Timer 1, Timer 2, Timer 3 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. Clock Set You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers. − Press the ◄ or ► button to select Month, Day, Year, Hour, or Minute. Set these by pressing the ▲ or ▼ button. You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control. In the event of a power interruption or the set being turned off at the supply, the settings for the Clock will be lost. Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode. − Select the preset time interval (Off, 30, 60, 90, 120, 150, or

180) for staying on by pressing the ▲ or ▼ button.

Setup Plug & Play Language : English Time Auto Wall-Mount Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard Custom Off Off Off Mono Adjust

Exit Inactivate 1 Press the TOOLS button on the remote control. Volume 2 Press the ▲ or ▼ button to select Sleep Timer. Repeat 3 Press the ◄ or ► button to select the minute, then press the Once ENTER button. Move Adjust Return Timer 1 / Timer 2 / Timer 3 You can set the On/Off timers so that the television will switch on or off automatically at the time you select. You must set the clock first. − Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied. On Timer : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Off Timer : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Volume : Select the required volume level. Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun. You can set the hour, minute, directly by pressing the number buttons on the remote control.

Power Off Auto When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time. English - 25 BN68-01768A.indb 25 2009-01-22 오후 2:56:36 Language / Melody / Entertainment / Energy Saving / PIP

Melody : Off 3 Select the required option by pressing the ▲ or ▼ button, then Entertainment : Off press the ENTER button. Energy Saving : Off PIP

Available options: Language, Melody, Entertainment, Energy Saving, PIP 4 When you are satisfied with your setting, press the ENTER Move Enter Return button. 5 Press the EXIT button to exit. Language It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications. Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. The Melody does not play When no sound is output from the TV because the MUTE button has been pressed. When no sound is output from the TV because the – (Volume) button has been pressed. When the TV is turned off by Sleep Timer function.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Entertainment: Off/Sports/Cinema/Game Entertainment mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switches the Entertainment function off. − Sports: Provides the optimal picture and sound quality for sports. − Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound. − Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. set any of the three Entertainment modes to On, the settings will be locked and can not Ifbeyou adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off. The Entertainment settings are saved for each input source. Continued... English - 26 BN68-01768A.indb 26 2009-01-22 오후 2:56:36 Energy Saving: Off/Low/Medium/High This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Switches off the Energy Saving mode. − Low: Operates in standard mode regardless of the surrounding illumination. − Medium: Enters Medium power saving mode regardless of the surrounding illumination. − High: Enters maximum power saving mode regardless of the surrounding illumination.

Setup Plug & Play Language : English Time Auto Wall-Mount 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Energy Saving. 3 Press the ◄ or ► button to select the required option. Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move PIP (Picture in Picture): PIP(On/Off)/Source/Size/Position/ Programme You can display a sub picture within the main picture. In this way you can watch TV programme or monitor the video input from any connected devices. − PIP: On/Off You can activate or deactivate the PIP function. Table of PIP Settings Sub Picture Standard Custom Off Off Off Mono Adjust Exit PIP PIP Source Size Position Programme Move Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select PIP. Press the ◄ or ► button to select the required option. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment Move

Standard Standard Off Off Medium Enter Exit − Source You can select a source of the sub-picture. − Size:

You can select a size of the sub-picture. If main picture is in PC and Component mode, Size is not available. − Position:

You can select a position of the sub-picture. In Double( , ) mode, Position cannot be selected. − Programme You can select a channel of the sub-picture only when the Source is set to TV and DTV.

English - 27 BN68-01768A.indb 27 2009-01-22 오후 2:56:37 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1 Right click the mouse on the Windows Desktop, then click on Properties. The Display Properties will be displayed. 2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings. 3 Click on Advanced. A new settings dialog box will be displayed. 4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate. 5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment. English - 28 BN68-01768A.indb 28 2009-01-22 오후 2:56:37 Input Mode (PC) Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported: D-Sub Input Mode Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 350 720 x 400

VESA 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Mode Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) VESA 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. English - 29 BN68-01768A.indb 29 2009-01-22 오후 2:56:37 Setting the PC Preset to the PC mode by pressing the SOURCE button.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Picture, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit. Auto Adjustment : Auto adjustment allows the PC screen to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Picture

Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button. Screen Adjustment: Coarse/Fine/Position/Image Reset - Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. 1 Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button. 2 Press the ◄ or ► button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button. - Position Adjust the PC’s screen positioning if it does not fit the TV screen. 1 Adjust the position by pressing the ▲/▼/◄/► button. 2 Press the ENTER button. - Image Reset You can replace all image settings with the factory default values. Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Auto Adjustment Screen Adjustment Detailed Settings More Move Enter Return Auto Adjustment in Progress Please wait. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment Move

Standard Standard Off Off Medium Enter Exit Screen Adjustment Coarse Fine Position Image Reset Move

Enter Return Position Move Enter Return Image Reset is completed.

English - 30 BN68-01768A.indb 30 2009-01-22 오후 2:56:37 Previewing the DTV Menu System

The company does not guarantee the normal operation of the DTV menu for countries other than the 8 supported countries (United Kingdom, France, Germany, Italy, Netherlands, Spain, Switzerland, Austria) because only these country standards are supported. In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel List, etc. may not be displayed properly. Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Digital Menu, then press the ENTER button. Guide Now & Next Guide Full Guide Scheduled List Default Guide Now/Next Full Guide Digital Channel Country Auto Store Manual Store Edit Favourite Channels Channel List All Favourites Default All Favourites Setup Menu Transparency High Medium Low Opaque Change PIN Parental Lock Parental Rating Subtitle Off

Subtitle Mode Normal Hard of hearing Audio Format PCM Dolby Digital Audio Description Audio Description Enable Time Zone Common Interface System Product Information Signal Information Software Upgrade Reset English - 31 BN68-01768A.indb 31

Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move DTV Enter Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Enter

Return Continued... 2009-01-22 오후 2:56:38 Language Audio Language Subtitle Language Teletext Language Preference DTV Language Audio Language Subtitle Language Teletext Language Preference Primary Audio Language Secondary Audio Language Primary Subtitle Language Move Enter Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language (depending on the Country)

Return The sub-items of the CI Menu may vary depending on the CAM model. (refer to page 41) Displaying Programme Information While viewing a channel, additional information about the current programme may be displayed. While viewing a programme, press the INFO button. The programme information is displayed. The information is displayed: − Parental Rating − Video Type: SD, HD, Radio − Audio Type: Mono, Stereo, Dual, Dolby Digital − Existence of Teletext or DVB Subtitle − Audio Language To exit from banner information, press the INFO button.

21:49 Sat 1 May 1 AFDO, 16:9 AFDO, 16:9 No Block Stereo Subtitle English All Channels 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Exit

English - 32 BN68-01768A.indb 32 2009-01-22 오후 2:56:38 Operating the DTV Menu Viewing the DTV Menu After installing your antenna system and TV with appropriate connectors. Plug in the AC main power and switch on the TV. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Digital Menu, then press the ENTER button. The main menu appears on the screen. Its left side has four icons: Guide, Digital Channel, Setup, and Language.

Move Press the ENTER button. The Country menu is displayed. Select your country by pressing the ▲ or ▼ button, then press the ENTER button. Even though you have changed the country setting in this menu, the country setting for Analog TV is not changed.(Refer to page 10)

1.3 Manual Store

You can specify the channel for a fast channel search. − Channel Press the ▲, ▼ or numeric buttons (0~9) to select a channel. The available channels are 21~68. The corresponding frequency for the selected channel is automatically set. − Frequency If you do not know the exact frequency, follow the above step to select the frequency automatically using channel. − Bandwidth The available bandwidths are 7 and 8 MHz. Exit Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move Enter DTV Return Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

1.2 Auto Store

You can update the channel list when the broadcaster adds new services or if you move the TV to a new location. Press the ENTER button to select Auto Store. Press the ENTER button again to start the search. When it has finished, the number of scanned services will be displayed. − The existing favourite channel list will not be deleted when the channel list is updated. − To stop the scan before it has finished, press the ENTER button with Stop selected. If the signal status is poor, No service found! Check the aerial connection. message is displayed. Enter DTV Digital Channel This menu consists of 5 sub-menus: Country, Auto Store, Manual Store, Edit Favourite Channels, and Channel List. Press the ▲ or ▼ button to select Channel, then press the ENTER button. The Channel menu is displayed.

1.1 Country

Services found: 0 Channel: - Start Return DTV Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move DTV Enter Return Manual Store Channel

Frequency Bandwidth 177500 KHz 7 MHz

Search Adjust Return Continued... English - 33 BN68-01768A.indb 33 2009-01-22 오후 2:56:39 Press the red button to start the scan for digital services. When it has finished, channels are updated in the channel list. You can input by pressing the button on the remote control. You can not change only frequency and when changing a channel the Frequency will be automatically changed.

1.4 Edit Favourite Channels

DTV Channel You can edit your favourite channels using the colour buttons. Country : United Kingdom Auto Store In the case of DTV mode, OK or Select can be used as Manual Store the ENTER button. Edit Favourite Channels Press the red button in the Edit Favourite Channels menu Channel List to display all currently stored channels. Press the ▲ or ▼ button to select a channel you want. Move Enter Return Press the ENTER button. A “” icon is shown next to the selected channel and the channel will be added to the DTV Edit Favourite Channels favourites list. To undo, press the ENTER button again. BBC TWO Select AlI: Select all channels currently displayed. Five BBC THREE Select None: Deselect all selected channels. abc1 Preview: Displays (a) currently selected QVC channel(s). Select All Select None Preview If The Favourite Channels settings have been Move Select Return completed. DTV Edit Favourite Channels Add You can use this function when one or more favourite channels have been selected. BBC TWO

BBC THREE − Press the red button in the Edit Favourite Channels abc1 menu. To add more channels, refer to the previous section. − To add all channels to the favourites channel list, press Add Renumber Preview Delete the red button. Move Return − To remove all channels, press the green button. − Preview: Displays (a) currently selected channel(s). − Press the CH LIST button to display the favourite channel list. Renumber (depending on the Country) − In the Edit Favourite Channels menu, press the ▲ or ▼ button to select the required channel. − Press the green button. The space for entering the number is a blank. − Enter the new channel number. Press ENTER button to store or RETURN button to cancel. Press the ◄ button to delete an entered digit. If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel. That is, the two numbers are exchanged. The favorite channels are automatically sorted in ascending order of channel numbers. Preview − In the Edit Favourite Channels menu, press the ▲ or ▼ button to select the channel to be previewed. − Press the yellow button. Displays currently selected channel.

Delete − In the Edit Favourite Channels menu, press the ▲ or ▼ button to select the channel to be deleted from the favourite channels list. − Press the blue button. The selected channel and number will be deleted. To add a deleted channel back in to the favourite channel list, see Add.

Continued... English - 34 BN68-01768A.indb 34 2009-01-22 오후 2:56:40 Channel List

1.5 Channel List

BBC TWO All Channels-All You can display a list of all channels or your favourite

1. Test Card ‘M’...

40. BBC NEWS24

51. BBCi

2. BBC TWO

3. Vida003b

4. Vida004b

Press the ▲ or ▼ button to select Channel List, then 802 BBC ONE

5. Vida005b

803 MDR FERNSE.. press the ENTER button.

6. Vida006b

7. BBC THREE

It can be displayed simply by pressing the CH LIST

30. CBBC Channel

805 Vida002b button. Previous Page Next Page Favourites Move Watch Return Press the yellow button to toggle between your favourite channels and all channels. Your favourite channels are only displayed if they were previously set in the Edit Favourite Channels menu (refer to page 34). Press the red or green button to display the previous or next channel list page. Press the ▲ or ▼ button to select a channel to be tuned, then press the ENTER button. The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels. Press the blue or CH LIST button to exit from the channel list.

Now & Next Guide Guide This menu consists of 4 sub-menus: Now & Next Guide, Full Guide, Scheduled List, and Default Guide. Now Next

2.1 Now & Next Guide / Full Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. − Now & Next Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. − Full Guide Displays the programme information as time ordered 1 hour segment. 2 hours of programme information is displayed which may be scrolled forwards or backwards in time. Press the ▲ or ▼ button to select Now & Next Guide or Full Guide. Press the ENTER button. The selected guide menu is displayed. − Press the red button to toggle between Now & Next Guide or Full Guide. − Press the green button to display Favourites or All Channels list. − Press the yellow button to scrolls backwards quickly (24 hours). − Press the blue button to scrolls forwards quickly (24 hours). You can also display the guide menu simply by pressing the GUIDE button. To watch a programme in the EPG list, press the ▲/▼/◄/► button to select a programme of your choice, then press the ENTER button. If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the section. Watch Full Guide Favourites Exit

Continued... English - 35 BN68-01768A.indb 35 2009-01-22 오후 2:56:40 To view programme information, press the ▲/▼/◄/► button to select a programme of your choice, then press the INFO button. Information such as the channel number, programme title and running time, status bar, and brief summary of the highlighted programme will be displayed in the top right corner of the screen. If there is a lengthy summary, “…” will be displayed. Press the INFO button for the full summary text. Six channels are displayed. To scroll between channels, move to a channel using the ▲ or ▼ button. To display page by page, use the P button.

2.2 Scheduled List

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program. Press the red button to add a new programme. The menu for adding a programme is displayed with Channel selected. Press the ▲/▼ and ENTER buttons to set the required channel, time, date, and frequency. When you are satisfied with your settings, save the adjusted schedule by pressing the red button. If you want to edit the scheduled programme, select a programme by pressing the ▲ or ▼ button, then press the green button. If necessary, select the programme to be deleted by pressing the ▲ or ▼ button, then press the blue button. When watching analog TV, the reserved DTV channel cannot be changed. The channel is only changed automatically to the reserved channel when you are watching DTV. Scheduling programme only functions with the television already turned on, and not from standby mode. For details about switching the television on and off automatically, refer to page 25. DTV Scheduled List Thursday 22 Apr 2 BBC TWO Add Programme Edit Move Return DTV Delete Scheduled List

Channel Time Date 20 MOJO

21:00 Thu 6 Jan 2008 Frequency Once Save Adjust Cancel Move Return

2.3 Default Guide

You can preset the default guide style. Press the ▲ or ▼ button to select the required option (Now/Next or Full Guide), then press the ENTER button. The selected option for default guide is displayed on the EPG menu and the channel list appears. DTV Guide Now & Next Guide Full Guide Scheduled List

Move DTV : Full Guide Enter Return

2.4 All Channels and Favorite Channels

In the EPG menu, you can display all channels or favourite channels. Press the green button repeatedly to toggle between the all and favourite channels list. When the favorite channel list has not been set up: − The favorite list is empty. Would you like to choose your favorite now? message is displayed. − Select Yes. The Edit Favourite Channels menu is displayed. If you select No, all channels will remain unchanged. − To edit the favourite channels, refer to page 34 for more details. All Channels is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode. Favourites (favourite channels) is the list of channels that has been set in the Edit Favourite Channels menu (refer to page 34). When there is no channel information, the No Data message will be displayed and you will not be able to change the channel even if you press the ENTER button. When the No Data message appears and you cannot change the channel, press the channel number directly using the numeric buttons. DTV Guide Now & Next Guide Full Guide Scheduled List

Move : Full Guide Enter Return Now & Next Guide Now Next

Language This menu consists of 4 sub-menus: Audio Language, Subtitle Language, Teletext Language, and Preference.

3.1 Audio Language / Subtitle Language / Teletext Language

You can change the default value for subtitle, audio and teletext languages. Press the ▲ or ▼ button to select required menu (Audio Language, Subtitle Language, or Teletext Language), then press the ENTER button. The options of the selected menu are displayed. Watch Full Guide Favourites Exit Now & Next Guide The favourites list is empty. Would you like to choose your favourites now? Yes Watch Full Guide DTV

Favourites Exit Language Audio Language Subtitle Language Teletext Language Preference Move Enter

Return Continued... English - 37 BN68-01768A.indb 37 2009-01-22 오후 2:56:42 DTV Language

3.2 Preference

This menu consists of 6 sub-menus: Audio Language Primary Audio Language, Secondary Audio Language, Subtitle Language Primary Subtitle Language, Secondary Subtitle Language, Teletext Language Primary Teletext Language, and Secondary Teletext Preference Language (depending on the Country). Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Move Enter Return Irish, Danish, Finnish, Spanish, Dutch). The language selected DTV Preference here is the default when the user selects a channel. Primary Audio Language : English Press the ▲ or ▼ button to select required menu (Primary Secondary Audio Language : English Audio Language, Secondary Audio Language, Primary Primary Subtitle Language : English Subtitle Language, Secondary Subtitle Language, Secondary Subtitle Language : English Primary Teletext Language, or Secondary Teletext Primary Teletext Language Language), then press the ENTER button. The options of the selected menu are displayed. Move Enter Return Press the ▲ or ▼ button to select required option (English, German, Italian, Swedish, French, Welsh, DTV Preference Gaelic, Irish, Danish, Finnish, Spanish, Dutch), then Primary Audio Language : English English press the ENTER button. German Secondary Audio Language : English Italian If you change the language setting, the Audio Primary Subtitle Language : English Swedish Language, Subtitle Language, and the Teletext French Secondary Subtitle Language : English Language of the Language menu (refer to page 37) Primary Teletext Language Welsh are automatically changed to the selected language. The Audio Language, Subtitle Language, and the Move Enter Return Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Audio Language, Primary Subtitle Language, or the Primary Teletext Language of the Preference menu.

Continued... English - 38 BN68-01768A.indb 38 2009-01-22 오후 2:56:42

Setup This menu consists of 11 sub-menus: Menu Transparency, Change PIN, Parental Lock, Subtitle, Subtitle Mode, Audio Format, Audio Description, Digital Text, Time Zone, Common Interface and System.

4.1 Menu Transparency

You can set the translucency of the on-screen menu. Press the ▲ or ▼ button to select required option (High, Medium, Low, or Opaque), then press the ENTER button.

4.2 Change PIN / Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary). Enter your current 4-digit PIN code by using the numeric buttons (0~9). The Parental Lock menu are displayed with the Parental Rating selected. The default PIN code for a new TV set is 0000. If you enter an invalid PIN code, the Invalid PIN code. Please try again. message is displayed. Press the ENTER button. Press the ▲ or ▼ button to select the age rating you want to lock out, then press the ENTER button. If you want to change the PIN code, press the ▲ or ▼ button to select Change PIN, then press the ENTER button. − Enter your new PIN code by using the numeric buttons (0~9). The Confirm New PIN is displayed. − Re-enter your new PIN code to confirm by using the numeric buttons (0~9). The Your PIN code has been changed successfully. message is displayed. If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off) MUTE 8 2 4 POWER (On). DTV Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Enter DTV

Return Setup Menu Transparency : Medium High Medium Change PIN Parental Lock Low Opaque Subtitle : Off Subtitle Mode Move Enter Return Setup DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode

Return Parental Lock Enter PIN

DTV Enter PIN Return Change PIN Enter New PIN

DTV Enter PIN Return Change PIN Confirm New PIN

Enter PIN Return Continued... English - 39 BN68-01768A.indb 39 2009-01-22 오후 2:56:44 DTV Setup

4.3 Subtitle / Subtitle Mode / Audio Format / Audio Description /

Digital Text Menu Transparency : Medium You can use various settings to suit your personal preferences. Change PIN Parental Lock Press the ▲ or ▼ button to select required menu Subtitle : On (Subtitle, Subtitle Mode, Audio Format, Audio Subtitle Mode : Normal Description or Digital Text), then press the ENTER button. The options of the selected menu are displayed. Move Enter Return Press the ▲ or ▼ button to select required option, then press the ENTER button. DTV Setup − Subtitle : On / Off Menu Transparency : Medium You can select these options simply by pressing the Change PIN SUBT. button on the remote control. Parental Lock − Subtitle Mode : Normal (basic subtitle) / Hard of hearing Subtitle : On Off (subtitle for a hearing-impaired person) Subtitle Mode : Normal If the programme you are watching does not support the Hard of hearing function, Normal automatically Move Enter Return activates even though Hard of hearing mode is selected. DTV Setup − Audio Format Menu Transparency : Medium You can only hear Dolby Digital sound through the audio Change PIN receiver connected through an optical cable. You can only Parental Lock hear PCM sound through the main speaker. Subtitle : On Subtitle Mode : Normal When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio Move Enter Return receiver. In this case, use the TV Speaker function. Even if you have selected PCM or Dolby Digital in Audio Format, when the input signals are any format of PCM and Dolby Digital, the input format is applied regardless of the setting. If the input signals are not any of those, the setting is not applied. − Audio Description This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume. − Digital Text : Enable / Disable (UK only) If the programme is broadcast with digital text, this feature is enabled. MHEG (Multimedia and Hypermedia Information Coding Experts Group)? An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), teleeducation, tele-conferencing, digital libraries and network games.

4.4 Time Zone (Spain only)

You can select the time zone where you are located. This menu is only enabled when you select a country supported by the time zone.

DTV Time Zone Common Interface

Move Enter Return Continued... English - 40 BN68-01768A.indb 40 2009-01-22 오후 2:56:44 DTV Application Info.

4.5 Common Interface

Installing the CI Card Type: CA a. Purchase the CI CAM module by visiting your Manufacturer: Canal Plus nearest dealer or by phone. Info: Top Up TV b. Insert the CI CARD into the CAM in the direction of the arrow until it fits. c. Insert the CAM with the CI CARD installed into the common interface slot. Return Insert the CAM in the direction of the arrow, right CI Menu up to the end so that it is parallel with the slot. d. Check if you can see a picture on a scrambled signal channel. You can install the CAM anytime whether the TV is ON or OFF. Application Info. This contains information on CAM inserted in the CI slot and displays it. Move Enter Exit − Press the ENTER button to display the information for your application. CI Menu This helps the user select an item from the CAM-supported menu. − Press the ENTER button. The options of the selected menu are displayed. Press the ▲ or ▼ button to select the required option, then press the ENTER button. Select the CI Menu based on the PC Card menu.

Continued... English - 41 BN68-01768A.indb 41 2009-01-22 오후 2:56:45

4.6 System

This menu consists of 4 sub-menus: Product Information, Signal Information, Software Upgrade, and Reset. − Product Information You can view your product information. For service or repair, please contact a Samsung approved dealer. Press the ENTER button with Product Information selected. The product information menu is displayed. − Software Version / Firmware Version − Signal Information You can get information about the signal status. Press the ENTER button with Signal Information selected. The technical information for signal status is displayed. − Service / Service ID / Multiplex / Network / Bit error level / Signal Strength − Software Upgrade (Option) To keep your product up-to-date with new digital television features then software upgrades are periodically broadcast as part of the normal television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade. Software Inforamtion Press the ENTER button, then the current software version is shown. To display the software version information, press the ENTER button again. Manual Upgrade Press the ENTER button to search for new software from the currently broadcasting channels. Standby Mode Upgrade : On / Off Press the ENTER button. To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the PDP product. This phenomenon may continue for more than 1 hour until the software upgrade is completed. DTV Setup System Move Enter DTV Return System Product Information

Enter Return Product Information Software Version: T- PERLDEUC-1009 Firmware Version: T-EMMA2DEUB-0106 Return DTV Signal Information Service: ? Service ID: 0000 Multiplex: ? (TSID 0000,ONID 0000) Network: ? (ID 0000) Bit error level: Signal Strength: 0 Return DTV Software Upgrade Software Information

Standby Mode Upgrade : On

Move Enter Return − Reset You can reset the values stored to the factory default values. DTV Reset The Reset operation deletes all channel information

WARNING: All channel settings and user preferences will be

lost and returned to the factory defaults. It is recommended and user preferences returning all values to their default that a reset is performed only when serious problems are factory state. experienced. Press the ENTER button with Reset selected. The Enter PIN is displayed. Enter your current 4-digit PIN code by using the numeric buttons (0~9). The warning message is Return displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn. The default PIN of a new TV set is “0-0-0-0”. When PIN is changed in Child Lock, the PIN for resetting automatically changes. When reset is complete, it operates DTV Plug & Play (DTV Auto Store, Time Zone-depending on the country, Time Setting) and exits from the digital TV mode without changing to the analog TV mode. (Refer to page 10~11)

English - 42 BN68-01768A.indb 42 2009-01-22 오후 2:56:45 Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. TV Side Panel Press the POWER button on the remote control or front panel. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected the message There is no device connected will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class BulkOnly Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Recommended image resolution for Wiselink is 6 mega pixels. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). We recommend the sequential jpeg format. Do not disconnect the USB device while it is (

PTP(Picture Transfer Protocol) is supported, but MTP(Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. The Photo or Music List displays up to 300 folders or files. English - 43 BN68-01768A.indb 43 2009-01-22 오후 2:56:46 Using the WISELINK Menu

Input Source List : TV Edit Name Anynet+ (HDMI-CEC) WISELINK Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the ENTER button. The WISELINK menu differs depending on the USB Memory Device connected to TV. Some devices may not be supported due to compatibility problems. Move

Press the ◄ or ► button to move to an icon, then press the ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control. Enter Exit Press the W.LINK button on the remote control to display a WISELINK menu. Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item. Select the currently selected item. During a Slide Show or Music Play: - Pressing the ENTER button during play pauses the play. - Pressing the ENTER button during pause resumes the play. Play or pause the Slide Show or MP3 file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) Stop the current function and return to the previous high-level menu. English - 44 BN68-01768A.indb 44 2009-01-22 오후 2:56:47 Using the PHOTO (JPEG) List This menu shows JPEG files and folders saved on an USB memory device. Photo 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 44) 2 Press the ◄ or ► button to move to Photo, then press the ENTER button. The saved file information is displayed as a folder or file. 3 Press the ▲, ▼, ◄ and ► buttons to select a file. Move Enter Return

• Pressing the ENTER button over a photo icon shows the currently selected photo in full screen. Photo
• Pressing the ENTER button over a folder icon shows the JPEG files included in the folder. To exit WISELINK mode, press the W.LINK button on the remote control. Moving to a photo may take a few seconds to load the file. At this point, the ( ) icon will appear at the Select Move Enter Option Return top left of the screen. It takes time to show JPEG files as Thumbnail images. This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. The files are displayed on a page. 15 thumbnail photos are displayed per page. The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. Certain types of USB Digital camera and audio devices may not be compatible with this TV. Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and MP3 files appear in the order of the time they were saved to the USB memory device. The folders and JPEG files appear in the order of the time they were saved to the USB memory device. If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. Press the button when a Photo icon is selected to start a Slide Show. Photos without EXIT information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. CELLDISK2.0 315MB/495MB Free Photo Music Setup 1/10 Page Photo 0001 400x340 53 KB May 1, 2007 1 / 14

Photo 0001 File 2 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 CELLDISK2.0 315MB/495MB INFO Viewing a Slide Show

1/10 Page Photo 0001 Photo Press the INFO button to display the option(Start Slide Show, Select All). Press the ▲ or ▼ button to select Start Slide Show then press the ENTER button. During the slide show, files are displayed in order from Start Slide Show the currently shown file. Select All MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To Normal enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. Press the INFO button during the slide show to set the following options (Slide Show Speed, Background Music, Slide Show Speed : Normal Background Music : Off Background Music Setting, List). Background Music Setting List Press the ▲ or ▼ button to select the option, then press the ENTER button. After setting the option, press the ENTER button to make a change. 400x340 53 KB May 1, 2007 1 / 14 File 4

File 9 INFO INFO Exit File 5 File 10 Select Photo 0001 File 2 None File 6 File 7 File 8 File 11 Move File 12 Enter INFO File 13 Option Return Exit Continued... English - 45 BN68-01768A.indb 45 2009-01-22 오후 2:56:50 Using the Menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option(Fast, Normal, Slow), then press the ENTER button. Normal Slide Show Speed : Normal Background Music : On Background Music Setting List INFO Fast Normal Slow Exit Background Music: Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option(On, Off), then press the ENTER button. Slide Show Speed : Normal Background Music : On Background Music Setting List INFO Off

Exit Background Music Setting: While the slide show is in progress, MP3 files and folders under the same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTER button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played.

◄◄ 1/1 Page ►► If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. List: Move Return 1/10 Page Photo The file information is displayed as a folder or JPEG file. To exit WISELINK mode, press the W.LINK button on the remote control. Enter Photo 0001 400x340 53 KB May 1, 2007 1 / 14 File 4 File 5 Photo 0001 File 2 None File 6 File 7 File 8 selecting a photo file, the photo file information is When displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). File 11 Move File 12 Enter INFO File 13 Option Return 1/10 Page Photo Photo 0001 400x340 53 KB May 1, 2007 1 / 14 : Folder icon File 4 File 5 Photo 0001 File 2 None File 6 File 7 File 8 CELLDISK2.0 : Photo icon 315MB/495MB File 9 File 10 Select : Move to the previous folder stage icon File 11 Move File 12 Enter INFO File 13 Option Return Such as the resolution File size Date modified Order of the file in the current directory Photo 400x340 53 KB May 1, 2007 1 / 14 Continued... English - 46 BN68-01768A.indb 46 2009-01-22 오후 2:56:52 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 44) Press the ◄ or ► button to move to Photo, then press the ENTER button. The saved file information is displayed as a folder or file. Press the ▲, ▼, ◄ and ► button to select a file, then press the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen. Press the INFO button to display the option (Start Slide Show, Zoom, Rotate, List) Start Slide Show Zoom Rotate List INFO

Exit Zoom: Press the ▲ or ▼ button to select Zoom, then press the ENTER button. Each time the ▲ or ▼ button is pressed, the photo size increases.(X1 → X2 → X4 ) - X1 : Restore a photo to its original size. Start Slide Show - X2 : Zoom-in to a photo x2. Zoom Rotate - X4 : Zoom-in to a photo x4. List To pan up/down/left/right in the zoomed-in photo, press the INFO button to remove option menu, then press the ▲, ▼, ◄ and ► buttons. The Rotate, Start Slide Show option is disabled when the Zoom option is selected.

Rotate: Press the ▲ or ▼ button to select Rotate, then press the ENTER button. Each time the ▲ or ▼ button is pressed, the photo rotates repeatedly. - 0º : This rotates a photo to its original position - 90º : This rotates a photo by 90 degrees - 180º : This rotates a photo by 180 degrees - 270º : This rotates a photo by 270 degrees

Start Slide Show Zoom Rotate List INFO Exit

90º 180º 270º The rotated file is not saved. The Zoom, Start Slide Show option is disabled when the Rotate option is selected. English - 47 BN68-01768A.indb 47 2009-01-22 오후 2:56:52 Using the MP3 List This menu shows MP3 files from among the files saved on a USB memory device. 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 44) 2 Press the ◄ or ► button to move to Music, then press the ENTER button. The saved file information is displayed as a folder or file. 3 Press the ▲ or ▼ button to move to an icon, then press the ENTER button. Pressing the ENTER button over a musical note icon immediately plays the music file. Pressing the ENTER button over a folder icon shows the music files included in the folder. To select a file on the next page, press the button to move to the next page. 4 To select all files or a file, press the INFO button to display the Music menus. Press the ENTER button to select Play, Repeat Music or Select All. To exit WISELINK mode, press the W.LINK button on the remote control.

Nat King Cole-Fly me to the moon Music INFO Upper Folder Folder 1 5959 KB Nov 14, 2007 6/14 Play Repeat Music Select All Enter Off 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 : Folder icon : Music list icon : Move to the previous folder stage icon Play: Select to play MP3 files. Press the button while playing an MP3 file to pause the file. Press the button to exit Play mode. menu only shows files with the MP3 file extension. Files with other file extensions are not This displayed,even if they are saved on the same USB device. The selected file is displayed on the top with its playing time. adjust the music volume, press the + or - button on the remote control. To mute the sound, press the MUTE button on the remote control. Press or buttons to change pages. Repeat Music: Select to repeatedly play MP3 files in the current folder. You can select On or Off Music function information icon Icon Function When all music files in the folder (or the selected file) are repeated. Repeat Music is On. When all music files in the folder (or the selected file) are played once. Repeat Music is Off. When pressing the PLAY/PAUSE button on the remote control while music is playing. When pressing the STOP button on the remote control, the music stops. English - 48 BN68-01768A.indb 48 2009-01-22 오후 2:56:56 Using the Setup Menu Setup displays the user settings of the WISELINK menu. 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 44) 2 Press the ◄ or ► button to move to Setup, then press the ENTER button. 3 Press the ▲ or ▼ button to select an item you want, then press the ENTER button. (Slide Show Speed, Background Music, Background Music Setting, Repeat Music, Screen Saver) 4 Press the ▲ or ▼ button to select the option, then press the ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control. Photo Music Setup Move Enter Return Slide Show Speed : Normal

Background Music : On

Background Music Setting Repeat Music : Off

Screen Saver : 5 min

Move Enter Return Slide Show Speed: Select to control the slide show speed. You can select Fast, Normal or Slow. Slide Show Speed Background Music Setting Slow Repeat Music : On Screen Saver : 5 min Move Enter Return Background Music: Select to determine whether to play an MP3 file during a slide show. You can select Music Off or Music On. Slide Show Speed : Fast Background Music : On Off Background Music Setting

Repeat Music : On Screen Saver : 5 min Move Enter Return Background Music Setting: While a slide show is in progress, use the Background Music Setting to select a music file to listen to. Select a MP3 file as the background music. ◄◄ 1/1 Page ►► Move Enter Return Continued... English - 49 BN68-01768A.indb 49 2009-01-22 오후 2:56:57 Repeat Music: Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. You can select Off or On. Slide Show Speed : Fast Background Music : On Background Music Setting Off Repeat Music : On Screen Saver : 5 min On Move Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes. Enter Slide Show Speed : Fast Background Music : On Return Background Music Setting Repeat Music : On Screen Saver What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV. To directly connect to TV

Anynet+ Device 1 HDMI 1.3 Cable Anynet+ Device 2 HDMI 1.3 Cable Anynet+ Device 3 HDMI 1.3 Cable Anynet+ Device 4 Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI 1.3 Cable To connect to Home Theatre

Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Connect Input on the receiver. Connect only one receiver. can listen to 5.1 channel sound through the home theatre’s speakers. Otherwise, you can only You listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of

the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre. You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 51 BN68-01768A.indb 51 2009-01-22 오후 2:56:58 Setting Up Anynet+ The following settings are to use Anynet+ functions. Using the Anynet+ Function

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the ENTER button. 2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER button. 3 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 4 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER button. 5 Press the ▲ or ▼ button to select On, then press the ENTER button. The Anynet+ (HDMI-CEC) function is enabled. If you select Off, Anynet+ (HDMI-CEC) is disabled. When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Turning an Anynet+ Device Off Automatically when the TV is Turned Off 4 Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button. 5 Press the ▲ or ▼ button to select Yes, then press the ENTER button. The Auto Turn Off function is enabled. If you select No, the Auto Turn Off function is canceled. Press the EXIT button to exit. The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ENTER button to select Anynet+ (HDMI-CEC). Select Device

:Off Setup Move Return

Enter Setup Searching Connections Move Enter Return Searching Connections Move : Off

Yes Enter Return Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move Scanning and Switching between Anynet+ Devices

Press the MENU button to display the menu. Press the ▲ or ▼

button to select Input, then press the ENTER button. View TV DVDR1 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then Select Device DVDR2 press the ENTER button. DVD1 Record Press the ▲ or ▼ button to select Select Device, then press the DVD2 Menu on Device ENTER button. Device Operation Press the ▲ or ▼ button to select to a particular device and press Receiver :Off the ENTER button. It is switched to the selected device. Setup If you cannot find a device you want, press the ▲ or ▼ button to Move Enter select Searching Connections, then press the ENTER button. Return The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are Setup listed in the Anynet+ menu. Anynet+ (HDMI-CEC) : On Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. Auto Turn Off : Yes The time required to scan for devices is determined by the number Searching Connections of connected devices. When the device scan is complete, the number of found devices is Move Enter Return not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button. Continued... English - 52 BN68-01768A.indb 52 2009-01-22 오후 2:56:58 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup Description Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Anynet+ Device Operating Status After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file Available Buttons Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons EXIT button (Backward search) (Forward search) (Stop) (Play/Pause) Device with built-in Tuner After switching to the device, when you are watching a TV programme

Audio Device When a Receiver is activated

button button The Anynet+ function only works when the remote control is set to TV. The button works only while in the recordable state. cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ You devices only using the TV remote control. TV remote control may not work under certain conditions. In this case, reselect the Anynet+ The device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The , operations may differ depending on the device. Recording You can make a recording of a TV programme using a recorder. Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. You can also record the source streams by selecting Record after pressing the TOOLS button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

English - 53 BN68-01768A.indb 53 2009-01-22 오후 2:56:59 Listening through a Receiver You can listen to sound through a receiver instead of the TV speaker.

1 Press the MENU button to display the menu. View TV Press the ▲ or ▼ button to select Input, then press the ENTER button. Select Device 2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER Record button. Menu on Device 3 Press the ▲ or ▼ button to select Receiver, then press the ENTER button. Device Operation 4 Press the ◄ or ► button to select to On, then press the ENTER button. Now you can listen to sound through the receiver. Receiver :On Setup 5 Press the EXIT button to exit. Move Enter When the receiver is set to On, you can listen to the TV sound through the Exit 2-channel receiver. If the receiver is exclusively for a home theater only (supporting audio only), it may not appear in the device list. Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. In case of a content with copyright problems, listening through the receiver may not properly operate. If there is a power interruption to the TV when the Receiver is set to On (by disconnecting the power cord or a power failure), the TV Speaker may be set to Off when you turn the TV on again. (see page 23)

Check Points before Requesting Service Symptom Anynet+ does not work. Solution

I want to start Anynet+.

I want to exit Anynet+.

The message Connecting to Anynet+ device… appears on the screen. The Anynet+ device does not play.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of CH and PRE-CH to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete.

You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. The TV programme cannot be recorded.

Check whether the antenna jack on the recording device is properly connected. The TV sound is not output through the receiver.

Connect the optical cable between TV and the receiver. The connected device is not displayed. English - 54 BN68-01768A.indb 54 2009-01-22 오후 2:56:59 Teletext Feature (depending on the model) Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

(exit) Exit from the teletext display (depending on the model) (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button. (store) Used to store the teletext pages. (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. (sub-page) Used to display the available sub-page. (page up) Used to display the next teletext page. (page down) Used to display the previous teletext page. (index) Used to display the index (contents) page at any time while you are viewing teletext. (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. (cancel) Used to display the broadcast when searching for a page.

You can change teletext pages by pressing the numeric buttons the remote control. Continued... English - 55 BN68-01768A.indb 55 2009-01-22 오후 2:57:00 The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) Press the TV/DTV button to exit from the teletext display. English - 56 BN68-01768A.indb 56 2009-01-22 오후 2:57:00 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) Standard Screw 23 ~ 26 200 * 100

46 ~ 52 400 * 400 600 * 400

700 * 400 (No VESA) 57 ~ 70 800 * 400 80 ~ 1400 * 800 42 ~ 58 400 * 400 600 * 400

676 * 407 (No VESA) LCD-TV PDP-TV Quantity

provided the standard dimensions for wall mount kits as shown in the table above. purchasing our wall mount kit, a detailed installation manual and all parts necessary for When assembly are provided. not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. wall mounts that do not comply with the VESA standard screw specifications, the length of the For screws may differ depending on their specifications. not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. is not liable for product damage or personal injury when a non-VESA or non-specified wall Samsung mount is used or the consumer fails to follow the product installation instructions. 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our Our dedicated wall mount kit for this model. Do not exceed 15 degrees tilt when mounting this TV. not install your Wall Mount Kit while your TV is turned on. DIt omay result in personal injury due to electric shock. English - 57 BN68-01768A.indb 57 2009-01-22 오후 2:57:01 Auto Wall- mount adjustment (Sold separately)(PS50A656) Once the auto wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount Rear Panel Serial Cable(1P to 1P)(Not supplied) Entering the menu Press the ▲, ▼, ◄ or ► button on your remote control. The Wall Mount Adjustment screen is displayed. If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.
• Press the ▲ or ▼ button to select Auto Wall-Mount, then press the ENTER button.

Return to select Yes, then press the ENTER button. The position is initialized to the default setting. Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position. To not save the current position, press the RETURN button. When selecting a save mode, you cannot use the Color buttons. Press the ENTER button to save. When Position1 is selected, the message Current position saved as Position1 is displayed. Press the ENTER button. The saved Position appears on the left side of the OSD. Position

INFO Center Save Select a mode to Save. Position 1

Adjust to the desired position using the ▲, ▼, ◄, ► buttons. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button Position1

Enter Setup Plug & Play Language : English Time Auto Wall-Mount Auto Wall-Mount Remembering the Position

Position 2 Position 3 Move Enter Return Continued... English - 58 BN68-01768A.indb 58 2009-01-22 오후 2:57:02 Moving to the remembered position Complete Step 1 of Entering the menu. Auto Wall-Mount Pressing a Color (Red, Green, Yellow) button moves the auto Position1 wall mount to the saved position. You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position

2) or Yellow (Position 3) buttons.

If you adjust the positon after moving to a pre-set position, Adjust Save INFO Center the position display will disappear. For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ or WISELINK is operating. 42 inches model is not compatible with the older wall mount model (WMN5090A).

Preparing before installing Wall- Mount on the wall Case A. Installing SAMSUNG Wall-Mount Case B. Installing other company’s Wall-Mount

Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if the torque is out of the specified range. Accessory Kit contains Holder–Ring [①] for installing other company’s Wall-Mount on Samsung TV. (Case B) How to assemble the Stand-Base (depending on the model) Using the 6 screws for securing the stand base and the TV, firmly attach the TV to the stand base. (The exterior of the set may be different than the picture.) In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding. Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. or more people should carry Two the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. English - 59 BN68-01768A.indb 59 2009-01-22 오후 2:57:03 Securing the TV to the Wall Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. To avoid the TV from falling:

Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. You may need additional material such as an anchor depending on the type of wall. Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly. Install the TV near to the wall so that it does not fall backwards. It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. Untie the string before moving the TV.

Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer. English - 60 BN68-01768A.indb 60 2009-01-22 오후 2:57:04 Troubleshooting Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer. No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER button on the remote control. Check the picture contrast and brightness settings. Check the volume. Check if TV Speaker is set to Off. Normal picture but no sound Check the volume. Check whether the volume MUTE button on the remote control has been pressed. No picture or black and white picture Adjust the colour settings. Check that the broadcast system selected is correct. Sound and picture interference Try to identify the electrical appliance that is affecting the television, then move it further away. Plug the television into a different main socket. Blurred or snowy picture, distorted sound Check the direction, location and connections of your aerial. This interference often occurs due to the use of an indoor aerial. Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check that the “+” and “–” ends of the batteries are inserted correctly. Check that the batteries are drained. Screen is black and power indicator light blinks steadily On your computer check; Power, Signal Cable. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. On your equipment check (STB, DVD, etc) ; Power, Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on. The damaged picture appears in the corner of the screen. If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. The "Resets all settings to the default values" message appears. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. English - 61 BN68-01768A.indb 61 2009-01-22 오후 2:57:04 Specifications The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice. Model Name Screen Size (Diagonal) PS50A656 PS58A656 50 inch 58 inch PC Resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound (Output) 10Wx2 15Wx2 1240 x 766 x 96 mm 1240 x 836 x 320 mm 1418 x 866 x 101 mm 1418 x 928 x 345 mm 40 kg 44 kg 59 kg 64 kg Dimension (WxHxD) Body With stand Weight Body With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity This device is a Class B digital apparatus. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. English - 62 BN68-01768A.indb 62 2009-01-22 오후 2:57:04 This page is intentionally left blank. BN68-01768A.indb 63 2009-01-22 오후 2:57:04 This page is intentionally left blank. BN68-01768A.indb 64 2009-01-22 오후 2:57:04 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. BN68-01768A.indb 65 2009-01-22 오후 2:57:04 Nom station Prog. Can. Nom station

Déplacer Entrer Retour Français - 16 BN68-01768A_Fre.indb

2008-10-21 11:02:10 Programme normal (Audio standard) PIP PIP Source Taille Position Programme Déplacer 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Entrée HDMI/DVI Dolby Digital Description audio Description audio Tous les canaux 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Quitter

Français - 32 BN68-01768A_Fre.indb

2008-10-21 11:02:21 Guide Now & Next Maintenant Suivant

Nat King Cole-Fly me to the moon Music 5959 KB Nov 14, 2007 6/14

Configuration Musique 00:04:00 Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 00:04:12 004 Tom Waits-Time INFO Quitter Retour Upper Folder 003 Fall in Love 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30

Home Theater Câble HDMI 1.3 Appareil Anynet+ 2 Câble HDMI 1.3 Caract. VESA (A * B) Vis standard 23 ~ 26 200 * 100

46 ~ 52 57 ~ 70 800 * 400 80 ~ 1400 * 800 42 ~ 58 TELEVISEUR ECRAN A PLASMA : −−−− −−−− : −−−− VCR DVD : Kabel-STB Sat-STB PVR-STB AV-Receiver

: OK OK Abbrechen Eingabe Zurück Deutsch - 22 BN68-01768A_GER.indd

2008-10-21 11:22:13 Audiofunktionen

Standard Standard Aus Aus Aus Mono

Eingabe Beenden Mono (Normal) 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Dolby Digital Audio Description Audio Description

Nat King Cole-Fly me to the moon Music 5959 KB Nov 14, 2007 6/14 Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 00:04:12 004 Tom Waits-Time Beenden Zurück Upper Folder 003 Fall in Love 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 400 * 400 600 * 400 700 * 400 (No VESA)

400 * 400 600 * 400 676 * 407 (No VESA) 63 ~ 70 800 * 400 80 ~ 1400 * 800 Menge

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Dolby Digital Audio Description Audio Description Alle kanalen 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Sluiten

Nederlands - 32 BN68-01768A_01DUT.indd

2008-10-21 10:41:19 Software upgrade Softwaregegevens

Start Slide Show File 9 Play Repeat Music Select All Enter Nat King Cole-Fly me to the moon Muziek

Muziek 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 Background Music Setting Repeat Music : Aan Screen Saver Searching Connections Verpl. : Off Nee

Enter Terug VESA Spec. (A * B) Standaardschroeven 23 ~ 26 200 * 100

46 ~ 52 400 * 400 600 * 400

700 * 400 (Geen VESA) LCD-TV PDP-TV Aantal

57 ~ 70 800 * 400 80 ~ 1400 * 800 42 ~ 58 400 * 400 600 * 400

676 * 407 Geen VESA 63 ~ 70 800 * 400

Nucleo in ferrite per S-Video Sintonia fine

Reset Regola Salva Ritorno

Italiano - 20 BN68-01768A_01ITA.indd

Continua... 2008-10-21 11:16:42

Ora Imposta Ora Timer stand-by Timer 1 Timer 2 Timer 3 Timer 1 Orario TV on 00 : 00 Disattivato Orario TV off 00 : 00 Disattivato Volume 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200 1920 x 1080RB 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200 1920 x 1080p

Tuttii Canali 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Esci

Italiano - 32 BN68-01768A_01ITA.indd

2008-10-21 11:16:52 Cambia PIN Immetti PIN

DTV Immetti PIN Ritorno

Photo 0001 File 2 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Photo 400x340 53 KB May 1, 2007 1 / 14 File 4 File 5 Photo 0001 File 2 None File 6 File 7 File 8 File 11 File 12 File 13 Nat King Cole-Fly me to the moon 00:04:00 Upper Folder 5959 KB Nov 14, 2007 6/14

Folder 1 001 Swan Song feat.TBNY 00:04:00 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 Spec. VESA (A * B) Vite standard 23 ~ 26 200 * 100

46 ~ 52 400 * 400 600 * 400

700 * 400 (No VESA) 57 ~ 70 800 * 400 80 ~ 1400 * 800 42 ~ 58 PDP-TV

400 * 400 600 * 400 676 * 407 (No VESA) Quantità

PS50A656 50 inch 1920 x 1080 @ 60 Hz 10W x 2 PS50A656 58 inch 1920 x 1080 @ 60 Hz 15W x 2 1240 x 766 x 96 mm 1240 x 836 x 320 mm 1418 x 866 x 101 mm 1418 x 928 x 345 mm 40 Kg 44 Kg 59 kg 64 kg Monitor out L/R SOUND AMP NTP3100 FBE3 UART MAX232EC

SVC_TX/RX

UART SW MM74HC Display Panel 50Hz for 1920 x 1080 Main/DTV Service Jack MAIN Part DTV Part Schema blocco 2008-10-21 11:17:45 Panel de control Panel frontal TV/Ext/AV/Componente/HDMI/ DTV

4 min 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

HDMI/DVI Entrada Idioma principal del teletexto Todos los canales 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Salir

Español - 32 BN68-01768A_SPA.indd

2008-10-21 13:20:09 Photo 400x340 53 KB May 1, 2007 1 / 14 File 4 File 5 File 9 File 10 Photo 0001 File 2 None File 6 File 7 File 8 File 11 File 12 Photo 400x340 53 KB May 1, 2007 1 / 14 Nat King Cole-Fly me to the moon Music Entrar Volver 00:04:00 Upper Folder 5959 KB Nov 14, 2007 6/14

Music Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 Background Music Setting

Repeat Music : Desactivado

Salvapantallas : 5 min

Mover Entrar Volver Background Music Setting Repeat Music Background Music Setting Repeat Music Background Music Setting Repeat Music Background Music Setting Repeat Music : Activado Salvapantallas 400 * 400 600 * 400 700 * 400 (No VESA)

400 * 400 600 * 400 676 * 407 (No VESA) 63 ~ 70 800 * 400 80 ~ 1400 * 800 Cantidad

Conector EXT 1 EXT 2 Português - BN68-01768A_POR.indd

Continua... 2008-10-21 11:30:30 Saltar Plug & Play Mudar pixels Mudar pixels Pt horizontal Linha vertical Tempo Mover 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Entrada HDMI/DVI Dolby Digital Audio Description Audio Description Idioma principal do teletexto Todos os canais 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Sair

Português - 32 BN68-01768A_POR.indd

2008-10-21 11:30:53 Guia completo Lista planeada Guia predef. Mover Confirmar novo PIN

Introduzir PIN Voltar Continua... Português - 39 BN68-01768A_POR.indd

Selec. Todos INFO File 9 Saída File 10 Selecc Mover File 11 File 12 Enter File 13 Opção Voltar Normal Nat King Cole-Fly me to the moon 00:04:00 Upper Folder Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30

Home Theater Dispositivo Anynet+ 1

Cabo HDMI 1.3 Cabo HDMI 1.3 This page is intentionally left blank. BN68-01768A_POR.indd

2008-10-21 11:31:37 © 2008 Samsung Electronics Co., Ltd. All rights reserved. Slovenščina - BN68-01768A_01Sln.indd

2008-10-21 10:56:44 Cable Television Network ali

Izhod Video Avdio (L/R Video Avdio (L/R (L/D))RGB (L/D)) EXT 1

Picture Mode : Standard Cell Light 7 Contrast 80 Brightness Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings More Move Enter Exit Slovenščina - BN68-01768A_01Sln.indd

2008-10-21 10:56:56 Plug & Play Start Plug & Play. Enter Plug & Play English Deutsch Français Italiano

Language Move Select ‘Home Use’ when installing this TV in your home. Store Demo Move Home Use Enter Plug & Play Check antenna input. Enter Plug & Play United Kingdom Austria Eastern Europe Others Country Move Enter Plug & Play Some DTV functions may not be available. Digital Scan? Yes Move

Enter Skip Plug & Play Clock Set Month Year

Move Adjust Enter Plug & Play

Services found: 0 Start Enter Skip

Plug & Play Scanning for digital services... Services found: 6 Enter The Iberian Peninsula and Balears Islands Canarian Islands

Move Select Skip <Samo Španija> Plug & Play Set the current time. Month Day Year

29% Channel: 35 Stop

Channel: - Adjust Move Enter Skip Enjoy your viewing

Setup Plug & Play Language : English Time Auto Wall-Mount Input Source List : TV Edit Name Anynet + (HDMI-CEC) WISELINK Move

Return Source List Ext.1 Ext.2 S-Video Component More Move

Source List : TV Edit Name Anynet + (HDMI-CEC) WISELINK Move

Return Edit Name : −−−− −−−− : −−−− VCR DVD : Cable STB Satellite STB PVR STB AV Receiver

Imena naprav, ki so na voljo: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA.

Channel Country : United Kingdom Auto Store Switzerland Manual Store United Kingdom Austria Channel Manager Eastern Europe Sort Others Name Fine Tune LNA : Off Move

Channel Manual Store Programme Colour System Sound System Channel Search Store Move Channel Manager Channel List Child Lock : Off Move

Enter Return Channel List P 1 C6 1 / 10 Prog.

Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move

Picture Dynamic Mode : Standard Standard Cell Light 7 Movie Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move Enter Return Tools Enostavna nastavitev

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard ► Custom Off Off Off Mono Adjust Exit Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Colour 50 Tint G50 R50 Detailed Settings More Move

Pixel Shift Pixel Shift Horizontal Dot Vertical Line Time Move : On

Return TV/Ext/AV/Component/HDMI/ DTV

4 min Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move NICAM Stereo

Adjust Vrsta oddaje Standard Standard Off Off Off Mono Exit Setup Plug & Play Language : English Time Auto Wall-Mount Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move

Standard Custom Off Off Off Mono Adjust

Exit Language/Melody/Entertainment/Energy Saving/ PIP

Setup Plug & Play Language : English Time Light Effect : In Standby Auto Wall-Mount Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move Standard Custom Off Off Off Mono Adjust

Exit PIP PIP Source Size Position Programme Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment Move

Enter Standard Standard Off Off Medium Exit 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Mode (Način) Resolution (Ločljivost)

Picture Mode : Standard Cell Light 7 Contrast 95 Brightness Sharpness 20 Auto Adjustment Screen Adjustment Detailed Settings More Move Enter Exit Auto Adjustment in Progress Please wait. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment Move

Standard Standard Off Off Medium Enter Exit Screen Adjustment Coarse Fine Position Image Reset Move

Return Position Image Reset is completed.

Slovenščina - 30 BN68-01768A_01Sln.indd

2008-10-21 10:57:13 Now & Next Guide Full Guide Scheduled List Default Guide Now/Next Full Guide Digital Channel Country Auto Store Manual Store Edit Favourite Channels Channel List All Favourites Default All Favourites Setup Menu Transparency High Medium Low Opaque Change PIN Parental Lock Parental Rating Subtitle Off

Subtitle Mode Normal Hard of hearing Audio Format PCM Dolby Digital Audio Description Audio Description Enable Time Zone Common Interface System Product Information Signal Information Software Upgrade Reset Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move DTV Enter Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Enter

Return Language Audio Language Subtitle Language Teletext Language Preference DTV Language Audio Language Subtitle Language Teletext Language Preference Primary Audio Language Secondary Audio Language Primary Subtitle Language Move Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language (odvisno od države) Enter

Return 21:49 Sat 1 May 1 AFDO, 16:9 AFDO, 16:9 No Block Stereo Subtitle English All Channels 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Exit

Slovenščina - 32 BN68-01768A_01Sln.indd

2008-10-21 10:57:16 Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move Enter DTV Return Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Move DTV Enter Return Auto Store

Services found: 0 Channel: - Start Return DTV Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

Manual Store Channel

Frequency Bandwidth 177500 KHz 7 MHz

Search Adjust Return Scheduled List Thursday 22 Apr 2 BBC TWO Add Programme Edit Move Return DTV Delete Scheduled List

Channel Time Date Frequency Save Adjust

21:00 Thu 6 Jan 2008 Once Move Cancel Return

Guide Now & Next Guide Full Guide Scheduled List

Move DTV : Full Guide Enter Return Guide Now & Next Guide Full Guide Scheduled List

Move : Full Guide Enter Return Now & Next Guide Now Next

Now & Next Guide The favourites list is empty. Would you like to choose your favourites now? Yes Watch DTV Full Guide

Favourites Exit Language Audio Language Subtitle Language Teletext Language Preference

Language Audio Language Subtitle Language Teletext Language Preference Move DTV

Enter Return Preference Primary Audio Language : English Secondary Audio Language : English Primary Subtitle Language : English Secondary Subtitle Language : English Primary Teletext Language Move DTV Enter Return Preference Primary Audio Language

: English English German Secondary Audio Language : English Italian Primary Subtitle Language : English Swedish French Secondary Subtitle Language : English Welsh Primary Teletext Language : English Move Enter Return se nadaljuje … Slovenščina - 38 BN68-01768A_01Sln.indd

Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Enter DTV

Return Setup Menu Transparency : Medium High Medium Change PIN Parental Lock Low Opaque Subtitle : On Subtitle Mode Move Enter Return Setup DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode

Return Parental Lock Enter PIN

DTV Enter PIN Return Parental Lock Enter New PIN

DTV Enter PIN Return Change PIN Confirm New PIN

Enter PIN Return se nadaljuje … Slovenščina - 39 BN68-01768A_01Sln.indd

2008-10-21 10:57:25 Time Zone Common Interface Move Enter

Return System Product Information

Enter Return Product Information Software Version: T- PERLDEUC-1009 Firmware Version: T-EMMA2DEUB-0106 Return DTV Signal Information Service: ? Service ID: 0000 Multiplex: ? (TSID 0000,ONID 0000) Network: ? (ID 0000) Bit error level: Signal Strength: 0 Return DTV Software Upgrade Software Information

Standby Mode Upgrade : On

Move Enter Return Input Source List : TV Edit Name Anynet+ (HDMI-CEC) WISELINK

Start Slide Show Select All Exit Select Move Enter File 13 Option Return Normal Slide Show Speed : Normal Background Music : Off Background Music Setting List Exit Se nadaljuje … Slovenščina - 45 BN68-01768A_01Sln.indd

2008-10-21 10:57:35 Slide Show Speed : Normal Background Music : On Background Music Setting List Fast Normal Slow Exit Photo 400x340 53 KB May 1, 2007 1 / 14 Se nadaljuje … Slovenščina - 46 BN68-01768A_01Sln.indd

2008-10-21 10:57:38 Start Slide Show Zoom Rotate List

Exit Start Slide Show Zoom Rotate List

Start Slide Show Zoom Rotate List Exit

90º 180º 270º Slovenščina - 47 BN68-01768A_01Sln.indd

2008-10-21 10:57:39 Nat King Cole-Fly me to the moon Music Upper Folder Folder 1 5959 KB Nov 14, 2007 6/14 Play Repeat Music Select All Enter Off Exit 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 Slide Show Speed : Normal

Background Music Setting Repeat Music : Off

Screen Saver : 5 min

Slide Show Speed Enter Return Background Music Setting Repeat Music : On Screen Saver : 5 min Move Slide Show Speed : Fast Background Music : On Background Music Setting Repeat Music : On Screen Saver : 5 min Move Slow Enter Return Off

Enter Return Slide Show Speed : Fast Background Music : On Background Music Setting Off Repeat Music : On Screen Saver : 5 min On Move Slide Show Speed : Fast Background Music : On Return Background Music Setting Repeat Music : On Screen Saver View TV Select Device

:Off Setup Move Return

Enter Setup Searching Connections Move Enter Return Searching Connections Move : Off Yes Enter Return Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual I-II Move Medium Mono Exit Spec. VESA (A * B) Standardni vijak 23 ~ 26 200 * 100

46 ~ 52 400 * 400 600 * 400

700 * 400 (Ni VESA) 57 ~ 70 800 * 400 80 ~ 1400 * 800 42 ~ 58 PDP-TV

Setup Plug & Play Language : English Time Auto Wall-Mount Select a mode to Save. position saved as Position1.

Adjust Auto Wall-Mount

Position 2 Auto Wall-Mount

© 2008 Samsung Electronics Co., Ltd. All rights reserved. Türkçe - BN68-01768A-Tur.indd

2008-10-21 11:44:22 NICAM Çift I-II NICAM Çift-1 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768

Mod Çözünürlük Sık Kullanılan. 14:20 - 14:33 Contains video with AFD O; coded frame is 16:9 Çıkış 15:30 ~ 18:00 Bir Kez Huw Stephens and the Nations

Fotoğraf 400x340 53 KB May 1, 2008 1 / 14 Nat King Cole-Fly me to the moon Müzik Çıkış 00:04:00 Upper Folder 5959 KB Nov 14, 2008 6/14 Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:05:25 007 Ryuichi Sakamoto-Rain 00:04:30 400 * 400 600 * 400 700 * 400 (VESA Yok)

400 * 400 600 * 400 676 * 407 (VESA Yok) Miktar

Manufacturer: SAMSUNG ELECTRONICS CO., LTD 12th FL., Samsung Main Bldg., 250, 2-Ka Taepyung-Ro, Seoul, Korea Tel) 82-2-727-7114 LVD: KTL (Korea Testing Laboratory) 222-13, Kuro-Dong, Kuro,Seoul, 152-848, Korea Tel) 82-2-860-1493 Fax) 82-2-860-1482 EMC: Samsung Electronics Co., Ltd. Suwon EMC Test Laboratory416 Maetan-3 Dong, Yeongtong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 Tel) 81-31-200-2185, Fax) 81-31-200-2189 BN68-01768A-Tur.indd
