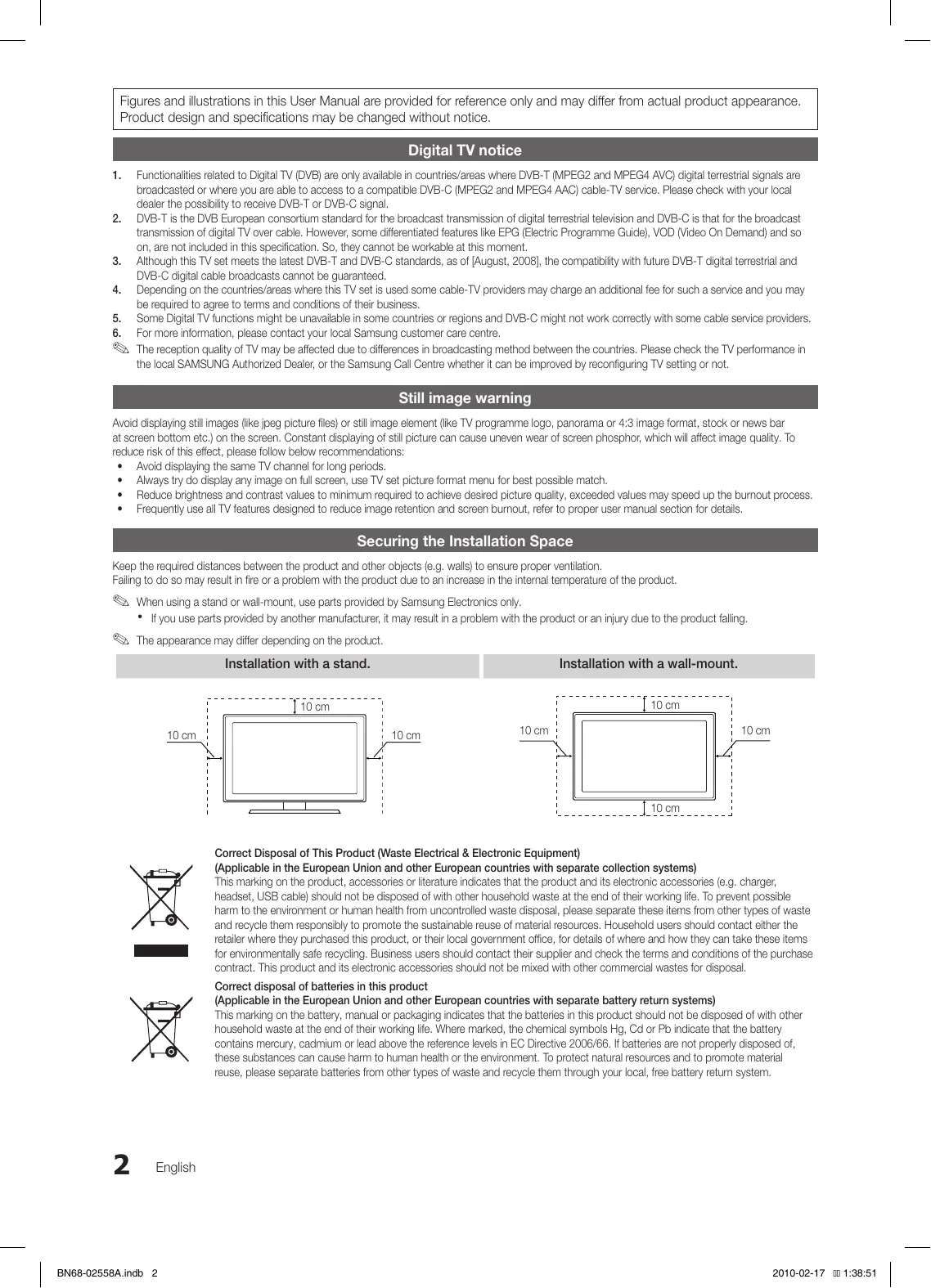

LCD TV user manual Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. LCD TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model______________ Serial No.______________ © 2010 Samsung Electronics Co., Ltd. All rights reserved. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Digital TV notice Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal. 2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment. 3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed. 4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business. 5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

✎✎ The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause uneven wear of screen phosphor, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.
• Always try do display any image on full screen, use TV set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details. Securing the Installation Space Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product. ✎✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only. xx If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling. ✎✎ The appearance may differ depending on the product. Installation with a stand. Installation with a wall-mount. 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

English BN68-02558A.indb 2 2010-02-17 1:38:51 Contents Getting Started

Accessories Viewing the Control Panel Viewing the Remote Control Connecting to an Antenna Plug & Play (Initial Setup) Connections

Connecting to an AV Device Connecting to an Audio Device Changing the Input Source Basic Features

How to Navigate Menus Using the INFO button (Now & Next guide) Planning Your Viewing Channel Menu Picture Menu Sound Menu Setup Menu Support Menu Advanced Features

Connecting to a PC Network Connection Media Play Anynet+ Internet@TV AllShare Other Information

Analogue Channel Teletext Feature Installing the Wall Mount Assembling the Cables Anti-Theft Kensington Lock Securing the TV to the Wall Troubleshooting Specifications Index

This function can be used by pressing the TOOLS button on the remote control. Note One-Touch Button English BN68-02558A.indb 3

2010-02-17 1:38:52 Getting Started Accessories ✎✎Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. ✎✎The items’ colours and shapes may vary depending on the models. yy Remote Control & Batteries (AAA x 2) yy Owner’s Instructions yy Warranty Card / Safety Guide (Not available in some locations) yy Cleaning Cloth yy Power Cord (46 ~ 55 inch TVs) yy Blanking Bracket yy Cable tie See separate guide for installing the stand.

yy Stand (1EA) yy Screws (9EA) (32 inch model only: 8EA) Viewing the Control Panel ✎✎The product colour and shape may vary depending on the model. Remote control sensor Power Indicator Speakers P (Power) Turns the TV on or off. Power Indicator SOURCEE Blinks and turns off when the power is on and lights up in standby mode. Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control. Displays an on-screen menu, the OSD (on screen display), of your TV’s features. Adjusts the volume. In the OSD, use the Y buttons as you would use the ◄ and ► buttons on the remote control. Changes the channels. In the OSD, use the z buttons as you would use the ▼ and ▲ buttons on the remote control. Aim the remote control towards this spot on the TV. MENU

Remote control sensor Standby mode Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power code.

English BN68-02558A.indb 4 2010-02-17 1:38:54 ✎✎This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel, and Volume buttons. Turns the TV on and off. (P. 6) When the ON/OFF light button is set to ON and a certain button is pressed, the remote control buttons will be lit for a moment. (Using the remote control with this button set to On will reduce the battery usage time.) Displays and selects the available video sources. (P. 9) 01 Getting Started Viewing the Remote Control Press to directly access to channels. Returns to the previous channel. Alternately selects Teletext, Double or MiX. Cuts off the sound temporarily. Adjusts the volume. Changes channels. Displays the main on-screen menu. (P. 9) Displays channel list on the screen. (P. 13) Displays the Content View, which includes Guide, Internet@TV, Media Play, and AllShare. Displays the EPG (Electronic Programme Guide). (P. 10) Quickly selects frequently used functions. Displays information on the TV screen. (P. 10) Selects on-screen menu items and change menu values. Exits the menu. Returns to the previous menu. Buttons in the Channel Manager, Internet@ TV, Media Play menu, etc.

MEDIA.P: Views the Media play. (P. 29) INTERNET: L inks to various internet services. (P. 39) DUAL I-II: Selects sound mode. (P. 17) AD: A udio Description selection. (Not available in some locations) (P. 17) P.SIZE: Choose the picture size. (P. 15) SUBT.: Digital subtitle display (P. 19) Use these buttons in the Media Play and Anynet+ modes. (P. 29, 36) (: controls recording on Samsung recorders with the Anynet+ feature) Installing batteries (Battery size: AAA) ✎✎NOTE xx Use the remote control within 23 feet from the TV. xx Bright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon signs. xx The colour and shape may vary depending on the model. English BN68-02558A.indb 5

2010-02-17 1:38:56 Getting Started Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. ✎✎Preset: Connecting the mains and antenna. VHF/UHF Antenna Cable R-AUDIO-L ANT OUT

Power Input Plug & Play (Initial Setup) When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button. Plug & Play is available only when the Input source is set to TV. ✎✎To return to the previous step, press the red button.

Selecting a language

Selecting a country Selecting Store Demo or Home Use Press the ▲ or ▼ button, then press the ENTERE button. Select the desired OSD (On Screen Display) language. Press the ◄ or ► button, then press the ENTERE button. yy Select the Home Use mode. Store Demo Mode is for retail environments. yy Return the unit’s settings from Store Demo to Home Use (standard): Press the volume button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec. Press the ▲ or ▼ button, then press the ENTERE button. Select the appropriate country. If the desired country does not exist on the menu, select Others. ✎✎After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.

Selecting an antenna

Setting the Clock Mode Selecting a channel When you input the PIN number, 0-0-0-0 is not available. Press the ▲ or ▼ button, then press the ENTERE button. Select Air or Cable. Press the ▲ or ▼ button, then press the ENTERE button. Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Store (P. 12).

Viewing the HD Connection Guide. Enjoy your TV. Press the ENTERE button at any time to interrupt the memorization process. Set the Clock Mode automatically or manually.

If you select the Auto, select the time zone which you live. The connection method for the best HD screen quality is displayed. Press the ENTERE button. If You Want to Reset This Feature... Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English BN68-02558A.indb 6 2010-02-17 1:38:57 Connections 02 Connections Connecting to an AV Device Using an HDMI / DVI Cable: HD connection (up to 1080p) Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB) DVD

HDMI OUT Red White AUDIO OUT

xx When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the DVI AUDIO IN jacks for audio. xx If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour). xx If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade. xx It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur. Using a Component (up to 1080p) or Audio / Video (480i only) Cable and Using a Scart Cable Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

Yellow Red White VCR

AUDIO OUT VIDEO OUT R-AUDIO-L

R-AUDIO-L AUDIO OUT R-AUDIO-L R-AUDIO-L

✎✎In Ext. mode, DTV Out supports MPEG SD Video and Audio only. ✎✎To obtain the best picture quality, the Component connection is recommended over the A/V connection. R-AUDIO-L

English BN68-02558A.indb 7

2010-02-17 1:39:05 Connections Connecting to an Audio Device Using an Optical or Audio Cable Connection Available devices: digital audio system, amplifier, DVD home theatre OPTICAL Digital Audio System R-AUDIO-L

Headphone ✎✎DIGITAL AUDIO OUT (OPTICAL) xx When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system. xx 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. xx When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre. ✎✎Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled. xx Sound function may be restricted when connecting headphones to the TV. xx Headphone volume and TV volume are adjusted separately. CONNECTIONS COMMON INTERFACE Slot To watch paid channels, the “CI or CI+ CARD” must be inserted. yy If you don’t insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”. yy The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. yy When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated. ✎✎NOTE xx You must obtain a “CI or CI+ CARD” from a local cable service provider. xx When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it. xx Insert the “CI or CI+ CARD” in the direction marked on the card. xx The location of the COMMON INTERFACE slot may be different depending on the model. xx “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer. xx If you have any problems, please contact a service provider.

English BN68-02558A.indb 8 2010-02-17 1:39:09 Edit Name ■■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier. Source List Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV. ✎✎ When a PC with a resolution of 1920 x 1080 @ 02 Connections Changing the Input Source 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name. ✎✎ When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name. ✎✎ In the Source List, connected inputs will be highlighted. ✎✎ Ext.1 and Ext.2 always stay activated. Basic Features How to Navigate Menus How to Operate the OSD (On Screen Display) Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions. The access step may differ depending on the selected menu.

The main menu options appears on the screen: Picture, Sound, Channel, Setup, Input, Application, Support. Select an icon with the ▲ or ▼ button. Press ENTERE to access the submenu. Select the desired submenu with the ▲ or ▼ button. Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu. Press ENTERE to complete the configuration. Press EXIT. English BN68-02558A.indb 9

2010-02-17 1:39:11 Basic Features Using the INFO button (Now & Next guide) The display identifies the current channel and the status of certain audio-video settings. The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time. yy Scroll ◄, ► to view information for a desired programme while watching the current channel. yy Scroll ▲, ▼ to view information for other channels. If you want to move to the currently selected channel, press the ENTERE button. abc1 Using Scheduled View Unclassified No Detaild Information Information E Cancel

Red (View Mode): View the list of programmes that are playing now or coming up. Yellow (+24 hours): Viewing the list of programmes to be broadcasted after 24 hours.

Blue (Ch.Mode): Select the type of channels you want to display on the Channel View window. Guide

–– The Ch. Mode differs according to the antenna source. (Information): Displays details of the selected programme. (Page): Moves to the previous / next page. 6 ENTERE button –– When selecting the current programme, you can watch the selected programme. –– When selecting the future programme, you can reserve to watch the selected programme. To cancel the schedule, press the ENTERE button again and select Cancel Schedules. Using Channel View Guide

Planning Your Viewing The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time. Programme entries may appear blank or out of date depending on a channel status. Today Today View Mode

EWatch Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five 18:11 Thu 6 Jan Life On Venus Avenue DTV Air 2:10 Tue 1 Jun DTV Air 800 five 2:10 Tue 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five Channel View - TV Today Discovery DiscoveryH&L five price-drop.tv QVC R4DTT View Mode

18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information +24 Hours

Information k Page E Watch

English BN68-02558A.indb 10 2010-02-17 1:39:14 ¦¦ Using Favourite Channels delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the Channels, My Channels or Scheduled screen.

(in Channel Manager) Shows all favourite channels. 1futech

BBC World bid-up.tv Boonerang Cartoon Nwk Class News \ Coming Soon Discovery ■■ Edit My Channels t : You can set the selected channels to desired my channels group. ✎✎The “*” symbol will be displayed and the channel will be set as a my channel.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4. xx One or more groups can be selected. Select k Page T Tools Channels: Shows the channel list according to channel type.

• My Channels: Shows the group of the channel.

Scheduled: Shows all the currently reserved programmes. ✎✎Using the colour buttons with the Channel Manager

3. After you have changed the settings, the channel list

for each group can be viewed in My Channels. Channels

xx Red (Antenna): Toggle among Air or Cable. xx B Green (Zoom): Enlarges or shrinks a channel

All Yellow (Select): Select desired channels and press the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels. Air 1futech

Select k Page T Tools number.

03 Basic Features Channel Manager

Zoom abc1 Edit My Channels Lock Delete BBC World Deselectbid-up.tv All Select AllBoonerang

Cartoon Nwk Class News \ Coming Soon Discovery xx (Page): move to next or previous page. xx T (Tools): Displays the Channel Manager option menu. (The Options menus may differ depending on the situation.) Channel Status Display Icons Icons

Operations An Analogue channel. A channel selected. A channel set as a Favourite. A programme currently being broadcast. A locked channel. A reserved programme. English BN68-02558A.indb 11

2010-02-17 1:39:17 Basic Features Channel Menu Manual Store Scans for a channel manually and stores in the TV. ¦¦ Retuning channels ✎✎If a channel is locked using the Child Lock function, Antenna (Air / Cable) t ■■ Digital Channel: When scanning has finished, channels are updated in the channel list. Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). ✎✎When selecting Antenna → Air: Channel, Frequency, the PIN input window appears. Country The PIN input screen appears. Enter your 4 digit PIN number. ■■ Digital Channel: Change the country for digital channels. ■■ Analogue Channel: Change the country for analogue channels. Auto Store Scans for a channel automatically and stores in the TV. ✎✎Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears. Bandwidth. ✎✎When selecting Antenna → Cable: Frequency, Modulation, Symbol Rate. ■■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search, Store): If there is abnormal sound or no sound, reselect the sound standard required. ✎✎Channel mode xx P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode. xx C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel. ■■ Antenna Source (Air / Cable): Select the antenna source to memorise. ¦¦ Editing channels ■■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise. Channel Manager Option Menu When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels. (in Channel Manager)

1. Select a channel and press the TOOLS button.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

2. Edit the channel name or number using the Edit

Channel Name or Edit Channel Number menu. ✎✎ If you set Quick, you can set up Network, Network ID, Frequency, Modulation, Symbol Rate manually by press the button on the remote control. Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual. Network ID: When Network is Manual, you can set up Network ID using the numeric buttons. Frequency: Displays the frequency for the channel. (differs in each country) Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates. ■■ Edit Channel Name (analogue channels only): Assign your own channel name. ■■ Edit Channel Number (digital channels only): Edit the number by pressing the number buttons desired. ¦¦ Other Features Cable Search Option (depending on the country) Sets additional search options such as the frequency and symbol rate for a cable network search. ■■ Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each country) ■■ Modulation: Displays available modulation values. ■■ Symbol Rate: Displays available symbol rates.

English BN68-02558A.indb 12 2010-02-17 1:39:17 (in Channel Manager) Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

Channel List Transfer Imports or exports the channel map. You should connect a USB storage to use this function. The PIN number input screen appears. Enter your 4 digit PIN number.

✎✎ The default PIN number of a new TV set is ‘0-0-0-0’.

2. Select a function and change its settings.

Import from USB: Import channel list from USB. ■■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

Export to USB: Export channel list to USB. ✎✎NOTE Fine Tune xx This function is available only when the Child Lock is set to On. xx The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option. ■■ Timer Viewing: You can set a desired channel to be displayed automatically at the intended time. Set the current time first to use this function. (analogue channels only) If the signal is weak or distorted, fine tune the channel manually. Fine tuned channels are marked with an asterisk “*”.

✎✎ To reset the fine-tuning, select Reset. Picture Menu ✎✎ When a digital channel is selected, press the ► button to view the digital Programme. ■■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. ¦¦ Changing the Preset Picture Mode Mode t ■■ Delete: You can delete a channel to display the channels you want. Select your preferred picture type. ■■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager. ■■ Standard: Suitable for a normal environment. Scheduled ■■ Dynamic: Suitable for a bright room. ■■ Natural: Suitable for reducing eye strain. ✎✎ Natural is not available in PC mode. ■■ Movie: Suitable for watching movies in a dark room. (in Channel Manager) You can view, modify or delete a a show you have reserved to watch. ¦¦ Adjusting picture settings ■■ Change Info: Change a a show you have reserved to watch. Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R) ■■ Cancel Schedules: Cancel a show you have reserved to watch. ■■ Information: Display a show you have reserved to watch. (You can also change the reservation information.) ■■ Select All / Deselect All: Select or deselect all reserved programmes. Channel List You can see all the channels searched. Your television has several setting options for picture quality control. ✎✎NOTE xx In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available. xx In PC mode, you can only make changes to Backlight, Contrast and Brightness. xx Settings can be adjusted and stored for each external device connected to the TV. xx Lowering picture brightness reduces power consumption. English BN68-02558A.indb 13 03 Basic Features Channel Manager Option Menu

2010-02-17 1:39:18 Basic Features ¦¦ Economical Solutions ECO Solution ■■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto) t : Adjust the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. ■■ ECO Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room. If you adjust the Backlight, the Eco Sensor will be set to Off.

Min Backlight: When ECO sensor is On, the minimum screen brightness can be adjusted manually. If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■■ No Signal Power Off (Off / 15 min / 30 min / 60 min): Activates the Stand-by mode, in the case of “No Signal” or “Check Signal Cable” status for a certain period of time defined by the user. Disabled when the PC is in power saving mode.

■■ Expert Pattern (Off / Pattern 1 / Pattern 2): By running the Expert Pattern function, the picture can be calibrated without a generator or filter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears. While the Expert Pattern is running, sound is not outputted.

✎✎ Only enabled in DTV, Component and HDMI modes. ■■ RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.). ■■ Colour Space (Auto / Native / Custom): Adjust the range of colours available to create the image. To adjust Colour, Red, Green, Blue and Reset, set Colour Space to Custom. ■■ White Balance: Adjust the colour temperature for a more natural picture. R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness. R-Gain/G-Gain/B-Gain: Adjust each colour’s (red, green, blue) brightness. Reset: Resets the White Balance to it’s default settings. ■■ 10p White Balance (Off / On): Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness. ¦¦ Changing the Picture Options ✎✎ Available when the picture mode is set to Movie Advanced Settings (available in Standard / Movie mode) You can adjust the detailed setting for the screen including colour and contrast. ✎✎In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance. and when the external input is set to HDMI or Component. ✎✎ Some external devices may not support this function. Interval: Select interval to adjust. Red: Adjust the red level. Advanced Settings

Green: Adjust the green level. Black Tone : Off Dynamic Contrast : Medium Shadow Detail

Expert Pattern : Off ■■ Flesh Tone: Emphasize pink “Flesh Tone.” RGB Only Mode : Off Colour Space : Native ■■ Edge Enhancement (Off / On): Emphasize object boundaries.

U Move E Enter R Return ■■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth. ■■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast. ■■ Shadow Detail (-2~+2): Increase the brightness of dark images. Disabled under PC mode.

Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default settings. ■■ xvYCC (Off / On): Setting the xvYCC mode on increases detail and colour space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks. ✎✎ Available when the picture mode is set to Movie and when the external input is set to HDMI or Component. ✎✎ Some external devices may not support this function. ■■ Gamma: Adjust the primary colour intensity.

English BN68-02558A.indb 14 2010-02-17 1:39:18 xx Depending on the input source, the picture size ✎✎In PC mode, you can only make changes to the Colour xx The available items may differ depending on the Tone, Size, Digital Noise Filter and Auto Protection Time. : Normal Size : Auto Wide Screen Mode : 16:9 xx In PC mode, only 16:9 and 4:3 modes can be adjusted. Picture Options Colour Tone options may vary.

U Move E Enter R Return ■■ Colour Tone (Cool / Normal / Warm1 / Warm2) Warm1 or Warm2 will be deactivated when the picture mode is Dynamic. Settings can be adjusted and stored for each external device connected to an input on the TV.

■■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time. Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio. 16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting. Wide Zoom: Magnifies the picture size more than 4:3. Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size. Adjusts the Position or Size by using ▲, ▼ button.

4:3 : The default setting for a movie or normal broadcasting. Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted. ✎✎NOTE xx After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲, ▼, ◄ or ► button to move the

picture. xx Settings can be adjusted and stored for each external device connected to an input of the TV. 03 Basic Features Picture Options input, 1 line will be cut at the top, bottom, left and right as in the overscan function. ■■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size. Not available in PC, Component or HDMI mode.

■■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed. Auto Visualisation: When changing analogue channels, displays signal strength. Only available for analogue channels.

✎✎ When bar is green, you are receiving the best possible signal. ■■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide an improved picture quality. Disabled under PC mode.

■■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth. Available only in HDMI mode (RGB signals).

■■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality. Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■■ 100Hz Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo) : Removes drag from fast scenes with a lot of movement to provide a clearer picture. If you enable 100Hz Motion Plus, noise may appear on the screen. If this occurs, set 100Hz Motion Plus to Off.

Blur Reduction: Adjusts the blur reduction level from video sources. Judder Reduction: Adjusts the judder reduction level from video sources when playing films. Reset: Reset the custom settings. ■■ Auto Protection Time (2 hours/4 hours/8 hours/10 hours/ Off) : If the same image remains on the screen, Auto Screen Burn Protector will work. Picture Reset (OK / Cancel) Resets your current picture mode to its default settings. English BN68-02558A.indb 15

2010-02-17 1:39:19 Basic Features ¦¦ Setting up the TV with Your PC ¦¦ Adjusting sound settings Set the input source to PC. Auto Adjustment t Adjust frequency values/positions and fine tune the settings automatically. ✎✎Not available when connecting through HDMI/DVI cable. Screen Equalizer Adjusts the sound mode. ■■ Balance L/R: Adjusts the balance between the right and left speaker. ■■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies. ■■ Reset: Resets the equalizer to its default settings. ■■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen. ■■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◄ / ►). ■■ Image Reset: Resets the image to default settings. ¦¦ Sound Systems, Etc. SRS TruSurround HD (Off / On) t (standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology. Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear. Audio Language

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

yy The correct size setting (resolution) [Optimum: 1920 X 1080 pixels] yy If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box. Sound Menu ¦¦ Changing the Preset Sound Mode SRS TheaterSound t ■■ Standard: Selects the normal sound mode. (standard sound mode only) This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly when viewing a show. (digital channels only) Change the default value for audio languages. ✎✎The available language may differ depending on the broadcast. Audio Format (MPEG / Dolby Digital 5.1) (digital channels only) When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. ✎✎Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable. ■■ Music: Emphasizes music over voices. ■■ Movie: Provides the best sound for movies. ■■ Clear Voice: Emphasizes voices over other sounds. ■■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

English BN68-02558A.indb 16 2010-02-17 1:39:19 (not available in all locations) (digital channels only) This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster. ■■ Audio Description (Off / On): Turn the audio description function on or off. ■■ Volume: Adjust the audio description volume. Auto Volume (Off / Normal / Night) To equalize the volume level on each channel, set to Normal. ■■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night. Speaker Select (External speaker / TV speaker) A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker. ✎✎When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited. ✎✎When Speaker Select is set to External Speaker, you should use these settings. xx TV speaker: Off , External speaker: On ✎✎When Speaker Select is set to TV Speaker, you ■■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player. Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital. ✎✎ By connecting to 5.1ch speakers in a Dolby 03 Basic Features Audio Description Digital setup, maximize your interactive 3D sound experience. Audio Delay: Correct audio-video mismatch, when watching TV or video, and listening to digital audio output using an external device such as an AV receiver. ■■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound). ✎✎ Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time. Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB. Sound Reset (OK / Cancel) Reset all sound settings to the factory defaults. ¦¦ Selecting the Sound Mode When you set to Dual l-ll, the current sound mode is displayed on the screen. should use these settings. xx TV speaker: On , External speaker: On ✎✎If there is no video signal, both speakers will be mute. Additional Setting (digital channels only) ■■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level. ✎✎ According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB. ✎✎ To increase or decrease the volume, adjust between the range 0 and -10 respectively.

Stereo NICAM Stereo Audio Type Mono Stereo Dual Mono Stereo Dual Dual I-II Default Automatic change Dual I Automatic change Dual I ✎✎If the stereo signal is weak and an automatic switching, occurs, then switch to the mono. ✎✎Only activated in stereo sound signal. ✎✎Only available when the Input source is set to TV. English BN68-02558A.indb 17

2010-02-17 1:39:19 Basic Features Setup Menu On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.) ¦¦ Setting the Time Volume: Set the desired volume level. Time ■■ Clock: Setting the clock is for using various timer features of the TV. OO The current time will appear every time you press the INFO button. ✎✎ If you disconnect the power cord, you have to set the clock again. Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV) Antenna (when the Source is set to TV): Select ATV or DTV. Channel (when the Source is set to TV): Select the desired channel. Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically. ✎✎ Depending on the broadcast station and signal, ✎✎ If there is no music file on the USB device or the ✎✎ The antenna must be connected in order to set ✎✎ When there is only one photo file in the USB the auto time set up may not be correct. In this case, set the time manually. the time automatically. Clock Set: Set the Day, Month, Year, Hour and Minute manually. ✎✎ Available only when Clock Mode is set to Manual. Time Zone: You can select your time zone. ✎✎ This function is only available when Clock Mode is set to Auto. ✎✎ Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. ¦¦ Using the Sleep Timer ■■ Sleep Timer t : Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes). ✎✎ To cancel Sleep Timer, select Off. ■■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first. Timer 1

Sun Tue Wed L Move U Adjust

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names. Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer. ✎✎ The c mark indicates the day is selected. ✎✎Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating. ¦¦ Locking Programs Change the PIN using the Change PIN option. ■■ Parental Lock (Parental Rating): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code.

Thu ✎✎The PIN input screen appears before the setup screen. ✎✎Enter your 4-digit PIN, the default of which is “0-0-0-0”. ✎✎ Available only when the Input source is set to TV. Channel ATV Mon selected. ✎✎ Each USB you use is assigned its own folder. ■■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme. device, the Slide Show will not play. ✎✎ If a folder name is too long, the folder cannot be Security ¦¦ Setting the On / Off Timer On Time folder containing a music file is not selected, the Timer function does not operate correctly. Fri Sat E Enter R Return Allow All: Unlock all TV ratings. ✎✎ The items of Parental Lock differs depending on the country. English BN68-02558A.indb 18 2010-02-17 1:39:20 ✎✎ If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on). ¦¦ Other Features Language ■■ Menu Language: Set the menu language. ■■ Teletext Language: Set a desired language for teletext. ✎✎ English is the default in cases where the selected language is unavailable in the broadcast. ■■ Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select a language, which will be the default language when a channel is selected. Subtitle Use this menu to set the Subtitle mode. ✎✎The subtitle feature doesn’t work in Component or HDMI modes. ■■ Subtitle (Off / On): Switches subtitles on or off. ■■ Mode (Normal / Hearing Impaired): Sets the subtitle mode. ■■ Subtitle Language: Sets the subtitle language. General ■■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode. ✎✎NOTE xx Precautions and limitations for game mode –– To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu. –– If you display the TV menu in Game Mode, the screen shakes slightly. xx Game Mode is not available in TV and TV mode. xx After connecting the game console, set Game Mode to On to prevent poor picture quality. xx If Game Mode is On: Picture mode is set to Standard and Sound mode is set to Custom. ■■ BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution. ✎✎ Available when connecting Samsung products that support BD Wise through a HDMI cable. ■■ Menu Transparency (Bright / Dark): Se t the Transparency of the menu. ■■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off. Common Interface ✎✎ If the programme you are watching does not ■■ CI Menu: This enables the user to select from the CAMprovided menu. Select the CI Menu based on the menu PC Card. ✎✎ English is the default in cases where the selected ■■ Application Info.: View information on the CAM inserted into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off. support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected. language is unavailable in the broadcast. Digital Text (Disable / Enable) (UK only) If the programme broadcasts with digital text, this feature is enabled. Network (Network Type / Network Setup / Network Test / Samsung Wireless Link / SWL connect) For details on setting up options, refer to the “Network Connection” instructions. (P. 23) 03 Basic Features ■■ Change PIN: Change your personal ID number required to set up the TV.

1. Purchase a CI CAM module at your nearest dealer or by

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel. Wireless Remote Control (On / Off) Turn wireless remote controls on or off or give permission to wireless remote controls. English BN68-02558A.indb 19

2010-02-17 1:39:21 Basic Features ¦¦ Picture In Picture (PIP) ■■ Signal Information: (digital channels only) HDTV channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength. PIP t Watches simultaneously the TV tuner and one external video source. PIP (Picture-in-Picture) does not function in the same mode. ✎✎NOTE xx If you turn the TV off while watching in PIP mode, the PIP window will disappear. xx You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. xx While Internet@TV is in operation, the PIP function cannot be used. ■■ Troubleshooting: If the TV seems to have a problem, refer to this description. ✎✎ If none of these troubleshooting tips apply, contact the Samsung customer service centre. Software Upgrade Software Upgrade can be performed via a broadcasting signal or by downloading the latest firmware from samsung. com to a USB memory device. Current Version the software already installed in the TV. ✎✎Software is represented as “Year/Month/Day_Version”. Software Upgrade Current Version 2010/01/18_000001

■■ PIP (Off / On): Activate or deactivate the PIP function. ■■ Channel: Select the channel for the sub-screen. ■■ Size (Õ / Ã): Select a size for the sub-picture. ■■ Position (à / – / — / œ): Select a position for the sub-picture. ■■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode. Support Menu Self Diagnosis ■■ Picture Test (Yes / No): Use to check for picture problems and if the problem continues to occur check the colour pattern. ■■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems. ✎✎ If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker in the Sound menu. By USB By Online By Channel Standby Mode Upgrade : 2 hours later Alternative Software ----/--/--/--_------

U Move E Enter R Return Installing the Latsted Version ■■ By USB: Insert a USB drive TV Side Panel containing the firmware upgrade file, downloaded from www.samsung.com, into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off USB Drive and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade. ✎✎ The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

English BN68-02558A.indb 20 2010-02-17 1:39:21 ✎✎ First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions. ✎✎ If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade. ■■ By Channel: Upgrade the software using the broadcasting signal. ✎✎ If the function is selected during the software transmission period, software will be automatically searched and downloaded. ✎✎ The time required to download the software is determined by the signal status. ■■ Alternative Software (backup): Displays the Software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated. HD Connection Guide Refer to this information when connecting external devices to the TV. 03 Basic Features ■■ By Online: Upgrade the software using the Internet. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software. ■■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is complete. English BN68-02558A.indb 21

2010-02-17 1:39:21 Advanced Features Connecting to a PC Using an HDMI/DVI Cable / a D-sub Cable DVI OUT R-AUDIO-L

AUDIO OUT AUDIO OUT PC OUT

Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution is 1920 X 1080 @ 60 Hz Mode IBM MAC VESA CVT VESA DMT VESA GTF

VESA DMT / DTV CEA

Resolution 640 x 350 720 x 400 640 x 480 832 x 624 1152 x 870 720 x 576 1152 x 864 1280 x 720 1280 x 960 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1280 x 720 1360 x 768 1440 x 900 1440 x 900 1600 x 1200 1680 x 1050 1280 x 720 1280 x 1024 1920 x 1080p

✎✎NOTE xx For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. xx The interlace mode is not supported. xx The set might operate abnormally if a non-standard video format is selected. xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English BN68-02558A.indb 22 2010-02-17 1:39:25 You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. ¦¦ Connecting to a Wired Network You can attach your TV to your LAN using cable in three ways: yy You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable. See the diagram below. The Modem Port on the Wall TV Rear Panel External Modem (ADSL / VDSL / Cable TV) Modem Cable 04 Advanced Features Network Connection LAN Cable yy You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use Cat 5 cable for the connection. See the diagram below. The Modem Port on the Wall External Modem (ADSL / VDSL / Cable TV) Modem Cable LAN Cable IP Sharer (having DHCP server) TV Rear Panel LAN Cable yy Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house. The Modem Port on the Wall TV Rear Panel LAN Cable If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks. Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer. ✎✎ You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses. English BN68-02558A.indb 23

2010-02-17 1:39:27 Advanced Features Network Setup (Auto) Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps: Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. How to set up automatically To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

1. Connect your TV to your LAN as described in the

2. Turn on your TV, press the Menu button on your

remote, use the ▲or▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲or▼ button to select Network in the Setup

menu, and then press the ENTERE button. The Network screen appears. : Wired

Network Setup Network test SWL(Samsung Wireless Link)

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed. How to set up manually Network Network Type Getting the Network Connection Values : Off To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up

automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the first

entry field. SWL connect

4. On the Network screen, select Network Type.

4. Enter the IP Address, Subnet Mask, Gateway, and

DNS Server values. Use the number buttons on your remote to enter numbers and the arrow buttons to move from one entry field to another.

5. Set Network Type to Wired.

5. When done, press the Return button on your remote.

6. Select Network Setup. The Network Setup screen

6. Select Network Test to check the Internet connectivity.

U Move E Enter R Return U Move E Enter R Return

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

9. Wait two minutes, and then press the RETURN button

10. If the Network Function has not acquired the network

connection values, go to the directions for Manual.

English BN68-02558A.indb 24 2010-02-17 1:39:28 To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN), which you connect to your TV’s back or side panel USB jack. See the illustration below. ✎✎To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port. The LAN Port on the Wall TV Side Panel Wireless IP sharer Samsung Wireless LAN Adapter 04 Advanced Features ¦¦ Connecting Wireless Network

LAN Cable Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts. com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly. ✎✎NOTE xx You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN) to use a wireless network. xx Samsung’s Wireless LAN adapter is sold separately. The WIS09ABGN Wireless LAN adapter is offered by select retailers, Ecommerce sites and Samsungparts.com. xx To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. xx Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure. xx If you apply a security system other than the systems listed blow, it will not work with the TV. xx If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. xx If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. xx Keep the Samsung Wireless LAN Adaptor at a distance from the TV. If you watch the TV with the adaptor connected nearby, images may appear corrupted for some channels. xx If your router, modem, or device isn’t, it may not connect to the TV via the “Samsung Wireless LAN Adapter.” xx Connection Methods: You can setup the wireless network connection six ways.

Samsung Auto Configuration PBC (WPS) Auto Setup (Using the Auto Network Search function) Manual Setup SWL (Samsung Wireless Link) Ad-Hoc xx All of Samsung Wireless LAN Adapter shoud be connected directly to the TV's USB port. USB HUB are not supported. English BN68-02558A.indb 25

2010-02-17 1:39:30 Advanced Features Network Setup (Samsung Auto Configuration) Network Setup (PBC (WPS)) This function is available in APs (Access Points) that support Samsung Auto Configuration. If there is no such AP, you can connect through PBC (WPS) or manually. If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the

previous section. ✎✎This function is available when SWL(Samsung Wireless Link) set to Off. ✎✎You can check for equipment that supports Samsung Auto Configuration on www.samsung.com. How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them on.

✎✎ Because the booting times of applications differ, you may have to wait for approximately 2 minutes. ✎✎ If the LAN cable connected the WAN port of AP during Samsung Auto Configuration, you are able to complete until internet connection test. If you do not connect, Samsung Auto configuration will check only device connecting of AP (Not check internet).

2. After 2 minutes, connect the Samsung Wireless LAN

Adaptor to the TV. When the Samsung Wireless LAN Adaptor is established, the pop-up window appears.

3. As soon as a connection is established, place the AP in

parallel with the Samsung Wireless LAN Adaptor giving a gap no larger than 25cm.

4. Wait until the connection is automatically established.

✎✎ If the connection fails, reset the AP and then try again. ✎✎ If Samsung Auto Configuration does not connect your TV to your AP, a pop-up window appears on the screen notifying you of the failure. Reset the AP, and then try again. If the connection fails again, choose one of the other connection setup methods, PBC (WPS), auto, or manual.

5. After the connection is established, locate the sharer at

the desired location. ✎✎ If the AP settings have been changed or it is the first time you use the new AP after purchase, you need to set up again beginning from Step 1. How to set up using PBC (WPS)

2. Turn on your TV, press the Menu button on your

remote, use the ▲or▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲or▼ button to select Network in the Setup

menu, and then press the ENTERE button.

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen

appears. Network Setup Select a network Internet Protocol Setup

7. Press the Red button on your remote.

8. Press the PBC (WPS) button on your router within 2

minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

Return button to exit the Network Setup screen. Network Setup (Auto) Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process. How to set up automatically To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up PBC

2. Press the ▼ button to select Internet Protocol Setup,

and then press the ENTERE button. Press the ▲ or ▼ button to select Auto, and then press the ENTERE button.

English BN68-02558A.indb 26 2010-02-17 1:39:30

4. In the list of networks, press the ▲ or ▼ button to select

a network, and then press the ENTERE button. ✎✎ If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Na me (SSID) and Security Key to establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the

Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN. For

most home networks, you would select Security (for Security Key). The Security Screen appears. Network Setup Security Key 0 entered

0~9 Number Lower case

Delete Space n Move E Enter R Return

7. On the Security screen, enter your network’s Pass

Phrase. ✎✎ You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

8. To enter the Pass Phrase, follow these general

directions: –– Press the number buttons on your remote to enter numbers. –– Use the direction buttons on your remote to move from button to button on the Security Key screen. –– Press the Red button to change case or display symbols/characters. –– To a enter letter or symbol, move to the letter or symbol, and then press the ENTERE button. –– To delete the last letter or number you entered, press the Green button on your remote.

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection confirmation message is

displayed, and then press the ENTERE button. The Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTERE button. Network Setup (Ad-Hoc) You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network. ✎✎This function is available when SWL(Samsung Wireless Link) is set to Off. How to connect to new Ad-hoc

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a network. A list of devices/networks

3. While in the device list, press the Blue button on the

remote. ✎✎ The message Ad-hoc is a direct WI-Fi connection with cellphone or PC. The existing network system may have limited functionality. Do you want to change the network connection? is displayed.

4. Input the generated Network Name (SSID) and

Security Key into the device you want to connect. How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a network. Then, the device list will be

3. Select the device you want in the Device list.

4. If security key was applied, input the security key.

✎✎ If network doesn’t operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction. Network Setup (Manual) If the other methods do not work, you need to enter the Network setting values manually. Getting the Network Connection Values To get the Network setting values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed. English BN68-02558A.indb 27 04 Advanced Features

3. Press the ▲ button to go to Select a Network, and

then press the ENTERE button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

2010-02-17 1:39:31 Advanced Features How to set up manually How to connect Samsung Wireless link To enter the Network settings into your TV, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)”. (P. 26) For the procedures to establish a connection, refer to the following:

1. Follow Steps 1 through 5 in the “How to set up using

2. Press the ▼ button to select Internet Protocol Setup,

and then press ENTERE button. Press the ▲ or ▼ button to select Manual, and then press ENTERE button.

2. Select Samsung Wireless Link by using the ▼ button

and press the ENTERE button to turn it On.

3. Press the ▼ button to go to the first entry field (IP

4. If the “Press the PBC button on the device which

supports PBC button to connect within 120 seconds” message appears, press the PBC button on the device to connect.

4. Use the number buttons to enter numbers.

5. When done with each field, use the ► button to move

successively to the next field. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the first DNS entry field.

Enter the numbers as above.

9. When done, press the ▲ button to go to Select

a Network. Select your network, and then press ENTERE button.

10. Go to Step 4 in the "How to set up automatically" (P. 26),

and follow the directions from that point on. Network Setup (SWL (Samsung Wireless Link)) This function lets you connect a Samsung device that supports the PBC (WPS) to your TV. You can connect devices to the TV even if a sharer is not connected to the TV. ✎✎To use the Internet@TV, the AP (access point) must be connected to the wireless network. ✎✎If a Samsung Wireless Lan Adapter is connected to the USB 2 port, the network may not operate normally. We recommend to connect to USB 1 (HDD) port. ✎✎Only sharers using the 2.4 Ghz band are supported. Sharers using the 5 Ghz band are not supported. SWL connect

3. Select SWL connect by using the ▼ button and press

the ENTERE button. ✎✎ For more information, refer to the wireless network setup manual of the device to be connected.

5. If the device is connected properly to the TV after

starting count on message box then message box will be disappeared automatically. ✎✎ If the connection fails, please retry after 2 minutes. If Your TV Fails to Connect to the Internet Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect. To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet. If your Internet service provider requires an ID or assword to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet. The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG. You can directly connect a device that supports the PBC (WPS) to the TV. ✎✎This function is available when SWL(Samsung Wireless Link) is set to On.

English BN68-02558A.indb 28 2010-02-17 1:39:31 Enjoy photos, music and/or movie files saved on a USB Mass Storage Class (MSC) device and/or your PC. 04 Advanced Features View Devices E Enter R Return ¦¦ Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie files to the USB 1

(HDD) or USB 2 jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select

USB Drive ¦¦ Connecting to the PC through network You can play pictures, music and videos saved on your PC or on your TV through a network connection in the Media Play mode. ✎✎If you use Media Play through saved file on your PC, you should download “PC Share Manager” and users manual from “www.samsung.com.” TV Side Panel LAN

External Modem (ADSL/VDSL/Cable TV) Samsung Wireless LAN Adapter Wireless IP sharer LAN Cable

1. For more information on how to configure your network, refer to ‘Network Connection’.

–– You are recommended to locate both TV and PC in same subnet. The first 3 parts of the subnet address of the TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager

program will be installed. –– You can connect the TV to the PC directly without connecting it through a Sharer (Router). English BN68-02558A.indb 29

2010-02-17 1:39:35 Advanced Features ✎✎Functions that are not supported when connecting to a PC through a network: xx The Background Music and Background Music Setting functions. xx Sorting files by preference in the Photo, Music, and Movie folders. xx The (REW) or µ (FF) button while a movie is playing. ✎✎The Divx DRM, Multi-audio, embedded caption does not supported. ✎✎Samsung PC Share manager should be permitted by the firewall program on your PC. ✎✎When you use Media Play mode through a network connection, According to functions of the provided server: xx The sorting method may vary. xx The scene search function may not be supported. xx The Play Continuously function, which resumes playing of a video, may not be supported. –– The Play Continuously function does not support multiple users. (It will have only memorized the point where the most recent user stopped playing.) xx The (REW), µ (FF) or (Pause) buttons may not work depending on the content information. ✎✎If you experience any file stuttering issue while playing a video over a wireless network, we recommend using a wired network. ✎✎It might not work properly with unlicensed multimedia files. ✎✎Need-to-Know List before using Media Play xx MTP (Media Transfer Protocol) is not supported. xx The file system supports FAT16, FAT32 and NTFS. xx Certain types of USB Digital camera and audio devices may not be compatible with this TV. xx Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port. xx Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. xx Connect a USB HDD to the dedicated port, USB1 (HDD) port. xx Do not disconnect the USB device while it is loading. xx MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only. xx The higher the resolution of the image, the longer it takes to display on the screen. xx The maximum supported JPEG resolution is 15360X8640 pixels. xx For unsupported or corrupted files, the “Not Supported File Format” message is displayed. xx If the files are sorted by Basic View, up to 1000 files can be displayed in each folder. xx MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements. xx If more than 2 PTP devices are connected, you can only use one at a time. xx If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported. xx If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction. xx If the TV has been no input during time set in Auto Protection Time, the Screensaver will run. xx The power-saving mode of some external hard disk drives may be released automatically when connected to the TV. xx If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read. xx If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection. xx If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

English BN68-02558A.indb 30 2010-02-17 1:39:36 Move to the file you desired using the up/down/right/left buttons and then press the ENTERE or (Play) button. The file is played. ✎✎Supports the Device Mode and Contents Mode in Media Play homepage. Information : You can ascertain the selected file name and the number of files and page. Videos Sort List Section : Displays sorting standard. ✎✎ Sorting standard is different depending on the contents. 1/1 Page /Movie 01.avi Jan.10.2010 File List Section : You can confirm the files and groups that is sorted by each category. Sorting T Tools Operation Buttons Red (Change Device): Selects a connected device. B Green (Preference): Sets the file preference. (not supported in Basic view) Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol. Blue (Sorting): Selects the sort list. T Tools: Displays the option menu. ✎✎ Using the or µ button, file list can move to next or previous page. Videos Playing a Video

1. Press the ◄ or ► button to select Videos, then press the ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired video in the file list.

3. Press the ENTERE button or (Play) button.

–– The selected file is displayed on the top with its playing time. –– If video time information is unknown, play time and pregress bar are not displayed. –– During video playback, you can search using ◄ and ► button. ✎✎In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself. 00:04:03 / 00:07:38 1/1 Movie 01.avi yy Supported Subtitle Formats Name File extension MPEG-4 time-based text .ttxt Format XML SAMI .smi HTML SubRip .srt string-based SubViewer .sub string-based Micro DVD .sub or .txt string-based SUM E Pause L Jump T Tools R Return English BN68-02558A.indb 31

2010-02-17 1:39:44 Advanced Features yy Supported Video Formats File Extention Video Codec Resolution Frame rate (fps) Bit rate (Mbsp) H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Container *.avi *.mkv *.asf AVI MKV 800 x 600 6 ~ 30

XviD 1920 x 1080 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920 x 1080 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

VC1 1920 x 1080 6 ~ 30

ASF *.wmv ASF *.mp4 MP4 *.3gp 3GPP *.vro VRO VOB *.mpg *.mpeg *.ts *.tp *.trp

Audio Codec xx If there are problems with the contents of a codec, the codec will not be supported. xx If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly. xx Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Fram/sec listed in the table above. xx If the Index Table is in error, the Seek (Jump) function is not supported. Video Decoder

Supports up to H.264, Level 4.1 H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported. XVID, MPEG4 SP, ASP :

Supports up to WMA 7, 8, 9, STD WMA 9 PRO does not support 2 channel excess multi channel or lossless audio. WMA sampling rate 22050Hz mono is not supported. –– Below 1280 x 720: 60 frame max –– Above 1280 x 720: 30 frame max

GMC 2 over is not support. H.263 is not supported. Only Samsung Techwin MJEPG is supported. English BN68-02558A.indb 32 2010-02-17 1:39:45 If you exit the playing Videos function, it can be played later from the point where it was stopped. ✎✎If you will press the ENTERE button during playing the file, you can explore scene divided into 5 chapters you want.

1. Select the movie file you want to play continuously by pressing

the ◄ or ► button to select it from the file list section.

2. Press the (Play) / ENTERE button.

00:04:03 / 00:07:38 1/1 Movie 01.avi

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped. ✎✎ The Blue button is available when resuming play. ✎✎ If the Cont. movie play help function is set to On in the 04 Advanced Features Playing movie file continuously (Resume Play) Play continuously Resumes playing from the last viewed scene. Settings menu, a pop-up message will appear when you resume play a movie file. SUM Play continuously E Chaptering L Jump T Tools R Return Music Playing a Music

1. Press the ◄ or ► button to select Music, then press the ENTERE

button in the Media Play menu. Playlist

2. Press the ◄/►/▲/▼ button to select the desired file in the file list.

3. Press the ENTERE button or (Play) button.

–– During music playback, you can search using ◄ and► button. –– (REW) and µ buttons do not function during play. I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer Music 1 Music 2 No Singer Music 3 No Singer ✎✎Only displays the files with MP3 and PCM file extension. Other file 01:10 / 04:02 Music 4 No Singer Music 5 extensions are not displayed, even if they are saved on the same USB device. ✎✎If the sound is abnormal when playing MP3 files, adjust the 3/15 No Singer SUM E Pause L Jump T Tools R Return Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.) Creating My Playlist

1. Press the ◄/►/▲/▼ button to select the tracks you want to add and press the TOOLS button.

2. Select Add My Playlist.

3. When the Add My Playlist menu appears, select New My Playlist.

✎✎ To add to an old play list, simply select the play list you want to add music to.

4. The newly created or updated playlist will be in the main Music page.

Playing MyPlaylist Select the My Playlist folder and it will play automatically. Press the ▲ or ▼ button to select a different music file within the play list. English BN68-02558A.indb 33

2010-02-17 1:39:56 Advanced Features Photos Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired photo in the file list.

3. Press the ENTERE button or (Play) button.

Normal Image1024.jpg 1024x768 2010/2/1 3/15 –– While a photo list is displayed, press the (Play) / ENTERE button on the remote control to start slide show. –– All files in the file list section will be displayed in the slide show. –– During the slide show, files are displayed in order from currently being shown. ✎✎Music files can be automatically played during the Slide Show if the Background Music is set to On. E Pause L Previous/Next T Tools R Return SUM ✎✎The BGM Mode cannot be changed until the BGM has finished loading. ¦¦ Playing the multiple files Playing the selected video / music / photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

NOTE xx The (c) mark appears to the left of the selected files. xx To cancel a selection, press the yellow button again. xx To deselect all selected files, press the TOOLS button and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video / music / photo file group

1. While a file list is displayed, move to the any file in desired group.

2. Press the TOOLS button and select Play Current Group.

2 files selected /Movie 01.avi Movie 01.avi Sorting T Tools ¦¦ Media Play Additional Function Sorting the file list Press the blue button in the file list to sort the files. Category Operations It shows whole folder. You can view the photo by selecting the folder.

Title It sorts and displays the file title in Symbol/Number/Alphabet/Special order.

Preference It sorts and displays the file by preference. You can change the file preference in the file list section using the green button

Latest Date It sorts and shows files by latest date.

Earliest Date It sorts and shows files by earliest date. Artist It sorts the music file by artist in alphabetical

Album It sorts the music file by album in alphabetical order.

Genre It sorts music files by the genre.

Mood It sorts music files by the mood. You can change the music mood information.

Monthly It sorts and shows photo files by month. It sorts only by month (from January to December) regardless of year.

English BN68-02558A.indb 34 2010-02-17 1:40:05 During playing a file, press the TOOLS button. Option menu Operations Videos Title You can move the other file directly.

Repeat Mode Picture Size (Mode1 / Mode2 / Original) Picture Setting You can play movie and music files repeatedly.

You can adjust the picture size for preference.

You can adjust the picture setting. (P. 13, 14, 15, 16)

Sound Setting You can adjust the sound setting. (P. 16, 17) you can play the video file with Subtitle. This function only works if the subtitles are the same file name as the video file. you can enjoy video in one of supported language as required. The function is only enabled when steam-type files which support multiple audio formats are played.

Subtitle Setting audio Music Photos

Stop Slide Show / Start You can start or stop a Slide Show. Slide Show Slide Show Speed You can select the slide show speed during the slide show.

Zoom You can set variously the slide show effect. You can set and select background music when watching a Slide Show. You can zoom into images in full screen mode. Rotate You can rotate images in full screen mode.

Home Background You can move the file to the Media Play desktop. Information You can see detailed information about the played file. Slide Show Effect Background Music 04 Advanced Features Settings Using the Setup Menu ■■ Background Setting: Select to display the background you want. ■■ Cont. movie play help (resume play) Help (On / Off): Select to display the help pop-up message for continuous movie playback. ■■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD registration using Media Play, the registration is completed. ✎✎ For more information on DivX

VOD, visit www.DivX.com. ■■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated. ■■ Information: Select to view information about the connected device. English BN68-02558A.indb 35

2010-02-17 1:40:06 Advanced Features Anynet+ What is Anynet+? t Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it. To connect to Home Theatre

Home Theatre Optical Cable Anynet+ Device 1 1. Connect the HDMI IN (1(DVI), 2, 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable. ✎✎NOTE xx Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre. xx When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / satellite box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV. xx Connect only one Home Theatre. xx You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. xx Anynet+ works when the AV device supporting Anynet+ is in the standby or on status. xx Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type. Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Device List Recording: (*recorder) (device_name) MENU (device_name) INFO Stop Recording: (*recorder) Receiver Description Changes Anynet+ mode to TV broadcast mode. Shows the Anynet+ device list. Starts recording immediately using the recorder. (This is only available for devices that support the recording function.) Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear. Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear. Stops recording. Sound is played through the receiver. If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

English BN68-02558A.indb 36 2010-02-17 1:40:07 04 Advanced Features ¦¦ Setting Up Anynet+ ■■ Setup Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On. (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off. The active source on the TV must be set to TV to use the Anynet+ function.

✎✎ Even if an external device is still recording, it may turn off. ¦¦ Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

✎✎ If you cannot find a device you want, press the red button to refresh the list.

2. Select a device and press the ENTERE button. You can switch to the selected device.

(HDMI-CEC) to On in the Application menu, the Device List menu appears. xx Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation. xx If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List. ¦¦ Recording You can make a recording of a TV programme using a Samsung recorder.

1. Select Recording.

✎✎ When there are more than two recording devices xx When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List. ✎✎ When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

✎✎ You can record the source streams by selecting Recording: (device_name). ✎✎ Pressing the (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. ✎✎ Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. English BN68-02558A.indb 37

2010-02-17 1:40:07 Advanced Features ¦¦ Listening through a Receiver You can listen to sound through a receiver (i.e Home Theatre) instead of the TV speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎✎ If your receiver supports audio only, it may not appear in the device list. ✎✎ The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV. ✎✎ When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV (aerial) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver. ✎✎NOTE xx You can only control Anynet+ devices using the TV remote control, not the buttons on the TV. xx The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device. xx The Anynet+ functions do not operate with other manufacturers’ products. ¦¦ Troubleshooting for Anynet+ Problem Anynet+ does not work. Possible Solution

I want to start Anynet+.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver (home theatre). Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI Cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play or Plug & Play (Initial setup), etc.) When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Presshe TOOLS button to display the Anynet+ menu and select a menu you want. I want to exit Anynet+.

Select View TV in the Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press P >/<, PRE-CH, and FAV.CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The message “Connecting to Anynet+ device...” appears on the screen.

You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play.

You cannot use the play function when Plug & Play (Initial setup) is in progress. The connected device is not displayed.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI Cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI Cable only. Some HDMI cables may not support Anynet+ functions. If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.

The TV programme cannot be recorded.

Check whether the antenna jack on the recording device is properly connected. The TV sound is not output through the receiver.

Connect the optical cable between TV and the receiver.

English BN68-02558A.indb 38 2010-02-17 1:40:08 ¦¦ Getting Started with Internet@TV Recommended Internet@TV brings useful and entertaining contents and services directly from the web to your TV. by Date 1/1 My Applications Samsung Apps 04 Advanced Features Internet@TV Settings

Sort by R Return ✎✎NOTE xx Configure the network settings before using Internet@TV. For more information, refer to “Network Connection” (P. 23). xx Unsupported fonts within the provider’s content will not display normally. xx Slow responses and/or interruptions may occur, depending on your network conditions. xx English may be only supported in application service depending on region. xx This feature is not available in all locations xx If you experience a problem using a application, please contact the content provider. xx According to circumstances of the contents provider, an application’s updates or the application it self may be discontinued. xx Depending on your country’s regulations, some application may have limited service or not be supported. Screen Display Recommended TV Screen: Displays the current channel. Application service: You can experience various service by provided samsung. by Date 1/1 My Applications Information: Displays notices, new applications, and advertisemevnts brought to you by Samsung product introductions. Recommended Applications: Displays the recommended service by Samsung. You are not able to add or delete a service in this list. Downloaded Applications: Displays the downloaded applications through the Samsung Apps. Samsung Apps Settings

Login Internet@TV Settings: Edit and configure application and Internet@TV settings.

Sort by R Return Controls : Red (Login): To log in to to Internet@TV.

• B Green (Mark as Favorite): To mark the application as a favorite. Blue (Sort by): To sort the application.
• R Return: To return to the previous menu. ✎✎The Color buttons may work differently depending on the application. English BN68-02558A.indb 39

2010-02-17 1:40:10 Advanced Features ■■ System Setup Account Login For a application with multiple categories, use ◄ and ► to access the different categories. on country. Ticker Autorun (Off / On): Enable/disable ticker autorun upon powering on the TV. Channel Bound Service (Off / On): Some channels support application as an Internet data service, allowing you to access the Internet service while watching TV. Only available if supported by the broadcaster. ✎✎ Ticker Autorun may not be supported depending adgjm

Move [0~9] Enter PIN R Cancel ✎✎For a more enjoyable application experience, register and log in to your account. Reset: Resets Internet@TV settings to factory default settings. Change the Service Lock password The default password set is "0-0-0-0."

✎✎ If you forget the password, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE → 9 → 2 → 8 → POWER (on). ✎✎For instructions on creating an account, refer to Setting up Internet@TV → Internet@TV ID → Create.

1. Press the Red button in Internet@TV home page.

2. Select desired User account, then press the ENTERE

button. ✎✎ If you want create account, press Red button then create account OSD window appear.

3. Enter the Password.

✎✎ When login succeeds, User account will be displayed on the screen. ■■ Internet@TV ID You can use this menu when creating, deleting the account. You can control your account including contents site’s account information. Account is only for internet@TV.

Create: Create an account and link it with desired service application. NOTE

xx Account will be made less than 10. xx Maximum number of characters is 10. Settings Create IDs and configure Internet@TV settings from this screen. Highlight Settings using ▲ and ▼ buttons and press the ENTERE button. Settings

• Ticker Autorun : Off : Off
• Service Manager ▪ Change the Service Lock password

• Channel Bound Service

English BN68-02558A.indb 40 2010-02-17 1:40:11 Before create User account, you should download the application first on the Samsung Apps.

1. Using the ▲/▼/◄/► button, select Settings. Then

press the ENTERE button.

2. Press the ▼ button to select Internet@TV ID, then

press the ENTERE or ► button.

3. Select Create. The Keypad screen will appear.

4. The keypad OSD will be displayed on the screen.

Using the Keypad Pressing the – button on the remote while you are using the Screen Keypad enables you to change the text fields to lower case, upper case, numbers and icons. You can use this Screen Keypad in a several Internet@ TV applications. Here is how to input characters. 4-1. For example, suppose that you want to input “105Chang”. 4-2. Press the – button on the remote twice to change the input mode from lower case to numbers. 4-3. Press the 1, 0 and 5 button in numerical order. 4-4. Press the – button on the remote 3 times to change the input mode from numbers to upper case. 4-5. Press the 2 button on the remote 3 times to input C. 4-6. Press the – button on the remote 3 times to change the input mode from upper case to lower case.

6. Account created. You can use the services provided

by all users of your Samsung TV with a single login by linking the users’ account to the TV ID. If you want to register a service site ID, select Yes. Service Site list will appear on the screen.

7. Select Register of the Service Site you want, then

press the ENTERE button.

8. Using number buttons, enter your application site ID

and password. Then press the ENTERE button.

9. Registered successfully. If you add another service

site, select Yes. then press the ENTERE button, go to step 5. 04 Advanced Features How to create Internet@TV ID

10. When completed, select OK. Then press the

ENTERE button. Manager –– Service Site: Register login information for service sites such as YouTube. –– Change Password: Change account password. –– Delete: Delete the account. If you forget the password, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE

• 9 → 2 → 8 → POWER (on).

■■ Service Manager: Delete and lock application installed to Internet@TV. Lock : Lock the application Accessing a locked widget requires the password.

Delete : Delete the application ■■ Properties: Display information about Internet@TV. Use the Check the speed of your internet connection option to test your network connection. 4-7. Press buttons on the remote to input the rest of “Chang”. When done, press the ENTERE button.

5. Using the number buttons, enter the User account

and Password. xx Password must be numbers only. xx Using the – button, you can change the text fields to lower case, upper case, numbers and icons. xx You can delete the entered character using the PRE-CH button. xx Using the π (REW) or µ (FF) button, you can select icon you want to enter in icon keypad screen. English BN68-02558A.indb 41

2010-02-17 1:40:12 Advanced Features ¦¦ Using the Internet@TV service Using the Samsung Apps by category Samsung Apps Samsung Apps is a store for downloading applications to be used on Samsung TV/AV equipment. Users can enjoy a variety of contents like videos, music, photos, games, useful information etc. using the downloaded applications. Additional applications will be available hereafter. Samsung AppS What’s New! Featured Video Most downloaded Most recent Travel Name Free Games Sports Lifestyle Information The following categories are available: yy What’s New: Displays newly registered applications. yy Video: Displays various video media such as movies, TV shows and short length videos. yy Games: Displays various games such as sudoku and chess. yy Sports: Displays various sports media such as match information, images and short length video. yy Lifestyle: Includes various lifestyle media services such as music, personal photo management tools and social networking such as Facebook and Twitter. yy Information: Includes various information services such as news, stocks and weather. yy Others: Includes other miscellaneous services. yy My Page: Displays the application list and your cyber cash balance. Starting in the middle of 2010 (US and Korea only), you can purchase cyber-cash for buying applications through tv.samsung.com.

Sort By R Return ✎✎Using the colour buttons with the Samsung Apps. yy Help: If you have questions about Internet@TV, check this section first. xx Red (Login): To log in to the internet service. xx B Green (Thumbnail View): To change the view

mode. Blue (Sort By): To sort the application by Featured, Most Downloaded, Most Recent or Name. Some application contents only have English. How can I change the language? The application content language may be different from widget user interface language. It depends on service provider. Some application services do not work. Check with that service provider. Refer to help website for widget service provider information. When a network error occurred, I can’t use other menus except setting menu. If network connection doesn’t work, your service might be limited. Because all of function except setting menu are needed to connect internet. Is there any possibility to show adult movies on YouTube? Basically, at the list on the menu it is filtered out. But by using search function, It can be shown. In this case, using the Widget Gallery lock the widget service. 04 Advanced Features ¦¦ Troubleshooting for internet@TV ✎✎Approaching step may be changed later on. ✎✎It can be different links for special countries. Country Austria Belgium Czech Denmark Finland France Germany Greece Hungary Ireland Italy Netherlands Norway Poland Portugal Slovakia Spain Sweden Switzerland United Kingdom Turkey Estonia Latvia Lithuania Russia Ukraine Advanced Features AllShare ¦¦ About AllShare AllShare connects your TV and compatible Samsung mobile phones / devices through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV for browsing web pages in your mobile phones. Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message, Media, or ScreenShare function. ✎✎The Media function is available in all mobile devices which support AllShare. ■■ Allowed / Denied: Allows/Blocks the mobile phone. ■■ Delete: Deletes the mobile phone from the list. ✎✎ This function only deletes the name of the mobile from the list. If the deleted mobile device is turned on or trieds to connect to the TV, it may appear on the list again. contact the Samsung call center. Mobile devices may need additional software installation. For details, refer to each user’s guide. ¦¦ Setting Up the AllShare Using the Message Function Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV. ✎✎NOTE xx To disable the alarm window, set Message to Off in Setup Setup of AllShare. ■■ Message (On / Off): Enables or disables the message function (for call arrivals SMS messages and schedules set on your mobile phones). ■■ Media (On / Off): Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports ScreenShare. ■■ ScreenShare (On / Off): Enables or disables ScreenShare accesses various contents from mobile phones or other ScreenShare supporting devices. ■■ TV name: Sets the TV name so you can find it easily on a mobile device. ✎✎ If you select User Input, you can type on the TV using the OSK (On Screen Keyboard). AllShare 3/7 Setup Messange : On Messange Media : On Media ScreenShare : On ScreenShare TV name : Home TV xx If OK is selected, or if OK is not selected after the message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone. xx The alarm window can be displayed while using some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode. xx When a message from an unknown mobile phone is displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone. Message View If a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed. You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual.

✎✎ Some types of characters may be displayed as blank or broken characters. E Select R Return e Exit ' Setup R Return

English BN68-02558A.indb 44 2010-02-17 1:40:15 Using ScreenShare Function If a call arrives while you are watching TV, the alarm window appears. Using ScreenShare, you can browse various web contents provided by the mobile phone. For example, the image below displays an access page for contents on a mobile. You can read the mobile’s files and view the phone book and calendar on the TV. Also, in the phone book, you can make a call to another person, or send to SMS. Schedule Alarm While you are watching TV, the alarm window appears to display the registered event. You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual.

✎✎ Some special characters may be displayed as blank or broken characters. ✎✎NOTE xx You must have ScreenShare installed on your Samsung Mobile phone/device to use this feature. 04 Advanced Features Call Arrival Alarm xx Doc Viewer can read files in doc format, but cannot modify them. xx The screen display may differ depending on the Using the Media Function An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played. connected device. My Mobile ✎✎NOTE xx If the media function executes for the first time, the warning popup window appears. Press Allow button, then you can use Media function on that device. "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow Deny Contacts Calendar Doc viewer E Select

Return Using your Samsung Phone to Operate Your TV Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, y, z and MUTE buttons are supported. ✎✎Even if you keep pressing down on a control button (channel or volume) on the mobile phone the value will only go up or down by one unit. xx To turn off the media contents transmission from the mobile phone, set Media to Off in the AllShare setup. xx Contents may not be played on your TV depending on their resolution and format. xx The ENTERE and ◄ / ► buttons may not work depending on the type of media content. xx Using the mobile device, you can control the media playing. For details, refer to each mobile’s user’s guide. xx When you want to play media contents from your PC, select the PC icon on the main display of AllShare. Then the TV’s Media Play menu automatically changes. For more detail information, refer to “Media Play”. English BN68-02558A.indb 45

2010-02-17 1:40:16 Other Information Analogue Channel Teletext Feature The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. ✎✎You can change Teletext pages by pressing the numeric buttons on the remote control.

/ (Teletext on/mix): Activate the Teletext mode after selecting the channel providing the Teletext service. Press it twice to overlap the Teletext mode with the current broadcasting screen.

9 (hold): Hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again

previous Teletext page. 6 (index): Display the index 9 (contents) page at any time while you are viewing Teletext. 5 (reveal): Display the hidden

7 (cancel): Display the current

text (answers to quiz games, for example). To display the normal screen, press it again.

broadcast when searching for a page.

0 (mode): Select the Teletext mode (LIST/ FLOF). If you press this button in the LIST mode, the mode is switched into the List save mode. In the List save mode, you can save a Teletext page into list using the 8(store) button. 3 (page down): Display the

8 (store): Store the Teletext 4 (size): Display the doublesize letters on the upper half of the screen. For the lower half of the screen, press it again. To display the normal screen, press it once again.

Teletext page. pages.

2 (page up): Display the next

Colour buttons (red/green/ @ yellow/blue): If the FASTEXT system is used by a broadcasting company, the different topics covered on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. The Teletext pages are organized according to six categories: Part Contents Part Contents

Selected page number.

Broadcasting channel identity.

Current page number or search indications.

Status information. FASTEXT information.

English BN68-02558A.indb 46 2010-02-17 1:40:17 05 Other Information Installing the Wall Mount ¦¦ Assembling the Blanking Bracket When installing the TV onto a wall, attach the Blanking Bracket into the part that connects to the stand as shown in the picture. Blanking bracket ¦¦ Preparing before installing Wall-Mount (46 ~ 55 inch TVs) To install a wall-mount from another manufacturer, use the Holder-Ring. ¦¦ Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. English BN68-02558A.indb 47

2010-02-17 1:40:18 Other Information ¦¦ Wall Mount Kit Specifications (VESA) ✎✎Wall mount kit is not supplied but sold separately. Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. ✎✎NOTE xx Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. xx Standard dimensions for wall mount kits are shown in the table below. xx When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. xx Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. xx For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. xx Do not use screws that do not comply with the VESA standard screw specifications. xx Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. xx Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. xx Do not exceed 15 degrees tilt when mounting this TV. Product Family inches 19~22 LCD-TV 23~29 30~40 46~55 57~65 70~80 80~ VESA Spec. (A * B) 75 X 75 100 X 100 200 X 100 200 X 200 400 X 400 600 X 400 800 X 400 1400 X 800 Standard Screw Quantity

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. Assembling the Cables Enclose the cables in the Cable tie so that the cables are not visible through the transparent stand. Cable tie

English BN68-02558A.indb 48 2010-02-17 1:40:20 The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use.

✎✎Please find a “K” icon on the rear of the TV. A kensington slot is beside the “K” icon.

1. Insert the locking device into the Kensington slot on the LCD TV

1 and turn it in the locking direction 2.

05 Other Information

2. Connect the Kensington Lock cable 3.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

✎✎The locking device has to be purchased separately. ✎✎The location of the Kensington Lock may be different depending on its model. Securing the TV to the Wall Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. ¦¦ To avoid the TV from falling ✎✎Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Drive the screws into the clamps and firmly fasten them onto the

wall. Make sure the screws are firmly fixed into the wall. ✎✎ Screw Specifications xx For a 32 ~ 40 Inch LCD TV: M6 xx For a 46 ~ 55 Inch LCD TV: M8

2. Remove the screws from the centre back of the TV, put the

screws into the clamps, and then fasten the screws onto the TV again.

3. Connect the clamps fixed onto the TV and the clamps fixed onto

the wall with a strong string and then tie the string tightly. ✎✎Verify all connections are properly secured. Periodically check Wall connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer. ✎✎Install the TV near to the wall so that it does not fall backwards. ✎✎It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. ✎✎Untie the string before moving the TV. English BN68-02558A.indb 49

2010-02-17 1:40:21 Other Information Troubleshooting If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual. Issues Solutions and Explanations Picture Quality First of all, please perform the Picture Test and confirm that your TV is properly displaying test image. (go to MENU - Support - Self Diagnosis - Picture Test) (P. 20) If the test image is properly displayed, the poor picture may caused by the source or signal. The TV image does not look as good as it did in the store.

The picture is distorted: macroblock error, small block, dots, pixelization

If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality. Cable/Satellite subscribers: Try HD stations from the channel line up. Antenna connection: Try HD stations after performing Auto programme. ✎✎ Many HD channels are upscaled from SD(Standard Definition) contents. Adjust the Cable/Set top box video output resolution to 1080i or 720p. Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal. Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies. Low signal level or bad quality can cause picture distortion. This is not a TV issue. Colour is wrong or missing.

If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen. There is poor colour or brightness.

Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness) Adjust Energy Saving option in the TV menu. (go to MENU - Picture - ECO solution - Energy Saving) (P.14) Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset) There is a dotted line on the edge of the screen.

If the picture size is set to Screen Fit, change it to 16:9. (P. 15) Change cable/set top box resolution. The picture is black and white.

If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV. When changing channels, the picture freezes or is distorted or delayed.

If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes. Set the output resolution of the cable box to 1080i or 720p.

Sound Quality First of all, please perform the Sound Test to confirm that your TV audio is properly operating. (go to MENU - Support - Self Diagnosis - Sound Test) (P. 20) If the audio is OK, the sound problem may caused by the source or signal. There is no sound or the sound is too low at maximum volume.

Please check the volume the of external device connected to your TV. The picture is good but there is no sound.

Set the Speaker Select option to TV speaker in the sound menu. (P. 17) If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV. If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV). If you are using a DVI to HDMI cable, a separate audio cable is required. If your TV has a headphone jack, make sure there is nothing plugged into it.

The speakers are making an inappropriate noise.

Check the cable connections. Make sure a video cable is not connected to an audio input. For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion. English BN68-02558A.indb 50 2010-02-17 1:40:22 Solutions and Explanations No Picture, No Video The TV won’t turn on.

Make sure the AC power cord is securely plugged in to the wall outlet and the TV. Make sure the wall outlet is working. Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below. The TV turns off automatically.

Ensure the Sleep Timer is set to Off in the Setup menu. (P. 18) If your PC is connected to the TV, check your PC power settings. Make sure the AC power cord is plugged in securely to the wall outlet and the TV. When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal. There is picture/Video.

Check cable connections (remove and reconnect all cables connected to the TV and external devices). Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connect to an HDMI input on the TV. Make sure your connected devices are powered on. Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

05 Other Information Issues RF(Cable/Antenna) Connection The TV is not receiving all channels.

The picture is distorted: macroblock error small block, dots, pixelization

Make sure the Antenna cable is connected securely. Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU Setup - Plug & Play (Initial setup) and wait for all available channels to be stored. Verify the Antenna is positioned correctly. Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies. A low signal can cause picture distortion. This is not a TV issue. PC Connection A “Not Supported Mode” message appears.

Set your PC’s output resolution and frequency so they matche the resolutions supported by the TV. (P. 20) “PC” is always shown on the source list, even if a PC is not connected.

This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected. The video is OK but there is no audio.

If you are using a HDMI connection, check the audio output setting on your PC.

Samsung Wireless USB dongle is required to use a wireless network. Make sure the Network Connection is set to Wireless. Make sure the TV is be connected to a wireless IP sharer (router).

Network Connection (Depending on Models) Wireless network connection failed. Others The picture won’t display in full screen.

HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) contents. Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV. Adjust the picture size options on your external device or TV to full screen. The remote control does not work.

Replace the remote control batteries with the poles (+/–) in the right direction. Clean the sensor’s transmission window on the remote. Try pointing the remote directly at the TV from 5~6 feet away. The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code. A “Not Supported Mode” message appears.

Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 20 of this manual. There is a plastic smell from the TV.

This smell is normal and will dissipate over time. The TV Signal Information is unavailable in the Self Diagnosis Test menu.

This function is only available with digital channels from an Antenna / RF/Coax connection. (P. 20) The TV is tilted to the side.

Remove the base stand from the TV and reassemble it. There are difficulties assembling the stand base.

Make sure the TV is placed on a flat surface. If you can not remove the screws from the TV, please use a magnetized screw driver. The channel menu is greyed out. (unavailable)

The Channel menu is only available when the TV source is selected.

English BN68-02558A.indb 51

2010-02-17 1:40:22 Other Information Issues Solutions and Explanations Your settings are lost after 30 minutes or every time the TV is turned off.

If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTERE. You have intermittent loss of audio or video.

Check the cable connections and reconnect them. Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors. You see small particles when you look closely at the edge of the frame of the TV.

This is part of the product’s design and is not a defect. The PIP menu is not available.

PIP functionality is only available when you are using a HDMI, PC or components source. The message “Scramble signal” or “Weak Signal/No Signal” appears.

If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot. If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again. You turned the TV off 45 minutes ago, and it turned on again.

It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV. There are recurrent picture/sound issues.

Check and change the signal/source. A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.

To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture. ✎✎This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. ¦¦ Licence Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

English BN68-02558A.indb 52 2010-02-17 1:40:24 Panel native Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity TV System Colour/video system Sound System HDMI IN 1 ~ 4 Stand Swivel (Left / Right) Model Name Screen Size (Diagonal) Sound Output Dimensions (WxDxH) Body With stand Weight Body With Stand Model Name Screen Size (Diagonal) Sound Output Dimensions (WxDxH) Body With stand Weight Body With Stand 05 Other Information Specifications 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653 LE32C654 LE40C653 LE40C654 LE46C653 LE46C654 32 inch 40 inch 46 inch 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

✎✎Design and specifications are subject to change without prior notice. ✎✎For the power supply and power consumption, refer to the label attached to the product. English Other Information Index

AllShare Amplify Antenna Anynet+ Audio Out Auto Adjustment Auto Volume

Background Music Balance L/R Basic View Batteries Black Tone Blanking Bracket Brightness

Cable Tie Change PIN 6, 19 Channel Manager Clock Colour Tone Component Connecting to a PC Connecting to an Audio Device

HDMI Headphones Home Theatre 7, 36 8, 36

Installation Space Internet@TV

Language Licence Lock

Media Play Melody Menu Transparency Music

Navigate Network Connection Network Setup Now & Next guide Eco Sensor Edit Name Editing Channels Energy Saving Equalizer External Speaker EPG

ON/OFF button Optimal resolution Select All Self Diagnosis Sharpness Signal Information Sleep Timer Slide Show Software Upgrade Source List Speaker Select Specifications Standby mode Subtitle Symbol

Timer Title Tools Troubleshooting TV Speaker

Password Photos Picture Size PIP (Picture in Picture) Plug & Play Power Indicator Receiver Recording Remote Control Repeat Mode RGB Only Mode Rotate

Favourites Channel Film Mode Fine Tune Flesh Tone Frequency

USB 20, 29 Using Channel View Using Scheduled View Using the Favourite Channels

Wall Mount Warm White Balance

English BN68-02558A.indb 54 2010-02-17 1:40:24 This page is intentionally left blank. BN68-02558A.indb 55 2010-02-17 1:40:24 Yellow Red White

AUDIO OUT VIDEO OUT R-AUDIO-L

AUDIO OUT COMPONENT OUT

✎✎DIGITAL AUDIO OUT (OPTICAL) Life On Venus Avenue DTV Air

18:11 Thu 6 Jan Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five Unclassified No Detaild Information 2:10 Mar 1 Jui DTV Air 800 five five five Information E Annuler 2:10 Mar 1 Jui DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five 18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information Mode aff. +24 heures

BBC World bid-up.tv Boonerang Cartoon Nwk Class News \ Coming Soon Discovery 1futech

Cartoon Nwk Class News \ Coming Soon Discovery ■■ Ton chair : accentue le "Ton chair" rose. Figure Expert : Arrêt RVB uniquement : Arrêt SRS TheaterSound t VESA GTF

VESA DMT / DTV CEA

Résolution 640 x 350 720 x 400 640 x 480 832 x 624 1152 x 870 720 x 576 1152 x 864 1280 x 720 1280 x 960 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1280 x 720 1360 x 768 1440 x 900 1440 x 900 1600 x 1200 1680 x 1050 1280 x 720 1280 x 1024 1920 x 1080p Polarité de synchronisation (H/V)

MPEG-4 time-based text .ttxt Format XML SAMI .smi HTML SubRip .srt chaînes SubViewer .sub chaînes Micro DVD .sub ou .txt chaînes SUM *.ts *.tp *.trp Codec vidéo Résolution H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920 x 1080 6 ~ 30

H.264 BP/MP/HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

VC1 1920 x 1080 6 ~ 30

Codec audio I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer Music 1 Music 2 No Singer Music 3 No Singer Mark as Favorite

Sort by R Return ✎✎REMARQUE Mark as Favorite

Sort by R Return Move [0~9] Enter PIN R Cancel Settings

• Ticker Autorun : Off : Off
• Service Manager ▪ Change the Service Lock password

• Channel Bound Service

Français Games Sports Lifestyle Information Other Sort By R Return "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow Deny Contacts Calendar Doc viewer E Sélectionner

Retour Installation du support mural 75 X 75 100 X 100 200 X 100 200 X 200 400 X 400 600 X 400 800 X 400 1400 X 800 Vis standard Quantité

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

Français 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653 LE32C654 LE40C653 LE40C654 LE46C653 LE46C654 32 pouces 40 pouces 46 pouces 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

ON/OFF, bouton Outils

Photos PIP (Picture in Picture) Piles Plug & Play Cable R-AUDIO-L ANT OUT

AUDIO OUT VIDEO OUT R-AUDIO-L

R-AUDIO-L R-AUDIO-L R-AUDIO-L

✎✎DIGITAL AUDIO OUT (OPTICAL) 2:10 Mar 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five Life On Venus Avenue DTV Air

18:00 ~ 6:00 Unclassified No Detaild Information

2:10 Mar 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five Vista can. - TV Today Discovery DiscoveryH&L five price-drop.tv QVC R4DTT Modo Vista

18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information +24 Horas Modo can

BBC World bid-up.tv Boonerang Cartoon Nwk Class News \ Coming Soon Discovery Pagina T Herramientas 1futech

Cartoon Nwk Class News \ Coming Soon Discovery L Mover U Ajustar

Español BN68-02558A-Spa.indb 18

Jue Seguridad VESA GTF

VESA DMT / DTV CEA

Polaridad de sincronización (H / V)

*.ts *.tp *.trp Códec de vídeo Resolución H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

1920 x 1080 6 ~ 30 H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920 x 1080 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

VC1 1920 x 1080 6 ~ 30

Códec de audio I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer Music 1 Music 2 No Singer Music 3 No Singer Music 4 01:10 / 04:02 No Singer Mark as Favorite

Sort by R Return ✎✎NOTA Mark as Favorite

Sort by R Return Move [0~9] Enter PIN R Cancel Settings

• Ticker Autorun : Off

• Channel Bound Service : Off

• Service Manager ▪ Change the Service Lock password

Español BN68-02558A-Spa.indb 40 2/17/2010 1:32:50 PM Games Sports Lifestyle Information Other My Page Help

Sort By R Return Uso del teléfono móvil de Samsung para hacer funcionar el televisor "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow Deny ¦¦ Licencia Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

Español BN68-02558A-Spa.indb 52 2/17/2010 1:32:58 PM 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653 LE32C654 LE40C653 LE40C654 LE46C653 LE46C654 32 pulgadas 40 pulgadas 46 pulgadas 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

(46 ~ 55 inch TVs) yy Tampa yy Base guia (1EA) (M4 X L12) Yellow Red White

AUDIO OUT VIDEO OUT R-AUDIO-L

AUDIO OUT R-AUDIO-L R-AUDIO-L

✎✎DIGITAL AUDIO OUT (OPTICAL) Guia Family Affairs 18:00 - 18:30 Drama

18:00 ~ 6:00 Unclassified No Detaild Information Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five 18:11 Thu 6 Jan Life On Venus Avenue DTV Air 2:10 Ter 1 Jun DTV Air 800 five

five five 2:10 Ter 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five Vis. Canal - TV Today Discovery DiscoveryH&L five price-drop.tv QVC R4DTT Modo Vis.

18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information +24 horas

• 24ore.tv abc1 Channel Manager Option Menu U Mover E Enter R Regressar U Mover E Enter R Regressar Automatic change Dual I Automatic change Dual I L Mover U Ajustar

Qui Sex Sáb E Enter R Regressar U Mover E Enter R Regressar VESA GTF

VESA DMT/DTV CEA

Resolução 640 x 350 720 x 400 640 x 480 832 x 624 1152 x 870 720 x 576 1152 x 864 1280 x 720 1280 x 960 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1280 x 720 1360 x 768 1440 x 900 1440 x 900 1600 X 1200 1680 x 1050 1280 x 720 1280 x 1024 1920 x 1080p SWL(Samsung Wireless Link) U Mover E Enter R Regressar U Mover E Enter R Regressar ✎✎To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port. Porta LAN na parede n Mover E Enter R Regressar *.ts *.tp *.trp

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920 x 1080 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

VC1 1920 x 1080 6 ~ 30

Codec de áudio I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer Music 1 Music 2 No Singer Music 3 Sistema home theatre Cabo óptico Mark as Favorite

04 Funcionalidades avançadas Internet@TV Sort by R Return ✎✎NOTA Mark as Favorite

Sort by R Return Move [0~9] Enter PIN R Cancel Settings

• Ticker Autorun : Off : Off
• Service Manager ▪ Change the Service Lock password

• Channel Bound Service

Português BN68-02558A_POR.indb 40 2010-02-17 1:21:00 Games Sports Lifestyle Information Other Sort By R Return Utilização do telemóvel da Samsung para controlar o "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow Deny 8 (memorizar): memoriza as

75 X 75 100 X 100 200 X 100 200 X 200 400 X 400 600 X 400 800 X 400 1400 X 800 Parafuso padrão Quantidade

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

Português BN68-02558A_POR.indb 52 2010-02-17 1:21:13 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653 LE32C654 LE40C653 LE40C654 LE46C653 LE46C654 32 inch 40 inch 46 inch 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

Kabel ali R-AUDIO-L ANT OUT

AUDIO OUT VIDEO OUT R-AUDIO-L

AUDIO OUT R-AUDIO-L R-AUDIO-L

✎✎DIGITAL AUDIO OUT (OPTICAL) 2:10 Tue 1 Jun DTV Air 800 five Family Affairs 18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five Information E Cancel 18:11 Thu 6 Jan Life On Venus Avenue DTV Air five five 18:00 ~ 6:00 E Watch Unclassified No Detaild Information ' Information Načrtovanje gledanja Guide

2:10 Tue 1 Jun DTV Air 800 five Home and Away 18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage... 800 five Channel View - TV Today Discovery DiscoveryH&L five price-drop.tv QVC R4DTT View Mode 18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information +24 Hours

Information k Page E Watch

• 24ore.tv Select abc1

BBC World bid-up.tv Boonerang Cartoon Nwk Class News \ Coming Soon Discovery Page 1futech

Edit My Channels Lock BBC World bid-up.tv DeselectBoonerang All Select AllCartoon Nwk ClassdNews \ Coming Soon Discovery Delete Select Page T Tools Antenna (Air / Cable) t Frequency, Bandwidth Channel, Frequency, Bandwidth. Modulation, Symbol Rate Frequency, Modulation, Symbol Rate. Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R) Advanced Settings Dynamic Contrast ne predvaja U Move E Enter R Return U Move E Enter R Return ■■ Colour Tone (Cool / Normal / Warm1 / Warm2) Picture Options Colour Tone izbrani način. SRS TruSurround HD (Off / On) t L Move U Adjust

E Enter R Return ■■ Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): za izbiro jezika, ki bo privzeti jezik ob izbiri kanala. Software Upgrade Current Version 2010/01/18_000001 By USB By Online By Channel Standby Mode Upgrade : 2 hours later Alternative Software ----/--/--/--_------

U Move E Enter R Return VESA GTF

VESA DMT/DTV CEA

Polariteta sinhr. (V/N)

✎✎OPOMBA Network Setup Network test SWL(Samsung Wireless Link) Network Network Type U Move E Enter R Return U Move E Enter R Return

1. AP in televizor postavite drug ob drugega in ju vklopite.

5. Nastavite Network Type na Wireless.

Network Setup Select a network Internet Protocol Setup Network Setup Security Key 0 entered

0~9 Number Lower case

Delete Space n Move E Enter R Return connection with cellphone or PC. The existing network system may have limited functionality. Do you want to change the network connection?. View Devices E Enter R Return Sorting T Tools E Pause L Jump T Tools R Return Slovenščina H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800 x 600 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920 x 1080 6 ~ 30

H.264 BP / MP / HP 1920 x 1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

MPEG1 1920 x 1080 24 / 25 / 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

MPEG2 1920 x 1080 24 / 25 / 30

H.264 1920 x 1080 6 ~ 30

VC1 1920 x 1080 6 ~ 30

Zvočni kodek Play continuously Resumes playing from the last viewed scene. SUM Play continuously E Chaptering L Jump T Tools R Return 1st Album Pop 4.2MB Music 2 No Singer Music 3 Only you Jason Music 1 Music 4 No Singer Music 5 No Singer Devicename E Pause L Jump T Tools R Return E Pause L Previous/Next T Tools R Return SUM

Sorting T Tools Picture Size (Mode1 / Mode2 / Original) Stop Slide Show/ Start Slide Show Slide Show Speed Slide Show Effect Mark as Favorite

Sort by R Return ✎✎OPOMBA Mark as Favorite

Sort by R Return Move [0~9] Enter PIN R Cancel Settings

• Ticker Autorun : Off : Off
• Service Manager ▪ Change the Service Lock password

• Channel Bound Service

Slovenščina Games Sports Lifestyle Information Other My Page Help

Sort By R Return E Select R Return e Exit ' Setup R Return

Slovenščina prikaže pojavno okno. Pritisnite gumb ENTERE, da izberete Allow in tako v napravi omogočite uporabo funkcije večpredstavnosti. "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow Deny Contacts Calendar Doc viewer E Select

Return Spec. VESA (A * B) Standardni vijak 23~29 75 X 75 100 x 100 200 x 100

46~55 400 x 400 19~22 LCD-TV 57~70 800 x 400 80~ 1400 x 800 80~ 1400 X 800 Koli ina

Preverite in spremenite signal/vir. ¦¦ Licenca Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Videoon-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

Slovenščina 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653 LE32C654 LE40C653 LE40C654 LE46C653 LE46C654 32 inch 40 inch 46 inch 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

AllShare Amplify Antenna Anynet+ Audio Out Auto Adjustment Auto Volume

Background Music Balance Basic View Baterij Black Tone Brightness

Change PIN Channel Manager Clock Colour Tone Component 6, 19

Language Licence Lock

Media Play Melody Menu Transparency

ECO Sensor Edit Name Energy Saving EPG Equalizer External Speaker

Film Mode Fine Tune Flesh Tone Frequency

Receiver Recording Repeat Mode RGB Rotate

Slovenščina Yellow Red White

AUDIO OUT VIDEO OUT R-AUDIO-L

AUDIO OUT COMPONENT OUT

✎✎DIGITAL AUDIO OUT (OPTICAL) Tanya confesses all to a stunned Babs. Conrad is anxious to hear... 800 five Life On Venus Avenue DTV Air

18:00 ~ 6:00 Unclassified No Detaild Information EWatch ' Bilgi İzlemenizi Planlama five five Grnt Modu Bilgi E İptal

Dani is devastated when scott makes clear his views on marriage... 800 five Kanal Grnm - TV Today Discovery DiscoveryH&L five price-drop.tv QVC R4DTT

18:00 - 19:00 American Chopper Programmes resume at 06:00 Home and... )Family Affairs No Information QVC Selection No Information Grnt Modu +24 Saat Ch. Modu

BBC World bid-up.tv Boonerang Cartoon Nwk Class News \ Coming Soon Discovery 1futech

Cartoon Nwk Class News \ Coming Soon Discovery Dual l-ll Mono Stereo ↔ Mono Dual I ↔ Dual II Mono Mono ↔ Stereo Mono → Dual I Dual II VESA GTF

VESA DMT / DTV CEA

Çözünürlük 640 x 350 720 x 400 640 x 480 832 x 624 1152 x 870 720 x 576 1152 x 864 1280 x 720 1280 x 960 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1280 x 720 1360 x 768 1440 x 900 1440 x 900 1600 X 1200 1680 x 1050 1280 x 720 1280 x 1024 1920 x 1080p IP Sharer (having DHCP server) TV Arka Paneli LAN Kablosu Network Setup Security Key 0 entered

0~9 Number Lower case

Delete Space n Move E Enter R Return TV Yan Paneli LAN ya da *.ts *.tp *.trp Video Codec'i Çözünürlük H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

Motion JPEG 800x600 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

XVID 1920x1080 6 ~ 30

H.264 BP / MP / HP 1920x1080 6 ~ 30

MPEG4 SP / ASP

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

MPEG1 1920x1080 24 / 25 / 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

MPEG2 1920x1080 24 / 25 / 30

H.264 1920x1080 6 ~ 30

VC1 1920x1080 6 ~ 30

Ses Codec'i I Love You Jhon I Love you Jhon 1st Album Pop 4.2MB No Singer Music 1 Music 2 No Singer Music 3 Mark as Favorite

Sort by R Return ✎✎NOT Mark as Favorite

Sort by R Return Move [0~9] Enter PIN R Cancel Settings

• Ticker Autorun : Off : Off
• Service Manager ▪ Change the Service Lock password

• Channel Bound Service

Türkçe Games Sports Lifestyle Information

Sort By R Return TV’nizi Çalıştırmak için Samsung Telefonunuzu Kullanma "Unknown Device 0" is requesting that the media file be allowed to play. If you wish to allow the media file to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or

unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play. Allow VESA Özellik (A * B) 75 X 75 100 X 100 200 X 100 200 X 200 400 X 400 600 X 400 800 X 400 1400 X 800 Standart Vida Miktar

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;7,460,688; 7,519,274 TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license form SRS Lab, Inc.

LE32C650L1WXXC

LE32C652L2WXXC

LE37C650L1WXXC

LE40C650L1WXXC

LE40C652L2WXXC

LE46C650L1WXXC

LE46C652L2WXXC

LE55B650L1WXXC

32 inç 37 inç 40 inç 46 inç 55 inç 789.2 X 77.8 X 509.9 mm 907.6 X 78.5 X 574.4 mm 976.2 X 80.4 X 614.9 mm 1108.6 X 80.3 X 689.7 mm 1301.6 X 85.3 X 801.2 mm

789.2 X 240 X 555.9 mm 907.6 X 255 X 621.2 mm 976.2 X 255 X 659.3 mm 1108.6 X 275 X 734.5 mm 1301.6 X 305 X 845.3 mm

9.1 kg

11.8 kg

11.6 kg

14.3 kg

17.7 kg

18.1 kg

21.9 kg

28.1 kg

32.7 kg

LE32C653M2WXXC

LE32C654M1WXXC

LE40C653M2WXXC

LE40C654M1WXXC

LE46C653M2WXXC

LE46C654M1WXXC

32 inç 40 inç 46 inç 10W X 2

794.5 X 77.8 X 495.4 mm

794.5 X 240 X 558.6 mm

981.5 X 80.4 X 598.5 mm

981.5 X 255 X 661.9 mm

1113.9 X 80.3 X 674.1 mm 1113.9 X 275 X 737.1 mm

9.3 kg

13.5 kg

16.9 kg

18.1 kg

21.9 kg

416 Maetan-3 Dong, Yeongtong-Gu, Suwon-City Gyeonggi-Do, Korea, 443-742 Tel. : +82-2-2255-0114 Fax: +82-2-2255-0117 LVD EMC KTL(Korea Testing Laboratory) NEMKO Korea Co.,Ltd KTL(Korea Testing Laboratory) DIGITAL EMC CO., LTD. NEMKO Korea Co.,Ltd SAMSUNG ELECTRONICS CO., LTD. CTK Co., Ltd. Samsung Electronics Co., Ltd. 222-13, Guro-3dong, Guro-gu, Seoul, 152-718, Korea Tel: +82-2-860-1114 Fax: +82-2-838-2675
