USER MANUAL PS50A551S3R SAMSUNG

Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country

AUSTRIA Customer Care Centre 

0800-SAMSUNG(726-7864)

Plasma TV user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

BN68-01434A-Eng.indb 1

2008-03-10 오후 3:30:13

 Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.  Height The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.  Heat on the top of the PDP TV The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.  The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.  Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.  Avoid operating the TV at temperatures below 5°C(41°F)  A still image displayed too long may cause permanent damage to the PDP Panel. Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.  Afterimage on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.  Warranty - Warranty does not cover any damage caused by image retention. - Burn-in is not covered by the warranty.  Installation Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

BN68-01434A-Eng.indb 2

2008-03-10 오후 3:30:13

Storing Channels Automatically 13

Storing Channels Manually 14 Adding / Locking Channels 15 Sorting the Stored Channels 16 Assigning Names to Channels 16 Fine Tuning Channel Reception 17

What is Anynet+? 39 Connecting Anynet+ Devices 39 Setting Up Anynet+ 40 Scanning and Switching between Anynet+ Devices 40  Recording 41  Listening through a Receiver 42  Check Points before Requesting Service 42    

Changing the Picture Standard 18

Customizing the Picture Settings 18 Configuring Detailed Settings on the Picture 19 Picture Options 20 Resetting the Picture Settings to the Factory Defaults 22

Teletext Feature (depending on the model)... 43

Wall Mount Kit Specifications (VESA) 45 Wall- mount adjustment (Sold separately) 46 How to assemble the Stand-Base (depending on the model) 47  Troubleshooting 48  Specifications 49    

 Sound Features 23  Selecting the Sound Mode (depending on the model) 24  Connecting Headphones (Sold separately)... 24

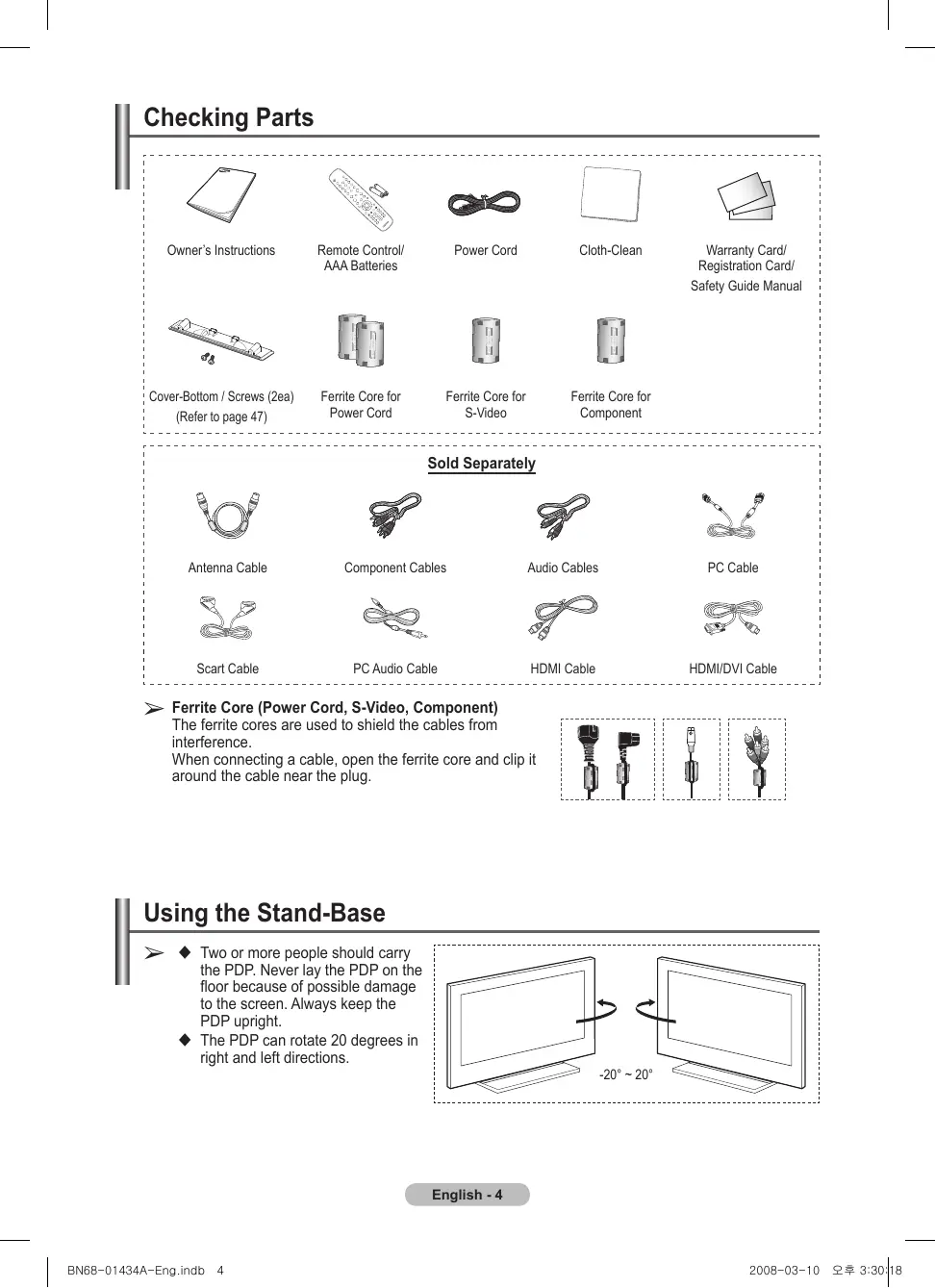

Cover-Bottom / Screws (2ea)

Registration Card/ Safety Guide Manual

Core (Power Cord, S-Video, Component)

➢ Ferrite The ferrite cores are used to shield the cables from

When connecting a cable, open the ferrite core and clip it around the cable near the plug.

Using the Stand-Base

 Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the

PDP upright.  The PDP can rotate 20 degrees in right and left directions.

BN68-01434A-Eng.indb 4

2008-03-10 오후 3:30:18

➢ The product colour and shape may vary depending on the model.

1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3).

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

2 MENU Press to see an on-screen menu of your TV’s features.

Blinks and turns off when the power is on and lights up in stand-by mode. 6

POWER Press to turn the TV on and off.

7 Remote Control Sensor

Aim the remote control towards this spot on the TV. 8 Speakers

+ Press to increase or decrease the volume. In the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control. 4

Press to change channels.

In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control.

BN68-01434A-Eng.indb 5

2008-03-10 오후 3:30:19

The product colour and shape may vary depending on the model.

 Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

 When connecting an external device, match the colour of the connection terminal to the cable.

1 POWER IN Connect the supplied power cord.

2 COMPONENT IN Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component. 3 PC IN(PC) / AUDIO Connect to the video and audio output jack on your PC. 4 EXT 1, EXT 2 Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

5 Connecting external Audio Devices

Connect RCA audio signals from the TV to an external source, such as Audio equipment. 6 SERVICE − Connector for service. − Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control.

Input/Output Specification

Connector EXT 1 EXT 2

Output Video Audio(L/R) RGB Video + Audio(L/R) Only TV output is ✔ ✔ ✔ available. Output you can ✔ ✔ choose.

BN68-01434A-Eng.indb 6

2008-03-10 오후 3:30:24

− No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. What is HDMI? - “High Definition Multimedia interface” allows the ansmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI IN (HDMI 2) AUDIO R/L DVI audio outputs for external devices.

8 ANT IN 75Ω Coaxial connector for Aerial/Cable Network. Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component

➢ The product colour and shape may vary depending on the model.

1 HDMI IN 3 Connect to the HDMI jack of a device with HDMI output. 2 WISELINK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 3 S-VIDEO or VIDEO / AUDIO L/R Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room.

➢ Prolonged use of headphones at a high volume may damage your hearing.

BN68-01434A-Eng.indb 7

2008-03-10 오후 3:30:27

Viewing the Remote Control

(turns the TV on and off) 2 Selects the TV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 Temporary sound switch-off 6 Volume increase Volume decrease 7 Channel control button (Refer to page 15) 8 Use to quickly select frequently used functions. 9 Control the cursor in the menu 0 Use to see information on the current broadcast # Press to select the optional display and sound modes for sports, cinema and games. $ VCR/DVD Function (Rewind, Stop, Play/Pause, Fast/ Forward) % Available source selection ^ Previous channel & Next channel Previous channel * Displays the main on-screen menu ( This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 33 (JPEG), 36 (MP3)) ) Returns to the previous menu a Exit the on-screen menu b Picture size selection

c Use this when connecting a SAMSUNG DMA (Digital

Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 40) d Selects the HDMI mode directly e Press to select the picture mode

(Refer to page 43) 2 Exit from the teletext display (depending on the model) 7 Teletext store 8 Teletext size 0 Teletext reveal ! Fastext topic selection @ Teletext display/mix both teletext information and the normal broadcast % Teletext mode selection (LIST/FLOF) ^ Teletext sub page & P :Teletext next page P :Teletext previous page * Teletext index ) Teletext hold a Teletext cancel

BN68-01434A-Eng.indb 8

2008-03-10 오후 3:30:29

Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries.  Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.  Do not mix battery types, i.e. alkaline and manganese. Close the cover as shown in the figure. Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

remote control doesn’t work! Check the following:

➢ If1.the Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained? 4. Is there a power cut, or is the power cord unplugged? 5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off

The mains lead is attached to the rear of the television. 1 Plug the mains lead into an appropriate socket. The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz. 2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 13 or “Storing Channels Manually” on page 14. If the television is initially powered on, several basic customer settings proceed automatically. Refer to “Plug & Play Feature” on page 10. 3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control. 4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

Press the MENU button.

The main menu is displayed on the screen. Its left side has six icons: Picture, Sound, Channel, Setup, Input. Press the ▲ or ▼ button to select one of the icons. Press the ENTER button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTER button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu.

Mode : Standard  Cell Light 7 Contrast 80 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings  More Move

BN68-01434A-Eng.indb 9

2008-03-10 오후 3:30:30

When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available. If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed.

If the television is in standby mode, press the POWER button on the remote control. The message Start Plug & Play is displayed. Press the ENTER button.

The Language menu will automatically appear after several seconds. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button. The message Select ‘Home Use’ when installing this TV in your home. is displayed. Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed. The default selection is Home Use. We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button. When the volume OSD is displayed, press and hold the MENU button for 5 seconds. Make sure that the antenna is connected to the TV. Press the ENTER button. The Country menu is displayed. Select your country or area by pressing the ▲ or ▼ button. Press the ENTER button.

Select ‘Home Use’ when installing this TV in your home.

United Kingdom Austria Eastern Europe Others Enter Plug & Play

BN68-01434A-Eng.indb 10

2008-03-10 오후 3:30:32

Press the ENTER button to start search the channels.

Plug & Play The channel search will start and end automatically. After Clock Set all the available channels are stored, Clock Set menu is Month Day Year automatically displayed. Press the ENTER button. 15 01 2008 To stop the search before it has finished, press the Hour Min ENTER button with Stop selected. 12 00 Press the ◄ or ► button to select Month, Day, Year, Hour, Move Adjust Enter or Min. Set these by pressing the ▲ or ▼ button. You can set the Month, Day, Year, Hour, or Min directly by pressing the numeric buttons on the remote control. Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. 

If you want to reset this feature …

1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ENTER button again to select Plug & Play. The message Start Plug & Play is displayed.

Plug & Play Language : English Time Light Effect : In Standby Auto Wall-Mount

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing. 1

Press the TOOLS button.

The Tools menu will appear.

Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items.

For a more detailed description of each function, refer to the corresponding page. • • • • • • •

Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Anynet+(HDMI-CEC), see page 40

Picture Mode, see page 18 Sound Mode, see page 23 Sleep Timer, see page 25 SRS TS XT, see page 23 Energy Saving, see page 27 Dual I-II, see page 24

Viewing External Signal Sources

You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source (broadcast or cable). 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ENTER button again to select Source List. 4 Press the ▲ or ▼ button to select the signal source, then press the ENTER button. Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3 You can choose only those external devices that are connected to the TV.

Source List : TV Edit Name Anynet + (HDMI-CEC)

TV Ext.1 Ext.2 AV S-Video Component PC More

You can select these options simply by pressing the SOURCE button on the remote control.

To watch television programme again, press the TV button and

➢ select the channel number required.

You can also watch HDMI mode simply by pressing the HDMI

➢ button on the remote control.

BN68-01434A-Eng.indb 12

2008-03-10 오후 3:30:34

Editing Device Names

You can give a name to the external source. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ▲ or ▼ button to select Edit Name, then press the ENTER button. 4 Press the ▲ or ▼ button to select the external source to be edited, then press the ENTER button. 5 Select the required device by pressing ▲ or ▼, then press the ENTER button. Available device names: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA. 6 Press the EXIT button to exit.

: TV Edit Name Anynet + (HDMI-CEC)

: −−−− −−−− : −−−− VCR DVD : : Cable STB Satellite STB : −−−− PVR STB : −−−− AV Receiver :  : −−−− : −−−−

Storing Channels Automatically

You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ENTER button again. The available countries are listed. 4 Select your country by pressing the ▲ or ▼ button, then press the ENTER button. 5 Press the ▲ or ▼ button to select Auto Store, then press the ENTER button. 6 Press the ENTER button again to start the search. The search will end automatically. To stop the search before it has finished, press the MENU or the ENTER button.

▲ Country : United Kingdom Auto Store Switzerland Manual Store United Kingdom Austria Channel Manager Eastern Europe Sort Others Name Fine Tune

Storing Channels Manually

You can store television channels, including those received via cable networks. When storing channels manually, you can choose:  Whether or not to store each of the channels found.  The programme number of each stored channel which you wish to identify. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Manual Store, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit.

Programme Colour System Sound System Channel Search Store

 Programme (Programme number to be assigned to a channel)

Move Enter Return − Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9).  Colour System: Auto/PAL/SECAM/NTSC4.43 − Press the ▲ or ▼ button to select the required colour standard.  Sound System: BG/DK/I/L − Press the ▲ or ▼ button to select the required sound standard.  Channel (When you know the number of the channel to be stored) − Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). − Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required.  Search (When you do not know the channel numbers) − Press the ▲ or ▼ button to start the search. − The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.  Store (When you store the channel and associated programme number) − Set to OK by pressing the ENTER button.

☛ Channel  P (Programme mode): When completing tuning, the broadcasting stations in your area have

been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

 C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.  S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

BN68-01434A-Eng.indb 14

2008-03-10 오후 3:30:37

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add channels. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Channel Manager, then press the ENTER button.  Adding channels Using the Channel List, you can add channels. 4 5

Select Channel List by pressing the ENTER button.

Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select a channel to be added, and press the ENTER button to add the channel. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added.

Channel List Child Lock : Off

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. 6

Press the ▲ or ▼ button to select Child Lock, then press the ENTER button.

7 Select On by pressing the ▲ or ▼ button, then press the ENTER button. 8 Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 9 Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select a channel to be locked, and press the ENTER button. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is canceled. A blue screen is displayed when Child Lock is activated. 10 Press the EXIT button to exit.

can select these options simply by pressing the CH LIST

➢ You button on the remote control.

BN68-01434A-Eng.indb 15

2008-03-10 오후 3:30:39

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Sort, then press the ENTER button. 4 Select the channel that you wish to move by pressing the ▲ or ▼ button, then press the ENTER button. 5 Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button. Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly. 6 Repeat steps 4 to 5 until you have moved all the channels to the required programme numbers. 7 Press the EXIT button to exit.

TV Assigning Names to Channels

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Name, then press the ENTER button. 4 Press the ▲ or ▼ button to select the channel to be assigned to a new name, then press the ENTER button. 5 Press the ▲ or ▼ button to select a letter, a number, or a symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank). Move on to the previous or next letter by pressing the ◄ or ► button, then press the ENTER button. 6 Repeat steps 4 to 5 for each channel to be assigned to a new name. 7 Press the EXIT button to exit.

TV Fine Tuning Channel Reception

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to fine tune the channel manually. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Fine Tune, then press the ENTER button. 4 To obtain a sharp, and clear picture and good sound quality, press the ◄ or ► button until you reach the optimal setting. Press the ENTER button. Press the INFO button. Fine Tune Store will change the colour of the Channel OSD (On Screen Display) from White to Red and add the “*” mark. To reset the fine tuning to 0, select Reset by pressing the ▲ or ▼ button. Press the ENTER button. 5 Press the EXIT button to exit.

Mono Picture Sound SRS TS XT −− : −−

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie The settings values may vary depending on the input source. 5 Press the EXIT button to exit.

Mode : Standard  Cell Light 7 Contrast 80 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings  More

 Choose Dynamic for viewing the TV during the day or when there is bright light in the room.

 Choose Standard for general TV watching mode.  Choose Movie when viewing the movie.

Dynamic Mode : Standard Standard Cell Light 7 Movie Contrast 80 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings More Move

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select Picture Mode.

Press the ◄ or ► button to select the required option.

Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Press the P.MODE button on the remote control to select one of

➢ the standard picture settings.

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie 5 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 6 When you are satisfied with your setting, press the ENTER button. 7 Press the EXIT button to exit.

Mode : Standard  Cell Light 7 Contrast 80 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings  More Move

 Cell Light - Contrast – Brightness – Sharpness – Colour – Tint

In Analog TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function. In PC mode, you can only make changes to Cell Light, Contrast, and Brightness. Press the ◄ or ► button until you reach the optimal setting.

BN68-01434A-Eng.indb 18

2008-03-10 오후 3:30:43

Configuring Detailed Settings on the Picture

You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement, xvYCC 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit.

➢ Detailed Settings is available in Standard or Movie mode.

PC mode, you can only make changes to Dynamic ➢ InContrast, Gamma and White Balance from among the Detailed Settings items.

Mode : Standard  Cell Light 7 Contrast 80 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings  More Move

 Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.  Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.  Gamma: -3 ~ +3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting.  Colour Space : Auto/Native/Custom Colour space is a colour matrix composed of red, green and blue colours. Select your favorite colour space to experience the most natural colour. − Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources. − Native: Native Colour Space offers deep and rich colour tone. − Custom: Adjusts the colour range to suit your preference. (see “Customizing the Colour Space”) Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom. Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button. − Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. − Reset: Resets the colour space to the default values.  White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults.

BN68-01434A-Eng.indb 19

2008-03-10 오후 3:30:44

 Flesh Tone:-15~+15

You can emphasize the pink tone in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen.  Edge Enhancement: Off/On You can emphasize object boundaries.  xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. The xvYCC function works only in Component or HDMI(Y, Cb, Cr) mode.

You can set detailed picture settings. Mode : Standard  1 Press the MENU button to display the menu. Cell Light 7 Contrast 80 2 Press the ENTER button to select Picture. Brightness 45 3 Press the ▲ or ▼ button to select Picture Options, then Sharpness 50 Colour 50 press the ENTER button. Tint G50 R50 Detailed Settings  4 Select the required option by pressing the ▲ or ▼ button, More then press the ENTER button. Move Enter Exit 5 When you are satisfied with your setting, press the ENTER button. TV Picture Options Colour Tone : Normal  6 Press the EXIT button to exit. Size : Auto Wide  Screen Mode : 16:9  In PC mode, you can only make changes to the Colour Tone, Digital NR : Auto  Size and Screen Burn Protection from among the items in DNle : On  Picture Options. HDMI Black Level : Normal  Movie Plus : Low   Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 Blue only mode : Off  Screen Burn Protection  When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected. Move Enter Return  Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan You can select the picture size which best corresponds to your TV Size viewing requirements. Auto Wide − Auto Wide: Expanding and pulling up the picture from 4:3 to 16:9 Wide Zoom 16:9 ratio. Zoom − 16:9: Sets the picture to 16:9 wide mode. 4:3 − Wide Zoom: Magnify the size of the picture more than 4:3. Just Scan Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button. − Zoom: Magnify the size of the picture vertically on screen. Move Enter Return − 4:3: Sets the picture to 4:3 normal mode. − Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i/1080p) or Component(1080i/1080p) signals are input. After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Press the ◄ or ► button to select , then press the ENTER button. Press the ▲, ▼, ◄ or ► button to move the picture up, down, left and right. Reset: Press the ◄ or ► button to select Reset, then press the ENTER button. You can initialize the setting. With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen. For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported. You can change the picture size simply by pressing the P.SIZE button on the remote control. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Continued...

BN68-01434A-Eng.indb 20

2008-03-10 오후 3:30:45

Positioning and Sizing the screen using Zoom

− Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the ▲ or ▼ button as well as the screen size. − Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ◄ or ► button. − Resize the screen vertically using the ▲ or ▼ button after selecting the by pressing the ◄ or ► button. Screen Mode: 16:9/Wide Zoom/Zoom/4:3 TV Picture Options When setting the picture size to Auto Wide in a 16:9 wide TV, Colour Tone : Normal you can determine the picture size you want to see the 4:3 Size : Auto Wide Screen Mode : 16:9 16:9 WSS (Wide Screen Service) image or nothing. Each individual Digital NR : Wide Zoom European country requires different picture size so this function DNle : Zoom is intended for users to select it. HDMI Black Level : 4:3 Movie Plus : Low − 16:9: Sets the picture to 16:9 wide mode. Blue only mode : Off − Wide Zoom: Magnify the size of the picture more than 4:3. Screen Burn Protection − Zoom: Magnify the size of the picture vertically on screen. Move Enter Return − 4:3: Sets the picture to 4:3 normal mode. This function is available in Auto Wide mode. This function is not available in PC,Component or HDMI mode. Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. This function is not available in PC mode. When the signal is weak, select one of the other options until the best picture is displayed. DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. This function is available only in Dynamic mode. HDMI Black Level: Normal/Low Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to 235). This function is active only when the external input connects to HDMI(RGB signals). Movie Plus: Off/Low/Medium/High/Demo You can view more natural skin and clear text even in fast moving scenes. This function is not available in PC mode. The Wide Zoom, Zoom and Just Scan mode are not supported.

 Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/ Yellow Colour Bar Patterns, without using an additional Blue Filter. Blue Only Mode is available when the picture mode is set to Movie or Standard.

 Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes. English - 21

BN68-01434A-Eng.indb 21

TV Screen Burn Protection

Pixel Shift White Scrolling Side Gray : Dark

2008-03-10 오후 3:30:47

− Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

− Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button. − Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Horizontal Dot, Vertical Line, Time Optimum condition for pixel shift;

PC TV/Ext/AV/Component/

➢ The Pixel Shift value may differ depending on the monitor size (inches) and mode.

− White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. Light: When you set the screen ratio to 4:3, it brightens the left and right sides. To remove after images on the screen, use either White or Scrolling function. Although both of the two functions remove after images on the screen, Scrolling is more effective. The after image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again. Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults

You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Reset, then press the ENTER button. 4 Press the ▲ or ▼ button to select OK or Cancel then press the ENTER button.

➢ Each mode can be reset.

TV Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Sound, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Mode, Equalizer, SRS TS XT, Auto Volume, TV Speaker, Sound Select 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit.  Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Sound Mode. 3 Press the ◄ or ► button to select the required option.

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

 Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

R + + The television has several settings which allow you to control 0 0 the sound quality. If you make any changes to these settings, the sound L Balance 100Hz 300Hz 1kHz 3kHz 10kHz mode is automatically switched to Custom.  SRS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the Move Adjust Return problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

TruSurround XT, SRS and

Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

1 Press the TOOLS button on the remote control.

2 Press the ▲ or ▼ button to select SRS TS XT. 3 Press the ◄ or ► button to select Off or On.

Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

 Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.  TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. The – +, MUTE buttons do not operate when the TV Speaker is set to Off. When TV Speaker is set to Off, you can operate only Sound Select (in PIP mode) in Sound menu.

 Sound Select: Main/Sub

When the PIP feature is activated, you can listen to you can operate only Sound Select (in PIP mode) in Sound menu. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. English - 23

BN68-01434A-Eng.indb 23

2008-03-10 오후 3:30:49

Selecting the Sound Mode (depending on the model)

The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the current transmission. Easy Setting 1 2 3

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select Dual I-II. Press the ◄ or ► button to select the required option. Type of broadcast Regular broadcast (Standard audio)

On-screen indication

Regular + NICAM Mono

Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving

Dual I-II NICAM dual-1

Bilingual or DUAL-I/II Dual I Stereo

Custom Off Off Off Mono

Dual II Mono (Forced mono)

 If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.

 If the stereo signal is weak and automatic switching occurs, switch to Mono.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.

When you insert the head set jack into the corresponding port, you can operate only “Auto Volume” and Sound

Select(in PIP mode) in Sound menu.

➢ Prolonged use of headphones at a high volume may damage your hearing.

➢ You will not hear sound from the speakers when you connect headphones to the TV.

➢ The headphone volume and TV volume are adjusted separately.

BN68-01434A-Eng.indb 24

2008-03-10 오후 3:30:50

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ▲ or ▼ button to select Time, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Clock Set, Sleep Timer, Timer 1, Timer 2, Timer 3 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit.  Clock Set You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers. − Press the ◄ or ► button to select Month, Day, Year, Hour, or Minute. Set these by pressing the ▲ or ▼ button. You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control. In the event of a power interruption or the set being turned off at the supply, the settings for the Clock will be lost.  Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode. − Select the preset time interval (Off, 30, 60, 90, 120, 150, or 180) for staying on by pressing the ▲ or ▼ button.

Plug & Play Language : English Time Light Effect : In Standby Auto Wall-Mount

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

1 Press the TOOLS button on the remote control. Repeat 2 Press the ▲ or ▼ button to select Sleep Timer. Once 3 Press the ◄ or ► button to select the minute, then press the Move Adjust Return ENTER button.  Timer 1 / Timer 2 / Timer 3 You can set the On/Off timers so that the television will switch on or off automatically at the time you select. You must set the clock first. − Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied. On Timer : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Off Timer : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun. Volume : Select the required volume level. You can set the hour, minute, directly by pressing the number buttons on the remote control.

☛ Auto When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours

after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time.

BN68-01434A-Eng.indb 25

2008-03-10 오후 3:30:51

Language / Light Effect / Melody / Entertainment /

Energy Saving / PIP 1 2

3 Select the required option by pressing the ▲ or ▼ button, then Melody : Off  press the ENTER button. Entertainment : Off  Energy Saving : Off  Available options: Language, Melody, Light Effect, PIP

Entertainment, Energy Saving, PIP 4 When you are satisfied with your setting, press the ENTER Move Enter Return button. 5 Press the EXIT button to exit.  Language It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications.

 Light Effect: Off/In Standby/In Watching TV/Always

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. − Off: The blue LED is always off. − In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on. − In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off. − Always: The blue LED always lights. Set the Light Effect to Off to reduce the power consumption.

 Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted. When the Melody does not play When no sound is output from the TV because the MUTE button has been pressed. When no sound is output from the TV because the – (Volume) button has been pressed. When the TV is turned off by Timer function.

 Entertainment: Off/Sports/Cinema/Game

Entertainment mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switches the Entertainment function off. − Sports: Provides the optimal picture and sound quality for sports. − Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound. − Game: P rovides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. If you set any of the three Entertainment modes to On, the settings will be locked and can not ➢ be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off.

➢ The Entertainment settings are saved for each input source.

BN68-01434A-Eng.indb 26

2008-03-10 오후 3:30:51

 Energy Saving: Off/Low/Medium/High

This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Switches off the Energy Saving mode. − Low: O perates in standard mode regardless of the surrounding illumination. − Medium: Enters Medium power saving mode regardless of the surrounding illumination. − High: Enters maximum power saving mode regardless of the surrounding illumination.

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Plug & Play Language : English Time Light Effect : In Standby Auto Wall-Mount

1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Energy Saving. 3 Press the ◄ or ► button to select the required option.  PIP (Picture in Picture): P IP(On/Off)/Source/Size/Position/ Programme You can display a sub picture within the main picture. In this way you can watch TV programme or monitor the video input from any connected devices. − PIP: On/Off You can activate or deactivate the PIP function.

Size Position Programme

Table of PIP Settings

Main Picture Component HDMI1, 2, 3

You can select a source of the sub-picture. − Size: / / You can select a size of the sub-picture. If main picture is in PC and Component mode, Size is not available. − Position: / / / You can select a position of the sub-picture. In Double( , ) mode, Position cannot be selected. − Programme You can select a channel of the sub-picture only when the Source is set to TV.

BN68-01434A-Eng.indb 27

2008-03-10 오후 3:30:52

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1 Right click the mouse on the Windows Desktop, then click on Properties. The Display Properties will be displayed. 2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings. 3 Click on Advanced. A new settings dialog box will be displayed. 4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate. 5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment.

BN68-01434A-Eng.indb 28

2008-03-10 오후 3:30:53

Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported: D-Sub Input Mode

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200

37.879 48.363 63.981 47.712 75.000

60.317 60.004 60.020 60.015 60.000

40.000 65.000 108.000 85.500 162.000

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported.

BN68-01434A-Eng.indb 29

2008-03-10 오후 3:30:53

➢ Preset to the PC mode by pressing the SOURCE button.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Picture, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit.  Auto Adjustment : Auto adjustment allows the PC screen to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button.  Screen: Coarse/Fine/Position/Image Reset - Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. 1 Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button. 2 Press the ◄ or ► button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button. - Position Adjust the PC’s screen positioning if it does not fit the TV screen. 1 Adjust the position by pressing the ▲/▼/◄/► button. 2 Press the ENTER button. - Image Reset You can replace all image settings with the factory default values.

Mode : Standard  Cell Light 7 Contrast 80 Brightness 45 Sharpness 50 Auto Adjustment  Screen  Detailed Settings  More Move

Auto Adjustment in Progress

Anynet+ (HDMI-CEC) Picture Mode Standard Sound Mode Custom Sleep Timer Off SRS TS XT Off Energy Saving Off PIP Auto Adjustment Move

Coarse Fine Position Image Reset

Image Reset is completed.

BN68-01434A-Eng.indb 30

2008-03-10 오후 3:30:54

Using the WISELINK Function

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

Press the POWER button on the remote control or front panel. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message There is no device connected will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class BulkOnly Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.SAMSUNG is not responsible for any data file damage or data loss. Recommended image resolution for Wiselink is 6 mega pixels. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). We recommend the sequential jpeg format. Do not disconnect the USB device while it is (

PTP(Picture Transfer Protocol) is supported, but MTP(Media Transfer Protocol) is not supported.

The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. The Photo or Music List displays up to 300 folders or files.

BN68-01434A-Eng.indb 31

2008-03-10 오후 3:30:55

Using the WISELINK Menu

Source List : TV Edit Name Anynet+ (HDMI-CEC)

WISELINK Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the ENTER button.

The WISELINK menu differs depending on the USB Memory Device connected to TV. Some devices may not be supported due to compatibility problems.

Press the ◄ or ► button to move to an icon, then press the

ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control.

the W.LINK button on the remote control to display a

➢ Press WISELINK menu.

Using the Remote Control Button in WISELINK Menu

Move the cursor and select an item. Select the currently selected item. Play or pause the Slide Show or MP3 file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) Stop the current function and return to the previous high-level menu.

BN68-01434A-Eng.indb 32

2008-03-10 오후 3:30:58

Using the PHOTO (JPEG) List

This menu shows JPEG files and folders saved on an USB memory device. Photo 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 32) 2 Press the ◄ or ► button to move to Photo, then press the ENTER button. The saved file information is displayed as a folder or file. 3 Press the ▲, ▼, ◄ and ► buttons to select a file. Move Enter Return • Pressing the ENTER button over a photo icon shows the currently selected photo in full screen. Photo • Pressing the ENTER button over a folder icon shows the JPEG files included in the folder. To exit WISELINK mode, press the W.LINK button on the remote control. Moving to a photo may take a few seconds to load the file. At this point, the ( ) icon will appear at the Select Move Enter Option Return top left of the screen. It takes time to show JPEG files as Thumbnail images. This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. The files are displayed on a page. 15 thumbnail photos are displayed per page. The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. Certain types of USB Digital camera and audio devices may not be compatible with this TV. Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order. If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. Press the PLAY/PAUSE button when a Photo icon is selected to start a Slide Show. Photos without EXIT information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. CELLDISK2.0 315MB/495MB Free

53 KB May 1, 2007 1 / 14

Viewing a Slide Show

Press the INFO button to display the option(Start Slide

Show, Select All). Press the ▲ or ▼ button to select Start Slide Show then press the ENTER button. During the slide show, files are displayed in order from the currently shown file. MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. Press the INFO button during the slide show to set the following options (Slide Show Speed, Background Music, Background Music Setting, List). Press the ▲ or ▼ button to select the option, then press the ENTER button.  After setting the option press the ENTER button to make a change.

53 KB May 1, 2007 1 / 14

Slide Show Speed : Normal 

Background Music : Off  Background Music Setting List Exit

BN68-01434A-Eng.indb 33

2008-03-10 오후 3:31:02

Using the Menu during a Slide Show

Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option(Fast, Normal, Slow), then press the ENTER button. Slide Show Speed : Normal  Fast Background Music : On  Normal Background Music Setting Slow List Exit

Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option(On, Off), then press the ENTER button.

Slide Show Speed : Normal 

Background Music : On  Off Background Music Setting On List Exit

Background Music Setting:

While the slide show is in progress, MP3 files and folders under the same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTER button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played.

If you turn Off the Background Music, even if the Background

Music Settings have been set up, the background music will not be played.

The file information is displayed as a folder or JPEG file.

To exit WISELINK mode, press the W.LINK button on the remote control.

53 KB May 1, 2007 1 / 14

When selecting a photo file, the photo file information is

➢ displayed on the left side of the TV screen, such as the

resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15).

53 KB May 1, 2007 1 / 14

: Move to the previous folder stage icon

Such as the resolution

File size Date modified Order of the file in the current directory

400x340 53 KB May 1, 2007 1 / 14

BN68-01434A-Eng.indb 34

2008-03-10 오후 3:31:06

Complete Steps 1 to 3 of Using the WISELINK Menu.

(Refer to page 32) Press the ◄ or ► button to move to Photo, then press the ENTER button. The saved file information is displayed as a folder or file. Press the ▲, ▼, ◄ and ► button to select a file, then press the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen. Press the INFO button to display the option (Start Slide Show, Zoom, Rotate, List)

 Press the ▲ or ▼ button to select Zoom, then press the ENTER button.  Each time the ▲ or ▼ button is pressed, the photo size increases.(X1 → X2 → X4 ) - X1 : Restore a photo to its original size. Start Slide Show - X2 : Zoom-in to a photo x2. Zoom X1 Rotate 0º  - X4 : Zoom-in to a photo x4. List  To pan up/down/left/right in the zoomed-in photo, press the INFO button to remove option menu, then press the ▲, ▼, ◄ and ► buttons. The Rotate, Start Slide Show option is disabled when the Zoom option is selected. X1 X2 X4

 Press the ▲ or ▼ button to select Rotate, then press the ENTER button.  Each time the ▲ or ▼ button is pressed, the photo rotates repeatedly. - 0º : This rotates a photo to its original position - 90º : This rotates a photo by 90 degrees - 180º : This rotates a photo by 180 degrees - 270º : This rotates a photo by 270 degrees

Zoom Rotate List Exit

➢ The rotated file is not saved.

➢ The Zoom, Start Slide Show option is disabled when the Rotate option is selected.

BN68-01434A-Eng.indb 35

2008-03-10 오후 3:31:07

This menu shows MP3 files from among the files saved on a USB memory device. 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 32) 2 Press the ◄ or ► button to move to Music, then press the ENTER button. The saved file information is displayed as a folder or file. 3 Press the ▲ or ▼ button to move to an icon, then press the ENTER button.  Pressing the ENTER button over a musical note icon immediately plays the music file.  Pressing the ENTER button over a folder icon shows the music files included in the folder.  To select a file on the next page, press the REW or FF button to move to the next page. 4 To select all files or a file, press the INFO button to display the Music menus. Press the ENTER button to select Play, Repeat Music or Select All. To exit WISELINK mode, press the W.LINK button on the remote control.

5959 KB Nov 14, 2007

Nat King Cole-Fly me to the moon

Repeat Music Select All

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

: Music list icon : Move to the previous folder stage icon

Select to play MP3 files.

➢ Press the PLAY/PAUSE button while playing an MP3 file to pause the file.

➢ Press the STOP button to exit Play mode. This menu only shows files with the MP3 file extension. Files with other file extensions are not ➢ displayed,even if they are saved on the same USB device. ➢ The selected file is displayed on the top with its playing time. To adjust the music volume, press the + or - button on the remote control. To mute the ➢ sound, press the MUTE button on the remote control. ➢ Press FF or REW buttons to change pages. Repeat Music: Select to repeatedly play MP3 files in the current folder. You can select On or Off Music function information icon Icon

When all music files are being played. When a music file is being played. When pressing the PLAY/PAUSE button on the remote control while music is playing. When pressing the STOP button on the remote control when music is stopped. The music resumes and the Stop text appears at the top of the screen.

Select to play all MP3 files in the current folder. English - 36

BN68-01434A-Eng.indb 36

2008-03-10 오후 3:31:15

Using the Setup Menu

Setup displays the user settings of the WISELINK menu. 1 Complete Steps 1 to 3 of Using the WISELINK Menu. (Refer to page 32) 2 Press the ◄ or ► button to move to Setup, then press the ENTER button. 3 Press the ▲ or ▼ button to select an item you want, then press the ENTER button. (Slide Show Speed, Background Music, Background Music Setting, Repeat Music, Screen Saver) 4 Press the ▲ or ▼ button to select the option, then press the ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control.

Background Music Setting

Select to control the slide show speed. You can select Fast, Normal or Slow.

Background Music Setting

Select to determine whether to play an MP3 file during a slide show. You can select Music Off or Music On.

Background Music Setting

Background Music Setting:

While a slide show is in progress, use the Background Music Setting to select a music file to listen to. Select a MP3 file as the background music.

BN68-01434A-Eng.indb 37

2008-03-10 오후 3:31:17

Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played.

Background Music Setting

Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes.

Background Music Setting

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV TV Connect the [HDMI 1], [HDMI

2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

To connect to Home Theatre

Connect the [HDMI 1],

[HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

➢ Connect only one receiver. can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support

➢ You Anynet+ functions. ➢ Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. ➢ Anynet+ supports up to 8 AV devices in total.

BN68-01434A-Eng.indb 39

2008-03-10 오후 3:31:19

The following settings are to use Anynet+ functions. Using the Anynet+ Function 1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the ENTER button. 2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER button. 3 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 4 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER button. 5 Press the ▲ or ▼ button to select On, then press the ENTER button. The Anynet+ (HDMI-CEC) function is enabled. If you select Off, Anynet+ (HDMI-CEC) is disabled. When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Turning an Anynet+ Device Off Automatically when the TV is

4 Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button. 5 Press the ▲ or ▼ button to select Yes, then press the ENTER button. The Auto Turn Off function is enabled. If you select No, the Auto Turn Off function is canceled. Press the EXIT button to exit. The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

1 Press the TOOLS button on the remote control. 2 Press the ENTER button to select Anynet+ (HDMI-CEC).

View TV Select Device

Searching Connections

Searching Connections

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono Exit

Scanning and Switching between Anynet+ Devices

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the

ENTER button. Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then TV P1 press the ENTER button. Press the ▲ or ▼ button to select Select Device, then press View TV DVDR1 the ENTER button. Select Device  DVDR2 Press the ▲ or ▼ button to select to a particular device and DVD1 Record  press the ENTER button. DVD2 Menu on Device  It is switched to the selected device. Device Operation  If you cannot find a device you want, press the ▲ or ▼ button to select Receiver :Off  Searching Connections, then press the ENTER button. Setup  The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are listed Move Enter Return in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes. You Setup cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of Anynet+ (HDMI-CEC) : On  connected devices. Auto Turn Off : Yes  When the device scan is complete, the number of found devices is not Searching Connections  displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a Move Enter Return specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button. English - 40

BN68-01434A-Eng.indb 40

2008-03-10 오후 3:31:20

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup

Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

After switching to the device, when the menu of the corresponding device is displayed on the screen.

Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons EXIT button (Backward search) (Forward search) (Stop) W.LINK / (Play/Pause)

W.LINK After switching to the device, while playing a file

Device with built-in Tuner

After switching to the device, when you are watching a TV W.LINK programme

When a Receiver is activated

W.LINK W.LINK P W.LINK

➢ The Anynet+ function only works when the remote control is set to TV.

➢ The REC button works only while in the recordable state. cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ ➢ You devices only using the TV remote control. TV remote control may not work under certain conditions. In this case, reselect the Anynet+ ➢ The device. ➢ The Anynet+ functions don’t operate for the products from other manufacturers. ➢ In Anynet+ mode, the colour buttons may not work properly. ➢ The , operations may differ depending on the device. Recording

W.LINK W.LINK You can make a recording of a TV programme using a recorder.

Press the REC button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. You can also record the source streams by selecting Record after pressing the TOOLS button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

BN68-01434A-Eng.indb 41

2008-03-10 오후 3:31:22

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker. 1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the ENTER button. TV P1 2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER View TV button.  Select Device 3 Press the ▲ or ▼ button to select Receiver, then press the ENTER button. Record  4 Press the ◄ or ► button to select to On, then press the ENTER button. Menu on Device  Now you can listen to sound through the receiver.  Device Operation 5 Press the EXIT button to exit. Receiver :On  When the receiver is set to On, you can listen to the TV sound through the 2-channel  Setup receiver. Move Enter If the receiver is exclusively for a home theater only (supporting audio only), it may Exit not appear in the device list. In case of a content with copyright problems, listening through the receiver may not properly operate. If there is a power interruption to the TV when the Receiver is set to On (by disconnecting the power cord or a power failure), the TV Speaker may be set to Off when you turn the TV on again. (see page 23)

Check Points before Requesting Service

Symptom Anynet+ does not work.

■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. ■ Connect only one receiver. ■ Check if the Anynet+ device power cord is properly connected. ■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Check whether the TV remote control is in TV mode. ■ Check whether it is Anynet+ exclusive remote control. ■ Anynet+ doesn’t work at a certain condition. (Searching channels) ■ When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. ■ Check if the Anynet+ Function of Anynet+ device is set on. I want to start Anynet+. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. ■ Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. I want to exit Anynet+. ■ Select View TV in Anynet+ menu. ■ Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. ■ Press any of CH, CH LIST, and PRE-CH to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The message Connecting to ■ You cannot use the remote control when you are configuring Anynet+ device… appears on Anynet+ or switching to a view mode. the screen. ■ Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not ■ You cannot use the play function when Plug & Play is in progress. play. The connected device is not ■ Check whether or not the device supports Anynet+ functions. displayed. ■ Check whether or not the HDMI 1.3 cable is properly connected. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Search Anynet+ devices again. ■ You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. The TV programme cannot be ■ Check whether the antenna jack on the recording device is properly recorded. connected. English - 42

BN68-01434A-Eng.indb 42

2008-03-10 오후 3:31:22

Teletext Feature (depending on the model)

Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

1 TV Exit from the teletext display (depending on the model)

2 (store) Used to store the teletext pages. 3 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 4 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. 5 Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. 6 (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. 7 (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button. 8 (sub-page) Used to display the available sub-page. 9 (page up) Used to display the next teletext page. 0 (page down) Used to display the previous teletext page. ! (index) Used to display the index (contents) page at any time while you are viewing teletext. @ (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. # (cancel) Used to display the broadcast when searching for a page. can change teletext pages by pressing the numeric buttons ➢ You on the remote control.

BN68-01434A-Eng.indb 43

2008-03-10 오후 3:31:26

The teletext pages are organized according to six categories:

A B C D E F Contents

Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information.

information is often divided between several pages

➢ Teletext displayed in sequence, which can be accessed by:  Entering the page number  Selecting a title in a list  Selecting a coloured heading (FASTEXT system)

➢ Press the TV button to exit from the teletext display.

BN68-01434A-Eng.indb 44

2008-03-10 오후 3:31:26

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

LCD-TV PDP-TV Quantity

provided the standard dimensions for wall mount kits as shown in the table above.

➢ We purchasing our wall mount kit, a detailed installation manual and all parts necessary for ➢ When assembly are provided. not use screws longer than the standard dimension, as they may cause damage to the inside of ➢ Do the TV set. wall mounts that do not comply with the VESA standard screw specifications, the length of the ➢ For screws may differ depending on their specifications. not use screws that do not comply with the VESA standard screw specifications. ➢ Do Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

is not liable for product damage or personal injury when a non-VESA or non-specified wall

➢ Samsung mount is used or the consumer fails to follow the product installation instructions. 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our ➢ Our dedicated wall mount kit for this model. ➢ Do not exceed 15 degrees tilt when mounting this TV. not install your Wall Mount Kit while your TV is turned on. DIt omay result in personal injury due to electric shock. English - 45

BN68-01434A-Eng.indb 45

2008-03-10 오후 3:31:27

Wall- mount adjustment (Sold separately)

Once the auto wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount

Serial Cable(1P to 1P)(Not supplied)

Press the ▲, ▼, ◄ or ► button on your remote control.

➢ The Wall Mount Adjustment screen is displayed. ➢ If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen. • Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. •P ress the ▲ or ▼ button to select Auto Wall-Mount, then press the ENTER button.

Plug & Play Language : English Time Light Effect : In Standby Auto Wall-Mount

Remembering the Position

Adjust to the desired position using the ▲, ▼, ◄, ► buttons.

➢ If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. ➢ Press the INFO button to reset. Press the ◄ or ► button to select Yes, then press the ENTER button. The position is initialized to the default setting. Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position. ➢ To not save the current position, press the RETURN button. ➢ When selecting a save mode, you cannot use the Colour buttons. Press the ENTER button to save. ➢ When Position1 is selected, the message Current position saved as Position1 is displayed. Press the ENTER button. ➢ The saved Position appears on the left side of the OSD.

Select a mode to Save. Position 1 Position 2 Position 3 Adjust

BN68-01434A-Eng.indb 46

2008-03-10 오후 3:31:29

Moving to the remembered position

Complete Step 1 of Entering the menu. Auto Wall-Mount Pressing a Colour (Red, Green, Yellow) button moves the auto wall Position 1 mount to the saved position. ➢ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. ➢ If you adjust the positon after moving to a pre-set position, the Position 1 2 3 position display will disappear. INFO Center Adjust Save For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ or WISELINK is operating.

➢ 42 inches model is not compatible with the older wall mount model (WMN5090A).

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.)

In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding.

Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. or more people should carry ➢ Two the TV. Never lay the TV on the

floor because of possible damage to the screen.

Always store the TV upright.

BN68-01434A-Eng.indb 47

2008-03-10 오후 3:31:33

Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer. No sound or picture  Check that the mains lead has been connected to a wall socket.  Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER button on the remote control.  Check the picture contrast and brightness settings.  Check the volume.  Check if TV Speaker is set to Off. Normal picture but no sound  Check the volume.  Check whether the volume MUTE button on the remote control has been pressed. No picture or black and white picture  Adjust the colour settings.  Check that the broadcast system selected is correct. Sound and picture interference  Try to identify the electrical appliance that is affecting the television, then move it further away.  Plug the television into a different main socket. Blurred or snowy picture, distorted sound  Check the direction, location and connections of your aerial. This interference often occurs due to the use of an indoor aerial. Remote control malfunctions  Replace the remote control batteries.  Clean the upper edge of the remote control (transmission window).  Check that the “+” and “–” ends of the batteries are inserted correctly.  Check that the batteries are drained. Screen is black and power indicator light blinks steadily  On your computer check; Power, Signal Cable.  The TV is using its power management system.  Move the computer’s mouse or press any key on the keyboard.  On your equipment check (STB, DVD, etc) ; Power, Signal Cable.  The TV is using its power management system.  Press the Source button on the panel or remote control.  Turn the TV off and on. The damaged picture appears in the corner of the screen.  If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. The "Resets all settings to the default values" message appears.  This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

BN68-01434A-Eng.indb 48

2008-03-10 오후 3:31:34

The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice. Model Name

Screen Size (Diagonal)

10 W + 10 W Dimension (WxHxD)

Body With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

1231 x 831 x 320 mm 38 Kg 42 Kg

 This device is a Class B digital apparatus.

➢ Design and specifications are subject to change without prior notice.

 For the power supply and Power Consumption, refer to the label attached to the product.

BN68-01434A-Eng.indb 49

2008-03-10 오후 3:31:34

This page is intentionally left blank.

BN68-01434A-Eng.indb 50

2008-03-10 오후 3:31:34

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

BN68-01434A-Eng.indb 51

2008-03-10 오후 3:31:34

−−−−− −−−−− −−−−− −−−−−

Programme normal (Audio standard)

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

400x340 53 KB May 1, 2007 1 / 14

Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

Caract. VESA (A * B)

TELEVISEUR ECRAN A PLASMA Fixation murale

1231 x 831 x 320 mm 38 Kg 42 Kg

BN68-01434A-X0GER.indd 2

3/6/2008 10:35:01 PM BN68-01434A-X0GER.indd 3

3/6/2008 10:14:19 PM Lieferumfang

BN68-01434A-X0GER.indd 4

3/6/2008 10:14:19 PM Systemsteuerung

BN68-01434A-X0GER.indd 5

3/6/2008 10:14:21 PM Anschlussfeld

BN68-01434A-X0GER.indd 6

3/7/2008 10:38:38 PM BN68-01434A-X0GER.indd 7

3/6/2008 10:14:22 PM BN68-01434A-X0GER.indd 8

3/7/2008 1:02:55 PM BN68-01434A-X0GER.indd 8

3/7/2008 1:02:55 PM BN68-01434A-X0GER.indd 9

3/7/2008 10:38:53 PM BN68-01434A-X0GER.indd 10

BN68-01434A-X0GER.indd 11

3/7/2008 10:39:28 PM BN68-01434A-X0GER.indd 12

: −−−− VCR : −−−− DVD : −−−− Kabel-STB : −−−− Sat-STB : −−−− PVR-STB : −−−− V : −−−− : −−−−

BN68-01434A-X0GER.indd 13

3/6/2008 10:14:26 PM BN68-01434A-X0GER.indd 14

3/6/2008 10:14:26 PM BN68-01434A-X0GER.indd 15

3/6/2008 10:14:27 PM BN68-01434A-X0GER.indd 16

3/7/2008 1:04:26 PM BN68-01434A-X0GER.indd 17

3/6/2008 10:14:29 PM BN68-01434A-X0GER.indd 18

3/6/2008 10:14:29 PM BN68-01434A-X0GER.indd 19

3/6/2008 10:14:30 PM BN68-01434A-X0GER.indd 20

3/7/2008 1:04:43 PM BN68-01434A-X0GER.indd 21

3/7/2008 10:44:45 PM

BN68-01434A-X0GER.indd 22

3/7/2008 10:42:10 PM Audiofunktionen

BN68-01434A-X0GER.indd 23

3/6/2008 10:14:31 PM BN68-01434A-X0GER.indd 24

3/6/2008 10:14:32 PM Zeitfunktionen

BN68-01434A-X0GER.indd 25

3/7/2008 1:07:48 PM BN68-01434A-X0GER.indd 26

3/6/2008 10:14:33 PM BN68-01434A-X0GER.indd 27

3/6/2008 10:14:33 PM BN68-01434A-X0GER.indd 28

3/6/2008 10:14:33 PM

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

BN68-01434A-X0GER.indd 29

3/7/2008 1:08:01 PM BN68-01434A-X0GER.indd 30

3/7/2008 1:08:11 PM BN68-01434A-X0GER.indd 31

3/6/2008 10:14:34 PM BN68-01434A-X0GER.indd 32

3/6/2008 10:14:34 PM

BN68-01434A-X0GER.indd 33

3/7/2008 1:08:35 PM Foto

400x340 53 KB May 1, 2007 1 / 14

BN68-01434A-X0GER.indd 34

3/7/2008 1:09:11 PM BN68-01434A-X0GER.indd 35

3/6/2008 10:14:40 PM Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

Select to play all MP3 files in the current folder. Deutsch - 36

BN68-01434A-X0GER.indd 36

3/7/2008 1:09:49 PM BN68-01434A-X0GER.indd 37

3/7/2008 1:10:37 PM BN68-01434A-X0GER.indd 38

3/7/2008 1:11:11 PM BN68-01434A-X0GER.indd 39

3/6/2008 10:14:47 PM BN68-01434A-X0GER.indd 40

3/6/2008 10:14:47 PM BN68-01434A-X0GER.indd 41

3/7/2008 10:42:41 PM BN68-01434A-X0GER.indd 42

3/6/2008 10:14:48 PM BN68-01434A-X0GER.indd 43

3/6/2008 10:14:49 PM BN68-01434A-X0GER.indd 44

3/6/2008 10:14:50 PM

600 * 400 700 * 400 (No VESA)

600 * 400 676 * 407 (No VESA)

BN68-01434A-X0GER.indd 45

3/7/2008 1:11:58 PM BN68-01434A-X0GER.indd 46

2 3 Speichern INFO Center

BN68-01434A-X0GER.indd 47

3/7/2008 1:12:41 PM BN68-01434A-X0GER.indd 48

3/6/2008 10:14:53 PM

1231 x 770 x 95 mm 1231 x 831 x 320 mm

1231 x 831 x 320 mm 38 Kg 42 Kg

BN68-01434A-X0GER.indd 49

3/6/2008 10:14:53 PM BN68-01434A-X0GER.indd 50

3/6/2008 10:14:53 PM BN68-01434A-X0GER.indd 51

3/6/2008 10:14:53 PM Bediening

Beschikbare toestelnamen: VCR, DVD, Kabel STB, Satelliet

STB, PVR STB, AV-ontvanger, Spelcomputer, Camcorder, PC, TV, IPTV, BLU-Ray, HD DVD, DMA. 6

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

HDMI 1.3 Cable Home Theatre

Geen VESA LCD-TV PDP-TV Aantal

1231 x 770 x 95 mm 1231 x 831 x 320 mm

Nucleo in ferrite per

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

5959 KB Nov 14, 2007

Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY Spento X Select

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

600 *400 676 * 407 (No VESA)

1231 x 770 x 95 mm 1231 x 831 x 320 mm

1231 x 831 x 320 mm 38 Kg 42 Kg

100Hz for 1366 x 768 or 50Hz for 1920 x 1080

C PUI R/G/B/CV OUT DE MU X FIL TER MPE G A/ VDECODER DTV_Y,Pb,Pr

DTV CVBS PAL ENCODER HOSTINTE RF A CE I2S PERIPHERALS E MM A 2S L Panel de control

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

400x340 53 KB May 1, 2007 1 / 14

Nat King Cole-Fly me to the moon

5959 KB Nov 14, 2007

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

600 * 400 700 * 400 (No VESA)

600 * 400 676 * 407 (No VESA)

2 3 Guardar INFO Central

1231 x 831 x 320 mm 38 Kg 42 Kg

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

: −−−− −−−− : −−−− VCR DVD : : Cable STB Satellite STB : −−−− PVR STB : −−−− AV Receiver : V : −−−− : −−−−

▲ : United Kingdom Switzerland United Kingdom Austria Eastern Europe Others

Mudar pixels Pt horizontal Linha vertical Tempo

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

Nat King Cole-Fly me to the moon

5959 KB Nov 14, 2007

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

HDMI 1.3 Cable Home Theatre

1231 x 770 x 95 mm 1231 x 831 x 320 mm

1231 x 831 x 320 mm 38 Kg 42 Kg

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

Diavetítés megtekintése

Nat King Cole-Fly me to the moon

5959 KB Nov 14, 2007

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

1231 x 770 x 95 mm 1231 x 831 x 320 mm

Wideo Audio (L/P) RGB Wideo + Audio (L/P)

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

Nat King Cole-Fly me to the moon

5959 KB Nov 14, 2007

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

1231 x 831 x 320 mm 38 Kg 42 Kg

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

: −−−−Video DVD : : Kabel. receiver Sat. receiver : −−−− PVR STB : −−−− AV receiver : ▼ : −−−− : −−−− Zadat

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

Zobrazení prezentace

Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

: Music list icon : Move to the previous folder stage icon

View TV Select Device

:Vypnuto Z Z Nastavení

Searching Connections

Searching Connections

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

315MB/495MB Zobrazenie prezentácie

Nat King Cole-Fly me to the moon

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

1231 x 831 x 320 mm 38 Kg 42 Kg

Video Avdio (L/R (L/D))RGB EXT 1

Mode : Standard Cell Light Contrast Brightness Sharpness Colour Tint G50 Detailed Settings VMore Move

Select ‘Home Use’ when installing this TV in your home. Store Demo Move

United Kingdom Austria Eastern Europe Others Enter

Plug & Play Language Time Light Effect Auto Wall-Mount Melody Entertainment Energy Saving

Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Source List : TV Edit Name Anynet + (HDMI-CEC)

TV Ext.1 Ext.2 AV S-Video Component PC VMore

: −−−− −−−− : −−−− VCR DVD : : Cable STB Satellite STB : −−−− PVR STB : −−−− AV Receiver : V : −−−− : −−−−

Imena naprav, ki so na voljo: VCR, DVD, Cable STB, Satellite

STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA. 6

: TV Edit Name Anynet + (HDMI-CEC)

▲ Country : United Kingdom Switzerland Auto Store United Kingdom Manual Store Austria Channel Manager Eastern Europe Sort Others Name Fine Tune

Programme Colour System Sound System Channel Search Store

Channel List Child Lock

P 1 C6 1 / 10 Prog. 0

Mono Picture Sound SRS TS XT −− : −−

Mode : Standard Cell Light Contrast Brightness Sharpness Colour Tint G50 Detailed Settings VMore Move

Dynamic Mode : Standard Standard Cell Light Movie Contrast Brightness Sharpness Colour Tint G50 Detailed Settings VMore Enter

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Mode : Standard Cell Light Contrast Brightness Sharpness Colour Tint G50 Detailed Settings VMore Move

Cell Light - Contrast – Brightness – Sharpness – Colour – Tint

Mode : Standard Cell Light Contrast Brightness Sharpness Colour Tint G50 Detailed Settings VMore Move

Vertical Line Time (minute)

SRS TS XT Energy Saving Dual I-II Move

Language / Light Effect / Melody / Entertainment / Energy Saving / PIP

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono

Plug & Play Language Time Light Effect Auto Wall-Mount Melody Entertainment Energy Saving

Size Position Programme

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

+/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+

Auto Adjustment in Progress

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving PIP

Mode : Standard Cell Light Contrast Brightness Sharpness Auto Adjustment Screen Detailed Settings VMore

Coarse Fine Position Image Reset

Image Reset is completed.

: TV Edit Name Anynet+ (HDMI-CEC) WISELINK

Gledanje diaprojekcije

Slide Show Speed : Normal X Background Music : Off X Background Music Setting

400x340 53 KB May 1, 2007 1 / 14

Zoom Rotate List Exit

5959 KB Nov 14, 2007

Nat King Cole-Fly me to the moon

Repeat Music Select All

001 Swan Song feat.TBNY

002 Beatles-Yesterday

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

X Background Music Setting

Background Music Setting

Background Music Setting

Background Music Setting

Background Music Setting

Searching Connections

Searching Connections

Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer SRS TS XT Energy Saving Dual I-II Move

Custom Off Off Off Mono Exit

Plug & Play Language Time Light Effect Auto Wall-Mount Melody Entertainment Energy Saving

Select a mode to Save. Position 1 Position 2 Position 3 Adjust

1231 x 831 x 320 mm 38 Kg 42 Kg
