| Type de produit | Plasma television |
| Screen size (diagonal) | 42 inches (107 cm) |
| PC resolution | 1024 x 768 at 60 Hz |
| Dimensions (without stand) | 1055.0 x 667.4 x 93.2 mm |
| Dimensions (with stand) | 1055.0 x 724.9 x 315.9 mm |
| Weight (without stand) | 26.9 kg |
| Weight (with stand) | 30.5 kg |
| Sound power | 10 W + 10 W |
| Digital tuner | Built-in HD (ATSC) |
| Image technology | DNle (Digital Natural Image engine) |
| Audio technology | SRS TruSurround XT |
| HDMI inputs | 3 (HDMI 1, 2, 3) |
| Component inputs | 2 (Component 1, 2) |
| PC input | 1 (D-Sub 15-pin) |
| Other inputs | AV, S-Video, antenna |
| Audio outputs | Digital optical, analog audio (R/L) |
| 3D function | Yes (via 3D glasses and IR emitter) |
| Parental control | V-Chip |

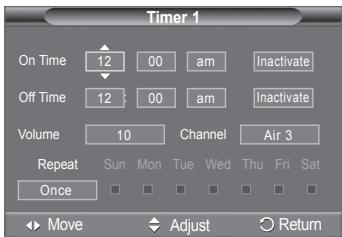

| Timer | Programmable on/off |
| Power saving | Yes (standby mode) |
| Included accessories | Remote control, AAA batteries, power cord, user guide, ferrite core, cleaning cloth, stand screws |
| Operating temperature | 10 °C to 40 °C |
| Operating humidity | 10% to 80% non-condensing |
Frequently Asked Questions - PN42A450 SAMSUNG
User questions about PN42A450 SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual PN42A450 - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PN42A450 by SAMSUNG.
USER MANUAL PN42A450 SAMSUNG
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Plasma TV user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
Model Serial No.
Important Warranty Information Regarding Television Format Viewing
Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars.
On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
In the United States: 1-800-SAMSUNG (1-800-726-7864)
In Canada: 1-800-SAMSUNG
See the warranty card for more information on warranty terms.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
User Instructions
Screen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, refer to page 23 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image.
Altitude
The PDP can only operate normally at heights under 6500ft.
Heat on the top of the Plasma TV
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product.
This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.
The product is making a 'cracking' noise.
A 'cracking' noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.
Cell Defects
The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
Avoid operating the TV at temperatures below 5^ (41^)
A still image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images for a long time.
Warranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.
Contents
General Information
List of Features 5
■ Accessories. 5
Viewing the Control Panel 6
Viewing the Connection Panel 7
Remote Control. 8

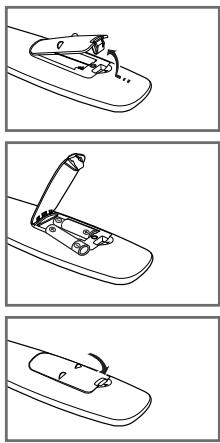

- Installing Batteries in the Remote Control 9
Connections
- Connecting VHF and UHF Antennas 9

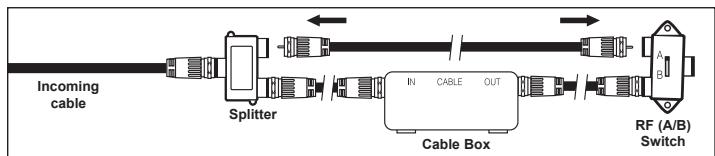

- Connecting Cable TV 10

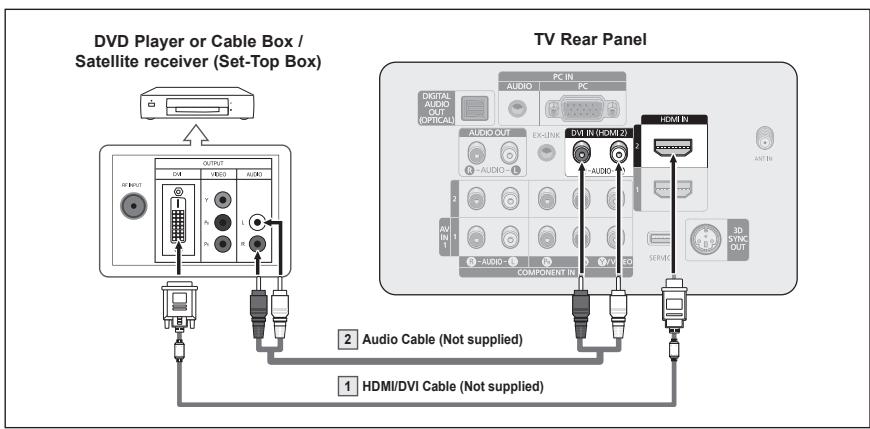

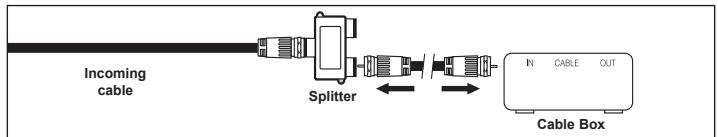

- Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI 11
- Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via DVI. 11
- Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables. 12
- Connecting a Camcorder 12

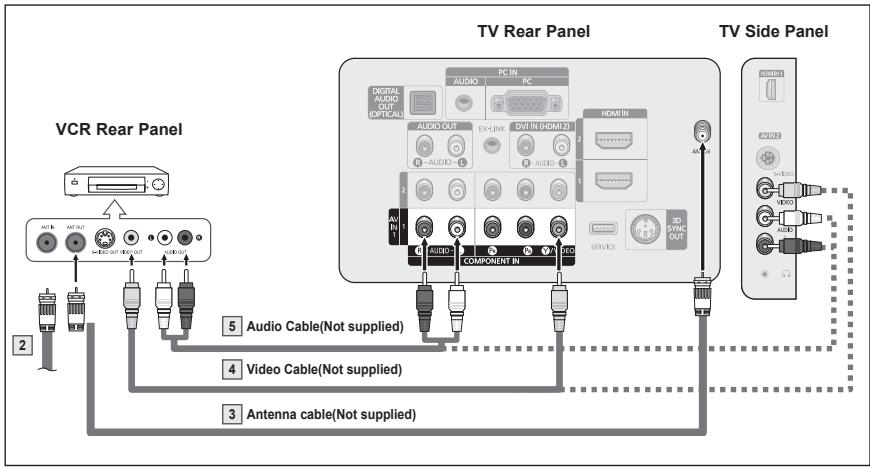

- Connecting a VCR 13
- Connecting a Digital Audio System 14

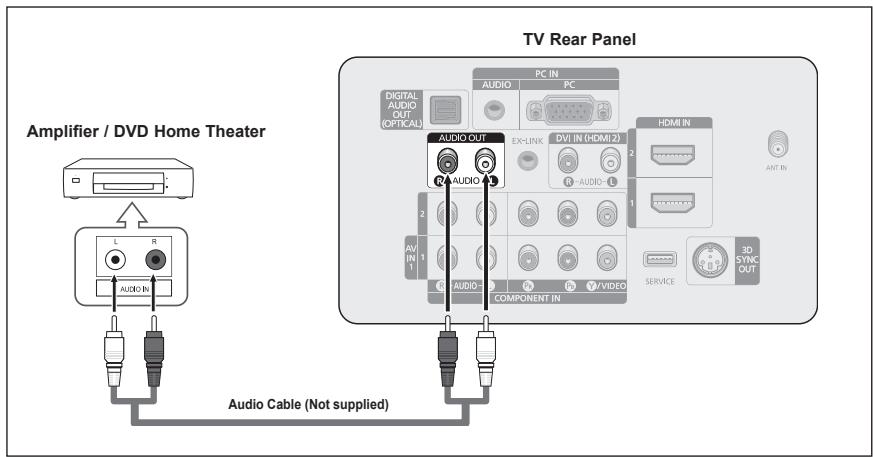

- Connecting an Amplifier / DVD Home Theater 14
- Connecting a PC. 15
Operation
■Turning the TV On and Off. 16
Plug & Play Feature 16
Changing Channels 18
Adjusting the Volume 19

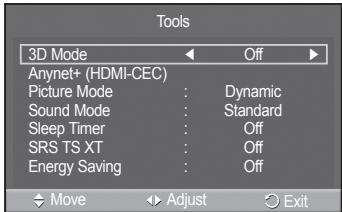

Using the TOOLS Button 19
Viewing the Display. 19
Viewing the Menus. 20
■ Memorizing the Channels. 20
To Select the Source 22
To Edit the Input Source Name 22
Picture Control
Changing the Picture Standard 23

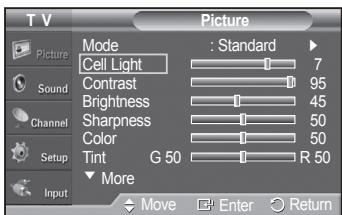

Customizing the Picture Settings 23

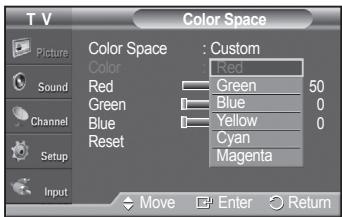

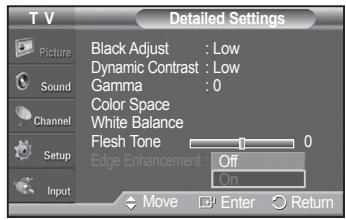

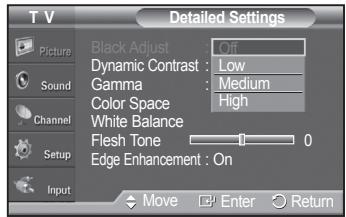

Adjusting the Detailed Settings 24
- Configuring Picture Options 26
Using the 3D Function 32
Resetting the Picture Settings to the Factory Defaults...33
Sound Control

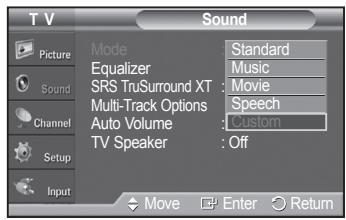

Changing the Sound Standard 34

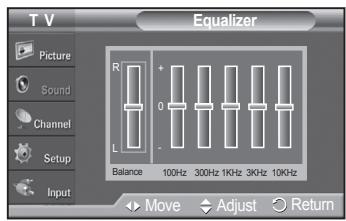

Customizing the Sound 34

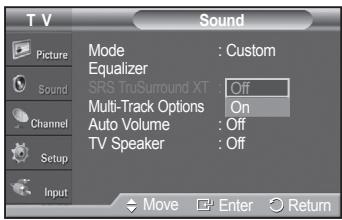

Setting the TruSurround XT 35

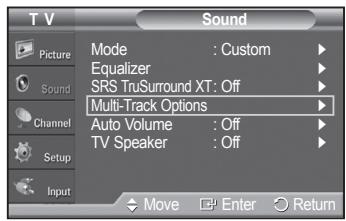

Choosing a Multi-Channel Sound (MTS) Track - Digital..35
Choosing a Multi-Channel Sound (MTS) Track - Analog...36

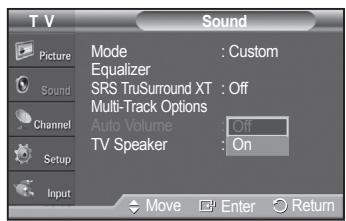

Automatic Volume Control 36
Setting the TV Speakers On/Off 37
- Connecting Headphones (Sold separately) 37
Channel Control

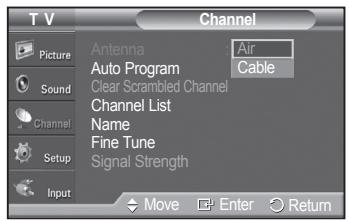

Selecting the Antenna 38

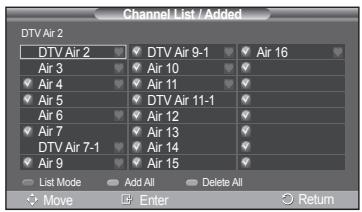

Clearing Scrambled Channels - Digital 38
- Adding and Erasing Channels 39
Viewing the Channel Lists 40

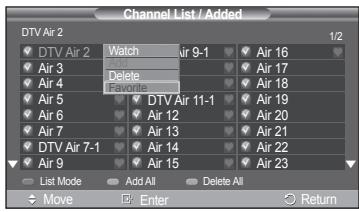

Setting Your Favorite Channels 40

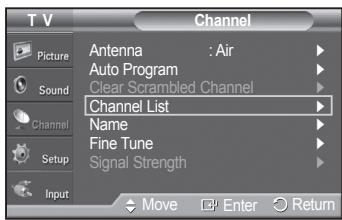

Setting the Default Channel List Mode 41

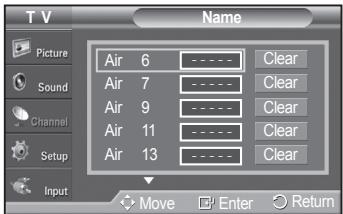

Labeling Channels 42

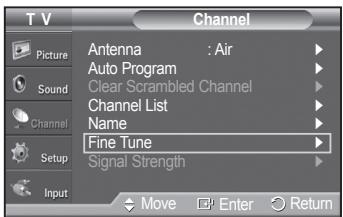

Fine Tuning Analog Channels 42

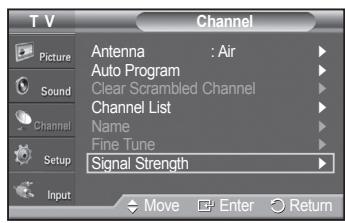

■ Checking the Digital-Signal Strength 43
PC Display
Using Your TV as a Computer (PC) Display 44
Display Modes 44

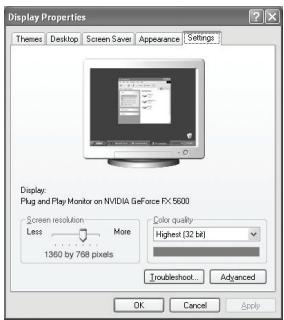

Setting up the TV with your PC 45
Time Setting

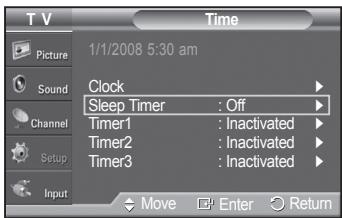

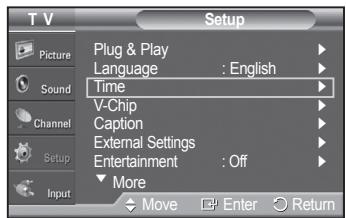

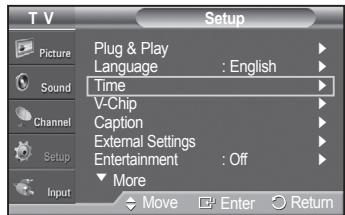

Setting the Time. 47
Function Description
Selecting a Menu Language 50

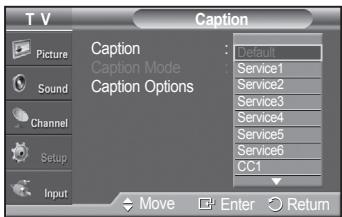

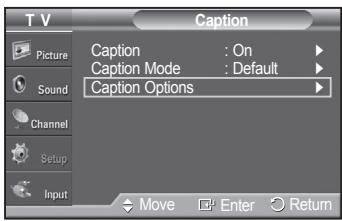

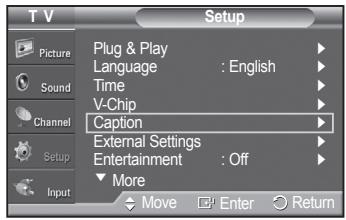

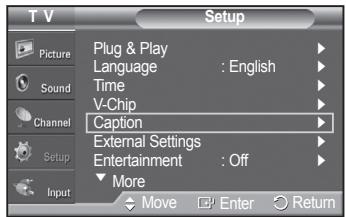

Viewing Closed Captions (On-Screen Text Messages) - Digital...50
Viewing Closed Captions (On-Screen Text Messages) - Analog..52
Adjusting the TV On/Off Melody Sound 53

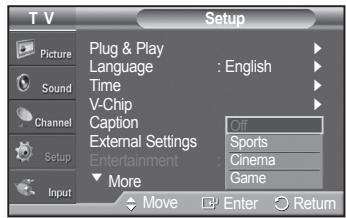

Setting the Light Effect. 53
Setting the Entertainment mode 54
Using the Energy Saving Feature 54
Upgrading the Software 55

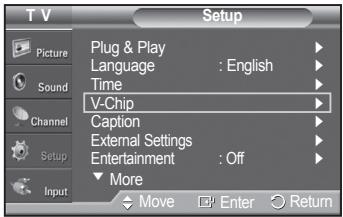

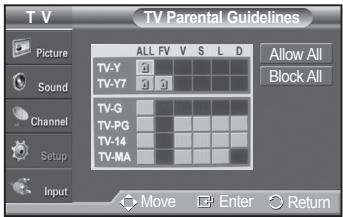

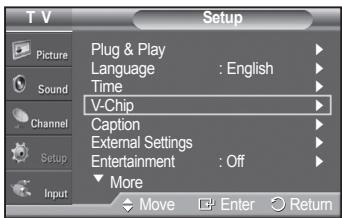

Using the V-Chip. 56
About Anynet+
What is Anynet+? 64
- Connecting Anynet+ Devices 64
Setting Up Anynet+ 65
Scanning and Switching between Anynet+ Devices....65
■ Recording 66
■ Listening through a Receiver (Home theater) 67
Check Points before Requesting Service 67
Appendix
Securing the TV to the Wall 68
Troubleshooting 69
■ Wall- mount adjustment (Sold separately) 70

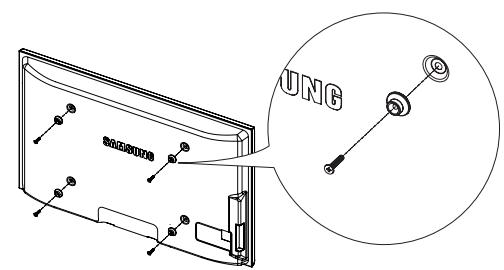

Preparing before installing Wall- Mount on the wall....71

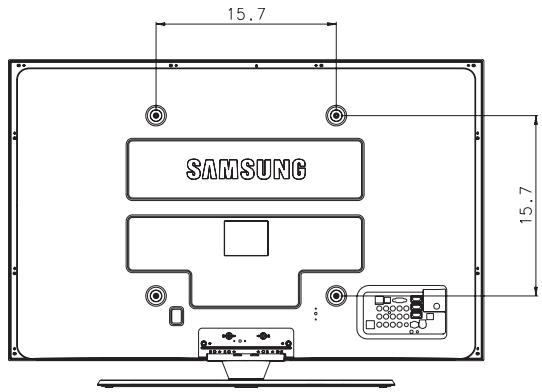

■ Wall Mount Kit Specifications (VESA). 72

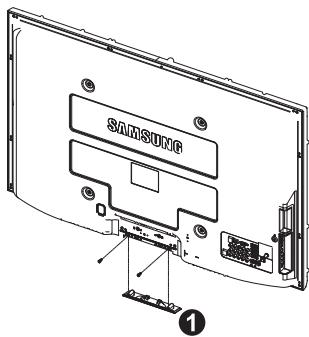

How to assemble the Stand-Base (depending on the model) 73
■ Specifications. 73

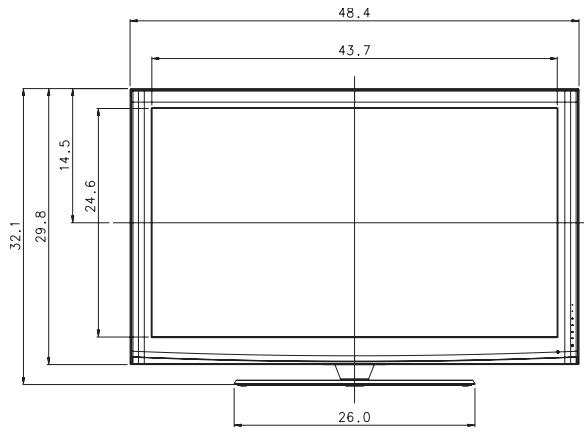

Dimensions (PN42A450P1D) 74
Dimensions (PN50A450P1D) 75
Symbols
Press
One-Touch
Note

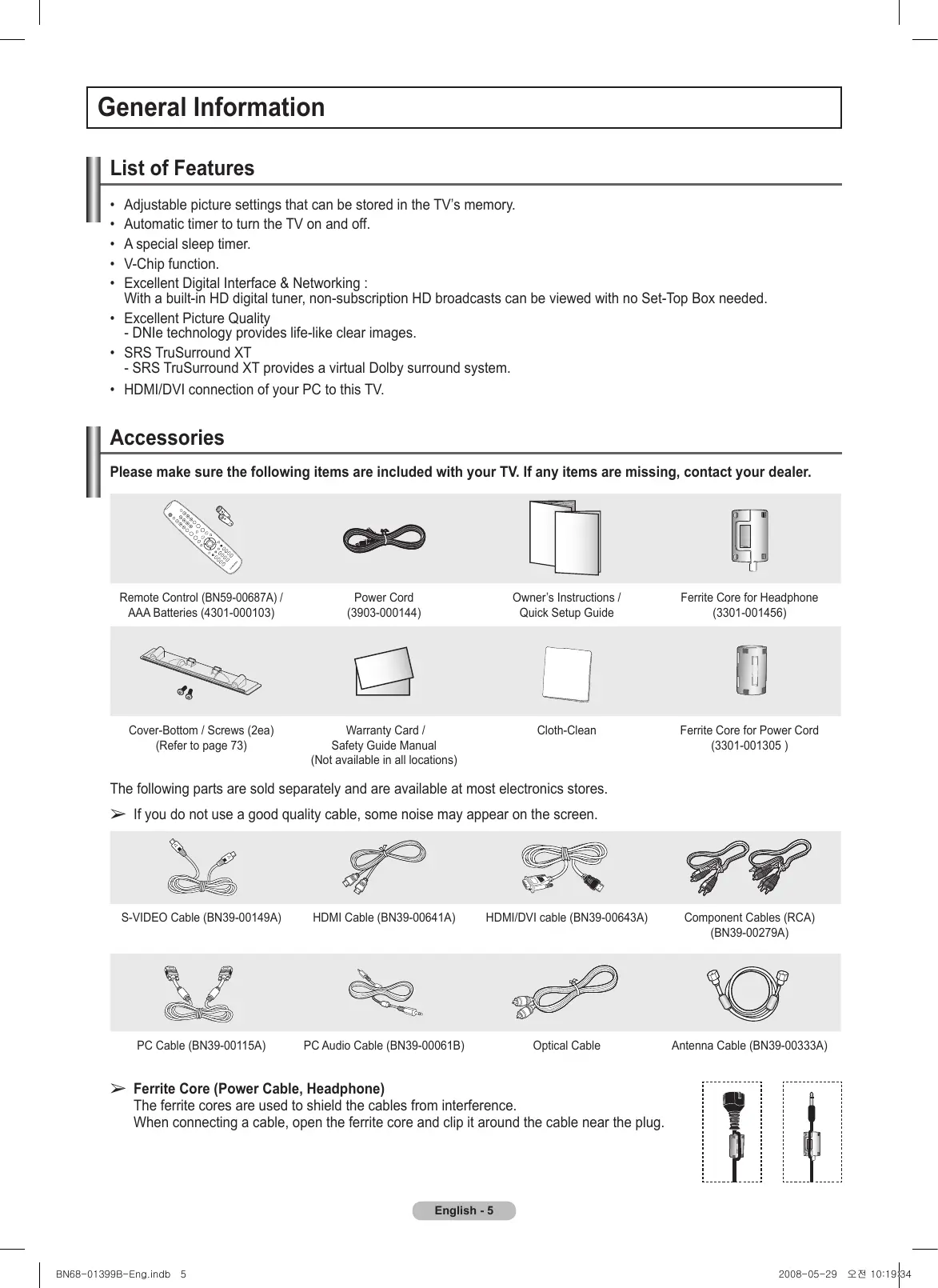

List of Features
- Adjustable picture settings that can be stored in the TV's memory.
Automatic timer to turn the TV on and off. -

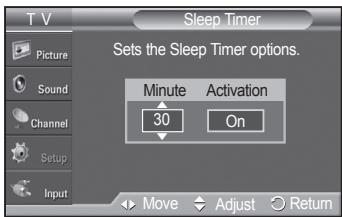

A special sleep timer.
V-Chip function.
Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Set-Top Box needed.
Excellent Picture Quality -
DNlte technology provides life-like clear images.
-
SRS TruSurround XT
- SRS TruSurround XT provides a virtual Dolby surround system.
- HDMI/DVI connection of your PC to this TV.
Accessories
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
| Remote Control (BN59-00687A) / AAA Batteries (4301-000103) | Power Cord (3903-000144) | Owner's Instructions / Quick Setup Guide | Ferrite Core for Headphone (3301-001456) |
| Cover-Bottom / Screws (2ea) (Refer to page 73) | Warranty Card / Safety Guide Manual (Not available in all locations) | Cloth-Clean | Ferrite Core for Power Cord (3301-001305 ) |
The following parts are sold separately and are available at most electronics stores.
If you do not use a good quality cable, some noise may appear on the screen.
| S-VIDEO Cable (BN39-00149A) | HDMI Cable (BN39-00641A) | HDMI/DVI cable (BN39-00643A) | Component Cables (RCA) (BN39-00279A) |
| PC Cable (BN39-00115A) | PC Audio Cable (BN39-00061B) | Optical Cable | Antenna Cable (BN39-00333A) |
Ferrite Core (Power Cable, Headphone)
The ferrite cores are used to shield the cables from interference.
When connecting a cable, open the ferrite core and clip it around the cable near the plug.

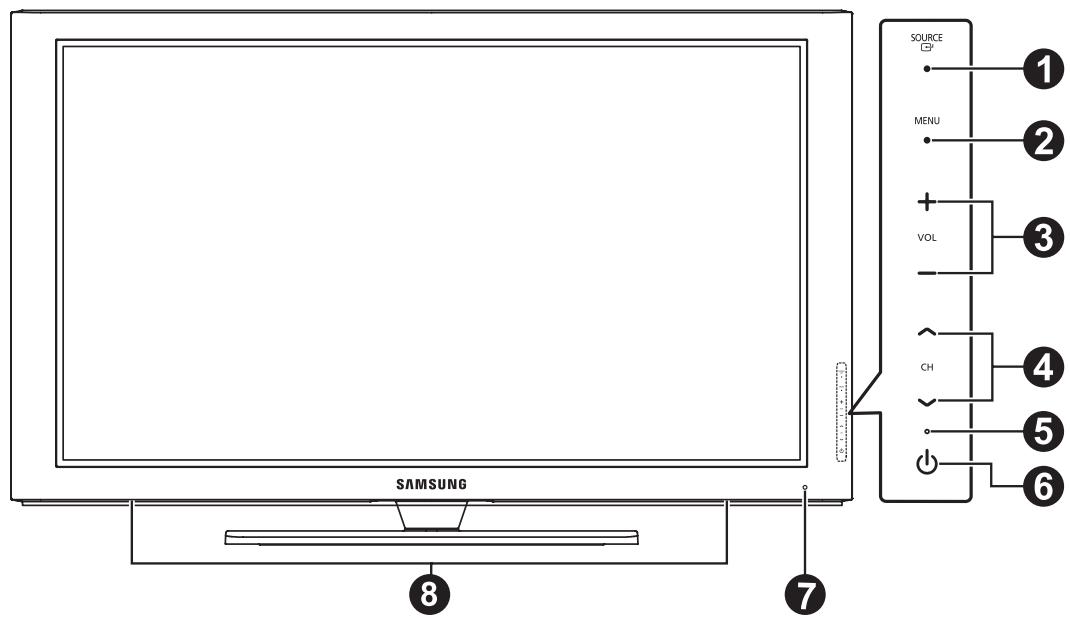

Buttons on the Lower-Right Part of the Panel
The buttons on the lower-right panel control your TV's basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.
The product color and shape may vary depending on the model.
Front Panel buttons
Touch each button to operate.

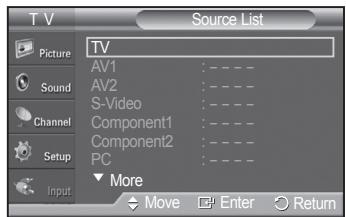

SOURCE
Toggles between all the available input sources (TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3).
In the on-screen menu, use this button as you would use the ENTER button on the remote control.
2 MENU
Press to see an on-screen menu of your TV's features.
+VOL-
Press to increase or decrease the volume. In the on-screen menu, use the +VOL- buttons as you would use the and buttons on the remote control.
4 CH
Press to change channels.
In the on-screen menu, use the CH buttons as you would use the and buttons on the remote control.
5 Power Indicator
Blinks and turns off when the power is on and lights up in stand-by mode.
6 POWER
Press to turn the TV on and off.
Remote Control Sensor
Aim the remote control towards this spot on the TV.
3 Speakers

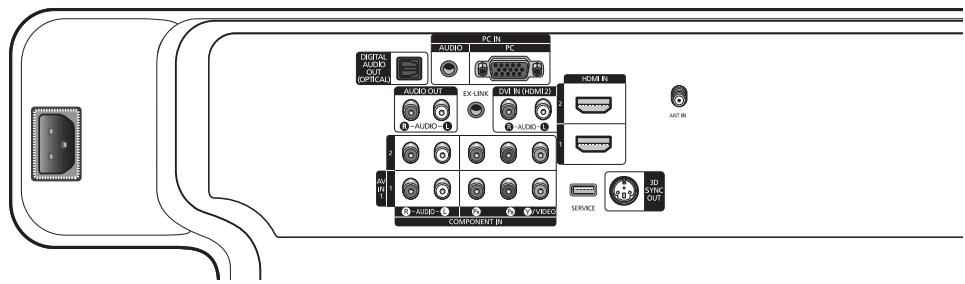

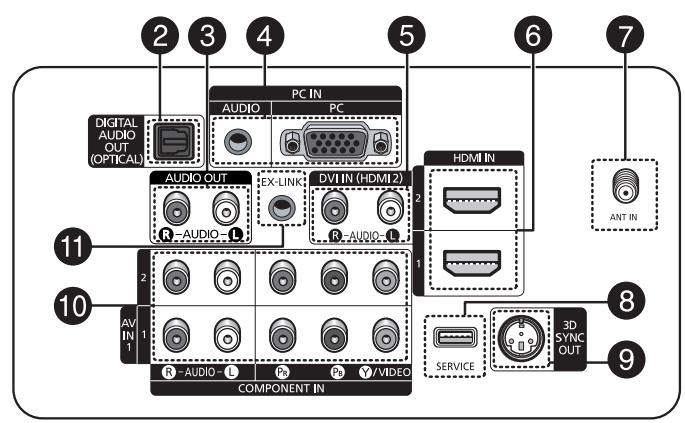

Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model.
1 POWER IN
Connect the supplied power cord.

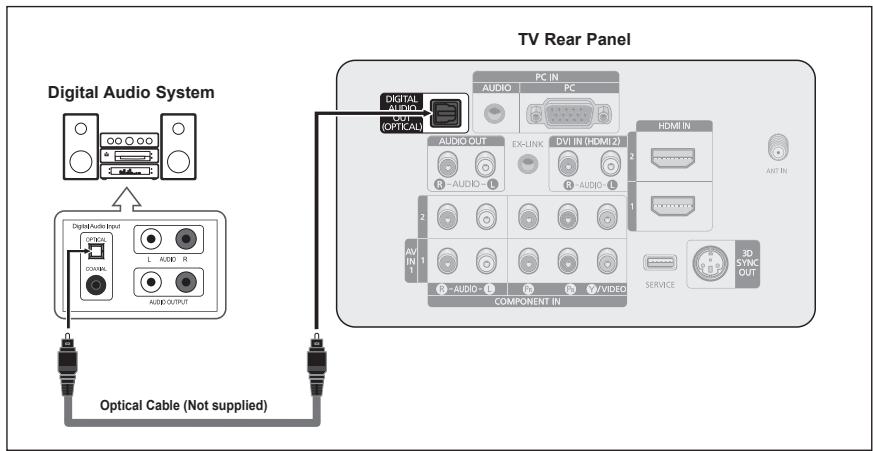

2 DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio component.
3 AUDIO OUT (R/L)
Audio outputs to external devices.

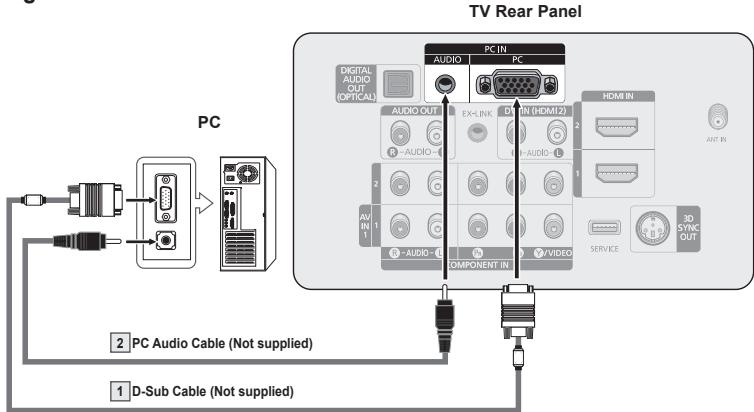

PC IN[PC]/[AUDIO]
Connect to the video and audio output jack on your PC.

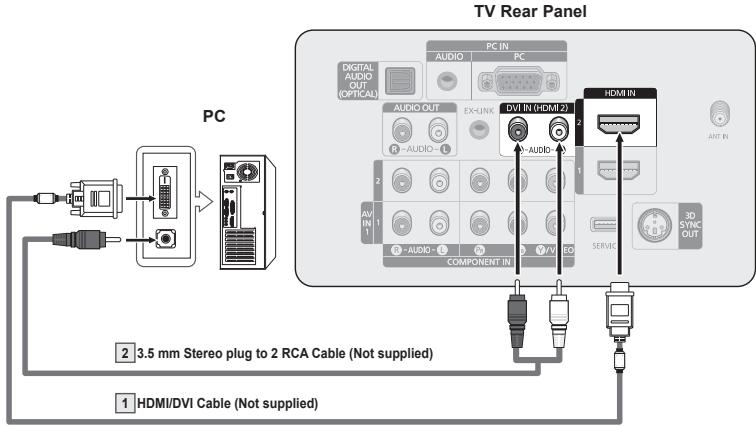

DVI IN (HDMI 2) (AUDIO-R/L)
Connect to the DVI audio output jack of an external device.

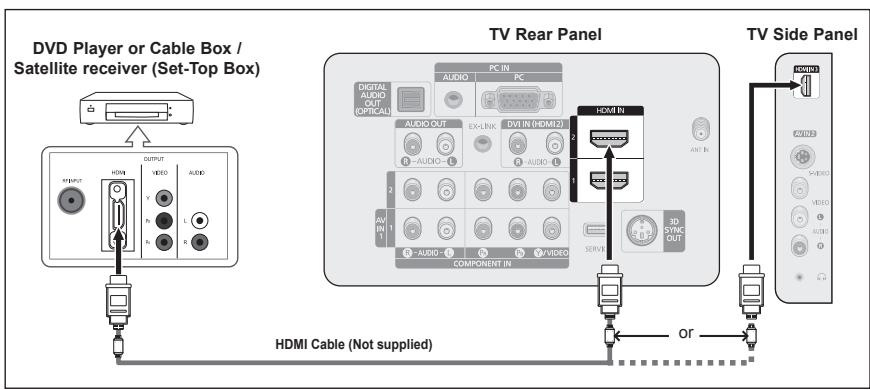

HDMI IN 1,2
Connect to the HDMI jack of a device with an HDMI output. (HDMI2 supports HDMI-DVI IN and connection from a PC.)
-
This input can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection.
-
When using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device.
ANT IN
Uses a 75Ω Coaxial connector for an Air/Cable Network.

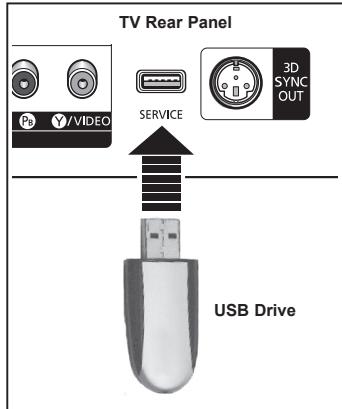

3 SERVICE
For service only.

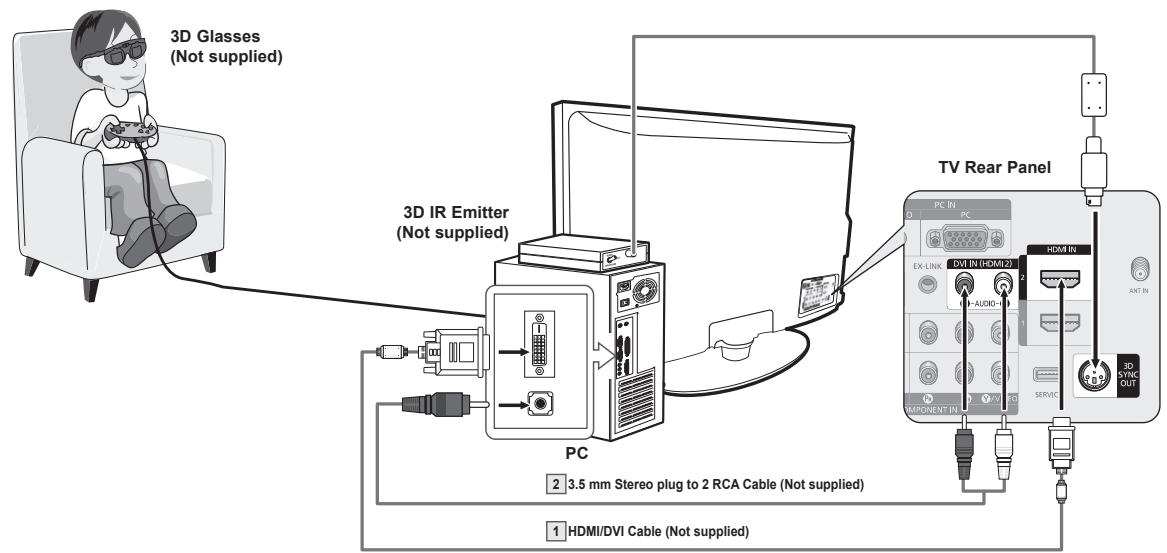

9 3D SYNC OUT
Connect to 3D IR Emitter.
10 COMPONENT IN 1,2/AVIN1
Connects Component video/audio.
The COMPONENT IN 1 jack is also used as the AV IN 1 jack.
- Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN [R-AUDIO-L] jacks.

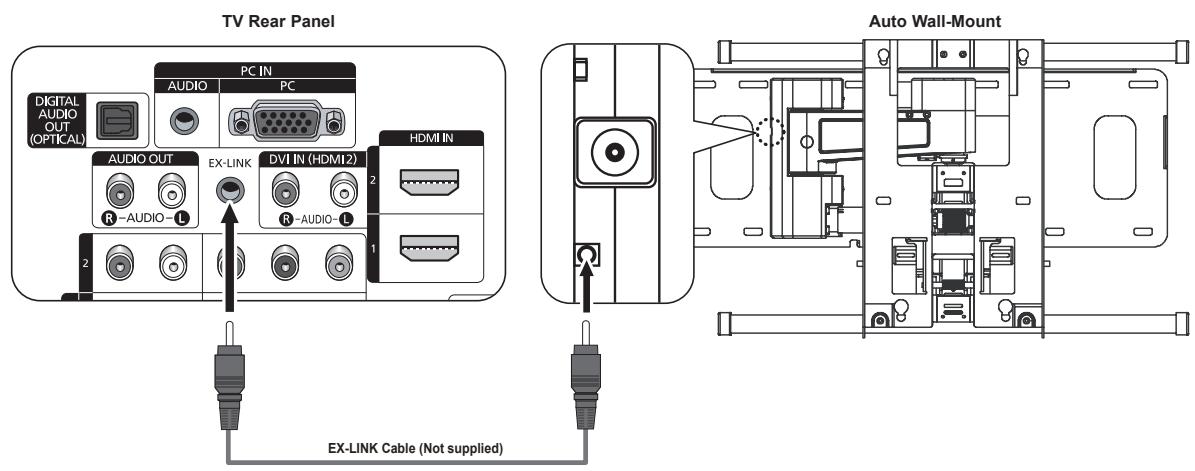

1 EX-LINK
Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.
Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game. The product color and shape may vary depending on the model.
1 HDMI IN 3
Connect to the HDMI jack of a device with HDMI output.
2 S-VIDEO (AV IN 2)
S-Video input for external devices with an S-Video output.
AVIN2
Video and audio inputs for external devices.
HEADPHONE
You can connect a set of headphones if you wish to watch a television program without disturbing other people in the room.

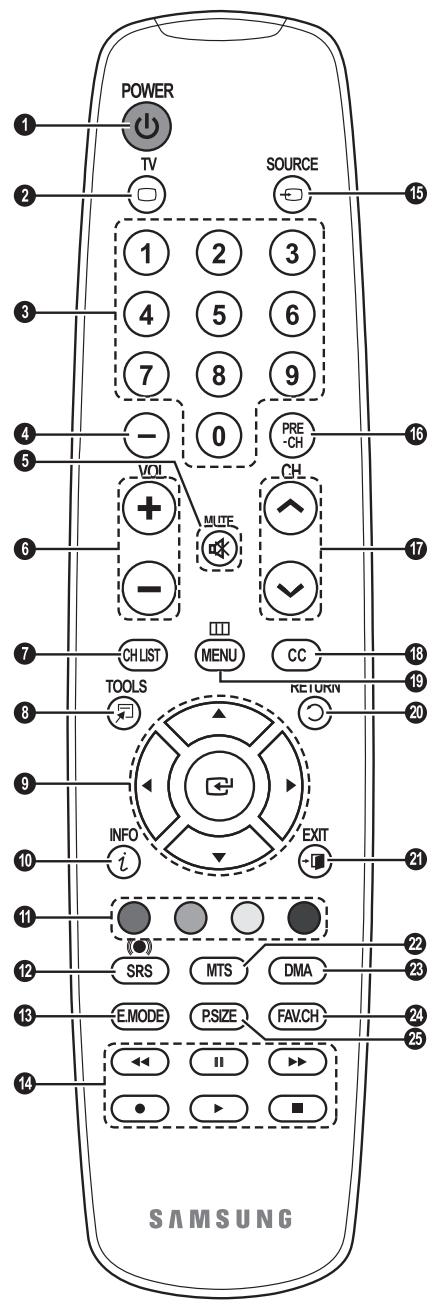

1 POWER
Turns the TV on and off.
2 TV
Selects the TV mode directly.
3 NUMERIC BUTTONS

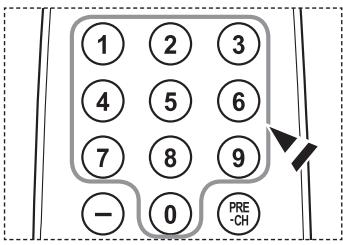

Press to directly select a channel.
4 -
Press to select additional channels (digital and analog) being broadcast by the same station. For example, to select channel "54-3", press "54", then press " - " and "3".
5 MUTE
Press to temporarily cut off the sound.
6 + VOL
Press to increase or decrease the volume.
CH LIST
Used to display Channel Lists on the screen.
6 TOOLS
Use to quickly select frequently used functions.
UP▲/DOWN▼/LEFT▲/RIGHT▶/ENTER
Use to select on-screen menu items and change menu values.
10 INFO
Press to display information on the TV screen.
1 COLOR BUTTONS
Use these buttons in the Channel list.
SRS
Selects SRS TruSurround XT mode.
13 E.MODE
Press to select the preset display and sound modes for sports, cinema and games.
Use these buttons in the DMA and Anynet+ modes.
( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature)
15 SOURCE
Press to display all of the available video sources.
PRE-CH
Tunes to the previous channel.
17 CH
Press to change channels.

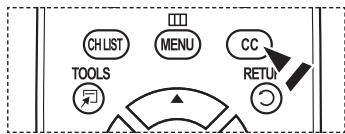

18 CC
Controls the caption decoder.
19 MENU
Displays the main on-screen menu.
20 RETURN
Returns to the previous menu.
2 EXIT
Press to exit the menu.
MTS
Press to choose stereo, mono or Separate Audio Program (SAP broadcast).
28 DMA (Digital Media Adapter) Use this when connecting a Samsung DMA device through an HDMI interface and switching to DMA mode.
For more information on the operating procedures, refer to the user manual of the DMA.
This button is available when "Anynet(HDMI-CEC)" is "On". (see page 65)
24 FAV.CH
Press to switch to your favorite channels.
25 P.SIZE
Press to change the screen size.
The performance of the remote control may be affected by bright light.
Installing Batteries in the Remote Control
1 Lift the cover at the back of the remote control upward as shown in the figure.
2 Install two AAA size batteries.
Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
Do not mix battery types, i.e. alkaline and manganese.
3 Close the cover as shown in the figure.
Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet (7m) from the TV. (Assuming typical TV usage, the batteries last for about one year.)
If the remote control doesn't work, check the following:
- Is the TV power on?
- Are the plus and minus ends of the batteries reversed?
- Are the batteries drained?
- Is there a power cut, or is the power cord unplugged?
- Is there a special fluorescent light or a neon sign nearby?
Connections
Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like this, see "Antennas with 300 Ω Flat Twin Leads" below.
If your antenna has one lead that looks like this, see "Antennas with 75 Ω Round Leads".
If you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 twin flat leads, follow the directions below.
1 Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).
Use a screwdriver to tighten the screws.
2 Plug the adaptor into the ANT IN terminal on the back of the TV.
Antennas with 75 Round Leads
1 Plug the antenna lead into the ANT IN terminal on the back of the TV.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1 Connect both antenna leads to the combiner.
2 Plug the combiner into the ANT IN terminal on the bottom of the back panel.
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1 Plug the incoming cable into the ANT IN terminal on the back of the TV.
Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
Connecting to a Cable Box that Descrambles All Channels
1 Find the cable that is connected to the ANT OUT terminal on your cable box.
This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2 Connect the other end of this cable to the ANT IN terminal on the back of the TV.

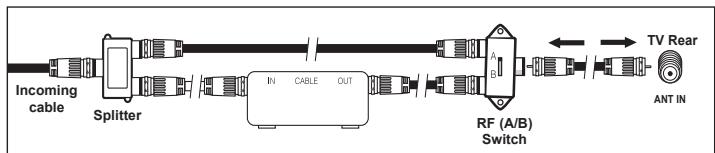

Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)
1 Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".
2 Connect this cable to a two-way splitter.

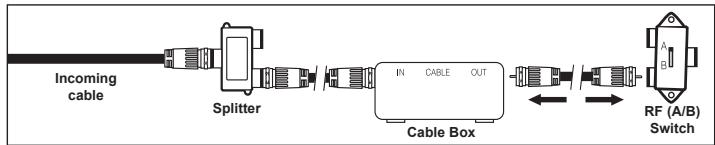

3 Connect an Antenna cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box.
4 Connect an Antenna cable between the ANT OUT terminal on the cable box and the B-IN terminal on the RF(A/B) switch.
5 Connect another cable between the other OUT terminal on the splitter and the A-IN terminal on the RF (A/B) switch.
6 Connect the last Antenna cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.
After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's output channel, which is usually channel 3 or 4.)
This connection can only be made if there is an HDMI Output jack on the external device. This connection will provide the highest quality picture.
1 Connect an HDMI Cable between the HDMI IN(1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box / Satellite receiver (Set-Top Box).
What is HDMI?
- HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video signals using a single cable without compression.
- The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output jack on the external device.
1 Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2 Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack.

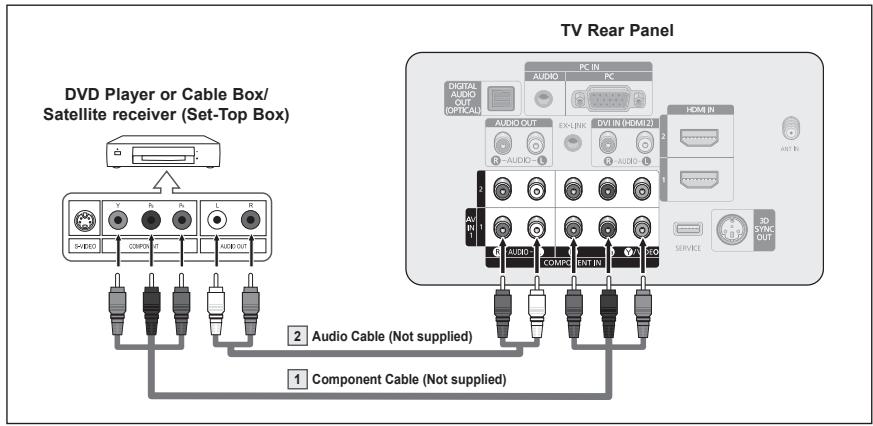

The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box / Satellite receiver (Set-Top Box) to your TV.
1 Connect Component Cables between the COMPONENT IN (1 or 2) [Y, P_B , P_R] jacks on the TV and the COMPONENT [Y, P_B , P_R] jacks on the DVD Player or Cable Box / Satellite receiver (Set-Top Box).
2 Connect Audio Cables between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box / Satellite receiver (Set-Top Box).
Component video separates the video into Y (Luminance (brightness)), P_B (Blue) and P_R (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

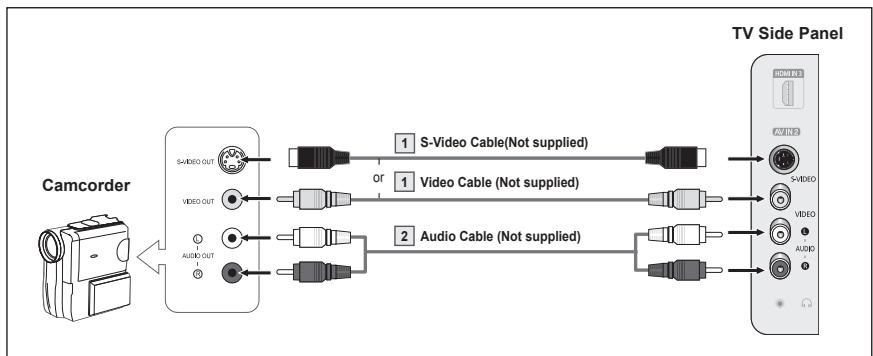

Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.
1 Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the Camcorder.
2 Connect Audio Cables between the AV IN 2 [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the Camcorder.
Each Camcorder has a different back panel configuration.
When connecting a Camcorder, match the color of the connection terminal to the cable.
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.
1 Unplug the cable or antenna from the back of the TV.
2 Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3 Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4 Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 [Y/VIDEO] or AV IN 2 [VIDEO] jack on the TV.
5 Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.
If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the TV. Alternatively, connect the cable to the "R" jack. If your VCR is stereo, you must connect two cables.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

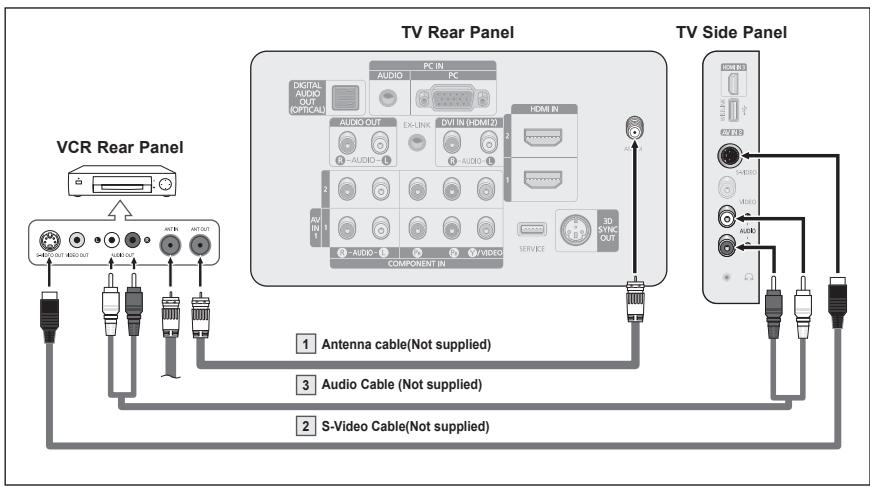

S-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.)
1 To begin, follow steps 1-3 in the previous section to connect the antenna or cable to your VCR and your TV.
2 Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.
3 Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks on the TV.
An S-Video may be included with your VCR. (If not, check your local electronics store.)
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
The rear panel jacks on your TV make it easy to connect a Digital Audio System(Home theater/Receiver) to your TV.
1 Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL) jacks on the Digital Audio System.
When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) terminal: Decrease the volume of the TV, and adjust the volume level with the system's volume control.
What is OPTICAL?
- Converts the electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of digital audio in the form of a light wave that uses a glass conductor.
5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.
Each external input source device has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
Connecting an Amplifier / DVD Home Theater
1 Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] on the TV and AUDIO IN [L-AUDIO-R] on the Amplifier / DVD Home Theater.
When an audio amplifier is connected to the AUDIO OUT [R-AUDIO-L] jacks terminals: Decrease the volume of the TV, and adjust the volume level with the Amplifier's volume control.
Each Amplifier / DVD Home Theater has a different back panel configuration.
When connecting an Amplifier / DVD Home Theater, match the color of the connection terminal to the cable.
Using the D-Sub Cable
1 Connect a D-Sub Cable between PC IN [PC] jack on the TV and the PC output jack on your computer.
2 Connect a PC Audio Cable between PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.
Using the HDMI/DVI Cable
1 Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2 Connect a 3.5mm Stereo/ 2RCA cable between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.
Using the D-Sub Cable
Using the HDMI/DVI Cable
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.
Turning the TV On and Off
Press the POWER button on the remote control. You can also use the POWER button on the TV.
It may take a while before you see a full picture.
Plug & Play Feature
When the TV is initially powered On, basic settings proceed automatically and subsequently:
The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

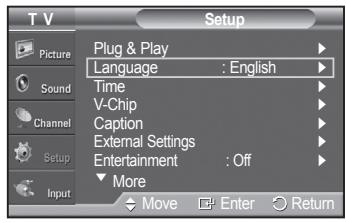

1 Press the POWER button on the remote control. The message Menu language, Store Demo, Channels and Time will be set. is displayed.

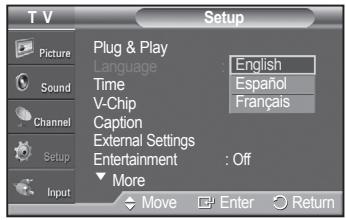

2 Press the ENTER button to enter the language. Press the or button to select language, then press the ENTER button. The message Select "Home Use" when installing this TV in your home. is automatically displayed.
3 Press the or button to select Store Demo or Home Use, then press the ENTER button.
We recommend setting the TV to Home Use mode for the best picture in your home environment.
Store Demo mode is only intended for use in retail environments.
If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button. While the volume OSD is displayed, press and hold the MENU button for 5 seconds.
The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running.

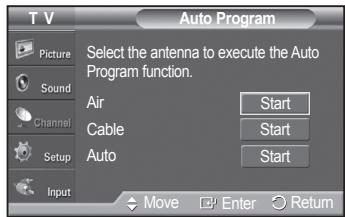

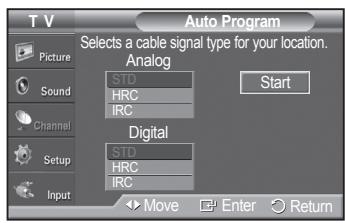

4 Press the or button to memorize the channels of the selected connection. Press the ENTER button to select Start.

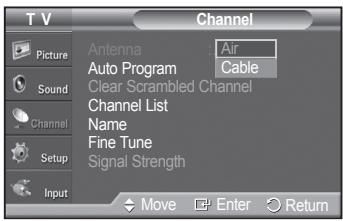

Air: Air antenna signal.
Cable : Cable antenna signal.
Auto: Air and Cable antenna signals.
In Cable mode, you can select the correct analog signal source among STD, HRC, and IRC by pressing the or button, then press the ENTER button. If you have Digital cable, select the signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.
5 The TV will begin memorizing all of the available channels.
To stop the search before it has finished, press the ENTER button with Stop selected.
After all the available channels are stored, the TV starts to remove scrambled channels(see page38). The Auto program menu then reappears. Press the ENTER button when channel memorization is complete. Clock Mode menu is automatically displayed.
6 Press the ENTER button.

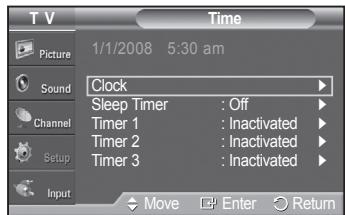

Press the or button to select Manual if you want to set the current time manually, then press the ENTER button. Enter the current date and time. is displayed.
If you select Auto, Set to daylight savings time. is displayed, then go to step 9.

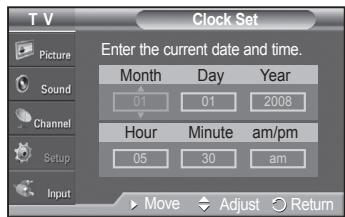

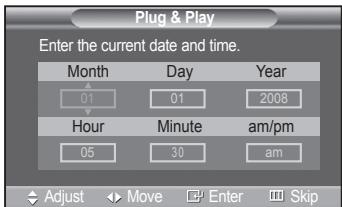

7 Press the or button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the or button, then press the MENU button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing the number buttons on the remote control.
8 The message Enjoy your watching. is displayed. When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.
Setting the Clock Automatically
9 Press the ENTER button.
Press the or button to select On or Off, then press the ENTER button. The Select the time zone in which you live. menu is automatically displayed.

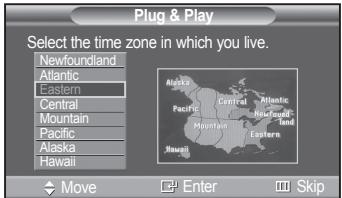

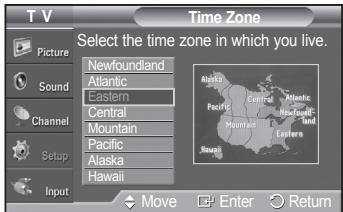

10 Press the or button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States).
Press the ENTER button.
If clock is not automatically set, see page 48 to set the clock.
11 The message Enjoy your watching. is displayed. When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

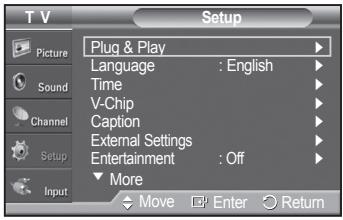

If you want to reset this feature...
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the ENTER button to select Plug & Play. For further details on setting up options, refer to the pages 16~17.
The Plug & Play feature is only available in the TV.
Changing Channels
Using the Channel Buttons
1 Press the CH or CH button to change channels.
When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See pages 20-21 to memorize channels.
Using the Number Buttons
1 Press the number buttons to go directly to a channel. For example, to select channel 27, press 2, then 7.
The TV will change channels when you press the second number.
For quick channel change, press the number buttons, then press the ENTER button.
Using the "-" Button
The "Θ" button is used to select stations that broadcast a digital signal.
1 For example, for Channel 7-1, press 7, then , then 1.
HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal.
For quick channel change, press the number buttons, then press the ENTER button.

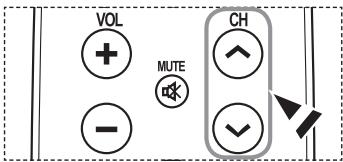

Using the PRE-CH Button to select the Previous Channel
Use the number buttons to quickly tune to any channel.
1 Press the PRE-CH button. The TV will switch to the last channel viewed.
To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them.
Using the Volume Buttons
1 Press the VOL or VOL button to increase or decrease the volume.
Using the Mute Button
At any time, you can cut off the sound using the MUTE button.
1 Press MUTE and the sound cuts off.
Mute will displayed on the screen.
2 To turn mute off, press the MUTE button again, or simply press the VOL or VOL button.
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes depending on which external input mode you are viewing.
1 Press the TOOLS button.
The Tools menu will appear.
2 Press the / button to select a menu, then press the ENTER button.
3 Press the / / / ENTER buttons to display, change, or use the selected items.
For a more detailed description of each function, refer to the corresponding page.
- Anynet+(HDMI-CEC), see page 65
- Picture Mode, see page 23
Sound Mode, see page 34 - Sleep Timer, see page 49
- Add to Favorite, see page 40
- Switch to Cable, see page 20
Viewing the Display
The display identifies the current channel and the status of certain audio-video settings.

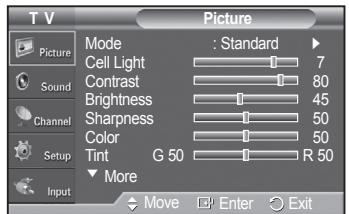

1 Press the INFO button on the remote control.
The TV will display the channel, the type of sound, and the status of certain picture and sound settings.
Press the INFO button once more or wait approximately 10 seconds and it disappears automatically.
1 With the power on, press the MENU button. The main menu appears on the screen. Its left side has five icons: Picture, Sound, Channel, Setup, Input.
2 Press the or button to select one of the icons. Then press the ENTER button to access the icon's sub-menu.
3 Press the EXIT button to exit.
It takes about one minute until the on-screen menu disappears.
Memorizing the Channels
Your TV can memorize and store all of the available channels for both "off-air" (air) and cable channels. After the available channels are memorized, use the CH or CH button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (Channel Lists).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).
1 Press the MENU button to display the menu. Press the or button to select Channel, then press the ENTER button.
2 Press the ENTER button to select Antenna. Press the or button to select Air or Cable, then press the ENTER button. Press the EXIT button to exit.

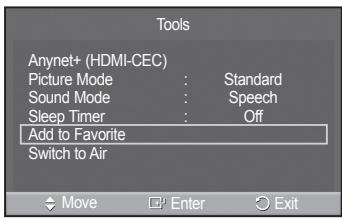

Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Switch to Cable or Switch to Air, then press the ENTER button.

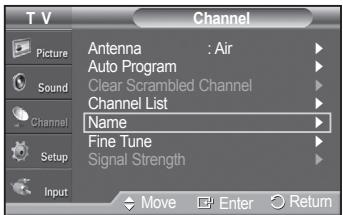

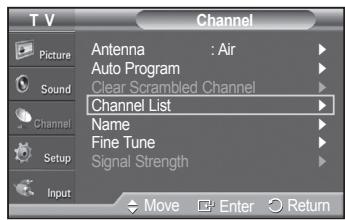

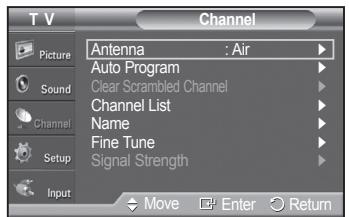

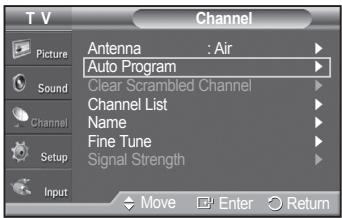

Storing Channels in Memory (Automatic Method)
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Auto Program, then press the ENTER button.
3 Press the or button to select the antenna connection, then press the ENTER button.
Air: Air antenna signal.
Cable : Cable antenna signal.
Auto: Air and Cable antenna signals.
4 When selecting the Cable TV system:
Press the ENTER button to start the auto program.
Press the or to select the correct analog signal cable system source from among STD, HRC, and IRC, then press the ENTER button. If you have Digital cable TV, select the cable system signal source for both Analog and Digital.
STD, HRC, and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected.
5 The TV begins memorizing all available stations.
After all the available channels are stored, the TV starts to remove scrambled channels (see page 38). The Auto program menu then reappears.
If you want to stop Auto Programming, press the ENTER button. The Stop Auto Program? message will be displayed. Select Yes by pressing the or button.
Press the EXIT button to exit.
Use to select TV or other external input sources such as DVD players or Set-top/Cable boxes connected to the TV. Use to select the input source of your choice.

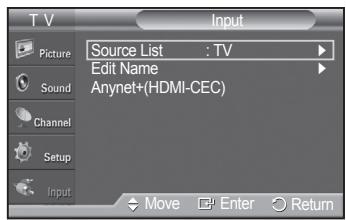

1 Press the MENU button to display the menu.
Press the or button to select Input, then press the ENTER button.
2 Press the ENTER button to select Source List.
Press the or button to select signal source, then press the ENTER button.
Available signal sources: TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3.
You can choose only those external devices that are connected to the TV.
You can also press the SOURCE button on the remote control to view an external signal source.
To Edit the Input Source Name
You can name the device connected to the input jacks to make your input source selection easier.
1 Press the MENU button to display the menu.
Press the or button to select Input, then press the ENTER button.
Press the or button to select Edit Name, then press the ENTER button.

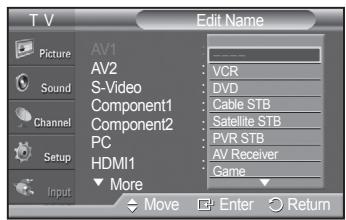

2 Press the or button to select AV1, AV2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2, or HDMI3 input jack, then press the ENTER button.
3 Press the or button to select VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD or Digital Media Adapter input source, then press the ENTER button.
Press the EXIT button to exit.
When a PC with a resolution of 640 × 480@60Hz is connected to the HDMI IN 2 port, you should set the HDMI2 mode to PC in the Edit Name menu.

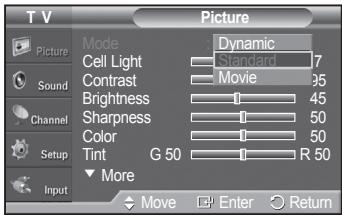

Changing the Picture Standard
You can select the type of picture which best corresponds to your viewing requirements.

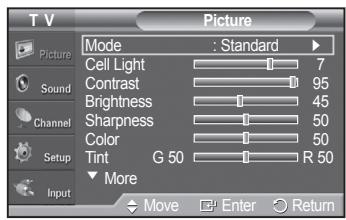

1 Press the MENU button to display the menu. Press the ENTER button to select Picture.
2 Press the ENTER button to select Mode. Press the or button to select Dynamic, Standard, or Movie. Press the ENTER button.
- Dynamic: Select the picture for high-definition in a bright room.
- Standard : Select the picture for the optimum display in a normal environment.
- Movie : Select the picture for viewing movies in a dark room.
3 Press the EXIT button to exit.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Picture Mode.
3 Press the or button to select the required option.

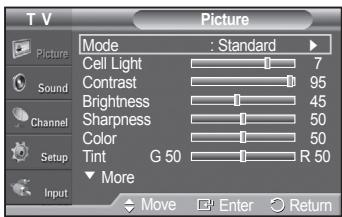

Customizing the Picture Settings
Your television has several setting options that allow you to control the picture quality.
1 To select the desired picture mode, follow the Changing the Picture Standard instructions number 1 to 2.
2 Press the or button to select Cell Light, Contrast, Brightness, Sharpness, Color, or Tint, then press the ENTER button.
3 Press the or button to decrease or increase the value of a particular item. Press the ENTER button. Press the EXIT button to exit.
When you make changes to Cell Light, Contrast, Brightness, Sharpness, Color, or Tint(G/R) the OSD will be adjusted accordingly.
-
When in PC mode, Tint(G/R), Sharpness and Color are not available.
Each adjusted setting will be stored separately according to its input mode. -
Cell Light : Sets the pixel brightness; 10 being the highest setting.
- Contrast : Adjusts the contrast level of the picture.
- Brightness: Adjusts the brightness level of the picture.
- Sharpness: Adjusts the edge definition of the picture.
Color: Adjusts color saturation of the picture. - Tint : Adjusts the color tint of the picture by compensating the red and green color.
Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.

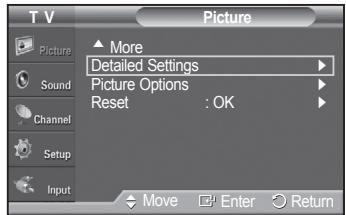

Activating Detailed Settings
1 Press the MENU button to display the menu. Press the ENTER button to select Picture.
2 Press the ENTER button to select Mode. Press the or button to select Standard or Movie, then press the ENTER button.
Detailed Settings is available in Standard or Movie mode.

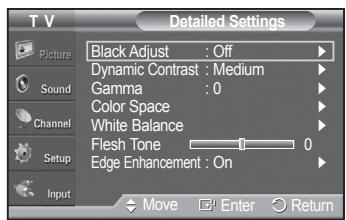

3 Press the or button to select Detailed Settings, then press the ENTER button.
In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance from among the Detailed Settings items.
Activating Black adjust
You can select the black level on the screen to adjust the screen depth.
4 Press the or button to select Black adjust, then press the ENTER button.
5 Press the or button to select Off, Low, Medium or High. Press the ENTER button.
- Off : Turns off the black adjustment function.
- Low: Sets the black color depth to low.
Medium : Sets the black color depth to medium. - High : Sets the black color depth to high.

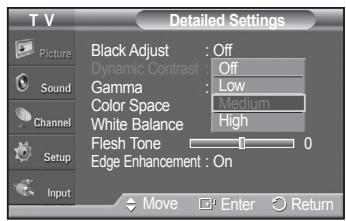

Activating Dynamic Contrast
You can adjust the screen contrast so that the optimal contrast is provided.
6 Press the or button to select Dynamic Contrast, then press the ENTER button.
7 Press the or button to select Off, Low, Medium or High. Press the ENTER button.
- Off: Turns off the dynamic contrast adjustment function.
- Low: Sets the dynamic contrast to low.
Medium : Sets the dynamic contrast to medium. - High : Sets the dynamic contrast to high.

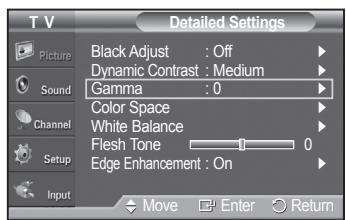

Activating Gamma
You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 +3)
8 Press the or button to select Gamma, then press the ENTER button.
9 Press the or button to decrease or increase the value. Press the ENTER button.
Continued...

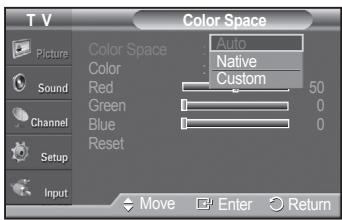

Changing the Color Space
Color space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most natural color.
10 Press the or button to select Color Space, then press the ENTER button.
11 Press the ENTER button again to select Color Space.
12 Press the or button to select Auto, Native or Custom. Press the ENTER button.
- Auto : Auto Color Space automatically adjusts to the most natural color tone based on program sources.
- Native : Native Color Space offers deep and rich color tone.
- Custom: Adjusts the color range to suit your preference. (see "Customizing the Color Space")

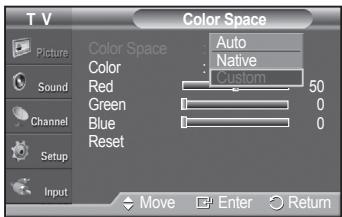

Customizing the Color Space
13 Press the or button to select Color, then press the ENTER button.
Color is available when Color Space is set to Custom.
14 Press the or button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button.
15 Press the or button to select Red, Green or Blue to change it. Press the ENTER button.
16 Press the or button to decrease or increase the value of a particular item. Press the ENTER button.
In Color, you can adjust the RGB values for the selected color.
To reset the adjusted RGB value, select Reset.
- Red : Adjusts the red saturation level of the selected color.
- Green : Adjusts the green saturation level of the selected color.
- Blue : Adjusts the blue saturation level of the selected color.
- Reset: Resets the color space to the default values.
Changing the adjustment value will refresh the adjusted screen.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.

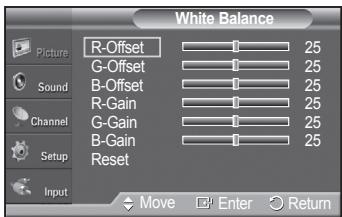

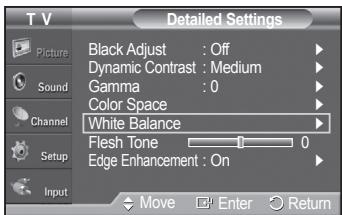

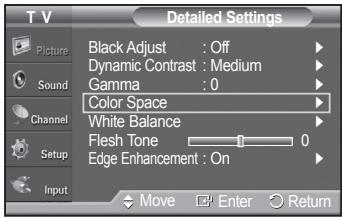

Activating White Balance
You can adjust the color temperature for more natural picture colors.
17 Press the or button to select White Balance, then press the ENTER button.
18 Select the required option by pressing the or button, then press the ENTER button.
19 Press the or button to decrease or increase the value of a particular item. Press the ENTER button.
- R Offset : Adjusts the red color darkness.
- G Offset : Adjusts the green color darkness.
- B Offset : Adjusts the blue color darkness.
- R Gain: Adjusts the red color brightness.
G Gain: Adjusts the green color brightness.
B Gain: Adjusts the blue color brightness. - Reset : The previously adjusted white balance will be reset to the factory defaults.
Changing the adjustment value will refresh the adjusted screen.
Continued...

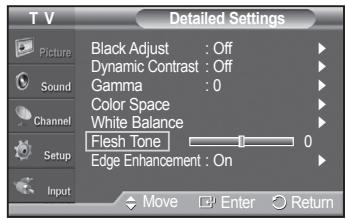

Flesh Tone
You can emphasize the pink flesh tone in the picture.
20 Press the or button to select Flesh Tone, then press the ENTER button.
21 Press the or button to decrease or increase the value. Press the ENTER button.
Changing the adjustment value will refresh the adjusted screen.
Activating Edge Enhancement
You can emphasize object boundaries in the picture.
22 Press the or button to select Edge Enhancement, then press the ENTER button.
23 Press the or button to select Off or On. Press the ENTER button.

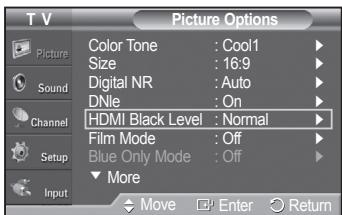

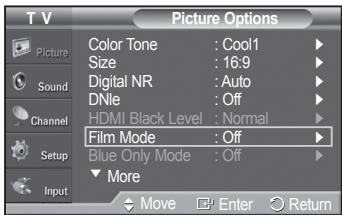

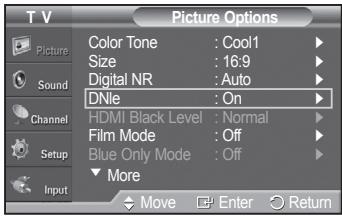

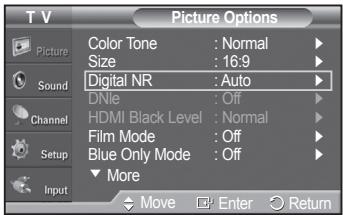

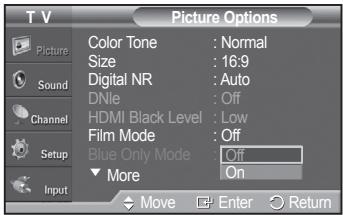

Configuring Picture Options
Activating Picture Options

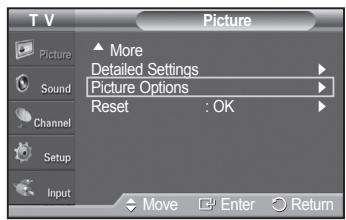

1 Press the MENU button to display the menu. Press the ENTER button to select Picture.
2 Press the or button to select Picture Options, then press the ENTER button.
3 Press the or button to select a particular item. Press the ENTER button.
When you are satisfied with your setting, press the ENTER button.
In PC mode, you can only make changes to the Color Tone and Size from among the items in Picture Options.

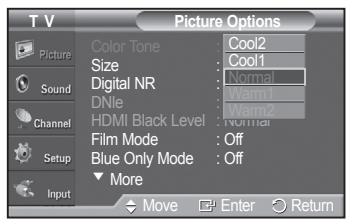

Adjusting the Color Tone
1 Follow the Activating Picture Options instructions numbers 1 and 2.
2 Press the or button to select Color Tone, then press the ENTER button.
3 Press the or button to select Cool2, Cool1, Normal, Warm1 or Warm2. Press the ENTER button.
Warm1 or Warm2 is only activated when the picture mode is Movie.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.

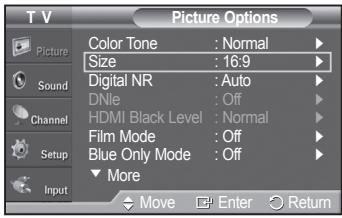

Changing the Screen Size
Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
2 Press the or button to select Size, then press the ENTER button.
3 Press the or button to select the screen format you want.
Press the ENTER button.
Press the EXIT button to exit.
- 16:9 : Sets the picture to 16:9 wide mode.
- Zoom1: Magnifies the size of the picture on the screen.
- Zoom2: Expands the Zoom1 format picture.
- Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.
- 4:3 : Sets the picture to 4:3 normal mode.
- Just Scan : Use the function to see the full image without any cutoff when HDMI (1080i/1080p), Component (1080i/1080p) or DTV (1080i) signals are input.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
After selecting Zoom1, Zoom2 or Wide Fit

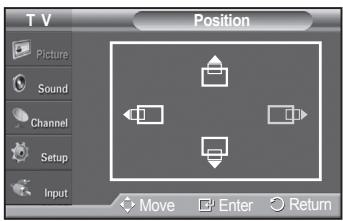

Press the or button to select Position, then press the ENTER button.
Press the or button to move the picture up and down.
Reset: Press the or button to select Reset, then press the ENTER button. You can initialize the setting.
After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode:
Press the or button to select H-Position or V-Position, then press the ENTER button. Press the or button to adjust the screen Position. Press the ENTER button.
Reset: Press the or button to select Reset, then press the ENTER button. You can initialize the setting.
HD (High Definition)
16:9 - 1080i (1920x1080), 720p (1280x720)
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
| Input Source | Picture Size |
| TV, Video, S-Video, Component (480i, 480p) | 16:9, Zoom1, Zoom2, 4:3 |
| DTV(1080i), Component (1080i), HDMI (1080i) | 16:9, 4:3, Wide Fit, Just Scan |
| PC | 16:9, 4:3 |
Alternate, you can press the P.SIZE button on the remote control repeatedly to change the picture size.
EMODE
PSIZE
FAV.CH
16:9
Sets the picture to 16:9 wide mode.
Zoom1
The screen size when Wide screen is vertically enlarged.
Zoom2
The screen size when the Zoom1 screen is vertically enlarged.
Wide Fit
Enlarges the aspect ratio of the picture to fit the entire screen.
4:3
Sets the picture to 4:3 normal mode.
Just Scan
Use the function to see the full image without any cutoff when HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

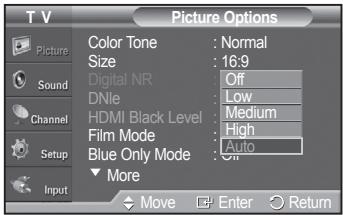

Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.
1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select Digital NR, then press the ENTER button.
3 Press the or button to select Off, Low, Medium, High or Auto. Press the ENTER button.
- Off: Turns the screen noise reduction function off.
- Low: Reduces screen noise at a low level.
Medium : Reduces screen noise at a medium level. - High: Reduces screen noise at a high level.
- Auto: Automatically recognizes and reduces screen noise.
Press the EXIT button to exit.
Continued...
DNle (Digital Natural Image engine)
This TV includes the DNle function to provide high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated.

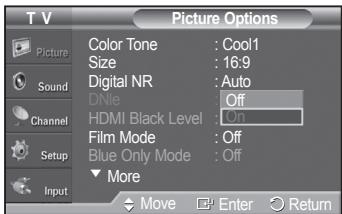

1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select DNle, then press the ENTER button.
3 Press the or button to select On or Off or then press the ENTER button.
- Off: Switches off the DNle mode.
- On: Switches on the DNle mode.
Press the EXIT button to exit.
DNleTM (Digital Natural Image engine) DNleTM
This feature brings you a more detailed image with 3D noise reduction and detail, contrast and white enhancement.
DNlle is only available in Dynamic mode.
This function doesn't work when the Input Source is PC.
Setting the HDMI Black Level
Use this function to adjust the Black Level of the picture while in HDMI mode.
1 Follow the Activating Picture Options instructions numbers 1 and 2 (Refer to page 26)
2 Press the or button to select HDMI Black Level, then press the ENTER button.
3 Press the or button to select Normal or Low, then press the ENTER button.
Normal : The screen gets brighter.
- Low: The screen gets darker.
This function is active only when an external device is connected to the TV via HDMI. HDMI Black Level function may not be compatible with or external devices.
Press the EXIT button to exit.

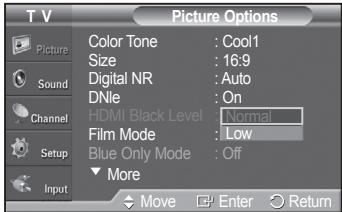

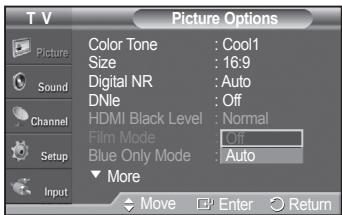

Setting the Film Mode
The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select Film Mode, then press the ENTER button.
3 Press the or button to select Off or Auto, then press the ENTER button. Press the EXIT button to exit.
Film mode is supported in TV, AV1, AV2, S-Video, Component (480i /1080i) and HDMI (1080i).
Continued...
Setting the Blue Only Mode
This function is for AV device measurement experts.
This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Color and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Color and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/ Yellow Color Bar Patterns, without using an additional Blue Filter.
1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select Blue Only Mode, then press the ENTER button.
3 Press the or button to select Off or On, then press the ENTER button. Press the EXIT button to exit.
Blue Only Mode is available when the picture mode is set to Standard or Movie.
Reducing the Effects of Screen Burn
If screen burn has occurred, you can select a white screen or scrolling to help remove screen burn artifacts.
1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select Screen Burn Protection, then press the ENTER button.
3 Press the or button to select Pixel Shift, White, Scrolling, or Side Gray then press the ENTER button.
Press the EXIT button to exit.
White
This function removes after-images on the screen by changing the color of pixels to white. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
- Scrolling
This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
- Side Gray
When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.
To prevent the screen burn from happening, select Dark or Light.
- Dark : When you set the screen ratio to 4:3, it darkens the left and right sides.
- Light : When you set the screen ratio to 4:3, it brightens the left and right sides.
To remove after-images on the screen, use either the White or Scrolling function. Although both functions remove after-images on the screen, Scrolling is more effective.
The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.
Press any key on the remote control to cancel this feature.
Preventing Screen Burn-in
To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology.
This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot).
The Time setting allows you to program the time between movement of the picture in minutes.
1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 26)
2 Press the or button to select Screen Burn Protection, then press the ENTER button.
3 Press the ENTER button to select Pixel Shift, then press the ENTER button. Pressing the or button will alternate between On and Off. You will also see the items Horizontal Dot, Vertical Line and Time.
- Pixel Shift : Using this function, you can minutely move pixels on the PDP in the horizontal or vertical direction to prevent after-images on the screen.
4 Press the or button to select the item you wish to change, then press the ENTER button.
Press the or button to change the value of the item, then press the ENTER button.
- Optimum condition for pixel shift;
| PC | TV/AV1/AV2/S-Video/Component/HDMI | |
| Horizontal Dot | 1 | 2 |
| Vertical Line | 1 | 2 |
| Time(min) | 2 | 2 min |
This function is not available in the Just Scan mode.
Press the EXIT button to exit.
You can enjoy 3D movies and games on your TV. The 3D effects function enables you to view 3D images using special 3D glasses.
Connections

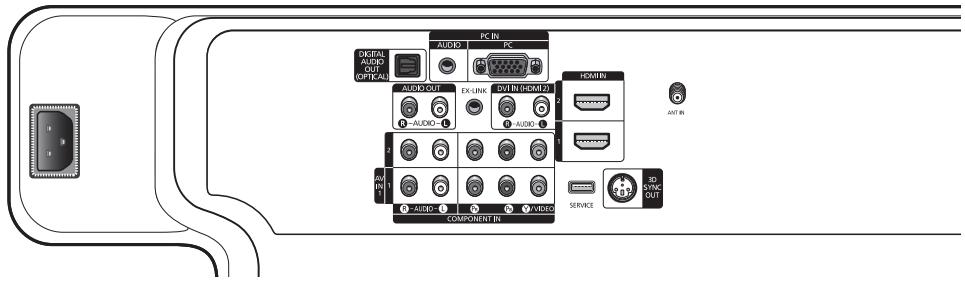

※ The appearance of the 3D glasses (including Emitter) may differ depending on the model of your glasses.
1 Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2 Connect a 3.5mm Stereo/2RCA cable between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.
3 Connect the Emitter to the 3D SYNC OUT port on the rear panel of the TV.
4 Turn the TV on and set the source of the TV to HDMI2.
For more information on the 3D glasses (including the Emitter), refer to the user manual of your 3D glasses.
Adjust the PC resolution: - PN42A450P1D: 1024 x 768@60Hz - PN50A450P1D: 1024 x 768@60Hz,1360 x 768@60Hz
Optimum PC resolution for PN50A450P1D is 1360x768. When 1024x768 signal is connected in 3D mode, the picture will be shown in 4:3 format with left and right side grey bars appeared.
The 3D IR Emitter communicates with the 3D glasses. Therefore, the 3D IR Emitter should be located near the 3D glasses.
It is activated when the HDMI or DVI input signal is RGB, and DVI Sound is supported.
When the power is turned on or off, the mode changes to the default (Off) and the Format is saved.
The 3D Effect is turned on or off regardless of the Picture Mode.
When 3D Effect is on, only the Contrast, Brightness, 3D Effect, and Reset picture menus are activated.
To use the 3D Effect function, a graphics card supporting 3D or 3D software is required.
The 3D glasses and the Emitter must be manufacturer by the same company.
If you play a game or watch TV while wearing the 3D glasses for long periods of time, you may experience eyestrain or a headache.
3D glasses (including the Emitter) not manufactured by Samsung may not be supported.
If you find the screen flickering while the 3D function is used, change the environmental lighting darker or turn off the fluorescent lamp to watch the screen for its best condition.
Changing the Mode
Provides the function to turn on the 3D Effect. You can choose between Mode1 and Mode2. To achieve the 3D effect, the 3D glasses shutter back and forth from the left to right and vice versa (left/right sync).
1 Connect the TV, PC and 3D IR Emitter as shown in the figure.
2 Press the SOURCE button to select HDMI2.
3 Press the MENU button to display the menu. Press the or button to select Picture, then press the ENTER button.
4 Press the or button to select Picture, Option then press the ENTER button.
Press the or button to select 3D Effect then press the ENTER button.
5 Press the or button to select Mode, then press the ENTER button. Press the or button to select Off, Mode1 or Mode2 then press the ENTER button.
- Off: Turns the 3D Effect function off.
Mode1: Mode 1 operates with right sync first.
Mode2: Mode 2 operates with left sync first.
You should choose Off to end 3D Effect completely.
If the 3D effect is not working properly, it means the Mode and 3D glasses may not be syncing properly. To put them in sync, switch to the other mode.
Changing the Format
Select the optimal input format to match your graphic cards or 3D Software. See the descriptions for Steps 1 to 4 above.
5 Press the or button to select Format, then press the ENTER button.
6 Press the or button to select Checkerboard, Horizontal or Vertical then press the ENTER button.
| Checkerboard | If the output format of your graphic card or 3D software is Checkerboard, select this input format. |
| Horizontal | If the output format of your graphic card or 3D software is Horizontal interleaved, select this input format. |
| Vertical | If the output format of your graphic card or 3D software is Vertical interleaved, select this input format. |
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select 3D Effect.
3 Press the ENTER button to start the 3D Effect.
Resetting the Picture Settings to the Factory Defaults
1 To select the desired picture mode, follow the Activating Picture Options instructions numbers 1 and 2. (see page 26)
2 Press the ENTER button to select Picture. Press the or button to select Reset, then press the ENTER button. Press the or button to select OK or Cancel then press the ENTER button. Press the EXIT button to exit.
Eachmodecan bereset.
Changing the Sound Standard
You can select the sound mode to best suit the programming you're watching.
1 Press the MENU button to display the menu.
Press the or button to select Sound, then press the ENTER button.
2 Press the ENTER button to select Mode. Press the or button to select Standard, Music, Movie, Speech, or Custom sound setting, then press the ENTER button.
Press the EXIT button to exit.
- Standard: Selects the normal sound mode.
- Music : Emphasizes music over voices.
- Movie : Provides the best sound for movies.
- Speech : Emphasizes voice over other sounds.
- Custom: Recalls your customized sound setting. (See Customizing the Sound)
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Sound Mode.
3 Press the or button to select the required option.

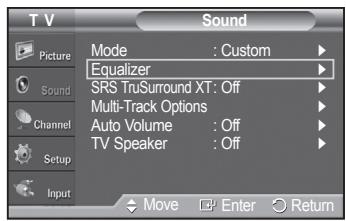

Customizing the Sound
The sound settings can be adjusted to suit your personal preference.
1 Press the MENU button to display the menu.
Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select Equalizer, then press the ENTER button.
3 Press the or button to select a particular frequency to adjust.
Press the or button to increase or decrease the level of the particular frequency, then press the ENTER button.
Press the EXIT button to exit.
- L/R Sound Balance Adjustment : To adjust the sound balance of the L/R speakers.
- Bandwidth Adjustment (100Hz, 300Hz, 1kHz, 2kHz, 3kHz, 10kHz):
To adjust the level of different bandwidth frequencies.
If you make any changes to the equalizer settings, the sound mode is automatically switched to the Custom mode.
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two-speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multi channel formats.
1 Press the MENU button to display the menu. Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select SRS TruSurround XT, then press the ENTER button.
3 Press the or button to select Off or On, then press the ENTER button. Press the EXIT button to exit.
Press the SRS button on the remote control to select On or Off.
TruSurround XT, SRS and () Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Choosing a Multi-Channel Sound (MTS) Track - Digital
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).

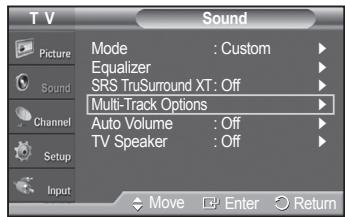

Preferred language
1 Press the MENU button to display the menu. Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select Multi-Track Options, then press the ENTER button.
3 Press the ENTER button to select Preferred Language. Press the or button to choose the language (English/Spanish/French) you want, then press the ENTER button.
Press the EXIT button to exit.
You can only select the language from among the actual languages being broadcast.
Preferred Language is available only in Digital TV mode.
Press the MTS button on the remote control to listen in a language other than the preferred language.
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
Multi-Track Sound
1 Press the MENU button to display the menu.
Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select Multi-Track Options, then press the ENTER button.
3 Press the or button to select Multi-Track Sound, then press the ENTER button.
Press the or button to select a setting you want, then press the ENTER button.
Press the EXIT button to exit.
- Mono : Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal.
- Stereo : Choose for channels that are broadcasting in stereo.
- SAP : Choose to listen to the Separate Audio Program, which is usually a foreign language translation.
Multi-Track Sound is available only in Analog TV mode.
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
Press the MTS buttons on the remote control to select Mono, Stereo, or SAP.

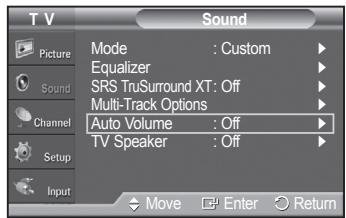

Automatic Volume Control
Reduces the difference in volume level among broadcasters.
1 Press the MENU button to display the menu.
Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select Auto Volume, then press the ENTER button.
3 Press the or button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.

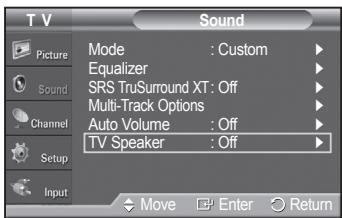

Sound output from the TV speakers is muted.
1 Press the MENU button to display the menu. Press the or button to select Sound, then press the ENTER button.
2 Press the or button to select TV Speaker, then press the ENTER button.

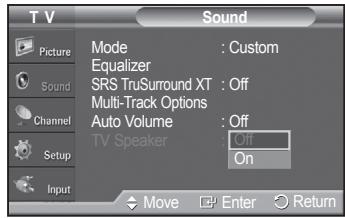

3 Press the or button to select Off or On, then press the ENTER button. Press the EXIT button to exit.
When TV Speaker is set to Off, Sound menus except Multi-track Options cannot be adjusted.
- The VOL , VOL and MUTE buttons do not operate when the TV Speaker is set to Off.
| TV's Internal Speakers | Audio Out (Optical, L/R Out) to Sound System | |||||
| TV | AV, S-Video | Component, PC, HDMI | TV | AV, S-Video | Component, PC, HDMI | |
| TV Speaker On | Speaker Output | Speaker Output | Speaker Output | Sound Output | Sound Output | Sound Output |
| TV Speaker Off | Mute | Mute | Mute | Sound Output | Sound Output | Sound Output |
| Video No Signal | Mute | Mute | Mute | Mute | Mute | Mute |
Connecting Headphones (Sold separately)
You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.
When you insert the headphone's plug into the headphone jack, you cannot operate TV Speaker in Sound menu.
Prolonged use of headphones at a high volume may damage your hearing.
You will not hear sound from the speakers when you connect headphones to the TV.
Selecting the Antenna
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the ENTER button to select Antenna.
Press the or button to select Air or Cable, then press the ENTER button.
Press the EXIT button to exit.

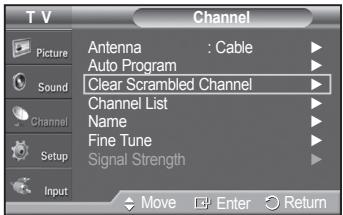

Clearing Scrambled Channels - Digital
The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20-30 minutes.
1 Press the MENU button.
Press the or button to select Channel, then press the ENTER button.
Press the or button to select Clear Scrambled Channel, then press the
ENTER button. It searches scrambled channels, which are to be removed from
the list.
To stop searching scrambled channels;
Press the ENTER button to select Stop.
Press the button to select Yes, then press the ENTER button.
2 When the scrambled channel searching is completed, press the ENTER button.
Press the EXIT button to exit.
This function is only available in Cable mode.

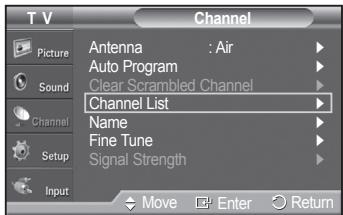

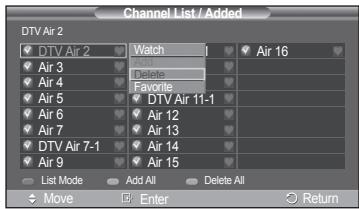

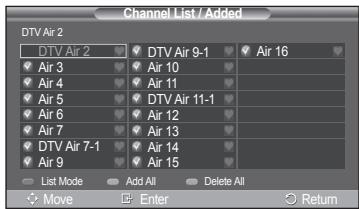

You can add or delete a channel to display the channels you want.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Channel List, then press the ENTER button.
3 Press the or button to select Added, then press the ENTER button.
4 Press the / / buttons to select a channel to add, then press the ENTER button.

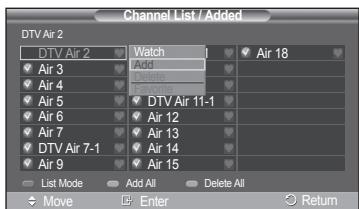

Press the or button to select Add, then press the ENTER button to add the channel.
Press the MENU button to return.
All added channels will be shown on Added menu.
5 Press the / / buttons to select a channel to delete, then press the ENTER button.
Press the or button to select Delete, then press the ENTER button to delete the channel.
Press the EXIT button to exit.
You can also delete a channel in the All Channels menu in the same manner.
- Red button : Press repeatedly to select All, Added, or Favorite.
- Green button : Press to add all channels deleted.
- Yellow button : Press to delete all channels memorized.
You can display a list of all channels, added channels or your favorite channels.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Channel List, then press the ENTER button.
3 Press the or button to select All, Added or Favorite, then press the ENTER button.
To toggle between your all channels, add channels, or favorite channels, use the red button on the remote control.
- Red button : Press repeatedly to select All, Added, or Favorite.
- Green button : Press to add all channels deleted.
- Yellow button : Press to delete all channels memorized.

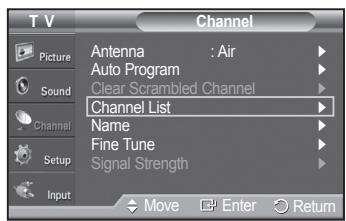

Setting Your Favorite Channels
You can set channels you watch frequently as favorites.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Channel List, then press the ENTER button.

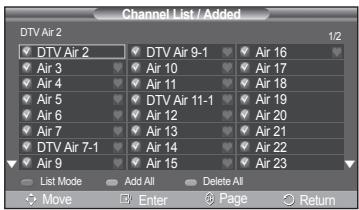

3 Press the or button to select All or Added, then press the ENTER button.
4 Press the / / buttons to select a channel as a favorite channel, then press the ENTER button.
Press the CH and CH button to display the next channel list page.
Continued...
5 Press the or button to select Favorite, then press the ENTER button. The “ 心 ” symbol will be highlighted and the channel will be set as a Favorite. To cancel your Favorite channel selection, press the ENTER button until the “ 心 ” symbol disappears.
Press the EXIT button to exit.
Only memorized channels can be set as favorite channels.
All favorite channels will be shown on the Favorite menu.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Add to Favorite or Delete from Favorite, then press the ENTER button.
The current channel is added to or deleted from Favorites.
To select the favorite channels you have set up, press the FAV.CH button on the remote control.
Setting the Default Channel List Mode
You can set All, Added, or Favorite to be the Default List that appears when you press the CH LIST button.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Channel List, then press the ENTER button.
3 Press the or button to select Default List Mode, then press the ENTER button.
Press the or button to select All, Added, or Favorite, then press the ENTER button.
Select the Channel list you want to appear when you press the CH LIST button.
- All : Shows All the channels when you press the CH LIST button on the remote control.
- Added : Shows Added channels when you press CH LIST button on the remote control.
- Favorite : Shows Favorite channels when you press CH LIST button on the remote control.
Press the EXIT button to exit.
Press the CH LIST button on the remote control to bring up the Channel Lists.

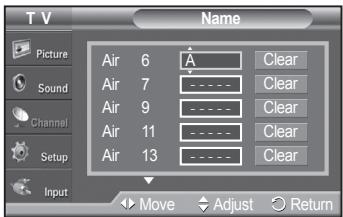

Channels can labeled so that their call letters appear whenever the channel is selected.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
Press the or button to select Name, then press the ENTER button.
2 Press the or button to select the channel to be assigned a new name, then press the ENTER button.
3 Press the or button to select a letter, a number or a blank (Results in this sequence: A~Z, 0~9, +, -, *, /, blank).
Press the button to switch to the next field, which will be selected.
Select a second letter or digit by pressing the or button, as above.
Repeat the process to select the last three digits. When you have finished, press the ENTER button to assign the new name.
To erase the assigned new name, select Clear by pressing the or button, then press the ENTER button.
Press the EXIT button to exit.
The names of digital broadcasting channels are automatically assigned and thus cannot be assigned by users.
Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Fine Tune, then press the ENTER button.
3 Press the or button to adjust the fine tuning.
4 To store the fine tuning setting in the TV's memory, press the ENTER button. To reset the fine tuning setting, press the button to select Reset, then press the ENTER button.
Press the EXIT button to exit.
Only analog TV channels can be fine tuned.
“*” will appear next to the number of fine-tuned channels.
Unlike analog channels, which can vary in reception quality from snowy to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.
1 Press the MENU button to display the menu.
Press the or button to select Channel, then press the ENTER button.
2 Press the or button to select Signal Strength, then press the ENTER button. If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.
Continue to adjust the antenna until you find the best position with the strongest signal.
Press the EXIT button to exit.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer or Video Card manufacturer.)
1 First, click on Control Panel on the Windows start menu.
2 When the control panel window appears, click on Appearance and Themes and a display dialog-box will appear.
3 When the control panel window appears, click on Display and a display dialog-box will appear.
4 Navigate to the Settings tab on the display dialog-box.
The correct size setting (resolution)
Optimum : PN42A450P1D : 1024x768 pixels
PN50A450P1D : 1360x768 pixels
If a vertical-frequency option exists on your display settings dialog box, the correct value is 60 or 60Hz . Otherwise, just click OK and exit the dialog box.
Display Modes
If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn't equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacture.
D-Sub Input
| Mode | Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) | Pixel Clock Frequency (MHz) | Sync Polarity (H/V) | PN42A450P1D | PN50A450P1D |
| IBM | 640 x 350 | 31.469 | 70.086 | 25.175 | +/- | ✓ | ✓ |
| 720 x 400 | 31.469 | 70.087 | 28.322 | -/+ | ✓ | ✓ | |
| VESA | 640 x 480 | 31.469 | 59.940 | 25.175 | -/- | ✓ | ✓ |
| 640 x 480 | 37.861 | 72.809 | 31.500 | -/- | ✓ | ✓ | |
| 640 x 480 | 37.500 | 75.000 | 31.500 | -/- | ✓ | ✓ | |
| 800 x 600 | 37.879 | 60.317 | 40.000 | +/+ | ✓ | ✓ | |
| 800 x 600 | 48.077 | 72.188 | 50.000 | +/+ | ✓ | ✓ | |
| 800 x 600 | 46.875 | 75.000 | 49.500 | +/+ | ✓ | ✓ | |
| 1024 x 768 | 48.363 | 60.004 | 65.000 | -/- | ✓ | ✓ | |
| 1024 x 768 | 56.476 | 70.069 | 75.000 | -/- | ✓ | ✓ | |
| 1024 x 768 | 60.023 | 75.029 | 78.750 | +/+ | ✓ | ✓ | |
| 1360 x 768 | 47.712 | 60.015 | 85.500 | +/+ | ✓ |
HDMI/DVI Input
| Mode | Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) | Pixel Clock Frequency (MHz) | Sync Polarity (H/V) | PN42A450P1D | PN50A450P1D |
| VESA | 640 x 480 | 31.469 | 59.940 | 25.175 | -/- | ✓ | ✓ |
| 800 x 600 | 37.879 | 60.317 | 40.000 | +/+ | ✓ | ✓ | |
| 1024 x 768 | 48.363 | 60.004 | 65.000 | -/- | ✓ | ✓ | |
| 1360 x 768 | 47.712 | 60.015 | 85.500 | +/+ | ✓ |
- The interlace mode is not supported.
- The TV operates abnormally if a non-standard video format is selected.
- The table above conforms to IBM/VESA regulations and is based on using the Analog Input.
- “ ” mark means that this mode is supported.
For the PN42A450P1D, PC text quality is optimum in VESA mode (1024 x 768@60Hz).
- For the PN50A450P1D, PC text quality is optimum in VESA mode (1360 x 768@60Hz). (Three pixels on left, right, top and bottom will be grayed out at the resolution setting of 1360x768@60Hz. This is not a mechanical problem but a result caused by the pixel difference between the standard resolution and the PDP panel.)
- When this TV is used as a PC display, 32-bit color is supported.
- Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of Windows.) Check your PC instruction book for information about connecting your PC to a TV.
- If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 48.4KHz (horizontal).
- In some cases, abnormal signals (such as stripes) might appear on the TV screen when the PC power is turned off (or if the PC is disconnected). If so, press the SOURCE button on the remote control or TV panel to enter a VIDEO mode. Also, make sure that the PC is connected.
Setting up the TV with your PC
Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC. The function also automatically fine-tunes the settings and adjusts the frequency values and positions.
How to Auto Adjust
1 Press the MENU button to display the menu.
Press the or button to select Picture, then press the ENTER button.
2 Press the or button to select Auto Adjustment, then press the ENTER button. The message Auto Adjustment in progress. Please wait. appears on the screen and the picture adjustments are automatically activated.
Press the EXIT button to exit.
This function does not work in DVI-Digital mode.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Auto Adjustment, then press the ENTER button.

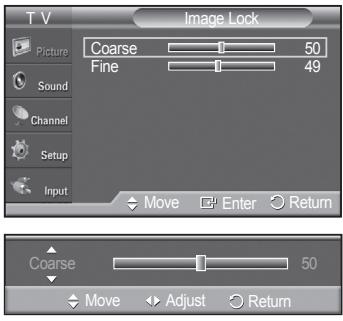

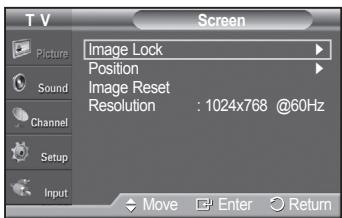

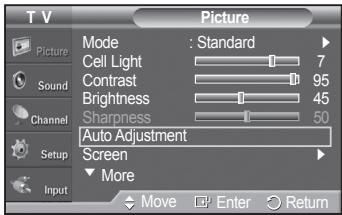

Adjusting the Screen Quality
The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmost and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the or button to select Picture, then press the ENTER button.
Press the or button to select Screen, then press the ENTER button.
2 Press the ENTER button to select Image Lock.
3 Press the or button to select Coarse or Fine, then press the ENTER button. Press the or button to adjust the screen quality, then press the ENTER button.
Press the EXIT button to exit.
Vertical stripes may appear or the picture may be blurry.

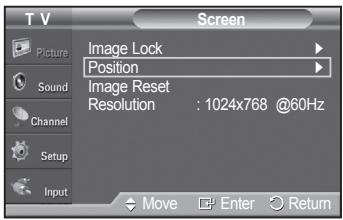

Changing the Screen Position
Adjust the PC's screen positioning if it does not fit the TV Screen.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the or button to select Picture, then press the ENTER button.
Press the or button to select Screen, then press the ENTER button.
2 Press the or button to select Position, then press the ENTER button.
3 Press the or button to adjust the V-Position.
Press the or button to adjust the H-Position.
Press the ENTER button.
Press the EXIT button to exit.

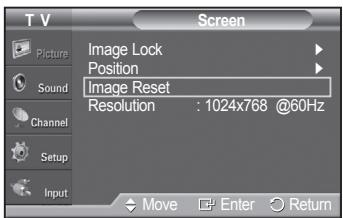

Initializing the Screen Position
You can replace all image settings with the factory default values.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the or button to select Picture, then press the ENTER button.
Press the or button to select Screen, then press the ENTER button.
2 Press the or button to select Image Reset, then press the ENTER button. The message Image Reset is completed. appears on the screen.
Press the EXIT button to exit.
The previously adjusted settings will be reset to the factory defaults.
Viewing the Resolution
Displays currently set PC resolution.
Setting the Time
Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)
Option 1: Setting the Clock Manually
1 Press the MENU button to display the menu. Press the or button to select Setup, then press the ENTER button. Press the or button to select Time, then press the ENTER button.
2 Press the ENTER button to select Clock.
3 Press the ENTER button to select Clock Mode. Press the or button to select Manual, then press the ENTER button.
4 Press the or button to select Clock Set, then press the ENTER button.
5 Press the or button to move to Month, Day, Year, Hour, Minute, or am/ pm. Set the date and time you want by pressing the or button, then press the ENTER button.
Press the EXIT button to exit.
The current time will appear every time you press the INFO button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing the number buttons on the remote control.
Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
Press the or button to select Time, then press the ENTER button.
2 Press the ENTER button to select Clock.
3 Press the ENTER button to select Clock Mode.
Press the or button to select Auto, then press the ENTER button.
4 Press the or button to select Time Zone, then press the ENTER button.
5 Press the or button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States), then press the ENTER button.
6 Press the or button to select DST(Daylight Saving Time), then press the ENTER button.
Press the or button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually.
Antenna or Cable must be connected in order to set the time automatically.

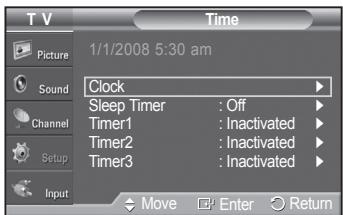

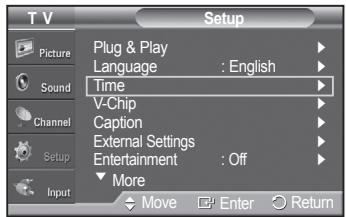

Setting the On/Off Timer
Use this feature to set the TV to turn on or off at a desired time. You must set the clock first.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
Press the or button to select Time, then press the ENTER button.
Continued...

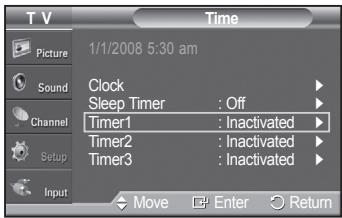

2 Three different On/Off Timer Settings can be made.
Press the or button to select Timer1, Timer2,or Timer3, then press the ENTER button. The timer menu is displayed.
Press the or button to adjust hour, then press the button to move to the next step. Set other items using the same method as above.
3 Press the or button to select the desired item below.
Press the or button to adjust the setting.
Press the EXIT button to exit.
- On Time : Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you've chosen, set to Activate.)
- Off Time : Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you've chosen, set to Activate.)
Volume : Set the required volume level. - Channel: When the On Timer is activate, you can turn on a specific channel.
- Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual.
When Manual is selected, press the button to select the desired day of the week. Press the ENTER button over the desired day and the mark (√) will appear.
You can set the hour, and minute directly by pressing the number buttons on the remote control.
Auto Power Off
When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
Press the or button to select Time, then press the ENTER button.
2 Press the or button to select Sleep Timer, then press the ENTER button.
3 Press the or button to select the minute.
Setting the Timer sets the Activation to On automatically.
To cancel the set sleep timer:
Press the button to select Activation.
Press the or button to select Off, then press the ENTER button.
Press the EXIT button to exit.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the or button to select Sleep Timer, then press the ENTER button.
3 Press the or button to select the minute, then press the ENTER button.
4 Press the EXIT or TOOLS button to exit.
Function Description
Selecting a Menu Language
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button
Press the or button to select Language, then press the ENTER button.
2 Press the or button to select the appropriate language: English, Espanol, or Frangois, then press the ENTER button.
Press the EXIT button to exit.
Viewing Closed Captions (On-Screen Text Messages) - Digital
The Digital Captions function operates on digital channels.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select Caption, then press the ENTER button.
3 Press the ENTER button to select Caption.
Press the or button to select On, then press the ENTER button.
Continued...

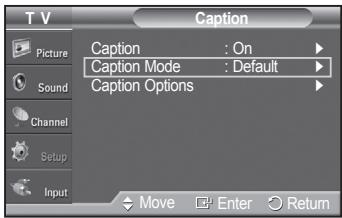

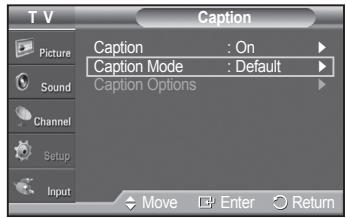

4 Press the or button to select Caption Mode, then press the ENTER button. Press the or button to select submenu (Default, Service1~Service6, CC1~CC4 or Text1~Text4) you want, then press the ENTER button.
Service1~6 in digital caption mode may not be available depending on the broadcast.
Caption Options are available only when Default, Service1~Service6 can be selected in Caption Mode.

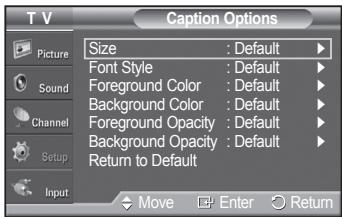

5 Press the or button to select Caption Options, then press the ENTER button.
6 Press the or button to select Size, then press the ENTER button. Press the or button to select the desired caption option, then press the ENTER button.
Press the or button to select the desired sub-menu options (see options below), then press the ENTER button.
Press the EXIT button to exit.
The availability of captions depends on the program being broadcast.
Default means to follow the standard set by the broadcaster.
Foreground and Background cannot be set to have the same color.
Foreground Opacity and Background Opacity cannot be both set to Transparent.
- Size: This option consists of Default, Small, Standard, and Large. The default is Default.
- Font Style : This option consists of Default, Style0 ~ Style7. You can change the font you want. The default is Default.
- Foreground Color : This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the color of the letter. The default is Default.
- Background Color : This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the background color of the caption. The default is Default.
- Foreground Opacity : This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the opacity of the letter.
- Background Opacity : This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the background opacity of the caption.
- Return to Default : This option sets each of Size, Font Style, Foreground Color, Background Color, Foreground Opacity, and Background Opacity to its default.
Press the CC button on the remote control to turn the Caption On or Off.

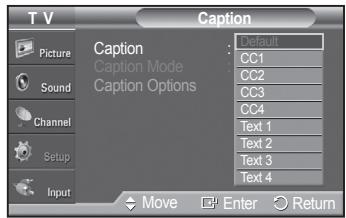

The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select Caption, then press the ENTER button.
3 Press the ENTER button to select Caption.
Press the or button to select On, then press the ENTER button.
4 Press the or button to select Caption Mode, then press the ENTER button. Press the or button to select submenu (Default, CC1~CC4 or Text1~Text4) you want, then press the ENTER button.
Press the EXIT button to exit.
The default is Default.
- CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
- CC2: The Special Non-Synchronous Use Captions. This channel carries data that is intended to augment information carried in the program.
- CC3: Secondary Synchronous Caption Service.
Alternate program-related caption data, typically second language captions.
- CC4: Special Non-Synchronous Use Captions. Similar to CC2.
- Text1: First Text Service. This may be various non-program related data.
- Text2 : Second Text Service. Additional data, usually not program related.
- Text3/Text4 : Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.
The Caption feature doesn't work in COMPONENT, PC, HDMI(DVI) modes.
- The availability of captions depends on the program being broadcast.
You can also press the CC button on the remote control to select Captions On or Off.

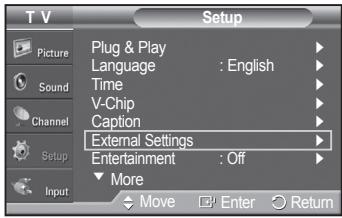

The TV power on/off melody sound volume can be adjusted.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select External Settings, then press the ENTER button.
3 Press the ENTER button to select Melody.
Press the or button to select Off, Low, Medium, or High, then press the ENTER button.
- Off: Turns off the melody function.
- Low: Sets the melody volume to low.
Medium : Sets the melody volume to medium. - High: Sets the melody volume to high.
Press the EXIT button to exit.
The Melody does not play
- When no sound is output from the TV because the MUTE button has been pressed,
- When no sound is output from the TV because you have reduced the volume to minimum by pressing the VOL button.
- When the TV is turned off by Timer function.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

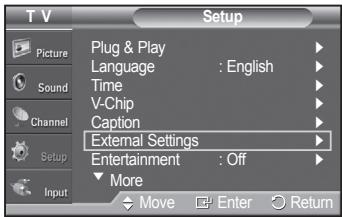

Setting the Light Effect
You can turn the blue LED on the front of TV on/off.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
Press the or button to select External Settings, then press the ENTER button.
2 Press the or button to select Light Effect, then press the ENTER button. Press the or button to select Off, In Standby, When Watching TV, or Always, then press the ENTER button.
Press the EXIT button to exit.
- Off: The LED is always off.
- In Standby : The LED lights while in Standby mode and it turns off when your TV is turned on.
- When Watching TV : The LED lights when watching TV and it turns off when your TV is turned off.
- Always : The LED is always lit.
Set the Light Effect to Off to reduce the power consumption.

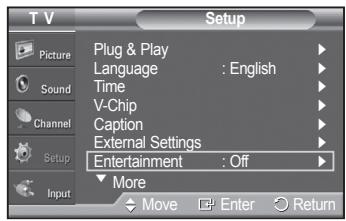

The Entertainment mode enables you to select the optimal display and sound for sports, cinema and games.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select Entertainment, then press the ENTER button.
3 Press the or button to select Off, Sports, Cinema or Game, then press the ENTER button.
- Off: Switches the Entertainment function off.
- Sports : Provides the optimal picture and sound quality for sports.
- Cinema : Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound.
- Game : Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.
Press the EXIT button to exit.
If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off.
The Entertainment settings are saved for each input source.
You can press the E.MODE button on the remote control repeatedly to change the Entertainment setting.
Using the Energy Saving Feature
This feature adjusts the power consumption of the unit in order to save energy.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select Energy Saving, then press the ENTER button.
Press the or button to select Off, Low, Medium, or High, then press the ENTER button.
Press the EXIT button to exit.
- Off: Switches off the Energy Saving mode.
- Low: Operates in standard mode.
Medium: Enters medium power saving mode. - High: Enters maximum power saving mode.
Samsung may offer upgrades for your TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port.
1 Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the rear of the TV.
2 Press the MENU button to display the menu. Press the or button to select Setup, then press the ENTER button.
3 Press the or button to select SW Upgrade, then press the ENTER button.
4 Press the or button to select USB, then press the ENTER button. The message Scanning for USB... It may take up to 30 seconds is displayed.
5 If the firmware on the USB is properly recognized, the message Upgrade version xxxx to version xxxx The system would be reset after upgrade. is displayed.
Press the or button to select Yes, then press the ENTER button.
The upgrade starts.
Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied.
The TV will shut off and turn on automatically after completing the firmware upgrade.
Please check the firmware version after the upgrades are complete.
When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.
U.S.A Only
This product is covered by the following U.S. patents: US4,930,158 US4,930,160
The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed.
V-Chip function is not available in HDMI, Component or PC mode.
Setting Up Your Personal ID Number (PIN)
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.

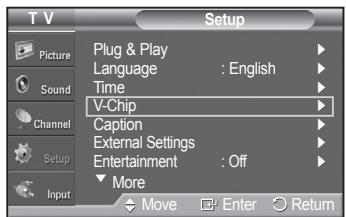

2 Press the or button to select V-Chip, then press the ENTER button.
The message Enter PIN will appear. Enter your 4 digit PIN number.
The default PIN number of a new TV set is 0-0-0-0.

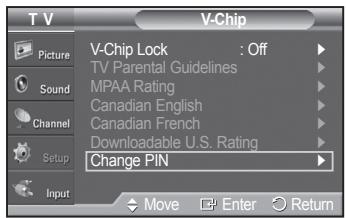

3 The V-Chip screen will appear.
Press the or button to select Change PIN, then press the ENTER button.
The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. Re-enter the same 4 digits.
When the message PIN is changed successfully, is displayed, your PIN has been memorized.
Press the EXIT button to exit.
If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0: Power Off. MUTE 8 2 4 Power On.
Continued...
How to Enable/Disable the V-Chip
3 The V-Chip screen will appear.
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button. The message Enter PIN will appear. Enter your 4 digit PIN number.

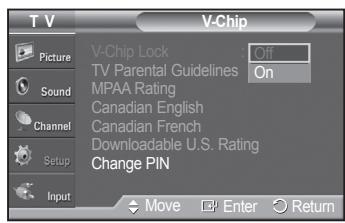

To enable the V-Chip feature, press the ENTER button so that the V-Chip Lock field is On. (Pressing the or button will alternate between On and Off.) Press the ENTER button.
Press the EXIT button to exit.
How to Set up Restrictions Using "TV Parental Guidelines"
First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

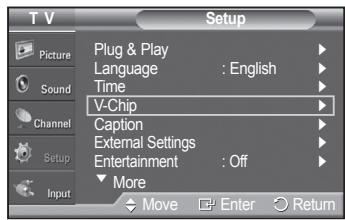

1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button. The message Enter PIN will appear. Enter your 4 digit PIN number.

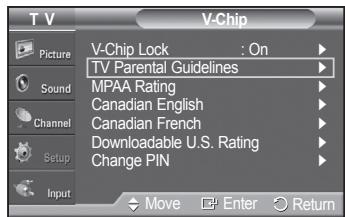

3 The V-Chip screen will appear. Press the or button to select TV Parental Guidelines, then press the ENTER button.
Continued...

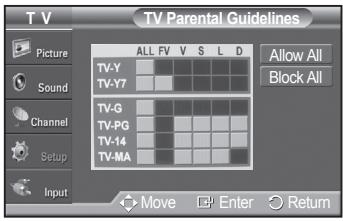

4 The TV Parental Guidelines screen will appear.
Press the or button to select one of the six aged based categories:
- TV-Y: All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two to six.
- TV-Y7: Directed to older children. The themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven.
- TV-G: General audience. It contains little or no violence, no strong language, and little or no sexual dialog or situations.
- TV-PG: Parental guidance suggested. This program may contain infrequent coarse language, limited violence, some suggestive sexual dialog and situations.
- TV-14: Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.
- TV-MA : Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit sexual content.
5 At this point, one of the TV-Ratings is selected.
Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Locked) While “ ” is selected, press the ENTER button to block or unblock the category.
To select a different TV-Rating, press the or button and then repeat the process.
Allow All:Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options.
See the next step to change any of the following sub-ratings:
- ALL: Lock all TV ratings.
- FV: Fantasy violence.
D: Sexually suggestive dialog.
L: Adult language.
S: Sexual situation.
V:Violence.
The V-Chip will automatically block certain categories that are "more restrictive". For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the "young adult" group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The substratings (D, L, S, V) work together similarly. (See next section.)
6 How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4), and press the ENTER button. The “ ” symbol will be displayed for each sub-rating. While “ ” is selected, press the button to go to a sub rating. Press the ENTER to block the sub rating. To select a different TV-Rating, press the or button and then repeat the process.
7 Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes.)
These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group.
How to Set up Restrictions Using "MPAA Ratings" (G, PG, PG-13, R, NC-17, X, NR)
The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button. The message Enter PIN will appear. Enter your 4 digit PIN number.

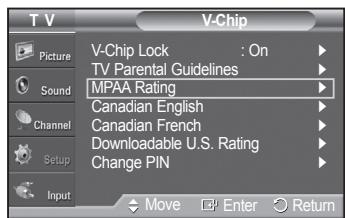

3 The V-Chip screen will appear. Press the or button to select MPAA Rating, then press the ENTER button.

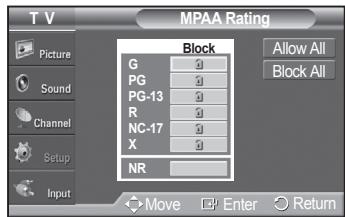

4 Press the or button to select an appropriate restriction. Press the ENTER button to activate the restriction selected.
The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category.
Press the EXIT button to exit.
Allow All:Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
- G: General audience (no restriction).
- PG: Parental guidance suggested
- PG-13 : Parents strongly cautioned.
- R: Restricted. Children under 17 should be accompanied by an adult.
- NC-17: No children under age 17.
- X: Adults only.
- NR: Not rated.
The V-Chip will automatically block any category that is "more restrictive". For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also.
Continued...
How to Set up Restrictions Using "Canadian English" (for Canada Models)
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button. The message Enter PIN will appear. Enter your 4 digit PIN number.

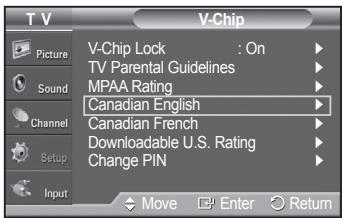

3 The V-Chip screen will appear. Press the or button to select Canadian English, then press the ENTER button.

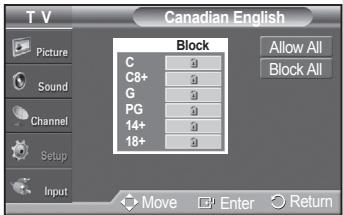

4 Press the or button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated.
Press the EXIT button to exit.
Allow All:Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
C: Programming intended for children under age 8.
- C8+ : Programming generally considered acceptable for children 8 years and over to watch on their own.
- G: General programming, suitable for all audiences.
- PG: Parental guidance.
- 14+ : Programming contains themes or content which may not be suitable for viewers under the age of 14.
- 18+ : Adult programming.
The V-Chip will automatically block any category that is "more restrictive".
For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also.
How to Set up Restrictions Using "Canadian French" (for Canada Models)
1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button. The message Enter PIN will appear. Enter your 4 digit PIN number.

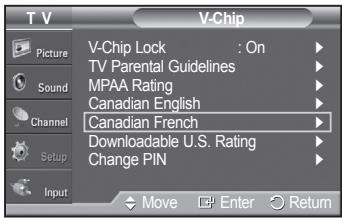

3 The V-Chip screen will appear. Press the or button to select Canadian French, then press the ENTER button.

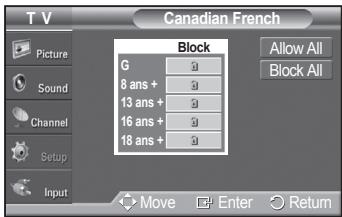

4 Press the or button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected. The “ 圆 ” symbol is indicated.
Press the EXIT button to exit.
Allow All:Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
G :General.
- 8 ans+ : Not recommended for young children.
- 13 ans+ : Programming may not be suitable for children under the age of 13.
- 16 ans+ : Programming is not suitable for children under the age of 16.
- 18 ans+ : Programming restricted to adults.
The V-Chip will automatically block any category that is "more restrictive". For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.
Using the V-Chip for Digital channels
Parental restriction information can be used while watching DTV channels.

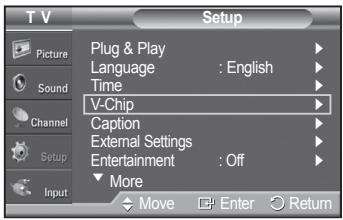

1 Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
2 Press the or button to select V-Chip, then press the ENTER button.
The message Enter PIN will appear. Enter your 4 digit PIN number.

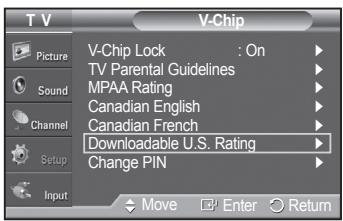

3 The V-Chip screen will appear. Press the or button to select Downloadable U.S. Rating, then press the ENTER button.
If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated.
Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds.
The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

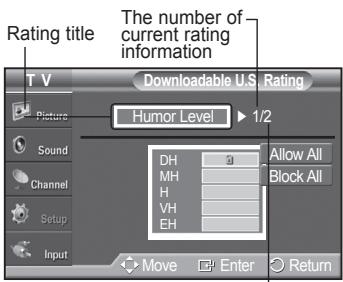

4 Press the or button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected.
The " " symbol is indicated.
Press the EXIT button to exit.
Allow All:Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
Parental restriction levels differ depending on the broadcasting station.
The default menu name and downloadable US rating changes depending on the downloaded information.
Even if you set the on-screen display to your desired language, the Downloadable U.S. Rating menu will appear in English only.
The rating will automatically block certain categories that are more restrictive.
The rating titles (for example: Humor Level..etc) and TV ratings (for example: DH, MH, H..etc) may differ depending on the broadcasting station.
The number of all the rating information
How to Reset the TV after the V-Chip Blocks a Channel ("Emergency Escape")
If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:
1 Enter your PIN.
To resume normal viewing, tune to a different channel using CH or CH button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an "emergency escape":
2 Press the MENU button. Press the or button to select Setup, then press the ENTER button.
3 Press the or button to select V-Chip, then press the ENTER button.
4 Enter your PIN, then press the ENTER button, and press the or button to temporarily disable the V-Chip Lock.
If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0: Power Off. MUTE 8 2 4 Power On.
Channel Is Locked by
TV-PG[S]
Use the NUMBER buttons to enter your
pin number to unlock all channels.
Press EXIT to clear PIN.
Press MENU for main menu.
Channel Is Locked by
TV-PG[L]
Use the NUMBER buttons to enter your
pin number to unlock all channels.
Press EXIT to clear PIN.
Press MENU for main menu.
About Anynet+
What is Anynet+?
Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your Samsung TV's remote.
Connecting Anynet+ Devices
The Anynet+ system can be used only with Samsung AV devices that have the Anynet+ feature. To be sure your Samsung AV device has this feature, check if there is an Anynet+ mark on it.

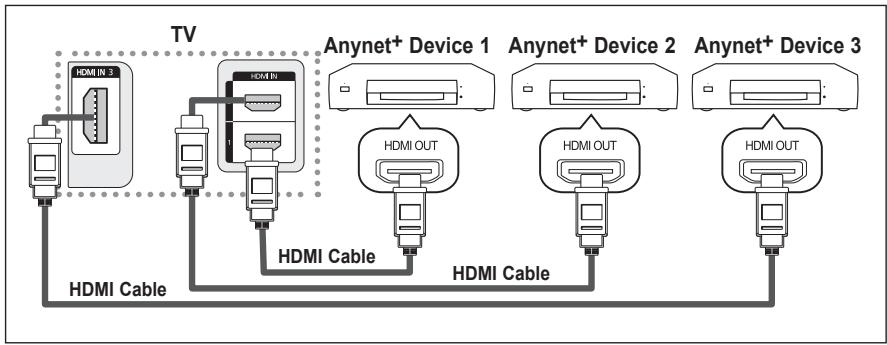

To directly connect to TV
Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

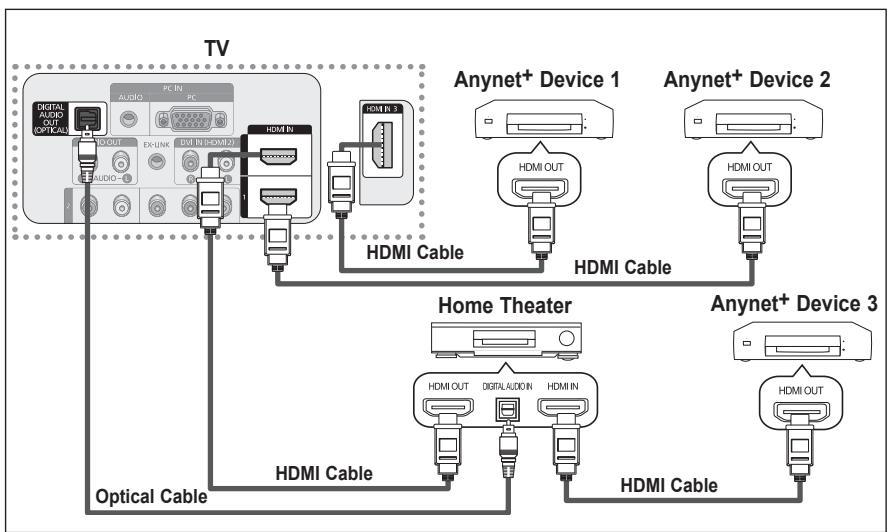

To connect to Home Theater
1 Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.
2 Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.
Connect the Optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the Home Theater.
Connect only one Home Theater.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theater's Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV.
You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
The following settings are to use Anynet+ functions.
To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On
1 Press the MENU button to display the menu.
Press the or button to select Input, then press the ENTER button.
2 Press the or button to select Anynet+ (HDMI-CEC), then press the ENTER button.
3 Press the or button to select Setup, then press the ENTER button.
4 Press the or button to select Anynet+ (HDMI-CEC).
5 Press the or button to select On, then press the ENTER button.
The Anynet+ (HDMI-CEC) function is enabled.
If you select Off, Anynet+ (HDMI-CEC) is disabled.
When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.
Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off
4 Press the or button to select Auto Turn Off, then press the ENTER button.
5 Press the or button to select Yes, then press the ENTER button.
The Auto turn off function is enabled.
If you select No, the Auto turn off function is canceled.
Press the EXIT button to exit.
The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function.
If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.
Scanning and Switching between Anynet+ Devices
1 Press the TOOLS button.
Anynet+ devices connected with the TV are listed.
2 Press the or button to select to a particular device and press the ENTER button. It is switched to the selected device.
3 If you cannot find a device you want, press the or button to select Searching Connections, then press the ENTER button.
The message Configuring Anynet+ Connection... is displayed.
When searching devices completes, the connected devices are listed in the Anynet+ menu.
Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.
The time required to scan for devices is determined by the number of connected devices.
When the device scan is complete, the number of found devices is not displayed.
Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search devices.
If you have selected external AV device by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.
Anynet+Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.
| Anynet+ Menu | Description |
| View TV | Switches from Anynet+ to TV broadcast mode. |
| Record | Starts a recording. (This menu works only for a device supporting recording.) |
| (Device_Name) Menu | Shows the menu of the connected device. Example: When a DVD Recorder is connected, the DVD Recorder's title menu appears. |
| (Device_Name) Operation | Shows the play control menu of the connected device. Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. |
| Connect (Device_Name) | Your TV connects to the corresponding device. |
| Receiver | Sound is output through the receiver (home theater). A audio stream in HDMI is one way only from Device to TV. But there's SPDIF output in TV. So TV sound can be sent to HT. |
| Setup | You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using Anynet+. |
TV Remote Control Buttons Available in Anynet+ Mode
| Device Type | Operating Status | Available Buttons |
| Anynet+ Device | After switching to the device, when the menu of the corresponding device is displayed on the screen. | Numeric buttons▲/▼/▲/▶/ENTER buttonsColor buttonsEXIT button |
| After switching to the device, while playing a file | Backward search)Forward search)(Stop)(Play/Pause) | |
| Device with built-in Tuner | After switching to the device, when you are watching a TV program | CH ⊙ / ⊙ button |
| Audio Device | When Receiver is activated | VOL ⊙ / ⊙ buttonMUTE button |
The Anynet ^+ function only works when the remote control is set to TV.
The REC button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device.
The Anynet+ functions don't operate for the products from other manufacturers.
The Anynet+ functions do not work with other manufacturers' products.
The (, ) operations may differ depending on the device.
Recording
You can make a recording of a TV program using a Samsung recorder.
Press the TOOLS button.
Recording begins. (Only when the Anynet+ enabled recording device is connected.)
You can record the source streams by selecting Record after pressing the TOOLS button.
The current TV program is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device's user manual.
You can listen to sound through a receiver instead of the TV speaker.
1 Press the MENU button to display the menu.
Press the or button to select Input, then press the ENTER button.
2 Press the or button to select Anynet+ (HDMI-CEC), then press the ENTER button.
3 Press the or button to select Receiver, then press the ENTER button.
4 Press the or button to select to On, then press the ENTER button.
Now you can listen to sound through the receiver.
5 Press the EXIT button to exit.
When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV.
When listening through the receiver, there are restrictions for using the audio-related (MTS, Preferred language) menus.
If there is a power interruption to the TV when the Receiver is set to On (by disconnecting the power cord or a power failure), the TV Speaker may be set to Off when you turn the TV on again.
Check Points before Requesting Service
| Symptom | Solution |
| Anynet+ does not work. | Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver (home theater). Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device's Video/Audio/HDMI cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn't work in certain situations. (Searching channels, Plug & Play, etc.) When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again. Check if the Anynet+ Function of Anynet+ device is set on. |
| I want to start Anynet+. | Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. |
| I want to exit Anynet+. | Select View TV in the Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press CH, CH LIST, PRE-CH, and FAV.CH to change to the TV mode. (Note that the channel button operates only when an Anynet+ device with a built-in tuner is not connected.) |
| The Connecting to Anynet+ device... message appears on the screen. | You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. |
| The Anynet+ device does not play. | You cannot use the play function when Plug & Play is in progress. |
| The connected device is not displayed. | Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions. |
| The TV program cannot be recorded. | Check whether the antenna jack on the recording device is properly connected. |
| The TV sound is not output through the receiver. | Connect the optical cable between TV and the receiver. |
Securing the TV to the Wall
Caution
Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.
To avoid the TV from falling:
1 Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.
You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.
2 Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.
Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.
3 Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.
Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
Untie the string before moving the TV.
4 Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG.
| Problem | Possible Solution |
| Poor picture quality. | Try another channel. Adjust the antenna. Check all wire connections. |
| Poor sound quality. | Try another channel. Adjust the antenna. |
| No picture or sound. | Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. Make sure the MUTE button is off. |
| No sound or sound is too low at maximum volume. | First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. |
| Picture rolls vertically. | Check all connections. |
| The TV operates erratically. | Unplug the TV for 30 seconds, then try operating it again. |
| The TV won't turn on. | Make sure the wall outlet is working. |
| Remote control malfunctions | Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. Make sure the remote has batteries. Check that the "+" and "-" ends of the batteries are inserted correctly. |
| Digital broadcasting screen problem. | Please check the digital signal strength and input antenna. |
| The image is too light or too dark. | Adjust the Brightness and Contrast. Adjust the Fine tuning. |
| The image is too large or too small. | Adjust the Size settings. |
| The visual qualities of digital channels vary. | The visual qualities of digital channels may vary depending on the original production method (analog or digital). - If the original production method is digital: High visual quality. - If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. |
| Screen is black and power indicator light blinks steadily. | On your computer; check the Power and Signal Cable. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard. |
| On your equipment check (STB, DVD, etc) ; Power and Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on. | |
| Although the TV caption shows HD, the visual quality is not satisfactory. | The HD(High Definition) caption that appears when switching channels or when pressing the Information button on the remote control means the selected channel is a digital channel. If the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect. |
| A distorted picture appears in the corner of the screen. | If Just Scan is selected in some external devices, a distorted picture may appear in the corner of the screen. This symptom is caused by external devices, not the TV. |
| A Strange sound is heard. | This is caused by minor systems operation and is not a defect. |
| The “Reset all settings to the default values” message appears. | This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. |
This Plasma panel uses a panel consisting of sub pixels (2,359,296 pixels (for 42 inch models) / 3,147,264 pixels (for 50 inch models)) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
Once the wall mount is installed, the position of your TV can be easily adjusted.
Entering the menu
1 Press the , , or button on your remote control.
The Wall Mount Adjustment screen is displayed.
If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.
- Press the MENU button to display the menu.
Press the or button to select Setup, then press the ENTER button.
- Press the or button to select External Settings, then press the ENTER button.
- Press the or button to select Wall-Mount Adjustment, then press the ENTER button.

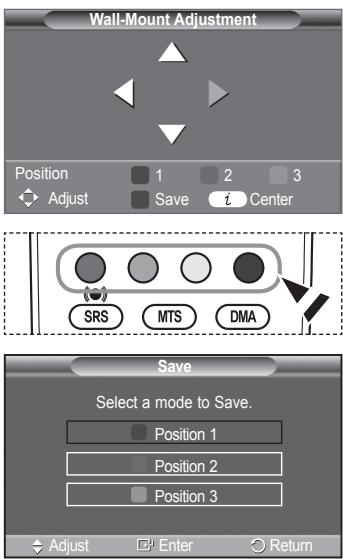

Remembering the Position
2 Adjust to the desired position using the , , , buttons.
If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
Press the INFO button to reset. Press the or button to select Yes, then press the ENTER button. The position is initialized to the default setting.
3 Press the Blue button.
Press the and buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position.
To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Color buttons.
4 Press the ENTER button to save.
When Position 1 is selected, the message Current position saved as Position 1 is displayed.
5 Press the ENTER button.
The saved Position appears on the left side of the OSD.
Continued...
Moving to the remembered position
1 Complete Step 1 of Entering the menu.
2 Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position.
You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the positon after moving to a pre-set position, the position display will disappear.
For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ is operating.
Preparing before installing Wall- Mount on the wall
Once the wall mount is installed, the position of your TV can be easily adjusted.

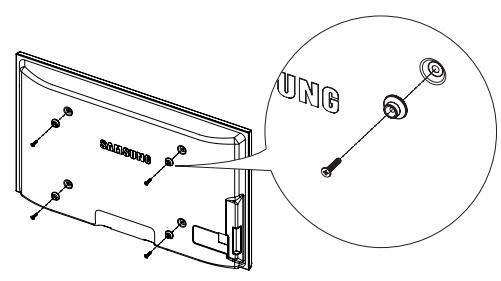

Case A. Installing SAMSUNG Wall-Mount

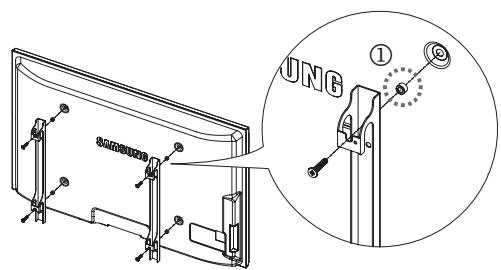

Case B. Installing other company's Wall-Mount
1 Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if the torque is out of the specified range.
2 Accessory Kit contains Holder-Ring [1] for installing other company's Wall-Mount on Samsung TV. (Case B)
Install your wall mount on a solid wall perpendicular to the floor.
When attaching to other building materials, please contact your nearest dealer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

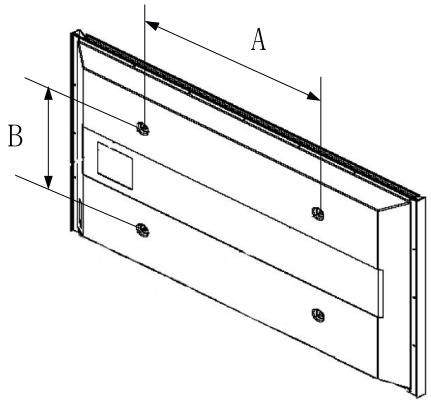

| Product Family | inch | VESA Spec. (A * B) | Standard Screw | Quantity |
| LCD-TV | 23 ~ 26 | 200 * 100 | M4 | 4 |
| 32 ~ 40 | 200 * 200 | M6 | ||
| 46 ~ 52 | 400 * 400 | |||
| 600 * 400 | ||||
| 57 | 700 * 400 | M8 | ||
| (No VESA) | ||||
| 57 ~ 70 | 800 * 400 | |||
| 80 ~ | 1400 * 800 | |||
| PDP-TV | 42 ~ 58 | 400 * 400 | M8 | 4 |
| 600 * 400 | ||||
| 63 | 676 * 407 | 6 | ||
| (No VESA) | ||||
| 63 ~ 70 | 800 * 400 | 4 | ||
| 80 ~ | 1400 * 800 | 4 |
We provided the standard dimensions for wall mount kits as shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

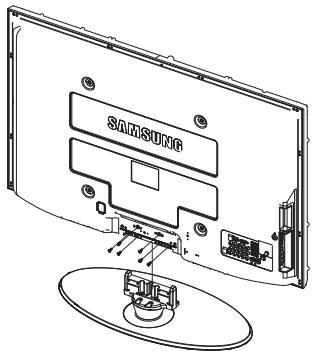

Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)
When mounting your TV on a wall, install the cover (1) on the stand-base using two screws.
Warning
Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.
Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright.
Specifications
| Model Name | PN42A450P1D | PN50A450P1D |
| Screen Size (Diagonal) | 42 inch | 50 inch |
| PC Resolution | 1024 x 768 @ 60 Hz | 1360 x 768 @ 60 Hz |
| Sound (Output) | 10+10 W | 10+10 W |
| Dimension (W x H x D) | ||
| Body | 41.5 X 26.3 X 3.7 inches | 48.4 X 29.8 X 3.8 inches |
| With stand | (1055.0 X 667.4 X 93.2 mm) | (1230.2 X 755.7 X 95.0 mm) |
| 41.5 X 28.5 X 12.4 inches | 48.4 X 32.0 X 12.4 inches | |
| (1055.0 X 724.9 X 315.9 mm) | (1230.2 X 812.7 X 315.9 mm) | |
| Weight | ||
| Body | 59.3 lbs (26.9 Kg) | 75.4 lbs (34.2 Kg) |
| With stand | 67.2 lbs (30.5 Kg) | 81.6 lbs (37.0 Kg) |
| Environmental Considerations | ||
| Operating Temperature | 50 °F to 104 °F (10 °C to 40 °C) | |
| Operating Humidity | 10% to 80%, non-condensing | |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) | |
| Storage Humidity | 5% to 95%, non-condensing | |
This device is a Class B digital apparatus.
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.
Stand Swivel (Left / Right)
-20° ~ 20°

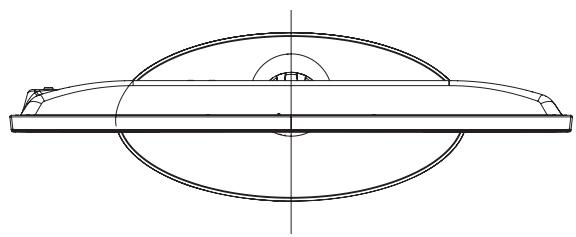

TOP VIEW

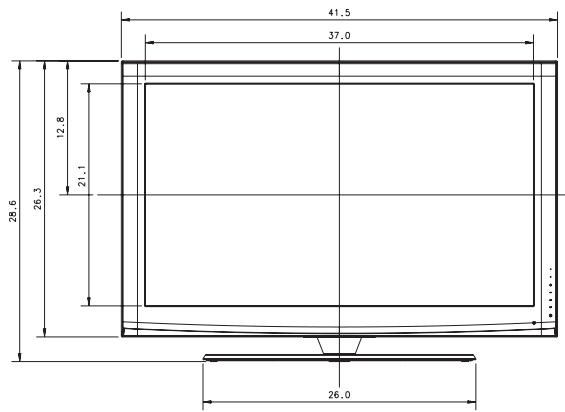

FRONT VIEW
JACK PANEL DETAIL 3.7"H x 7.2"W
SIDE VIEW

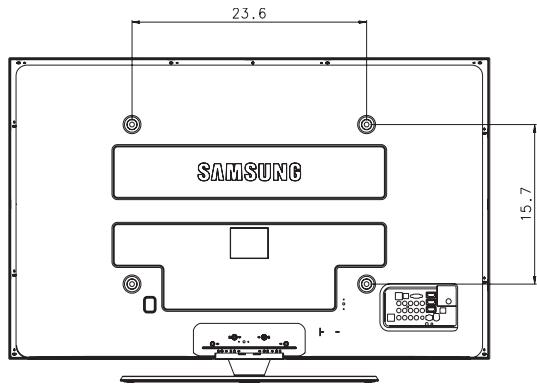

REAR VIEW
NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc.
TOP VIEW
FRONT VIEW
JACK PANEL DETAIL 3.7"H x 7.2"W
SIDE VIEW
REAR VIEW
NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc.
This page is intentionally left blank.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
2 DIGITAL AUDIO OUT (OPTICAL)
16:9 - 1080i (1920x1080), 720p (1280x720)
Alternate, you can press the P.SIZE button on the remote control repeatedly to change the picture size.
16:9
Viewing the Resolution
Once the wall mount is installed, the position of your TV can be easily adjusted.
Cas A. Installation d'un support mural SAMSUNG
Comment assembler le support
© 2008 Samsung Electronics America, Inc.
VUE DE DESSUS
VUE AVANT
DIMENSION DU PANNEAU DE PRISES 3.7"H x 7.2"W
VUE LATERALE
VUE ARRIÈRE
© 2008 Samsung Electronics America, Inc.
- Plasma TV user manual
- Important Warranty Information Regarding Television Format Viewing
- U.S.A Only
- Other countries
- SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
- User Instructions
- Screen Image retention
- Altitude
- Heat on the top of the Plasma TV
- The product is making a 'cracking' noise.
- Cell Defects
- Avoid operating the TV at temperatures below 5°C (41°F)
- A still image displayed too long may cause permanent damage to the PDP Panel.
- Afterimage on the Screen.
- Warranty
- Contents
- General Information
- Connections
- Operation
- Picture Control
- Sound Control
- Channel Control
- PC Display
- Time Setting
- Function Description
- About Anynet+
- Appendix
- List of Features
- Accessories
- Buttons on the Lower-Right Part of the Panel
- Front Panel buttons
- SOURCE
- MENU
- +VOL-
- CH
- Power Indicator
- POWER
- Remote Control Sensor
- Speakers
- Rear Panel Jacks
- Side Panel Jacks
- Installing Batteries in the Remote Control
- Connecting VHF and UHF Antennas
- Antennas with 300 Flat Twin Leads
- Antennas with 75 Round Leads
- Separate VHF and UHF Antennas
- Cable without a Cable Box
- Connecting to a Cable Box that Descrambles All Channels
- Connecting to a Cable Box that Descrambles Some Channels
- What is HDMI?
- Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via DVI
- Connecting a Camcorder
- Video Connection
- S-Video Connection
- What is OPTICAL?
- Connecting an Amplifier / DVD Home Theater
- Using the D-Sub Cable
- Using the HDMI/DVI Cable
- Turning the TV On and Off
- Plug & Play Feature
- Setting the Clock Automatically
- If you want to reset this feature...
- Changing Channels
- Using the Channel Buttons
- Using the Number Buttons
- Using the "-" Button
- Using the PRE-CH Button to select the Previous Channel
- Using the Volume Buttons
- Using the Mute Button
- Using the TOOLS Button
- Viewing the Display
- Memorizing the Channels
- Selecting the Video Signal-source
- Easy Setting
- Storing Channels in Memory (Automatic Method)
- To Edit the Input Source Name
- Changing the Picture Standard
- Customizing the Picture Settings
- Activating Detailed Settings
- Activating Black adjust
- Activating Dynamic Contrast
- Activating Gamma
- Changing the Color Space
- Customizing the Color Space
- Activating White Balance
- Flesh Tone
- Activating Edge Enhancement
- Configuring Picture Options
- Activating Picture Options
- Adjusting the Color Tone
- Changing the Screen Size
- 16:9
- Zoom1
- Zoom2
- Wide Fit
- 4:3
- Just Scan
- Digital Noise Reduction
- DNle (Digital Natural Image engine)
- Setting the HDMI Black Level
- Setting the Film Mode
- Setting the Blue Only Mode
- Reducing the Effects of Screen Burn
- White
- - Scrolling
- - Side Gray
- Preventing Screen Burn-in
- Changing the Mode
- Changing the Format
- Resetting the Picture Settings to the Factory Defaults
- Changing the Sound Standard
- Customizing the Sound
- Choosing a Multi-Channel Sound (MTS) Track - Digital
- Preferred language
- Multi-Track Sound
- Automatic Volume Control
- Connecting Headphones (Sold separately)
- Selecting the Antenna
- Clearing Scrambled Channels - Digital
- Setting Your Favorite Channels
- Setting the Default Channel List Mode
- Fine Tuning Analog Channels
- Using Your TV as a Computer (PC) Display
- Setting Up Your PC Software (Based on Windows XP)
- Display Modes
- Setting up the TV with your PC
- How to Auto Adjust
- Adjusting the Screen Quality
- Changing the Screen Position
- Initializing the Screen Position
- Viewing the Resolution
- Setting the Time
- Option 1: Setting the Clock Manually
- Option 2: Setting the Clock Automatically
- Setting the On/Off Timer
- Setting the Sleep Timer
- Selecting a Menu Language
- Viewing Closed Captions (On-Screen Text Messages) - Digital
- Setting the Light Effect
- Using the Energy Saving Feature
- Setting Up Your Personal ID Number (PIN)
- How to Enable/Disable the V-Chip
- How to Set up Restrictions Using "TV Parental Guidelines"
- How to Set up Restrictions Using "MPAA Ratings" (G, PG, PG-13, R, NC-17, X, NR)
- How to Set up Restrictions Using "Canadian English" (for Canada Models)
- How to Set up Restrictions Using "Canadian French" (for Canada Models)
- Using the V-Chip for Digital channels
- How to Reset the TV after the V-Chip Blocks a Channel ("Emergency Escape")
- What is Anynet+?
- Connecting Anynet+ Devices
- To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On
- Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off
- Scanning and Switching between Anynet+ Devices
- Anynet+Menu
- Recording
- You can listen to sound through a receiver instead of the TV speaker.
- Check Points before Requesting Service
- Securing the TV to the Wall
- To avoid the TV from falling:
- Entering the menu
- Remembering the Position
- Moving to the remembered position
- Preparing before installing Wall- Mount on the wall
- Warning
- This page is intentionally left blank.
- DIGITAL AUDIO OUT (OPTICAL)
- Comment assembler le support
Brand : SAMSUNG
Model : PN42A450
Category : TV
