LN37A450 - TV SAMSUNG - Free user manual and instructions

Product Type	37-inch HD LCD Television
Brand	Samsung
Model	LN37A450 (LN37A450C1D)
Screen Size (Diagonal)	37 inches (94 cm)
Resolution	1360 x 768 pixels
Audio - Output Power	10 W x 2 (stereo)
Audio Technologies	SRS TruSurround XT

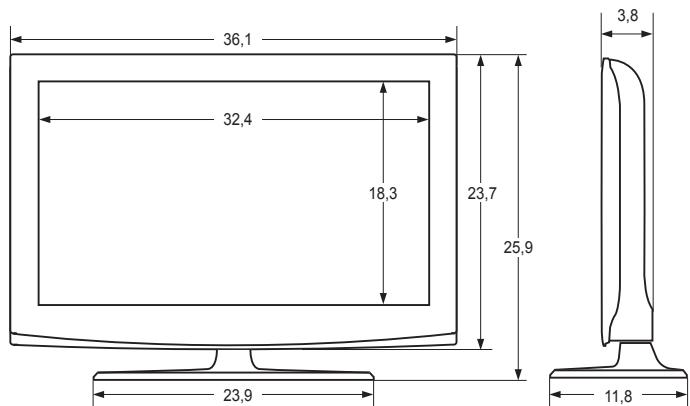

Dimensions (without stand)	916.4 x 81.7 x 601.0 mm (W x D x H)
Dimensions (with stand)	916.4 x 300 x 658.1 mm
Weight (without stand)	15.1 kg
Weight (with stand)	18.3 kg
Power Supply	100-240 V AC, 50/60 Hz (built-in power adapter)
Power Consumption	Approximately 150 W (typical value)
Connectivity	HDMI (x3), Component (x2), AV (x2), S-Video, PC (VGA + audio), optical audio output, SCART (AV1)
Main Features	Built-in HD tuner, DNle (Digital Natural Image engine), Anynet+ (HDMI-CEC), fine tuning, subtitles, timer, energy saving mode
Cleaning and Maintenance	Use a soft, dry cloth (cleaning cloth provided). Avoid chemical products.

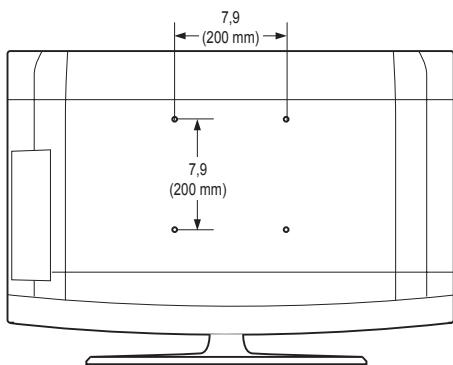

Security	Kensington lock (anti-theft), VESA 200x200 mm wall mount (M6)
Operating Temperature	10 °C to 40 °C
Operating Humidity	10% to 80% (non-condensing)
Included Accessories	Remote control (BN59-00687A), AAA batteries x2, power cord, cleaning cloth, stand, screws, user manual

Frequently Asked Questions - LN37A450 SAMSUNG

How to connect a DVD player to the Samsung LN37A450 TV?

Use an HDMI cable between the TV's HDMI IN port and the DVD player's HDMI output. If your player only has component output, connect the video cables (Y, Pb, Pr) to the COMPONENT IN inputs and the audio cables to the corresponding audio inputs.

How to adjust the picture for best quality?

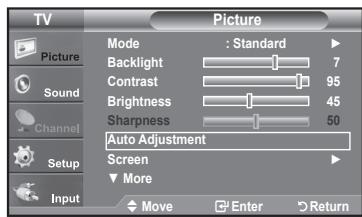

Press MENU, select Image, then Mode. Choose Standard or Movie depending on your content. You can also adjust Contrast, Brightness, and Sharpness in the settings. Enable DNle in the image options for optimal quality.

What to do if the remote control does not work?

First check that the TV is turned on. Replace the batteries (AAA type) respecting the polarities. Clean the infrared transmission window of the remote. Make sure no obstacle blocks the sensor on the TV. If the problem persists, restart the TV.

How to automatically memorize channels?

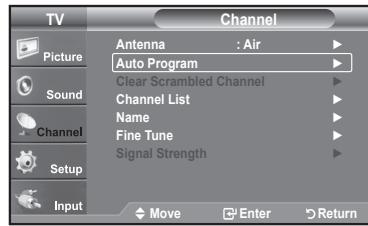

Press MENU, go to Channel, then Auto Program. Select the source Air (antenna) or Cable. The TV searches and memorizes all available channels. You can stop the search by pressing ENTER.

How to use the Anynet+ function to control other HDMI devices?

Connect an Anynet+ compatible device (e.g., Samsung Blu-ray player) via HDMI. Enable Anynet+ (HDMI-CEC) in the Setup menu. Then press TOOLS to access the controls of the connected device, such as play or record.

How to reduce the TV's power consumption?

Go to Menu > Setup > Energy Saving. Choose between Low, Medium, High or Auto. You can also reduce the backlight (Backlight) in the image settings.

How to connect headphones?

Plug the headphones into the HEADPHONES jack on the left side of the TV. The sound from the speakers is then automatically muted. Use the TV or remote control volume buttons to adjust the headphone volume.

What does the message 'Check cable signal' mean?

This message usually appears when the input source is set to PC and no PC cable is connected or the signal is absent. Check the connection of the VGA or DVI cable between the computer and the TV, and make sure the computer is turned on.

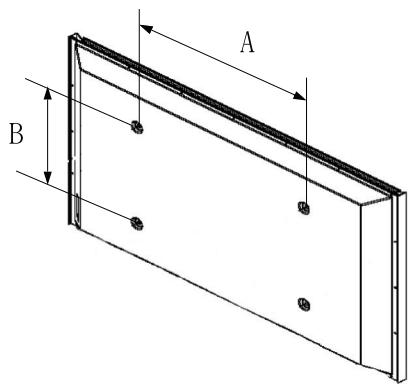

How to mount the TV on a wall?

Use a VESA 200x200 mm compatible wall mount. Follow the mounting instructions provided with the mount. Do not overtighten the screws (max M6). Call a professional for installation to avoid any risk of falling.

What to do if the image appears distorted or black bars appear?

Check that the picture format is set to 16:9 (press the P.SIZE button). If you receive a standard definition signal, the TV may display black bars. Use Wide or Zoom mode to fill the screen. Also make sure the source (set-top box, receiver) is set to the appropriate format.

USER MANUAL LN37A450 SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Thank you for purchasing a Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

Important Warranty Information Regarding Television Format Viewing

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.

U.S.A Only

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Other countries

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT

Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.

Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

In the United States: 1-800-SAMSUNG (1-800-726-7864)

In Canada: 1-800-SAMSUNG

See the warranty card for more information on warranty terms.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

Contents

GENERAL INFORMATION

List of Features. 2
Accessories 2
Viewing the Control Panel 3
Viewing the Connection Panel 4

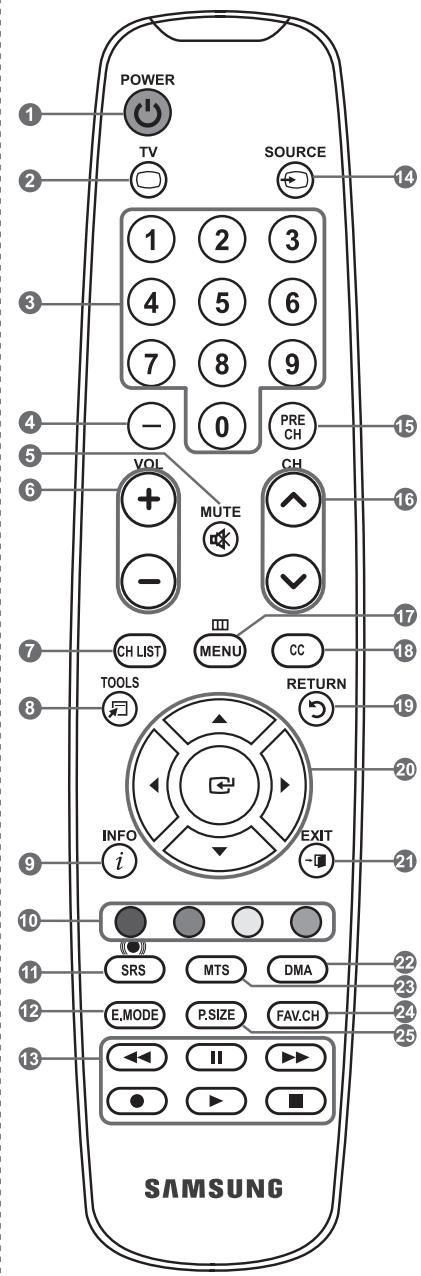

Remote Control 6
■ Installing Batteries in the Remote Control. 7

CONNECTIONS (LN26A450C1D, LN40A450C1D)

• Connecting VHF and UHF Antennas. 7

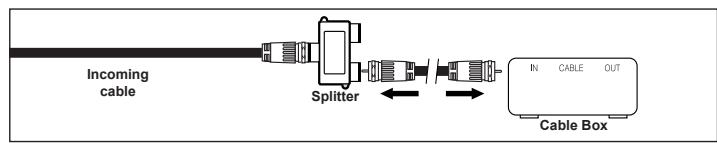

• Connecting Cable TV 8

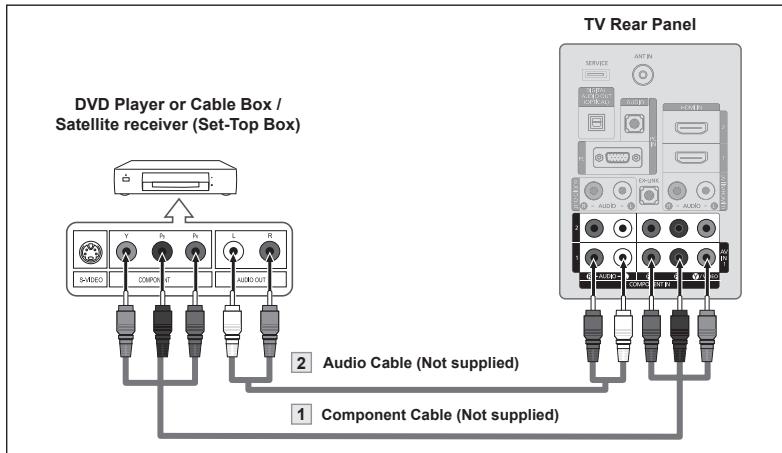

• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI. 9
• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI. 9
• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables. 10

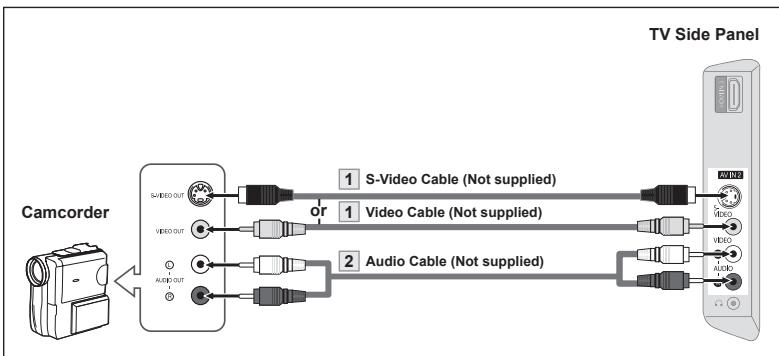

• Connecting a Camcorder 10
• Connecting a VCR 11
• Connecting a Digital Audio System 12
• Connecting an Amplifier/DVD Home Theater 12
• Connecting a PC 13

CONNECTIONS (LN32A450C1D, LN37A450C1D)

• Connecting VHF and UHF Antennas. 14

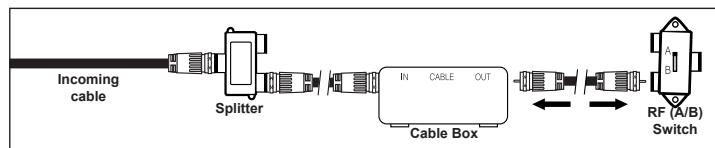

• Connecting Cable TV 15

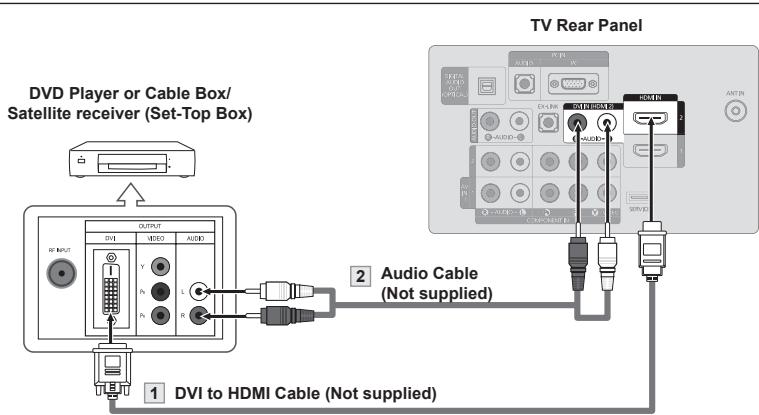

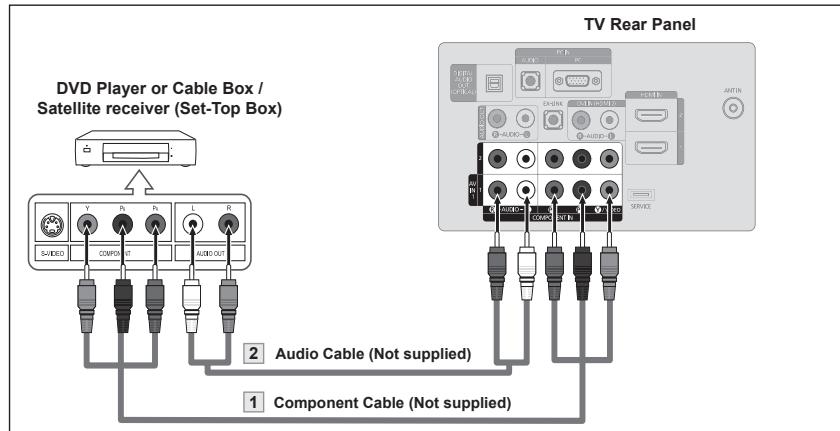

• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI. 16
• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI. 16
• Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables. 17
• Connecting a Camcorder 17
• Connecting a VCR 18
• Connecting a Digital Audio System 19
• Connecting an Amplifier/DVD Home Theater 19
• Connecting a PC 20

OPERATION

Turning the TV On and Off 21

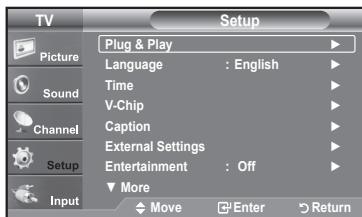

Plug & Play Feature 21
Changting Channels 22

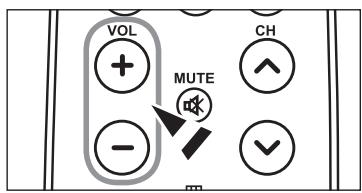

Adjusting the Volume 23
Viewing the Display 23

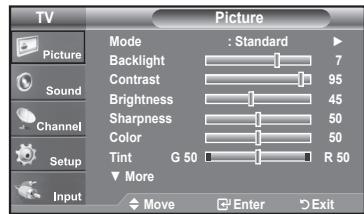

Viewing the Menu 23
Using the TOOLS Button 24

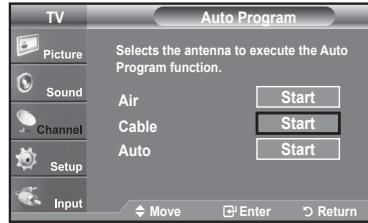

■ Memorizing the Channels. 24
To Select the Source 26

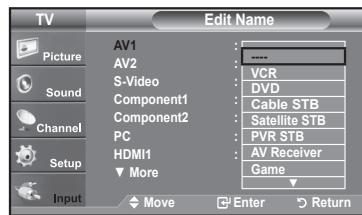

To Edit the Input Source Name 26

PICTURE CONTROL

Changing the Picture Standard 27

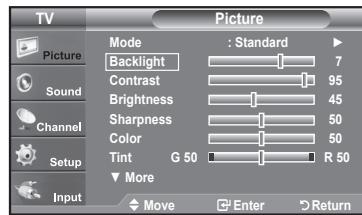

Customizing the Picture Settings 27

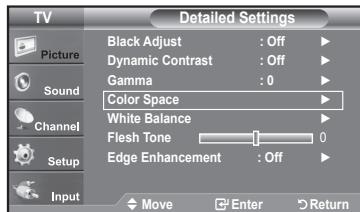

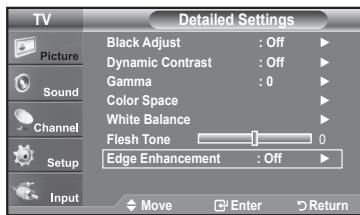

Adjusting the Detailed Settings 28

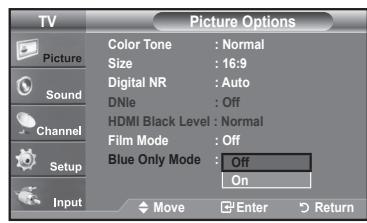

- Configuring Picture Options 31
- Resetting the Picture Settings to the Factory Defaults 34

SOUND CONTROL

Changing the Sound Standard 35

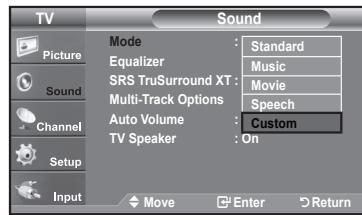

Customizing the Sound 35

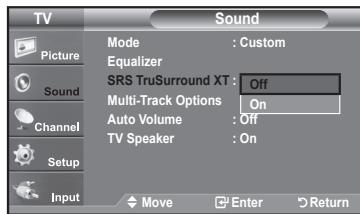

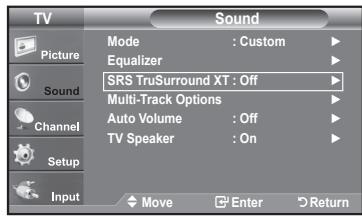

Setting the TruSurround XT 36
Choosing a Multi-Channel Sound (MTS) track - Digital 36
Choosing a Multi-Channel Sound (MTS) track - Analog 37

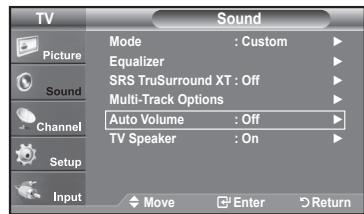

Automatic Volume Control 37
Setting the TV Speakers On/Off 38
- Connecting Headphones (Sold separately). 38

CHANNEL CONTROL

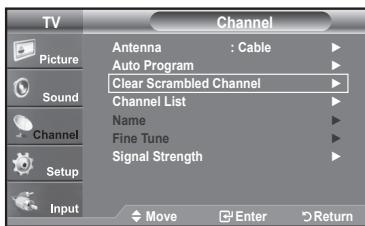

Clearing Scrambled Channels - Digital 39

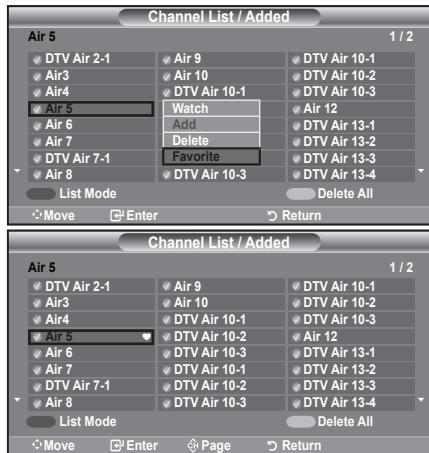

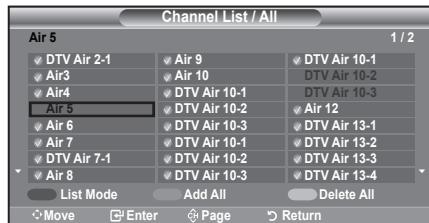

- Adding and Erasing Channels 40
To Set-Up Your Favorite Channels 41
Using the Channel Lists - Analog 42
Viewing the Channel Lists 42
Labeling Channels 43
Fine Tuning Analog Channels 44
■ Checking the Digital-Signal Strength. 44

PC DISPLAY

Using Your TV as a Computer (PC) Display 45
Display Modes. 45
Setting up the TV with your PC 46

TIME SETTING

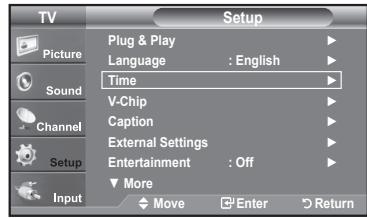

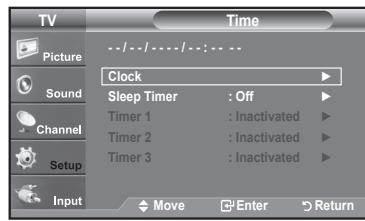

Setting the Clock 48

FUNCTION DESCRIPTION

Selecting a Menu Language 51

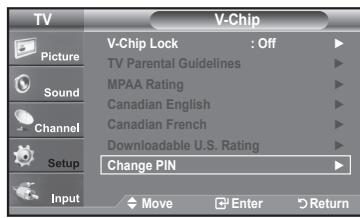

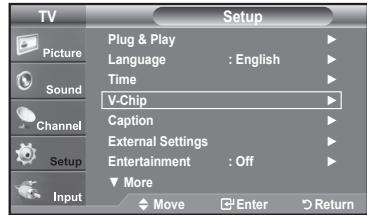

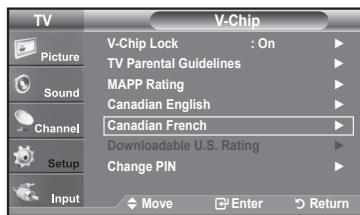

Using the V-Chip 52

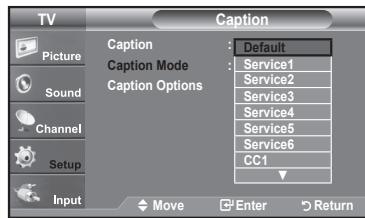

Viewing Closed Captions (On-Screen Text Messages) -Analog 59
Viewing Closed Captions (On-Screen Text Messages)
- Digital 60
Adjusting the TV On/Off Melody Sound 61

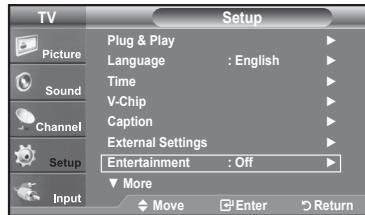

Setting the Entertainment mode 61
Using the Energy Saving Feature 62
Upgrading the Software 62

ABOUT ANYNET+

What is Anynet? 63
- Connecting Anynet+ Devices 63
Setting Up Anynet+ 64
Scanning and Switching between Anynet+ Devices 64
■ Recording 65
■ Listening through a Receiver (Home theater) 66
Troubleshooting for Anynet 66

APPENDIX

Troubleshooting 67

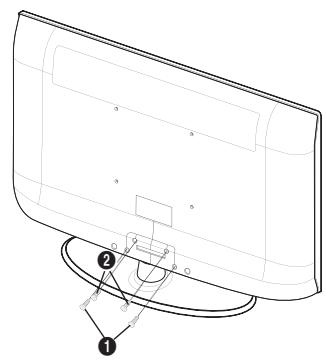

■ Installing the Stand 69

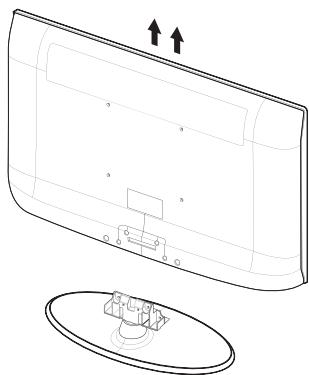

Disconnecting the Stand 69
Auto Wall-Mount Adjustment (Sold separately) (LN32A450C1D, LN37A450C1D, LN40A450C1D) 70
Wall Mount Kit Specifications (VESA) 71
Using the Anti-Theft Kensington Lock 72
■ Specifications 73

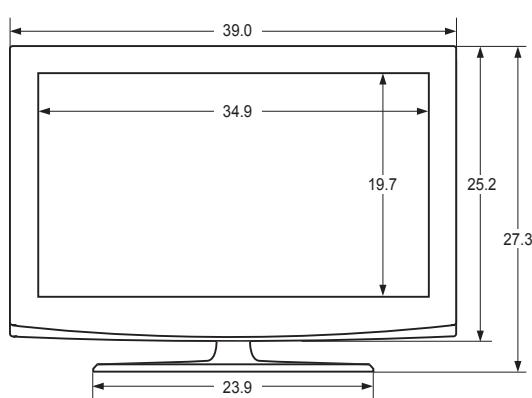

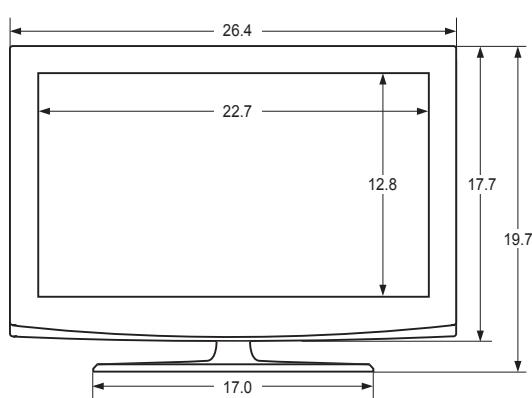

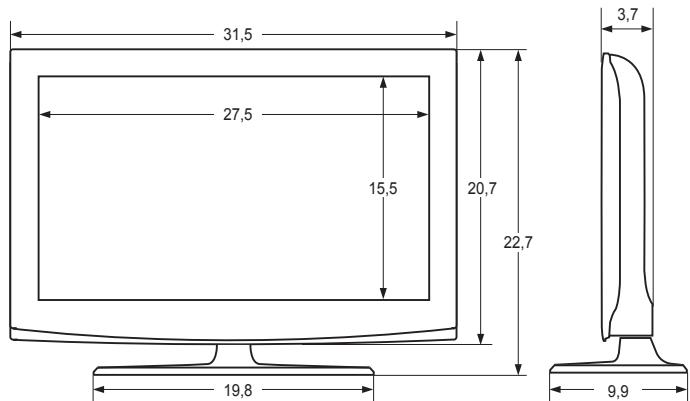

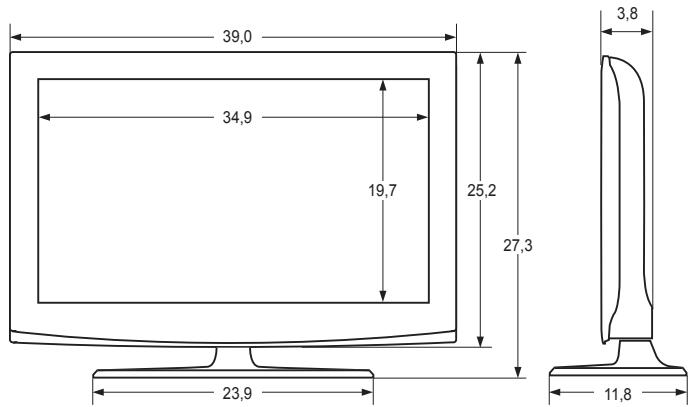

Dimensions. 74

Symbol

Press

Note

One-Touch
Button

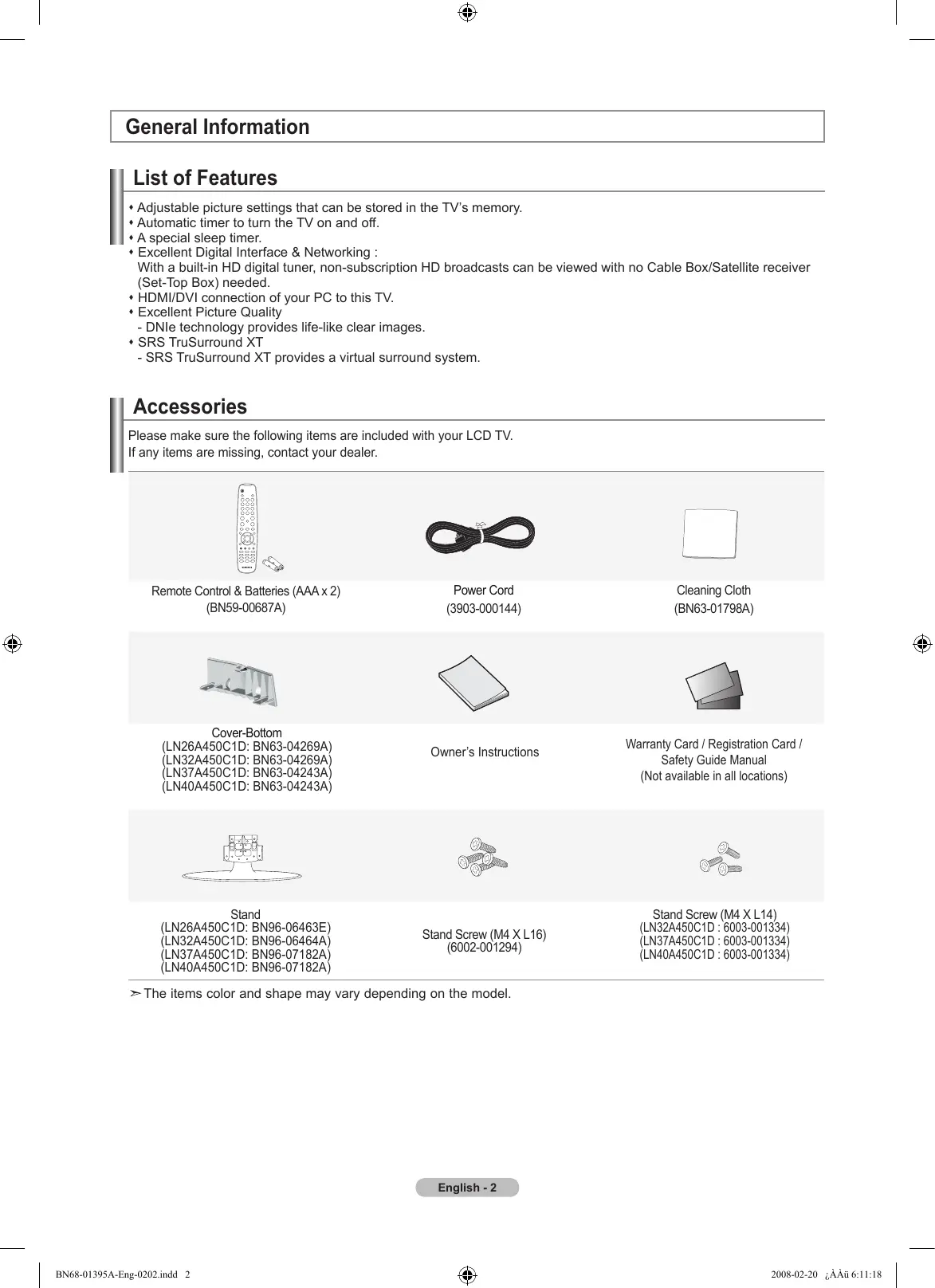

List of Features

Adjustable picture settings that can be stored in the TV's memory.
Automatic timer to turn the TV on and off.
A special sleep timer.
Excellent Digital Interface & Networking :

With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed.

HDMI/DVI connection of your PC to this TV.
Excellent Picture Quality

• DNlte technology provides life-like clear images.

• SRS TruSurround XT

• SRS TruSurround XT provides a virtual surround system.

Accessories

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)

(BN59-00687A)

Power Cord

(3903-000144)

Cleaning Cloth

(BN63-01798A)

Cover-Bottom

(LN26A450C1D:BN63-04269A)

(LN32A450C1D:BN63-04269A)

(LN37A450C1D:BN63-04243A)

(LN40A450C1D:BN63-04243A)

Owner's Instructions

Warranty Card / Registration Card /

Safety Guide Manual

(Not available in all locations)

Stand

(LN26A450C1D:BN96-06463E)

(LN32A450C1D:BN96-06464A)

(LN37A450C1D:BN96-07182A)

(LN40A450C1D: BN96-07182A)

Stand Screw (M4 X L16)

(6002-001294)

Stand Screw (M4 X L14)

(LN32A450C1D : 6003-001334)

(LN37A450C1D:6003-001334)

(LN40A450C1D:6003-001334)

The items color and shape may vary depending on the model.

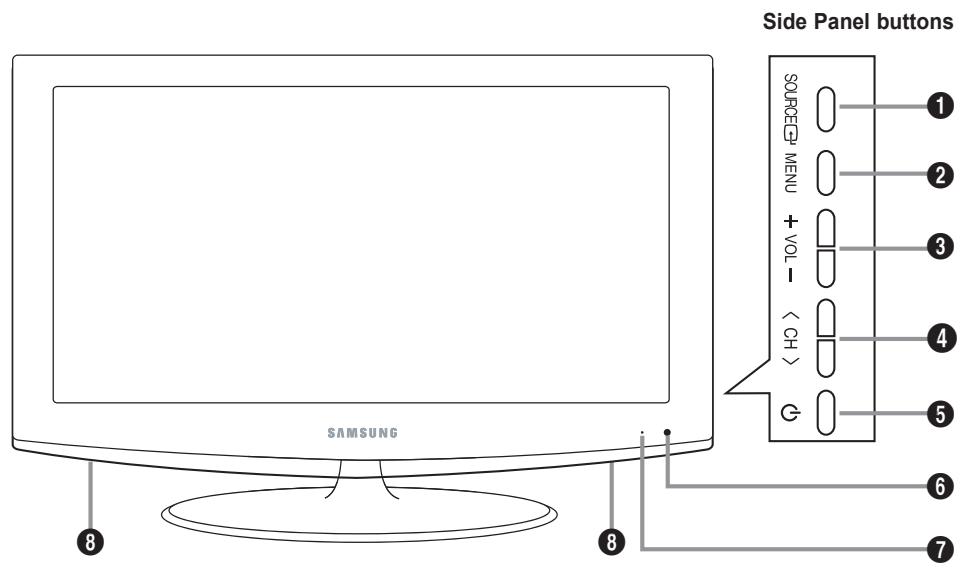

Buttons on the Lower-Right Part of the Panel

The buttons on the lower-right panel control your TV's basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

The product color and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources (TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you would use the ENTER button on the remote control.

2 MENU

Press to see an on-screen menu of your TV's features.

+VOL -

Press to increase or decrease the volume. In the on-screen menu, use the +VOL - buttons as you would use the and buttons on the remote control.

CH>

Press to change channels. In the on-screen menu, use the <CH> buttons as you would use the and buttons on the remote control.

(POWER)

Press to turn the TV on and off.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

7 POWER INDICATOR

Blinks and turns off when the power is on and lights up in stand-by mode.

SPEAKERS

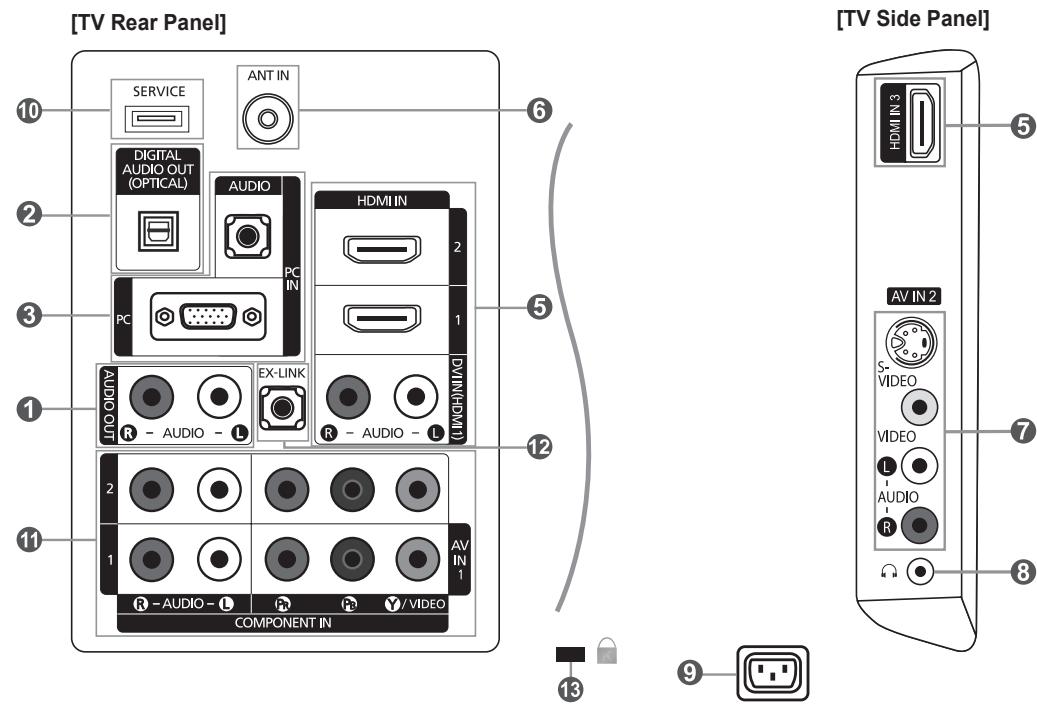

Viewing the Connection Panel

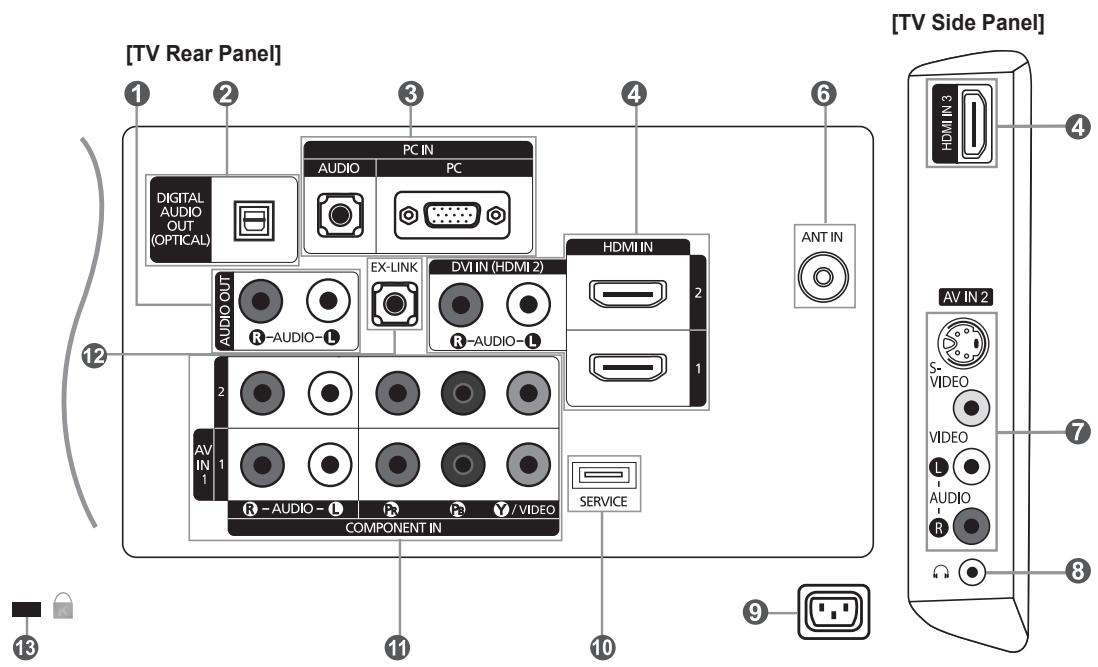

Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR. For more information on connecting equipment, see pages 7~20.

LN26A450C1D, LN40A450C1D

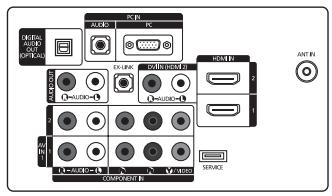

LN32A450C1D, LN37A450C1D

The product color and shape may vary depending on the model.

1 AUDIO OUT

Connects to the audio input jacks on your Amplifier/Home theater.

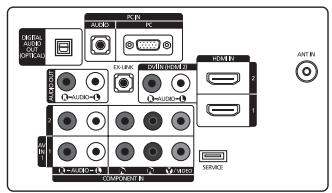

2 DIGITAL AUDIO OUT (OPTICAL)

Connects to a Digital Audio component.

3 PC IN [PC] / [AUDIO]

Connects to the video and audio output jacks on your PC.

HDMI IN 1, 2, 3 / DVI IN(HDMI2)[R-AUDIO-L] (LN26A450C1D, LN40A450C1D)

Connects to the HDMI jack of a device with an HDMI output.

Use the HDMI IN 2 jack for DVI connection to an external device.

Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.

• No sound connection is needed for an HDMI to HDMI connection.

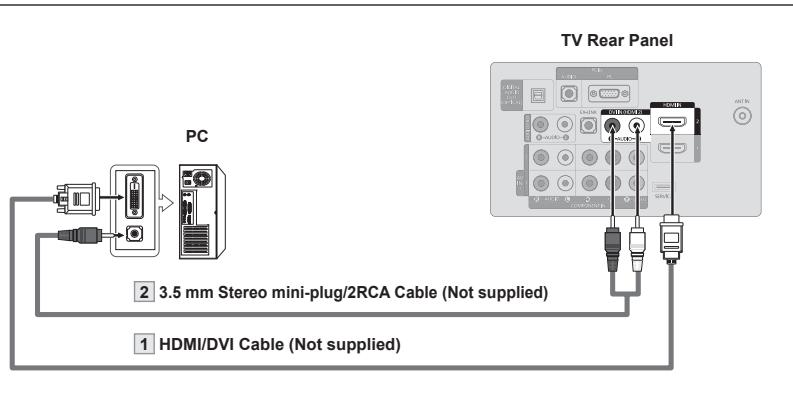

• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

HDMI IN 1, 2, 3 / DVI IN(HDMI1)[R-AUDIO-L] (LN32A450C1D, LN37A450C1D)

Connects to the HDMI jack of a device with an HDMI output.

Use the HDMI IN 1 jack for DVI connection to an external device.

Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the DVI IN (HDMI1) [R-AUDIO-L] jacks for audio.

• No sound connection is needed for an HDMI to HDMI connection.

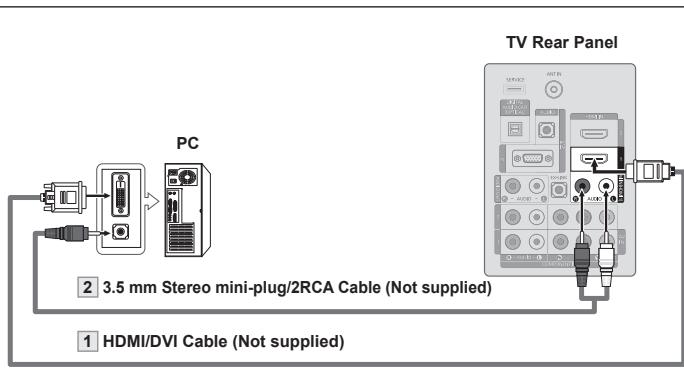

• When using an HDMI/DVI cable connection, you must use the HDMI IN 1 jack.

6 ANT IN

Connects to an antenna or cable TV system.

AV IN 2

Video and audio inputs for external devices, such as a camcorder or VCR. S-VIDEO

Connects an S-Video signal from a camcorder or VCR.

3 (HEADPHONE)

Connects a set of external headphones for private listening.

9 POWER INPUT

Connects the supplied power cord.

10 SERVICE

Connector for SERVICE only.

1 COMPONENT IN 1,2

The COMPONENT IN 1 jack is also used as the AV IN 1 jack.

• Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1 [R-AUDIO-L] jacks.

EX-LINK

-LN26A450C1D

Connector for SERVICE only.

• LN32A450C1D / LN37A450C1D / LN40A450C1D

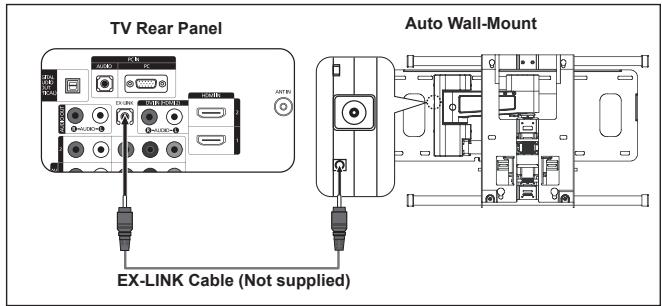

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

13 KENSINGTON LOCK

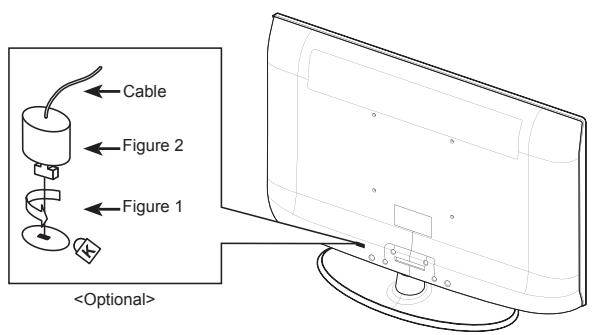

The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the Kensington Lock may be different depending on its model.

You can use the remote control up to a distance of about 23 feet from the TV.

1 POWER

Turns the TV on and off.

TV

Selects the TV mode directly.

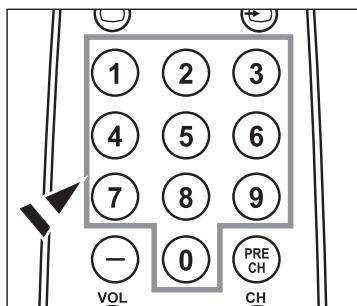

3 NUMERIC BUTTONS

Press to change the channel.

4

Press to select additional channels(digital and analog) being broadcast by the same station. For example, to select channel "54-3", press "54", then press "O" and "3".

5 (MUTE)

Press to temporarily cut off the sound.

6 VOL+ I VOL-

Press to increase or decrease the volume.

CH LIST

Used to display Channel Lists on the screen.

8 TOOLS

Use to quickly select frequently used functions.

9 INFO

Press to display information on the TV screen.

10 COLOR BUTTONS

Use these buttons in the Channel list, etc.

SRS

Selects SRS TruSurround XT mode.

12 E.MODE

Press to select the preset display and sound modes for sports, cinema and games.

Use these buttons in the DMA and Anynet+ modes.

() : This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

14 SOURCE

Press to display and select the available video sources.

PRECH

Tunes to the previous channel.

16 CH /CI

Press to change channels.

17 MENU

Displays the main on-screen menu.

18 CC

Controls the caption decoder.

19 RETURN

Returns to the previous menu.

Use to select on-screen menu items and change menu values.

2 EXIT

Press to exit the menu.

DMA (Digital Media Adapter)

Use this when connecting a SAMSUNG DMA device through an HDMI interface and switching to DMA mode.

For more information on the operating procedures, refer to the user manual of the DMA.

This button is available when "Anynet+ (HDMI-CEC)" is "On" (see page 64)

MTS

Press to choose stereo, mono or Separate Audio Program (SAP broadcast).

24 FAV.CH

Press to switch to your favorite channels.

P.SIZE

Picture size selection.

The performance of the remote control may be affected by bright light.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
3. Replace the cover.
Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.

The remote control can be used up to about 23 feet from the TV.

(Assuming typical TV usage, the batteries should last for about one year.)

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Connections (LN26A450C1D, LN40A450C1D)

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas with 300 Ω Flat Twin Leads" below.

If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 Round Leads".

If you have two antennas, see "Separate VHF and UHF Antennas".

Antennas with 300 Ω Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300 - 75 adapter (not supplied).

Use a screwdriver to tighten the screws.

1. Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennas with 75 Ω Round Leads

1. Plug the antenna lead into the ANT IN terminal on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

1. Plug the incoming cable into the ANT IN terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.

Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".

1. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

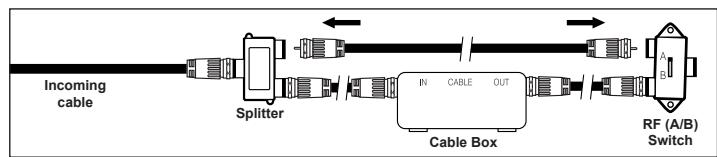

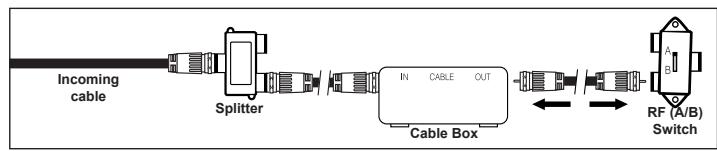

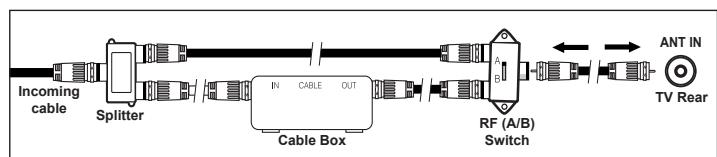

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
   This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".
2. Connect this cable to a two-way splitter.
3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.
4. Connect an RF cable between the ANT OUT terminal on the cable box and the B-IN terminal on the RF(A/B) switch.
5. Connect another cable between the other OUT terminal on the splitter and the A-IN terminal on the RF (A/B) switch.
6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.

After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's output channel, which is usually channel 3 or 4.)

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

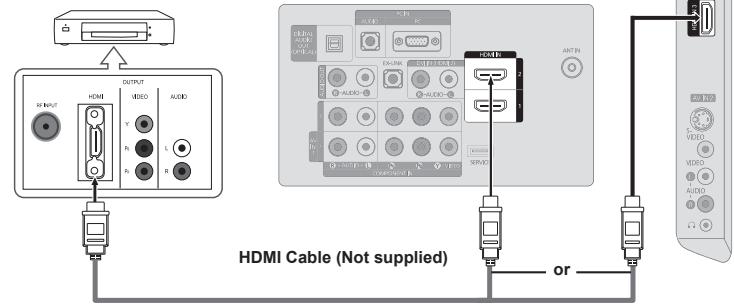

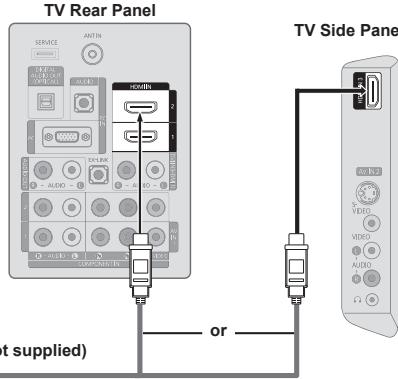

1. Connect an HDMI Cable between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

DVD Player or Cable Box/Satellite receiver (Set-Top Box) Rear Panel

What is HDMI?

• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.

  Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

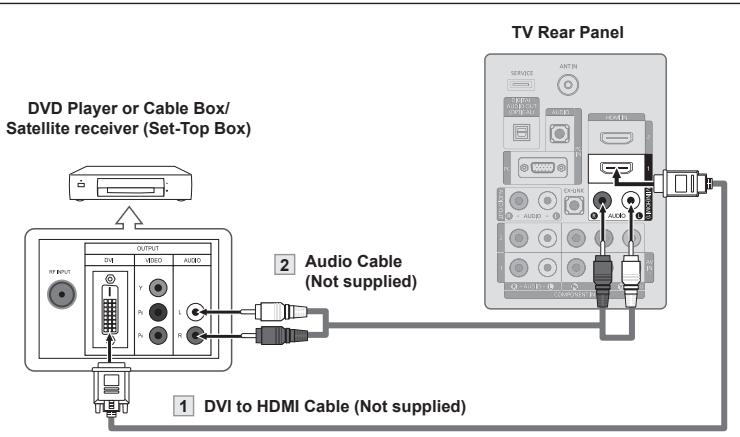

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.

1. Connect a Component Cable between the COMPONENT IN (1 or 2) [Y, P_B , P_R ] jacks on the TV and the COMPONENT [Y, P_B , P_R ] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN(1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting a Component video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

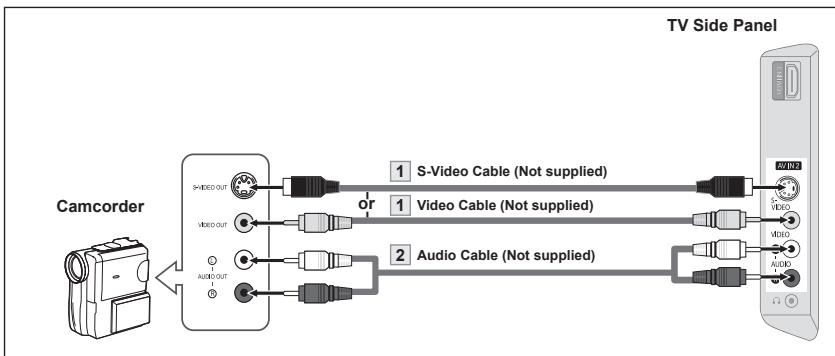

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV.

They allow you to view the camcorder tapes without using a VCR.

1. Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.

Each Camcorder has a different back panel configuration.

When connecting a Camcorder, match the color of the connection terminal to the cable.

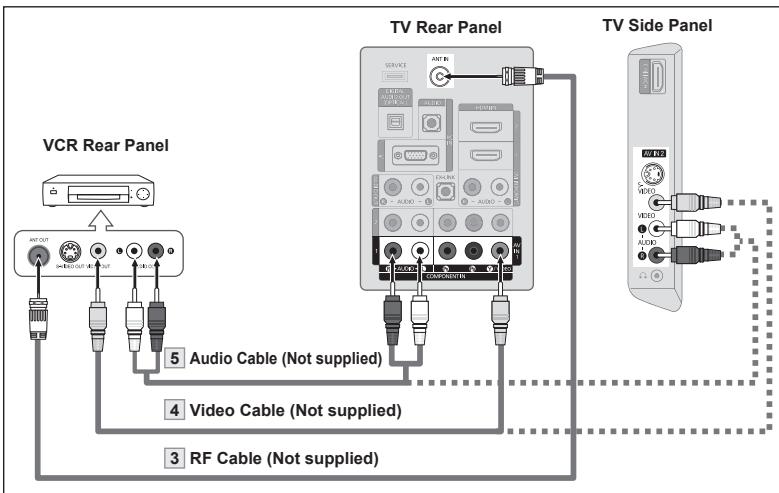

Video Connection

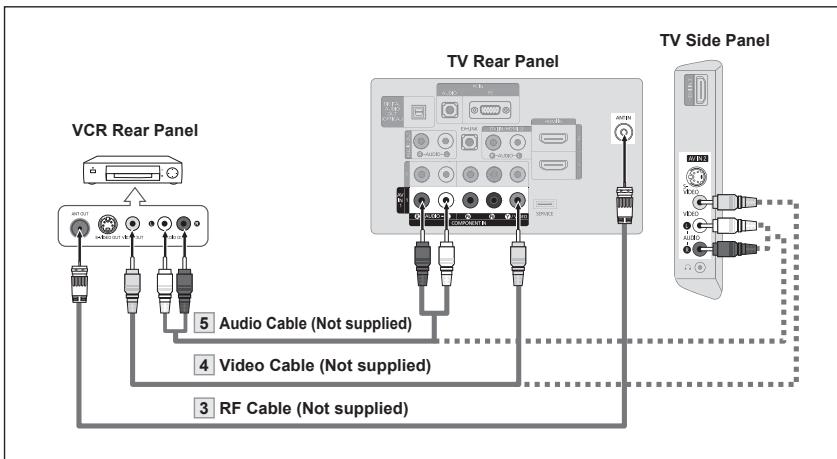

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 7~8). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 [Y/VIDEO] or AV IN 2 [VIDEO] jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.

If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCRis stereo, you must connect two cables.

Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.

Each VCR has a different back panel configuration.

When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

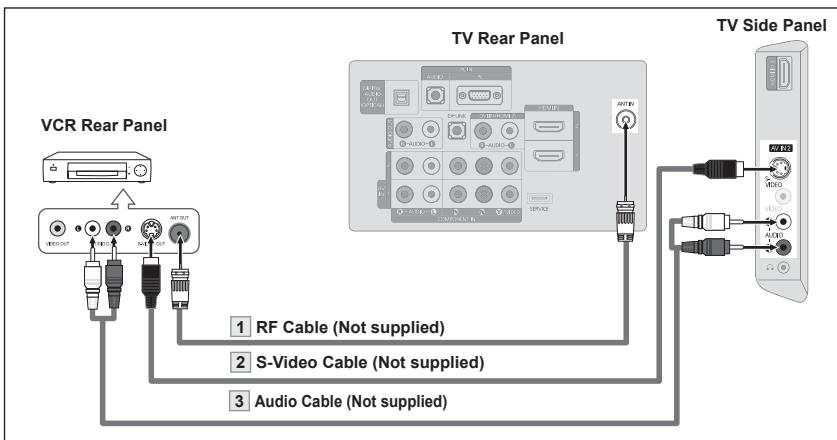

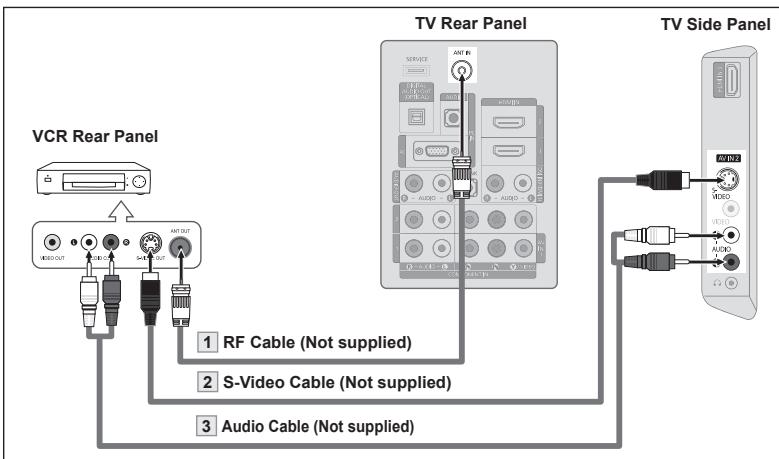

S-Video Connection

Your Samsung TV can be connected to an S-Video jack on a VCR.

(This connection delivers a better picture when compared to the regular Video connection above.)

1. To begin, follow steps 1-3 in the previous section to connect the antenna or cable to your VCR and your TV.
2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.
3. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks on the TV.

An S-Video cable may be included with a VCR. (If not, check your local electronics store.)

Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.

Connecting a Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.

1. Connect an Optical Cable between the "DIGITAL AUDIO OUT (OPTICAL)" jacks on the TV and the Digital Audio Input jacks on the Digital Audio System.

When a Digital Audio System is connected to the "DIGITAL AUDIO OUT (OPTICAL)" jack: Decrease the volume of the TV and adjust the volume level with the system's volume control.

Digital Audio System

Optical Cable (Not supplied)

TV Rear Panel

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.
Each Digital Audio System has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.

Connecting an Amplifier/DVD Home Theater

1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD Home Theater.

When an audio amplifier is connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier's volume control.

Amplifier/DVD Home Theater

Audio Cable (Not supplied)
TV Rear Panel

Each Amplifier/DVDHome Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable.

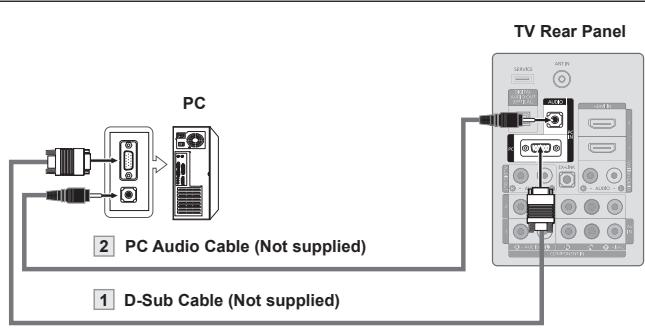

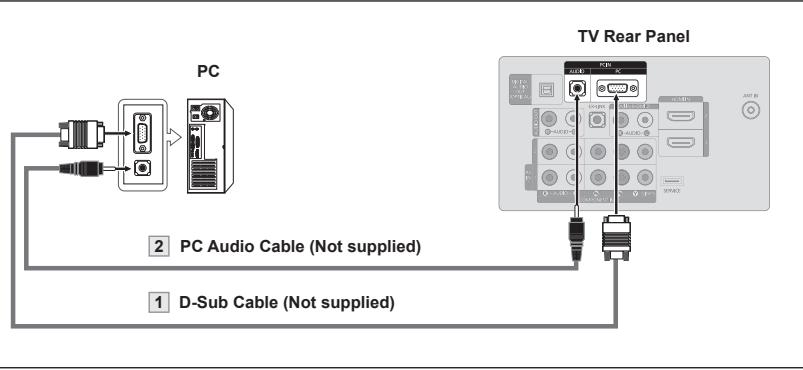

Using the D-Sub Cable

1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.

Using the HDMI/DVI Cable

1. Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2. Connect a 3.5 mm Stereo mini-plug/2RCA Cable between the DVI IN(HDMI2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.

Each PC has a different back panel configuration.

When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas with 300 Ω Flat Twin Leads" below.

If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 Round Leads".

If you have two antennas, see "Separate VHF and UHF Antennas".

Antennas with 300 Ω Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).

Use a screwdriver to tighten the screws.

1. Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennas with 75 Ω Round Leads

1. Plug the antenna lead into the ANT IN terminal on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

1. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

1. Plug the incoming cable into the ANT IN terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.

Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".

1. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambs only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
   This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".
2. Connect this cable to a two-way splitter.
3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.
4. Connect an RF cable between the ANT OUT terminal on the cable box and the B-IN terminal on the RF(A/B) switch.
5. Connect another cable between the other OUT terminal on the splitter and the A-IN terminal on the RF (A/B) switch.
6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.

After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's output channel, which is usually channel 3 or 4.)

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

1. Connect an HDMI Cable between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

DVD Player or Cable Box/Satellite receiver (Set-Top Box) Rear Panel

TV Rear Panel

What is HDMI?

• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.

  Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 1 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI IN (HDMI 1) [R-AUDIO-L] jack on the TV and the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 1 jack.

The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.

1. Connect a Component Cable between the COMPONENT IN (1 or 2) [Y,PB,PR] jacks on the TV and the COMPONENT [Y,PB,PR] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN(1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting a Component video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

1. Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and theVIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.

Each Camcorder has a different back panel configuration.

When connecting a Camcorder, match the color of the connection terminal to the cable.

Video Connection

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 14~15). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 [Y/VIDEO] or AV IN 2 [VIDEO] jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.

If you have a "mono"(non-stereo) VCR, use aY-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.

Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

S-Video Connection

Your Samsung TV can be connected to an S-Video jack on a VCR.

(This connection delivers a better picture when compared to the regular Video connection above.)

1. To begin, follow steps 1-3 in the previous section to connect the antenna or cable to your VCR and your TV.
2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.
3. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks on the TV.

An S-Video cable may be included with a VCR. (If not, check your local electronics store.)

Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.

The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.

1. Connect an Optical Cable between the "DIGITAL AUDIO OUT (OPTICAL)" jacks on the TV and the Digital Audio Input jacks on the Digital Audio System.

When a Digital Audio System is connected to the "DIGITAL AUDIO OUT (OPTICAL)" jack: Decrease the volume of the TV and adjust the volume level with the system's volume control.

Digital Audio System

Optical Cable (Not supplied)

TV Rear Panel

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.
Each Digital Audio System has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.

Connecting an Amplifier/DVD Home Theater

1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD Home Theater.

When an audio amplifier is connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier's volume control.

Amplifier/DVD Home Theater

Audio Cable (Not supplied)

TV Rear Panel

Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable.

Using the D-Sub Cable

1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.

Using the HDMI/DVI Cable

1. Connect a HDMI/DVI cable between the HDMI IN 1 jack on the TV and the PC output jack on your computer.
2. Connect a 3.5 mm Stereo mini-plug/2RCA Cable between the DVI IN(HDMI1) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.

Each PC has a different back panel configuration.

When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 1 jack.

Turning the TV On and Off

Press the POWER button on the remote control.

You can also use the POWER button on the TV.

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

The Screen Saver is activated if there is no remote control key input for longer than 1 minute while "Plug & Play" is running.
The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

1. Press the POWER button on the remote control.

The message "Menu Language, Store Demo, Channels and Time will be set." is displayed.

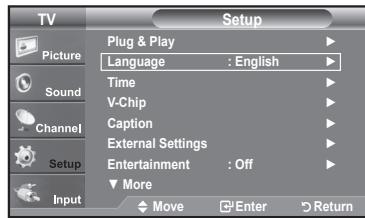

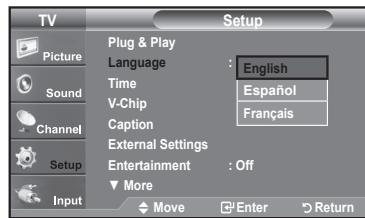

Press the ENTER button, then "Select the language of the OSD" menu is automatically displayed.

1. Press the or button to select language, then press the ENTER button.

The message "Select 'Home Use' when installing this TV in your home." is displayed.

1. Press the or button to select "Store Demo" or "Home Use", then press the ENTER button.

The message "Select the antennas to memorize." is displayed.

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
"Store Demo" mode is only intended for use in retail environments.
If the unit is accidentally set to "Store Demo" mode and you want to return to "Home Use" (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

1. Press the or button to memorize the channels of the selected connection.

Press the ENTER button to select "Start".

Air: "Air" antenna signal.

Cable: "Cable" antenna signal.

Auto: "Air" and "Cable" antenna signals.

In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the , , or button, then press the ENTER button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.

1. The TV will begin memorizing all of the available channels.

To stop the search before it has finished, press the ENTER button with "Stop" selected.

After all the available channels are stored, it starts to remove scrambled channels (see page 39). The Auto program menu then reappears.

Press the ENTER button when channel memorization is complete.

The message "Set the Clock Mode." is displayed.

1. Press the ENTER button.

Press the or button to select "Auto", then Press the ENTER button. The message "Set to daylight saving time." is displayed.

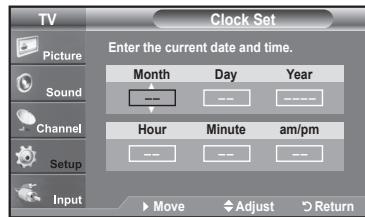

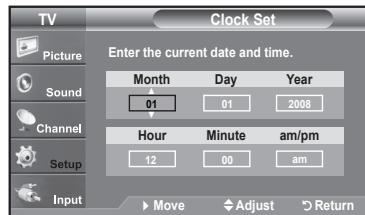

If you select "Manual", "Enter the current date and time." is displayed. (See page 48)

1. Press the or button to select "Off" or "On", then press the ENTER button. The message "Select the time zone in which you live." is displayed.

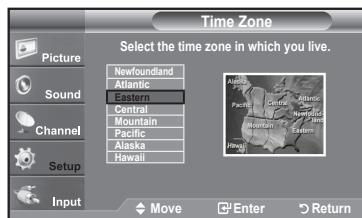

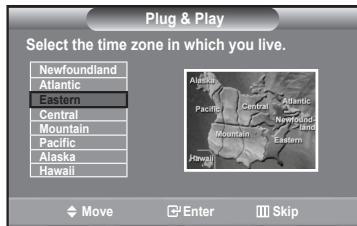

2. Press the or button to highlight the time zone for your local area. Press the ENTER button. If you have received a digital signal, the time will be set automatically. If not, see page 48 to set the clock.

3. The message "Enjoy your watching." is displayed. When you have finished, press the ENTER button.

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the ENTER button again to select "Plug & Play". For further details on setting up options, refer to the pages 21~22. The "Plug & Play" feature is only available in the TV mode.

Changing Channels

Using the Channel Buttons

1. Press the CH or CH button to change channels.

When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 24 to memorize channels.

Using the Number Buttons

1. Press the number buttons to go directly to a channel. For example, to select channel 27, press 2, then 7.

For quick channel change, press the number buttons, then press the ENTER button.

Using the Button

The button is used to select stations that broadcast a digital signal.

1. For example, for Channel 7-1, press 7, then , then 1.

HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal.
For quick channel change, press the number buttons, then press the ENTER button.

Using the PRE CH Button to select the Previous Channel

1. Press the PRE CH button.

The TV will switch to the last channel viewed.

To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE CH button to quickly alternate between them.

Adjusting the Volume

Using the Volume Buttons

1. Press the VOL or VOL ^+ button to increase or decrease the volume.

Using the MUTE button

At any time, you can cut off the sound using the MUTE button.

1. Press MUTE button and the sound cuts off.

"Mute" is displayed on the screen.

1. To turn mute off, press the MUTE button again or simply press the

VOL or VOL+ button.

Viewing the Display

The display identifies the current channel and the status of certain audio-video settings.

1. Press the INFO button on the remote control.

The TV will display the channel, the type of sound, and the status of certain picture and sound settings.

Press the INFO button once more or wait approximately 10 seconds and the display disappears automatically.

Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu's left side has icons:

Picture, Sound, Channel, Setup, Input.

1. Press the or button to select one of the icons.

Then press the ENTER button to access the icon's sub-menu.

1. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes depending on which external input mode you are viewing.

1. Press the TOOLS button.
   The "Tools" menu will appear.
2. Press the or button to select a menu.

3. Press the / / / button to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

4. Anynet+(HDMI-CEC), see page 64

5. Picture Mode, see page 27
   Sound Mode, see page 35
6. Sleep Timer, see page 50
7. Add to Favorite, see page 41
8. Switch to Air, see page 24
9. Auto Adjustment, see page 46

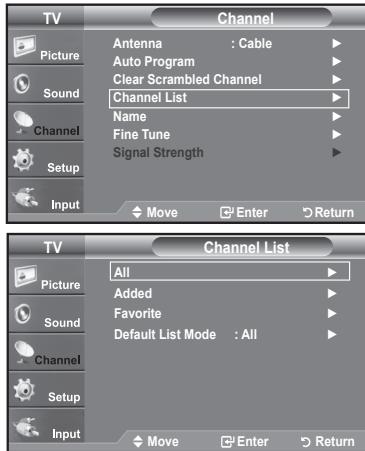

Memorizing the Channels

Your TV can memorize and store all of the available channels for both "off-air" (Air) and "Cable" channels. After the available channels are memorized, use the CH or CH button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Lists).

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the ENTER button to select "Antenna".

Press the or button to select "Air" or "Cable", then press the ENTER button. Press the EXIT button to exit.

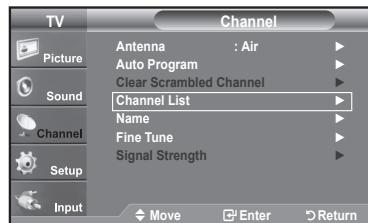

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Switch to Air" (or "Switch to Cable"), then press the ENTER button.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER 已 button.

2. Press the or button to select "Auto Program", then press the ENTER button.

3. Press the or button to select the antenna connection, then press the ENTER button.

Air: "Air" antenna signal.

Cable: "Cable" antenna signal.

Auto: "Air" and "Cable" antenna signals.

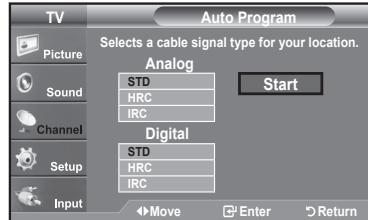

1. When selecting the Cable TV system:

Press the ENTER button to start the auto program.

Press the or button, then press the or to select the correct analog signal cable system source among "STD", "HRC", and "IRC". Press the ENTER button. If you have Digital cable TV, select the cable system signal source for both Analog and Digital.

STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected.

1. The TV begins memorizing all available stations.

After all the available channels are stored, it start to remove scrambled channels(see page 39).

If you want to stop Auto Programming, press the ENTER button. The "Stop Auto Program?" message will be displayed. Select "Yes" by pressing the or button, then press the ENTER button.

Press the EXIT button to exit.

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable Box/ Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

1. Press the MENU button to display the menu.

Press the or button to select "Input", then press the ENTER button.

1. Press the ENTER button to select "Source List".

Press the or button to select signal source, then press the ENTER button.

Available signal sources: TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3.
You can choose only those external devices that are connected to the TV.

Press the SOURCE button on the remote control to view an external signal source.

To Edit the Input Source Name

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.
   Press the or button to select "Input", then press the ENTER ^山 button. Press the or button to select "Edit Name", then press the ENTER ^山 button.
2. Press the or button to select "AV1", "AV2", "S-Video", "Component1", "Component2", "PC", "HDMI1", "HDMI2", "HDMI3" input jack, then press the ENTER button.
3. Press the or button to select "VCR", "DVD", "Cable STB", "Satellite STB", "PVR STB", "AV Receiver", "Game", "Camcorder", "PC", "TV", "IPTV", "Blu-Ray", "HD DVD", "Digital Media Adapter" input source, then press the ENTER button. Press the EXIT button to exit.

Changing the Picture Standard

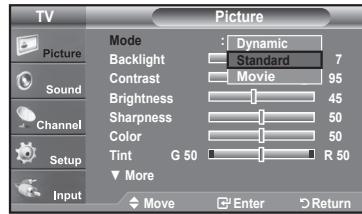

You can activate either Dynamic, Standard, Movie by making a selection from the menu.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

2. Press the ENTER button to select "Mode". Press the or button to select the "Dynamic", "Standard" or "Movie".

3. Dynamic: Selects the picture for high-definition in a bright room.

4. Standard: Selects the picture for the optimum display in a normal environment.

5. Movie: Selects the picture for viewing movies in a dark room.

6. Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Picture Mode".
3. Press the or button to select the required option.
4. Press the EXIT or TOOLS button to exit.

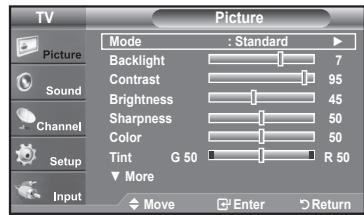

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.

1. To select the desired picture mode, follow the "Changing the Picture Standard" instructions numbers 1 and 2.
2. Press the or button to select "Backlight", "Contrast", "Brightness", "Sharpness", "Color" or "Tint", then press the ENTER button.
3. Press the or button to decrease or increase the value of a particular item. Press the ENTER button.

Press the EXIT button to exit.

When you make changes to "Backlight", "Contrast", "Brightness", "Sharpness", "Color" or "Tint", the OSD will be adjusted accordingly.
In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness".

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

• Backlight: Adjusts the brightness of LCD back light.
• Contrast: Adjusts the contrast level of the picture.
• Brightness: Adjusts the brightness level of the picture.
• Sharpness: Adjusts the edge definition of the picture.
  Color: Adjusts color saturation of the picture.
• Tint: Adjusts the color tint of the picture.

Adjusting the Detailed Settings

Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.

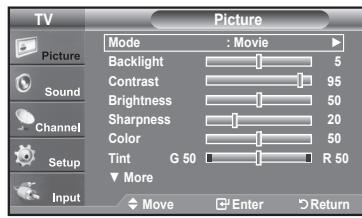

Activating Detailed Settings

1. Press the MENU button to display the menu.
   Press the ENTER b button to select "Picture".
2. Press the ENTER button to select "Mode"
   Press the or button to select "Standard" or "Movie", then press the ENTER button.
   > "Detailed Settings" is available in "Standard" or "Movie" mode.
3. Press the or button to select "Detailed Settings", then press the ENTER button.

   In PC mode, you can only make changes to "Dynamic Contrast", "Gamma" and "White Balance" from among the "Detailed Settings" items.

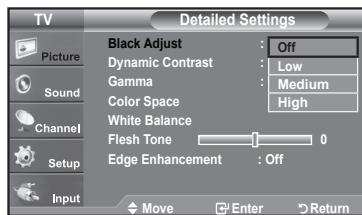

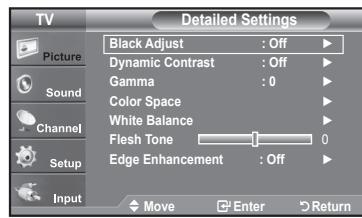

Setting the Black adjust

You can select the black level on the screen to adjust the screen depth.

1. Press the or button to select "Black adjust", then press the ENTER button.

2. Press the or button to select "Off", "Low", "Medium" or "High". Press the ENTER button.

3. Off: Turns off the black adjustment function.

4. Low: Sets the black color depth to low.
   Medium: Sets the black color depth to medium.
   High: Sets the black color depth to high.

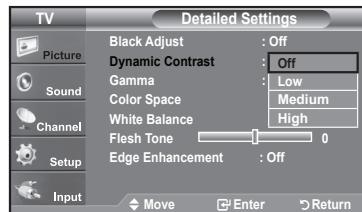

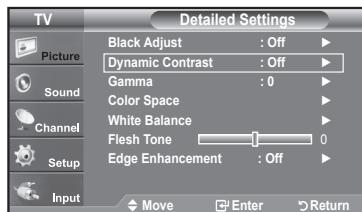

Setting the Dynamic Contrast

You can adjust the screen contrast so that the optimal contrast is provided.

1. Press the or button to select "Dynamic Contrast", then press the ENTER button.

2. Press the or button to select "Off", "Low", "Medium" or "High". Press the ENTER button.

3. Off: Turns off the dynamic contrast adjustment function.
   Low: Sets the dynamic contrast to low.
   Medium: Sets the dynamic contrast to medium.
   High: Sets the dynamic contrast to high.

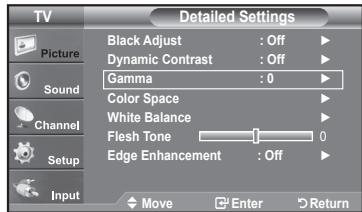

Adjusting the Gamma

You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 +3)

1. Press the or button to select "Gamma", then press the ENTER button.
2. Press the or button to decrease or increase the value.

Press the ENTER button.

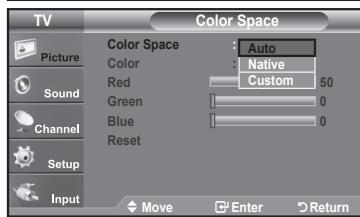

Setting the Color Space

Color space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most natural color.

1. Press the or button to select "Color Space", then press the ENTER button.
2. Press the ENTER button again to select "Color Space".

3. Press the or button to select "Auto", "Native" or "Custom". Press the ENTER button.

4. Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.

5. Native: Native Color Space offers deep and rich color tone.
6. Custom: Adjusts the color range to suit your preference. (see "Customizing the Color Space")

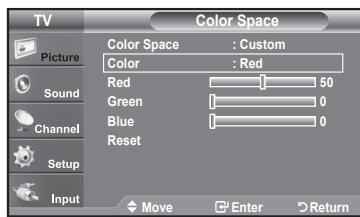

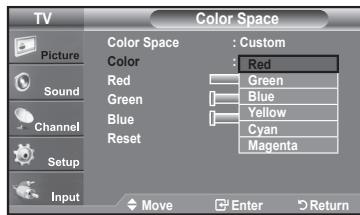

Customizing the Color Space

1. Press the or button to select "Color", then press the ENTER button.

   "Color" is available when "Color Space" is set to "Custom".

2. Press the or button to select "Red", "Green", "Blue", "Yellow", "Cyan" or "Magenta". Press the ENTER button.
3. Press the or button to select "Red", "Green" or "Blue" to change it. Press the ENTER button.
4. Press the or button to decrease or increase the value of a particular item. Press the ENTER button.

In "Color", you can adjust the RGB values for the selected color.
To reset the adjusted RGB value, select "Reset".

• Red: Adjusts the red saturation level of the selected color.
• Green: Adjusts the green saturation level of the selected color.
• Blue: Adjusts the blue saturation level of the selected color.
• Reset: Resets the color space to the default values.

Changing the adjustment value will refresh the adjusted screen.
Settings can be adjusted and stored for each external device you have connected to an input of the TV. For example, if you have a DVD player connected to HDMI 1 and it is currently selected, settings and adjustments will be saved for the DVD player.

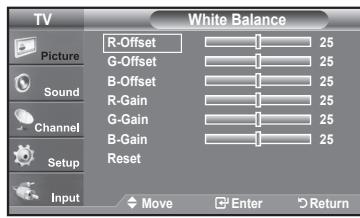

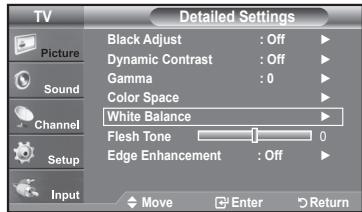

Adjusting the White Balance

You can adjust the color temperature for more natural picture colors.

1. Press the or button to select "White Balance", then press the ENTER button.
2. Select the required option by pressing the or button, then press the ENTER button.

3. Press the or button to decrease or increase the value of a particular item. Press the ENTER button.

4. R-Offset: Adjusts the red color darkness.
   G-Offset: Adjusts the green color darkness.
   B-Offset: Adjusts the blue color darkness.
   R-Gain: Adjusts the red color brightness.
   G-Gain: Adjusts the green color brightness.
   B-Gain: Adjusts the blue color brightness.

5. Reset: The previously adjusted white balance will be reset to the factory defaults.

Changing the adjustment value will refresh the adjusted screen.

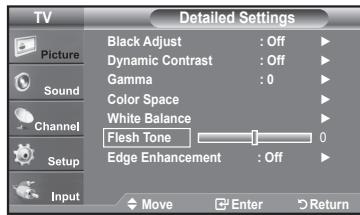

Adjusting the Flesh Tone

You can emphasize the pink 'flesh tone' in the picture.

1. Press the or button to select "Flesh Tone", then press the ENTER button.
2. Press the or button to decrease or increase the value. Press the ENTER button.

Changing the adjustment value will refresh the adjusted screen.

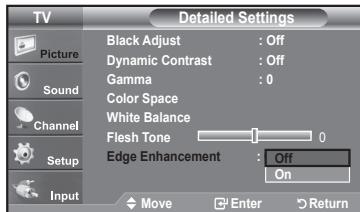

Setting the Edge Enhancement

You can emphasize object boundaries in the picture.

1. Press the or button to select "Edge Enhancement", then press the ENTER button.
2. Press the or button to select "Off" or "On". Press the ENTER ^ button.

Press the EXIT button to exit.

Activating Picture Options

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

2. Press the or button to select "Picture Options", then press the ENTER button.

Press the or button to select a particular item. Press the ENTER G button.
When you are satisfied with your setting, press the ENTER button.
In PC mode, you can only make changes to the "Color Tone" and "Size" from among the items in "Picture Options".

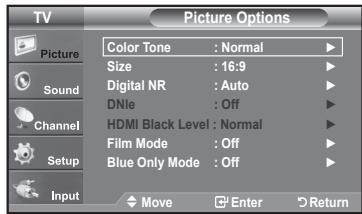

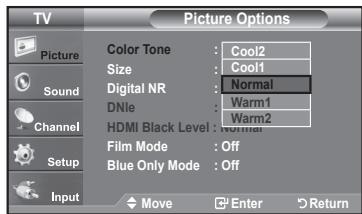

Setting the Color Tone

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)
2. Press the or button to select "Color Tone", then press the ENTER button.
3. Press the or button to select "Cool2", "Cool1", "Normal", "Warm1" or "Warm2". Press the ENTER l button.

"Warm1" or "Warm2" is only activated when the picture mode is "Movie".

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

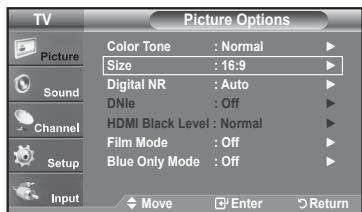

Setting the Screen Size

Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)
2. Press the or button to select "Size", then press the ENTER button.
3. Press the or button to select the screen format you want. Press the ENTER button.

Press the EXIT button to exit.

• 16:9 : Sets the picture to 16:9 wide mode.
• Zoom1: Magnifies the size of the picture on the screen.
• Zoom2: Magnifies the size of the picture more than "Zoom1".
• Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3 : Sets the picture to 4:3 normal mode.
• Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

Temporary image retention may occur when viewing a static image on the set for more than two hours.
After selecting "Zoom1", "Zoom2" or "Wide Fit":

Press the or button to select "Position", then press the ENTER button. Press the or button to move the picture up and down.

Reset: Press the or button to select "Reset", then press the ENTER button. You can initialize the setting.

After selecting "Just Scan" in HDMI (1080i) or Component (1080i) mode:

Press the or button to select "H-Position" or "V-Position", then press the ENTER button.

Press the or button to adjust the screen Position. Press the ENTER button.

Reset: Press the or button to select "Reset", then press the ENTER button. You can initialize the setting.

HD (High Definition)

16:9 - 1080i (1920x1080), 720p (1280x720)

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Input Source	Picture Size
TV, Video, S-Video, Component (480i, 480p)	16:9, Zoom1, Zoom2, 4:3
DTV(1080i), Component (1080i), HDMI (720p, 1080i)	16:9, 4:3, Wide Fit, Just Scan
PC	16:9, 4:3

Alternate, you can press the P.SIZE button on the remote control repeatedly to change the picture size.

16:9

Sets the picture to 16:9 wide mode.

Zoom1

Magnifies the size of the picture on the screen.

Zoom2

Magnifies the size of the picture more than "Zoom1".

Wide Fit

Enlarges the aspect ratio of the picture to fit the entire screen.

4:3

Sets the picture to 4:3 normal mode.

Just Scan

Use the function to see the full image without any cutoff when HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

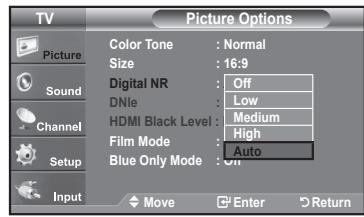

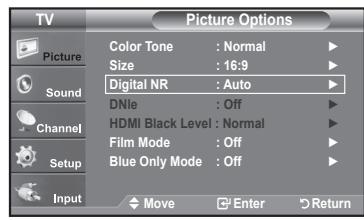

Setting the Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)
2. Press the or button to select "Digital NR", then press the ENTER button.

3. Press the or button to select "Off", "Low", "Medium", "High" or "Auto". Press the ENTER button.

4. Off: Turns the screen noise reduction function off.

5. Low: Reduces screen noise at a low level.
   Medium: Reduces screen noise at a medium level.
   High: Reduces screen noise at a high level.
   Auto: Automatically recognizes and reduces screen noise.

Press the EXIT button to exit.

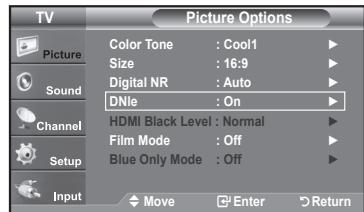

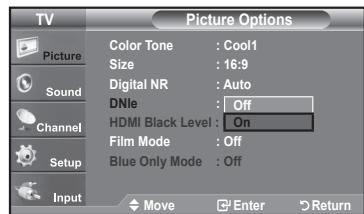

Setting the DNle (Digital Natural Image engine)

This TV includes the DNlle function to provide high visual quality. If you set DNlle to on, you can view the screen with the DNlle feature activated.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)
2. Press the or button to select "DNle", then press the ENTER 已 ^ 日 button.

3. Press the or button to select "Off" or "On", then press the ENTER button.

4. Off: Switches off the "DN1e" mode.

5. On: Switches on the "DNle" mode.

Press the EXIT button to exit.

DNleTM (Digital Natural Image engine) DnIeThis feature brings you a more detailed image with 3D noise reduction and detail, contrast and white enhancement.
"DNle" is only available in "Dynamic" mode.

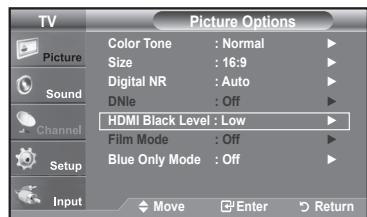

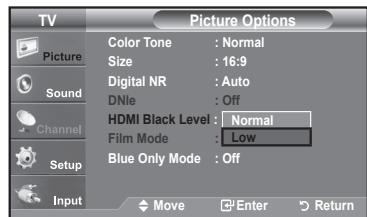

Setting the HDMI Black Level

You can select the black level on the screen to adjust the screen depth.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)
2. Press the or button to select "HDMI Black Level", then press the ENTER 已 button.
3. Press the or button to select "Normal" or "Low", then press the ENTER button.

Normal: The screen gets brighter.
- Low: The screen gets darker.
This function is active only when an external device is connected to the TV via HDMI. "HDMI Black Level" function may not be compatible with all external devices.

Press the EXIT button to exit.

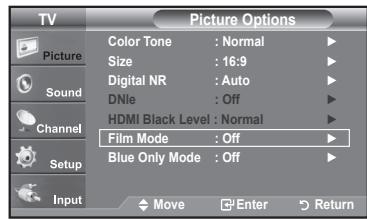

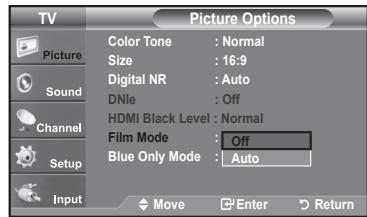

Setting the Film Mode

The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31)

2. Press the or button to select "Film Mode", then press the ENTER button.

3. Press the or button to select "Off" or "Auto", then press the ENTER button. Press the EXIT button to exit.

"Film mode" is supported in TV,VIDEO,S-VIDEO,COMPONENT(480i/1080i) and HDMI(480i/1080i).

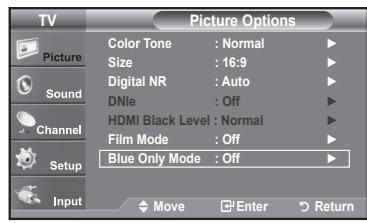

Setting the Blue Only Mode

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Color and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Color and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Color Bar Patterns, without using an additional Blue Filter.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 31).

2. Press the or button to select "Blue Only Mode", then press the ENTER button.

3. Press the or button to select "Off" or "On", then press the ENTER button. Press the EXIT button to exit.

"Blue Only Mode" is available when the picture mode is set to "Movie" or "Standard".

Resetting the Picture Settings to the Factory Defaults

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Press the or button to select "Reset", then press the ENTER button. Press the or button to select "OK" or "Cancel" then press the ENTER button.

Press the EXIT button to exit.

Eachmodecan bereset.

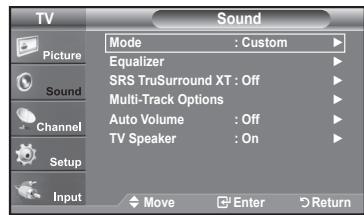

Changing the Sound Standard

You can select the sound mode to best suit the programming you're watching.

1. Press the MENU button to display the menu.

Press the or button to select "Sound", then press the ENTER 已 button.

1. Press the ENTER button to select "Mode".

Press the or button to select "Standard", "Music", "Movie", "Speech", or "Custom" sound setting, then press the ENTER button.

Press the EXIT button to exit.

• Standard: selects the normal sound mode.
  Music: emphasizes music over voices.
• Movie: provides the best sound for movies
• Speech: emphasizes voice over other sounds.
• Custom: recalls your customized sound settings. (see "Customizing the Sound")

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sound Mode".
3. Press the or button to select the required option.
4. Press the EXIT or TOOLS button to exit.

Customizing the Sound

The sound settings can be adjusted to suit your personal preference.

1. Press the MENU button to display the menu.
   Press the or button to select "Sound", then press the ENTER button.

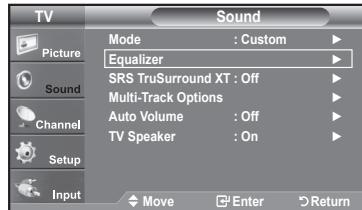

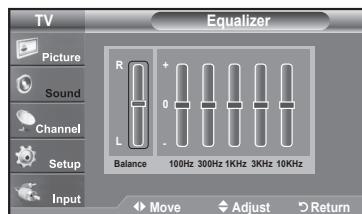

2. Press the or button to select "Equalizer", then press the ENTER button.

3. Press the or button to select a particular frequency to adjust.

Press the or button to increase or decrease the level of the particular frequency.

Press the ENTER button.

Press the EXIT button to exit.

• L/R Sound Balance Adjustment: To adjust the sound balance of the L/R speakers.
• Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz): To adjust the level of different bandwidth frequencies.

If you make any changes to the "Equalizer" settings, the sound mode is automatically switched to the "Custom" mode.

Setting the TruSurround XT

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu.
   Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "SRS TruSurround XT", then press the ENTER button.
3. Press the or button to select "Off" or "On", then press the ENTER button.

Press the EXIT button to exit.

SRS(●)

SRS TruSurround XT

TruSurround XT, SRS and () Symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Press the SRS button on the remote control to select "Off" or "On".

Choosing a Multi-Channel Sound (MTS) track - Digital

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional "multitracks" depends upon the program.

"Multi-Track Options" is available only in TV mode.

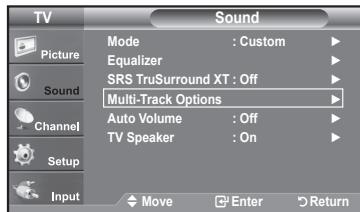

Preferred Language

1. Press the MENU button to display the menu.
   Press the or button to select "Sound", then press the ENTER button.

   Quick way to access the MTS menu: Just press the "MTS" button on the remote control. You can listen in a language other than your chosen language by pressing the MTS button.

2. Press the or button to select "Multi-Track Options", then press the ENTER button.
3. Press the ENTER button to select "Preferred Language".

Press the or button to choose the language (English, Spanish or French) you want, then press the ENTER button.

Press the EXIT button to exit.

> "Preferred Language" is available only in Digital TV mode.
You can only select the language from among the actual languages being broadcast.

You can listen in a language other than the Preferred language by pressing the MTS button on the remote control.

Multi-Track Sound

1. Press the MENU button to display the menu.
   Press the or button to select "Sound", then press the ENTER button.
2. Press the or button to select "Multi-Track Options", then press the ENTER button.
3. Press the or button to select "Multi-Track Sound", then press the ENTER button.

Press the or button to select a setting you want, then press the ENTER button.

Press the EXIT button to exit.

• Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal.
• Stereo: Choose for channels that are broadcasting in stereo.
• SAP: Choose to listen to the Separate Audio Program, which is usually a foreign-language translation.

“Multi-Track Sound” is available only in Analog TV mode.
Depending on the particular program being broadcast, you can listen to "Mono", "Stereo" or "SAP".

Press the MTS buttons on the remote control repeatedly to select "Mono", "Stereo" or "SAP".

Automatic Volume Control

Reduces the differences in volume level among broadcasters.

1. Press the MENU button to display the menu.
   Press the or button to select "Sound", then press the ENTER button.

2. Press the or button to select "Auto Volume", then press the ENTER button.

3. Press the or button to set Auto Volume "Off" or "On" then press the ENTER button.

Press the EXIT button to exit.

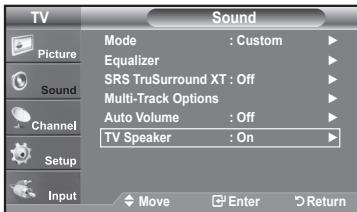

Setting the TV Speakers On/Off

Sound output from the TV speakers is muted.

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.

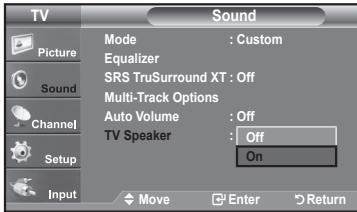

2. Press the or button to select "TV Speaker", then press the ENTER button.

3. Press the or button to select "Off", then press the ENTER button.

Press the EXIT button to exit.

When "TV Speaker" is set to "Off", Sound menus except "Multi-Track Options" cannot be adjusted.
The VOL, VOL and MUTE buttons do not operate when the "TV Speaker" is set to "Off".

	TV's Internal Speakers			Audio Out (Optical, L/R Out) to Sound System
	RF	AV, S-Video	Component, PC, HDMI	RF	AV, S-Video	Component, PC, HDMI
TV Speaker On	Speaker Output	Speaker Output	Speaker Output	Sound Output	Sound Output	Sound Output
TV Speaker Off	Mute	Mute	Mute	Sound Output	Sound Output	Sound Output
Video No Signal	Mute	Mute	Mute	Mute	Mute	Mute

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.

When you insert the headphone's plug into the headphone jack, you cannot operate "TV Speaker" in Sound menu.
Prolonged use of headphones at a high volume may damage your hearing.
You will not hear sound from the speakers when you connect headphones to the TV.

Clearing Scrambled Channels - Digital

The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the or button to select "Clear Scrambled Channel", then press the ENTER button.

It searches scrambled channels, which are to be removed from the list.

To stop searching scrambled channels:

Press the ENTER button to select Stop.

Press the button to select "Yes", then press the ENTER button.

1. When the scrambled channel searching is completed, press the ENTER button.

Press the EXIT button to exit.

This function is only available in "Cable" mode.

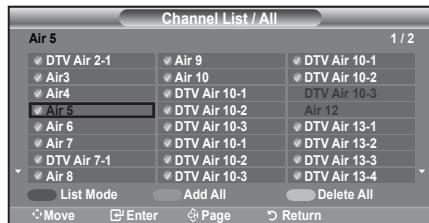

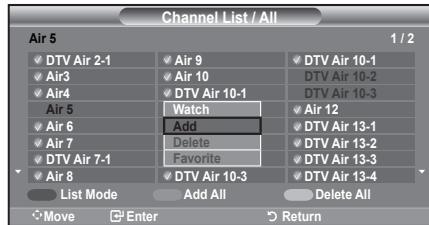

Adding and Erasing Channels

Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts. To use the Channel List function, first run "Auto Program" (see page 25).

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Channel List", then press the ENTER button.
3. Press the ENTER button to select "All".

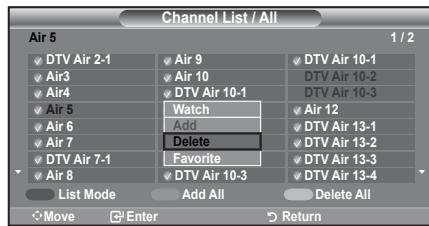

1. Press the , , or button to select a channel to delete, then press the ENTER button.

Press the or button to select "Delete", then press the ENTER button to delete the channel.

The mark will disappear.

1. Press the , , or button to select a channel to add, then press the ENTER button.

Press the or button to select "Add", then press the ENTER 口 button to add the channel.

The mark will appear and the channel will be added.

Press the EXIT button to exit.

All selected channels will be shown on "Added" menu.

• Red button: Press repeatedly to select "All", "Added" or "Favorite".
• Green button: Press to add all deleted channels.
• Yellow button: Press to delete all memorized channels.

You can set channels you watch frequently as favorites.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.

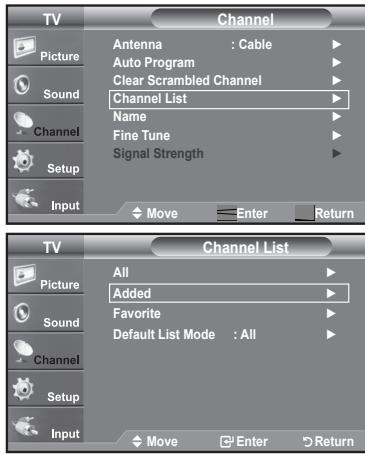

2. Press the or button to select "Channel List", then press the ENTER button.

3. Press the or button to select "All" or "Added", then press the ENTER button.

1. Press the , , or button to select your favorite channels to watch among the labeled channels. Then press the ENTER button.

Press the or button to select "Favorite", then press the ENTER button.

The "♥" symbol will be highlighted and the channel will be set as a Favorite. To cancel your Favorite channel selection, press the ENTER button until the "♥" symbol is no longer highlighted.

Press the EXIT button to exit.

Only memorized channels can be set as favorite channels.
All favorite channels will be shown in the "Favorite" menu.

To select the favorite channels you have set up, press the FAV.CH button on the remote control.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Add to Favorite" (or "Delete from Favorite"), then press the ENTER button.

The current channel is added to (or deleted from) Favorites.

Displays the channel list automatically when you press CH LIST button on the remote. (Choose "All", "Added" or "Favorite")

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Channel List", then press the ENTER button.
3. Press the or button to select "Default List Mode" (the channel list you want to appear when you press CH LIST), then press the ENTER button.

Press the or button to select "All", "Added" or "Favorite" then press the ENTER button.

The Channel list you have chosen will now be set.

Press the EXIT button to exit.

Alternate, press the CH LIST button on the remote control to bring up the Channel Lists.

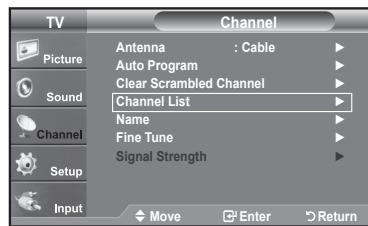

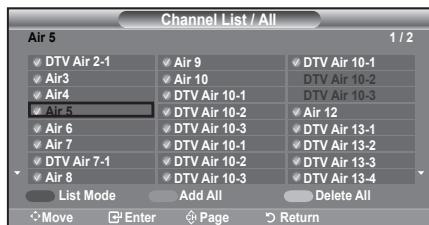

Viewing the Channel Lists

You can display a list of all channels, added channels or your favorite channels.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Channel List", then press the ENTER button.
3. Press the or button to select "All", "Added" or "Favorite", then press the ENTER button.

4. Press the or button to select "Channel", then press the ENTER button. To toggle between your all channels, add channels or favorite channels, use the Red button on the remote control.

5. Red button: Press repeatedly to select "All", "Added" or "Favorite"

Channels can be labeled so that their call letters appear whenever the channel is selected.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

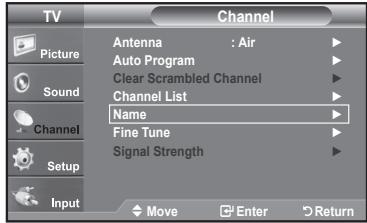

Press the or button to select "Name", then press the ENTER button.

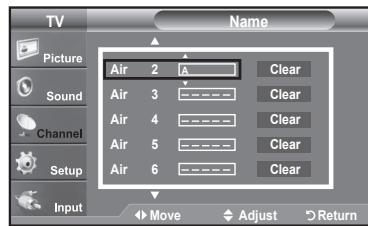

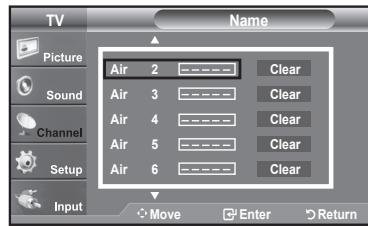

1. Press the or button to select the channel to be assigned a new name, then press the ENTER button.

Press the or button to select a letter, a number or a blank (Results in this sequence: A...Z, 0...9, +, -, *, /, blank).

Press the button to switch to the next field, which will be selected.

Select a second letter or digit by pressing the or button, as above.

Repeat the process to select the last three digits. When you have finished, press the ENTER button to assign the new name.

To erase the assigned new name, select "Clear" by pressing the or button, then press the ENTER button.

Press the EXIT button to exit.

The names of digital broadcasting channels are automatically assigned and cannot be labelled.

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.

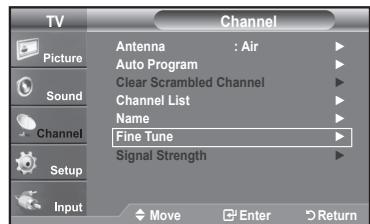

2. Press the or button to select "Fine Tune", then press the ENTER button.

3. Press the or button to adjust the fine tuning.

To store the fine tuning setting in the TV's memory, press the ENTER button.

If you do not store the fine-tuned channel in memory, adjustments are not saved.

1. To reset the fine tuning setting, press the button to select "Reset", then press the ENTER button.

Press the EXIT button to exit.

" " will appear next to the name of fine-tuned channels.
Only analog TV channels can be fine tuned.

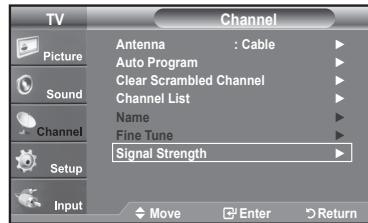

Checking the Digital-Signal Strength

Unlike analog channels, which can vary in reception quality from "snowy" to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER 已 button.

1. Press the or button to select "Signal Strength", then press the ENTER button.

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.

Continue to adjust the antenna until you find the best position with the strongest signal.

Press the EXIT button to exit.

Using Your TV as a Computer (PC) Display

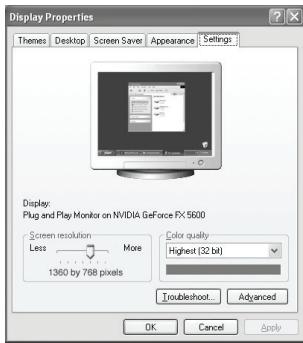

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution)

Optimum: 1360 X 768 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn't equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing.

D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640x350	31.469	70.086	25.175	+/-
	720x400	31.469	70.087	28.322	-/+
VESA	640x480	31.469	59.940	25.175	-/-
	640x480	37.861	72.809	31.500	-/-
	640x480	37.500	75.000	31.500	-/-
	800x600	37.879	60.317	40.000	+/+
	800x600	48.077	72.188	50.000	+/+
	800x600	46.875	75.000	49.500	+/+
	1024x768	48.363	60.004	65.000	-/-
	1024x768	56.476	70.069	75.000	-/-
	1024x768	60.023	75.029	78.750	+/+
	1360 x 768	47.712	60.015	85.500	+/+

HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640×480	31.469	59.940	25.175	-/-
	800×600	37.879	60.317	40.000	+/+
	1024×768	48.363	60.004	65.000	-/-
	1360 x 768	47.712	60.015	85.500	+/+

How to Auto Adjust

Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions.

This function does not work in DVI-Digital mode.
Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.

Press the or button to select "Picture", then press the ENTER button.

1. Press the or button to select "Auto Adjustment", then press the ENTER button. Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Auto Adjustment", then press the ENTER button.

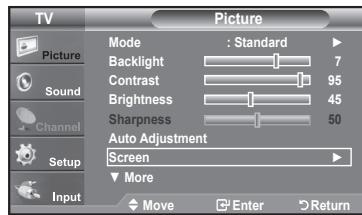

Adjusting the Screen Quality

The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then make the vertical frequency adjustments on your PC and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen.

Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Picture", then press the ENTER button. Press the or button to select "Screen", then press the ENTER button.
2. Press the ENTER button to select "Image Lock".
3. Press the or button to select "Coarse" or "Fine", then press the ENTER button.

Press the or button to adjust the screen quality.

Vertical stripes may appear or the picture may be blurry.

Press the ENTER button.

Press the EXIT button to exit.

Changing the Screen Position

Adjust the PC's screen positioning if it does not fit the TV screen.

Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Picture", then press the ENTER button.
   Press the or button to select "Screen", then press the ENTER button.
2. Press the or button to select "Position", then press the ENTER button.
3. Press the or button to adjust the V-Position.
   Press the or button to adjust the H-Position.
   Press the ENTER button.
   Press the EXIT button to exit.

Initializing the Screen Position, Coarse and Fine

You can replace all image settings with the factory default values.

Preset: Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.

Press the or button to select "Picture", then press the ENTER button.

Press the or button to select "Screen", then press the ENTER button.

1. Press the or button to select "Image Reset", then press the ENTER button.

Press the EXIT button to exit.

Viewing the Resolution

You can confirm the resolution configured for the PC.

Time Setting

Setting the Clock

Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)

Option 1: Setting the Clock Manually

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button. Press the or button to select "Time", then press the ENTER button.
2. Press the ENTER button to select "Clock".
3. Press the ENTER button to select "Clock Mode".
   Press the or button to select "Manual", then press the ENTER button.
4. Press the or button to select "Clock Set", then press the ENTER button.
5. Press the or button to move to "Month", "Day", "Year", "Hour", "Minute", or "am/pm". Set the date and time you want by pressing the or button, then press the ENTER button.

Press the EXIT button to exit.

The current time will appear every time you press the INFO button.

You can set the month, day, year, hour and minute directly by pressing the number buttons on the remote control.

Option 2: Setting the Clock Automatically

The Clock can be set automatically if you are receiving a digital signal.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
   Press the or button to select "Time", then press the ENTER button.
2. Press the ENTER button to select "Clock".
3. Press the ENTER button to select "Clock Mode".
   Press the or button to select "Auto", then press the ENTER button.
4. Press the or button to select "Time Zone", then press the ENTER button.
5. Press the or button to highlight the time zone for your local area, then press the ENTER button.
6. Press the or button to select "DST", then press the ENTER button.

Press the or button to select "Off" or "On", then press the ENTER button.

Press the EXIT button to exit.

Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually.
The Antenna or cable must be connected in order to set the time automatically.

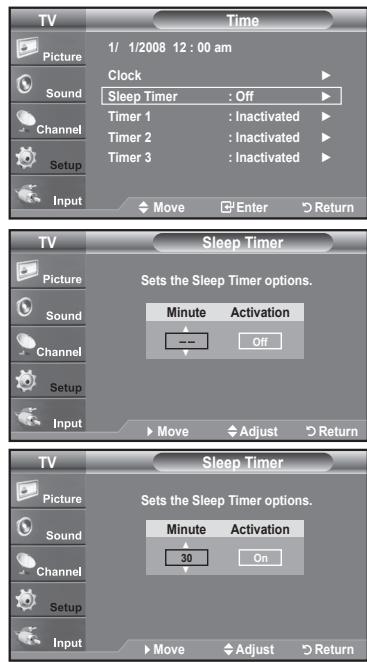

Setting the Sleep Timer

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER 已 button.

Press the or button to select "Time", then press the ENTER 品 button.

1. Press the or button to select "Sleep Timer", then press the ENTER button.

2. Press the or button to adjust "Minute", then press the ENTER button.

Setting the Timer sets the "Activation" to "On" automatically.

To cancel the set sleep timer :

Press the or button to select "Activation".

Press the or button to select "Off", then press the ENTER button.

Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sleep Timer".
3. Press the or button to select the minute.
4. Press the EXIT or TOOLS button to exit.

Setting the On/Off Timer

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

Press the or button to select "Time", then press the ENTER button.

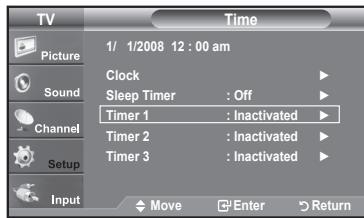

1. Three different On/Off Timer Settings can be made. Press the or button to select "Timer 1", "Timer 2" or "Timer 3", then press the ENTER button.

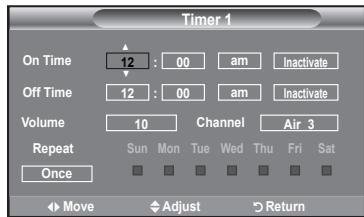

2. Press the or button to select the desired item below.

Press the or button to adjust the setting.

• On Time: Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you've chosen, set to "Activate".)
• Off Time: Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you've chosen, set to "Activate".)
  Volume: Set the required volume level.
• Channel: Select the desired channel.
• Repeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat", "Sat~Sun", or "Manual".

When "Manual" is selected, press the button to select the desired day of the week. Press the ENTER button over the desired day and the mark will appear.

Press the EXIT button to exit.

You can set the hour, minute and channel by pressing the number buttons on the remote control.
Auto Power Off

When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Function Description

Selecting a Menu Language

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

Press the or button to select "Language", then press the ENTER button.

1. Press the or button to select "English", "Espanol" or "Français".

Press the ENTER button.

Press the EXIT button to exit.

The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed.

> "V-Chip" function is not available in HDMI, component or PC mode.

The Screen Saver is activated if there is no remote control key input for longer than 1 minute while setting up the "V-Chip".

U.S.A Only

This product is covered by the following U.S.patents:US4,930,158,US4,930,160

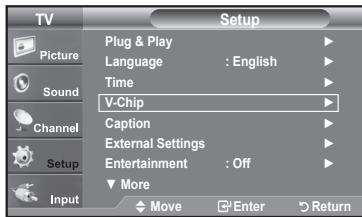

Setting Up Your Personal ID Number (PIN)

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER 已 button.

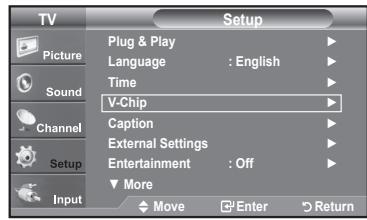

1. Press the or button to select "V-Chip", then press the ENTER button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

The default PIN number of a new TV set is "0-0-0-0".

1. The "V-Chip" screen will appear.

Press the or button to select "Change PIN", then press the ENTER button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the "Confirm Password" screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized.

Press the EXIT button to exit.

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0: Power Off. Mute 8 2 4 Power On.

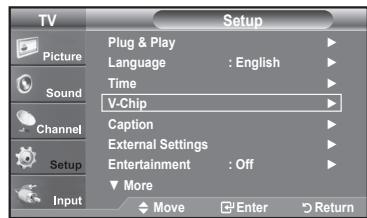

How to Enable/Disable the V-Chip

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER 已 button.

1. Press the or button to select "V-Chip", then press the ENTER button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

1. The "V-Chip" screen will appear.

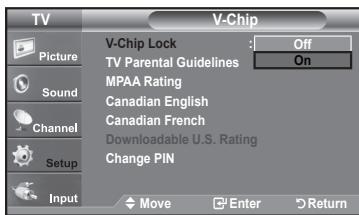

To enable the V-Chip feature, press the ENTER button so that the "V-Chip Lock" field is "On". (Pressing the or button will alternate between "On" and "Off".)

Press the ENTER button.

Press the EXIT button to exit.

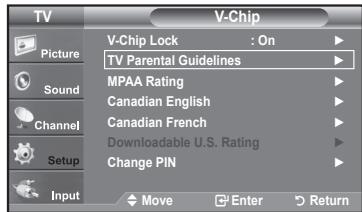

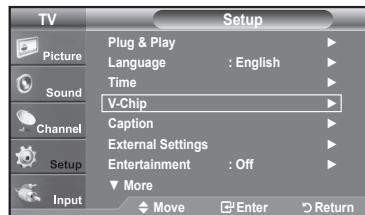

How to Set up Restrictions Using the "TV Parental Guidelines"

First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.)

Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

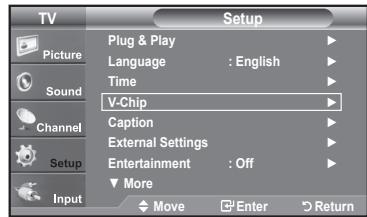

1. Press the or button to select "V-Chip", then press the ENTER button. The message "Enter PIN" will appear. Enter your 4 digit PIN number.

1. The "V-Chip" screen will appear. Press the or button to select "TV Parental Guidelines", then press the ENTER button.

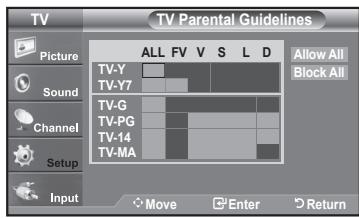

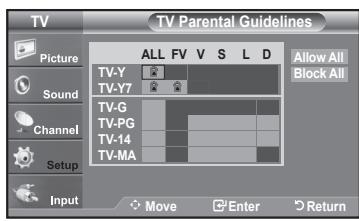

2. The "TV Parental Guidelines" screen will appear.

Press the or button to select one of the six aged based categories:

TV-Y: Young children
TV-Y7: Children 7 and over
- TV-G: General audience
- TV-PG: Parental guidance
TV-14: Viewers 14 and over
- TV-MA: Mature audience

1. At this point, one of the TV-Ratings is selected.

Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Locked) While “ ” is selected, press the ENTER button to block or unblock the category.

To select a different TV-Rating, press the or button and then repeat the process.

Allow all:Press to unlock all TV ratings./Block all:Press to lock all TV ratings.
The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:

FV: Fantasy violence / D: Sexually Suggestive Dialog / L: Adult Language / S: Sexual situation / V: Violence

The V-Chip will automatically block certain categories that are "more restrictive". For example, if you block "TV-Y" category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the "young adult" group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly.(See next section.)

1. How to set the FV, D, L, S and V sub-ratings.

First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14 or TV-MA (See Step 4) and press the button. The " ⑤ " symbol will be displayed for each sub-rating.

While “ 一 ” is selected, press the ENTER button to go to a sub rating.

Press ENTER to block the sub rating. To select a different TV-Rating, press the or button and then repeat the process.

• ALL: Lock all TV ratings.
  FV: Fantasy violence
  V: Violence
  S: Sexual situation
  L: Adult Language
  D: Sexually Suggestive Dialog

The V-chip will automatically block certain categories that are "More restrictive". For example, if you block "L" sub-rating in TV-PG, then the "L" sub-ratings in TV-14 and TV-MA will automatically be blocked.

1. Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes.)

These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7) and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. (See next step.)

The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER 已 button.
2. Press the or button to select "V-Chip", then press the ENTER button.
   The message "Enter PIN" will appear. Enter your 4 digit PIN number.

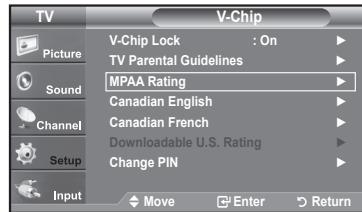

3. The "V-Chip" screen will appear. Press the or button to select "MPAA Rating", then press the ENTER button.

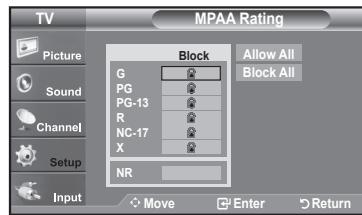

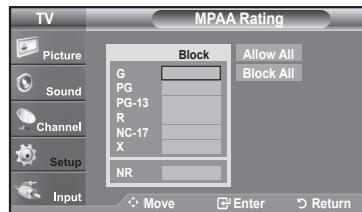

4. The "MPAA Rating" screen will appear. Repeatedly press the or button to select a particular MPAA category. Pressing the or button will cycle through the MPAA categories:

G: General audience (no restrictions).
- PG: Parental guidance suggested.
- PG-13: Parents strongly cautioned.
- R: Restricted. Children under 17 should be accompanied by an adult.
- NC-17: No children under age 17.
X: Adults only.

NR: Not rated.

Allow all:Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
While a particular category is selected, press the ENTER button to activate it. The " 品 ” symbol will be displayed. Press the ENTER button to block or unblock the category.
The V-Chip will automatically block any category that is "more restrictive". For example, if you block the "PG-13" category, then "R", "NC-17" and "X" will automatically be blocked also.

Press the EXIT button to exit.

How to Set up Restrictions Using the 'Canadian English'

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER 品 button.
2. Press the or button to select "V-Chip", then press the ENTER button.
   The message "Enter PIN" will appear. Enter your 4 digit PIN number.

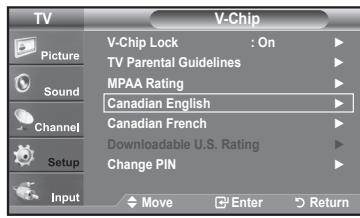

1. The "V-Chip" screen will appear. Press the or button to select

"Canadian English", then press the ENTER button.

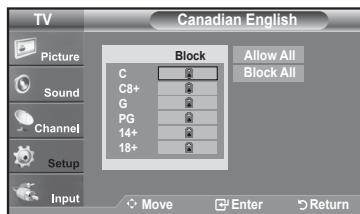

1. Press the or button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated.

Press the EXIT button to exit.

Allow all:Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

C: Programming intended for children under age 8.
- C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
G: General programming, suitable for all audiences.
- PG: Parental Guidance.
- 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
- 18+: Adult programming.

The V-Chip will automatically block any category that is "more restrictive".

For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also.

How to Set up Restrictions Using the 'Canadian French'

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER 品 button.
2. Press the or button to select "V-Chip", then press the ENTER button.
   The message "Enter PIN" will appear. Enter your 4 digit PIN number.

1. The "V-Chip" screen will appear. Press the or button to select

"Canadian French", then press the ENTER button.

1. Press the or button to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated.

Press the EXIT button to exit.

Allow all:Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

G:General
- 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own.
- 13 ans+: Programming may not be suitable for children under the age of 13.
- 16 ans+: Programming is not suitable for children under the age of 16.
18 ans+: Programming restricted to adults.

The V-Chip will automatically block any category that is "more restrictive".

For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Using the V-Chip for Digital channels

Parental restriction information can be used while watching DTV channels.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "V-Chip", then press the ENTER button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

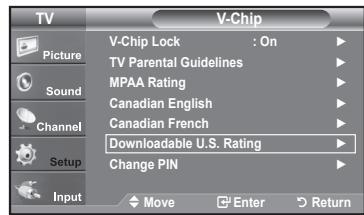

1. The "V-Chip" screen will appear. Press the or button to select

"Downloadable U.S. Rating", then press the ENTER button.

If information is not downloaded from the broadcasting station, the Downloadable U.S. rating menu is deactivated.

Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds.
The Downloadable U.S. rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

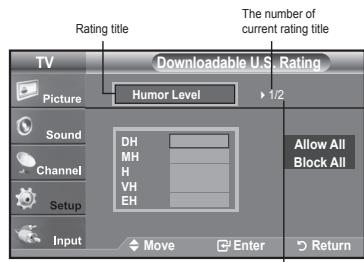

1. Press the or button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated.

Press the EXIT button to exit.

Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.
Parental restriction levels differ depending on the broadcasting station.
The default menu name and Downloadable US rating changes depending on the downloaded information.
Even if you set the On-screen display to your desired language, the "Downloadable U.S. Rating" menu will appear in English only.
The rating will automatically block certain categories that are more restrictive.
The rating titles(For example: Humor Level.,etc) and TV ratings (For example: DH, MH, H.,etc) may differ depending on the broadcasting station.

The number of all rating title

How to Reset the TV after the V-Chip Blocks a Channel ("Emergency Escape")

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

1. Enter your PIN.

To resume normal viewing, tune to a different channel using CH or CH button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an "emergency escape":

1. Press the MENU button. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "V-Chip", then press the ENTER button.
3. Enter your PIN, then press the ENTER button and press the or button to temporarily disable the V-Chip Lock.

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0: Power Off. MUTE 8 2 4 Power On.

Channel Is Locked by

TV-PG [S]

Use the NUMBER buttons to enter your pin number to unlock all channels.

Press EXIT to clear PIN.

Press MENU for main menu.

Channel Is Locked by

TV-PG [L]

Use the NUMBER buttons to enter your pin number to unlock all channels.

Press EXIT to clear PIN.

Press MENU for main menu.

The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.

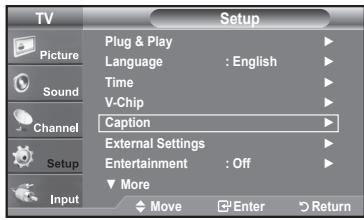

2. Press the or button to select "Caption", then press the ENTER button.
3. Press the ENTER button to select "Caption".
   Press the or button to select "On", then press the ENTER button.

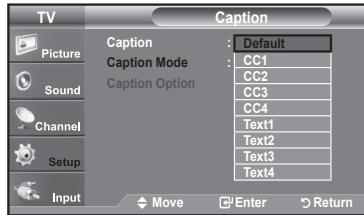

1. Press the or button to select "Caption Mode", then press the ENTER button.

Press the or button to select submenu (Default, CC1~CC4 or Text1~Text4) you want, the press the ENTER button.

Press the EXIT button to exit.

The default is "CC1".
- CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
- CC2: The Special Non-Synchronous Use Captions. This channel carries data that is intended to augment information carried in the program.
- CC3: Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions.
- CC4: Special Non-Synchronous Use Captions. Similar to CC2.
- Text1: First Text Service. This may be various non-program related data.
- Text2: Second Text Service. Additional data, usually not program related.
- Text3/Text4: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.

The Caption feature doesn't work in Component, HDMI or PC modes.
The availability of captions depends on the program being broadcast.

Press the CC button on the remote control to turn the Caption "On" or "Off".

The Digital Captions function operates on digital channels.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Caption", then press the ENTER G button.

2. Press the ENTER button to select "Caption".

Press the or button to select "On", then press the ENTER button.

1. Press the or button to select "Caption Mode", then press the ENTER button.

Press the or button to select submenu (Default, Service1~Service6, CC1~CC4 or Text1~Text4) you want, then press the ENTER button.

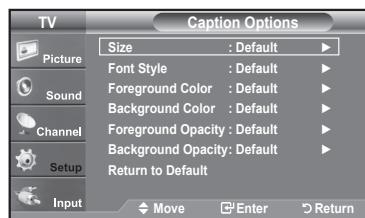

1. Press the or button to select "Caption Options", then press the ENTER button.

“Caption Options” are available only when “Default” and “Service 1~Service 6” can be selected in “Caption Mode”.

Service1~6 in digital caption mode may not be available depending on the broadcast.

1. Press the or button to select "Size", then press the ENTER button. Press the or button to select the desired Caption option, then press the ENTER button.

Press the or button to select the desired sub-menu options (see options below), then press ENTER button.

Press the EXIT button to exit.

The availability of captions depends on the program being broadcast.
> "Default" means to follow the standard set by the broadcaster.
Foreground and Background cannot be set to have the same color.
"Foreground Opacity" and "Background Opacity" cannot be both set to Transparent.

• Size: This option consists of "Default", "Small", "Standard" and "Large". The default is "Standard".
• Font Style: This option consists of "Default", "Style0 ~ Style 7". You can change the font you want. The default is "Style 0".
• Foreground Color: This option consists of "Default", "White", "Black", "Red", "Green", "Blue", "Yellow", "Magenta" and "Cyan". You can change the color of the letter. The default is "White".
• Background Color: This option consists of "Default", "White", "Black", "Red", "Green", "Blue", "Yellow", "Magenta" and "Cyan". You can change the background color of the caption. The default is "Black".
• Foreground Opacity: This option consists of "Default", "Transparent", "Translucent", "Solid" and "Flashing". You can change the opacity of the letter.
• Background Opacity: This option consists of "Default", "Transparent", "Translucent", "Solid", and "Flashing". You can change the background opacity of the caption.
• Return to Default: This option sets each of "Size", "Font Style", "Foreground Color", "Background Color", "Foreground Opacity" and "Background Opacity" to its default.

Press the CC button on the remote control to turn the Caption "On" or "Off".

Adjusting the TV On/Off Melody Sound

A melody sound can be set to come on when the TV is powered On or Off.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.

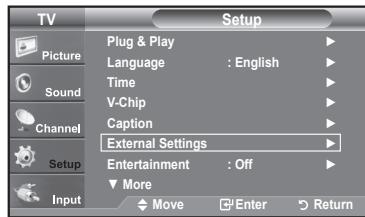

2. Press the or button to select "External Settings", then press the ENTER button.
3. Press the or button to select "Melody", then press the ENTER button.

4. Press the or button to select "Off", "Low", "Medium" or "High", then press the ENTER button.

5. Off: Turns off the melody function.

6. Low: Sets the melody volume to low.
7. Medium : Sets the melody volume to medium.
8. High: Sets the melody volume to high.

Press the EXIT button to exit.

The Melody does not play

• When no sound is output from the TV because the MUTE button has been pressed.
• When no sound is output from the TV because the Volume has been reduced to minimum with the VOL button.
• When the TV is turned off by Timer function.

Setting the Entertainment mode

The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Entertainment", then press the ENTER button.

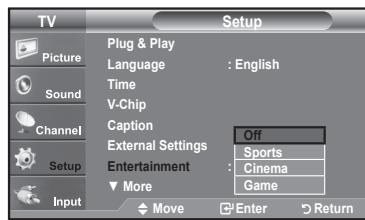

3. Press the or button to select "Off", "Sports", "Cinema" or "Game", then press the ENTER button.

4. Off: Switches the "Entertainment" function off.

5. Sports: Provides the optimal picture and sound quality for sports.
6. Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound
7. Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

Press the EXIT button to exit.

If you set any of the three "Entertainment" modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the "Entertainment" mode must be turned off.
The "Entertainment" settings are saved for each input source.
If you set any of the three "Entertainment" modes to On, "SRS TruSurround XT" function is not available.

You can press the E_MODE button on the remote control repeatedly to change the "Entertainment" setting.

Using the Energy Saving Feature

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the "Energy Saving" mode option to "High" to reduce eye fatigue as well as power consumption.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Energy Saving", then press the ENTER button.

Select the required option ("Off", "Low", "Medium", "High", "Auto") by pressing the

or button.

Press the ENTER button.

• Off: Turns off the energy saving function.
• Low: Sets the TV to low energy saving mode.
  Medium: Sets the TV to medium energy saving mode.
• High: Sets the TV to high energy saving mode.
• Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Press the EXIT button to exit.

Upgrading the Software

Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.

1. Insert a USB drive containing the firmware upgrade into the SERVICE port on the rear of the TV.

2. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.

3. Press the or button to select "SW upgrade", then press the ENTER button.
4. Press the ENTER button.

The message "Scanning for USB... It may take up to 30 seconds." is displayed.

1. The message "Upgrade version XXXX to version XXXX The system would be reset after upgrade." is displayed.

Press the or to select the "Yes", then press the ENTER button.

Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

About Anynet+

What is Anynet?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV's remote.

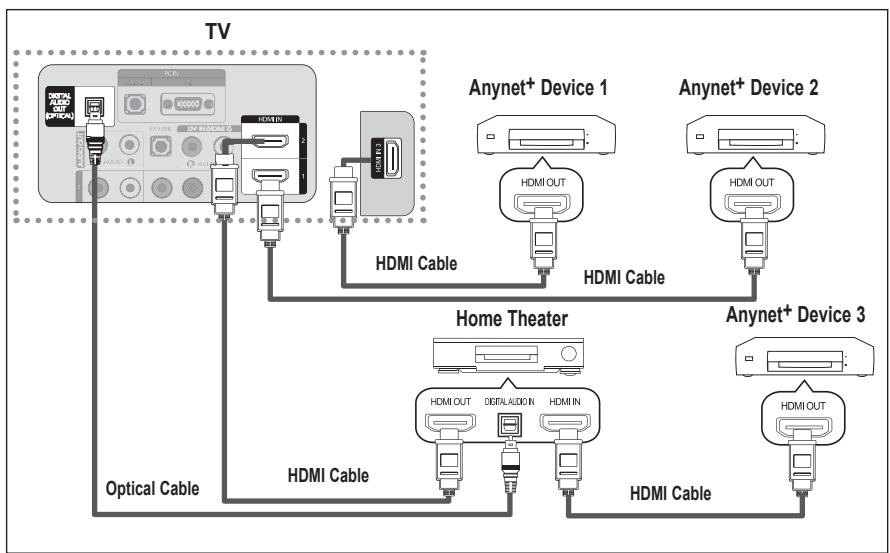

Connecting Anynet+ Devices

The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

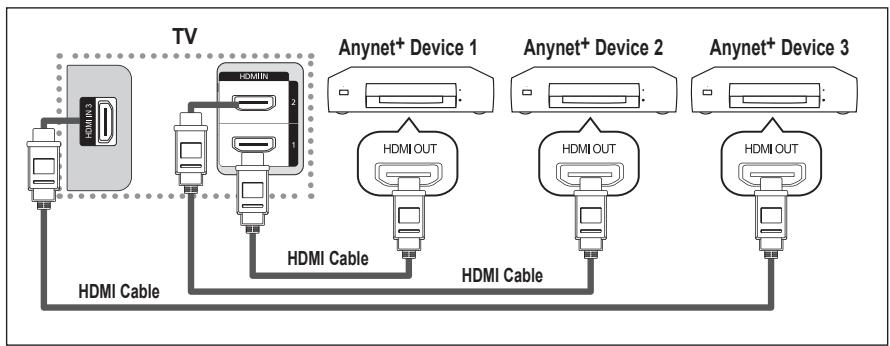

To connect to a TV

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

To connect to Home Theater

1. Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the Home Theater.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theater's Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV.
Connect only one Home Theater.
You can connect an Anynet+ device using the HDMI Cable. Some HDMI cables may not support Anynet+ functions.

Anynet ^+ works when the AV device supporting Anynet ^+ is in the Standby or On status.
Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

The following settings help set the Anynet+ functions.

To use the Anynet ^+ Function, Anynet^+ (HDMI-CEC) must be set to On

1. Press the TOOLS button.

Press the ENTER button to select "Anynet+(HDMI-CEC)".

Press the or button to select "Setup", then press the ENTER button.

1. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button.

3, Press the or button to select "On", then press the ENTER button.

The "Anynet" (HDMI-CEC)" function is enabled.
If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.
When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated.

Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off

1. Press the or button to select "Auto Turn Off", then press the ENTER button.
2. Press the or button to select "Yes", then press the ENTER button.

The "Auto Turn Off" function is enabled.
If you select "No", the "Auto Turn Off" function is canceled.

Press the EXIT button to exit.

The active source on the TV remote must be set to TV to use the Anynet+ function.
If you set "Auto Turn Off" to "On", connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off.

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Press the ENTER button to select "Anynet+(HDMI-CEC)".

Anynet+ devices connected to the TV are listed.

1. Press the or button to select to a particular device and press the ENTER button. It is switched to the selected device.
2. If you cannot find a device you want, press the or button to select "Searching Connections", then press the ENTER button.

The message "Configuring Anynet" connection..." is displayed.

When searching devices completes, the connected devices are listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.
The time required to scan for devices is determined by the number of connected devices.
When the device scan is complete, the number of devices found are not displayed.
Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list.

In this case, select the Searching Connections menu to search devices.

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Switches from Anynet+ to TV broadcast mode.
Record	Starts a recording. (This menu works only for a device supporting recording.)
(Device_Name) Menu	Shows the menu of the connected device. Example: When a DVD Recorder is connected, the DVD Recorder's title menu appears.
(Device_Name) Operation	Shows the play control menu of the connected device. Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.
Connect (Device_Name)	Your TV connects to the corresponding device.
Receiver	Sound is output through the receiver (home theater).
Setup	You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type	Operating Status	Available Buttons
Anynet+ Device	After switching to the device, when the menu of the corresponding device is displayed on the screen.	Numeric buttons▲/▼/▲/▶/ENTER ▲按钮Color buttonsEXIT button
	After switching to the device, while playing a file	Backward search(Forward search)(Stop)(Play) / (Pause)
Device with built-in Tuner	After switching to the device, when you are watching a TV program	CH ▲/□ button
Audio Device	When Receiver is activated	VOL ⊙/□ buttonMUTE button

The Anynet ^+ function only works when the active source on the TV remote control is set to TV.
The button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device.
The Anynet+ functions do not operate with other manufacturers' products.
The , operations may differ depending on the device.

Recording

You can make a recording of a TV program using a recorder.

Press the button.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

You can record the source streams by selecting "Record" after pressing the Anynet button.
Pressing the button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording devices users manual.

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button.

Press the ENTER button to select "Anynet+(HDMI-CEC)".

Press the or button to select "Receiver", then press the ENTER button.

1. Press the or button to select to "On", then press the ENTER G button.

Now you can listen to sound through the receiver.

1. Press the EXIT button to exit.

If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV.
When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred language) menus.
If there is a power interruption to the TV when the "Receiver" is set to "On" (by disconnecting the power cord or a power failure), the "TV Speaker" may be set to "Off" when you turn the TV on again. (see page 38)

Troubleshooting for Anynet+

Symptom	Solution
Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver (home theater). Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device's Video/Audio/HDMI cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn't work in certain situations. (Searching channels, Plug & Play, etc.) When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again. Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of CH, CH LIST, PRE CH, and FAV.CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The message Connecting to Anynet+ device... appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.	Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions. If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.
The TV program cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	Connect the optical cable between TV and the receiver.

Appendix

Troubleshooting

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG.

Problem	Possible Solution
Poor picture	Try another channel. Adjust the antenna. Check all wire connections.
Poor sound quality.	Try another channel. Adjust the antenna.
No picture or sound.	Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections.
No sound or sound is too low at maximum volume.	First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly.
Picture rolls vertically.	Check all wire connections.
The TV operates erratically.	Unplug the TV for 30 seconds, then try operating it again.
The TV won't turn on.	Make sure the wall outlet is working.
Remote control malfunctions	Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals.
“Check signal cable” message.	Ensure that the signal cable is firmly connected to the PC source.
"Not Supported Mode" message.	Check the maximum resolution and connected device's Video frequency. Compare these values with the data in the Display Modes.
Digital broadcasting screen problem.	Please check the digital signal strength and input antenna.
The image is too light or too dark.	Adjust the Brightness and Contrast. Adjust the Fine tuning.
Black bars on the screen.	Make sure the broadcast you're receiving is High Definition (HD). HD channels sometimes broadcast Standard Definition (SD) programming, which can cause black bars. Set your cable/satellite box to stretch or widescreen mode to eliminate the bars.
Picture has a Red/Green or Pink tint.	Make sure the Component cables are connected to the correct jacks.
Closed Captioning not working.	If you are using a Cable/Satellite box, you must set Closed Captioning on the box, not your TV.
Snowy picture	Your cable box may need a firmware upgrade. Please contact your Cable company.
Ghosting on picture	This is sometimes caused by compatibility issues with your cable box. Try connecting Component cables instead.
Problem	Possible Solution
Horizontal bars appear to flicker, jitter or shimmer on the image.	Adjust the Coarse tuning and then adjust the Fine tuning.
Vertical bars appear to flicker, jitter or shimmer on the image.	Adjust the Coarse tuning and then adjust the Fine tuning.
Screen is black and power indicator light blinks steadily.	On your computer check: Power, Signal Cable. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard.
Image is not stable and may appear to vibrate when you have a computer connected to the PC input.	If the setting is not correct, use your computer utility program to change the display settings. > Your TV supports multiscan display functions within the following frequency domain:
	Horizontal frequency (kHz)	30~60
	Vertical frequency (Hz)	60~75
	PC Maximum refresh rate (at 60 Hz)	1360 X 768
Image is not centered on the screen.	Adjust the horizontal and vertical position. The screen position must be adjusted on the output source (i.e. STB) with a digital signal.
The picture appears distorted in the corner of the screen.	If "Just Scan" is selected with some external devices, the picture may appear distorted in the corner of the screen. This symptom is caused by the external devices, not TV.
The "Reset all settings to the default values" message appears	This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.
This TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

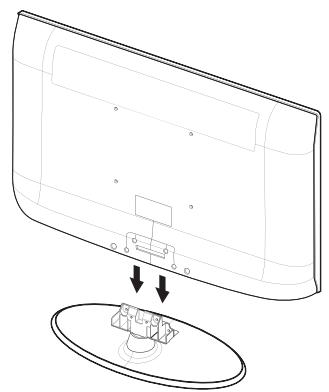

1. Attach your LCD TV to the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when attaching it.
To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.

1. Fasten two screws at position 1 and then fasten two screws at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.

Disconnecting the Stand

1. Remove four screws from the back of the TV.
2. Separate the stand from the TV.

Two or more people should carry the TV.

1. Cover the bottom hole with the cover.

Once the auto wall mount is installed, your TV's position can be easily adjusted.

Entering the menu

1. Press the , , or button on your remote control.

The Wall Mount Adjustment screen is displayed.
If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU butt on to display the menu. Press the or button to select "Setup", then press the ENTER button.
• Press the or button to select "External Settings", then press the ENTER button.
• Press the or button to select "Wall-Mount Adjustment", then press the ENTER button.

Remembering the Position

1. Adjust to the desired position using the , , , buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
Press the INFO button to reset. Press the or button to select "Yes", then press the ENTER 已 button.

The position is initialized to the default setting.

1. Press the blue button.

Press the and buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position.

To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Color buttons.

1. Press the ENTER button to save.

When Position1 is selected, the message "Current position saved as Position1" is displayed.

1. Press the ENTER button.

The saved Position appears on the left side of the OSD.

Moving to the remembered position

1. Complete Step 1 of "Entering the menu".

2. Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the position after moving to a pre-set position, the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ is operating.
LN37A450C1D and LN40A450C1D models are not compatible with the older wall mount model (WMN5090A).

Install your wall mount on a solid wall perpendicular to the floor.

When attaching to other building materials, please contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

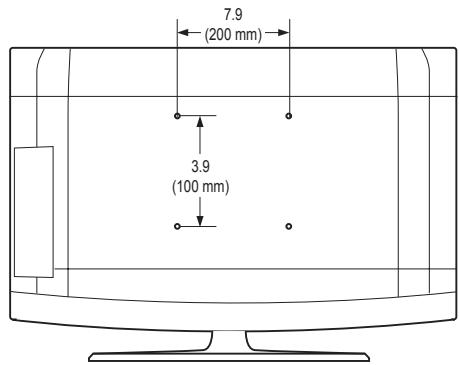

Product Family	inches	VESA Spec. (A * B)	Standard Screw	Quantity
LCD-TV	23~26	200*100	M4	4
	32~40	200*200	M6
	46~52	600*400	M8
	57	700*400 (No VESA)
	57~70	800*400
	80~	1400*800
PDP-TV	42~50	600*400	M8	4
	55~70	800*400
	63	No VESA		6
	80~	1400*800		4

Standard dimensions for wall mount kits are shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.

Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Do not exceed 15 degrees tilt when mounting this TV.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Using the Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

The location of the Kensington Lock may be different depending on its model.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction (Figure 2).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.

Specifications

Model Name	LN26A450C1D	LN32A450C1D
Screen Size (Diagonal)	26 inches	32 inches
PC Resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound Output	5W x 2	10W x 2
Dimensions (WxDxH)
Body	26.4 X 3.0 X 17.7 inches	31.5 X 3.1 X 20.7 inches
With stand	(669.7 X 75.1 X 450.7 mm)	(799.6 X 79 X 525.2 mm)
	26.4 X 8.5 X 19.7 inches	31.5 X 9.9 X 22.7 inches
	(669.7 X 216 X 500.4 mm)	(799.6 X 252 X 576.5 mm)
Weight
With Stand	21.4lbs (9.7 kg)	28.9lbs (13.1 kg)
Without stand	18.3lbs (8.3 kg)	24.0lbs (10.9 kg)
Environmental Considerations
Operating Temperature	50 °F to 104 °F (10 °C to 40 °C)	50 °F to 104 °F (10 °C to 40 °C)
Operating Humidity	10% to 80%, non-condensing	10% to 80%, non-condensing
Storage Temperature	-4 °F to 113 °F (-20 °C to 45 °C)	-4 °F to 113 °F (-20 °C to 45 °C)
Storage Humidity	5% to 95%, non-condensing	5% to 95%, non-condensing
Stand Swivel (Left / Right)	-0° ~ 0°	-20° ~ 20°
Model Name	LN37A450C1D	LN40A450C1D
Screen Size (Diagonal)	37 inches	40 inches
PC Resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound Output	10W x 2	10W x 2
Dimensions (WxDxH)	36.1 X 3.2 X 23.7 inches	39.0 X 3.2 X 25.2 inches
Body	(916.4 X 81.7 X 601.0 mm)	(989.8 X 81.7 X 640.7 mm)
With stand	36.1 X 11.8 X 25.9 inches	39.0 X 11.8 X 27.3 inches
	(916.4 X 300 X 658.1 mm)	(989.8 X 300 X 694.3 mm)
Weight
With Stand	40.3lbs (18.3 kg)	41.0lbs (18.6 kg)
Without stand	33.3lbs (15.1 kg)	34.0lbs (15.4 kg)
Environmental Considerations
Operating Temperature	50 °F to 104 °F (10 °C to 40 °C)	50 °F to 104 °F (10 °C to 40 °C)
Operating Humidity	10% to 80%, non-condensing	10% to 80%, non-condensing
Storage Temperature	4 °F to 113 °F (-20 °C to 45 °C)	4 °F to 113 °F (-20 °C to 45 °C)
Storage Humidity	5% to 95%, non-condensing	5% to 95%, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°	-20° ~ 20°

Design and specifications are subject to change without prior notice.

This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.

TOP VIEW

JACK PANEL DETAIL 7.2"W X 3.7"H

FRONT VIEW / SIDE VIEW

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

TOP VIEW

JACK PANEL DETAIL 4.1"W X 6.4"H

FRONT VIEW / SIDE VIEW

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

TOP VIEW

JACK PANEL DETAIL 4.1"W X 6.4"H

FRONT VIEW / SIDE VIEW

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

TOP VIEW

JACK PANEL DETAIL 7.2"W X 3.7"H

FRONT VIEW / SIDE VIEW

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

This page is intentionally left blank.

2 DIGITAL AUDIO OUT (OPTICAL)

16:9 - 1080i (1920x1080), 720p (1280x720)

© 2008 Samsung Electronics America, Inc.

VUE DU HAUT

DETAILS DU PANNEAU DES PRISES 4,1"W X 6,4"H

VUE AVANT/VUE LATERALE

VUE ARRIERE

© 2008 Samsung Electronics America, Inc.

VUE DU HAUT

DETAILS DU PANNEAU DES PRISES 4,1"W X 6,4"H

VUE AVANT/VUE LATERALE

VUE ARRIERE

© 2008 Samsung Electronics America, Inc.

VUE DU HAUT

DETAILS DU PANNEAU DES PRISES 7,2"W X 3,7"H

VUE AVANT/VUE LATERALE

VUE ARRIERE

© 2008 Samsung Electronics America, Inc.
