USER MANUAL LN-S1952W SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Owner's Instructions

Register your product at

www.samsung.com/global/register

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

- Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen.

Playing a DVD or a game console may cause a similar effect to the screen.

Damages caused by the above effect are not covered by the Warranty.

- Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

■ List of Features 2
■ Accessories.... 2
■ Viewing the Control Panel.... 3
■ Viewing the Connection Panel 4
■ Viewing the Remote Control 5
■ Installing Batteries in the Remote Control 6

CONNECTIONS

■ Connecting VHF and UHF Antennas 6
■ Connecting Cable TV 7
■ Connecting a VCR 8
■ Connecting an S-VHS VCR 8

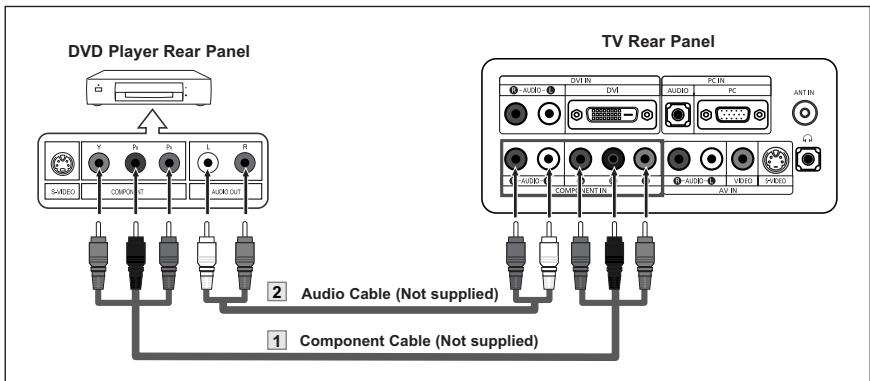

■ Connecting a DVD Player....9
■ Connecting a DVD Player/Set-Top Box via DVI 9
■ Connecting a PC.... 10

OPERATION

■ Turning the TV On and Off.... 11
■ Plug and Play Feature 11
■ Changing Channels 12
■ Adjusting the Volume 12
■ Viewing the Display.... 12
■ Selecting the Video Signal-source.... 12
■ Storing Channels Automatically 13
■ Storing Channels Manually.... 13
■ Fine Tuning Channels 13

PICTURE CONTROL

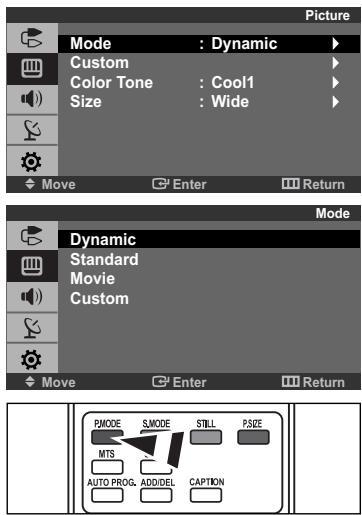

■ Using Automatic Picture Settings 14

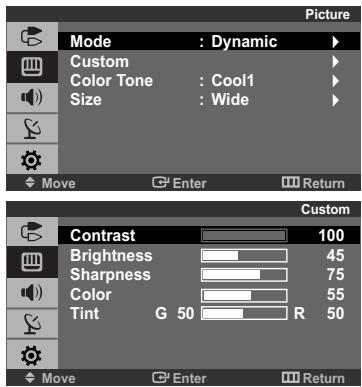

■ Customizing the Picture 14
■ Adjusting the Color Tone.... 14
■ Changing the Picture Size 15
■ Adjusting the Color Control.... 15
■ Freezing the Picture.... 15

SOUND CONTROL

■ Using Automatic Sound Settings 15

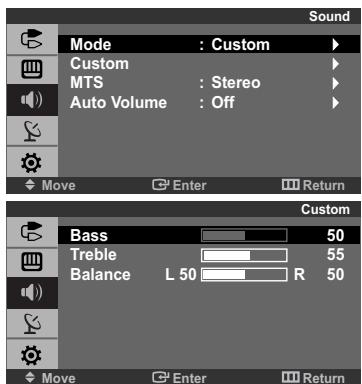

■ Customizing the Sound 16
■ Choosing a Multi-Channel Sound (MTS) Soundtrack 16
■ Using the Auto Volume 16

TIME SETTING

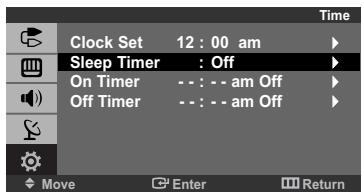

■ Setting the Clock 17
■ Setting the Sleep Timer 17
■ Setting the On/Off Timer.... 17

FUNCTION DESCRIPTION

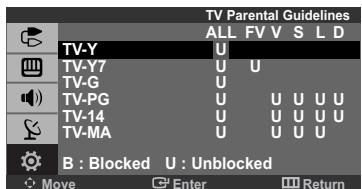

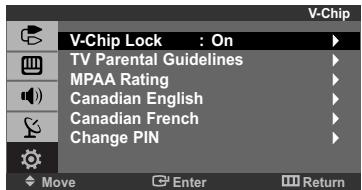

■ Using the V-Chip.... 18
■ Viewing Closed Captions 20
■ Selecting a Menu Language.... 20
■ Setting the Blue Screen Mode.... 21
■ Selecting the Source 21
■ Editing the Input Source Name 21

PC DISPLAY

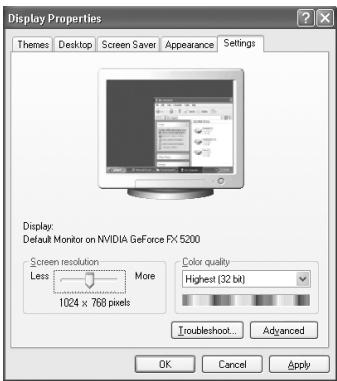

■ Setting Up Your PC Software (Based on Windows XP)...... 22
■ Display Modes 22
■ Setting up the TV with your PC 23

APPENDIX

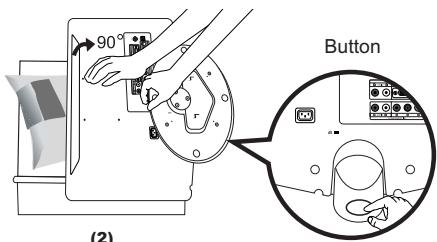

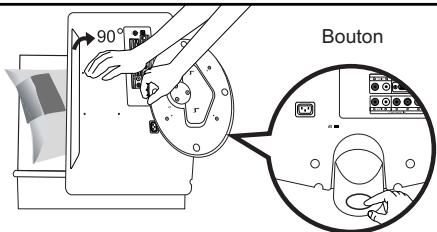

■ How to Adjust the Stand 24
■ How to Adjust the Angle of the TV.... 24

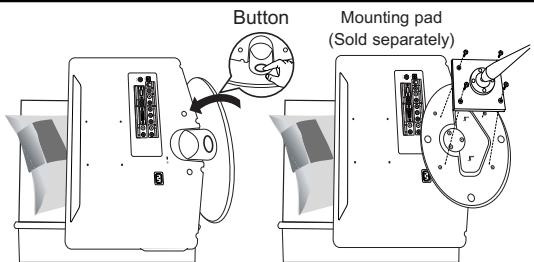

■ Installing the Wall Mount Kit.... 24
■ Installing VESA compliant mounting devices.... 24
■ Using the Decoration Covers.... 24
■ Identifying Problems 25
■ Specifications 25

General Information

List of Features

♦ Easy-to-use remote control
♦ Easy-to-use on-screen menu system
♦ Automatic timer to turn the TV on and off.
- Adjustable picture settings that can be stored in the TV’s memory.
♦ A special filter to reduce or eliminate reception problems
♦ Fine tuning control for the sharpest picture possible
♦ A built-in multi-channel sound decoder for stereo and bilingual listening
♦ Built-in, dual channel speakers
♦ Headphone jack for private listening

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)

(LN-S1951W: BN59-00545B)

(LN-S1952W: BN59-00518B)

Power Cord (3903-000085)

Wall Mount kit (BN96-03969A)

Owner's Instructions

Warranty Card / Registration Card/ Safety Guide Manual

Decoration Cover (LN-S1951W-Left: BN63-02715A, Right: BN63-02716A) (LN-S1952W-Left: BN63-02715B, Right: BN63-02716B)

Cleaning Cloth (BN63-01798A)

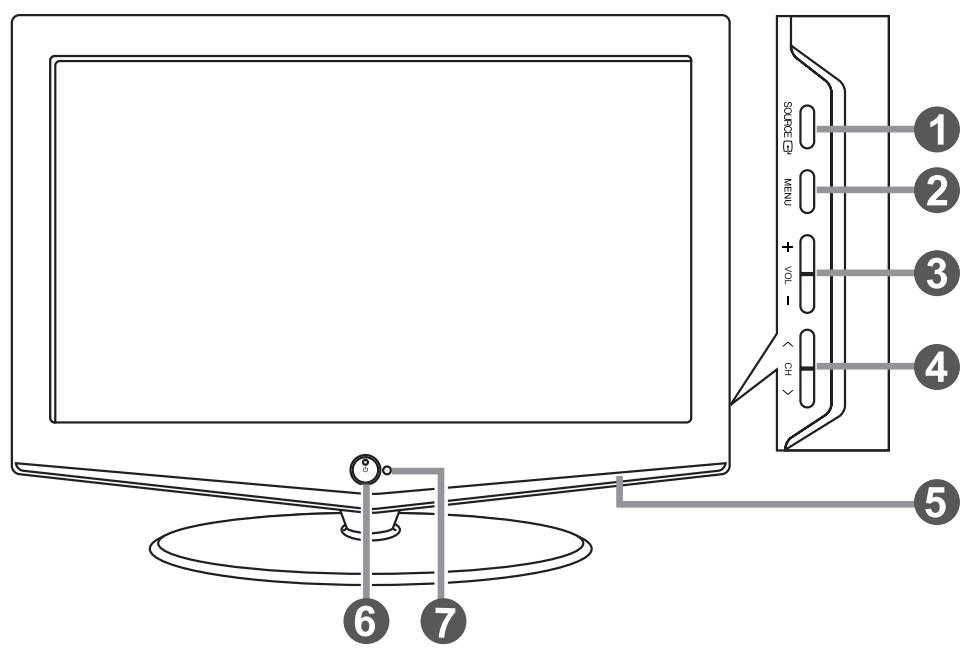

The buttons on the lower-right panel control your TV's basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

The product color and shape may vary depending on the model.

① SOURCE

Toggles between all the available input sources

(TV, AV, S-Video, Component, PC, DVI).

In the on-screen menu, use this button as you would use the

ENTER ↻ button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features.

③+ VOL -

Press to increase or decrease the volume.

In the on-screen menu, use the + VOL — buttons as you

would use the ◀ and ▶ buttons on the remote control.

④ < CH >

Press to change channels.

In the on-screen menu, use the buttons as you would use

the ▼ and ▲ buttons on the remote control.

⑤ SPEAKERS

6 (POWER)

Press to turn the TV on and off.

POWER INDICATOR

Blinks and turns off when the power is on and lights up in stand-by mode.

⑦ REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

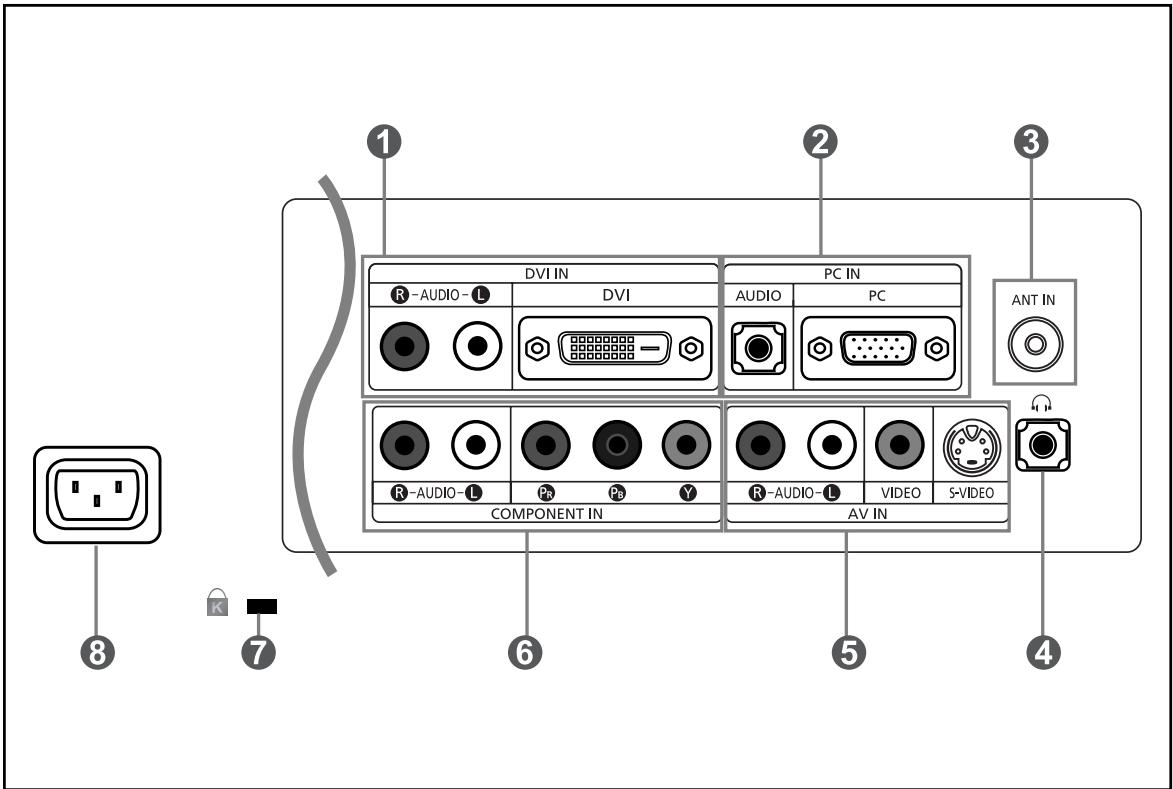

Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 6-10.

① DVI IN

Connect to the digital video output jack on your DVD/Set-Top Box.

- DVI-D terminal does not support PC.

② PC IN

Connect to the video and audio output jacks on your PC.

③ ANT IN

Connect to an antenna or cable TV system.

4 HEADPHONE

Connect a set of external headphones for private listening.

⑤ AV IN

Video and audio inputs for external devices, such as a camcorder or VCR.

S-VIDEO

Connect an S-Video signal from a camcorder or VCR.

6 COMPONENT IN

Connect Component video/audio.

⑦ KENSINGTON LOCK

The Kensington lock (optional) is a device used to physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV.

The place of the Kensington Lock may be different depending on its model.

8 POWER INPUT

Connect the supplied power cord.

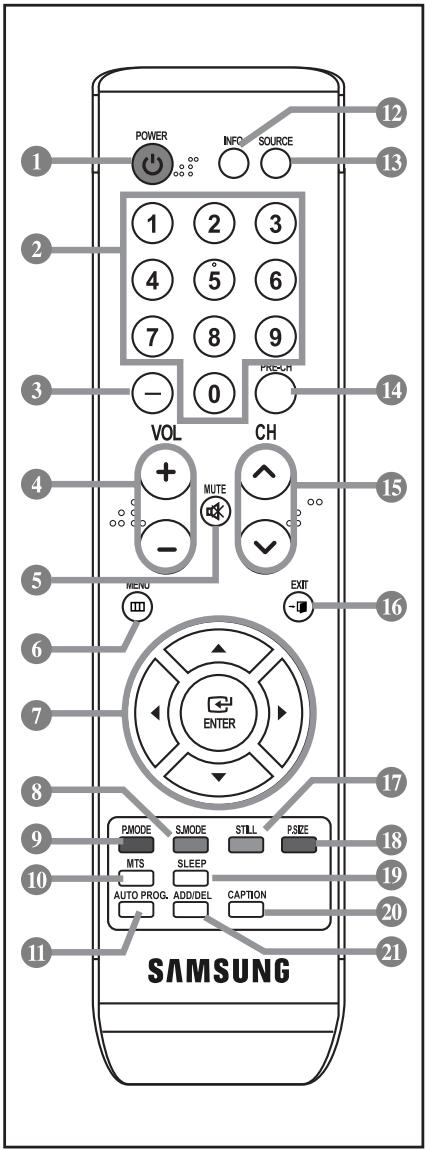

You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV.

1 POWER
Turns the TV on and off.
② NUMERIC BUTTONS
Press to change the channel.

③ -

Press to select channels over 100. For example, to select channel 121, press “-”, then press “2” and “1”.

④ VOL ⊕ / VOL ⊖

Press to increase or decrease the volume.

5 (MUTE)

Press to temporarily cut off the sound.

6 MENU

Displays the main on-screen menu.

Use to select on-screen menu items and change menu values.

8 S.MODE

Press to select the sound mode.

9 P.MODE

Press to select the picture mode.

10 MTS

Press to choose stereo, mono or Separate Audio Program (SAP broadcast).

11 AUTO PROG.

Press to automatically store TV/Cable channels.

12 INFO

Press to display information on the TV screen.

13 SOURCE

Press to display all of the available video sources.

14 PRE-CH

Tunes to the previous channel.

15 CH ⬤ / CH √

Press to change channels.

16 EXIT

Press to exit the menu.

17 STILL

Press to stop the action during a particular scene. Press again to resume normal video.

18 P.SIZE

Press to change the screen size.

19 SLEEP

Press to select a preset time interval for automatic shut off.

20 CAPTION

Controls the caption decoder.

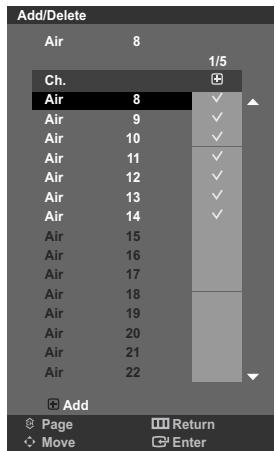

21 ADD/DEL

Use to store and delete channels to/from memory.

The performance of the remote control may be affected by bright light.
This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the “+” and “−” ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Connections

Connecting VHF and UHF Antennas

Pure diagram of a symmetrical mechanical or electrical component with two horizontal bars and a curved central line (no text or symbols)

If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below.

Pure diagram of a black cable with a connector, no text or symbols present

If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”.

Antennas with 300 Ω Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below.

Pure mechanical component diagram without any text, numbers, or symbols

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).
   Use a screwdriver to tighten the screws.

1. Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennas with 75 Ω Round Leads

1. Plug the antenna lead into the ANT IN terminal on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

1. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

1. Plug the incoming cable into the ANT IN terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.

Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".

1. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

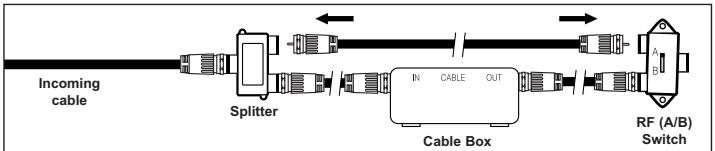

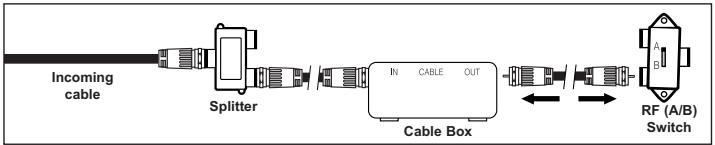

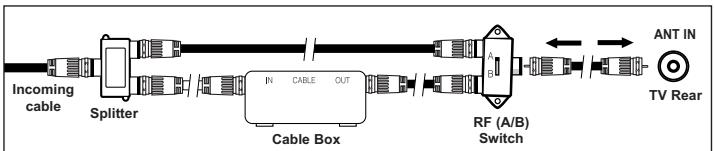

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.

This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".

1. Connect this cable to a two-way splitter.

1. Connect an RF cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box.

1. Connect an RF cable between the ANT OUT terminal on the cable box and the B-IN terminal on the RF(A/B) switch.

1. Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.

1. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.

After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's output channel, which is usually channel 3 or 4.)

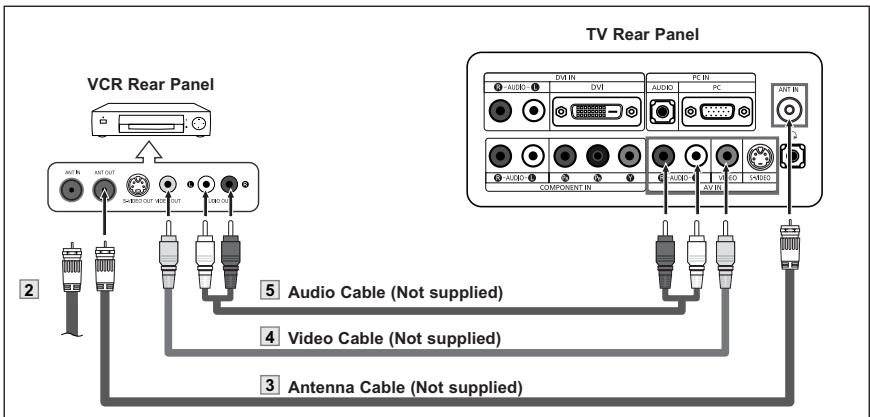

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6-7). Skip step 1 if you have not yet connected to an antenna or a cable system.

Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.

➢ Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.

1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN [VIDEO] jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV.

If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

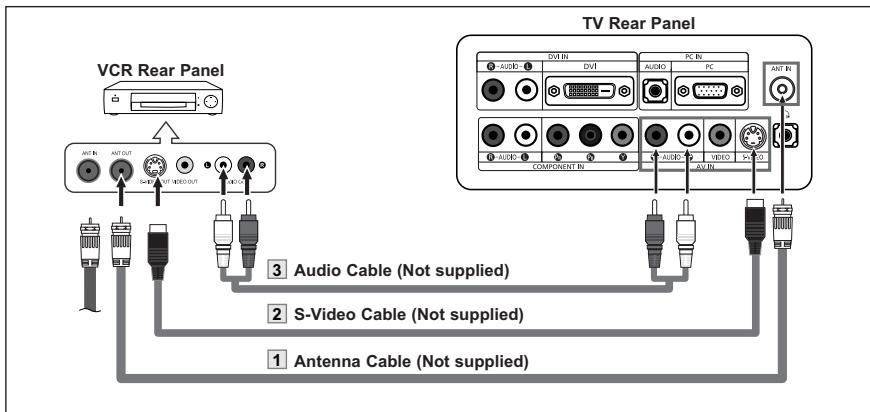

Connecting an S-VHS VCR

Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This connection delivers a better picture as compared to a standard VHS VCR.)

An S-Video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.)

➢ Each S-VHS VCR has a different back panel configuration.
When connecting an S-VHS VCR, match the color of the connection terminal to the cable.

1. To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.
2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN [S-VIDEO] jack on the TV.
3. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV.

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.

Be sure to match the component video and audio connections.

For example, if connecting the video cable to COMPONENT IN,

connect the audio cable to COMPONENT IN also.

➢ Each DVD player has a different back panel configuration.
When connecting a DVD player, match the color of the connection terminal to the cable.

1. Connect a Component Cable between the COMPONENT IN [Y, P_B, P_R] jacks on the TV and the COMPONENT [Y, P_B, P_R] jacks on the DVD player.
2. Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD player.

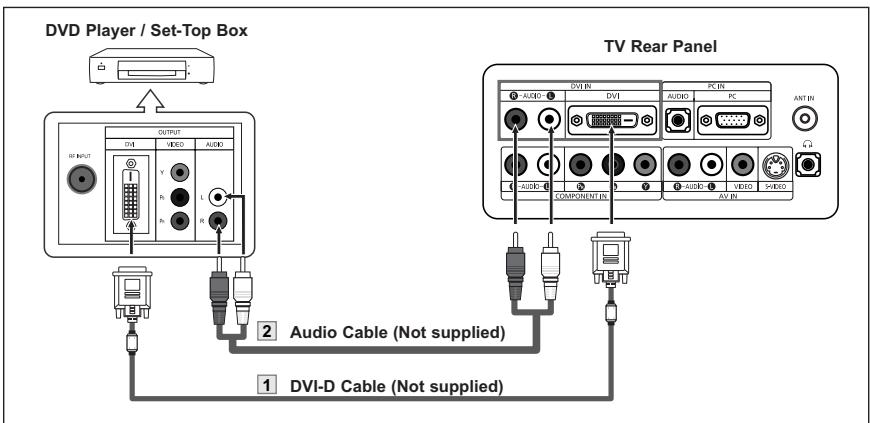

Connecting a DVD Player/Set-Top Box via DVI

This connection can only be made if there is a DVI Output connector on the external device.

➢ Each DVD player/Set-top box has a different back panel configuration.
When connecting a DVD player/Set-top box, match the color of the connection terminal to the cable.

1. Connect a DVI-D Cable Adapter between the DVI IN connector on the TV and the DVI connector on the DVD player/Set-Top Box.
2. Connect Audio Cables between the DVI IN [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

➢ Each external input source device has a different back panel configuration.

When connecting an external device, match the color of the connection terminal to the cable.

The DVI jacks do not support PC connection.

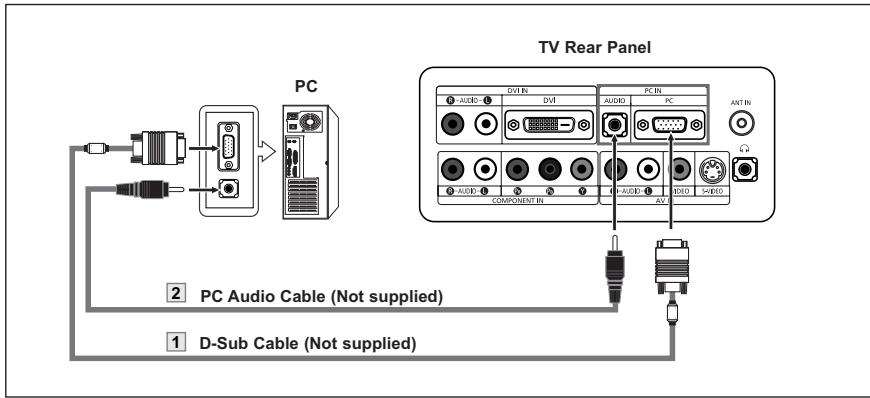

1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.

2. Connect a PC Audio Cable between PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.

Turning the TV On and Off

Press the POWER ⏻ button on the remote control.

You can also use the POWER ⏻ button on the front of the panel.

Plug and Play Feature

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER ⏻ button on the remote control. The message "Start Plug & Play" is displayed with "OK" selected.
2. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.
3. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button. ➢ Please check that the antenna or cable TV is connected correctly.
4. Press the ▲ or ▼ button to select "Air", "STD", "HRC", or "IRC", then press the ENTER button.
5. Press the ENTER button to select "Start". ➢ The channel search will start and end automatically. After all the available channels are stored, the "Clock Set" menu appears. ➢ Press the ENTER button at any time to interrupt the memorization process.
6. Press the ENTER button. Press the ◀ or ▶ button to move to the "Hour", "Minute" or "am/pm". Set the "Hour", "Minute" or "am/pm" by pressing the ▲ or ▼ button.
7. Press the ENTER button to confirm your setting. The message "Enjoy your watching." is displayed.

• Language: Select your language.
• Air/Cable: Selects between terrestrial antenna connection or your local cable company TV system.
- Auto Program: The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes.
- Clock Set: Sets the current time for the TV clock.
➢ You can also set the hour and minute by pressing the number buttons on the remote control.

If you want to reset this feature...

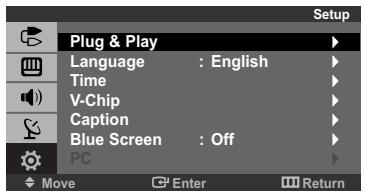

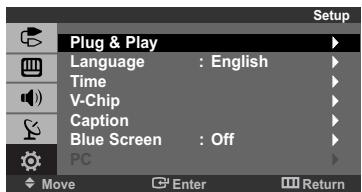

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ENTER button to select "Plug & Play".
3. The message "Start Plug & Play" is displayed.

Changing Channels

Using the Channel Buttons:

1. Press the CH ⬤ or CH ⬤ button to change channels.

When you press the CH ⚙ or CH ⏰ button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized.

Using the PRE-CH Button to select the Previous Channel:

1. Press the PRE-CH button. The TV will switch to the last channel viewed.

To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them.

Adjusting the Volume

1. Press the VOL ⊕ or VOL ⊖ button to increase or decrease the volume.

Using MUTE 📧 button:

At any time, you can temporarily cut off the sound using the MUTE 🔒 button.

1. Press the MUTE button and the sound cuts off. The word "Mute" will appear in the lower-left corner of the screen.
2. To turn mute off, press the MUTE 🎧 button again, or simply press the VOL ⊕ or VOL ⊖ button.

Viewing the Display

Press the INFO button on the remote control to view current channel and the status of certain audio-video settings.
➢ Press the button once more or wait approximately 10 seconds and it disappears automatically.

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an antenna or a cable system).

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ENTER button to select "Air/Cable".
3. Press the ▲ or ▼ button to select the video signal source, then press the ENTER button.
4. Press the EXIT button to exit.

STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected. Proceed to “Storing Channels Automatically”. (See page 13)

Storing Channels Automatically

The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes.

1. To select the signal source, follow the "Selecting the Video Signal-source" instructions numbers 1 to 3 on page 12.
2. Press the ▲ or ▼ button to select "Auto Program", then press the ENTER button.
3. Press the ENTER button to select "Start".

The channel search will start and end automatically.

➢ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Channel" menu reappears.

2. Press the EXIT button to exit.

Press the AUTO PROG. button on the remote control.

Storing Channels Manually

Set the channels according to your preference. You can easily delete or add the channels you want.

1. Use the number buttons to directly select the channel that will be added or deleted.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Add/Delete", then press the ENTER ↻ button.
4. Press the ▲ or ▼ button to select the channels to be deleted or added.
5. Press the ▶ button to select “⊕” column, then press the ENTER ⊖ button. ➤ The channels marked with “√” will be added.
6. Press the EXIT button to exit.

You can directly select any channel (including an erased channel) by using the number buttons on the remote control.

Use the number buttons to directly select the channel that will be added or erased. Press the ADD/DEL button on the remote control.

Fine Tuning Channels

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER ⏻ button.
4. Press the ◀ or ▶ button to adjust the fine tuning.
5. To store the fine tuning setting in the TV's memory, press the ENTER button.
6. Press the EXIT button to exit.

If you do not store the fine-tuned channel in memory, adjustments are not saved.
➢ Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner.
To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

Using Automatic Picture Settings

Your TV has four automatic picture settings (“Dynamic”, “Standard”, “Movie”, and “Custom”) that are preset at the factory.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ENTER button, to select "Mode".
3. Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.

4. Press the EXIT button to exit.

5. Dynamic: Selects the picture for high-definition in a bright room.

6. Standard: Selects the picture for optimum display in a normal environment.
7. Movie: Selects the picture for comfortable display in a dark room.
8. Custom: Select to view your favorite display settings.

[PC mode]

• Entertain: High brightness. (For watching motion pictures such as a DVD or Video CD.)
• Internet: Medium brightness. (For working with a mixture of images such as text and graphics.)
• Text: Normal brightness. (For documentations or works involving heavy text.)
• Custom: Select to view your favorite display settings.

The Picture mode must be adjusted separately for each input source.
In the PC mode, "Entertain", "Internet", "Text", "Custom" appears.
You can also press the P.MODE button on the remote control to select one of the picture settings.

Customizing the Picture

Your set has several settings which allow you to control picture quality.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Custom", then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to select a particular item. Press the ENTER button.
4. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER ⏻ button.

5. Press the EXIT button to exit.

6. Contrast: Adjusts the lightness and darkness between objects and the background.

7. Brightness: Adjusts the brightness of the whole screen.
8. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
   • Color: Adjusts the colors, making them lighter or darker.
9. Tint: Adjusts the color of objects, making them more red or green for a more natural look.

If you make any changes to these settings, the Picture Mode is automatically switched to "Custom".
In the PC mode, only "Contrast" and "Brightness" can be adjusted.
"Tint" doesn't operate in Component or DVI mode.

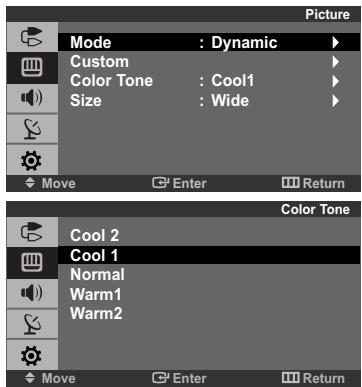

Adjusting the Color Tone

You can Change the color of the entire screen according to your preference.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Color Tone", then press the ENTER ↩ button.

3. Press the ▲ or ▼ button to select the desired color tone setting. Press the ENTER button.

4. Press the EXIT button to exit.

- Cool2: Makes the color temperature bluer than "Cool1" menu.

• Cool1: Makes whites bluish.
• Normal: Keeps whites white.
• Warm1: Makes whites reddish.
- Warm2: Makes the color temperature redder than "Warm1" menu.

In the PC mode, "Cool", "Normal", "Warm", "Custom" appears.

Changing the Picture Size

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Size", then press the ENTER ← button.
3. Select the required option by pressing the ▲ or ▼ button. Press the ENTER button.
4. Press the EXIT button to exit.

- Wide: Adjusts the picture size to Wide appropriate for DVDs or wide broadcasting. - Zoom: Magnifies the Wide picture (in the vertical direction) to fit the screen size. - 4:3: This is the default setting for a video movie or normal broadcasting.

In PC, Component and DVI Mode, only "Wide" and "4:3" mode can be adjusted. (The "Zoom" mode is not supported.)
➢ Select ☐ by pressing the ◀ or ▶ buttons. Use the ▲ or ▼ button to move the picture up and down. After selecting ☐, use the ▲ or ▼ button to magnify or n

Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size.

Adjusting the Color Control

Adjust the individual R, G, B Color Controls.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Color Control", then press the ENTER button.
3. Press the ▲ or ▼ button to select a particular item. Press the ENTER button.

4. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER 📊 button.

5. Press the EXIT button to exit.

Available in PC Mode Only

Freezing the Picture

1. Press the STILL button to freeze a moving picture.

Normal sound will still be heard. Press again to cancel.
This function doesn't work when the Input Source is Component, DVI, and PC.

Sound Control

Using Automatic Sound Settings

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER ⏻ button.
2. Press the ENTER button to select "Mode".
3. Press the ▲ or ▼ button to select the desired sound effect. Press the ENTER button.

4. Press the EXIT button to exit.

5. Standard: Selects the normal sound mode.
   • Music: Emphasizes music over voices.

6. Movie: Provides live and full sound for movies.
7. Speech: Emphasizes voices over other sounds.
8. Custom: Selects your custom sound settings.

You can also press the S.MODE button on the remote control to select one of the sound settings.

Customizing the Sound

The sound settings can be adjusted to suit your personal preferences. (Alternatively, you can use one of the “automatic” settings.)

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Custom", then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to select a particular item. Press the ENTER ↩ button.
4. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER button.
5. Press the EXIT button to exit.

If you make any changes to the "Custom" settings, the sound mode is automatically switched to the "Custom" mode.

Choosing a Multi-Channel Sound (MTS) Soundtrack

Depending on the particular program being broadcast, you can listen to stereo, mono or a Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather).

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "MTS", then press the ENTER ← button.
3. Press the ▲ or ▼ button to select the required option, then press the ENTER ↻ button.

4. Press the EXIT button to exit.

5. Mono: Select for channels that are broadcast in mono, or if you are having difficulty receiving a stereo signal.

6. Stereo: Select for channels that are broadcast in stereo.
7. SAP: Select to listen to the Separate Audio Program, which is usually a foreign-language translation.

You can also press the MTS button on the remote control to select "Mono", "Stereo" or "SAP".

Using the Auto Volume

Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed.

“Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

Time Setting

• Setting the Clock
• Setting the Sleep Timer
• Setting the On/Off Timer

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER ⏻ button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER ↩ button.
3. Press the ENTER button to select "Clock Set".

4. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

5. Press the EXIT button to exit.

➢ If you disconnect the power cord, you have to set the clock again.
➢ You can also set the hour and minute by pressing the number buttons on the remote control.

Setting the Sleep Timer

Set the timer for the TV to automatically turn off at a preset time.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER ← button.
3. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.

4. Press the ▲ or ▼ button repeatedly until the desired time appears. (Off, 30, 60, 90, 120, 150, 180) Press the ENTER button.

5. Press the EXIT button to exit.

The TV automatically turn off when the timer reaches 0.

You can also press the SLEEP button on the remote control to set the sleep time.

Setting the On/Off Timer

You can set the On/Off timers so that the set will:

◆ Switch on automatically and tune to the channel of your choice at the time you select.
◆ Switch off automatically at the time you select.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER 📊 button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER ← button.
3. Press the ▲ or ▼ button to select "On Timer", then press the ENTER button.

4. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER 📊 button to return.

5. Press the ▲ or ▼ button to select "Off Timer", then press the ENTER ← button.

6. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER 📊 button to return.

7. Press the EXIT button to exit.

The clock must be set (see above) before you can set the On/Off timer.
➢ You can also set the hour and minute by pressing the number buttons on the remote control.
The "Activation" setting must be set to "On" in order for the timers to work.

Auto Power Off: When you set the timer on, your television will be turned off if you do not operate any controls for 3 hours after the TV has been turned on with the "Timer On" function.

Using the V-Chip

Setting Up Your Personal ID Number (PIN):

The V-Chip feature automatically locks out programming that is deemed inappropriate for children.

The user must first enter a Pin (personal ID number) before any of the V-Chip restrictions can be set up or changed.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.
2. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ↩ button.
3. The "Enter PIN" screen will appear. Enter your 4-digit PIN. ➢ The default PIN number for a new TV set is "0-0-0-0".
4. After entering a valid PIN number, the "V-Chip" screen will appear. Press the ▲ or ▼ button to select "Change PIN". Press the ENTER ⬇ button.
5. The Change PIN screen will appear. Choose any 4-digits for your PIN and enter them. As soon as the 4 digits are entered, the “Confirm new PIN.” screen appears. Re-enter the same 4 digits. When the confirm screen disappears, your PIN has been memorized.
6. Press the EXIT button to exit.

How to Enable/Disable the V-Chip:

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ← button.
3. The "Enter PIN" screen will appear. Enter your 4-digit PIN.
4. The "V-Chip" screen will appear, and "V-Chip Lock" will be selected. Press the ENTER button.
5. Press the ▲ or ▼ button to select "On" or "Off", then press the ENTER ← button.
6. Press the EXIT button to exit.

How to Set up Restrictions Using the ‘TV guidelines’:

First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.
2. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ↩ button.
3. The "Enter PIN" screen will appear. Enter your 4-digit PIN.
4. Press the ▲ or ▼ button to select "TV Parental Guidelines", then press the ENTER ↩ button.
5. The "TV Parental Guidelines" screen will appear. Press the ▲ or ▼ button to select one of the six age-based categories:

• TV-Y: Young children• TV-Y7: Children 7 and over

• TV-G: General audience• TV-PG: Parental guidance• TV-14: Viewers 14 and over• TV-MA: Mature audience

1. At this point, one of the TV-Ratings is selected. Press the ENTER button: Depending on your existing setup, the color of the letter "U" or "B" will be highlighted. (U= Unblocked, B= Blocked) When the color of the "U" or "B" is highlighted, press the ENTER button to block or unblock the category. A TV-Rating will be highlighted. To exit this screen, press the MENU button again. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.

The TV-Y7, TV-PG, TV-14, and TV-MA have additional options. See the next step to change any of the following sub-ratings: FV: Fantasy Violence / D: Sexual suggestive Dialog L: Adult Language / S: Sexual situation / V: Violence
The V-Chip will automatically block certain categories that are “more restrictive.” For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The sub-ratings (D, L, S, V) work together similarly.

1. How to set the FV, D, L, S, and V sub-ratings.

First, highlight one of these TV-Ratings: TV-Y7, TV-PG, TV-14, or TV-MA

(See Step 4, on previous page). Next, while the TV-Rating is selected, repeatedly

press the ENTER button. This will cycle through the available sub-ratings (FV,L, S, D, or V).

A highlighted letter ("U" or "B") will be displayed for each sub-rating.

While the "U" or "B" is highlighted, press the ENTER button to change the sub-rating.

Press the MENU button once to save the TV guidelines. A TV-Rating will be selected, and no letters "U" or "B" will be changed to yellow. To exit this screen, press the MENU button again.

To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.

The V-chip will automatically block certain categories that are "More restrictive".

For example, if you block the “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.

1. Press the EXIT button to clear all the screens.

(Or proceed to the next section, and set up additional restrictions based on the MPAA codes).

How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR

The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER ↩ button.

1. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ↩ button.

2. The "Enter PIN" screen will appear. Enter your 4-digit PIN.

3. Press the ▲ or ▼ button to select "MPAA Rating", then press the ENTER ⬇ button.

4. Repeatedly press the ▲ or ▼ button to select a particular MPAA category. (When a category is selected, its color changes to yellow.)

Pressing the ▲ or ▼ button will cycle through the MPAA categories:

• G: General audience (no restrictions).

• PG: Parental guidance suggested.

• PG-13: Parents strongly cautioned.

• R: Restricted. Children under 17 should be accompanied by an adult.

• NC-17: No children under age 17.

• X: Adults only.

- NR: Not rated.

1. Press the ▲ or ▼ button to select a category.

Press the ENTER ↩ button to select "U" or "B".

Press the EXIT button to save the settings and to clear all screens.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the “PG-13” category, then “R”, “NC-17”, and “X” will automatically be blocked also.

How to Reset the TV after the V-Chip Blocks a Channel ('Emergency Escape')

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: "Excessive rating". To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the Menu button for an "emergency escape": Select the V-Chip on the Menu. Enter your PIN number, and press the ENTER button to temporarily disable the V-Chip Lock.

How to Set up Restrictions Using Canadian English

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER ← button.

1. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ← button.

2. The "Enter PIN" screen will appear. Enter your 4-digit PIN.

3. Press the ▲ or ▼ button to select "Canadian English", then press the ENTER ← button.

4. Press the ▲ or ▼ button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected. The "B" is indicated.

1. Press the EXIT button to exit.

2. E: Exempt programming includes...news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
   • C: Programming intended for children under age 8.
   • C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
   • G: General programming, suitable for all audiences.
   • PG: Parental Guidance.

3. 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
   • 18+: Adult programming.

How to Set up Restrictions Using Canadian French

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER ↩ button.
2. Press the ▲ or ▼ button to select "V-Chip", then press the ENTER ← button.
3. The "Enter PIN" screen will appear. Enter your 4-digit PIN.
4. Press the ▲ or ▼ button to select "Canadian French", then press the ENTER ↩ button.
5. Press the ▲ or ▼ button to select a appropriate restriction. Press the ENTER ⬇ button to activate the restriction selected. The "B" is indicated.
6. Press the EXIT button to exit.

• E: Exempt programming includes...news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
• G: General.
• 8 ans+: Not recommended for young children.
- 13 ans+: Programming may not be suitable for children under the age of 13.
- 16 ans+: Programming is not suitable for children under the age of 16.
• 18 ans+: Programming restricted to adults.

Viewing Closed Captions

Your TV decodes and displays the closed captions that are broadcast with certain TV shows.

These captions are usually subtitles for the hearing impaired or foreign-language translations.

All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed captions as well.

Check for the closed caption symbol in your television schedule and on the tape's packaging: cc.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.
2. Press the ▲ or ▼ button to select "Caption", then press the ENTER← button.
3. Press the ENTER button to select "Caption".
4. Press the ▲ or ▼ button to set caption "On" or "Off", then press the ENTER ⬇ button.
5. Depending on the particular broadcast, it might be necessary to make changes to "Channel" and "Field".
6. Press the EXIT button to exit.

- Caption: Off / On

- Channel: 1 / 2

- Mode: Caption / Text

- Field: 1 / 2

The Caption feature does not work with Component, PC and DVI mode.
Different channels and fields display different information: Field 2 carries additional information that supplements the information in Field 1. (For example, Channel 1 may have subtitles in English, while Channel 2 has subtitles in Spanish).

Press the CAPTION button on the remote control.

Selecting a Menu Language

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Language", then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to select the appropriate language. Press the ENTER button.
4. Press the EXIT button to exit.

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER ↩ button.
2. Press the ▲ or ▼ button to select "Blue Screen", then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to select "On" or "Off", then press the ENTER ↩ button.
4. Press the EXIT button to exit.

Selecting the Source

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu. Press the ENTER button to select "Input".
2. Press the ENTER button to select the "Source List".
3. Press the ▲ or ▼ button to select the Input source, then press ENTER 📊 button.
   You can only select a source if it is connected to your TV.

You can also press the SOURCE button on the remote to choose the Input source.

Editing the Input Source Name

You can name the input device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. Press the ENTER button to select "Input".
2. Press the ▲ or ▼ button to select "Edit Name" then press the ENTER button.
3. Press the ▲ or ▼ button to select the desired input device, then press the ENTER ↩ button.
4. Press the ▲ or ▼ button repeatedly until the appropriate source name appears. After the source is selected, press the ENTER ↩ button.
   The following options are available:
   ---- - VCR - DVD - Cable STB - HD STB - Satellite STB - AV Receiver - DVD Receiver

5. Game - Camcorder - DVD Combo - DHR - PC
   DHR: DVD HDD Recorder

6. Press the EXIT button to exit.

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1440 x 900 @ 60Hz

If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz".

Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution.

The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	720 x 400	31.469	70.087	28.322	- / +
	640 x 480	31.469	59.940	25.175	- / -
VESA	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	800 x 600	48.077	72.188	50.000	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ / +
	1280 x 1024	63.981	60.020	108.00	+ / +
	1280 x 1024	79.976	75.025	135.00	+ / +
	1440 x 900	70.635	74.984	136.75	- / +

The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
DVI does not support PC function.

Image Lock:

The purpose of picture quality adjustment is to remove or reduce picture noise.

If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again.

After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1. Press the SOURCE button to select PC mode.
2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER ↩ button.

1. Press the ▲ or ▼ button to select "PC", then press the ENTER ↩ button.
2. Press the ENTER button to select "Image Lock".
3. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER ↩ button.
4. Press the ◀ or ▶ button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button.
5. Press the EXIT button to exit.

Position:

Adjust the PC's screen positioning if it does not fit the TV screen.

1. Press the SOURCE button to select PC mode.
2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.

1. Press the ▲ or ▼ button to select "PC", then press the ENTER ↩ button.
2. Press the ▲ or ▼ button to select "Position", then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to adjust the V-Position (Vertical-Position).

Press the ◀ or ▶ button to adjust the H-Position (Horizontal-Position).

Press the ENTER ↩ button.

1. Press the EXIT button to exit.

Image Reset:

You can replace all image settings with the factory default values.

1. Press the SOURCE button to select PC mode.
2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER Ⓗ button.

1. Press the ▲ or ▼ button to select "PC", then press the ENTER ↩ button.
2. Press the ▲ or ▼ button to select "Image Reset", then press the ENTER ↩ button.
3. Press the EXIT button to exit.

Auto Adjustment:

Auto adjustment allows you to set the TV to self-adjust to the incoming PC video signal.

The fine, coarse and position values are adjusted automatically.

1. Press the SOURCE button to select PC mode.
2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER ↩ button.

1. Press the ▲ or ▼ button to select "PC", then press the ENTER ↩ button.
2. Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER ⏻ button.
3. Press the EXIT button to exit.

How to Adjust the Stand

Diagram of a computer monitor with an attached circuit board and fan (no text or symbols)

(1)

(2)

1. Place the front of the TV onto a soft cloth or cushion on a table as in Figure (1).
2. Align the TV bottom along the table edge.
3. Press on the center of the TV back.

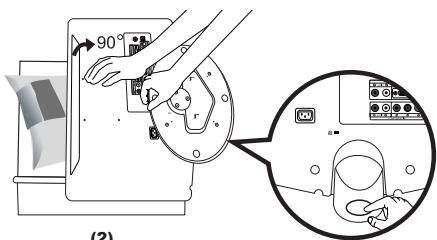

   Adjust the stand as in Figure (2) while pressing the button on the back of the stand.
4. Place the TV on the table so that the TV sits safely.

How to Adjust the Angle of the TV

(1) Angle adjustment when using the TV on its stand.

(2) Angle adjustment when converting from Stand to Wall mount (1 → 3, 3 → 1)

(3) Angle adjustment when LCD TV is wall-mounted

When you adjust the stand, press the button on the back of the stand.

1. Figure (1) shows the adjustment angle (-2^ 14^) when you use the LCD on its stand. Excessive tilting can turn the LCD TV over which may cause damage.
2. Figure (2) shows the adjustment angle (14°\~80°) when you convert the LCD from stand-based use to wall-mount.
3. Figure (3) shows the adjustment angle ( 0^ 10^ ) when you mount the LCD TV to a wall.

➢ You will hear a “Click” sound when changing the angle from 1 to 2 or 3 to 2.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For the detailed information on installing the Wall Mount, see the instruction in the Wall Mount items. Contact a technician for installing the wall bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Installing VESA compliant mounting devices

(2)
(3)

1. Place the TV face down on a soft cloth or cushion on a table.
2. Adjust the stand, pressing the button on the back of the stand.
3. Align the mounting interface pad (not supplied) with the holes in the stand bottom and secure it with the four screws that come with the arm-type base, wall mount hanger or other bases (not supplied).

Using the Decoration Covers

Diagram of a computer monitor with ventilation slots and a handle, labeled (1), showing no text or symbols beyond the label.

Technical line drawing of a car front panel with mounting brackets and structural ribs (no text or symbols)

1. When installing the TV on the wall without using the stand, insert decoration covers into the holes as described in the picture (1).
2. After inserting the decoration covers, fasten them with 4 screws as described in the picture (2).

Identifying Problems

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center.

Problem	Possible Solution
Poor picture	♦ Try another channel. / ♦ Adjust the antenna. / ♦ Check all wire connections.
Poor sound quality.	♦ Try another channel. / ♦ Adjust the antenna.
No picture or sound.	♦ Try another channel.♦ Press the SOURCE button.♦ Make sure the TV is plugged in.♦ Check the antenna connections.
No sound or sound is too low at maximum volume.	♦ First, check the volume of units connected to your TV(Digital broadcasting receiver, DTV, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly.
Picture rolls vertically.	♦ Check all wire connections.
The TV operates erratically.	♦ Unplug the TV for 30 seconds, then try operating it again.
Remote control malfunctions	♦ Replace the remote control batteries.♦ Clean the upper edge of the remote control (transmission window).♦ Check the battery terminals.
“Check signal cable.” message.	♦ Ensure that the signal cable is firmly connected to the PC sources.
“Not Optimum Mode.” message.	♦ Check the maximum resolution and the frequency of the Video Adaptor.♦ Compare these values with the data in the Display Modes.
The image is too light or too dark.	♦ Adjust the Brightness and Contrast.
Horizontal bars appear to flicker, jitter or shimmer on the image.	♦ Adjust the Coarse tuning and then adjust the Fine tuning.

The TFT LCD panel uses a panel consisting of sub pixels (3,888,000) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Specifications

Model Name	LN-S1951W / LN-S1952W
Screen Size (Diagonal)	19 inches
Power Supply	AC 110-120 V, 60 Hz
Power Consumption	45W
PC Resolution	1440 x 900 @ 60Hz
SoundOutput	3W + 3W
Dimension (WxDxH)
Body	19.1 x 2.3 x 14.5 inches (485.0 x 58.0 x 369.0 mm)
With stand	19.1 x 7.9 x 16.1 inches (485.0 x 200.0 x 407.8 mm)
Weight
Without stand	10.6 lbs (4.8 kg)
With stand	12.3 lbs (5.6 kg)
Environmental Considerations
Operating Temperature	50 °F to 104 °F (10 °C to 40 °C)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-4 °F to 113 °F (-20 °C to 45 °C)
Storage Humidity	5% to 95%, non-condensing

This device is a Class B digital apparatus.

This page is intentionally left blank.

Table des matières

INFORMATIONS GENERALES

Pure diagram of a symmetrical mechanical or electrical component with two horizontal bars and a curved central bar (no text or symbols)

Simple line drawing of a black cable with a connector (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a computer monitor with an attached circular device showing internal components (no text or symbols)

(1)

(2)

Line drawing of a computer monitor with two inserted clips (no text or symbols)

(1)

Technical line drawing of a car front panel with ventilation grilles and mounting holes (no text or symbols)

(2)

Pure diagram of a symmetrical mechanical or electrical component with two horizontal bars and a curved central bar (no text or symbols)

Pure diagram of a black cable with a connector, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a computer monitor with an attached circular device showing internal components (no text or symbols)

(1)

(2)
Botón

Diagram of a computer monitor with two connectors inserted, labeled (1), showing no text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols
