LCD TVuser manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

Contents

CONNECTING AND PREPARED YOUR TV

List of Parts 3
Installing the Stand. 3
Installing the Wall Mount Kit 3
Viewing the Control Panel 4
Viewing the Connection Panel 5
Viewing the Remote Control. 8
Installing Batteries in the Remote Control. 9
Switching On and Off 9
Placing Your Television in Standby Mode. 9

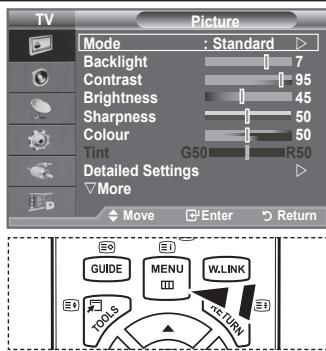

Viewing the Menus 10

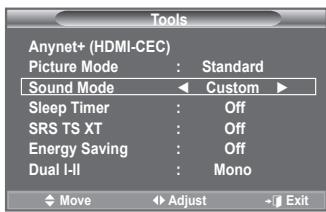

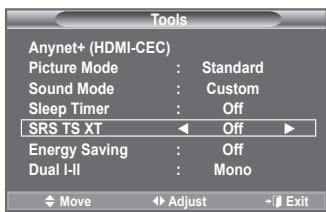

Using the TOOLS Button 10

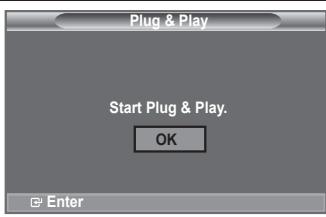

Plug & Play 11

SETTING THE CHANNELS

Storing Channels Automatically 12

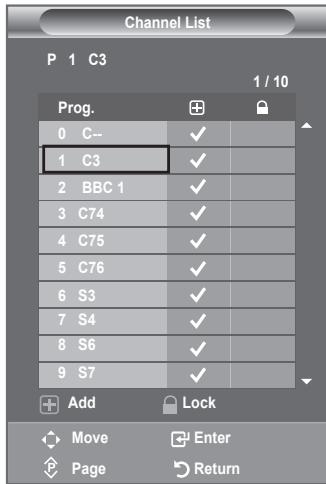

Storing Channels Manually 13
Adding / Locking Channels 14
Sorting the Stored Channels 15

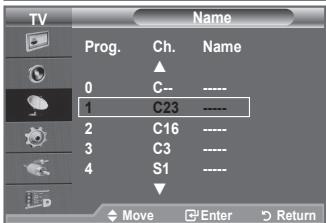

Assigning Channels Names 15
Fine Tuning Channel Reception 16
LNA (Low Noise Amplifier) 16

SETTING THE PICTURE

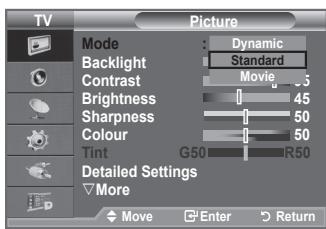

Changing the Picture Standard 17

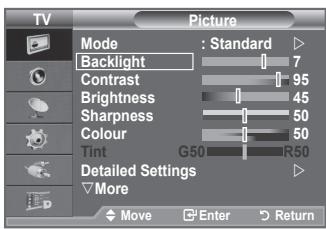

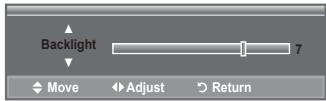

Adjusting the Custom Picture 18

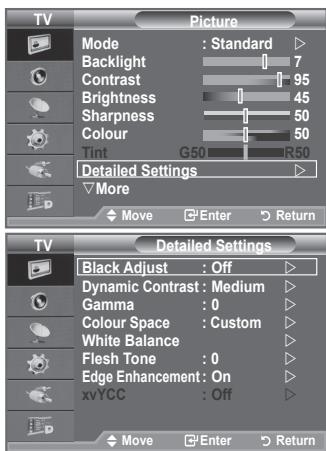

Configuring Detailed Settings on the Picture ... 18

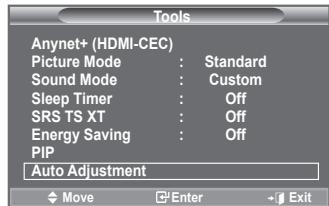

Resetting the Picture Settings to the Factory Defaults 19

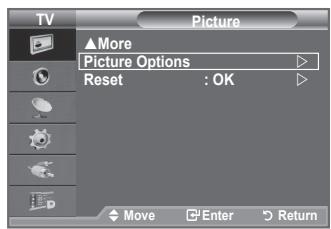

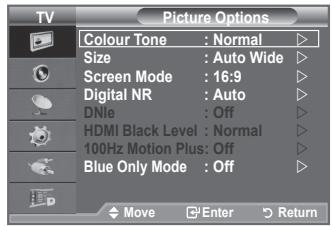

Configuring Picture Option 20

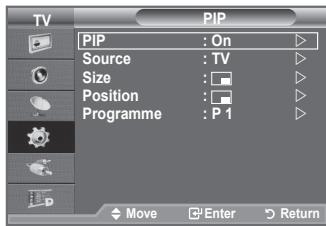

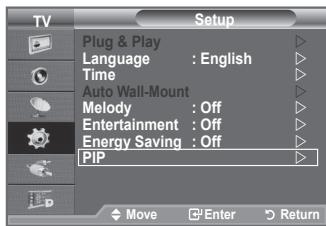

Viewing the Picture In Picture (PIP) 22

SETTING THE SOUND

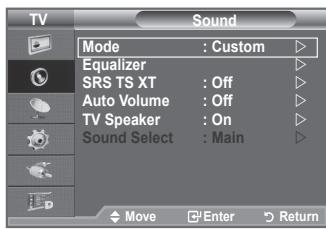

Sound Features 23
Selecting the Sound Mode 24
Connecting Headphones (Sold separately) .... 24

SETTING THE TIME

Setting and Displaying the Current Time. 25

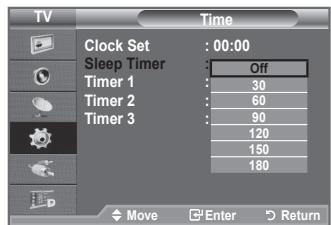

Setting the Sleep Timer 25

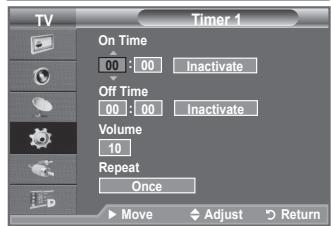

Switching the Television On and Off Automatically 26

FUNCTION DESCRIPTION

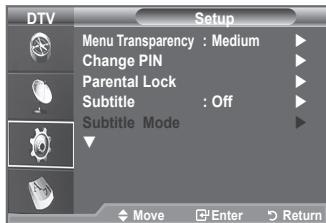

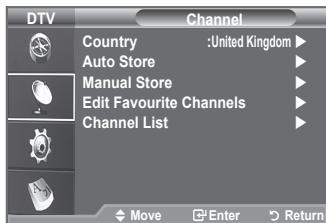

Choosing Your Language 26

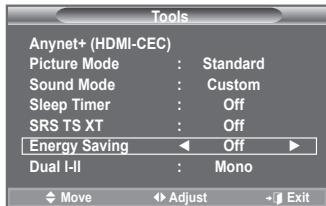

Melody / Entertainment / Energy Saving 27

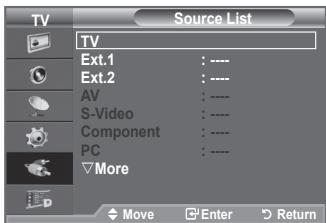

Selecting the Source 28

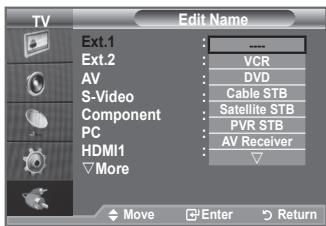

Editing the Input Source Names 29

USING THE DTV FEATURE

Previewing the DTV Menu System 30

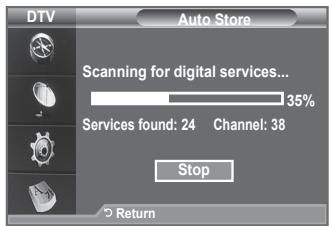

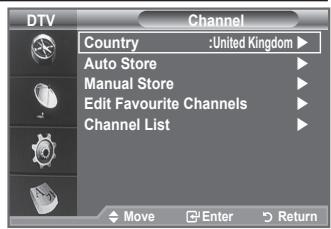

Updating the Channel List Automatically. 31

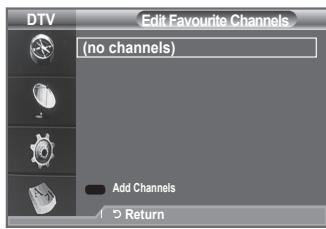

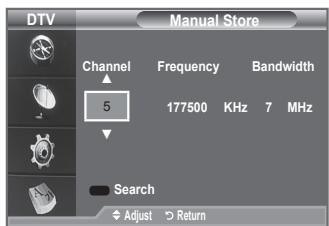

Updating the Channel List Manually 31

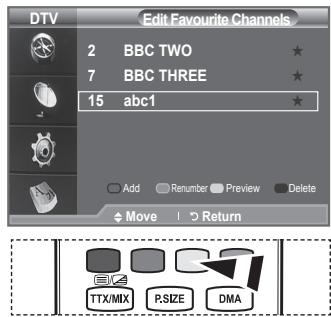

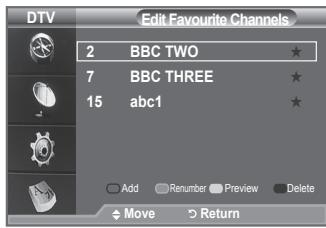

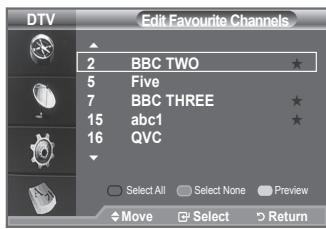

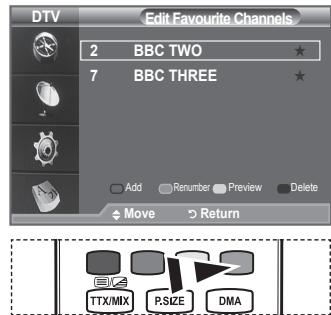

Editing Your Favourite Channels 32
Selecting Channel List 34

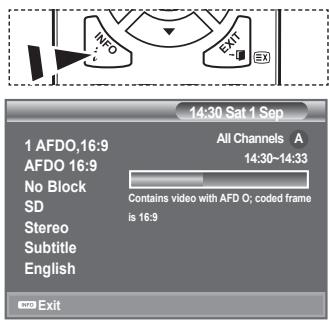

DisplayingProgramme Information 34

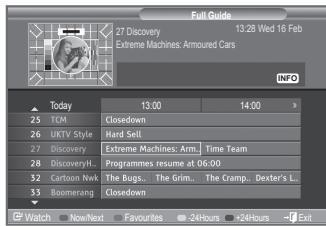

Viewing the EPG (Electronic Programme Guide) Information 35

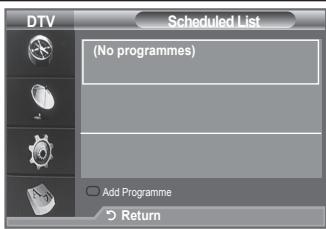

Using the Scheduled List 36
Setting the Default Guide 36
Viewing All Channels and Favourite Channels 37

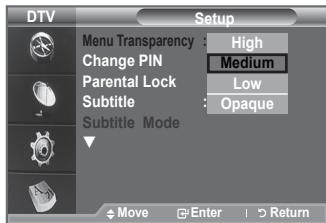

Adjusting the Menu Transparency 37

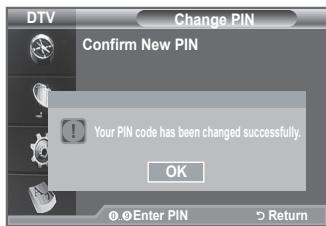

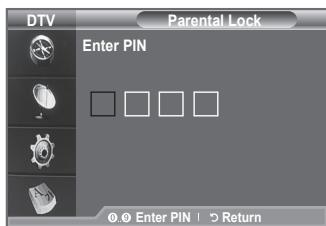

Setting up the Parental Lock 38

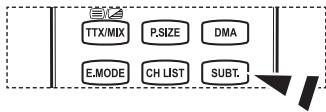

Setting the Subtitle 39
Setting the Subtitle Mode 39

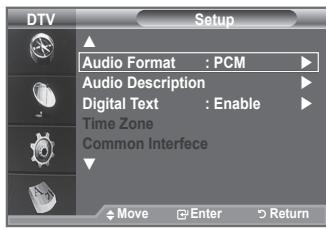

Selecting the Audio Format 39

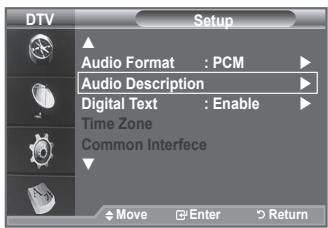

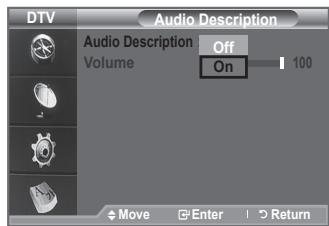

Selecting the Audio Description 40

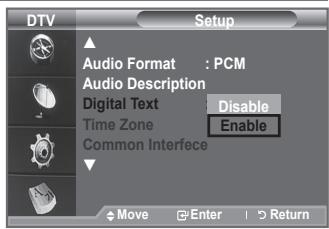

Selecting the Digital Text (UK only) 40

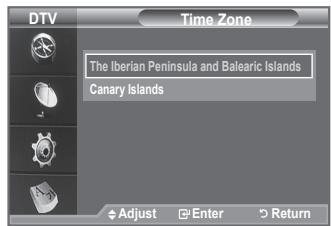

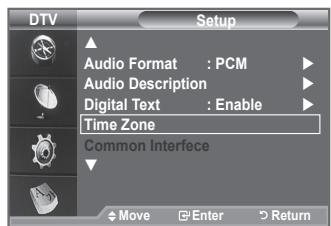

Selecting the Time Zone (Spain only) 41

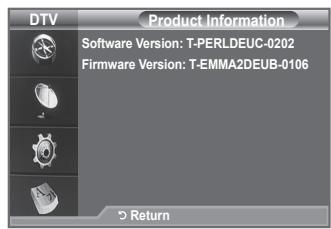

Viewing Product Information 41

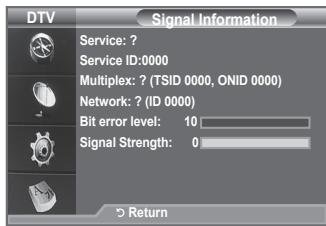

Checking the Signal Information 42

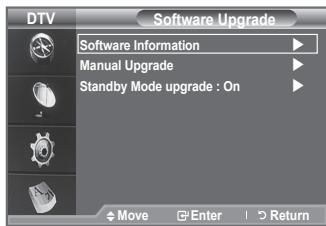

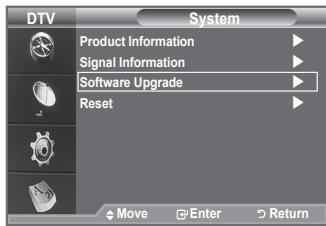

Upgrading the Software 42
Viewing Common Interface 43
Selecting the CI (Common Interface) Menu..... 43

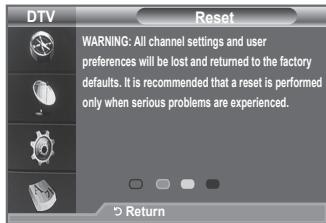

Resetting 44

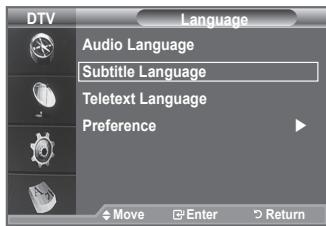

Selecting the Preferred Language (Subtitle, Audio or Teletext) 44
Preference. 45

SETTING THE PC

Setting up Your PC Software (Based on Windows XP) 46
Display Modes. 46
Setting up the TV with your PC 47

WISELINK

Using the WISELINK Function 48

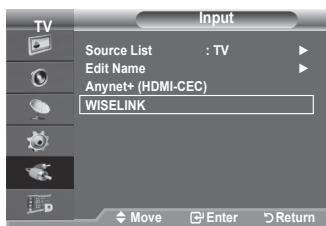

Using the WISELINK Menu 49

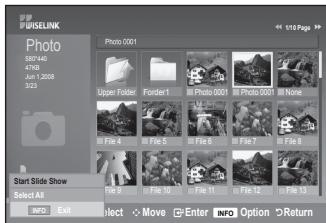

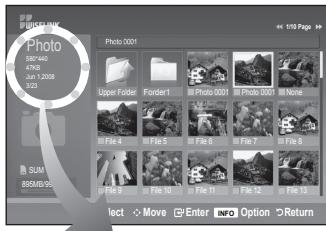

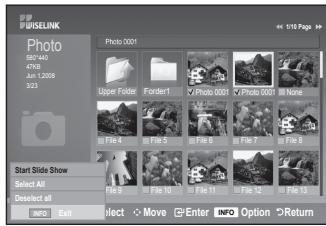

Using the PHOTO (JPEG) List 50

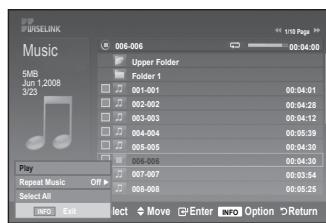

Using the MP3 List. 53
Using the Setup Menu 54

ABOUT ANYNET

What is Anynet+? 55

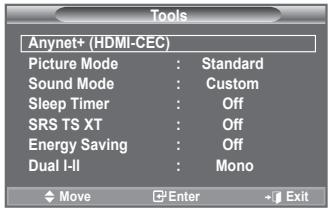

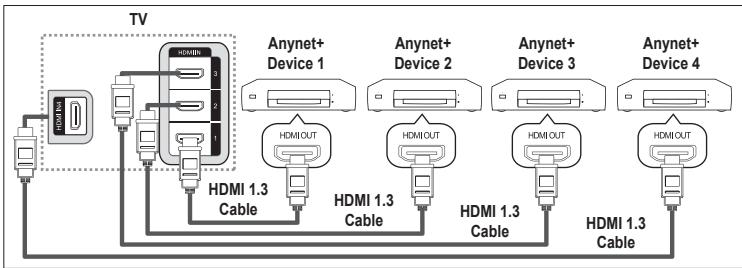

Connecting Anynet+ Devices 55

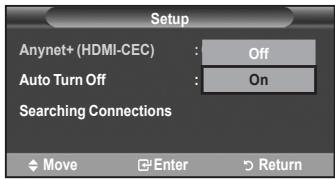

Setting Up Anynet+ 56

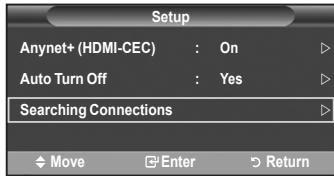

Scanning and Switching between Anynet+ Devices 57
Recording 59
Listening through a Receiver 59
Check Points before Requesting Service. 60

RECOMMENDATIONS FOR USE

Teletext Feature 61
Auto Wall-Mount (Sold separately) 63

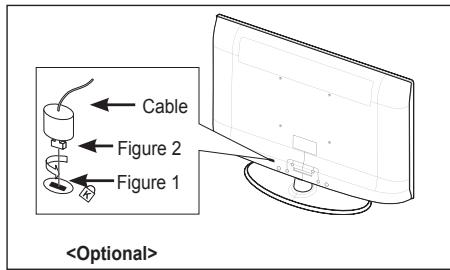

Using the Anti-Theft Kensington Lock (depending on the model) 64
Troubleshooting: Before Contacting Service Personnel 65
Technical and Environmental Specifications ... 66

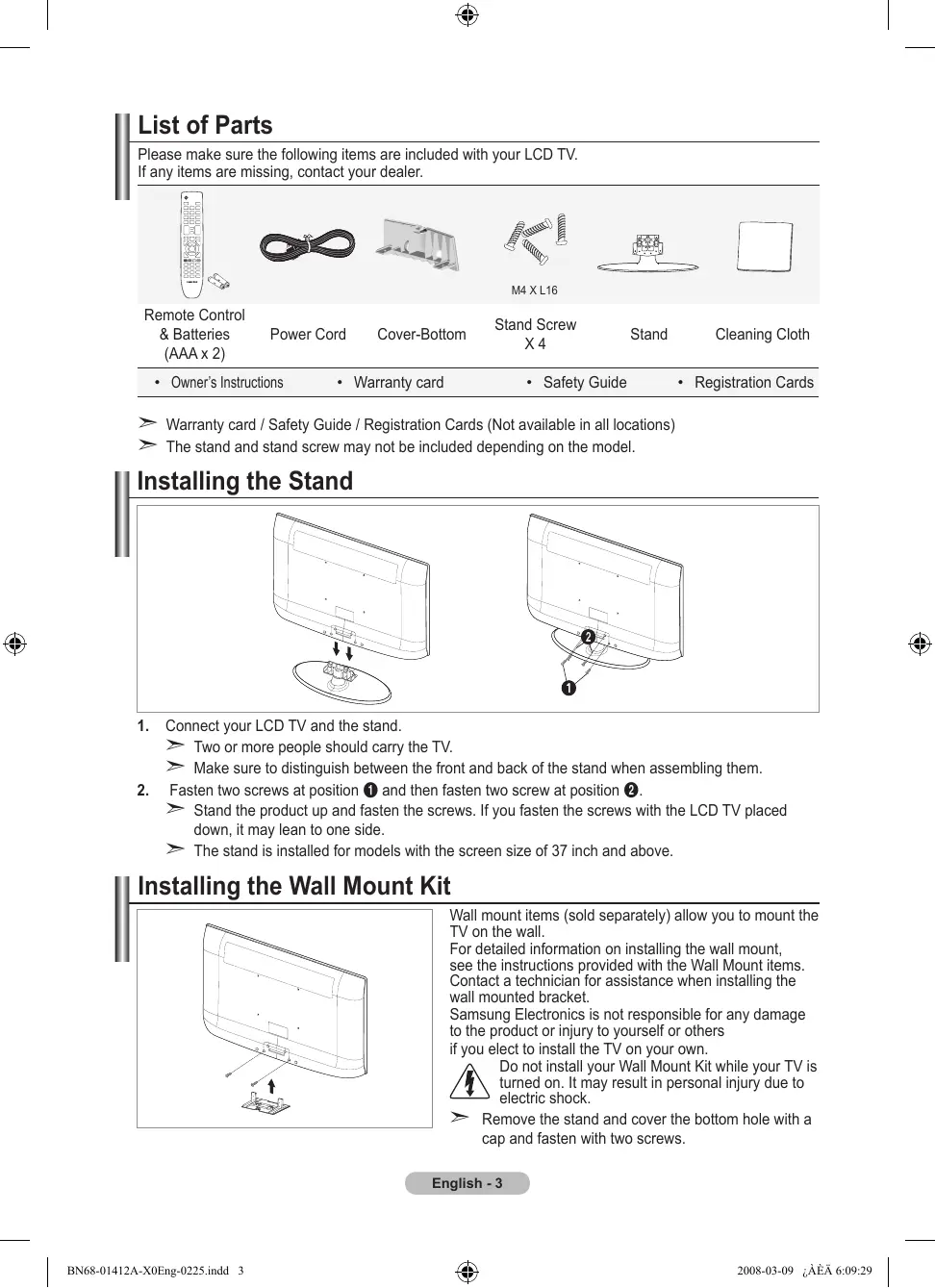

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)	Power Cord	Cover-Bottom	Stand Screw X 4	Stand	Cleaning Cloth
• Owner's Instructions	• Warranty card		• Safety Guide		• Registration Cards

Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.

Installing the Stand

1. Connect your LCD TV and the stand.

Two or more people should carry the TV.
Make sure to distinguish between the front and back of the stand when assembling them.

1. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
The stand is installed for models with the screen size of 37 inch and above.

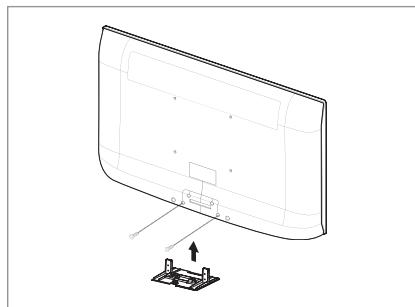

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items.

Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others

if you elect to install the TV on your own.

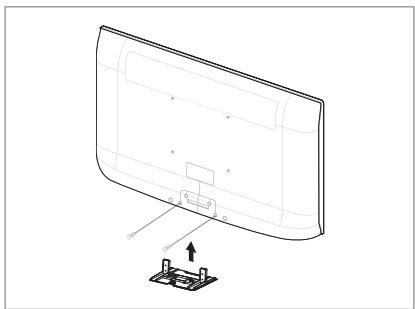

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

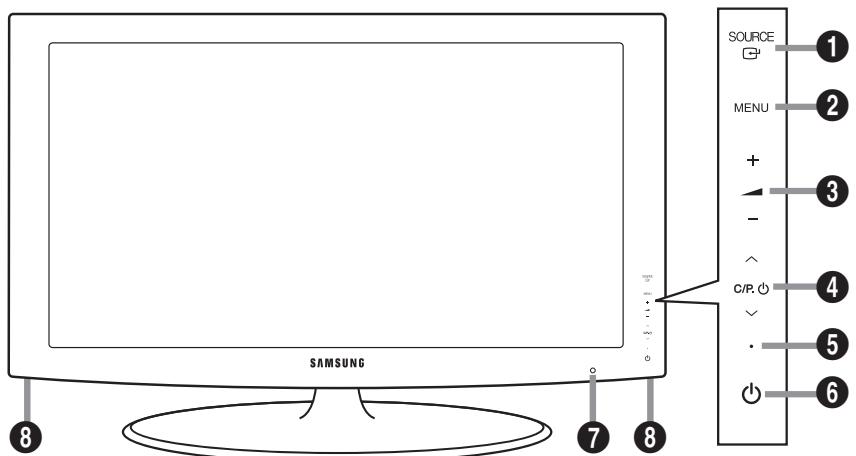

Front Panel buttons

Touch each button to operate.

The product colour and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, HDMI4, DTV). In the on-screen menu, use this button as you use the ENTER button on the remote control.

2 MENU

Press to see an on-screen menu of your TV's features.

3 -+

Press to decrease or increase the volume. In the on-screen menu, use the + buttons as you use the and buttons on the remote control.

C/P.0A

Press to change channels.

In the on-screen menu, use the C / P . buttons as you use the and buttons on the remote control.

(Without the Remote Control, you can turn on the TV by using the Channel buttons.)

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

6 (Power)

Press to turn the TV on and off.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

3 Speakers

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off
When connecting an external device, match the colour of the connection terminal to the cable.

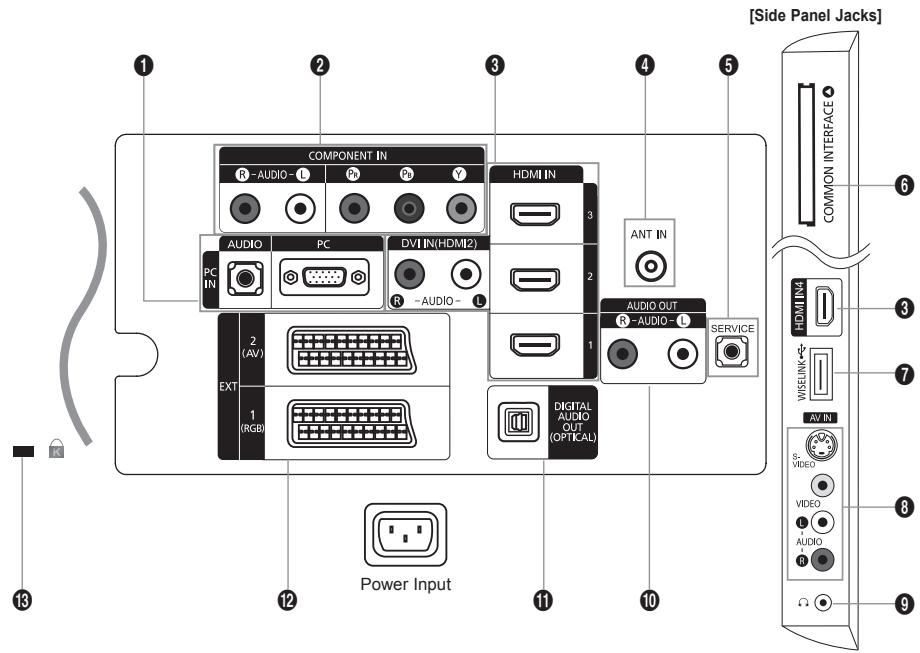

PC IN [PC] / [AUDIO]

• Connect to the video and audio output jack on your PC.

2 COMPONENT IN

• Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.
• If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set.
• The PR , PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

3 HDMI IN 1, HDMI IN 2, HDMI IN 3, HDMI IN 4

• Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
• No additional Audio connection is needed for an HDMI to HDMI connection.
• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?
- "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio.
- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.
The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

• DVI audio outputs for external devices.
  Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i	1080p
HDMI/DVI 50Hz	X	X	X	O	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O	O
Component	O	O	O	O	O	O	O

4 ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

• An outdoor aerial / A cable television network / A satellite network

5 SERVICE

• Connector for SERVICE only.

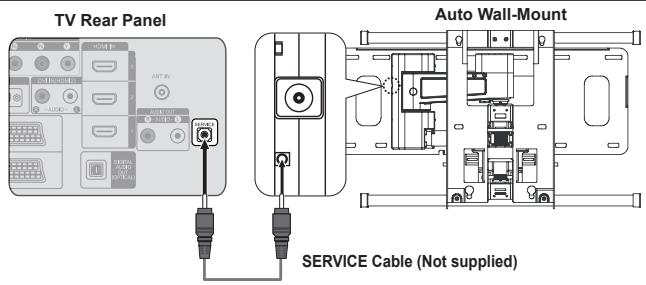

• Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

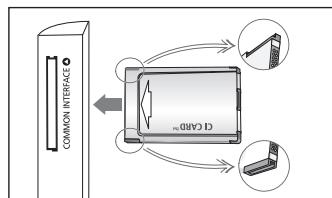

6 COMMON INTERFACE Slot

• When not inserting "CI CARD" in some channels, "Scrambled Signal" is displayed on the screen.
• The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.
• When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated.

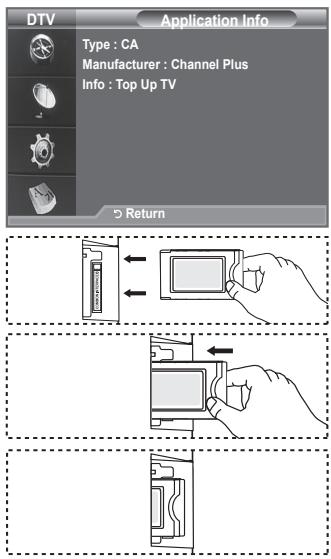

You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it.
Insert the Cl-Card in the direction marked on it.
The place of the COMMON INTERFACE Slot may be different depending on its model.

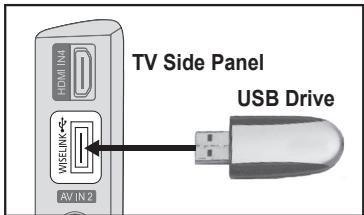

WISELINK

• Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3)

S-VIDEO or VIDEO / R-AUDIO-L

• Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device.

9 Headphones jack

• Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

10 AUDIO OUT [R-AUDIO-L]

• Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

1 DIGITAL AUDIO OUT (OPTICAL)

• Connect to a Digital Audio Component.

When the HDMI IN jackets are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.

12EXT1,EXT2

Connector	Input			Output
	Video	Audio (L/R)	RGB	Video + Audio (L/R)
EXT 1	O	O	O	Only TV or DTV output is available.
EXT 2	O	O		Output you can choose.

• Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Kensington Lock (depending on the model)

• The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
• If you want to use a locking device, contact the dealer where you purchased the TV.
• The location of the kensington lock may be different depending on its model.

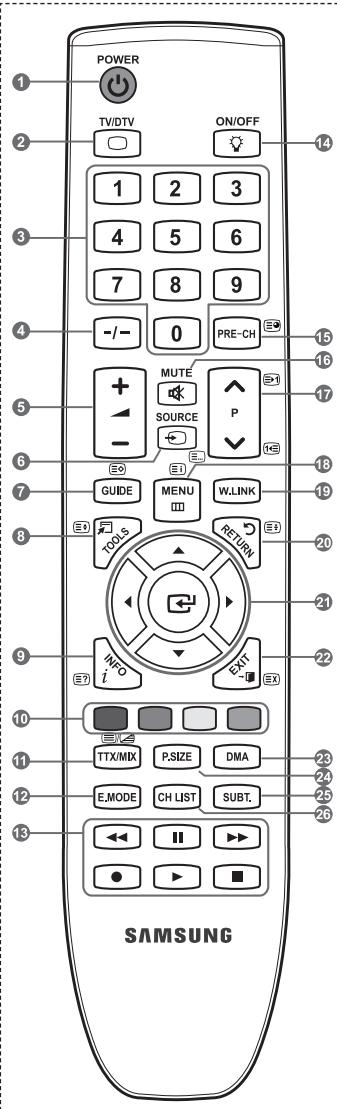

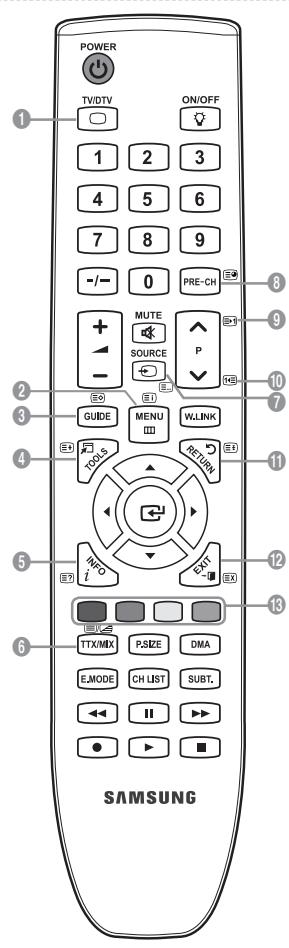

1 Television Standby button
2 Selects the TV and DTV mode directly
Number buttons for direct channel access
One/Two-digit channel selection
+ : Volume increase - : Volume decrease
6 Available source selection
Electronic Program Guide (EPG) display
Use to quickly select frequently used functions.
Use to see information on the current broadcast
10 Colour buttons : Use these buttons in the Channel list and WISELINK, etc.
12 Press to select the optional display and sound modes for sports, cinema and games.
Use these buttons in the DMA, WISELINK and Anynet+. (●): This remote can be used to control recording on Samsung recorders with the Anynet+ feature)
Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF button set to On will reduce the battery usage time.)
Previous channel
Temporary sound switchoff
P:Next channel
P: Previous channel
10 Displays the main on-screen menu

This function enables you to view and play photo and music files from an external device.
20 Returns to the previous menu
2 Control the cursor in the menu
2 Exit the on-screen menu
Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when "Anynet+ (HDMI-CEC)" is "On" (see page 56)

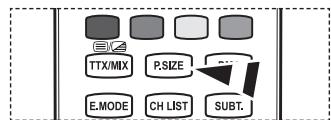

Picture size selection
Digital subtitle display
It display "Channel List" on the screen.

Teletext Functions

Exit from the teletext display
Teletext mode selection (LIST/FLOF)
7 Teletext store
Teletext size selection
9 Teletext reveal
10 Fastext topic selection
10 Alternately select Teletext, Double, or Mix.
15 Teletext sub page
P : Teletext next page P : Teletext previous page
16 Teletext index
20 Teletext hold
22 Teletext cancel

The performance of the remote control may be affected by bright light.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.
Using the remote control with the ON/OFF button set to On will reduce the battery usage time.

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

1. Press the button on your set.

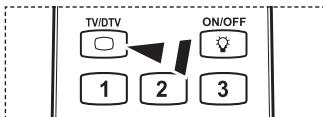

You also can press the POWER button or the TV/DTV button on the remote control to turn the TV on.
The programme that you were watching last is reselected automatically.

1. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or C / P . button on your set.
   When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.
2. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

1. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial.

Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu's left side has icons: Picture, Sound, Channel, Setup, Input, Digital Menu.

1. Press the or button to select one of the icons.

Then press the ENTER button to access the icon's submenu.

1. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

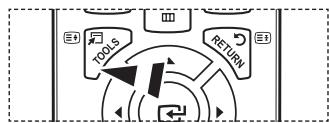

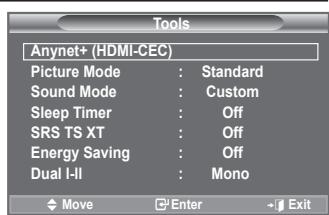

Using the TOOLS Button

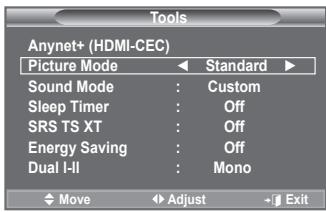

You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes depending on which external input mode you are viewing.

1. Press the TOOLS button.
   The "Tools" menu will appear.
2. Press the or button to select a menu.
3. Press the / / / buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC), see page 56
Picture Mode, see page 17
Sound Mode, see page 23
Sleep Timer, see page 25
SRS TS XT, see page 23
Energy Saving, see page 28
Dual I-II, see page 24
PIP, see page 22
Auto Adjustment, see page 47

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1. Press the POWER button on the remote control. The message "Start Plug & Play" is displayed with "OK" selected.
2. Select the appropriate language by pressing the or button. Press the ENTER button to confirm your choice.
3. Press the or button to select "Store Demo" or "Home Use", then the ENTER button.

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
"Store Demo" mode is only intended for use in retail environments.
If the unit is accidentally set to "Store Demo" mode and you want to return to "Home Use" (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

1. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.

Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the or button. Press the ENTER button to confirm your choice.
2. The message "Some DTV functions may not be available. Digital Scan?" is displayed. Press the or button to select "Yes" or "No", then press the ENTER button.

Yes: First an ATV search is performed and then a DTV ch. auto search is performed.
No: Only an ATV search is performed.

This function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria.

1. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically. The DTV channel scan menu appears and the DTV channel is automatically updated.
If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. After all the available channels are stored, the "Clock Set" menu appears.

Press the ENTER button at any time to interrupt the memorization process.
For detailed descriptions about DTV channel update, refer to page 31 of this manual. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country.

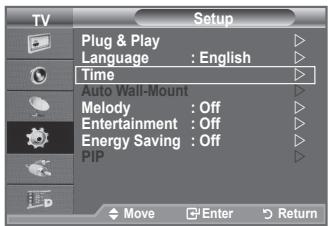

1. Press the ENTER button.

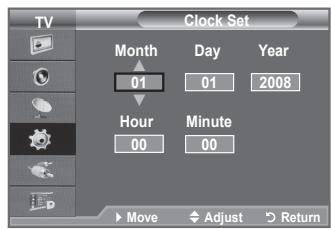

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the or button.

Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the or button.

You can also set the "Month", "Day", "Year", "Hour" and "Minute" by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting. The message "Enjoy your viewing" is displayed. When you have finished, press the ENTER button.

Even if the ENTER按钮 is not pressed, the message will automatically disappear after several seconds.

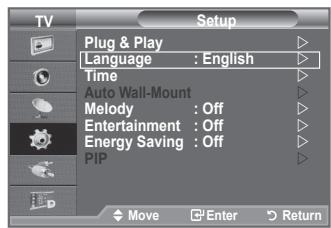

Language: Select your language.
Country: Select your country.
Auto Store: Automatically scans for and stores channels available in the local area.
Clock Set: Sets the current time for the TV clock.

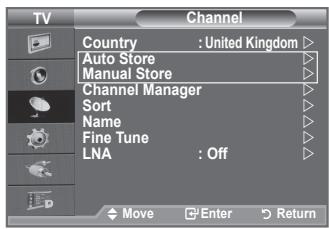

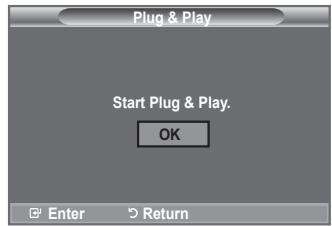

If you want to reset this feature...

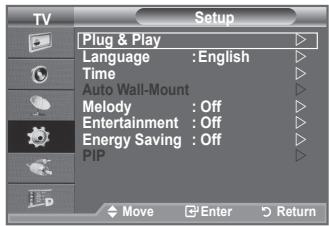

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the ENTER button again, to select "Plug & Play". For further details on setting up options, refer to the page 11. The "Plug & Play" feature is only available in the TV mode.

• Storing Channels Automatically
• Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the ENTER button to select "Country".
3. Select the appropriate country by pressing the or button.

Press the ENTER button to confirm your choice.

Even though you have changed the country setting in this menu, the country setting for DTV is not changed. (Refer to page 31)

1. Press the or button to select "Auto Store", then press the ENTER button.

2. Press the ENTER button.

The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears. (refer to page 15)

Storing Channels Manually

Not available in DTV or external input mode.

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.

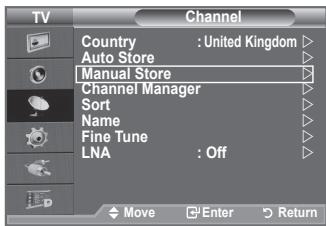

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

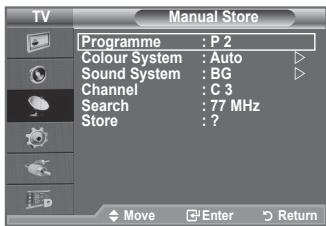

1. Press the or button to select "Manual Store", then press the ENTER按钮.
2. Select the required option by pressing the or button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Programme (Programme number to be assigned to a channel)

• Press the or button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

Colour System: Auto/PAL/SECAM/NTSC4.43

• Press the or button to select the required colour standard.

Sound System: BG/DK/I/L

• Press the or button to select the required sound standard.

Channel (When you know the number of the channel to be stored)

• Press the or button to select C (Air channel) or S (Cable channel).

• Press the button, then press the or button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).
If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers)

• Press the or button to start the search.
• The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number)

• Set to "OK" by pressing the ENTER按钮.

Channel mode

• P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
• C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
• S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Not available in DTV or external input mode.

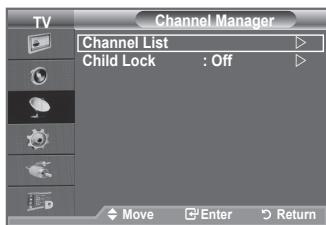

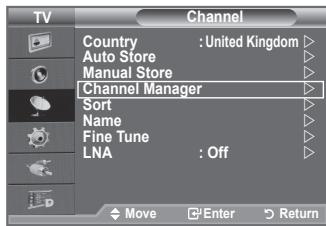

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Channel Manager", then press the ENTER button.
   Adding channels

Using the Channel List, you can add channels.

1. Select Channel List by pressing the ENTER button.
2. Move to the () field by pressing the , , or button, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER按钮 again, the () symbol next to the channel disappears and the channel is not added.

" ^ is active when "Child Lock" is selected to "On".

Locking channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

1. Press the or button to select "Child Lock", then press the ENTER button.
2. Select "On" by pressing the or button, then press the ENTER button.
3. Press the or button to select "Channel List", then press the ENTER button.
4. Move to the "O" field by pressing the , , or button, select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the () symbol next to the channel disappears and the channel lock is cancelled.
A blue screen is displayed when "Child Lock" is activated.

1. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "■" to be active or inactive.

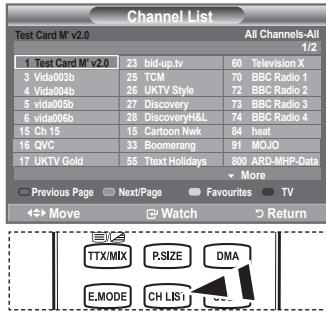

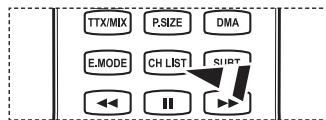

You can select these options by simply pressing the CH LIST button on the remote control.

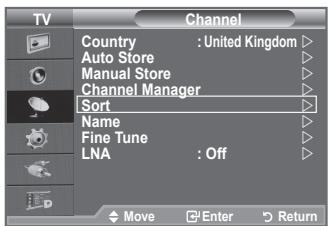

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

Not available in DTV or external input mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Sort", then press the ENTER button.

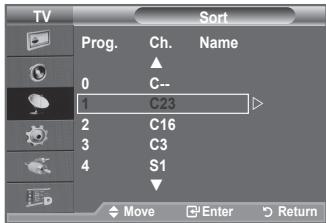

3. Select the channel number that you wish to change by pressing the or button repeatedly.

Press the ENTER button.

The selected channel number and name are moved to right side.

1. Press the or button to move to the position in which you would like to change and then press the ENTER button.
   The selected channel is exchanged with the one previously stored to the chosen number.
2. Repeat steps 3 to 4 for another channel to be sorted.
3. Press the EXIT button to exit.

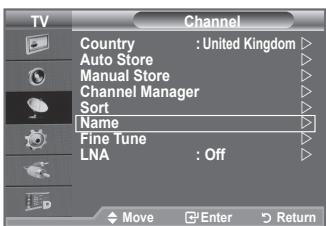

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

Not available in DTV or external input mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Name", then press the ENTER button.
3. If necessary, select the channel to be assigned to a new name by pressing the or button. Press the ENTER button

The selection bar is displayed around the name box.

To...	Then...
Select a letter, number or symbol	Press the ▲ or ▼ button
Move on the next letter	Press the ➔ button
Move back the previous letter	Press the ← button
Confirm the name	Press the ENTER按钮

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.
2. Press the EXIT button to exit.

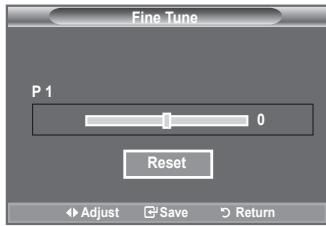

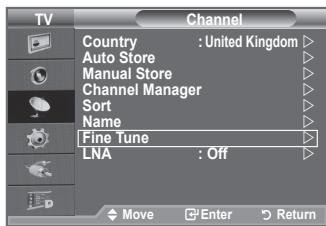

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

Not available in DTV or external input mode.
1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the or button to select "Fine Tune", then press the ENTER button.
2. Press the or button to adjust the fine tuning.

Press the ENTER button.

1. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk "**" on the right-hand side of the channel number in the channel banner. And the channel number turns red.
To reset the fine-tuning, select "Reset" by pressing the or button and then press the ENTER按钮.

If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

Not available in DTV or external input mode.
1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

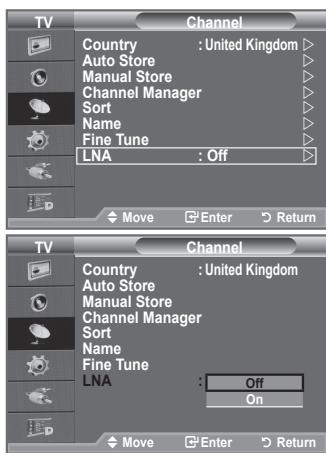

1. Press the or button to select "LNA", then press the ENTER按钮.
2. Press the or button to select "Off" or "On". Press the ENTER button.
3. Press the EXIT button to exit.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

1. Press the ENTER button again, to select "Mode".
2. Press the or button to select the desired picture effect.

Press the ENTER button.

1. Press the EXIT button to exit.

Dynamic: Selects the picture for high-definition in a bright room.
Standard: Selects the picture for optimum display in a normal environment.
Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Picture Mode".
3. Press the or button to select the desired picture mode.
4. Press the EXIT or TOOLS button to exit.

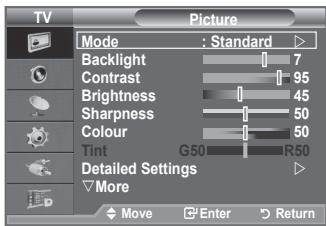

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 17).
2. Press the or button to select a particular item. Press the ENTER button.
3. Press the or button to decrease or increase the value of a particular item. Press the ENTER button.
4. Press the EXIT button to exit.

Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10)
Contrast: Adjusts the lightness and darkness between objects and the background.
Brightness: Adjusts the brightness of the whole screen.
Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
Colour: Adjusts the colours, making them lighter or darker.
Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness".

In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.
You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19)

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1. Press the MENU button to display the menu.
   Press the ENTER button, to select "Picture".
2. Press the ENTER button to select "Mode".
   Press the or button to select "Standard" or "Movie", then press the ENTER button.
3. Press the or button to select "Detailed Settings", then press the ENTER按钮.
4. Select the required option by pressing the or button, then press the ENTER button.
5. When you are satisfied with your setting, press the ENTER button.
6. Press the EXIT button to exit.
   "Detailed Settings" is available in "Standard" or "Movie" mode.

   In PC mode, you can only make changes to "Dynamic Contrast", "Gamma" and "White Balance" from among the "Detailed Settings" items.

Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 +3

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Press the or button until you reach the optimal setting.

Colour Space: Auto/Native/Custom

Colour space is a colour matrix composed of "Red", "Green" and "Blue" colours.

Select your favourite Colour space to experience the most natural Colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.
Native: Native Colour Space offers deep and rich colour tone.
Custom: Adjusts the colour range to suit your preference.

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

"Colour" is available when "Colour Space" is set to "Custom".

Press the or button to select "Red", "Green", "Blue", "Yellow", "Cyan" or "Magenta".

Press the ENTER button.

Red/Green/Blue: In "Colour", you can adjust the RGB values for the selected colour.

Press the or button to select "Red", "Green" or "Blue" to change it.

Press the ENTER按钮.

Press the or button to decrease or increase the value of a particular item. Press the

ENTER按钮。

Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the or button, then press the ENTER button.

Press the or button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15

You can emphasize the pink 'flesh tone' in the picture.

Press the or button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jackets. You must set the Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.
If xvYCC function is active, PIP cannot be selected.

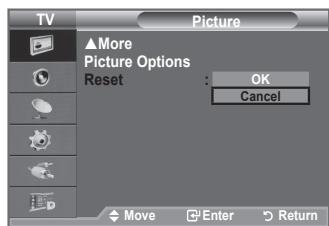

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (On page 17).
2. Press the or button to select "Reset", then press the ENTER button.
3. Press the or button to select "OK" or "Cancel". Press the ENTER button.
4. Press the EXIT button to exit.
   The "Reset" will be set for each "Picture" mode.

Configuring Picture Option

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

1. Press the or button to select "Picture Options", then press the ENTER button.
2. Select the required option by pressing the or button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

In PC mode, you can only make changes to the "Colour Tone" and "Size" from among the items in "Picture Options".

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected "Picture" mode.
"Warm1" or "Warm2" is only activated when the picture mode is "Movie".

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
4:3: This is the default setting for a video movie or normal broadcasting.
Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "DTV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
Wide Zoom: Move the screen up/down using the or button after selecting the by pressing the or ENTER button.
Zoom: Select by pressing the or button. Use the or button to move the picture up and down. After selecting, use the or button to magnify or reduce the picture size in the vertical direction.
When Double ( ,) mode has been set in PIP, the Picture Size cannot be set.
After selecting "Just Scan" in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select by pressing the or button. Use the , , or button to move the picture. Reset: Press the or button to select "Reset", then press the ENTER button.

You can initialize the setting.

You can select these options by simply pressing the P.SIZE button on the remote control.

Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnify the size of the picture vertically on screen.
4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode.
This function is not available in "PC", "Component" or "HDMI" mode.

Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNle: Off/Demo/On

This TV includes the DNle function so as to provide a high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated. If you set the DNle to Demo, you can view the applied DNle and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNleTM (Digital Natural Image engine) DNleTM

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNle™ technology will fit every signal into your eyes.
This function is not available in "Movie" and "Standard" mode.

HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

Movie Plus: Off/Low/Medium/High/Demo (LE32A656)

You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.
This function is not available in "Wide Zoom" and "Zoom" modes.
This function is not available when "PIP" is set to "On".
It is not supported in HDMI 1080p/24Hz mode.

100Hz Motion Plus: Off/Low/Medium/High/Demo (LE37A656, LE40A656, LE46A656, LE52A656)

Removes drag from fast scenes with a lot of movement to provide a clearer picture.

This function is not available in PC mode.
If you enable "100 Hz Motion Plus", noise may appear on the screen. If this occurs, set "100Hz Motion Plus" to "off" or select one of the other options.

Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

"Blue Only Mode" is available when the picture mode is set to "Movie" or "Standard".

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "PIP", then press the ENTER按钮.
3. Select the required option by pressing the or button, then press the ENTER button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "PIP", then press the ENTER按钮.
3. Press the or button to select a particular item.
4. Press the or button to select the required option.
5. Press the EXIT or TOOLS button to exit.

PIP: On/Off

You can activate or deactivate the PIP function.

You can select a source of the sub-picture.

Size: / /

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

Position: // // //

You can select a position of the sub-picture.

In Double ( ,) mode, "Position" cannot be selected.

Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV" or "DTV".

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Select the required option by pressing the or button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sound Mode".
3. Press the or button to select the desired sound mode.
4. Press the EXIT or TOOLS button to exit.

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal preferences.

If you make any changes to these settings, the sound mode is automatically switched to "Custom".

SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "SRS TS XT".
3. Press the or button to select the "Off" or "On".
4. Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and () Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The + , - and MUTE buttons do not operate when the "TV Speaker" is set to "Off".
When "TV Speaker" is set to "Off", you can operate only "Sound Select" (in PIP mode) in Sound menu.

Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Selecting the Sound Mode

You can set the sound mode in the "Tools" menu.
When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Dual I-II".
3. Press the or button to select required option.
4. Press the ENTER button.

	Audio Type	Dual 1/2	Default
A2 Stereo	Mono	MONO	Automatic change
	Stereo	STEREO ↔ MONO
	Dual	DUAL 1 ↔ DUAL 2	DUAL 1
NICAM Stereo	Mono	MONO	Automatic change
	Stereo	MONO ↔ STEREO
	Dual	→ MONO ↔ DUAL 1 DUAL 2 ←	DUAL 1

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
This function is only available in Analogue TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu.

Prolonged use of headphones at a high volume may damage your hearing.
You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.

TV Side Panel

Setting and Displaying the Current Time

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Time", then press the ENTER按钮.

2. Press the ENTER button to select "Clock Set".

To...	Press the....
Move to "Month", "Day", "Year", "Hour" or "Minute"	<or button.
Set the "Month", "Day", "Year", "Hour" or "Minute"	▲ or▼ button.
Confirm the setting	ENTER按钮

1. Press the EXIT button to exit.

The current time will appear every time you press the INFO button.

You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER button.
3. Press the or button to select "Sleep Timer", then press the ENTER button.
4. Press the or button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).

Press the ENTER button.

1. Press the EXIT button to exit.
   The TV automatically switches to standby mode when the timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sleep Timer".
3. Press the or button to select the minute.
4. Press the EXIT or TOOLS button to exit.

Switching the Television On and Off Automatically

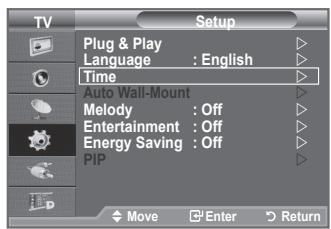

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER按钮.
3. Press the or button to select "Timer 1", "Timer 2", "Timer 3", then press the ENTER button. Three different On/Off Timer Settings can be made.
   You must set the clock first.
4. Press the or button to select the required item below. Press the or button to adjust to the setting satisfied.

On Time: Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".)
Off Time: Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".)
Volume: Select the desired turn on volume level.
Repeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun".

You can set the hour and minute directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Language", then press the ENTER button.
3. Select a particular language by pressing the or button repeatedly. Press the ENTER按钮.
4. Press the EXIT button to exit.

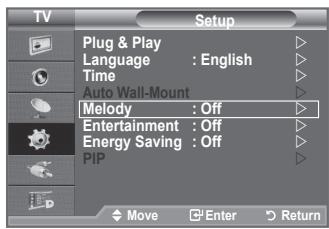

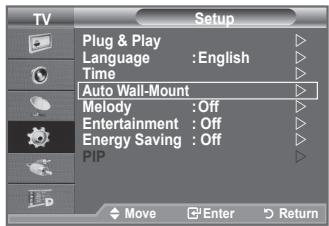

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Select the required option by pressing the or button, then press the ENTER button.
2. When you are satisfied with your setting, press the ENTER button.
3. Press the EXIT button to exit.

Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

• When no sound is output from the TV because the MUTE button has been pressed.
• When no sound is output from the TV because the - (Volume) button has been pressed.
• When the TV is turned off by the Sleep Timer function.

Entertainment: Off/Sports/Cinema/Game

The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games.

• Off: Switch the "Entertainment" function off.
• Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound.
• Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound.
• Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three "Entertainment" modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the "Entertainment" mode must be turned off.
The "Entertainment" settings are saved for each input source.
If you set any of the three "Entertainment" modes to On, "SRS TS XT" function is not available.

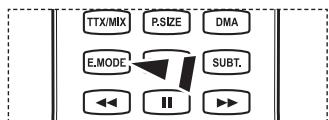

You can press the E.MODE button on the remote control repeatedly to change the "Entertainment" setting.

Energy Saving: Off/Low/Medium/High/Auto

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

• Off: Turns off the energy saving function.
• Low: Sets the TV to low energy saving mode.
• Medium: Sets the TV to medium energy saving mode.
• High: Sets the TV to high energy saving mode.
• Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Energy Saving".
3. Press the or button to select the "Off", "Low", "Medium", "High" or "Auto".
4. Press the EXIT or TOOLS button to exit.

Selecting the Source

You can select among external sources connected to your TV's input jacks.

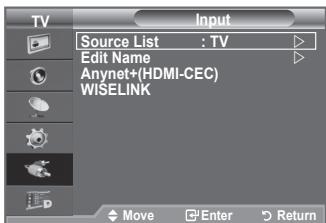

1. Press the MENU button to display the menu.
   Press the or button to select "Input", then press the ENTER button.
2. Press the ENTER button again, to select "Source List".
   When no external device is connected to your set, only "TV", "Ext.1", "Ext.2", "DTV" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2", "HDMI3", "HDMI4" are activated only when they are connected to your set.
3. Select the required device by pressing the or button. Press the ENTER button.

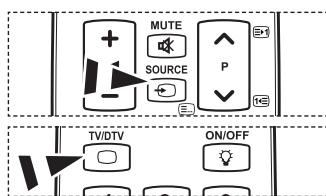

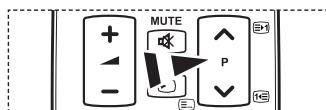

Press the SOURCE button on the remote control to toggle between all the available source.

TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P ∧ / √ button on the remote control.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

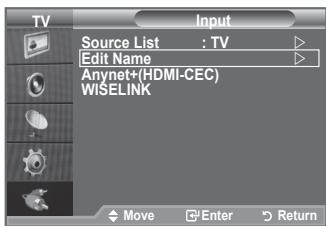

1. Press the MENU button to display the menu.
   Press the or button to select "Input", then press the ENTER button.
2. Press the or button to select "Edit Name", then press the ENTER button.
3. Press the or button to select the device that you wish to edit.

Press the ENTER button.

1. Press the or button to select the required device.

Press the ENTER button.

1. Press the EXIT button to exit.

When a PC with a resolution of 1920 × 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

The company does not guarantee the normal operation of the DTV menu for countries other than the supported countries (France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria) because only these country standards are supported.
In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel Manager, etc. may not be displayed properly.
Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Press the MENU button to display the menu.

Press the or button to select "Digital Menu", then press the

ENTER按钮。

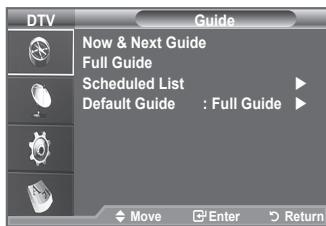

Guide

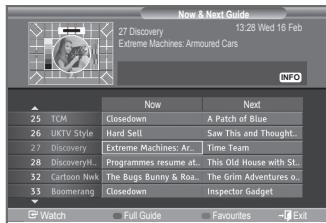

Now & Next Guide

Full Guide

Scheduled List

Default Guide

Now/Next, Full Guide

Channel

Country

Auto Store

Manual Store

Edit Favourite Channels

Channel List

All, Favourites, Default

Setup

Menu Transparency

Change PIN

Parental Lock

Subtitle

Subtitle Mode

Audio Format

Audio Description

High, Medium, Low, Opaque

Off, On

Normal, Hard of hearing

PCM, Dolby Digital

Audio Description—Off, On

Volume

Disable, Enable

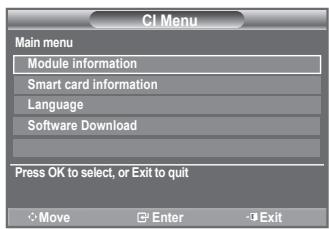

Application Info, CI Menu

Product Information

Signal Information

Software Upgrade

Reset

Digital Text

Time Zone

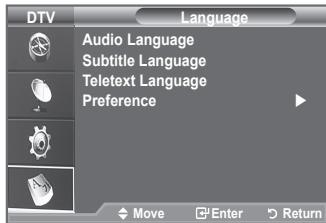

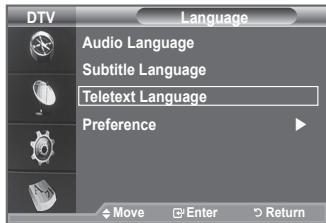

Common Interface

System

Language

Audio Language

Subtitle Language

Teletext Language

Preference

Primary Audio Language

Secondary Audio Language

Primary Subtitle Language

Secondary Subtitle Language

Primary Teletext Language

Secondary Teletext Language (Depending On the Country)

The sub-items of the CI Menu may vary depending on the CAM model.

Updating the Channel List Automatically

You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Channel", then press the ENTER button.
3. Press the ENTER button again, to select "Country".
4. Select the appropriate country by pressing the or button. Press the ENTER button to confirm your choice.

Even though you have changed the country setting in this menu, the country setting for Analogue TV is not changed. (Refer to page 12)

1. Press the or button again, to select "Auto Store". Press the ENTER button.

When it has finished, the number of scanned services will be displayed.
The existing favourite channel list will not be deleted when the channel list is updated.
To stop the scan before it has finished, press the ENTER button with "STOP" selected.

1. Press the EXIT button to exit.

If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed.

Updating the Channel List Manually

You can specify the channel for a fast channel search.

1. Press the or button to select the required option, then press the ENTER按钮.

2. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.

3. Press the or button to select "Channel", then press the ENTER button.

4. Press the or button to select "Manual Store", then press the ENTER button.

5. Channel : Channel "5" to "69" in sequence are displayed (depending on the country)
   Frequency : The frequency available in the Channel group is displayed.

6. Bandwidth : The available bandwidths are 7 and 8 MHz.

   Press the red button to start the scan for digital services.
   When it has finished, channels are updated in the channel list.

7. When it has finished, the number of scanned services will be displayed.
8. Press the EXIT button to exit.

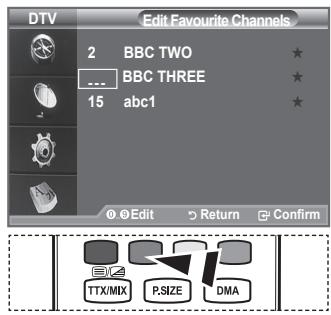

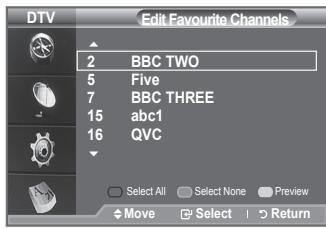

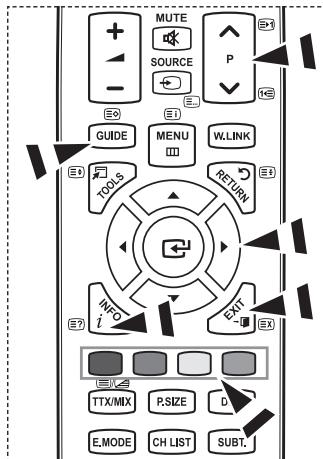

You can edit your favourite channels using the four colour buttons.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Channel", then press the ENTER button.
3. Press the or button to select "Edit Favourite Channels", then press the ENTER button.
4. Press the red button to display all currently stored channels.
5. Press the or button to select a channel you want. Press the ENTER button.

A "icon is shown next to the selected channel and the channel will be added to the favourite channel list.
To undo, press the ENTER button again.
- Select All: Select all channels currently displayed.
- Select None: Deselect all selected channels.
- Preview: Displays (a) currently selected channel(s).
The Favourite Channels settings have been completed.

1. Press the EXIT button to exit.

Add

You can use this function when one or more favourite channels have been selected.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Channel", then press the ENTER button.
3. Press the or button to select "Edit Favourite Channels", then press the ENTER按钮.
4. Press the red button in the "Edit Favourite Channels" menu. To add more channels, refer to the step 5 on the previous description.
5. If you want to check the channel to be stored, press RETURN button.

Press the EXIT button to exit.

To add all channels to the favourite channel list, press the red button.
To remove all channels, press the green button.
- Preview: Displays (a) currently selected channel(s).
- Press the CH LIST button to display the favourite channel manager.

Renumber (depending on the country)

1. Press the MENU button to display the menu.

Press the or button to select "Digital Menu", then press the ENTER button.

1. Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Edit Favourite Channels", then press the ENTER button.
3. Select the required channel using the or button.
4. Press the green button.

The space for entering the number is a blank.

1. Enter the new channel number. Press ENTER按钮 to store or RETURN button to cancel.

Press the button to delete an entered digit.
If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel.

That is, the two numbers are exchanged.

The Favourite Channels are automatically sorted in ascending order of channel numbers.

1. Press the EXIT button to exit.

Preview

1. In the "Edit Favourite Channels" menu, select the channel to be previewed by pressing the or button.
2. Press the yellow button.

The selected channel is displayed on the screen.

Delete

1. In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the or button.
2. Press the blue button.

The selected channel and number will be deleted.
To add a deleted channel back in to the favourite channel list, see "Add" on page 32.

Selecting Channel List

You can exclude the channels you have chosen from the channels you have scanned.When you scan through the stored channels, those you have chosen to skip are not displayed. All channels that you do not specifically choose to skip are displayed during scanning.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER按钮.
2. Press the or button to select "Channel", then press the ENTER button.
3. Press the or button to select "Channel List". Press the ENTER button.
4. Press the or button to select "All", "Favourites" or "Default". Press the ENTER按钮.
5. Press the yellow button to toggle between your favourite channels and all channels.

Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu (refer to page 32).

1. Press the red or green button to display the previous or next channel List page.
2. Press the or button to select a channel to be tuned. Press the ENTER button.
   The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels.
3. Press the blue button to toggle between your "TV", "Radio", "Data/Other" and "All".
4. Press the CH LIST button to exit from the channel List.

It can be displayed simply by pressing the CH LIST button.

Displaying Programme Information

While viewing a channel, additional information about the current programme may be displayed.

1. While viewing a programme, press the INFO button.

The programme information is displayed.

1. To exit from banner information, press the INFO button.

The information is displayed:

• Parental Rating
  Video Type: SD, HD, Radio
  Audio Type: Mono, Stereo, Dual, Dolby Digital
• Existence of Teletext or DVB Subtitle
  Audio Language

Viewing the EPG (Electronic Programme Guide) Information

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

Now & Next Guide

For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

Full Guide

Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time.

1. Press the MENU button to display the menu.

Press the or button to select "Digital Menu", then press the ENTER按钮.

1. Press the ENTER button, to select "Guide".
2. Press the or button to select "Now & Next Guide" or "Full Guide".

Press the ENTER button.

You can also display the guide menu simply by pressing the GUIDE button.

To...	Then...
Watch a programme in the EPG list	• Select a programme by pressing the▲,▼,▲按钮. • Press the ENTER button.
If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, the scheduling is cancelled with the clock icon gone. For details about scheduling programmes, refer to the next page.
View programme information	• Select a programme of your choice by pressing the▲,▼,▲按钮. • Press the INFO button when the programme of your choice is highlighted.
Toggle between the "Now & Next Guide" or "Full Guide"	• Press the red button repeatedly.
Display the "Favourites" and the "All Channels" list	• Press the green button repeatedly.
Scrolls backwards quickly (24 hours).	• Press the yellow button repeatedly.
Scrolls forward quickly (24 hours).	• Press the blue button repeatedly.
Exit the guide	• Press the EXIT button.

The programme title is on the upper part of the screen center. Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "... will be appeared if the summary is long.

Six channels are displayed. To scroll between channels, move to a channel using the or button. To display page by page, use the P or P button.

Using the Scheduled List

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled programme at the scheduled time even if you are watching another programme.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the ENTER button, to select "Guide".
3. Press the or button to select "Scheduled List", then press the ENTER button.
4. Press the red button.

The channel will be switched to the scheduled programme.

1. Press the ENTER button to select an item and adjust with the or button.

You can also set hour and minute by pressing the number buttons on the remote control.

• Channel: Set the channel.
• Time: Set the time.
• Date: Set Year, Month and Day.
  Frequency: Set the frequency.

("Once", "Daily", or "Weekly")

1. After setting the schedule, Press the red button.
2. Press the EXIT button to exit.

Save: Save the adjusted schedule.
- Cancel: Cancel the adjusted schedule.
- Add Programme: Add a new schedule.
- Edit: Readjust the selected schedule.
- Delete: Delete the selected schedule.

Setting the Default Guide

You can preset the default guide style.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the ENTER button, to select "Guide".
3. Press the or button to select "Default Guide", then press the ENTER button.
4. Select "Now/Next" or "Full Guide" using the or button, and press the ENTER button.
5. Press the EXIT button to exit.

You can select these options by simply pressing the GUIDE button on the remote control.

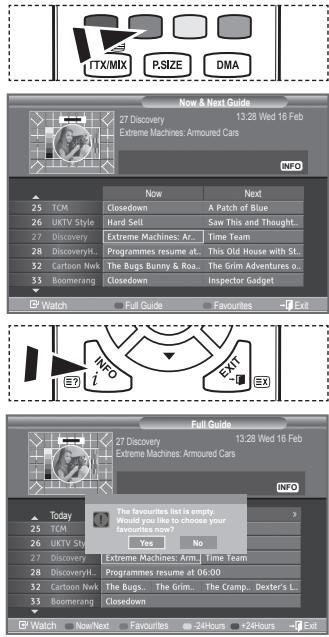

In the EPG menu, you can display all channels or favourite channels.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER按钮.
2. Press the ENTER button again, to select "Guide".
3. Select the your required guide ("Now & Next Guide" or "Full Guide") by pressing the or button.
4. Press the ENTER button.
5. Press the green button.

All the channel lists and the Favourite Channel lists will be toggled.

1. Select a programme of your choice by pressing the , , , or button.
2. Press the INFO button to display information about the highlighted programme.
3. When the Edit Favourite Channels list has not been set up:

The favourites list is empty.
Would you like to choose your favourites now?" message is displayed.
- Select "Yes".

The "Edit Favourite Channels" menu is displayed.

If you select "No", all channels will remain unchanged.

• To edit the favourite channels, refer to page 32 for more details.

• Press the EXIT button to exit.
  "All Channels" is the list of channels that have been scanned by the channel list update.

All channels are displayed in the all channel mode.

"Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 32).

Adjusting the Menu Transparency

You can set the Transparency of the menu.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER按钮.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Menu Transparency" then press the ENTER button.
4. Select the required option ("High", "Medium", "Low", or "Opaque") by pressing the or button, and press the ENTER button to change the setting.
5. Press the EXIT button to exit.

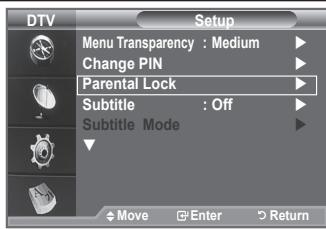

Setting up the Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER按钮.
2. Press the or button to select "Setup", then press the ENTER按钮.
3. Press the or button to select "Parental Lock.", then press the ENTER按钮.
4. The "Enter PIN" is displayed.
5. Enter your current 4-digit PIN code by using the numeric buttons (0~9).

The default PIN code for a new TV set is 0000.
If you enter an invalid PIN code, the "Invalid PIN code."

Please try again." message is displayed.

1. Press the ENTER button.
2. Press the or button to select the age rating you want to lock out.

Press the ENTER button.

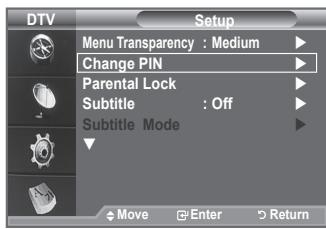

Change PIN

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER按钮.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Change PIN", then press the ENTER button.

The "Enter PIN" is displayed.

1. Enter your current 4-digit PIN code by using the numeric buttons (0 9)
   The "Enter New PIN" is displayed.
2. Enter your new PIN code by using the numeric buttons (0~9)
   The "Confirm New PIN" is displayed.
3. Re-enter your new PIN code to confirm by using the numeric buttons (0~9).
   The Your PIN code has been changed successfully message is displayed.
4. Press the ENTER button.
5. Press the EXIT button to exit.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On).

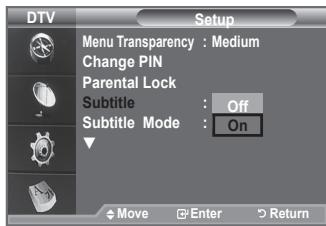

Setting the Subtitle

You can activate and deactivate the subtitles.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Subtitle", then press the ENTER button.
4. Select "On" by pressing the or button. Press the ENTER button.
5. Press the EXIT button to exit.

You can select these options simply by pressing the SUBT. button on the remote control.

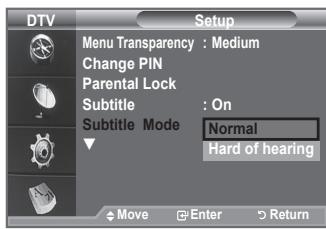

Setting the Subtitle Mode

Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of hearing" is the subtitle for a hearing-impaired person.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Subtitle Mode", then press the ENTER button.
4. Press the or button to select "Normal" or "Hard of hearing". Press the ENTER按钮.
5. Press the EXIT button to exit.

If the programme you are watching does not support the "Hard of hearing" function, "Normal" automatically activates even though "Hard of hearing" mode is selected.

Selecting the Audio Format

You can only hear Dolby Digital sound through the audio receiver connected through an optical cable. You can only hear PCM sound through the main speaker.

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the internal mute function.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Audio Format", then press the ENTER button.
4. Press the or button to select "PCM" or "Dolby Digital". Press the ENTER button.
5. Press the EXIT button to exit.
   The Audio Format appears according to the broadcasting signal.

Dolby digital sound is only available when the TV is connected with an external speaker using an optical cable.

Selecting the Audio Description

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Audio Description", then press the ENTER button.
4. Press the or button to select "On", then press the ENTER按钮.

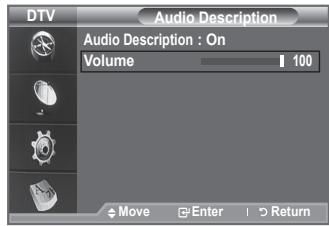

5. Press the or button to select "Volume", then press the ENTER button.

"Volume" is active when "Audio Description" is set to "On".

1. Press the or button until you reach the optimal setting. Press the ENTER button.
2. Press the EXIT button to exit.

Selecting the Digital Text (UK only)

If the programme is broadcast with digital text, this feature is enabled.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Digital Text", then press the ENTER button.
4. Press the or button to select "Disable" or "Enable". Press the ENTER按钮.
5. Press the EXIT button to exit.

MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games.

Select the local time zone.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Time Zone", then press the ENTER按钮.
4. Select the time zone where you locate by pressing the or button.

Press the ENTER button.

The following options are available The Iberian Peninsula and Balearic Islands - Canary Islands

1. Press the EXIT button to exit.

Viewing Product Information

You can view your product information. For service or repair, please contact a Samsung approved dealer.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "System", then press the ENTER button.
4. Press the ENTER button again, to select "Product Information".

The Product Information menu is selected.

• Software Version, Firmware Version

• Press the EXIT button to exit.

Checking the Signal Information

You can get information about the signal status.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "System", then press the ENTER按钮.
4. Press the or button to select "Signal Information", then press the ENTER button.
5. Press the EXIT button to exit.

If the signal status is poor, the "No signal." message is displayed.

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal.

It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "System", then press the ENTER按钮.
4. Press the or button to select "Software Upgrade", then press the ENTER button.
5. Press the or button to select "Software Information", "Manual Upgrade" or "Standby Mode upgrade".

Press the ENTER button.

Software Information

Press the ENTER button, then the current software version is shown. To display the software version information, press the ENTER button again.

To switch to an alternative version, press the red button.

Press the blue button to reset, activate the upgrade and restart.

Manual Upgrade

Press the ENTER button to search for new software from the currently broadcasting channels.

Standby Mode Upgrade: On / Off

Press the ENTER button. To continue software upgrade with master power on, Select On by pressing the or button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

1. Press the EXIT button to exit.

Viewing Common Interface

This contains information on CAM inserted in the CI slot and displays it.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "Common Interface", then press the ENTER按钮.
4. Press the ENTER button to display the information for your application.
5. Press the EXIT button to exit.
   The Application Info inserting is about the CI CARD.

You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.
2. Insert the CI CARD into the CAM in the direction of the arrow until it fits.
3. Insert the CAM with the CI CARD installed into the common interface slot.

(Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

1. Check if you can see a picture on a scrambled signal channel.

Selecting the CI (Common Interface) Menu

This enables the user to select from the CAM-provided menu.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER按钮.
3. Press the or button to select "Common Interface", then press the ENTER button.
4. Select to "CI Menu" by pressing the or button, and press the ENTER button.
5. Select the required option by pressing the or button, and press the ENTER button.
6. Press the EXIT button to exit.

Select the CI Menu based on the menu PC Card.

You can reset the values stored to the factory default values.

The Reset operation deletes all channel information and user preferences returning all values to their default factory state.

1. Press the MENU button to display the menu.
   Press the or button to select "Digital Menu", then press the ENTER button.
2. Press the or button to select "Setup", then press the ENTER button.
3. Press the or button to select "System", then press the ENTER button.
4. Press the or button to select "Reset", then press the ENTER按钮.
5. The "Enter PIN" screen will appear.
6. Enter your current 4-digit PIN code by using the numeric buttons (0~9).

The warning message is displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn.

1. Press the EXIT button to exit.

Selecting the Preferred Language (Subtitle, Audio or Teletext)

You can change the default value for subtitle, audio teletext languages.

Displays the language information for the incoming stream.

1. Press the MENU button to display the menu.

Press the or button to select "Digital Menu", then press the ENTER button.

1. Press the or button to select "Language", then press the ENTER按钮.

2. Press the or button to select "Audio Language",

"Subtitle Language" or "Teletext Language".

Press the ENTER button.

1. Select a particular language by pressing the or button repeatedly.

Press the ENTER button.

English is the default in cases where the selected language is unavailable in the broadcast.

1. Press the EXIT button to exit.

While viewing a programme, the subtitle can be selected. While viewing a programme, audio languages can be selected.

This menu consists of 6 sub-menus: Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language. Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch). The language selected here is the default when the user selects a channel.

Press the or button to select required menu (Primary Audio

Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language), then press the ENTER button. The options of the selected menu are displayed.

Select the appropriate language by pressing the or button.

Press the ENTER button to confirm your choice.

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 44) are automatically changed to the selected language.
The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 350	31.469	70.086	25.175	+ / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	640 x 480	31.469	59.940	25.175	- / -
	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	800 x 600	48.077	72.188	50.000	+ / +
	800 x 600	46.875	75.000	49.500	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ / +
	1280 x 1024	63.981	60.020	108.000	+ / +
	1280 x 1024	79.976	75.025	135.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CVT	1920 x 1080RB	66.587	59.934	138.500	+ / -

HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640 x 480	31.469	59.940	25.175	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1280 x 1024	63.981	60.020	108.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CEA	1920 x 1080p	67.500	60.000	148.500	+ / +

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

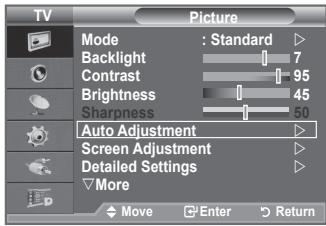

Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

1. Select the required option by pressing the or button, then press the ENTER按钮.
2. When you are satisfied with your setting, press the ENTER button.
3. Press the EXIT button to exit.

Auto Adjustment

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Auto Adjustment", then press the ENTER button.

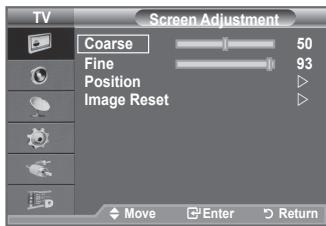

Screen Adjustment:

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

Press the or button to select "Coarse" or "Fine", then press the ENTER button.

Press the or button to adjust the screen quality.

Press the ENTER button.

Position

Adjust the PC's screen positioning if it does not fit the TV screen.

Press the or button to adjusting the Vertical-Position.

Press the or button to adjust the Horizontal-Position.

Press the ENTER button.

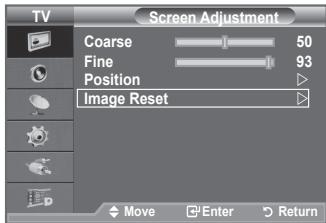

Image Reset

You can replace all image settings with the factory default values.

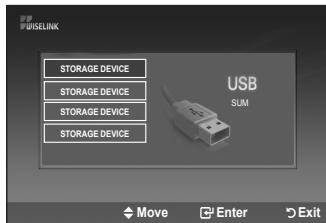

Using the WISELINK Function

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

Press the POWER button on the remote control or your set. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message "There is no device connected" will appear. In this case, insert the USB device, exit the screen by pressing the WLINK button on the remote control and enter the WISELINK screen again.

Only alphanumeric characters must be used as a folder name or filename (photo, music).

The file system only supports FAT16/32 (The NTFS file system is not supported)

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.

Only MP3 and JPEG file formats are supported.

The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz).

We recommend the sequential JPEG format.

Do not disconnect the USB device while it is loading.

MTP (Media Transfer Protocol) is not supported.

The playing duration of an mp3 file may be displayed as '00:00:00' if its playing time information is not found at the start of the file.

The higher the resolution of the image, the longer it takes to display on the screen.

The Photo or Music List displays up to 300 folders or files.

Loading may take some time depending on the size of the file.

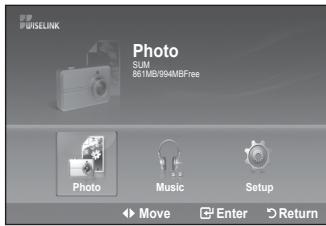

Using the WISELINK Menu

1. Press the MENU button. Press the or button to select "Input", then press the ENTER button.

2. Press the or button to select "WISELINK", then press the ENTER button.

3. Press the or button to select the corresponding USB Memory Device, then press the ENTER button.

The "WISELINK" menu differs depending on the USB Memory Device connected to TV.

Some devices may not be supported due to compatibility problems.

1. Press the or button to move to an icon, then press the ENTER button.

To exit "WISELINK" mode, press the W.LINK button on the remote control.

Press the W.LINK button on the remote control to display a WISELINK menu.

Using the Remote Control Button in WISELINK Menu

Button	Operations
▲/▼/▲	Move the cursor and select an item.
ENTER	Select the currently selected item.
→	Play the Slide Show or MP3 file.
II	Pause the Slide Show or MP3 file.
RETURN	Return to the previous menu.
INFO	Run various functions from the Photo and Music menus.
■	Stop the current slide show or MP3 file.
←→	Page Up or Down (file list item)
EXIT	Stop the current function and return to the previous high-level menu.

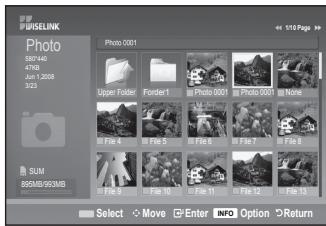

Using the PHOTO (JPEG) List

This menu shows JPEG files and folders saved on an USB memory device.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 49)
2. Press the or button to move to "Photo", then press the ENTER button. The saved file information is displayed as a folder or file.

3. Press the , , and buttons to select a file.

4. Pressing the ENTER button over a photo icon shows the currently selected photo in full screen.

5. Pressing the ENTER button over a folder icon shows the JPEG files included in the folder.

To exit "WISELINK" mode, press the W.LINK button on the remote control.

Moving to a photo may take a few seconds to load the file. At this point, the icon will appear at the top left of the screen.
It takes time to show JPEG files as Thumbnail images.

This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed.
The files are displayed on a page. 15 thumbnail photos are displayed per page.
The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order.
If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen.
While a full screen is displayed, or button will let you see another photo image in the same folder.
Press the button when a Photo icon is selected to start a Slide Show.
Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution.

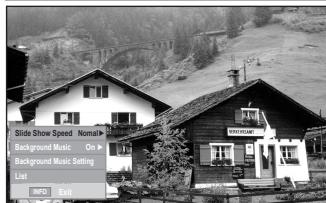

Viewing a Slide Show

1. Press the INFO button to display the option("Start Slide Show", "Select All").
2. Press the or button to select "Start Slide Show" then press the ENTER button.

During the slide show, files are displayed in order from the currently shown file.
MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device.

1. Press the INFO button during the slide show to set the following options ("Slide Show Speed", "Background Music", "Background Music Setting", "List"). Press the or button to select the option, then press the ENTER button.

After setting the option press the ENTER button to make a change.

Using the Menu in the Photo List

Start Slide Show:

You can start a Slide Show.

Select All:

Select all the files in the folder.

Deselect all:

Deselect all the files in the folder.

Using the Menu during a Slide Show

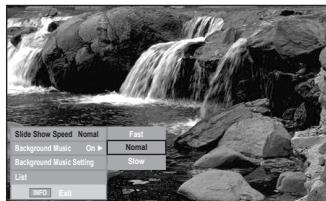

Slide Show Speed:

Select to control the slide show speed.

Press the or button to select the required option ("Fast", "Normal", "Slow"), then press the ENTER按钮.

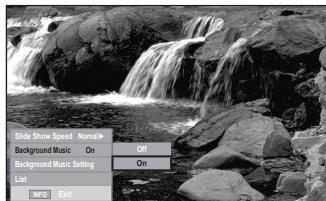

Background Music:

Select to choose whether you want to play an MP3 file during a slide show.

Press the or button to select the required option ("On", "Off"), then press the ENTER button.

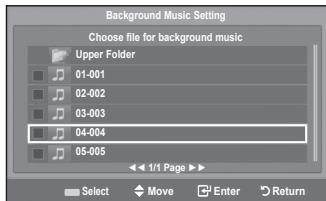

Background Music Setting:

While the slide show is in progress, MP3 files and folders under the same directory are displayed.

Press the or button to select a music file, then press the yellow button.

The () mark appears to the left of the selected music.

Repeat the above operation to select multiple music files.

Press the ENTER button.

If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played.

List:

The file information is displayed as a folder or JPEG file. To exit "WISELINK" mode, press the W.LINK button on the remote control.

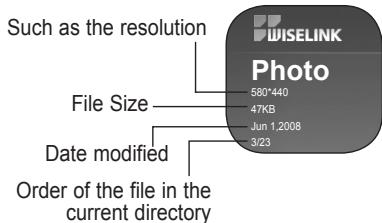

When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15).

:Foldericon

: Photo icon

:Move to the previous folder stage icon

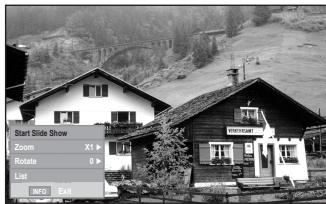

Using the Option Menu

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 49)
2. Press the or button to move to "Photo", then press the ENTER button. The saved file information is displayed as a folder or file.
3. Press the , , and button to select a file, then press the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen.
4. Press the INFO button to display the option("Start Slide Show", "Zoom", "Rotate", "List")

Start Slide Show:

• Press the or button to select "Start Slide Show", then press the ENTER button. You can start a Slide Show.

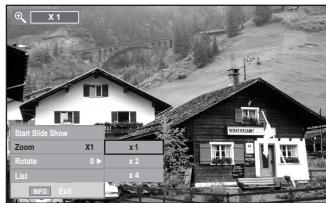

Zoom:

• Press the or button to select "Zoom", then press the ENTER button.
• Select the required option by pressing the or button, then press the ENTER button. (X1, X2, X4)

To pan up/down/left/right in the zoomed-in photo, press the INFO button to exit option menu, then press the , , and buttons.
"Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected.

"x1": Restore a photo to its original size.

" x2": Zoom-in to a photo x2.

"x4": Zoom-in to a photo x4.

/ / : Move the zoomed-in photo up/down/right/left.

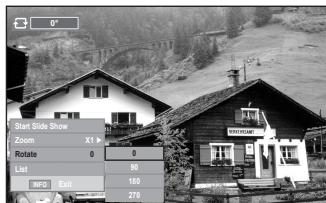

Rotate:

• Press the or button to select "Rotate", then press the ENTER button.
• Select the required option by pressing the or button, then press the ENTER button. (0^, 90^, 180^, 270^)

The rotated file is not saved.
"Start Slide Show" or "Zoom" is disabled when the "Rotate" option is selected.

"0°": This rotates a photo to its original position

"90" : This rotates a photo by 90 degrees

"180°": This rotates a photo by 180 degrees

"270°": This rotates a photo by 270 degrees

Using the MP3 List

This menu shows MP3 files from among the files saved on a USB memory device.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 49)
2. Press the or button to move to "Music", then press the ENTER button. The saved file information is displayed as a folder or file.

3. Press the or button to move to an icon, then press the ENTER button.

4. Pressing the ENTER按钮 over a musical note icon immediately plays the music file.

5. Pressing the ENTER按钮 over a folder icon shows the music files included in the folder.
   To select a file on the next page, press the or button to move to the next page.

6. To select all files or a file, press the INFO button to display the Music menus. Press the ENTER button to select "Play", "Repeat Music" or "Select All".

To exit "WISELINK" mode, press the W.LINK button on the remote control.

Using the Option Menu

Play:

Select to play MP3 files.

Press the button while playing an MP3 file to pause the file.
Press the button to exit Play mode.
This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device.
The selected file is displayed on the top with its playing time.
To adjust the music volume, press the - + button on the remote control. To mute the sound, press the MUTE button on the remote control.

Repeat Music:

Select to repeatedly play MP3 files in the current folder.

You can select On or Off.

Select All:

Select all the files in the folder.

Deselect all:

Deselect all the files in the folder.

Music function information icon

: When all music files in the folder (or the selected file) are repeated. "Repeat Music" is "On".
: When all music files in the folder (or the selected file) are played once. "Repeat Music" is "Off".

: When pressing the / button on the remote control while music is playing.

: When pressing the button on the remote control when music is stopped.

:Folder icon

: Music icon

: Move to the previous folder stage icon

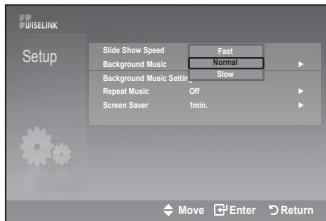

Using the Setup Menu

Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 49)
2. Press the or button to move to "Setup", then press the ENTER button.
3. Press the or button to select an item you want, then press the ENTER button. ("Slide Show Speed", "Background Music", "Background Music Setting", "Repeat Music", "Screen Saver")
4. Press the or button to select the option, then press the ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control.

Slide Show Speed:

Select to control the slide show speed. You can select "Fast", "Normal" or "Slow".

Background Music :

Select to determine whether to play an MP3 file during a slide show. You can select Music "On" or Music "Off".

Background Music Setting:

While a slide show is in progress, use the "Background Music Setting" to select a music file to listen to. Select an MP3 file as the background music.

Repeat Music :

Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played.

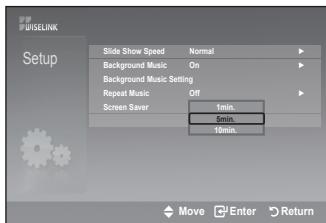

Screen Saver:

Select to set the waiting time before the screen saver appears. The screenshot will appear when no button is pressed for 1, 5 or 10 minutes.

What is Anynet+?

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV

Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

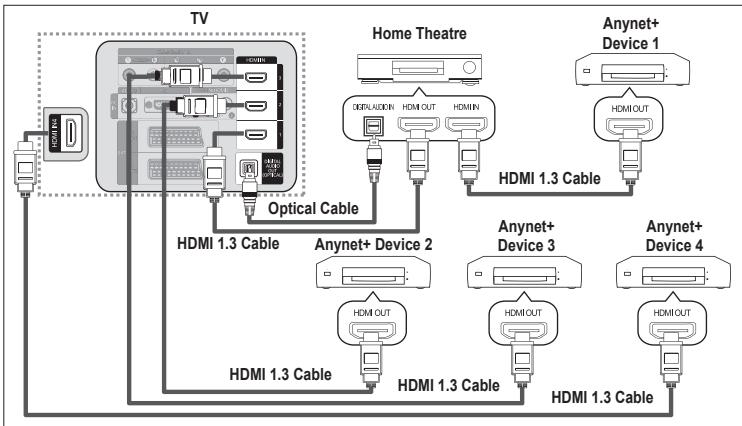

To connect to Home Theater

1. Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver.
Connect only one receiver.
You can listen to 5.1 channel sound through the home theatre's speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre.
You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet+ supports up to 8 AV devices in total.

Setting Up Anynet+

The following settings are to use Anynet+ functions.

Using the Anynet+ Function

1. Press The TOOLS button. Then Press the ENTER button to select "Anynet+ (HDMI-CEC)".
   Press the or button to select "Setup", then press the ENTER button.
2. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button.
3. Press the or button to select "On", then press the ENTER按钮.

   The "Anynet+ (HDMI-CEC)" function is enabled.
   If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.
   When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated.

Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the or button to select "Auto Turn Off", then press the ENTER button.
2. Press the or button to select "Yes", then press the ENTER按钮.

The Auto turn off function is enabled.
If you select "No", the Auto turn off function is cancelled.

Press the EXIT button to exit.

The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function.
If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Then press the ENTER button to select "Anynet+(HDMI-CEC)".

1. Press the or button to select "Select Device", then press the ENTER button.
2. Press the or button to select to a particular device and press the ENTER button. It is switched to the selected device.
3. If you cannot find a device you want, press the or button to select "Setup", then press the ENTER button.
4. Press the or button to select "Searching Connections", then press the ENTER button.

The message "Configuring Anynet+ connection..." is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.
The time required to scan for devices is determined by the number of connected devices.
When the device scan is complete, the number of found devices is not displayed.
Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices.
If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Anynet+Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Switches from Anynet+ to TV broadcast mode.
Select Device	Your TV connects to the corresponding device.
Record	Starts a recording. (This menu works only for a device supporting recording.)
Menu on Device	Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder's title menu appears.
Device Operation	Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.
Receiver	Sound is output through the receiver.
Setup	You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type	Operating Status	Available Buttons
Anynet+ Device	After switching to the device, when the menu of the corresponding device is displayed on the screen.	Numeric buttons▲/▼/▲/▼/ENTER按钮Colour buttonsEXIT button
	After switching to the device, while playing a file	Backward search)/Forward search)/(Stop)/(Play)/(Pause)
Device with built-in Tuner	After switching to the device, when you are watching a TV programme	P ∧/∨ button
Audio Device	When Receiver is activated	+ / - buttonMUTE button

The Anynet+ function only works when the remote control is set to TV.

The button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device.
The Anynet+ functions don't operate for the products from other manufacturers.
In Anynet+ mode, the colour buttons may not work properly.
The operations may differ depending on the device.

Recording

You can make a recording of a TV programme using a recorder.

Press the button.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.
You can also record the source streams by selecting "Record" after pressing the TOOLS button.

Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)".
   Press the or button to select "Receiver", then press the ENTER button.
2. Press the or button to select to "On", then press the ENTER button.
   Now you can listen to sound through the receiver.
3. Press the EXIT button to exit.
   When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver.
   If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list.

   Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work.
   In case of a content with copyright problem, listening through the receiver may not properly operate.
   If there is a power interruption to the TV when the "Receiver" is set to "On" (by disconnecting the power cord or a power failure), the "TV Speaker" may be set to "Off" when you turn the TV on again. (see page 24)

Check Points before Requesting Service

Symptom	Solution
Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device's Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn't work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV/DTV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of P ∧ / √, CH LIST and PRE-CH such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The Configuring Anynet+ connection message appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.	Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan.
The TV programme cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	Connect the optical cable between TV and the receiver.

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

1 (exit)

Exit from the teletext display

2 3 (index)

Used to display the index (contents) page at any time while you are viewing teletext.

(3)(store)

Used to store the teletext pages.

4 (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

(3) (reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

6 (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

7 (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button.

8 (sub-page)

Used to display the available sub-page.

9 (page up)

Used to display the next teletext page.

10 (page down)

Used to display the previous teletext page.

1 (hold)

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

12 (cancel)

Used to display the broadcast when searching for a page.

Colour buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be

selected in the same way. To display the previous or next page, press the corresponding coloured button.

You can change teletext pages by pressing the numeric buttons on the remote control.

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.
	FASTEXT information.

Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

Entering the page number
Selecting a title in a list
Selecting a coloured heading (FASTEXT system)

Press the TV/DTV button to exit from the teletext display.

Once the auto wall mount is installed, your TV's position can be easily adjusted.

Entering the menu

1. Press the , , or button on your remote control.

The Auto Wall-Mount screen is displayed.
If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU butt on to display the menu. Press the or button to select "Setup", then press the ENTER button.
• Press the or button to select "Auto Wall-Mount", then press the ENTER按钮.

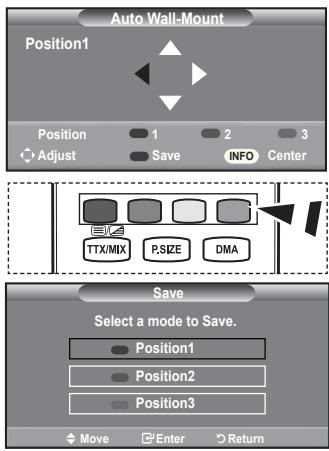

Remembering the Position

1. Adjust to the desired position using the , , , buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.

Press the INFO button to reset. Press the or button to select "Yes", then press the ENTER button.

The position is initialized to the default setting.

1. Press the blue button.

Press the and buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position.

To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Colour buttons.

1. Press the ENTER button to save.
   When Position1 is selected, the message "Current position saved as Position1" is displayed.
2. Press the ENTER button.
   The saved Position appears on the left side of the OSD.

Moving to the remembered position

1. Complete Step 1 of "Entering the menu".

2. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the position after moving to a pre-set position, the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.

For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ and WISELINK are operating.
37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*).

Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
   The place of the Kensington Lock may be different depending on its model.

Troubleshooting: Before Contacting Service Personnel

No sound or picture	◆ Check that the mains lead has been connected to a wall socket. ◆ Check that you have pressed the ① button on your set. ◆ Check the picture contrast and brightness settings. ◆ Check the volume.
Normal picture but no sound	◆ Check the volume. ◆ Check whether the MUTE按钮 has been pressed on the remote control. ◆ Check if "TV Speaker" is "on"
Screen is black and power indicator light blinks steadily	◆ On your computer check; Power, Signal Cable. ◆ The TV is using its power management system. ◆ Move the computer's mouse or press any key on the keyboard.
No picture or black and white picture	◆ Adjust the colour settings. ◆ Check that the broadcast system selected is correct.
Sound and picture interference	◆ Try to identify the electrical appliance that is affecting the set and move it further away. ◆ Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	◆ Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial.
Remote control malfunctions	◆ Replace the remote control batteries. ◆ Clean the upper edge of the remote control (transmission window). ◆ Check the battery terminals.
'Check signal cable.' message is displayed	◆ Check that the signal cable is firmly connected to the PC or video sources. ◆ Check that the PC or video sources are turned on.
On PC mode, 'Not Supported Mode.' message is displayed	◆ Check the maximum resolution and the frequency of the video adaptor. ◆ Compare these values with the data in the Display Modes.
The damaged picture appears in the corner of the screen	If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.
The 'Reset all settings to the default values.' message appears.	This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.
You may see small particles if you look closely at the edge of the bezel surrounding the TV screen.	This is part of the product's design and is not a defect.
The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model Name	LE32A656	LE37A656	LE40A656
Screen Size (Diagonal)	32 inch	37 inch	40 inch
PC Resolution	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound Output	10W x 2	10W x 2	10W x 2
Dimensions (WxDxH)
Body	806 x 81 x 528 mm	923 x 84 x 597 mm	998 x 83 x 638 mm
With stand	806 x 252 x 584 mm	923 x 300 x 658 mm	998 x 300 x 698 mm
Weight
With stand	14 kg	18 kg	20 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE46A656	LE52A656
Screen Size (Diagonal)	46 inch	52 inch
PC Resolution	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound Output	10W x 2	10W x 2
Dimensions (WxDxH)
Body	1131 x 95 x 714 mm	1276 x 105 x 806 mm
With stand	1131 x 280 x 775 mm	1276 x 326 x 866 mm
Weight
With stand	27 kg	35 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	10 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°

Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.

This page is intentionally left blank.

Installation du support mural

1 DIGITAL AUDIO OUT (OPTICAL)

xvYCC:Arret/Marche

Volume auto: Arret/Marche

10 AUDIO OUT [R-AUDIO-L]

1 DIGITAL AUDIO OUT (OPTICAL)

xvYCC: Aus/Ein

10 AUDIO OUT [R-AUDIO-L]

1 DIGITAL AUDIO OUT (OPTICAL)

100Hz Motion Plus: Uit/Laag/Middel/Hoog/Demo (LE37A656, LE40A656, LE46A656, LE52A656)

Picture in Picture (PIP)

Entertainment: Uit/Sport/Film/Spelcomputer

10 AUDIO OUT [R-AUDIO-L]

1 DIGITAL AUDIO OUT (OPTICAL)

DVI IN (HDMI2) [R-AUDIO-L]

10 AUDIO OUT [R-AUDIO-L]

1 DIGITAL AUDIO OUT (OPTICAL)
