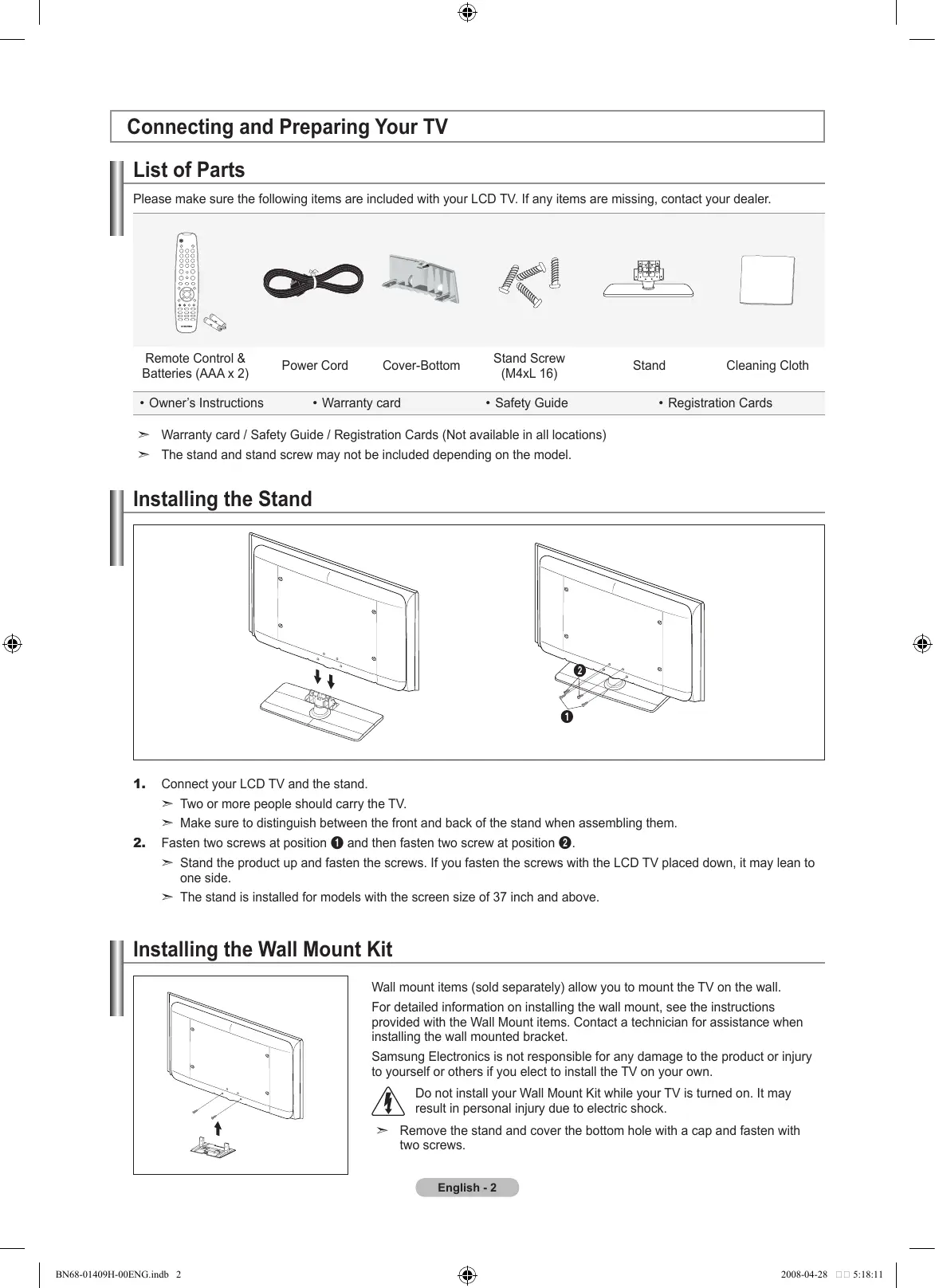

Connecting and Preparing Your TV List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)

• Registration Cards

➣ Warranty card / Safety Guide / Registration Cards (Not available in all locations) ➣ The stand and stand screw may not be included depending on the model.

Installing the Stand

Connect your LCD TV and the stand. ➣ Two or more people should carry the TV. ➣ Make sure to distinguish between the front and back of the stand when assembling them. Fasten two screws at position 1 and then fasten two screw at position 2. ➣ Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side. ➣ The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. D o not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. ➣ Remove the stand and cover the bottom hole with a cap and fasten with two screws. English -

BN68-01409H-00ENG.indb 2

2008-04-28 �� 5:18:11

Viewing the Control Panel Front Panel buttons Touch each button to operate.

➣ The product colour and shape may vary depending on the model.

1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3). In the on-screen menu, use this button as you would use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. 3 – + Press to increase or decrease the volume. In the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control.

C/P. Press to change channels. In the on-screen menu, use the C/P. buttons as you would use the ▼ and ▲ buttons on the remote control.

5 POWER INDICATOR Blinks and turns off when the power is on and lights up in stand-by mode. 6

(Power) Press to turn the TV on and off.

7 REMOTE CONTROL SENSOR Aim the remote control towards this spot on the TV.

8 SPEAKERS English -

BN68-01409H-00ENG.indb 3

Viewing the Connection Panel [TV Rear Panel]

➣ The product colour and shape may vary depending on the model. ➣ Whenever you connect an external device to your TV, make sure that power on the unit is turned off. ➣ When connecting an external device, match the colour of the connection terminal to the cable. 1 PC IN [PC] / [AUDIO] Connect to the video and audio output jack on your PC. 2 COMPONENT IN - Connect component video cables (optional) to component connector (“PR”, “PB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (“PR”, “PB”, “Y”) on your set. - The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD. 3 HDMI IN 1, HDMI IN 2, HDMI IN 3 - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) - No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

BN68-01409H-00ENG.indb 4

➣ What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. ➣ The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/ Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying flicker or no screen display. DVI IN(HDMI2) [R-AUDIO-L] - DVI audio outputs for external devices. ➣ Supported modes for HDMI/DVI and Component. HDMI/DVI 50Hz HDMI/DVI 60Hz Component

4 ANT IN To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 5 SERVICE - Connector for SERVICE only. - Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. 6 COMMON INTERFACE Slot - When not inserting “CI CARD” in some channels,”Scrambled Signal” is displayed on the screen. - The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. - When the channel information configuration has finished, the message “Updating Completed” is displayed, indicating that the channel list is now updated. ➣ You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it. ➣ Insert the CI-Card in the direction marked on it. ➣ The place of the COMMON INTERFACE Slot may be different depending on its model. 7 WISELINK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 8 S-VIDEO or VIDEO / R-AUDIO-L - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to “R-AUDIO-L” on your set and the other ends to corresponding audio out connectors on the A/V device. 9 Headphones jack Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 0 AUDIO OUT [R-AUDIO-L] Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

BN68-01409H-00ENG.indb 5

! DIGITAL AUDIO OUT (OPTICAL) - Connects a set of external headphones for private listening. ➣ When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV. @ EXT 1, EXT 2 Connector EXT 1 EXT 2

O O Input Audio (L/R)

O O RGB O Output Video + Audio (L/R) Only TV or DTV output is available. Output you can choose.

- Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. # Kensington Lock (depending on the model) - The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The location of the Kensington Lock may be different depending on its model.

➣ The performance of the remote control may be affected by bright light.

1_BN68-01409H-Eng.indd 7

2008-04-29 �� 3:03:41

Installing Batteries in the Remote Control 1. 2.

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. ➣ Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Replace the cover. ➣ Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.

➣ If the remote control doesn’t work, check the following: 1. Is the TV power on? 2. Are the plus and minus ends of the batteries reversed? 3. Are the batteries drained? 4. Is there a power outage or is the power cord unplugged? 5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set. 1. Plug the mains lead into an appropriate socket. ➣ The standby indicator lights up on your set. 2. Press the button on your set. button or the TV/DTV button on the remote control to turn the TV on. ➣ You also can press the POWER ➣ The programme that you were watching last is reselected automatically. 3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or C/P. button on your set. ➣ When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed. 4. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example). 1. Press the POWER button on the remote control. ➣ The screen is turned off and a red standby indicator appears on your set. 2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again. ➣ Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

1. With the power on, press the MENU button. The main menu appears on the screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input, Application. 2. Press the ▲ or ▼ button to select one of the icons. Then press the ENTER button to access the icon’s sub-menu. 3. Press the EXIT button to exit. ➣ The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “TOOLS” menu changes depending on which external input mode you are viewing. 1. Press the TOOLS button. The “Tools” menu will appear. 2. Press the ▲ or ▼ button to select a menu. 3. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. • • • • • • • • •

Device List: see page 66 Picture Mode: see page 25 Sound Mode: see page 30 Sleep Timer: see page 34 SRS TS XT: see page 30 Energy Saving: see page 40 Dual l ll: see page 32 PIP: see page 29 Auto Adjustment: see page 45

Tools Device List Picture Mode

Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. 1. Press the POWER button on the remote control. The message “Les menus Langue, Enr. démo, Canaux et Heure seront définis.” is displayed.

BN68-01409H-00ENG.indb 9

2008-04-28 �� 5:18:14

4. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button. ➣ We recommend setting the TV to “Home Use” mode for the best picture in your home environment. ➣ “Store Demo” mode is only intended for use in retail environments. ➣ If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds. 5. Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER button to select “Start”. ➣ Digital & Analogue: “Digital” and “Analogue” channels. Digital: “Digital” channels. Analogue: “Analogue” channels. ➣ The channel search will start and end automatically. ➣ Press the ENTER button at any time to interrupt the memorization process. ➣ After all the available channels are stored, the message “Set the Clock Mode.” is displayed.

Plug & Play Select ‘Home Use’ when installing this TV in your home. Store Demo

Plug & Play Select the channel source to memorize. Digital & Analogue

Plug & Play Auto Store in progress.

Plug & Play Auto Store is completed. Digital Channels : 45 Analogue Channels : 32

OK Plug & Play Set the Clock Mode.

6. Press the ENTER button to select the “Clock Mode”. Press the ▲ or ▼ button to select “Manual”, then Press the ENTER button. ➣ If you select “Auto”, The message “Enjoy your viewing” is displayed. If you have received a digital signal, the time will be set automatically.

Plug & Play Set current date and time

7. Select the “Day”, “Month”, “Year”, “Hour”, or “Minute” by pressing the ◄ or ► button. Set the “Day”, “Month”, “Year”, “Hour”, or “Minute” by pressing the ▲ or ▼ button. ➣ You can also set the “Month”, “Day”, “Year”, “Hour” and “Minute” by pressing the number buttons on the remote control.

8. The message “Enjoy your viewing” is displayed. When you have finished, press the ENTER button.

If you want to reset this feature... 1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. 2. Press the ENTER button again to select “Plug & Play”. 3. Enter your 4 digit PIN number. The default PIN number of a new TV set is “0-0-0-0”. ➣ If you want to change PIN number, refer to 37 page. ➣ For further details on setting up options, refer to the pages 9~10. ➣ The “Plug & Play” feature is only available in the TV mode.

Plug & Play The Menu Language, Store Demo, Channels, and Time will be set.

Channel Control Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch. 1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Auto Store ► 2. Press the ▲ or ▼ button to select “Auto Store”, then press the ENTER Manual Store button. Full Guide 3. Press the ▲ or ▼ button to select the channel source to memorize. Mini Guide Press the ENTER button to select “Start”. Default Guide : Mini Guide ➣ Digital & Analogue: “Digital” and “Analogue” channels. Channel List Digital: “Digital” channels. Channel Mode : Added Ch. Analogue: “Analogue” channels. Child Lock : On ➣ Scans for all channels with active broadcast stations and stores them in the TV’s memory. ➣ If you want to stop Auto Store, press the ENTER button. The “Stop Auto Store?” message will be displayed. Select “Yes” by pressing the ◄ or ► button, then press the ENTER button. 4. Press the EXIT button to exit. ➣ If a channel is locked using the “Child Lock” function, the PIN input window appears (refer to page 22).

Storing Channels Manually

You can store television channels, including those received via cable networks. When storing channels manually, you can choose: • Whether or not to store each of the channels found. • The programme number of each stored channel which you wish to identify. 1. Press the MENU button to display the menu. Auto Store Press the ▲ or ▼ button to select “Channel”, then press the ENTER Manual Store ► button. 2. Press the ▲ or ▼ button to select “Manual Store”, then press the ENTER Full Guide button. Mini Guide Default Guide

Channel List Channel Mode

3. Press the ▲ or ▼ button to select “Digital Channel”, then press the ENTER button. ➣ If a channel is locked using the “Child Lock” function, the PIN input window appears (refer to page 22). 4. Press the ◄ or ► button to select the required option. − Channel : Set the Channel number using the ▲, ▼ or number buttons. − Frequency : Set the frequency using the number buttons. − Bandwidth : Set the bandwidth using the ▲, ▼ or number buttons. 5. Press the ENTER button to start the scan for digital services. ➣ When it has finished, channels are updated in the channel list. 6. When it has finished, the number of scanned services will be displayed. 7. Press the EXIT button to exit.

Channel List Channel Mode

2008-04-28 �� 5:18:15

Analogue Channel Channel

3. Press the ▲ or ▼ button to select “Analogue Channel”, then press the ENTER button. ➣ If a channel is locked using the “Child Lock” function, the PIN input window appears (refer to page 22). 4. Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied. 5. Press the EXIT button to exit.

Channel List Channel Mode

Programme (Programme number to be assigned to a channel) Press the ▲ or ▼ button until you find the correct number. ➣ You can also select the channel number directly by pressing the numeric buttons (0~9). Colour System: Auto/PAL/SECAM/NTSC4.43 Press the ▲ or ▼ button to select the required colour standard.

Sound System: BG/DK/I/L Press the ▲ or ▼ button to select the required sound standard.

Channel (When you know the number of the channel to be stored) Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the ▲ or ▼ button to select the required number. ➣ You can also select the channel number directly by pressing the numeric buttons (0~9). ➣ If there is abnormal sound or no sound, reselect the sound standard required.

Search (When you do not know the channel numbers) Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number) button.

Set to OK by pressing the ENTER Manual Store Programme 1

➣ Channel mode -P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. -C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. -S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. 1. Press the MENU button to display the menu. Auto Store Manual Store 2. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Full Guide 3. Press the ▲ or ▼ button to select “Full Guide” or “Mini Guide” then press the Mini Guide ENTER button. Default Guide : Mini Guide 

Mini Guide The information of each program is displayed by each line on the current channel Mini Guide screen from the current program onwards according to the program starting time order. Full Guide Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time. To...

Watch a programme in the EPG list

Select a programme by pressing the ▲, ▼, ◄, ► button.

Press the blue button

View programme information

• Select a programme of your choice by pressing the ▲, ▼, ◄, ► button. • Then press the INFO button when the programme of your choice is highlighted. • The programme title is on the upper part of the screen center.

➣ Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. “...” will be appeared if the summary is long. Toggle between the “Mini Guide” or “Full Guide” In Full Guide • Scrolls backwards quickly (24 hours). • Scrolls forwards quickly (24 hours). In Mini Guide • Display next page quickly. • Display previous page quickly.

DTV Cable 900 f tn Freshmen On Campus 2:00 - 2:30

f tn ITV Play Kerrang! Kiss oneword Smash Hits!

No Detailed Information 2:00 - 3:00 Freshmen O.. Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

➣ If the next program is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, press the ◄, ► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the next page.

Channel List Channel Mode

DTV Cable 900 f tn Freshmen On Campus Street Hypnosis Booze Britain

Press the red button repeatedly.

• Press the green button repeatedly. • Press the yellow button repeatedly.

• Press the green button. • Press the yellow button.

O You can also display the guide menu simply by pressing the GUIDE button. (To configure the “Default Guide”, refer to the descriptions on page 14.)

BN68-01409H-00ENG.indb 13

2008-04-28 �� 5:18:16

O You can select these options by simply pressing the GUIDE button on the remote control.

BN68-01409H-00ENG.indb 14

2008-04-28 �� 5:18:16

Managing Channels Using this menu, you can Add/Delete or set Favourite channels and use the program guide for digital broadcasts. Viewing All Channels Mini Guide Channel

Show all currently available channels. To use the Channel List function, operate the “Auto Store” first. 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Channel List Channel Mode

Press the ◄ button to select “Added Ch.”.

3. Press the ▲ or ▼ button to select “All Channels”. ➣ Shows all currently available channels. Press the ENTER button.

4. Press the ▲ or ▼ button to select a channel to view, then press the ENTER button. You can watch the selected channel.

O Press the CH LIST button on the remote control to bring up the channel lists.

Using the Colour buttons on the Remote with the Channel List • Red (Channel Type): Toggle between your “TV”, “Radio”, “Data/Other” and “All”. • Green (Zoom): Enlarges or shrinks a channel number. • Yellow (Select): Selects multiple channel lists. • TOOLS (Option): Displays the “Delete”(or “Add”), “Add to Favourite”(or “Delete from Favourite”), “Lock”, “Timer Viewing”, “Edit Channel Name”, “Sort”, “Edit Channel Number”, “Select All”, “Deselect All” or “Auto Store” menu. (The Options menus may differ depending on the situation.) ➣ A gray-coloured channel indicates the channel has been deleted. The “Add” menu only appears for deleted channels. ➣ A channel marked with the “♥” mark means the channel has been set as a Favourite. The “Delete from Favourite” menu only appears for channels with the “♥” mark.

Channel List Channel Mode

You can delete or add a channel to display the channels you want. 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button. 2. Press the ◄ button to select “Added Ch.”. 3. Press the ▲ or ▼ button to select “All Channels”. ➣ Shows all currently available channels. Press the ENTER button. 4. Press the ▲ or ▼ button to select a channel to delete, then press the TOOLS button. 5. Press the ENTER button to select “Delete”. ➣ All deleted channels will be shown on “All Channels” menu. 6. Press the EXIT button to exit. ➣ You can also add a channel to the “Added Ch.” menu in the same manner. ➣ A channel must be deleted before it can be added back to the “Added Ch.” list. ➣ To Add (Restore) a channel back to the Added Channel List, follow steps 1-3 above, press the ▲ or ▼ button to select a channel to add, the press the TOOLS button. Press the ENTER button to select Add.

UKTV Gold UKTV style

A A All  Channel Type

O Press the CH LIST button on the remote control to bring up the channel lists.

Channel List Channel Mode

You can set channels you watch frequently as favorites. 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button. 2. Press the ◄ button to select “Added Ch.”. 3. Press the ▲ or ▼ button to select “All Channels”. ➣ Shows all currently available channels. Press the ENTER button. 4. Press the ▲ or ▼ button to select a channel as a favorite channel. ➣ Adding multiple channels to Favourites Press the ▲ or ▼ button to select the desired channel in the channel list. Then press the yellow button. Repeat the above operation to select multiple channels. The mark appears to the left of the selected channels. 5. Press the TOOLS button. 6. Press the ▲ or ▼ button to select “Add to Favourite”, then press the ENTER button. The “♥” symbol will be displayed and the channel will be set as a favorite. 7. To cancel your favorite channel selection, press the TOOLS button when a favorite channel is selected. Press the ▲ or ▼ button to select “Delete from Favourite”, then press the ENTER button. The channel is deleted from “Favourites” and the “♥” mark also disappears. Press the EXIT button to exit. ➣ You can also Add or Delete a channel from Favourites in the “Added Ch.” menu in the same manner. ➣ All favorite channels will be shown on “Favourite” menu.

Delete Add to Favourite Lock Timer Viewing Edit Channel Name Sort

O Press the CH LIST button on the remote control to bring up the channel lists.

BN68-01409H-00ENG.indb 16

Locking and Unlocking Channels

UKTV Gold UKTV style

A A All  Channel Type

Unlocking channels 7. Press the ▲ or ▼ button to select the channels you want to Unlock, then press the TOOLS button. 8. Press the ▲ or ▼ button to select “Unlock”, then press the ENTER button. 9. Enter your 4 digit PIN number. ➣ The channel is unlocked and the “ ” mark also disappears. ➣ The default PIN number of a new TV set is “0-0-0-0”. ➣ If you want to change PIN number, refer to 36 page. 10. Press the EXIT button to exit.

Locking channels 4. Press the ▲ or ▼ button to select the channels you want to lock, then press the TOOLS button. 5. Press the ▲ or ▼ button to select “Lock”, then press the ENTER button. 6. Enter your 4 digit PIN number. ➣ The “ ” symbol will be displayed and the channel will be locked. ➣ The default PIN number of a new TV set is “0-0-0-0”. ➣ If you want to change PIN number, refer to 36 page.

This function is available only when the “Child Lock” is set to “on”. (see page22) 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button. 2. Press the ◄ button to select “Added Ch.”. 3. Press the ▲ or ▼ button to select “All Channels”. ➣ Shows all currently available channels. Press the ENTER button.

C -C -C -C -C -C -C --

A All  Channel Type

Add to Favourite Lock Timer Viewing Edit Channel Name Sort

UKTV Gold UKTV style

Delete Add to Favourite Unlock Timer Viewing Edit Channel Name Sort

BN68-01409H-00ENG.indb 17

2008-04-28 �� 5:18:18

Reserving a Program (Timer Viewing) If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 33~34. Mini Guide Channel

1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Channel List Channel Mode

3. Press the ▲ or ▼ button to select “Timer Viewing”, then press the ENTER button. The Reserve a Program (Timer Viewing) screen appears. 4. Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button. Reserving a program has been completed. Press the EXIT button to exit. ➣ You can also reserve a program in the “All Channels” or “Favourite” menus using the same procedures. ➣ For information on how to confirm a viewing reservation, refer to page 19. Only memorized channels can be reserved. ➣ You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control.

Delete Add to Favourite

O Press the CH LIST button on the remote control to bring up the channel lists.

Digital Program Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. : A program currently being broadcast. : A reserved program

A All  Channel Type

2008-04-28 �� 5:18:18

Channel List Channel Mode

Press the ◄ button to select “Added Ch.”.

Canceling a reservation 4. To select a reservation item to be canceled, press the ▲ or ▼ button, and then press the TOOLS button. 5. Press the ▲ or ▼ button to select “Cancel Schedules”, then press the ENTER button. 6. Press the ◄ or ► button to select “OK”, then press the ENTER button. The viewing reservation has been canceled. Press the EXIT button to exit.

Programmed Option • • • •

Change Info: Select to change a viewing reservation. Cancel Schedules: Select to cancel a viewing reservation. Information: Select to view a viewing reservation. Select All: Select all reserved programs.

O Press the CH LIST button on the remote control to bring up the channel lists.

BN68-01409H-00ENG.indb 19

2008-04-28 �� 5:18:19

Edit Channel Name-Analogue Mini Guide Default Guide

Channels can labeled so that their call letters appear whenever the channel is selected. 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Channel List Channel Mode

Numeric buttons: You can enter numbers. Red button: You can switch between English and Characters. Green button: You can delete an already entered character. Yellow button: You can enter a blank space. Blue button: You can finish renaming a channel.

Delete Add to Favourite

5. When you have finished, press the blue button to assign the new name. Press the EXIT button to exit. ➣ The names of digital broadcasting channels are automatically assigned and cannot be labelled.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. 1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Channel List Channel Mode

2. Press the ▲ or ▼ button to select a channel, then press the TOOLS button. 3. Press the ▲ or ▼ button to select “Sort”, then press the ENTER button. 4. Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button. 5. Repeat steps 2 to 4 for another channel to be sorted. 6. Press the EXIT button to exit.

UKTV Gold UKTV style ▲

Add to Favourite Lock Timer Viewing Edit Channel Name Sort Select All

Television X UKTV style

3. Press the ▲ or ▼ button to select “Edit Channel Number”, then press the ENTER button. 4. Then you can edit the Channel Number pressing the ▲ or ▼ button repeatedly. You can also edit the channel number by pressing the number buttons on the remote control.

Add to Favourite Lock Timer Viewing Edit Channel Number Select All

Selecting and Deselecting All Channels

1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button. 2. Press the ▲ or ▼ button to select the channel, then press the TOOLS button. 3. Press the ▲ or ▼ button to select “Select All” or “Deselect All”, then press the ENTER button. ➣ You can select(or Deselect) all channel in the channel list. ➣ The mark appears to the left of the selected channels.

Delete Add to Favourite Lock Deselect All Select All Auto Store

Storing Channels in Memory (Auto Store)

1. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button. 2. Press the ▲ or ▼ button to select the channel to be assigned a new name, then press the TOOLS button. 3. Press the ▲ or ▼ button to select “Auto Store”, then press the ENTER button. ➣ For further details on setting up options, refer to page 11. ➣ If a channel is locked using the “Child Lock” function, the PIN input window appears (refer to page 22).

Setting the Channel Mode

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. 1. Press the MENU button to display the menu. Channel List Press the ▲ or ▼ button to select “Channel”, then press the ENTER Channel Mode : Added Channel button. Child Lock

3. Enter your 4 digit PIN number. ➣ The default PIN number of a new TV set is “0-0-0-0”. ➣ If you want to change PIN number, refer to 36 page.

0~9 Enter PIN Channel List Channel

4. Press the ▲ or ▼ button to select “On”. Press the ENTER button. 5. Press the EXIT button to exit. ➣ You can lock some channels in Channel List. (refer to page 17) ➣ “Child Lock” is available only in TV mode. ➣ “Child Lock” is not available when PIP is set to on. ➣ If a channel is locked using the “Child Lock” function, the PIN input window appears when “Auto Store” or “Plug & Play” is selected.

2008-04-28 �� 5:18:21

Fine Tuning Analogue Channels Channel

1. Use the number buttons to directly select the channel that you want to fine tune. 2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. 3. Press the ▲ or ▼ button to select “Fine Tune”, then press the ENTER button. 4. Press the ◄ or ► button to adjust the fine tuning. Press the ENTER button. 5. Press the EXIT button to exit. ➣ Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner. ➣ To reset the fine-tuning, select “Reset” by pressing the ▲ or ▼ button and then press the ENTER button. ➣ Only Analogue TV channels can be fine tuned.

2. Press the ▲ or ▼ button to select “Signal Information”, then press the ENTER button. 3. Press the EXIT button to exit. ➣ If the signal status is poor, the “No signal.” message is displayed. ➣ While viewing a Digital channel, this function can be selected.

➣ While viewing an Analogue channel, this function can be selected.

You can select the type of picture which best corresponds to your viewing requirements. 1. Press the MENU button to display the menu. Press the ENTER button to select “Picture”.

• Dynamic: Selects the picture for high-definition in a bright room. • Standard: Selects the picture for the optimum display in a normal environment. • Movie: Selects the picture for viewing movies in a dark room. 3. Press the EXIT button to exit.

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality. 1. To select the desired picture mode, follow the “Changing the Picture Standard” instructions numbers 1 and 2. 2. Press the ▲ or ▼ button to select “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Colour” or “Tint(G/R)”, then press the ENTER button. 3. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Press the EXIT button to exit. ➣ When you make changes to “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Colour” or “Tint(G/R)”, the OSD will be adjusted accordingly. ➣ In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the “Tint” Function. ➣ In PC mode, you can only make changes to “Backlight”, “Contrast” and “Brightness”. ➣ Settings can be adjusted and stored for each external device you have connected to an input of the TV. ➣ The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and that this will reduce the overall running cost. • • • • • •

Detailed Settings Picture Options

Backlight: Adjusts the brightness of LCD back light. Contrast: Adjusts the contrast level of the picture. Brightness: Adjusts the brightness level of the picture. Sharpness: Adjusts the edge definition of the picture. Colour: Adjusts colour saturation of the picture. Tint(G/R): Adjusts the colour tint of the picture. English - 25

BN68-01409H-00ENG.indb 25

2008-04-28 �� 5:18:22

Adjusting the Detailed Settings Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. Activating Detailed Settings

1. Press the MENU button to display the menu. Press the ENTER button to select “Picture”. 2. Press the ENTER button to select “Mode”. Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button. ➣ “Detailed Settings” is available in “Standard” or “Movie” mode. 3. Press the ▲ or ▼ button to select “Detailed Settings”, then press the ENTER button. ➣ In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items.

Black adjust: Off/Low/Medium/High You can select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ +3 You can adjust the Primary Colour (Red, Green, Blue) Intensity. Colour Space: Auto/Native/Custom Colour Space is a colour matrix composed of red, green and blue colours. Select your favorite Colour Space to experience the most natural colour.

• Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources. • Native: Native Colour Space offers deep and rich colour tone. • Custom: Adjusts the colour range to suit your preference. ➣ Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”. Press the ENTER button. Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select “Red”, “Green” or “Blue” to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Reset: Resets the colour space to the default values. 

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15 You can emphasize the pink ‘flesh tone’ in the picture. Press the ◄ or ► button until you reach the optimal setting. ➣ Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On You can emphasize object boundaries in the picture.

xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. ➣ “xvYCC” is available when the picture mode is set to “Movie”, and the external input is set to “HDMI” or “Component” mode. ➣ If xvYCC function is active, PIP cannot be selected. English - 26

ress the MENU button to display the menu. P Press the ENTER button to select “Picture”. 2. Press the ▲ or ▼ button to select “Picture Options”, then press the ENTER button. ➣ Press the ▲ or ▼ button to select a particular item. Press the ENTER button. ➣ When you are satisfied with your setting, press the ENTER button. ➣ In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”. 

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 You can select the most comfortable colour tone to your eyes. ➣ The adjusted values are stored according to the selected “Picture” mode. ➣ “Warm1” or “Warm2” is only activated when the picture mode is “Movie”.

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the “16:9” aspect ratio. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. 4:3: This is the default setting for a video movie or normal broadcasting. Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component (1080i/1080p) signals are input.

“Auto Wide” function is available only in “TV”, “Ext.1”, “Ext.2”, “AV”, and “S-Video” mode. In PC Mode, only “16:9” and “4:3” mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours. “Wide Zoom”: Press the ► button to Select “Position”, then press the ENTER button. Press the ▲ or ▼ button to move the screen up/down. Then press the ENTER button. “Zoom”: Press the ► button to Select “Position”, then press the ENTER button. Press the ▲ or ▼ button to move the picture up and down. Then press the ENTER button. Press the ► button to Select “Size”, then press the ENTER button. Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the ENTER button. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select “Position” by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting. If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

O You can select these options by simply pressing the P.SIZE button on the remote control.

Screen Mode: 16:9/Wide Zoom/Zoom/4:3 When setting the picture size to “Auto Wide” in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it. • • • •

16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnify the size of the picture vertically on screen. 4:3: Sets the picture to 4:3 normal mode.

➣ This function is available in “Auto Wide” mode. ➣ This function is not available in “PC”, “Component” or “HDMI” mode. English - 27

1_BN68-01409H-Eng.indd 27

2008-04-29 �� 3:51:17

Digital NR: Off/Low/Medium/High/Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. ➣ When the signal is weak, select one of the other options until the best picture is displayed.

DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. ➣ DNIe™ (Digital Natural Image engine) DNIe™ This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes. ➣ This function is not available in “Movie” and “Standard” mode.

HDMI Black Level: Normal/Low You can directly select the black level on the screen to adjust the screen depth. ➣ This function is active only when the external input connects to HDMI (RGB signals).

Movie Plus: Off/Low/Medium/High/Demo You can view more natural skin and clear text even in fast moving scenes. ➣ Use this function when watching movies. ➣ This function is not available in “Wide Zoom” and “Zoom” modes. ➣ This function is not available when “PIP” is set to “On”. ➣ It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.

Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter. ➣ “Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

Resetting the Picture Settings to the Factory Defaults Detailed Settings Picture

1. To select the desired picture mode, follow the “Changing the Picture Standard” instructions numbers 1 and 2. (see page 25) 2. Press the ▲ or ▼ button to select “Picture Reset”, then press the ENTER button. 3. Press the ▲ or ▼ button to select “OK” or “Cancel”, then press the ENTER button. Press the EXIT button to exit. ➣ Each mode can be reset.

BN68-01409H-00ENG.indb 28

2008-04-28 �� 5:18:23

Viewing Picture-in-Picture You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

Software Upgrade Common Interface

Source You can select a source of the sub-picture.

/ / Size: You can select a size of the sub-picture. ➣ If main picture is in “HDMI” mode, “Size” is available.

/ / / Position: You can select a position of the sub-picture. ➣ In Double ( , ) mode, “Position” cannot be selected.

Channel You can select a channel of the sub-picture only when the “Source” is set to “TV”.

2008-04-28 �� 5:18:23

Sound Control Changing the Sound Standard

Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting 1. Press the TOOLS button on the remote control. 2. Press the ▲ or ▼ button to select “Sound Mode”. 3. Press the ◄ or ► button to select the required option. 4. Press the EXIT or TOOLS button to exit.

Equalizer: Mode/Balance/100Hz/300Hz/1kHz/3kHz/10kHz/Reset The sound settings can be adjusted to suit your personal preferences. ➣ The adjusted values are stored according to the selected “Sound” mode. ➣ Reset: Resets the equalizer settings to the default values. SRS TruSurround XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Easy Setting 1. Press the TOOLS button on the remote control. 2. Press the ▲ or ▼ button to select “SRS TS XT”. 3. Press the ◄ or ► button to select the “Off” or “On”. 4. Press the EXIT or TOOLS button to exit.

Equalizer SRS TruSurround XT

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. 

Audio Language You can change the default value for audio languages. Displays the language information for the incoming stream. ➣ While viewing a Digital channel, this function can be selected. ➣ You can only select the language among the actual languages being broadcast.

Audio Format: MPEG/Dolby Digital When sound is emitted from both the main speaker and the audio receiver, a around echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. ➣ While viewing a Digital channel, this function can be selected. ➣ You can only select the language among the actual languages being broadcast. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Audio Description This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume. − Audio Description : On/Off − Volume : 0~100 ➣ “Volume” is active when “Audio Description” is set to “On”. ➣ While viewing a Digital channel, this function can be selected.

Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. ➣ The +, – and MUTE buttons do not operate when the “TV Speaker” is set to “Off”. ➣ When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) and “Sound Reset” in Sound menu. TV's Internal Speakers

Sound Select: Main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture.

Sound Reset: Reset All/Reset Sound Mode/Cancel You can restore the Sound settings to the factory defaults.

BN68-01409H-00ENG.indb 31

Selecting the Sound Mode You can set the sound mode in the “Tools” menu. When you set to “Dual I II”, the current sound mode is displayed on the screen. 1. Press the TOOLS button on the remote control. 2. Press the ▲ or ▼ button to select “Dual I II”. 3. Press the ◄ or ► button to select required option. 4. Press the ENTER button. Audio Type A2 Stereo

Automatic change DUAL 1 Automatic change DUAL 1

➣ If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. ➣ This function is only activated in stereo sound signal. It is deactivated in mono sound signal. ➣ This function is only available in Analogue TV mode.

Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room. TV Side Panel ➣ When you insert the headphone’s plug into the headphone jack, you can not operate “Mode”, “Equalizer”, “SRS TruSurround XT” and “TV Speaker” in Sound menu. ➣ Prolonged use of headphones at a high volume may damage your hearing. ➣ You will not hear sound from the speakers when you connect headphones to the TV. ➣ The headphone volume and TV volume are adjusted separately.

Time Setting Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) ➣ If you disconnect the power cord, you have to set the clock again. Option 1: Setting the Clock Manually

Change PIN Parental Lock Subtitle Teletext Language

Preference Light Effect

: In Watching TV Wall-Mount Adjustment

button to select “Clock”.

5. Press the ◄ or ► button to move to “Day”, “Month”, “Year”, “Hour” or “Minute”. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. Press the EXIT button to exit. ➣ The current time will appear every time you press the INFO button. ➣ You can set the month, day, year, hour and minute directly by pressing the number buttons on the remote control.

Change PIN Parental Lock Subtitle Teletext Language

Preference Light Effect

: In Watching TV Wall-Mount Adjustment

button to select “Clock”.

: In Watching TV Wall-Mount Adjustment

Change PIN Parental Lock Subtitle Teletext Language

Preference Light Effect

: In Watching TV Wall-Mount Adjustment

3. Press the ▲ or ▼ button to select “Timer 1”, “Timer 2”, “Timer 3”, then press the ENTER button. Three different On/Off Timer Settings can be made. ➣ You must set the clock first. 4. Press the ◄ or ► button to select the desired item below. Press the ▲ or ▼ button to adjust to the setting satisfied. • On Time: Set the Hour, Minute, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to “Activate”.) • Off Time: Set the Hour, Minute, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to “Activate”.) • Volume: Set the required volume level. • Contents: When the “On Timer” is active, you can turn on a specific channel or play back contents such as photo or audio files. – TV/USB: Select TV or USB. (Make sure that an USB device is connected to your TV.) – Antenna: Select “ATV” or “DTV”. – Channel: Select the desired channel. – Music: Select the folder containing MP3 files on the USB device. – Photo: Select the folder containing JPEG files on the USB device. • Repeat: Select “Once”, “Everyday”, “Mon~Fri”, “Mon~Sat”, “Sat~Sun”, or “Manual”. ➣ When “Manual” is selected, press the ► button to select the desired day of the week. Press the ENTER button over the desired day and the mark will appear. Press the EXIT button to exit. ➣ You can set the hour, minute and channel by pressing the number buttons on the remote control. ➣ Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

ATV Sun Mon Tue Wed Thu Fri

ATV Channel Channel 3am

Music None Photo None Move

2. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. 3. Press the EXIT button to exit.

Parental Lock Subtitle Teletext Language

Parental Lock Subtitle Teletext Language

Preference Light Effect

: In Watching TV Wall-Mount Adjustment Melody

3. Press the ▲ or ▼ button to select “Change PIN”, then press the ENTER button. The “Enter PIN” is displayed. 4. Enter your current 4-digit PIN code by using the numeric buttons (0~9). ➣ The “Enter New PIN” is displayed. 5.

Change PIN Enter PIN *

Enter your new PIN code by using the numeric buttons (0~9) ➣ The “Confirm New PIN” is displayed. Re-enter your new PIN code to confirm by using the numeric buttons (0~9). ➣ The “PIN is changed successfully” message is displayed. Press the EXIT button to exit. ➣ If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On).

Change PIN Enter New PIN Confirm New PIN

Setting up the Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. Press the MENU button to display the menu.

Subtitle Teletext Language

Preference Light Effect

: In Watching TV Wall-Mount Adjustment

3. Press the ▲ or ▼ button to select “Parental Lock”, then press the ENTER button. ➣ The “Enter PIN” is displayed. 4. Enter your current 4-digit PIN code by using the numeric buttons (0~9). ➣ The default PIN code for a new TV set is 0000. If you want to change PIN number, refer to 36 page.

6. Press the ▲ or ▼ button to select the age rating you want to lock out. Press the ENTER button. ➣ The “ ” symbol will be displayed. ➣ Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. 7.

Setting the Subtitle You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. “Normal” under the menu is the basic subtitle and “Hard of hearing” is the subtitle for a hearing-impaired person. Change PIN

: In Watching TV Wall-Mount Adjustment

5. Press the ▲ or ▼ button to select “Mode”, then press the ENTER button. 6. Press the ▲ or ▼ button to select “Normal” or “Hard of hearing”. Press the ENTER button. ➣ If the programme you are watching does not support the “Hard of hearing” function, “Normal” automatically activates even though “Hard of hearing” mode is selected.

7. Press the ▲ or ▼ button to select “Subtitle Language”, then press the ENTER button. 8. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. ➣ English is the default in cases where the selected language is unavailable in the broadcast. 9. Press the EXIT button to exit.

O You can select these options simply by pressing the SUBT. button on the remote control.

BN68-01409H-00ENG.indb 38

2008-04-28 �� 5:18:26

Selecting a Teletext Language Parental Lock Setup

You can set the Teletext language by selecting the language type. 1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. 2. Press the ▲ or ▼ button to select “Teletext Language”, then press the ENTER button. 3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ➣ English is the default in cases where the selected language is unavailable in the broadcast. 4. Press the EXIT button to exit.

: In Watching TV Wall-Mount Adjustment Melody

PIP Selecting a Preference Language This menu consists of 6 sub-menus: Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language. Using this feature, users can select one of the languages. The language selected here is the default when the user selects a channel. Subtitle Setup

: In Watching TV Wall-Mount Adjustment Melody

PIP Software Upgrade

➣ If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are automatically changed to the selected language. ➣ The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

Setting the Light Effect (depending on the model) You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. Teletext Language

Off: LED will not come on. In Standby: Turns the LED on in standby mode. In Watching TV: Turns the LED on while watching TV. Always: LED is always on.

➣ Set the “Light Effect” to “Off” to reduce the power consumption. 4. Press the EXIT button to exit.

Wall-Mount Adjustment Melody

PIP Software Upgrade Common Interface

BN68-01409H-00ENG.indb 39

Melody/Entertainment/Energy Saving Light Effect Setup

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. 2. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 3. When you are satisfied with your setting, press the ENTER button. 4. Press the EXIT button to exit.

: In Watching TV Wall-Mount Adjustment Melody

PIP Software Upgrade Common Interface

Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. ➣ The Melody does not play − When no sound is output from the TV because the MUTE button has been pressed. − When no sound is output from the TV because the – (Volume) button has been pressed. − When the TV is turned off by Sleep Timer function.

Entertainment: Off/Sports/Cinema/Game The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games. • Off: Switches the “Entertainment” function off. • Sports: Provides the optimal picture and sound quality for sports. • Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound. • Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. ➣ If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off. ➣ If you set any of the three “Entertainment” modes to On, “SRS TruSurround XT” function is not available. ➣ The “Entertainment” settings are saved for each input source.

O You can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting.

Energy Saving: Off/Low/Medium/High/Auto This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the “Energy Saving” mode option to “High” to reduce eye fatigue as well as power consumption. • • • • •

Off: Turns off the energy saving function. Low: Sets the TV to low energy saving mode. Medium: Sets the TV to medium energy saving mode. High: Sets the TV to high energy saving mode. Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting 1. Press the TOOLS button on the remote control. 2. Press the ▲ or ▼ button to select “Energy Saving”. 3. Press the ◄ or ► button to select the “Off”, “Low”, “Medium”, “High”, “Auto” or “On”. 4. Press the EXIT or TOOLS button to exit.

TOOLS Device List Picture Mode

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade. 1. Insert a USB drive containing the firmware upgrade into the WISELINK port TV Side Panel on the side of the TV.

PIP Software Upgrade

BY USB : - Preset : Insert a USB drive containing the firmware upgrade into TV. ➣ Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

BY Channel : Upgrades the software using the broadcasting signal.

Standby Mode Upgrade : To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

Alternative Software : To display the software version information.

Software Upgrade Current Version

BY USB BY Channel Standby Mode Upgrade

2008-04-28 �� 5:18:27

Viewing Common Interface

➣ The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF. 1. Purchase the CI CAM module by visiting your nearest dealer or by phone. 2. Insert the CI CARD into the CAM in the direction of the arrow until it fits. 3. Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.) 4. Check if you can see a picture on a scrambled signal channel.

Selecting the CI (Common Interface) Menu PIP Setup

2008-04-28 �� 5:18:28

To Select the Source Input

Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. 1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Input”, then press the ENTER button. 2. Press the ENTER button to select “Source List”. Press the ▲ or ▼ button to select signal source, then press the ENTER button. ➣ Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3, USB. ➣ You can choose only those external devices that are connected to the TV. In the “Source List”, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom. ➣ Using the Colour buttons on the remote with the Source list

Source List Edit Name

• Red (Refresh): Refreshes the connecting external devices. • TOOLS (Option): Displays the “Edit Name” and “Information” menus.

O Press the SOURCE button on the remote control to view an external signal source. TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P </> button on the remote control.

3. Press the ▲ or ▼ button to select “VCR”, “DVD”, “Cable STB”, “Satellite STB”, “PVR STB”, “AV Receiver”, “Game”, “Camcorder”, “PC”, “TV”, “IPTV”, “Blu-Ray”, “HD DVD” or “Digital Media Adapter” input source, then press the ENTER button. Press the EXIT button to exit. ➣ When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the “HDMI2/DVI” mode to “PC” in the “Edit Name” of the “Input” mode.

2008-04-28 �� 5:18:28

PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. First, click on “Control Panel” on the Windows start menu. 2. When the control panel window appears, click on “Appearance and Themes” and a display dialog-box will appear. 3. When the control panel window appears, click on “Display” and a display dialogbox will appear. 4. Navigate to the “Settings” tab on the display dialog-box. The correct size setting (resolution) Optimum: 1920 X 1080 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. D-Sub Input Mode

IBM VESA CVT Resolution

Horizontal Frequency (kHz)

+/-/+ -/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+ +/-

Vertical Frequency (Hz) 59.940 60.317 60.004 60.020 60.015 60.000 60.000

Sync Polarity (H/V) -/+/+ -/+/+ +/+ +/+ +/+

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200). English - 44

BN68-01409H-00ENG.indb 44

2008-04-28 �� 5:18:29

Setting up the TV with your PC Picture

Screen Adjustment Detailed Settings Picture Options Picture Reset

How to Auto Adjust Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. ➣ This function does not work in DVI-HDMI mode. Easy Setting 1. Press the TOOLS button on the remote control. 2. Press the ▲ or ▼ button to select “Auto Adjustment”, then press the ENTER button.

Auto Adjustment in progress. Please Wait.

TOOLS Device List Picture Mode

PIP Energy Saving Auto Adjustment

Adjusting the Screen Quality

Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select “Coarse” or “Fine”, then press the ENTER button. Press the ◄ or ► button to adjust the screen quality. Press the ENTER button.

Screen Adjustment Coarse

Screen Adjustment Coarse

Image Reset is completed.

BN68-01409H-00ENG.indb 45

WISELINK Using the WISELINK Function Connecting a USB Device TV Side Panel

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. 1. Press the POWER button on the remote control or front panel. ➣ The TV is powered on. 2. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.

➣ If you enter the WISELINK mode with no USB device connected the message “No external storage device found. Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. ➣ MTP (Media Transfer Protocol) is not supported. ➣ The file system only supports FAT16/32 (The NTFS file system is not supported). ➣ Certain types of USB Digital camera and audio devices may not be compatible with this TV. ➣ Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) ➣ Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. ➣ Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. ➣ Do not disconnect the USB device while it is loading. ➣ MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only. ➣ The sequential jpeg format is supported. ➣ Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file names to English, French or Spanish if necessary. ➣ The higher the resolution of the image, the longer it takes to display on the screen. ➣ The maximum supported JPEG resolution is 15360x8640 pixels. ➣ For unsupported or corrupted files, the “Not Supported File Format” message is displayed. Using the Remote Control Button in WISELINK Menu Button

ENTER Select the currently selected item. During a Slide Show or Music Play: - Pressing the ENTER button during play pauses the play. - Pressing the ENTER button during pause resumes the play.

RETURN TOOLS Play or pause the Slide Show or Music file. Return to the previous menu. Run various functions from the Photo and Music menus. Pause the Slide Show / Stop the Playing Music file.

Jump to previous group / Jump to next group.

INFO Show file information.

W.LINK Exit WISELINK mode.

PRE-CH Stop WISELINK mode and Returns to TV mode.

O Press the SOURCE button on the remote control repeatedly to select “USB”, then press the ENTER

3. Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device (i.e. if connected through a hub). Press the ENTER button. ➣ This function differs depending on the USB Memory Device connected to TV. ➣ The selected USB device name appears at the bottom left of the screen. 4. Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press the ENTER ➣ To exit “WISELINK” mode, press the W.LINK button on the remote control.

Using the Photo List This menu shows Photo files saved on an USB memory device. Photo List 1. Press the W.LINK button on the remote control to display the “WISELINK” menu. 2. Press the ◄ or ► button to select “Photo”, then press the ENTER button. ➣ Photo files are displayed. ➣ This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. ➣ Press the (Play) / ENTER button to start the Slide Show. ➣ To move to the previous / next group, press the (REW) or (FF) button. ➣ When moving to a photo, loading may take a few seconds. At this point, the loading icon will appear at the screen. ➣ It may take some time to load photo files as Thumbnail images. ➣ Photos without EXIF information may not be displayed as thumbnail images in the Photo List depending on the picture quality and resolution.

1 Currently selected photo Shows the currently selected photo. 2 Photo Information Window Shows information about the currently selected photo. You can change the “Color”, “Composition”, and “Favorite”. 3 Current Sort Standard Press the ▲ or ▼ button to change the standard for sorting photos. (“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”) The item that is selected as the sorting standing is highlighted in the Photo Information Window. 4 View Groups Shows the sorting groups. The sorting group including the currently selected photo is highlighted. 5 Current Device Shows the currently selected device name. Press the Red button to select a device. 6 Item Selection Information Shows the number of photos that are selected by pressing the Yellow button. 7 Help Items • Red(Device) button: Selects a connected device. • Green(Favorites Setting) button: Changes the favorites setting for the selected photo. Press this button repeatedly until the desired value appears. (Refer to page 51) • Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a symbol on the left. • (Jump) button: Jumps to the previous sorting group / Jumps to the next sorting group. • TOOLS(Option) button: Displays the “Slide Show”, “Play Current Group”, “Delete”, “Change Group” (in “Color” or “Composition” group), “Information” or “Remove Safely” menus.

BN68-01409H-00ENG.indb 48

Sorting Photo List You can sort photos in the Photo List by a particular standard. 1. Press the W.LINK button on the remote control to display the “WISELINK” menu. 2. Press the ◄ or ► button to select “Photo”, then press the ENTER button. ➣ Photo files are displayed. 3. Press the ▲ or ▼ button to select a sorting standard. (“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”) ➣ The photos are sorted according to the newly selected sorting standard. 4. Press the ENTER button to start the Slide Show in the order selected by the user. ➣ Wiselink identifies the color and composition of images and groups them accordingly by analyzing the images on the USB device. ➣ The “Composition” and “Color” information extracted from a photo file may be different from what you selected. ➣ Photo information is automatically set. You can change the “Color”, “Composition”, and “Favorite”. ➣ Photos for which information cannot be displayed are set as “Unclassified”. ➣ PTP does not support folder sort mode.

Monthly Sorts photos by month. ➣ It sorts and shows photos in the file by month. It sorts only by month (from January to December) regardless of year. 1. Select “Monthly” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by Month. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist.

Timeline Sorts photos by time. ➣ It sorts and shows photos by date. It sorts by year and month from the earliest photo. 1. Select “Timeline” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by Timeline. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist.

Color Sorts photos by color. ➣ You can change the photo color information. 1. Select “Color” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by color. (REW) or ➣ To move to the previous / next group, press the (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist. Changing the color information 1. Select “Color” as the sorting standard in the Photo List and press the ◄ or ► button to select a photo. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Change Group”. Press the ENTER button. 4. Press the ◄ or ► button to select the desired option, then press the ENTER button. ➣ The group information of the current file is updated and the file is moved to the new group. ➣ “Color” options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassified.

Composition Sorts photos by composition. ➣ You can change the compositional information of photos. 1. Select “Composition” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by compositon. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist. Changing the composition information 1. Select “Composition” as the sorting standard in the Photo List and press the ◄ or ► button to select a photo. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Change Group”. Press the ENTER button. 4. Press the ◄ or ► button to select the desired option, then press the ENTER button. ➣ The group information of the current file is updated and the file is moved to the new group. ➣ “Composition” options: (horizontal), (vertical), (object), (perspective), (pattern), Unclassified

Folder Sorts photos by folder. ➣ If there are many folders in USB, the photos files are shown in order in each folder. The photo file in the Root folder is shown first and the others are shown in alphabetical order by name. 1. Select “Folder” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by folder. (REW) or ➣ To move to the previous / next group, press the (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist.

Preference Sorts photos by preference. (Favorite) ➣ You can change the photo preferences. 1. Select “Preference” as the sorting standard in the Photo List. 2. Press the ◄ or ► button to select from the sublist of files grouped by preference. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”. 4. Press ENTER to play the selected group of photo files from the sublist.

Changing the Favorites setting 1. Press the ◄ or ► button to select the desired photo in the Photo list. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2. Press the Green button repeatedly until the desired setting appears. ➣ Favorites settings change completed. ➣ “Favorite” options: ★ ★ ★ , ★ ★ ★ , ★ ★ ★ , ★ ★ ★ ➣ Users can select the number of stars (up to 3) according to their preference.

BN68-01409H-00ENG.indb 51

Deleting the Photo file 1. Press the ◄ or ► button to select the desired photo in the Photo list. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Delete”, then press the ENTER button. ➣ The “Delete this file?” message appear. 4. Press the ◄ or ►button to select “OK”, then press the ENTER button. ➣ The photo is deleted. ➣ When a read-only file is deleted, the “This File is read-only file. Delete it?” message appear. ➣ If you select “Cancel”, the deletion is cancelled. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control. ➣ You cannot remove the PTP-connected digital camera picture files. ➣ While removing files, don’t remove the USB memory device. ➣ You cannot recover a deleted photo file.

Delete Selected File(s) : image... 1 File(s) Delete this file?

Deleting Multiple Photos 1. Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. ➣ Repeat the above operation to select multiple photos. ➣ The mark appears to the left of the selected photo. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Delete selected File”, then press the ENTER button. ➣ The “Delete the selected files?” message appear. 4. Press the ◄ or ► button to select “OK”, then press the ENTER button. ➣ The selected photos are deleted. ➣ If you select “Cancel”, the deletion is cancelled. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control. ➣ You cannot remove the read-only files from the selected ones. ➣ You cannot recover a deleted photo file.

Delete Selected File(s) : image... 2 File(s) Delete the selected files?

Viewing the Photo Information The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed. 1. Press the ◄ or ► button to select the desired photo in the Photo list. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Information”, then press the ENTER button. ➣ The information on the selected photo appears.

Photo Info Name Size Resolution Date Path

: image_1.jpg : 2.0MB : 440x440 : Jan.1.2008 : /Photo/

OK O Press the INFO button to viewing the information.

➣ All files in the photo list will be used for the Slide Show.

➣ During the slide show, files are displayed in order from the currently shown file. ➣ The Slide Show progresses in the order sorted in the Photo list. ➣ Music files can be automatically played during the Slide Show if the “Background Music” is set to “On”. (Refer to page 55).

(Play) / ENTER button on the remote control to start slide show.

O While a photo list is displayed, press the

To perform a SlideShow with only the selected files 1. Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. ➣ The mark appears to the left of the selected photo. ➣ If you select one file, the SlideShow will not be performed. 2. Press the (Play) / ENTER button. ➣ The selected files will be used for the Slide Show. ➣ If you have selected files, only the selected files will be used for the Slide Show. Playing current group 1. Press the ▲ or ▼ button to select a sorting standard. (“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”) 2. Press the ◄ or ► button to select the desired photo in the Photo list. (REW) or ➣ To move to the previous / next group, press the (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”, then press the ENTER button. Only the photos in the sorting group including the selected files will be used for the Slide Show. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control.

Current OSD Function

Photo Slide Show is in progress.

You can pause a Slide Show by pressing the (Pause)/ENTER button on the remote control during a Slide Show. To resume the Slide Show, press the (Play)/ENTER button on the remote control again. English - 53

BN68-01409H-00ENG.indb 53

2008-04-28 �� 5:18:39

Viewing a photo 1. Press the W.LINK button on the remote control to display the “WISELINK” menu. 2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button. ➣ Photo files are displayed. 3. Press the ◄ or ► button to select the desired photo in the Photo list. Then Press the Yellow button to select only one file. 4. Press the ENTER button over a photo icon. ➣ The currently selected photo is displayed in full screen.

Using the option menu during a slide show (or Viewing a Photo) 1. During a slide show(or viewing a photo), Press the TOOLS button to set the option. 2. Press the ▲ or ▼ button to select the desired option. Then press the ENTER button. Start Slide Show (or Stop Slide Show) You can start or stop a Slide Show. Press the ▲ or ▼ button to select “Start Slide Show” (or “Stop Slide Show”), then press the ENTER button. ➣ You can select the SlideShow speed only during a slide show. ➣ You can also change the speed of the Slide Show by pressing the (REW) or (FF) button during the Slide Show.

TOOLS Stop Slide Show Rotate Zoom Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Move

Rotate You can rotate images in full screen mode. Press the ▲ or ▼ button to select “Rotate”, then press the ENTER button. Press the ◄ or ► button repeatedly to rotate the photo by the desired amount. ➣ Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚. ➣ Whenever you press the ► button, it rotates by 90˚, 180˚, 270˚, and 0˚. ➣ If you have select “Zoom”, the “Rotate” deactivated. ➣ The rotated file is not saved. ➣ The Rotating function information icon is displayed at the top right of the screen Icon

Current OSD Function

This rotates a photo to its original position

This rotates a photo by 90 degrees

This rotates a photo by 180 degrees

This rotates a photo by 270 degrees

2008-04-28 �� 5:18:39

Zoom You can zoom into images in full screen mode. Press the ▲ or ▼ button to select “Zoom”, then press the ENTER button. Press the ◄ or ► button repeatedly to increase or decrease the Zoom effect. (x1 → x2 → x4) To move the enlarged photo image, press the ENTER button, then press the ▲/▼/◄/► buttons. ➣ Note that when the enlarged picture is smaller than the original screen size, the location change function doesn’t work. ➣ The enlarged file is not saved. ➣ If you have select “Zoom”, the “Rotate” deactivated. ➣ Zoom function information icon is displayed at the top right of the screen. Icon

Current OSD Function

Zoom-into a photo at 2x.

Restore a photo to its original size.

Pan Down Pan Up Pan Right Pan Left

Pan down to view the lower part of a zoomed-in photo. Pan up to view the upper part of a zoomed-in photo. Pan right to view the right side of a zoomed-in photo. Pan left to view the left side of a zoomed-in photo.

Slide Show Speed You can select the slide show speed. Press the ▲ or ▼ button to select “Slide Show Speed”. Press the ◄ or ► button to select the desired option. (Fast → Slow → Normal) ➣ You can select the SlideShow speed only during a slide show.

Background Music If you set ”Background Music” to On, the background music will be played when viewing photos one by one or in a Slide Show. Press the ▲ or ▼ button to select “Background Music”. Press the ◄ or ► button to select “On” or “Off”. ➣ If you set ”Background Music” to On, a screen appears immediately where you can set the Background Music. • On: When the background music is available, if you select On, the music is played back. To use this feature, there must be music and photo files stored on the USB device. • Off: Background music is not played.

BN68-01409H-00ENG.indb 55

2008-04-28 �� 5:18:40

Background Music Setting You can set the background music. Press the ▲ or ▼ button to select “Background Music Setting”, then press the ENTER button. ➣ If you turn off the “Background Music”, even if the “Background Music Settings” have been set up, the background music will not be played.

➣ Loading music files is needed to change BGM mode. Play music files in music category to load. ➣ “Background Music setting” menu is displayed. Press the ◄ or ► button to select the desired BGM (Background music) mode. (Shuffle, Selected file, Mood)

TOOLS Stop Slide Show Rotate Zoom Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Move

• Shuffle: Plays music files in random order. • Selected file: Plays a selected music file. • Mood: Plays music files of a particular mood only.

➣ Selectig the background music file Press the ◄ or ► button to set “BGM Mode” to “Selected file”. Press the ▲ or ▼ button to select “Select Music File”, then press the ENTER button. Press the ▲ or ▼ button to select a music file, then press the yellow button. The mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the ENTER button.

2 File(s) Selected Music

➣ Selecting the background music file mood Press the ◄ or ► button to set “BGM Mode” to “Mood”. Press the ▲ or ▼ button to select “BGM Mood”. Then press ◄ or ► button to select the desired BGM mood. Press the ENTER button. BGM mode option: Energetic, Rhythmical, Sad, Exciting, Calm ➣ WISELINK identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device.

Better than yesterday  Select

Sound Mode You can set the Sound mode. (Refer to page 30) Information The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed. (Refer to page 52) Remove Safely You can remove the device safely from the TV. Press the ▲ or ▼ button to select “Remove Safely”, then press the ENTER Remove the USB device from the TV.

BN68-01409H-00ENG.indb 56

2008-04-28 �� 5:18:40

Using the Music List This menu shows MP3 files from among the files saved on a USB memory device. 1. Press the W.LINK button on the remote control to display the “WISELINK” WISELINK menu.

2. Press the ◄ or ► button to select “Music”, then press the ENTER button. ➣ Music files are displayed. ➣ Press the (Play) / ENTER button over a music icon to play the music. ➣ To move to the previous / next group, press the (REW) or (FF) button.

Better than yesterday

Better than yesterday

1 Currently selected music Shows the currently selected music. 2 Current Sort Standard Press the ▲ or ▼ button to change the standard for sorting music files. (“Title”, “Artist”, “Mood”, “Genre”, “Folder”, “Preference”) 3 View Groups Shows the sorting groups. The sorting group including the currently selected music file is highlighted. 4 Current Device Shows the currently selected device name. Press the Red button to select a device.

BN68-01409H-00ENG.indb 57

2008-04-28 �� 5:18:41

5 Item Selection Information Shows the number of music files that are selected by pressing the Yellow button. 6 Help Items • Red(Device) button: Selects a connected device. • Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button repeatedly until the desired value appears. (Refer to page 60) • Yellow(Select) button: Selects music files from the music list. Selected music files are marked with a symbol the left. • (Jump) button: Jumps to the previous sorting group / Jumps to the next sorting group. • TOOLS(Option) button: Displays the “Play Current Group”, “Delete”, “Change Group” (in “Mood” group), “Information” or “Remove Safely” menus.

Sorting Music List You can sort music files in the Music List by a particular standard. 1. Press the W.LINK button on the remote control to display the WISELINK menu. 2. Press the ◄ or ► button to select “Music”, then press the ENTER button. ➣ Music files are displayed. 3. Press the ▲ or ▼ button to select a sorting standard. (“Title”, “Artist”, “Mood”, “Genre”, “Folder”, “Preference”) ➣ Music files are sorted according to the newly selected sorting standard. 4. Press the ENTER button to start playing music in the order selected by the user. ➣ Music information is set automatically and you can change the Favorite information. ➣ Music files for which information cannot be displayed are set to “Unclassified”. ➣ If there is no title information for a music file, the filename is displayed. ➣ If no information is available for the Genre, Artist, Album, or Year, the corresponding item is displayed as blank.

Better than yesterday

Title Sorts music files by the title. ➣ It sorts the Music titles in alphabetical order, and shows the music file. 1. Select “Title” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped in alphabetical order. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely

BN68-01409H-00ENG.indb 58

2008-04-28 �� 5:18:41

Artist Sorts music files by the artist. ➣ It sorts the music file by artist in alphabetical order. 1. Select “Artist” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped in alphabetical order. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely ★★★

Mood Sorts music files by the mood. ➣ You can change the music mood information.

1. Select “Mood” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped by mood. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist. Changing the Mood information 1. Select “Mood” as the sorting standard in the Music List and press the ◄ or ► button to select a music file. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Change Group”. Press the ENTER button. ➣ Wiselink identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device. ➣ “Mood” information extracted from a music file may not always match the Mood option. For example, a file you think is “Energetic” may be extracted to the “Exciting” mood option. 4. Press the ◄ or ► button to select the desired option, then press the ENTER button. ➣ The group information of the current file is updated and the file is moved to the new group. ➣ “Mood” options: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified

Better than yesterday

Play Current Group Catherine Delete Album 3 2005 Change Group Pop Information ★★★

Better than yesterday

BN68-01409H-00ENG.indb 59

2008-04-28 �� 5:18:41

Genre Sorts music files by the genre. 1. Select “Genre” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped by Genre. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely Calm

Folder Sorts music files by the folder. ➣ If there are many folders in USB, the files are shown in order in each folder. The music file in the Root folder is shown first and the others are shown in alphabetical order by name. 1. Select “Folder” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped by Folder. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely

Darby Album 2 2005 Pop

Preference Sorts music files by preference. (Favorite) ➣ You can change the music files preferences. 1. Select “Preference” as the sorting standard in the Music List. 2. Press the ◄ or ► button to select from the sublist of files grouped by Preference. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3. Press the TOOLS button. 4. Press the ▲ or ▼ button to select “Play Current Group”. 5. Press ENTER to play the selected group of music files from the sublist.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely ★★★

Changing the Favorites setting 1. Press the ◄ or ► button to select the desired music in the music list. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired music in the music list. Then press the yellow button. Repeat the above operation to select multiple musics. The mark appears to the left of the selected music. 2. Press the Green button repeatedly until the desired setting appears. ➣ Favorites settings change completed. ➣ “Favorite” options: ★ ★ ★ , ★ ★ ★ , ★ ★ ★ , ★ ★ ★ ➣ Users can select the number of stars (up to 3) according to their preference. 3. Press the ENTER button to start playing music.

BN68-01409H-00ENG.indb 60

2008-04-28 �� 5:18:42

Deleting the Music file 1. Press the ◄ or ► button to select the desired music file in the music list. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Delete”, then press the ENTER button. ➣ The “Delete this file?” message appear. 4. Press the ◄ or ► button to select “OK”, then press the ENTER button. ➣ The music is deleted. ➣ When a read-only file is deleted, the “This File is read-only file. Delete it?” message appear. ➣ If you select “Cancel”, the deletion is cancelled. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control. ➣ While removing files, don’t remove the USB memory device. ➣ You cannot recover deleted music files.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely

Delete Selected File(s) :I Love Y... 1 File(s) Delete this file?

Deleting Multiple Music files 1. Press the ◄ or ► button to select the desired music in the music list. Then press the yellow button. ➣ Repeat the above operation to select multiple music files. ➣ The mark appears to the left of the selected music files. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Delete selected File”, then press the ENTER button. ➣ The “Delete the selected files?” message appear. 4. Press the ◄ or ► button to select “OK”, then press the ENTER button. ➣ The selected music files are deleted. ➣ If you select “Cancel”, the deletion is cancelled. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control. ➣ You cannot remove the read-only files from the selected ones. ➣ You cannot restore the deleted music files.

Better than yesterday

Delete selected File Deselect AllCatherine Album 3 2005 Remove Safely Pop

Delete Selected File(s) :I Love Y... 2 File(s) Delete the selected files?

Viewing the Information The music file information including the order of the file in the current directory, the name, the size, the date modified and the path is displayed. 1. Press the ◄ or ► button to select the desired music in the music list. 2. Press the TOOLS button. 3. Press the ▲ or ▼ button to select “Information”, then press the ENTER button. ➣ The information on the selected file appears.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely

O Press the INFO button to viewing the information.

Playing a Music File Playing a music file 1. Press the W.LINK button on the remote control to display the “WISELINK” menu. 2. Press the ◄ or ► button to select “Music”, then press the ENTER button. ➣ Music files are displayed. 3. Pressing the ◄ or ► button to select a music file to be played, then press the ENTER button. ➣ This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device. (Play) / ENTER button over a music icon to play ➣ Press the the music. ➣ (REW) or (FF) buttons do not function during play. ➣ Press the (Pause) / ENTER button while playing a music file to pause the file. Press the (Stop) button to exit Play mode. ➣ The selected file is displayed at the top with its playing time. ➣ To adjust the music volume, press the VOL – or VOL + button on the remote control. To mute the sound, press the MUTE button on the remote control. ➣ The playing duration of a music file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. 4. To exit “WISELINK” mode, press the W.LINK button on the remote control.

Better than yesterday

Playing the music group 1. Press the W.LINK button on the remote control to display the WISELINK Music menu. Thanks 2. Press the ◄ or ► button to select “Music”, then press the ENTER Jee button. ➣ To move to the previous / next group, press the (REW) or Energetic (FF) button. 3. Press the ◄ or ► button to select the desired music file. Title 4. Press the TOOLS button. SUM 5. Press the ▲ or ▼ button to select “Play Current Group”, then press the ENTER button. ➣ The music files in the sorting group including the selected file are played. 6. To exit “WISELINK” mode, press the W.LINK button on the remote control.

Better than yesterday

Play Current Group Catherine Delete Album 3 Information2005 Pop Remove Safely

Better than yesterday

(Play) / ENTER button. 4. Press the ➣ Only the selected file is played. ➣ Press the (Stop) button while playing to stop the current item and to return to the music list. 5. To exit “WISELINK” mode, press the W.LINK button on the remote control.

Current OSD (Music) Repeat (Music) Once

Function When all music files in the folder(or the selected file) are repeated. “Repeat Mode” is “On”. When all music files in the folder(or the selected file) are played once. “Repeat Mode” is “Off”. (Play)/ (Pause)/ENTER When pressing the remote control while music is playing.

Repeating Music Play 1. 2. 3.

While a Music file is playing, press the TOOLS button. Press the ▲ or ▼ button to select “Repeat Mode”. Press the ◄ or ► button to select “On” or “Off”. • On: Plays back all music files in the folder(or the selected file) repeatedly. • Off: Doesn’t play back repeatedly.

2008-04-28 �� 5:18:44

Select to control the slide show speed. Press the ▲ or ▼ button to select “Slide Show Speed”. Press the ◄ or ► button to select “Fast”, “Normal” or “Slow”.

Select to repeatedly play music files. Press the ▲ or ▼ button to select “Music Repeat Mode”. Press the ◄ or ► button to select “On” or “Off”.

Select to set the waiting time before the screen saver appears. Press the ▲ or ▼ button to select “Screen Saver Run Time”. Press the ◄ or ► button to select “1 min”, “3 min” or “5 min”.

SUM Information Select to viewing the information of the connected device. Press the ▲ or ▼ button to select “Information”, then press the ENTER button.

: 995.00MB OK Remove Safely You can remove the device safely from the TV. (Refer to page 56)

BN68-01409H-00ENG.indb 64

2008-04-28 �� 5:18:44

About Anynet+ What is Anynet+? Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.

Connecting Anynet+ Devices The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it. To connect to a TV Anynet+ Device 1

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

C onnect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

➣ Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the Home Theater. ➣ When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the Digital Audio Out (Optical) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV. ➣ Connect only one Home Theater. ➣ You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. ➣ Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. ➣ Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type. English - 65

BN68-01409H-00ENG.indb 65

2008-04-28 �� 5:18:45

Setting Up Anynet+ The following settings help set the Anynet+ functions. To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On Application

Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off 1. Press the ▲ or ▼ button to select “Auto Turn Off”, then press the ENTER button. 2. Press the ▲ or ▼ button to select “Yes”, then press the ENTER button. ➣ The “Auto Turn Off” function is enabled. ➣ If you select “No”, the “Auto Turn Off” function is canceled. Press the EXIT button to exit. ➣ The active source on the TV remote must be set to TV to use the Anynet+ function. ➣ If you set “Auto Turn Off” to “Yes”, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off.

Scanning and Switching between Anynet+ Devices 1. Press the TOOLS button. Press the ▲ or ▼ button to select “Device List”, then press the ENTER button. ➣ Anynet+ devices connected to the TV are listed. ➣ If you cannot find a device you want, press the red button to scan for devices. 2. Press the ▲ or ▼ button to select to a particular device and press the ENTER button. It is switched to the selected device. ➣ Only when you set “Anynet+ (HDMI-CEC)” to On in the “Application” menu, the “Device List” menu appears.

➣ Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. ➣ The time required to scan for devices is determined by the number of connected devices. ➣ When the device scan is complete, the number of devices found are not displayed. ➣ Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search devices. ➣ If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

BN68-01409H-00ENG.indb 66

2008-04-28 �� 5:18:46

Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Device List Record Menu on Device Device Operation Timer Recording Stop Recording Receiver Setup

Description Switches from Anynet+ to TV broadcast mode. Displays the Anynet+ device list. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example: When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Allows reserving a recording. (This menu works only for a device supporting recording reservations.) Stops recording. Sound is output through the receiver (home theater). You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode Device Type

After switching to the device, when the menu of the corresponding device is displayed on the screen.

Available Buttons Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons / EXIT button (Backward search) / (Stop) / (Play) /

After switching to the device, while playing a file Device with built-in Tuner Audio Device

After switching to the device, when you are watching a TV program When Receiver is activated

(Forward search) (Pause)

➣ The Anynet+ function only works when the active source on the TV remote control is set to TV. ➣ The button works only while in the recordable state. ➣ You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. ➣ The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device. ➣ The Anynet+ functions do not operate with other manufacturers’ products. ➣ The , operations may differ depending on the device.

Recording You can make a recording of a TV program using a Samsung recorder. 1. Press the TOOLS button. 2. Press the ▲ or ▼ button to select Recording Immediately and press the ENTER button. Recording begins. When there is more than one recording device When multiple recording devices are connected, the recording devices are listed. Press the ▲ or ▼ button to select a recording device and press the ENTER button. Recording begins. When the recording device is not displayed Select “Device List” and press the red button to search devices.

TOOLS Device List Record Timer Recording :

Press the EXIT button to exit. ➣ You can record the source streams by selecting “Record” after pressing the TOOLS button. ➣ Pressing the button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. ➣ Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. English - 67

BN68-01409H-00ENG.indb 67

2008-04-28 �� 5:18:47

Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker. TOOLS 1. Press the TOOLS button. Press the ▲ or ▼ button to select “Receiver”. Device List Record 2. Press the ◄ or ► button to select to “On”. Timer Recording Now you can listen to sound through the receiver. Receiver ◄ Off ► 3. Press the EXIT button to exit. Picture Mode : Standard Sound Mode : Custom ➣ If your receiver supports audio only, it may not appear in the device list. Sleep Timer : Off ➣ The receiver will work when you have properly connected the Optical IN jack of the SRS TS XT : Off receiver to the Optical Out jack of the TV. ▼ Move Adjust e Exit ➣ When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. ➣ When using the WISELINK feature, sound may not output properly through the receiver. ➣ When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred language) menus. ➣ If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 31)

Troubleshooting for Anynet+ Symptom Anynet+ does not work.

Solution • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • Connect only one receiver (home theater). • Check if the Anynet+ device power cord is properly connected. • Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. • Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. • Check whether the TV remote control is in TV mode. • Check whether it is Anynet+ exclusive remote control. • Anynet+ doesn’t work in certain situations. (Searching channels, Operating WISELINK, Plug & Play, etc.) • When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or turn your TV off and on again. • Check if the Anynet+ Function of Anynet+ device is set on. I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. • Press the TV/DTV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. I want to exit Anynet+. • Select View TV in the Anynet+ menu. • Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. • Press P >/> and PRE-CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The message Connecting to • You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Anynet+ device... appears on the screen. • Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play. You cannot use the play function when Plug & Play is in progress. • Check whether or not the device supports Anynet+ functions. The connected device is not displayed. • Check whether or not the HDMI 1.3 cable is properly connected. • Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. • Search Anynet+ devices again. • You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. • If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan. The TV program cannot be Check whether the antenna jack on the recording device is properly connected. recorded. The TV sound is not output Connect the optical cable between TV and the receiver. through the receiver. English - 68

BN68-01409H-00ENG.indb 68

2008-04-28 �� 5:18:47

Recommendations for Use Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. ➣ For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. 1

(exit) Exit from the teletext display.

2 6 (index) Used to display the index (contents) page at any time while you are viewing teletext.

3 8 (store) Used to store the teletext pages. 4 4 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 5 5 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. 6 / (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. 7 0 (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button. 8 1 (sub-page) Used to display the available sub-page.

9 2 (page up) Used to display the next teletext page. 0 3 (page down) Used to display the previous teletext page. ! 9 (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. @ 7 (cancel) Used to display the broadcast when searching for a page. # Colour buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. ➣ You can change teletext pages by pressing the numeric buttons on the remote control.

BN68-01409H-00ENG.indb 69

2008-04-28 �� 5:18:47

The teletext pages are organized according to six categories: Part

A B C D E F Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information.

➣ Teletext information is often divided between several pages displayed in sequence, which can be accessed by: - Entering the page number - Selecting a title in a list - Selecting a coloured heading (FASTEXT system) ➣ Press the TV/DTV button to exit from the teletext display.

Auto Wall-Mount Adjustment (Sold separately) Once the auto wall mount is installed, your TV’s position can be easily adjusted. TV Rear Panel

SERVICE Cable (Not supplied)

1. Press the ▲, ▼, ◄ or ► button on your remote control. ➣ The Wall Mount Adjustment screen is displayed. ➣ If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen. • Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. • Press the ▲ or ▼ button to select “Wall-Mount Adjustment”, then press the ENTER button.

: In Watching TV Wall-Mount Adjustment Melody

PIP Software Upgrade Common Interface

BN68-01409H-00ENG.indb 70

2008-04-28 �� 5:18:48

Remembering the Position 2. Adjust to the desired position using the ▲,▼,◄,► buttons. ➣ If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. ➣ Press the INFO button to reset. Press the ◄ or ► button to select “Yes”, then press the ENTER button. The position is initialized to the default setting. 3. Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position. ➣ To not save the current position, press the RETURN button. ➣ When selecting a save mode, you cannot use the Colour buttons. 4. Press the ENTER button to save. ➣ When Position1 is selected, the message “Current position saved as Position1” is displayed. 5. Press the ENTER button. ➣ The saved Position appears on the left side of the OSD.

Wall-Mount Adjustment

Moving to the remembered position 1. Complete Step 1 of “Entering the menu”. 2. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position. ➣ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. ➣ If you adjust the Position after moving to a pre-set position, the position display will disappear. ➣ For installation, refer to the Installation Manual provided with the wall mount. ➣ For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. ➣ This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. ➣ The auto wall mount will not work when Anynet+ or WISELINK is operating. ➣ 37, 40 and 46 models are not compatible with the older wall mount model (WMN5090A).

Wall-Mount Adjustment Position1

BN68-01409H-00ENG.indb 71

2008-04-28 �� 5:18:49

Using the Anti-Theft Kensington Lock (depending on the model) The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

Cable Figure 2 Figure 1 <Optional>

➣ The location of the Kensington Lock may be different depending on its model. 1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction (Figure 2). 2. Connect the Kensington Lock cable. 3. Fix the Kensington Lock to a desk or a heavy stationary object.

BN68-01409H-00ENG.indb 72

2008-04-28 �� 5:18:49

Securing the TV to the Wall Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do

not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. 주의 Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling: 1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. ➣ You may need additional material such a s an anchor depending on the type of wall. ➣ Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. ➣ Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications. Screw Specifications - For a 17 ~ 29 Inch LCD TV: M4 X 15 - For a 32 ~ 40 Inch LCD TV: M6 X 15

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly. ➣ Install the TV near to the wall so that it does not fall backwards. ➣ It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. ➣ Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer.

Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on your set. Check the picture contrast and brightness settings. Check the volume.

Normal picture but no sound

• Check the volume. • Check whether the MUTE button has been pressed on the remote control. • Check if “TV Speaker” is on.

Screen is black and power indicator light blinks steadily

• On your computer check; Power, Signal Cable. • The TV is using its power management system. • Move the computer’s mouse or press any key on the keyboard.

No picture or black and white picture

• Adjust the colour settings. • Check that the broadcast system selected is correct.

Sound and picture interference

• Try to identify the electrical appliance that is affecting the set and move it further away. • Plug your set into a different mains socket.

Blurred or snowy picture, distorted sound

• Check the direction, location and connections of your aerial. • This interference is often due to the use of an indoor aerial.

Remote control malfunctions

• Replace the remote control batteries. • Clean the upper edge of the remote control (transmission window). • Check the battery terminals.

‘Check signal cable.’ message is displayed

• Check that the signal cable is firmly connected to the PC or video sources. • Check that the PC or video sources are turned on.

On PC mode, ‘Not Supported Mode.’ message is displayed

• Check the maximum resolution and the frequency of the video adaptor. • Compare these values with the data in the Display Modes.

The damaged picture appears in the corner of the screen

If “Just Scan” is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.

The ‘Resets all settings to the default values.’ message appears.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

You may see small particles if you look closely at the edge of the bezel surrounding the TV screen.

This is part of the product’s design and is not a defect.

The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

Screen Size (Diagonal)

PC Resolution (Optimum) Sound Output Dimensions (WxDxH) Body With stand Weight With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Stand Swivel (Left / Right)

➣ Design and specifications are subject to change without prior notice. ➣ This device is a Class B digital apparatus. ➣ For the power supply and Power Consumption, refer to the label attached to the product.

BN68-01409H-00ENG.indb 78

This page is intentionally left blank.

2008-04-28 �� 5:15:34

2008-04-28 �� 5:15:34

2008-04-28 �� 5:15:36

2008-04-28 �� 5:15:37

2008-04-28 �� 5:15:37

2008-04-28 �� 5:15:38

2008-04-28 �� 5:15:38

2008-04-29 �� 3:12:42

2008-04-28 �� 5:15:39

2008-04-28 �� 5:15:39

2008-04-28 �� 5:15:40

2008-04-28 �� 5:15:40

DTV Cable 900 f tn Freshmen On Campus 2:00 - 2:30

No Detailed Information 2:00 - 3:00 Freshmen O.. Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

DTV Cable 900 f tn Freshmen On Campus Street Hypnosis Booze Britain

2008-04-28 �� 5:15:42

2008-04-28 �� 5:15:43

UKTV Gold UKTV style

UKTV Gold UKTV style

2008-04-28 �� 5:15:43

2008-04-28 �� 5:15:44

2008-04-28 �� 5:15:44

A UKTV Gold UKTV style

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A UKTV Gold UKTV style

Television X UKTV style

2008-04-28 �� 5:15:46

2008-04-28 �� 5:15:46

2008-04-28 �� 5:15:46

2008-04-28 �� 5:15:48

2008-04-28 �� 5:15:48

2008-04-28 �� 5:15:48

2008-04-28 �� 5:15:50

2008-04-28 �� 5:15:50

2008-04-28 �� 5:15:51

2008-04-28 �� 5:15:51

2008-04-28 �� 5:15:51

2008-04-28 �� 5:15:51

2008-04-28 �� 5:15:52

2008-04-28 �� 5:15:52

2008-04-28 �� 5:15:53

2008-04-28 �� 5:15:53

2008-04-28 �� 5:15:53

70,086 70,087 59,940 72,809 75,000 60,317 72,188 75,000 60,004 70,069 75,029 60,020 75,025 60,015 60,000 59,934

25,175 28,322 25,175 31,500 31,500 40,000 50,000 49,500 65,000 75,000 78,750 108,000 135,000 85,500 162,000 138,500

+/-/+ -/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ +/+ +/-

31,469 37,879 48,363 63,981 47,712 75,000 67,500

2008-04-28 �� 5:15:54

2008-04-28 �� 5:15:55

2008-04-28 �� 5:15:56

2008-04-28 �� 5:15:57

2008-04-28 �� 5:15:58

2008-04-28 �� 5:15:59

2008-04-28 �� 5:16:01

2008-04-28 �� 5:16:02

2008-04-28 �� 5:16:04

2008-04-28 �� 5:16:05

2008-04-28 �� 5:16:05

Zoom Vous pouvez zoomer sur les images lorsque vous êtes en mode Plein écran. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Zoom”, puis appuyez sur le bouton ENTER . Appuyez plusieurs fois sur le bouton ◄ ou ► pour augmenter ou réduire l’effet de zoom. (x1 → x2 → x4) Pour déplacer l’image agrandie, appuyez sur le bouton ENTER , puis sur ▲/▼/◄/►. ➣ Notez que lorsque la taille de l’image agrandie est inférieure à celle de l’écran, la fonction de déplacement est inopérante. ➣ Le fichier agrandi n’est pas enregistré. ➣ Si vous avez sélectionné “Zoom”, l’option “Rotat.” est désactivée. ➣ L’icône d’informations sur la fonction de zoom s’affiche en haut à droite de l’écran. Icône

Current OSD Function

2008-04-28 �� 5:16:06

2008-04-28 �� 5:16:06

Better than yesterday

Better than yesterday

2008-04-28 �� 5:16:06

Better than yesterday Catherine Album 3 2005 Pop

2008-04-28 �� 5:16:07

Better than yesterday

Better than yesterday

Better than yesterday

2008-04-28 �� 5:16:07

Better than yesterday

Better than yesterday

Better than yesterday

2008-04-28 �� 5:16:08

Better than yesterday

Better than yesterday

Better than yesterday

2008-04-28 �� 5:16:08

Better than yesterday

Better than yesterday

2008-04-28 �� 5:16:09

Better than yesterday

2008-04-28 �� 5:16:14

2008-04-28 �� 5:16:17

Cette page est laissée intentionnellement en blanc.

BN68-01409H-Fre.indb 79

2008-04-28 �� 5:16:17

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Comment éliminer ce produit (déchets d’équipements électriques et électroniques) (Applicable dans les pays de l’Union Européen et aux autres pays européens disposant de systémes de collecte sélective) Ce symbole sur le produit ou sa documentation indique qu’il ne doit pas être éliminé en fin de vie avec les autres déchets ménagers. L’élimination incontrôlée des déchets pouvant porter préjudice à l’environnement ou à la santé humaine, veuillez le séparer des autres types de déchets et le recycler de façon responsable. Vous favoriserez ainsi la réutilisation durable des ressources matérielles. Les particuliers sont invités à contacter le distributeur leur ayant vendu le produit ou à se renseigner auprès de leur mairie pour savoir où et comment ils peuvent se débarrasser de ce produit afin qu’il soit recyclé en respectant l’environnement. Les entreprises sont invitées à contacter leurs fournisseurs et à consulter les conditions de leur contrat de vente. Ce produit ne doit pas être éliminé avec les autres déchets commerciaux.

BN68-01409H-Fre.indb 80

2008-04-28 �� 5:16:17
