USER MANUAL LE-52F96BD SAMSUNG

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. LE52F9 LE70F9 Before operating the unit, please read this manual thoroughly, and retain it for future reference. ON-SCREEN MENUS PC DISPLAY PICTURE IN PICTURE (PIP) TELETEXT Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference.

• Model _______________ ▪ Serial No. _______________ BN68-01313B-00 Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen.
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Eng-0816.indd 1 2007-08-17 2:39:09 English Contents Connecting and Preparing Your TV

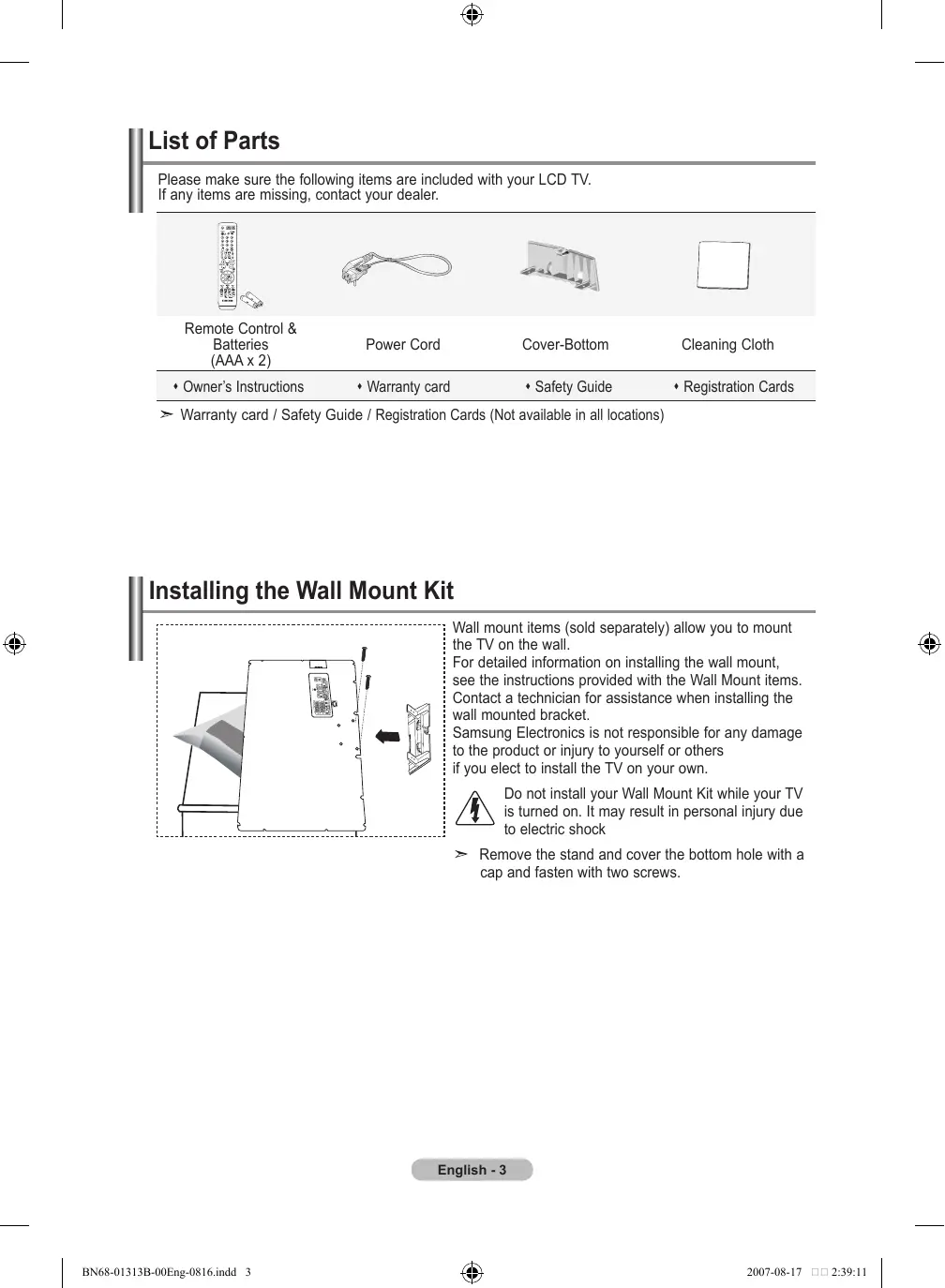

• List of Parts p. 3
• Installing the Wall Mount Kit p. 3
• Viewing the Control Panel p. 4
• Viewing the Connection Panel p. 5
• Viewing the Remote Control p. 7
• Installing Batteries in the Remote Control p. 8
• Switching On and Off p. 8
• Placing Your Television in Standby Mode p. 8
• Plug & Play Setting the Channels p. 9

• Storing Channels Automatically p. 10
• Storing Channels Manually p. 11
• Adding / Locking Channels p. 12
• Sorting the Stored Channels p. 13
• Assigning Channels Names p. 13
• Fine Tuning Channel Reception p. 14
• LNA (Low Noise Amplifier) p. 14
• Setting the Picture Changing the Picture Standard p. 15
• Adjusting the Custom Picture p. 15
• Changing the Colour Tone p. 16
• Activating Backlight p. 16
• Configuring Detailed Settings on the Picture p. 17
• Changing the Picture Size p. 18
• Selecting the Screen Mode p. 18
• Digital NR / Active Colour / DNIe / LED SmartLighting / Movie Plus p. 19
• Freezing the Current Picture p. 19
• Resetting the Picture Settings to the Factory Defaults p. 20
• Viewing the Picture In Picture (PIP) p. 20

• Setting the Time Setting and Displaying the Current Time p. 22
• Setting the Sleep Timer p. 23
• Switching the Television On and Off Automatically p. 23
• Function Description Choosing Your Language p. 24
• Upgrading the Software p. 24
• Game Mode/ Blue Screen / Melody / Light Effect / Energy Saving / HDMI Black Level / Feature Demo p. 25
• Selecting the Source p. 26
• Editing the Input Source Names p. 26
• Previewing the DTV Menu System p. 27
• Updating the Channel List Automatically p. 28
• Updating the Channel List Manually p. 28
• Editing Your Favourite Channels p. 29
• Selecting Channel List p. 31
• Displaying Programme Information p. 31
• Viewing the EPG (Electronic Programme Guide) Information p. 32
• Using the Scheduled List p. 33
• Setting the Default Guide p. 33
• Viewing All Channels and Favourite Channels p. 34
• Adjusting the Menu Transparency p. 34
• Setting up the Parental Lock p. 35
• Setting the Subtitle p. 36
• Setting the Subtitle Mode p. 36
• Selecting the Audio Format p. 36
• Selecting the Digital Text (UK only) p. 37
• Selecting the Time Zone (Spain only) p. 37
• Viewing Product Information p. 37
• Checking the Signal Information p. 38
• Upgrading the Software p. 38
• Viewing Common Interface p. 39
• Selecting the CI (Common Interface) Menu p. 39
• Resetting p. 40
• Selecting the Preferred Language (Subtitle, Audio or Teletext) p. 40
• Preference English - 1 BN68-01313B-00Eng-0816.indd 1 2007-08-17 2:39:10 Using the Teletext Feature p. 41

• Recommendations For Use Teletext Decoder p. 41
• Displaying the Teletext Information p. 42
• Selecting a Specific Teletext Page p. 42
• Using Fastext to Select a Teletext Page p. 43
• Setting Up Your Remote Control p. 43
• Remote Control Codes p. 44
• Wall-Mount Adjustment (Sold separately) (LE52F9) p. 61
• Using the Anti-Theft Kensington Lock (depending on the model) p. 62
• Troubleshooting: Before Contacting Service Personnel p. 62
• Technical and Environmental Specifications p. 63
• What is Anynet+? p. 57
• Connecting Anynet+ Devices p. 57
• Setting Up Anynet+ p. 58
• Scanning and Switching between Anynet+ Devices p. 58
• Recording p. 59
• Listening through a Receiver p. 60
• Check Points before Requesting Service Symbol Press Important Note One-Touch Button English - 2 BN68-01313B-00Eng-0816.indd 2 2007-08-17 2:39:10 List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Remote Control & Batteries (AAA x 2) Power Cord Cover-Bottom Owner’s Instructions Warranty card Safety Guide Cleaning Cloth Registration Cards Warranty card / Safety Guide / Registration Cards (Not available in all locations) Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock Remove the stand and cover the bottom hole with a cap and fasten with two screws. English - BN68-01313B-00Eng-0816.indd 3 2007-08-17 2:39:11 Viewing the Control Panel <LE52F9> p. 60

Front Panel buttons Touch the each button to operate. The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, DTV). In the on-screen menu, use this button as you use the ENTER/OK button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features.

5 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. 6 S peakers 7 R emote Control Sensor Aim the remote control towards this spot on the TV. (Power) [LE52F9] Touch the silver sensor below the ( ) mark to turn the TV on and off. Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control. Press to change channels. In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) Silver sensor [LE70F9] Press to turn the TV on and off. English - BN68-01313B-00Eng-0816.indd 4 2007-08-17 2:39:12 Viewing the Connection Panel

The product colour and shape may vary depending on the model. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable. 1 EXT 1, EXT 2 Connector Input Output EXT 1 EXT 2 Video

Video + Audio (L/R) Only TV or DTV output is available. Output you can choose. -Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. 2 AUDIO OUT(R-AUDIO-L) - Connect RCA audio cables to AUDIO OUT "R-AUDIO-L" on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

3 HDMI IN 1, HDMI IN 2, HDMI IN 3

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) - No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN2 jack. What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio (5. 1 channels). - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. he TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) "R-AUDIO-L" jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request an upgrade. HDMI cables that are not 1.3 may cause annoying flicker or no screen display. DVI IN (HDMI 2) (R-AUDIO-L) - DVI audio outputs for external devices. English - BN68-01313B-00Eng-0816.indd 5 2007-08-17 2:39:12 Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 480i

4 ANT IN To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 5 COMMON INTERFACE Slot - When not inserting "CI CARD" in some channels,"Scrambled Signal" is displayed on the screen. - The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. - When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated. You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it. Insert the CI-Card in the direction marked on it. 6 WISELINK - Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3) 7 Headphones jack - Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. 8 S-VIDEO or VIDEO / R-AUDIO-L - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to "R - AUDIO - L" on your set and the other ends to corre sponding audio out connectors on the A/V device. 9 PC IN (PC)/(AUDIO) - Connect to the video and audio output jack on your PC. 0 DIGITAL AUDIO OUT (OPTICAL) - Connect to a Digital Audio Component. ! SERVICE - Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. The model LE70F9 cannot be wall mounted. The EX-LINK jack on this model functions as a service jack. @ COMPONENT IN - Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set. - The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD. - This LCD TV displays its optimum picture resolution in 1080p mode. - This LCD TV displays its maximum picture resolution in 1080p mode. # Kensington Lock (depending on the model) - The Kensington lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The place of the Kensington Lock may be different depending on its model. English - BN68-01313B-00Eng-0816.indd 6 2007-08-17 2:39:12 Viewing the Remote Control 1 Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR) (Refer to pages 43~46) 2 Television Standby button 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 It display "Channel List" on the screen. 6 Selects the TV and DTV mode directly 7 VCR/DVD Functions Rewind, Stop, Play/Pause, Fast/Forward 8 Volume increase Volume decrease 9 Temporary sound switch-off 0 Displays the main on-screen menu ! Returns to the previous menu # Electronic Program Guide (EPG) display $ Picture size selection % Sound effect selection ^ Adjusts 5 separate devices - TV, DVD, STB, CABLE, or VCR. & [LE52F9] Press to backlight the VOL, CH, and the active source button(TV, DVD, CABLE, STB, VCR) on the remote. [LE70F9] Press to backlight the VOL, CH, MUTE and LED screen.

• Available source selection ( Previous channel ) This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. a This remote can be used to control recording on Samsung recorders. (Anynet+ function only) b P : Next channel P : Previous channel c Exit the on-screen menu d Control the cursor in the menu e Use to see information on the current broadcast f Runs the Anynet view functions and sets up Anynet+ devices. g Colour buttons : Press to add or delete channels and to store channels to the favorite channel list in the “Channel List” menu. h Picture-In-Picture On / Off i Digital subtitle display j Picture effect selection k Picture freeze l When your remote does not work, change the batteries and press the "RESET" button for 2-3 seconds before use. m Display selected input source and battery status n Make the remote control works for TV, DVD, STB, CATV, VCR (Refer to pages 43~46) Teletext Functions 6 Exit from the teletext display 0 Teletext index @ Alternately select Teletext, Double, or Mix. $ Teletext size selection
• Teletext mode selection (LIST/FLOF) ( Teletext sub page b P : Teletext next page P : Teletext previous page c Teletext cancel e Teletext reveal g Fastext topic selection h Teletext hold j Teletext store [LE52F9] [LE70F9] The performance of the remote control may be affected by bright light. This is a special remote control for the visually impaired, and has Braille points on the Power, Channel, STOP, PLAY/PAUSE and Volume buttons. English - BN68-01313B-00Eng-0816.indd 7 2007-08-17 2:39:13 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries. Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket. The standby indicator lights up on the front of the set.

Press the button on the front of the set. You also can press the POWER button or the TV/DTV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

button on the right side of the set. When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

To switch your set off, press the POWER button again. Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control. The screen is turned off and a red standby indicator appears on the front of your set.

To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again. o not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial. English - BN68-01313B-00Eng-0816.indd 8 2007-08-17 2:39:13 Plug & Play Plug & Play When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available. Any functions related to Digital TV (DVB) will only work in Start Plug & Play. countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with Enter the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼ button.

Press the ENTER/OK button to confirm your choice.

3. Press the ◄ or ► button to select “Shop” or “Home”, then the ENTER/OK button.

We recommend setting the TV to Home mode for the best picture in your home environment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press the Volume button and then hold down the MENU button for five seconds on the side panel of the TV.

4. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER/OK button. Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER/OK button to confirm your choice.

6. The message “Some DTV functions may not be available. Digital Scan?” is displayed.

Press the ◄ or ► button to select “Yes” or “No”, then press the ENTER/OK button. Yes: First an ATV search is performed and then a DTV ch. auto search is performed. No: Only an ATV search is performed. This function is supported for all countries except for the following countries : France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria

7. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER/OK button.

The channel search will start and end automatically. The DTV channel scan menu appears and the DTV channel is automatically updated. If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER/OK button at any time to interrupt the memorization process. For detailed descriptions about DTV channel update, refer to page 28 of this manual. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country.

8. Press the ENTER/OK button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button. You can also set the “Month”, “Day”, “Year”, “Hour” and “Minute” by pressing the number buttons on the remote control.

9. Press the ENTER/OK button to confirm your setting. The message “Enjoy your viewing” is

displayed. When you have finished, press the ENTER/OK button. Even if the ENTER/OK button is not pressed, the message will automatically disappear after several seconds. Language: Select your language. Country: Select your country. Auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock. English - BN68-01313B-00Eng-0816.indd 9 2007-08-17 2:39:14 If you want to reset this feature...

Press the ENTER/OK button again, to select "Plug & Play".

The message "Start Plug & Play" is displayed. (Refer to page 9) Start Plug & Play.

Enter Analog Channel

- Storing Channels Automatically - Storing Channels Manually Return Storing Channels Automatically You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Press the ENTER/OK button to select "Country".

Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER/OK button to confirm your choice. Even though you have changed the country setting in this menu, the country setting for DTV is not changed. (Refer to page 28)

Press the ENTER/OK button. The TV will begin memorizing all of the available channels. Press the ENTER/OK button at any time to interrupt the memorization process and return to the "Analog Channel" menu.

After all the available channels are stored, the "Sort" menu appears. (refer to page 13) English - 10 BN68-01313B-00Eng-0816.indd 10 2007-08-17 2:39:15 Storing Channels Manually Not available in DTV or external input mode. You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Analog Channel", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Manual Store", then press

the ENTER/OK button.

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER/OK button.

4. When you are satisfied with your setting, press the

Enter Manual Store Programme Colour System Sound System Channel Search Store Move Press the EXIT button to exit. ♦ P rogramme (Programme number to be assigned to a channel) − Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9). ♦ C olour System: Auto/PAL/SECAM/NTSC4.43 − Press the ▲ or ▼ button to select the required colour standard. ♦ Sound System: BG/DK/I/L − Press the ▲ or ▼ button to select the required sound standard. Channel (When you know the number of the channel to be stored) − Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). − Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) − Press the ▲ or ▼ button to start the search. − The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. ♦ Store (When you store the channel and associated programme number) − Set to "OK" by pressing the ENTER/OK button. Channel mode − P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. − C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. − S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. English - 11 BN68-01313B-00Eng-0816.indd 11 2007-08-17 2:39:15 Adding / Locking Channels

Not available in DTV or external input mode. Using the Channel Manager, you can conveniently lock or add channels. Analog Channel

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Analog Channel", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Channel Manager",

then press the ENTER/OK button. ♦ Adding channels Using the Channel List, you can add channels.

3. Select Channel List by pressing the ENTER/OK button.

4. Move to the ( ) field by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the ENTER/ OK button to add the channel.

If you press the ENTER/OK button again, the ( ) symbol next to the channel disappears and the channel is not added.

" " is active when "Child Lock" is selected to "On". Move Enter Channel Manager Channel List Child Lock : Off

Move Enter Return Channel List P 1 C3 1 / 10 ♦ Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

5. Press the ▲ or ▼ button to select "Child Lock", then press

the ENTER/OK button.

6. Select "On" by pressing the ▲ or ▼ button, then press the

7. Press the ▲ or ▼ button to select "Channel List",

then press the ENTER/OK button.

8. Move to the ( ) field by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER/OK button.

If you press the ENTER/OK button again, the ( ) symbol next to the channel disappears and the channel lock is canceled. ➣ A blue screen is displayed when Child Lock is activated.

9. Press the EXIT button to exit.

elect "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive. Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return You can select these options by simply pressing the CH LIST button on the remote control English - 12 BN68-01313B-00Eng-0816.indd 12 2007-08-17 2:39:16 Sorting the Stored Channels This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Press the ▲ or ▼ button to select "Sort", then press the ENTER/OK button. Select the channel number that you wish to change by press ing the ▲ or ▼ button repeatedly. Press the ENTER/OK button. The selected channel number and name are moved to right side. Repeat steps 3 to 4 for another channel to be sorted.

Press the EXIT button to exit.

4. Press the ▲ or ▼ button to move to the position in which

you would like to change and then press the ENTER/OK button. The selected channel is exchanged with the one previously stored to the chosen number.

Enter Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. ➣ Not available in DTV or external input mode.

Press the ▲ or ▼ button to select "Name", then press the ENTER/OK button.

If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER/OK button. The selection bar is displayed around the name box.

To... Then... Select a letter, number or symbol Move on the next letter Press the ► button Move back the previous letter Press the ◄ button Confirm the name Press the ENTER/OK button

he characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) Special characters (+, -, *, /, space)

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit. English - 13 BN68-01313B-00Eng-0816.indd 13 2007-08-17 2:39:17 Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

Use the number buttons to directly select the channel that you want to fine tune.

Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER/OK button.

Press the ◄ or ► button to adjust the fine tuning. Press the ENTER/OK button.

Press the EXIT button to exit. Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. Adjust Save Return To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER/OK button. LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

Press the ▲ or ▼ button to select "LNA", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER/OK button.

Press the EXIT button to exit. Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements.

Press the MENU button to display the menu. Press the ENTER/OK button, to select "Picture".

Press the ENTER/OK button again, to select "Mode".

Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER/OK button.

Press the EXIT button to exit.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move

♦ Dynamic: Selects the picture for high-definition in a bright room. ♦ Standard: Selects the picture for optimum display in a normal environment. ♦ Movie: Selects the picture for comfortable display in a dark room. Move The Picture mode must be adjusted separately for each input source. Enter Return Picture Dynamic Mode : Dynamic Standard 100 Contrast Movie 45 Brightness Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Enter Return You can also press the P.MODE button on the remote control to select one of the picture settings. Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select a particular item. Press

the ENTER/OK button.

3. Press the ◄ or ► button to decrease or increase the value

of a particular item. Press the ENTER/OK button.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move Enter Return Press the EXIT button to exit. ♦ Contrast: Adjusts the lightness and darkness between objects and the background. ♦ Brightness: Adjusts the brightness of the whole screen. ♦ Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. ♦ Colour: Adjusts the colours, making them lighter or darker. ♦ Tint: Adjusts the colour of objects, making them more red or green for a more natural look. The adjusted values are stored according to the selected Picture mode. In PC Mode, Only "Contrast" and "Brightness" can be adjusted. "Tint" is only activated for NTSC broadcasting, DTV broadcasting, " Ext.", "AV", "S-Video", "Component" and "HDMI" modes. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 20) English - 15 BN68-01313B-00Eng-0816.indd 15 2007-08-17 2:39:19 Changing the Colour Tone You can select the most comfortable colour tone to your eyes.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 15)

Press the ▲ or ▼ button to select "Colour Tone", then press the ENTER/OK button.

Press the ▲ or ▼ button to select the desired colour tone setting. Press the ENTER/OK button.

Press the EXIT button to exit

♦ Cool2: Makes the colour temperature bluer than "Cool1" menu. ♦ Cool1: Makes whites bluish. ♦ Normal: Keeps whites white. ♦ Warm1: Makes whites reddish. ♦ Warm2: Makes the colour temperature redder than "Warm1" menu.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Cool 2 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm 1 sMore Warm 2 Move Enter Return The adjusted values are stored according to the selected Picture mode. When the picture mode is set to "Dynamic" or "Standard", "Warm1" and "Warm2" cannot be selected. Activating Backlight You can adjust the screen brightness by adjusting the LCD backlight brightness. (0~10)

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3. (On page 15)

2. Press the ▲ or ▼ button to select “Backlight”, then press the

3. Press the ◄ or ► button to decrease or increase the value of

Press the ENTER/OK button.

Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move Enter Backlight Press the EXIT button to exit. Return

Adjust Return English - 16 BN68-01313B-00Eng-0816.indd 16 2007-08-17 2:39:20 Configuring Detailed Settings on the Picture You can set detailed picture settings.

1. Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Picture".

Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER/OK button.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button.

When you are satisfied with your setting, press the ENTER/OK button.

Press the EXIT button to exit. "Detailed settings" is available in "Standard" or "Movie" mode. If "DNIe" is Off, the "Detailed Settings" cannot be selected when the Picture mode is in "Standard" mode. Picture Mode : Movie Contrast 80 Brightness 45 Sharpness 30 Colour 53 Tint G50 R50 Colour Tone : Warm 2 Detailed Settings Backlight : 5 sMore Move

♦ Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth.

Enter Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. ♦ Gamma: -3 ~ +3 You can adjust the Primary Color (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. ♦ My Colour Control: Pink/Green/Blue/White/Reset This setting can be adjusted to suit your personal preferences. Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted colours will be reset to the factory defaults. ♦ Edge Enhancement: Off/On You can emphasize object boundaries.

Colour Space: Auto/Wide You can set the colour reproduction space for the input signal to Auto or Wide.

XVYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. Only available in "HDMI" and "Component" on "Movie" mode. If xvYCC function is active, PIP cannot be selected. English - 17 BN68-01313B-00Eng-0816.indd 17 2007-08-17 2:39:20 Changing the Picture Size You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the ENTER/OK button, to select "Picture".

2. Press the ▲ or ▼ button to select "Size", then press the

3. Select the required option by pressing the ▲ or ▼ button.

Press the ENTER/OK button.

4. Press the EXIT button to exit.

♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. ♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. ♦ 4:3: This is the default setting for a video movie or normal broadcasting. ♦ Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component (720p/1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "DTV", "Ext.1", "Ext.2", "AV", and "S-Video" mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode Zoom : S elect by pressing the ◄ or ► button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Wide Zoom : M ove the screen up/down using the or ▼ button after selecting the by pressing the ► or ENTER/OK button. Enter Return You can select these options by simply pressing the P.SIZE button on the remote control. Selecting the Screen Mode When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

1. Press the MENU button to display the menu.

Press the ENTER/OK button, to select “Picture”.

2. Press the ▲ or ▼ button to select "Screen Mode", then press

the ENTER/OK button.

3. Select the required option by pressing the ▲ or ▼ button.

Press the ENTER/OK button.

♦ 16:9: Sets the picture to 16:9 wide mode. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnify the size of the picture vertically on screen. ♦ 4:3: Sets the picture to 4:3 normal mode.

4. Press the EXIT button to exit.

This function is available in "Auto Wide" mode. This function is not available in PC, Component or HDMI mode. English - 18 BN68-01313B-00Eng-0816.indd 18 2007-08-17 2:39:21 Digital NR / Active Colour / DNIe / LED SmartLighting / Movie Plus

Press the MENU button to display the menu. Picture Press the ENTER/OK button, to select “Picture”. rMore Size : Auto Wide

2. Select the required option by pressing the ▲ or ▼ button,

Screen Mode : 16 : 9 Digital NR : Auto then press the ENTER/OK button. Active Colour : On Available options: Digital NR, Active Colour, DNIe, DNle : On LED SmartLighting

LED SmartLighting, Movie Plus. Movie Plus : On Reset : OK

3. When you are satisfied with your setting, press the

ENTER/OK button. Move Enter Return

4. Press the EXIT button to exit.

♦ Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. This function is not available in PC mode. ♦ Active Colour: Off/On If you turn on this option, the colours of the sky and grass will be stronger and clearer for a more vivid on-screen picture. This function is not available in PC mode. This function is not available in "Movie" and "Standard" mode. ♦ DNIe: Off/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. This function is not available in "Movie" mode ♦ LED SmartLighting: Off/On Controls LED backlight to maximize picture clarity. If “Feature Demo” is On, this function is not available.

Movie Plus: Off/On You can view more natural skin and clear text even in fast moving scenes. Use this function when watching movies. This function is not available in “Wide Zoom”, “Zoom” and “Just Scan” modes. This function is not available in PC mode. Freezing the Current Picture Press the STILL button to freeze a moving picture into a still one. Press again to cancel. English - 19 BN68-01313B-00Eng-0816.indd 19 2007-08-17 2:39:21 Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 on page 15.

Press the ▲ or ▼ button to select "Reset", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER/OK button.

Press the EXIT button to exit.

The "Reset" will be set for each picture mode. Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "PIP", then press the

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER/OK button.

4. When you are satisfied with your setting, press the

5. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

IP: On/Off You can activate or deactivate the PIP function. Main picture Sub picture Analog TV broadcasts Ext.1, Ext.2

Setup More Wall-Mount Adjustment Energy Saving : Off HDMI Black Level : Low Feature Demo : Off PIP SW Upgrade Move

Enter Return Mode :PIP Custom Equalizer PIP :: Off

SRS TS XT

Source : TV Auto Volume : Off Size Internal Mute : Off Position Reset Programme : P 1 Move Enter Move

Press the PIP button on the remote control repeatedly to activate or deactivate the "PIP". ♦ Source: TV/Ext.1/Ext.2/AV You can select a source of the sub-picture. ♦ Size:

You can select a size of the sub-picture. ➣ If main picture is in "PC" and "Component" mode, "Size" is not available. ♦ Position:

You can select a position of the sub-picture. ♦ Programme You can select a channel of the sub-picture only when the "Source" is set to "TV". English - 20 BN68-01313B-00Eng-0816.indd 20 2007-08-17 2:39:22 Sound Features Sound

1. Press the MENU button to display the menu.

Mode : Custom Press the ▲ or ▼ button to select "Sound", then press the Equalizer ENTER/OK button.

SRS TS XT

: Off Auto Volume : Off

2. Select the required option by pressing the ▲ or ▼ button,

Internal Mute : Off then press the ENTER/OK button. Sound Select : Main Reset Available options: M ode, Equalizer, SRS TS XT, Auto Volume, Internal Mute, Sound Select(in PIP mode), Reset (If Game Mode is On) Move Enter Return

3. When you are satisfied with your setting, press the

Equalizer ENTER/OK button.

4. Press the EXIT button to exit.

ode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Balance 100Hz 300Hz 1kHz 3kHz 10kHz ♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz The sound settings can be adjusted to suit your personal Move Adjust Return preferences. ➣ If you make any changes to these settings, the sound mode is automatically switched to "Custom". RS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. uto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. ♦ Internal Mute: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier.

The - and MUTE buttons do not operate when the "Internal Mute" is set to On. When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted. ound Select: Main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. eset If "Game Mode" is On, the Reset Sound function is activated(refer to page 25). Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

TRADEMARK & LABEL LICENSE NOTICE

Manufactured under license from Dolby Laboratorories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. English - 21 BN68-01313B-00Eng-0816.indd 21 2007-08-17 2:39:23 Connecting Headphones You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

TV Side Panel hen you insert the head set jack into the corresponding port, you can operate only "SRS TS XT", "Auto Volume and "Sound Select"(in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently. Selecting the Sound Mode You can set the sound mode by pressing the “DUAL” button. When you press it, the current sound mode is displayed on the screen. Stereo NICAM Stereo Audio Type Mono Stereo Dual Mono Stereo Dual Default Automatic change DUAL 1 Automatic change You can also set these options simply by pressing the DUAL button on remote control. DUAL 1 If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. Setting and Displaying the Current Time You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Press the ▲ or ▼ button to select "Time", then press the ENTER/OK button.

Press the ENTER/OK button to select "Clock Set". To... Press the... Move to Month, Day, Year, Hour or Minute ◄ or ► button. Set the Month, Day, Year, Hour or Minute ▲ or ▼ button. Confirm the setting

Press the EXIT button to exit. Adjust Return If you disconnect the power cord, you have to set the clock again You can also set Month, Day, Year, Hour and Minute by pressing the number buttons on the remote control. English - 22 BN68-01313B-00Eng-0816.indd 22 2007-08-17 2:39:24 Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

Press the ▲ or ▼ button to select "Time", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER/OK button.

Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER/OK button.

Press the EXIT button to exit. The TV automatically switches to standby mode when the timer reaches 0.

Switching the Television On and Off Automatically

Mode : Custom Press the MENU button to display the menu. Setup Equalizer Press the ▲ or ▼ button to select "Setup", then press the Plug & Play SRS TS : Off Language : English ENTER/OK button. Auto Volume : Off Time Internal Mute Off Game Mode : Off Press the ▲ or ▼ button to select "Time", then press the ResetScreen Blue : Off ENTER/OK button. Melody : Off Press the ▲ or ▼ button to select "Timer 1", "Timer 2", Home Theatre PC : Off Light Effect : In WatchingReturn "Timer 3", then press the ENTER/OK button. Move Enter More You must set the clock first. Move Enter Return Press the ◄ or ► button to select the required item below. Timer 1 On Time Press the ▲ or ▼ button to adjust to the setting satisfied. 00 :

♦ On Time : Select hour, minute, and "Yes"/"No". (To activate Off Time timer with the setting satisfied, set to "Yes".) 00 :

Volume Repeat ♦ Off Time : Select hour, minute, and "Yes"/"No". (To activate Once timer with the setting satisfied, set to "Yes".) ♦ Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat", ► Move Adjust Return or "Sat~Sun". ♦ Volume : Select the required volume level. You can set the hour, minute, and channel directly by pressing the number buttons on the remote control. Auto Power Off When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time. English - 23 BN68-01313B-00Eng-0817.indd 23 2007-08-17 4:08:26 Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

Press the ▲ or ▼ button to select "Language", then press the ENTER/OK button.

Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER/OK button.

Press the EXIT button to exit.

Upgrading the Software Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on located on the side of your TV. TV Side Panel USB Drive

1. Insert a USB drive containing the firmware upgrade into the

WISELINK port on the side of the TV.

2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

3. Press the ▲ or ▼ button to select "SW Upgrade", then press

the ENTER/OK button.

4. Press the ENTER/OK button.

The message "Scanning for USB... It may take up to 30 seconds." is displayed. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. Setup More Wall-Mount Adjustment Energy Saving : Off HDMI Black Level : Low Feature Demo : Off PIP SW Upgrade Move

Return SW Upgrade USB Enter Return SW Upgrade Scanning for USB... It may take up to 30 seconds. English - 24 BN68-01313B-00Eng-0816.indd 24 2007-08-17 2:39:26 Game Mode/ Blue Screen / Melody / Light Effect / Energy Saving / HDMI Black Level / Feature Demo

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER/OK button. Available options: Game Mode, Blue Screen, Melody, Light Effect, Energy Saving, HDMI Black Level, Feature Demo

3. When you are satisfied with your setting, press the ENTER/

OK button. Mode : Custom Setup Equalizer Plug Play

SRS TS XT

: Off Language :English Auto Volume : Off Time InternalMode Mute : Off Game :Off Reset Blue Screen :Off Melody :Off Home Theatre PC :Off Light Effect : In WatchingReturn Move Enter More Move

4. Press the EXIT button to exit.

Enter Return Setup More Wall-Mount Adjustment ♦ Game Mode: Off/On Energy Saving : Off When connecting to a game console such as PlayStation™ HDMI Black Level : Low or Xbox™, you can enjoy a more realistic gaming Feature Demo : Off PIP experience by selecting game menu. Upgrade To disconnect the game console and connect another external device, cancel game mode in the setup menu. If you display the TV menu in Game mode, the screen Move Enter Return shakes slightly. "Game Mode" is not available in TV mode. If Game Mode is On:

• Picture Mode changes to "Standard" and Sound Mode changes to "Custom" automatically. The user cannot change these to other modes.
• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults. ♦ Blue Screen: Off/On If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the Blue Screen to Off. ♦ Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. ♦ Light Effect: Off/In Standby/In Watching TV/Always You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. − Off: LED will not come on. − In Standby: Turns the LED on in standby mode. − In Watching TV: Turns the LED on while watching TV. − Always: LED will come on after you turn the TV off. Set the Light Effect to Off to reduce the power consumption.

nergy Saving: Off/Low/Medium/High/Auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Switches off the Energy Saving mode. − Low: Operates in standard mode regardless of the surrounding illumination. − Medium: Enters Medium power saving mode regardless of the surrounding illumination. − High: Enters maximum power saving mode regardless of the surrounding illumination. ♦ HDMI Black Level: Normal/Low You can directly select the black level on the screen to adjust the screen depth. This function is active only when the external input connects to HDMI(RGB signals). eature Demo: Off/On Feature Demo allows you to compare the enhanced screen quality of the “LED SmartLighting” feature with the original picture. The Demo screen for the “LED SmartLighting” is displayed. The right figure shows the screen before the LED Feature is applied. The left figure shows the screen after the LED Feature is applied. English - 25 BN68-01313B-00Eng-0816.indd 25 2007-08-17 2:39:26 Selecting the Source You can select among external sources connected to your TV’s input jacks.

Press the ENTER/OK button again, to select "Source List". When no external device is connected to your set, only "TV", "Ext.1", "Ext.2", "DTV" are activated in the "HDMI1", "HDMI2","HDMI3" are activated only when they are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button.

Press the ENTER/OK button. Move Enter Move

Return Enter Return Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P / button on the remote control. But it cannot be selected using the SOURCE button. Editing the Input Source Names Name the device connected to the input jacks to make your input source selection easier.

Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER/OK button. Press the ▲ or ▼ button to select the required device. Press the ENTER/OK button. Press the EXIT button to exit. hen a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

Return Enter Return Previewing the DTV Menu System he company does not guarantee the normal operation of the DTV menu for countries other than the supported countries (France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria) because only these country standards are supported. In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel Manager, etc. may not be displayed properly. ♦ Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button. Guide Now & Next Guide Full Guide Scheduled List Default Guide Language Audio Language Subtitle Language Teletext Language Preference High, Medium, Low, Opaque Off, On Normal, Hard of hearing PCM, Dolby Digital Disable, Enable Product Information Signal Information Software Upgrade Common Interface Reset Enter

Return Enter Exit Channel Country Auto Store Manual Store Edit Favourite Channels Channel List All, Favourites, Default Setup Menu Transparency Change PIN Parental Lock Subtitle Subtitle Mode Audio Format Digital Text Time Zone System

Enter Return Enter Exit Channel Country :United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List Move Move Enter Return Enter Exit Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Move Move Enter

Return Enter Exit Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Return Enter Exit Primary Audio Language Secondary Audio Language Primary Subtitle Language Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language The sub-items of the CI Menu may vary depending on the CAM model. English - 27 BN68-01313B-00Eng-0817.indd 27 2007-08-17 7:42:12 Updating the Channel List Automatically You can update the channel list when the broadcaster Channel Country :United Kingdom adds new Services or if you move the TV to a new Auto Store location. Manual Store

1. Press the MENU button to display the menu.

Edit Favourite Channels Channel List Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Channel", then press

the ENTER/OK button. Move Enter Return

3. Press the ENTER/OK button again, to select "Country".

Mode Auto: Custom Store

4. Select the appropriate country by pressing the ▲ or ▼

Equalizer button. Press the ENTER/OK button to confirm your choice.

SRS TS XT

: Off Auto Volume : Off Even though you have changed the country setting Scanning for digital services... Internal Mute : Off in this menu, the country setting for Analog TV is not 35% Reset changed.(Refer to page 10) Services found: 24 Channel: 38

5. Press the ▲ or ▼ button again, to select "Auto Store".

Stop Press the ENTER/OK button. Move Enter Return When it has finished, the number of scanned services Return will be displayed. The existing favourite channel list will not be deleted when the channel list is updated. To stop the scan before it has finished, press the ENTER/OK button with "STOP" selected.

6. Press the EXIT button to exit.

If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed. Updating the Channel List Manually You can specify the channel for a fast channel search. Manual Store

1. Press the MENU button to display the menu.

Channel Frequency Bandwidth Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button. 177500 KHz 7 MHz

2. Press the ▲ or ▼ button to select "Channel", then press

the ENTER/OK button. Search

3. Press the ▲ or ▼ button to select "Manual Store", then

Adjust Return press the ENTER/OK button.

4. Press the ▲ or ▼ button to select the required option,

then press the ENTER/OK button. − Channel : Channel "5" to "69" in sequence are displayed (depending on the country) − Frequency : The frequency available in the Channel group is displayed. andwidth : The available bandwidths are 7 and 8 MHz. ress the red button to start the scan for digital services. When it has finished, channels are updated in the channel list.

5. When it has finished, the number of scanned services will be displayed.

6. Press the EXIT button to exit.

English - 28 BN68-01313B-00Eng-0816.indd 28 2007-08-17 2:39:30 Editing Your Favourite Channels You can edit your favourite channels using the four colour buttons.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Edit Favourite Channels",

then press the ENTER/OK button.

4. Press the red button to display all currently stored channels.

5. Press the ▲ or ▼ button to select a channel you want.

Press the ENTER/OK button. A "" icon is shown next to the selected channel and the channel will be added to the favourite channel list.

• To undo, press the ENTER/OK button again.
• Select All: Select all channels currently displayed.

• Select None: Deselect all selected channels.

• Preview: Displays (a) currently selected channel(s). Edit Favourite Channels (no Channels) Move Enter Add Channels Return Return Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC Move Enter Select All Select None Move Select Return Preview Return Edit Favourite Channels

Move Enter Return Add Renumber Preview Delete Move Return Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC

Move Enter Select All Select None Return Preview Move Return Select English - 29 BN68-01313B-00Eng-0816.indd 29 2007-08-17 2:39:31 ♦ Renumber (depending on the country)

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Edit Favourite Channels",

then press the ENTER/OK button.

4. Select the required channel using the ▲ or ▼ button.

5. Press the green button.

The space for entering the number is a blank.

6. Enter the new channel number. Press ENTER/OK button to

store or RETURN button to cancel. Press the ◄ button to delete an entered digit. If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel. That is, the two numbers are exchanged. The favorite channels are automatically sorted in ascending order of channel numbers.

7. Press the EXIT button to exit.

1. In the "Edit Favourite Channels" menu,

select the channel to be previewed by pressing the ▲ or ▼ button.

2. Press the yellow button.

The selected channel is displayed on the screen. Edit Favourite Channels

Move Enter Edit Confirm Edit Favourite Channels

Add Renumber Move ♦ Delete

1. In the "Edit Favourite Channels" menu, select the channel to

be deleted from the favourite channels list by pressing the ▲ or ▼ button.

2. Press the blue button.

The selected channel and number will be deleted. To add a deleted channel back in to the favourite channel list, see "Add" on page 29. Return Return Preview Delete Return Edit Favourite Channels

Add Move Renumber Preview Delete Return English - 30 BN68-01313B-00Eng-0816.indd 30 2007-08-17 2:39:32 Selecting Channel List You can exclude the channels you have chosen from the Channel List All Channels-All Test Card M' v2.0 channels you have scanned.When you scan through the 1/2 23 bid-up.tv 60 Television X 1 Test Card M' v2.0 stored channels, those you have chosen to skip are not 25 TCM 70 BBC Radio 1 3 Vida003b displayed. All channels that you do not specifically choose 26 UKTV Style 72 BBC Radio 2 4 Vida004b 27 Discovery 73 BBC Radio 3 5 vida005b to skip are displayed during scanning. 28 DiscoveryH&L 74 BBC Radio 4 6 vida006b 15 Cartoon Nwk 84 heat 15 Ch 15 33 Boomerang 91 MOJO 16 QVC

1. Press the MENU button to display the menu.

55 Ttext Holidays 800 ARD-MHP-Data 17 UKTV Gold Press the ▲ or ▼ button to select "Digital Menu", then press 6 More Previous Page Next/Page Favourites the ENTER/OK button. Move Watch Return

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Channel List".

Press the ENTER/OK button. It can be displayed simply by

4. Press the ▲ or ▼ button to select "All", "Favourites" or

pressing the CH LIST button. "Default". Press the ENTER/OK button.

5. Press the yellow button to toggle between your favourite

channels and all channels. Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu (refer to page 29).

6. Press the red or green button to display the previous or next channel List page.

7. Press the ▲ or ▼ button to select a channel to be tuned.

Press the ENTER/OK button. The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels.

8. Press the blue button to toggle between your TV, Radio, Data/Other and All.

9. Press the CH LIST button to exit from the channel List.

Displaying Programme Information While viewing a channel, additional information about the current programme may be displayed.

1. While viewing a programme, press the INFO button.

➣ The programme information is displayed.

2. To exit from banner information, press the INFO button.

The information is displayed: − Parental Rating − Video Type: SD, HD, Radio − Audio Type: Mono, Stereo, Dual, Dolby Digital − Existence of Teletext or DVB Subtitle − Audio Language 14:30 Sat 1 Sep AII Channels A 1 AFDO,16:9 14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame is 16:9 Stereo Subtitle English Move Enter Return Exit English - 31 BN68-01313B-00Eng-0816.indd 31 2007-08-17 2:39:32 Viewing the EPG (Electronic Programme Guide) Information The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. ♦ Now & Next Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. ♦ Full Guide Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ENTER/OK button, to select "Guide".

3. Press the ▲ or ▼ button to select "Now & Next Guide" or

"Full Guide". Press the ENTER/OK button. You can also display the guide menu simply by pressing the GUIDE button.

To... Then... Watch a programme in the EPG list

• Select a programme by pressing the ▲, ▼, ◄, ► button. Now & Next Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Now Watch Full Guide Next Favourites Exit Full Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Today Watch Now/Next 13:00 Favourites 14:00 -24Hours +24Hours Exit

• Press the ENTER/OK button. If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER/OK button is pressed again, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the next page.
• Select a programme of your choice by pressing the ▲, ▼, ◄, ► button. View programme information

• Press the INFO button when the programme of your choice is highlighted. Toggle between the "Now & Next Guide" or "Full Guide"

• Press the red button repeatedly. Display the "Favourites" and the "All Channels" list

• Press the green button repeatedly. Scrolls backwards quickly (24 hours).

• Press the yellow button repeatedly. Scrolls forward quickly (24 hours).

• Press the blue button repeatedly. Exit the guide The programme title is on the upper part of the screen center. Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "..." will be appeared if the summary is long. Six channels are displayed. To scroll between channels, move to a channel using the ▲ or ▼ button. To display page by page, use the P or button. English - 32 BN68-01313B-00Eng-0816.indd 32 2007-08-17 2:39:33 Using the Scheduled List If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled programme at the scheduled time even if you are watching another programme.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ENTER/OK button, to select "Guide".

3. Press the ▲ or ▼ button to select "Scheduled List", then

press the ENTER/OK button.

4. Press the red button.

The channel will be switched to the scheduled programme.

5. Press the ENTER/OK button to select an item and adjust with

the ▲ or ▼ button . You can also set hour and minute by pressing the number buttons on the remote control.

• Channel: Set the channel.
• Date: Set Year, Month and Day.
• Frequency: Set the frequency. ("Once", "Daily", or "Weekly")

6. After setting the schedule, Press the red button.

7. Press the EXIT button to exit.

• Save: Save the adjusted schedule.
• Cancel: Cancel the adjusted schedule.
• Add Programme: Add a new schedule.
• Edit: Re-adjust the selected schedule.
• Delete: Delete the selected schedule. Scheduled List (No programmes) Add Programme Return Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Move Edit Delete Return Scheduled List Channel 802 RaiUno Time 15 : 20 to -- : -- Date Tue 22 Apr 2007 Frequency Once Save Adjust Cancel Move Return Setting the Default Guide You can preset the default guide style.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ENTER/OK button, to select "Guide".

3. Press the ▲ or ▼ button to select "Default Guide", then

press the ENTER/OK button.

4. Select "Now/Next" or "Full Guide" using the ▲ or ▼ button,

and press the ENTER/OK button.

5. Press the EXIT button to exit.

You can select these options by simply pressing the GUIDE button on the remote control. English - 33 BN68-01313B-00Eng-0816.indd 33 2007-08-17 2:39:33 Viewing All Channels and Favourite Channels In the EPG menu, you can display all channels or favourite channels.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ENTER/OK button again, to select "Guide".

3. Select the your required guide ("Now & Next Guide" or "Full

Guide") by pressing the ▲ or ▼ button.

4. Press the ENTER/OK button.

5. Press the green button.

All the channel lists and the favorite channel lists will be toggled.

6. Select a programme of your choice by pressing the ▲, ▼, ◄,

7. Press the INFO button to display information about the

highlighted programme.

8. When the Edit Favourite Channels list has not been set up:

• "The favourites list is empty. Would you like to choose your favourites now?" message is displayed.
• Select "Yes". The "Edit Favourite Channels" menu is displayed. If you select "No", all channels will remain unchanged. To edit the favourite channels, refer to page 29 for more details. 9 . Press the EXIT button to exit. Now & Next Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Now Watch Next Full Guide Favourites Exit Full Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO The favourites list is empty. 13:00 Would you like to choose your favourites now? Today Yes Watch Now/Next Favourites 14:00

-24Hours +24Hours Exit "All Channels" is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode. "Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 29). Adjusting the Menu Transparency You can set the Transparency of the menu.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press

the ENTER/OK button.

3. Press the ▲ or ▼ button to select "Menu Transparency"

then press the ENTER/OK button.

4. Select the required option ("High", "Medium", "Low", or

"Opaque") by pressing the ▲ or ▼ button, and press the ENTER/OK button to change the setting.

5. Press the EXIT button to exit.

Setup Menu Transparency : Medium High Change PIN Medium Parental Lock Low Subtitle : On Opaque Subtitle Mode : Normal

Move Enter Return English - 34 BN68-01313B-00Eng-0816.indd 34 2007-08-17 2:39:34 Setting up the Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press

the ENTER/OK button.

3. Press the ▲ or ▼ button to select "Parental Lock.", then

press the ENTER/OK button.

4. The "Enter PIN" is displayed.

5. Enter your current 4-digit PIN code by using the numeric

buttons (0~9). The default PIN code for a new TV set is 0000. If you enter an invalid PIN code,the "Invalid PIN code. Please try again." message is displayed.

6. Press the ENTER/OK button.

7. Press the ▲ or ▼ button to select the age rating you want to

lock out. Press the ENTER/OK button. Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Move Enter Move

Return Enter Return Parental Lock Enter PIN Enter PIN Return Parental Lock Parental Rating: No Block No Block Block

Move Enter Move ♦ Change PIN

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press

the ENTER/OK button.

3. Press the ▲ or ▼ button to select "Change PIN", then

press the ENTER/OK button. ➣ The "Enter PIN" is displayed.

4. Enter your current 4-digit PIN code by using the numeric

buttons (0~9). ➣ The “Enter New PIN” is displayed.

5. Enter your new PIN code by using the numeric buttons (0~9)

➣ The "Confirm New PIN" is displayed.

6. Re-enter your new PIN code to confirm by using the numeric

buttons (0~9). ➣ The Your PIN code has been changed successfully message is displayed.

7. Press the ENTER/OK button.

8. Press the EXIT button to exit.

➣ If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On). Return Enter Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Move Enter Move

Return Enter Return Change PIN Confirm New PIN Your PIN code has been changed successfully.

Enter PIN Return English - 35 BN68-01313B-00Eng-0816.indd 35 2007-08-17 2:39:35 Setting the Subtitle You can activate and deactivate the subtitles.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Subtitle ", then press the

4. Select "On" by pressing the ▲ or ▼ button. Press the

5. Press the EXIT button to exit.

Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Off Subtitle Mode : Normal

Move Enter Move Enter Return Return Setting the Subtitle Mode Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of hearing" is the subtitle for a hearing-impaired person.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Subtitle Mode", then

press the ENTER/OK button.

4. Press the ▲ or ▼ button to select "Normal" or

"Hard of hearing". Press the ENTER/OK button.

5. Press the EXIT button to exit.

If the programme you are watching does not support the "Hard of hearing" function, "Normal" automatically activates even though "Hard of hearing" mode is selected. Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Normal Hard of hearing Move Enter Move Enter Return Return Selecting the Audio Format You can only hear Dolby Digital sound through the audio Setup receiver connected through an optical cable. You can only Audio Format : PCM hear PCM sound through the main speaker. Digital Text : Enable When sound is emitted from both the main speaker and the Time Zone audio receiver, a sound echo may occur due to the decoding System speed difference between the main speaker and the audio receiver. In this case, use the internal mute function.

1. Press the MENU button to display the menu.

Move Enter Return Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the ENTER/OK button.

3. Press the ▲ or ▼ button to select "Audio Format", then press the ENTER/OK button.

4. Press the ▲ or ▼ button to select "PCM" or "Dolby Digital". Press the ENTER/OK button.

5. Press the EXIT button to exit.

The Audio Format appears according to the broadcasting signal. Dolby digital sound is only available when the TV is connected with an external speaker using an optical cable. English - 36 BN68-01313B-00Eng-0816.indd 36 2007-08-17 2:39:35 Selecting the Digital Text (UK only) If the programme is broadcast with digital text, this feature Setup is enabled. Audio Format : PCM

1. Press the MENU button to display the menu.

Digital Text : Enable Disable Press the ▲ or ▼ button to select "Digital Menu", then press Time Zone Enable the ENTER/OK button. System

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Digital Text", then press

Move Enter Return the ENTER/OK button.

4. Press the ▲ or ▼ button to select "Disable" or

"Enable". Press the ENTER/OK button.

5. Press the EXIT button to exit.

MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games. Selecting the Time Zone (Spain only) Select the time zone where locate

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Time Zone", then press

the ENTER/OK button.

4. Select the time zone where you locate by pressing the

▲ or ▼ button. Press the ENTER/OK button. he following options are available The Iberian Peninsula and Balearic Islands Canary Islands

5. Press the EXIT button to exit.

Viewing Product Information You can view your product information. For service or repair, please contact a Samsung approved dealer.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press

the ENTER/OK button.

4. Press the ENTER/OK button again, to select "Product

Information". The Product Information menu is selected. - Software Version, Firmware Version

5. Press the EXIT button to exit.

Time Zone The Iberian Peninsula and Balearic Islands Canary Islands Adjust Enter Return Checking the Signal Information You can get information about the signal status.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press the

4. Press the ▲ or ▼ button to select "Signal Information",

then press the ENTER/OK button.

5. Press the EXIT button to exit.

If the signal status is poor, the "No signal." message is displayed. Signal Information Service: ? Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Network: ? (ID 0000) Bit error level: Signal Strength: 0 Move Enter Return Return Upgrading the Software To keep your product up-to-date with new Digital Television System Product Information features then software upgrades are periodically broadcast Signal Information as part of the normal Television signal. Software Upgrade It will automatically detect these signals and display the Common Interface software upgrade banner. You are given the option to install Reset the upgrade.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press Move Enter Return the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

Software Upgrade ENTER/OK button. Software Information Manual Upgrade

3. Press the ▲ or ▼ button to select "System", then press the

Standby Mode upgrade : On ENTER/OK button.

4. Press the ▲ or ▼ button to select "Software Upgrade",

then press the ENTER/OK button.

5. Press the ▲ or ▼ button to select “Software Infomation”,

“Manual Upgrade” or “Satandby Mode upgrade”. Move Enter Return Press the ENTER/OK button. ♦ Software Inforamtion Press the ENTER/OK button, then the current software version is shown. To display the software version information, press the ENTER/OK button again. To switch to an alternative version, press the red button. Press the blue button to reset, activate the upgrade and restart. ♦ Manual Upgrade Press the ENTER/OK button to search for new software from the currently broadcasting channels. ♦ Standby Mode Upgrade : On / Off Press the ENTER/OK button. To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

6. Press the EXIT button to exit.

English - 38 BN68-01313B-00Eng-0816.indd 38 2007-08-17 2:39:36 Viewing Common Interface This contains information on CAM inserted in the CI slot and displays it.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press the

4. Press the ▲ or ▼ button to select "Common Interface",

then press the ENTER/OK button.

5. Press the ENTER/OK button to display the information for

6. Press the EXIT button to exit.

The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer

2. Insert the CI CARD into the CAM in the direction of the

arrow until it fits.

3. Insert the CAM with the CI CARD installed into the common

interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

4. Check if you can see a picture on a scrambled signal

channel. Application Info Type : CA Manufacturer : Channel Plus Info : Top Up TV Return Selecting the CI (Common Interface) Menu This enables the user to select from the CAM-provided menu.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press the

4. Press the ▲ or ▼ button to select "Common Interface",

then press the ENTER/OK button.

5. Select to "CI Menu" by pressing the ▲ or ▼ button, and

press the ENTER/OK button.

6. Select the required option by pressing the ▲ or ▼ button,

and press the ENTER/OK button.

7. Press the EXIT button to exit.

Select the CI Menu based on the menu PC Card. CI Menu Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Move Enter Exit English - 39 BN68-01313B-00Eng-0816.indd 39 2007-08-17 2:39:37 Resetting You can reset the values stored to the factory default values. The Reset operation deletes all channel information and user preferences returningall values to their default factory state.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press

the ENTER/OK button.

4. Press the ▲ or ▼ button to select "Reset", then press the

5. The "Enter PIN" screen will appear.

6. Enter your current 4-digit PIN code by using the numeric

buttons (0~9). he warning message is displayed.All values will be reset by pressing the coloured buttons (red, green, yellow, and blue)in turn.

7. Press the EXIT button to exit.

Reset Enter PIN Enter PIN Return Reset

WARNING: All channel settings and user

preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. Return Selecting the Preferred Language (Subtitle , Audio or Teletext) You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select "Language", then press

the ENTER/OK button.

3. Press the ▲ or ▼ button to select "Audio Language",

"Subtitle Language" or "Teletext Language". Press the ENTER/OK button.

4. Select a particular language by pressing the ▲ or ▼ button

repeatedly. Press the ENTER/OK button. English is the default in cases where the selected language is unavailable in the broadcast.

5. Press the EXIT button to exit.

While viewing a programme, the subtitle can be selected While viewing a programme, audio languages can be selected. Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return English - 40 BN68-01313B-00Eng-0816.indd 40 2007-08-17 2:39:37 Preference This menu consists of 6 sub-menus: Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language. Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch). The language selected here is the default when the user selects a channel. Language Audio Language Subtitle Language Teletext Language Preference Move Enter Move Enter Return Return ♦ Press the ▲ or ▼ button to select required menu (Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language), then press the ENTER/OK button. The options of the selected menu are displayed. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER/OK button to confirm your choice. If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 40) are automatically changed to the selected language. The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu. Teletext Decoder Most set channels carry " teletext ", pages of written information that provide information such as: ♦ Television programme times. ♦ News bulletins and Weather forecasts. ♦ Sports results. ♦ Subtitles for the hard of hearing. The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting station identity. Current page number or search status. Date and time. Text. Status information. English - 41 BN68-01313B-00Eng-0816.indd 41 2007-08-17 2:39:38 Displaying the Teletext Information You can display teletext information at any time, but signal reception must be good. Otherwise: ♦ Information may be missing. ♦ Some pages may not be displayed. To activate the teletext mode and display the contents page:

Using the P ( ) or P the teletext service.

) button, select the channel providing

Press the TEXT/MIX ( ) button to activate the teletext mode. The contents page is displayed. It can be redisplayed at any time by pressing the MENU ( ) button.

Press the TEXT/MIX ( ) button again. The actual broadcast will be displayed with "Teletext", "Double", and "Mix" in order on the screen.

Press the TV/DTV button to exit from the Text display. If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu. Selecting a Specific Teletext Page Press the number buttons on the remote control to enter the page number directly:

1. Enter the three-digit page number listed in the contents by pressing

the corresponding numeric buttons.

2. If the selected page is linked with several secondary pages, the

secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP ( ) . Press the PIP ( ) button again to resume.

Both teletext information and the normal broadcast TEXT/MIX ( Hidden text (answers to quiz games, for example) INFO (

The normal screen INFO (

A secondary page, by entering its 4-digit number PRE-CH ( The next page The previous page

Double-size letters in the: Upper half of the screen Lower half of the screen P.SIZE ( Once Twice Normal screen Three times

English - 42 BN68-01313B-00Eng-0816.indd 42 2007-08-17 2:39:38 Using Fastext to Select a Teletext Page The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

Display the teletext contents page by pressing the TEXT/MIX ) button.

Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).

Press the Red button to display the previous page. Press the Green button to display the next page.

Press the TV/DTV button to exit from the Text display. Setting Up Your Remote Control After it has been set up properly, your remote control can operate in five different modes: TV, DVD, Cable, Set-Top Box, VCR. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose. [LE52F9] The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes. Setting Up the Remote to Operate Your VCR, CABLE, DVD and STB

Turn off your VCR, CABLE, DVD and STB.

2. Press the VCR, CABLE, DVD and STB button on your TV’s remote

control. [LE52F9] Press the MODE button and make sure that the required mode (TV, VCR, CATV, DVD, STB) appears on the LED screen. [LE70F9]

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the

VCR code listed on pages 44~46 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a "0". (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your VCR should turn on if your remote is set up correctly. If your VCR does not turn on after set up, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080. [LE70F9] English - 43 BN68-01313B-00Eng-0816.indd 43 2007-08-17 2:39:39 Remote Control Codes VCR Brand SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar) LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Code

Product Home Theatre VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Code

Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on "Control Panel" on the Windows start menu. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display

dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported) D-Sub Input Mode IBM VESA VESA GTF Resolution 640x350 720×400 640×480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152x864 1152x864 1280x960 1280×1024 1280×1024 1600×1200 1920×1080 640×480 800×600 1024×768 Resolution 640x350 720×400 640×480 800×600 1024×768 1280×1024 1920×1080 Sync Polarity (H/V)

The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200). English - 47 BN68-01313B-00Eng-0816.indd 47 2007-08-17 2:39:40 Setting the PC Coarse and Fine Tuning of the Image (Image Lock): The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

Image Lock Coarse Fine Preset: Press the SOURCE button to select PC mode. Move

Press the ▲ or ▼ button to select "PC", then press the ENTER/OK button.

Press the ENTER/OK button to select "Image Lock".

Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER/OK button.

Press the ◄ or ► button to adjust the screen quality. Press the ENTER/OK button.

Press the EXIT button to exit. Changing the Image Position: Adjust the PC’s screen positioning if it does not fit the TV screen.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Position", then press the ENTER/OK button.

Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER/OK button.

Press the EXIT button to exit. Adjusting the PC Screen Automatically (Auto Adjustment): Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER/OK button.

Press the EXIT button to exit.

Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.

Press the ▲ or ▼ button to select "Image Reset", then press the ENTER/OK button.

Press the EXIT button to exit.

Image Lock Position Auto Adjustment Image Reset Move Initializing the Image Settings (Image Reset): You can replace all image settings with the factory default values. Return Position Move

Image Lock Position Auto Adjustment Image Reset Move Enter

Return English - 48 BN68-01313B-00Eng-0816.indd 48 2007-08-17 2:39:41 Setting the Home Theatre PC You can view higher quality pictures by configuring the screen settings in PC Mode. If you set the Home Theatre PC function to On, you can configure the Detail Settings (when Picture Mode is set to Standard or Movie) as in PC Mode.

Press the ▲ or ▼ button to select "Home Theatre PC". Press the ENTER/OK button.

Press the ▲ or ▼ button to select "Off" or "On". Press the ENTER/OK button.

Press the EXIT button to exit. This function is available only in PC mode.

Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off Home Theatre PC : Off Light Effect : In WatchingReturn Move Enter More Move

Enter Return Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off Home Theatre PC : Off Off Light Effect : In Standby On Return Move Enter More Move Enter Return English - 49 BN68-01313B-00Eng-0816.indd 49 2007-08-17 2:39:41 Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. Press the POWER button on the remote control or front panel. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by pressing the WISE LINK button on the remote control and enter the WISELINK screen again. TV Side Panel USB Drive Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.SAMSUNG is not responsible for any data file damage or data loss. Recommended image resolution for Wiselink is 600 mega pixels. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). We recommend the sequential jpeg format. Progressive jpeg uses a lot of memory and decoding may fail. Do not disconnect the USB device while it is “loading.” Neither PTP (Picture Transfer Protocol) nor MTP (Media Transfer Protocol) is supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. If the horizontal resolution of an image is higher than 5000, it cannot be decoded. If the vertical resolution of an image is higher than 4000, it cannot be decoded. In the WISELINK mode, the EXT 1(RGB) and EXT 2(AV) ports are disabled. The Photo or Music List displays up to 300 folders or files. English - 50 BN68-01313B-00Eng-0816.indd 50 2007-08-17 2:39:41 Using the WISELINK Menu

1. Press the MENU button. Press the ▲ or ▼ button to select

“Input”, then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select “WISELINK”, then press the

ENTER/OK button. Input

Source List : TV ► Edit Name ► Anynet+ (HDMI-CEC) WISELINK Move

3. Press the ▲ or ▼ button to select the corresponding USB

Memory Device, then press the ENTER/OK button. ➣ The "WISELINK" menu differs depending on the USB Memory Device connected to TV. Enter Return

4. Press the ◄ or ► button to move to an icon, then press the

ENTER/OK button. ➣ To exit WISELINK mode, press the WISELINK button on the remote control. Enter Exit Enter Return

Press the WISELINK button on the remote control to display a WISELINK menu. Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item. Select the currently selected item. Play or pause the Slide Show or MP3 file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) Stop the current function and return to the previous high-level menu. Stop WISELILNK mode. (Returns to TV mode ) English - 51 BN68-01313B-00Eng-0816.indd 51 2007-08-17 2:39:43 Using the Option Menu

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer

2. Press the ◄ or ► button to move to “Photo”, then press the

ENTER/OK button. The saved file information is displayed as a folder or file.

3. Press the ▲, ▼, ◄ and ► button to select a file, then press the

ENTER/OK button. Pressing the button over a photo thumbnail displays the photo in full screen.

4. Press the INFO button to display the option("Start Slide Show",

"Zoom", "Rotate", "List") Start Slide Show Zoom : Original Rotate : Original List INFO Exit Zoom:

• Press the ▲ or ▼ button to select “Zoom”, then press the ENTER/OK button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. (Original, X2, X4) ➣ To pan up/down/left/right, press the ▲, ▼, ◄ and ► buttons. ➣ Images with a resolution larger than 1280 X 720 are not supported. ➣ The "Rotate/Start Slide Show" option is disabled when the "Zoom" option is selected. ➣ Zoom function information icon (Displayed at the top left of the screen). Start Slide Show Zoom : Rotate List INFO

Exit "Original" : Restore a photo to its original size. " x2 " : Zoom-in to a photo x2. " x4 : Zoom-in to a photo x4.

: Move the zoomed-in photo up/down/right/left. Rotate:

• Press the ▲ or ▼ button to select “Rotate”, then press the ENTER/OK button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. (Original, 90, 180, 270) ➣ The rotated file is not saved. ➣ The “Zoom/Start Slide Show” option is disabled when the “Rotate” option is selected. ➣ The Rotating function information icon (Displayed at the top left of the screen). Start Slide Show Zoom : Original Rotate : List

"Original" : This rotates a photo to its original position INFO Original

"90" : This rotates a photo by 90 degrees "180 : This rotates a photo by 180 degrees "270" : This rotates a photo by 270 degrees English - 54 BN68-01313B-00Eng-0817.indd 54 2007-08-17 8:04:50 Using the Menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option("Fast", "Normal", Slow), then press the ENTER/OK button. Slide Show Speed : Fast Fast Normal Background Music : On Show Background Music Setting List Exit INFO Background Music: Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option("On", "Off"), then press the ENTER/OK button. Slide Show Speed : Fast Background Music : OnOff Background Music Setting List Exit INFO Background Music Setting: While the slide show is in progress, MP3 files and folders under the same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTER/OK button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played. ➣ If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. Background Music Setting Choose a file for background music Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06 ◄◄ 1/1 Page ►► Move Enter Return 1/10 Page Photo List: The file information is displayed as a folder or JPEG file. To exit WISELINK mode, press the WISELINK button on the remote control. Up Folder Forder1 File 4 File 5 File 9 Select File 10 Move Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Enter INFO File 12 Option File 13 Return 1/10 Page

When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). Photo Up Folder Forder1 File 4 File 5 File 9 Select File 10 Move Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Enter INFO File 12 Option File 13 Return : Folder icon Such as the resolution : Photo icon Photo Date modified : Move to the previous folder stage icon 108 x 81 3KB Dec20. 2006 4/25 Order of the file in thecurrent directory English - 53 BN68-01313B-00Eng-0816.indd 53 2007-08-17 2:39:46 Using the Option Menu

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer

2. Press the ◄ or ► button to move to “Photo”, then press the

ENTER/OK button. The saved file information is displayed as a folder or file.

3. Press the ▲, ▼, ◄ and ► button to select a file, then press the

ENTER/OK button. Pressing the button over a photo thumbnail displays the photo in full screen.

4. Press the INFO button to display the option("Start Slide Show",

"Zoom", "Rotate", "List") Start Slide Show Zoom : Original Rotate : Original List INFO Exit Zoom:

• Press the ▲ or ▼ button to select “Zoom”, then press the ENTER/OK button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. (Original, X2, X4) ➣ To pan up/down/left/right, press the ▲, ▼, ◄ and ► buttons. ➣ Images with a resolution larger than 1280 X 720 are not supported. ➣ The "Rotate/Start Slide Show" option is disabled when the "Zoom" option is selected. ➣ Zoom function information icon (Displayed at the top left of the screen). Start Slide Show Zoom : Rotate List INFO

Exit "Original" : Restore a photo to its original size. " x2 " : Zoom-in to a photo x2. " x4" : Zoom-in to a photo x4.

: Move the zoomed-in photo up/down/right/left. Rotate:

• Press the ▲ or ▼ button to select “Rotate”, then press the ENTER/OK button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. (Original, 90, 180, 270) ➣ The rotated file is not saved. ➣ The “Zoom/Start Slide Show” option is disabled when the “Rotate” option is selected. ➣ The Rotating function information icon (Displayed at the top left of the screen). Start Slide Show Zoom : Original Rotate : List

"Original" : This rotates a photo to its original position INFO Original

"90" : This rotates a photo by 90 degrees "180" : This rotates a photo by 180 degrees "270" : This rotates a photo by 270 degrees English - 54 BN68-01313B-00Eng-0817.indd 54 2007-08-17 9:04:00 Using the MP3 List This menu shows MP3 files from among the files saved on a USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to

2. Press the ◄ or ► button to move to “Music”, then press the

ENTER/OK button. The saved file information is displayed as a folder or file.

3. Press the ▲ or ▼ button to move to an icon, then press the

• Pressing the ENTER/OK button over a musical note icon immediately plays the music file.
• Pressing the ENTER/OK button over a folder icon shows the music files included in the folder.
• To select a file on the next page, press the REW ◄◄ or FF ►► button to move to the next page.

4. To select all files or a file, press the INFO button to display the

Music menus. Press the ENTER/OK button to select “Play”, “Repeat Music” or “Select All”. To exit WISELINK mode, press the WISELINK button on the remote control. Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 Play Repeat Music : On Exit 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 Select All INFO 001 Swan Song feat.TBNY Select Move Enter INFO Option 00:05:25 Return : Folder icon : Music icon : Move to the previous folder stage icon Play: Select to play MP3 files. ➣ Press the PLAY/PAUSE button while playing an MP3 file to pause the file. ➣ Press the STOP ▄ button to exit Play mode. ➣ This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed,even if they are saved on the same USB device. ➣ The selected file is displayed on the top with its playing time. ➣ To adjust the music volume, press the VOL+ or VOL- button on the remote control. To mute the sound, press the MUTE button on the remote control. ➣ FF ►► or REW ◄◄ button does not function during the play. Repeat Music: Select to repeatedly play MP3 files in the current folder. You can select On or Off Music function information icon : When all music files are being played. : When a music file is being played. : When pressing the PLAY/PAUSE button on the remote control while music is playing. The music stops and the ‘Play’ text appears at the top of the screen. : When pressing the STOP ▄ button on the remote control when music is stopped. The music resumes and the ‘Stop’ text appears at the top of the screen.

English - 55 BN68-01313B-00Eng-0816.indd 55 2007-08-17 2:39:48 Using the Setup Menu Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 51)

2. Press the ◄ or ► button to move to “Setup”, then press the ENTER/OK button.

3. Press the ▲ or ▼ button to select an item you want, then press the ENTER/OK button. (“Slide Show

Speed”, “Background Music”, “Background Music Setting”, “Repeat Music”, “Screen Saver”)

4. Press the ▲ or ▼ button to select the option, then press the ENTER/OK button.

To exit WISELINK mode, press the WISELINK button on the remote control. Slide Show Speed: Select to control the slide show speed. You can select “Fast”, “Normal” or “Slow”. Background Music : Select to determine whether to play an MP3 file during a slide show. You can select Music “On” or Music “Off”. Setup Slide Show Speed :Fast Fast Background Music : On Normal Background Music Setting Slow Repeat Music : Off Screen Saver : 5 min Move Setup Enter Slide Show Speed : Fast Background Music Background Music Setting: While a slide show is in progress, use the "Background Music Setting" to select a music file to listen to. Select an MP3 file as the background music. Return Enter Return Background Music Setting Choose a file for background music Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06 Repeat Music: Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. ◄◄ 1/1 Page ►► Move Setup Enter Slide Show Speed Return : Fast Background Music : On Background Music Setting Repeat Music : Off Off Screen Saver Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes. : 5 min

Move Setup Slide Show Speed Enter Return : Fast Background Music : On Background Music Setting Repeat Music : Off Screen Saver What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV. To directly connect to TV

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI 1.3 Cable To connect to Home Theater

HDMI 1.3 Cable Home Theatre HDMI 1.3 Cable Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI 1.3 Cable Optical Cable

Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver. Connect only one receiver. You can listen to 5.1 channel sound through the home theatre’s speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 57 BN68-01313B-00Eng-0816.indd 57 2007-08-17 2:39:51 Setting Up Anynet+ The following settings are to use Anynet+ functions. Using the Anynet+ Function

View TV Press the Anynet+ button. Press the ▲ or ▼ button to select Setup, then press the ENTER/OK button. Press the ENTER/OK button to select Anynet+ (HDMI-CEC), then press the ENTER/OK button. Press the ▲ or ▼ button to select On, then press the ENTER/OK button. The Anynet+ (HDMI-CEC) function is enabled. If you select Off, Anynet+ (HDMI-CEC) is disabled. When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Select Device

:Off Setup Move Exit

Enter Setup Searching Connections Move Enter Return Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the ▲ or ▼ button to select Auto Turn Off, then press

Setup the ENTER/OK button. Anynet+ (HDMI-CEC) : On

2. Press the ▲ or ▼ button to select On, then press the

Auto Turn Off : Off ENTER/OK button. Off

The Auto turn off function is enabled. If you select Off, the Auto turn off function is canceled. Searching Connections

Press the EXIT button to exit. Move Enter Return The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. Scanning and Switching between Anynet+ Devices

Press the Anynet+ button.

Press the ▲ or ▼ button to select Select Device, then press View TV the ENTER/OK button. DVDR1 Select Device DVDR2 Press the ▲ or ▼ button to select to a particular device and DVD1 Record press the ENTER/OK button. DVD2 Menu on Device It is switched to the selected device. Device Operation If you cannot find a device you want, press the ▲ or ▼ button Receiver :Off to select Searching Connections, then press the ENTER/OK button. Setup Move The meassage Configuring Anynet+ connection... is Enter Return displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu. Setup Switching to the selected devices may take up to 2 minutes. Anynet+ (HDMI-CEC) : On You cannot cancel the operation during the switching Auto Turn Off : On operation. The time required to scan for devices is determined by the Searching Connections number of connected devices. When the device scan is complete, the number of found Move Enter Return devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Anynet+ button. English - 58 BN68-01313B-00Eng-0816.indd 58 2007-08-17 2:39:51 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup Description Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Anynet+ Device Operating Status After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file Device with built-in Tuner After switching to the device, when you are watching a TV programme Audio Device When Receiver is activated Anyview2 When watching TV

Available Buttons Numeric buttons ▲/▼/◄/►/ENTER/OK buttons Colour buttons EXIT button ◄◄(Backward search) ►►(Forward search) (Stop) ► (Play/Pause) CH ▲/▼ button VOL +/- button MUTE button ► (Play/Pause) The Anynet+ function only works when the remote control is set to TV. The REC button works only while in the recordable state. You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The ◄◄, ►► operations may differ depending on the device. Recording You can make a recording of a TV programme using a recorder. Press the REC button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) ➣ The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. ➣ You can also record the source streams by selecting Record after pressing the Anynet+ button. ➣ Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. English - 59 BN68-01313B-00Eng-0816.indd 59 2007-08-17 2:39:51 Listening through a Receiver You can listen to sound through a receiver instead of the TV speaker.

1. Press the Anynet+ button.

Press the ▲ or ▼ button to select Receiver, then press the View TV ENTER/OK button. Select Device

2. Press the ◄ or ► button to select to On, then press the

Record ENTER/OK button. Menu on Device Now you can listen to sound through the receiver. Device Operation

3. Press the EXIT button to exit.

Receiver :On ➣ When the receiver is set to On, you can listen to the TV sound Setup through the 2-channel receiver. Move Enter ➣ If the receiver is exclusively for a home theatre only (supporting Exit audio only), it may not appear in the device list. ➣ Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. ➣ In case of a content with copyright problem, listening through the receiver may not properly operate. ➣ When listening through the receiver, there are restrictions for using the PIP and audio-related menu. Check Points before Requesting Service Symptom Anynet+ does not work. I want to start Anynet+. Solution

I want to exit Anynet+. ■

The Connecting to Anynet+ device… message appears on the screen. The Anynet+ device does not play. The connected device is not displayed. The TV programme cannot be recorded. The TV sound is not output through the receiver.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the Anynet+ button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of CH, CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. Check whether the antenna jack on the recording device is properly connected. Connect the optical cable between TV and the receiver. English - 60 BN68-01313B-00Eng-0816.indd 60 2007-08-17 2:39:51 Wall-Mount Adjustment (Sold separately) (LE52F9) Once the wall mount is installed, the position of your TV can be easily adjustable. TV Rear Panel Auto Wall-Mount SERVICE Cable (Not supplied)

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER/OK button.

2. Press the ▲ or ▼ button to select “Wall-Mount Adjustment”,

then press the ENTER/OK button.

3. Adjust to the desired position using the ▲,▼,◄,► buttons.

4. Press the EXIT button to exit.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. When you turn the power off, your TV moves to the initial installation position. When you turn the power on, your TV moves to the last remembered position you adjusted. The auto wall mount will not work when Anynet+ is operating.

Setup More Wall-Mount Adjustment Energy Saving : Off HDMI Black Level : Low Feature Demo : Off PIP SW Upgrade Move Enter

Return Using the Remote Control Buttons Button red button green button Operations yellow button Wall-mount angle adjustment Tilt Up, Tilt Down, Move right, Move left Reset Moves to the initial installation position Remembering the position and moving to the remembered position

1. Select the Direction buttons of the remote control.

2. Press the red button (Select Position 1).

3. Adjust the set to a desired position following the wall mount owner's

4. The position you adjusted last is memorized as Position 1.

5. By using the green button (Select Position 2) and the yellow button

(Select Position 3), you can save positions according to the procedures above.

6. You can save 3 respective positions. To the red button (Select

Position 1), green button (Select Position 2) and yellow button (Select Position 3). If you press a button after saving, the set automatically moves to that saved angle.

7. If you additionally move the set from a saved position, the last

position is saved. For installation, refer to the Installation Manual provided. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer English - 61 BN68-01313B-00Eng-0816.indd 61 2007-08-17 2:39:52 Using the Anti-Theft Kensington Lock (depending on the model) The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

Connect the Kensington lock cable.

Fix the Kensington lock to a desk or a heavy stationary object. Cable Figure 2 Figure 1 <Optional> The place of the Kensington Lock may be different depending on its model. Troubleshooting: Before Contacting Service Personnel No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on the front of the set. Check the picture contrast and brightness settings. Check the volume. Normal picture but no sound Check the volume. Check whether the MUTE button has been pressed on the remote control. Check if "Internal Mute" is off Screen is black and power On your computer check; Power, Signal Cable. indicator light blinks steadily The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. No picture or black and Adjust the colour settings. white picture Check that the broadcast system selected is correct. Sound and picture Try to identify the electrical appliance that is affecting the set and move it interference further away. Plug your set into a different mains socket. Blurred or snowy picture, Check the direction, location and connections of your aerial. distorted sound This interference is often due to the use of an indoor aerial. Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. "Check signal cable." Check that the signal cable is firmly connected to the PC or video sources. message is displayed. Check that the PC or video sources are turned on. On PC mode, "Not Supported Check the maximum resolution and the frequency of the video adaptor. Mode." message is displayed. Compare these values with the data in the Display Modes. The damaged picture appears If "Just Scan" is selected in some external devices, the damaged picture in the corner of the screen. may appear in the corner of the screen. This symptom is caused by external devices, not TV. The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 62 BN68-01313B-00Eng-0816.indd 62 2007-08-17 2:39:53 Technical and Environmental Specifications Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity LE52F9 52 inch 1920 x 1080 @ 60 Hz LE70F9 70 inch 1920 x 1080 @ 60 Hz 15 W X 2 15 W X 2 1372 x 120 x 780 mm 1372 x 320 x 845 mm 1771 x 150 x 1023 mm 1771 x 420 x 1079 mm 42 kg 96 kg Stand Swivel (Left / Right) (LE52F9) -20˚ ~ 20˚ Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product. English - 63 BN68-01313B-00Eng-0816.indd 63 2007-08-17 2:39:53 © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Fre-0817.indd 1 2007-08-17 10:40:10 Installation du support mural Nom station Prog.

Mode :PIP Custom Equalizer PIP :: Marche

SRS TS XT

Off Source : TV Auto Off Taille Volume Internal Mute : Off Position Reset Programme : P 1 Déplacer

Mono ↔ Dual I Dual II Régler les “Mois”, “Date”, “Année”, “Heure” ou “Minute”

BBC TWO Five BBC THREE abc1 QVC Move Sélectionner tout Déplacer Entrer Sélectionner aucun Sélect Return Aperçu Retour 27 Discovery Extreme Machines: Armoured Cars INFO Aujourd’hui Regarder Main/Aprés 13:00 Favoris 14:00 - 24Heures +24Heures Quit Guide Now & Next Produit Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Code

640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080

VESA GTF 640 × 480 800 × 600 1024 × 768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

40,000 65,000 108,000 138,500 Photo Up Folder Forder1 Photo 0001 Photo 0001 None File 4 File 5 File 6 File 7 File 8 File 9 File 10 File 11 File 12 File 13 Photo Up Folder Forder1 File 4 File 5 File 9 Sélect. File 10 Déplacer Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Entrer File 12 INFO Option File 13 Retour Photo Date de modification Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 Câble SERVICE (non fourni) Position 1 2 3 Régler INFO Centre Beenden © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Ger-0817.indd 1 2007-08-17 1:04:08 Send. C-C23 C16

Navig. Name --------------------Eingabe Zurück

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Navig. Einstellen Zurück Mono ↔ Dual I Dual II Software-Update USB Eingabe Zurück BBC TWO Five BBC THREE abc1 QVC Move Enter Navig. Wählen Alle wählen Keinen wählen Return Vorschau Zurück Favoriten bearbeiten

13:28 Mi 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Heute Ansehen Akt./Näch 13:00 Favoriten 14:00 --24Std +24Std Beenden Produkt Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Code

640 x 350 720 × 400 640 × 480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080 640 × 480 800 × 600 1024 × 768

VESA VESA GTF Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 001 Swan Song feat.TBNY Beenden Wählen Navig. Eingabe INFO Option 00:05:25 Zurück © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Dut-0817.indd 1 2007-08-17 1:32:13 Balance 100Hz 300Hz 1kHz 3kHz 10kHz Verpl Instellen Terug

BBC TWO Five BBC THREE abc1 QVC Move Enter Return Verpl. Keuze Terug Alles kiezen Niets kiezen Trailer Favorieten bewerken

13:28 Wo 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Vandaag Bekijken Nu/Volgend 13:00 Favorieten 14:00 -24 uur +24 uur Sluiten Codes afstandsbediening VCR Merk SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar) LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Code

Product Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Code

640 × 480 640 × 480 800 × 600 800 × 600 800 × 600 1024 × 768 1024 × 768 1024 × 768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080

VESA GTF 640 × 480 800 × 600 1024 × 768 35,000 43,750 57,672 70,000 70,000 72,000 28,560 45,500 78,434

Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 001 Swan Song feat.TBNY SluitenKeuze Verpl. Enter INFO Optie 00:05:25 Terug Apparaatbediening Receiver Instellingen © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Ita-0817.indd 1 2007-08-17 1:54:46 Start Plug & Play.

Sposta Nome --------------------Conferma Ritorno

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Sposta Regola Ritorno Ora Imposta Ora Timer stand-by Timer 1 Timer 2 Timer 3 Sposta

Regola Ritorno 1 AFDO,16:9 14:30~14:33 AFDO 16:9 Sbloccato Contains video with AFD O; coded frame is 16:9 Stereo Sottotitolo Inglese Move Enter Return Esci Italiano - 31 BN68-01313B-00Ita-0817.indd 31 2007-08-17 1:55:09 Guida “Ora & Seguente” 13:28 Mer 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Attuale Guarda Successivo Guida Completa Preferiti Esci Guida Completa 13:28 Mer 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Oggi Guarda 13:00 Ora/Segu Preferiti 14:00 -24 Ore +24 Ore Esci Reset Immetti PIN Immetti PIN Ritorno Codici del telecomando Videoregistratore Marca SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar) LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Codice

Prodotto Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Codice

640 x 350 720 × 400 640 × 480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080 640 × 480 800 × 600 1024 × 768

Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Spa-0817.indd 1 2007-08-17 2:02:36 DVI IN (HDMI 2) (R-AUDIO-L) 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir Bloquear Mover Entrar Página Volver BBC TWO Five BBC THREE abc1 QVC Move Selecc. todos Mover Enter No selec. ning Selecc Return Previsualiz. Volver 27 Discovery Extreme Machines: Armoured Cars INFO Hoy Ver 13:00 Act./sig Favoritos 14:00 -24Horas +24Horas Salir Producto Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Código

640 x 350 720 × 400 640 × 480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080 640 × 480 800 × 600 1024 × 768

Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Por-0817.indd 1 2007-08-17 3:24:31 [Side Panel Jacks] (Tomadas do painel lateral)

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Voltar Move Enter Adic. canais Return Voltar BBC TWO Five BBC THREE abc1 QVC Move Enter Selec. Todos Selec. Nenhum Mover Return Pré-vis Seleccion Voltar BBC TWO Five BBC THREE abc1 QVC Move Selec. Todos Mover

Enter Selec. Nenhum Seleccion Return Pré-vis Voltar Português - 29 BN68-01313B-00Por-0817.indd 29 2007-08-17 3:24:51 27 Discovery Extreme Machines: Armoured Cars INFO Hoje Ver 13:00 Act./Post Favoritos 14:00 -24 horas +24 horas Saída Códigos do telecomando Videogravador Marca SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar) LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Código

Produto Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Código

640 x 350 720 × 400 640 × 480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080 640 × 480 800 × 600 1024 × 768

Selec. Todos INFO Saída Nat King Cole-Fly me to the moon 00:04:00 Upper Folder Folder 1 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 © 2007 Samsung Electronics Co., Ltd. All rights reserved. BN68-01313B-00Sln-0817.indd 1 2007-08-17 3:21:12

UPORABA FUNKCIJE DTV-JA

UPORABA FUNKCIJE TELETEKSTA

Vhod Avdio (L/R (L/D))

Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off Home Theatre PC : Off Light Effect :In Watching TV More Move Enter Start Plug & Play.

Manual Store Programme Colour System Sound System Channel Search Store Move Channel Manager Channel List Child Lock : Off

) poleg Move Enter Return Channel List P 1 C3 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Pritisnite gumb ali Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move Picture Dynamic Mode : Dynamic Standard 100 Contrast Movie 45 Brightness Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move

Enter Return Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 Cool 2 R50 Colour Tone : Cool1 Cool 1 Detailed Settings Normal Backlight : 10 Warm 1 sMore Warm 2 Picture Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G50 R50 Colour Tone : Cool1 Detailed Settings Backlight : 10 sMore Move Enter Return Adjust Return Backlight

Slovenščina - 16 BN68-01313B-00Sln-0817.indd 16 2007-08-17 3:21:22 Picture Mode : Movie Contrast 80 Brightness 45 Sharpness 30 Colour 53 Tint G50 R50 Colour Tone : Warm2 Detailed Settings Backlight : 5 sMore Move

Enter Mode : Custom Setup Equalizer More

SRS TS XT

: Off Wall-Mount Auto VolumeAdjustment : Off Energy :: Off Internal Saving Mute Off HDMI Black Level : Low Reset Feature Demo : Off PIP SW Upgrade : Off Move Move

Enter Return Enter Return Mode :PIP Custom Equalizer PIP :: On

SRS TS XT

Off Source : TV Auto Off Size Volume Internal Mute : Off Position Reset Programme : P 1 Move Move

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Setup More Wall-Mount Adjustment Energy Saving : Off HDMI Black Level : Low Feature Demo : Off PIP SW Upgrade : Off Move

Return SW Upgrade USB Enter Return SW Upgrade Scanning for USB... It may take up to 30 seconds. Slovenščina - 24 BN68-01313B-00Sln-0817.indd 24 2007-08-17 3:21:27 Game Mode /Blue Screen/Melody/Light Effect/Energy Saving/ HDMI Black Level/ Feature Demo

Mode : Custom Setup Equalizer Plug & Play SRS TS : Off Language :English Auto Volume : Off Time InternalMode Mute : Off Game :Off Reset Blue Screen :Off Melody :Off Home Theatre PC :Off Light Effect : In WatchingReturn Move Enter More Move

Enter Return Setup More Mode : Custom Input Equalizer Source :: TV SRS TS List Off Edit Name Auto Volume : Off Anynet+(HDMI-CEC) Internal Mute Off WISELINK Reset Move Move

Return Enter Return Mode : Custom Input Equalizer Source List :: TV

SRS TS XT

Off Edit Name Auto Volume : Off Anynet+(HDMI-CEC) Internal Mute : Off WISELINK Reset Move Move

Return Enter Return Language Audio Language Subtitle Language Teletext Language Preference

High, Medium, Low, Opaque Off, On Normal, Hard of hearing PCM/Dolby Digital Disable, Enable Product Information Signal Information Software Upgrade Common Interface Reset Exit Enter

Return Enter Exit Channel Country : United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List Move All, Favourites, Default Return Enter Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Move Move Enter

Return Enter Exit Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Return Enter Exit Primary Audio Language Secondary Audio Language Primary Subtitle Language Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language Edit Favourite Channels (no Channels) Add Channels Return Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC Select All Select None Move Select Preview Return Edit Favourite Channels

Edit Favourite Channels

Move Add Move EnterPrewiew Return Delete Renumber Return Edit Favourite Channels

Move Add Move EnterPrewiew Return Delete Renumber Return Slovenščina - 30 BN68-01313B-00Sln-0817.indd 30 2007-08-17 3:21:33 14:30 Sat 1 Sep AII Channels A 1 AFDO,16:9 14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame is 16:9 Stereo Subtitle English Move Enter Return Exit Slovenščina - 31 BN68-01313B-00Sln-0817.indd 31 2007-08-17 3:21:34 Now & Next Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Now Watch Full Guide Next Favourites Exit Full Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Today Watch Now/Next 13:00 Favourites 14:00 -24Hours +24Hours Exit Scheduled List (No programmes) Add Programme Return Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Move Edit Delete Return Scheduled List Channel 802 RaiUno Time 15 : 20 to -- : -- Date Tue 22 Apr 2007 Frequency Once Save Adjust Cancel Move Return The favourites list is empty. Would you like to choose your favourites now? Yes

Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Move Move

Enter Return Enter Return Parental Lock Enter PIN Enter PIN Return Parental Lock Parental Rating: No Block No Block Block

Move Move Enter Return Enter Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Off Subtitle Mode : Normal

Move Move Enter Return Enter Return Fuso horário The Iberian Peninsula and Balearic Islands Canary Islands Ajustar Enter Volver Signal Information Service: ? Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Network: ? (ID 0000) Bit error level:

Signal Strength: Move

Enter Return Return Product Information Signal Information Software Upgrade Common Interface Reset Move

Enter Return Software Upgrade Software Information Manual Upgrade Standby Mode upgrade : On Move Enter

Return Reset Enter PIN Enter PIN Return Reset

WARNING: All channel settings and user

preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Slovenščina - 40 BN68-01313B-00Sln-0817.indd 40 2007-08-17 3:21:39 Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Enter Return Return Teletekst in TV-program TEXT/MIX ( Izdelek Home Theater VCR COMBO HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Koda

640 x 350 720 × 400 640 × 480 640×480 640×480 800×600 800×600 800×600 1024×768 1024×768 1024×768 1152 x 864 1152 x 864 1280 x 960 1280×1024 1280×1024 1600×1200 1920×1080 640 × 480 800 × 600 1024 × 768

Image Lock Position Auto Adjustment Image Reset Move

Image Lock Position Auto Adjustment Image Reset Move Enter

Return Slovenščina - 48 BN68-01313B-00Sln-0817.indd 48 2007-08-17 3:21:42 Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off Home Theatre PC : Off Light Effect : In WatchingReturn Move Enter More Move

Enter Return Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off Home Theatre PC : Off Off Light Effect : In Watching On Return Move Enter More Move Enter Return Slovenščina - 49 BN68-01313B-00Sln-0817.indd 49 2007-08-17 3:21:43 Input Source List : TV Edit Name Anynet+ (HDMI-CEC) WISELINK Move Photo Up Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 Start Slide Show Select All INFO Exit Normal Background Music : On Show Background Music Setting List INFO Background Music Setting List INFO Exit Background Music Setting Choose a file for background music Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06 ◄◄ 1/1 Page ►► Move Enter Return 1/10 Page Photo Photo Up Folder Forder1 File 4 File 5 File 9 Select File 10 Move Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Enter INFO File 12 Option File 13 Return Photo Datum spremembe Rotate : Original List INFO Exit Start Slide Show Zoom : Original Rotate : List INFO Original

Nat King Cole-Fly me to 00:04:00 Upper Folder Folder 1 Play Repeat Music : On Exit 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 Select All INFO 001 Swan Song feat.TBNY Select Move Enter INFO Option 00:05:25 Return Slide Show Speed :Fast Fast Background Music :Normal Background Music Setting Slow Repeat Music : Off Screen Saver : 5 min Move Setup Enter Slide Show Speed : Fast Background Music Background Music Setting Choose a file for background music Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06 ◄◄ 1/1 Page ►► Move Slide Show Speed Return : Fast Background Music : On Background Music Setting Repeat Music : Off Off Screen Saver Slide Show Speed Enter Return : Fast Background Music : On Background Music Setting Repeat Music : Off Screen Saver Auto Turn Off Searching Connections Move : Off Off

Enter Return View TV Select Device

:Off Setup Move Return Ko gledate TV-program

View TV Select Device

:On Setup Setup More Wall-Mount Adjustment Energy Saving : Off HDMI Black Level : Low Feature Demo : Off PIP SW Upgrade : Off Move Enter

Return Position 1 2 3 Adjust Center INFO Exit
