L100 - Camera SAMSUNG - Free user manual and instructions

Photo resolution	8.2 megapixels
Sensor type	CCD
Optical zoom	3x (37-111 mm equivalent 35mm)
Maximum aperture	f/2.8 (wide) - f/5.2 (tele)
LCD screen	2.5 inches, 230,000 pixels
Image stabilization	DIS (Double Image Stabilization)
ISO sensitivity	Auto, up to 1600
Internal memory	Approx. 20 MB
Storage support	SD, SDHC (up to 8 GB), MMCplus
Photo format	JPEG
Video format	AVI (MJPEG), 800 x 592 pixels
Battery	Samsung SLB-10A, Li-Ion, 3.7 V / 1,030 mAh
Connection	USB
Dimensions	87.7 x 56.3 x 20 mm
Weight	114 g (without battery or card)
Face detection	Yes

Frequently Asked Questions - L100 SAMSUNG

What is the maximum resolution of the Samsung L100?

The Samsung L100 captures photos up to 8.2 megapixels thanks to its CCD sensor. This resolution allows for sharp prints up to A3 size without visible quality loss.

What type of memory card should be used with the Samsung L100?

The camera accepts SD, SDHC cards (up to 8 GB) and MMCplus. It also has an internal memory of about 20 MB to store a few photos without a card.

What battery does the Samsung L100 use and where can I find a replacement?

The L100 uses the lithium-ion battery Samsung SLB-10A (3.7 V, 1,030 mAh). Compatible batteries are available on spare parts websites like Spareka or FixPart.

How do I activate image stabilization on the Samsung L100?

The L100 features DIS (Double Image Stabilization) technology. It can be activated from the camera's menu. It corrects both motion blur and color degradation in low light conditions.

What is the maximum ISO sensitivity of the Samsung L100?

The maximum sensitivity is ISO 1600. The higher the ISO value, the more sensitive the camera is to light, but photos may have more digital noise. Outdoors during the day, stick to ISO 80 or Auto.

Can the Samsung L100 record videos? At what resolution?

Yes, the L100 records videos in AVI (MJPEG) format up to a resolution of 800 x 592 pixels (SVGA). The optical zoom operates silently during video recording.

How to connect the Samsung L100 to a computer?

Connect the provided USB cable between the camera and your PC. A USB driver is available for download on the Samsung website (compatible with Windows). Photos appear as a removable drive or through your photo software.

How to use face detection on the Samsung L100?

Activate the Face Detection mode from the shooting menu. The camera automatically detects up to several faces in the frame and focuses on them. A self-portrait function is also available to make selfies easier.

What is the focal range of the Samsung L100's optical zoom?

The lens covers a range of 37 to 111 mm in 35mm equivalent, which is a 3x optical zoom. The maximum aperture is f/2.8 at wide angle and f/5.2 at telephoto.

Are photos taken with the Samsung L100 blurry despite stabilization?

If photos remain blurry, check that the DIS stabilization is activated in the menu. Hold the camera with both hands, elbows against your body, and wait for the autofocus to confirm focus (beep or green light) before pressing the shutter button. In very low light, use an appropriate scene mode or increase the ISO.

Is the Samsung L100's LCD screen of good quality?

The L100 has a 2.5-inch LCD screen with a resolution of 230,000 pixels, which was in the higher range for a compact of this generation. It allows easy viewing and deletion of photos after shooting.

Is the Samsung L100 compatible with high-capacity SDHC cards?

Yes, the camera is officially compatible with SDHC cards up to 8 GB. SDXC cards (64 GB and above) are not supported. Choose an SDHC Class 4 card or higher for better video performance.

USER MANUAL L100 SAMSUNG

Thank you for buying a Samsung Camera.

This manual has basic instructions for quick and easy picture taking.

For more information, refer to the user manual included in the supplied CD-Rom.

ENGLISH/FRANÇAIS/Türkçe/

繁體中文/BAHASA/1n

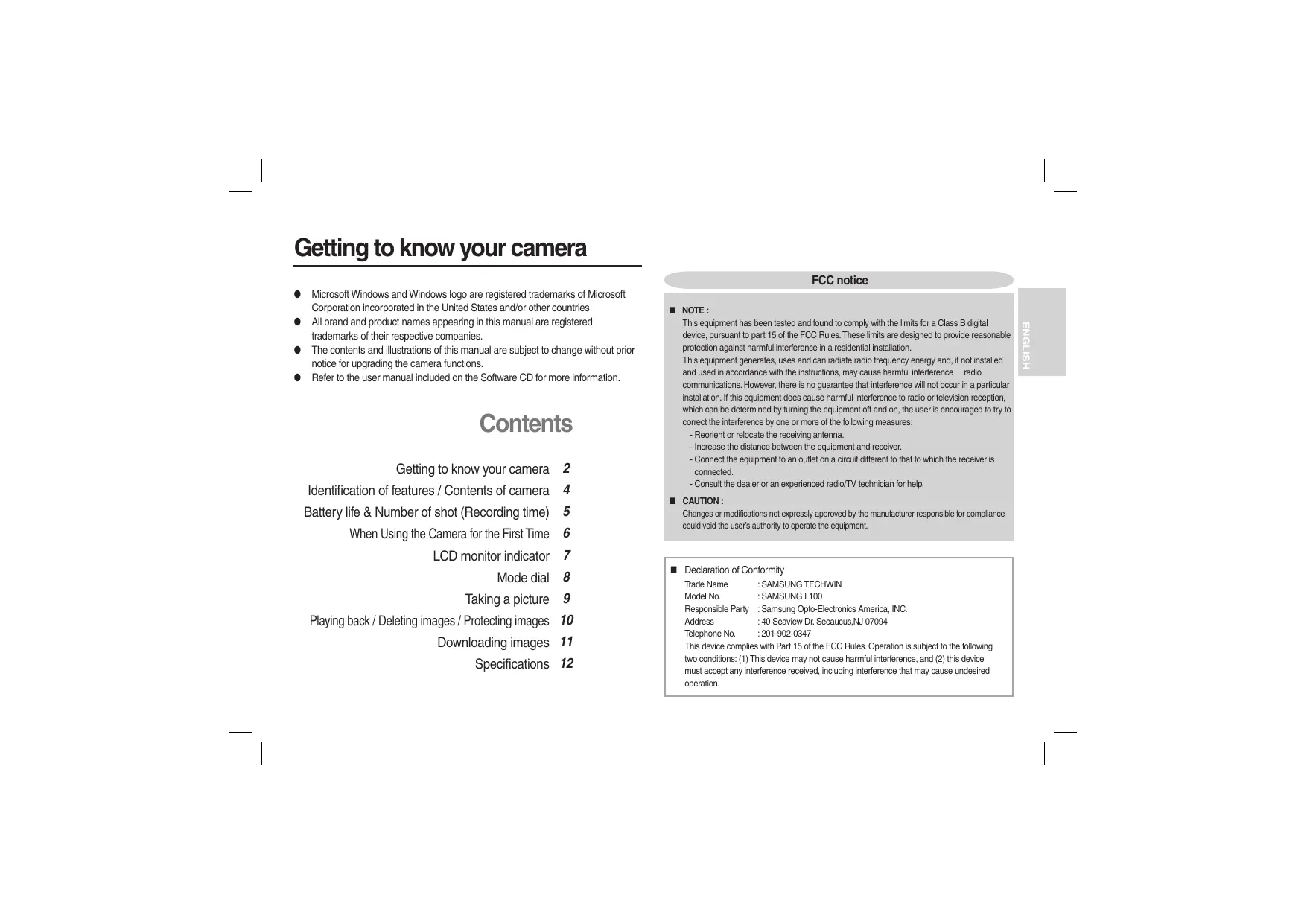

Getting to know your camera

Microsoft Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
- All brand and product names appearing in this manual are registered trademarks of their respective companies.
- The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
Refer to the user manual included on the Software CD for more information.

Contents

Getting to know your camera 2

Identification of features / Contents of camera 4

Battery life & Number of shot (Recording time) 5

When Using the Camera for the First Time 6

LCD monitor indicator 7

Mode dial 8

Taking a picture 9

Playing back / Deleting images / Protecting images 10

Downloading images 11

Specifications 12

FCC notice

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different to that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Responsible Party : Samsung Opto-Electronics America, INC.

Address : 40 Seaview Dr. Secaucus,NJ 07094

Telephone No. : 201-902-0347

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

It is highly likely to result in computer malfunctions when the 20 pin connector is connected to the USB port of a PC. Never connect the 20 pin connector to USB port of a PC.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

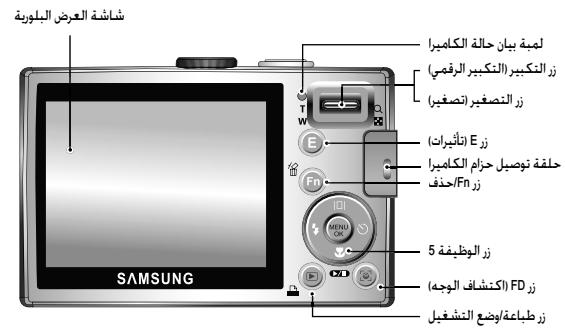

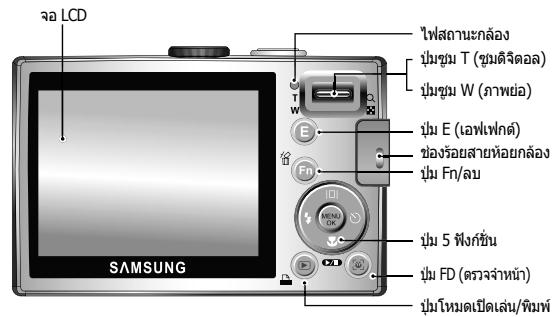

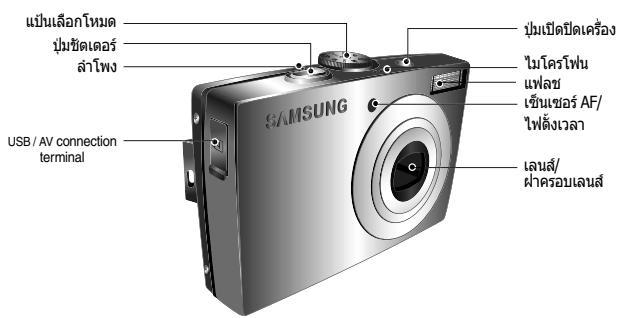

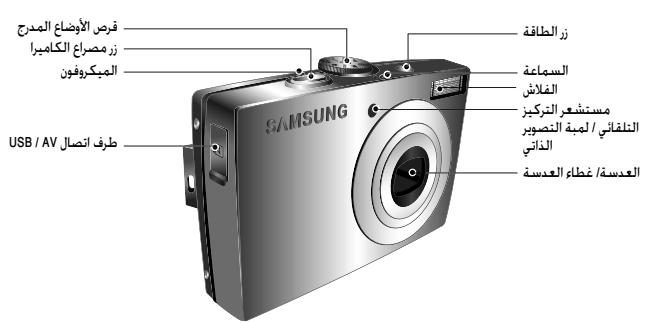

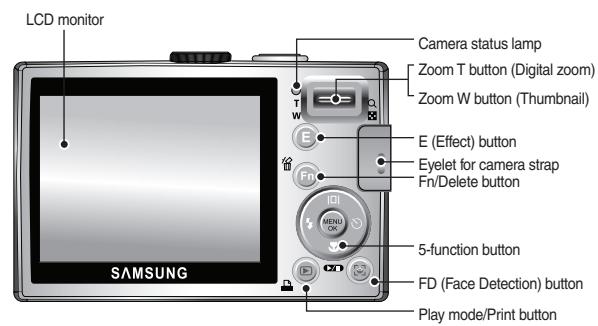

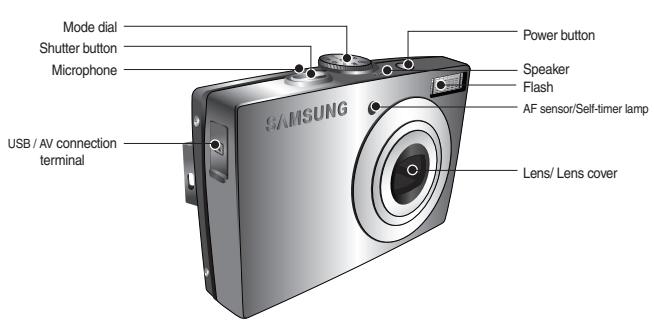

Identification of features / Contents of camera

Included items
Camera

Rechargeable Battery (SLB-10A)

AV cable

Camera strap

AC Adapter(SAC-47)/
USB cable(SUC-C3)

Optional items
Camera case

SD/SDHC/MMC memory card

User manual, Product warranty

Software CD

• Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shot (Recording time)

Number of images and battery life : Using the SLB-10A

Still image		Movie
Battery life	Number of images	Recording time
Approx. 130 MIN	Approx. 260 shots	Approx. 120 MIN
Conditions	Using the fully charged battery, Auto mode, 8M image size Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute.	Using the fully charged battery 640x480 image size 30fps frame rate

• These figures are measured under Samsung's standard conditions and shooting conditions and may vary depending on the user's methods.

• When using a 256MB MMC (Multi Media Card), the specified shooting capacity will be as follows.

Recorded image size		Super Fine	Fine	Normal	30FPS	15FPS
Still image	8"	About 64	About 117	About 171	-	-
	7"	About 71	About 135	About 192	-	-
	6"	About 84	About 157	About 220	-	-
	5"	About 100	About 186	About 256	-	-
	3"	About 150	About 269	About 372	-	-
	1"	About 459	About 822	About 868	-	-
Movie	640	-	-	-	About 2'02"	About 4'05"
	320	-	-	-	About 7'39"	About 13'15"

• The recording times can be changed by the zoom operation.
  The zoom button doesn't use during the movie recording.

When Using the Camera for the First Time

• Charge the rechargeable battery fully before using the camera for the first time.
• When the camera is turned on for the first time, a menu will be displayed to set date / time and language in the LCD monitor. This menu will not be displayed after setting up. Set up the date / time and language before using this camera.

Setting up the Language

1. Select the [Language] menu by pressing the UP/DOWN button and press the RIGHT button.
2. Select the desired sub menu by pressing the UP / DOWN button and press the OK button.

• You can select one of 22 languages. These are listed below :
• English, Korean, French, German, Spanish, Italian, S.Chinese, T.Chinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, Bahasa (Malay/ Indonesian), Arabic, Czech, Polish, Hungarian and Turkish.
• Even if the camera is restarted, the language setting will be maintained.

Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the UP/DOWN button and press the RIGHT button.
2. Select the desired sub menu by pressing the UP/ DOWN/ LEFT/ RIGHT button and press the OK button.

RIGHT button

: Selects WORLD TIME/ YEAR/MONTH/ DAY/HOUR/ MINUTE/DATE TYPE

LEFT button

: Moves the cursor to the [Date&Time] main menu if the cursor is at the first item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position.

UP/DOWN button : Changes the value of each item.

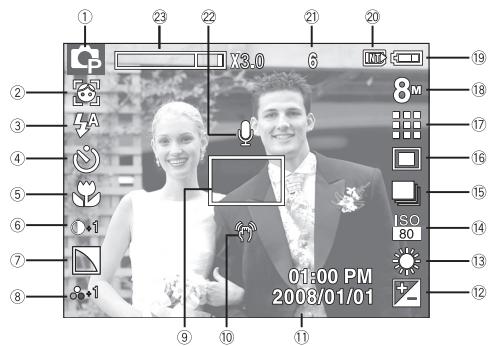

LCD monitor indicator

• The LCD monitor displays information about the shooting functions and selections. Refer to the user manual included on the Software CD for more information.

[Image & Full Status]

No.	Description	Icons
1	Recording mode	O M D E Y C E E
		A T B C D E F G
2	Face Detection / Self Portrait	/
3	Flash	4 A 5 S 6
4	Self-timer	2S 3D (C)
5	Macro	A B
6	Contrast	1-2 2-1 1+1 1+2

■ You can select a desired camera mode by using the Mode dial on the top of the camera

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction. In this mode, you can select the basic menus. To select an advanced menu, select the other camera mode.

PROGRAM

Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

MANUAL

You can manually configure all functions aperture value and shutter speed.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

PHOTO HELP GUIDE

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

PORTRAIT

Please select this mode for quick and easy portraits.

SCENE

Use the menu to easily configure optimal settings for a variety of shooting situations.

MOVIE

A movie can be recorded for as long as the available recording time of the memory capacity allows.

Taking a picture

How to take a picture

Select a camera mode.

1. Turn on the camera

1. Hold the camera as shown

1. Confirm the composition

1. Take a picture

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

ENGLISH

How to record a movie

Rotate the Mode dial and select (

1. Confirm the composition

1. Start the recording

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording

Playing back / Deleting images / Protecting images

Playingback the images

• The last image stored on the memory is displayed.

Press the button to select the Playback mode

Select an image that you want to play back by pressing the Left/Right button

- Deleting images

• This deletes images stored on the memory card.

• Select an image that you want to delete by pressing the Left / Right button and press the DELETE (备份) button.

1. To delete images, press the T button.

2. Left/Right button : Selects images

3. T button : Checks for deletion
4. OK button : Deletes the selected images

Protecting images

• This is used to protect specific shots from being accidentally erased (Lock).

[Select]:Selection window for an image to be protected / released is displayed.
[All] : Protect / release all saved images

• If you protect an image, the protect icon will be displayed on the LCD monitor.
  An image in LOCK mode will be protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

Downloading images

System Requirements

For Windows	For Macintosh
PC with processor better than Pentium II 450MHz (Pentium 800MHz recommended)	Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/Vista	Mac OS 10.0 ~ 10.4
Minimum 128MB RAM (Over 512MB recommended) 200MB of available hard disk space (Over 1GB recommend)	Minimum 64MB RAM 110MB of available hard-disk space
USB port	USB port
CD-ROM drive	CD-ROM drive
1024x768 pixels, 16bit color display compatible monitor (24bit color display recommended) MicroSoft DirectX X 9.0C	MPlayer (For movie)

PC connection mode

1. Install the supplied Software.

2. Download the images

- Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

Specifications

Image Sensor -Type:1/2.5"CCD

• Effective Pixel : Approx. 8.2 Mega-pixel
• Total Pixel: Approx. 8.3 Mega-pixel

Lens

• Focal Length: SAMSUNG Lens f = 6.2 ~ 18.6mm (35mm film equivalent : 37 ~ 111mm
  -F No.: F 2.8(W) ~ F 5.2(T)
• Digital Zoom : : Still Image mode : 1.0X ~ 3.0X
  • Play mode : 1.0X ~ 10.2X (depends on image size)

LCD Monitor

• 2.5" color TFT LCD (230,000 dots)

Focusing

• Type: TTL auto focus (Multi-AF, Center AF, Face Detection AF)
• Range

	Normal	Macro	Auto Macro
Wide	80cm ~ Infinity	5cm ~ 80cm	5cm ~ Infinity
Tele		50cm ~ 80cm	50cm ~ Infinity

Shutter

• Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix
• Range: Wide: 0.2m ~ 4.7m, Tele: 0.5m ~ 2.5m (ISO AUTO)
• Recharging Time : Approx. 4 sec

Sharpness

-2,-1,0,+1，+2

Color Effect

• Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color

White Balance

• Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording

• Voice Recording (max. 10 hours)
• Voice Memo in Still Image (max. 10 sec.)

Date Imprinting

• Date, Date & Time, Off (user selectable)

Shooting

• Still Image

Mode: Auto, Program, Manual, DIS, Photo Help Guide, Scene, Portrait
· Scene : Nightscene, Children, Landscape, Close up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow
- Shooting : Single, Continuous, AEB, Motion Capture
Self-timer:10sec.,2sec.,Double,MotionTimer

• Movie

With Audio or without Audio
* The maximum memory capacity of continuous movie is 2 hours.
Size:640x480,320x240
Frame rate:30 fps,15 fps

Storage

• Media

• Internal memory : 10MB flash memory

• External Memory (Optional): SD (up to 2GB guaranteed)/SDHC Card (up to 4GB guaranteed)/MMC Plus (Up to 2GB)

• File Format

• Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
  Movie:AVI(MJPEG)
  Audio : WAV

Specifications

• Image Size

8"	7"	6"	5"	3"	1"
3264	3264	3264	2592	2048	1024
X	X	X	X	X	X
2448	2176	1836	1944	1536	768

• Capacity (256 MB Size)

	8*	7*	6*	5*	3*	2*
Super Fine	64	71	84	100	150	459
Fine	117	135	157	186	269	822
Normal	171	192	220	256	372	868

These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

"E" Button	- Effect : Color, Image Adjust(Sharpness, Contrast, Saturation) - Editing : Resize, Rotate, Color, Image Adjust (ACB, Red Eye Fix, Brightness, Contrast ,Saturation)
Image Play	- Type : Single image, Thumbsils, Multi Slide show, Movie
Interface	- Digital output connector : USB 2.0 High Speed - Audio : Mono - Video output : NTSC, PAL (user selectable)
Power Source	- Rechargeable battery : SLB-10A, 3.7V (1,050mAh) - Adaptor : SAC-47 (DC 4.2V, 400mA)

Dimensions (WxHxD)

• 87.7 X 56.3 X 20mm (excluding protrusions)

Weight -114.5g (without batteries and card)

Operating Temperature

3

-0 40^ C

Operating Humidity

-5\~85%

Software

Samsung Master, Adobe Reader

※ Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household

wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

ENGLISH

MEMO

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

Batterie rechargeable (SLB-10A)

Cable AV

Dragonne

Non.	Description	Icônes
1	Mode d'enregistrement	O O M O S O D C E A T E B E L E
2	Détection de visages / AUTO PORTRAIT	S / S
3	Flash	A A S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S
4	Retardateur	O O S 2S O O (O O)
5	Macro	A A S
6	CONTRASTE	D-2 D-1 D-1 D-2

Non.	Description	Icones
7	Finesse
8	Couleur / Saturation
9	Cadre de mise au point automatique
10	Avertissement de mouvement de l'appareil
11	Date / Heure	2008/01/01 01:00 PM
12	Compensation d'exposition
13	White Balance	AWB
14	ISO	ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISOISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISOISOISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISBN 7-5-6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68-69-70-71-72-73-74-75-76-77-78-79-80-81-82-83-84-85-86-87-88-89-90-91-92-93-94-95-96-97-98-99-100-101-102-103-104-105-106-107-108-109-110-111-112-113-114-115-116-117-118-119-120-121-122-123-124-125-126-127-128-129-130-131-132-133-134-135-136-137-138-139-140-141-142-143-144-145-146-147-148-149-150-151-152-153-154-155-156-157-158-159-160-161-162-163-164-165-166-167-168-169-170-171-172-173-174-175-176-177-178-179-180-181-182-183-184-185-186-187-188-189-190-191-192-193-194-195-196-197-198-199-200-201-202-203-204-205-206-207-208-209-210-211-212-213-214-215-216-217-218-219-220-221-222-223-224-225-226-227-228-229-230-231-232-233-234-235-236-237-238-239-240-241-242-243-244-245-246-247-248-249-250-251-252-253-254-255-256-257-258-259-260-261-262-263-264-265-266-267-268-269-270-271-272-273-274-275-276-277-278-279-280-281-282-283-284-285-286-287-288-289-290-291-292-293-294-295-296-297-298-299-300-301-302-303-304-305-306-307-308-309-310-311-312-313-314-315-316-317-318-319-320-321-322-323-324-325-326-327-328-329-330-331-332-333-334-335-336-337-338-339-340-341-342-343-344-345-346-347-348-349-350-351-352-353-354-355-356-357-358-359-360-361-362-363-364-365-366-367-368-369-370-371-372-373-374-375-376-377-378-379-380-381-382-383-384-385-386-387-388-389-390-391-392-393-394-395-396-397-398-399-400-401-402-403-404-405-406-407-408-409-410-411-412-413-414-415-416-417-418-419-420-421-422-423-424-425-426-427-428-429-430-431-432-433-434-435-436-437-438-439-440-441-442-443-444-445-446-447-448-449-450-451-452-453-454-455-456-457-458-459-460-461-462-463-464-465-466-467-468-469-470-471-472-473-474-475-476-477-478-479-480-481-482-483-484-485-486-487-488-489-490-491-492-493-494-495-496-497-498-499-500-501-502-503-504-505-506-507-508-509-510-511-512-513-514-515-516-517-518-519-520-521-522-523-524-525-526-527-528-529-530-531-532-533-534-535-536-537-538-539-540-541-542-543-544-545-546-547-548-549-550-551-552-553-554-555-556-557-558-559-560-561-562-563-564-565-566-567-568-569-570-571-572-573-574-575-576-577-578-579-580-581-582-583-584-585-586-587-588-589-590-591-592-593-594-595-596-597-598-599-600-601-602-603-604-605-606-607-608-609-610-611-612-613-614-615-616-617-618-619-620-621-622-623-624-625-626-627-628-629-630-631-632-633-634-635-636-637-638-639-640-641-642-643-644-645-646-647-648-649-650-651-652-653-654-655-656-657-658-659-660-661-662-663-664-665-666-667-668-669-670-671-672-673-674-675-676-677-678-679-680-681-682-683-684-685-686-687-688-689-690-691-692-693-694-695-696-697-698-699-700-701-702-703-704-705-706-707-708-709-710-711-712-713-714-715-716-717-718-719-720-721-722-723-724-725-726-727-728-729-730-731-732-733-734-735-736-737-738-739-740-741-742-743-744-745-746-747-748-749-750-751-752-753-754-755-756-757-758-759-760-761-762-763-764-765-766-767-768-769-770-771-772-773-774-775-776-777-778-779-780-781-782-783-784-785-786-787-788-789-790-791-792-793-794-795-796-797-798-799-800-801-802-803-804-805-806-807-808-809-810-811-812-813-814-815-816-817-818-819-820-821-822-823-824-825-826-827-828-829-830-831-832-833-834-835-836-837-838-839-840-841-842-843-844-845-846-847-848-849-850-851-852-853-854-855-856-857-858-859-860-861-862-863-864-865-866-867-868-869-870-871-872-873-874-875-876-877-878-879-880-881-882-883-884-885-886-887-888-889-890-891-892-893-894-895-896-897-898-899-900-901-902-903-904-905-906-907-908-909-910-911-912-913-914-915-916-917-918-919-920-921-922-923-924-925-926-927-928-929-930-931-932-933-934-935-936-937-938-939-940-941-942-943-944-945-946-947-948-949-950-951-952-953-954-955-956-957-958-959-960-961-962-963-964-965-966-967-968-969-970-971-972-973-974-975-976-977-978-979-980-981-982-983-984-985-986-987-988-989-990-991-992-993-994-995-996-997-998-999-1000+

SHONN

Sélecteur de mode

Dimensions (L x H x P)

Indicator monitor LCD 7

Tombol mode 8

Mengambil gambar 9

Memutar ulang / Menghapus gambar / Memproteksi gambar 10

Men-download gambar 11

Spesifikasi 12

Mengenal kamera Anda

BAHAYA

Kelembaban Operational

5 85%

Perangkat Lunak - Samsung Master, Adobe Reader

120sL11 120sL11 120sL11

（j）gajgajc&j

6

7

C. x 1 或 x 2, 3, 4, 5 8

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

aALL ayIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

aaii aai i 1iic aiiin aiil ybiiaag oic llll aill iis pniin b

0g jgs piaiig liagjai gai a 15 15 ay 5111aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaln

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

45 45

yjg jIbJIi iJai JIeJI gJ IjQSLJIaWcJUoJpGjI yJqSLJIuJlJLJIaJgJauJg

ARABIC

1 1

(SUC-C3) USB, LPS (SAC-47) ,

1.

AVL

ySLB-10A

1

aaiyaiyaiiei

abgaaal gaiiaai gaa

asssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

SD/SDHC/MMC 3,511

1. 1,2,3 , 4,5,6

aaglllglgllllllllllllllllllllllllllllllllllllllllllllllllllllll

iI/lllJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

.10sJl pssw J aL1g

J 1

Jai /JIc jIe JIe IJIi [Language] 15

jL 1

ggoj jlc biaaiyjLjawlJc

aaii 22 jn jn jn jn jn jn

a a a a a a a a a a a a a a

（）

aagjLla!gagagaa

jLgLgJUJUJUJUJUJU

[ad]

1JL

.

J

.2511 4 4

gagaaaiai

J

.511 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

j jll lbc bcl a //Lw yjjgl bcblb1y gdi jgiilgall

（）

.2

USB JlS JI jjgsssJg JgssJggs- .lgjnl jgsssJg Lc g JgssJggs

J

Macintosh ρالبُّةِ بَعْدَةِ	Windows ρالبُّةِ بَعْدَةِ
Power Mac G3	Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz JzJz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz JZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZJZ
Mac OS 10.0 ~ 10.4	Windows 98SE / 2000 / ME / XP/Vista
SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SLSI SFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFSLFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS
USB iZio	USB iZio
alogéi zio aligbaw lizio	alogéi zio aligbaw lizio
(ρLlglg) MPlayer	JLCS 1024x768 C 16 aiglo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglGOaiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgoaiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglGO aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aiglgo aigldo LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LSF LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LSSLFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LSF.LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS LFS IZ

jgssJL JgssJg

jolal jolil 1

ARABIC

laolgai

1/2.5"CCD:egill-
L###J###J###8.2:alleleJ###S###
L###J###J###8.3:J###J###J###
10.0~1.0X:###J###J###
(###)SAMSUNG=6.2 ###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J### (###)111~37:###35###J###J###La)
(###)5.2,J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J### J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###J###
(###)230,000)

#

(aJUJIg aJUJIg)114.5g- jjJl

400-

85%~5-

Samsung Master, Adobe Reader -

1 2

Jooell Joo

0

104	2048	2592	3264	3264	3264
x	x	x	x	x	x
768	1536	1944	1836	2176	2448

(cuL Loo 256) aowil -

1w	3"	5"	6"	7"	8"
459	150	100	84	71	64	الله關係
822	269	186	157	135	117	الله關係
868	372	256	220	192	171	الله

10 10

1.

（）

“E”jj

JALIJIACB)gUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg

（）

a 1000

aIc aJ USB 2.0:

g:

(pasimallalal)PAL.NTSC:sall

4a ≥ 19

3.7V(1,050mAh).SLB-10A:JL

yunyuyunanianyuansn 6

7

uuiun 8

9

tlaa/naanw/laanw 10

nannnnn 11

12

VNTNNTNNNAVA

a

aunrnnnnae nnnaaennn nnnnnae eannnne

mnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne

nanaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanana an

wnnnnnaaannnnnnaaennnnaaannnnnnaaannnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaennnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaennnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaa ann

yuaaunuaaunuun uauannanunwwhaaa

#

nnaaunnnnnaeannnnnnaeennnnnnean nnnnnnne anannnne

wauuuaueaunauuuuauauauauauauauauauauauauauauauauau

waaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraa

• nnnnnaaannnnaananaananaan an nn nnnnnaanennn

-

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wunnaaatauuaananaa aannnnaa anananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaan ana

yauuun uuaaunauauuuuauuue aauuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU

VNTNNNNAVAVA

207

aannnnnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaan ana

nunnnnnaaannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn nannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnannnann

WuWuwauwuaWwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauwauw

Taaaauuauauauauauauauauauauauauauuuua aataaunnnnnaanannnna

y

wuuuunununununun

fuiuunnnnnaaannnnnnaanennnnnnae 20 nwnwaa USB

anwauwauwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunwunw

nanaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanana

IVH

nauuunnu/naaannnn

a

n

mua (SLB-10A)

AV

a

USB (SUC-C3)
ataaataAC (SAC-47)

a

yuaan

SD/SDHC/MMC

a

uuiuaaui

Samsung Inaiuunwuaquiuynnauo Samsung

aunrnnnnaeennnnnne aannnnn (nannnnnn)

■nunwnwuaanannr?jnuuSLB-10A

1. iannny [Language] ounnau
2. 1000000000000000000000000000000000000000000000000000000000

nssnuon nanaaunauuau

iannnnnnaaannnnnaananaananaan anananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara

nanaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanana

VH

iiau/naunw/uaunw

n

-wwwauuunuunuunuunuunuunuunuunuunu

1. anwnwnnna T

2. yu/ yu:

3. 1T:
   -OK:

nssilavunwn

-（）

[laanw]：wnnuuunnuwnwvaiku/
[wnn] : 1aJn / 1aonanwwnnnn nn

• wannawwimilalawwnw lanaunlialawnulngnaLCD (wwu'laqnilawnu
  *wuyuunueanuaonilauhunnnn auwaon [au] uuauiqnilauhunnna n 1u [waum]

nnaaannnnn

Jauunnuu

ustral Windows	ustral Macintosh
ustral Pentium II 450MHz (uauun Pentium 800MHz)	Power Mac G3 uauun uau
Windows 98SE / 2000 / ME / XP/Vista	Mac OS 10.0 ~ 10.4
ustral 128MB (uauun unnnn 512MB) ustral 200MB (uauun unnnn 1GB)	ustral 64MB uauun unnnn unnnn 110MB
ustral USB	ustral USB
ustral MicroSoft	ustral MicroSoft
1024x768 uau unnnu 16 1Mb (uau unnn 24 1Mb)	MPlayer (ustral uau unnn unnnu)
MicroSoft DirectX X 9.0C

Inn

1. 自己的自我欣赏与珍爱

2. 1

-pianananaunununununununununun USB nannnnnnaaunnnnnaaennnnnnae

VH

2

• 155nn:1/2.5"CCD

• 8.2

• Wnuaaunna: 157784 8.3 nwnina

Tau:Samsung Lens f = 6.2 18.6 (37\~111u.)

• F No.: F 2.8(Wide)~ F 5.2(Tele)
• yuanyao: ·luanyanwu: 1.0X ~ 3.0X
• 1.0X ~ 10.2X (xuaaunununw)

LCD - 2.5" TFT LCD (230,000
nssuwha - 1twn:aaTWh TTL (AF wann, AF nan, AF wannnnn)
-5%

Wide	80cm ~ 湿式ATM	5cm ~ 80cm	5cm ~ 湿式ATM
Tele		50cm ~ 80cm	50cm ~ 湿式ATM

• nssnnn:
• 10 Jun 2 Jun 2 Jun 2 Jun 2 Jun 2 Jun 2 Jun 2 Jun

-

2
- 20:640x480,320x240
- 30 fps, 15 fps

2a

auiu

-aa

• wuoyuanwuanyu: wuyuyu@10MB
• wuwenwunwen (a)

:SD（yunshunguo2GB)

SDHC Card (JnHsHnHg4GB)

MMC Plus (2GB)

• Waaanw
• ww: JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
• トトトは：AVI(MJPEG)
  WAV

-

8"	17"	6"	5"	3"	11"
3264	3264	3264	2592	2048	1024
X	X	X	X	X	X
2448	2176	1836	1944	1536	768

• 256 MB)

	8
	64	71	84	100	150	459
	117	135	157	186	269	822
	171	192	220	256	372	868

*

“E”

• 1
• nunu: uunu, uuu, uuu (ACB, unuauu, uuuuu, uuuuu

mnnn

• 155nn: nwiu, nweia, naunuaiaui, auiu

autaa

OPTICS & DIGITAL IMAGING DIVISION

145-3, SANGDAEWON 1-DONG, JUNGWONGU,

If you have any questions or comments relating to

Samsung cameras, Please contact

the SAMSUNG customer care center

SAMSUNG FRANCE S.A.S.

(free for calls from UK only)

UK Service Hotline: [phone]

www.samsungcamera.co.uk

RUSSIA INFORMATION CENTER

SAMSUNG ELECTRONICS

117545 ST. DOROZHNAYA BUILDING 3

KORPUS 6,ENTRANCE 2,MOSCOW,RUSSIA

TEL:[phone]

CALL FREE : (8) 800 555 55 55 (from Russia only)

www.samsungcamera.ru

Internet address - http ://www.samsungcamera.com

The CE Mark is a Directive conformity

mark of the European Community (EC)

AD68-01934A
