PL150 - Camera SAMSUNG - Free user manual and instructions

Product type	Compact digital camera
Brand	Samsung
Model	PL150
Sensor	CCD 1/2.33" (7.79 mm), 12.4 effective megapixels
Lens	Samsung f=4.9-24.5 mm (equiv. 27-135 mm), aperture F3.5 (W) - F5.9 (T)
Main screen	7.6 cm (3.0") QVGA, 230,000 pixels
Front screen	3.8 cm (1.5") LCD TFT, 61,000 pixels
Focus	Auto TTL (multi, center, face detection, tracking, smart recognition)
Shutter speed	Auto: 1/8-1/2000 s, Program: 1-1/2000 s, Night: 8-1/2000 s, Fireworks: 2 s
Internal storage	Approximately 30 MB
External storage	microSD (up to 2 GB), microSDHC (up to 8 GB)
Battery	Lithium-ion SLB-07, 760 mAh (rechargeable)
Power supply	AC adapter and USB cable (included)
Dimensions (W x H x D)	99.2 x 59 x 19.9 mm
Weight	136.6 g (without battery and memory card)
Operating temperature	0 - 40 °C
Operating humidity	5 - 85 %
Connectivity	USB/AV, HDMI, 20-pin DC port
Main features	Auto, Program, Night, Fireworks modes; video; self-portrait via front screen; flash; 5x optical zoom
Maintenance and cleaning	Avoid dust and moisture; clean with a soft cloth; store at moderate temperature
Safety	Do not use near flammable gases; keep out of reach of children; use Samsung batteries and chargers
Spare parts and repairability	Optional accessories: case, microSD memory card, AV cable, battery charger, HDMI cable. Replaceable rechargeable battery.
General information	Full manual on CD-ROM; transfer via USB with Intelli-studio software; manufacturer's warranty

Frequently Asked Questions - PL150 SAMSUNG

How to insert the battery and memory card?

Open the battery compartment. Insert the battery with the Samsung logo facing up. For the memory card (microSD), insert it with the chip facing up until it clicks into place. To remove, gently push the card to release it.

How to charge the battery?

Use the supplied AC adapter and USB cable. Connect the cable to the camera and to a wall outlet. The indicator is red during charging and green when the battery is fully charged.

How to use the front screen for a self-portrait?

In Shooting mode, press the front LCD screen button once. The front screen turns on in self-portrait mode. Frame yourself, then press the shutter button halfway for focus, then fully to take the picture.

How to transfer photos to a Windows computer?

Connect the camera to the computer via the USB cable. Turn on the camera. The computer automatically recognizes it. For Windows Vista, select 'Run iStudio.exe'. The Intelli-studio software allows you to transfer and edit files.

Which memory card to use?

The camera accepts microSD cards up to 2 GB and microSDHC cards up to 8 GB. Use a recognized brand card for best performance.

How to set the date and time?

Turn on the camera for the first time: the initial setup screen appears. Use the navigation buttons to select your language, set the date and time, and choose a time zone. You can change these settings later via the menu.

How to focus?

In Shooting mode, press the shutter button halfway to activate autofocus. A green frame indicates that focus is successful. Then press fully to take the picture.

How to record a video?

Turn the mode dial to video mode (camera icon). Frame your subject and press the shutter button to start recording. Press OK to pause or resume. Press the shutter button again to stop.

How to view photos?

Press the Playback button (▶). Use the left/right buttons to browse files. Press and hold for fast scrolling. For videos, press OK to play, and use the directional buttons to fast forward/reverse.

What to do if the camera does not turn on?

Check that the battery is properly inserted and sufficiently charged. Recharge it if necessary. Also ensure that the memory card is not damaged. If the problem persists, contact Samsung customer service.

USER MANUAL PL150 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

Health and safety information 2

Camera layout 4

Setting up your camera ..... 5

Unpacking 5

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera....7

Selecting options 7

Capturing photos or videos 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

1

13

12

28

61

77

99

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

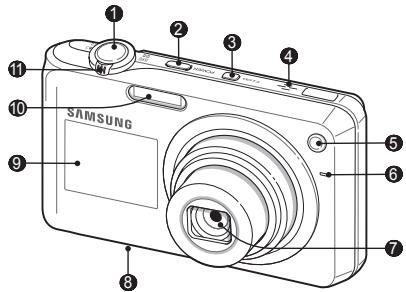

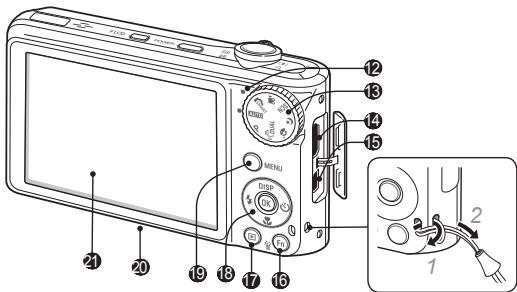

Camera layout

SAMSUNG

Diagram of a digital camera with labeled parts and an inset showing a hand holding a button.

① Shutter button
② POWER button
③ Front LCD button
4 Speaker
⑤ AF-assist light/timer lamp
6 Microphone
7 Lens
⑧ Battery chamber cover
9 Front display
10 : Flash
11 Zoom button

⑫ Status lamp
13 Mode dial
14 USB and A/V port (Accepts USB cable or A/V cable)
15 HDMI port (Accepts HDMI cable)
16 Function button
17 Playback button
18 Navigation button/OK button
19 MENU button
20 Tripod mount
21 Main display

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 solid color blocks (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

Setting up your camera

Unpacking

Line drawing of a digital camera with no text or symbols

Camera

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

AC adapter/USB cable

Rechargeable battery

Strap

User Manual CD-ROM

Quick Start Manual

Optional accessories

Camera case

Memory card (microSD ^TM )

A/V cable

Line drawing of a USB cable inserted into a square connector (no text or symbols)

Battery charger

HDMI cable

Setting up your camera

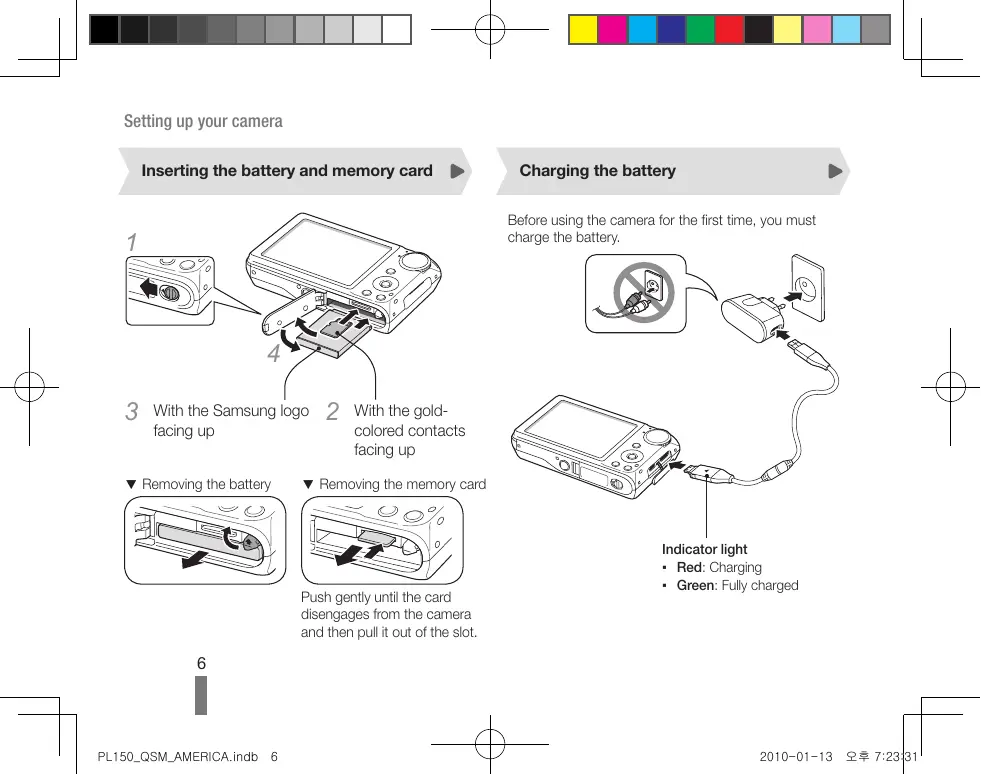

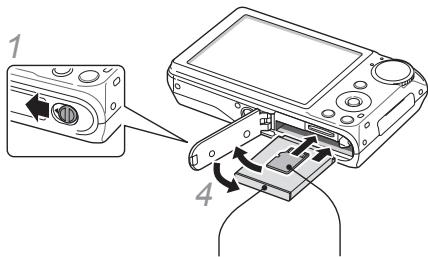

Inserting the battery and memory card

Diagram showing device port connection with labeled parts 1 and 4, including a close-up of a device's internal structure.

3 With the Samsung logo facing up
2 With the gold-colored contacts facing up

▼ Removing the battery

Diagram of a refrigerator air conditioner unit showing airflow direction (no text or symbols)

▼ Removing the memory card

Diagram of a refrigerator interior showing airflow direction arrows (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

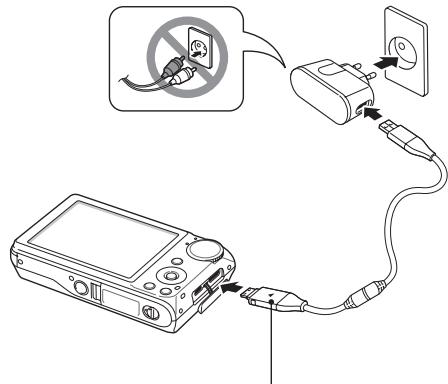

Charging the battery

Before using the camera for the first time, you must charge the battery.

Diagram showing a device connected to a plug and cable, with an electrical outlet symbol and no text labels.

Indicator light

• Red: Charging
• Green: Fully charged

Turning on your camera

1 Press [POWER].

- The initial setup screen appears when you turn on your camera for the first time.

Line drawing of a digital camera with an arrow indicating the portion of the screen (no text or symbols present)

2 Select a language, set the date and time, and select a time zone.

Display Language Date & Time Time Zone MENU Exit ▶ Change

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

12M -2 -1 0 +1 +2 EV MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

English

7

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 solid color blocks (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

Silhouette of a person holding a rectangular object, with camera and meter icons in the corner (no text or symbols on the figure itself)

4 Press [Shutter] all the way down to take the photo.

Taking a photo of yourself using the front display

The front display will help you take self-portraits.

1 In Shooting mode, press [Front LCD] once.

- The front display turns on in the Self-portrait mode.

Silhouette of a person holding a camera with a face detection bounding box (no text or symbols)

2 Press [Shutter] halfway down to focus.
3 Press [Shutter] all the way down to take the photo.

8

-

Recording a video

1 Rotate the mode dial to 🎨.
2 Align your subject in the frame.
3 Press [Shutter].
- Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB microSD ^TM )

Resolution		Super Fine	Fine	Normal
2M	4000 X 3000	145	281	399
10M	3984 X 2656	166	310	436
3M	3840 X 2160	200	363	522
8M	3264 X 2448	209	370	531
5M	2560 X 1920	335	560	783
3M	2048 X 1536	526	793	1,053
2M	1920 X 1080	860	1,131	1,421
1M	1024 X 768	1,455	1,651	1,851

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].
2 Press [⚡] or [💡] to scroll through files.

- Press and hold to scroll through files quickly.

Viewing videos

1 Press [▶].
2 Press [OK].
3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward
[Zoom] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Diagram showing a device connected to a laptop via cable (no text or symbols present)

Note

Make sure that the PC Software option is set to On in the settings menu.

2 Turn on the camera.

• The computer recognizes the camera automatically.
• For Windows Vista, select Run iStudio.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.

- If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

- New files will be transferred to your computer. You can now use the Intelli-studio program.

100P10TO SAM_0024, 30.01 SAM_0025.WAV SAM_0026.JPG SAM_0026.JPG 100P10TO SAM_0024, 30.08 SAM_0025.JPG SAM_0024.WAV SAM_0026.JPG Download Smart Studio - Desktop Manager

Note

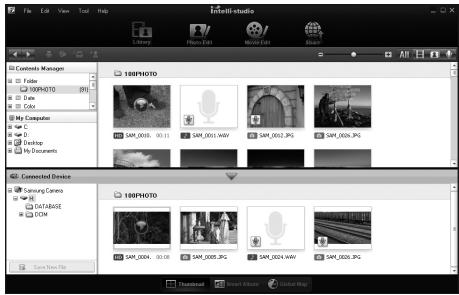

About Intelli-studio

Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

10

Specifications

Image sensor	Type: 1/2.33" (approx. 7.79 mm) CCDEffective pixels: approx. 12.4 mega-pixelsTotal pixels: approx. 12.7 mega-pixels
Lens	Focal length: Samsung lens f = 4.9 - 24.5 mm (35 mm film equivalent: 27 - 135 mm)F-stop range: F3.5 (W) - F5.9 (T)
Display	Main Display: 3.0" (approx. 7.6 cm) QVGA (230 K)Front Display: 1.5" (approx. 3.8 cm) 61 K TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF, Smart Face Recognition AF)
Shutter speed	Auto: 1/8 - 1/2,000 sec.Program: 1 - 1/2,000 sec.Night: 8 - 1/2,000 sec.Fireworks: 2 sec.
Storage	Internal memory: approx. 30 MBExternal memory (Optional): microSDTM card (up to 2 GB guaranteed), microSDHCTM card (up to 8 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (SLB-07, 760 mAh)
Dimensions (W x H x D)	99.2 x 59 x 19.9 mm
Weight	136.6 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Contenido

Diagram of a digital camera with labeled parts including controls, dials, and a close-up inset showing cable connection.

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

Line drawing of a digital camera with no text or symbols

Cámara

Line drawing of a portable electronic device with coiled cable and connector (no text or symbols)

Line drawing of a handheld electronic device with a coiled cable (no text or symbols)

Diagram showing device port connection with labeled parts 1 and 4, including a close-up of a device's internal structure.

Diagram of a refrigerator air conditioner unit with airflow direction arrows (no text or symbols)

Diagram of a microwave oven with airflow arrows indicating internal components (no text or symbols)

Diagram showing electrical connection with a device, plug, and socket connected to a power outlet, accompanied by a no-pin electrical symbol.

Luz indicadora

Line drawing of a digital camera with an arrow indicating the portion of the screen (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

Silhouette of a person holding a rectangular object, with control buttons and camera icon visible (no text or symbols on the object itself)

Silhouette of a person taking a picture with a camera, alongside a video call interface (no text or symbols on the image itself)

Diagram showing a device connected to a laptop via cable (no text or symbols present)

Nota

Diagram of a digital camera with labeled parts and an inset showing a hand holding a button.

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

Line drawing of a digital camera with no text or symbols

Appareil photo

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

Batterie rechargeable

Dragonne

Line drawing of a handheld electronic device with a rectangular housing and cable (no text or symbols)

Diagram showing device port connection with labeled parts 1 and 4, including a close-up of a device's internal structure.

Diagram of a refrigerator air conditioner unit with airflow direction arrows (no text or symbols)

Diagram of a microwave oven with airflow arrows indicating internal flow (no text or symbols)

Diagram showing a device connected to an electrical outlet with a no-pin plug, including a warning symbol and cable routing.

Voyant lumineux

Line drawing of a digital camera with control panel and buttons (no text or symbols)

Silhouette of a person holding a rectangular object, displayed in a photo editing interface (no text or symbols on the object itself)

Silhouette of a person taking a photo with a camera, no text or symbols present

Line drawing showing a device connected to a laptop via cable (no text or symbols)

Remarque

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 solid color blocks (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

SAMSUNG

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries.
