USER MANUAL LANDIAO NV9 SAMSUNG

Please refer to the warranty that came with your product or go to our website http://www.samsungcamera.com/ for after-sales service or inquiries.

The CE Mark is a Directive conformity mark of the European Community (EC)

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. For more information, refer to the User Manual included on the supplied CD-ROM. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

The specifications of the camera or contents of this manual may be changed without prior notice due to upgrade of camera functions.

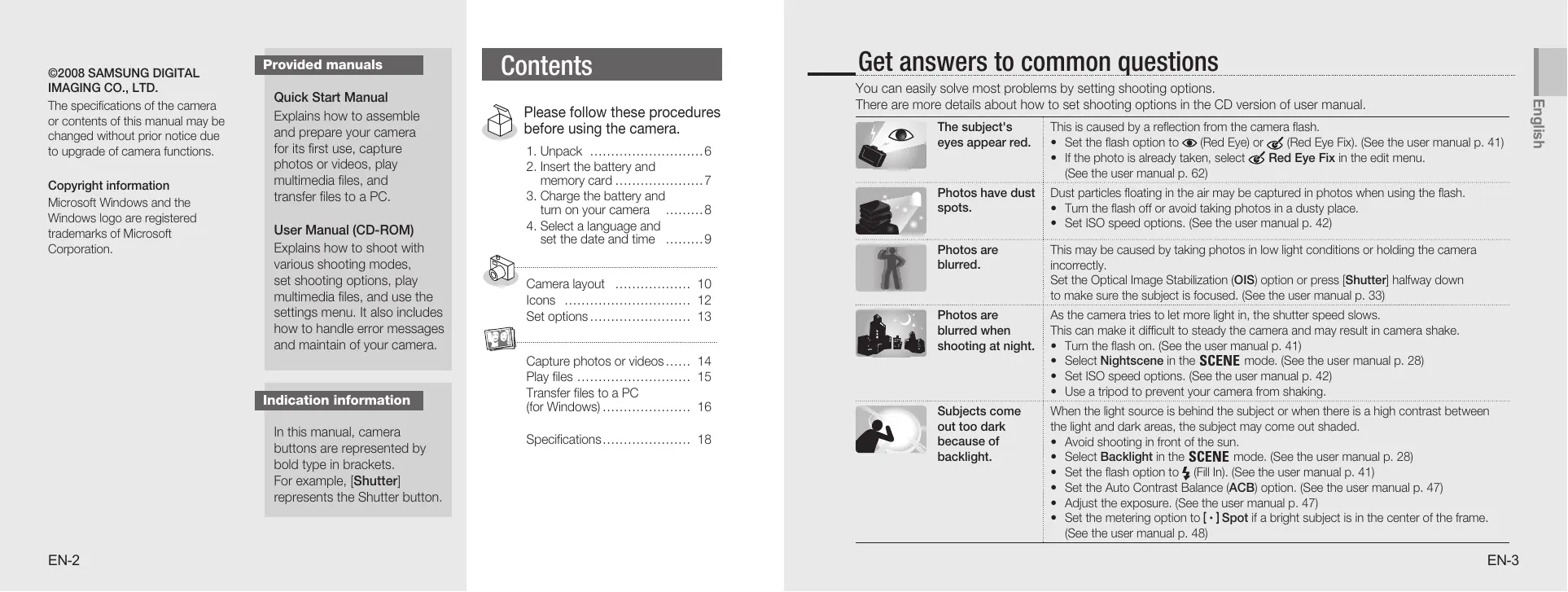

Copyright information

Microsoft Windows and the Windows logo are registered trademarks of Microsoft Corporation.

Provided manuals

Quick Start Manual

Explains how to assemble and prepare your camera for its first use, capture photos or videos, play multimedia files, and transfer files to a PC.

User Manual (CD-ROM)

Explains how to shoot with various shooting modes, set shooting options, play multimedia files, and use the settings menu. It also includes how to handle error messages and maintain of your camera.

Indication information

In this manual, camera buttons are represented by bold type in brackets. For example, [Shutter] represents the Shutter button.

Contents

Please follow these procedures before using the camera.

1.Unpack 6
2. Insert the battery and memory card .7
3. Charge the battery and turn on your camera 8
4. Select a language and set the date and time 9

Camera layout 10

Icons 12

Set options 13

Capture photos or videos..... 14

Play files 15

Transfer files to a PC (for Windows) 16

Specifications. 18

Get answers to common questions

You can easily solve most problems by setting shooting options.

There are more details about how to set shooting options in the CD version of user manual.

The subject's eyes appear red.	This is caused by a reflection from the camera flash. • Set the flash option to (Red Eye) or (Red Eye Fix). (See the user manual p. 41) • If the photo is already taken, select Red Eye Fix in the edit menu. (See the user manual p. 62)
Photos have dust spots.	Dust particles floating in the air may be captured in photos when using the flash. • Turn the flash off or avoid taking photos in a dusty place. • Set ISO speed options. (See the user manual p. 42)
Photos are blurred.	This may be caused by taking photos in low light conditions or holding the camera incorrectly. Set the Optical Image Stabilization (OIS) option or press [Shutter] halfway down to make sure the subject is focused. (See the user manual p. 33)
Photos are blurred when shooting at night.	As the camera tries to let more light in, the shutter speed slows. This can make it difficult to steady the camera and may result in camera shake. • Turn the flash on. (See the user manual p. 41) • Select Nightscene in the SCENE mode. (See the user manual p. 28) • Set ISO speed options. (See the user manual p. 42) • Use a tripod to prevent your camera from shaking.
Subjects come out too dark because of backlight.	When the light source is behind the subject or when there is a high contrast between the light and dark areas, the subject may come out shaded. • Avoid shooting in front of the sun. • Select Backlight in the SCENE mode. (See the user manual p. 28) • Set the flash option to (Fill In). (See the user manual p. 41) • Set the Auto Contrast Balance (ACB) option. (See the user manual p. 47) • Adjust the exposure. (See the user manual p. 47) • Set the metering option to [·] Spot if a bright subject is in the center of the frame. (See the user manual p. 48)

Health and Safety Information

Comply with the following precautions to avoid dangerous or illegal situations while operating the camera and keep this manual handy for future reference.

Warnings

Situations that could cause injury to yourself or others

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never dispose of batteries in a fire. Follow all local regulations when disposing of used batteries.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Situations that could cause damage to your camera or other equipment

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.
• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.
• Protect your camera and monitor from impact, rough handling, and excessive vibration to avoid serious damage.
• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Use caution with earphones

• Do not use earphones while driving, cycling, or operating motorised vehicles. Doing so may create a traffic hazard and may be illegal in some areas.
• Use only the minimum volume setting necessary. Listening to earphones at high volumes can damage your hearing.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your battery and lead to temporary or permanent battery damage.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Use only Samsung-approved accessories

Using incompatible accessories may damage your camera, cause injury, or void your warranty.

Protect your camera's lens

Protect your lens from fingerprints and scratches.

Clean your lens with a soft, clean, debris-free lens cloth.

1. Unpack

Camera

AC adapter (SAC-47)/USB cable (SUC-C3)

Rechargeable battery

Strap

A/V cable

Quick Start Manual

Earphones

Software CD-ROM (User manual included)

Optional accessories

Camera case

Memory cards

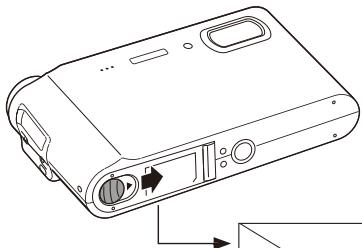

2. Insert the battery and memory card

Insert memory cards with the gold-colored contacts facing up.

Insert batteries with the Samsung logo facing down.

Remove the battery and memory card

Push gently until the card disengages from the camera and then pull it out of the slot.

Push the lock up to release the battery.

The internal memory can be used as a temporary storage device when the memory card is not inserted.

Note

3. Charge the battery and turn on your camera

p. 84 'About the battery'

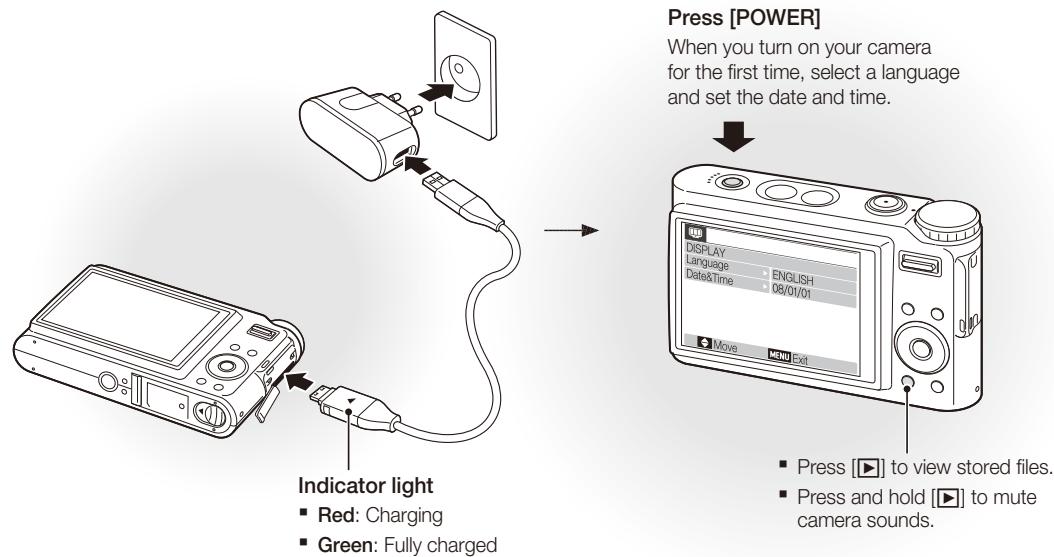

Charge the battery

Turn on your camera

Press [POWER]

When you turn on your camera for the first time, select a language and set the date and time.

Press [ ] to view stored files.
Press and hold [ ] to mute camera sounds.

4. Select a language and set the date and time

Select a language

1 Press [ ] to select Language.
2 Press [O].

3 Press [□□] or [□] to select a language.
4 Press [MENU/OK].

Set the date and time

1 Press [ ] to select Date&Time.
2 Press [O] and then [I□I].

3 Press [4] or [O] to select a city.
4 Press [MENU/OK].

5 Press [O] to select the date field.
6 Press [□] or [ ] to change the number.
7 Press [O] to select the next item or field.
Press [I□] or [ ] to change the number or select another date format.
9 Press [MENU/OK].

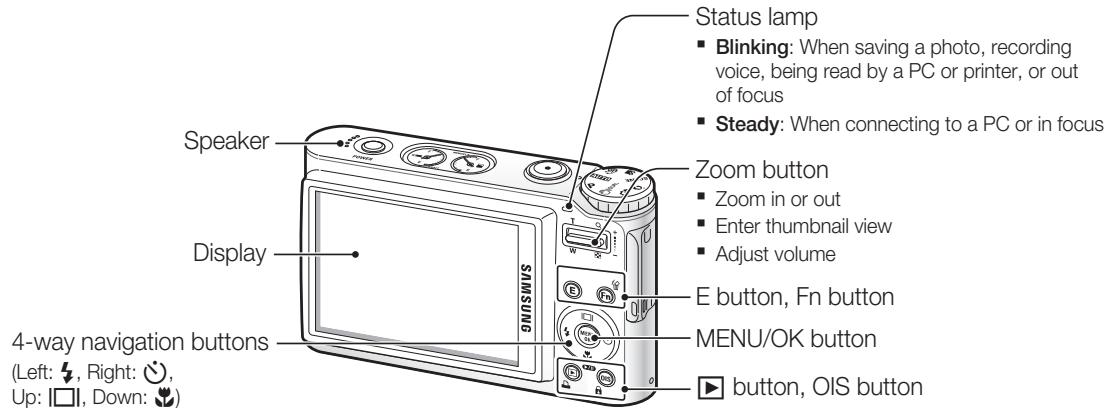

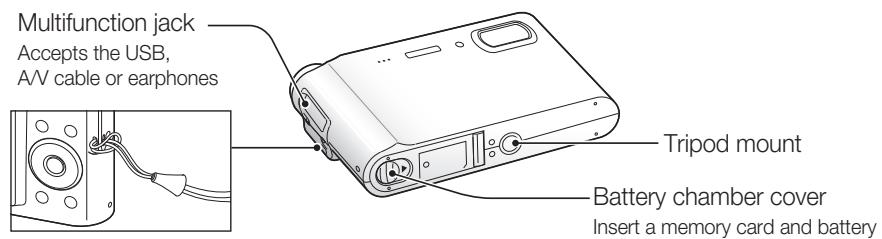

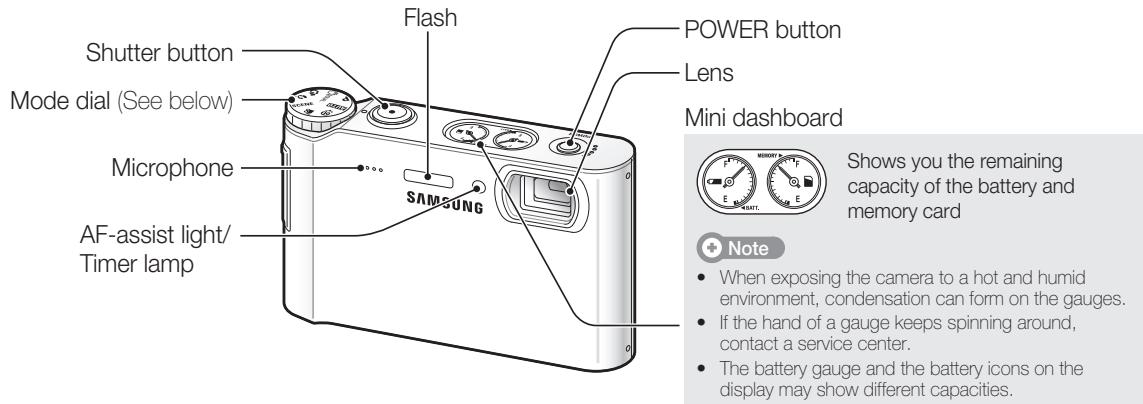

Camera layout

Icon	Mode	Description
AUTO	Auto	Take a photo quickly and easily with minimal settings
P	Program	Take a photo by setting options
DUAL	Dual IS	Take a photo with options suitable for reducing camera shake
	Photo Help Guide	Get shooting tips and practice shooting

Icon	Mode	Description
	Beauty Shot	Take a photo of a person with options to hide facial imperfections
SCENE	Scene	Take a photo with options for a preset scene
	Movie	Record a video
	Multimedia	Listen to MP3s, play videos, and view text files

The icons displayed may change according to the selected mode or options you set.

A. Information

Icon	Description
	Selected shooting mode
	Zoom ratio
00001	Available number of photos
00:00:06	Available recording time
	Internal memory
	Memory card inserted
	Fully charged ☐: Partially charged ☐: Charging needed
	Voice memo
	Auto focus frame
	Camera shake
2008/07/01	Current date and time

B. Icons on the left

Icon	Description
Face detection
Photo style
Color
Flash
Timer
Auto focus
Contrast
Sharpness
Voice Mute
Saturation
Optical Image Stabilization (OIS)

C. Icons on the right

Icon	Description
10M	Photo resolution
640	Video resolution
F	Photo quality
30	Frame rate
[ ]	Metering option
	Burst type
ISO	ISO speed
BD	White balance
	Exposure
LT	Long time shutter

Set options

You can set options by pressing [E], [MENU/OK], or [Fn] and using the navigation buttons ([], []), [I], []).

1 Press [E], [MENU/OK], or [Fn].
2 Use the navigation buttons to scroll to an option or menu.

To move left or right, press [F] or [O].
To move up or down, press [I□] or [].

3 Press [MENU/OK] to confirm the highlighted option or menu.

Going back to the previous menu

Press [E], [Fn], or [MENU/OK] again to go back to the previous menu.

Press [Shutter] to return to Shooting mode.

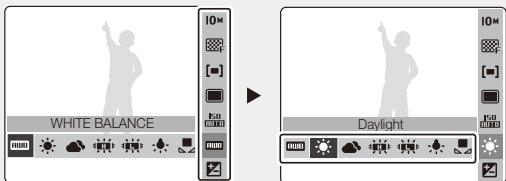

E.g. Select a white balance option in the P mode

1 Select P.

2 Press [Fn].
3 Press [I□] or [ ] and then [ ] or [ ] to set the white balance.

4 Press [MENU/OK].

Take a photo

1 Select AUTO.

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

4 Press [Shutter] all the way down to take the photo.

Record a video

1 Select

2 Align your subject in the frame.

3 Press [Shutter].

Press [ ] to pause or resume.

4 Press [Shutter] again to stop the recording.

View photos

1 Press [▶]

If the camera is off, it will turn on.

2 Press [4] or [O]

to scroll through files.

Press and hold to view files quickly.

Play a video

1 Press [▶].

2 Press [+] or [O] to scroll through files.

Press and hold to view files quickly.

3 Press [ ]

4 Use the following buttons to control playback:

Press [ ] or [ ] to skip forward or backward.

Press [ ] to pause or resume playback.

Press [Zoom] up or down to adjust volume.

Play multimedia files

1 Plug the supplied earphones into the Multifunction jack (optional).

2 Select

3 Press [4] or [O] to select a mode.

:MP3
PMP
- Text Viewer

4 Select Open to select a file to play.
- Select Resume to open the last file played (in the MP3 mode) or resume the last video or text file.
5 Press [MENU/OK].

Transfer files to a PC (for Windows)

1 Insert the installation CD in a CD-ROM drive and follow the on-screen instructions.

Note

Click User Manual to read the user manual.

The CD contains the following programs

Program	Description
Samsung Converter	Convert videos so that they can be played on the camera
Samsung Master	Edit photos and videos
Adobe Reader	View the user manual

2 Connect the camera to your PC with the USB cable.

Caution

You should plug the end of the cable with the indicator light (▲) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

3 Turn on the camera.

4 Select Computer and press [MENU/OK].

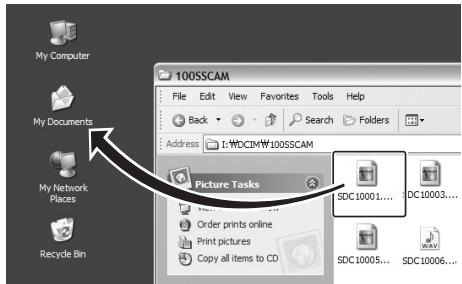

5 On your PC, select My Computer > Removable Disk > DCIM > 100SSCAM.
6 Select the files you want and drag or save them to the PC.

Transferring multimedia files to the camera

1 Create new folders named 'MP3', 'PMP', and 'TEXT' in My Computer > Removable Disk.
2 Copy multimedia files to the corresponding folders.

MP3: MP3 files
PMP:SDC files*
- TEXT: TXT files

*Convert with Samsung Converter

To disconnect safely (for Windows XP)

The way to disconnect the USB cable for Windows 2000/Vista is similar.

Image sensor	Type	1/2.33" (Approx. 1.09 cm) CCD
	Pixel	Effective pixels: Approx. 10.2 mega-pixels, Total pixels: Approx. 10.3 mega-pixels
Lens	Focal length	SAMSUNG lens 5X Inner Zoom f = 6.8 - 34 mm (35 mm film equivalent: 38 - 190 mm)
	F-stop range	F3.7 (W) - F4.9 (T)
LCD monitor		2.7" (Approx. 6.86 cm) color TFT LCD (Approx. 230,000 pixels)
Focusing	Type	TTL auto focus (Center AF, Multi AF, Face Detection AF)
	Range	Wide (W)		Tele (T)
		Normal	80 cm - Infinity
		Auto macro	8 cm - Infinity	50 cm - Infinity
		Macro	8 cm - 80 cm	50 cm - 80 cm
		Super Macro	3 cm - 8 cm	-
Shutter speed		Auto: 1 - 1/1,500 sec. Nightscene: 16 - 1/1,500 sec. Continuous, AEB: 1/4 - 1/1,500 sec.
Shake reduction		Dual IS[OIS (Optical Image Stabilization) + DIS (Digital Image Stabilization)]
Storage	Media	Internal memory: Approx. 10 MB flash memory External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed) Internal memory capacity may not match these specifications.

	File format	Still image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 Video: AVI (MJPEG) Audio: WAV
	Image size	For 1GB SD
			Super fine	Fine	Normal
		10M	3648x2736	188	357
		9M	3648x2432	206	391
		7M	3584x2016	248	469
		7M	3072x2304	262	483
		5M	2592x1944	344	638
		3M	2048x1536	533	897
		1M	1024x768	1720	2064
		These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.
Interface	Digital output	Connector : USB 2.0 (20 pin)
	Audio output	Mono
	Video output	AV: NTSC, PAL (selectable)
	DC power input connector	20 pin
Power source	Rechargeable battery	Lithium-ion battery SLB-10A (1050 mAh)
	AC adapter	Power adapter (SAC-47), USB cable (SUC-C3)
	The power source may differ depending on your region.
Dimensions (WxHxD)		95 X 59.9 X 18.8 mm (without projection part)
Weight		139.4 g (without battery and memory card)
Operating temperature		0 - 40 °C
Operating humidity		5 - 85 %

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Samsung Eco-mark

It is Samsung's own symbol mark is used to effectively communicate Samsung's environmental friendly product activities to the consumers. The mark represents Samsung's continuous effort on development of environmental conscious products.

©2008 SAMSUNG DIGITAL IMAGING CO., LTD.

Batterie rechargeable

Câble audio / video

Guide de prise en main rapide

Écouteurs

Accessoires disponibles en option

Étui

Cartes mémoire

Dragonne
