Product Type	Compact digital camera
Brand	Samsung
Model	LANDIAO NV100HD
Image Sensor	1/1.72" CCD, 14.7 effective megapixels
Lens	Schneider-KREUZNACH f=6.0-21.6 mm (35 mm equivalent: 28-102 mm), F2.8 (W) - F5.9 (T)
LCD Display	3.0" (7.62 cm) TFT touchscreen, 460,000 pixels
Image Stabilization	Dual IS (OIS + DIS)
Shutter Speed	Auto: 1 - 1/2000 s, Manual: 16 - 1/2000 s
Storage Media	Internal memory 40 MB, SD/SDHC/MMC Plus card (optional)
File Formats	Photo: JPEG, Video: MP4 (H.264), Audio: WAV
Max Video Resolution	HD (up to 20 minutes)
Battery	Lithium-ion SLB-1137D (1,100 mAh)
Charger	SAC-47, USB cable SUC-C4
Dimensions (W x H x D)	94.9 x 59.5 x 19.9 mm
Weight	138 g (without battery or card)
Connectivity	USB 2.0, AV (NTSC/PAL), HDMI 1.2 (via docking station)
Operating Temperature	0 - 40°C
Operating Humidity	5 - 85%
Maintenance and Cleaning	Clean the lens with a soft, clean cloth; avoid dust and moisture.
Safety	Do not use near flammable gases; keep out of reach of children; do not disassemble the battery.
Recycling	Follow WEEE guidelines; recycle battery separately.

Frequently Asked Questions - LANDIAO NV100HD SAMSUNG

What should I do if the subject's eyes appear red in photos?

Set the flash to RED-EYE REDUCTION or RED-EYE FIX. In edit mode, use the RED-EYE FIX option.

Why are my photos blurry?

Ensure Optical Image Stabilizer (OIS) is turned on. Press the shutter button halfway to focus. Use a tripod in low-light situations.

How can I avoid blurry photos at night?

Activate the flash or use NIGHT mode. Increase ISO sensitivity or use a tripod to keep the camera steady.

Dust spots appear on my photos with flash. Why?

Dust particles in the air may be visible with flash. Turn off flash or avoid dusty environments. You can also increase ISO sensitivity.

How to transfer photos to a Windows computer?

Connect the camera via USB cable, select COMPUTER on the screen. On the PC, open Removable Disk > DCIM > 100SSCAM and copy the files.

What if the battery does not charge?

Use only the supplied SAC-47 charger. Check that the indicator light is red (charging). If the problem persists, the battery may be defective.

What type of memory card is compatible?

SD cards (up to 4 GB), SDHC (up to 8 GB), and MMC Plus (up to 2 GB). Insert the card with gold contacts facing up.

How to use the touch screen?

Tap gently with your fingertip on the icons. To scroll, slide your finger horizontally or vertically. Do not use sharp objects.

How to record a video and what is the maximum duration?

Select VIDEO mode, frame the subject and press the shutter button. Maximum duration is 20 minutes. You can pause and resume recording.

Can I view photos on an HD TV?

Yes, via the HDMI docking station (sold separately) and an HDMI cable. Video output can be set to NTSC or PAL.

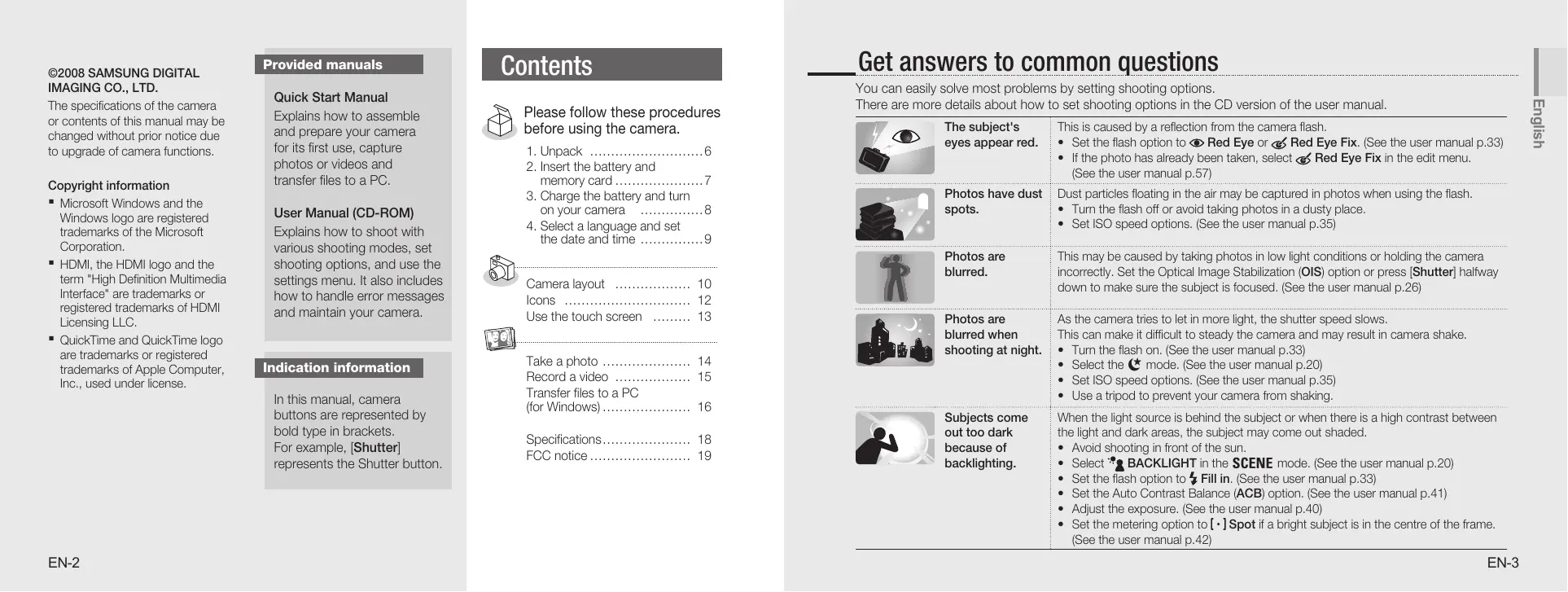

USER MANUAL LANDIAO NV100HD SAMSUNG

Please refer to the warranty that came with your product or go to our website http://www.samsungcamera.com/ for after-sales service or inquiries.

The CE Mark is a Directive conformity mark of the European Community (EC)

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. For more information, refer to the User Manual included on the supplied CD-ROM. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

The specifications of the camera or contents of this manual may be changed without prior notice due to upgrade of camera functions.

Copyright information

Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.
- HDMI, the HDMI logo and the term "High Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.
- QuickTime and QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used under license.

Provided manuals

Quick Start Manual

Explains how to assemble and prepare your camera for its first use, capture photos or videos and transfer files to a PC.

User Manual (CD-ROM)

Explains how to shoot with various shooting modes, set shooting options, and use the settings menu. It also includes how to handle error messages and maintain your camera.

Indication information

In this manual, camera buttons are represented by bold type in brackets. For example, [Shutter] represents the Shutter button.

Contents

Please follow these procedures before using the camera.

1.Unpack 6
2. Insert the battery and memory card .7
3. Charge the battery and turn on your camera 8
4. Select a language and set the date and time 9

Camera layout 10

Icons 12

Use the touch screen 13

Take a photo 14

Record a video 15

Transfer files to a PC (for Windows) 16

Specifications. 18

FCC notice 19

Get answers to common questions

You can easily solve most problems by setting shooting options.

There are more details about how to set shooting options in the CD version of the user manual.

The subject's eyes appear red.	This is caused by a reflection from the camera flash. • Set the flash option to Red Eye or Red Eye Fix. (See the user manual p.33) • If the photo has already been taken, select Red Eye Fix in the edit menu. (See the user manual p.57)
Photos have dust spots.	Dust particles floating in the air may be captured in photos when using the flash. • Turn the flash off or avoid taking photos in a dusty place. • Set ISO speed options. (See the user manual p.35)
Photos are blurred.	This may be caused by taking photos in low light conditions or holding the camera incorrectly. Set the Optical Image Stabilization (OIS) option or press [Shutter] halfway down to make sure the subject is focused. (See the user manual p.26)
Photos are blurred when shooting at night.	As the camera tries to let in more light, the shutter speed slows. This can make it difficult to steady the camera and may result in camera shake. • Turn the flash on. (See the user manual p.33) • Select the mode. (See the user manual p.20) • Set ISO speed options. (See the user manual p.35) • Use a tripod to prevent your camera from shaking.
Subjects come out too dark because of backlighting.	When the light source is behind the subject or when there is a high contrast between the light and dark areas, the subject may come out shaded. • Avoid shooting in front of the sun. • Select BACKLIGHT in the SCENE mode. (See the user manual p.20) • Set the flash option to Fill in. (See the user manual p.33) • Set the Auto Contrast Balance (ACB) option. (See the user manual p.41) • Adjust the exposure. (See the user manual p.40) • Set the metering option to [·] Spot if a bright subject is in the centre of the frame. (See the user manual p.42)

Comply with the following precautions to avoid dangerous or illegal situations while operating the camera and keep this manual handy for future reference.

Warnings

Situations that could cause injury to yourself or others

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never dispose of batteries in a fire. Follow all local regulations when disposing of used batteries.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Situations that could cause damage to your camera or other equipment

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.
• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.
• Protect your camera from impact, rough handling, and excessive vibration to avoid serious damage.
• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent batteries from making contact with metal objects, as this can create a connection between the + and - terminals of your battery and lead to temporary or permanent battery damage.
• Prevent memory cards from making in contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Use only Samsung-approved accessories

Using incompatible accessories may damage your camera, cause injury, or void your warranty.

Protect your camera's lens

Protect your lens from fingerprints and scratches

Clean your lens with a soft, clean, debris-free lens cloth.

1. Unpack

Camera

AC adapter (SAC-47)/ USB cable (SUC-C4)

Rechargeable battery

Strap

A/V cable

Quick Start Manual

Software CD-ROM (User manual included)

Optional accessories

Camera case

Memory cards

Sold as a set

HDMI cradle manual

Remote control

Cradle (for charging the battery and connecting your camera to an HDTV or PC)

HDMI cable (for viewing highresolution images or playing videos)

2. Insert the battery and memory card

p.74 'About memory cards'
p.75 'About the battery'

Insert memory cards with the gold-colored contacts facing up.

Insert batteries with the Samsung logo facing down.

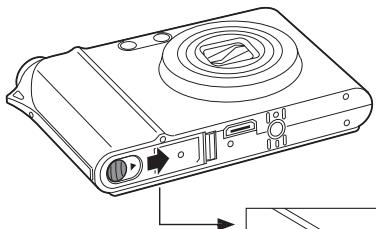

Remove the battery and memory card

Push gently until the card disengages from the camera and then pull it out of the slot.

Push the lock up to release the battery.

+Note

The built-in memory can be used as a temporary storage device when the memory card is not inserted.

3. Charge the battery and turn on your camera

p.75 'About the battery'

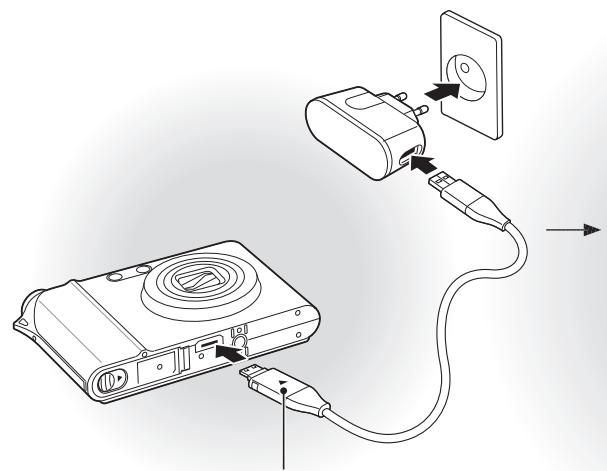

Charge the battery

Indicator light
Red:Charging
Green: Fully charged

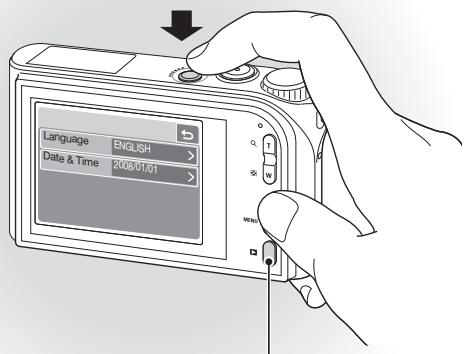

Turn on your camera

- Press [Playback] to view stored files.
- Press and hold [Playback] to mute camera sounds.

4. Select a language and set the date and time

Select a language

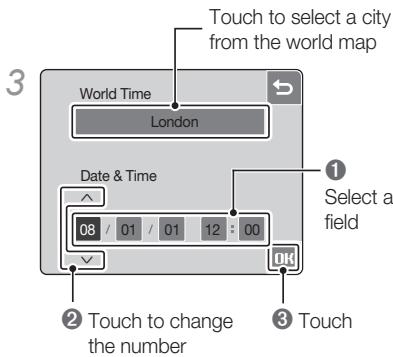

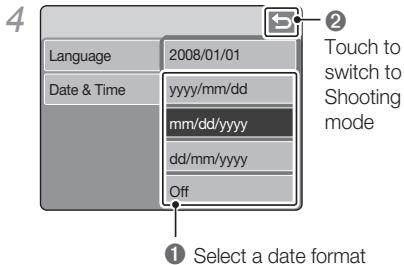

Set the date and time

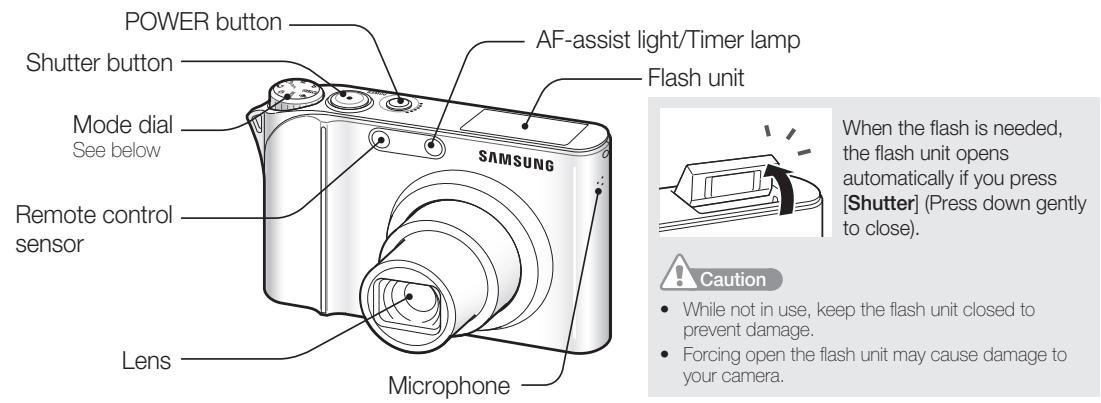

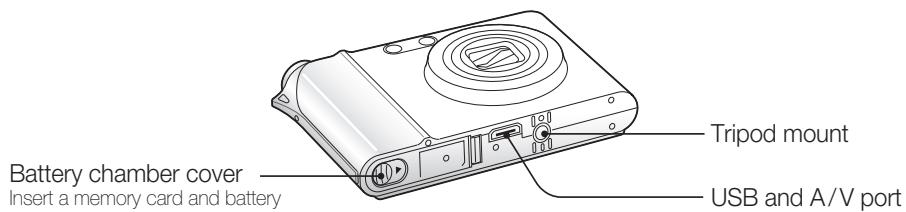

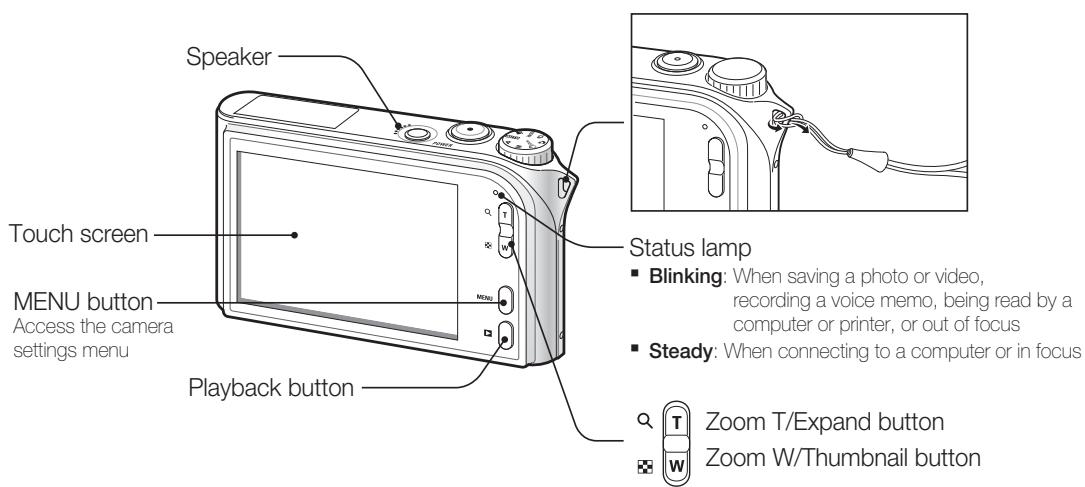

Camera layout

Icon	Mode	Description
AUTO	AUTO	Take a photo conveniently with minimal settings
P	PROGRAM	Take a photo by setting options (except for shutter speed and aperture value)
M	MANUAL	Take a photo by setting options manually
DUAL	DUAL IS	Take a photo with options suitable for reducing camera shake

Icon	Mode	Description
☆	NIGHT	Take a photo with options for shooting at night
▲	BEAUTY SHOT	Take a photo of a person with options to hide facial imperfections
SCENE	SCENE	Take a photo with options for a preset scene
MOVIE		Record a video

The icons displayed will change according to the selected mode or options you set.

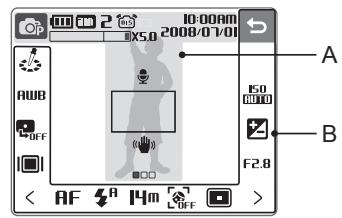

A. Main display

Icon	Description
CP	Selected shooting mode
III	Fully charged II: Partially charged □: Charging needed
EIM	Internal memory
E	Memory card inserted
2	Available number of photos
00:00:06	Available recording time
(uS)	Optical Image Stabilization (OIS)
10:00am 2008/01/01	Current date and time
x5.0	Zoom ratio
	Voice memo
	Auto focus frame
	Camera shake
□□	Option set 1 (of 3)

B. Touch icons

Icon	Description
	Selected photo style
RAW	Select a white balance
OFF	Adjust the exposure with ACB
	Select a display type
	Return to the previous screen
	Select a scene
ISO	Select an ISO speed
	Adjust the brightness of the face
	Adjust the exposure manually
1/30	Adjust the shutter speed
	Adjust imperfections of the face
F2.8	Select an aperture value
AF	Select an auto focus option
	Select a flash option
	Select a video resolution

Icon	Description
Hm	Select a photo resolution
3D	Select a frame rate
OFF	Select a face detection option
	Select a focus area option
	Select a burst type
[=]	Select a metering option
OFF	Select photo quality
OFF	Select a timer option
OFF	Add a voice memo to a photo or record a voice memo
OFF	Set the Optical Image Stabilization option
	Apply a color effect
	Adjust sharpness
	Adjust contrast
	Adjust saturation
<>	Display another row of options

Use the touch screen

Learn basic actions to use the touch screen.

The touch screen works best when touched with the soft part of your finger.

Do not use any sharp objects to touch the screen. Doing so may damage the screen.

Touching

Touch an icon to open a menu or set an option.

Dragging

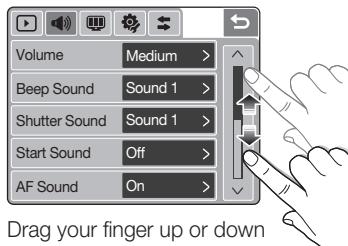

Drag your finger left or right to scroll horizontally.

to scroll vertically.

Take a photo

1 Select AUTO

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

4 Press [Shutter] all the way down to take the photo.

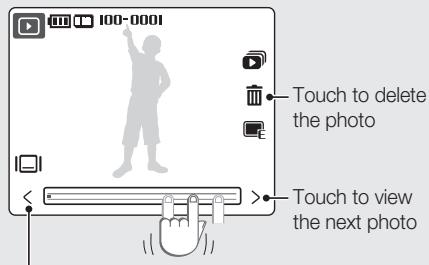

Viewing photos

1 Press [Playback].

If the camera is off, it will turn on.

2 Drag your finger left or right to scroll through photos.

Touch to view theprevious photo

Record a video

1 Select

2 Align your subject in the frame.
3 Press [Shutter].

• Touch to pause
• Touch again to resume

4 Press [Shutter] again to stop the recording.

You can record videos of up to 20 minutes in length.

Playing a video

1 Press [Playback].
2 Touch PLAY
3 Use the following icons to control playback.

Icon	Description
←	Skip backward
||	Pause or resume playback
■	Stop playback
►	Skip forward

Transfer files to a PC (for Windows)

p.61 'Tansferring files to your Computer'

1 Insert the installation CD in a CD-ROM drive and follow the on-screen instructions.

Note

Click User Manual to read the user manual.

2 Connect the camera to the PC with the USB cable.

You must plug the end of the cable with the indicator light (▲) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

3 Turn on the camera.

The CD contains the following programs

Samsung Master	Edit photos and videos
QuickTime Player 7.4	View videos
Adobe Reader	View the user manual

4 Touch Computer.

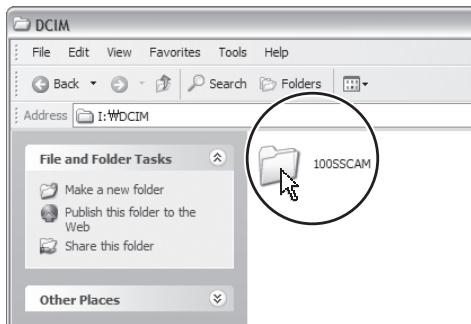

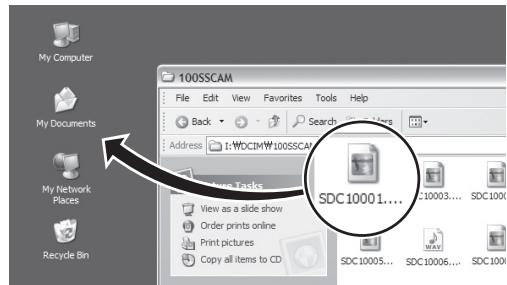

5 On your PC, select My Computer > Removable Disk > DCIM > 100SSCAM.

6 Select the files you want and drag or save them to the PC.

To disconnect safely (for Windows XP)

The way to disconnect the USB cable for Windows 2000/Vista is similar.

Specifications

p.79 'Camera specifications'

Image sensor	Type	1/1.72" (1.49 cm) CCD
	Pixel	Effective pixels: approx. 14.7 mega-pixels, Total pixels: approx. 15.0 mega-pixels
Lens	Focal length	Schneider-KREUZNACH lens f = 6.0 - 21.6 mm (35 mm film equivalent: 28 - 102 mm)
	F-stop range	F2.8 (W) - F5.9 (T)
LCD monitor		3.0" (7.62 cm) hVGA color TFT LCD (460,000 pixels) (Touch)
Focusing	Type	TTL auto focus (Multi AF, Center AF, Touch AF, Face Detection AF)
	Range	Wide		Tele
		Normal	80 cm-infinity
		Macro	5 cm-80 cm	50 cm-80 cm
		Auto macro	5 cm-infinity	50 cm-infinity
Shutter speed		AUTO: 1 - 1/2,000 sec. MANUAL: 16 - 1/2,000 sec. NIGHT: 8 - 1/2,000 sec. FIREWORK: 4 sec.
Shake reduction		Dual IS [OIS (Optical Image Stabilization) + DIS (Digital Image Stabilization)]
Storage	Media	Internal memory: approx. 40 MB External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed, 4 bit 20 MHz) Internal memory capacity may not match these specifications.
	File format	Still image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 Movie: MP4 (H.264 (MPEG4.AVC)) Audio: WAV

	Image size	For 1 GB SD
			Super fine	Fine	Normal
		4384x3288	136	265	386
		4384x2920	153	296	430
		4384x2464	180	347	501
		3264x2448	240	457	653
		2592x1944	370	685	957
		1920x1080	807	1374	1794
		1024x768	1655	2438	2894
		These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.
Interface	Digital output	Connector: USB 2.0 (30 pin)
	Audio output	Mono (Internal speaker), Stereo (Microphone)
	Video output	AV: NTSC, PAL (selectable)HDMI 1.2: NTSC, PAL (selectable)HDMI is available when it is connected to the optional cradle.
	DC power input connector	30 pin, 4.2V
Power source	Rechargeable battery	Lithium-ion battery SLB-1137D (1100 mAh)
	AC adapter	Power adapter (SAC-47), USB cable (SUC-C4)
	Cradle(Optional)	SCC-NV5 HDThe power source may differ depending on your region.
Dimensions (W x H x D)		94.9 X 59.5 X 19.9 mm (without projection part)
Weight		138 g (without battery and memory card)
Operating temperature		0 - 40°C
Operating humidity		5 - 85%

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European

countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Samsung Eco-mark

It is Samsung's own symbol mark is used to effectively communicate Samsung's environmental friendly product activities to the consumers. The mark represents Samsung's continuous effort on development of environmental conscious products.

©2008 SAMSUNG DIGITAL IMAGING CO., LTD.

A. Pantalla principal

Batterie rechargeable

Dragonne

Câble audio/vidente

Guide de prise en main rapide
