USER MANUAL LANDIAO I80 SAMSUNG

Getting to know your camera

is a trademark of SRS Labs, Inc. WOW HD technology is incorporated under license from SRS Labs, Inc.

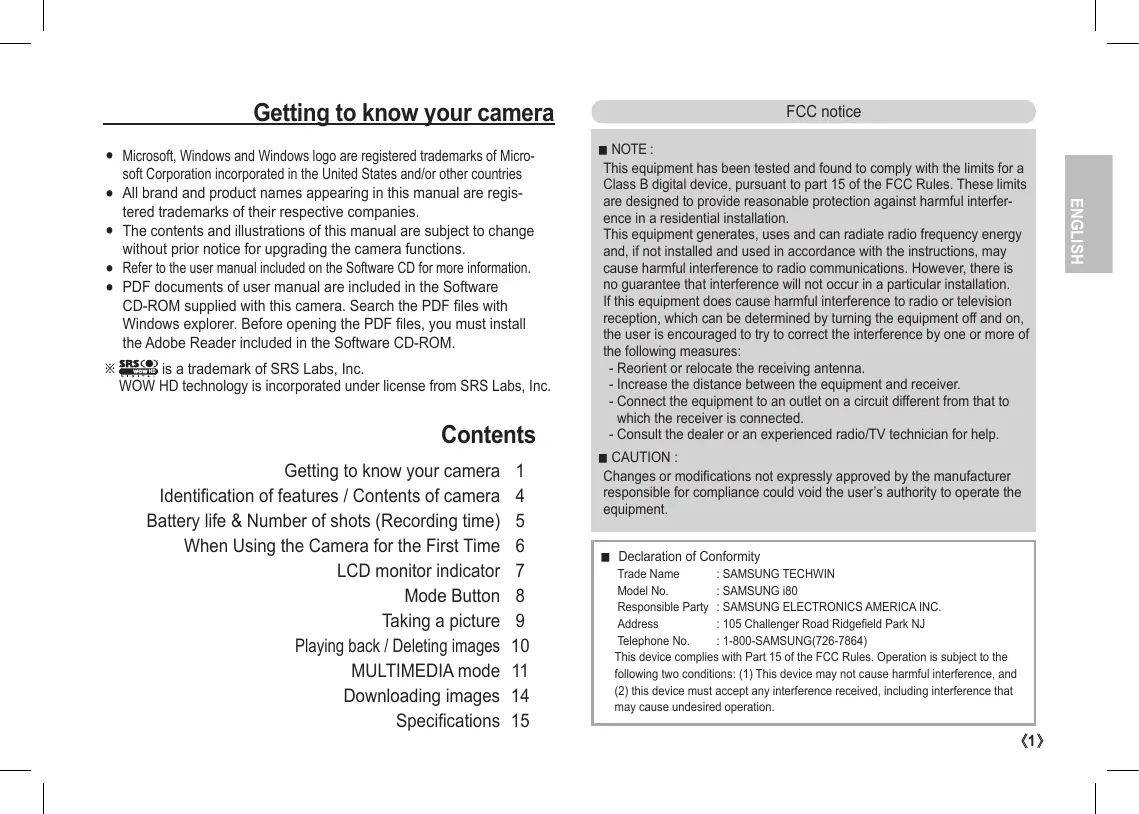

Contents Getting to know your camera Identification of features / Contents of camera Battery life & number of shots (Recording time) When Using the Camera for the First Time LCD monitor indicator Mode Button Taking a picture Playing back / Deleting images MULTIMEDIA mode Downloading images Specifications

Ê NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Ê CAUTION : Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Ê Declaration of Conformity Trade Name : SAMSUNG TECHWIN Model No. : SAMSUNG i80 Responsible Party : SAMSUNG ELECTRONICS AMERICA INC. Address : 105 Challenger Road Ridgefield Park NJ Telephone No. : 1-800-SAMSUNG(726-7864) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ENGLISH å M icrosoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries å All brand and product names appearing in this manual are registered trademarks of their respective companies. å The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions. å Refer to the user manual included on the Software CD for more information. å PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM. FCC notice Getting to know your camera DANGER WARNING DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes may cause eyesight damage. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: - Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. - There is the possibility of injury from the camera’s moving parts. Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places with extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fire. When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area. Getting to know your camera CAUTION Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components. Leaking, overheating, or damaged battery could result in fire or injury. - Use battery with the correct specification for the camera. - Do not short circuit, heat or dispose of battery in fire. - Do not insert the battery with the polarities reversed. Do not move the camera while it is switched on when you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock. Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case. Do not insert the memory card the wrong way round. Be sure to format the memory card if you are using a newly purchased memory card for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction. Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. Never the connect the 20 pin connector to a USB port of a PC. Doing so is highly likely to cause a computer malfunction. Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

ENGLISH CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Identification of features / Contents of camera USB / AV connection terminal Power button FD (Face Detection) button / MP3, PMP hold button Shutter button Flash AF sensor/ Self-timer lamp Camera status lamp M (Mode) button Lens Zoom W button (Thumbnail) Microphone Fn / Delete button Speaker Tripod socket Rechargeable battery (SLB-1137D) AC adapter (SAC-47) / USB cable (SUC-C3) AV Cable Camera strap Earphones Optional items SD / SDHC memory card / MMC Camera case 20 Pin Gender User manual, Product warranty Software CD Ä Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time) Ê Number of images and battery life: Using the SLB-1137D Approx. 160 MIN / Approx. 320 shots Using the fully charged battery, Auto mode, 8M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between Wide and Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute. Approx. 160 MIN Using the fully charged battery 640x480 image size 30fps frame rate MP3 Approx. 400 MIN Using the fully charged battery Turning off the LCD monitor PMP Approx. 380 MIN Using the fully charged battery Movie Multi Media Conditions

hese figures are measured under Samsung’s standard conditions and shooting conditions and may vary depending on the user’s methods. Ê When using a 256MB MMC memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type. Recorded image size Still image *Movie clip Super Fine Ÿ About 58 ¬ About 66 Y About 77 D About 91 C About 155 B About 355 Fine Normal 30 FPS 20 FPS 15 FPS About 89 About 137

ENGLISH Still image Battery life / Number of images

Ä The zoom button doesn't operate during the movie recording. The recording times can be changed by the zoom operation.

When Using the Camera for the First Time Ê Charge the rechargeable battery fully before using the camera for the first time. Ê Turning on the camera To turn on the camera, press the Power button () or Open the camera () as shown.

hen closing the camera, handle it as shown in the picture above. Your finger could be caught in the top or bottom groove and you could be injured as shown below.

LCD monitor indicator Ê The LCD monitor displays information about the shooting functions and selections. Icons Description Icons

Memory card icon / Internal memory icon o/p

Image Quality / Frame Rate

Exposure compensation

Camera shake Warning

Color / Saturation No. Description

Sharpness / Without Sound

Face Detection / Self Portrait / Photo Style Selector

Number of available shots remaining

Remaining time 00:00:00 ENGLISH Mode Button Ê You can select a desired camera mode by using the M (Mode) button on the back of the camera. AUTO Selects this mode for quick and easy picture taking with minimal user interaction. Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting. PROGRAM MOVIE CLIP Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed. DIS This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions. FUN In this mode, you can take pictures with various effects easily and simply.

A movie clip can be recorded for as long as the available recording time. SCENE Use the menu to easily configure optimal settings for a variety of shooting situations. MULTIMEDIA This camera has an embedded MP3, TEXT VIEWER & Portable Media Player program. You can take a picture, listen to the MP3 files and watch the movie clip (Movie and Video clip) whenever you want. You can listen to the MP3 music while reading the text on the LCD monitor or taking a picture. Taking a picture Ê How to take a picture

4. Take a picture.

1. Turn on the camera and select a

camera mode by using the M (Mode) button. Pressing halfway down Pressing fully Focus and Flash status Image is taken are checked.

2. Hold the camera as shown

Ê How to record a movie Select the Movie clip mode by pressing the M (Mode) button.

1. Confirm the composition

3. Confirm the composition

2. Start the recording

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Playing back / Deleting images Ê Playing back the images -The last image stored on the memory is displayed. Press the play button ( g ). Ê Deleting images - This deletes images stored on the memory card.

1. S

elect an image that you want to delete by pressing the Left / Right button and press the DELETE ( n ) button. Delete? Select an image that you want to play back by pressing the Left/ Right button

Select OK Confirm [Single Image] Ä Manner mode : Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON. Delete? Yes

Yes OK Comfirm [Thumbnail Image]

2. To add images to delete, press the T

button. - Left / Right button : S elects images - T button : C hecks for deletion - OK button : d eletes the selected images. Prev

Select Next OK Delete

3. S

elect the submenu values by pressing the Up / Down button and then press the OK button. - If [No] is selected : cancels "Delete Image". - If [Yes] is selected : deletes the selected images.

MULTIMEDIA mode Downloading files To use MP3, PMP and TEXT VIEWER functions, MP3, PMP (multimedia files) and TEXT files must be saved in the internal memory or memory card of this camera.

1. Save the desired files on your PC.

2. Connect the camera to your PC with the USB cable and turn on the

3. Open Windows EXPLORER and search for Removable Disk.

4. Make a folder under the Removable Disk.

MP3 Mode: [MP3] PMP Mode: [PMP]

5. Select files that you want to save and copy them to the desired

folder. e aware of the illegal duplication of MP3 & multimedia files. It å B violates various copyright laws. å Without permission of Samsung, you cannot copy, modify and/or distribute any part or all of MP3, PMP file provided in the internal memory. camera can only play back MP3 files in the MP3 mode and SDC å This files (modified XviD MPEG4 video / MPEG Layer2 audio type) in the PMP mode. å If a file can not be played back on this camera, convert it into the supported file format by using the Samsung Converter. å Up to 200 files and 100 sub folders can be saved in a folder. You can only save a total of 200 files and sub folders at one time. å New folders can be created within the MP3, PMP and TEXT folders. Otherwise any files in other folders that you create cannot be played back. TEXT VIEWER mode: [TEXT]

ENGLISH å This camera has an embedded MP3, TEXT VIEWER & Portable Media Player program. You can take a picture, listen to the MP3 files and watch the movie clip (Movie and Video clip) whenever you want. To use the PMP mode, you must convert the multimedia file with the Samsung Converter. In the TEXT VIEWER mode you can see the text on the LCD monitor when listening to MP3 music. å If the file or folder name is over 120 (Including 1 Byte/2 Byte language, Korean, Chinese, etc.) characters, the file or folder name doesn’t appear on the play list. MULTIMEDIA mode Insert the memory card that holds MP3, PMP and TEXT files. As this camera has a 40MB internal memory, you can save the files on the internal memory too. <MP3 mode>

1. Select a desired Multi media mode.

2. A menu will display as shown.

[Resume] : M emorizes the latest stopped frame. MP3 mode : P lays back from the beginning of the file. MP3 Move Select In this mode you can play MP3 files. <PMP mode> PMP mode : P lays back from the latest stopped frame. TEXT VIEWER mode : P lays back from the latest stopped frame. [Open] : The browsing menu will be displayed to select a desired file.

3. Select a desired file and press the OK button.

The file will then be played back. Resume Open OK Confirm Move MULTIMEDIA mode The LCD monitor displays information about the MP3, multimedia and Text file. Indication of present TEXT Current page/Whole page Playing time Lock Mute Equalizer Battery ENGLISH Encoding Type (ANSI, Uni) Volume Indication MP3 mode Battery TEXT Contents Title of file Ä Encoding Type: ANSI (American National Standards Institute) Type, Uni (Unicode) Type Title of file Volume Time line PMP mode Battery Search speed Lock Mute - When the ANSI encoding type is displayed: You should set the Language of the TEXT VIEWER menu to view the text. Set the Language menu as one that is the same as the Operating System language that the text was created. - When the UNI encoding type is displayed: The text file will be displayed with any language menu. Ä If the text file size is over 10MB, it may take a long time or even be impossible to view the text file. In this case, please divide the text file. <PMP mode>

Downloading images For Windows

For Macintosh Ê PC connection mode

1. Install the supplied Software.

PC with processor better than Pentium II 450MHz (Pentium II 800MHz recommended) Ä Samsung Converter PC with processor better than Pentium 500MHz (Pentium IV recommended) Power Mac G3 or later Minimum 128MB RAM (Over 512MB recommended) 200MB of available hard disk space (Over 1GB recommend) Minimum 256MB RAM 110MB of available hard-disk space USB port USB port CD-ROM drive CD-ROM drive 1024x768 pixels, 16bit color display compatible monitor (24bit color display recommended) Microsoft DirectX 9.0 or later

2. Download the images

- Connect the camera and Computer with supplied USB cable and download the image on your computer to save them. Specifications Lens (depends on image size) - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix - Range : Wide : 0.2m ~ 3.2m, Tele : 0.5m ~ 2.5m - Recharging Time : Approx. 4 sec Sharpness - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color LCD Monitor - Type : TTL auto focus (Multi AF, Center AF, Face Detection AF) - Range - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Normal Wide Tele 80cm ~ Infinity Flash Macro Super Macro Auto Macro 5cm ~ 80cm 1cm ~ 5cm 5cm ~ Infinity 40cm ~ 80cm

40cm ~ Infinity Shutter Voice Recording - Voice Recording (max. 10 hours) - Voice Memo in Still Image (max. 10 sec.) Date Imprinting - Date, Date & Time, Off (user selectable) Shooting - Still Image

• Mode : Auto, Program, DIS, FUN, Photo Help Guide, Scene
• Scene : Nightscene, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow, Self Shot, Food, Café
• Shooting : Single, Continuous, AEB, Motion Capture
• Self-timer : 10 sec., 2 sec., Double, Motion Timer

ENGLISH - Movie Clip

• With Audio (recording time : max 2 hours)
• Size : 800x592, 720x480, 640x480, 320x240
• Optical Zoom with sound recording
• Frame rate : 30 fps, 20 fps, 15 fps (15/20 fps for 800x592, 720x480) (15/30 fps for 640x480, 320x240)
• Optical Zoom up to 3.0X
• Movie Editing (Embedded) : Pause during recording, Still Image Capture, Time Trimming Storage - Media
• Internal memory : About 40MB flash memory
• External Memory (Optional) : MC card (Up to 2GB guaranteed) SD/SDHC card (Up to 4GB guaranteed, 4bit 20MHz) Ä Internal memory capacity is subject to change without prior notice. - Capacity (256 MB Size)

Super Fine About 58 Fine Normal About 89

About 66 About 77 About 91

About 155 About 355 About 100 About 115 About 133 About 190 About 414 About 137 About 150 About 177 About 198 About 216 About 452 Ä These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings. hoto Style Selector (Normal, Soft, Vivid, - Effect : P Forest, Retro, Cool, Calm, Classic), Color, Image Adjust (Sharpness, Contrast, Saturation), Fun (Cartoon, Photo Frame, High Light, Composite,Color Mask) - Editing : Image Edit (Resize, Rotate), Color, Image Adjust (ACB, Red Eye Fix, Brightness, Contrast, Saturation, Add Noise), Fun (Cartoon, Photo Frame, High Light, Composite, Sticker, Color Filter, Color Mask) Image Play - Type : S ingle image, Thumbnails, Multi slide show Ä Multi Slide show : Slide show with Effect & Music by folders Multi function - MP3, PMP, Text Viewer, Storage Driver, Voice Recorder Specifications Power Source - Digital output connector : USB 2.0 - Audio: Mono(Speaker), Stereo(Earphone) - Video output : NTSC, PAL (user selectable) - DC power input connector : 4.2V (20-pin connector) - Rechargeable battery : SLB-1137D (1100mAh) - Adaptor : SAC-47, SUC-C3 (20pin) Ä Included battery may vary depending on sale region. Dimensions (WxHxD) - 90 X 62 X 21.6mm (excluding protrusions) Weight - Approx. 157g (without batteries and card) Operating Temperature - 0 ~ 40°C Operating Humidity - 5 ~ 85% Software Ä MP3 Specification Audio - Frequency: 20Hz ~ 20KHz - Earphone Port: 20Pin Port (Stereo Type) - Output: M aximum Volume Left 40mW + Right 40mW (16Ω) - Noise Ratio: 80 dB File - File Format: MP3 (MPEG-1/2/2.5 Layer 3) - Bit Rate: 48 ~ 320kbps (Including VBR) Sound Effect - SRS, Normal, Classic, Dance, Jazz, Live, Rock Play Mode - All, Repeat One, Repeat All, Shuffle - Skipping in Play, Auto Skipping - Slide Show On/Off (User Selectable) P3&Capturing (Capturing Mode is Auto Default, 3M) emember last played file ackground skin of MP3 playback using user images ENGLISH Interface - Fast Forward/Rewind(Max 32x) eeking in Play, Skipping in Play - Auto skipping after one file played emember last played frame upport Full Screen in Converting S/W Subtitle

upport SMI file (Using Samsung Converter S/W)

Specifications Correct Disposal of This Product Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal. File - TXT extension name, up to 99999 pages File format

uto Scroll (0.8 sec ~ 2.3 sec) kipping by 1 page / 10 pages uto reload function (Remember last page) upport MP3 BGM during displaying text file Language

nglish, Korean, French, German, Spanish, Italian, Chinese, Taiwanese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Bahasa, Polish, Hungarian, Czech, Turkish. upportable language is subject to change without prior notice. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.
