USER MANUAL YP-Z3CP SAMSUNG

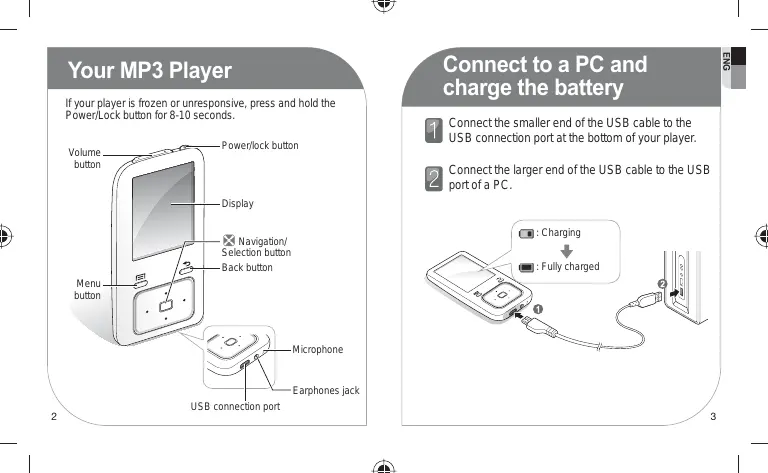

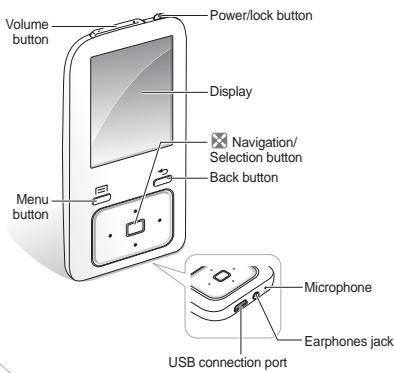

GM68-01102C (REV.1.0) The user manual and the installation program are stored in your player. Refer to page 4. Fully charge the battery before using your player for the first time. If your player is frozen or unresponsive, press and hold the Power/Lock button for 8-10 seconds. Volume button Power/lock button Connect to a PC and charge the battery ENG Your MP3 Player Connect the smaller end of the USB cable to the USB connection port at the bottom of your player. Connect the larger end of the USB cable to the USB port of a PC. Display : Charging Navigation/ Selection button Back button : Fully charged Menu button MIC

ENG Install PC program and view user manual Download files You can view the user manual and install the PC program (Kies) on your PC. Connect your player to a PC using the USB cable. On your PC, open <My Computer> and then the <Z3>. Connect your player to a PC using the USB cable. On your PC, double click <My Computer> → <Z3> → <Manual-PCProgram> → <Setup(YP-Z3).exe>. Select a folder you want. Copy files from the PC to your player. Click <Install now> to begin the Kies installation. Click <User Manual> to view the user manual. When the installation is completely done, you can remove the <Manual-PCProgram> folder in your player to increase the free space for further use.

Before disconnecting your player from a PC, first perform the safely remove hardware process. The process may vary depending on your PC’s operating system.

ENG Play video files In the main menu, select <Videos>. During playback, use the following controls: Skip to the previous file or the next file Do this Press

Search backward or forward in a file Press and hold Pause or resume playback Press

Select a video file from the list.
