USER MANUAL GN1416230CXPN BEKO

GN1416230CXPN EN/FR/SL

58 4222 0000/AE-1/3-EN-FR-SL Please read this manual before using the product! Dear Customer, We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls. Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product. This guide will help you use the product quickly and safely. Please read the user guide carefully before installing and operating the product. Always observe the applicable safety instructions. Keep the user guide within easy reach for future use. Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

C A B Important information and useful tips. Risk of life and property.

Risk of electric shock. The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.

C INFORMATION SUPPLIER’S NAME A A A MODEL IDENTIFIER C

.The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. (*)

https://eprel.ec.europa.eu/

1- Safety Instructions

5 Operating the product

5.1 Indicator panel . . . . . . . . . . . . . . . . . . . . . .13 5.2 Indicator panel. . . . . . . . . . . . . . . . . . . . .18 5.3 Freezing fresh food. . . . . . . . . . . . . . . . . . .20 5.4 Recommendations for preserving the frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 5.5 Deep-freeze information . . . . . . . . . . . . . . .21 5.6 Placing the food . . . . . . . . . . . . . . . . . . . . .21 5.7 Door open warning . . . . . . . . . . . . . . . . . . .21 5.8 Crisper. . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5.9 Humidity-controlled crisper . . . . . . . . . . . . .22 (FreSHelf) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5.10 Egg tray . . . . . . . . . . . . . . . . . . . . . . . . . .22 5.11 Movable Middle Section . . . . . . . . . . . . . .22 5.12 Cool Control Storage Compartment . . . . .23 5.13 Blue light/HarvestFresh. . . . . . . . . . . . . . .23 5.14 Odour filter. . . . . . . . . . . . . . . . . . . . . . . .23 5.15 Wine cellar compartment . . . . . . . . . . . . .24 5.16 Use of internal water dispenser and water dispenser at the door . . . . . . . . . . . . . . . .25 5.17 Dispensing water . . . . . . . . . . . . . . . . . . .25 5.18 For using water dispenser. . . . . . . . . . . . .26 5.19 Icematic . . . . . . . . . . . . . . . . . . . . . . . . .26 5.20 Icematic and ice storage container . . . . . .27

6 Maintenance and cleaning

Refrigerator / User Manual

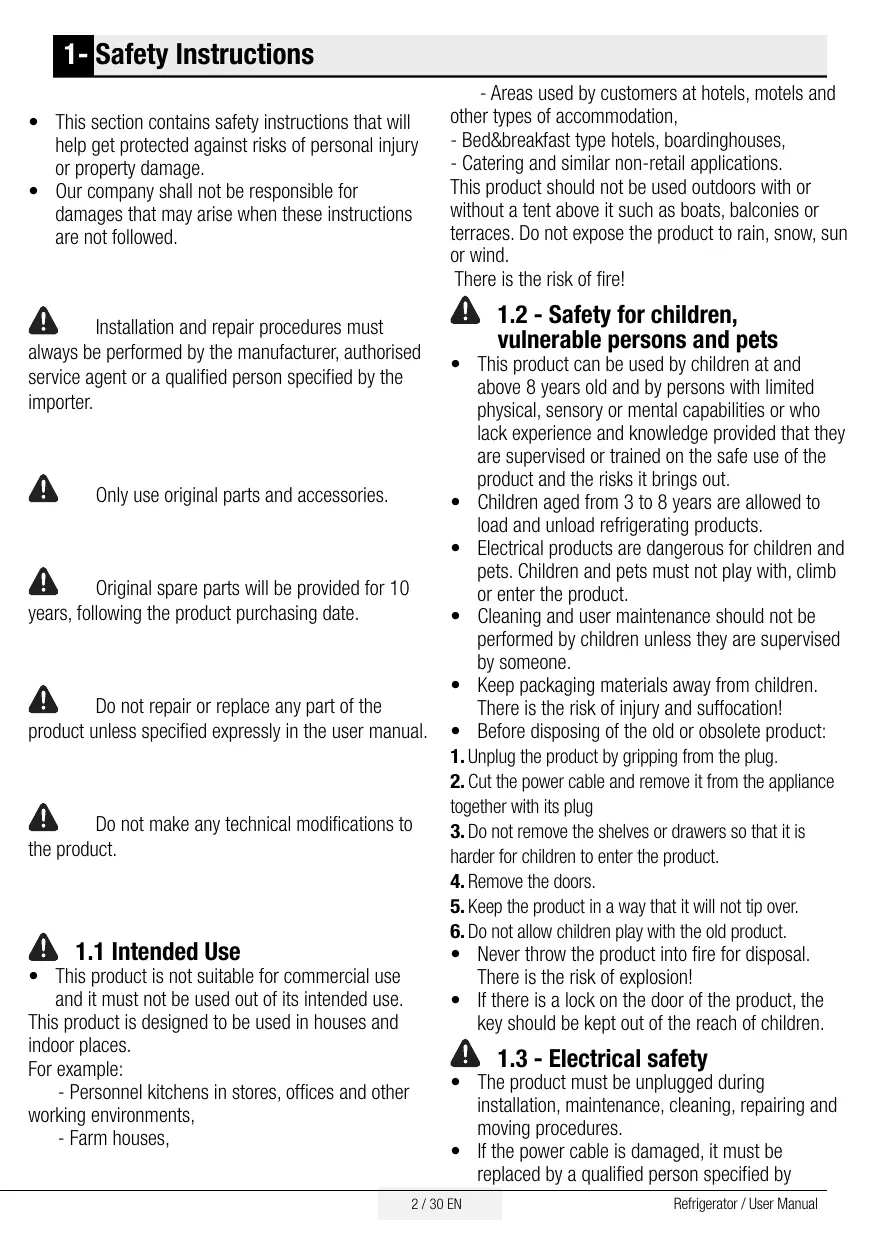

1- Safety Instructions 1- Safety Instructions

This section contains safety instructions that will help get protected against risks of personal injury or property damage. Our company shall not be responsible for damages that may arise when these instructions are not followed.

- Areas used by customers at hotels, motels and other types of accommodation, - Bed&breakfast type hotels, boardinghouses, - Catering and similar non-retail applications. This product should not be used outdoors with or without a tent above it such as boats, balconies or terraces. Do not expose the product to rain, snow, sun or wind. There is the risk of fire!

1.2 - Safety for children, vulnerable persons and pets

Installation and repair procedures must always be performed by the manufacturer, authorised service agent or a qualified person specified by the importer.

This product can be used by children at and above 8 years old and by persons with limited physical, sensory or mental capabilities or who lack experience and knowledge provided that they are supervised or trained on the safe use of the product and the risks it brings out. Children aged from 3 to 8 years are allowed to load and unload refrigerating products. Electrical products are dangerous for children and pets. Children and pets must not play with, climb or enter the product. Cleaning and user maintenance should not be performed by children unless they are supervised by someone. Keep packaging materials away from children. There is the risk of injury and suffocation! Before disposing of the old or obsolete product:

Only use original parts and accessories.

Original spare parts will be provided for 10 years, following the product purchasing date.

Do not repair or replace any part of the product unless specified expressly in the user manual.

Do not make any technical modifications to the product.

1. Unplug the product by gripping from the plug. 2. Cut the power cable and remove it from the appliance together with its plug 3. Do not remove the shelves or drawers so that it is harder for children to enter the product. 4. Remove the doors. 5. Keep the product in a way that it will not tip over. 6. Do not allow children play with the old product.

Never throw the product into fire for disposal. There is the risk of explosion! If there is a lock on the door of the product, the key should be kept out of the reach of children.

This product is not suitable for commercial use and it must not be used out of its intended use. This product is designed to be used in houses and indoor places. For example: - Personnel kitchens in stores, offices and other working environments, - Farm houses,

1.3 - Electrical safety

The product must be unplugged during installation, maintenance, cleaning, repairing and moving procedures. If the power cable is damaged, it must be replaced by a qualified person specified by

2 / 30 EN Refrigerator / User Manual

Important instructions regarding safety and environment the manufacturer, authorised service agent or importer in order to avoid potential dangers. Do not squeeze the power cable under or behind the product. Do not place heavy objects on the power cable. Power cable must not be bent excessively, pinched or get in contact with any heat source. Do not use extension cords, multi-sockets or adapters to operate the product. Portable multi-sockets or portable power sources can overheat and cause fire. Therefore, do not keep any multi-sockets behind or near the product. Plug must be easily accessible. If this is not possible, the electrical installation to which the product is connected must contain a device (such as a fuse, switch, circuit breaker, etc.) which conforms to the electrical regulations and disconnects all poles from the grid. Do not touch the power plug with wet hands. Remove the plug from the socket by gripping the plug and not the cable.

1.4 - Transportation safety

Product is heavy; do not move it alone. Do not hold its door when moving the product. Pay attention not to damage the cooling system or the piping during transportation. If the piping is damaged, do not operate the product and call the authorised service agent.

1.5 - Installation safety

Call the authorised service agent for installation of the product. To make the product ready for use, check the information in the user manual to make sure that the electricity and water installations are suitable. If they are not, call a qualified electrician and plumber to have the necessary arrangements made. Otherwise, there is the risk of electric shock, fire, problems with the product, or injury! Prior to installation, check if the product has any defects on it. If the product is damaged, do not have it installed. Place the product on a clean, flat and solid surface and balance it with adjustable feet. Otherwise, the product may tip over and cause injuries.

The installation location must be dry and well ventilated. Do not place carpets, rugs or similar covers under the product. Insufficient ventilation causes the risk of fire! Do not cover or block the ventilation openings. Otherwise, power consumption increases and your product may get damaged. Product must not be connected to supply systems such as solar power supplies. Otherwise, your product may get damaged due to sudden voltage changes! The more refrigerant a refrigerator contains, the larger the installation location must be. If the installation location is too small, flammable refrigerant and air mixture will accumulate in cases of refrigerant leakage in cooling system. The required space for each 8 gr of refrigerant is 1 m³ minimum. The amount of refrigerant in your product is indicated on the Type Label. Product must not be installed in places exposed to direct sunlight and it must be kept away from heat sources such as hobs, radiators, etc. If it is inevitable to install the product close to a heat source, a suitable insulation plate must be used in between and the following minimum distances must be kept to the heat source: - Minimum 30 cm away from heat sources such as hobs, ovens, heater units or stoves, - Minimum 5 cm away from electric ovens. Protection class of your product is Type I. Plug the product in a grounded socket that conforms the voltage, current and frequency values stated on the type label of the product. The socket must be equipped with a 10 A – 16 A circuit breaker. Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the local and national regulations. Product must not be plugged in during installation. Otherwise, there is the risk of electric shock and injury! Do not plug the product in sockets that are loose, dislocated, broken, dirty, greasy or bear the risk of getting in contact with water. Route the power cable and hoses (if any) of the product in a way that they do not cause risk of tripping over.

3 /30 EN Refrigerator / User Manual

Important instructions regarding safety and environment Exposing the live parts or power cable to humidity may cause short circuit. Therefore, do not install the product in places such as garages or laundry rooms where humidity is high or water may splash. If the refrigerator gets wet with water, unplug it and call the authorised service agent. Never connect your refrigerator to energy saving devices. Such systems are harmful to your product.

1.6- Operational safety

Never use chemical solvents on the product. There is the risk of explosion! If the product malfunctions, unplug it and do not operate until it is repaired by the authorised service agent. There is the risk of electric shock! Do not place flame sources (lit candles, cigarettes, etc.) on or close to the product. Do not climb on the product. There is the risk of falling and getting injured! Do not damage the pipes of the cooling system with sharp or penetrating objects. The refrigerant that might come out when the refrigerant pipes, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries. Unless recommended by the manufacturer, do not place or use electrical devices inside the refrigerator/deep freezer. Be careful not to trap your hands or any other part of your body in the moving parts inside the refrigerator. Pay attention not to squeeze your fingers between the door and the refrigerator. Be careful when opening and closing the door particularly if there are children around. Never eat ice cream, ice cubes or frozen food right after removing them from the refrigerator. There is the risk of frostbite! When your hands are wet, do not touch the inner walls or metal parts of the freezer or the food stored therein. There is the risk of frostbite! Do not place tins or bottles that contain carbonated drinks or freezable liquids in the freezer compartment. Tins and bottles may burst. There is the risk of injury and material damage! Do not place or use flammable sprays, flammable materials, dry ice, chemical

substances or similar heat-sensitive materials near the refrigerator. There is the risk of fire and explosion! Do not store explosive materials that contain flammable materials, such as aerosol cans, in your product. Do not place containers filled with liquid onto the product. Splashing water on an electrical part may cause electric shock or the risk of fire. This product is not intended for storing medicines, blood plasma, laboratory preparations or similar medical substances and products subject to Medical Products Directive. Using the product against its intended purpose may cause the products stored inside it to deteriorate or spoil. If your refrigerator is equipped with blue light, do not look at this light with optical tools. Do not stare at UV LED lamp directly for a long time. Ultraviolet light may cause eye strain. Do not overload the product. Objects in the refrigerator may fall down when the door is opened, causing injury or damage. Similar problems may arise if any object is placed onto the product. To avoid injuries, make sure that you have cleaned all the ice and water that may have fallen or splashed on the floor. Change the position of the shelves/bottle holders on the door of your refrigerator only when they are empty. There is the risk of injury! Do not place objects that can fall down/tip over onto the product. Such objects may fall down when the door is opened and cause injuries and/or material damage. Do not hit or exert excessive force on glass surfaces. Broken glass may cause injuries and/ or material damage. Cooling system of your product contains R600a refrigerant: Type of the refrigerant used in the product is indicated on the type label. This refrigerant is flammable. Therefore, pay attention not to damage the cooling system or the piping while the product is in use. If the piping is damaged: - Do not touch the product or the power cable, - Keep away potential sources of fire that may cause the product to catch fire.

4 / 30 EN Refrigerator / User Manual

Important instructions regarding safety and environment Use a clean and dry cloth to wipe the foreign materials or dust on the pins of the plug. Do not use a wet or damp cloth to clean the plug. There is the risk of fire and electric shock!

- Ventilate the area where the product is located. Do not use fans. - Call the authorised service agent. If the product is damaged and you see refrigerant leak, please stay away from the refrigerant. Refrigerant may cause frostbite in case of skin contact. For products with a Water Dispenser/Ice Machine Use only potable water. Do not fill the water tank with any liquids -such as fruit juice, milk, carbonated beverages or alcoholic drinks- that are not suitable for use in the water dispenser. There is the risk for health and safety! Do not allow children play with the water dispenser or ice machine (Icematic) in order to prevent accidents or injuries. Do not insert your fingers or other objects into the water dispenser hole, water channel or ice machine container. There is the risk of injury or material damage!

When you operate your product through HomeWhiz application, you must observe the safety warnings even when you are away from the product. You must also follow the warnings in the application.

Call the authorised service when it is required to replace the LED/bulb used for lighting.

1.7- Maintenance and cleaning safety

Do not pull from the door handle if you need to move the product for cleaning purposes. Handle may break and cause injuries if you exert excessive force on it. Do not spray or pour water on or inside the product for cleaning purposes. There is the risk of fire and electric shock! Do not use sharp or abrasive tools when cleaning the product. Do not use household cleaning products, detergent, gas, gasoline, thinner, alcohol, varnish etc. Only use cleaning and maintenance products inside the product that are not harmful for food. Never use steam or steam assisted cleaners to clean or defrost the product. Steam gets into contact with the live parts in your refrigerator, causing short circuit or electric shock! Make sure that no water enters the electronic circuits or lighting elements of the product.

5 /30 EN Refrigerator / User Manual

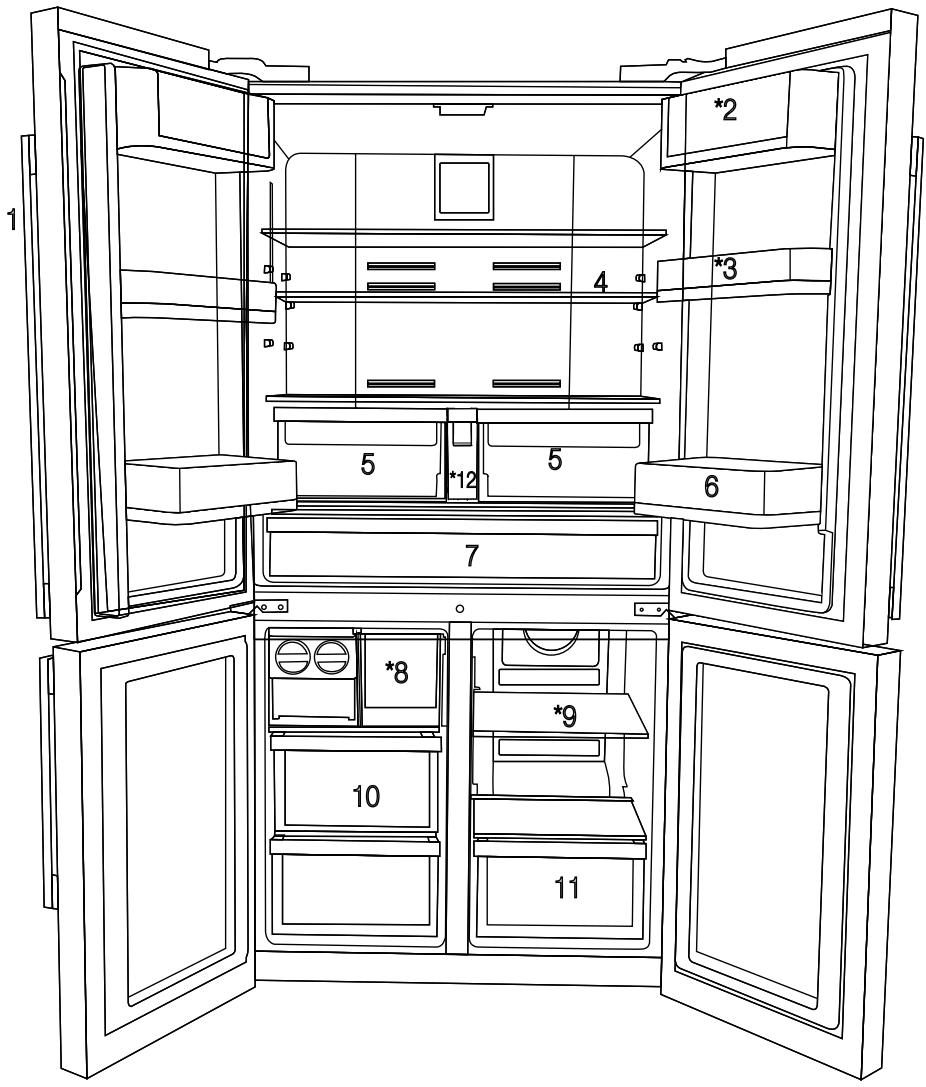

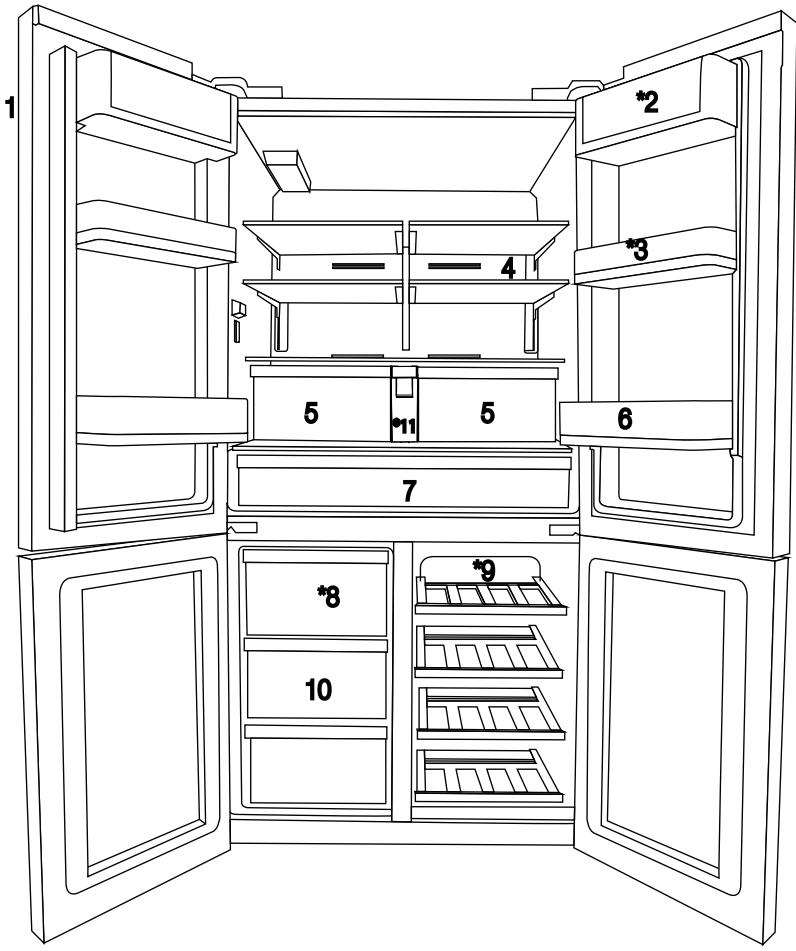

Control and indicator panel Butter & Cheese section 70 mm moving door shelf Fridge compartment glass shelf Fridge compartment crisper Gallon door shelf

7- Chiller compartment 8- Icebox drawer 9- Multizone compartment glass shelf/cooler 10- Freezer compartment drawers 11- Multizone Compartment's drawer 12- Water tank

* OPTIONAL Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

6 / 30 EN Refrigerator / User Manual

Control and indicator panel Butter & Cheese section 70 mm moving door shelf Fridge compartment glass shelf Fridge compartment crisper Gallon door shelf

7- Chiller compartment 8- Icebox drawer 9- Multizone compartment glass shelf/cooler 10- Freezer compartment drawers 11- Water tank

* OPTIONAL Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

7 /30 EN Refrigerator / User Manual

Installation fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient operation of the product.

3.1 Appropriate location for installation Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

temperature falls below -5°C.

3.2 Installing the plastic wedges Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

WARNING: Manufacturer shall not

be held liable for damages that may arise from procedures carried out by unauthorized persons.

WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!

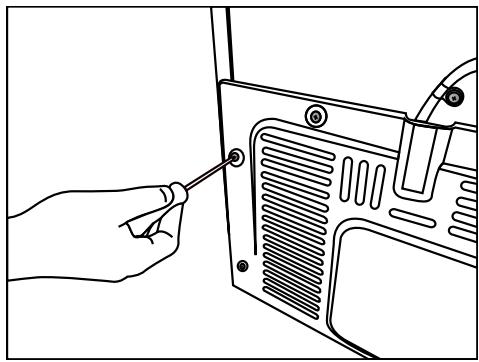

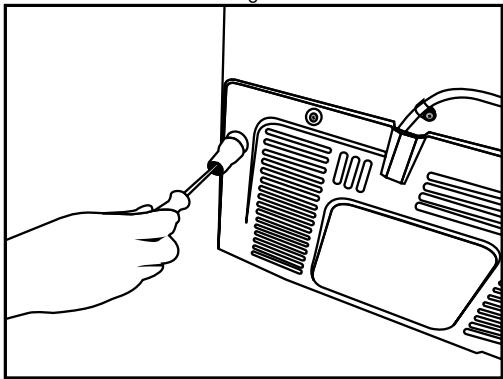

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.

WARNING: : If the door clearance of the

room where the product shall be placed is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

prevent jolts. heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.

2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

and kept in humid places. function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. Check if the rear wall clearance protection component is present at its location (if provided with the product). If the component is not available, or if it is lost or

8 / 30 EN Refrigerator / User Manual

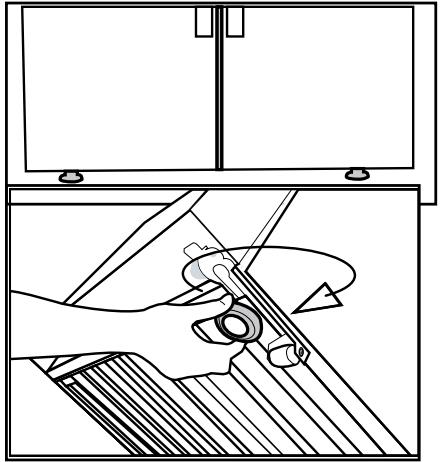

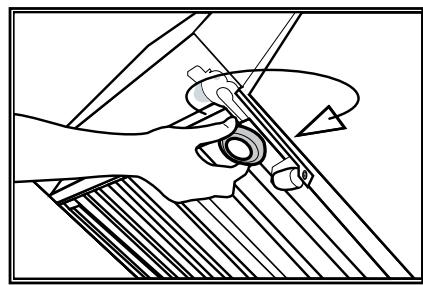

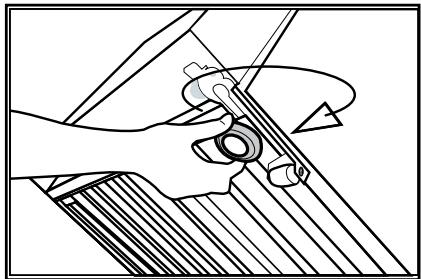

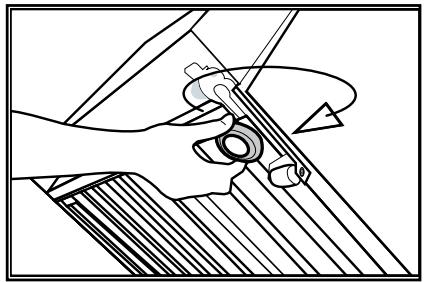

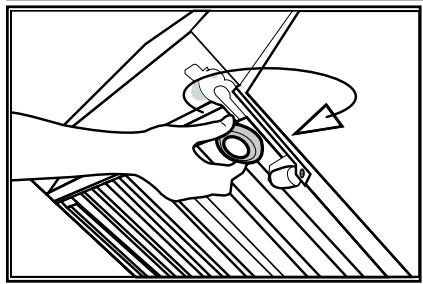

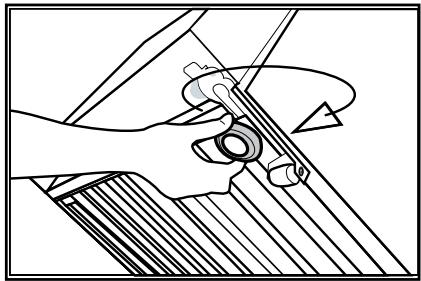

Installation 3.3* Adjusting the feet If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left. *If your product does not have a wine compartment or is not a glass door, your product does not have adjustable stands, the product has fixed stands.

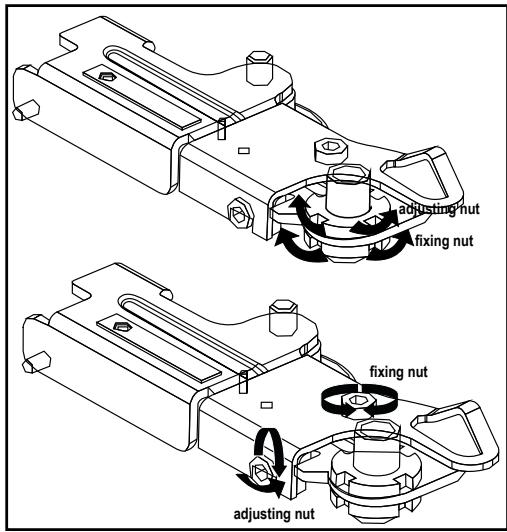

To adjust the doors vertically, Loosen the fixing nut located at the bottom. Rotate the adjusting nut according to the position of the door (clockwise/counter-clockwise). Tighten the fixing nut in order to fix the position. To adjust the doors horizontally, Loosen the fixing nut located at the top. Rotate the side adjusting nut according to the position of the door (clockwise/counter-clockwise). Tighten the fixing nut which is at the top in order to fix the position.

adjusting nut fixing nut

9 /30 EN Refrigerator / User Manual

Installation -Upper hinge group is fixed with 3 screws. -The hinge cover is attached after the sockets are installed. - Then the hinge cover is fixed with two screws.

3.4 Electric connection

A B C WARNING: Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cable must be replaced by the Authorized Service Agent.

If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations. Power cable plug must be within easy reach after installation. Do not extension cords or cordless multiple outlets between your product and the wall outlet.

10 / 30 EN Refrigerator / User Manual

4.1 Things to be done for saving energy

A Connecting your refrigerator to systems that save energy is dangerous as they may cause damage on the product.

For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a builtin appliance. Do not leave the doors of your refrigerator open for a long time. Do not put hot food or drinks in your refrigerator. Do not overload the refrigerator. Cooling capacity will fall when the air circulation in the refrigerator is hindered. Do not place the refrigerator in places subject to direct sunlight. Install the product at least 30 cm away from heat sources such as hobs, ovens, heater units and stoves and at least 5 cm away from electrical ovens. Pay attention to store your food in refrigerator in closed containers. To be able store maximum food in the freezer compartment of your refrigerator, the upper drawer has to be removed and placed on top of glass shelf. Power consumption stated for your refrigerator has been determined after removing the icematic and the upper drawers as to allow maximum loading. It is strongly recommended to use the lower drawers in the freezer and the multizone compartment while loading. Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances. Airflow should not be blocked by placing foods in front of the freezer and the multizone compartment fans. Foods should be loaded by leaving minimum 5 cm space in front of the protective fan grid.

Thawing the frozen foods in the fridge compartment both saves energy and reserves the quality of the foods.

C C C Temperature of the room where your refrigerator is located should at least be 10ºC /50°F. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency. Inside of your refrigerator must be cleaned thoroughly. If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

4.2 Recommendations about the fresh food compartment

11 /30 EN Make sure that the food does not touch the temperature sensor in fresh food compartment. To allow the fresh food compartment to keep its ideal storage temperature, the sensor must not be hindered by food. Do not place hot foods or beverages inside the product.

Refrigerator / User Manual

Preparation 4.3 Initial use

Before using the product, make sure that all preparations have been made in accordance with the instructions given in the "Important instructions regarding safety and environment" and "Installation" chapters. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section. Before you start the refrigerator, make sure that the interior is dry. Plug the refrigerator in a grounded socket. The interior illumination is lit when the door of the refrigerator is opened. Operate the refrigerator for 6 hours without placing any food in it and do not open its door unless it is necessary.

C C You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

12 / 30 EN Refrigerator / User Manual

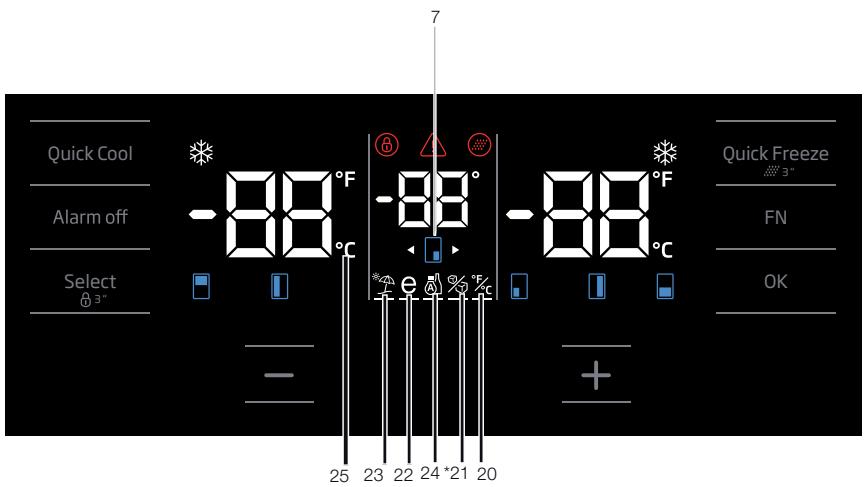

Operating the product

Touch-controlled indicator panel allows you to set the temperature and control the other functions related to the refrigerator without opening the door of the product. Just press the relevant buttons for function settings. 1

C Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

13 /30 EN Refrigerator / User Manual

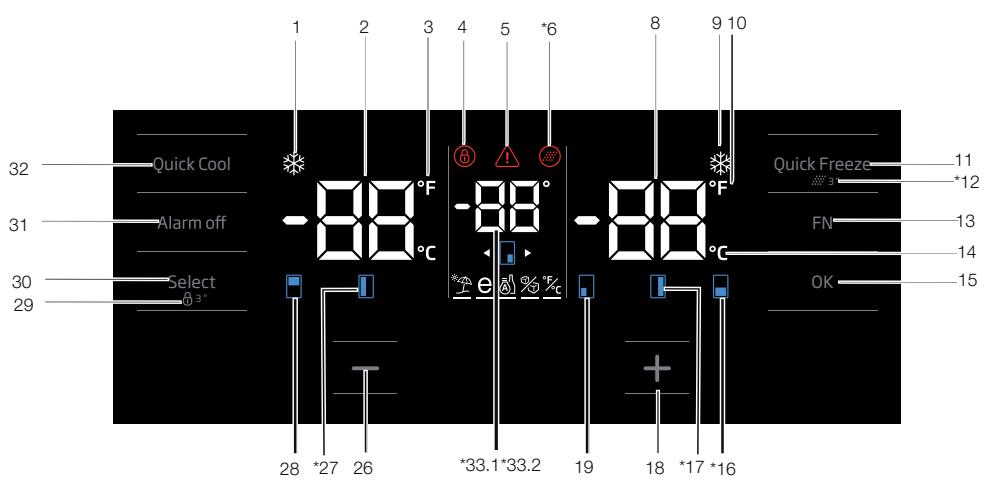

Operating the product 1. Quick cooling function indicator It turns on when the quick fridge function is activated. 2. Fridge compartment temperature indicator Temperature of the fridge compartment is shown; it can be set to 8,7,6,5,4,3,2,1. 3. Fahrenheit indicator It is a Fahrenheit indicator. When the Fahrenheit indication is activated, the temperature set values are shown in Fahrenheit and the relevant icon turns on. 4. Key lock Press key lock button simultaneously for 3 seconds. Key lock symbol will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited. Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator. 5. Power failure/High temperature / error warning This indicator illuminates during power failure, high temperature failures and error warnings. During long-term power failures, the highest temperature value that the freezer compartment reaches will blink on the digital display. After checking the food located in the freezer compartment, press the alarm off button to clear the warning. Please refer to “solutions recommended for troubleshooting” section on your manual if you observe that this indicator is illuminated. 6. Filter reset icon This icon turns on when the filter needs to be reset.

8. Freezer compartment temperature indicator Temperature of the fridge compartment is shown; it can be set to -16,-18, -19, -20, -21, -22, -23, -24. 9. Quick freeze function indicator It turns on when the quick freeze function is activated. 10. Fahrenheit indicator It is a Fahrenheit indicator. When the Fahrenheit indication is activated, the temperature set values are shown in Fahrenheit and the relevant icon turns on. 11. Quick freeze function button Press this button to activate or deactivate the quick freeze function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value.

C C C Use the quick freeze function when you want to quickly freeze the food placed in freezer compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product. If you do not cancel it, Quick Freeze will cancel itself automatically after 24 hours at the most or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

12. Filter reset The filter is reset when the quick freeze button is pressed for 3 seconds. Filter reset icon goes off.

13. FN button Using this key, you can switch between the 7. Temperature change cabin icon functions that you want to select. Upon pressing Indicates the cabin whose temperature is to be this key, the icon, whose function is required to be changed. When the temperature change cabin icon activated or deactivated, and this icon’s indicator starts flashing, it is understood that the relevant starts flashing. The FN button gets deactivated if cabin has been selected. not pressed for 20 seconds. You need to press this

14 / 30 EN Refrigerator / User Manual

Operating the product button to change the functions again. 14. Celsius indicator It is a Celsius indicator. When the Celsius indication is activated, the temperature set values are shown in Celsius and the relevant icon turns on. 15. OK button After navigating the functions using the FN button, when the function is cancelled via the OK button, the relevant icon and the indicator flashes. When the function is activated, it remains on. The indicator continues to flash in order to show the icon it is on. 16. Temperature change cabin icon Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

ice machine off icon and the ice machine function indicator start flashing when you hover over them, thus you can understand whether the ice machine will be turned on or off. When you press the OK button, the ice machine icon lights continuously and the Indicator continues to flash during this process. If you do not press any button after 20 seconds, the icon and the indicator remains on. Thus, the ice machine is switched off. In order to switch on the ice machine again, hover over the icon and the indicator; thus, both the ice machine off icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go off and thus the ice machine will be switched on again.

C C Indicates whether the icematic is on or off.

20. Setting the Celsius and Fahrenheit indicator Hover over this key using the FN key and select Fahrenheit and Celsius via the OK key. When the relevant temperature type is selected, the Fahrenheit and Celsius indicator turns on.

Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the icematic. 22. Eco fuzzy function icon Press the FN key (until it reaches the letter e icon and the lower line) to activate the eco fuzzy. When you hover over the eco fuzzy icon and the eco fuzzy function indicator, they start flashing. Thus, you can understand whether the eco fuzzy function will be activated or deactivated. When you press the OK button, the eco fuzzy function icon lights continuously and the Indicator continues to flash during this process. If you do not press any button after 20 seconds, the icon and the indicator remains on. Thus, the eco fuzzy function is activated. In order to cancel the eco fuzzy function, hover over the icon and the indicator again and press the OK key. Thus, both the eco fuzzy function icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go off and the eco fuzzy function will be cancelled.

21. Ice machine off icon Press the FN key (until it reaches the ice icon and the lower line) to switch off the ice machine. The

23. Vacation function icon Press the FN key (until it reaches the umbrella icon and the lower line) to activate the vacation

17. Temperature change cabin icon Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected. 18. Set increasing button Select the relevant cabin with the select button; the cabin icon representing the relevant cabin will start to flash. If you press the set increasing button during this process, the set value gets increased. If you keep pressing it in a loop, the set value returns to the beginning. 19. Temperature change cabin icon Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

15 /30 EN Refrigerator / User Manual

Operating the product function. When you hover over the vacation function icon and the vacation function indicator, they start flashing. Thus, you can understand whether the vacation function will be activated or deactivated. When you press the OK button, the vacation function icon lights continuously and thus the Vacation function is activated. The Indicator continues to flash during this process. Press the OK key to cancel the vacation function. Thus, both the vacation function icon and the indicator will start flashing and the vacation function will be cancelled. 24. Wine mode icon When first using the product, the wine mode icon ( ) is on by default. This means that wine mode is active. In order to cancel the wine mode function, Press the FN key (until it reaches the wine icon and the lower line) the wine mode.When you hover over the icon and the indicator,press the OK key. Thus, both the wine mode function icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go off and the wine mode function will be cancelled.Thus, the wine mode will convert to Freezer mode. To active the wine mode function, hover over the icon and the indicator again and press the OK key. Thus, both the wine mode function icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go on and the wine mode function will be activated. 25. Celsius indicator It is a Celsius indicator. When the Celsius indication is activated, the temperature set values are shown in Celsius and the relevant icon turns on.

27. Temperature change cabin icon Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

26. Set decreasing function Select the relevant cabin with the select button; the cabin icon representing the relevant cabin will start to flash. If you press the set decreasing button during this process, the set value gets decreased. If you keep pressing it in a loop, the set value returns to the beginning.

31. Alarm off warning In case of power failure/high temperature alarm, after checking the foods in the freezer compartment, press the alarm off button to clear the warning.

28. Temperature change cabin icon Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected. 29. Key lock Press key lock button simultaneously for 3 seconds. Key lock symbol will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited. Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator. 30.Select button Use this button to select the cabin whose temperature you want to change. Switch between the cabins by pressing this button. The selected cabin can be understood from the cabin icons (7,17,18,20,28,29). Whichever cabin icon is flashing, the cabin, whose temperature set value you want to change, is selected. Then, you can change the set value by pressing the cabin set value decreasing button (27) and the cabin set value increasing button (19). If you do not press the select button for 20 seconds, the cabin icons will go off. You need to press this key to select a cabin again.

16 / 30 EN Refrigerator / User Manual

Operating the product 32. Quick cooling function button The button has two functions. To activate or deactivate the quick cool function, press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings.

C C C C Use quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product. If you do not cancel it, quick cooling will cancel itself automatically after 1 hours at the most or when the fridge compartment reaches to the required temperature.

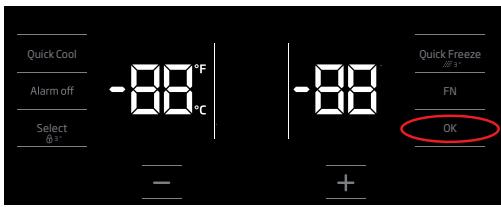

Sabbath Mode: Press the Ok Button for 3 seconds to activate or deactivate the Sabbath Mode. When Sabbath Mode is activated, the display, alarm, door opening or light buttons will not function:

OK If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately. This function is not recalled when power restores after a power failure.

33. 1 Joker temperature indicator Temperature set values of the joker cabin are displayed. 33. 2 Wine cooler compartment tempature indicator Tempature set values of the winecabin are displayed.

If the user does not deactivate the Sabbath mode, the refrigerator will automatically cancel it in 76 hours.

17 /30 EN Refrigerator / User Manual

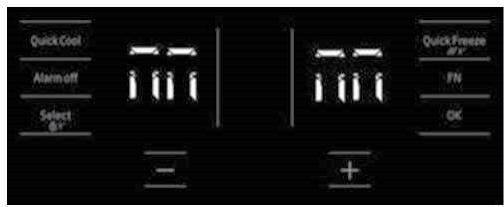

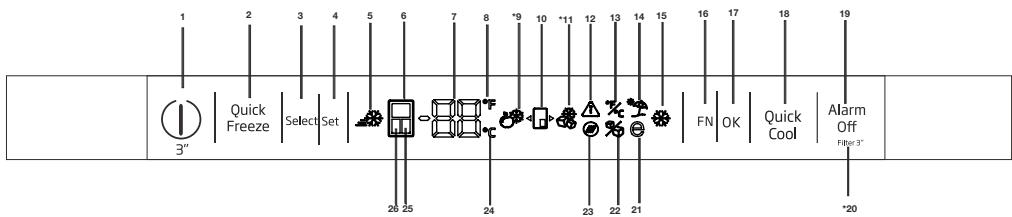

Operating the product 5.2 Indicator panel

Touch-control indicator panel allows you to set the temperature and control the other functions related to the refrigerator. Just press the relevant buttons for function settings. 1

C C Use the quick freeze function when you want to quickly freeze the food placed in freezer compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

25, 24 ). Whichever cabin icon is power on, the cabin, whose temperature set value you want to change, is selected. Then, you can change the set value by pressing the cabin set value Temperature Adjustment button (4) 4.Temperature Adjustment / Temperature Decrease When pressed, decreases the temperature of the selected compartment. 5-Quick freeze Indicator This icon lits when the Quick freeze function is active.

If you do not cancel it, Quick Freeze will cancel itself automatically after 24 hours at the most or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

3.Select button Use this button to select the cabin whose temperature you want to change. Switch between the cabins by pressing this button. The selected cabin can be understood from the cabin icons (6,

1-On/Off function Press the On/Off button for 3 seconds to turn off or turn on the fridge. 2. Quick freeze function button Press this button to activate or deactivate the quick freeze function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value.

6. Fridge compartment indicator When this indicator is active, the temperate of the fridge compartment is displayed on the temperature value indicator.Fridge compartment can be set to 8, 7, 6, 5, 4, 3, 2 or 1°C / 46, 45, 44, 43, 42, 41, 40,39,38,37,36,35,34 or 33°F by pressing Temperature Adjustment button (4). 7. Temperature value indicator Shows the temperature value of the selected compartment. 8. Fahrenheit indicator It is a Fahrenheit indicator. When the Fahrenheit indication is activated, the temperature set values are shown in Fahrenheit and the relevant icon turns on.

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

18 / 30 EN Refrigerator / User Manual

Operating the product 9. Joker fridge icon When you select the joker fridge icon using the FN button (16) and press the OK button (17) the joker cabin turns into a fridge cabin and operates as a cooler. 10. Joker cabin icon It shows joker cabin icon. 11. Joker freezer icon When you select the joker freezer icon using the FN button (16) and press the OK button (17) the joker cabin turns into a freezer cabin and operates as a freezer. 12. Power failure/High temperature / error warning This indicator illuminates during power failure, high temperature failures and error warnings. During long-term power failures, the highest temperature value that the freezer compartment reaches will blink on the digital display. After checking the food located in the freezer compartment, press the alarm off button (19) to clear the warning. 13.Setting the Celsius and Fahrenheit indicator Hover over this key using the FN key and select Fahrenheit and Celsius via the OK key. When the relevant temperature type is selected, the Fahrenheit and Celsius indicator turns on.

this key, the icon, whose function is required to be activated or deactivated, and this icon’s indicator starts flashing. The FN button gets deactivated if not pressed for 20 seconds. You need to press this button to change the functions again.

17. OK button After navigating the functions using the FN button, when the function is cancelled via the OK button, the relevant indicator flashes. When the function is activated, it remains on. The indicator continues to flash in order to show the icon it is on. 18. Quick cooling function button The button has two functions. To activate or deactivate the quick cool function, press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings. 19. Alarm off warning In case of power failure/high temperature alarm, after checking the foods in the freezer compartment, press the alarm off button to clear the High temperature warning icon (12). 20. Filter reset The filter is reset when the alarm off button (19) is pressed for 3 seconds. Filter reset icon goes off.

14. Vacation function icon Press the FN key (until it reaches the umbrella icon) to activate the vacation function. When you hover over the vacation function icon, it start flashing. Thus, you can understand whether the vacation function will be activated or deactivated. When you press the OK button, the vacation function indicator lights continuously and thus the Vacation function is activated. Press the OK key to cancel the vacation function. Thus, the vacation function indicator will start flashing and the vacation function will be cancelled. 15. Quick cooling function indicator It turns on when the quick fridge function is activated. 16. FN button Using this key, you can switch between the functions that you want to select. Upon pressing

21. Eco fuzzy function icon Press the FN key (until it reaches the letter e icon) to activate the eco fuzzy. When you hover over the eco fuzzy icon it start flashing. Thus, you can understand whether the eco fuzzy function will be activated or deactivated. When you press the OK button, the eco fuzzy function icon lights continuously during this process. If you do not press any button after 20 seconds, the icon remains on. Thus, the eco fuzzy function is activated. In order to cancel the eco fuzzy function, hover over the icon again and press the OK key. Thus, the eco fuzzy function icon will start flashing. If you do not press any button within 20 seconds, the icon will go off and the eco fuzzy function will be cancelled. 22. Ice machine off icon Press the FN key (until it reaches the ice icon) to switch off the ice machine. The ice machine off

19 /30 EN Refrigerator / User Manual

Operating the product icon start flashing when you hover over it, thus you can understand whether the ice machine will be turned on or off. When you press the OK button, the ice machine icon lights continuously during this process. If you do not press any button after 20 seconds, the icon and the indicator remains on. Thus, the ice machine is switched off. In order to switch on the ice machine again, hover over the icon. The ice machine off icon will start flashing. If you press ok button, the icon will go off and thus the ice machine will be switched on again.

5.3 Freezing fresh food

Indicates whether the icematic is on or off.

Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the icematic. 23. Filter reset icon This icon turns on when the filter needs to be reset. 24. Celsius indicator It is a Celsius indicator. When the Celsius indication is activated, the temperature set values are shown in Celsius and the relevant icon turns on. 25. Joker compartment indicator When this indicator is active, the temperate of the joker compartment is displayed on the temperature value indicator. Joker compartment set values change by pressing Temperature Adjustment button (4). 26. Freezer compartment indicator When this indicator is active, the temperate of the freezer compartment is displayed on the temperature value indicator.Freezer compartment can be set to -16, -18, -19, -20, -21, -22 and -24 °C /0, -2, -4, -6, -8, -10 and -12°F by pressing Temperature Adjustment button (3).

20 / 30 EN In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose. You may store the food longer in freezer compartment when you freeze them while they are fresh. Pack the food to be frozen and close the packing so that it would not allow entrance of air. Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers. Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first. Frozen food must be used immediately after they are thawed and they should not be refrozen. Do not freeze too large quantities of food at one time. “24 hours before freezing the fresh food, activate “Quick Freeze Function”. The fresh food packages should be placed in bottom drawers. After placing fresh food packages, activate “Quick Freeze Function” again. When the freezer cabinet is set to quick function, joker cabinet is also set to quick function automatically. “

Refrigerator / User Manual

Operating the product Freezer Fridge Compartment Compartment Remarks Setting Setting -18°C 4°C This is the normal recommended setting. -20, -22 or These settings are recommended when the ambient temperature 4°C -24°C exceeds 30°C. Use when you wish to freeze your food in a short time. Your product Quick Freeze 4°C will return to its previous mode when the process is over. Use these settings if you think that your fridge compartment is not -18°C or colder 2°C cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.4 Recommendations for preserving the frozen food

Compartment shall be set to -18°C at least. 1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw. 2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it. 3. Ensure that the package of the food is not damaged.

5.5 Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25°C ambient temperature to -18°C or lower within 24 hours for every 100-litres of freezer volume. It is possible to preserve the food for a long time only at -18°C or lower temperatures. You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze). Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially.

Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.6 Placing the food Freezer compartment shelves Refrigerator compartment shelves Door shelves of fridge compartment Crisper

Various frozen food such as meat, fish, ice cream, vegetables and etc. Food in pans, covered plates and closed containers, eggs (in closed container) Small and packaged food or beverage

Vegetables and fruits Delicatessen (breakfast food, Fresh zone meat products that shall be compartment consumed in a short time)

5.7 Door open warning (This feature is optional) An audio warning signal will be given when the door of your product is left open for 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

21 /30 EN Refrigerator / User Manual

Operating the product 5.8 Crisper

Crisper of the refrigerator is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation is intensified around the crisper in general. Remove the door shelves that stand against the crisper before removing the crisper.

5.9 Humidity-controlled crisper (FreSHelf) (This feature is optional) Humidity rates of fruits and vegetables are kept under control thanks to the humidity-controlled crisper and thus the food is ensured to stay fresh for a longer period. We recommend that you place leafy vegetables such as lettuce and spinach and vegetables sensitive to humidity loss as horizontally as possible when putting them in the crisper; not in a horizontal position on their roots. While the vegetables are being replaced, their specific weights should be taken into consideration. Heavy and hard vegetables must be placed at the bottom of the crisper and light and soft vegetables must be on the upper part. Never leave the vegetables in their plastic bags in the crisper. If they are left in their plastic bags, this will cause them to rot in a little while. If you not prefer the vegetable to get in contact with other vegetables for hygienic reasons, use perforated paper or a similar material instead of plastic bags.

Do not place pears, apricots, peaches etc., especially those fruits that generate large amounts of ethylene, in the same crisper with other fruits and vegetables. The ethylene gas emitted by these fruits cause other fruits to ripen sooner and to rot in a shorter span of time.

You can install the egg holder to the desired door or body shelf. Never keep the egg holder in the freezer compartment.

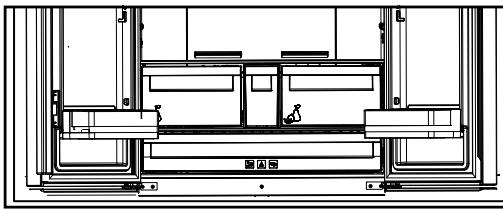

5.11 Movable Middle Section Movable middle section is intended to prevent the cold air inside your refrigerator from escaping outside. 1- Sealing is provided when the gaskets on the door presses on the surface of the movable middle section while the fridge compartment doors are closed. 2- Another reason that your refrigerator is equipped with a movable middle section is that it increases the net volume of the fridge compartment. Standard middle sections occupy some non-usable volume in the refrigerator. 3-Movable middle section is closed when the left door of the fridge compartment is opened. 4-It must not be opened manually. It moves under the guidance of the plastic part on the body while the door is closed.

22 / 30 EN Refrigerator / User Manual

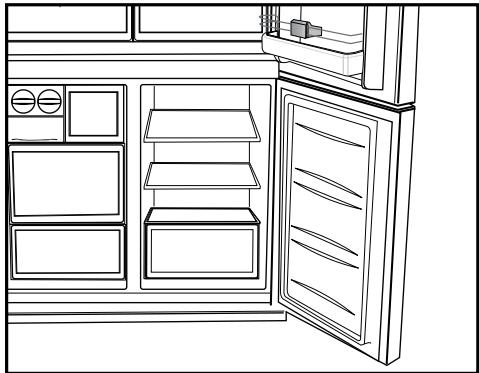

Operating the product 5.12 Cool Control Storage Compartment

5.13 Blue light/HarvestFresh

The Cool Control Storage Compartment of your refrigerator may be used in any desired mode by adjusting it to fridge (2/4/6/8 °C) or freezer (-18/-20/-22/-24) temperatures. You can keep the compartment at the desired temperature with the Cool Control Storage Compartment's Temperature Setting Button. The temperature of the Cool Control Storage Compartment may be set to 0 and 10 degrees in addition to the fridge compartment temperatures and to -6 degrees in addition to the freezer compartment temperatures. 0 degree is used to store the deli products longer, and -6 degrees is used to keep the meats up to 2 weeks in an easily sliceable condition.

*May not be available in all models For the blue light, Fruits and vegetables stored in the crispers that are illuminated with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus preserve their vitamin content. ForHarvestFresh, Fruits and vegetables stored in crispers illuminated with the HarvestFresh technology preserve their vitamins for a longer time thanks to the blue, green, red lights and dark cycles, which simulate a day cycle. If you open the door of the refrigerator during the dark period of the HarvestFresh technology, the refrigerator will automatically detect this and enable the blue-green or red light to illuminate the crisper for your convenience. After you have closed the door of the refrigerator, the dark period will continue, representing the night time in a day cycle.

5.14 Odour filter The feature of switching to a Fridge or Freezer compartment is provided by a cooling element located in the closed section (Compressor Compartment) behind the refrigerator. During operation of this element, sounds similar to the sound of seconds heard from an analogue clock may be heard. This is normal and is not fault cause.

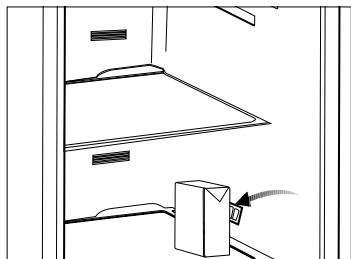

Odour filter in the air duct of the fridge compartment prevents build-up of unpleasant odours in the refrigerator.

23 /30 EN Refrigerator / User Manual

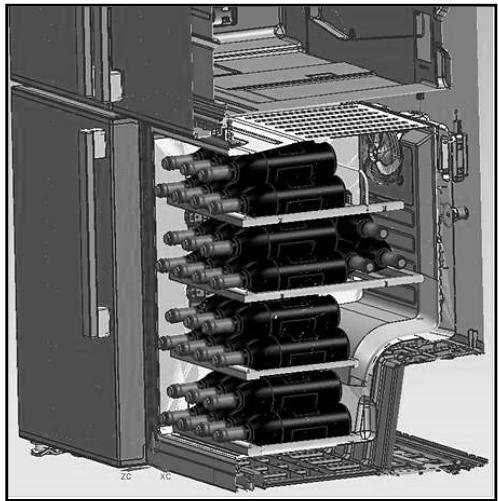

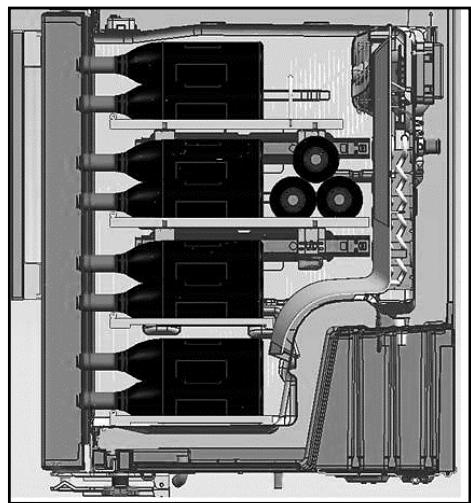

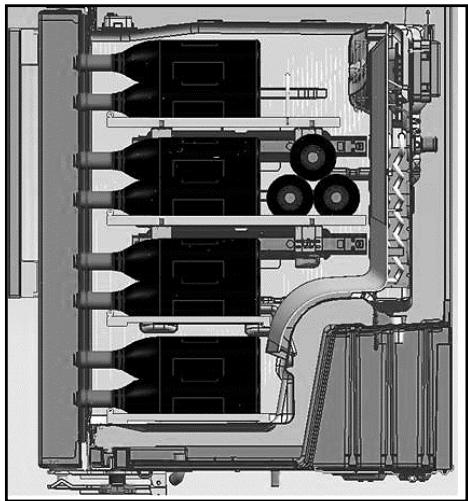

Operating the product 5.15 Wine cellar compartment (This feature is optional) 1 – Fill your cellar compartment Wine cellar was built to contain up to 28 front bottles + 3 bottles accessible using a telescopic rack. These maximum quantities declared are given for information purpose only and correspond to tests carried out with a “Bordelaise 75cl” standard bottle.

2- Suggested optimum service temperatures Our advice: If you mix different types of wines, choose a 12 ° Celsius setting just like in a real cellar. For white wines, which are to be served between 6 and 10 °, think of putting your bottles in the refrigerator 1/2 hour before serving, the refrigerator will be able to maintain the bottles at the preferred temperature. As regards red wines, they will heat up slowly at room temperature when serving.

16 -17°C Fine Bordeaux wines - Red

15 -16°C Fine Burgundy wines- Red

14 -16°C Grand crus (great growth) of dry white wines

11 -12°C Light,fruity and young red wines

10 -12°C Provence rosé wines, French wines

10 -12°C Dry white wines and red country wines

8 - 10°C White country wines

6-°C Sweet white wines

24 / 30 EN Refrigerator / User Manual

Operating the product 3- Suggestions relating to the opening of a wine bottle before tasting: White wines

About 10 minutes before serving

About10 minutes before serving

Thick and mature red wines

About 30 to 60 minutes before serving

4- How long can an open bottle be preserved? Unfinished bottles of wine must be cocked properly and can be preserved in a cold and dry place during the following periods: White

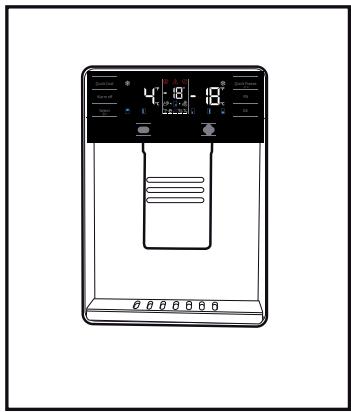

5.16 Use of internal water dispenser and water dispenser at the door

Water dispenser at the door (in some models)

(in some models) After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser paddle (5 seconds on, 5 seconds off) until a total of 4 gal. (15L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser. Allow 24 hours for the refrigerator to cool down and chill water. Dispense enough water every week to maintain a fresh supply. After 5 minutes of continuous dispensing, the dispenser will stop dispensing water to avoid flooding. To continue dispensing, press the dispenser paddle again.

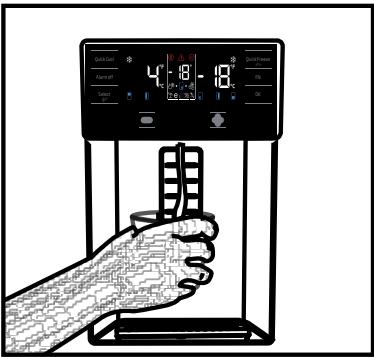

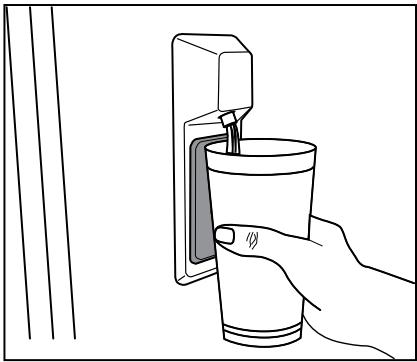

5.17 Dispensing water

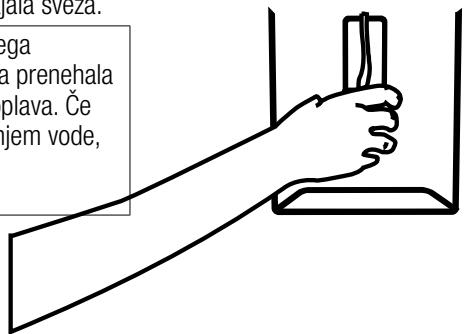

Hold a container under the dispenser spout while pressing the dispenser pad. Release the dispenser pad to stop dispensing. Quick Cool

C C It is normal for the first few glasses of water taken from the dispenser to be warm. If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

During initial use, you will have to wait approximately 24 hours for the water to cool down. Take out the glass a little while after you pull the trigger.

25 /30 EN Refrigerator / User Manual

Operating the product 5.19 Icematic Quick Cool

(in some models) To get ice from the icematic, fill the water tank in the fridge compartment with water up to the maximum level. Ice cubes in the ice drawer may stick to each other and become a bulk due to hot and humid air in approximately 15 days. This is normal. If you cannot break the bulk apart, you can empty the ice container and make ice again.

C C C C Built-in water dispenser (in some models)

5.18 For using water dispenser

A C Before using your fridge first time and after replacing your water filter, water dispenser may drip drops of water. To prevent water dripping or leaking from dispenser, please bleed the air from the system by dispensing 5-6 gallons (about 20 liter) of water through the water dispenser before the first use and every time after you change the water filter. This will remove any air trapped in the system and stop the water dispenser from leaking. Checking coupler position and the straightness of water line at the back of the unit will be required if there’s an obstruction in water flow.

It is recommended to change the water in the water tank if it remains in the water tank for more then 2-3 weeks. Strange noises you hear from the refrigerator at 120-minute intervals are the sounds of ice-making and pouring. This is normal. If you do not want to make ice, press the Ice off icon to stop the icematic to save energy and prolong the service life of your refrigerator. It is normal that a few drops of water drop from the dispenser after you have taken water.

If your water dispenser is leaking just a few drops of water after you have dispensed some water, this is normal.

26 / 30 EN Refrigerator / User Manual

Operating the product 5.20 Icematic and ice storage container (in some models) Using the Icematic Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice. Turn the knobs on the ice reservoirs clockwise by 90 degrees. Ice cubes in the reservoirs will fall down into the ice storage container below. You may take out the ice storage container and serve the ice cubes. If you wish, you may keep the ice cubes in the ice storage container. Ice storage container Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

27 /30 EN Refrigerator / User Manual

Maintenance and cleaning Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install. Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Cleaning your fridge at regular intervals will extend the service life of the product.

B WARNING: Unplug the product before cleaning it. Never use gasoline, benzene or similar substances for cleaning purposes. Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning. For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it. Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface Dissolve one teaspoon of bicarbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly. Make sure that no water enters the lamp housing and other electrical items. If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar. Check regularly that the door gaskets are clean. If not, clean them. To remove door and body shelves, remove all of its contents.

6.1 Avoiding bad odours

Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem: Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap. Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours. Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

28 / 30 EN Refrigerator / User Manual

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working. The power plug is not fully settled. >>> Plug it in to settle completely into the socket. The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE). The environment is too cold. >>> Do not install the product in environments with temperatures below -5°C. The door is opened too frequently >>> Take care not to open the product’s door too frequently. The environment is too humid. >>> Do not install the product in humid environments. Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders. The product’s door is left open. >>> Do not keep the product’s door open for long periods. The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature. Compressor is not working.

In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service. Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. The product is not plugged in. >>> Make sure the power cord is plugged in. The temperature setting is incorrect. >>> Select the appropriate temperature setting. The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator's operating noise is increasing while in use. The product’s operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long.

29 /30 EN Refrigerator / User Manual

Troubleshooting The new product may be larger than the previous one. Larger products will run for longer periods. The room temperature may be high. >>> The product will normally run for long periods in higher room temperature. The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently. The freezer or cooler door may be ajar. >>> Check that the doors are fully closed. The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature. The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate.

The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate. The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The food items kept in cooler compartment drawers are frozen. The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high.

30 / 30 EN Refrigerator / User Manual

Troubleshooting The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments. The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. The door may be ajar. >>> Fully close the door. The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise. The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product. Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc. The product’s operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product. The product uses a fan for the cooling process. This is normal and not a malfunction. There is condensation on the product's internal walls. Hot or humid weather will increase icing and condensation. This is normal and not a malfunction. The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door. The door may be ajar. >>> Fully close the door. There is condensation on the product's exterior or between the doors. The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad. The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water. Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour. The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Microorganisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

31 /30 EN Refrigerator / User Manual

Troubleshooting Food packages may be blocking the door. >>> Relocate any items blocking the doors. The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product. The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product. The vegetable bin is jammed. The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer. If The Surface Of The Product Is Hot. High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas.

A WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

DISCLAIMER / WARNING Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section). Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC. However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be

32 / 30 EN Refrigerator / User Manual

advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee. Self-Repair Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support. beko.com as of 1st March 2021). Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair. Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product. Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur. By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board,inverter board, display board, etc. The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above. The spare part availability of the refrigerator that you purchased is 10 years. During this period, original spare parts will be available to operate the refrigerator properly The minimum duration of guarantee of the refrigerator that you purchased is 24 months. This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by professional repairers.
