USER MANUAL RDNE455E30DZXBN BEKO

Refrigerator User Manual

57 7588 0000/AP-1/3- EN-İT Please read this user manual first!

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well. The user manual will help you use the product in a fast and safe way.

Read the manual before installing and operating the product.

Make sure you read the safety instructions. Keep the manual in an easily accessible place as you may need it later. Read the other documents given with the product. Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual. Explanation of symbols

Throughout this user manual the following symbols are used:

C A B C Important information or useful hints.

Risk of injury and damage to the property. Risk of electric shock.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment

INFORMATION SUPPLIER’S NAME A A A MODEL IDENTIFIER C

.The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.

https://eprel.ec.europa.eu/

1. Safety and environment instructions

6 Maintenance and cleaning 35

6 Maintenance and cleaning 36

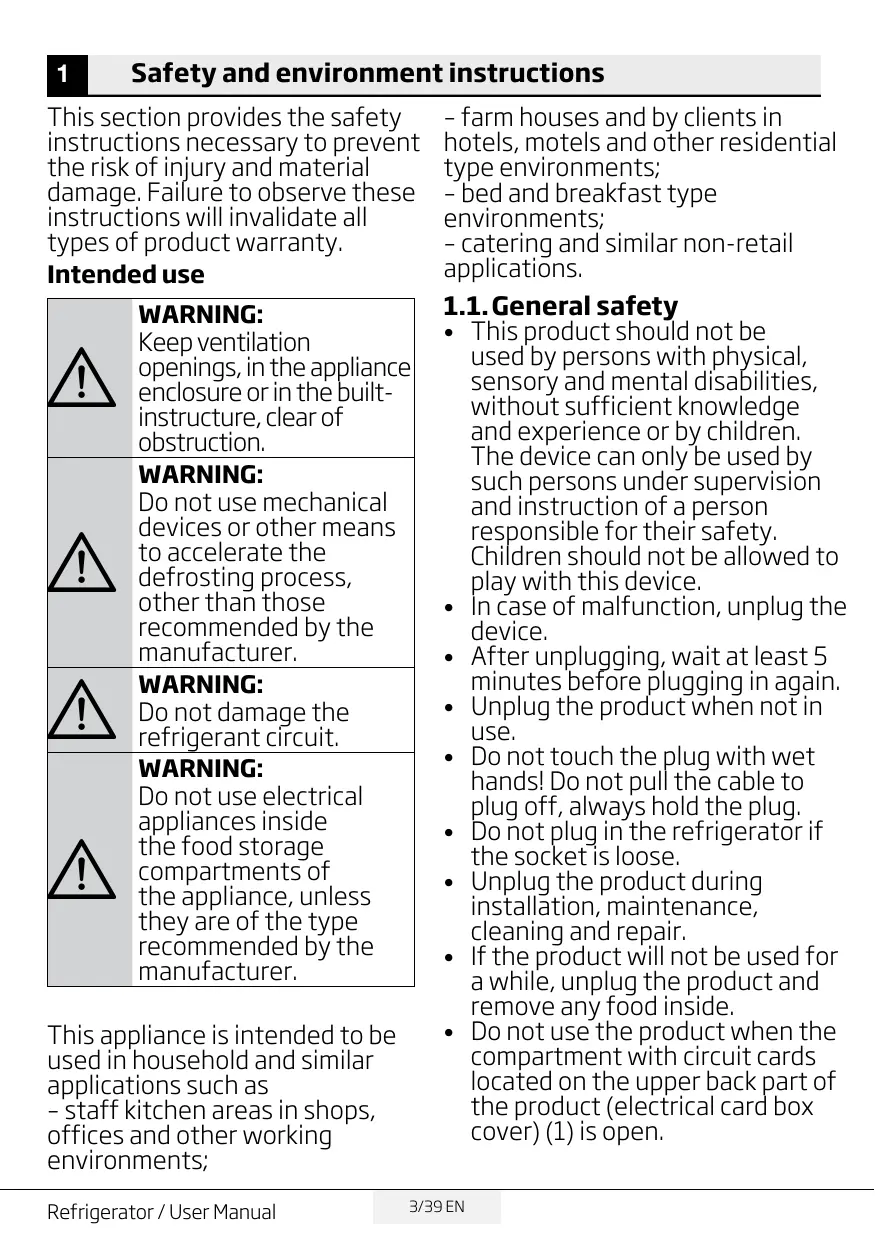

Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use WARNING:

A A A A Keep ventilation openings, in the appliance enclosure or in the builtinstructure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING: Do not damage the refrigerant circuit. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments; Refrigerator / User Manual

– farm houses and by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments; – catering and similar non-retail applications. 1.1. General safety This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device. In case of malfunction, unplug the device. After unplugging, wait at least 5 minutes before plugging in again. Unplug the product when not in use. Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug. Do not plug in the refrigerator if the socket is loose. Unplug the product during installation, maintenance, cleaning and repair. If the product will not be used for a while, unplug the product and remove any food inside. Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

3/39 EN Instructions for safety and environment

Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock! Do not wash the product by spraying or pouring water on it! Danger of electric shock! In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything. Plug the product into an earthed socket. Earthing must be done by a qualified electrician. If the product has LED type lighting, contact the authorised service for replacing or in case of any problem. Do not touch frozen food with wet hands! It may adhere to your hands! Do not place liquids in bottles and cans into the freezer compartment. They may explode.

4 / 39 EN Place liquids in upright position after tightly closing the lid.

Do not spray flammable substances near the product, as it may burn or explode. Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator. Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire. Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off. Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product. Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts. Take care not to trap the power cable.

Instructions for safety and environment

Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.

Use drinking water only. 1.2. Intended use This product is designed for home use. It is not intended The label on the inner left for commercial use. side indicates the type of The product should be used to store food and beverages gas used in the product. only. Do not keep sensitive 1.1.2 For models with products requiring controlled water dispenser temperatures (vaccines, Pressure for cold water heat sensitive medication, inlet shall be maximum 90 medical supplies, etc.) in the psi (620 kPa). If your water refrigerator. pressure exceeds 80 psi The manufacturer assumes (550 kPa), use a pressure no responsibility for any limiting valve in your mains damage due to misuse or system. If you do not know mishandling. how to check your water Original spare parts will pressure, ask for the help of be provided for 10 years, a professional plumber. following the product If there is risk of water purchasing date. hammer effect in your installation, always 1.3. Child safety use a water hammer Keep packaging materials prevention equipment in out of children’s reach. your installation. Consult Do not allow the children to Professional plumbers if you play with the product. are not sure that there is no If the product’s door water hammer effect in your comprises a lock, keep the installation. key out of children’s reach. 1.1.1 HC warning If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

C Instructions for safety and environment

1.4. Compliance with the WEEE Directive and Disposing of the

This product complies with EU WEEE Directive

(2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5. Compliance with

The product you have purchased complies with

EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

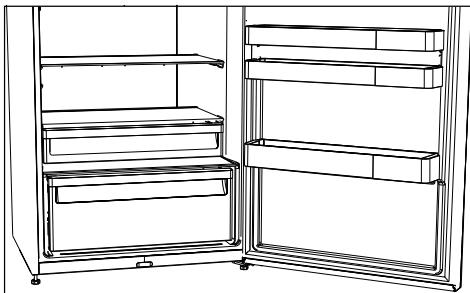

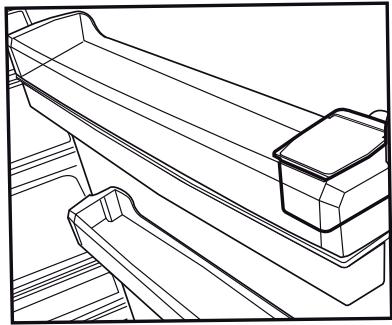

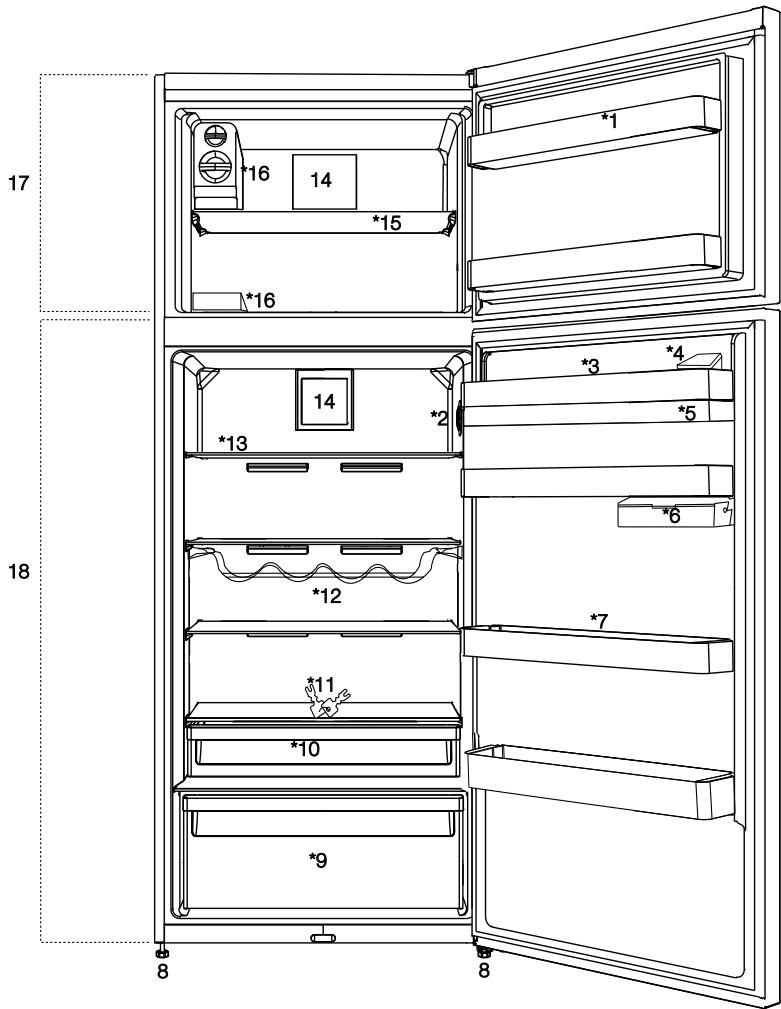

6 / 39 EN Fridge - compartment door shelf

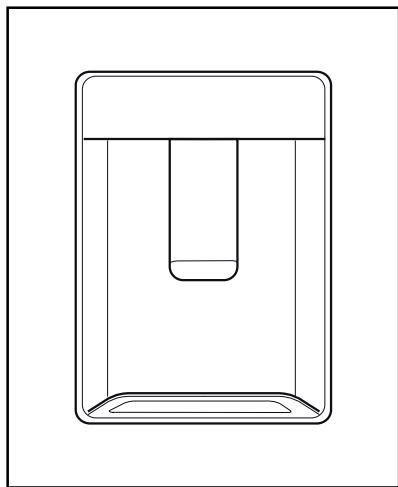

Temperature setting button Water dispenser filling tank Egg section Water dispenser reservoir Storage container under the door shelf Moving door shelf Adjustable feet Crisper

C Chiller compartment

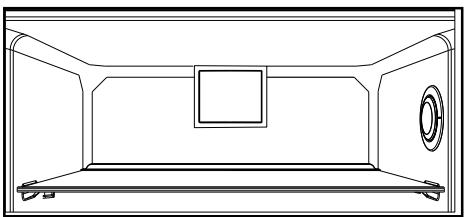

Lock and key Bottle shelf Fridge - compartment glass shelf Fan Freezer compartment shelf Icebox / Ice-making compartment Freezer compartment Fridge compartment

*optional:Figures in this user manual are given as an example and may not

match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

3.1. Appropriate installation location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

B B A WARNING: Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!

WARNING: If the door clearance

of the room where the product shall be place is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

surface to prevent jolts. away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.

If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. Check if the rear wall clearance protection component is present at its location (if provided with the product).

If the component is not available, or if it is lost or fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient operation of the product. where the temperature falls below -5°C.

3.2.Installing the plastic wedges

Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges. 2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

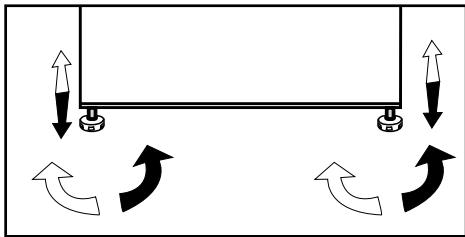

3.3.Adjusting the feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

direct sun light and kept in humid places. circulation to function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls.

3.4. Electrical connection

A B C WARNING:Do not make

connections via extension cables or multi-plugs.

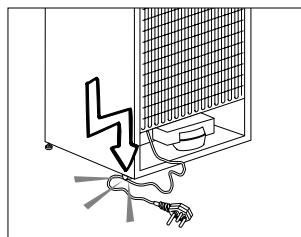

WARNING: Damaged power cable must be replaced by the

Authorized Service Agent. If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.

Power cable plug must be within easy reach after installation. Do not extension cords or cordless multiple outlets between your product and the wall outlet.

Hot Surface Warning!

Side walls of your product is equipped with refrigerant pipes to improve the cooling system. Refrigerant with high temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.

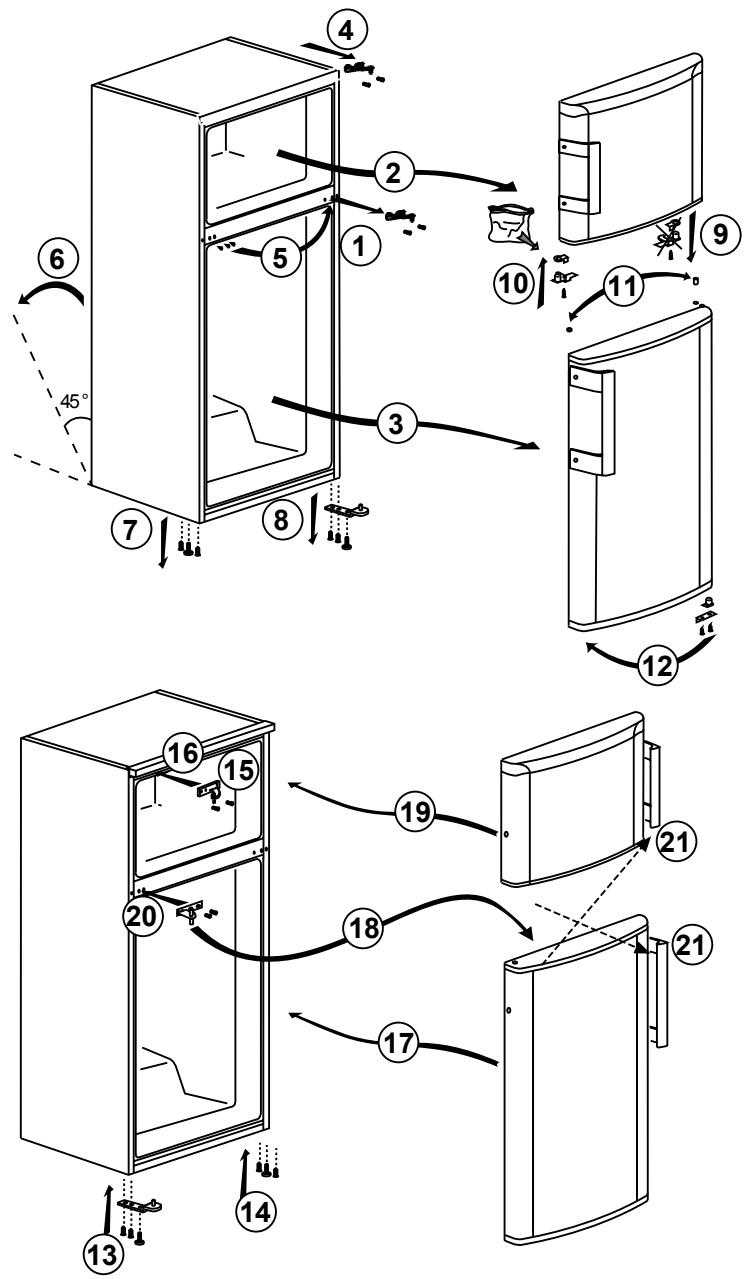

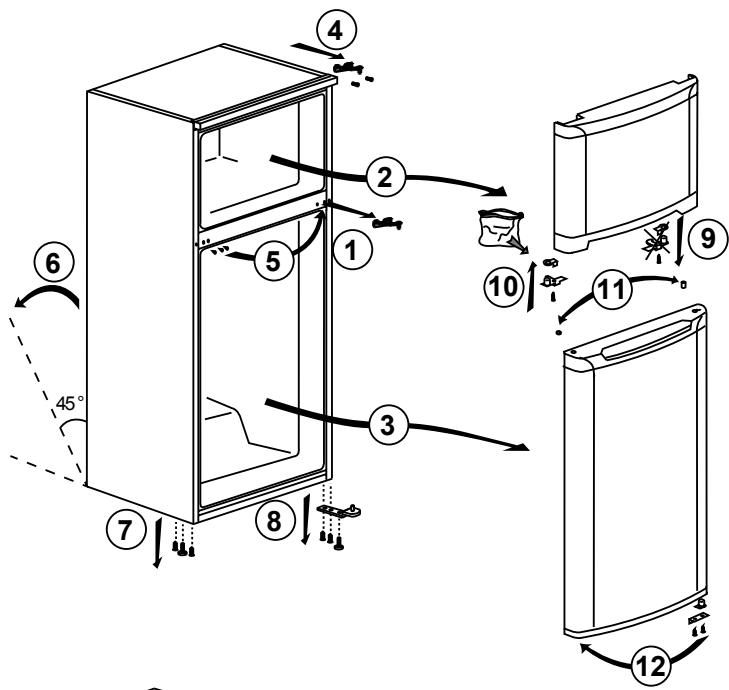

3.5.Reversing the doors

Proceed in numerical order .

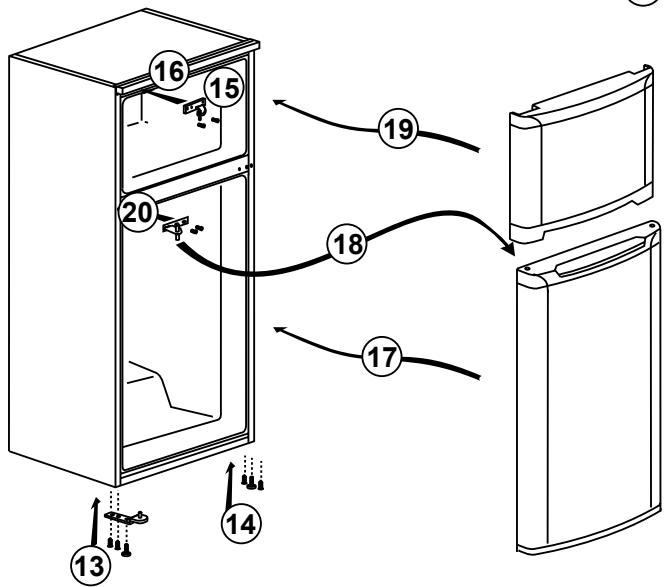

10 / 39 EN Reversing the doors

Proceed in numerical order .

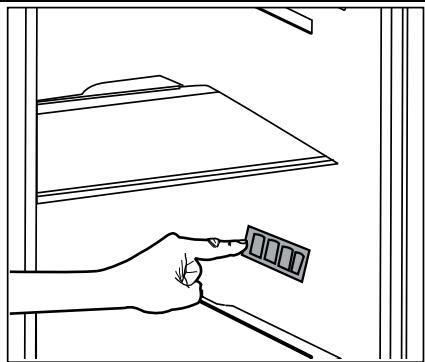

4.1. Things to be done for energy saving

A Connecting the product to electric energy saving systems is risky as it may cause damage on the product.

For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a built-in appliance’ .

Do not leave the doors of your refrigerator open for a long time. Do not put hot food or drinks in your refrigerator. Do not overload the refrigerator, cooling capacity will fall when the air circulation inside is hindered. In order to store maximum amount of food in the freezer compartment, the icematic, available in the freezer compartment and easily removable by hand, shall be taken out. Net volume and energy consumption values declared on the power data plate of your refrigerator are measured and tested by removing the icematic. Do not remove the shelves inside the freezer compartment and on the door of freezer compartment shall not be removed and they shall always be used they provide ease of use and efficiency in energy consumption. Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances. Airflow should not be blocked by placing foods on the sides of the freezer compartment fan. A minimum distance of 3 cm shall be provided on the sides of protective fan cover. The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

Depending on the features of your product, thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality. Do not allow contact of the food with the fridge compartment temperature sensor shown in the figure below.

Before starting to use your refrigerator, ensure that all preparations are made in accordance with the instructions in sections "Instructions for safety and environment" and "Installation".

Run the product without putting any food for 6 hours and do not open its door unless certainly required.

compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

Front edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation. In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

Operating the product

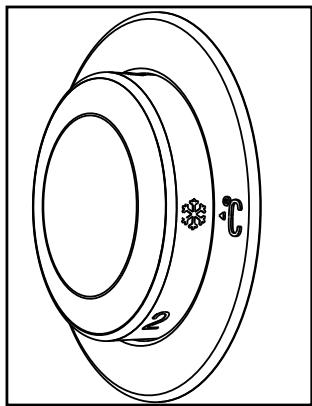

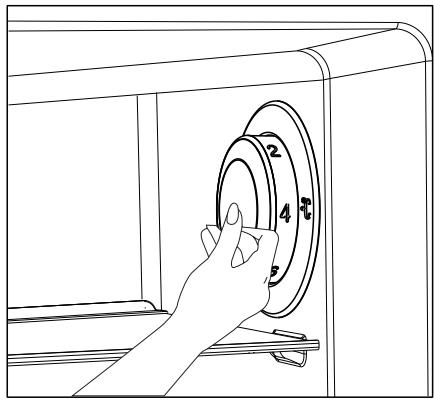

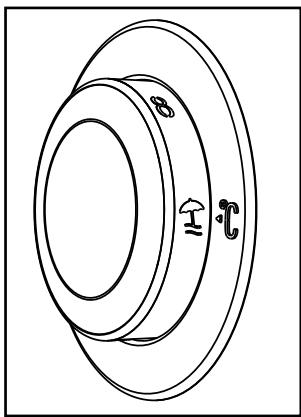

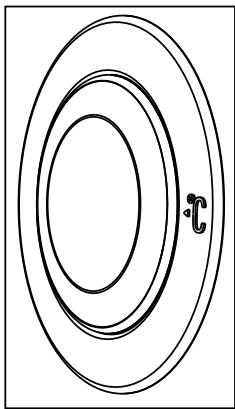

5.1. Temperature setting button

The interior temperature of your refrigerator changes for the following reasons;

Seasonal temperatures, Frequent opening of the door and leaving the door open for long periods, Food put into the refrigerator without cooling down to the room temperature, The location of the refrigerator in the room (e.g. exposing to sunlight).

If large amounts of fresh food are going to be frozen, adjust the temperature control knob to (

) max. 24 hours before putting the fresh food in the fast freeze compartment. It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

temperature due to such reasons by using the setting button.

The numbers around the control knob indicate the temperature values in “°C”. If the ambient temperature is 25°C, we recommend you to use the temperature control knob of your refrigerator at 4°C. This value may be increased or decreased as required in other ambient temperatures.

Operating the product

Remember to turn the temperature control knob back to its previous position once food has frozen.

When the setting operation is completed, you may press the temperature control knob and have it hidden.

If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically.

To cancel the function, change the knob setting.

It is not recommended to store food in cooler compartment when the vacation function is active.

14 / 39 EN Operating the product

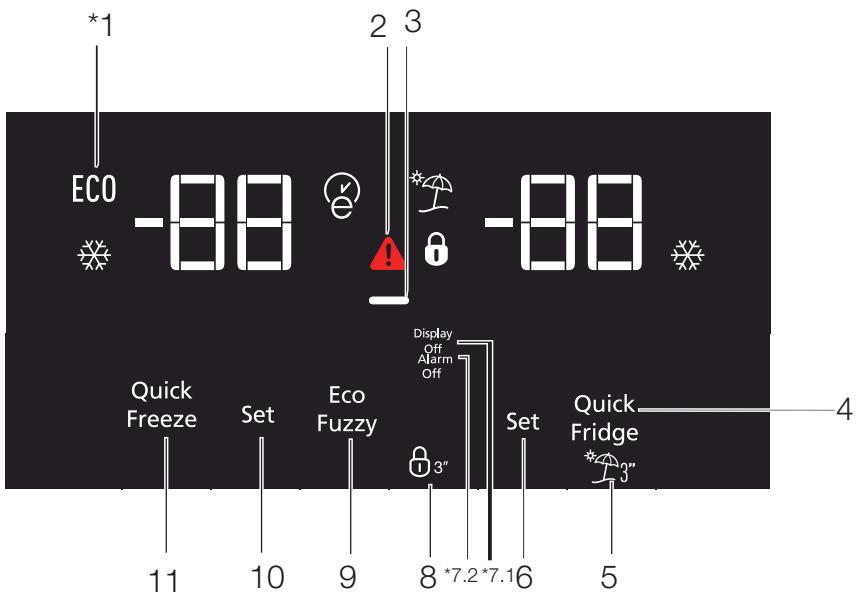

Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Power Failure / High temperature / applicable for every model.)

Error status indicator This indicator illuminated when a

This indicator ( ) illuminates in case of power failure, high temperature and error warnings.

When the temperature of the freezer compartment is heated up to a critical level for the frozen food, the maximum value reached by the freezer compartment temperature flashes on the digital indicator. Check the food in the freezer compartment. This is not a malfunction. The warning may be deleted by pressing any button or on high temperature alarm off button. (Cancelling by pressing any button is not

sensor failure occurs, too. When this indicator is illuminated, “E” and figures such as “1,2,3...” are displayed alternatively on the temperature indicator. These figures on the indicator inform the service personnel about the error.

2. Energy saving function (display off):

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. (

) When energy saving function is activated, all symbols on the display

*Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

Operating the product other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled. 3.Quick fridge function

The button has two functions. To activate or deactivate the quick cool function press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings. (

C C C C Use quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature. If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately. This function is not recalled when power restores after a power failure.

4. Fridge compartment temperature setting button

Press this button to set the

temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8... respectively.

Press this button to set the fridge compartment temperature to the desired value. ( ) 5.Vacation Function In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode indicator ( ) will be activated. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation function button again. 6. Termination of the High Temperature Warning

In case of power failure/high temperature warning, you may delete the warning ( ) by pressing any button on the indicator or high temperature alarm off button for 1 second after checking the food inside the freezer compartment.

Note: Cancelling by pressing any button is not applicable for every model. 7. Key lock

Press key lock button ( ) simultaneously for 3 seconds. Key lock symbol

( ) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3

16 / 39 EN Operating the product

seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( ). 8. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active (

). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function. This indicator is illuminated after 6 hours when eco fuzzy is activated. 9. Freezer compartment temperature setting button

Press this button to set the temperature of the freezer compartment to -18,-19,-20,-21,

-22, -23,-24, -18... respectively. Press this button to set the freezer compartment temperature to the desired value.( ) 10. Icematic off indicator Indicates whether the icematic is on or off. ( )If On, then the icematic is not operating. To operate the icematic again press and hold the OnOff button for 3 seconds.

C Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the icematic.

11. Quick freeze function button/ icematic on-off button

Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value. ( )

To turn on and off the icematic press and hold it for 3 seconds.

C Use the quick freeze function when you want to quickly freeze the food placed in fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

C If you do not cancel it, Quick

Freeze will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

C This function is not recalled when power restores after a power failure.

Indicates that the product is running in energy-efficient mode.This indicator will be active if the Freezer

Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

17/39 EN Economic usage indicator is turned off when quick cooling or quick freeze functions are selected.

Operating the product

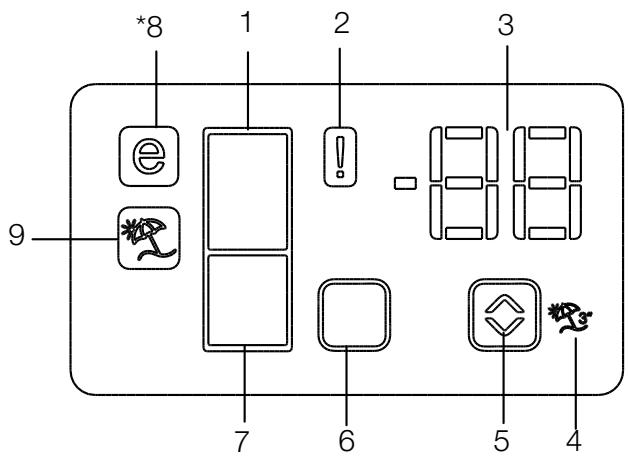

5.5. Indicator panel

Indicator panels may vary according to the product model.

Audio – visual functions on the indicator panel helps you in using your product.

Fridge Compartment Indicator

Error status indicator Temperature indicator Vacation function button Temperature setting button Compartment selection button Freezer compartment indicator Economy mode indicator Vacation function indicator

*Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

18 / 39 EN Operating the product

1. Fridge compartment indicator

5. Temperature setting button

6. Compartment selection button

Fridge compartment light is illuminated while the fridge compartment temperature is set.

Changes the temperature of the relevant compartment between

-24°C... -18°C and 8°C...1°C.

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated.

When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error. 3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function.

When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation button again.

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode.

This display shall be activated if the freezer compartment temperature is set to -18°C. 9. Vacation function indicator

Indicates that vacation is activated.

19/39 EN Operating the product

This symbol is illuminated when the freezer compartment is set to

-18°C'ye as the most economical setting value ( ). Economy indicator is turned off when quick cooling or quick freeze functions are selected. 2. High temperature / error warning indicator

This indicator ( ) illuminates during high temperature failures and error warnings.

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off.

When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

*Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

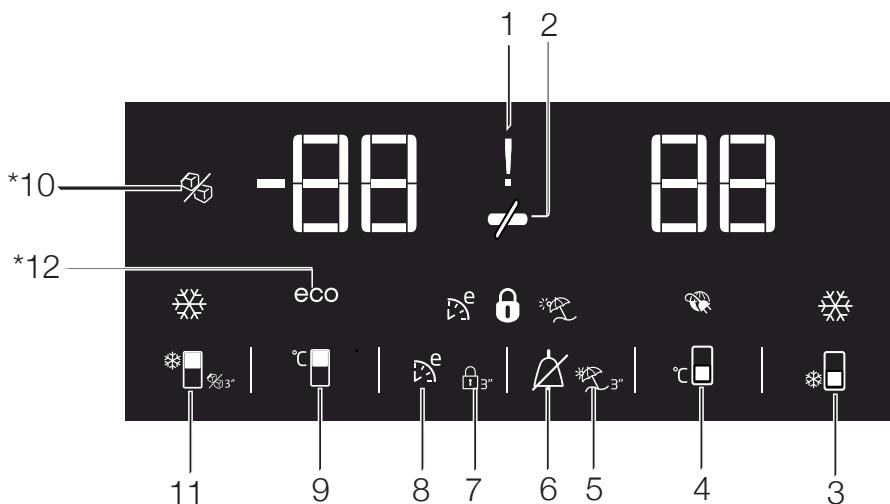

20 / 39 EN Operating the product

Energy saving function is activated during delivery from factory and cannot be canceled.

6. Fridge compartment temperature setting

Quick cooling indicator ( ) is illuminated when quick cooling function is activated and fridge compartment temperature indicator value is displayed as 1. To cancel this function press Quick cooling button again. Quick cooling indicator will turn off and refrigerator will return to its normal settings. Quick cooling function is canceled automatically in

1 hour if you do not cancel it before. If you want to cool large amounts of fresh food, press the Quick cooling button before putting the food into the fridge compartment. 5. Vacation function In order to activate vacation function, press the button no. ( ) for 3 seconds, and the vacation mode indicator activates. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation function button again.

When the button no. is pressed, you may set the temperature of the fridge compartment to 8,7,6,5,4,3,2 and 1 respectively ( ).

7.1 Energy saving function (display off):

Energy saving symbol ( ) is illuminated and Energy saving function is activated when you press this button ( ). When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the

Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving symbol is turned off and energy saving function is deactivated when you press this button ( ) again. 7.2. Alarm off warning

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

Press key lock button ( ) simultaneously for 3 seconds. Key lock symbol

( ) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again.

21/39 EN Operating the product

Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( ). 9. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active (

). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function. This indicator is illuminated after 6 hours when eco fuzzy is activated.

10. Freezer compartment temperature setting

Temperature setting for freezer compartment is performed here.

When button no. is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively. 11. Fast freeze

Press button no. for fast freeze operation, quick freeze indicator

( ) shall be activated. Quick freeze indicator is illuminated when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button ( ) again. Quick freeze indicator will turn off and refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.

22 / 39 EN Operating the product

(This feature is optional)

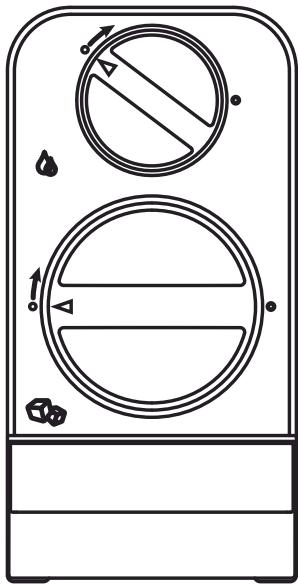

Remove the water tank by rotating it to the left.

Open the water tank cover by turning it and add water to the water tank up to the lower part of the water tank cover. Place the water tank on its place as shown in the figure after adding water and have it seated by rotating it on the direction of the arrow. Water shall be poured down to the icebank. When ice has formed, rotate icebank knob in the direction of the arrow to allow that the ice is dropped down to the ice drawer. Take the ice cubes by pulling ice drawer out. Pull the front face towards you in order to wash the icebank, and put it on the slides on the interior area and push it to its place in order to replace it. Pull the twist icematic unit towards you in order to remove the unit, and put it on the slides on the ceiling and push it to its place in order to replace it.

Operating the product

Remove the ice container from the freezer compartment.

Fill the ice container with water. Place the ice container in the freezer compartment. About two hours later, the ice is ready. Remove the ice container from the freezer compartment and bend it over the service plate. Ice cubes will easily fall down to the service plate.

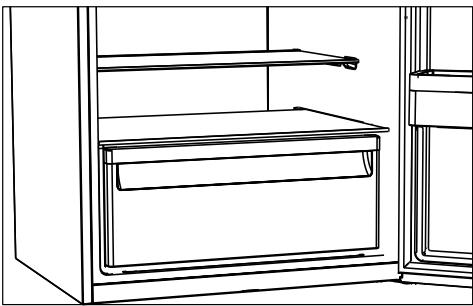

Crisper of the product is designed specially to keep the vegetables fresh without loosing their humidity.

For this purpose, cool air circulation is intensified around the crisper in general.

the desired door or body shelf. If it will be placed on body shelves than the lower cooler shelves are recommended.

Never place the egg holder in the freezer compartment

Fan is designed to ensure homogeneous distribution and circulation of the cold air inside your refrigerator.

Operation time of the fan may vary depending on the properties of your product. While the fan works only with the compressor in some products, the control system determines its operation time in some products in accordance with the cooling requirement.

5.11. Chiller compartment

(This feature is optional)

Use this compartment to store delicatessen that shall be stored in a lower temperature or meat products that you will consume in a short time.

Chiller compartment is the coolest place in your refrigerator where you can keep dairy products, meat, fish and poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.

24 / 39 EN Operating the product

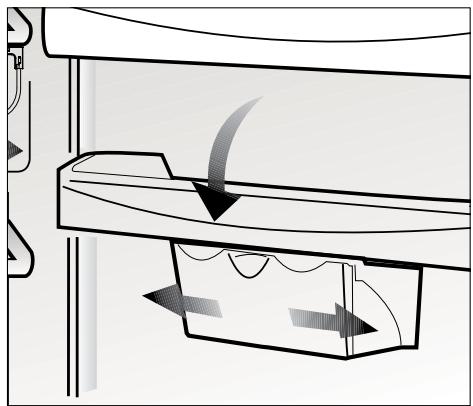

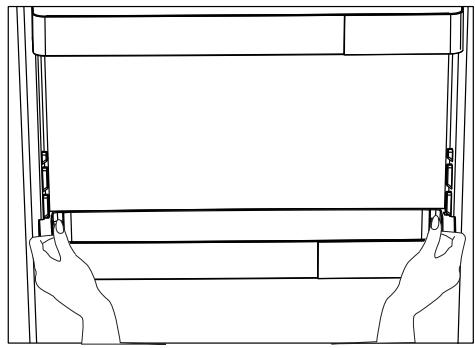

5.13. Sliding storage container

5.12. Moving door shelf

(This feature is optional)

(This feature is optional)

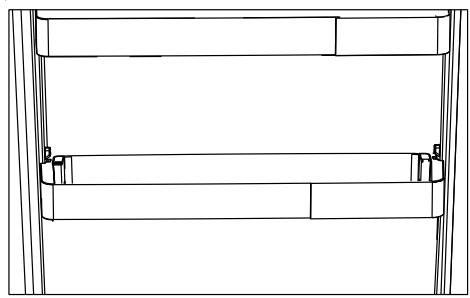

Moving door shelf may be fixed in 3 different positions.

Press the buttons shown in the sides at the same amount in order to move the shelf. Shelf shall be movable. Move the shelf up or down. Release the buttons when you have the shelf in the desired position. Shelf shall be fixed on the position where you release the buttons.

This accessory is designed to increase the usable volume of the door shelves.

It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

(This feature is optional)

This accessory is designed to increase the usable volume of the door shelves.

It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

Operating the product

5.15. Humidity controlled crisper

(This feature is optional)

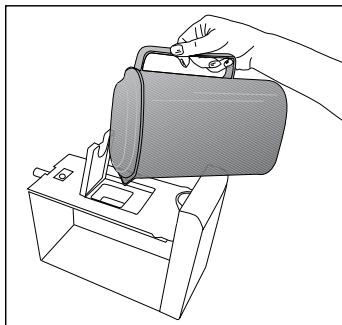

The Auto Icematic allows you to make ice in the fridge easily.

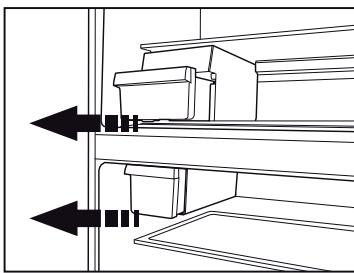

(This feature is optional) Remove the water tank in the fridge Humidity rates of the vegetables and compartment, fill it wilt water and fruit are kept under control with the feature of humidity-controlled crisper install it back to obtain ice from the Icematic. and the food is ensured to stay fresh First ice cubes will be ready in for longer. We recommend you to place the leafy approximately 2 hours in the Icematic drawer located in the freezer vegetables such as lettuce, spinach and the vegetables which are sensitive compartment. to humidity loss, in a horizontal manner If you fill the water tank completely, as much as possible inside the crisper, you will be able to obtain not on their roots in a vertical position. approximately 60-70 ice cubes. While the vegetables are being placed, Change the water in water tank if it has waited around 2-3 weeks. specific gravity of the vegetables should be taken into consideration. For the products having Heavy and hard vegetables should be automatic Icematic, sound may be heard during ice pouring. put at the bottom of the crisper and This sound is normal and does the lightweight and soft vegetables not signal any error. should be placed over. Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag. Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.

26 / 39 EN Operating the product

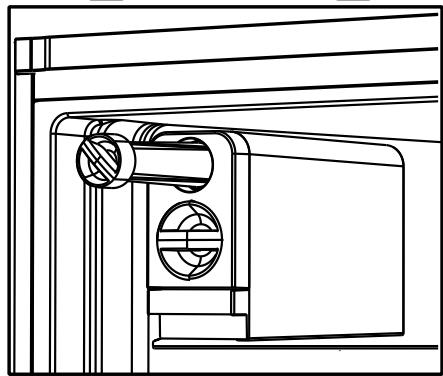

5.17. Description and cleaning of odor filter

(This feature is optional)

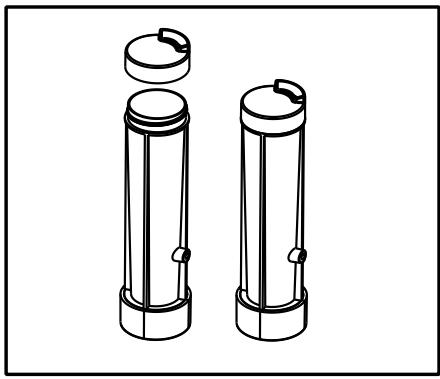

Odor filter prevents unpleasant odor build-up in your product.

1. Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated. 2. Leave the filter under sunlight for one day. Filter will be cleaned during this time. 3. Install the filter back to its place.

C Odor filter must be cleaned once in a year.

Remove the film container from

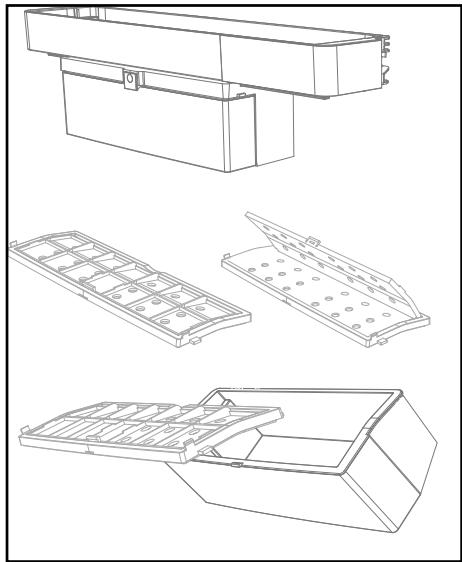

HerbBox/HerbFresh+ Take the film out of the bag and put it into the film container as shown in the image. Seal the container again and replace it into HerbBox/HerbFresh+ unit. HerbBox-HerbFresh+ sections are especially ideal for storage of various herbs that are supposed to be kept your unbagged herbs (parsley, dill, etc.) in this section horizontally and keep them fresh for a much longer period. The film shall be replaced in every six months.

27/39 EN Operating the product

5.19. Using the water dispenser *optional

C C It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

C Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

5.20. Using the water dispenser

C C It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

28 / 39 EN Operating the product

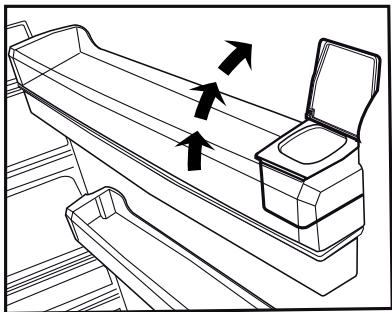

5.21. Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank. 2. Fill the tank with fresh drinking water. 3. Close the cover.

C C Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only. Capacity of the water tank is 3 litres; do not overfill.

Operating the product

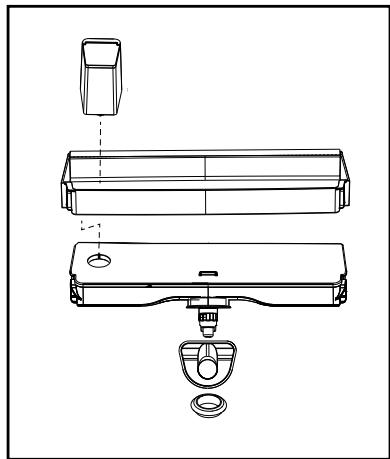

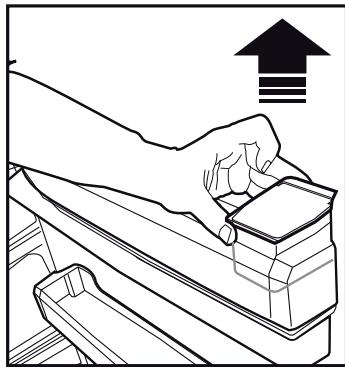

5.22. Cleaning the water tank

1. Remove the water filling reservoir inside the door rack.

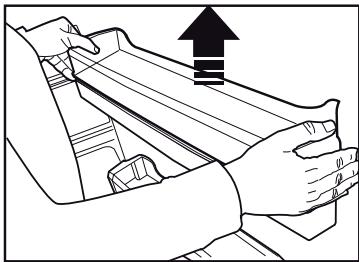

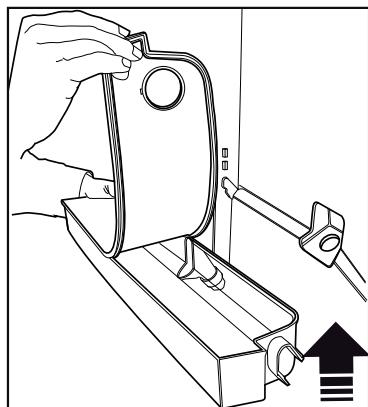

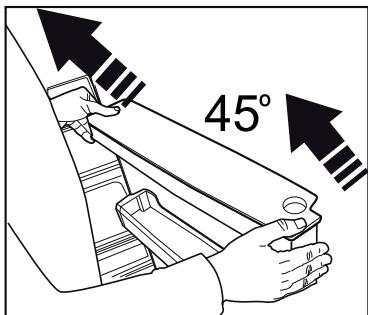

2. Remove the door rack by holding from both sides. 3. Grab the water tank from both sides and remove it with an angle of 45°C. 4. Remove the cover of the water tank and clean the tank.

C Components of the water tank and water dispenser should not be washed in dishwasher.

30 / 39 EN Operating the product

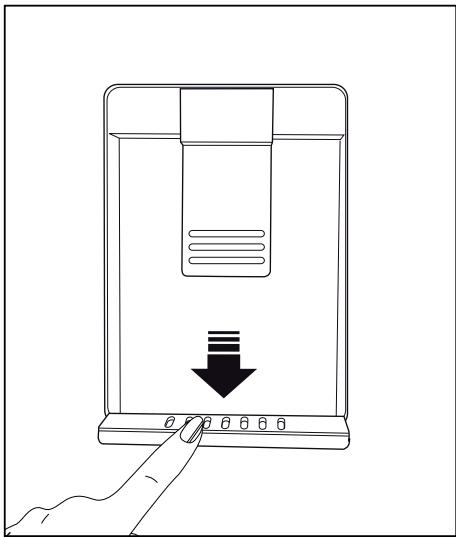

Water that dripped while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure. With a clean and dry cloth, remove the water that has accumulated.

Operating the product

5.24. Freezing fresh food

In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.

freezer compartment when you freeze them while they are fresh.

Pack the food to be frozen and close the packing so that it would not allow entrance of air. Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers. Label each pack of food by adding

The freezer compartment defrosts automatically.

Frozen food must be used immediately after they are thawed and they should not be re-frozen.

Do not freeze too large quantities of food at one time.

distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

Freezer Compartment Setting -18°C -20,-22 or

-24°C Fridge compartment

This is the normal recommended setting. These settings are recommended when the ambient temperature exceeds 30°C. Use when you wish to freeze your food in a short time. process is over. Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

32 / 39 EN Operating the product

5.25. Recommendations for preserving the frozen food

5.27. Placing the food

Compartment shall be set to -18°C at least.

1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.

2. Check whether the “Use By” and “Best Before” dates on the packaging are expired or not before freezing it. 3. Ensure that the package of the food is not damaged.

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25°C ambient temperature to

-18°C or lower within 24 hours for every 100-litres of freezer volume. It is possible to preserve the food for a long time only at -18°C or lower temperatures.

Freezer compartment shelves

Refrigerator compartment shelves

Door shelves of fridge compartment Crisper

Fresh zone compartment

for many months (at -18°C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially. Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

Various frozen food such as meat, fish, ice cream, vegetables and etc.

Food in pans, covered plates and closed containers, eggs (in closed container) Small and packaged food or beverage Vegetables and fruits Delicatessen (breakfast food, meat products that shall be consumed in a short time)

Operating the product

(This feature is optional)

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

5.29. Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it.If this is necessary, please call your nearest

Authorized Service. Above description is a general expression.For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

LED lamps are used as illumination lamps. Contact authorized service in case of any problem with this type of light.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

34 / 39 EN Maintenance and cleaning

Service life of the product is increase if it is regularly cleaned

Therefore, clean the refrigerator with carbonate dissolved in water every 15 days.

WARNING: First unplug the product Keep the food in closed containers. before cleaning your refrigerator. Microorganisms spreading out from uncovered containers can cause Never use any sharp and abrasive unpleasant odours. tools, soap, household cleaners, Never keep the food that have expired detergent and wax polish for cleaning. best before dates and spoiled in the Dissolve one teaspoon of carbonate refrigerator. in half liter of water. Soak a cloth with the solution and wrung it thoroughly. 6.2. Protecting the Wipe the interior of the appliance with plastic surfaces Clean with arm water immediately as the this cloth and the dry thoroughly. Make sure that no water enters the oil may cause damage on the surface lamp housing and other electrical when it is poured on plastic surfaces. items. 6.3. Door Glasses Clean the door with a damp cloth. Remove the protective foil on the To remove door and body shelves, remove all of its contents. Remove glasses. door shelves by moving them upwards. There is a coating on the surface of After cleaning, slide them from top to the glasses.This coating minimizes the bottom to install. stain build-up and helps to remove the Never use cleaning agents or water possible stains and dirt easily.Glasses that contain chlorine to clean the that are not protected with such a outer surfaces and chromium coated coating may be subject to persistent parts of the product. Chlorine causes binding of air or water based organic or corrosion on such metal surfaces. inorganic dirt such as limescale, mineral Do not use sharp, abrasive tools, salts, unburned hydrocarbons, metal soap, household cleaning agents, detergents, kerosene, fuel oil, oxides and silicones that can easily and varnish etc. to prevent removal and quickly cause stains or material damage. deformation of the prints on the Keeping the glass clean becomes too plastic part. Use lukewarm water and difficult despite the regular cleaning. a soft cloth for cleaning and then wipe Consequently, the appearance and the it dry. transparency of the glass deteriorates. Harsh and corrosive cleaning methods 6.1. Avoiding bad odors and compounds will intensify these Materials that may cause odor are not used in the production of our appliances. defects and speed up the deterioration process. However, due to inappropriate food preserving conditions and not cleaning Water-based cleaning products that are the inner surface of the appliance as not alkaline and corrosive must be used required can bring forth the problem of for regular cleaning purposes. odor.

B Maintenance and cleaning

Non-alkaline and non-corrosive materials must be used for cleaning so that the service life of this coating lasts for a long time.

These glasses are tempered to increase their durability against impacts and breaking.A safety film is also applied to their rear surfaces as an extra safety measure in order to prevent them from causing damage to their surrounding in case of a breakage. *Alkali is a base that forms hydroxide ions (OH¯) when it is dissolved in water. Li (Lithium), Na (Sodium), K (Potassium) Rb (Rubidium), Cs (Cesium) and artificial and radioactive Fr (Fan-sium) metals are called ALKALI METALS.

36 /39 EN Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

product does not restart after this period, contact the service.

Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. The product is not plugged in. >>> Make sure the power cord is plugged in. The temperature setting is incorrect. >>> Select the appropriate temperature setting. The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator is not working.

The power plug is not fully settled.

>>> Plug it in to settle completely into the socket. The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

The door is opened too frequently

>>> Take care not to open the product’s door too frequently. The environment is too humid. >>> Do not install the product in humid environments. Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders. The product’s door is left open. >>> Do not keep the product’s door open for long periods. The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

The refrigerator’s operating noise is increasing while in use.

The product’s operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

Compressor is not working.

In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard.

The product will restart after approximately 6 minutes. If the Refrigerator / User Manual

37/39 EN The new product may be larger than the previous one. Larger products will run for longer periods.

The room temperature may be high. >>> The product will normally run for long periods in higher room temperature. The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

The doors were opened frequently The temperature in the cooler or the freezer is too high. or kept open for long periods. >>> The warm air moving inside will The cooler compartment cause the product to run longer. Do temperature is set to a very high not open the doors too frequently. degree. >>> Temperature setting The freezer or cooler door may be of the cooler compartment has ajar. >>> Check that the doors are an effect on the temperature in fully closed. the freezer compartment. Wait The product may be set to until the temperature of relevant temperature too low. >>> Set the parts reach the sufficient level temperature to a higher degree by changing the temperature of and wait for the product to reach cooler or freezer compartments. the adjusted temperature. The doors were opened frequently The cooler or freezer door washer or kept open for long periods. may be dirty, worn out, broken or >>> Do not open the doors too not properly settled. >>> Clean or frequently. replace the washer. Damaged / The door may be ajar. >>> Fully torn door washer will cause the close the door. product to run for longer periods to The product may have been preserve the current temperature. recently plugged in or a new food item is placed inside. >>> The freezer temperature is very This is normal. The product low, but the cooler temperature is will take longer to reach the adequate. set temperature when recently The freezer compartment plugged in or a new food item is temperature is set to a very placed inside. low degree. >>> Set the freezer Large quantities of hot food may compartment temperature to a have been recently placed into the higher degree and check again. product. >>> Do not place hot food The cooler temperature is very into the product. low, but the freezer temperature is adequate.

The ground is not level or durable.

>>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product. Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The product is making noise of liquid flowing, spraying etc.

38 /39 EN Troubleshooting

The product’s operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

Remove any expired or spoilt foods from the product.

The door is not closing.

Food packages may be blocking the door. >>> Relocate any items blocking the doors.

The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product. The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

There is sound of wind blowing coming from the product.

The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product’s internal walls.

Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.

The doors were opened frequently The vegetable bin is jammed. or kept open for long periods. The food items may be in contact >>> Do not open the doors too with the upper section of the frequently; if open, close the door. drawer. >>> Reorganize the food The door may be ajar. >>> Fully items in the drawer. close the door. If The Surface Of The Product Is Hot. There is condensation on the High temperatures may be product’s exterior or between the observed between the two doors, doors. on the side panels and at the rear The ambient weather may be grill while the product is operating. humid, this is quite normal This is normal and does not in humid weather. >>> The require service maintenance!Be condensation will dissipate when careful when touching these areas. the humidity is reduced. The interior smells bad.

The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.

Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour. The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Refrigerator / User Manual

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

39/39 EN Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section).

Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC. However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/ warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee. Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair. Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board,inverter board, display board, etc. The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years.

During this period, original spare parts will be available to operate the refrigerator properly The minimum duration of guarantee of the refrigerator that you purchased is 24 months. This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by professional repairers.

(Característica opcional)
