USER MANUAL GS 8862 SEVERIN

GB Instructions for use Cabinet freezer

Dear Customer, ūūfor customers in hotels and motels and other living enviRead the complete instruction ronments; manual carefully before you ūūin bed and breakfast estabstart to use the appliance. Keep lishments. it for further use. The appliance is only to be used by persons

• The appliance is not designed who are familiar with the safety for commercial use, neither instructions. If you pass it on, for the use in catering servicattach these instructions as es and similar wholesales. well.
• WARNING: FIRE HAZARD! The appliance Intended Use contains the
• The appliance is designed for eco-friendly but storage and conservation of inflammable food only. cooling medium
• We are not liable for possible Isobutane (R600a). Theredefects in the case of abnorfore, you should pay attention mal handling or disregard of that the cooling system is the instructions given by this protected during the transport manual. and after the installation of
• This compressor-freezer unit the appliance. If the system is is designed for deep-freezing damaged, by no means actiand long-term storage of vate the appliance. In this deep-frozen food, as well as case, remove open fire or for making ice-cubes. ignition sources from near the
• Cooling appliances are dividcooling medium and aerate ed into climate classifications. the room. The climate classification for
• If you sell, hand over or subthis item can be taken from mit your appliance for recythe appliance specification cling, you have to refer to the sheet at the end of this maninflammable propellant Cycloual. pentane (C5H10) in isolation as well as to the refrigerate Safety Instructions Isobutane (R600a). Further
• The appliance is designed details can be taken from the for the use in a household or chapter Disposal. similar, for instance: ūūin kitchens for employees in stores, offices and similar working environments; ūūin agricultural holdings;

• WARNING! Do not damage ence and/or knowledge, but the cooling circuit. Leaking only if they are supervised cooling medium can damage or instructed relating to the your eyes or cause inflammasafe use of the appliance and tions. thus understand the resulting dangers.
• WARNING! Do not block the air inlets of the appliance
• Children are not allowed to panelling or the design with play with the appliance. built-in furniture. A sufficient
• Cleaning and maintenance circulation of air has to be must not be executed by chilensured. dren without supervision.
• WARNING! Do not use any
• Tepid water with an addition electric appliances (e.g., ice of washing-up liquid is suitamachines. etc.) that are not ble for regular maintenance. described in the manual. Further details of the cleaning
• Before plugging it in, check can be taken from the chapfor possible damage during ter Cleaning and Defrosting shipping in the power cord (Maintenance). or in the appliance itself. If this is the case, the appliance must not be put into operation.
• In this appliance, explosive substances such as an aerosol container with inflammable propellant cannot be stored.
• If reparations or interventions on the appliance are necessary, they have to be executed by an authorized repair service, in order to follow the safety regulations and to prevent endangerment. This also applies to the replacement of the power plug.
• The appliance can be used by children of 8 years or older as well as persons with reduced physical, sensory or mental abilities or lack of experi- 14 - GS_8862_multi.indd 14

• In order to prevent damage to persons or property, the appliance can only be transported in a box, and it requires two persons to be installed.
• Caution! Keep your children away from packaging material - choking hazard!
• Regularly check the power plug for damages. If this is the case, do not use the appliance.
• Do not use electric appliances on the storage space to prevent fire hazards. Also, do not put liquid containers on the appliance, so that possible leaking liquids do not interfere with the electronics and the isolation.
• Store high-proof alcoholic substances only tightly sealed and upright.
• Do not store glass bottles with freezable liquids or carbonated liquids in the appliance, since they could burst while freezing.
• Do not consume expired food. This could lead to food poisoning. Do not refreeze already defrosted groceries.
• Do not misuse any shelves, compartments, doors, etc., as a tread or for leaning on.
• Do not handle open fire or ignition sources in the interior space of the appliance.
• Pull the power plug:
• in case of disturbances during the operation;
• before every cleaning;
• while working on the appliance.
• Do not pull the power cord; always grab the power plug for this purpose. If the appliance is out of operation for a more extended period of time, then the door should stay open.
• We reserve technical changes.

Transport of the appliance Installation measures

• During the transport, you have to secure all loose parts in and on the appliance, in order to prevent damage.
• The appliance should not be transported in a vertical position and at the same time not tilted over more than 30 degrees. Wait 30 minutes after the installation, before you connect the appliance to the mains.
• If the appliance was transported with a tilt of more than 30 degrees, wait 4 hours before you connect the appliance to the mains. If the appliance is placed sideways on a wall, you will leave a lateral gap of at least 60 mm, so that the doors of the appliance can open in a 90-degree angle. Before the initial operation

• Remove the protective sheets and all packaging material incl. the transport securing of the storage spaces and of the trays from the appliance.
• Dispose the packaging professionally.
• You might notice a slight ‘new smell’ when you start the appliance for the first time. It goes away once the appliance begins to cool.
• Clean the interior with tepid water with the addition of washing-up liquid. Clean the equipment separately with rinsing water, not in the dishwasher.
• Before you fill the appliance with food, let it work for 24 hour, so that the target temperature can be reached. Installation of the appliance

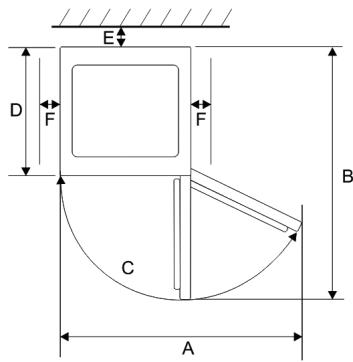

• The appliance should be installed in a dry and well-aired room.
• The appliance can be operated at a humidity of max. 70 %.
• The surrounding temperature, at which the appliance can be operated, can be taken from the appliance specification sheet at the end of this manual.
• Do not install the appliance outdoors.
• Bear in mind that you can pull the power plug anytime.
• Protect the appliance from direct insolation. It should not be installed near heat sources (stove, heater, etc.). If this, however, cannot be avoided, you should put isolation between the heat source and the appliance.
• You must not imbed the appliance in a cabinet. The installation of the fridge directly under a board or a cabinet is disallowed.
• The unevenness of the floor can be compensated with the two vertically adjustable screw-in feet in the front, so that safe stability is attained. Width (W) Depth (D) Height (H) 545 mm 597 mm 1252 mm

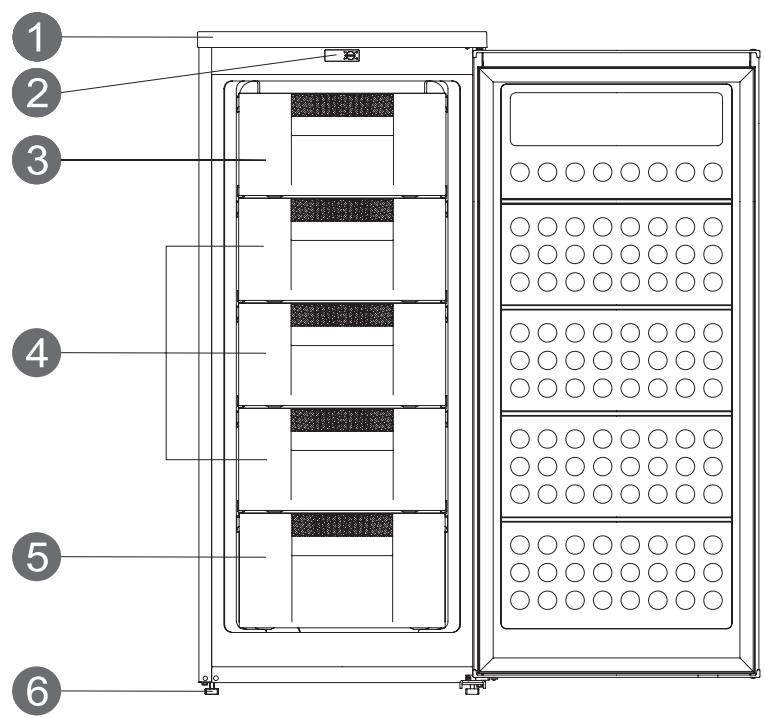

Operating elements Ventilation The temperature adjustment is set via the controller inside the appliance. The air warmed behind the appliance needs to circulate freely. For this reason, the circulation of air cannot be compromised. Caution! Do not cover possible existing ventilation openings in the back area of the top cover plate! Connection

• Before you connect the appliance, you have to make sure that itself and the power plug do not show any transport damages.
• Connect the appliance only to a shockproof outlet. The mains voltage has to correspond to the one stated on the tool identification plate.
• The appliance complies with the guidelines that are obligatory for CE marking.
• Do not connect the appliance to an inverter
• The power plug should not touch the backside, in order to avoid possible vibration noise.
• The appliance can be put into operation by plugging the mains plug into the point.
• A complete switching-off only occurs by pulling the mains plug.
• If the appliance has been disconnected from the mains, wait approx. 5 minutes after plugging in the mains plug before setting the temperature controller to the desired position. Place it in a central position (2 - 3) to set an optimal temperature for normal use. The more you turn the knob clockwise (3 - 4) with the help of a token/ coin, the lower the temperature in the appliance will be. The more you turn the knob counterclockwise (1 - 2), the higher the temperature in the appliance will be. Make sure the desired temperature has been reached by using a thermometer. The “O” position means the device is switched off. Freezer Door The freezer door should always stay closed so that the food does not defrost. Thereby, the formation of ice and frost accretion is reduced. Therefore, make sure that the door is only open for withdrawal of food or rather for filling the freezer. Freezing/Storing of Food

• The appliance is designed for the freezing of food, for the long-term storage of frozen food as well as for the appliance ion of ice cubes.
• Fresh food should be frozen to the core as quickly as possible, so that the nutritional value, the vitamins, etc. do not get lost. For this reason, put the food in one or two rows in the freezer.
• Do not bring them into contact with already frozen food.
• Do not exceed the freezing capacity per day! The respective value for the maximum freezing capacity can be taken from the appliance specification sheet at the end of the manual.
• The freezing time shortens if the food to be frozen is divided into small portions.
• Store the frozen food in the appliance only packaged. You can use uncoloured plastic sheets/ bags or aluminium foil as packaging material. Remove the air from the packaging before freezing and check for airtightness. Provide every packaging with a label with the content, date of freezing and date of expiry on it.
• Do not freeze carbonated liquids, warm foods or liquids in a glass container or bottle.
• Defrost frozen appliances in a refrigerator. Foods keep their taste when they are defrosted slowly, and the emitted cooling energy from these appliances can be used to maintain the intended temperature in the refrigerator.

• If the appliance is turned off for a longer period of time, e.g., because of a mains failure, leave the door closed. Thereby, a more significant loss of cooling energy can be avoided. The maximum storage time during malfunction can be taken from the appliance specification sheet at the end of the manual. Because of the higher interior temperature, the storage time for food is shortened. Data for expiry dates of frozen food are indicated in the chart per month. If the ice layer in the interior is 2-4 mm thick, the appliance must be defrosted. Clean it at least twice a year.
• Disconnect the mains plug from the socket.
• Remove food from the appliance and store it as cool as possible, e.g., together with ice packs and covered in a plastic recipient. Please remember that the lifetime of the goods is shortened by the temperature increase and that they should be consumed as quickly as possible.
• Leave the door open. To speed up defrosting, place one or more pots with hot but not boiling water in the freezer.
• Warning! Do not use other mechanical devices or any other means, e.g., heating appliances, to speed up defrosting.
• Dry the appliance thoroughly after cleaning.
• Plug in the mains plug. Wait approx. 5 minutes and set the temperature controller to the desired position. Do not store the frozen food longer than the given time in the freezer. Pay attention to the expiry date of the frozen food indicated by producer. Making ice cubes Tips for Energy Saving A special ice-cube tray is provided for making ice cubes. Fill the tray up to ¾ with drinking water and place it in the freezer compartment for a few hours. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes. Cleaning and Defrosting (Maintenance) Cleaning

• Always pull the mains plug before cleaning.
• Do not pour water into the appliance.
• Tepid water with a bit of washing-up liquid is suitable for the regular maintenance.
• Clean the equipment separately with rinsing water, not in the dishwasher.
• Do not use aggressive, abrasive or alcoholic detergents.
• After cleaning it with clear water, wipe the surface and carefully dry it off. Subsequently, plug the mains plug with dry hands.
• In order to save energy and maintain the efficiency, you should clean the condenser (on the backside) and the compressor at least twice a year with a broom or vacuum cleaner.
• The rating label in the interior of the appliance cannot be damaged or even removed while cleaning.

• For the installation of the appliance, choose a cool, dry and well-aired room.
• Protect the appliance from direct insolation. It should not be installed near heat sources (stove, heater etc.). If this cannot be avoided, some sort of isolation between heat source and appliance has to be used.

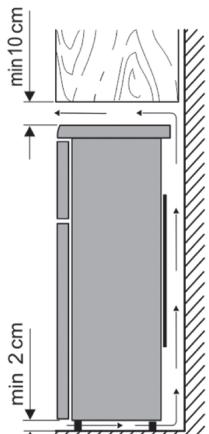

• Don’t cover the ventilation openings and grid. Provide enough circulation of air on the backside of the appliance.
• Let warm food cool down before you store it in the fridge.
• Do not leave the door open too long when withdrawing or putting food inside. Otherwise, the formation of ice in the interior will be accelerated.
• Do not set the temperature lower than necessary. More details on temperature settings can be taken from the chapter ‘Operating elements’. Operation Noises There might be some typical operation noises when the appliance is turned on. These are:
• Noise of the electric motor is arising from the working compressor. When the compressor starts to operate, then the noises get slightly louder for a short time.
• Noises in the tubes of the circulation of the refrigerant.

• If necessary, the door can be changed from rightto left-hinged.
• Warning! Before you work on the appliance, always pull the mains plug out of the point.
• In order to avoid damages to persons and property, execute the change of the door stop with two persons.
• We recommend leaving the change of the door stop to experts.
• Before you start with the modifications, here is some general info: ūū Always pay attention to the number of shims on the bearing pins and screws. ūū Position the doors always so that they close tightly.

4. Unscrew the bolt from the upper left side of the

appliance and screw it on the opposite side.

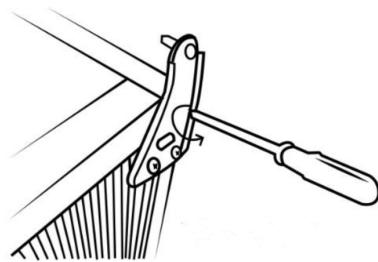

5. Loosen the bolt from the hinge using a

screwdriver. Turn the hinge around and replace the bolt. Set this hinge aside. You will not need it again before step 11.

6. Disconnect the door bushing from the top of

the door and the hinge shroud from the bottom of the door. Replace each on the other side and tighten the hinge shroud.

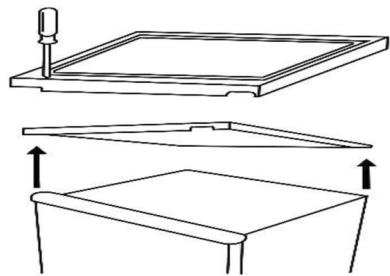

1. Remove the screw covers on the lid of the

appliance. Loosen the screws and remove the lid from the appliance. (Lower part of the door)

7. Remove the adjustable feet of the appliance.

Loosen the screws on the lower hinge and remove it.

2. Remove the hinge cover from the lid of the

appliance. Depending on the model, insert the separately enclosed or the freshly removed hinge cover on the opposite side.

8. Loosen the screw on the left side of the appliance and replace it on the other side.

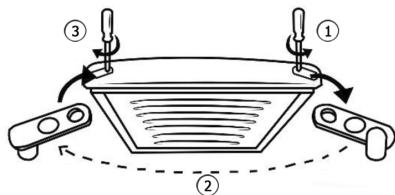

9. Loosen the screw on the lower hinge and

replace it on the other side.

3. Loosen the screws from the hinge and remove

it. Lightly lift the door and remove it. Screw the hinge on the left side of the appliance. Attach the feet back again.

10. Remove the hinge cover from the upper right

inside of the door and fix it onto the left side.

11. Place the door onto the lower hinge and place

the hinge pin of the hinge onto the door. Attach the hinge tight onto the appliance. Appliances that are marked with this symbol have to be disposed of separately from household rubbish. These appliances contain valuable resources that can be recycled. A correct waste disposal protects the environment and the health of those around you. To get informed about it, either defer to your municipal administration or the retailer.

• Pull the mains plug out of the socket and disconnect it from the appliance before getting rid of it.
• The cooling medium Isobutane (R600a) and the propellant in the isolation Cyclopentane (C5H10) are inflammable substances, thus, need to be appropriately disposed of.
• Make sure the tubes of the cooling circuit don’t get damaged before the proper disposal. Warranty

12. Replace the lid of the appliance, screw it tight

and replace the screw covers.

13. Finally, check the correct alignment of the door.

Make sure it is tightly sealed on all sides. If necessary, align the front feet of the appliance, so they are in a horizontal position. If the appliance has been tilted more than 30°, wait 4 hours before connecting it to the mains. Severin grants you a manufacturer’s warranty of two years starting from the date of purchase. During this period, we eliminate all defects which are noticeably based on material or fabrication defects and substantially affect the function, free of charge. Further claims are excluded. The following is excluded from the warranty: Damages that result from non-observance of the instruction manual, improper use or normal abrasion, also delicate parts, e.g., glass, plastic or light bulbs. The warranty expires in the case of an intervention that is not authorized by us. If a repair is necessary, call and write an e-mail to our after-sales service. The contact details can be taken from the appendix of the manual. The legal warranty laws against the vendor and possible vendor warranties stay untouched.

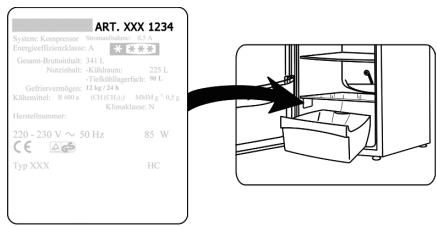

Details for After-Sales Service If a repair is necessary, please contact the service hotline directly with an explanation of the defect. Before you do that, write down the article number from the rating label on the appliance (see figure), since this is needed for the smooth processing of your request. Malfunction Removal Subsequently, there is a table with possible malfunctions and recovery methods. Check if the recovery methods can repair the malfunctions. If this is not the case, then the appliance has to be disconnected from the mains supply, and the after-sales service has to be contacted. Fault Possible reason and rectification The appliance is not working.

• The main fuse has dropped out.
• The fuse in the wall socket is not working. Check this by plugging another appliance into the same point. The noises are too loud (if the normal operation noises change).

• Does the device have a solid stand?
• Does the running cooling unit set adjoining furniture or objects into vibration?
• Do objects positioned on the top of the appliance vibrate? Appliance Specification Sheet* Cooling Appliances Item no. GS 8862 Category-Household Cooling Device 8 – Cabinet freezer Energy efficiency classification A++ Energy consumption** in kWh/Year

Useful capacity in the cooling part in litre Useful capacity - in the freezer part in litre Frost-protected: Freezer compartment

Frost-protected: Refrigerator compartment

Storage time in case of disturbances in hours

Freezing capacity in kg / 24 h

Climate classification N-T Surrounding temperature range in °C 16 – 43 Noise emission in dB(a)

Measurements H × W × D in cm 1252 × 545 × 597 Weight in kg 40,5 Electric data see rating plate *) According to ordinance (EU) Nr. 1060/2010 Appendix III **) The actual consumption depends on the use and the location of the appliance.
