USER MANUAL KASIA MRK-12 MPM

Oznaczenie umieszczane na produkcie wskazuje, że produktu po upływie okresu użytkowania nie należy usuwać z innymi odpadami pochodzącymi z gospodarstw domowych. Aby uniknąć szkodliwego wpływu na środowisko naturalne i zdrowie ludzi wskutek niekontrolowanego usuwania odpadów, zużyte urządzenie należy dostarczyć do punktu odbioru zużytego sprzętu AGD lub zgłosić jego odbiór z domu. W celu uzyskania szczegółowych informacji na temat miejsca i sposobu bezpiecznego usuwania odpadów elektrycznych i elektronicznych użytkownik powinien skontaktować się z punktem sprzedaży detalicznej, lub z lokalnym Wydziałem Ochrony Środowiska. Produktu nie należy usuwać razem z innymi odpadami komunalnymi. 10

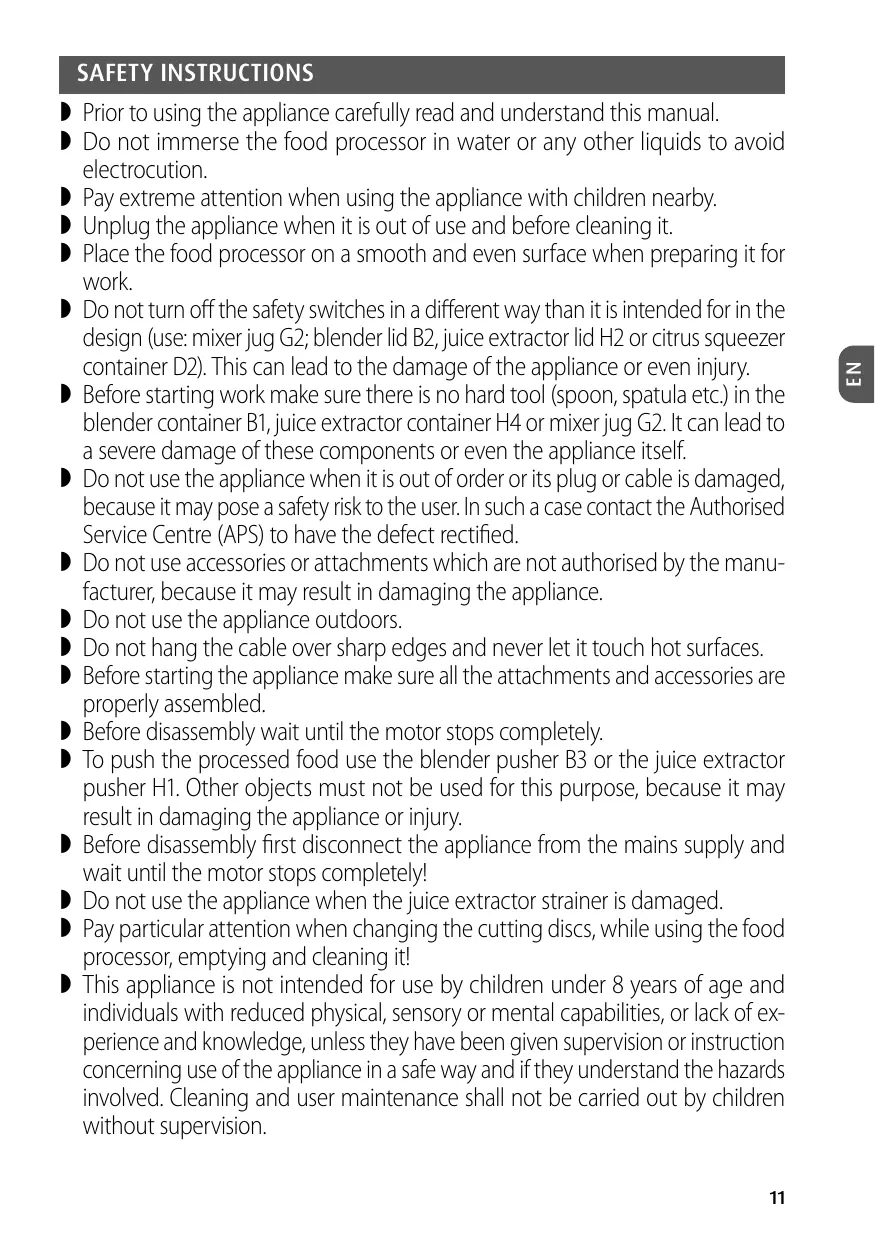

 Prior to using the appliance carefully read and understand this manual.  Do not immerse the food processor in water or any other liquids to avoid electrocution.  Pay extreme attention when using the appliance with children nearby.  Unplug the appliance when it is out of use and before cleaning it.  Place the food processor on a smooth and even surface when preparing it for work.  Do not turn off the safety switches in a different way than it is intended for in the design (use: mixer jug G2; blender lid B2, juice extractor lid H2 or citrus squeezer container D2). This can lead to the damage of the appliance or even injury.  Before starting work make sure there is no hard tool (spoon, spatula etc.) in the blender container B1, juice extractor container H4 or mixer jug G2. It can lead to a severe damage of these components or even the appliance itself.  Do not use the appliance when it is out of order or its plug or cable is damaged, because it may pose a safety risk to the user. In such a case contact the Authorised Service Centre (APS) to have the defect rectified.  Do not use accessories or attachments which are not authorised by the manufacturer, because it may result in damaging the appliance.  Do not use the appliance outdoors.  Do not hang the cable over sharp edges and never let it touch hot surfaces.  Before starting the appliance make sure all the attachments and accessories are properly assembled.  Before disassembly wait until the motor stops completely.  To push the processed food use the blender pusher B3 or the juice extractor pusher H1. Other objects must not be used for this purpose, because it may result in damaging the appliance or injury.  Before disassembly first disconnect the appliance from the mains supply and wait until the motor stops completely!  Do not use the appliance when the juice extractor strainer is damaged.  Pay particular attention when changing the cutting discs, while using the food processor, emptying and cleaning it!  This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision. 11

EN SAFETY INSTRUCTIONS Store the appliance and its cord out of reach of children under 8 years of age. Children should be supervised to ensure that they do not play with the appliance. Do not place the appliance in vicinity of electric and gas cookers, burners, ovens. Do not use the appliance outdoors. This appliance has been designed for domestic use only. Do not pull the plug by holding the power cord. Do not connect the power plug with wet hands. In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.  WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

EN ACCESSORIES At the beginning of the manual there are illustrations showing the component parts the food processor KASIA type 116. These illustrations also demonstrate the assembly sequence of the individual attachments and accessories. A – PROCESSING UNIT A 1 – driving shaft A2 – m ain switch and speed controller knob A3 – position 1 (slow motor speed) A4 – position 2 (average motor speed) A5 – position 3 (fast motor speed) A6 – OFF position (switched off) A7 – PULSE position (enables starting the appliance for the time of keeping the switch in this position) B – BLENDER B1 – container of the blender B2 – lid of the blender B3 – pusher of the blender C – DISCS C1/2 – slicing disc C3 – French fries disc C4/5 – medium and coarse shredding disc C6 – fine shredding disc C7 – disc holder D – CITRUS SQUEEZER D1 – squeezer head 12

D2 – squeezer container E – SPATULA F – DOUGH HOOK AND METAL CUTTER F1 – dough hook F2 – meat and vegetable metal cutter G – MIXER G1 – lid of the mixer G2 – jug of the mixer H – JUICE EXTRACTOR H1 – pusher of the juice extractor H2 – lid of the juice extractor H3 – filter of the juice extractor H4 – container of the juice extractor I – EGG WHIPPER I1 – egg whipper head I2 – egg whipper end

J – ACCESSORIES STAND BEFORE FIRST USE After purchasing and unpacking the appliance, wash all the attachments and accessories in warm water. Do not immerse the processing unit in water or other liquids, but only wipe it with a damp cloth. Carefully read the following instructions.

To start operation attach the blender container B1 onto the processing unit A. Place the blender container on the driving shaft of the processing unit A1, with the handle directed at you, and turn it counterclockwise until the clasps snap in place. Place the dough hook F1 in the blender container. Place the food to be processed into the blender container, put on the blender lid B2, turning it counterclockwise until the fastening clasps snap closed. The blender is now ready to use. Place other food products in the blender container through the opening in the lid and push them with the blender pusher B3, if necessary. The blender pusher may also be used for dosing loose and liquid ingredients. ATTENTION! When kneading the dough, make sure it does not form a ball, because it may damage the appliance. Recommended speeds: in the initial phase of dough kneading, it is advised to set the speed controller in the first level, and turn it up after a few seconds of work, depending on the type of dough. CHOPPING For this function use the blender container B1 as well, and to attach it follow the same procedure as for the dough kneading, but instead of the hook use the metal knife for meat and vegetables F2. Use this attachment to chop meat or vegetables. Recommended speed: for chopping use settings 2 or 3 or the PULSE function – A7. If it is necessary to push the products placed in the blender container through the opening in the lid, use only the blender pusher B3. MIXING Remove the blender container B1 from the processing unit A by turning it clockwise. Then place there the mixer jug G2 and turn it counterclockwise until the clasps snap in place. Place the ingredients to be mixed into the jug. ATTENTION! Do not fill the jug with hot liquids. Do not pour more than 1 l of liquids into the mixer jug. Recommended speed: adjust the speed of the mixer to the recipe or your own needs. WHIPPING EGG WHITES Put the egg whipper head I1, together with the whipper end I2, on the blender container B1 on the driving shaft A1 and close with the blender lid B2. Twist it counterclockwise until the clasps snap closed. 13

EN DOUGH KNEADING Use the egg whipper only to make foam from egg whites. When trying to use the whipper to mix even the most delicate of dough, it may result in damaging the whipper head I1 and repair costs will not be covered by the warranty. Recommended speed: best use speed setting 3. SHREDDING AND GRATING Attach the disc holder C7 to the blender bowl B1 on the driving shaft A1. Place one of the metal discs C1/2-C6 on the disc holder, depending on the products which will be processed and what effect you want to achieve. Next, place the lid B2 and turn it counterclockwise, until the clasps snap shut.

EN ATTENTION! Use only the blender pusher B3 to hold down and push the processed products. Recommended speed: depending on the disc, use speed setting 2 or 3. The PULSE function A7 may also be used. JUICE EXTRACTOR Attach the juice extractor container H4 with the filter H3 in the blender container B1 on the driving shaft A1. Next, place the juice extractor lid H2 and turn it counterclockwise, until the clasps snap shut. Feed the fruit you want to juice through the opening in the lid and push or hold them down only with the pusher H1. Recommended speed: for highest juicing efficiency use speed setting 3, because at these setting of the speed controller the centrifugal force in the container is greatest and can transfer the juice extracted in the juice extractor container to the container of the blender. CITRUS SQUEEZING Place the squeezer container D2 in the blender container B1 and turn it counterclockwise, until the clasps snap shut. Next, place the squeezer head D1 in the opening in the squeezer container to attach it to the driving shaft A1. Cut each citrus fruit you want to squeeze into halves and place each half with the pulp facing the squeezer head. Recommended speed: set the speed controller to the setting 1. ATTENTION! The blender container can maximally contain 1.5 litre of juice. ACCESSORIES STAND As a standard equipment, the food processor KASIA type 116 has an accessory stand, which makes it easier to store the appliance’s attachments. The following attachments can be placed on the stand: discs C, citrus squeezer D, spatula E, dough hook and metal cutter F, egg whites whipper I.

CLEANING AND MAINTENANCE Before cleaning the appliance always unplug it. Disassemble the attachments and accessories in the order reverse from that in which they were attached for their functions. Wash all the attachments and accessories in water with a cleaning agent (preferably right after use, which makes the cleaning process easier) and then dry them. Never immerse the processing unit A in water or any other liquids. It should only be wiped with a damp cloth. ATTENTION! Pay attention when touching cutting blades, especially when removing them from the container, emptying it and during cleaning.

EN NO OPERATION  Check if the appliance is properly plugged in to the mains and if there is power in the socket.  Check if the blender container B1, the blender lid B2 and the juice extractor lid H2, squeezer container D2 or mixer jug G3 are properly assembled.  If everything is properly assembled and attached,and the appliance still does not work, contact an Authorised Service Centre to have the defect identified and rectified. TECHNICAL DATA Power supply: 230 V ~50 Hz Maximum power: 800 W Maximum rotation: 13100 rpm Speed settings: 3 + PULSE function Capacity of the blender container: 1.5 litre Capacity of the mixer jug: 1.0 litre KB MAX = 5 min

LWA = 75 dB NOTE! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment) This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste. Poland
