USER MANUAL HMM7350X BEKO

Please read this user manual first!

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

C A Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property. Do not immerse the appliance in water. Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

This appliance conforms to the WEEE regulation.

It does not contain PCB.

Made in P.R.C CONTENTS

1 Important safety and environmental instructions

1 I mportant safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

•• This appliance complies with the international safety standards.

•• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. •• This appliance cannot be used by children. •• Keep the appliance and the power cable out of the reach of children. •• Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.

4 / 74 EN Mixer/User Manual

1 I mportant safety and environmental instructions

•• Unplug the appliance when left unattended, while installing/removing accessories or before cleaning. •• Only use the original parts or parts recommended by the manufacturer. •• Do not attempt to dismantle the appliance. •• Your mains power supply should comply with the information supplied on the rating plate of the appliance. •• Do not use the appliance with an extension cord. •• Do not pull the power cable when unplugging the appliance. •• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely. •• Do not touch the plug of the appliance with damp or wet hands. •• Do not use the device for hot food. •• Remove bones and stones from food to prevent the the appliance from getting damaged. •• This appliance is not suitable for dry or hard foods. Mixer/User Manual

1 I mportant safety and environmental instructions

•• To prevent overheating, do not use whisking continuously for more than 10 minutes. Leave to cool for 5 minutes in between each 10 minutes of operation. •• To prevent overheating, do not use mixing with spirals continuously for more than 2 minutes. Leave to cool for 1 minute in between each 2 minutes of operation. •• Follow all warnings to prevent injuries due to incorrect use. •• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts. •• Do not immerse the appliance, power cable, or power plug in water or any other liquids. •• Do not operate or place any part of this appliance or its parts on or near hot surfaces. •• If you keep the packaging materials, store them out of the reach of children. •• If you keep the packaging materials, store them out of the reach of children.

6 / 74 EN Mixer/User Manual

1 I mportant safety and environmental instructions

1.2 Compliance with the WEEE Directive and disposal of waste products This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Regulation. This appliance has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the appliance with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

7 / 74 EN Motor unit

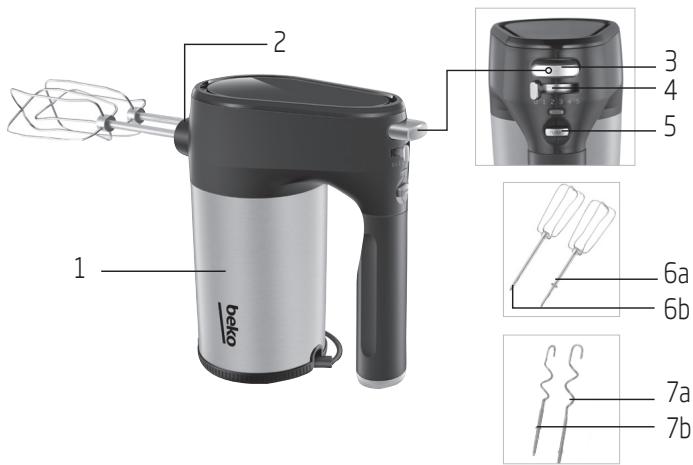

Accessory slots Accessory release button Operation and speed adjustment button 5. TURBO Button 6. Whiskers (6a/6b) 7. Dough kneading spirals (7a/7b)

This appliance complies with the European Directives 2004/108/ EC, 2006/95/EC, 2009/125/EC and 2011/65/EU. Voltage: 220-240 V~, 50/60 Hz Power: 350 W Technical and design modifications reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

8 / 74 EN Mixer/User Manual

Start mixing in low speed while mixing ingredients.

Ingredients may be spattered when you start with high speed. 3.2 Initial use 3. Plug in the appliance. Clean the appliance parts before 4. Hold the appliance above the initial use (see 4.1). container in which you previously prepared the ingredients 3.3 Whisking / for whisking or mixing in an inclined position, pointing the base Blending of the container. 1. Insert whisking and blending WARNING: Place accessories in slots (2) under the the container to be mixer. used for processing 2. Insert whisking accessory with a on a stable and flat round ring (6a) and mixer spiral surface. (7a) into the large slot and other whisking (6b) and mixer spiral 5. Run the appliance moving the (7b) into the small slot in the operation button gradually (4) mixer. to desired speed level. WARNING: Do not WARNING: use whisker accesSpeed levels range sory together with between 1-5. mixer spirals. Increase speed by starting with level 1. 6. When whisking/mixing is completed, move operation button (4) to “0” position and wait for it to stop completely. This appliance is intended only for household use; it is not suitable for professional use.

C A A Mixer/User Manual

WARNING: Set the speed adjustment button to “0” position when processing is over. 7. Unplug the appliance. 8. Press accessory release button (3) and remove accessories.

A A WARNING: When operation button is in “0” position, you can press accessory release button to release whisker and mixer accessories.

•• Always use both mixer spirals. •• Teflon-coated pots can be scratched. •• Use to knead dough.

When you need extra high speed, press and hold TURBO button and release when you do not need.

A WARNING: Do not use TURBO feature for more than 1 minute.

3.5 Things to do for energy saving

•• Always use both whiskers.

•• Teflon-coated pots can be Switch off and unplug the scratched. appliance after using it. •• Use for whisking liquid ingredients such as cakes, sauces, soup.

10 / 74 EN Mixer/User Manual

•• If you do not intend to use the appliance for a long time, store it carefully.

•• Unplug the appliance before lifting it. •• Store the appliance in a cool and dry place. 1. Unplug the appliance before •• Keep the appliance and cable out cleaning. of the reach of children. 2. Make sure whisker and mixer spirals are at complete stop and 4.3 Handling and remove accessories. transportation 3. Wipe appliance motor unit (1) •• D u r i n g handling and with a damp cloth. transportation, carry the 4. Removed accessories can be appliance in its original washed using a sponge and packaging. The packaging of dish-washing detergent. the appliance protects it against 5. Dry all parts of the appliance afphysical damages. ter cleaning. • • Do not place heavy loads on the WARNING: Whisappliance or the packaging. The kers and kneading appliance may be damaged. spirals are dishwas•• Dropping the appliance may her safe. render it non-operational or cause permanent damage.

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.
