USER MANUAL UEI 102F LR X WHIRLPOOL

EN Instructions for use

Two identical black silhouette figures of men, no text or symbols present

Illustration of two gloves, one white and one gray, with no text or symbols present.

Diagram showing a hand pressing a button on a control panel with labeled buttons and an 'I' indicator

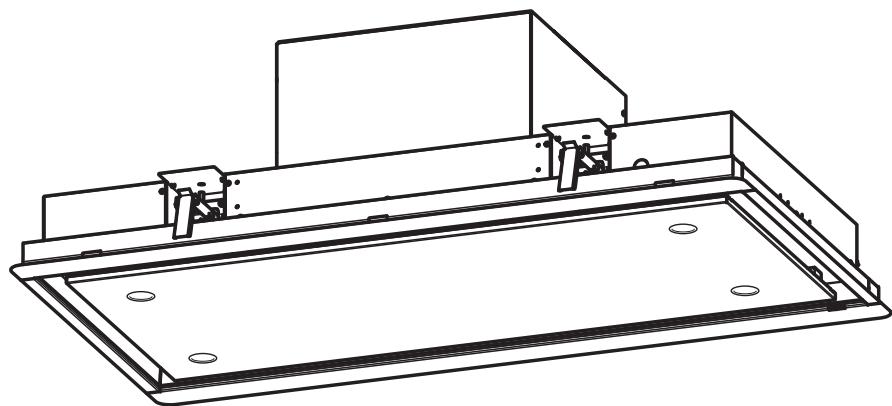

Technical line drawing of a mechanical assembly with mounting bracket and base plate (no text or symbols)

4x

1x

5x ø3,5x9,5mm

Technical line drawing of a mechanical component with a 1x magnified section (no text or symbols)

1x

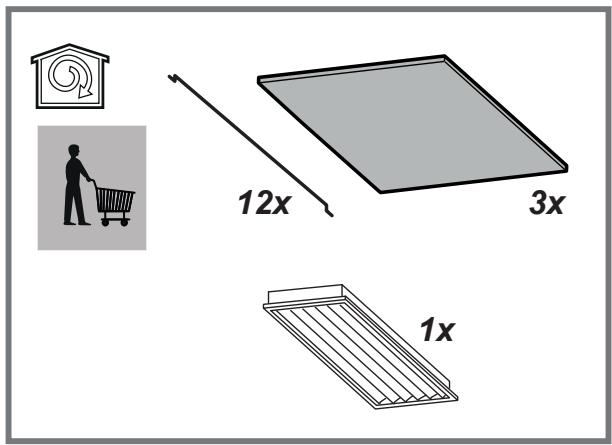

12x 3x 1x

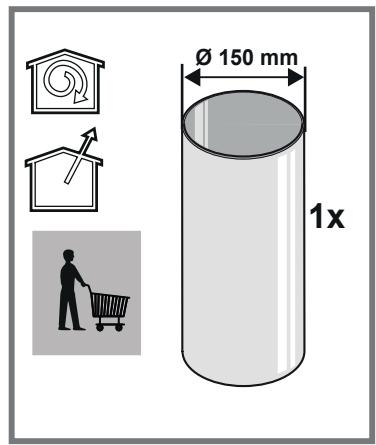

Ø 150 mm 1x

Diagram illustrating a parking or storage system with labeled components and directional arrows indicating flow or movement.

Technical diagram showing airflow or ventilation through a structural component with directional arrows and a house icon.

!

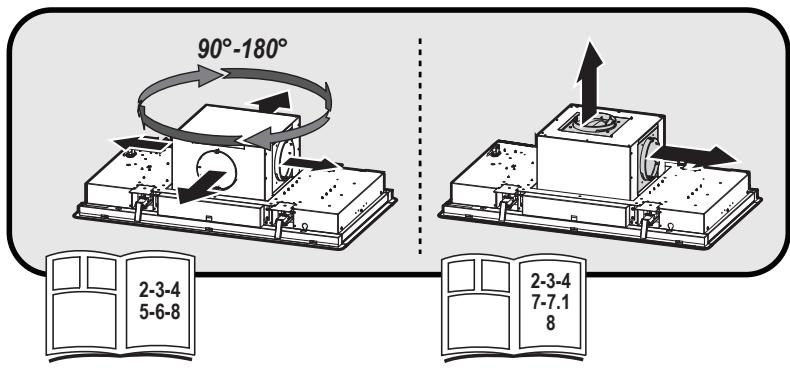

90°-180° 2-3-4 5-6-8 2-3-4 7-7.1 8

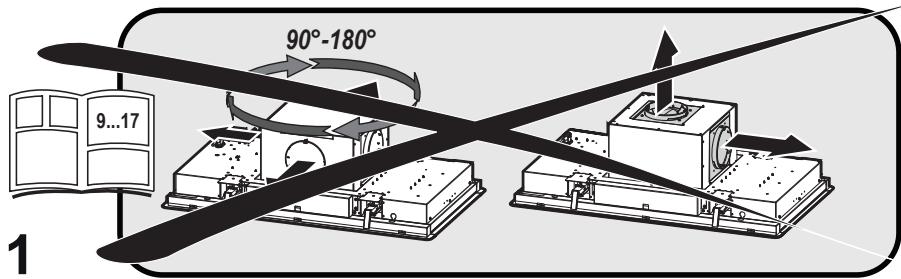

90°-180° 9...17 1

2.1 2.2 2

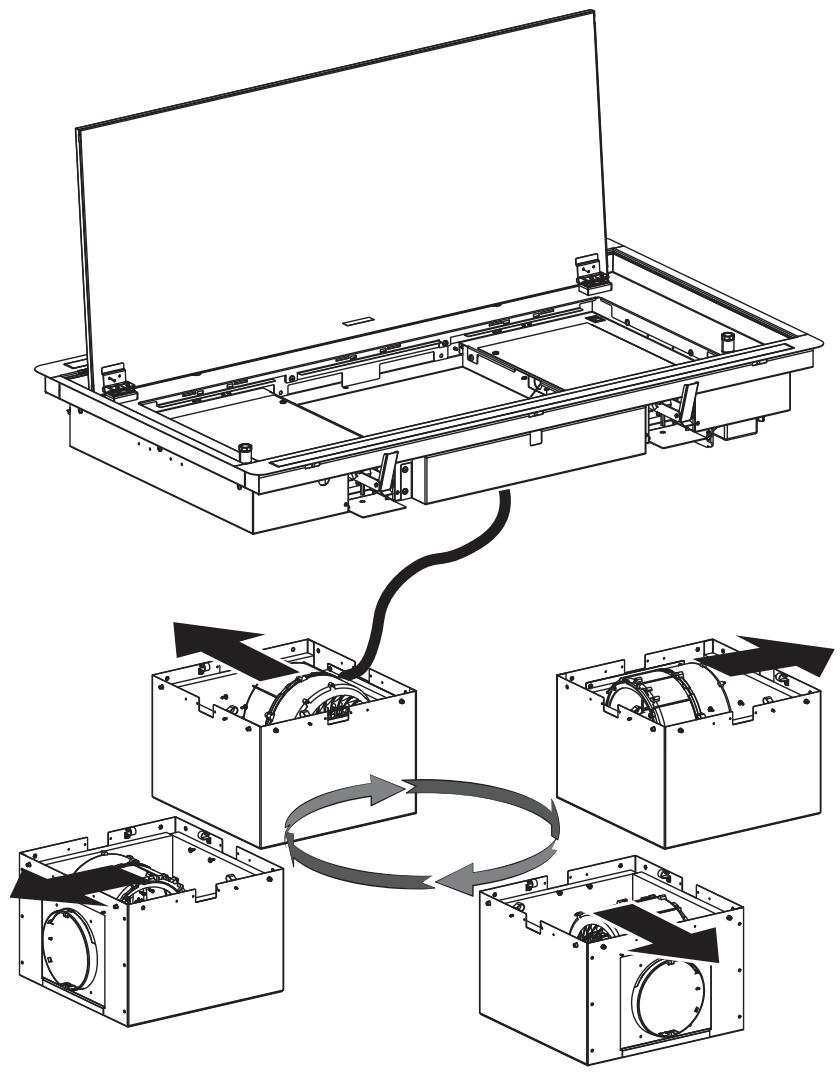

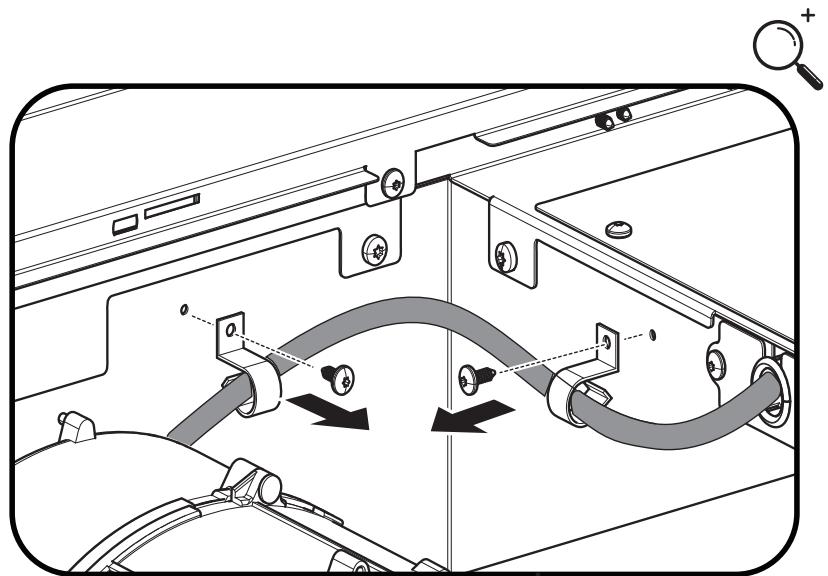

Technical diagram of a mechanical assembly with hoses and connectors, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

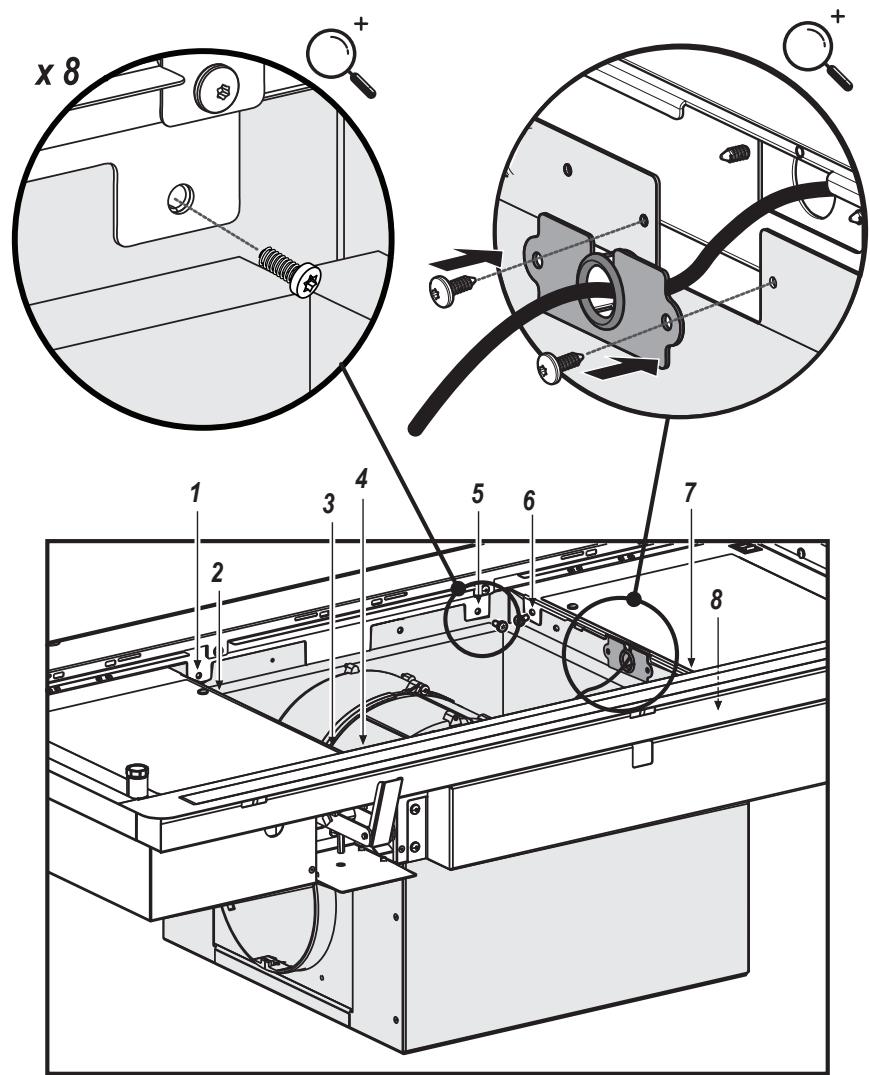

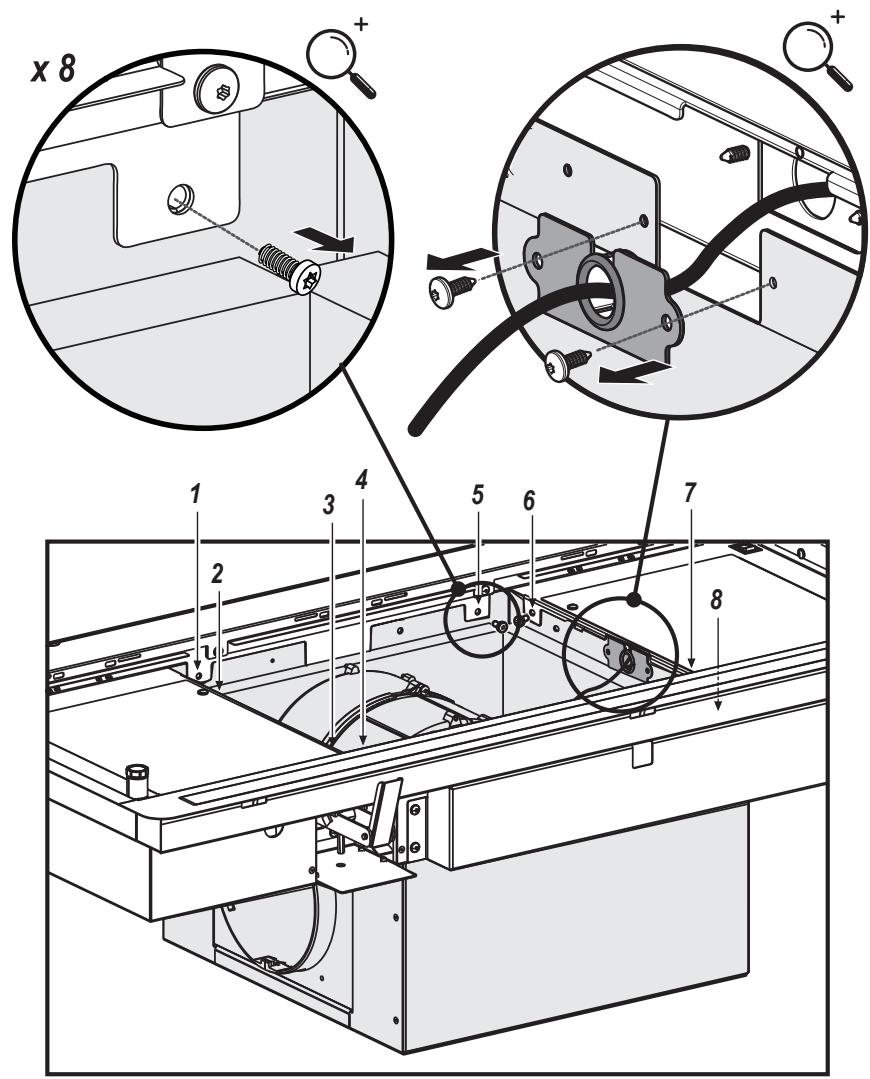

x 8 1 2 3 4 5 6 7 8

x 8 + + 1 2 3 4 5 6 7 8

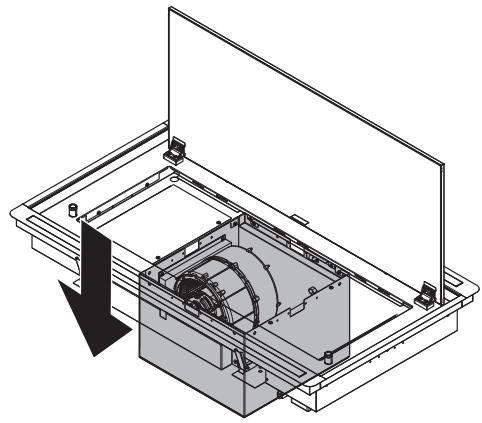

Technical line drawing of a mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with concentric rings and mounting brackets (no text or symbols)

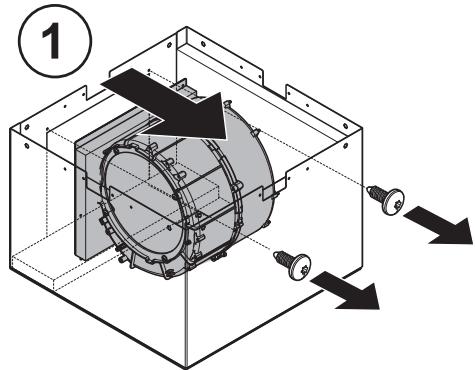

①

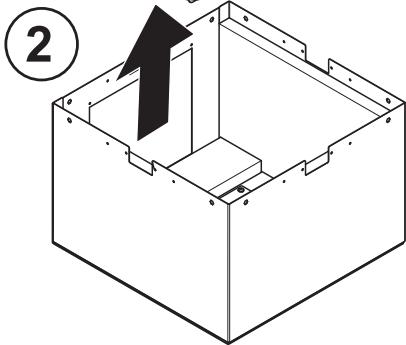

Isometric diagram of a rectangular housing with an arrow pointing to the interior (no text or symbols)

Isometric technical diagram of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

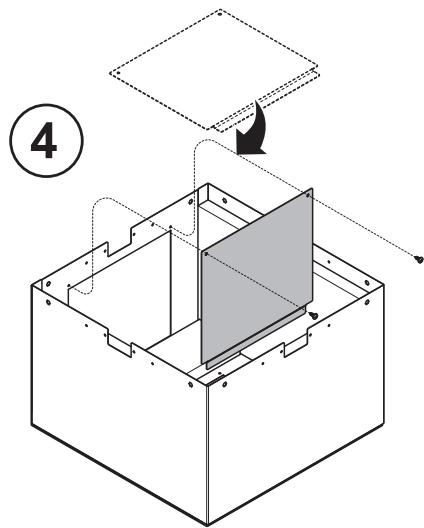

④

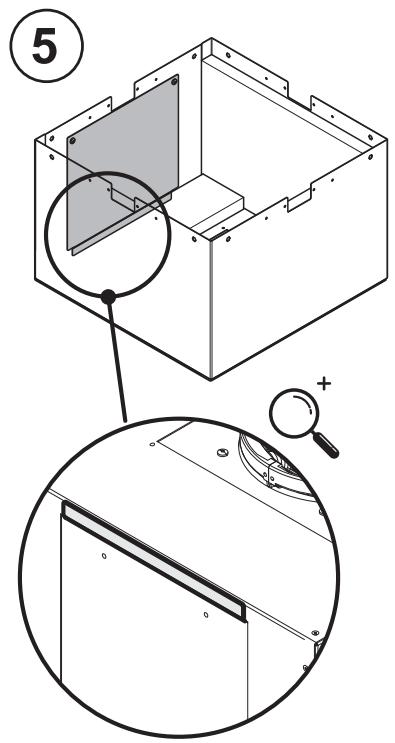

⑤ +

Technical diagram showing assembly of a mechanical component with labeled parts and directional arrows indicating assembly steps.

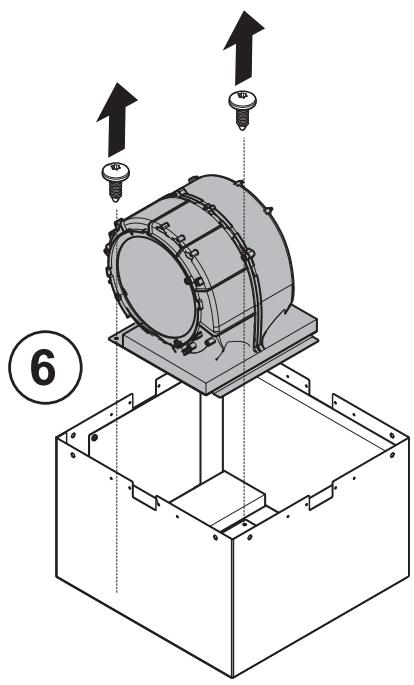

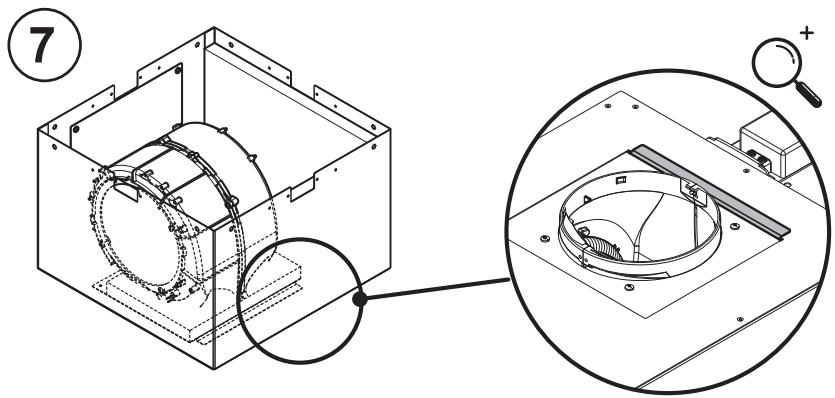

⑦

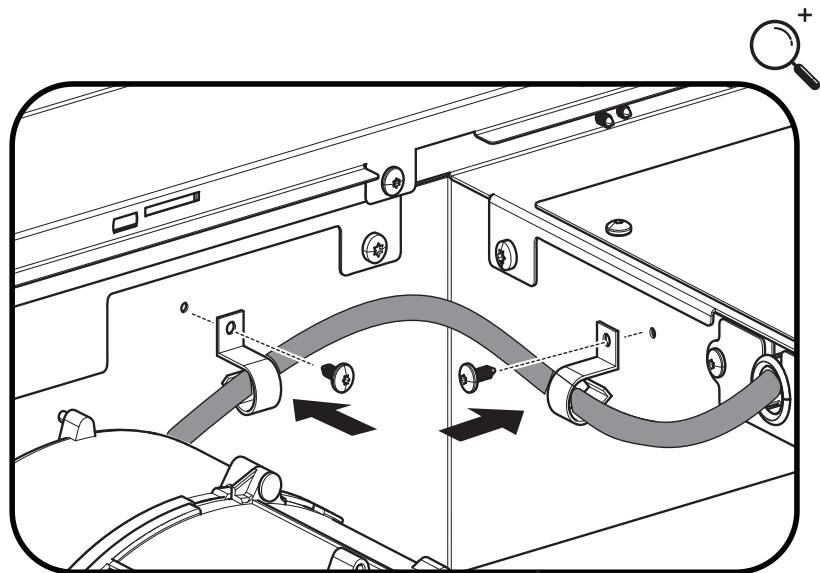

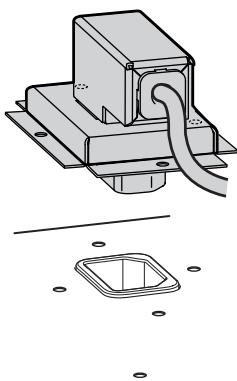

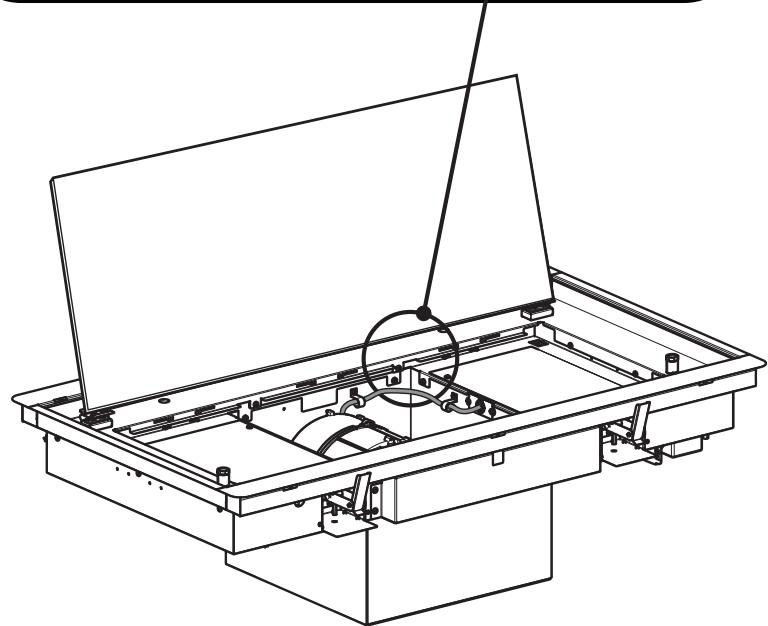

7.1

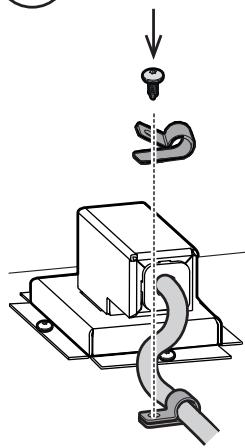

Technical diagram of a mechanical assembly with hoses and connectors, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with circular components and mounting base (no text or symbols)

1

Technical line drawing of a mechanical assembly with a square component and mounting holes (no text or symbols)

2

Technical diagram of a mechanical assembly with multiple bolt holes and a central component (no text or labels)

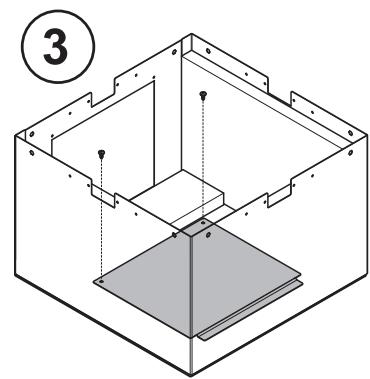

3

Mechanical assembly diagram showing a hook being inserted into a housing (no text or symbols present)

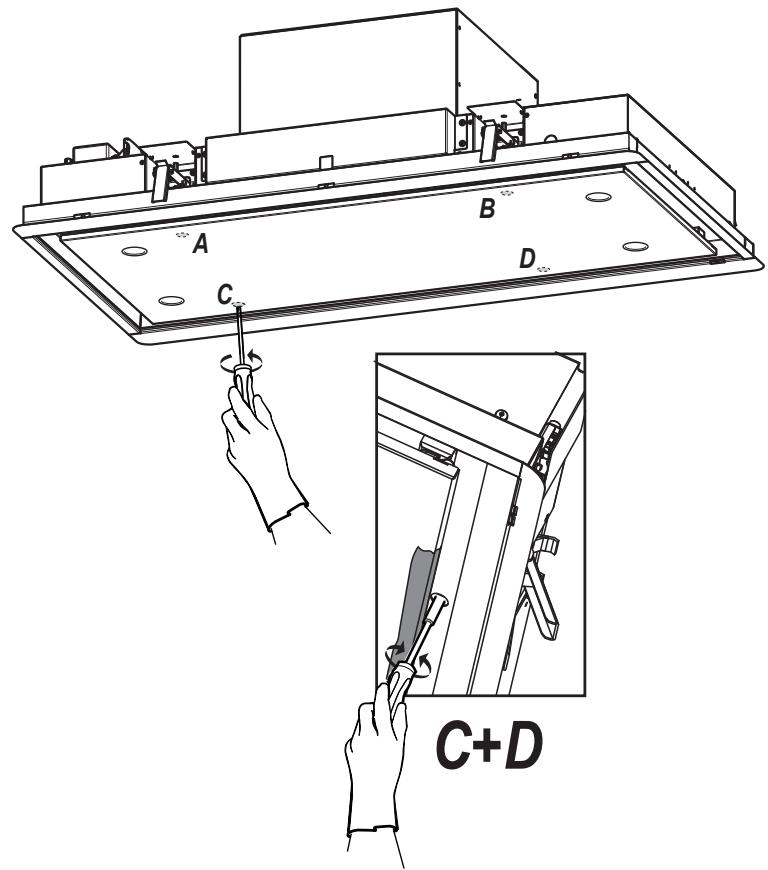

A B C D C+D

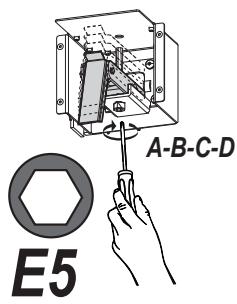

A-B-C-D E5

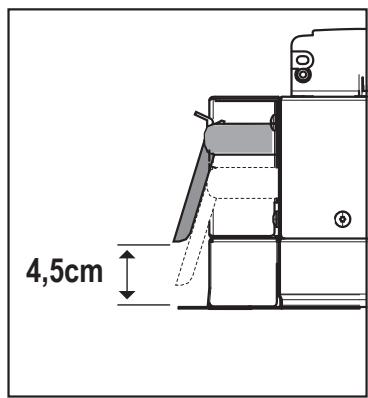

4,5cm

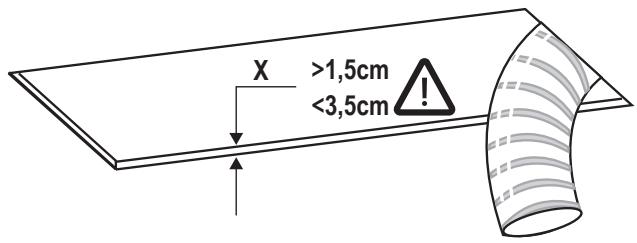

X >1,5cm <3,5cm

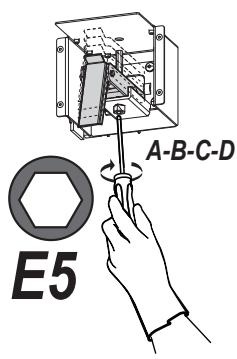

A-B-C-D E5

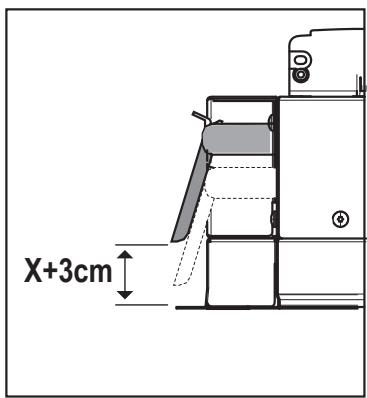

X+3cm

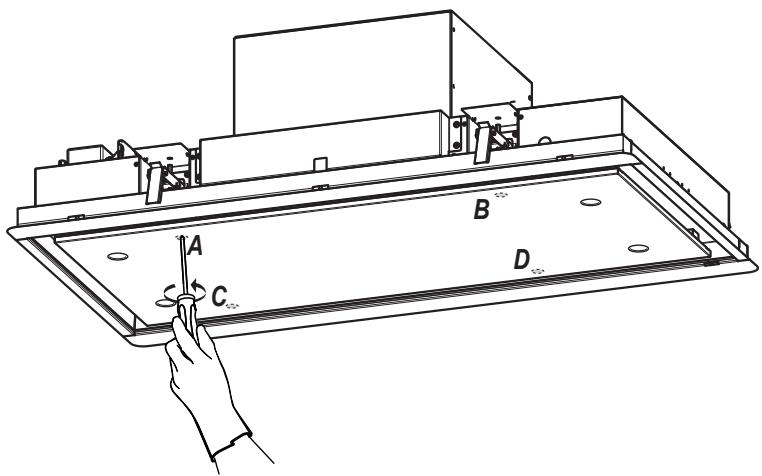

Technical diagram of a mechanical assembly with labeled components A, B, C, D and a hand holding a knob.

Two identical black silhouette figures of men, no text or symbols present

Ok!

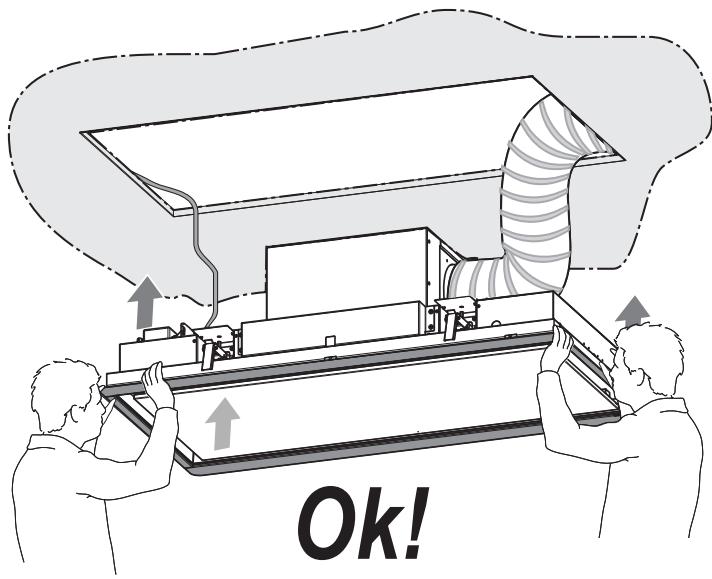

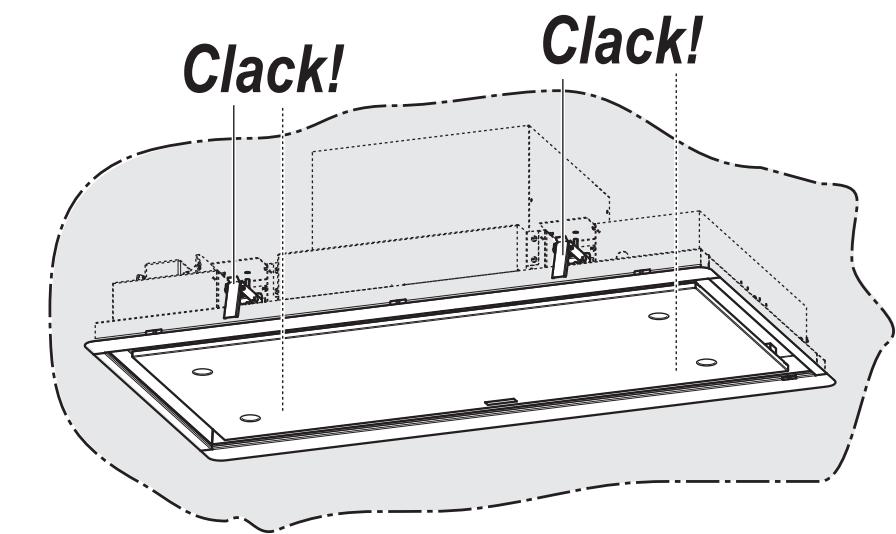

Clack! Clack!

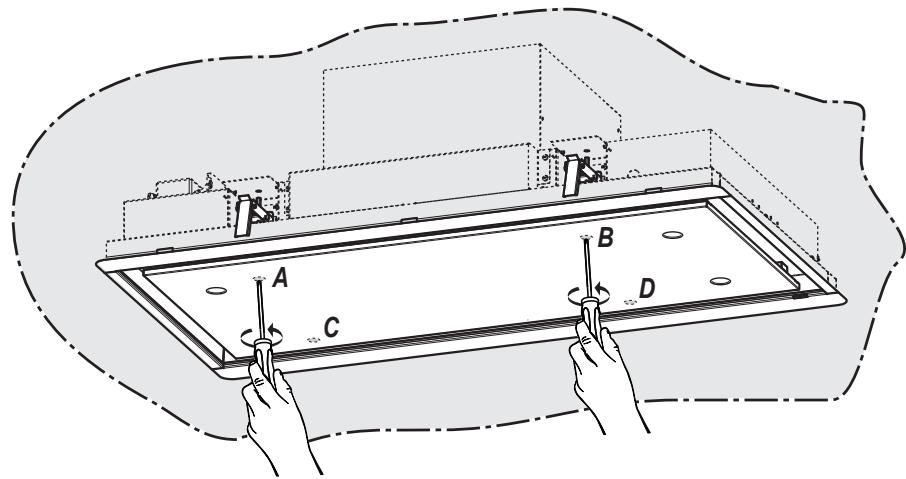

A B C D

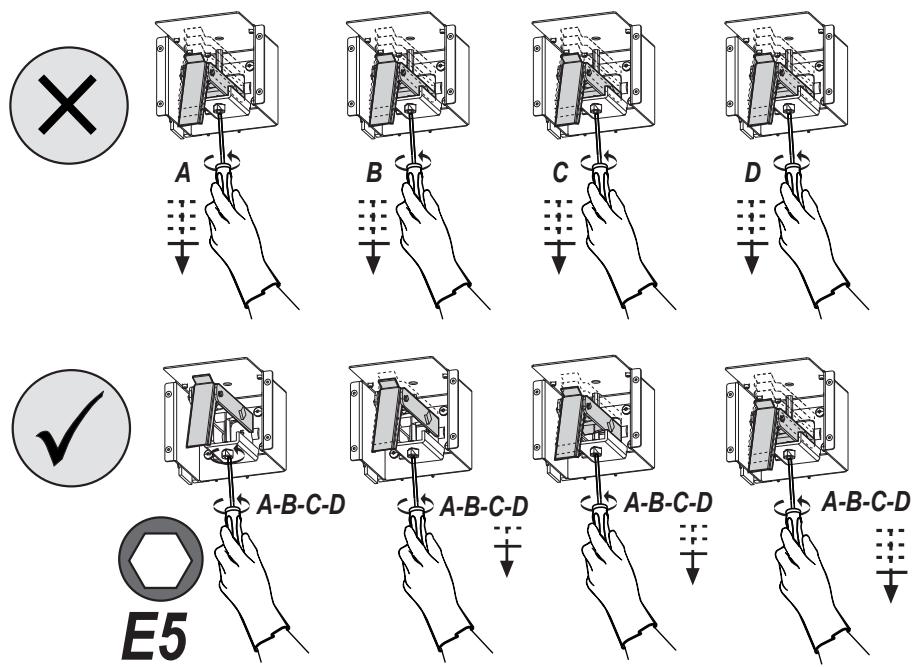

A B C D E5

4x

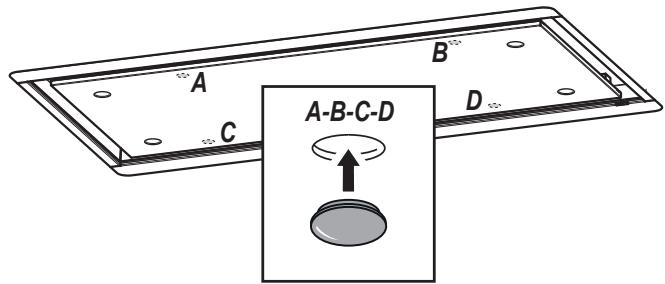

A B C D A-B-C-D

15

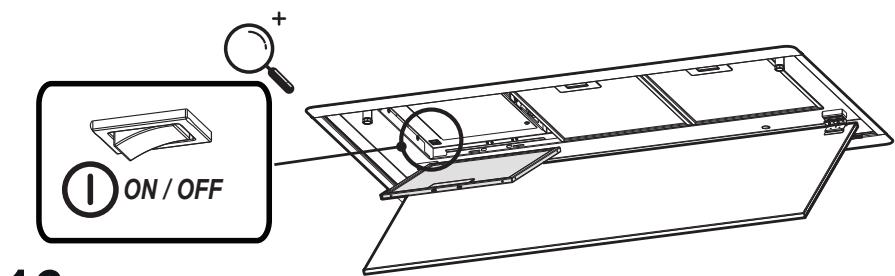

ON / OFF

16

x3 17.1 17

IT

SICUREZZA GENERALE

Icon showing a speaker emitting wireless signals, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing structural components with arrows indicating movement, including a magnified inset of a V-shaped component (no text or symbols present)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

EN

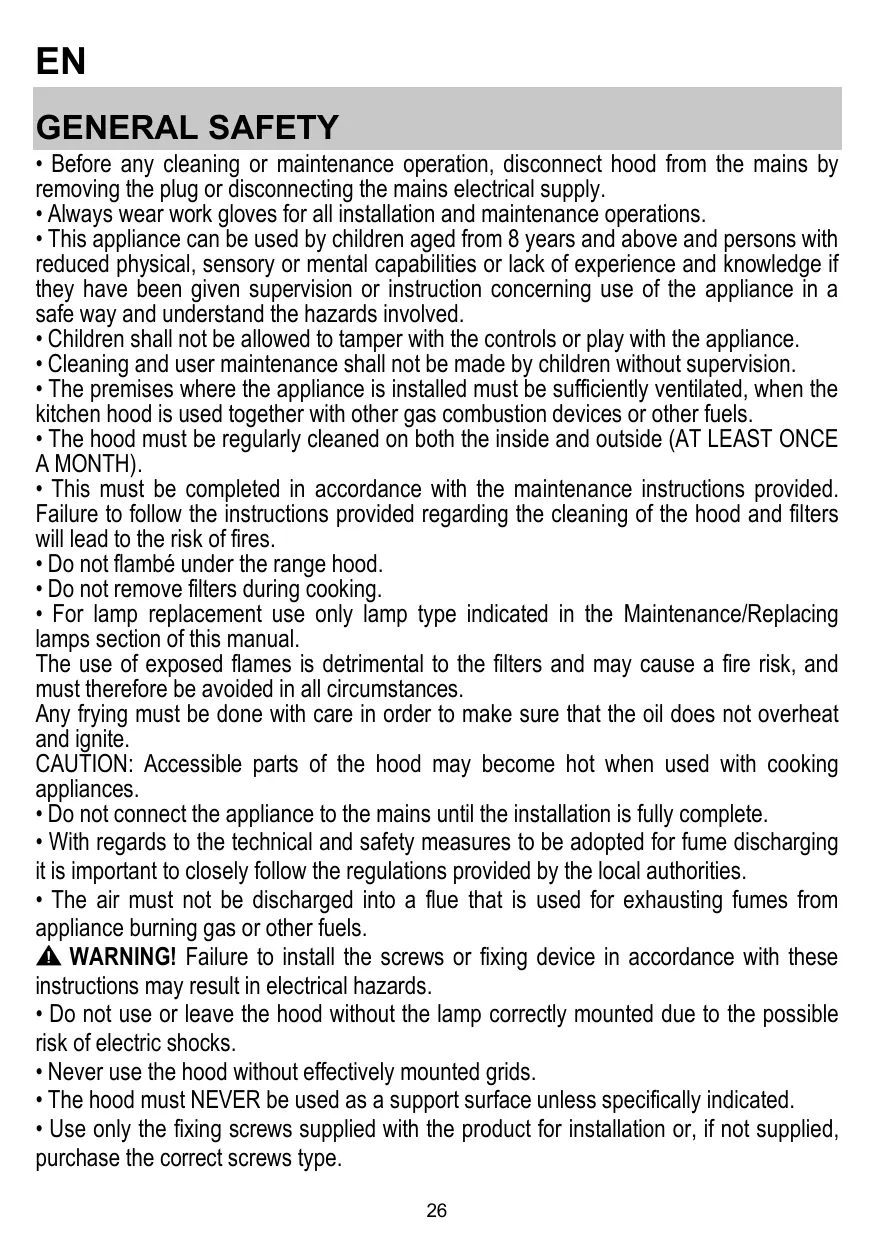

GENERAL SAFETY

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.
  The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
  Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
  CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is not for professional use. Do not use the appliance outdoors.
The appliance must be handled and installed by two or more persons-risk of injury.
Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must not be less than 60cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

AIR VENT

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

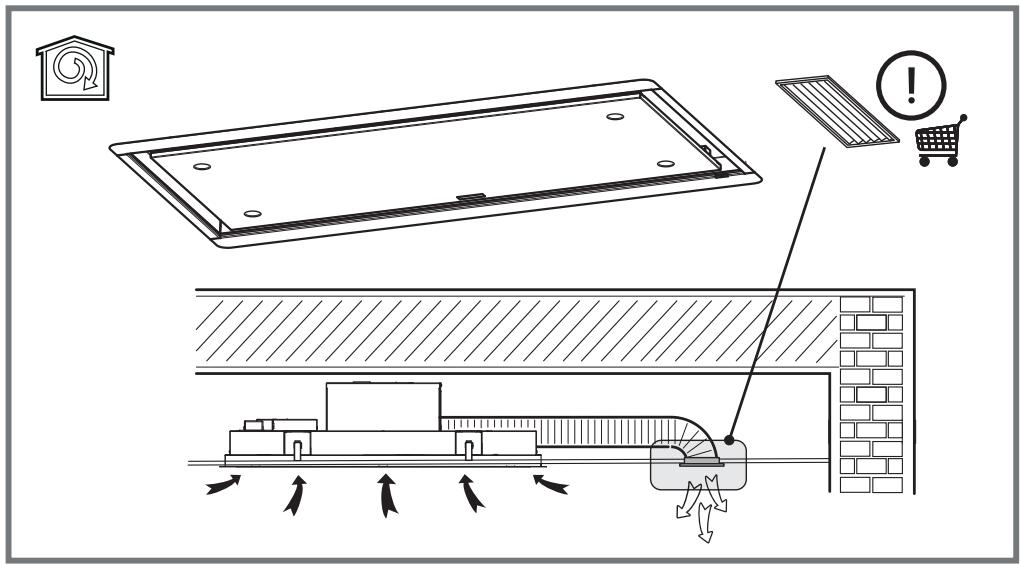

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

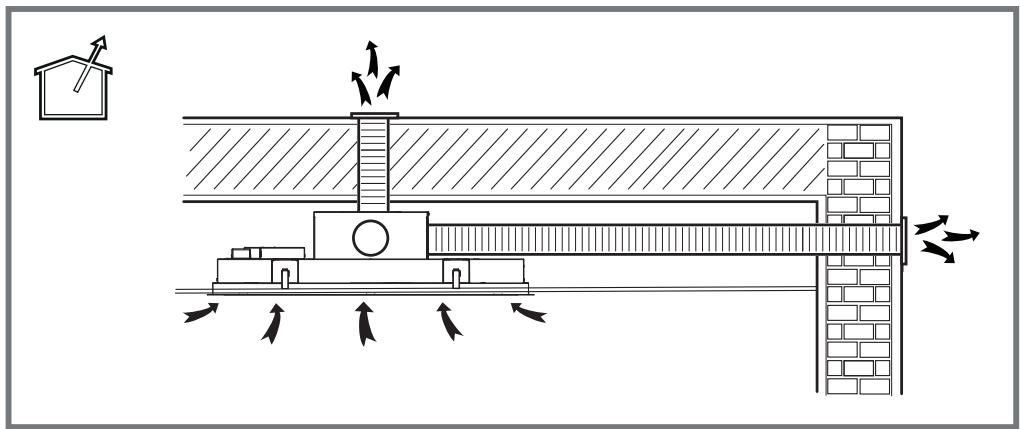

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

Icon showing a device emitting wireless signal, no text or symbols present

This product is designed to work with an Elica remote control, either supplied with the product or purchased separately as an optional.

To control the hood via remote control, the affiliation procedure must be carried out.

CAUTION!

To begin, the hood must be disconnected and then reconnected to the power supply and the affiliation procedure must be carried out within the first minute of connection to the power.

Read the instructions supplied with the remote control, which provide detailed instructions on affiliation and correct use.

Note: the Speed 4 (and the Speed 5, where applicable) if selected, will activate for a limited period of time after which Speed 2 is automatically enabled.

Remote control connection (if applicable)

Once the remote control has been connected, this will be displayed on the hood:

both LEDs flash.

Note: Using the remote control, delayed shut-down can be programmed based on the aspiration speed (power) enabled at that moment:

Speed 1 (low aspiration): 20 minutes

Speed 2 (medium aspiration): 15 minutes

Speed 3 (high aspiration): 10 minutes

Filter Saturation indicator lights

At regular intervals, the LEDs on the hood indicate the need to carry out filter maintenance.

Note: The filter saturation signal is visible for a few seconds when the hood is switched on; within this time, the saturation indicator lights must be reset.

Flashing Green LED: carry out maintenance on the grease filter.

Red flashing LED: carry out maintenance on the charcoal filter (only for hoods operating in "Filtration Version").

Note: Run the "RESET FILTRES" command via the remote control.

Activating/deactivating the filter saturation indicator light

Note: Run the procedure with the hood switched off. The charcoal filter saturation indicator light is usually deactivated.

If no control is given within maximum 10 sec, the hood automatically exits this function, at any time, and returns to the previous state.

Press and hold the B+C keys (Simultaneously) to enter the setup menu:

Briefly press button C to select the filter to be set up:

Grease filter: Green

Charcoal filter: Red

Briefly press button B to activate (the 2nd LED flashing) or deactivate (2nd LED off).

Note: the LEDs light up for a limited number of seconds after which they turn off to indicate that the indicator light has been activated (or deactivated).

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Perimeter aspiration panel

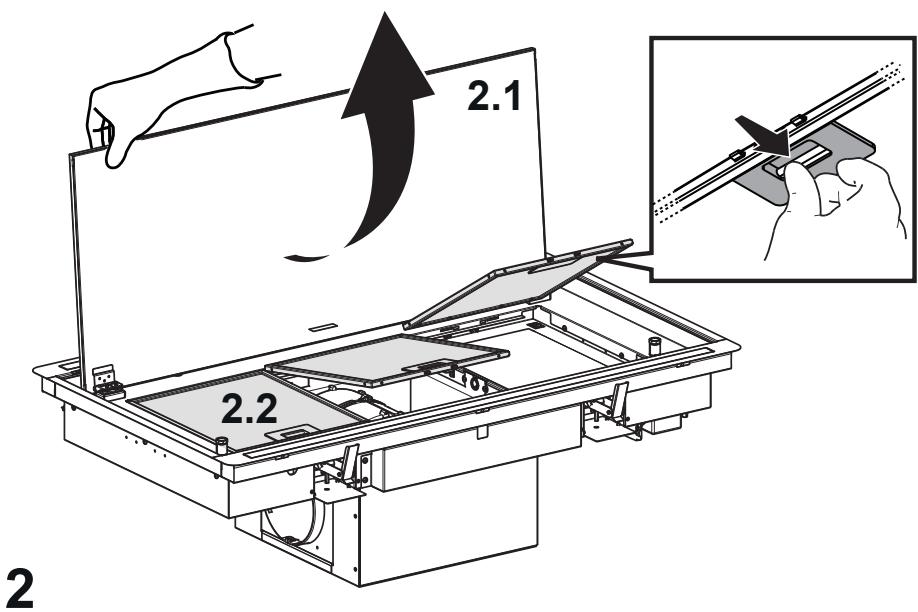

Fig. 2.1

The panel for perimeter suction should always be left closed and should only be opened in case of maintenance interventions (eg cleaning or replacing filters).

Maintenance of the anti-grease filters

Fig. 2.2

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Hand holding a mechanical clamp or bracket with a black arrow pointing to a component (no text or symbols visible)

Maintenance of the charcoal filter

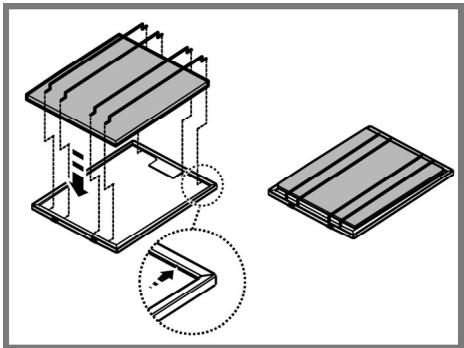

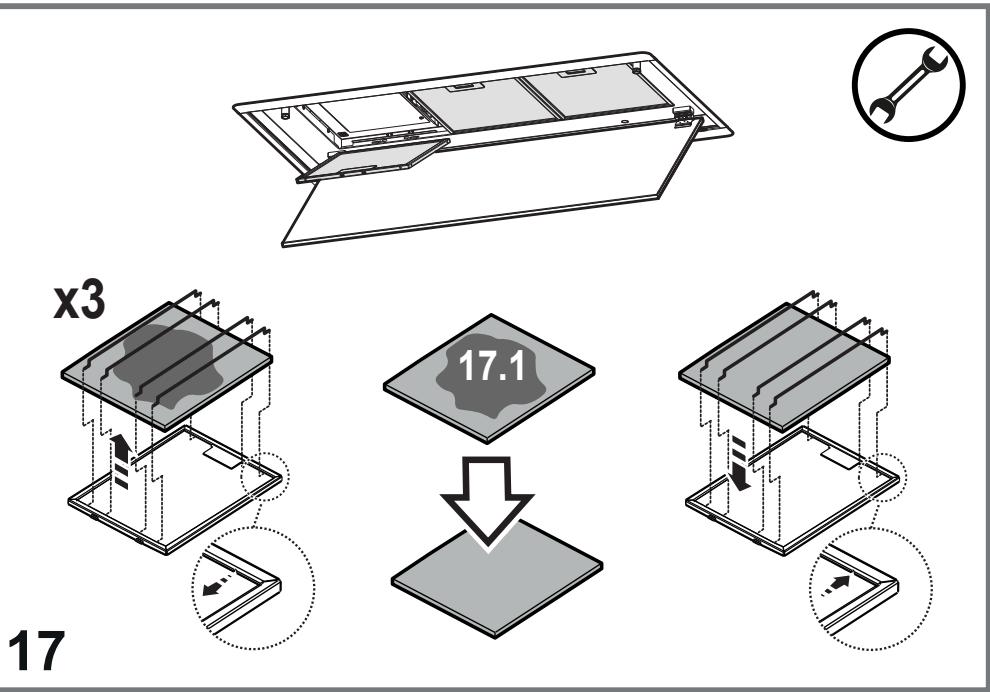

Fig. 17.1

It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed every two months (or when the filter saturation signal system - if present on your model - shows such need) in hot water and suitable detergents or in the dishwasher at 65°C (in this case run a complete wash cycle with no dishes inside).

Remove excess water without damaging the filter and then put the filter back in the oven for 10 minutes at 100^ C to dry it definitively.

Replace the pad every 3 years and every time the cloth is damaged.

Technical diagram showing structural components with arrows indicating assembly or alignment, no visible text or symbols

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

• The power has not been disconnected.
• A speed has been selected.

• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version)

• If the hood has turned off during normal functioning:

Check that:

• The power has not been disconnected.
• the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

height (cm)	Width (cm)	depth (cm)
32	96,7	46,7

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

QR code image containing encoded data, no visible human-readable text

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.whirlpool.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

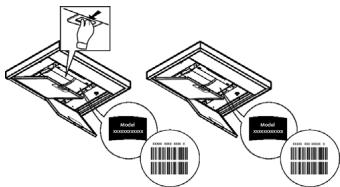

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

Icon showing a speaker emitting wireless signals, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Architectural diagram showing structural components with arrows indicating assembly (no text or labels)

Ersetzen der Lampen

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

FR

SÉCURITÉ GÉNÉRALE

Icon showing a device emitting wireless signal waves, no text or symbols present

Illustration of a hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Isometric diagram of a structural assembly with layered components and directional arrows (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

ALGEMENE VEILIGHEID

Icon showing a device emitting wireless signal waves, no text or symbols present

Activering/deactivering indicatoren verzadiging filters

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Isometric diagram of a structural assembly with two views: top view showing internal layers and bottom view showing layered materials (no text or symbols)

Vervanging lampjes

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

SEGURIDAD GENERAL

Icon showing a device emitting wireless signal, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing structural components and a close-up of a layered panel (no text or symbols present)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

PT

SEGURANÇA GERAL

Icon showing a device with wireless signal waves and a stopper (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing structural components and assembly, including a 3D panel assembly with internal layers and a separate flat panel (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a scanning process with labeled components and barcode indicators

ALLMÄN SÄKERHET

Icon showing a device emitting wireless signal, no text or symbols present

Yttre utsugningspanel

Fig. 2.1

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing structural components with arrows indicating assembly or alignment, no text or symbols present

Utbyte av lampor

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

FI

YLEINEN TURVALLISUUS

Icon showing a device emitting wireless signal waves above a stylized 'T' (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Isometric diagram of a structural assembly with layered components and directional arrows (no text or symbols)

Lamppujen vaihto

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

ADVARSEL

Icon showing a device emitting wireless signal waves, no text or symbols present

Panelet for oppsuging langs kanten

Fig. 2.1

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing a structural assembly with layered components and an inset view of a folded panel (no text or symbols present)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Du kan laste ned Sikkerhetsinstruksene, Brukerhåndboken, Produktkortet og Energidata ved:

Diagram illustrating scanning process steps with labeled boxes and barcode indicators

DA

GENEREL SIKKERHED

Icon showing a device with wireless signal waves above it, no text or symbols present

Illustration of a hand holding a mechanical component with a black arrow pointing to a small component (no text or symbols present)

Technical diagram showing structural components with arrows indicating movement, no text or symbols present

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating scanning process steps with labeled boxes and barcode indicators
