| Product Type | Combined refrigerator (fridge + freezer) |
| Brand | Indesit |
| Model | TIAA12V1 |
| Dimensions (H x W x D) | Approximately 180 x 60 x 65 cm (estimate) |
| Net Weight | Approximately 65 kg (estimate) |
| Power Supply | 220-240 V ~ 50 Hz, 150 W max |
| Climate Class | SN-ST (ambient temperature from 10°C to 38°C) |
| Freezing Capacity | 4 kg/24h |
| Cooling System | Static with Pure Wind (air circulation) |
| Refrigerator Defrost | Automatic |
| Freezer Defrost | Manual (defrost when frost >5 mm) |
| Reversible Doors | Yes, possibility to reverse door opening direction |
| Interior Lighting | 15 W or 25 W bulb (replaceable) |
| Materials | Hygienic, do not transfer odors |
| Cleaning and Maintenance | Warm water + baking soda or mild soap; avoid solvents and abrasives |
| Safety | Compliant with directives 73/23/EEC, 89/336/EEC, 2002/96/EC |
| Spare Parts | Use exclusively original parts |
| Repairability | Contact an authorized technician |
| Warranty | Consult after-sales service |
Frequently Asked Questions - TIAA12V1 INDESIT
User questions about TIAA12V1 INDESIT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Combined refrigerator in PDF format for free! Find your manual TIAA12V1 - INDESIT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TIAA12V1 by INDESIT.
USER MANUAL TIAA12V1 INDESIT
Operating Instructions 2-DOOR FRIDGE
Contents
Operating Instructions, 1
Assistance, 4
Description of the appliance, 8
Start-up and use, 19
Maintenance and care, 20
Precautions and tips, 21
Troubleshooting, 22
Assistance, 4
Before calling for Assistance:
- Check if the malfunction can be solved on your own (see Troubleshooting).
- If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre.
Communicating:
type of malfunction - appliance model (Mod.) - serial number (S/N)

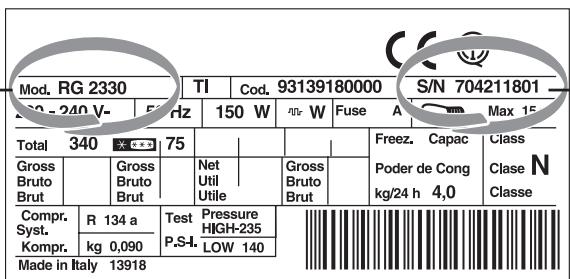

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.
Never call on unauthorized technicians and always refuse spare parts which are not originals.
FR
Assistance
Before calling for Assistance, please have the following information ready: model (Mod.) and serial number (S/N).
The information is not given in the table with characteristics, located in the cold section of the floor to the right.
Do not attempt to use the equipment until you have been trained on the technology, and always refuse to install non-original spare parts.



RS
Help
Ipe hero wto no3OBete nomoh:
- Поберпесл се несравнося самосяпшити (Буdu Keapobu u peueha). Ako n opea CBnx KOHTpona anapat He paan, a He MoKeTe daJIbe da ra KOHTpOnuWeTe, no3oBIne OBlaunHe n cepBnC.
JaTe m cIeDehe nOdaTke:
Bpcty KBapa MoJeI anapata (Mo.) - 6poj cepnje (S/N)
OBNoIaIcNceHaJIa3eHaHaneHNIu3aIeJIbeHoJHaNeBoj DOHOBJCTpaHI XJaIbHaKa.
Hnka da ce He o6paahajte HeayTopuBaHm TexHnUHM IInuMa n He Do3BOJNTe yrpaIbIy HeOpuHaHaHnx DeNoBa.
GR
Texvikn YtooTnpiŋ
Piv aTeuθuvθeite σην TeXvikn YtOoTniŋs:
BεβaiωθeIe av n avwμaia μTopei va αvtɪμeTwtioTei autóvouα (βλeTTe Avwμaiec kai lʊεiç). Av Tnpa Touc oLouc EeYxouc, n OoKeun DEv λeIToupyei kai To TpObetaIma TPO diATIOwOATE OvExiGeVA UpiTatai, kaEATE To TnNoiEoTepe Kevtro TxviKns YTOOTnPiEIGs.
Vwototoiote:
Tov TUTIO TNS aWUaIaIa to µνστ λστη µ η α ν (Mod.) Tov apiOmu oεipac (S/N)

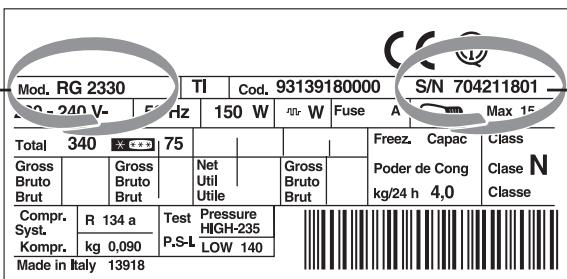

Oi npoopoe c autec biokovtai otnv taTtElaia xaapkntpiotikwv oTo diaepioa yuyieou kAtw apiotepa.
Mny TPOOtpexTe TOTe Oe m EGSOUIOBOTnEvouc TeXVIKoCs KAI VA apveiothe TAVTA TIV EYkataoTaon avtaaakTikwv mauhevtikwv.



IT
Description of the appliance
Overall view
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.
1 Levelling feet 2 Fruit and vegetable bin 3 Shelves 4 Temperature regulating knob 5 Pure wind 6 Freezer and storage compartment 7 Removable multipurpose shelves* 8 Bottle shelf
Before placing your new appliance into operation, please read these operating instructions carefully. They contain important information for safe use, for installation, and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

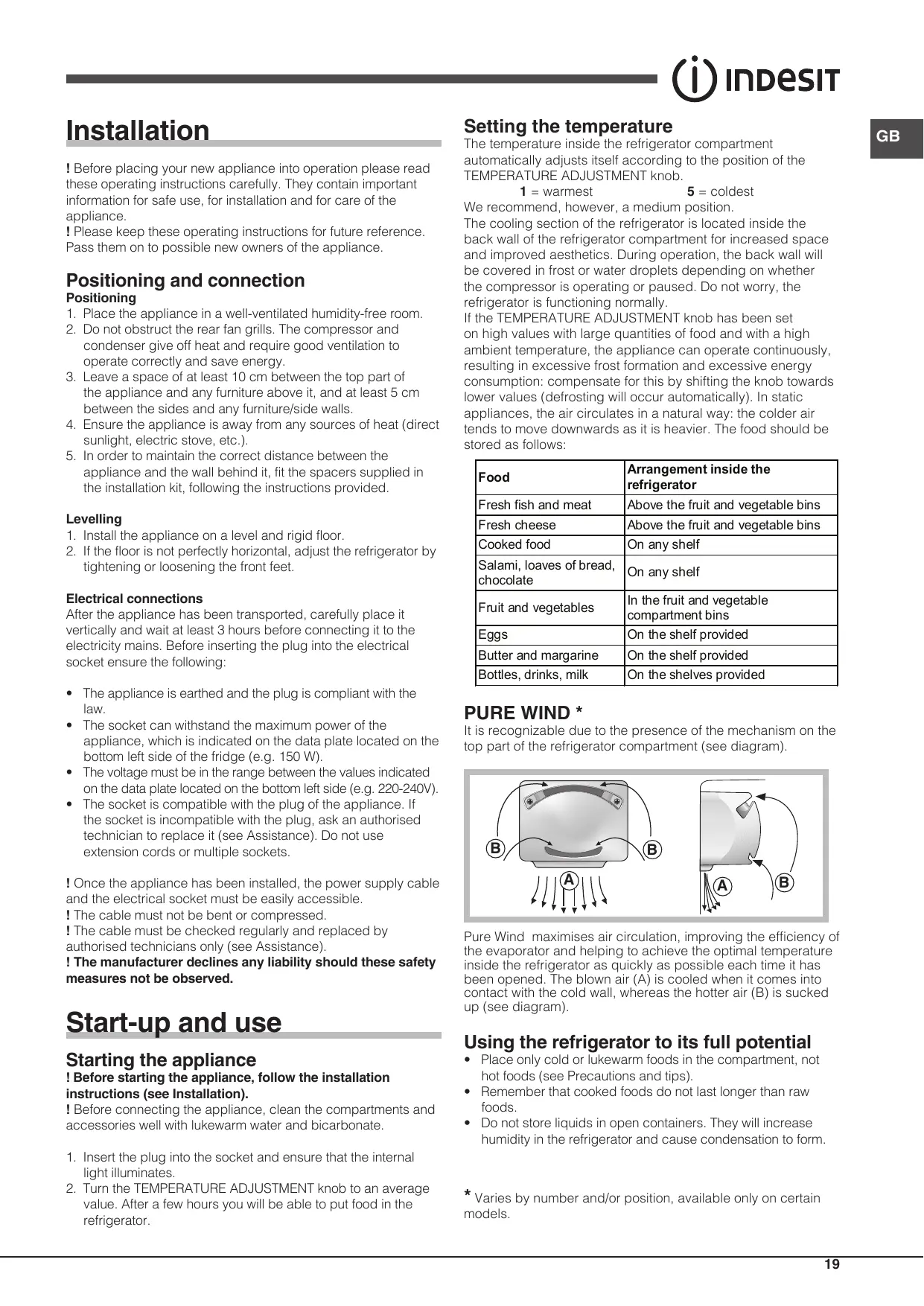

Positioning and connection
Positioning
- Place the appliance in a well-ventilated, humidity-free room.
- Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
- Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture or side walls.
- Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
- In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.
Levelling
- Install the appliance on a level and rigid floor.
- If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.
Electrical connections
After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:
- The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
- The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.
! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.
Start-up and use
Starting the appliance
! Before starting the appliance, follow the installation instructions (see Installation).
! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
- Insert the plug into the socket and ensure that the internal light illuminates.
- Turn the TEMPERATURE ADJUSTMENT knob to an average value. After a few hours you will be able to put food in the refrigerator.
Setting the temperature
The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the TEMPERATURE ADJUSTMENT knob.
1 = warmest 5 = coldest
We recommend, however, a medium position.
The cooling section of the refrigerator is located inside the back wall of the refrigerator compartment for increased space and improved aesthetics. During operation, the back wall will be covered in frost or water droplets depending on whether the compressor is operating or paused. Do not worry, the refrigerator is functioning normally.
If the TEMPERATURE ADJUSTMENT knob has been set on high values with large quantities of food and with a high ambient temperature, the appliance can operate continuously, resulting in excessive frost formation and excessive energy consumption: compensate for this by shifting the knob towards lower values (defrosting will occur automatically). In static appliances, the air circulates in a natural way: the colder air tends to move downwards as it is heavier. The food should be stored as follows:
| Food | Arrangement inside the refrigerator |
| Fresh fish and meat | Above the fruit and vegetable bins |
| Fresh cheese | Above the fruit and vegetable bins |
| Cooked food | On any shelf |
| Salami, loaves of bread, chocolate | On any shelf |
| Fruit and vegetables | In the fruit and vegetable compartment bins |
| Eggs | On the shelf provided |
| Butter and margarine | On the shelf provided |
| Bottles, drinks, milk | On the shelves provided |

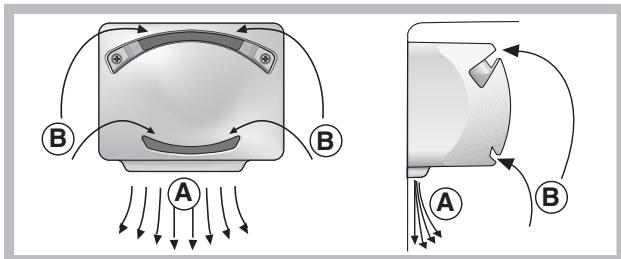

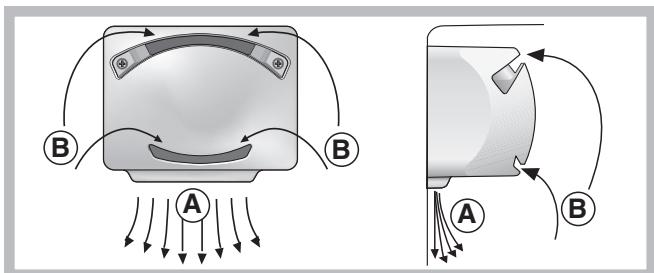

PURE WIND *
It is recognizable due to the presence of the mechanism on the top part of the refrigerator compartment (see diagram).

Pure Wind maximises air circulation, improving the efficiency of the evaporator and helping to achieve the optimal temperature inside the refrigerator as quickly as possible each time it has been opened. The blown air (A) is cooled when it comes into contact with the cold wall, whereas the hotter air (B) is sucked up (see diagram).
Using the refrigerator to its full potential
- Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
- Remember that cooked foods do not last longer than raw foods.
- Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.
- Varies by number and/or position, available only on certain models.

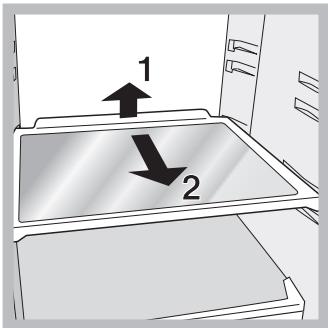

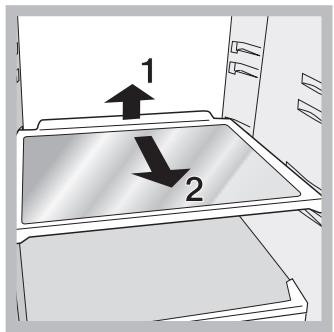

SHELVES: with or without grill.
Due to the special guides, the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. The height can be adjusted without completely removing the shelf.

TEMPERATURE* Indicator light: to identify the coldest area in the refrigerator.
- Check that OK appears clearly on the indicator light (see diagram).

- If the word "OK" does not appear, it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher (colder) position and wait approximately 10 hours until the temperature has stabilized.
- Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.
Using the freezer to its full potential
- Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
- Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and, if possible, be in direct contact with the walls (side and rear), where the temperature drops below -18°C and guarantees rapid freezing.
- Do not place glass bottles that contain liquids and are corked or hermetically sealed in the freezer because they could break.
- The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)
! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9-14 hours. ! If the room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced.
- Varies by number and/or position, available only on certain models.
Maintenance and care
Switching the appliance off
During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply.
It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.
Cleaning the appliance
- The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
- The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
- The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.
Avoiding mould and unpleasant odours
- The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
- If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.
Defrosting the appliance
! Follow the instructions below.
Do not speed up the defrosting process by using any devices or tools other than the scraper provided (available only on certain models), you may damage the refrigeration circuit.

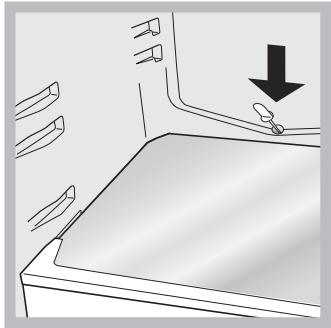

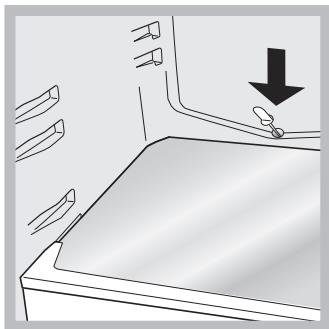

Defrosting the refrigerator compartment
The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily.

Defrosting the freezer compartment
If the frost layer is greater than 5 mm, it is necessary to defrost manually:
- Set the TEMPERATURE ADJUSTMENT knob to the position
- Wrap frozen foods in newspaper and place them in another freezer or in a cool place.
- Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.
- Clean and dry the freezer compartment carefully before switching the appliance on again.
- Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.
Replacing the light bulb

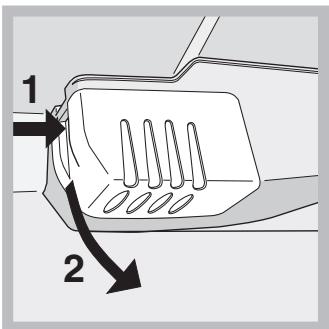

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).

Precautions and tips
! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;
- 2002/96/CE..
General safety
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or moist hands and feet.
- Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
- Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.
- In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
- Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
- Do not put ice cubes taken directly from the freezer into your mouth.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.
Disposal
- Observe local environmental standards when disposing packaging material for recycling purposes.
- The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed-out "wheeled bin" symbol on the product reminds you of your obligation that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
Respecting and conserving the environment
- Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
- Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
- Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
- Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
- Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
- Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).
Troubleshooting
If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.
The internal light does not illuminate.
- The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
The refrigerator and the freezer do not cool well.
- The doors do not close properly or the seals are damaged.
- The doors are opened too frequently.
- The TEMPERATURE ADJUSTMENT knob is not in the correct position.
- The refrigerator or the freezer have been over-filled.
- The atmospheric temperature of the area surrounding the appliance is lower than 14°C.
The food inside the refrigerator is beginning to freeze.
- The TEMPERATURE ADJUSTMENT knob is not in the correct position.
- The food is in contact with the back inside wall of the refrigerator.
The motor runs continuously.
- The door is not closed properly or is continuously opened.
- The outside ambient temperature is very high.
- The thickness of the frost exceeds 2-3 mm (see Maintenance).
The appliance makes a lot of noise.
- The appliance has not been installed on a level surface (see Installation).
- The appliance has been installed between cabinets that vibrate and make noise.
- The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.
Some of the external parts of the refrigerator become hot.
- These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.
The back wall of the refrigerator unit is covered in frost or droplets of water
- This shows the appliance is operating normally.
There is water at the bottom of the refrigerator.
- The water discharge hole is blocked (see Maintenance).
Installation
Before using the appliance, please read the installation instructions (see Installation). Before connecting the appliance, clean the interior with lukewarm water and a mild detergent.
1. Plug in the appliance and set the thermostat to the desired temperature. 2. Adjust the temperature control to the middle setting. After a few hours, the appliance will cool down.
Temperature Adjustment
The temperature inside the refrigerator is automatically regulated by the thermostat.
We recommend the middle setting.
In order to make the appliance look more natural, the appliance has a "defrosting mode" located on the back wall of the refrigerator. During operation, you may notice water droplets or ice forming on this wall, which means the compressor is working or pausing. Do not worry about this! The refrigerator is operating normally.
If you open the doors frequently for temperature adjustment in high humidity, with large amounts of food and high ambient temperature, the appliance may operate with increased ice formation and high energy consumption: you should open the doors less frequently (automatic defrosting will occur).
In static appliances, air circulation is natural: cold air falls because it is heavier. Here is how to arrange the food:
| Živila | Razmestitev v hladilniku |
| Meso in očišćene ribe | Nad predali za sadje in zelenjavo |
| Sveži siri | Nad predali za sadje in zelenjavo |
| KuhanaŽivila | Na katerikoli polici |
| Salame, kruh (toast), Čokolada | Na katerikoli polici |
| Sadje in zelenjava | V predalih za sadje in zelenjavo |
| Jajca | Na ustrezni polički |
| Maslo in margarina | Na ustrezni polički |
| Steklenice, pijěče, mleko | Na ustrezni polički |
Cooling system
The appliance is equipped with one of the systems described below: it is important to know which system it is and to follow the recommended food placement.
PURE WIND*
It is recognized by the presence of a device on the top wall of the refrigerator (see figure).

PURE WIND ensures optimal food preservation because it quickly cools the temperature after opening the door and evenly distributes the temperature: humid air (A) is cooled in contact with the cold wall, while warm air (B) is sucked in (see figure).
- Variations in the number and/or position of the fans exist only on some models.
How to best use the refrigerator
Store cold or lukewarm food, never hot (see recommendations and warnings). Make sure that cooked food does not stay too close to raw food. Do not leave food in open containers: they increase humidity and condensation.
BOTTOM: drawers or shelves.
The shelves can be moved thanks to special guides (see figure), for placing containers or food of large dimensions. To adjust the height, it is necessary to completely remove the shelf.

Food can remain preserved for about 9-14 hours.
! If during this time the temperature does not drop below 14°C, the necessary temperatures for safe storage in the freezing compartment are not reached and the storage period will be significantly reduced.
Disconnecting the appliance
Before cleaning and maintenance, it is necessary to disconnect the appliance from the power supply:
It is not enough to just turn the switch to the off position (the appliance is disconnected) because the switch may be in any electrical contact.
Cleaning the appliance
The outer surfaces, inner surfaces, and rubber seals can be cleaned with a soft cloth dampened with warm water and a little bicarbonate or neutral soap. Do not use solvents, abrasives, bleach, or ammonia. - Parts that can be removed should be placed in a container with warm water and soap or in the dishwasher. Rinse them and dry them. Before cleaning the appliance, follow the instructions you can find, after you have disconnected the appliance from the power supply, with the aim of preserving the environment.
Avoiding the formation of unpleasant odors
The appliance is made of high-quality materials that do not transmit odors. To preserve this characteristic, it is necessary that food is always well covered and closed. Avoid the formation of ice. - In case you want to disconnect the appliance for a long time, clean the interior and leave the door open.
Defrosting the appliance
!Pay attention to the additional instructions.
Do not accelerate the process with any means or devices, as you could damage the cooling system.
How to defrost the refrigerator.
The refrigerator has automatic defrosting: water flows with the door closed through the defrost drain (see figure) where the heat produced by the compressor evaporates. The only intervention you need to do from time to time is cleaning the dust drain so that water can flow out unobstructed.

How to defrost the freezer.
If the frost layer exceeds 5 mm, it is necessary to perform manual defrosting:
- Open the door carefully when the temperature is high.
- Open the door, put the food in the refrigerator, and leave them in a cool place.
- Leave the door open until it is completely cool; you can speed up the operation by letting the dishes pass through with lukewarm water.
- Carefully wash and dry the refrigerator before putting it into use.
- After that, put the food in the refrigerator and wait about 2 hours to get the ideal conditions for storing food.
Replacing the bulb
To replace the bulb for lighting the refrigerator, pull out the plug from the socket.
Follow the instructions. To access the lamp, it is necessary to remove the cover, as shown in the figure. Replace it with the corresponding bulb indicated on the cover (15 W or 25 W).

Notes and tips
! The appliance is designed and manufactured according to strict international safety standards. Read the notes carefully as they are important for safety reasons.

This appliance is in accordance with the directives:
-73/23/CEE of 19/02/73 (low voltage) and subsequent amendments; -89/336/CEE of 03/05/89 (electromagnetic compatibility) and subsequent amendments; -2002/96/CE.
Safety instructions
Before using the appliance, read the instructions carefully. The appliance must be used for storing and freezing food items according to the instructions in this manual. Do not place the appliance in an open space, nor in a space that is too small; it is dangerous to operate the appliance under such conditions. Do not touch or handle the appliance with wet hands or feet. Do not touch the interior cooling elements: they can cause burns or injuries. Do not pull the plug out of the socket by pulling the cable, as this can damage the plug. It is necessary to unplug the appliance before cleaning and maintenance. It is not enough to just turn the temperature control knob to the off position (appliance off) before any electrical contact. - In case of malfunction, never attempt to repair the internal mechanisms yourself. - Do not use sharp objects or electrical appliances not recommended by the manufacturer inside the freezer compartment. Do not put ice cubes or ice cream directly from the freezer into your mouth.
Do not allow children to play with the appliance. Never sit on the appliance or on the open door. - The appliance is not a toy for children.
Disposal
- Disposal of packaging material: follow local regulations, so you can reuse the packaging. Disposal of old appliance: take into account the law. The appliance contains refrigerants and blowing gases in the insulation, which, if released, can be harmful to the environment. AVOID ANY DAMAGE TO THE PIPES.
- Before disposing of the old appliance, disable it by cutting off the power cord and removing the door.
Protection of the environment
- Place the appliance in a dark, well-ventilated area, protected from direct sunlight and away from heat sources. When loading fresh food, open the door as briefly as possible.
Every time you open the door, energy is wasted.
Do not overfill the appliance: for proper cooling, air must circulate freely. If air circulation is obstructed, the compressor will run continuously. Do not put hot food: by raising the internal temperature, you force the compressor to work constantly, consuming a lot of energy. - Defrost the appliance when frost forms (see Maintenance); frost increases energy consumption. Keep the appliance clean, in a way that does not require long door openings and loss of cold air (see Maintenance).
Troubleshooting
The appliance may turn on when it is not running. Before calling for assistance (see Assistance), check if the problem is something you can fix yourself.
