REFRIGERATOR-FREEZER Plug replacement(UK&lreland only) Should you need to replace the plug,the wires in the power cable are colour in the following way: Blue - Neutral ’N’ Brown - Live ‘L’ Green&Yellow - Earth ‘E’ As the colours of the wires in the power cable may not correspond with the coloured markings identifying the terminals in your plug,and proceed as follows: The green&yellow wire must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol. The blue wire must be connected to the terminal that is marked with the letter N. The brown wire must be connected to the terminal that is marked with the letter L. If power supply cord is damaged,it must replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

Downloaded from www.Manualslib.com manuals search engine

REFRIGERATOR-FREEZER UNPACKING YOUR REFRIGERATORFREEZER WARNING: Use two or more people to move refrigerator-freezer.Failure to do so can result in back or other injury. Remove tape and any labels from your refrigerator-freezer before using(except the rating label). To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigeratorfreezer. When moving the refrigerator-freezer, do not tilt the refrigerator-freezer beyond 45°from upright position CLEANING BEFORE USE： After you remove all of the packaging materials, （especially the foam between outside condenser and cabinet should be removed）clean the inside of your refrigeratorfreezer before using it.

the hinge side to allow for the door to swing open. Never install your refrigerator-freezer near heat source and direct sun shins. ELECTRICAL REQUIREMENT WARNING: DO NOT REMOVE GROUND PRONG. DO NOT USE AN ADAPTOR. DO NOT USE EXTENSION CORD. Failure to follow these instructions can result in death, fire or electrical shock. Before you move your refrigerator-freezer into its final location, it is important to make sure you have the proper electrical connection. RECOMMENDED EARTHING METHOD AC220-240Volt /50Hz ,AC only 10 ampere fused and properly earthed electrical supply is required. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord. NOTE: Before performing any type of installation, disconnect the refrigerator-freezer from the electrical source. When you are finished, connect the refrigerator-freezer to the electrical source and reset the control to the desired setting.

SPACE REQUIREMENTS WARNING: Keep flammable materials and vapors, such as gasoline, away form refrigerator-freezer.Failure to do so can result in death, explosion, fine or burns. To ensure proper ventilation for your refrigerator-freezer, allow for 200mm space on each side between walls, 200mm space between back of your refrigerator-freezer and the wall, and 300mm space between counter top and the roof or ceiling. If you are installing your refrigerator-freezer next to a fixed wall, leave sufficient space on

LEVELING If the refrigerator-freezer is not leveled during installation. The doors may not close or seal properly, causing cooling, frost, or moisture problems. It is very important of the refrigerator-freezer to be level in order to function properly. To level your refrigerator-freezer you may either turn the adjustable foot clockwise to raise that side to the refrigerator-freezer or turn counter – clockwise to lower that side. NOTE: Having someone push against the top of the refrigerator-freezer, take some weight off. This makes it easier to adjust the adjustable foot.

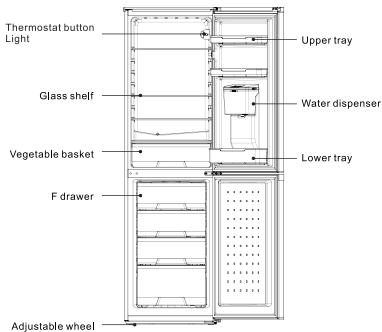

REFRIGERATOR-FREEZER USE OF THE APPLIANCE To obtain the best possible results form your refrigerator-freezer, it is important that you use it properly. TEMPERATURE SETTING The temperature in the refrigerator-freezer is controlled by the thermostat control knob. The temperature inside the refrigerator-freezer automatically adjusts itself according to the position of the thermostat knob. Min=warmest Max=coldest We raccomend, however, the medium position. "OFF" position means stop work. REPLACING THE LED LIGHT To replace the LED light in the refrigerator compartment, set the thermostat control knob on "OFF" and pull out the plug from the electrical socket. Access the LED light by removing the cover. Replace it with a 2 watt bulb. Be sure to replace the LED light with one of the same size and shape.

POWER INTERRUPTIONS If the electricity in your house goes off for a shorter period, keep both doors closed to help foods stay cold and frozen. If the power will be out for a longer period, remove foods from the freezer and stored it in a frozen food locker. Fresh Food Storage Wrap or store food in the refrigerator in airtight and moisture – proof material. This prevents food odor and taste transfer throughout refrigerator. ·Fruit – wash, let dry and store in refrigerator in plastic bags or crisper. ·Leafy vegetables- Remove wrapping and trim or tear off bruised and discolored areas, wash in cold water and drain. Place in plastic bag or plastic container and store in crisper. ·Fish –Use fresh fish the same day as purchased. ·Meat – Store most meat in original wrapping as long as it is airtight and moisture – proof. Re – wrap if necessary. ·Leftovers – Cover leftovers with plastic wrap or aluminum foil.Plastic containers with tight lied can also be used. Frozen Food Storage When using the refrigerator-freezer for the first time, set the thermostat control knob on "Max" f or at least two hours before introducing the food to be stored. All frozen food products you purchase should be placed in the freezer compartment as soon as possible to avoid the frozen food from defrosting. Storage recommendation printed on the packaging of frozen food by the manufacturers should be always be followed.

Downloaded from www.Manualslib.com manuals search engine

REFRIGERATOR-FREEZER Freezing Fresh Food Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not sterilize the food. It is advisable to freeze the food by packing it into separate meal portions and not in bulk form. Never put hot or even warm foodstuffs into the freezer compartment. Prior to storing the frozen food, pack it in plastic bags, aluminum sheets or freezing containers and place into the freezer compartment. The maximum quantuty of food that may be frozen daily is indicated on the plate containing the technical properties located on the back of the refrigerator-freezer. Note: Never put bottled food or drinks in the freezer compartment.For best performance, leave enough space in the Freezer compartment for air to circulate around the packages. Maintaining Your Refrigerator-freezer The refrigerator-freezer should be clean at least once a month to avoid mould and unpleasant odours. During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply. ·Set the thermostat control knob on "OFF" ·Pull the plug out of the socket ·Remove all movable parts from inside, such as shelves and crisper. Etc . Internal parts may be soaked in warm water and neutral soap. · clean using a soft sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. ·Hand wash, rinse and dry all surfaces thoroughly.

·Do not use cleaning waxes, concentrated detergents, bleaches or cleaners containing petroleum on plastics and rubber parts. ·Never use paper towels, window sprays, scouring cleansers or flammable fluids on plastic parts as these can scratch or damage material. PROLONGED OFF PERIODS If the refrigerator-freezer is not in use for a long period of time, proceed as follows: Disconnect the refrigerator-freezer from the main supply by removing the plug from the wall socket. Clean and dry the inside as instructed under the heading of cleaning the refrigeratorfreezer. Leave the door open to prevent any unpleasant smells from building up while the refrigerator-freezer is not in use.

Attention: 1. Only purified water and cool water without any impurities can be used for water dispenser. The hot water and soft drink with carbon dioxide, likes cola, fruit juice and so on can not be used;

11. Do not knock on the bottle frame in upward side during the filling of water.

Instruction of water dispenser

2. The water injection by taking down the water box from the door is not allowed;

2. The water flows out when the handle is pushed to inner side; and the outflow stops when the handle returns to the original place;

3. The maximum water injection rate shall be lower than the maximum scale indicated on the water box; 4. In case of failure of water taking, please inspect if the water box is normally located on its base; 5. Make sure that the water tank is empty before moving it. Handle at water outlet of water dispenser

6. The water valve components are non-detachable;

Filling of drinking water:

7. If the water dispenser is used for the first time, or it has been kept unused for a long period, then it needs to be disassembled and cleaned before water taking and drinking;

Open the water tank cover and directly fill the water; Water dispenser cover Water tank cover of water dispenser

8. If the water in the water tank is not used for a long period, then it is suggested that the water in water dispenser shall be drained and then the clean drinking water shall be added;

Water tank of water dispenser

9. It is suggested that the mechanism of the water dispenser(Inclouding water tank and gasket) shall be cleaned once in every 3-6 months; 10. If the cleaning solution is used for cleaning water dispenser, then it is suggested that, before the water taking and drinking, the water shall be drained to the amount of 5-6 cups after the water tank is installed back, so as to avoid the residue cleaning solution.

Downloaded from www.Manualslib.com manuals search engine

Water taking and drinking: 1. Push the handle to inner side by using the water glass;

Instructions for water dispenser disassembly and cleaning I. Disassembly

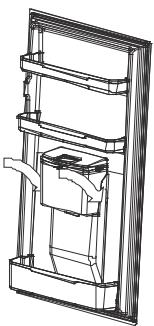

1.Remove all water from the tank at first.Take out the water tank components “o”pull out the water tank components in the direction of 45°of oblique upward by hands that are closely attached on the two sides of the water tank components, when the lower parts of water tank components are separated from the water valve components, the water tank components can be taken out through horizontal movement (to the direction of user);

II. Cleaning 1. To disassemble the water tank, water tank cover, sealing ring and water valve; 2. Use cold or warm water to cleaning the components of water dispenser. 3. Wipe it with dry cloth.

Attentions: 1. If the cleaning solution is used for cleaning water dispenser, then it is suggested that, before the water taking and drinking, the water shall be drained to the amount of 5-6 cups after the water tank is installed back, so as to avoid the residue cleaning solution.

2. Take down the sealing ring of water tank

Downloaded from www.Manualslib.com manuals search engine

1. Installation of water valve components The guiding boss on the water valve components shall be in alignment with the guiding slot on the base, and press it down in the direction of in the direction of 45°of oblique downward by hands with strength, until you may hear the sound of “lick”.

2. Installation of water tank sealing ring To install the sealing ring on the bottom of water tank by hand, make sure that it is properly installed, and the wrinkling and oblique installation and so on shall be avoided.

3. Installation of water tank components The hanging slot on the water tank components shall be in alignment with the suspension loop on the inner layer, and the sealing ring at the bottom of water tank shall be in alignment with the entrance of water value components, and then insert them into the corresponding positions in the direction of 45° of oblique downward by hands.

Cleaning of water receiving tank Use wet cloth to wipe it and then use the dry cloth.

Remove the existing top door block.Install a new top door block(not the same one) on the reversible side.Screw it down.Install the top door.
