USER MANUAL KA 6037 CB BOMANN

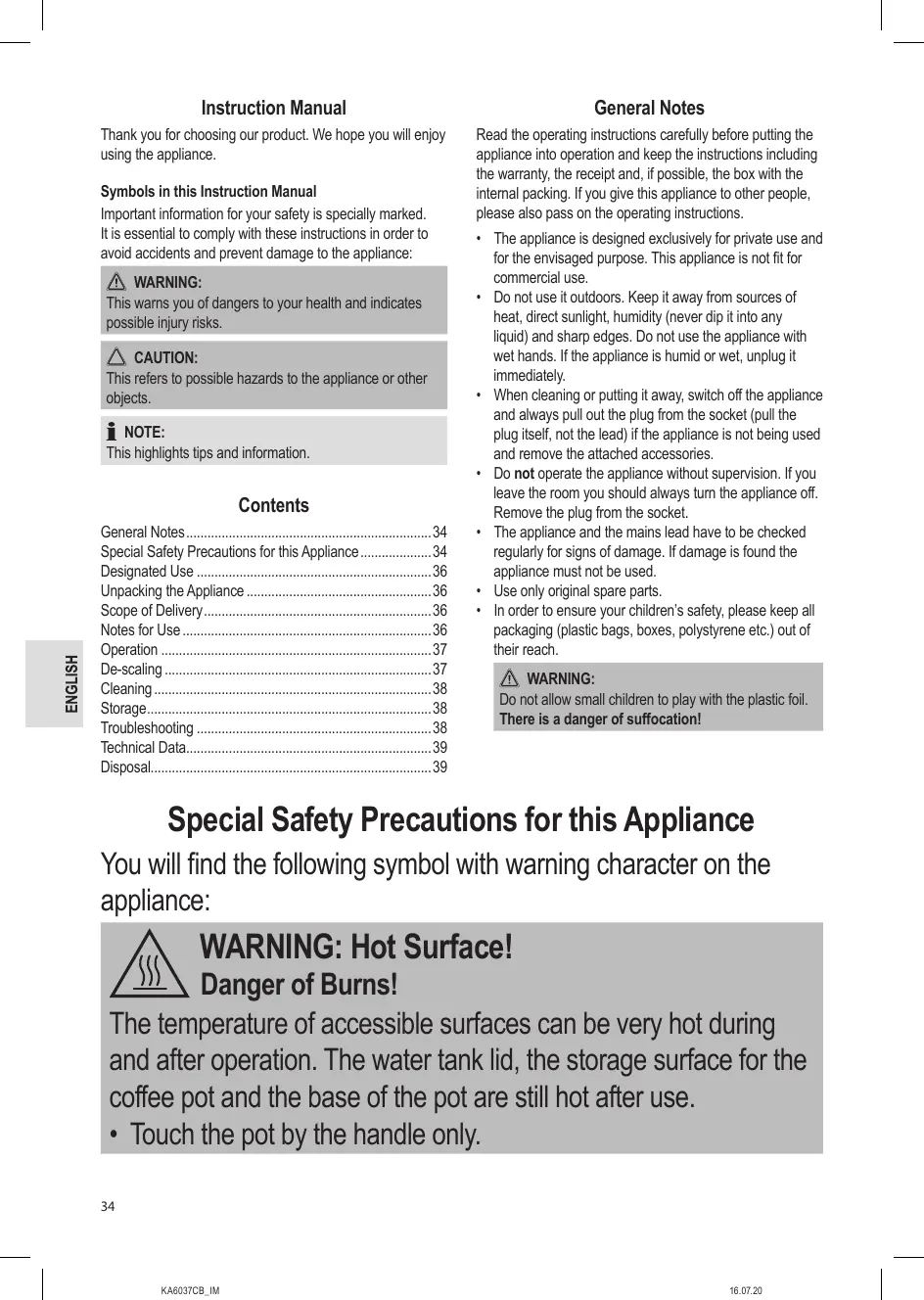

WAARSCHUWING: Heet oppervlak! WAARSCHUWING: Heet oppervlak! Thank you for choosing our product. We hope you will enjoy using the appliance. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil. There is a danger of suffocation! Special Safety Precautions for this Appliance You will find the following symbol with warning character on the appliance:

WARNING: Hot Surface!

Danger of Burns! The temperature of accessible surfaces can be very hot during and after operation. The water tank lid, the storage surface for the coffee pot and the base of the pot are still hot after use.

• Touch the pot by the handle only.

WARNING: Hot Surface!

• Never open the lid of the water reservoir during the cooking process. CAUTION: This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included in the chapter “Cleaning”.
• Use the appliance only on a level work surface.
• Only use the appliance when water is filled into the water container.
• Do not move the appliance when it is in operation.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be re35 KA6037CB_IM

placed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Please see the following chapter “Designated Use”. The abuse for any other purposes may result in injuries. Designated Use

• This appliance serves for brewing of ground coffee.
• Only use the appliance in a dry, indoor area.
• It is intended for domestic use and similar areas of use such as e.g.: - in staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments. It is not intended for use in farm houses or in bed and breakfast type environments. Unpacking the Appliance Notes for Use

1. Remove the appliance from its packaging.

2. Remove all packaging material such as plastic films, filler

material, cable ties and cardboard packaging.

3. Check the content for any missing parts.

4. In the event that the packaging content should be incomplete or if damages are noticeable, do not operate the

appliance. Return it to the dealer immediately. Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.
• Do not place the appliance in close proximity to a gas or electric stove or any other heat source. NOTE: There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under “Cleaning”. Scope of Delivery 1 × Automatic coffee maker 1 × Filter holder 1 × Stainless steel insulated pot 1 × Coffee pot lid Note About the Brewing Process During the brewing process and depending on the degree of grinding and the used amount, the coffee powder absorbs a certain amount of water. That is why the quantity of coffee might diverge from the quantity of water in the water tank. European Regulations on Energy Saving NOTE: The European Directive 2009 / 125 / EC (Ecodesign Directive) incorporates measurements for energy saving. The following applies to coffee makers: The keep-warm period is limited to max. 5 minutes after which the appliance turns off automatically. You benefit from better safety and lower energy consumption.

1. Ensure that your mains power corresponds with the

specifications of the appliance. The specifications are printed on the type label.

2. Connect the mains cable to a properly installed and

earthed wall outlet. Initial Operation Before making coffee for the first time operate the appliance twice with clean water only and without paper filter. This removes dust, which may have collected during transport. Follow the instructions given under “Operation”. Turning the Appliance On / Off

• Press the “ ” switch in order to turn on the appliance. The button must snap in. The operating control lamp lights up.
• Press the “ ” switch in order to turn off the appliance or to cancel the brewing process. The operating control lamp turns off. Operation

1. Open the lid of the water tank.

2. Fill cold water according to the desired amount of cups

of coffee into the rear water tank. You can determine the water level with the help of the scale in the water tank. NOTE: You can use the pot to fill the water tank. To open the lid of the pot, press the two latching lugs together simultaneously. CAUTION: Do not overfill the tank! Do not fill it above the MAX mark.

3. Insert the filter holder. One of the two handles must be

on the right hand side and the other on the left. Push the filter holder down until it snaps in.

4. Turn over the lower fold of the paper filter (size 1 x 4) and

place it in the filter funnel. Then fill it with coffee powder. NOTE: Do not put too much coffee powder into the filter to avoid spillage.

5. Now close the lid of the water tank. It must snap into

6. Place the lid on the pot. The button on the lid must face

the handle. Note the recesses on the opening of the pot and the latching lugs on the lid. The lid must snap in.

7. Place the pot onto the storage surface.

CAUTION: Drip stop Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents the coffee from dripping onto the warming plate if there is still water in the filter.

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.
• If there is still water in the tank, place the pot underneath as soon as possible. Otherwise the filter might overflow.

8. Switch on the appliance. The operating control lamp

lights up. NOTE: The appliance will switch off automatically a few seconds after the brewing process has ended. The operating control lamp turns off. After the Brewing Process

• When no more coffee is flowing through the filter you can remove the pot.
• Press the button on the lid, if you wish to pour coffee from the pot. NOTE: The filter holder can be removed from the coffee machine by using its handles on the right and left side. This makes it easier to dispose of the old coffee filter, for example.

WARNING:

If you would like to prepare another pot of coffee right away, wait about 5 minutes after the brewing process has been completed. Allow the appliance to cool down, with its water tank open, to prevent hot splashes of water when filling up the water. If the appliance is still too hot, a thermostat prevents it from being switched on again immediately. De-scaling De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acid-based descaler.
• Follow the recommended instructions for use.

WARNING:

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the de-scaling agent.
• Do not use any coffee powder!
• Do not use this water for consumption.

WARNING:

• Before cleaning, always remove the mains plug and wait until the appliance has cooled down.
• Do not immerse the appliance in water. Otherwise this might result in an electric shock or fire. CAUTION:
• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents. Storage

• The exterior of the appliance should be cleaned as necessary with a slightly damp cloth – without any additives.
• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.
• Clean the pot and the filter holder in warm rinse water with a bit of washing-up liquid. Use a soft brush if necessary.

• Clean the appliance as described and let it dry completely.
• We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
• Always store the appliance at a well ventilated and dry place outside the reach of children. Troubleshooting Problem Possible cause Solution The appliance does not work. The appliance is not connected to mains power. Check the wall outlet with a different appliance. Insert the plug properly in the wall outlet. Check the in-house fuse. Allow the appliance to cool off sufficiently. Filter blockage: coffee grounds spill over the edge of the filter. Coffee grounds in the coffee. A thermostat prevents switching on as the appliance is still too hot after the brewing process. The appliance is defective. The drip stop is closed: The coffee pot is not on the warming plate or the lid is not on the coffee pot. Too much coffee powder in the filter. The paper filter is too small. Too much coffee powder in the filter. Limescale deposits in the appliance. The brewing process takes too long. The appliance stops the brewing process although there is still water in the water tank. The appliance turns off This is not a malfunction of the appliance. automatically. In order to comply with the Ecodesign Directive (2009 / 125 / EC), the appliance turns off automatically after max. 40 minutes after the brewing process has finished. Contact our service or a repair centre.

1. Switch the appliance off. Disconnect from

2. Put the coffee pot with lid on the warming

plate so that the filter is emptied.

3. Dispose of the paper filter.

4. Clean the appliance as described.

Use a paper filter size “1 × 4”. Use less coffee powder. Decalcify the appliance as described.

Technical Data Model:..................................................................KA 6037 CB Power supply:.....................................220 - 240 V~, 50 - 60 Hz Power consumption:......................................................800 W Filling quantity:................................................approx. 1.2 litre Protection class:...................................................................... Net weight:...................................................... approx. 1.85 kg The right to make technical and design modifications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of ­re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority.
