USER MANUAL BFC2312N BRANDT

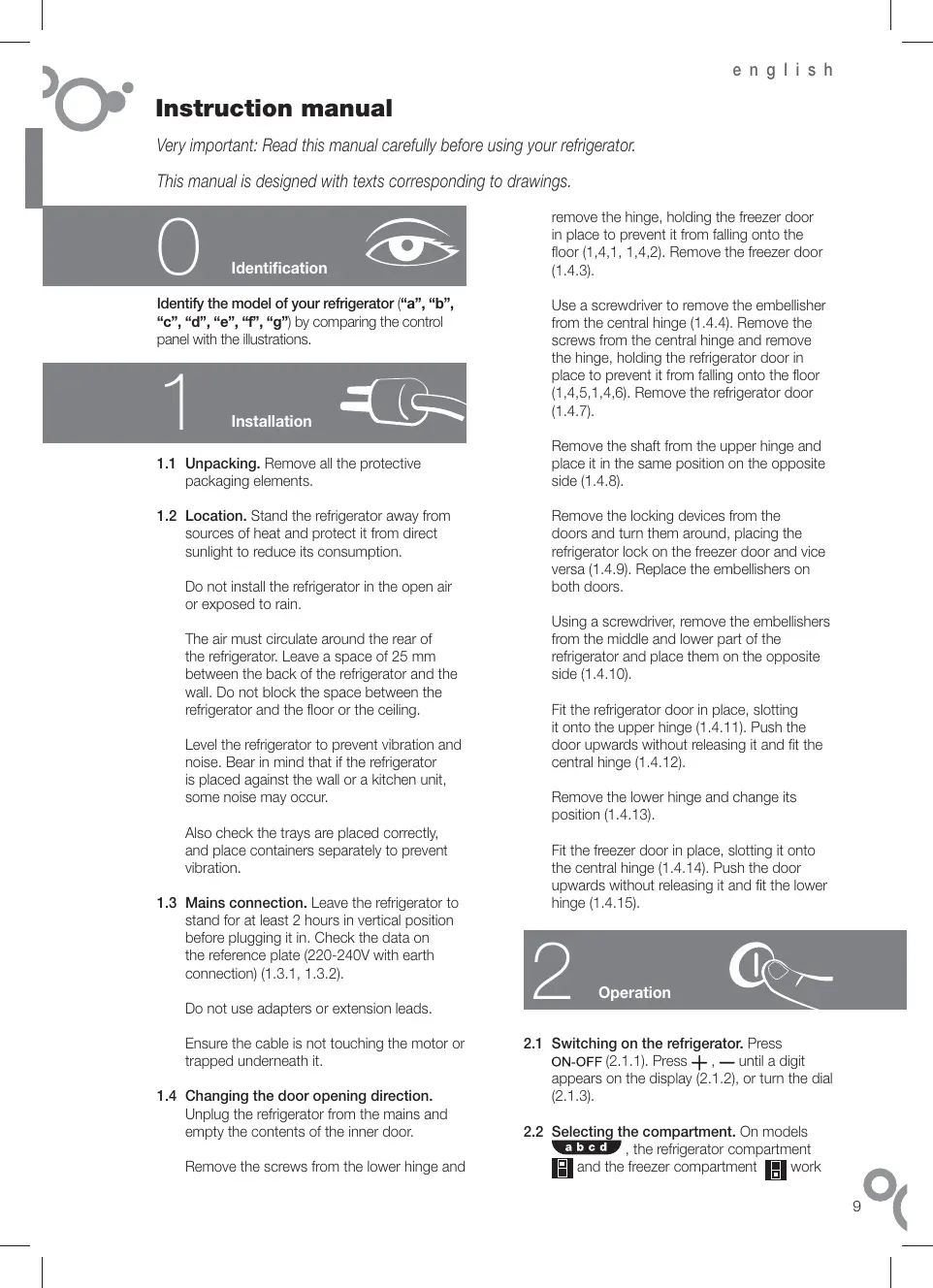

Instruction manual Very important: Read this manual carefully before using your refrigerator. This manual is designed with texts corresponding to drawings.

Identify the model of your refrigerator (“a”, “b”,

“c”, “d”, “e”, “f”, “g”) by comparing the control panel with the illustrations.

1.1 Unpacking. Remove all the protective packaging elements.

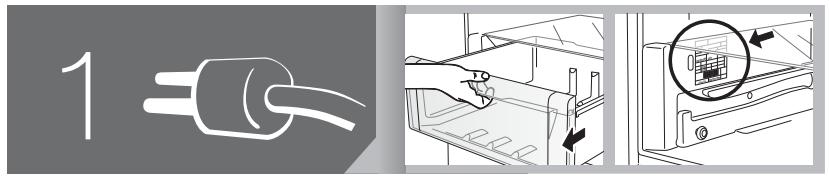

1.2 Location. Stand the refrigerator away from sources of heat and protect it from direct sunlight to reduce its consumption. Do not install the refrigerator in the open air or exposed to rain. The air must circulate around the rear of the refrigerator. Leave a space of 25 mm between the back of the refrigerator and the wall. Do not block the space between the refrigerator and the floor or the ceiling. Level the refrigerator to prevent vibration and noise. Bear in mind that if the refrigerator is placed against the wall or a kitchen unit, some noise may occur. Also check the trays are placed correctly, and place containers separately to prevent vibration. 1.3 Mains connection. Leave the refrigerator to stand for at least 2 hours in vertical position before plugging it in. Check the data on the reference plate (220-240V with earth connection) (1.3.1, 1.3.2). Do not use adapters or extension leads. Ensure the cable is not touching the motor or trapped underneath it. 1.4 Changing the door opening direction. Unplug the refrigerator from the mains and empty the contents of the inner door. Remove the screws from the lower hinge and

remove the hinge, holding the freezer door in place to prevent it from falling onto the

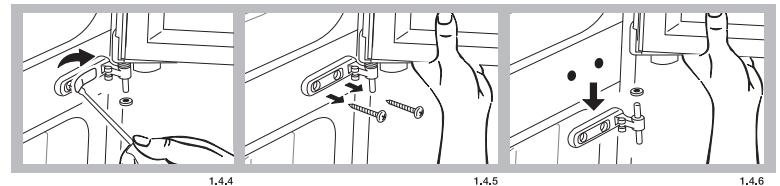

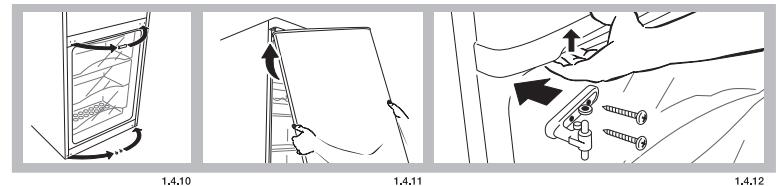

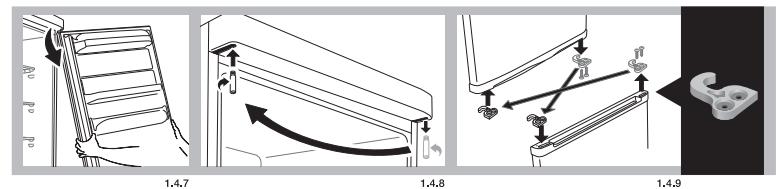

floor (1,4,1, 1,4,2). Remove the freezer door (1.4.3). Use a screwdriver to remove the embellisher from the central hinge (1.4.4). Remove the screws from the central hinge and remove the hinge, holding the refrigerator door in place to prevent it from falling onto the floor (1,4,5,1,4,6). Remove the refrigerator door (1.4.7). Remove the shaft from the upper hinge and place it in the same position on the opposite side (1.4.8). Remove the locking devices from the doors and turn them around, placing the refrigerator lock on the freezer door and vice versa (1.4.9). Replace the embellishers on both doors. Using a screwdriver, remove the embellishers from the middle and lower part of the refrigerator and place them on the opposite side (1.4.10). Fit the refrigerator door in place, slotting it onto the upper hinge (1.4.11). Push the door upwards without releasing it and fit the central hinge (1.4.12). Remove the lower hinge and change its position (1.4.13). Fit the freezer door in place, slotting it onto the central hinge (1.4.14). Push the door upwards without releasing it and fit the lower hinge (1.4.15).

2.1 Switching on the refrigerator. Press

, (2.1.1). Press until a digit appears on the display (2.1.2), or turn the dial (2.1.3). 2.2 Selecting the compartment. On models , the refrigerator compartment and the freezer compartment work 9

separately. On models compartments work together

2.3 Temperature selection. Turn the dial (2.3.1)

, or press the buttons of the freezer , followed by those of the compartment (2.3.2). refrigerator compartment When you have selected the temperature, you can find out the real temperature in the compartment by observing the indicator lights (2.3.3), or by holding down the or buttons of the desired compartment for 5 seconds. The temperature in the compartment will flash on the display (2.3.4). Recommendation: The recommended temperature for the refrigerator compartment is and for the freezer compartment it is for already frozen food, and if you wish to freeze food. Remember that the temperature inside the appliance depends on the room temperature, where the refrigerator is located and how often you open the door. 2.4 Refrigerator functions. Quick cool function: This function activates the refrigerator at a cooler temperature for 6 hours. It is recommended to activate it when you place a large amount of food in the refrigerator. To enable and disable this function: Press (2.4.1, 2.4.2). Models do not have this function. Holiday function: The holiday function is very useful when you will not be using the refrigerator for a long period of time but you wish to keep food in the freezer. With this function, your refrigerator will consume very little power and bad smells will not be do generated inside it. Models not have this function. Warning: The refrigerator door must be kept closed when this function is in use. To enable and disable this function: Press , (2.4.3), or the buttons of the refrigerator compartment until appears on the display (2.4.4). To disable the function, repeat this operation.

2.5 Freezer functions.

Quick cool function: This function activates the freezer at a cooler temperature for 52 hours. It is recommended to activate it 24 hours before placing a large amount of food in the freezer. On model , it should be deactivated 24 hours later. To enable and disable this function: Press (2.5.1, 2.5.2, 2.5.3). Model does not have this function. only. Use Winter function: Models this function if you notice that the freezer is becoming warmer. Hold down the button for 5 seconds until the orange pilot light begins to flash (2.5.4). The refrigerator light will remain on at half power so that the compressor functions for longer. When the freezer has reached the right temperature, switch off the winter function by holding down the button for 5 seconds again. Switching the freezer on and off: Press the button of the freezer compartment or (2.5.5). Press the button until no temperature appears on the display (2.5.6), or turn the dial to (2.5.7). When the freezer is switched off the refrigerator compartment will also switch off. 2.6 Recommendations for use. • Do not open the doors for any longer than necessary, and do not place hot food in the refrigerator. This will ensure a more efficient use of your refrigerator and will avoid excess power consumption. • If your refrigerator is NO FROST type, do not obstruct the ventilation grilles, and leave space between the food for the air to circulate. • Do not place bottles of fizzy drinks or glass bottles containing liquids in the freezer, as they may burst. • Place food in sealed containers to prevent it from drying up. • Do not consume ice cream or food that is very cold as this can cause burns.

Maintenance and cleaning

3.1 Cleaning the inside of the refrigerator. Use a sponge or a dish cloth soaked in water with bicarbonate of soda to clean the inside of the refrigerator, to prevent bad smells from forming.

Never use steam cleaning machines, solvents or abrasive detergents. 3.2 Cleaning the outside of the refrigerator. Do not use steam cleaning machines to clean the displays. It is recommended to clean the rear grille with a vacuum cleaner once a year. 3.3 Cleaning the accessories. The accessories are not dishwasher-safe. Wash them by hand, using a sponge or a dish cloth. 3.4 Changing the light. If the light bulb blows: Unplug the refrigerator. Press the tab to remove the light cover (3.4.1, 3.4.3) and remove the blown bulb (3.4.2, 3.4.4). Replace it by another bulb with the same screw type, E14, 220-240V, 15/25W, or as indicated on the light fitting. 3.5 Changing the carbon filter. Your refrigerator may be equipped with a carbon filter to absorb the unpleasant smells generated by some foods and to retain the microorganisms (fungus and bacteria) in the circulating air. The filter maintains its properties for a limited time of 6 months. When this time has elapsed, the filter should be changed and a new one fitted. The filter location depends on the model. To change the filter: Press the tab and remove the cover (3.5.1, 3.5.5). Remove the used filter (3.5.2, 3.5.6). If the filter needs activating: Remove the seals (3.5.3) and press the BIOFILTER display until you hear a slight click (3.5.4). In a few seconds the duration scale will begin to change colour. Fit the filter in its original location. Keep used filters and spares out of reach of children; as swallowing large amounts of this substance can be dangerous.

Do not wet the filter as it will lose all its properties.

4.1 Door open. If you leave the door open for longer than 2 minutes, an alarm will sound and the refrigerator light will switch off. The alarm will stop when you close the door.

4.2 The freezer is not cold enough • If the freezer temperature is abnormally warm, an alarm light will come on (4.2.1, 4.2.2) and an intermittent beep will sound. Press (4.2.3, 4.2.4) to switch off the beeper manually. only. If the winter function • Model is activated, the alarm light will flash. To deactivate it, see (2.5.4). • When you switch on the appliance for the first time, the alarm light will be activated, although the alarm beeper will not sound. 4.3 Electricity cuts Open the refrigerator doors as infrequently as possible. When the electricity returns, check whether the frozen food has thawed. 4.4 Normal refrigerator noise Your refrigerator may make some noise on functioning. Do not worry about the following noises, as they are normal. • The refrigerant gas may cause a bubbling noise as it circulates around the refrigerator circuits. • The compressor may make a buzzing noise or a slight tapping sound, particularly on start-up. • Expansion and contraction of the materials used may cause tapping or crackling noises. • The air moving the freezer fan may generate slight background noise. Do not attempt to repair the refrigerator yourself. Call the technical assistance service. 11

Waste management of electrical and electronic appliances.

• Keep the ventilation grilles free from any obstructions.

• Take care not to damage the refrigeration circuit. • Do not use electrical appliances inside the refrigerator, unless they are of a type recommended by the manufacturer. • Do not use mechanical devices or any other means to speed up the defrosting process, unless recommended by the manufacturer. • This appliance is not designed for use by people (including children) whose physical, sensorial or mental capacities are impaired, or who lack sufficient experience or knowledge, unless they are supervised or have been instructed in the use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance. • If the supply cable is damaged, it must be replaced by the manufacturer, the after-sales service or similar qualified staff to prevent hazard.

This refrigerator was designed with environmental conservation in mind.

The appliance operates with coolant R600A, which does not damage the environment. Respect the environment. Use the recommended temperatures for each compartment. They will depend on the mode you need for efficient use of your refrigerator. Disconnect the refrigerator or set it to holiday mode when you will not be using it for a prolonged period. You will reduce power consumption and save energy. Avoid leaving the doors open more time than necessary. It causes an increase in power use.

The symbol indicates that the appliance must not be disposed of in traditional bins for domestic waste.

Deliver your refrigerator to a special collection centre. Recycling domestic appliances prevents negative impacts on health and the environment and helps save energy and resources. For more information, contact your local authorities or the establishment where you purchased your refrigerator.
